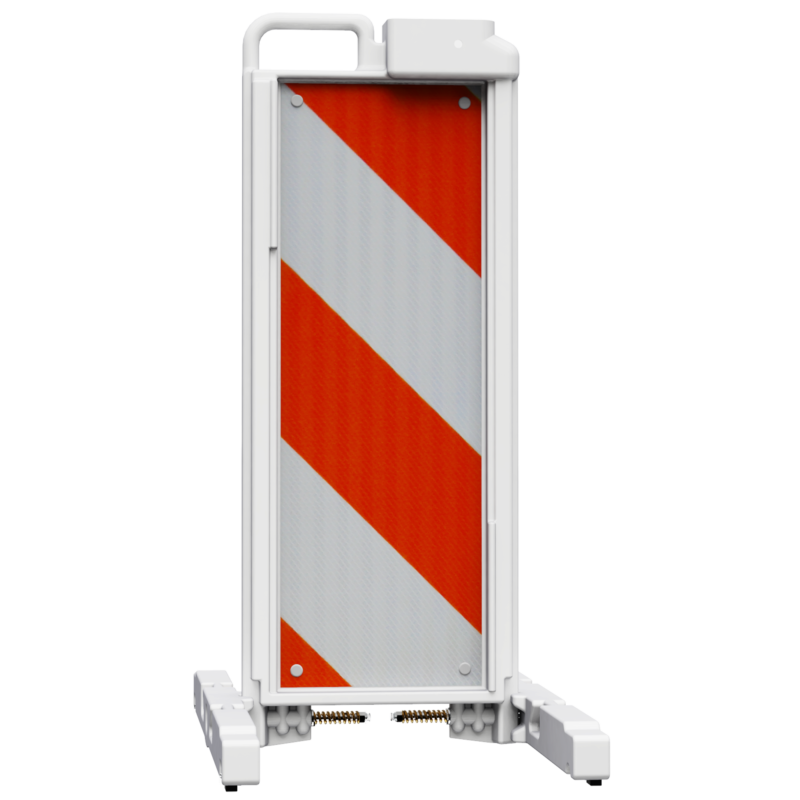

Type I Verticade Barricade

The Verticade is a Narrow Barricade made of High Density Polyethylene composed of a panel upright with optional sheeting with two sand-filled feet. The feet are spring-loaded and fold when needed, accepts one “D” cell battery light for higher visibility and a ballast boot for extra weight to secure it in place.

Features and Benefits:

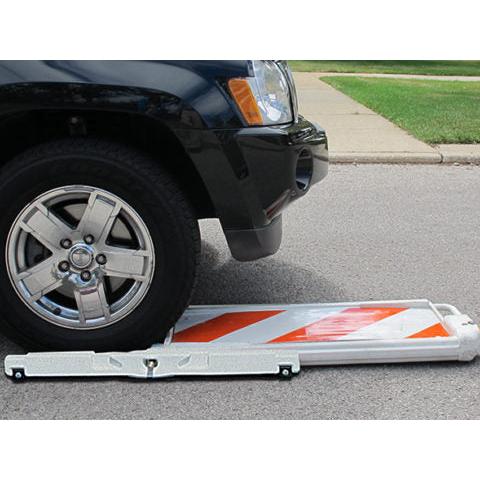

• Collapsible vertical panel that lies flat when hit for durability
• Spring-loaded feet, quick release for placement

• Anti-skid pads on feet for secure placement

• Optional ballast boots snap-on feet adding 20 lbs. each to ensure stability

• Large 12"W x 36"H Sheeting Panel

• Molded-in light receptacle for added night vision

• Optional retroreflective striped sheeting available in 3M Engineer Grade and High Intensity Prismatic Grade for maximum visibility

• Replacement parts and components available separately
• MASH Accepted - WZ-411 - Meets MUTCD Standard
• Ballast Boot available ensures stability - available separately
• Proudly made in the USA

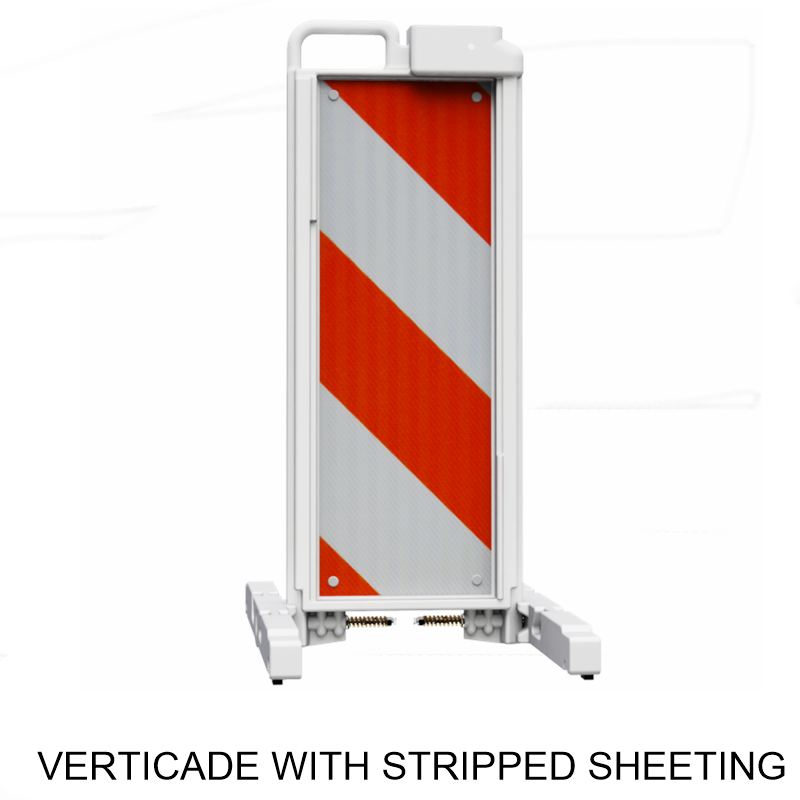

The Verticade is a traffic safety device designed to be durable and efficient. The upright panel can be personalized with striped sheeting or legends, available in EG or HIP for extra visibility and protection for vehicles and workers.

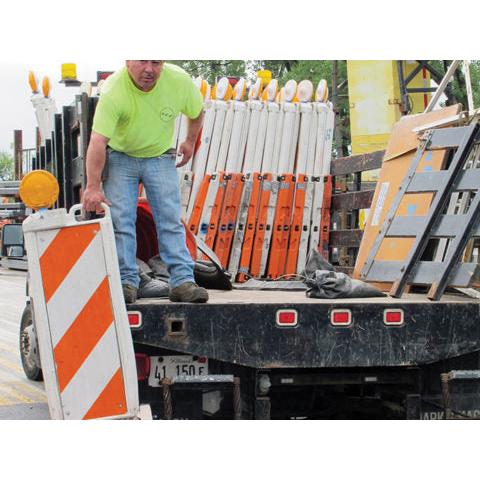

Its design makes it one of the easier barricades to handle, transport and store while also being durable, made of High Density Polyethylene this barricade can resist impacts and folds down when hit to prevent accidents. The component parts are also available separately, accessories like barricade lights or ballast boot are recommended for weight and visibility.

Made in the USA

If you would like to request a quotation for large quantities of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832

Technical Specifications:

• 12"W x 36"H Sheeting Panel
• Weight: 27 lbs., 67 lbs. with ballast boots
• Optional ballast boots snap-on feet adding 20 lbs. each
• 7.5 lb. feet - filled with silica sand
• Retroreflective striped sheeting available in 3M EG & HIP Grade
• MASH Accepted - WZ-411 - Meets MUTCD Standard
• Replacement parts and components available separately

Technical Documents and Certifications:

State Reference Guide
Learn more about traffic product certifications and specifications for your state.

Florida
Florida QPL
Florida Standard Specifications
Certified for use:
102-028-017
Products must have approval number stenciled or stamped on unit
DOT Sheeting Requirement – ASTM D4956, Type III
Plasticade meets the specification by supplying 3M™ High Intensity Prismatic Grade

Illinois
No QPL
IL State Supplement
IL Standard Specifications
IL Design Standards
Certified for use:
DOT Sheeting Requirement – ASTM D4956, Type III/IV
Plasticade meets the specification by supplying 3M™ High Intensity Prismatic Grade

Missouri
No QPL
MO State Manual
Standards and Specifications
Certified for use:
DOT Sheeting Requirement – ASTM D4956, Type IV
Plasticade meets the specification by supplying 3M™ High Intensity Prismatic Grade

Pennsylvania
PA QPL
Approved Products for Lower Volume Roads
PA State Supplement
Certified for use:
DOT Sheeting Requirement – ASTM D4956, Type IV
Plasticade meets the specification by supplying 3M™ High Intensity Prismatic Grade

South Dakota
No QPL
SD Standard Specifications
Certified for use

Texas
TX Compliant Work Zone Devices
Texas MUTCD
TX Standard Traffic Drawings
Certified for use:
DOT Sheeting Requirement – ASTM D4956, Type III
Plasticade meets the specification by supplying 3M™ High Intensity Prismatic Grade

Virginia
No QPL
VA Roadside and Safety Devices
VA State Supplement
Certified for use:
DOT Sheeting Requirement – ASTM D4956, Type IV
Plasticade meets the specification by supplying 3M™ High Intensity Prismatic Grade
