Innoplast

10' Overhead Clearance Bar – 7.35" OD x 120"L

10' Overhead Clearance Bar – 7.35" OD x 120"L

SKU:INN-CB-7120-YLNT

Regular price $123.50 USD
Regular price Sale price $123.50 USD
Sale Sold out
  • Call or Email us for large QTY, corporate, or government quotes
Color: Yellow
Tape Color

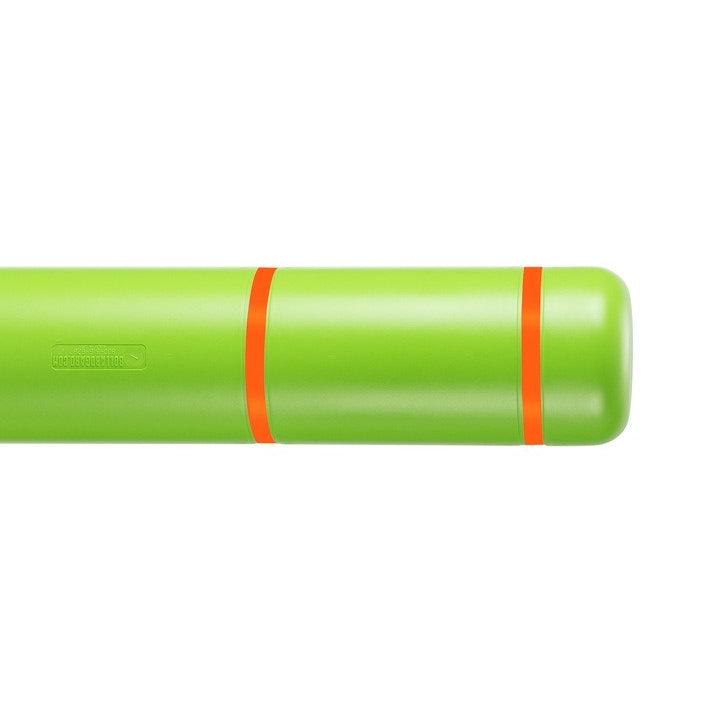

10' Overhead Clearance Bar – 7.35" OD x 120"L

The 10' Overhead Clearance Bar provides a large, highly visible height-warning marker for parking garages, car washes, drive-thrus, valet entrances, warehouses, loading areas, and other locations with restricted overhead clearance.

Constructed from .125" wall high-density polyethylene (HDPE), the bar measures 7.35" outside diameter × 120" long. Its larger-diameter profile provides strong visual presence at vehicle-access points where maximum visibility is important.

The standard configuration includes four reflective bands — two positioned near each end — and is available in nine standard bar colors with multiple 3M™ reflective tape options.

Features & Benefits

  • Overhead Clearance Warning: Provides a prominent visual indication of restricted vehicle height before drivers enter a low-clearance area.
  • 10' Length: 120" overall length creates a wide overhead marker for vehicle lanes and commercial entrances.
  • 7.35" Outside Diameter: Larger-diameter profile provides increased visibility compared with smaller clearance-bar configurations.
  • HDPE Construction: Manufactured from high-density polyethylene with a .125" wall thickness.
  • Four Reflective Bands: Two reflective bands near each end increase visibility as vehicles approach the clearance point.
  • 3M™ Reflective Material: Available with 3M™ #5100 Scotchlite™ Film in multiple reflective colors.
  • Nine Standard Bar Colors: Select a color to meet visibility, facility, or traffic-control requirements.
  • Quick Installation: Designed for straightforward overhead installation using hardware appropriate for the mounting location.
  • Customizable: Alternate lengths, diameters, colors, lettering, logos, and messages may be available for project-specific requirements.
  • 5-Year Warranty: Covered by a 5-year warranty against cracking and fading.
  • Made in the USA: Proudly manufactured in the United States.

Technical Specifications

Product Type Overhead Clearance / Height Warning Bar
Model / Reference CB-7120
Clearance Designation 10'
Outside Diameter 7.35"
Length 120"
Wall Thickness .125"
Bar Material HDPE
Fastener Material Steel
Reflective Bands 4 Total – 2 at Each End
Reflective Material 3M™ #5100 Scotchlite™ Film
Included Hardware Screws Used to Join Bar Sections
Warranty 5 Years Against Cracking & Fading

Bar Color Options

The clearance bar is available in the following nine standard colors:

Black, Blue, Brown, Gray, Green, Light Gray, Red, White, and Yellow.

Reflective Tape Options

The bar can be configured with 3M™ #5100 Scotchlite™ Film for increased visibility at parking entrances, vehicle lanes, drive-thrus, loading areas, and other low-clearance access points.

Reflective tape colors include Black, Blue, Green, Orange, Red, White, and Yellow. A No Tape option is also available.

Four Reflective Bands for Increased Visibility

The standard configuration uses four reflective tape bands, with two bands positioned near each end of the clearance bar. The additional contrast helps drivers identify the overhead warning point as they approach the restricted-height area.

Large 7.35" Diameter for High Visibility

With a 7.35" outside diameter, this model provides a larger visual profile than the 4.95" OD clearance-bar configuration. The increased diameter is well suited for wide entrances, parking structures, commercial facilities, and other locations where a more prominent overhead warning is preferred.

Designed for Low-Clearance Entrances

Overhead clearance bars provide drivers with an advance visual warning before entering an area with restricted vehicle height. When properly positioned, the bar communicates the available clearance before a vehicle reaches the structure, equipment, or overhead obstruction beyond it.

The 120" overall length provides a wide overhead marker suitable for larger vehicle lanes and commercial access points.

Common Applications

  • Parking garages and structures
  • Car washes
  • Drive-thru lanes
  • Valet entrances and carports
  • Warehouses
  • Loading and receiving areas
  • Commercial vehicle entrances
  • Low-clearance service areas
  • Indoor parking facilities
  • Restricted-height access points

Custom Sizes & Graphics

Custom clearance bars may be available in alternate lengths, diameters, and colors for installations where a standard configuration does not meet the project requirements.

Custom lettering, logos, and messages may also be available. A clearance bar of at least 74" in length is recommended when using standard clearance-height lettering. At 120" long, this model provides ample space for that lettering format.

Clearance Lettering

Clearance-height lettering is sold separately. This allows the bar to be labeled with the appropriate maximum-clearance message for the specific installation.

Important Application Note

This clearance bar is intended as a visual height-warning and driver-guidance device. It should not be treated as a structural impact barrier or as protection against vehicle collisions.

The installer is responsible for positioning the bar at the appropriate height and selecting installation hardware suitable for the mounting location and application requirements.

Made to Order – Non-Returnable

This clearance bar is made to order and is non-returnable. Confirm the required clearance designation, bar dimensions, color, and reflective tape selection before ordering.

Made in the USA

The 10' Overhead Clearance Bar is proudly manufactured in the United States.

Made in the USA

Technical Resources

View Mechanical Drawings

Assembly Instructions

Need Custom Sizes or Project Pricing?

Request a Quote
For custom clearance bars, large quantities, custom graphics, or project-specific requirements, contact LineDividers at sales@linedividers.com or call 1-800-288-2832.
