Innoplast

8' 8" Overhead Clearance Bar – 4.95" OD x 104"L

8' 8" Overhead Clearance Bar – 4.95" OD x 104"L

SKU:INN-CB-4104-YLNT

Regular price $82.99 USD
Regular price Sale price $82.99 USD
Sale Sold out
  • Call or Email us for large QTY, corporate, or government quotes
Color: Yellow
Tape Color

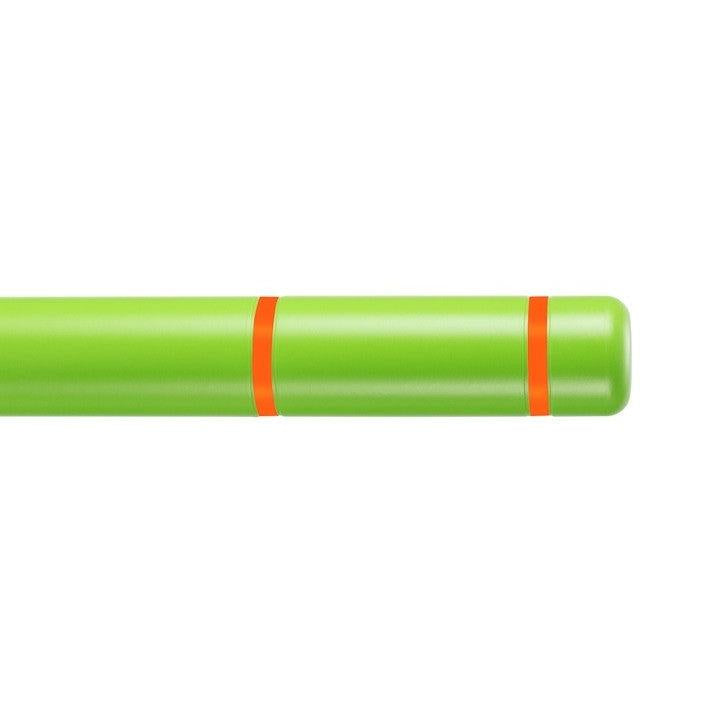

8' 8" Overhead Clearance Bar – 4.95" OD x 104"L

The 8' 8" Overhead Clearance Bar is designed to provide a highly visible height warning at parking garages, car washes, drive-thrus, loading areas, valet entrances, and other locations with restricted overhead clearance.

Constructed from .125" wall high-density polyethylene (HDPE), the bar measures 4.95" outside diameter × 104" long. Its large profile, bright color options, and reflective tape help approaching drivers identify the maximum-clearance point before entering a restricted-height area.

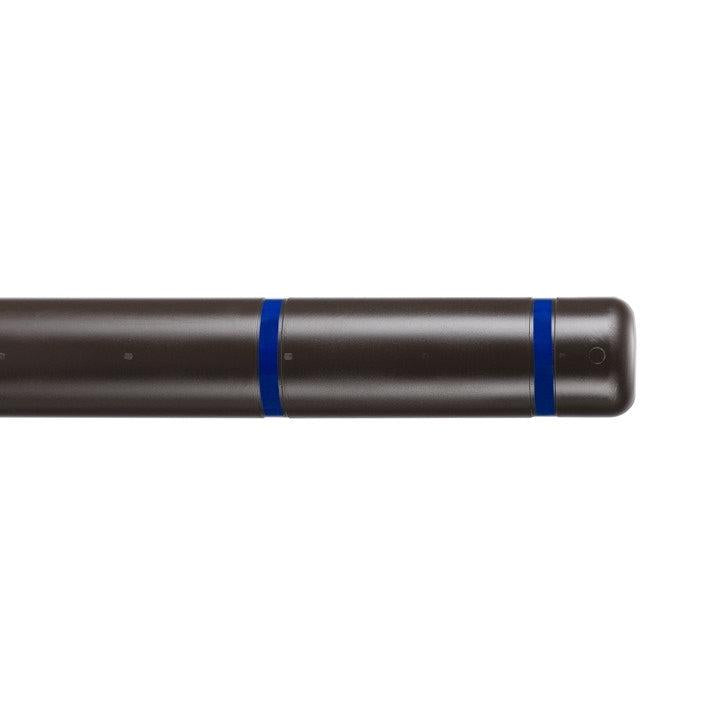

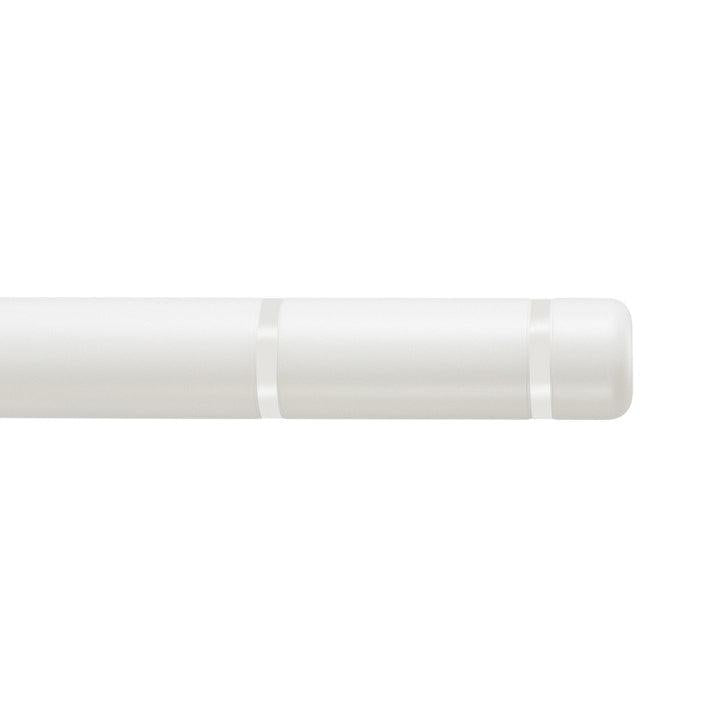

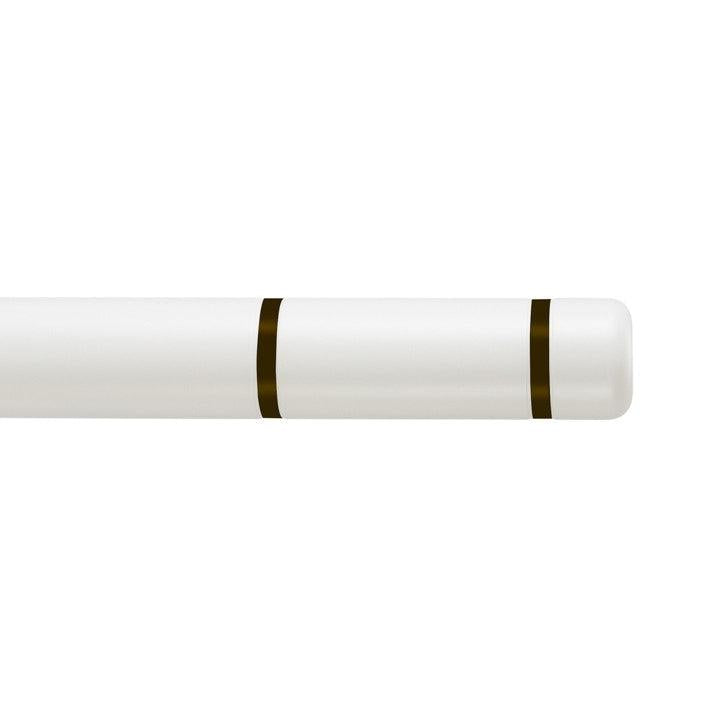

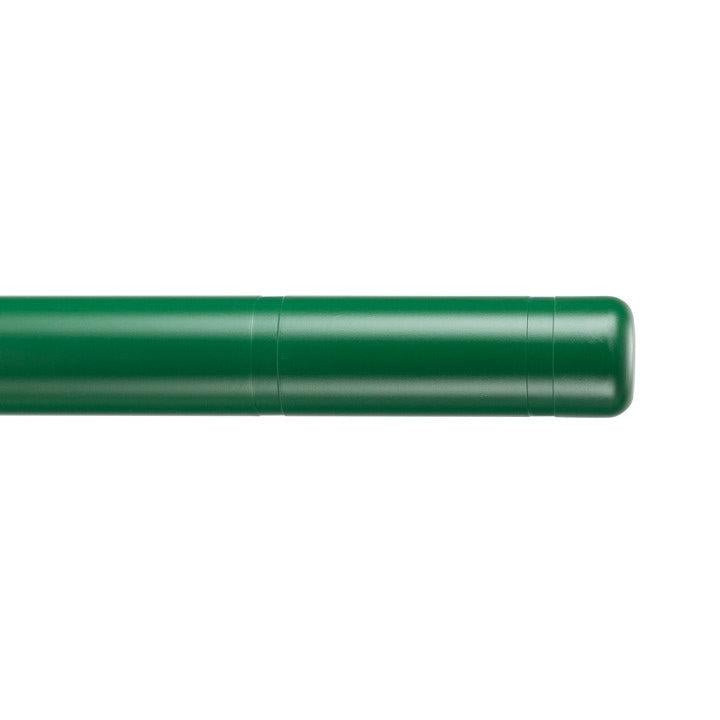

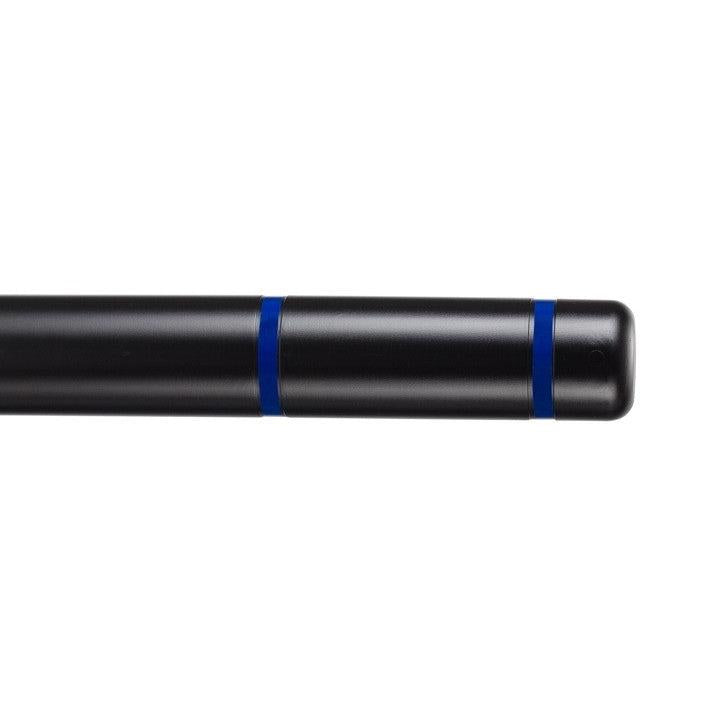

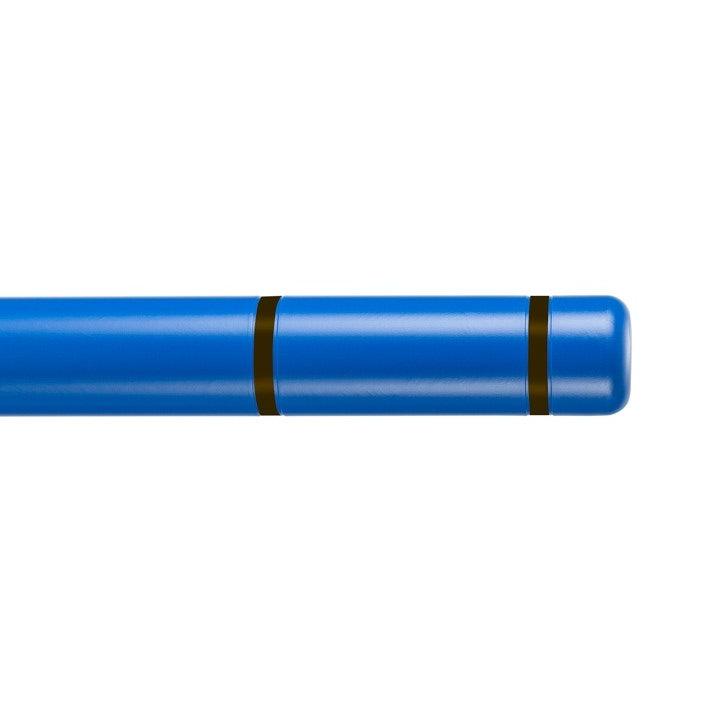

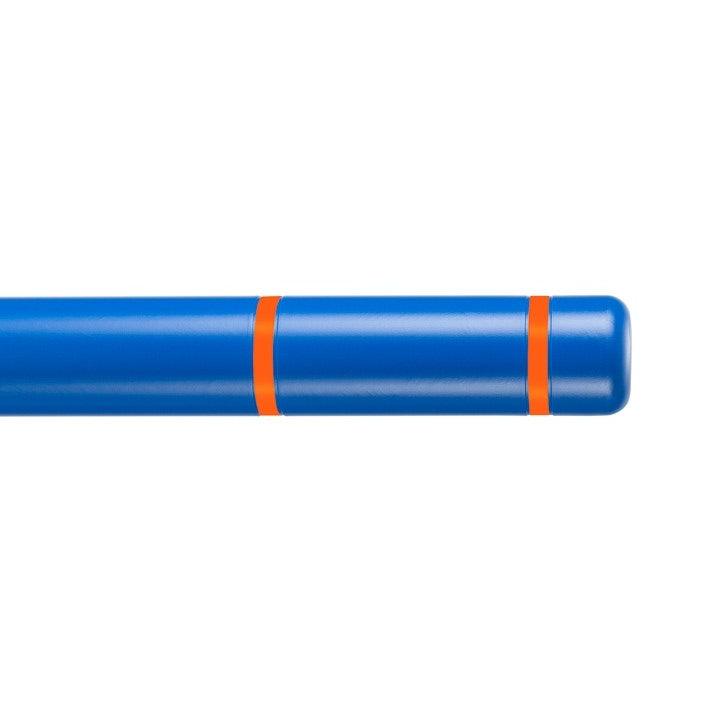

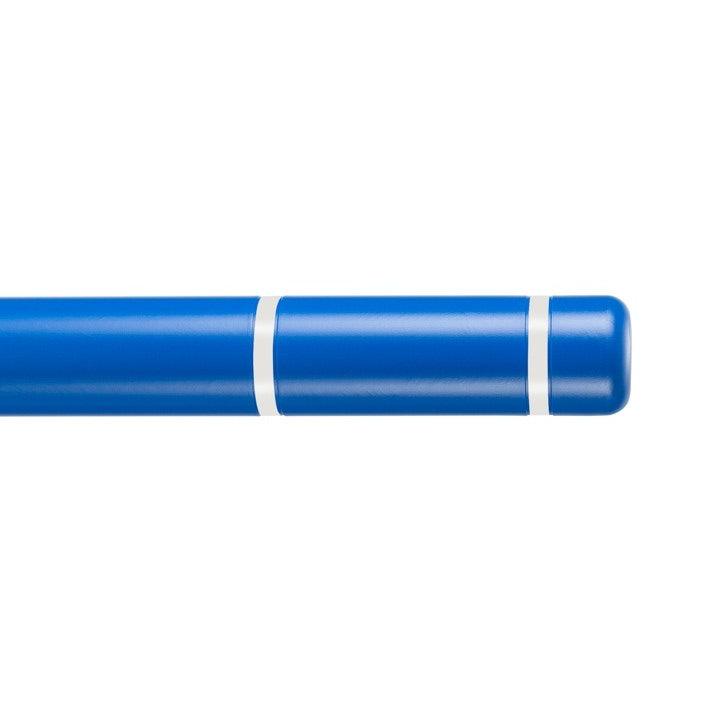

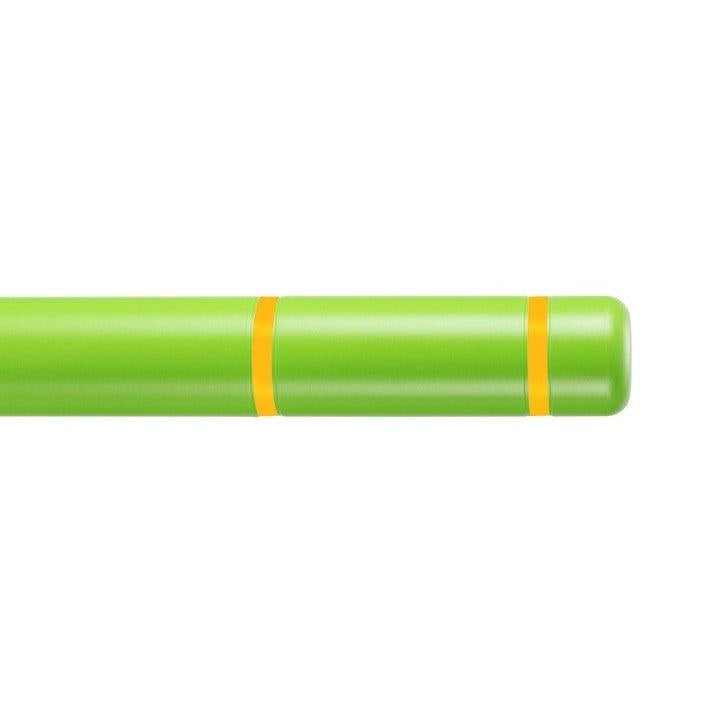

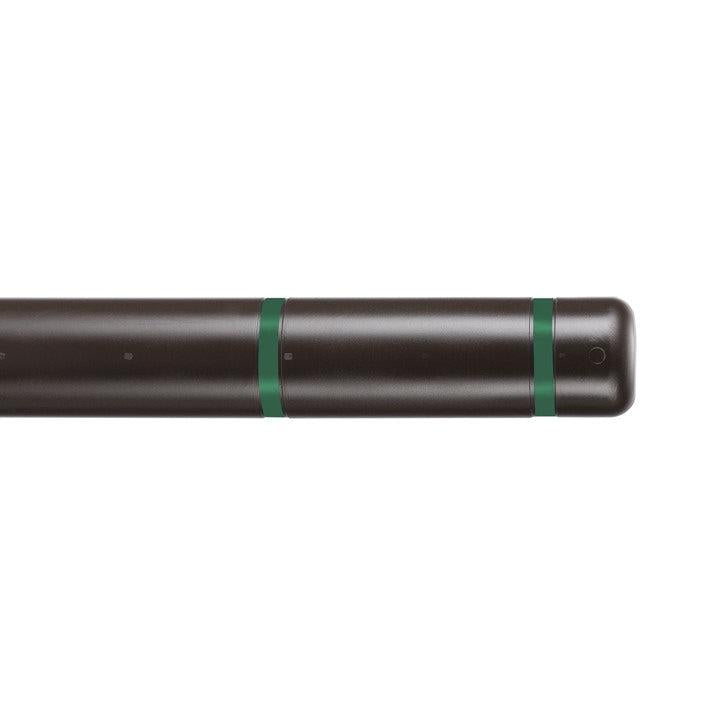

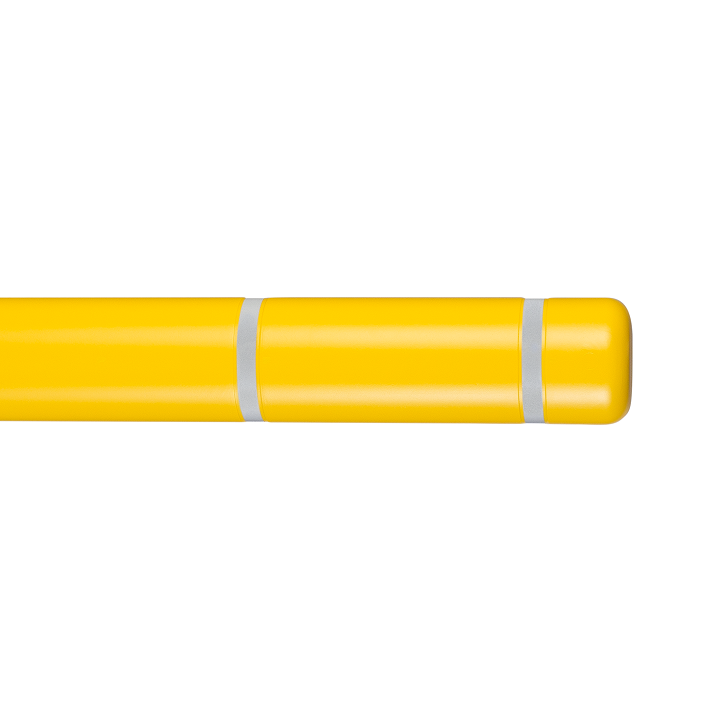

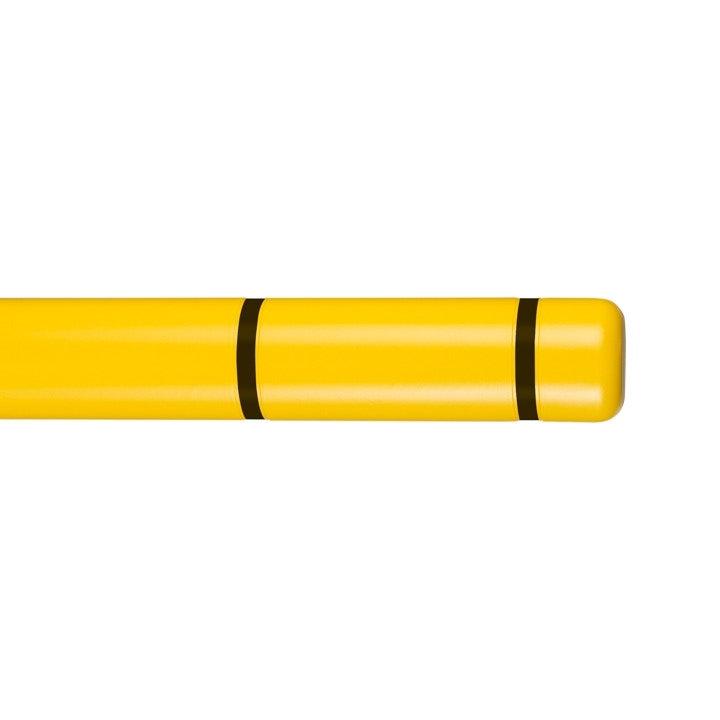

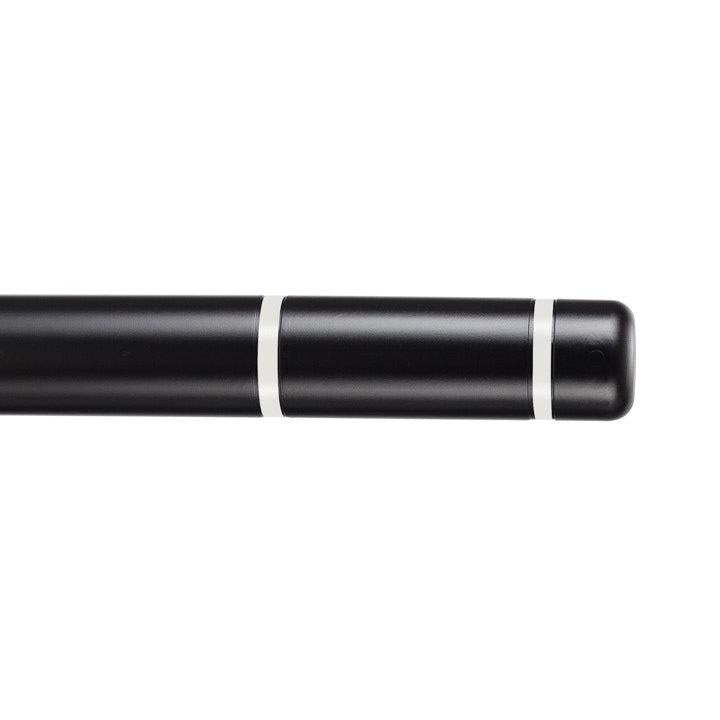

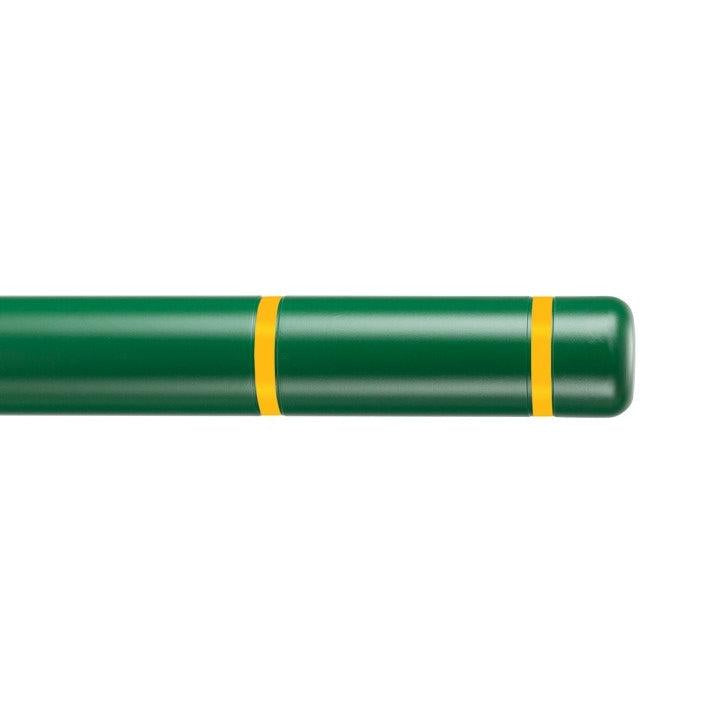

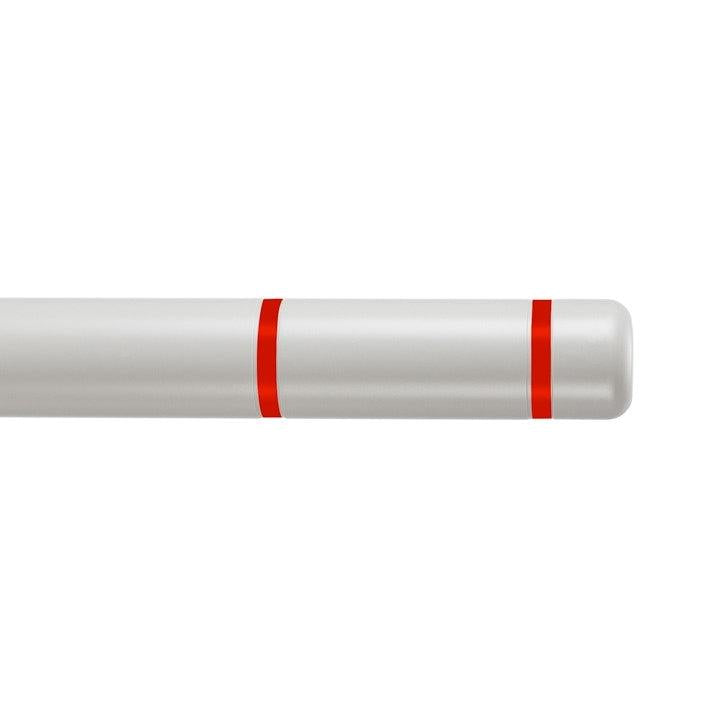

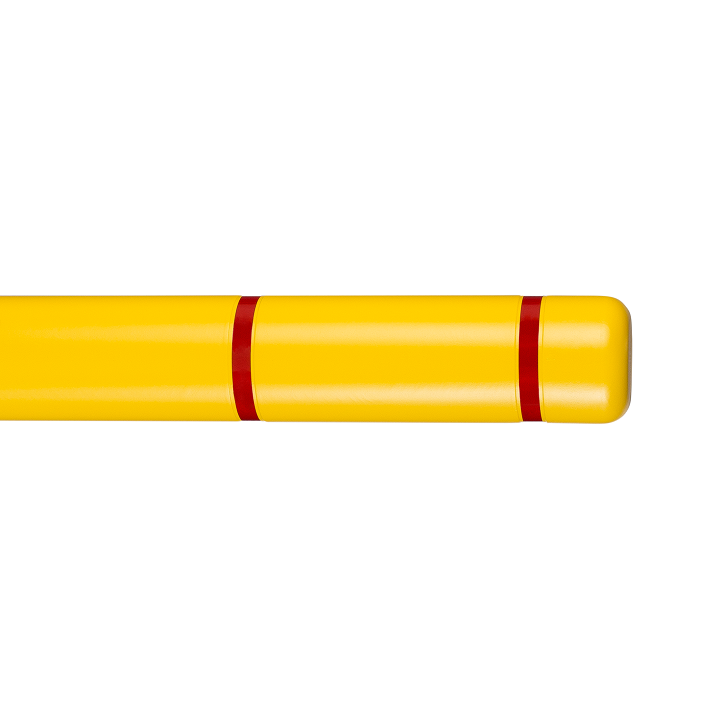

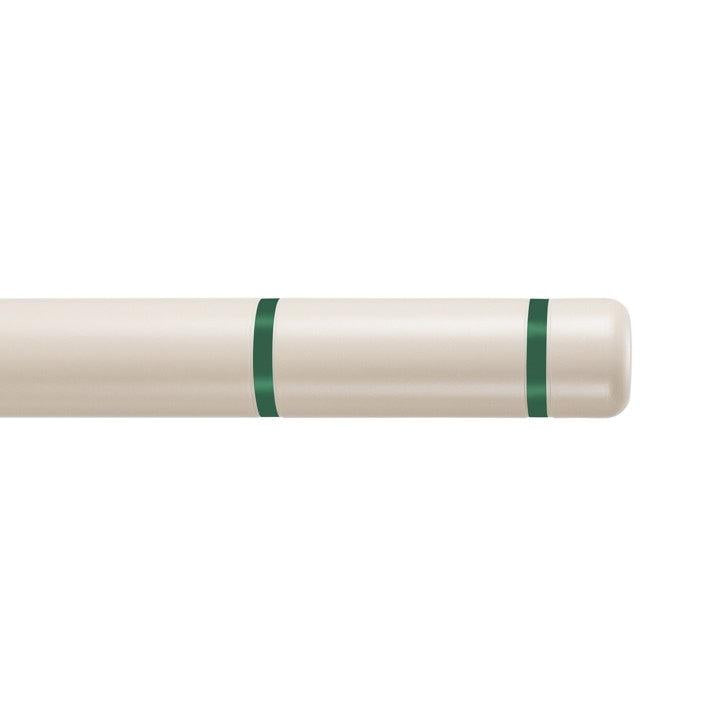

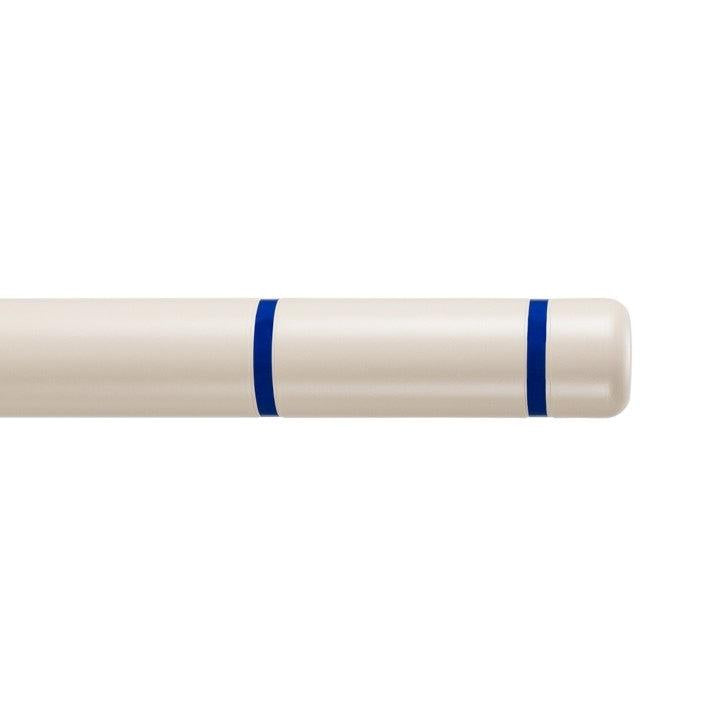

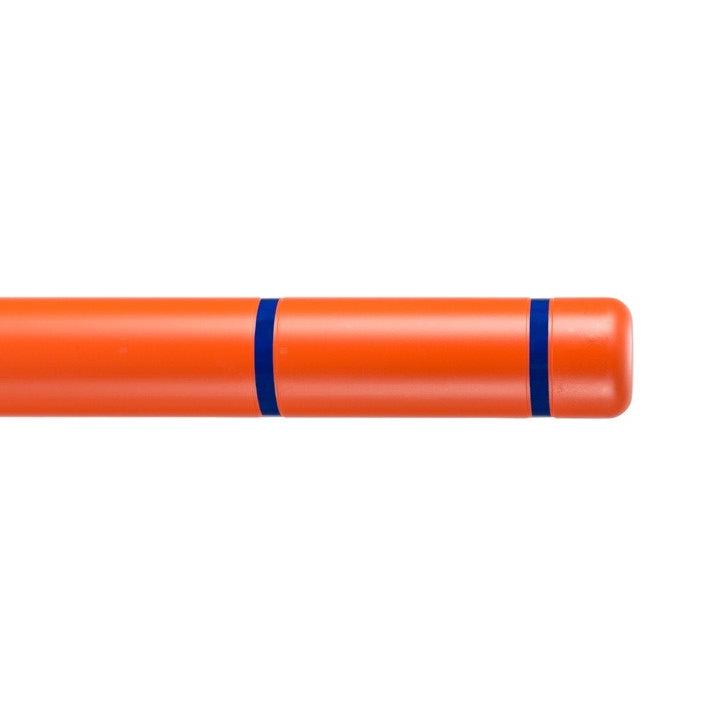

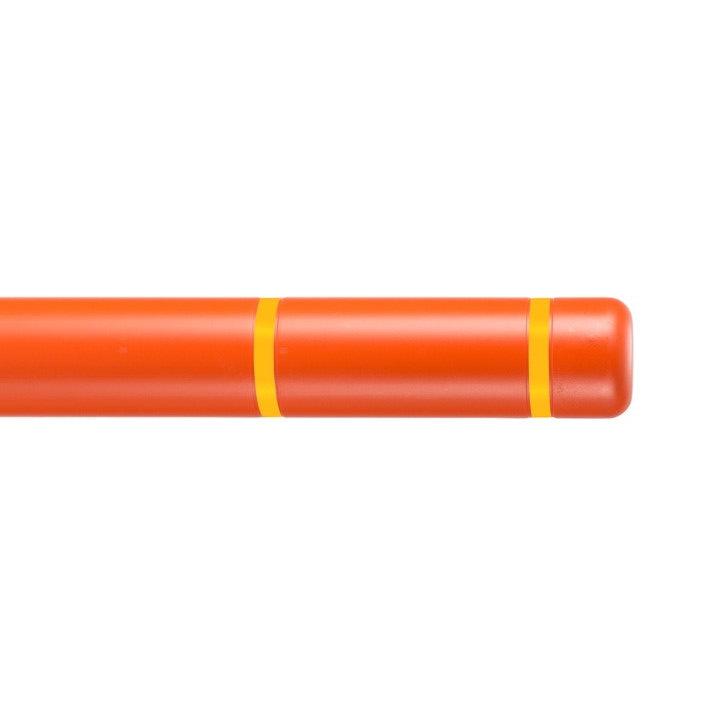

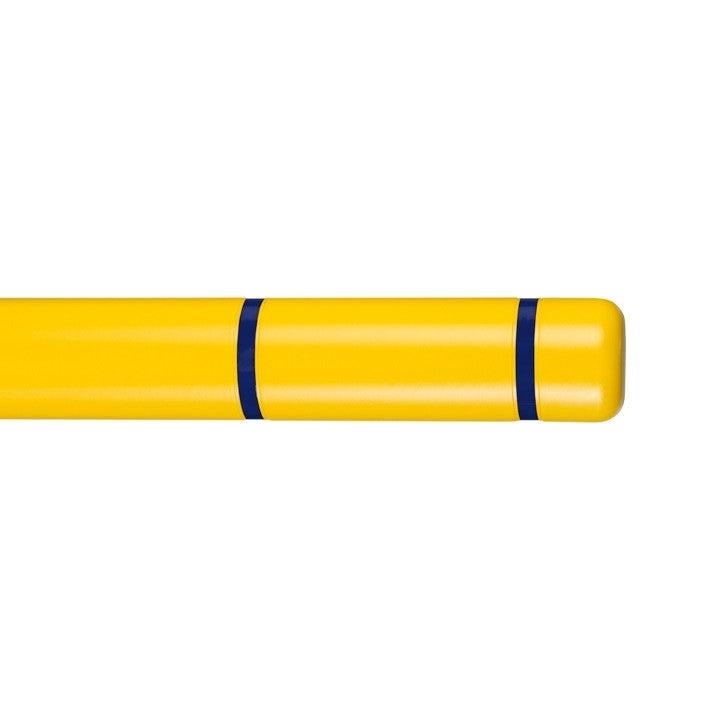

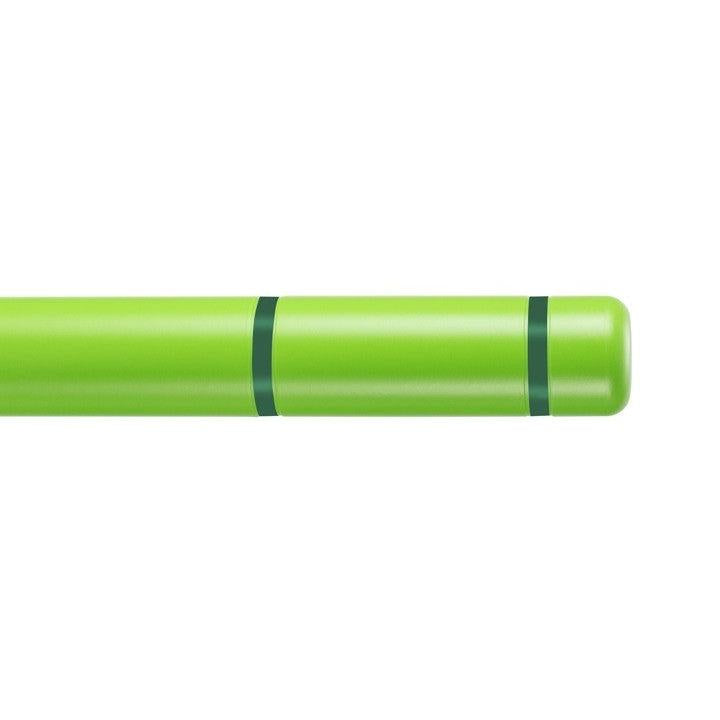

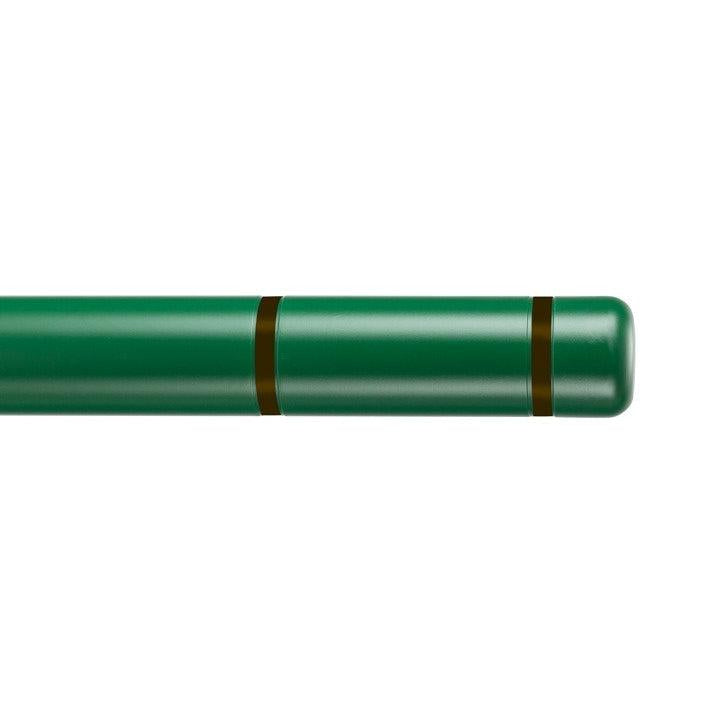

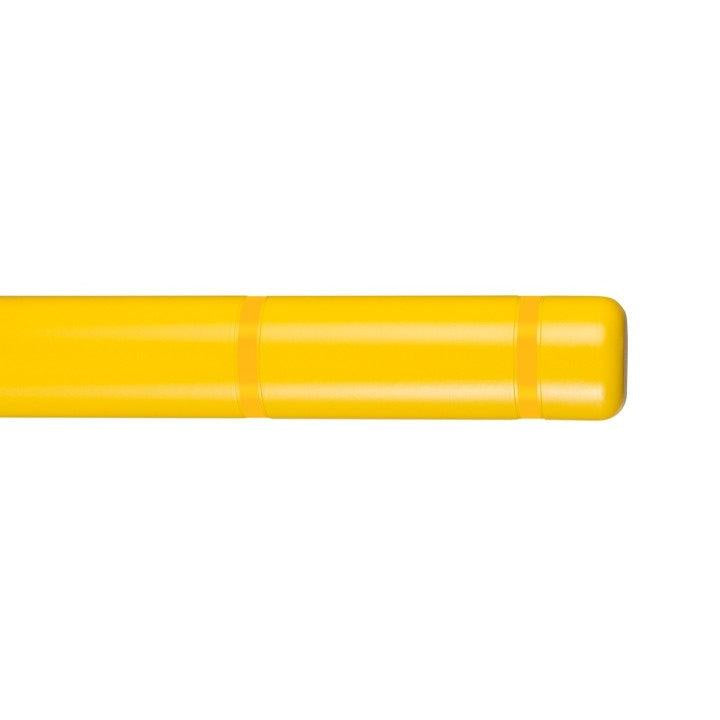

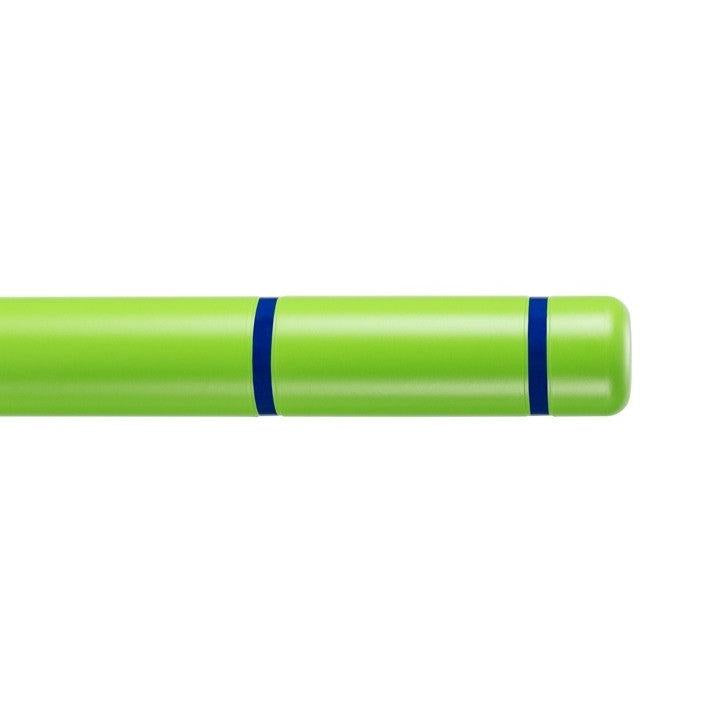

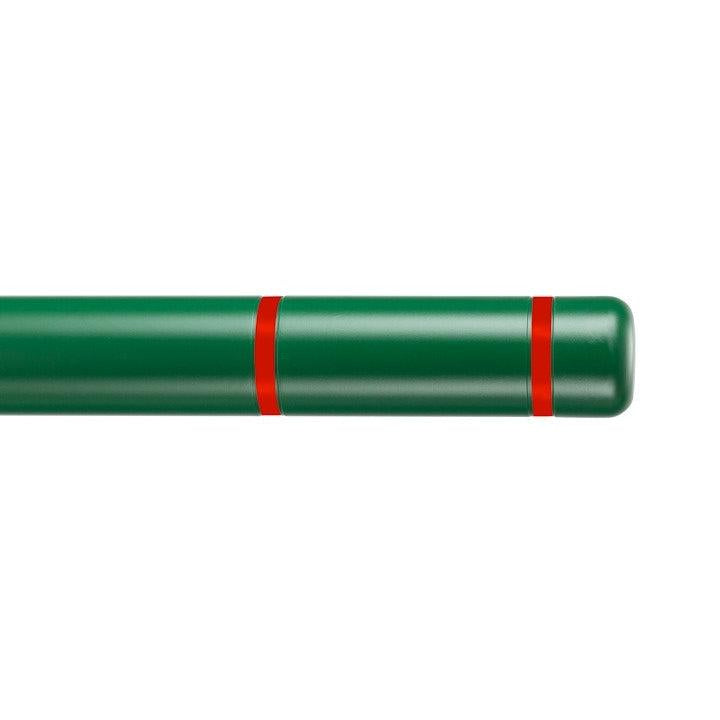

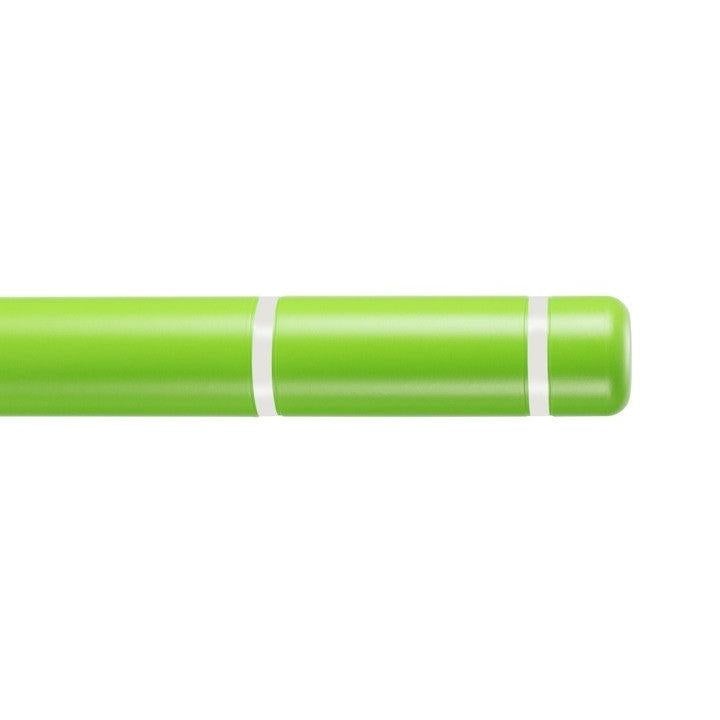

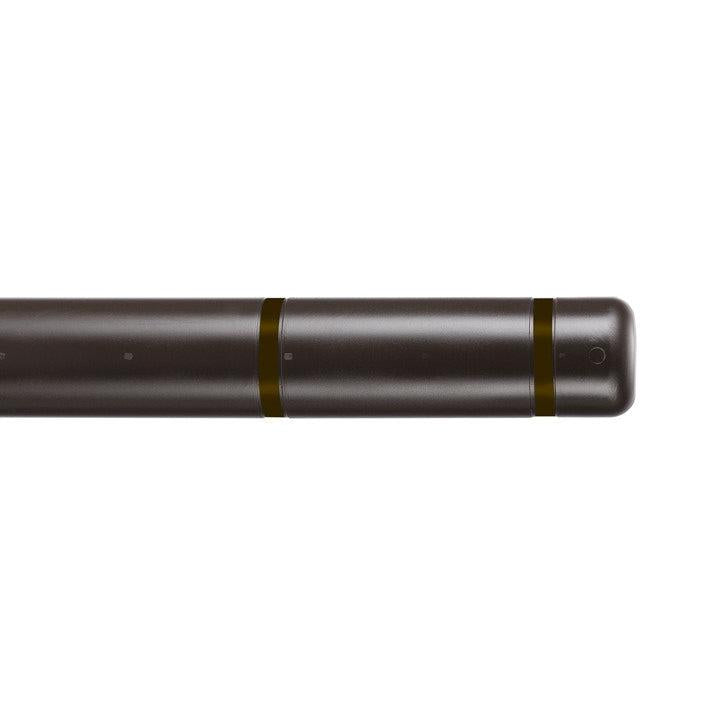

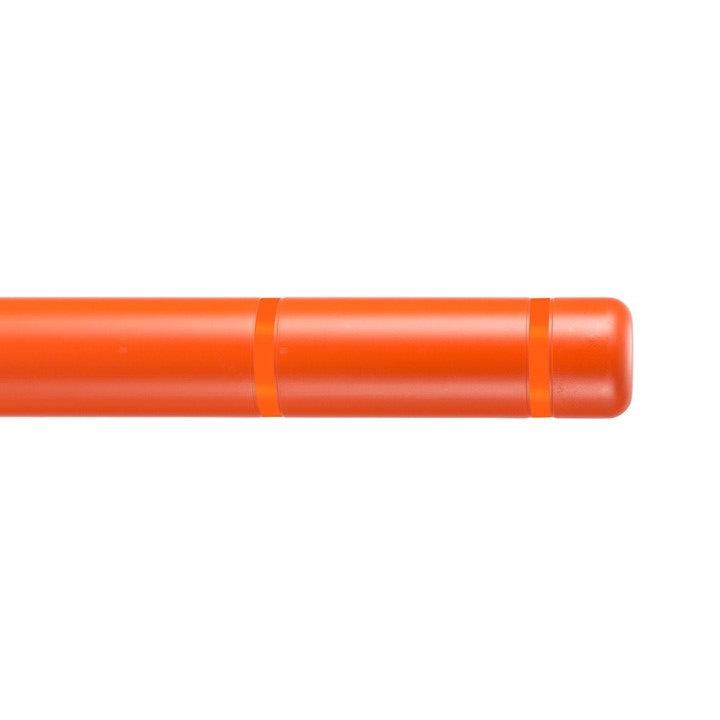

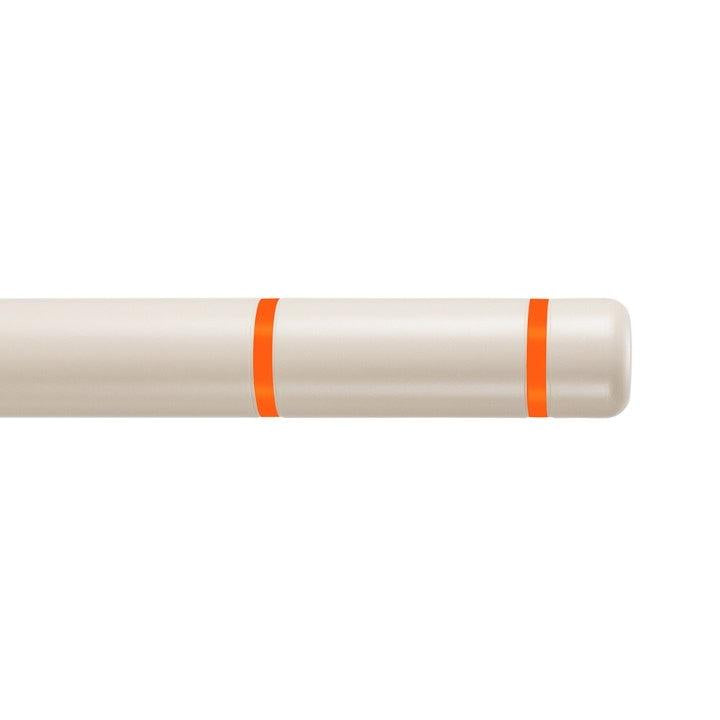

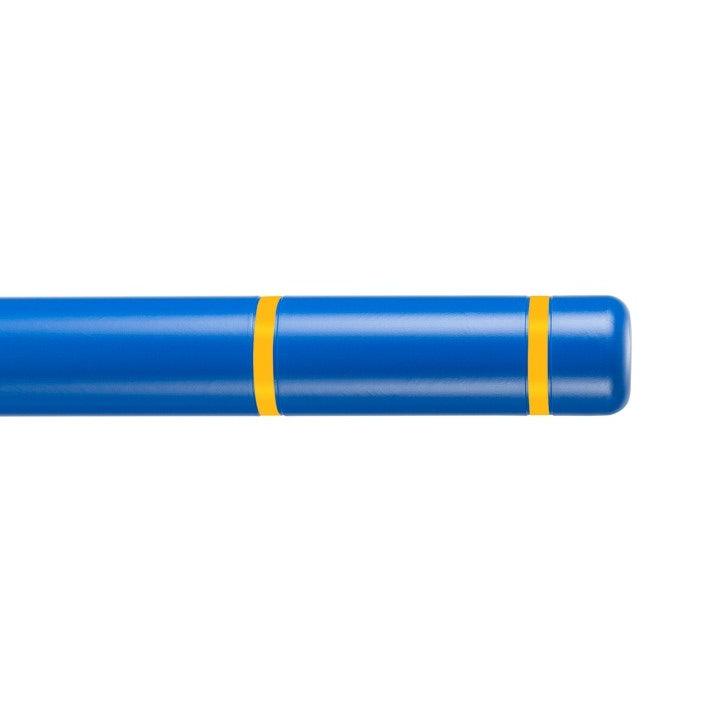

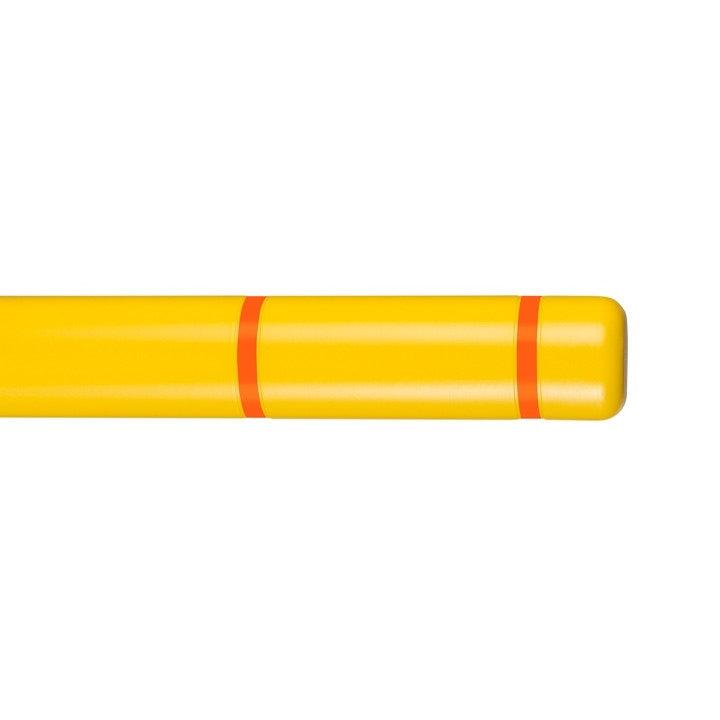

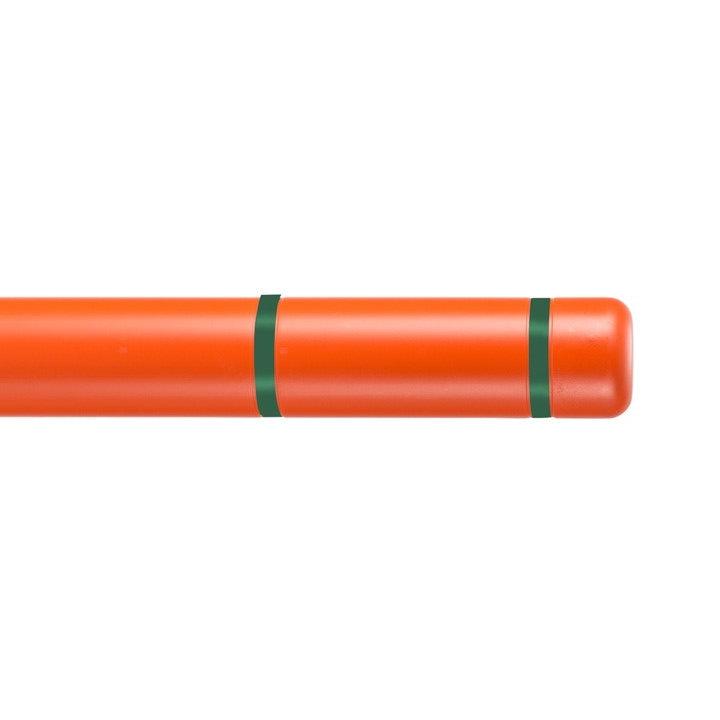

Four reflective bands — two positioned near each end of the bar — provide additional visibility. The bar is available in nine standard colors with multiple 3M™ reflective tape options.

Features & Benefits

  • Overhead Clearance Warning: Designed to alert drivers to restricted vehicle-height conditions before entering low-clearance areas.
  • 8' 8" Clearance Configuration: 104" long bar provides a prominent overhead visual marker.
  • 4.95" Outside Diameter: Large-diameter profile provides strong visibility from approaching vehicles.
  • HDPE Construction: Manufactured from high-density polyethylene with a .125" wall thickness.
  • Four Reflective Bands: Two reflective tape bands at each end help increase visibility in vehicle-access areas.
  • 3M™ Reflective Material: Available with 3M™ #5100 Scotchlite™ Film in multiple colors.
  • Nine Standard Bar Colors: Allows the clearance bar to coordinate with visibility, facility, or traffic-control requirements.
  • Quick Installation: Designed for straightforward overhead installation using appropriate suspension hardware.
  • Customizable: Custom lengths, diameters, colors, lettering, and graphics may be available for project-specific requirements.
  • 5-Year Warranty: Covered by a 5-year warranty against cracking and fading.
  • Made in the USA: Proudly manufactured in the United States.

Technical Specifications

Product Type Overhead Clearance / Height Warning Bar
Model / Reference CB-4104
Clearance Designation 8' 8"
Outside Diameter 4.95"
Length 104"
Wall Thickness .125"
Bar Material HDPE
Fastener Material Steel
Reflective Bands 4 Total – 2 at Each End
Reflective Material 3M™ #5100 Scotchlite™ Film
Included Hardware Screws Used to Join Bar Sections
Suspension / Installation Hardware Hardware Kit Sold Separately
Warranty 5 Years Against Cracking & Fading
UPC 649906608660

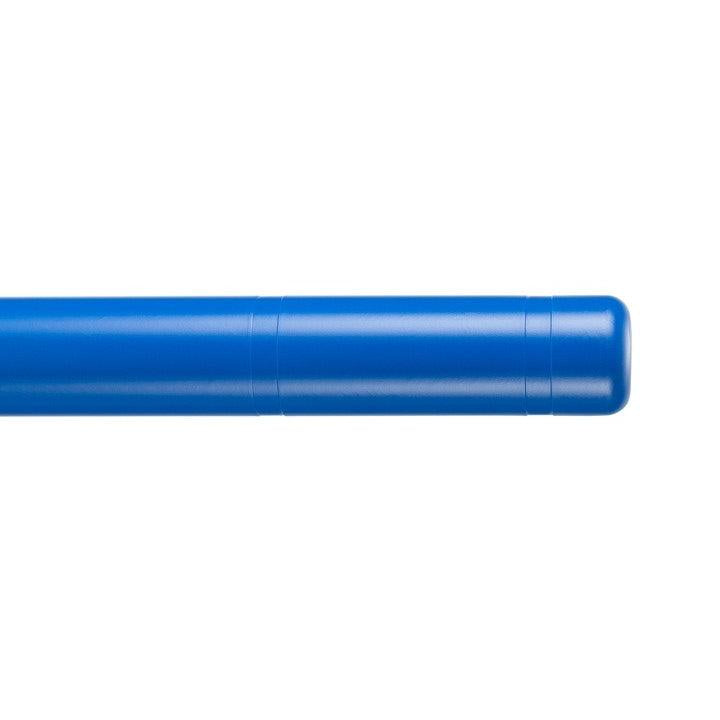

Bar Color Options

The clearance bar is available in the following nine standard colors:

Black, Blue, Brown, Gray, Green, Light Gray, Red, White, and Yellow.

Reflective Tape Options

The bar can be configured with 3M™ #5100 Scotchlite™ Film to increase visibility at entrances, parking structures, drive-thrus, and other vehicle-access points.

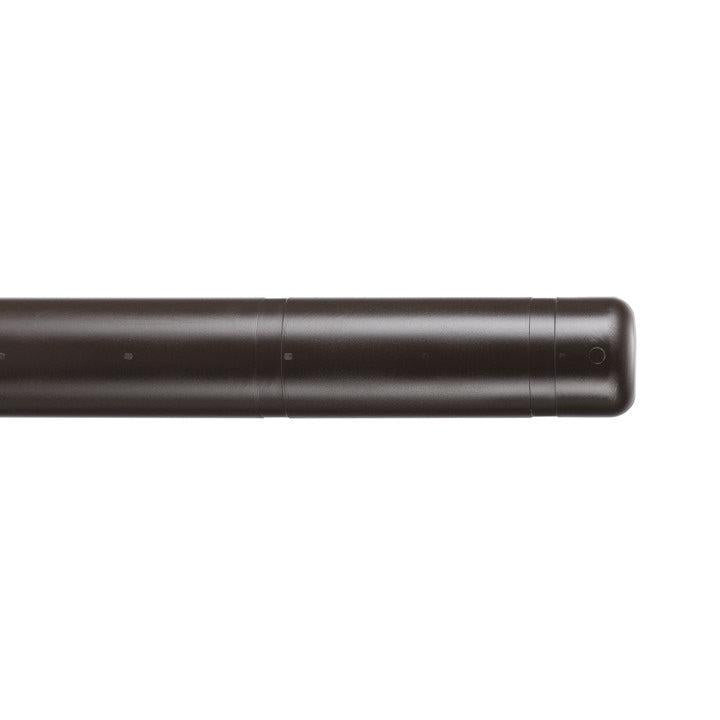

Reflective tape colors include Black, Blue, Green, Orange, Red, White, and Yellow. A No Tape option is also available.

Four Reflective Bands for Increased Visibility

The standard configuration uses four reflective tape bands, with two bands positioned near each end of the clearance bar. This arrangement helps make the bar easier to identify as vehicles approach the restricted-height area.

Designed for Low-Clearance Entrances

Overhead clearance bars provide drivers with an advance visual warning before entering areas where vehicle height is restricted. Properly positioned, the bar helps communicate the maximum available clearance before a vehicle reaches the structure or equipment beyond it.

The 104" length provides a large, visible overhead marker for vehicle lanes and access points.

Common Applications

  • Parking garages and structures
  • Car washes
  • Drive-thru lanes
  • Valet entrances and carports
  • Warehouses
  • Loading and receiving areas
  • Commercial vehicle entrances
  • Low-clearance service areas
  • Indoor parking facilities
  • Restricted-height access points

Custom Sizes & Graphics

Custom clearance bars may be available in alternate lengths, diameters, and colors for applications where a standard configuration does not meet the project requirements.

Custom lettering and logos may also be available. A clearance bar of at least 74" in length is recommended when using standard clearance-height lettering. At 104" long, this model is suitable for that lettering format.

Clearance Lettering

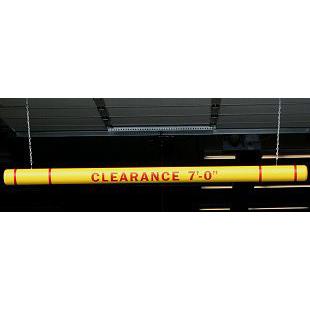

Clearance-height lettering is sold separately. This allows the bar to be labeled with the appropriate maximum-clearance message for the installation location.

Important Application Note

This clearance bar is intended as a visual height-warning and driver-guidance device. It should not be treated as a structural impact barrier or as protection against vehicle collisions.

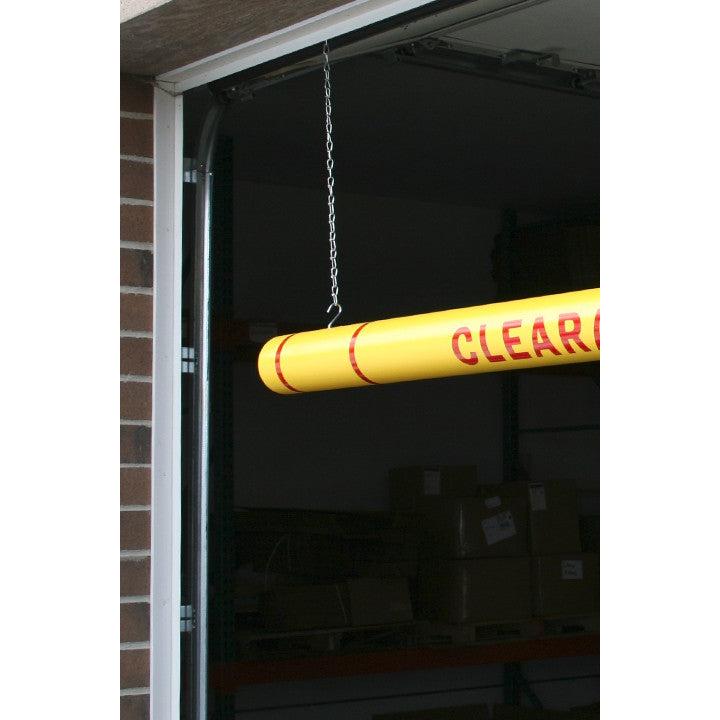

The installer is responsible for positioning the bar and selecting suspension hardware appropriate for the installation location and required clearance height.

Made to Order – Non-Returnable

This clearance bar is made to order and is non-returnable. Confirm the required clearance designation, bar dimensions, color, and reflective tape selection before ordering.

Made in the USA

The 8' 8" Overhead Clearance Bar is proudly manufactured in the United States.

Made in the USA

Technical Resources

View Mechanical Drawings

Assembly Instructions

Need Custom Sizes or Project Pricing?

Request a Quote
For custom clearance bars, large quantities, custom graphics, or project-specific requirements, contact LineDividers at sales@linedividers.com or call 1-800-288-2832.
