Accessories for Multi-Purpose Ramps

Optimize your multi-purpose ramp setup with our durable Steel Multi-Purpose Bridge Kits, designed to enhance ramp performance and efficiency in industrial, warehouse, or delivery applications. These optional bridge kits provide a seamless transition over gaps, ensuring smooth operation for hand trucks, carts, and other wheeled equipment.

Each bridge kit is crafted from high-quality steel for long-lasting durability and features a robust design to handle heavy-duty use. Select the appropriate size to match your ramp setup for optimal performance.

Features and Benefits:

• Durable Steel Construction: Ensures long-lasting strength and reliability.
• Optional Bridge Kit: Provides a smooth, safe transition over gaps.
• Improved Efficiency: Ideal for loading dock operations and other industrial applications.
• Versatile Use: Compatible with a variety of multi-purpose ramps and wheeled equipment.
• Enhanced Safety: Reduces the risk of tipping or load instability when crossing gaps.

Available Models and Differences:

• 1/8" x 8" x 3" Blue: Compact option for smaller ramps or tight spaces.
• Used In: Plastic Multi Purpose Ramps
• 1/8" x 24" x 5-3/8" Blue: Larger bridge kit for extended ramps or higher load applications.
• Used In: Rubber Multi-Purpose Ramp 10" x 23-1/5" x 3" – 5000 lb Capacity, Black

These bridge kits provide a simple, effective solution to improve the performance and safety of your multi-purpose ramps, ensuring smooth and reliable operation in any work environment.

Technical Specifications:

• Shared Specifications (for both models):
  • Material: Steel
  • Color Family: Blue
  • CPO-Prop 65 Warning Required: Yes
  • Approval Drawing Required: No
  • Assembly: Assembly required
  • Hardware Material: Steel
  • Package Contents: Brackets, Bolts, Washers, and Nuts

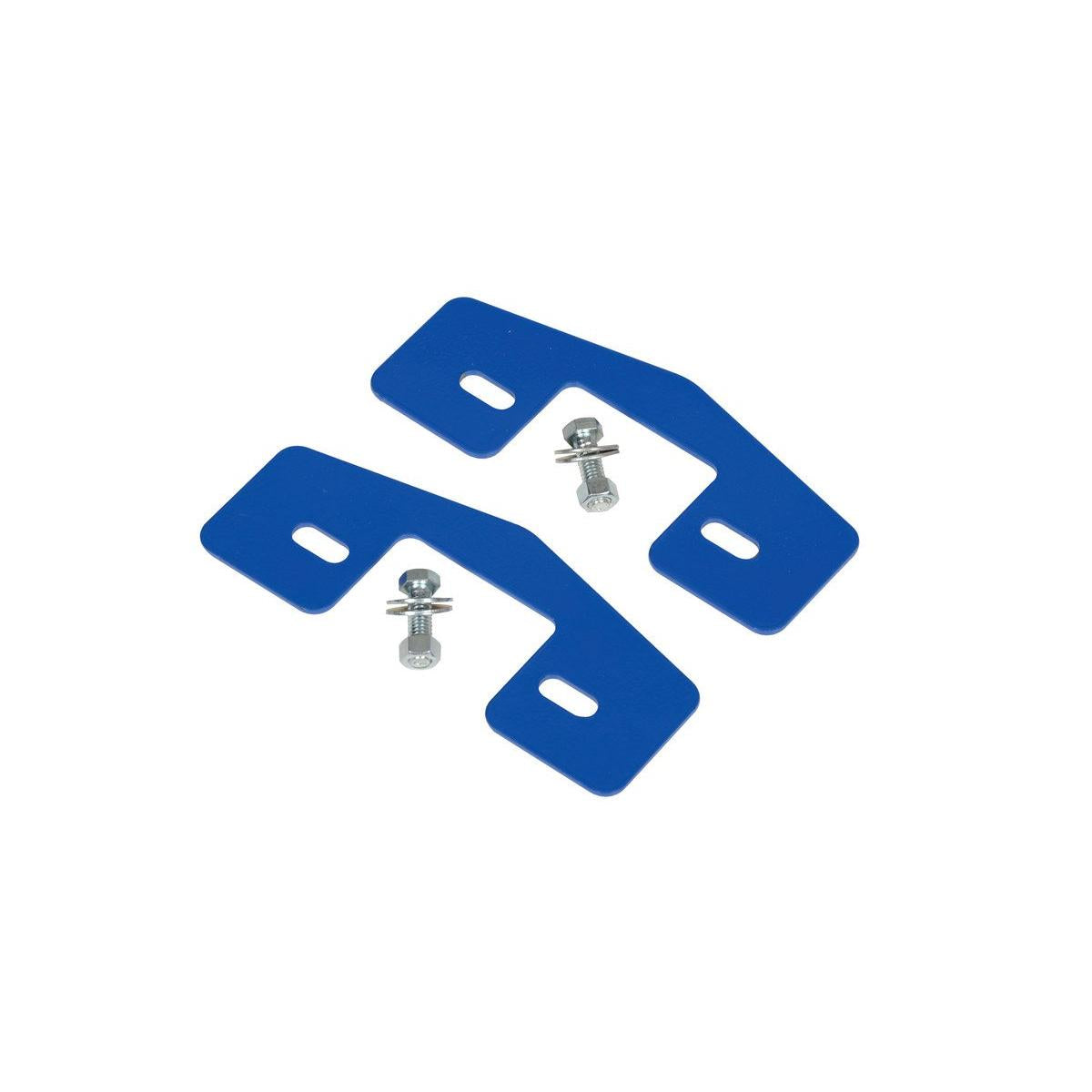

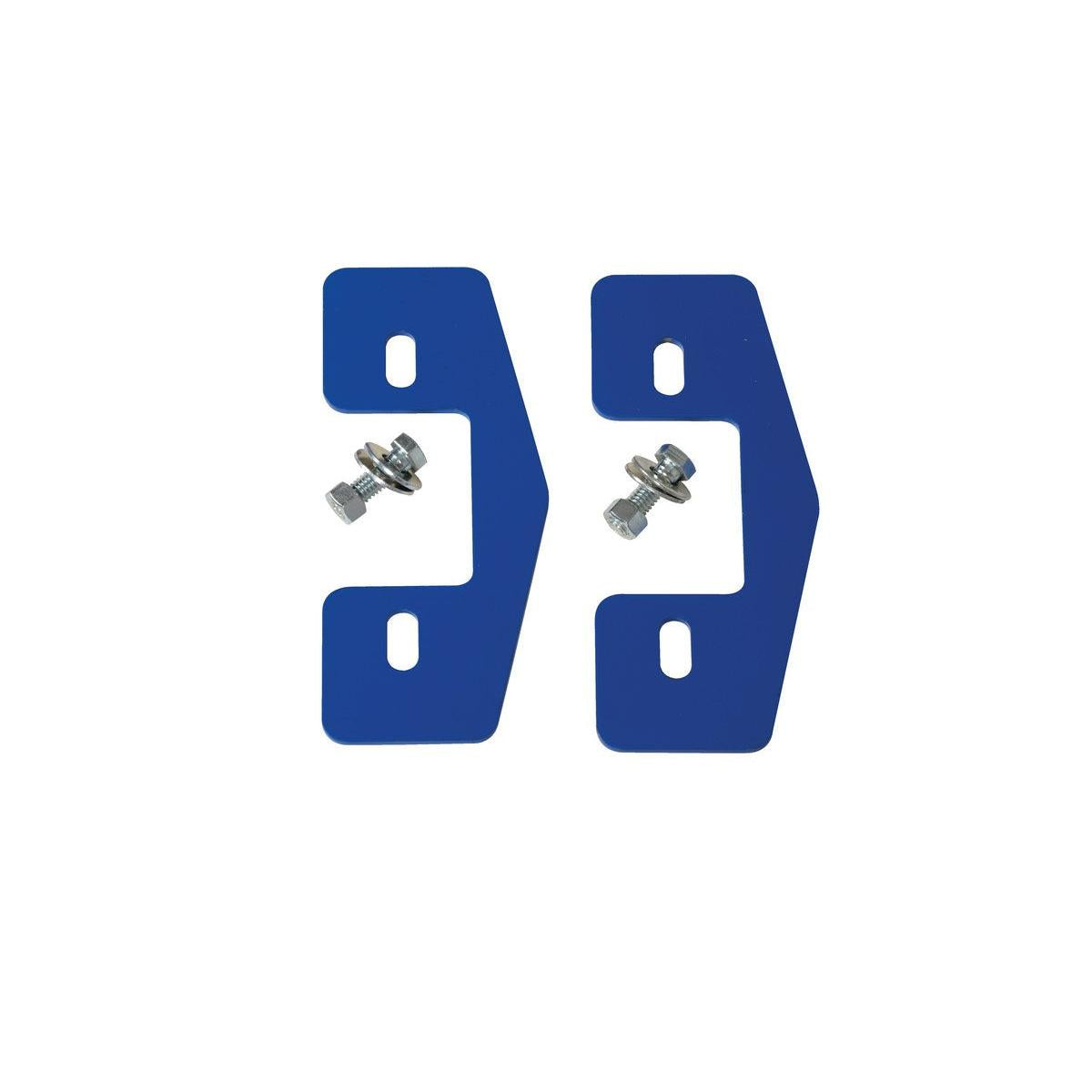

• Steel Multi-Purpose Bridge Kit 1/8" x 8" x 3" Blue:
  • Assembled Size (W x D x H, in): 8 x 0.125 x 3
  • Assembled Weight (lbs): 5
  • Total Ship Wt. (lbs): 6
  • Package 1 Size (W x D x H, in): 3 x 3 x 3
  • Bracket Quantity: 2
  • Usable Opening Width/Height (in): 3 x 1-7/8
  • Bolt Quantity: 2
  • Bolt Size: 1-1/2 x 3/8
  • Washer Quantity: 4
  • Nut Quantity: 2
  • Total Pieces: 10
  • Compatible Products: Plastic Multi Purpose Ramps

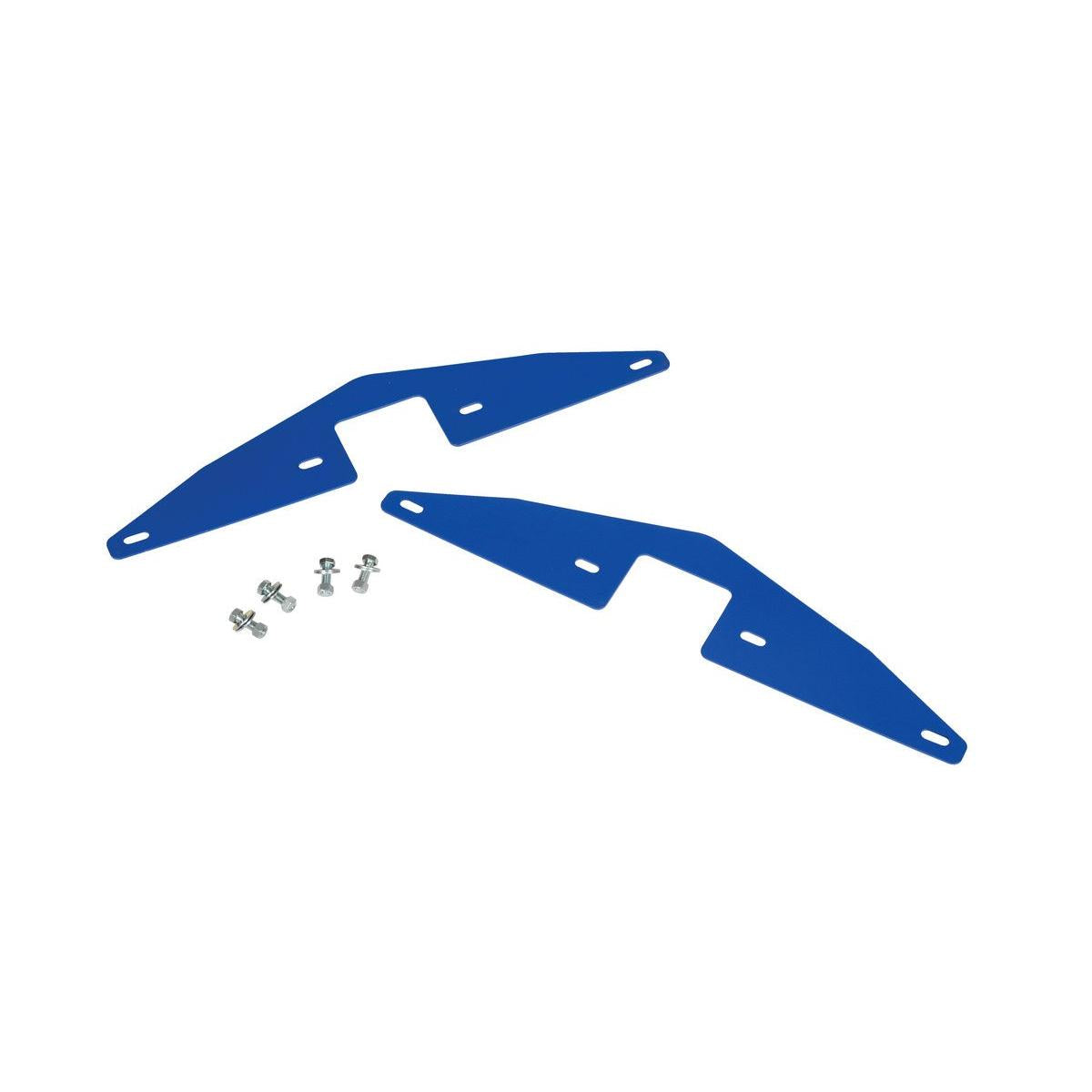

• Steel Multi-Purpose Bridge Kit 1/8" x 24" x 5-3/8" Blue:
  • Assembled Size (W x D x H, in): 24 x 0.125 x 5.375
  • Assembled Weight (lbs): 6
  • Total Ship Wt. (lbs): 6
  • Package 1 Size (W x D x H, in): 3 x 4 x 4
  • Bracket Quantity: 2
  • Usable Opening Width/Height (in): 4 x 3-1/4
  • Bolt Quantity: 4
  • Bolt Size: 1-1/2 x 3/8
  • Washer Quantity: 8
  • Nut Quantity: 4
  • Total Pieces: 18
  • Compatible Products: Rubber Multi-Purpose Ramp 10" x 23-1/5" x 3" – 5000 lb Capacity, Black

Made in the USA
