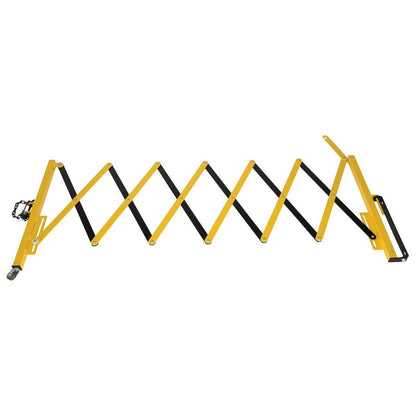

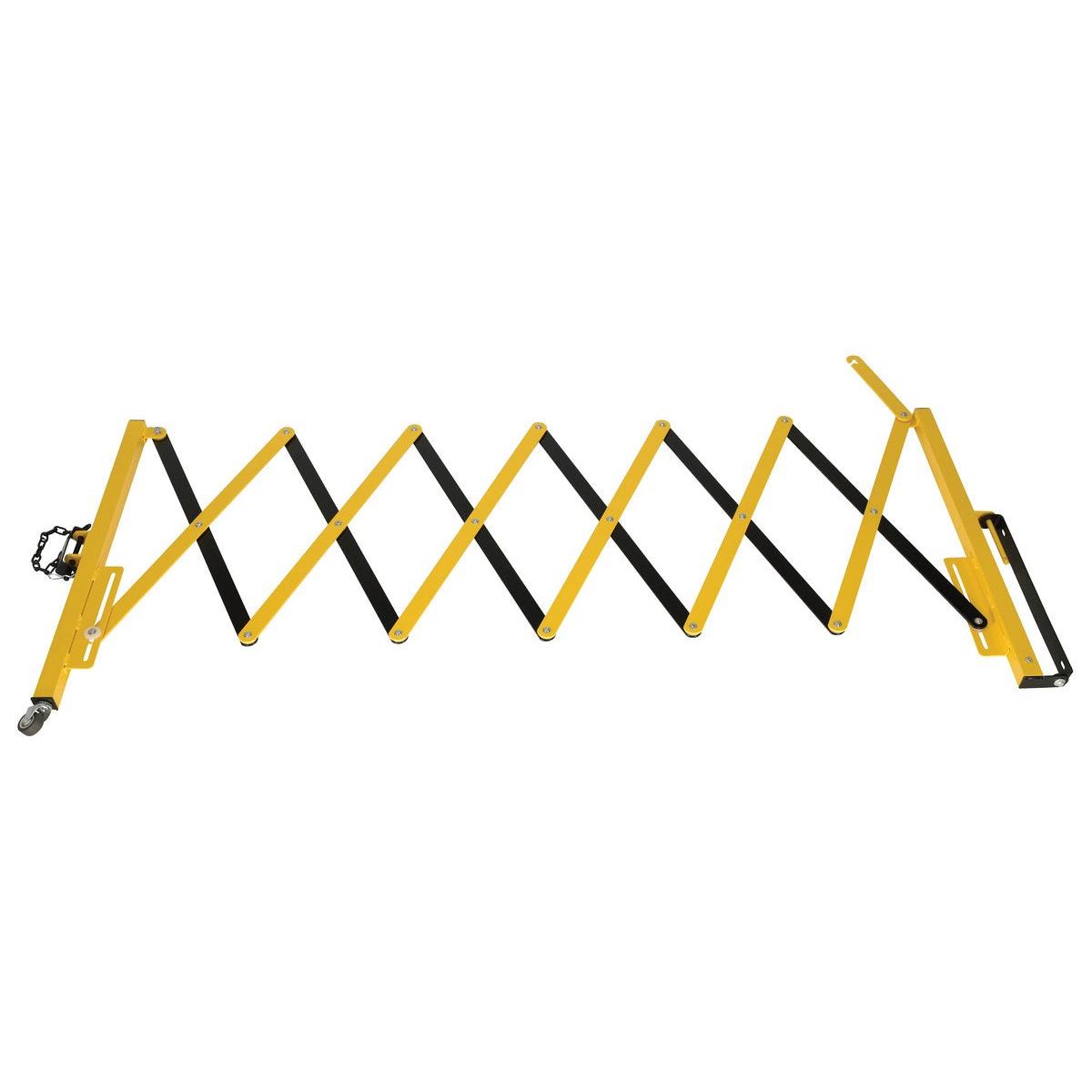

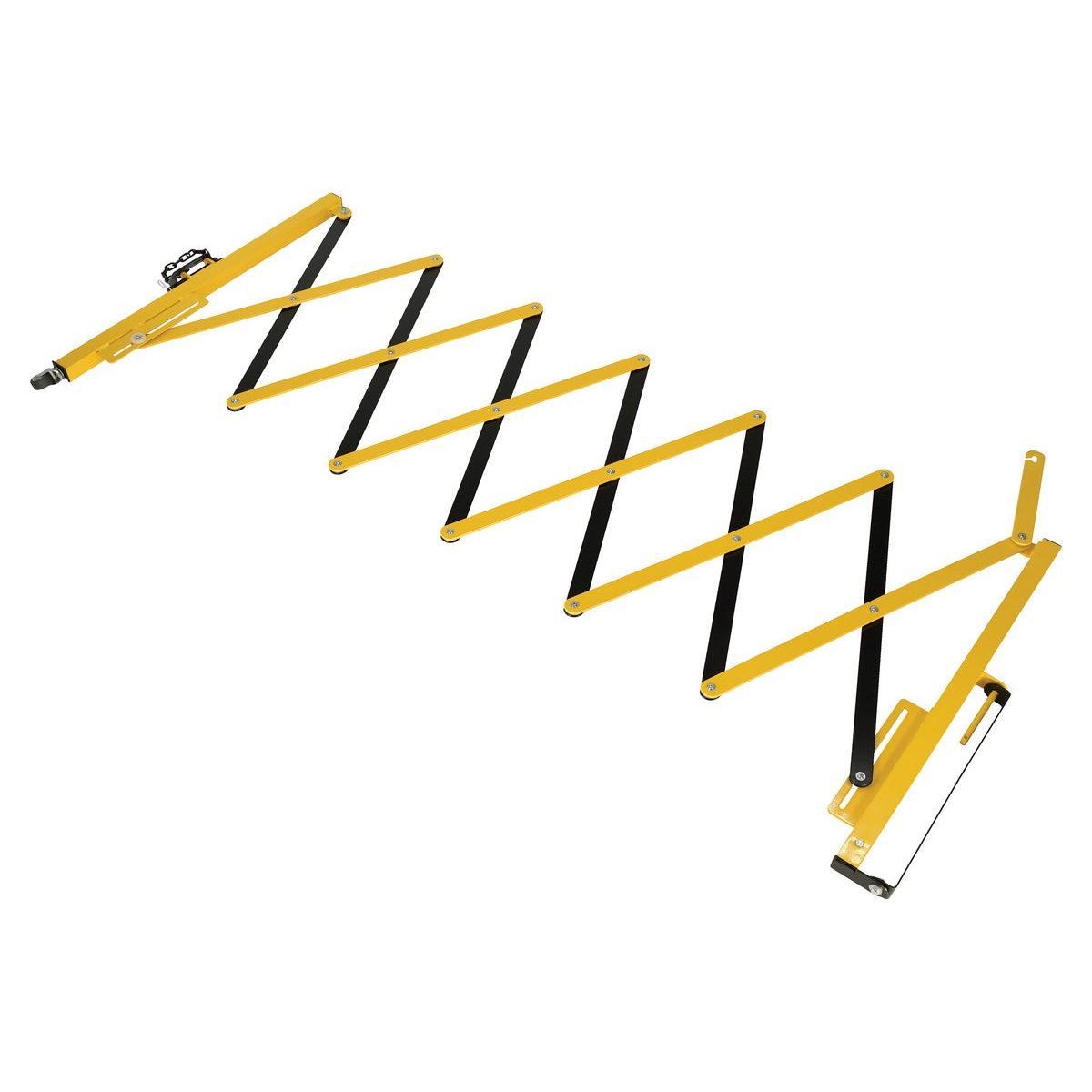

Aluminum Expand-A-Gate Wall Mount 2-3/4 In. x 20-5/16 In. x 38-5/16 In.

The Wall‑Mount Aluminum Expand‑A‑Gate creates an instant swing‑out barrier for blocking aisles, corridors, or work zones. Permanently anchored to a wall or rack face, the gate pivots into position in seconds to restrict access for cleaning, maintenance, or safety isolation, then folds compactly against the mounting surface when not in use.

Constructed from lightweight, corrosion‑resistant aluminum, the gate employs a smooth scissor action that can interlock with additional sections or nest tightly for minimal storage depth. An integrated pivot bracket and mounting hardware (included) ensure secure, single‑location deployment without sacrificing floor space.

Key Features & Benefits

• Wall‑Mounted Pivot Design – Swings out quickly; folds flat against the wall to keep aisles clear.
• Lightweight Aluminum Frame – Easy, one‑person operation and long‑term corrosion resistance.
• Expandable Scissor Action – Extends smoothly; units can interlock or nest for customized barrier length.

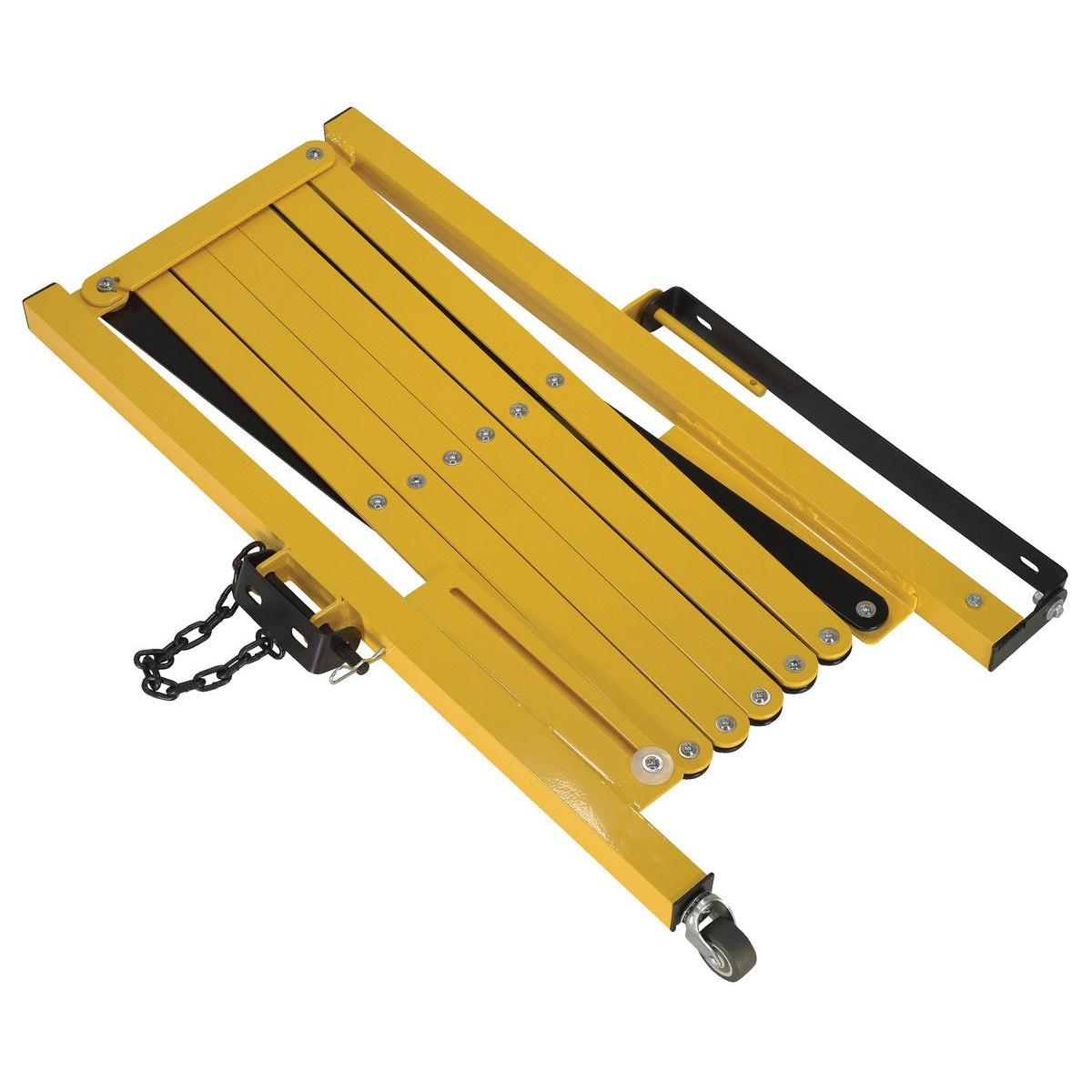

• Space‑Saving Storage – Collapses to only 2‑3/4 in. deep when stowed.
• Fixed Safety Solution – Ideal for areas requiring frequent, repeatable access control without moving equipment.

Additional Information:

• Mounting hardware is included for attachment to concrete, block, or steel surfaces.
• Compatible with freestanding and caster‑equipped Expand‑A‑Gate sections for extended reach.
• Finished dimensions when stowed: 2‑3/4 in. D × 20‑5/16 in. W × 38‑5/16 in. H.

Technical Specifications:

• Total Ship Wt.(lbs.): 35
• Size: 20.3125"W x 2.75"L x 38.3125"H
• Overall Expanded Width (in.): 144-3/16
• Expanded Gate Width (in.): 139
• X-Bar section, Yellow Bars Gauge: 4

• X-Bar section, Black Bars Gauge: 6
• Caster Quantity/Diameter/Width (in.): (1) 2 x 7/8
• Caster Type: Swivel

• Color / Finish: Yellow

• Material: Aluminum

• Adjustable Length: No

• Maximum Length (in): 2.75

• Adjustable Width: Yes

• Minimum Width (in): 139
• Maximum Width (in): 144.1875

• Depth (in): 2.75

• Interlocking: Yes

• Reflective: No

• Installation Hardware Included: Yes

• UPC: 691215112239
• GTIN: 00691215112239
• Manufacturer Warranty: 90 Days

Made in the USA
