Aluminum Hand Truck Dockboards

Aluminum Hand Truck Dockboards create a secure and efficient bridge between a truck bed and a loading dock, making material transfer smooth and safe. Built from high-strength aluminum with a diamond tread surface, these boards are designed for light-duty handling applications using two-wheel hand trucks.

Each dockboard features a 12-degree bend positioned 6" from the edge, allowing both ends to sit flush against the dock and truck floor for a seamless transition. The bolt-on locking legs keep the board stable under load, while full-length aluminum curbs serve as built-in handholds and help prevent roll-off. Despite their solid construction, these dockboards remain lightweight enough for a single operator to position and remove.

Features & Benefits

• Lightweight Aluminum Construction: Easy to carry and maneuver by one person.

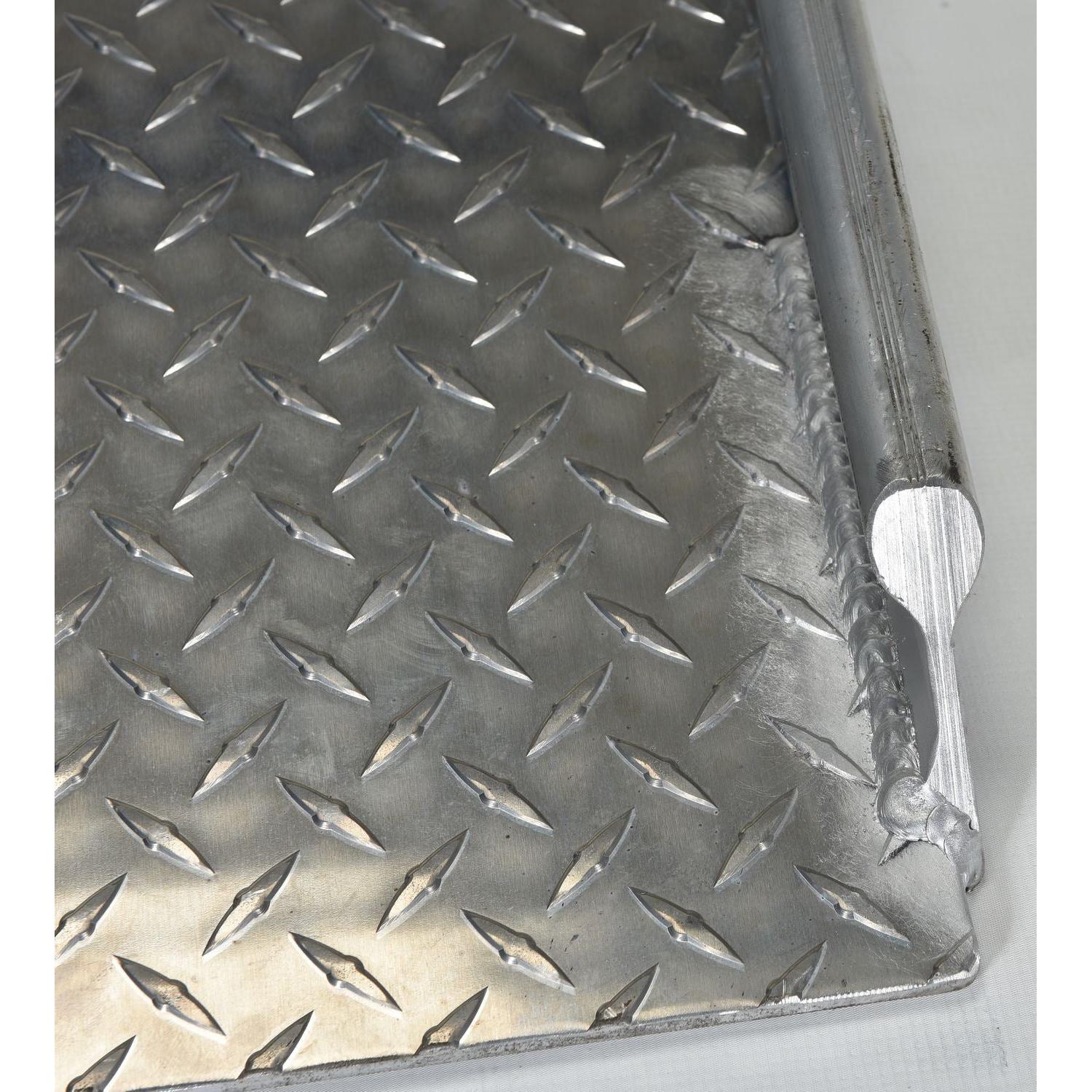

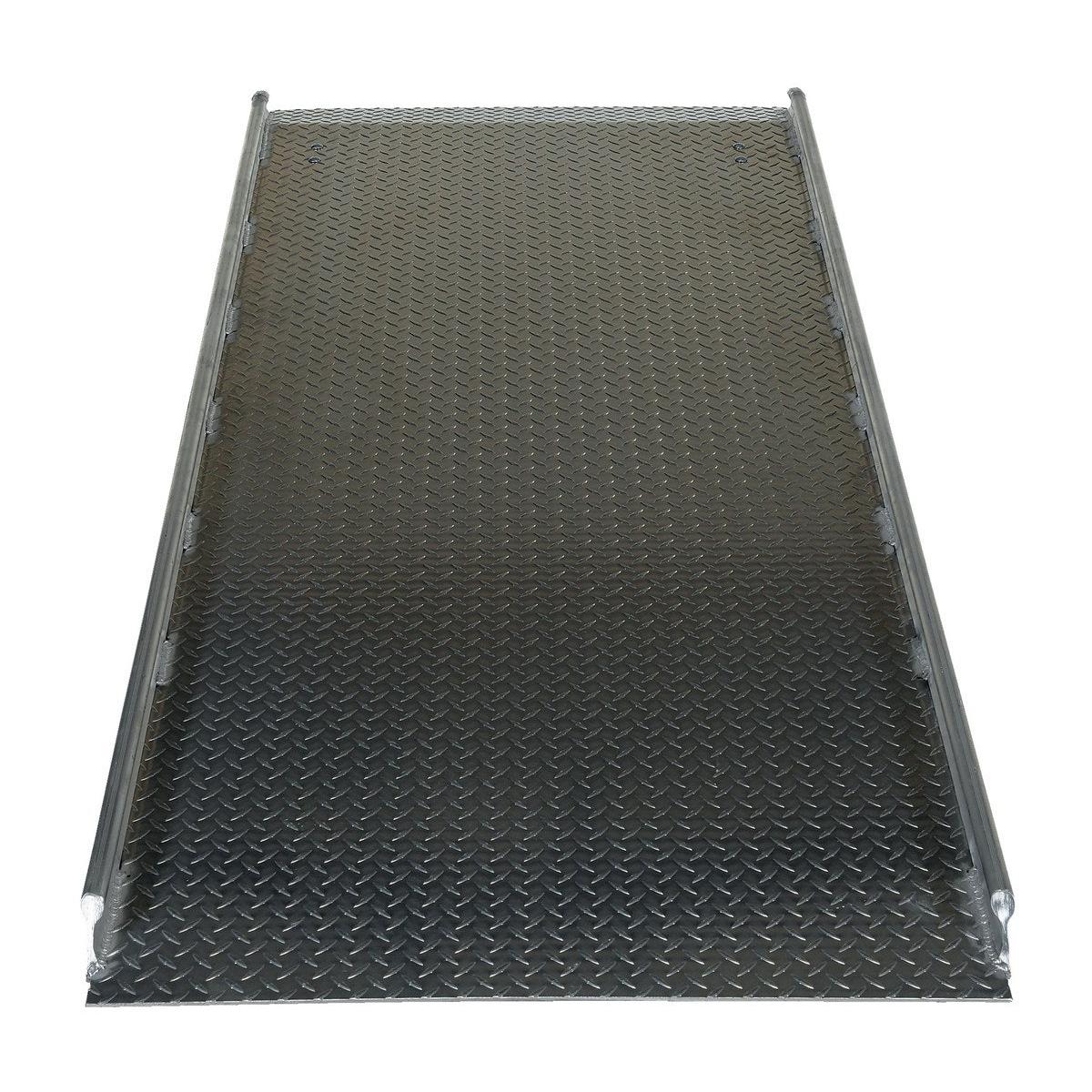

• Diamond Tread Surface: Provides superior traction and slip-resistance for added safety.
• Beveled Entry and Exit Edges: Ensure smooth transition between surfaces.

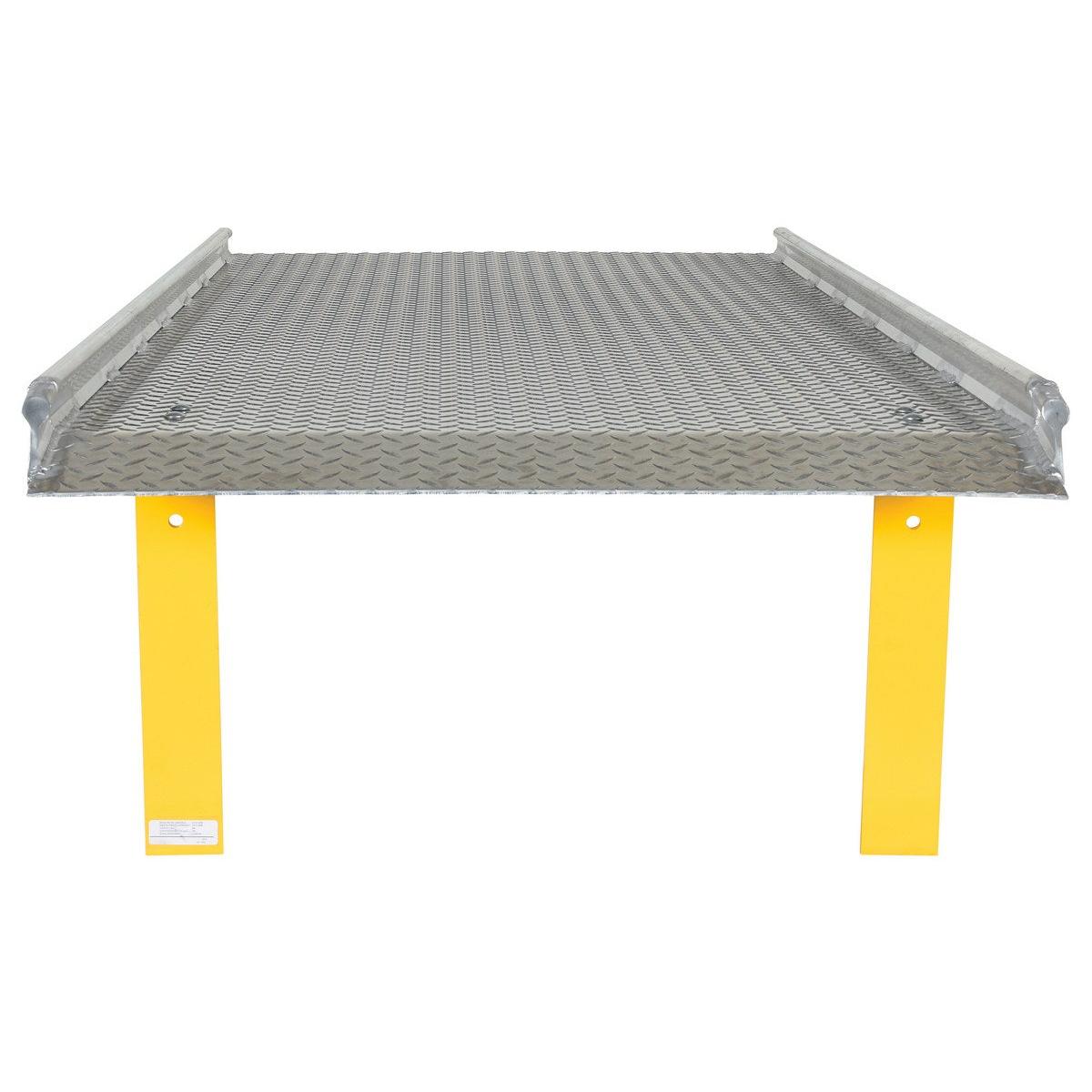

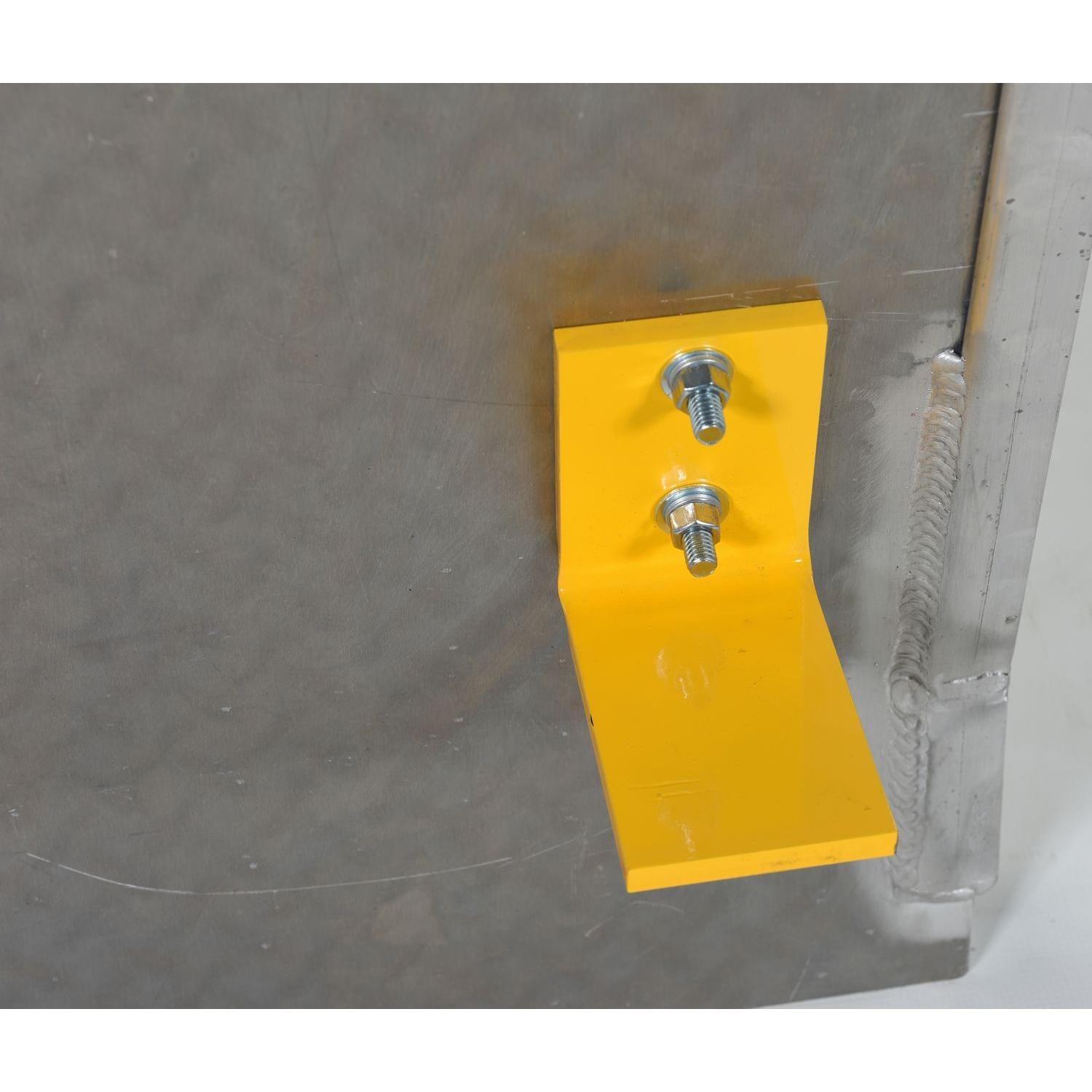

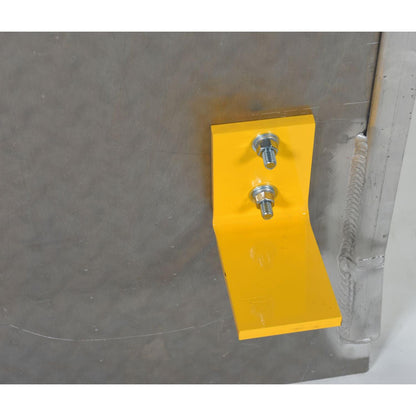

• Bolt-On Locking Legs: Maintain stability and meet OSHA requirements.
• Full-Length Curbs: Act as side barriers and convenient lifting handles.
• 12° Bend Design: Keeps edges flush for safe loading and unloading.
• 800 lb Uniform Capacity: Ideal for foot and hand truck traffic.
• 3/16" Plate Thickness: Adds rigidity while keeping weight manageable.

Available Configurations

All models share the same design, safety, and 800 lb load rating but differ in overall size and usable width, allowing selection based on dock height and vehicle size:

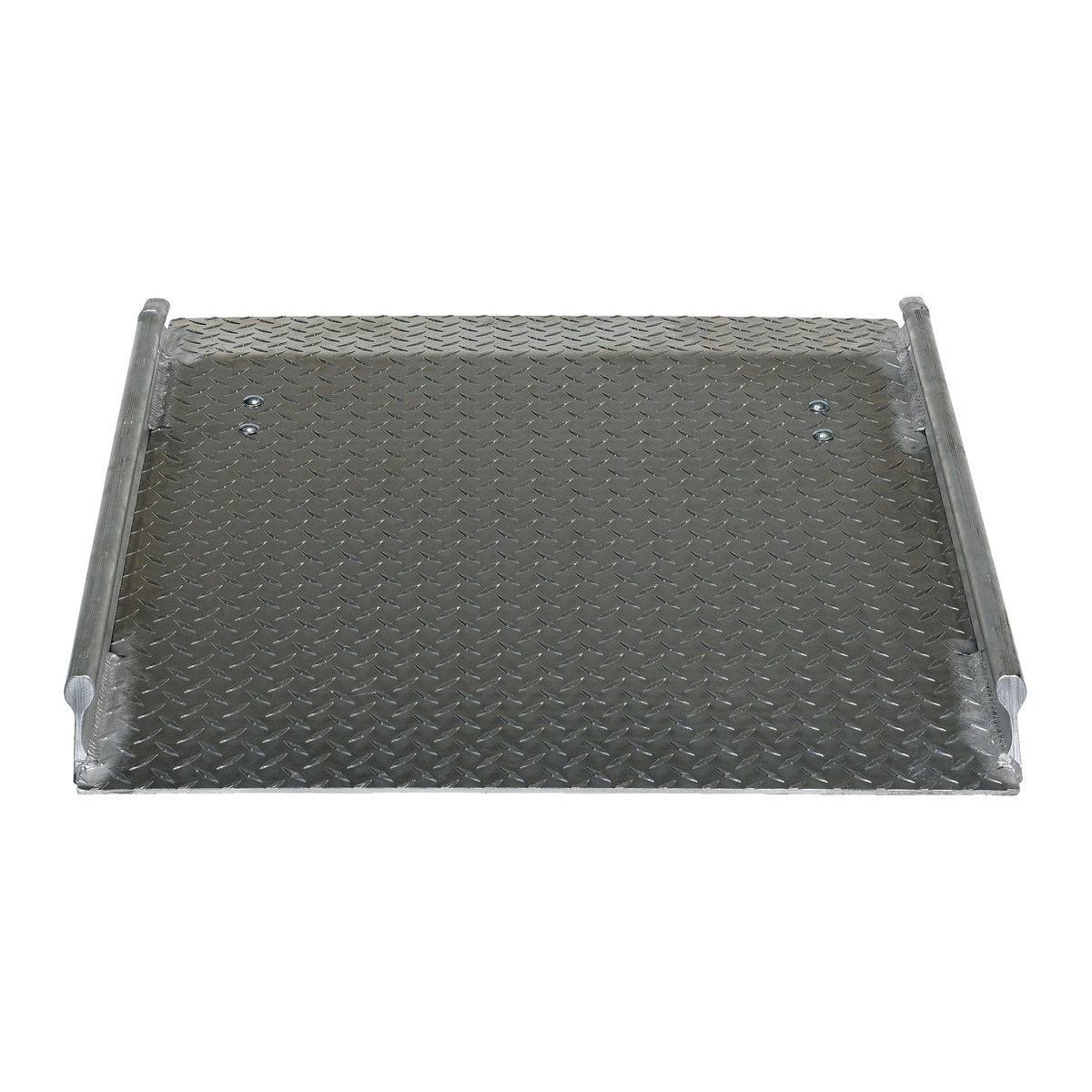

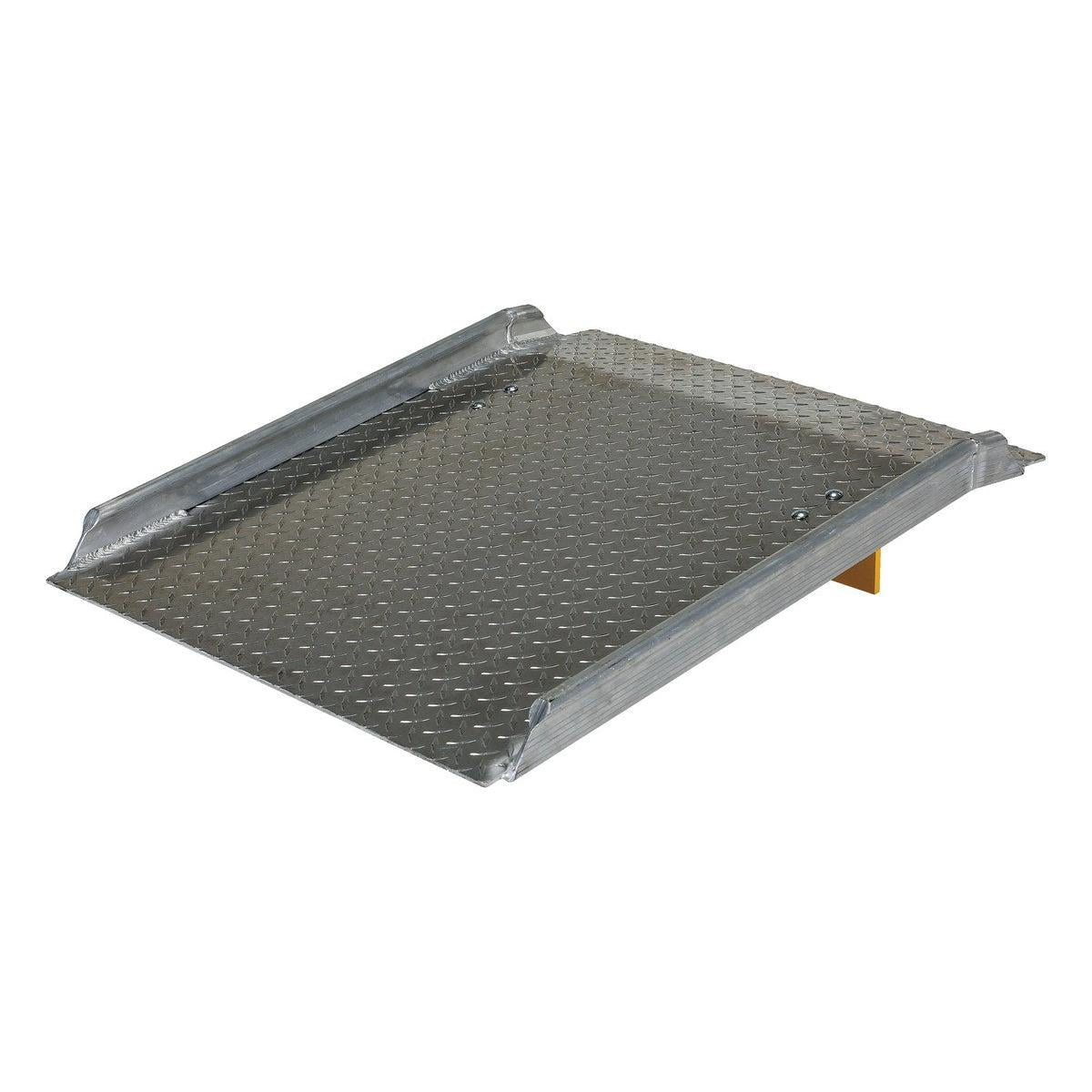

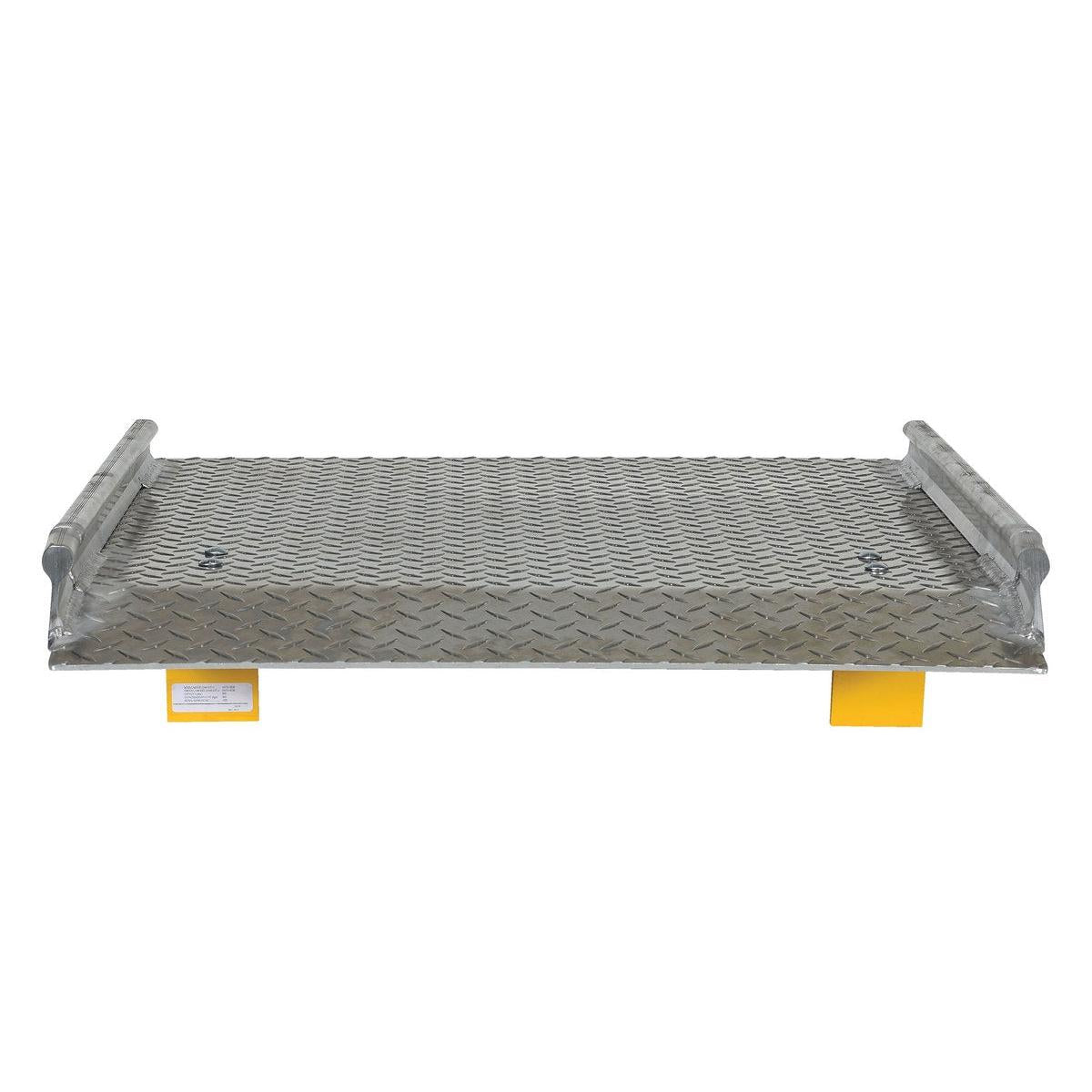

• AHTD-3036: 35-7/8" W × 31-1/4" L × 7-3/16" H - Compact size for tight docks or delivery vans.

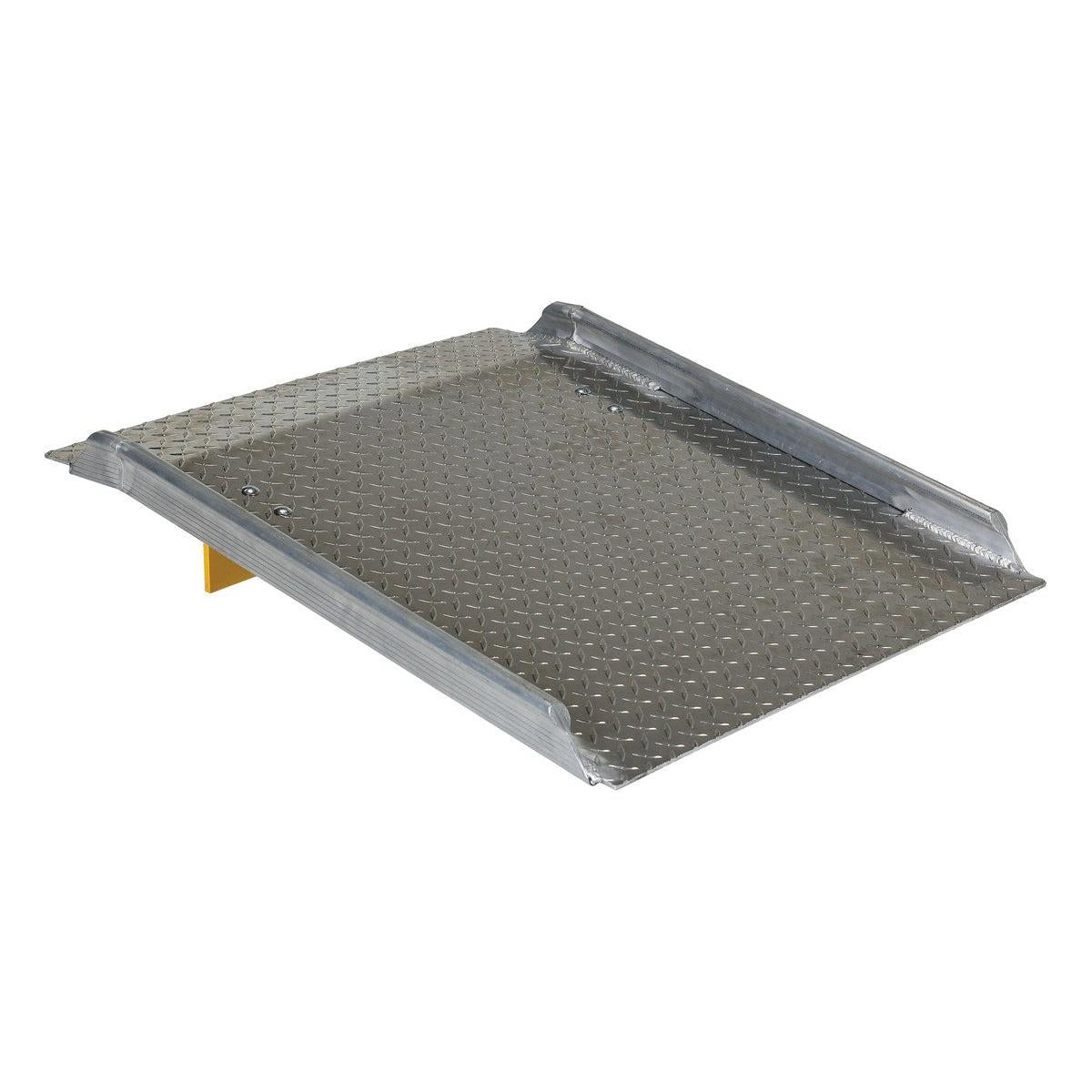

• AHTD-3048: 47-7/8" W × 31-1/4" L × 10-3/16" H - Slightly longer for standard dock applications.

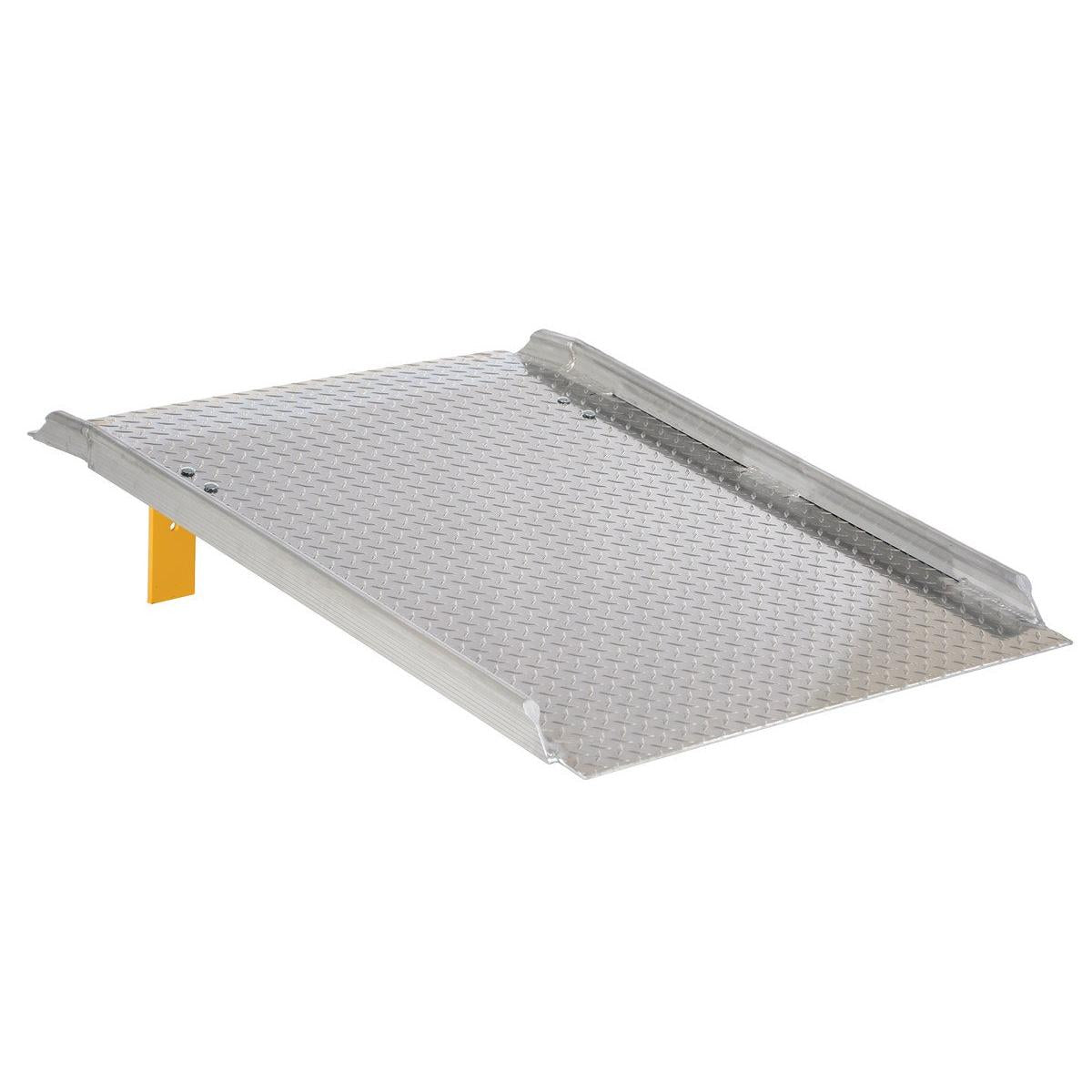

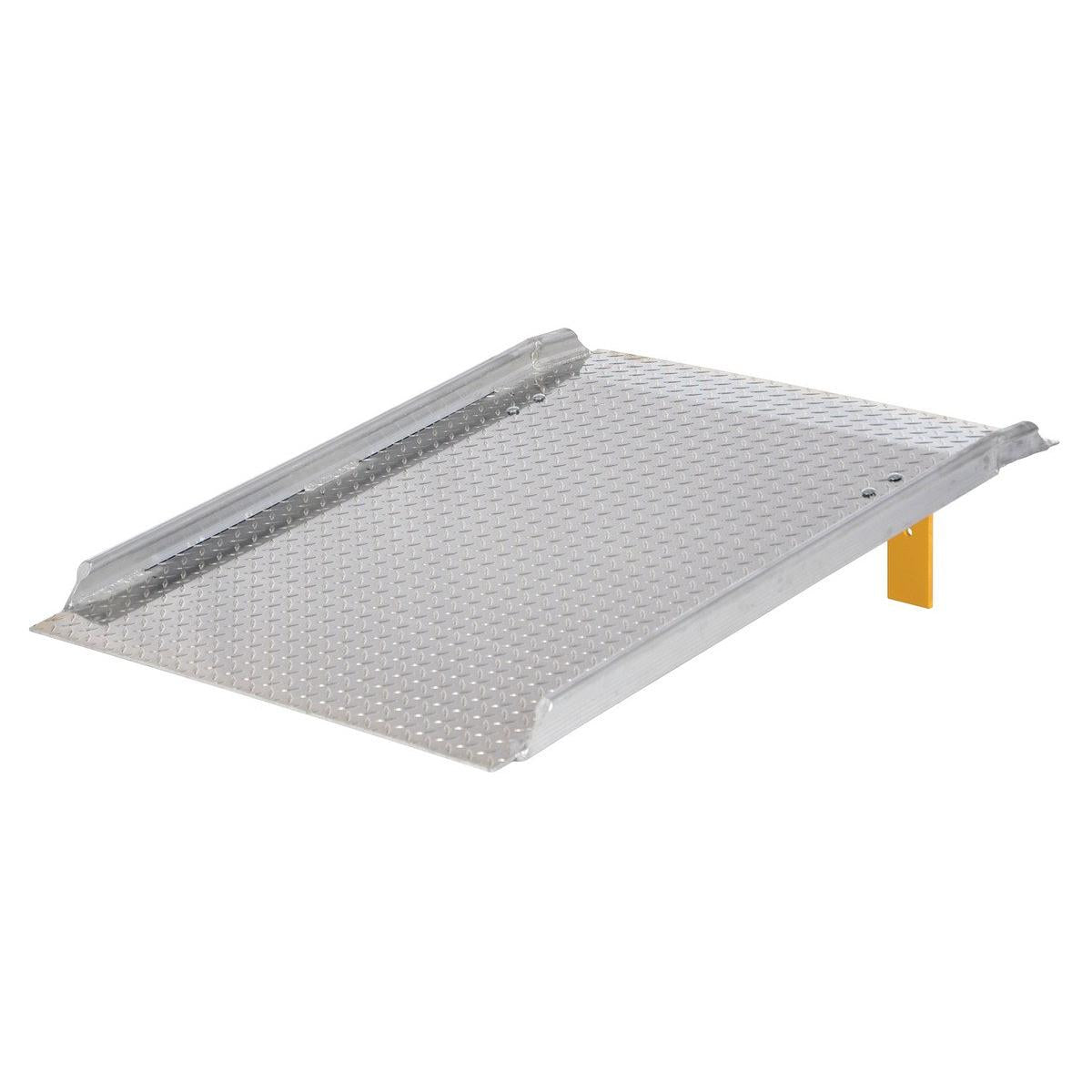

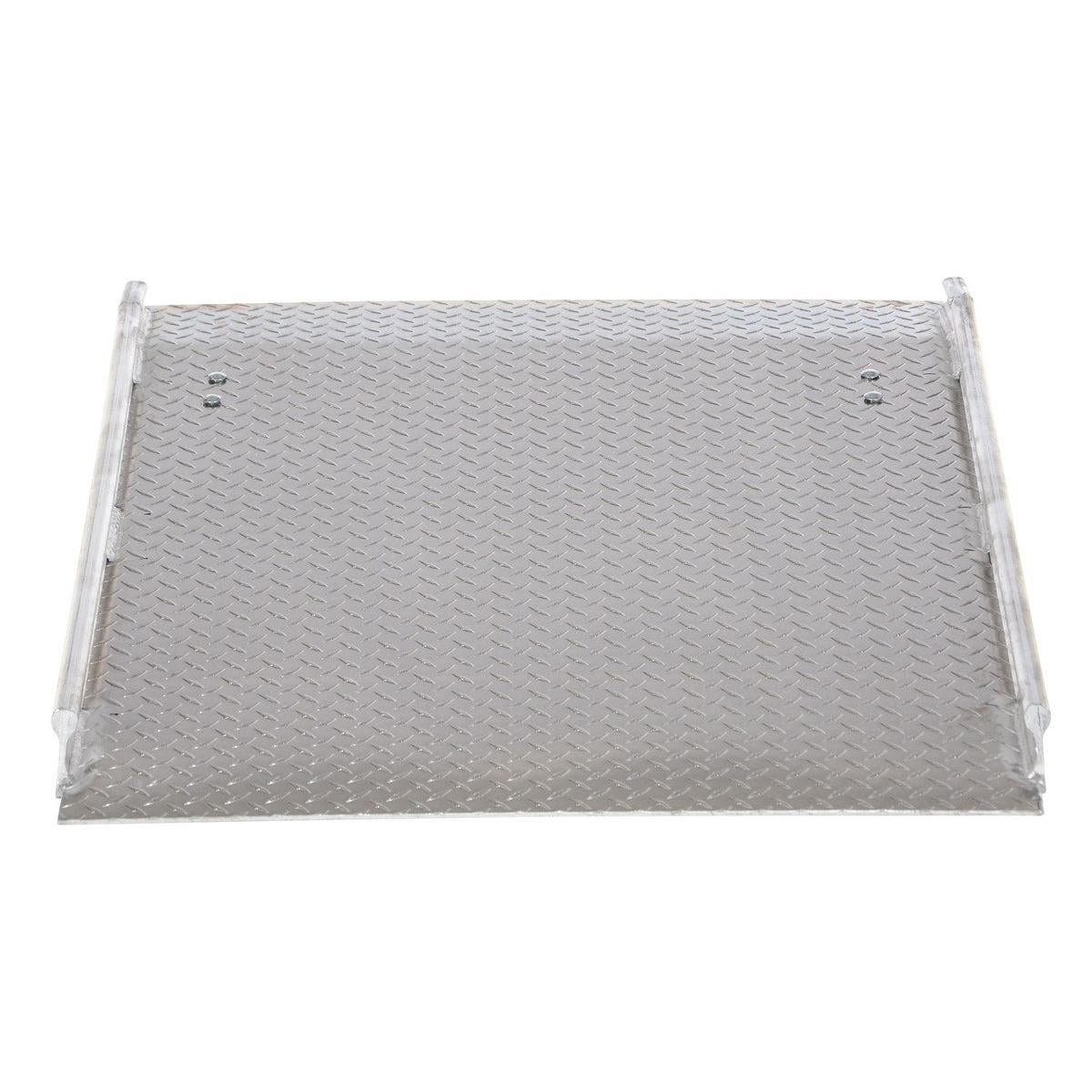

• AHTD-3648: 47-7/8" W × 37-1/4" L × 10-3/16" H - Increased width for larger hand trucks.
• AHTD-3660: 59-7/8" W × 37-1/4" L × 13-3/16" H - Extra length for higher dock positions.
• AHTD-3672: 71-7/8" W × 37-1/4" L × 16-1/8" H - Extended reach for taller vehicle decks.

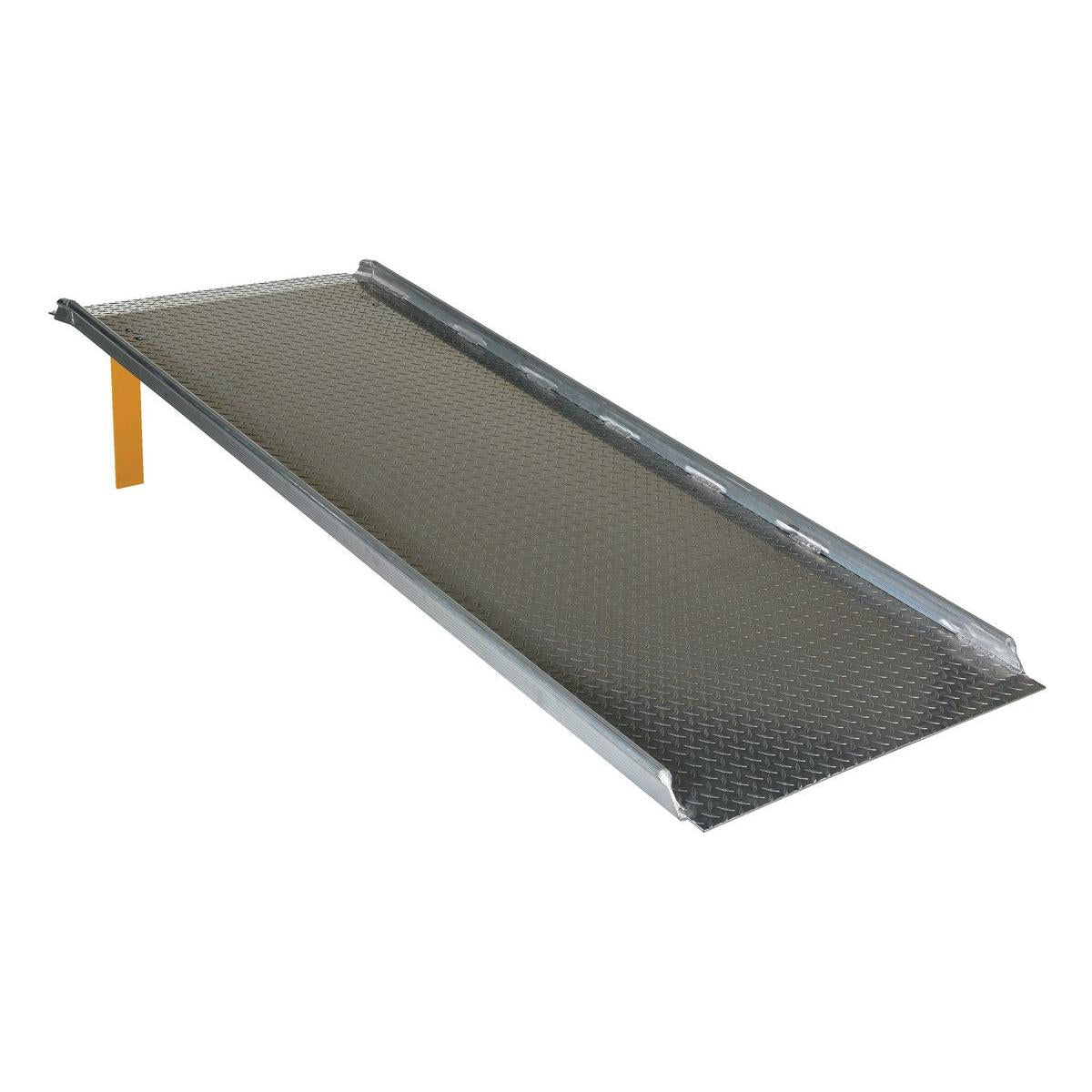

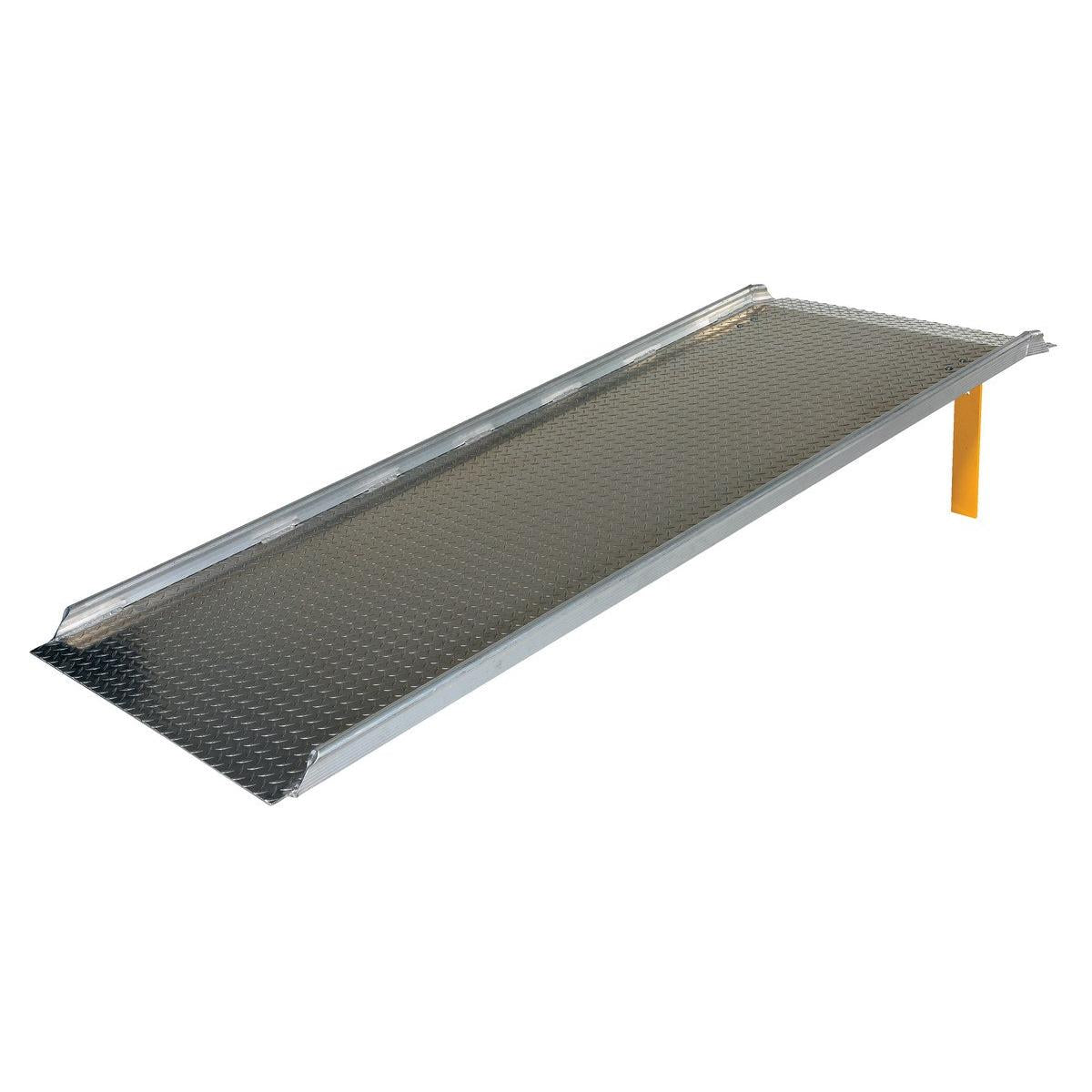

• AHTD-3696: 95-7/8" W × 37-1/4" L × 19-1/8" H - Maximum span model for the widest docks and highest platforms.

Each unit is manufactured in compliance with OSHA standards, ensuring dependable safety and long-term performance in commercial loading environments.

Available Accessories

Steel Dock Plate Storage Rack

Technical Specifications:

• Material: Aluminum
• Color Family: Silver
• Weight Capacity (lb): 800
• Plate Thickness (in): 3/16 (0.1875")
• Bend or Crown (°): 12
• Distance from Bend / Crown to Edge (in): 6
• Assembly: Assembly Required
• Approval Drawing Required: No
• CPO-Prop 65 Warning Required: Yes
• Manufacturer Warranty: 90 Days
• OSHA Compliance: 1910.30(a)
• ANSI Compliance: MH 30.2

Made in the USA
