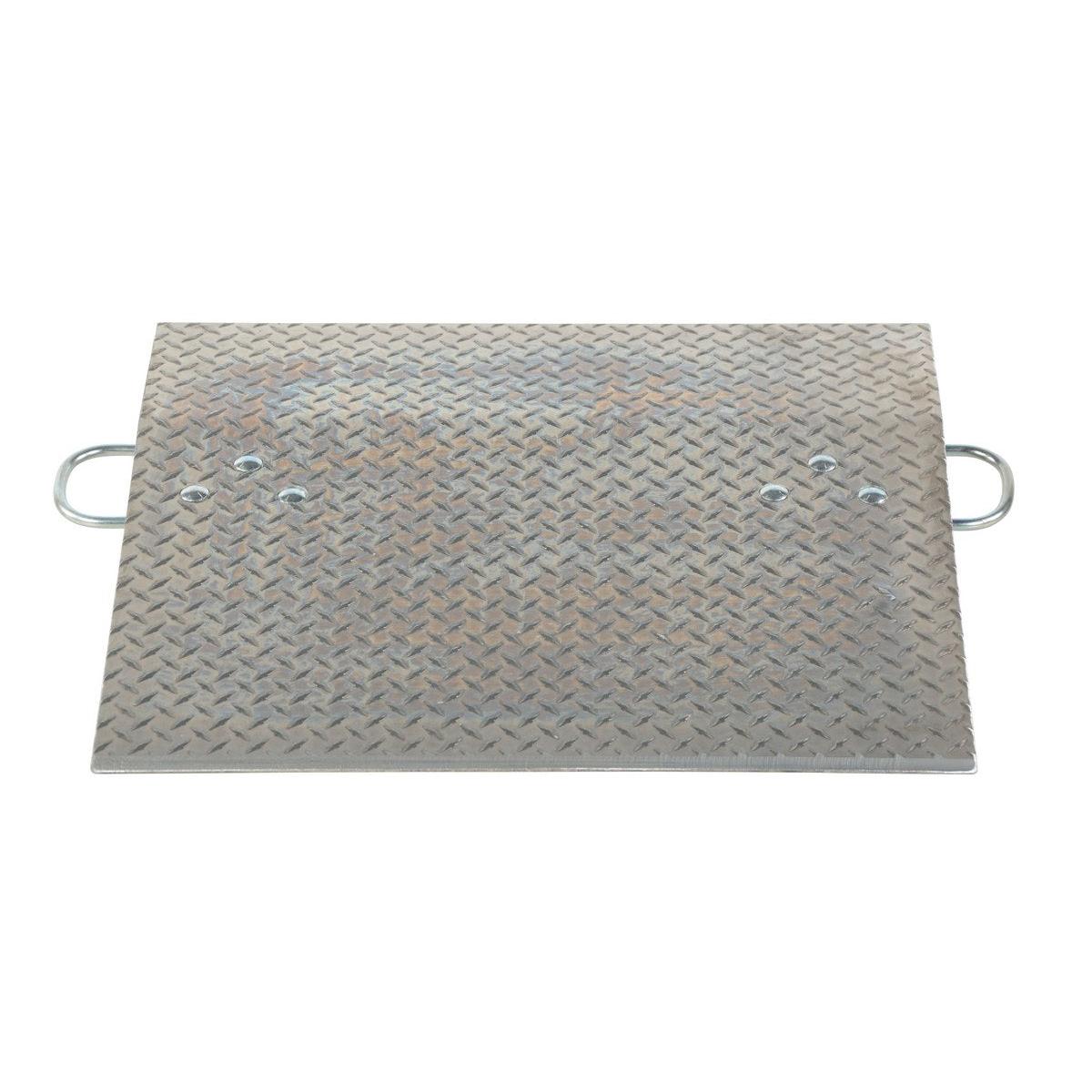

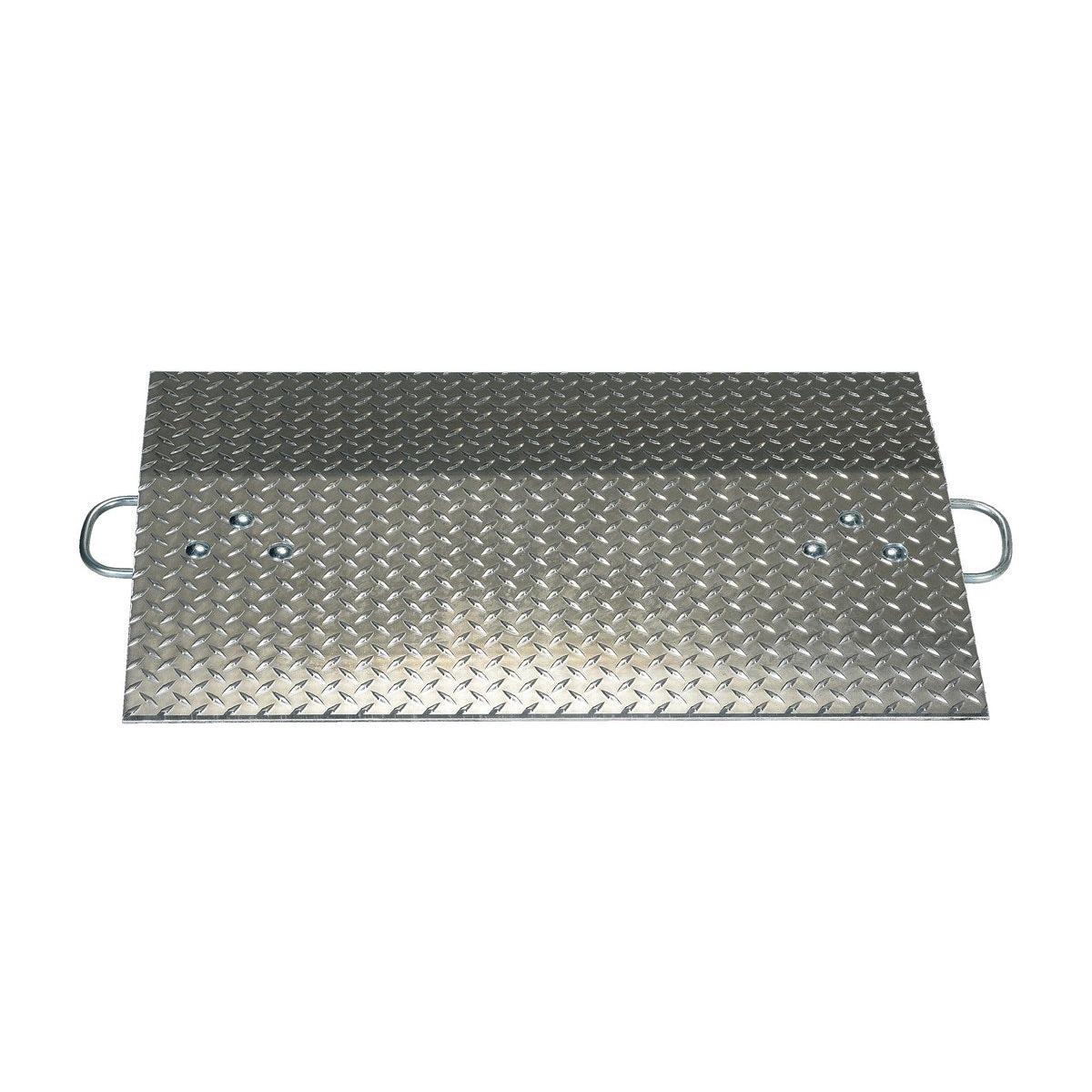

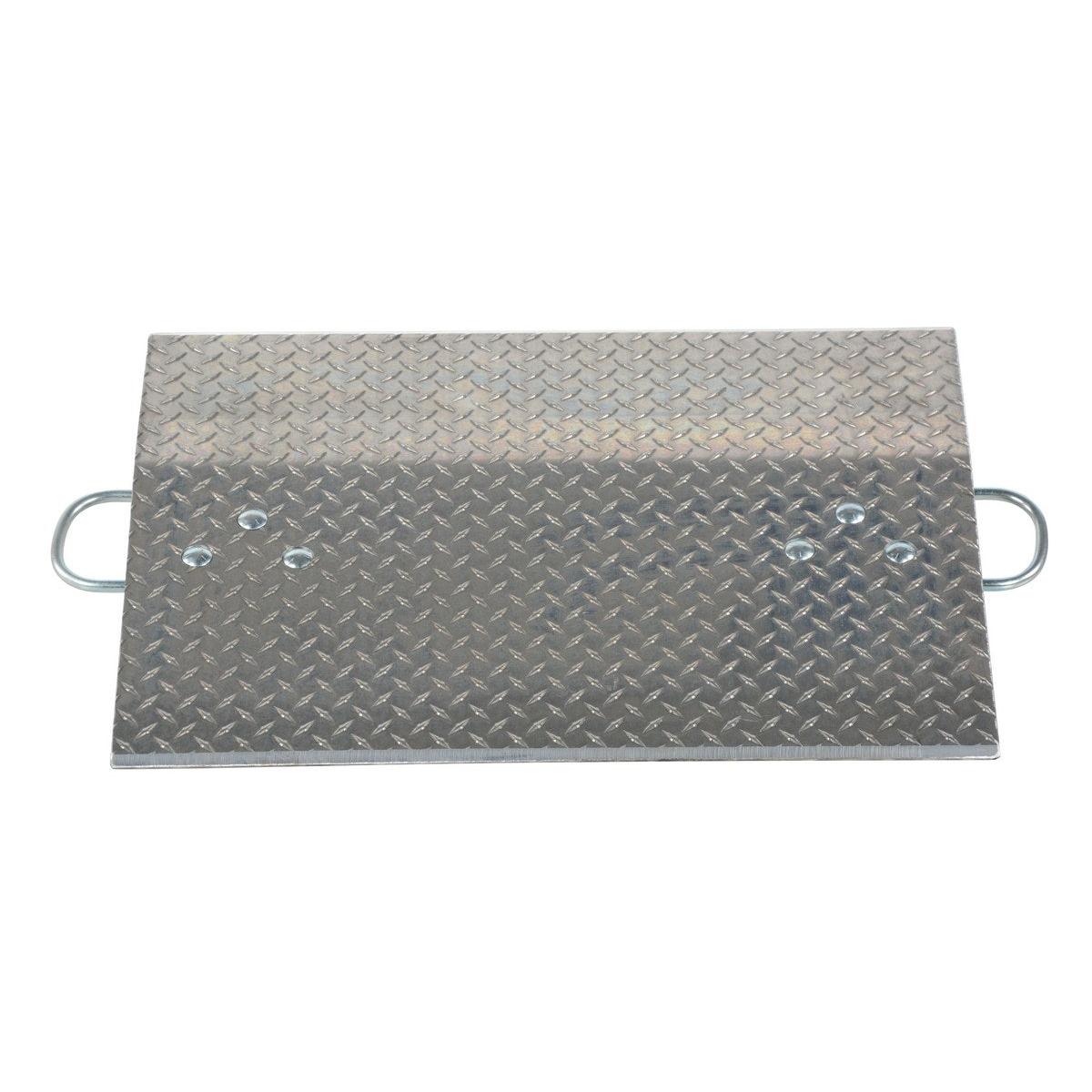

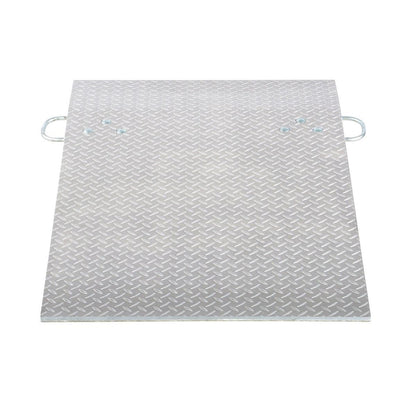

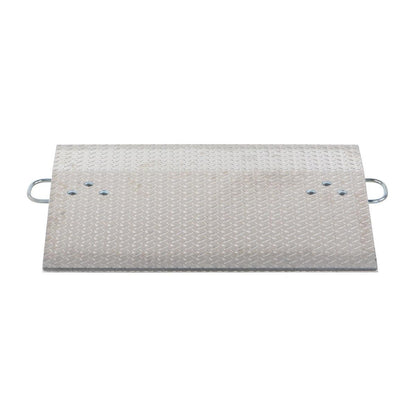

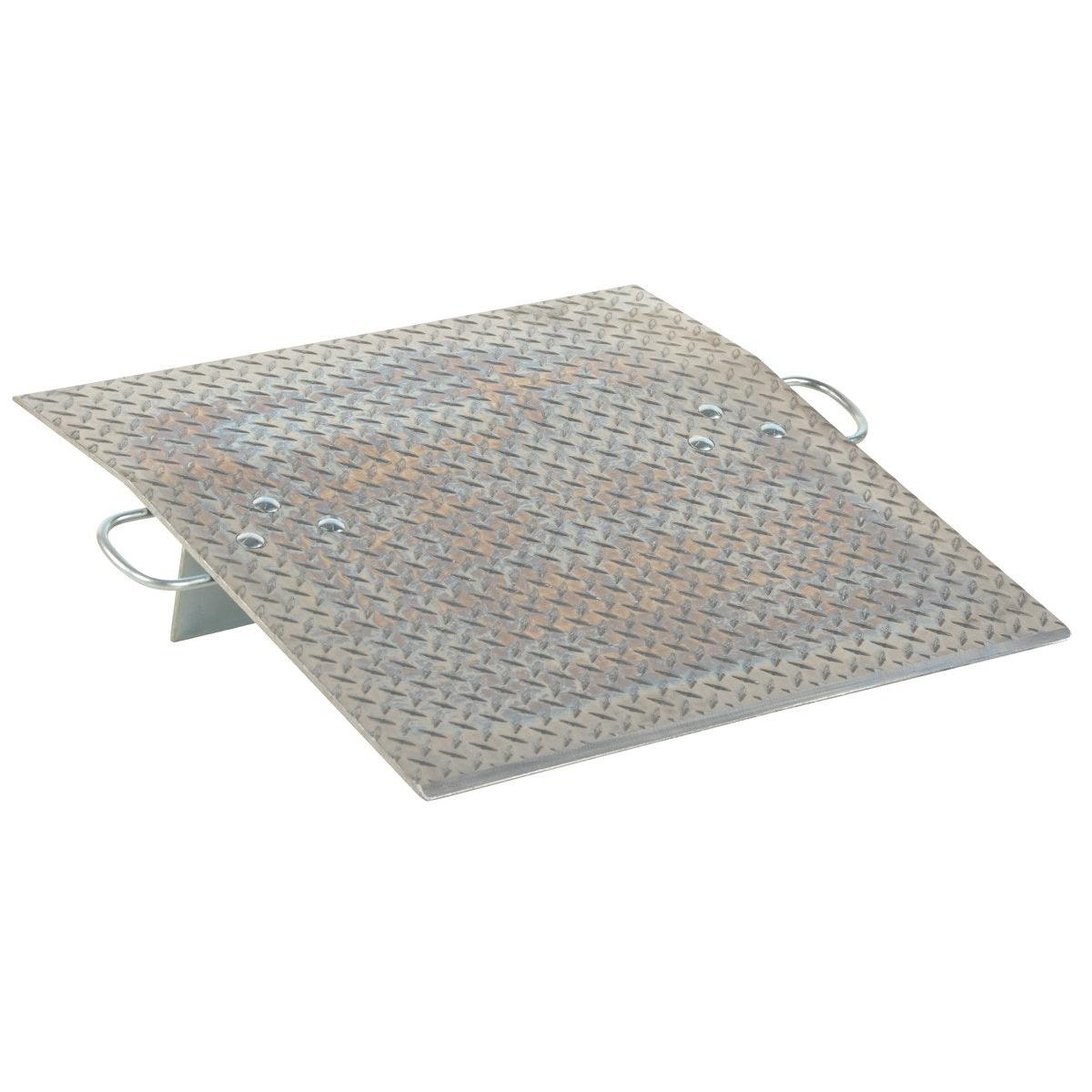

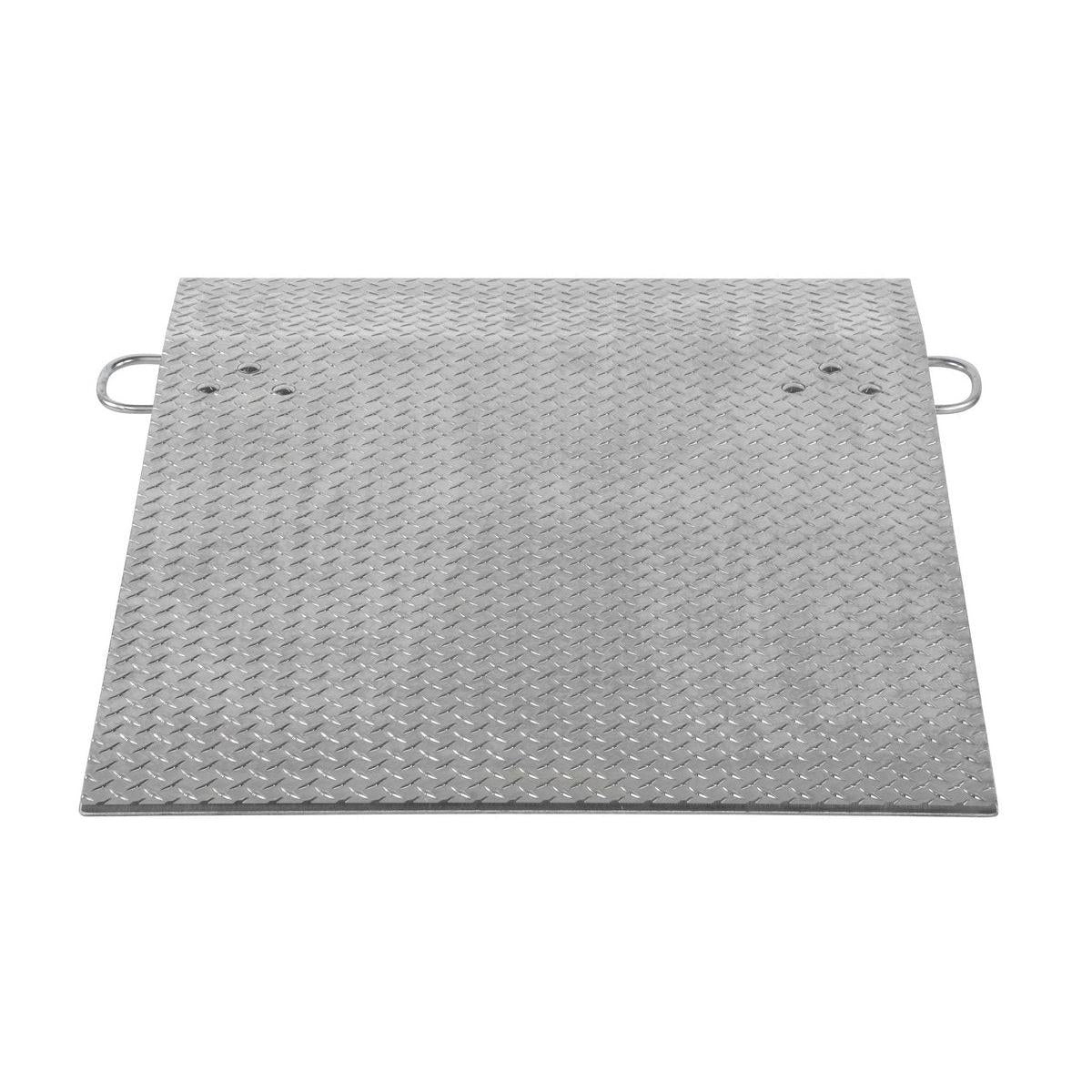

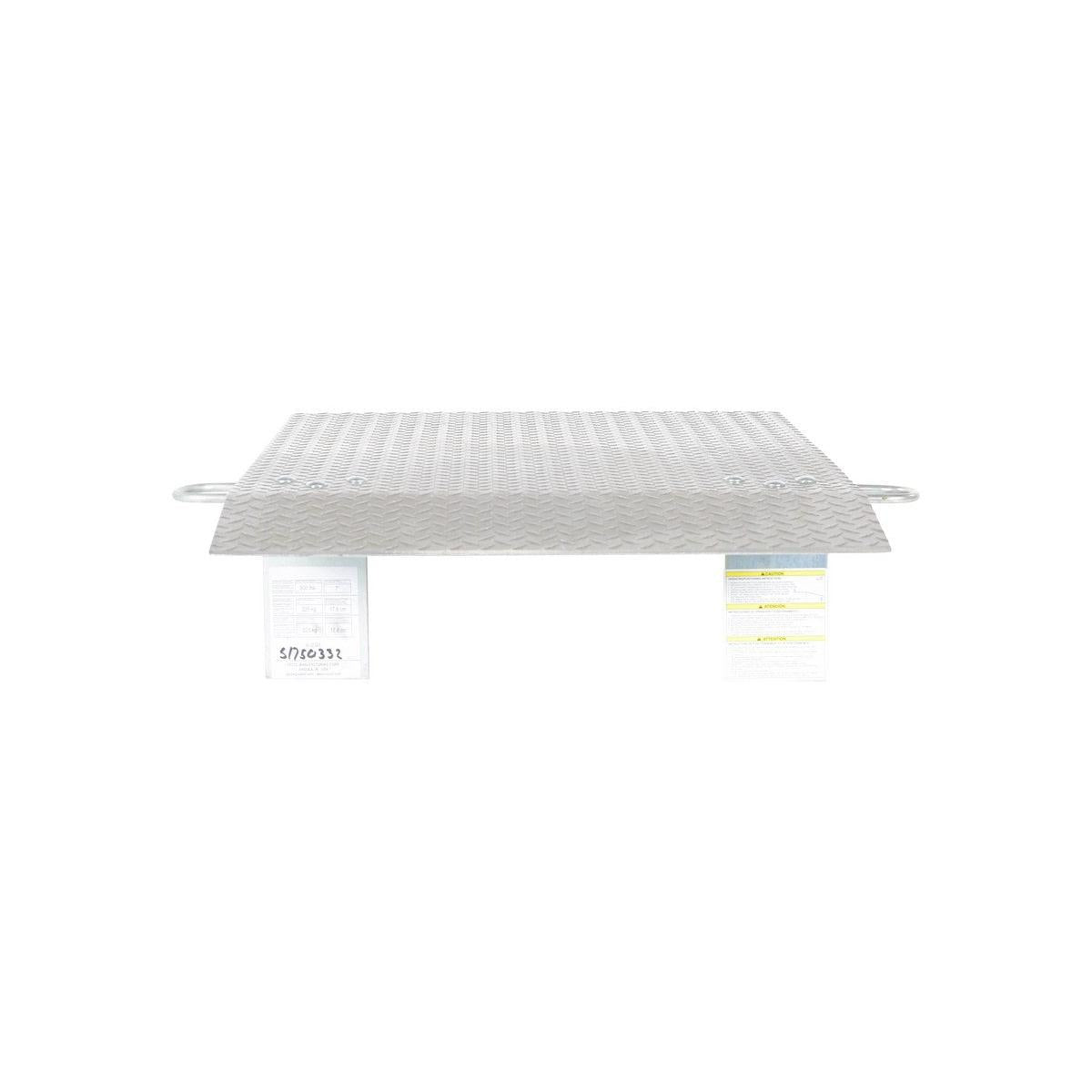

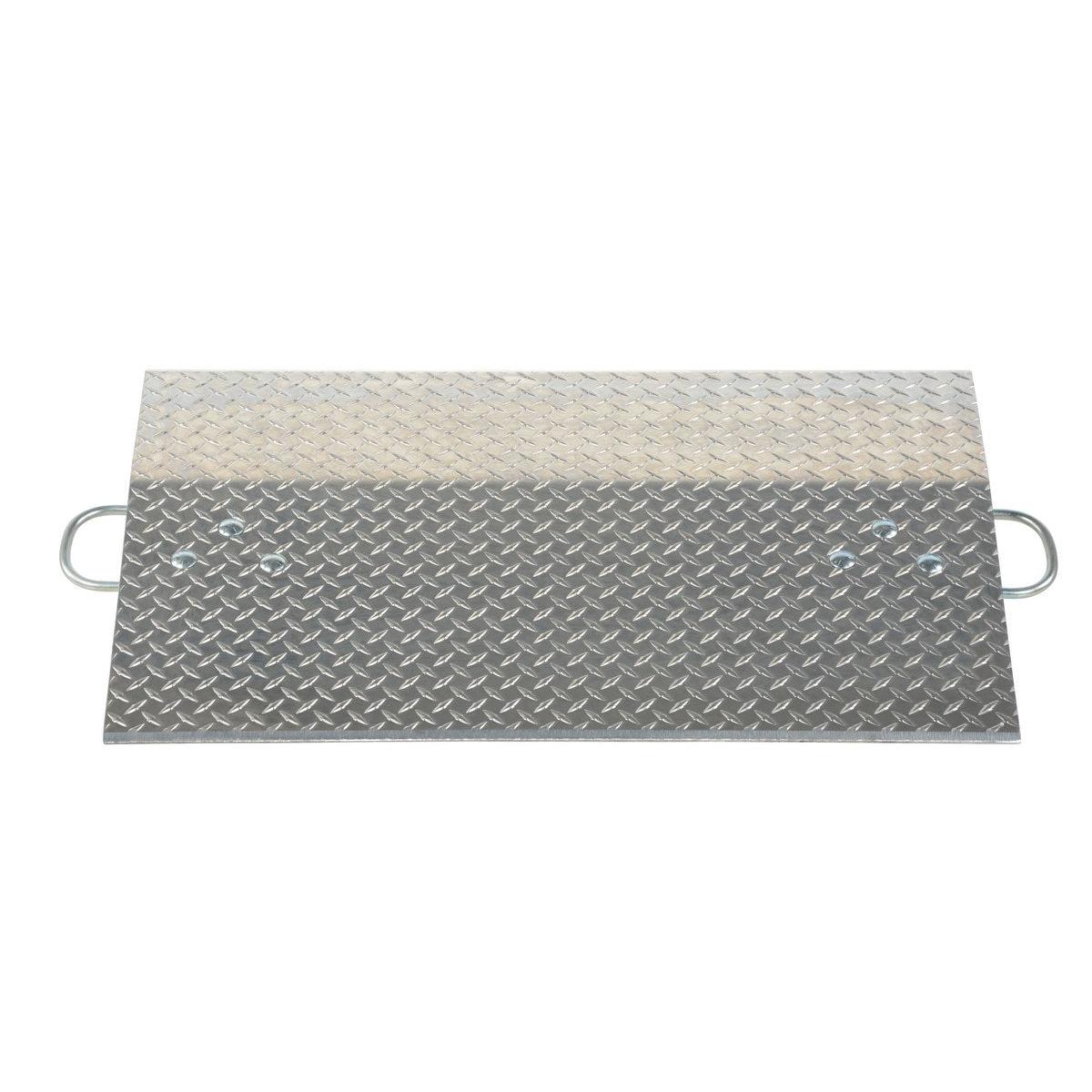

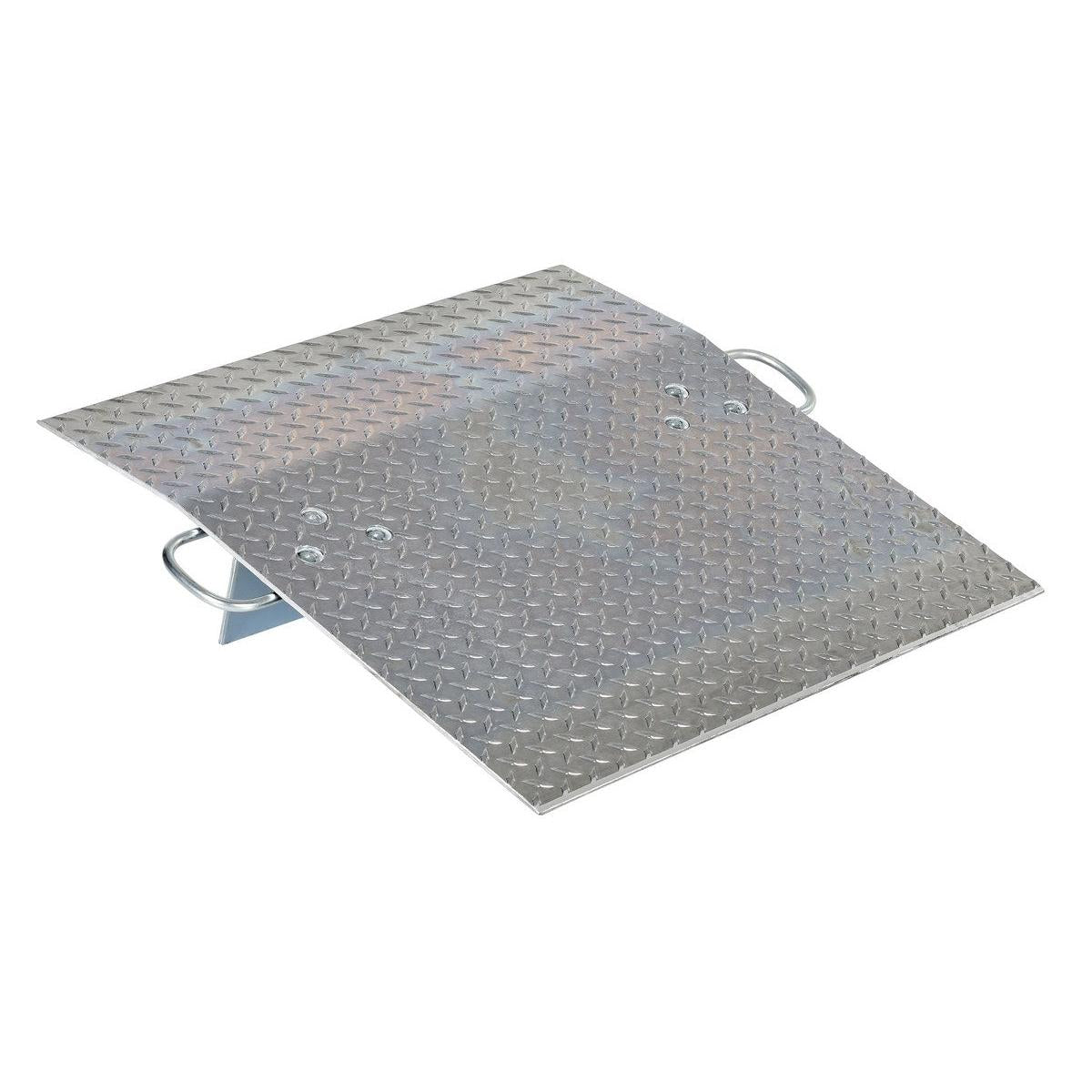

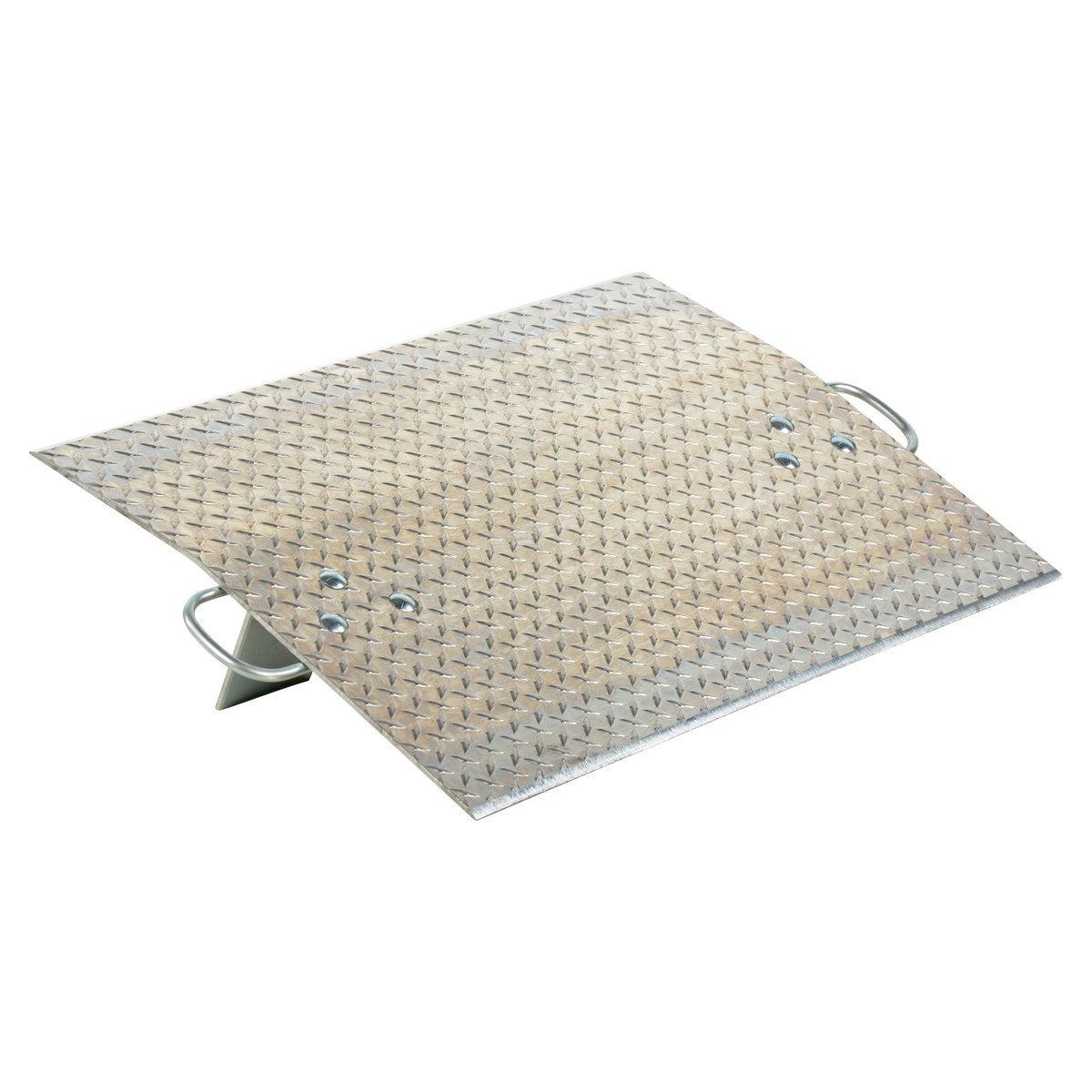

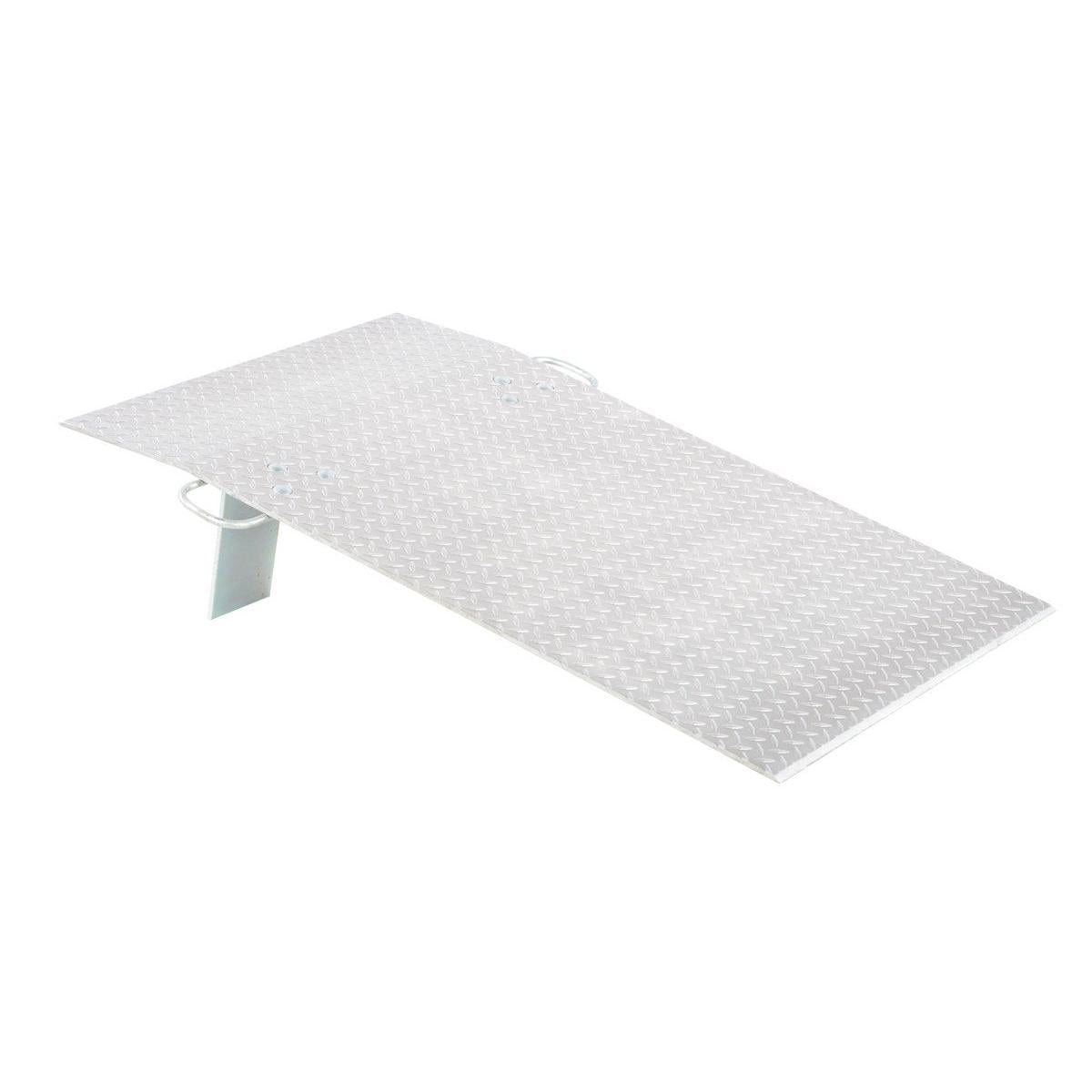

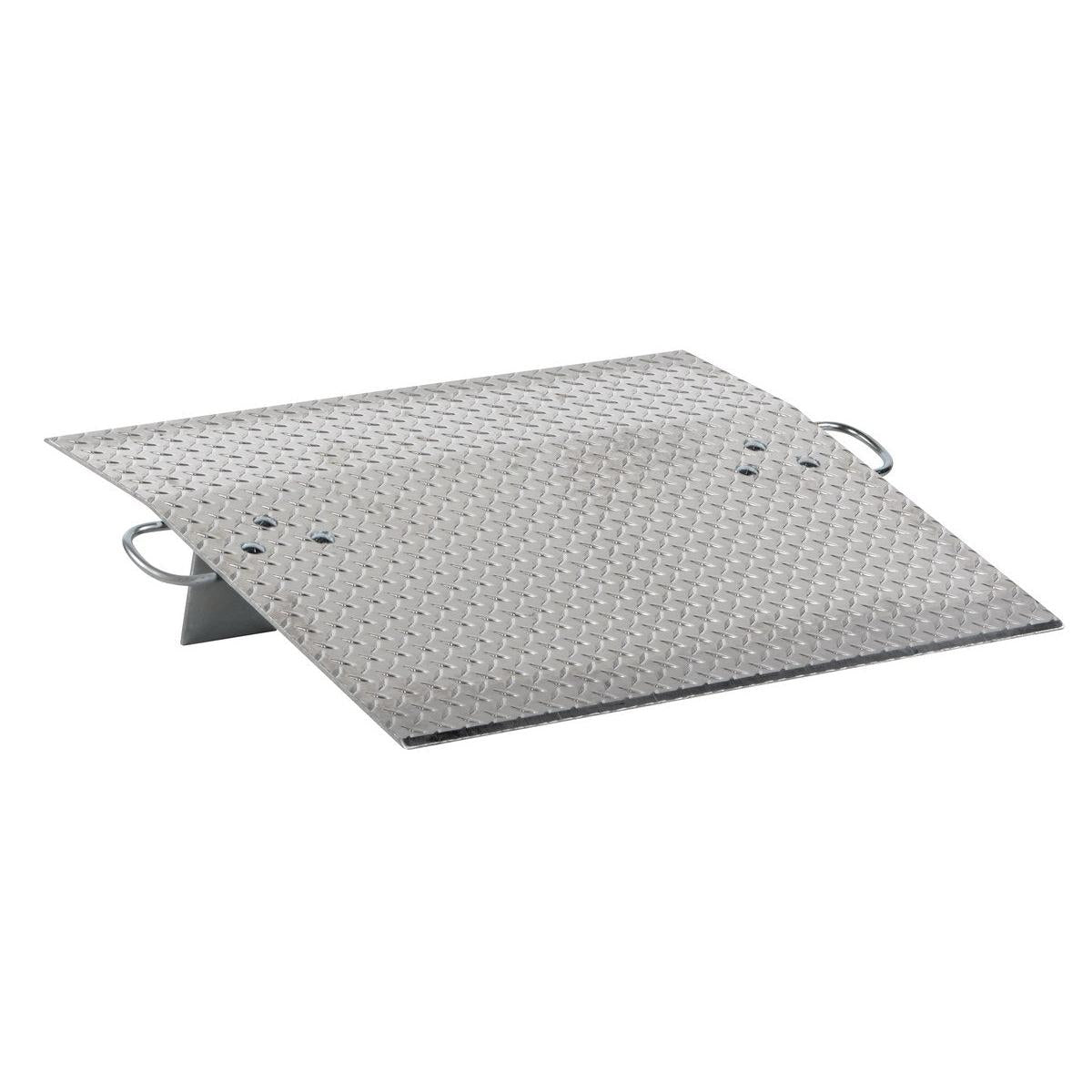

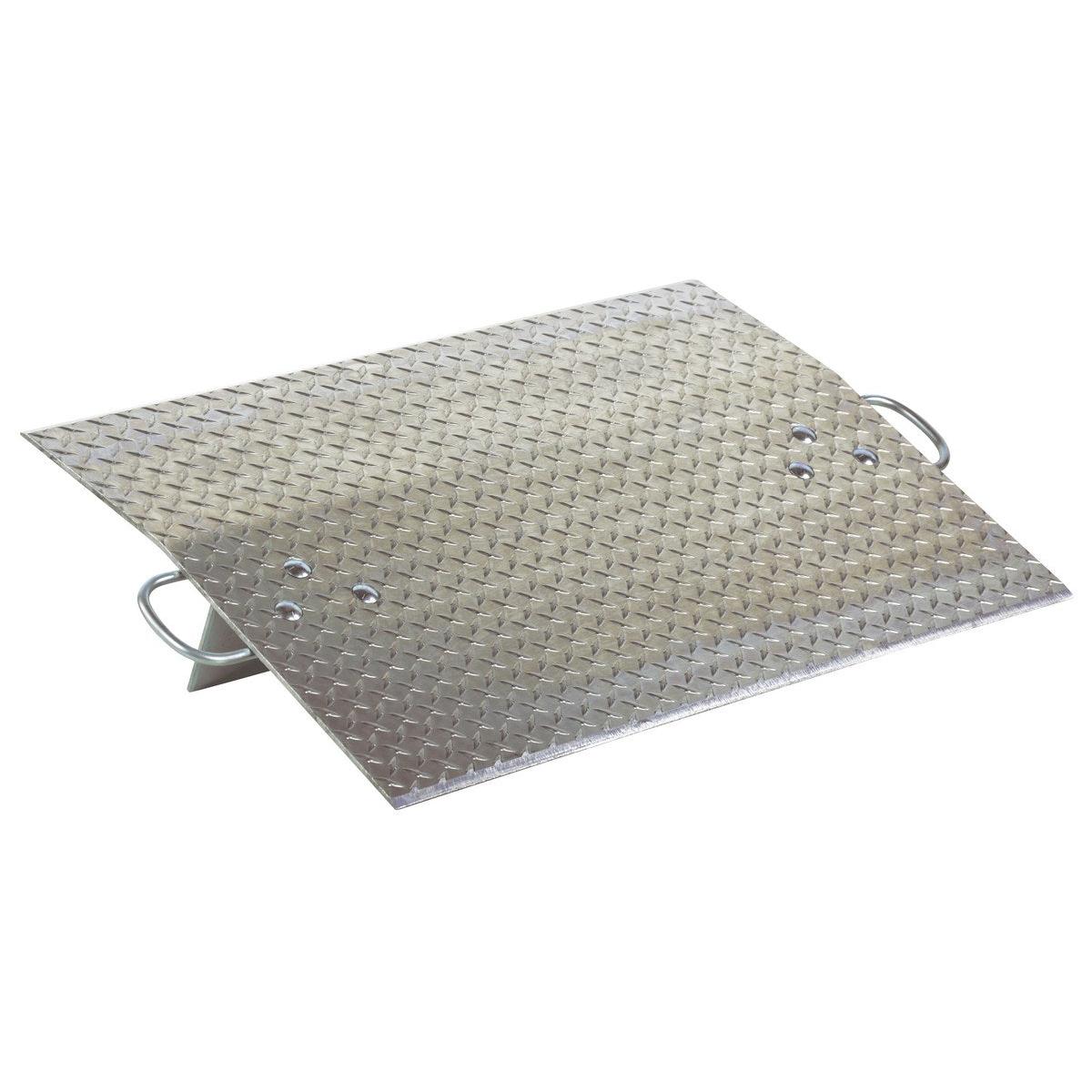

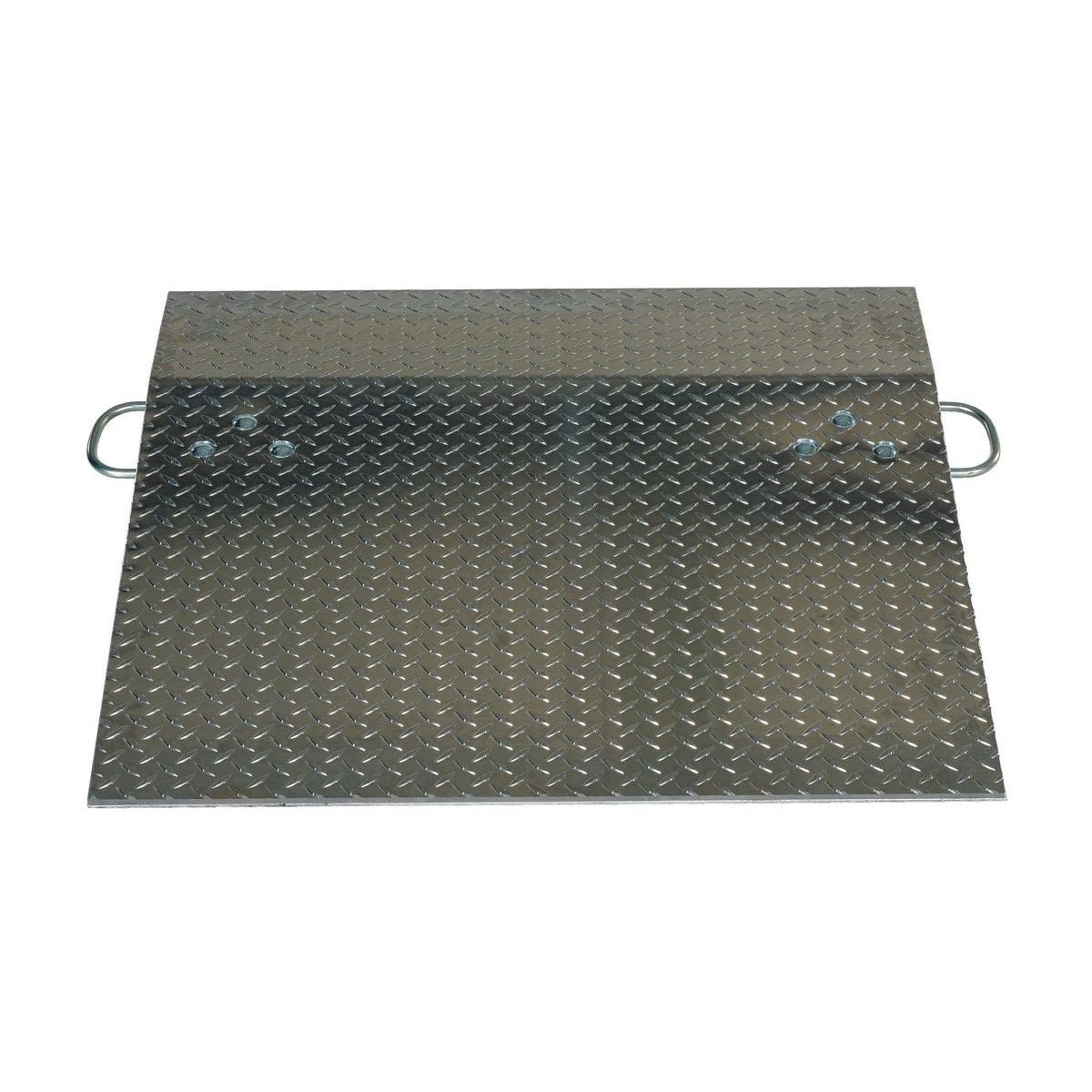

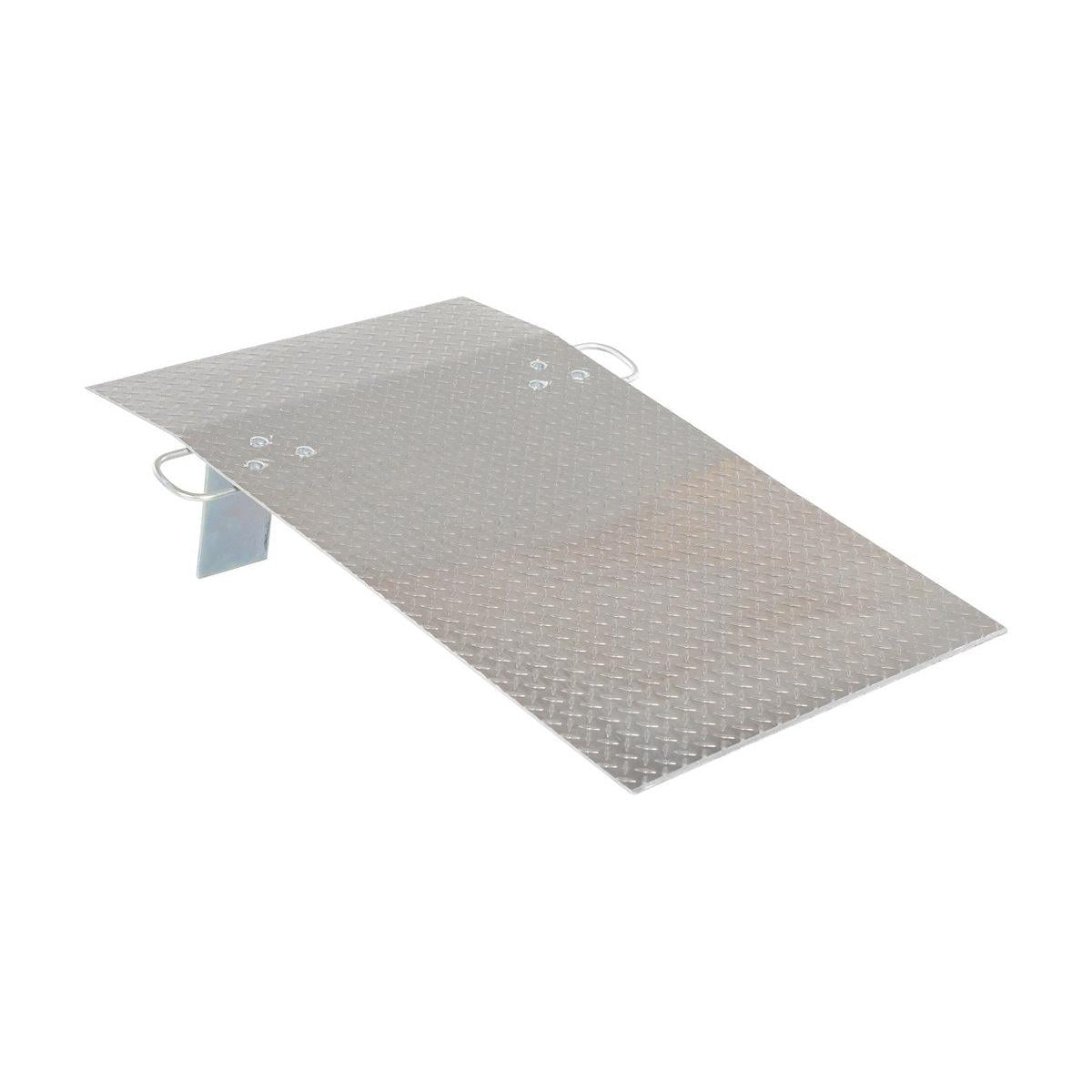

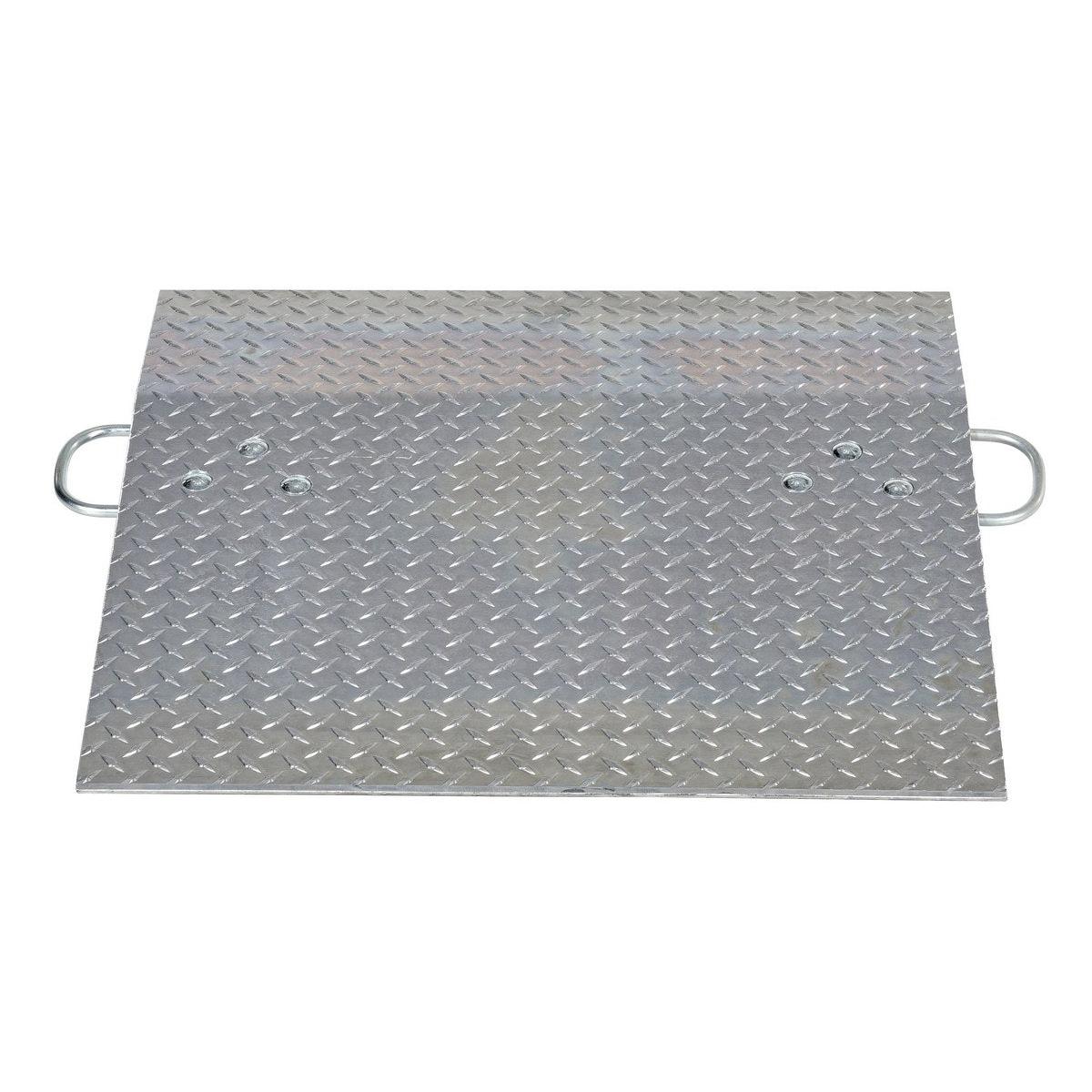

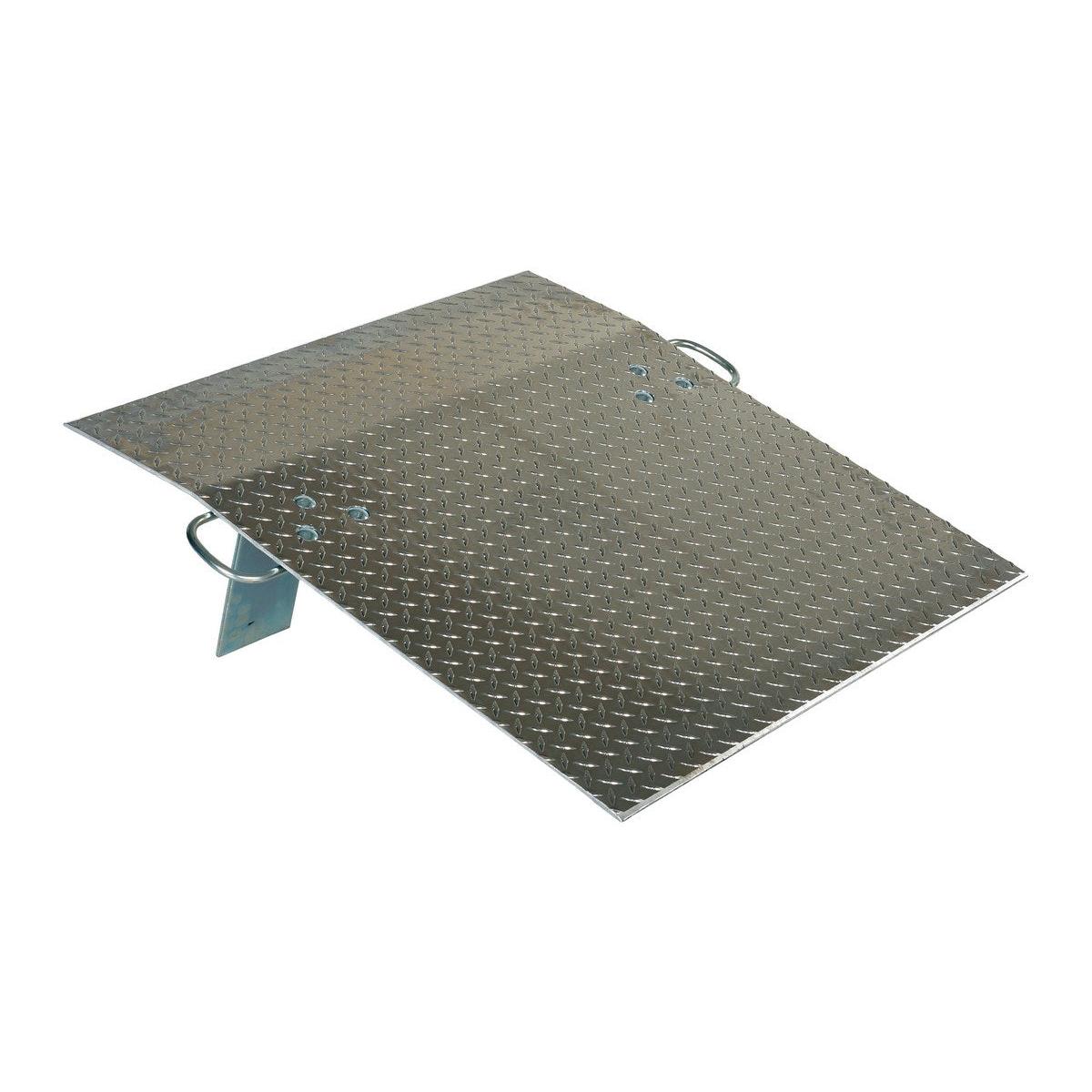

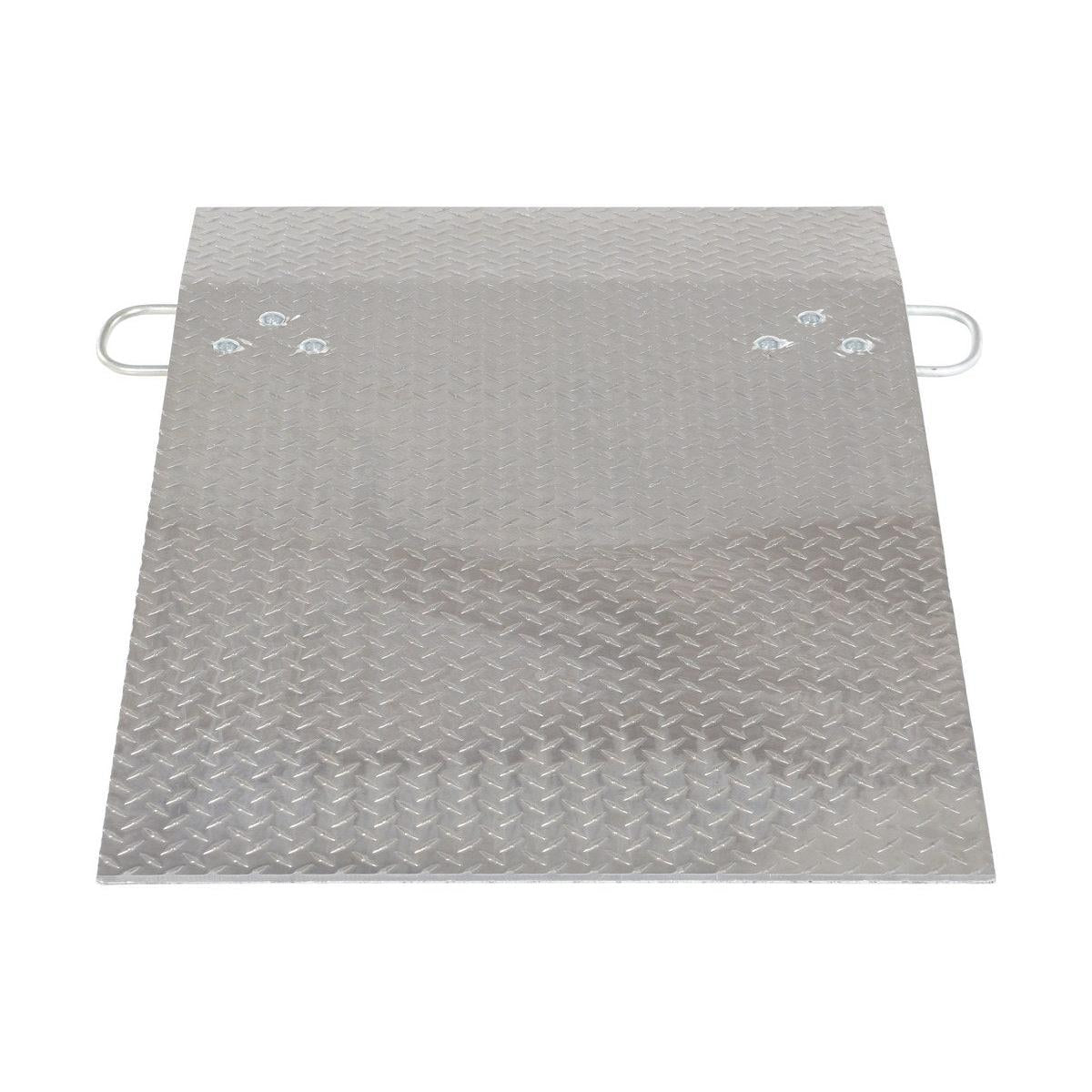

Aluminum Hand Truck Dockplates
Aluminum Hand Truck Dockplates
SKU:VES-A-3024
Free Shipping in the Lower 48 States
- Call or Email us for large QTY quotes
Couldn't load pickup availability

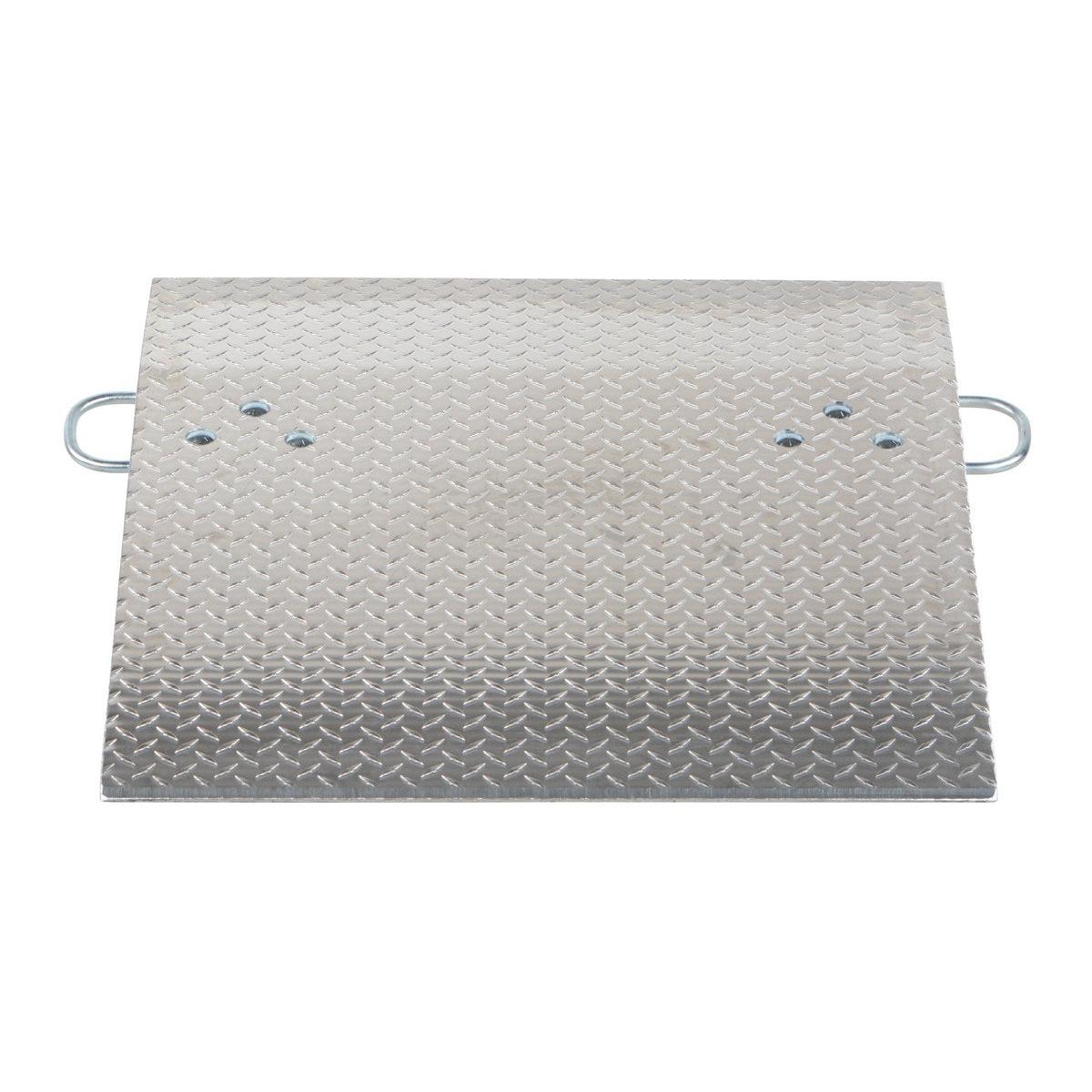

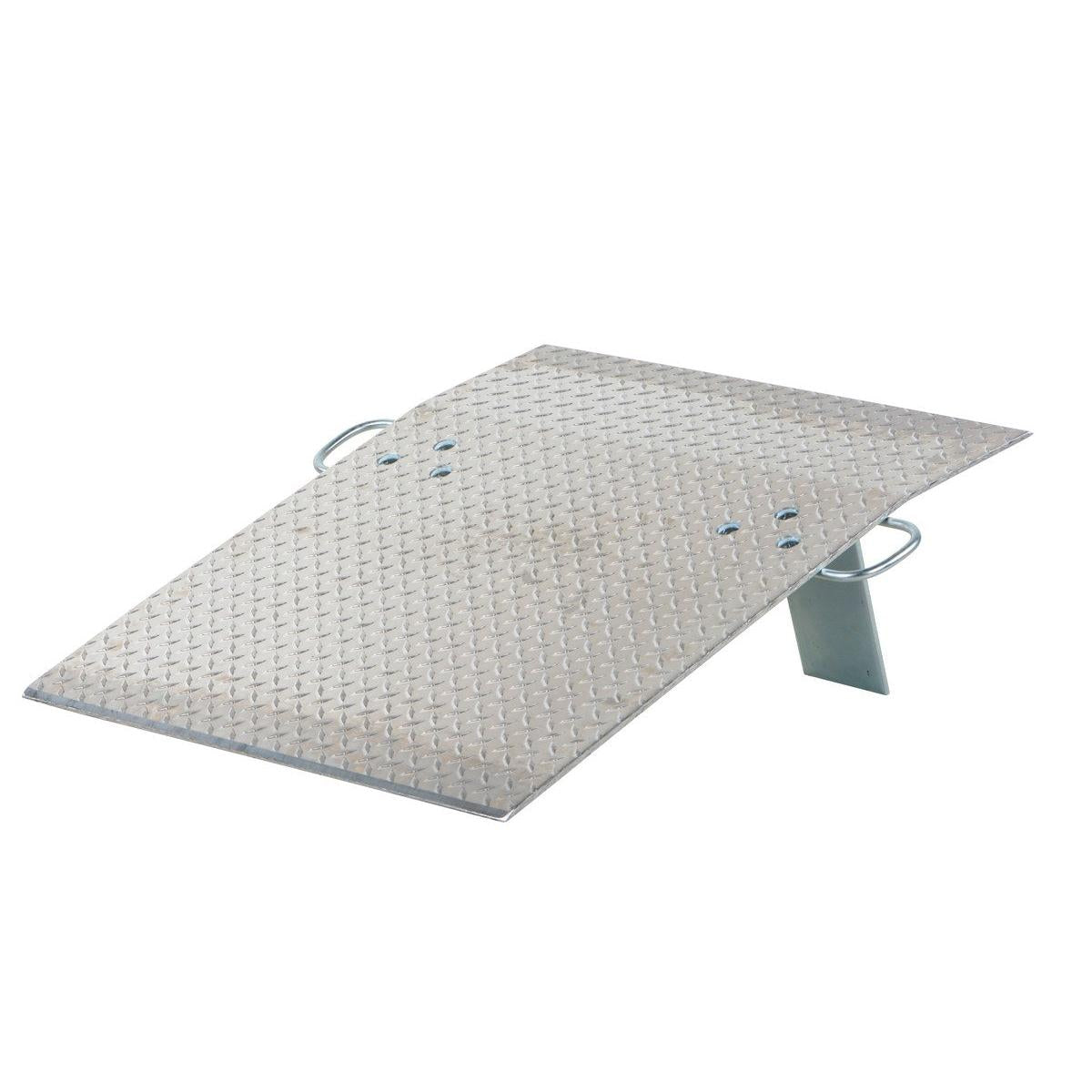

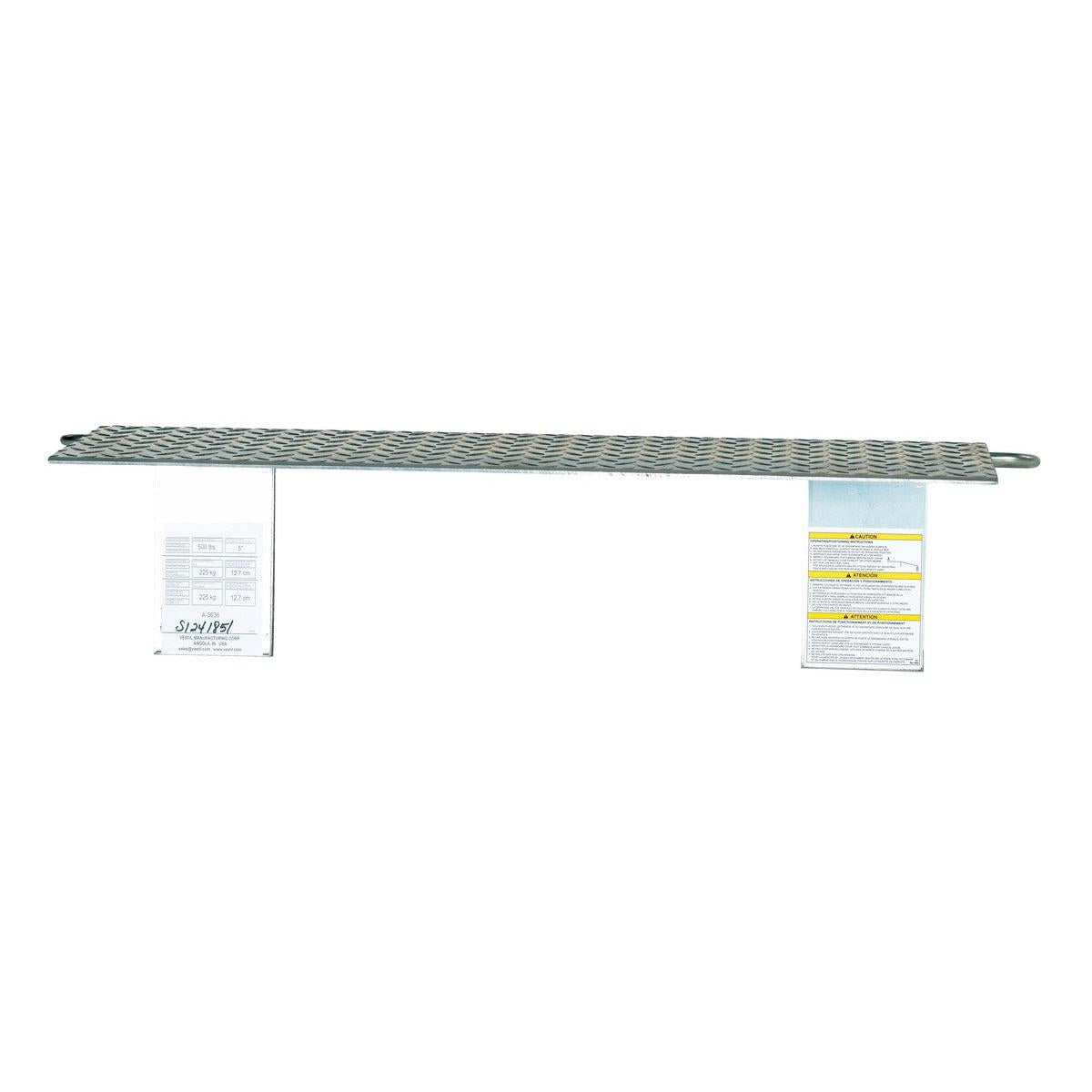

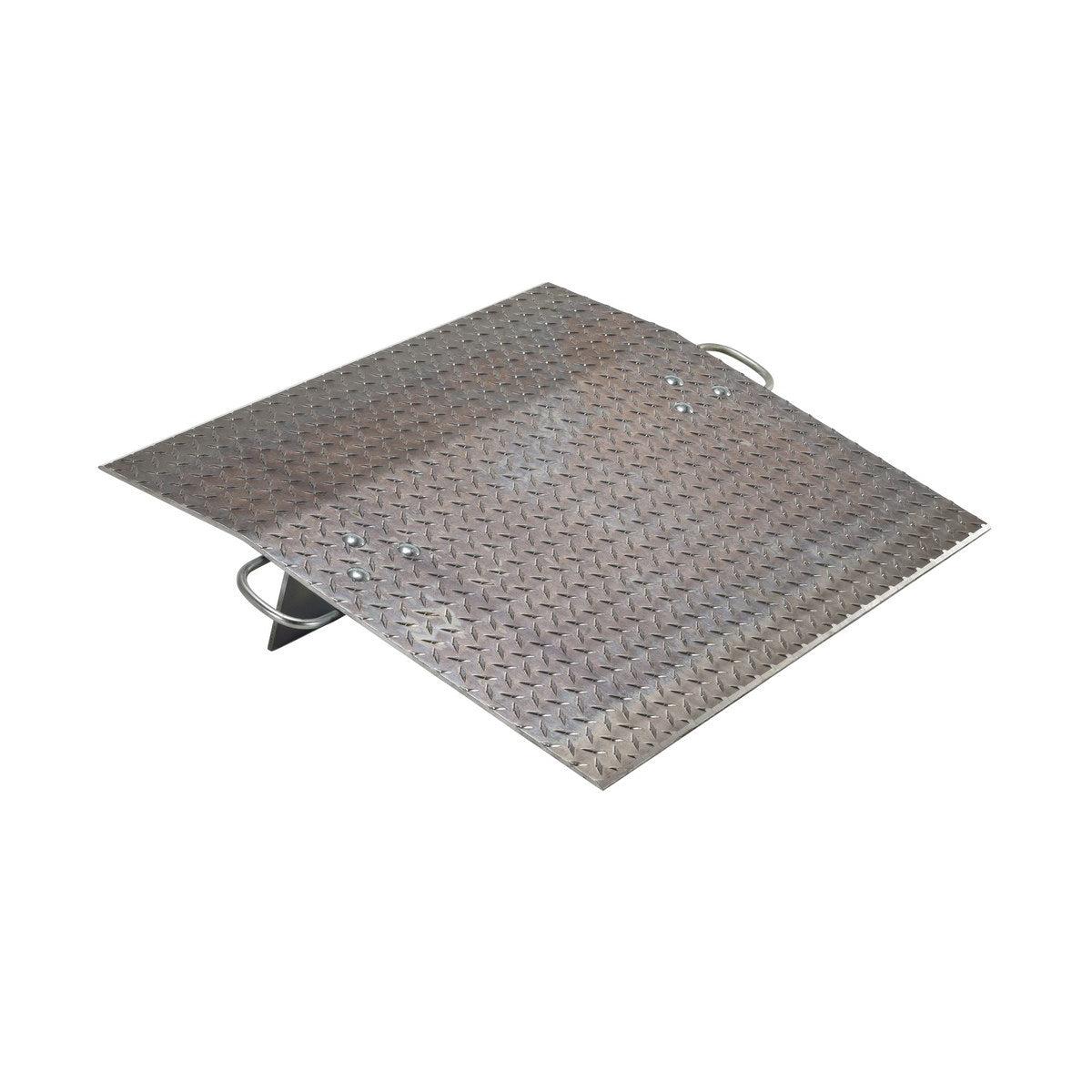

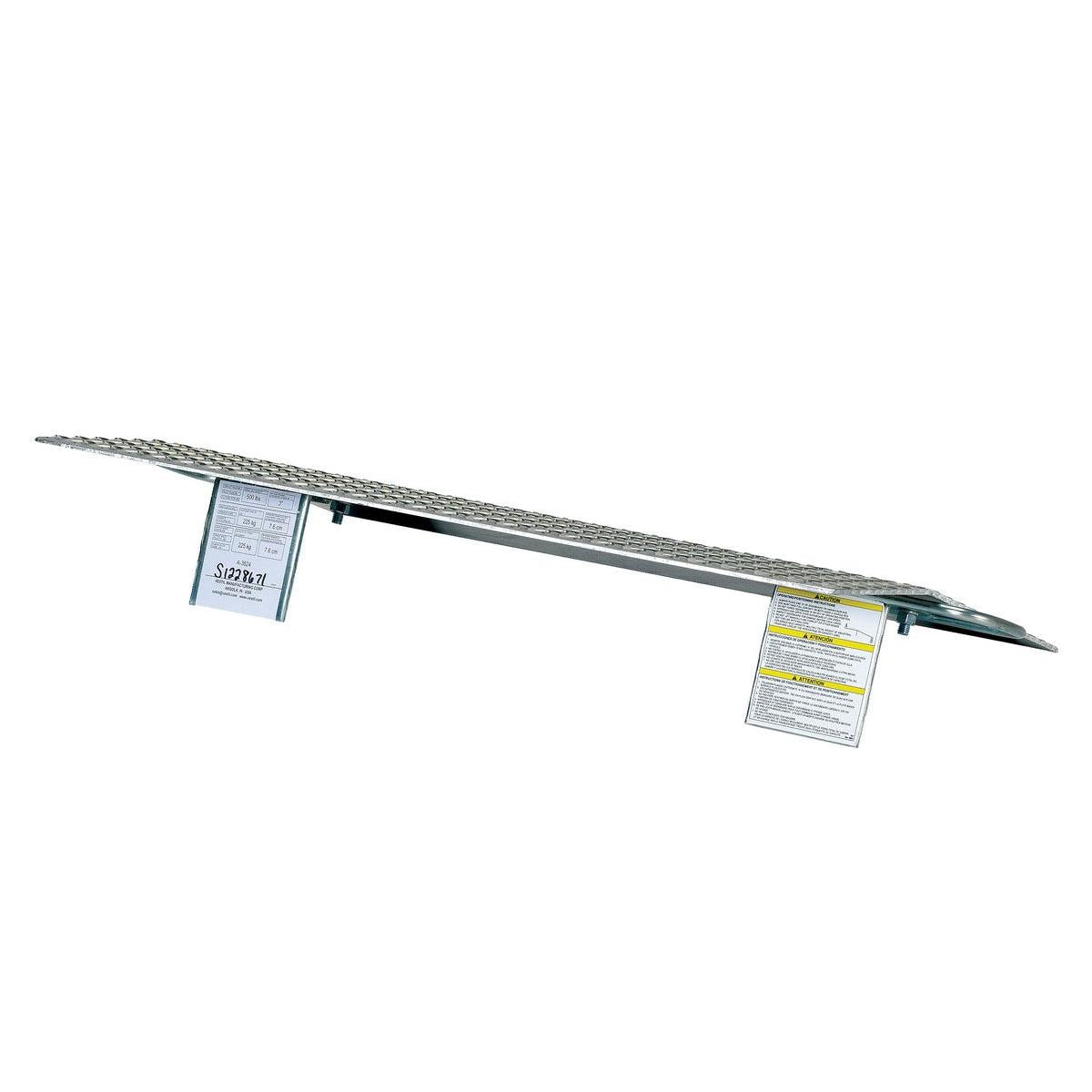

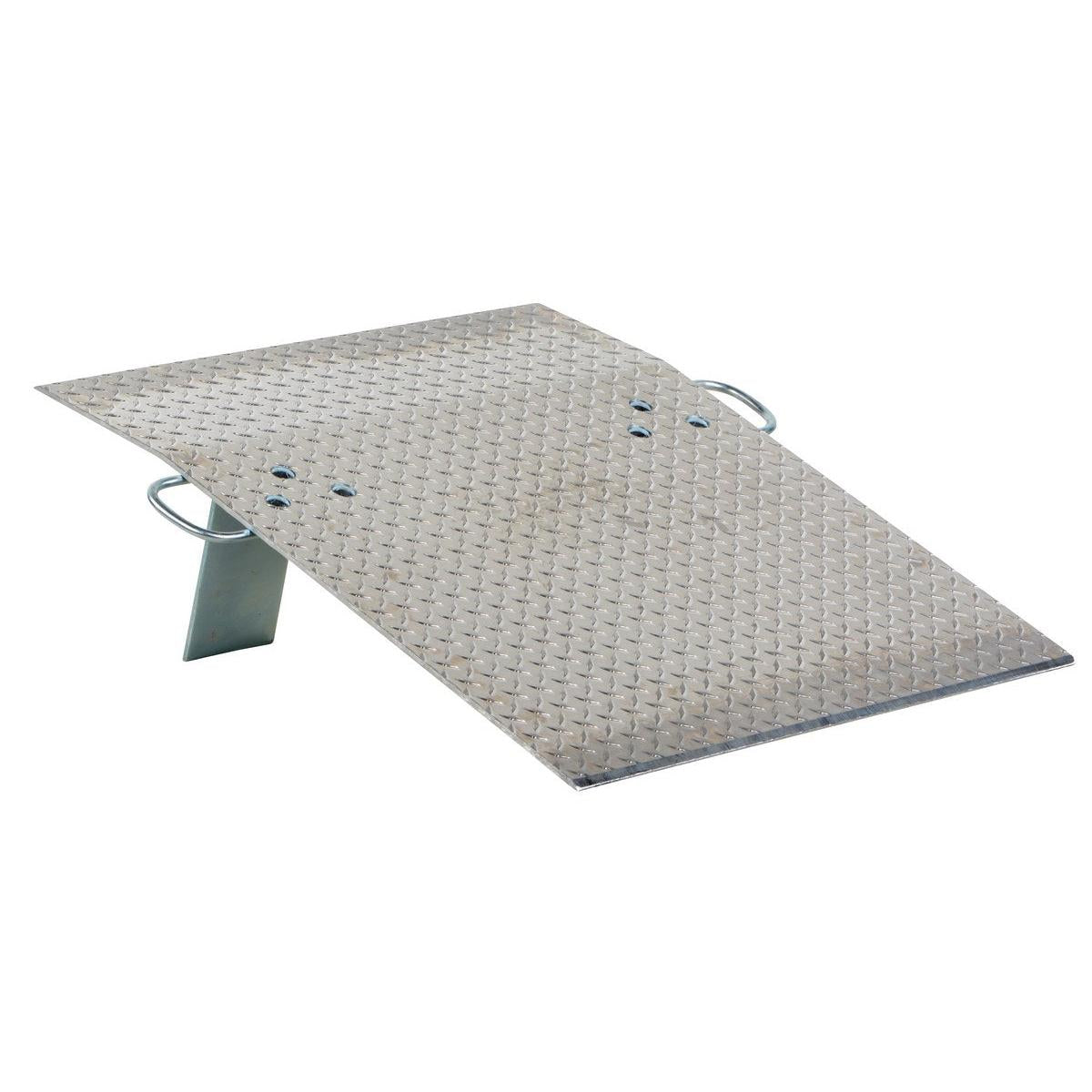

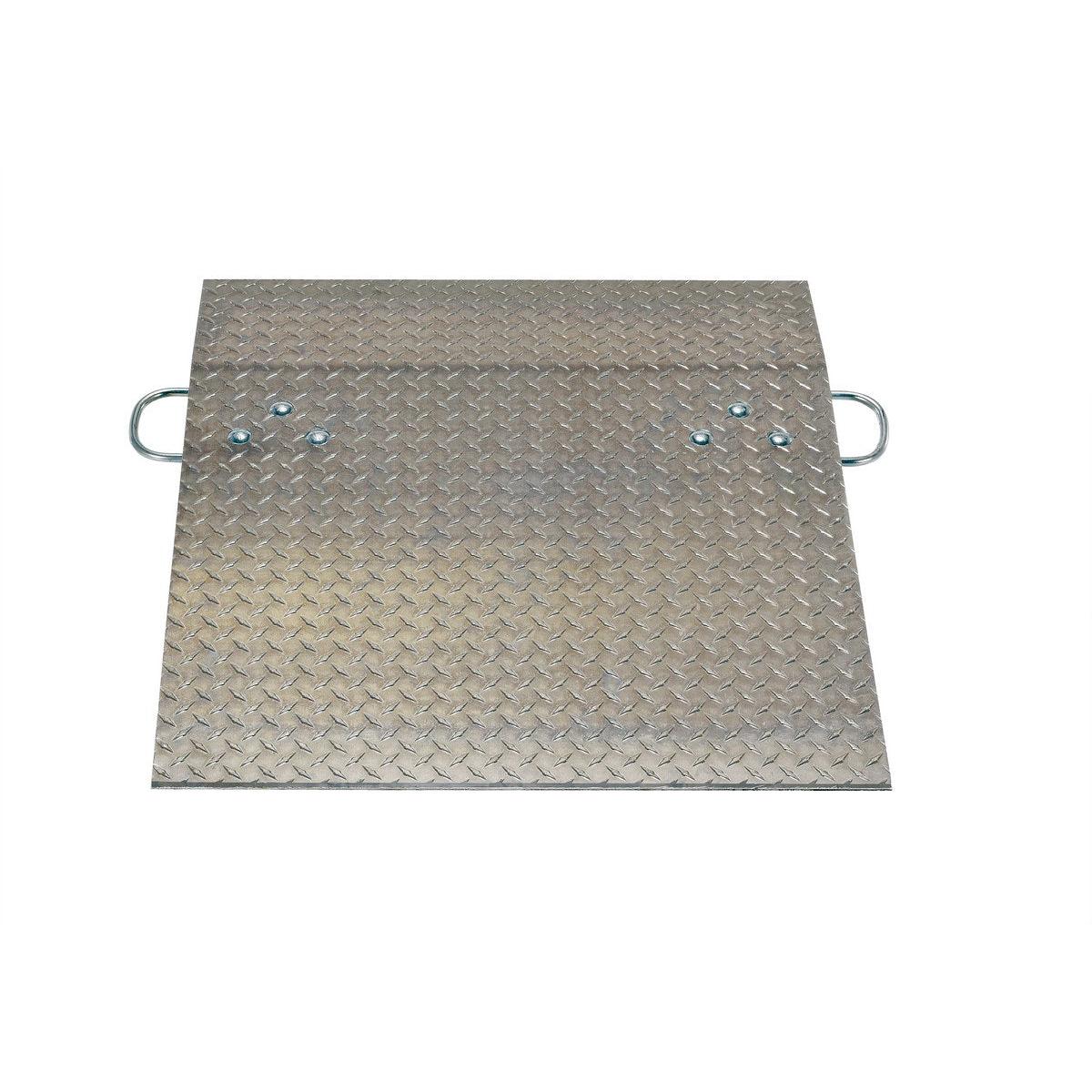

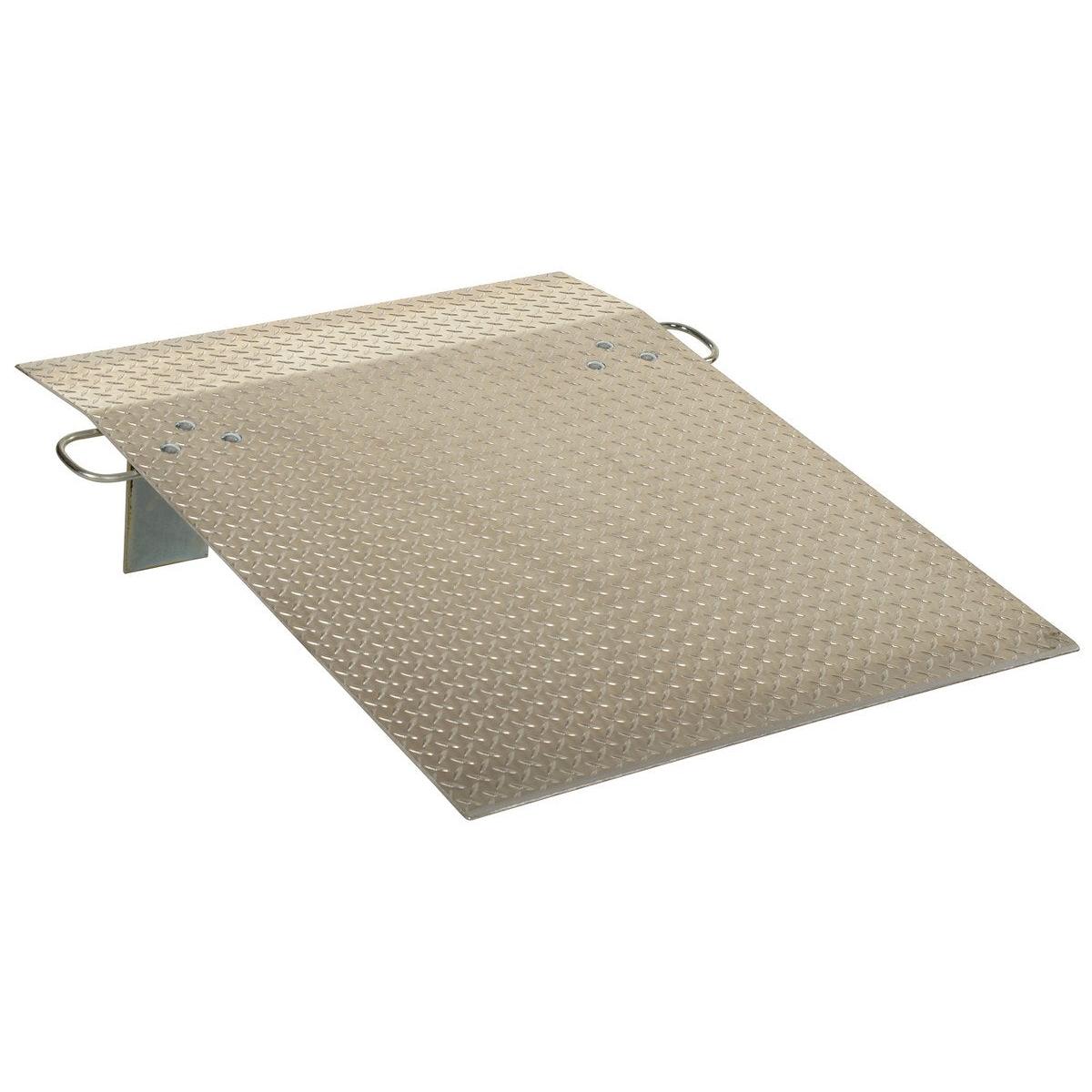

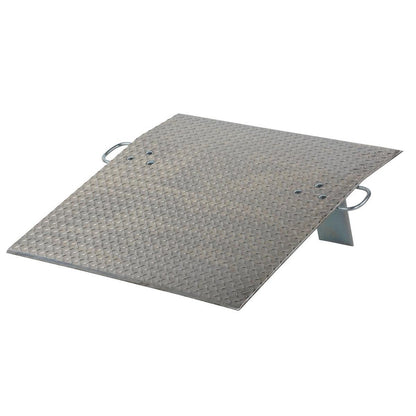

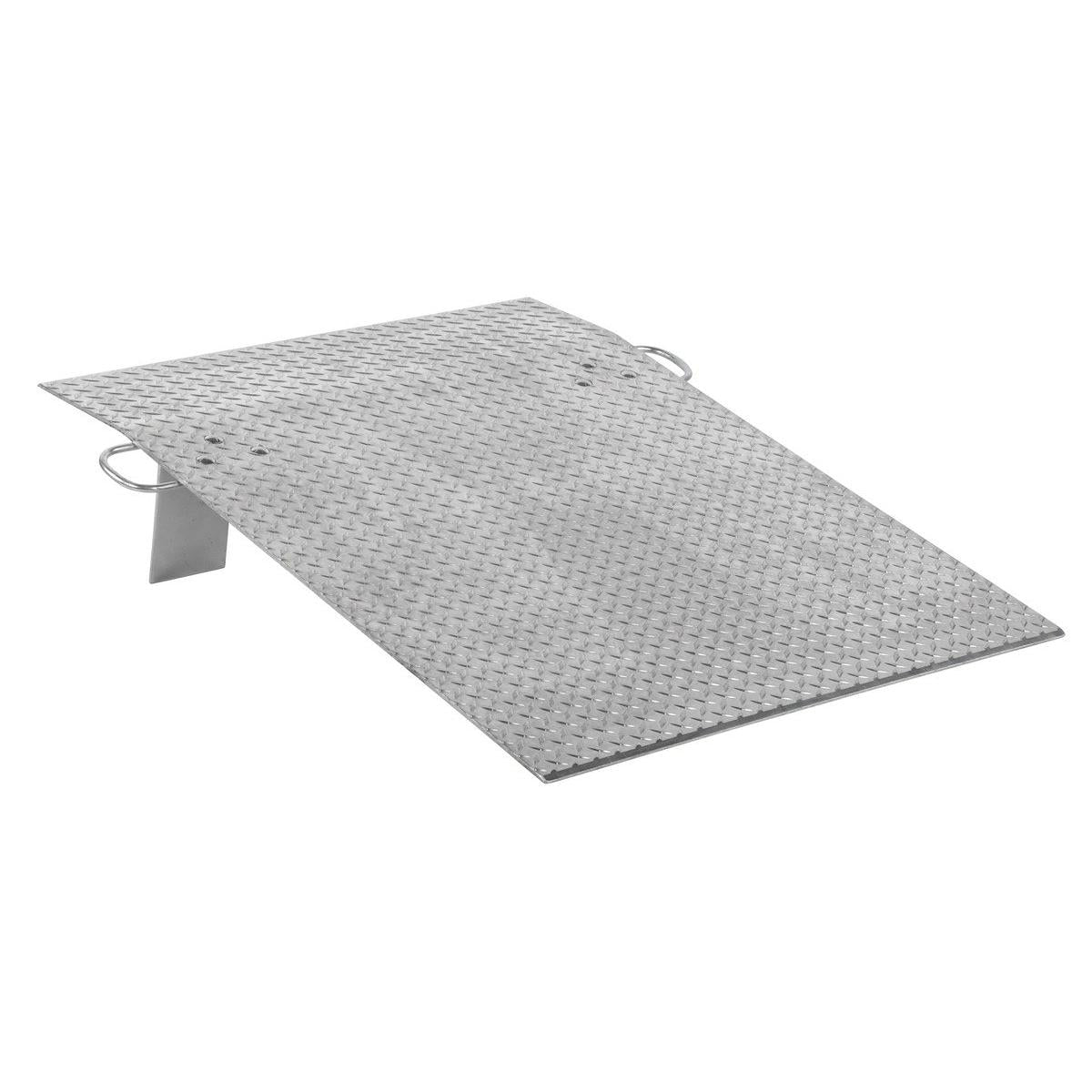

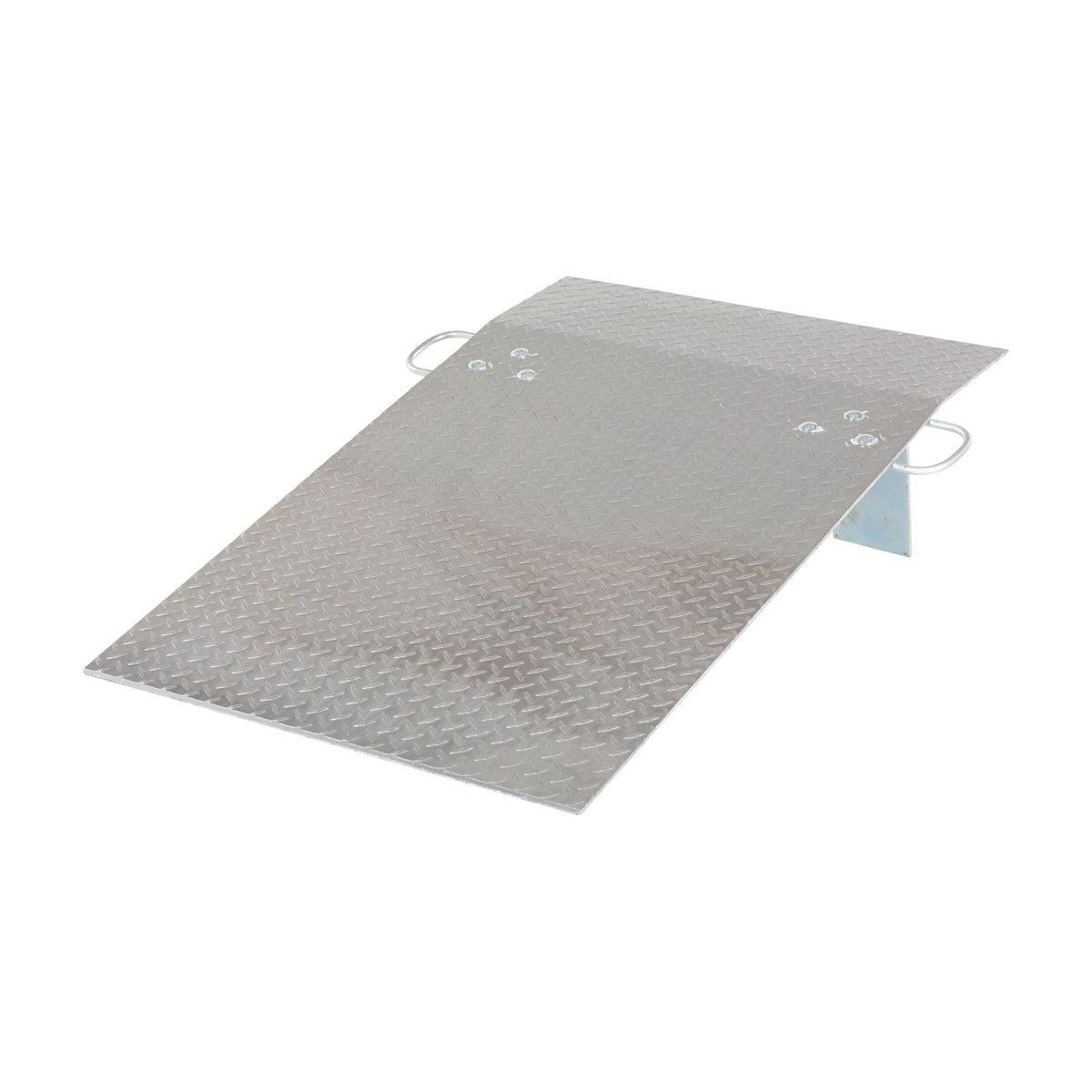

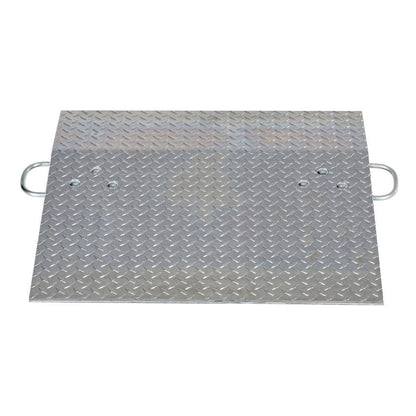

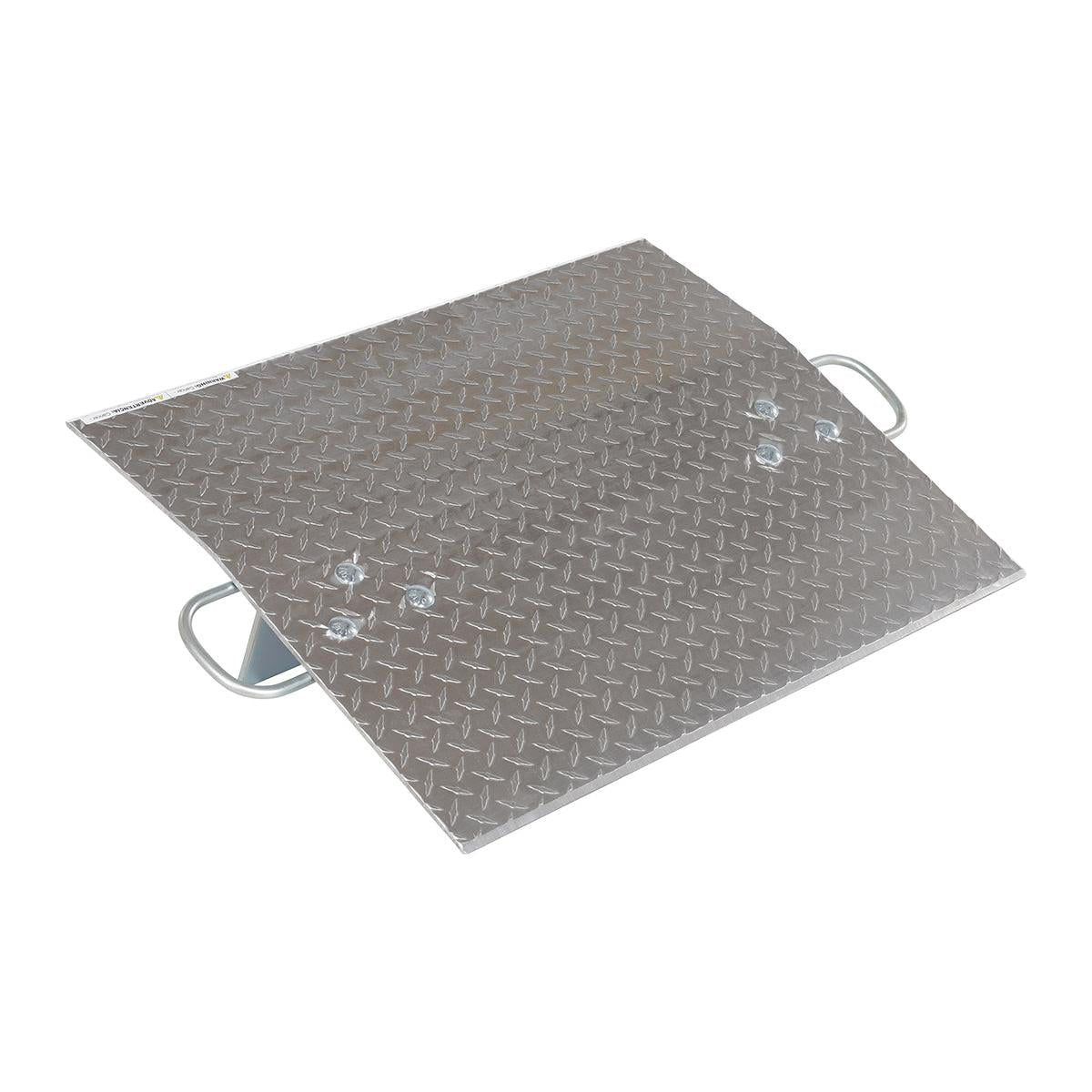

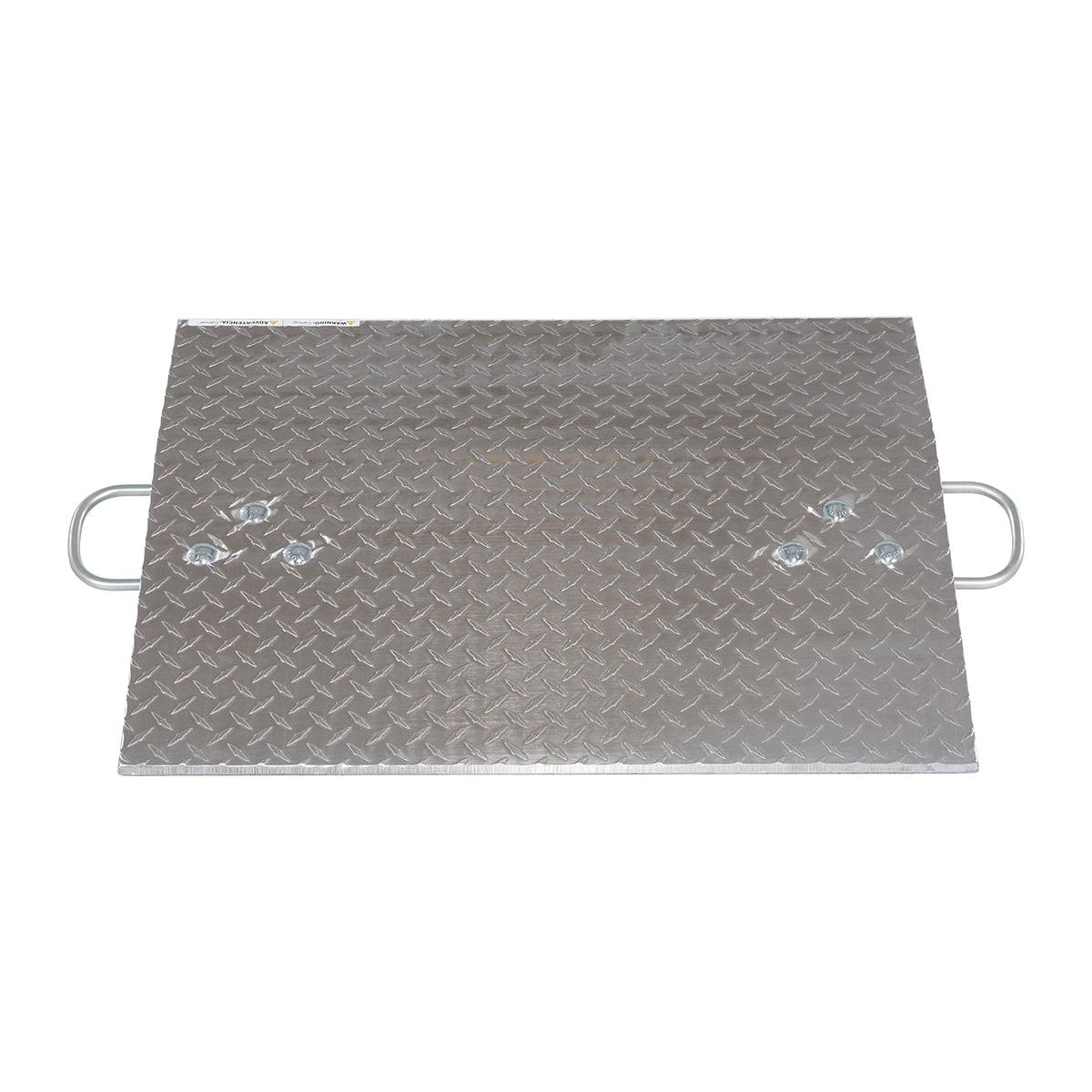

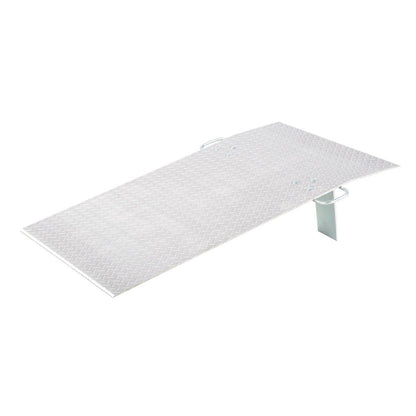

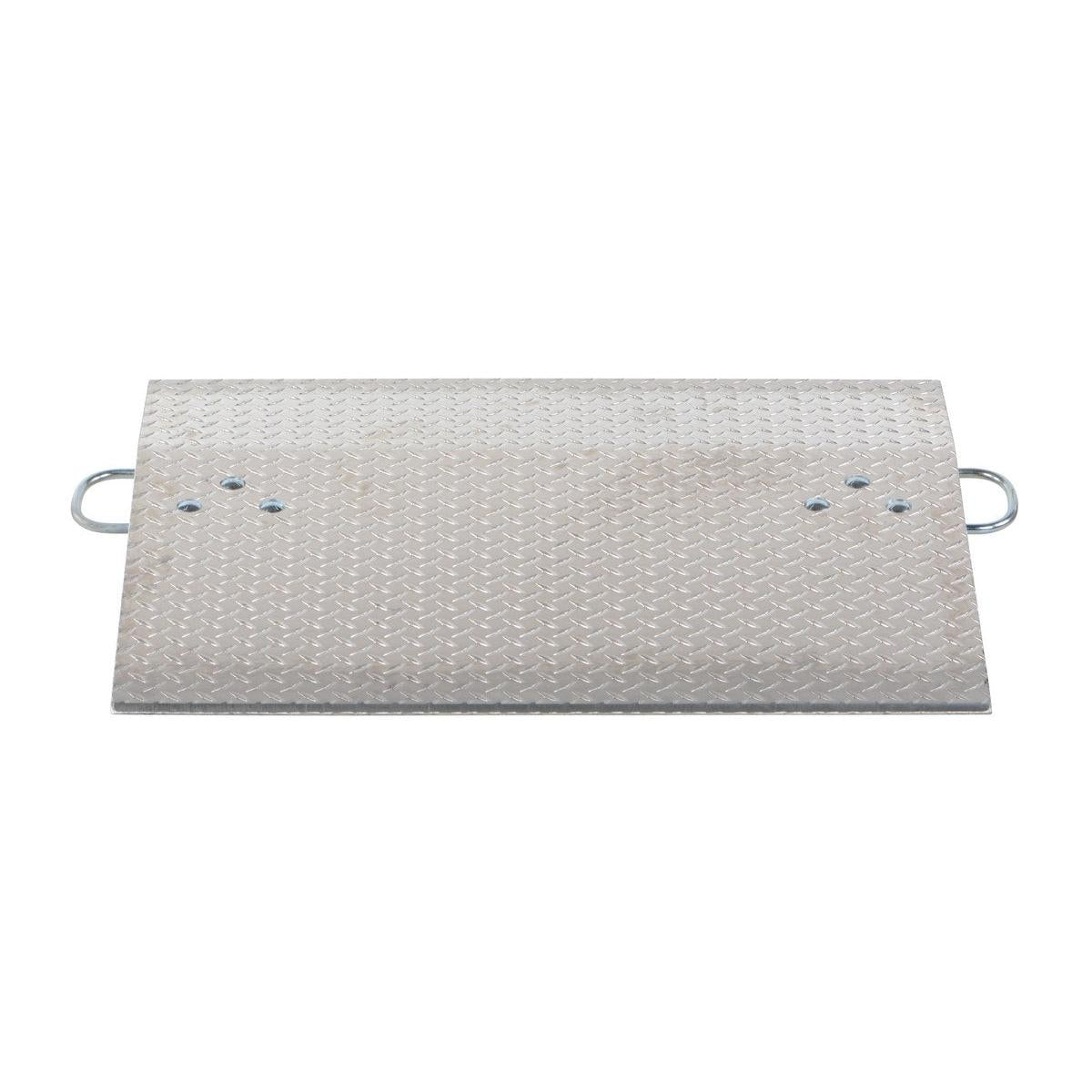

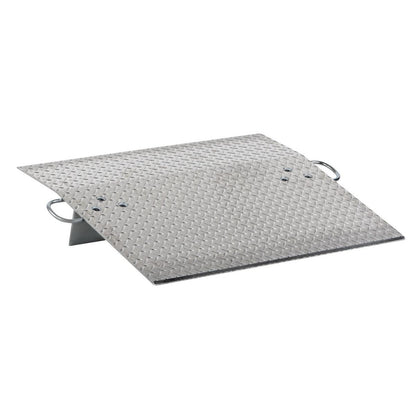

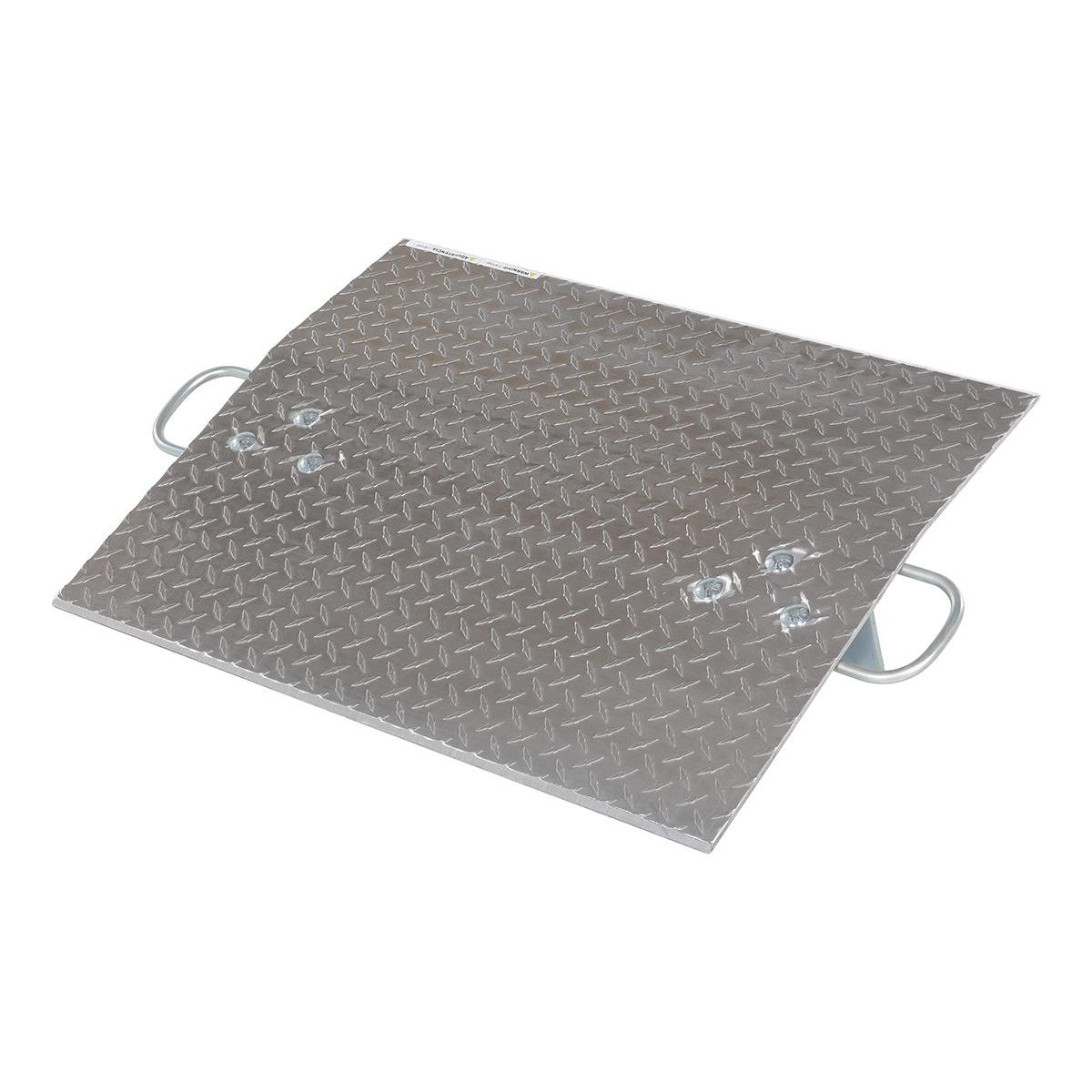

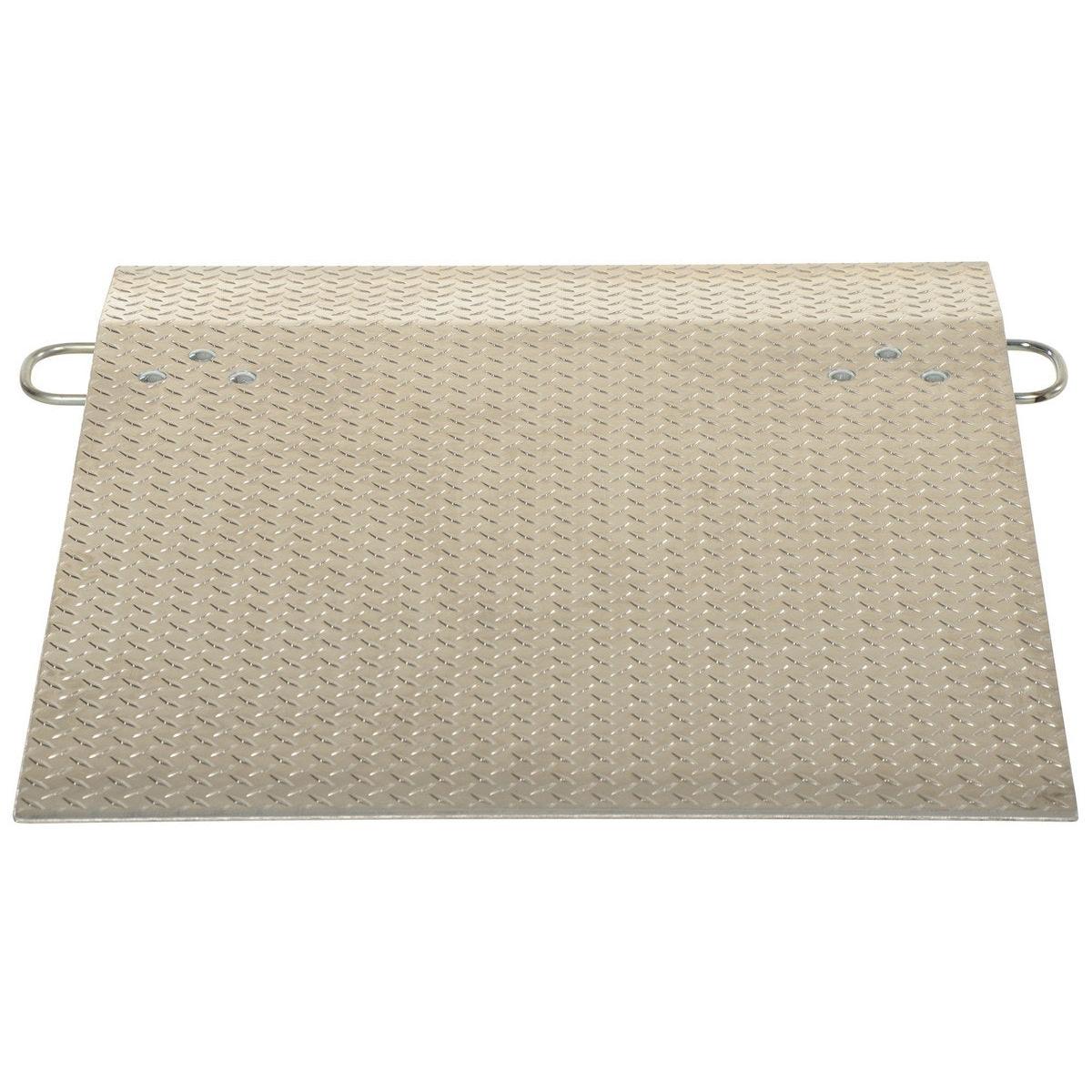

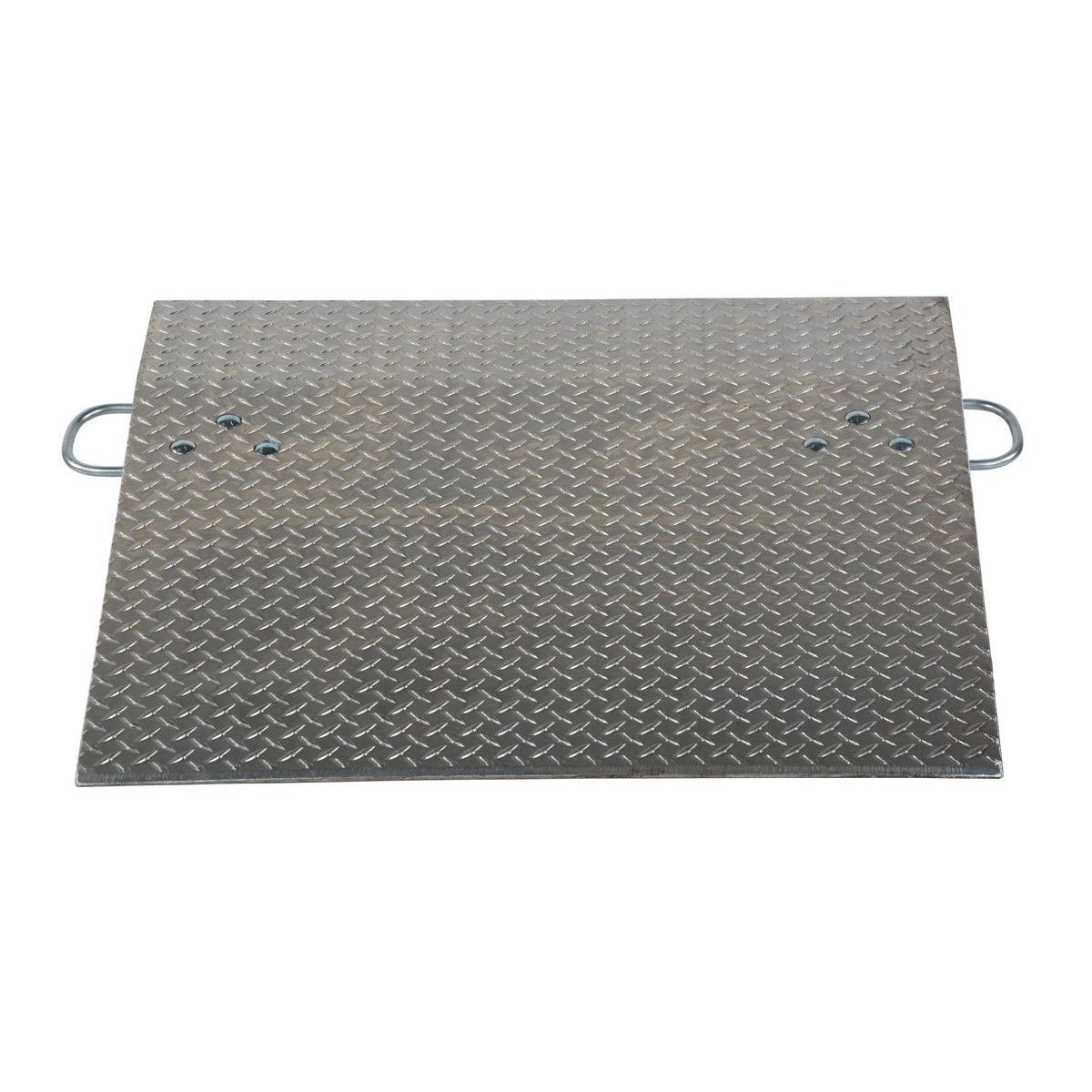

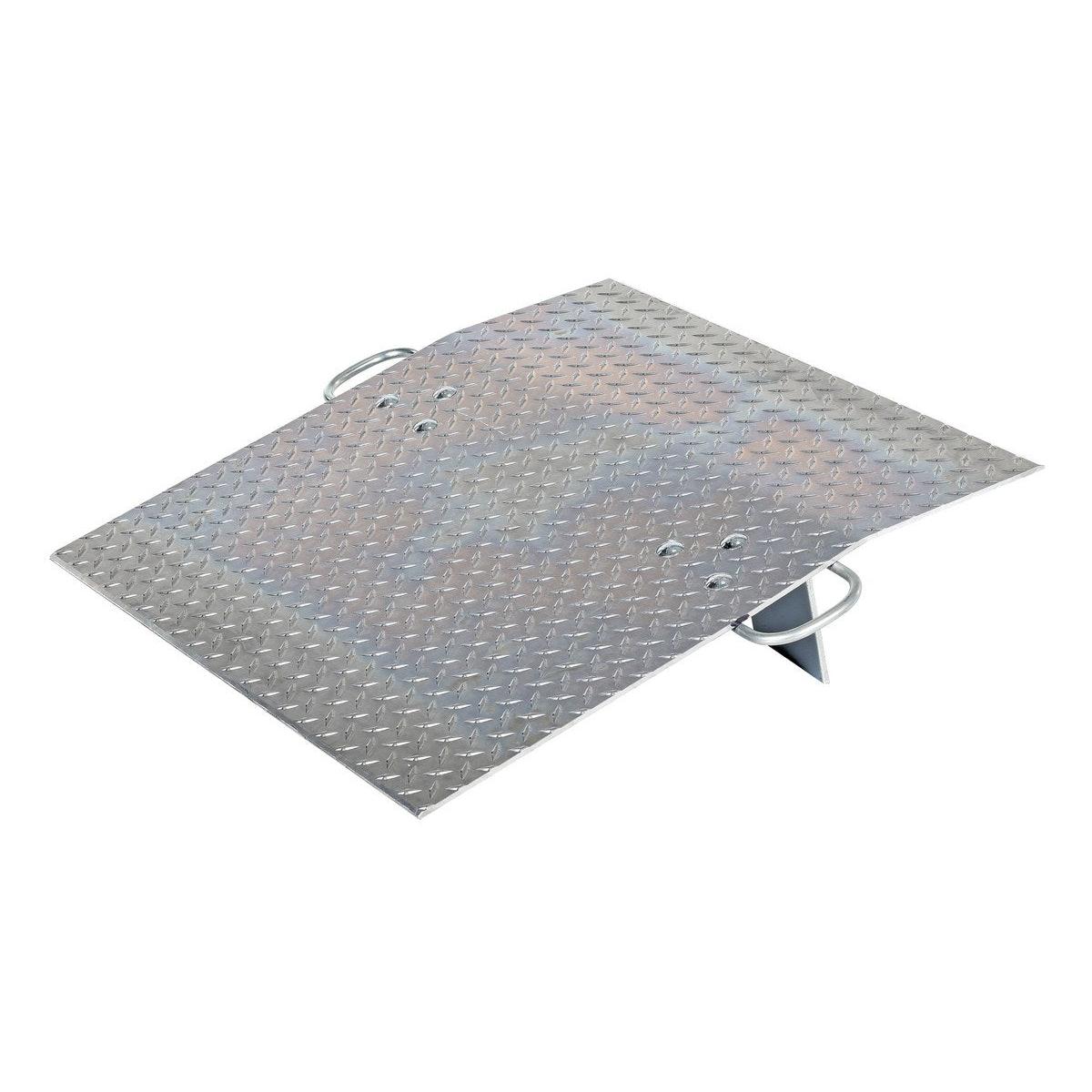

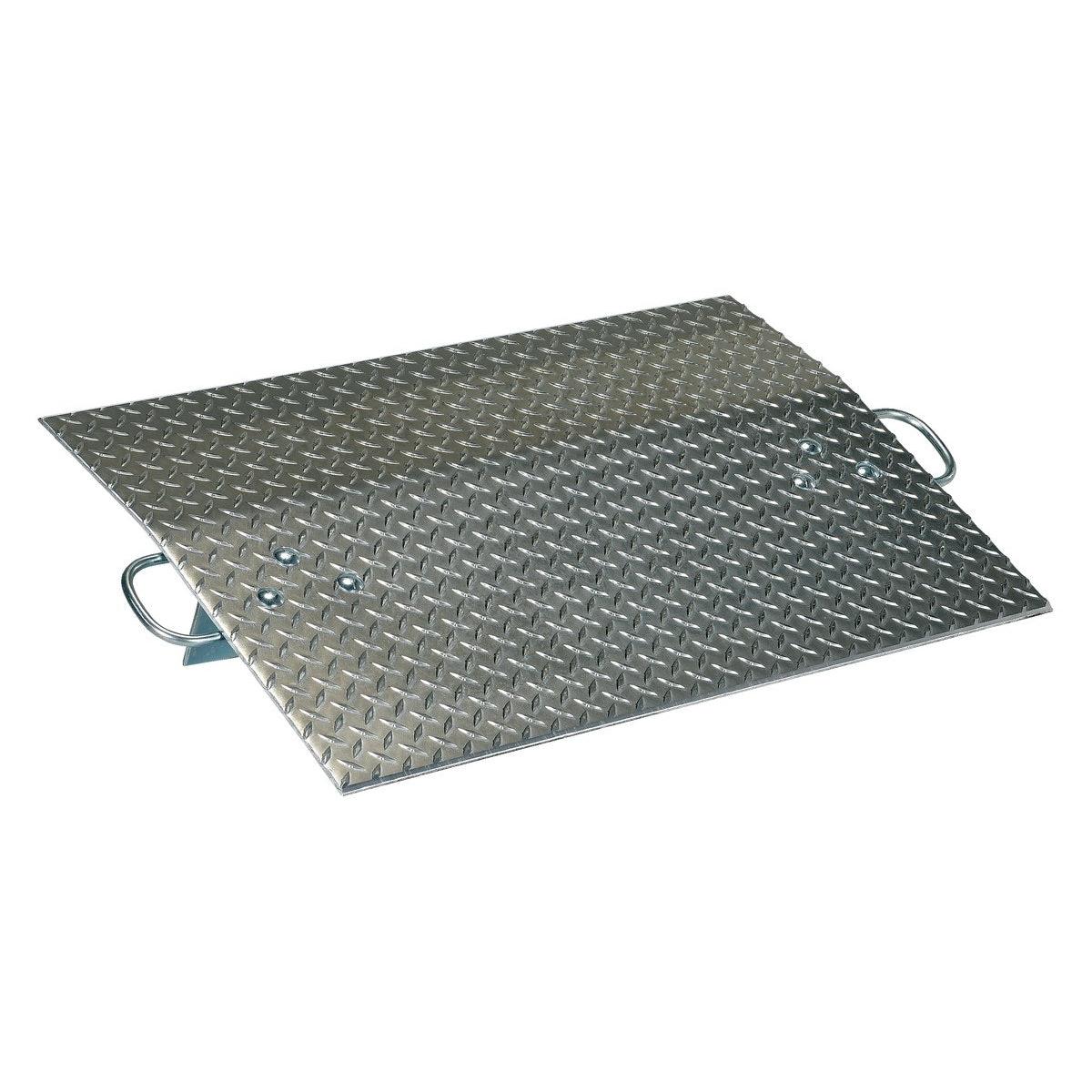

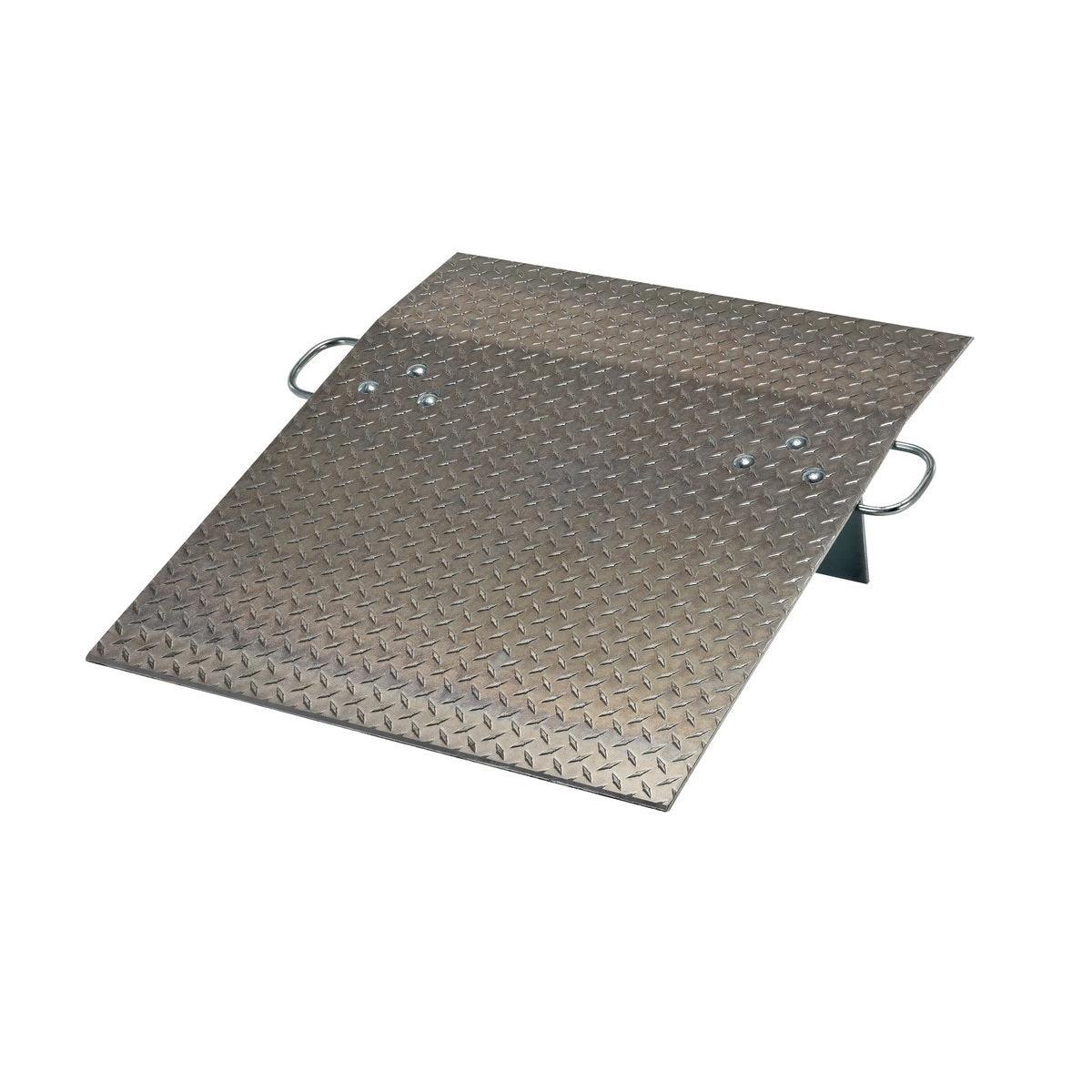

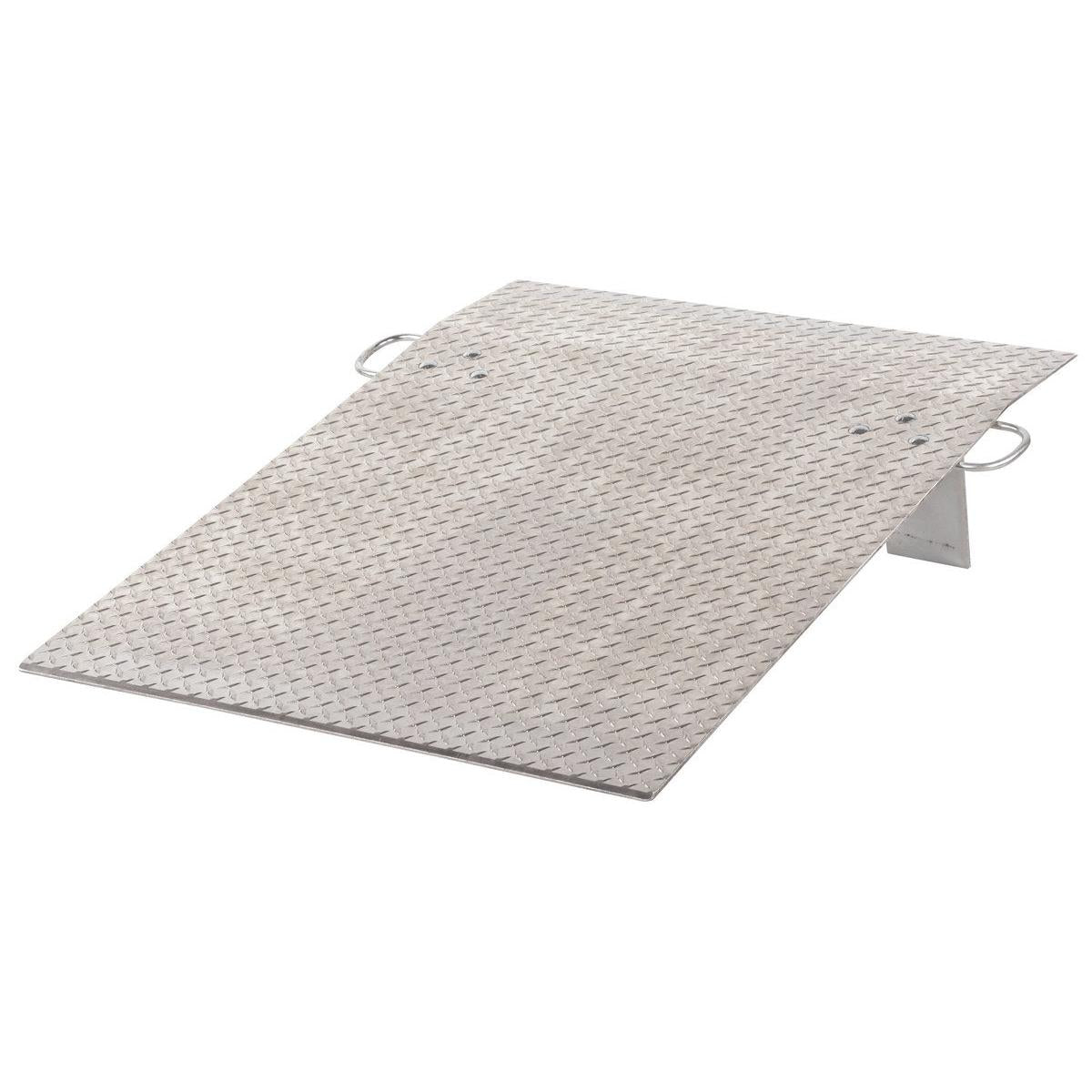

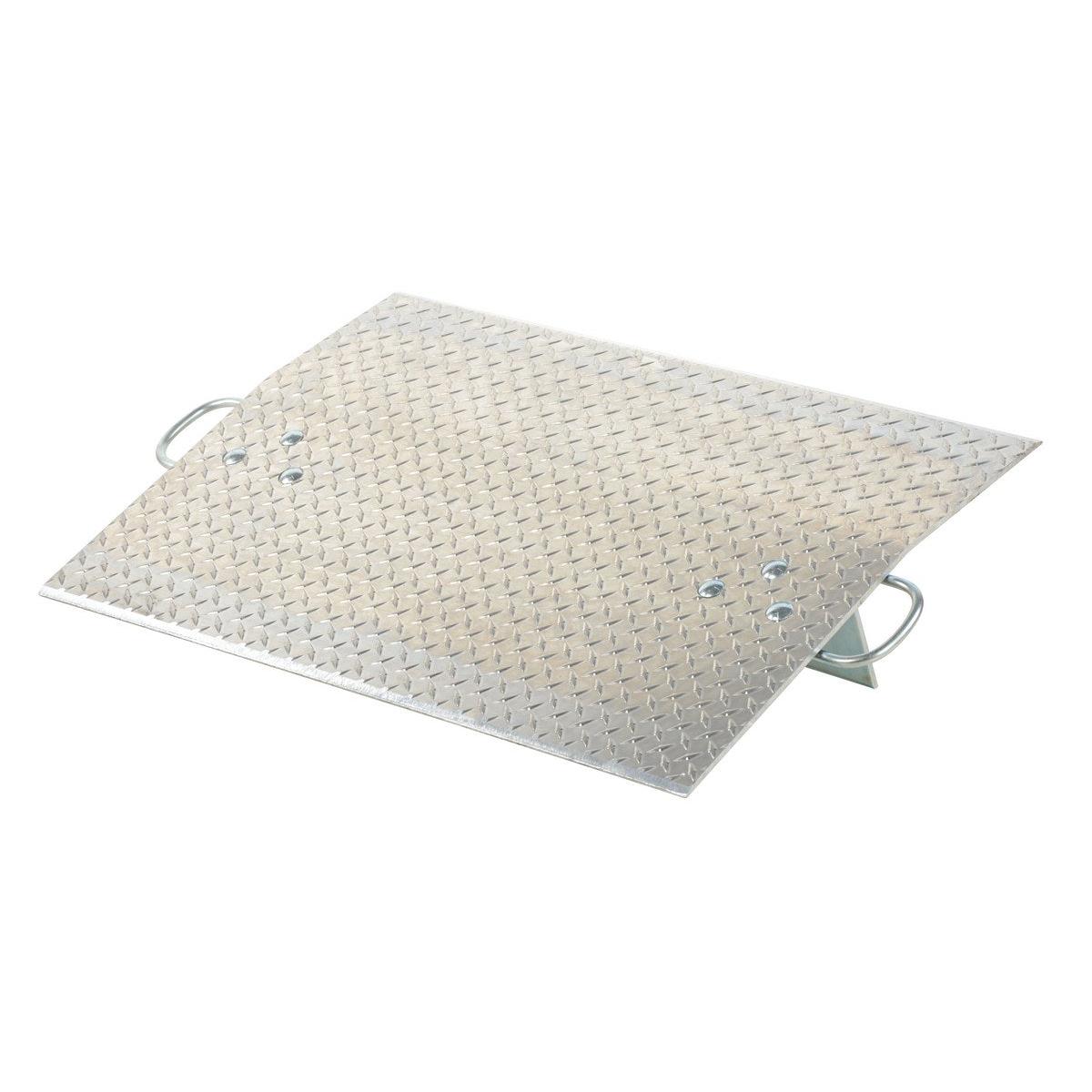

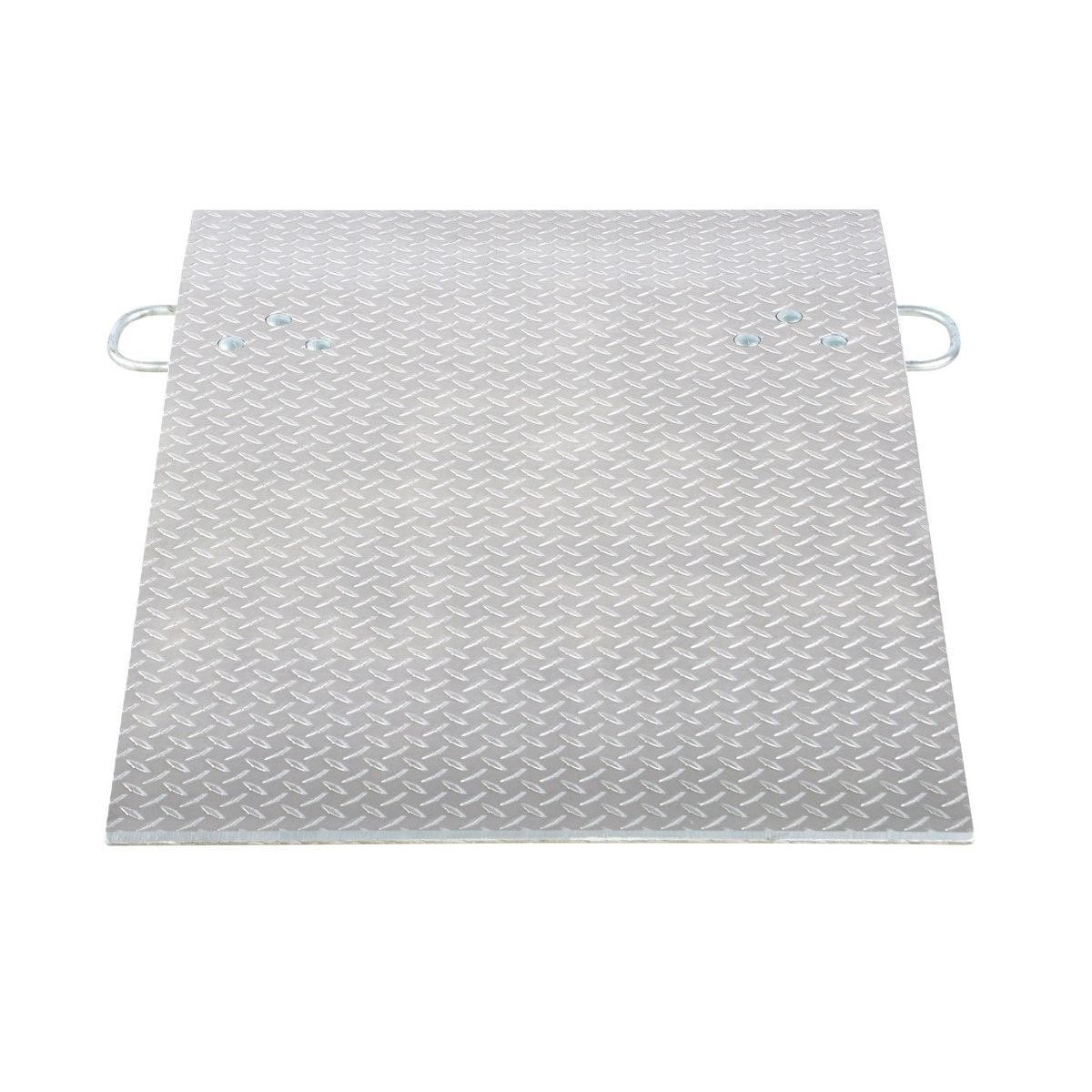

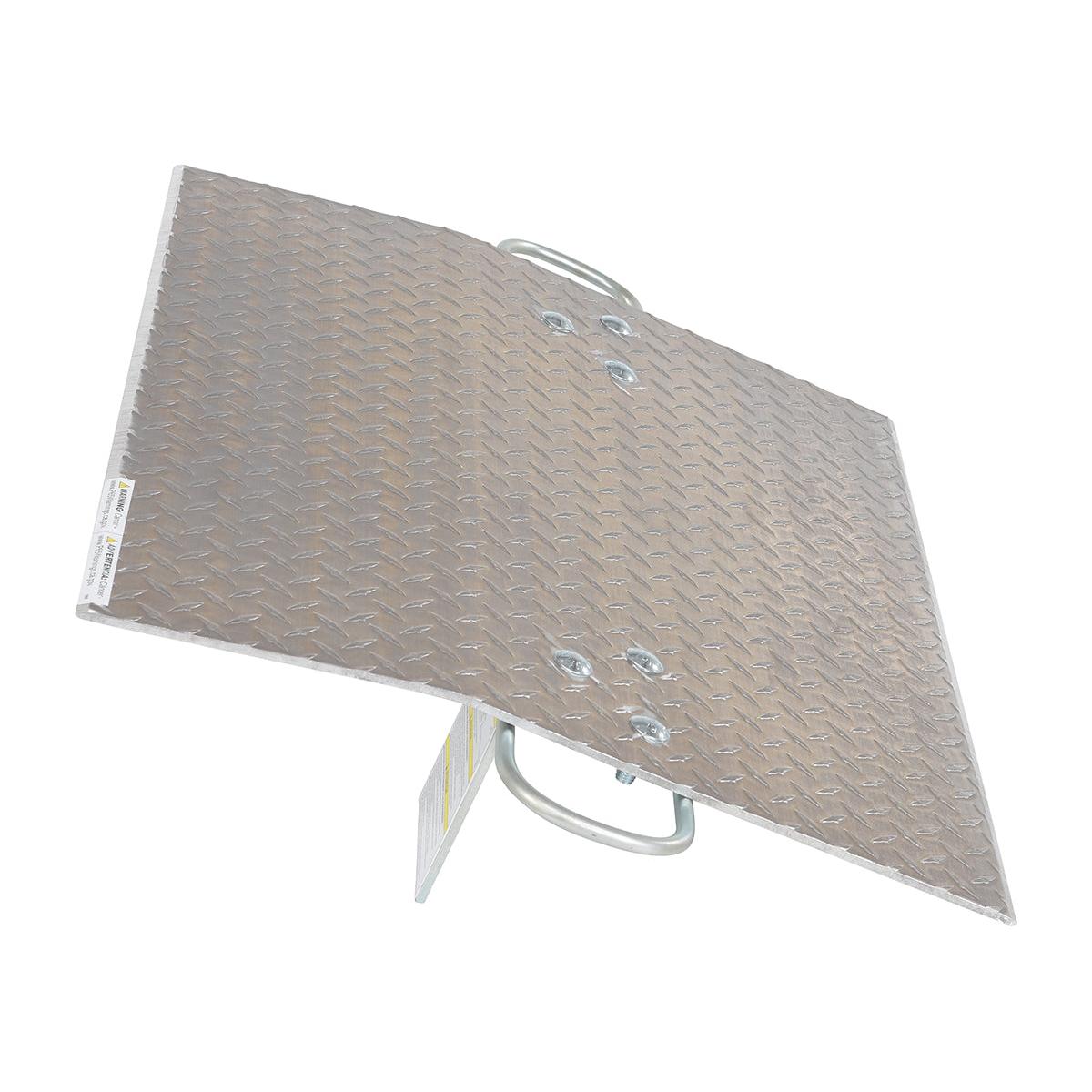

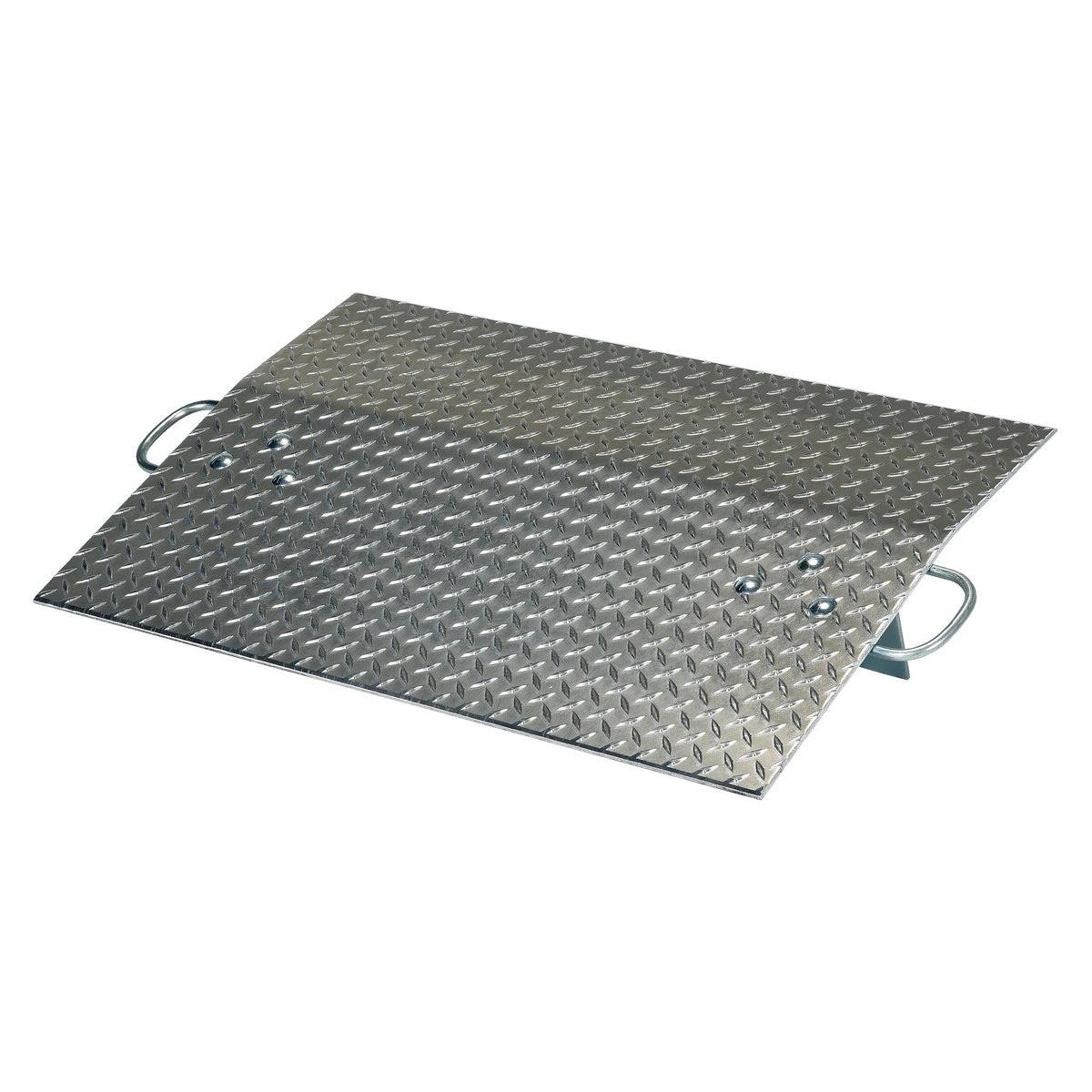

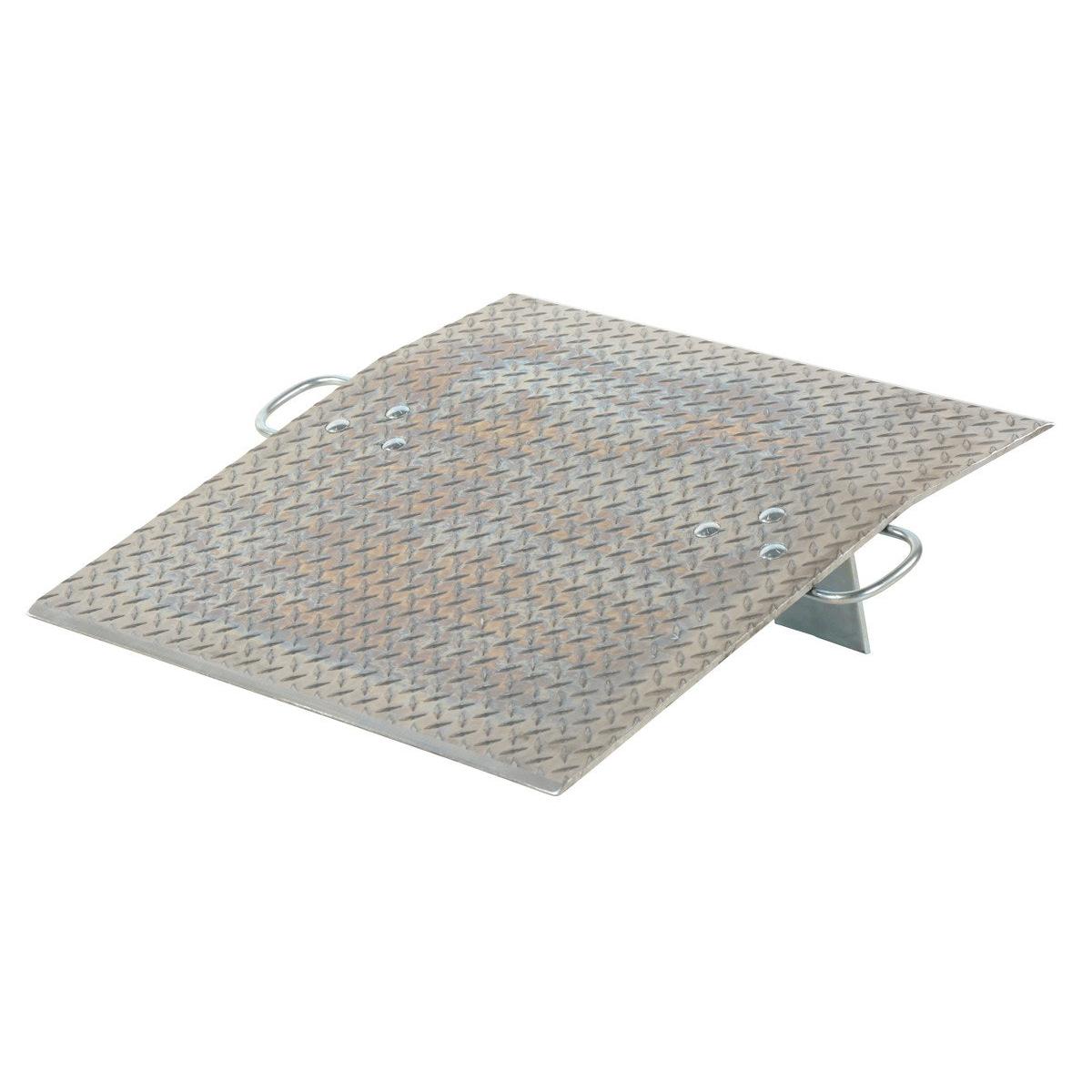

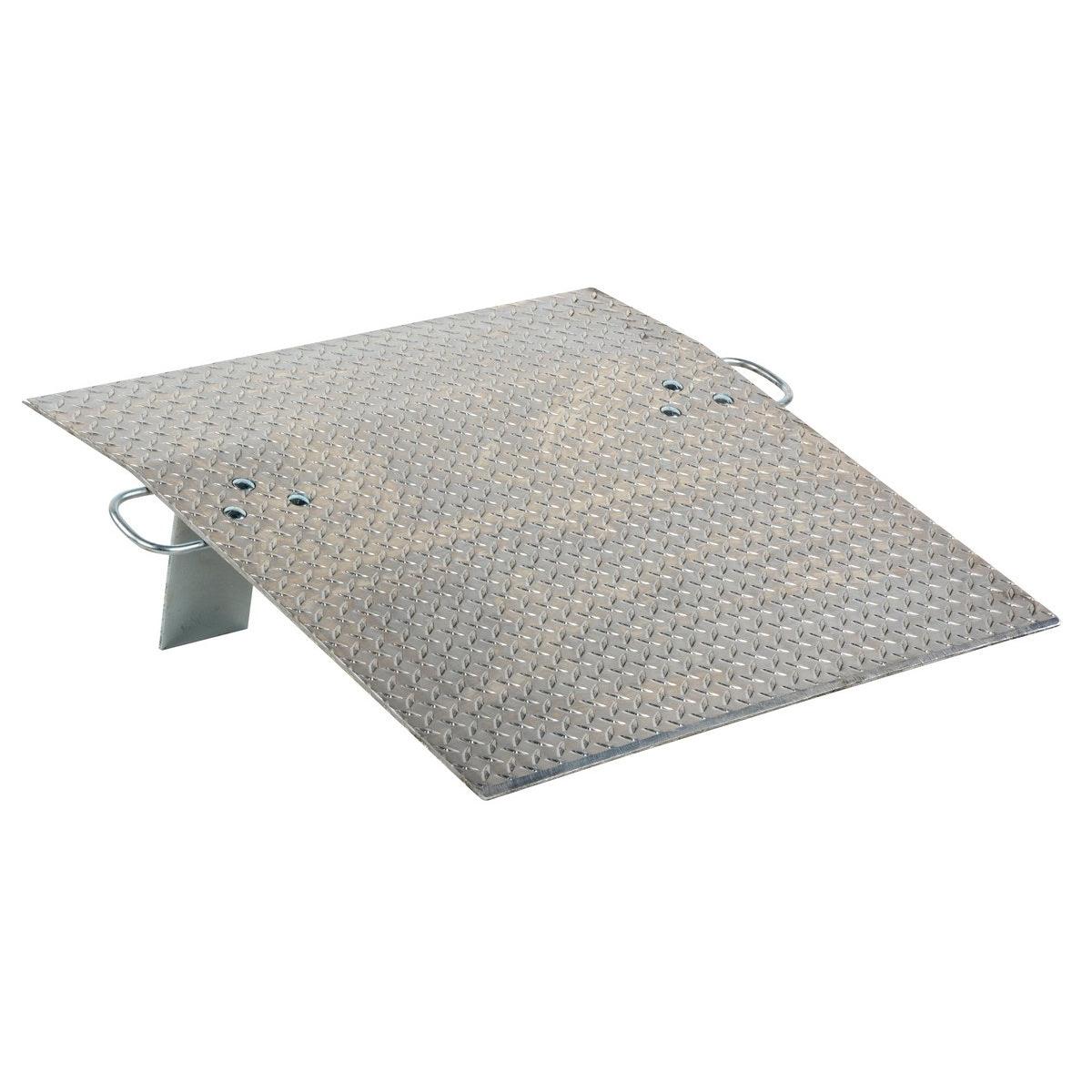

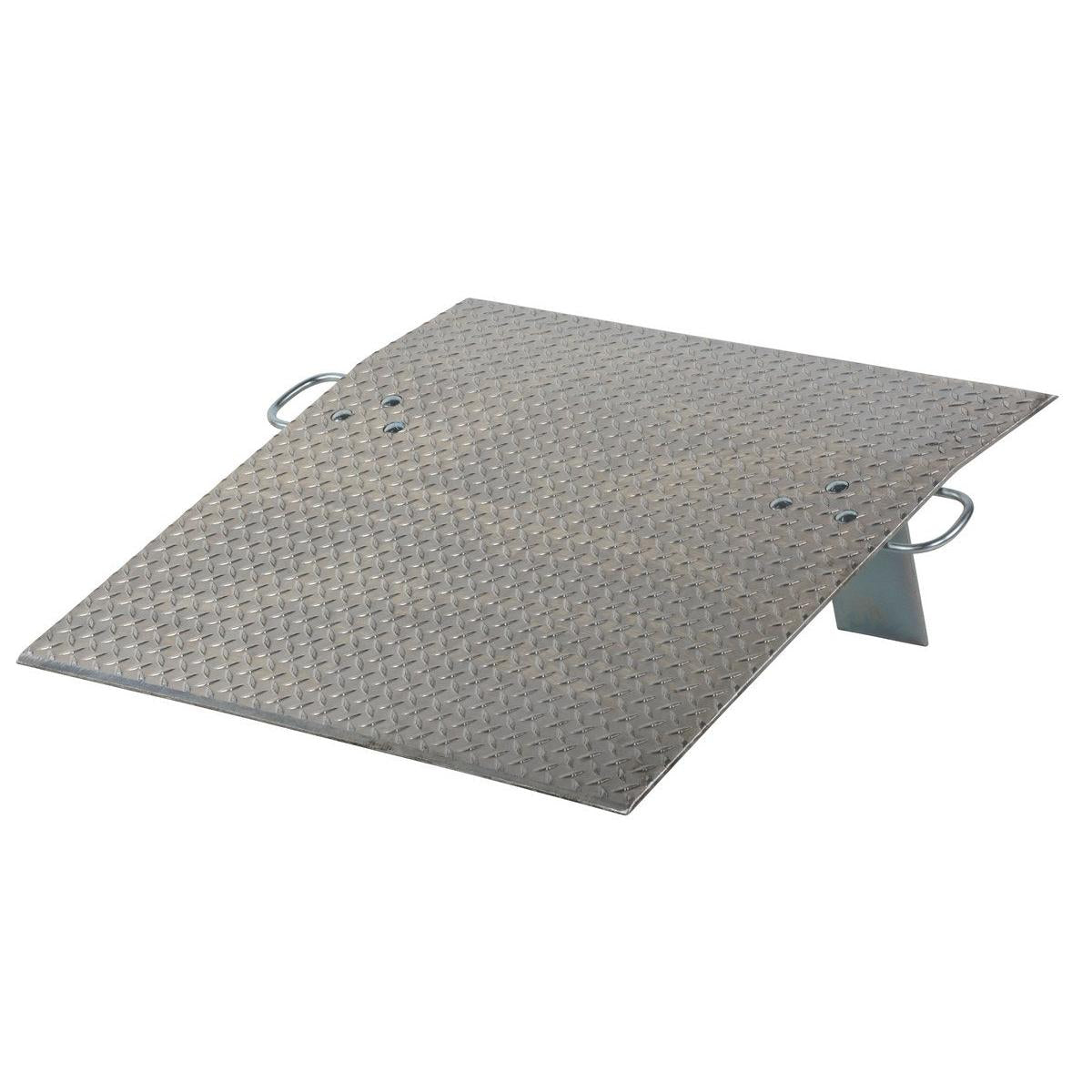

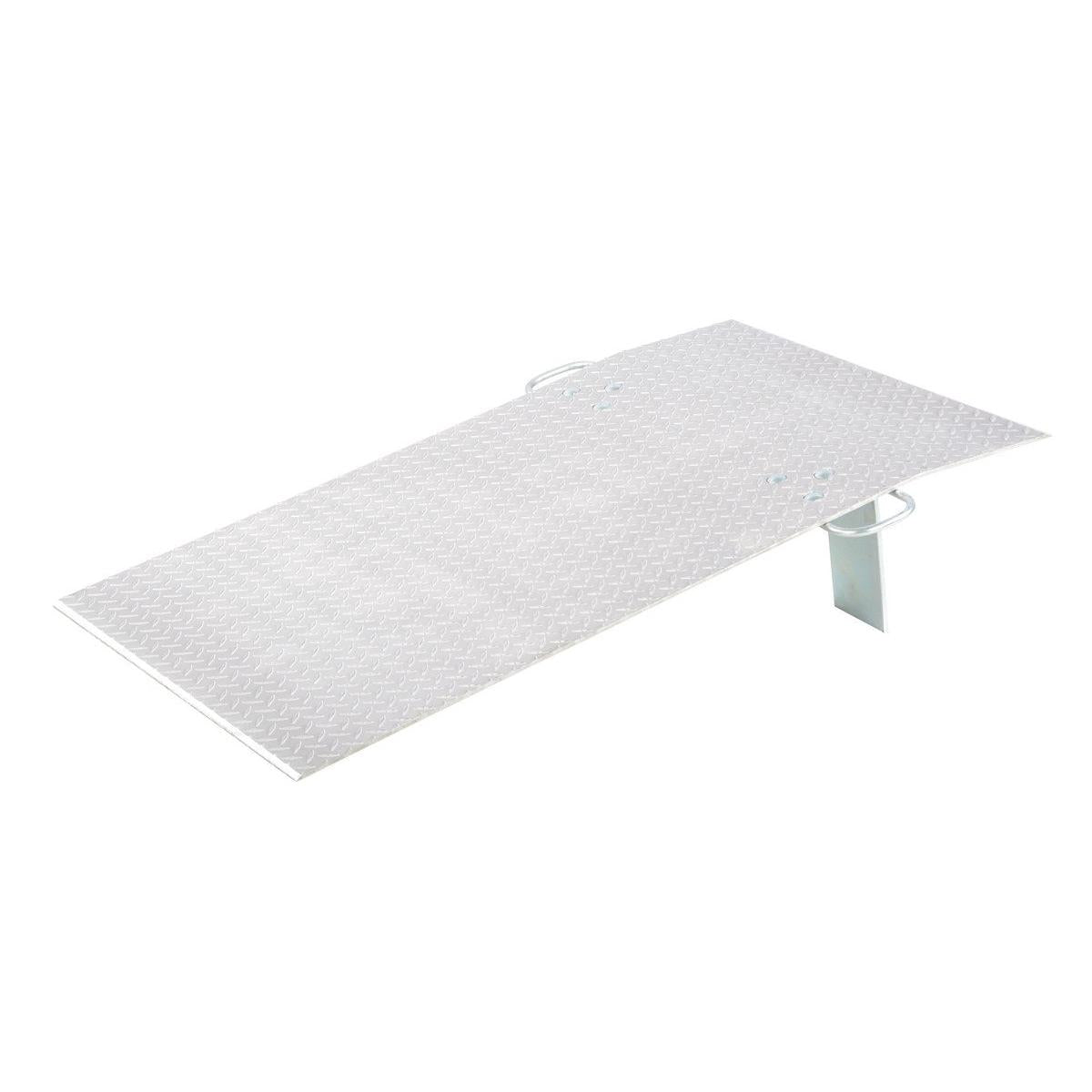

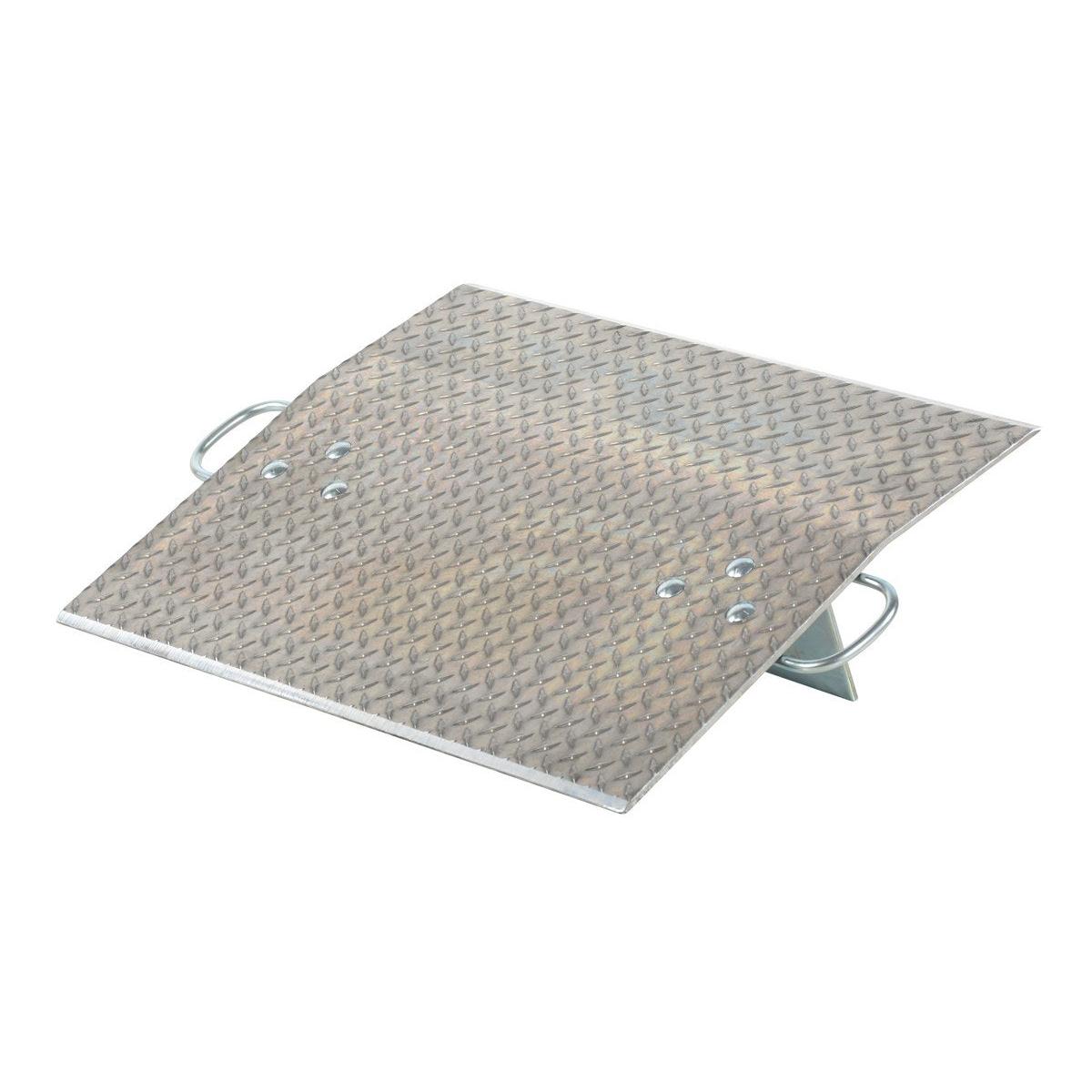

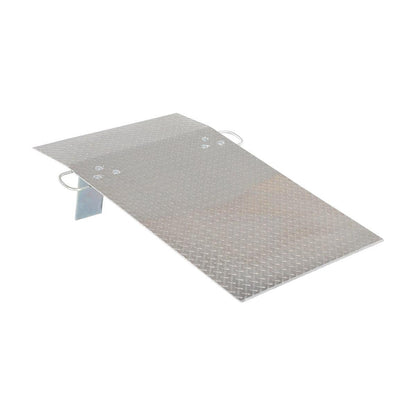

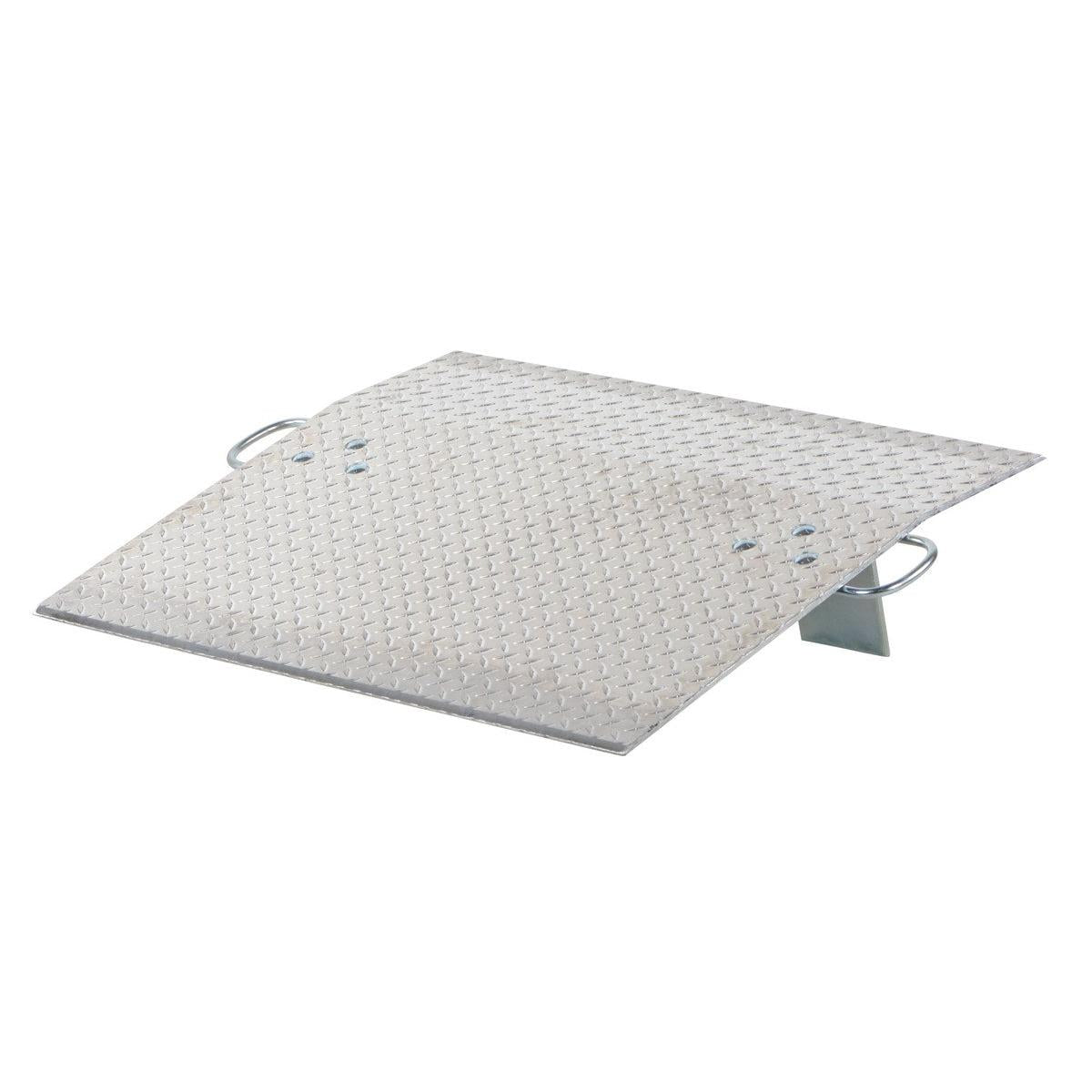

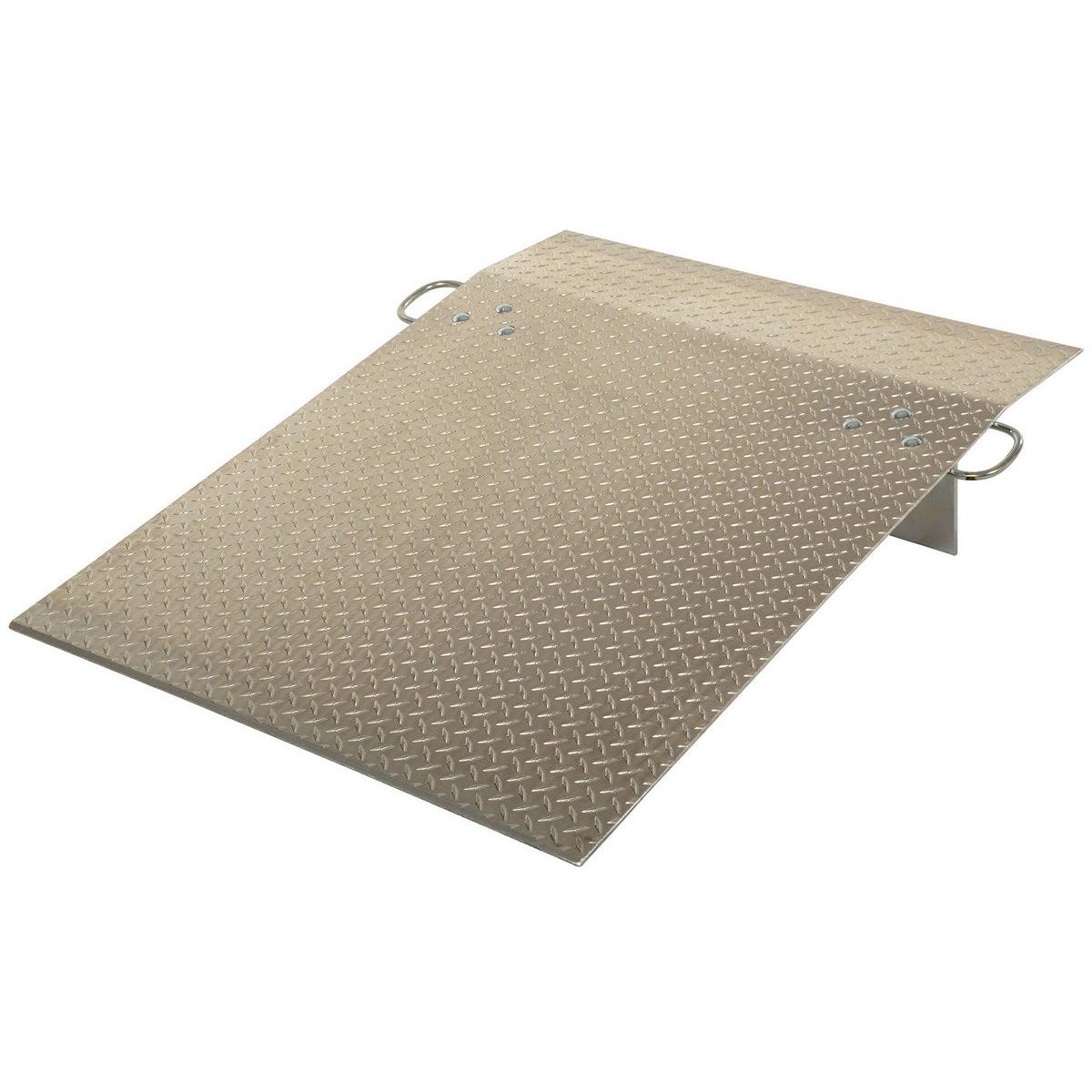

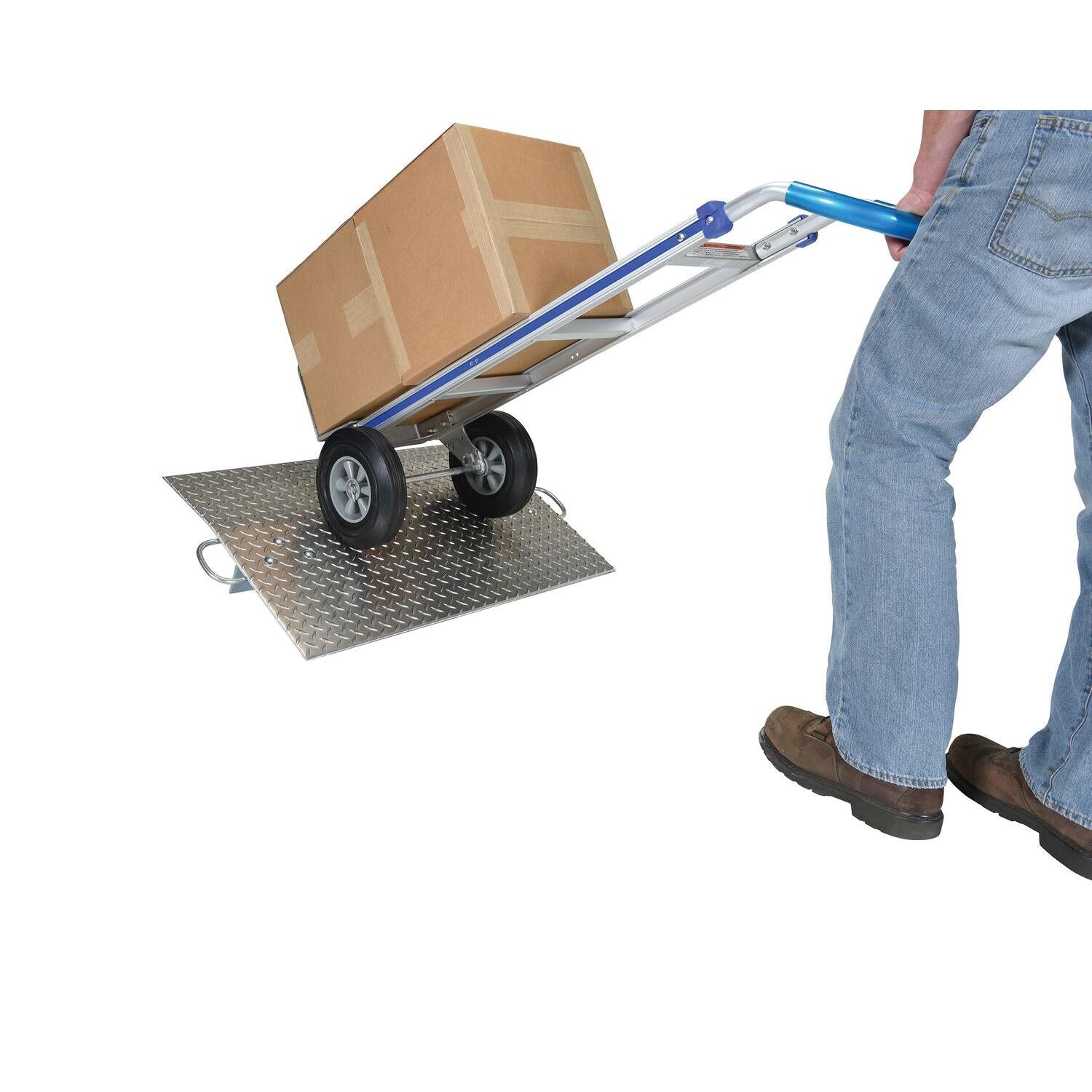

Aluminum Hand Truck Dockplates provide a safe, efficient way to bridge small gaps between trucks and loading docks. Designed specifically for use with two-wheel hand trucks, these dockplates create a smooth and stable transition point, making the movement of goods quicker, safer, and less strenuous. Their lightweight aluminum construction allows for easy portability by a single person, while the skid-resistant tread surface ensures secure footing and hand truck traction.

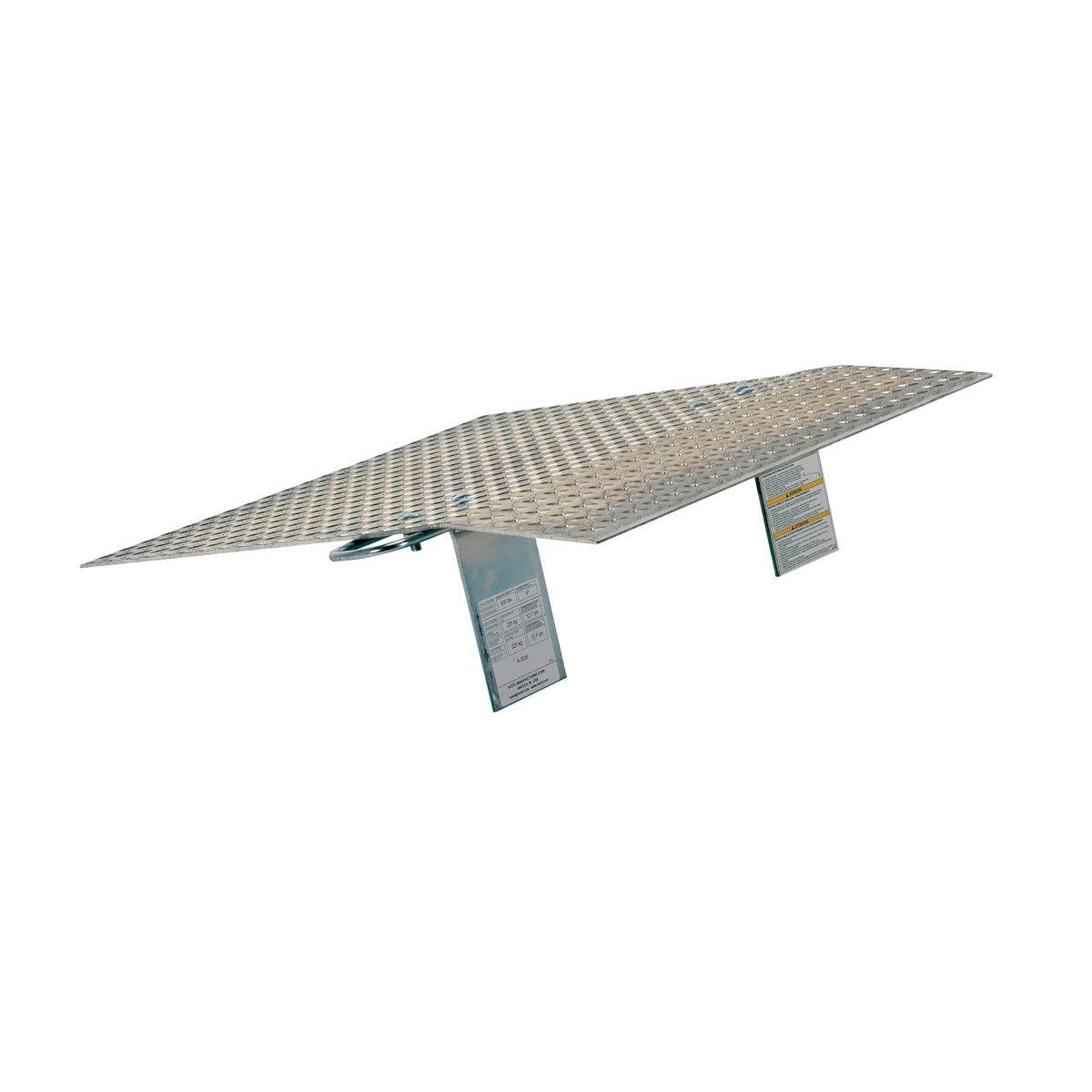

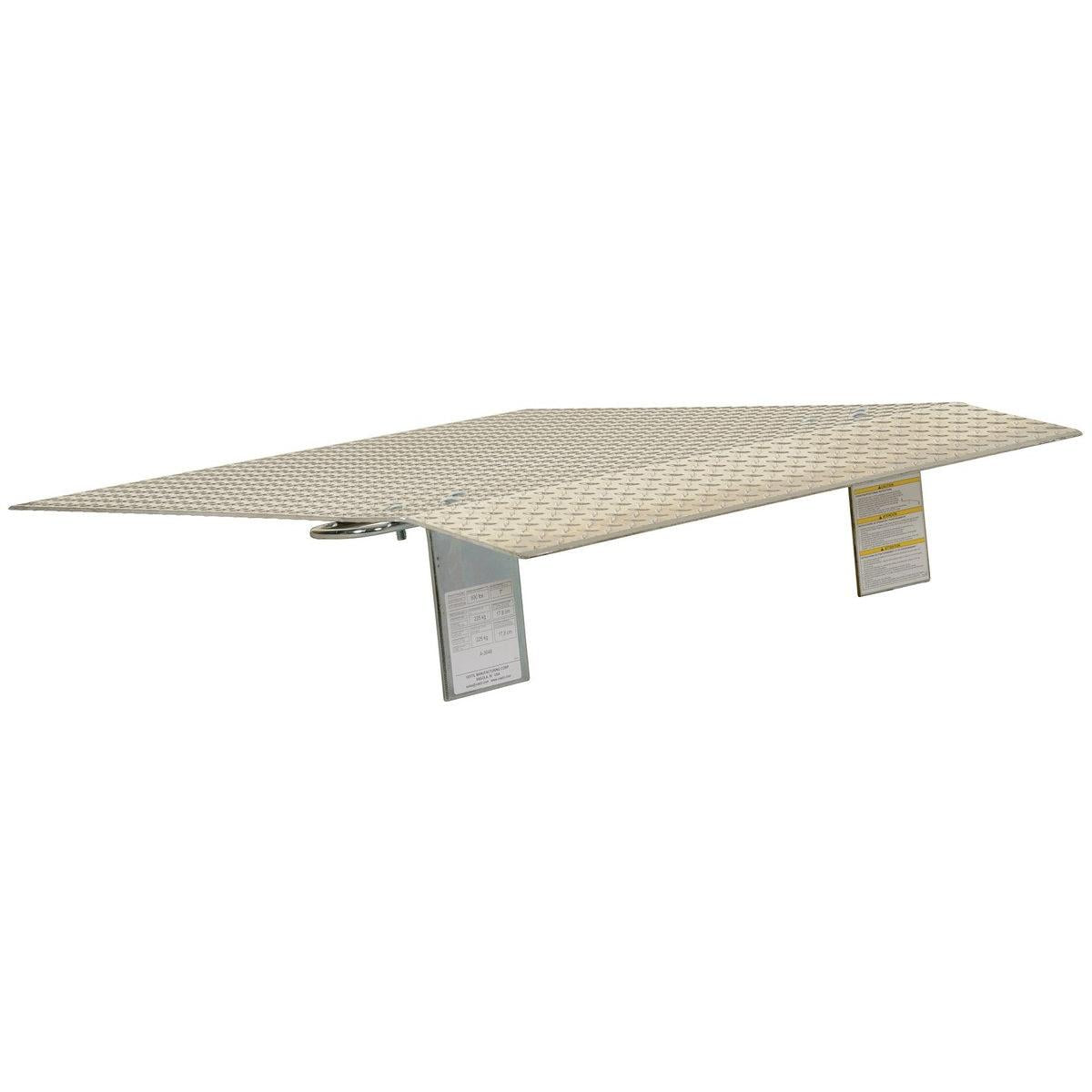

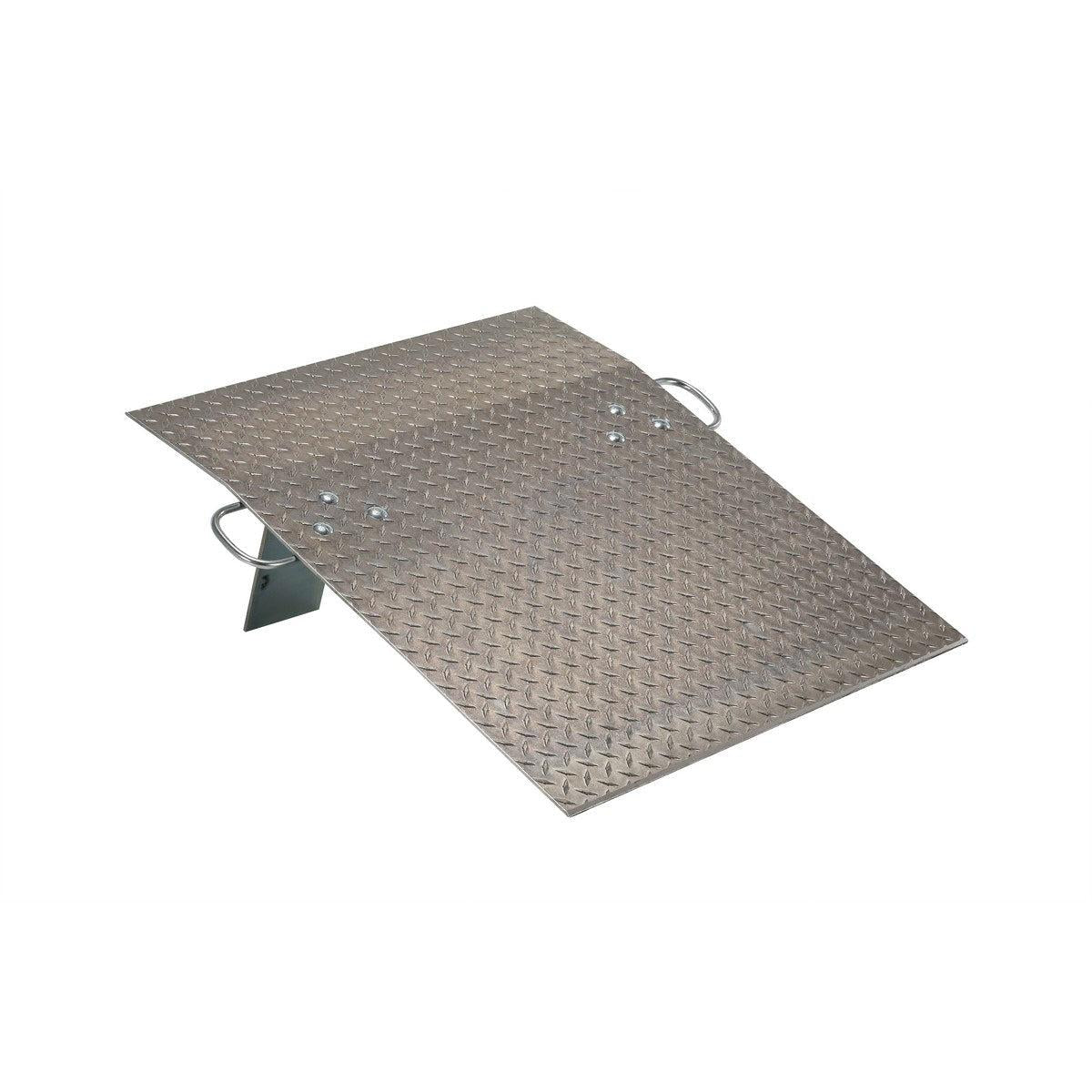

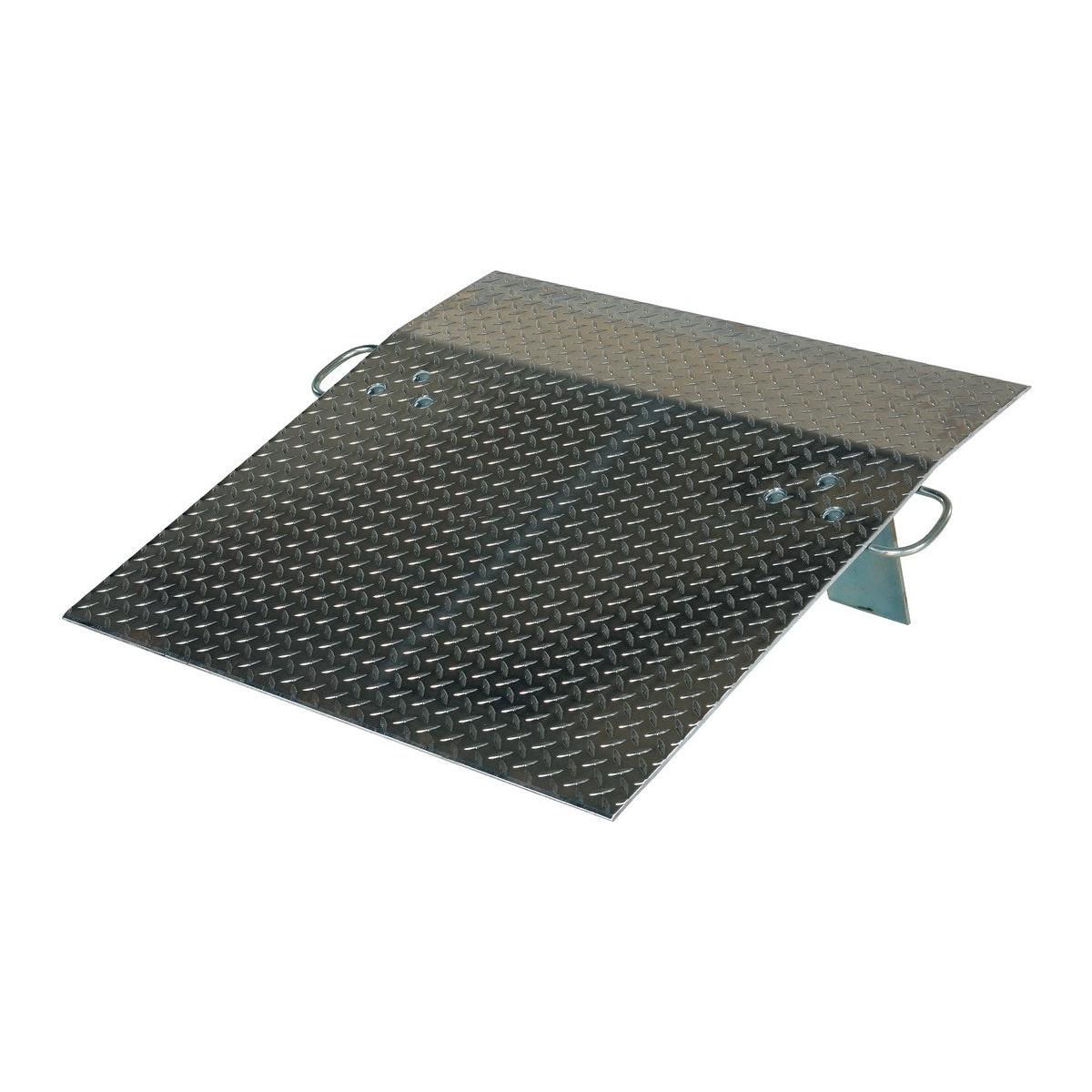

Built for convenience and safety, each dockplate includes beveled edges for a smooth entry and exit, locking legs for stability during loading, and zinc-plated bolt-on carrying handles for easy handling. These features make them an excellent choice for warehouses, delivery operations, and businesses that require reliable dock access for lighter loads.
Features & Benefits
- Lightweight Aluminum Design: Easily handled and positioned by one person.
- Skid-Resistant Tread Plate: Provides safe traction for hand trucks and foot traffic.
- Beveled Entry & Exit Edges: Ensures smooth transitions when loading or unloading.

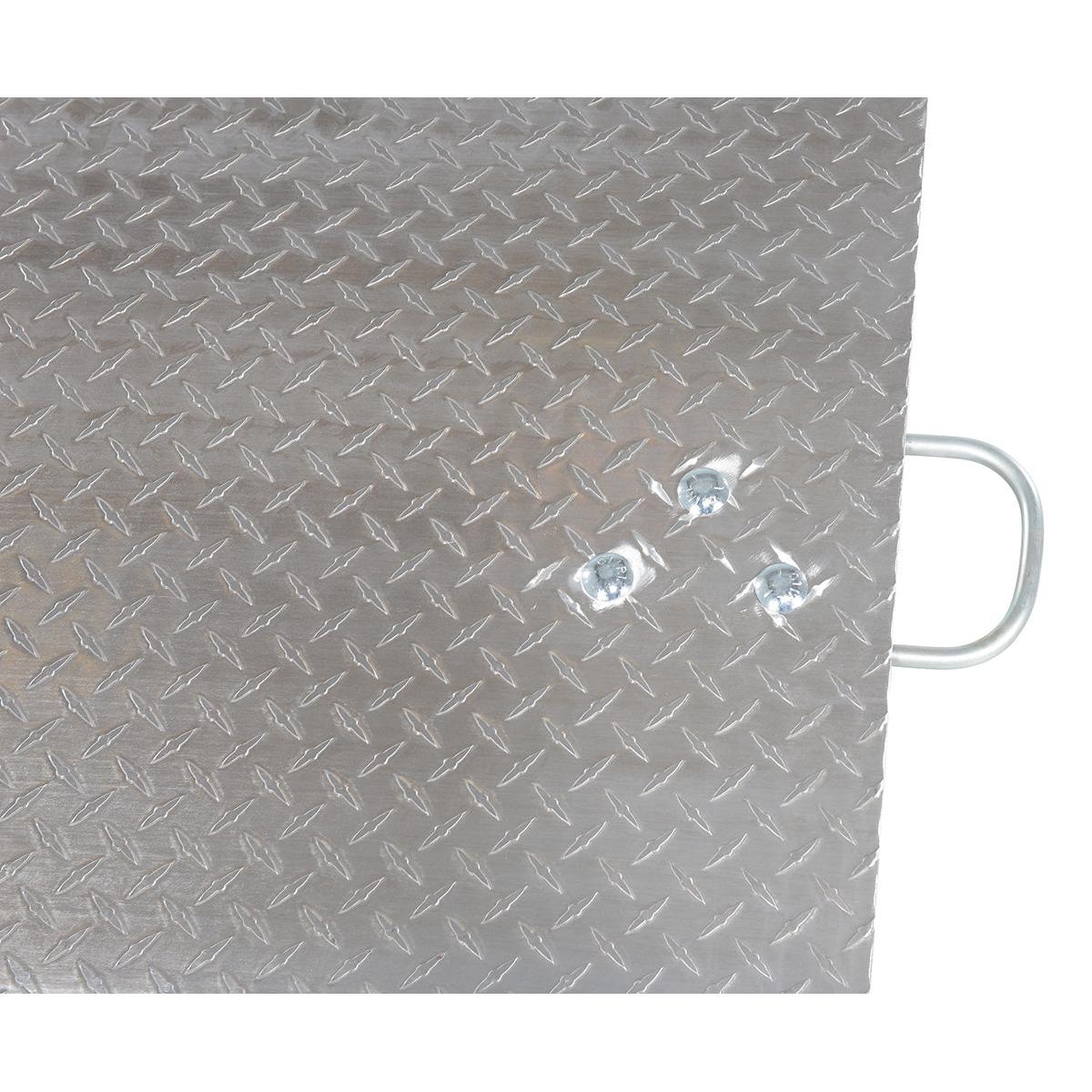

- Zinc-Plated Handles & Locking Legs: Rust-resistant components for OSHA compliance and enhanced safety.

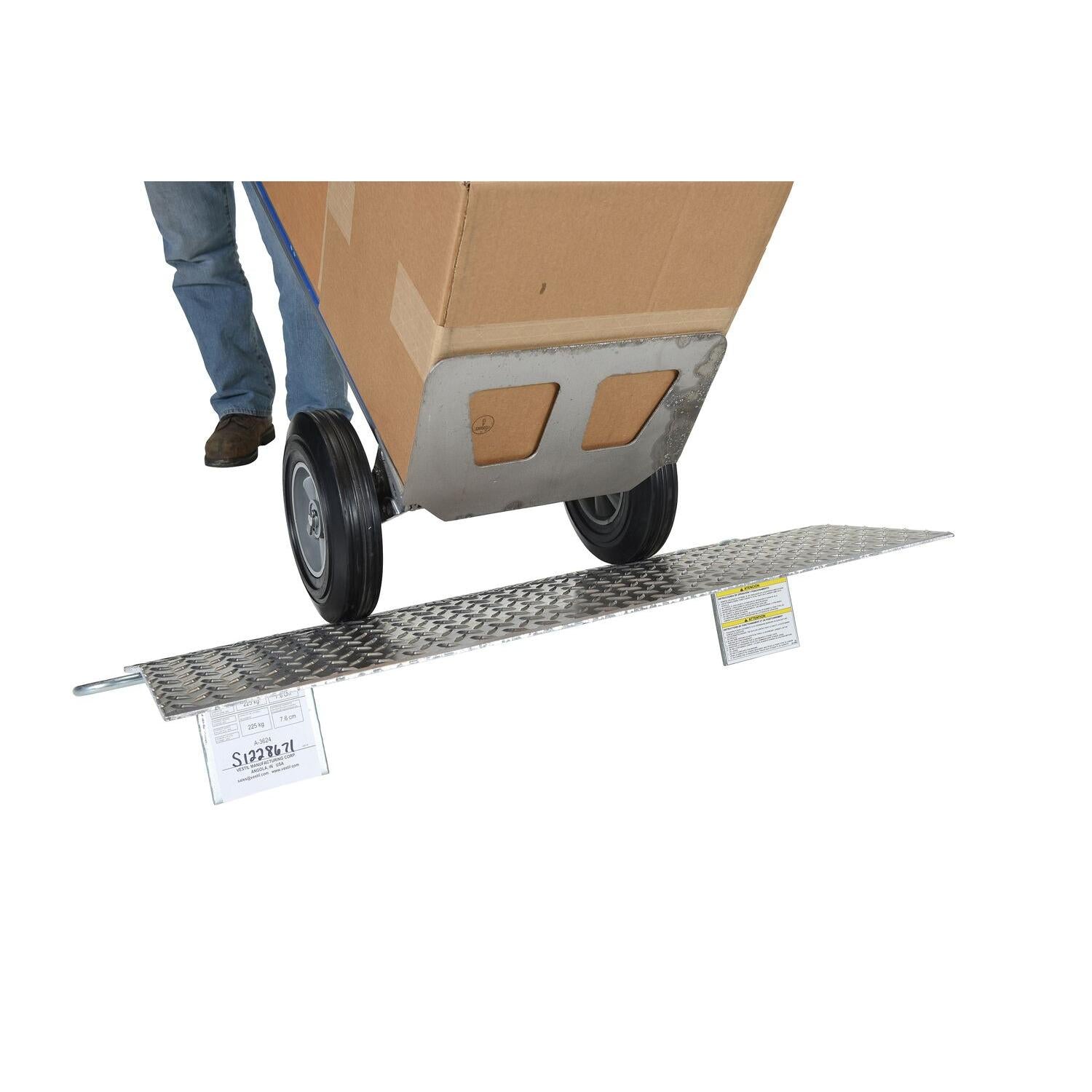

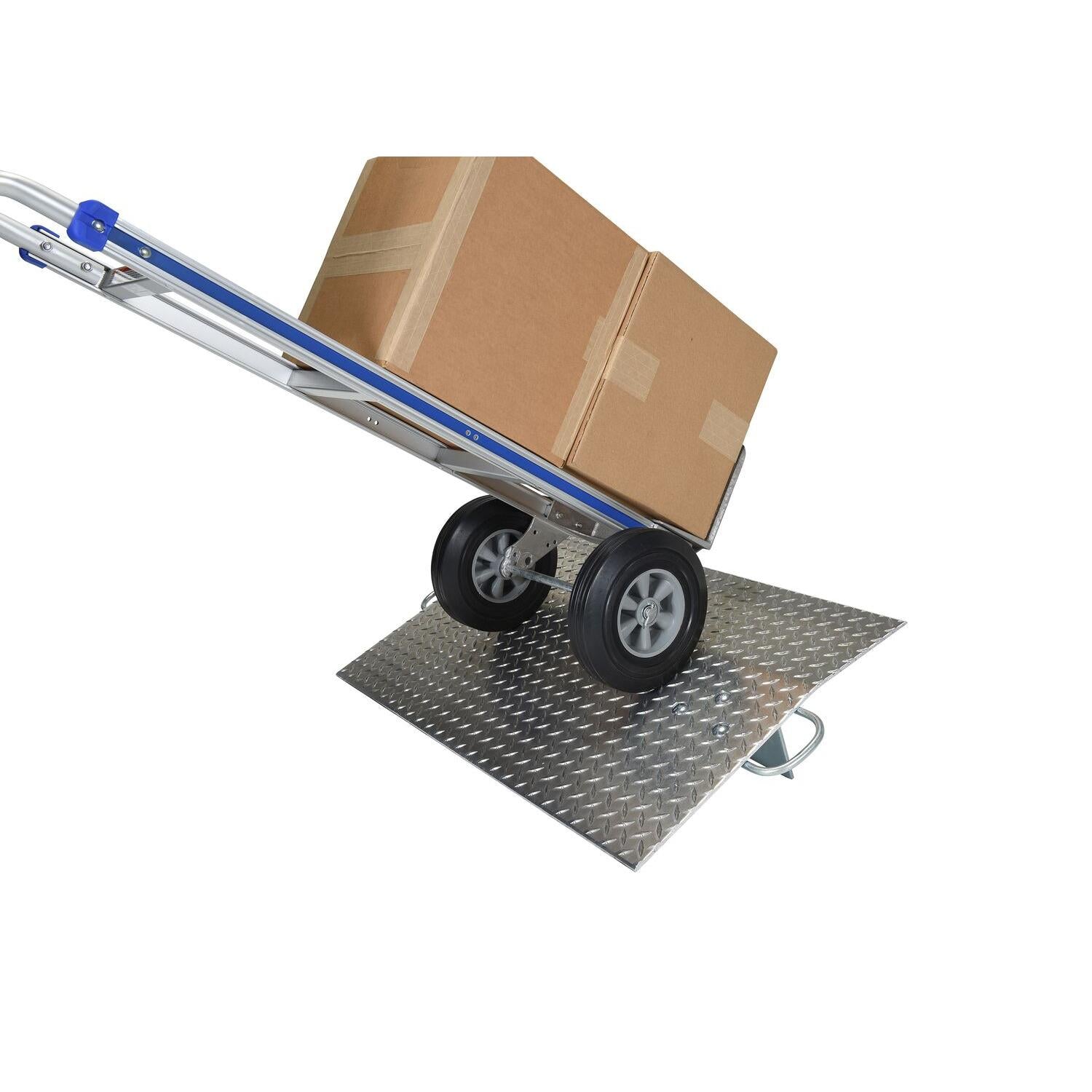

- Versatile Application: Ideal for two-wheel hand trucks in warehouse, retail, or delivery settings.
Product Variations
These dockplates are available in multiple sizes and weight capacities to fit different dock and load requirements:
-
30" Wide Options
- 24", 30", 36", and 48" lengths - available in 500 lb or 700 lb capacity.
-
36" Wide Options
- 24", 30", 36", and 48" lengths - available in 500 lb or 700 lb capacity.
All models are finished in silver aluminum with zinc-plated components for long-lasting performance.
Technical Specifications:
- Material: Aluminum
- Color / Finish: Silver
- CPO-Prop 65 Warning Required: Yes
- Approval Drawing Required: No
- Assembly: Assembly required
- Built-In Handles: Yes
- Manufacturer Warranty: 90 Days
- Bevel Angle (°): 11
- Distance from Bend / Crown to Dockplate Edge (in.): 9
| Product | Dimensions (W x L) | Capacity | Plate Thickness | Height Difference | Weight |
|---|---|---|---|---|---|
| 30" x 24" | 30" x 24" | 500 lb | 0.25" | Up to 3" | 30 lb |
| 30" x 30" | 30" x 30" | 500 lb | 0.25" | Up to 4" | 35 lb |
| 30" x 36" | 30" x 36" | 500 lb | 0.25" | Up to 5" | 42 lb |
| 30" x 48" | 30" x 48" | 500 lb | 0.25" | Up to 7" | 48 lb |
| 36" x 24" | 36" x 24" | 500 lb | 0.25" | Up to 3" | 33 lb |
| 36" x 30" | 36" x 30" | 500 lb | 0.25" | Up to 4" | 38 lb |
| 36" x 36" | 36" x 36" | 500 lb | 0.25" | Up to 5" | 47 lb |
| 36" x 48" | 36" x 48" | 500 lb | 0.25" | Up to 7" | 55 lb |
| 30" x 24" | 30" x 24" | 700 lb | 0.3125" | Up to 3" | 34 lb |
| 30" x 30" | 30" x 30" | 700 lb | 0.3125" | Up to 4" | 36 lb |
| 30" x 36" | 30" x 36" | 700 lb | 0.3125" | Up to 5" | 48 lb |
| 30" x 48" | 30" x 48" | 700 lb | 0.3125" | Up to 7" | 60 lb |
| 36" x 24" | 36" x 24" | 700 lb | 0.3125" | Up to 3" | 37 lb |
| 36" x 30" | 36" x 30" | 700 lb | 0.3125" | Up to 4" | 48 lb |
| 36" x 36" | 36" x 36" | 700 lb | 0.3125" | Up to 5" | 57 lb |
| 36" x 48" | 36" x 48" | 700 lb | 0.3125" | Up to 7" | 68 lb |
Please note: UPC & GTIN Available for all products on this line at request.
Made in the USA
