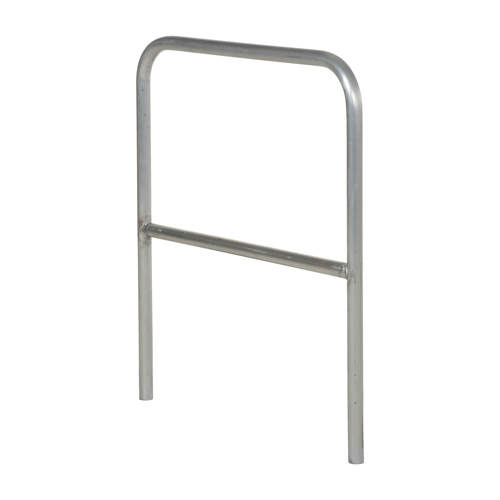

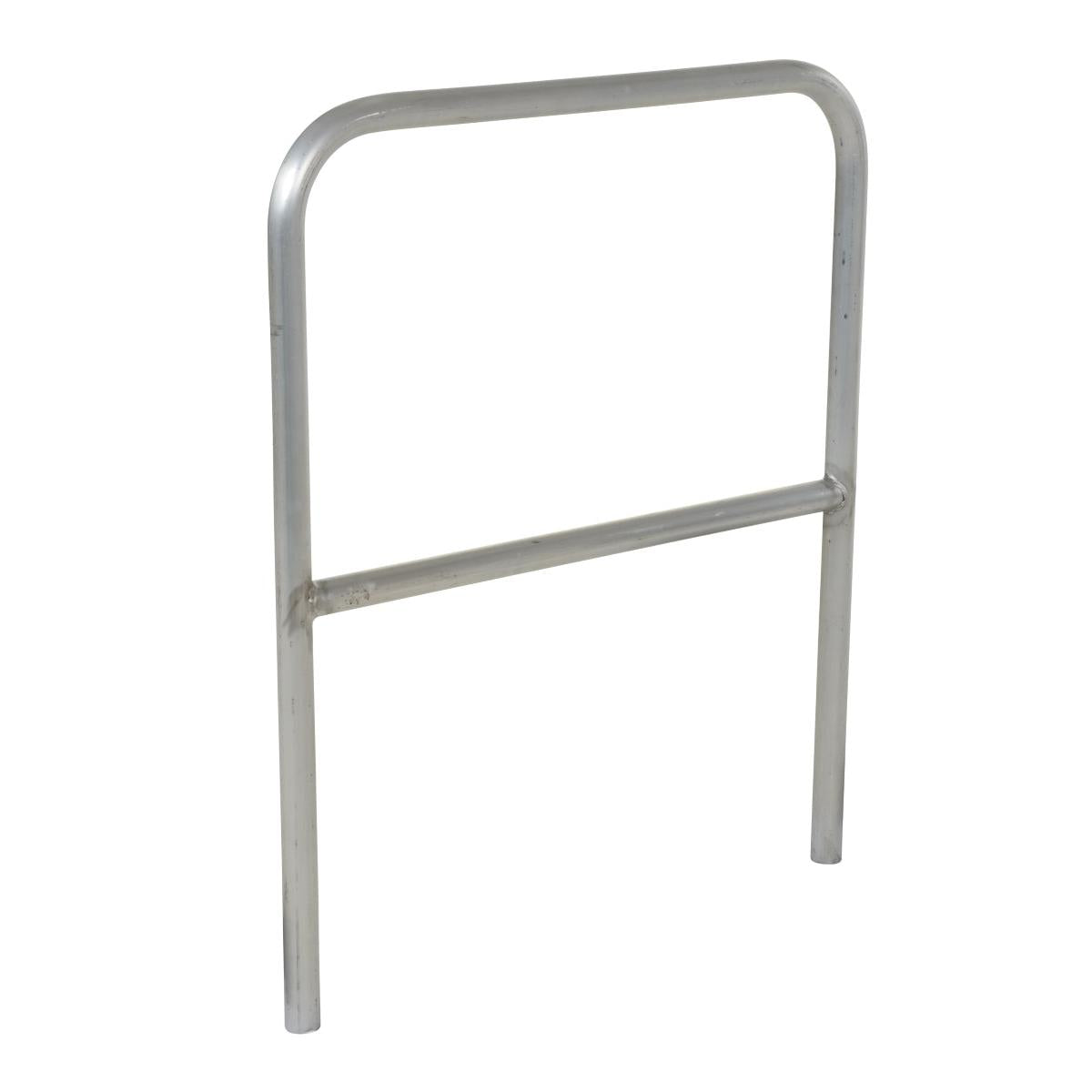

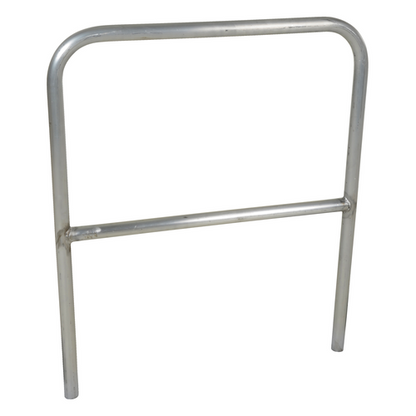

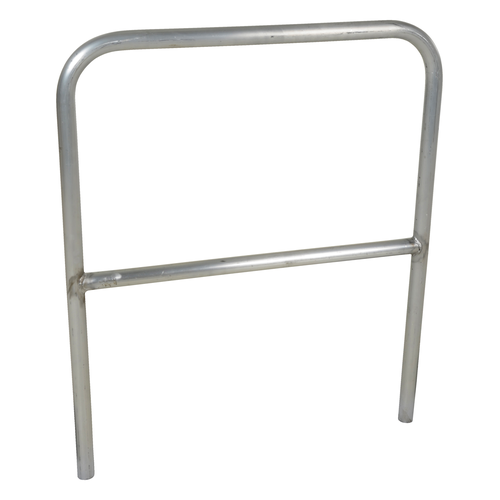

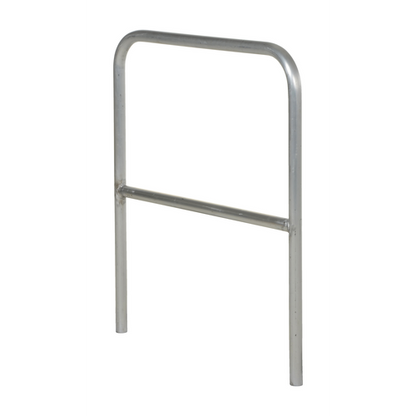

Aluminum Safety Railing 3 Ft.

The Aluminum Pipe Safety Railing provides critical fall protection along mezzanine edges, uneven walkways, and elevated work surfaces. Designed to meet OSHA 29 CFR 1910.29 guardrail standards, this railing system enhances workplace safety in industrial, commercial, and warehouse environments. Constructed from Schedule 40 aluminum pipe, it offers a lightweight yet durable barrier solution that’s corrosion-resistant and easy to install.

This railing features a 42-inch high top rail and a 21-inch mid-rail, ensuring compliance and added protection. Multiple mounting options are available - including socket sleeves, cast steel bases, barricade bases, and removable cast steel sockets that can accept toe boards for additional safety. The 1-5/8" outer pipe diameter is compatible with standard railing fittings, and pre-drilled lag holes enable permanent installation. Available in a range of colors for visibility and aesthetic integration.

Key Features & Benefits

• OSHA-Compliant Design – Meets 29 CFR 1910.29 requirements for general industry guardrail systems.
• Durable Aluminum Construction – Made from Schedule 40 aluminum for long-lasting corrosion resistance.
• High & Mid-Rail Configuration – 42" top rail and 21" mid-rail for enhanced personnel protection.
• Versatile Mounting Options – Choose from socket sleeves, cast steel bases, or barricade bases for various applications.
• Toe Board Compatibility – Cast steel sockets accept 2"x4" or 2"x6" wood for toe board installation.
• Pre-Drilled for Installation – Two lag holes in each base allow for secure and permanent mounting.
• Color Customization Available – Custom colors available, please contact us for custom orders with a protective Powder-Coat Finish.

Additional Information

Ideal for warehouses, mezzanines, loading areas, and walkways, the Aluminum Pipe Safety Railing offers a lightweight yet robust safety solution. The railing system is unfinished for durability and features polished zinc socket finishes for rust prevention. Optional color finishes and removable sections enhance adaptability across different site needs.

Looking for additional parts? Explore all compatible accessories for Aluminum Safety Railing systems in the Aluminum Safety Railing Accessories Collection.

Technical Specifications:

• Total Ship Wt.(lbs.): 10
• Color: Silver
• Size: 1.625"W x 36"L x 42"H
• Midrail Height (in.): 21
• Aluminum Pipe Schedule: 40
• Pipe Outside Diameter (in.): 1-5/8
• Top Rail Height (in.): 42
• Length (in.): 36
• OSHA Compliant: 29 CFR 1910.29
• Material: Aluminum
• Assembled Depth (in): 36
• Assembled Width (in): 1.625
• Rail Diameter (in): 1.625

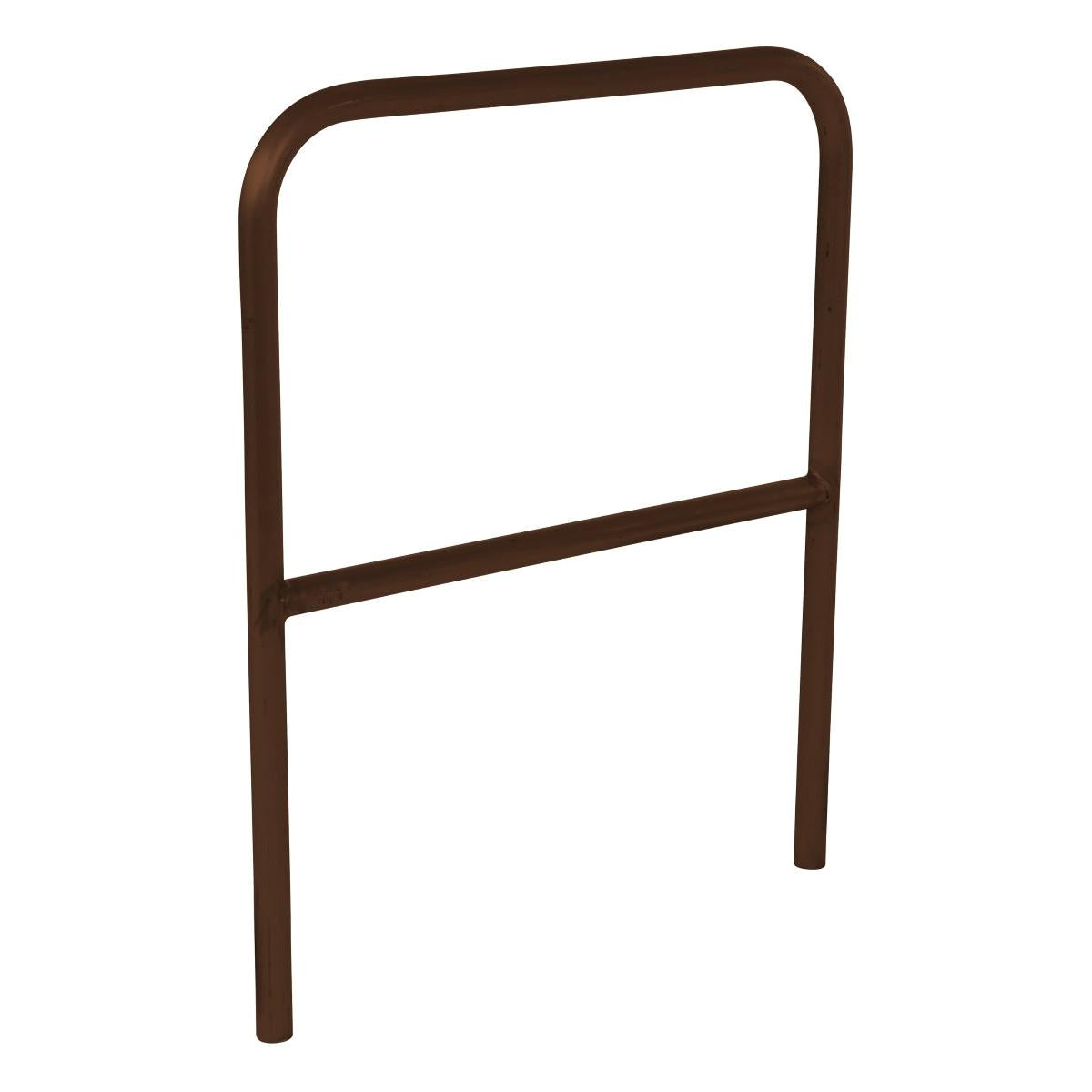

• Available Powder-Coat Custom Colors:

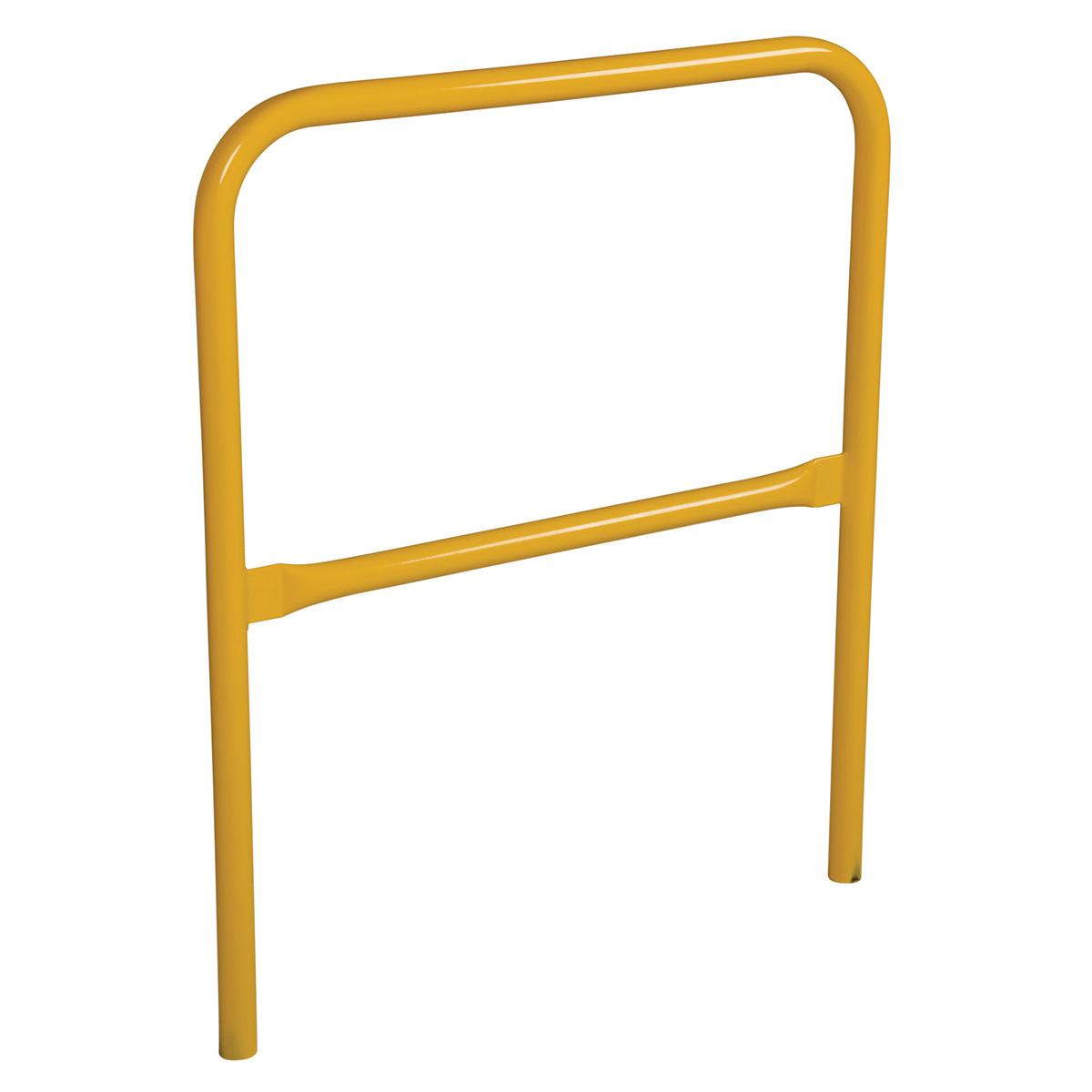

  • Yellow

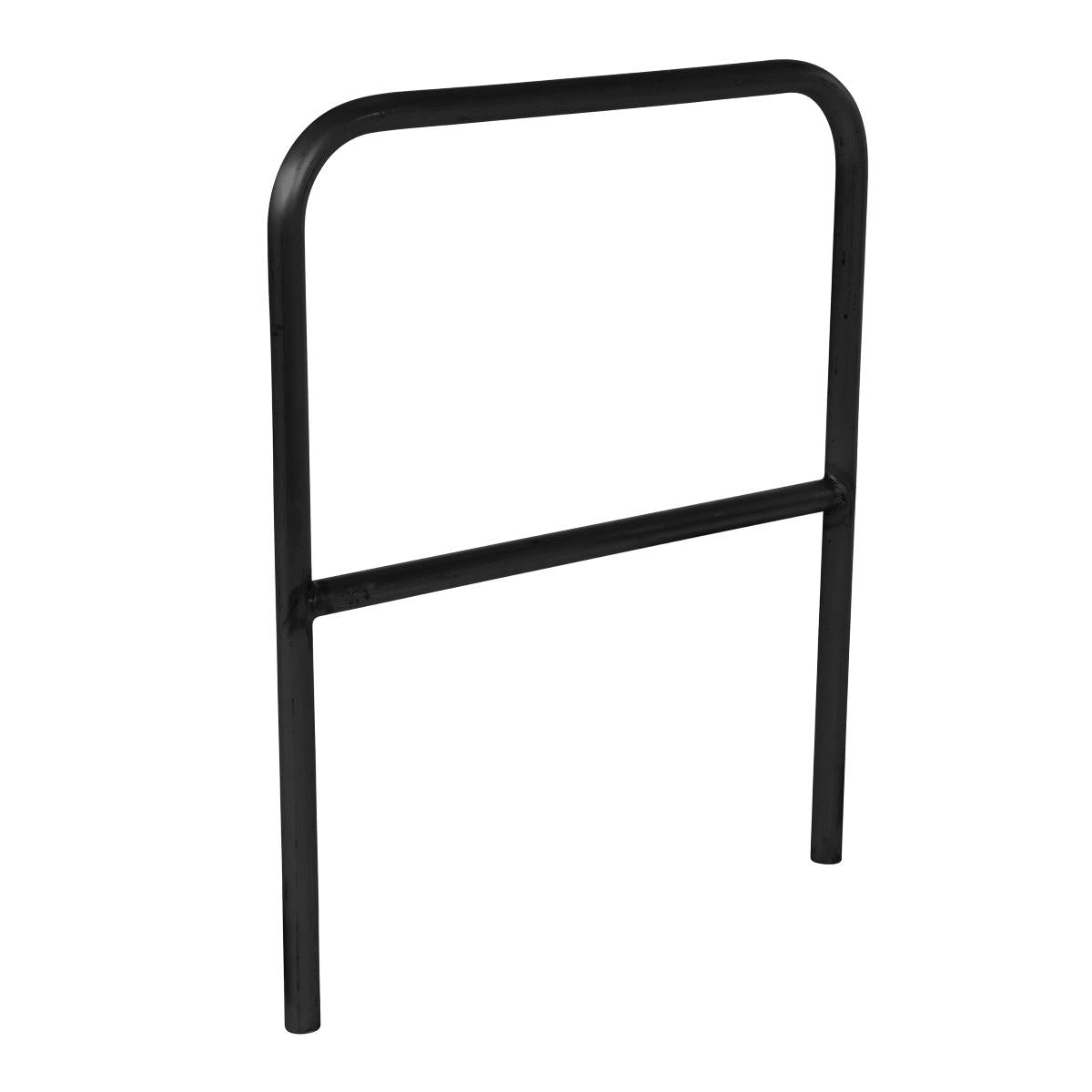

  • Black
  • Blue
  • Green
  • Orange
  • Red
• Installation Hardware Included: No
• Adjustable Length: No
• Adjustable Width: No
• Interlocking: No
• Reflective: No
• UPC: 691215000819

• GTIN: 00691215000819
• Manufacturer Warranty: 90 Days

Made in the USA

If you would like to request a Quotation for Large Quantities or Custom Powder-Coat Colors of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
