Vestil

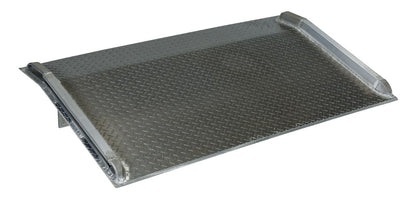

Aluminum Truck Dockboard - Welded Aluminum Curbs

Aluminum Truck Dockboard - Welded Aluminum Curbs

VES-BTA-06005430

  • Free Shipping in the Lower 48 States
  • Call or Email us for large QTY quotes
$699.99 USD
$699.99 USD
Sale Sold out
Width (in.)
Length (in.)
Uniform Capacity (lb.)

The Aluminum Truck Dockboard is designed for reliable, safe handling of heavy-duty loads with forklifts and other industrial equipment. Built from high-strength aluminum, it provides a stable transition between dock and trailer, ensuring smooth operation and enhanced safety during material transfers.

Each dockboard features beveled edges for easy entry and exit, welded aluminum safety curbs to prevent runoffs, and uneven locking legs that keep the unit securely positioned while allowing easy fork truck pickup when idle. For optimal performance, choose a dockboard capacity at least four times the lifting capacity of any three-wheeled fork truck used. The deck bend is 11° at 9" from the edge, and the legs are positioned 12" from the edge. Manufactured in full compliance with OSHA standards, this dockboard delivers a blend of safety, durability, and maneuverability.

Features and Benefits

  • 100% Aluminum Construction: Lightweight, corrosion-resistant, and built for long service life.

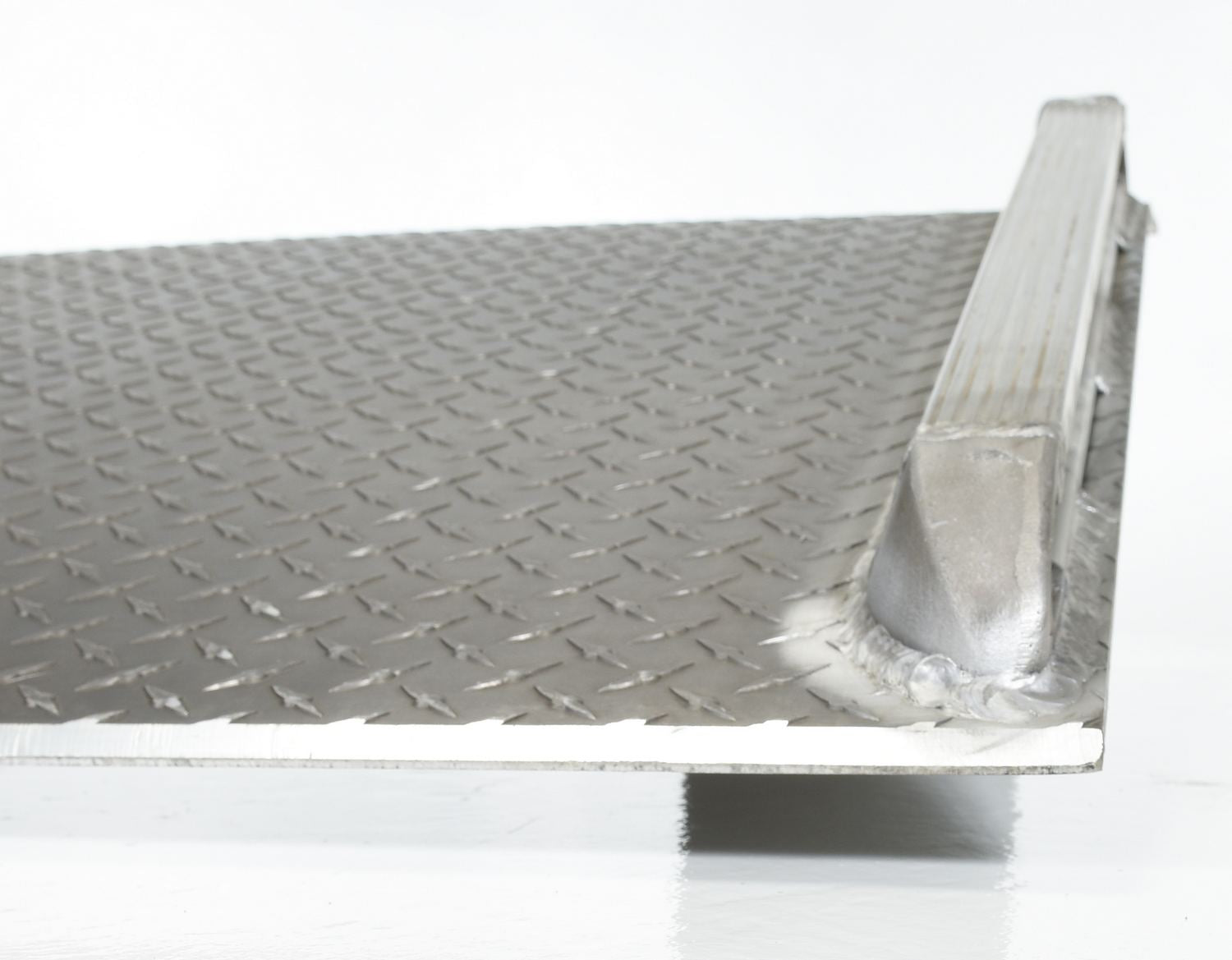

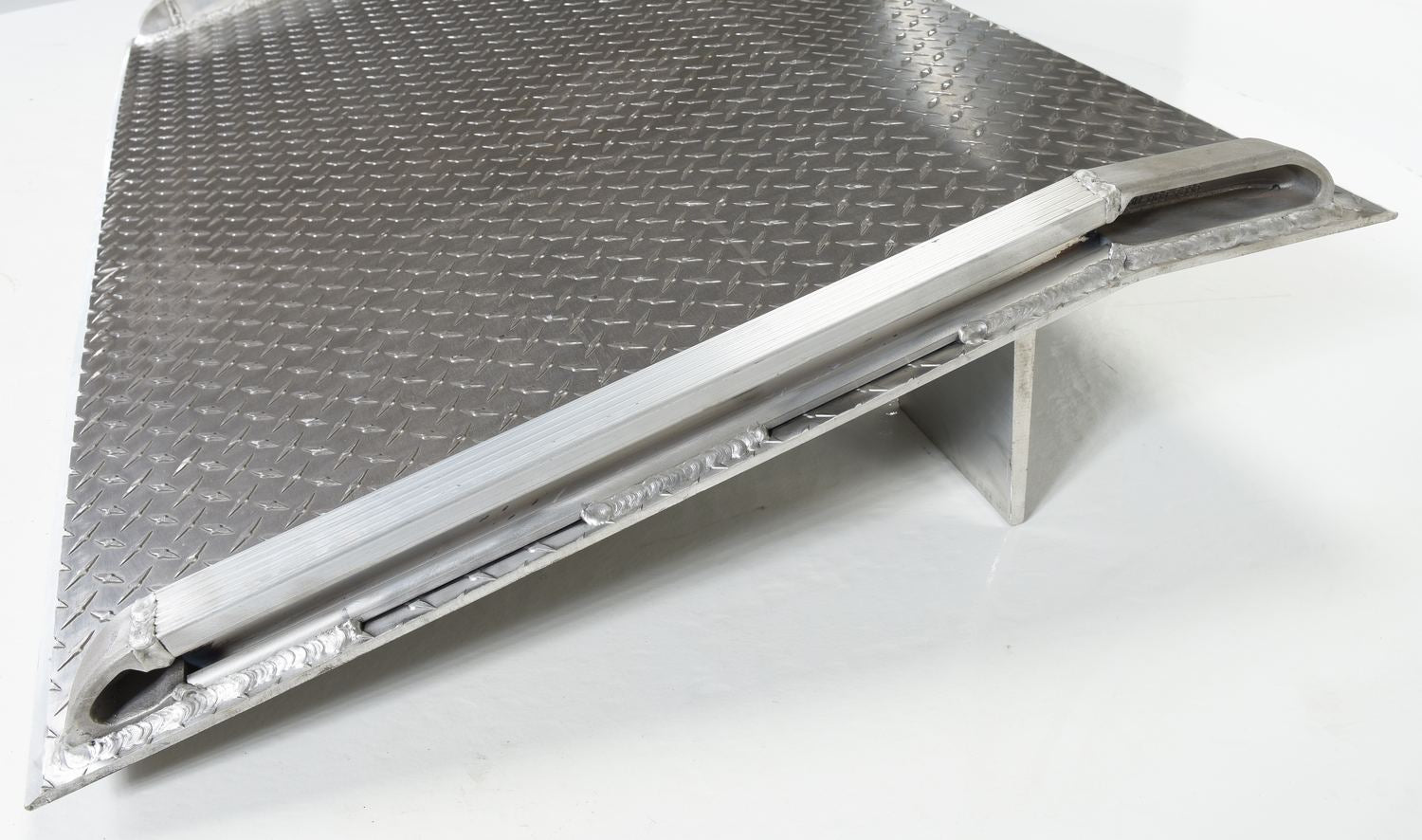

  • Welded Aluminum Safety Curbs: Provide a visible driving lane and prevent accidental runoffs.
  • Beveled Entry and Exit Edges: Allow smooth transition between dock and trailer surfaces.
  • Locking Legs: Prevent movement during loading and unloading; uneven design aids fork pickup.
  • Raised Diamond Tread Surface: Improves traction for forklifts and reduces slippage risk.
  • OSHA-Compliant Design: Meets recognized safety and performance standards for dockboards.

Additional Details

  • Available in multiple width and length combinations to accommodate various dock heights and vehicle configurations.
  • Recommended dockboard width should exceed the widest load by at least 15 inches for safe clearance.
  • Ideal for distribution centers, manufacturing facilities, and warehouses requiring efficient forklift-to-trailer transitions.
  • Compatible with both standard and three-wheeled forklifts when properly rated for capacity.
  • Bend angle and leg placement designed to maintain balance, stability, and proper incline for lifting operations.
View full details

Technical Specifications for Aluminum Truck Dockboard - Welded Aluminum Curbs

Technical Specifications

  • Bend Degree: 11
  • Bend Distance from Edge (in.): 9
  • Leg Distance from Edge (in.): 12
  • Equipped With: Welded
  • Dockboard Material: Aluminum
  • Surface Type: Raised-Diamond Treadplate

Uniform Capacity: 5000

SKU Assembled Wt. (lbs.) Width (in.) Length (in.) Height (in.) Plate Thickness (in.) Curb Height (in.) Curb Width (in.)
VES-BTA-05005454 117 54 54 13 5/16 2 2-1/8
VES-BTA-05005466 134 54 66 15 5/16 2 2-1/8
VES-BTA-05005478 168 54 78 16.75 5/16 2-3/4 2-1/4
VES-BTA-05006030 65 60 30 11 1/4 2 2-1/8
VES-BTA-05006036 69 60 36 11.1875 1/4 2 2-1/8
VES-BTA-05006048 105 60 48 11 5/16 2 2-1/8
VES-BTA-05006060 133 60 60 15.4375 5/16 2 2-1/8
VES-BTA-05006072 163 60 72 18.1563 5/16 2-3/4 2-1/4
VES-BTA-05006660 126 66 60 16.1875 5/16 2-3/4 2-1/4
VES-BTA-05006666 135 66 66 15.75 5/16 2-3/4 2-1/4
VES-BTA-05006672 171 66 72 16.75 5/16 2-3/4 2-1/4
VES-BTA-05007230 85 72 30 11 5/16 2 2-1/8
VES-BTA-05007236 92 72 36 11 5/16 2 2-1/8
VES-BTA-05007242 111 72 42 11 5/16 2 2-1/8
VES-BTA-05007248 137 72 48 11 5/16 2 2-1/8
VES-BTA-05007254 171 72 54 13 3/8 2 2-1/8
VES-BTA-05007260 195 72 60 16.25 3/8 2-3/4 2-1/4
VES-BTA-05007266 212 72 66 15.75 3/8 2-3/4 2-1/4
VES-BTA-05007272 281 72 72 16.75 3/8 2-3/4 2-1/4
VES-BTA-05007830 156 78 30 11 5/16 2 2-1/8
VES-BTA-05007836 151 78 36 11 5/16 2 2-1/8
VES-BTA-05007842 173 78 42 11 5/16 2 2-1/8
VES-BTA-05007854 212 78 54 13.75 5/16 2-3/4 2-1/4
VES-BTA-05007866 255 78 66 15.75 3/8 2-3/4 2-1/4
VES-BTA-05007872 267 78 72 16.75 3/8 2-3/4 2-1/4
VES-BTA-05008430 94 84 30 11 5/16 2 2-1/8
VES-BTA-05008442 116 84 42 11 5/16 2 2-1/8
VES-BTA-05008454 182 84 54 13.75 5/16 2-3/4 2-1/4
VES-BTA-05008466 275 84 66 15.75 3/8 2-3/4 2-1/4

Uniform Capacity: 6000

SKU Assembled Wt. (lbs.) Width (in.) Length (in.) Height (in.) Plate Thickness (in.) Curb Height (in.) Curb Width (in.)
VES-BTA-06005430 65 54 30 11 1/4 2 2-1/8
VES-BTA-06005442 102 54 42 11 5/16 2 2-1/8
VES-BTA-06005454 118 54 54 13.75 5/16 2-3/4 2-1/4
VES-BTA-06005466 144 54 66 15.75 5/16 2-3/4 2-1/4
VES-BTA-06005478 185 54 78 16.75 5/16 2-3/4 2-1/4
VES-BTA-06005484 201 54 84 17.75 3/8 2-3/4 2-1/4
VES-BTA-06006054 132 60 54 13.75 5/16 2-3/4 2-1/4
VES-BTA-06006060 144 60 60 16.1875 5/16 2-3/4 2-1/4
VES-BTA-06006072 164 60 72 18.2188 3/8 2-3/4 2-1/4
VES-BTA-06006084 185 60 84 13.1875 3/8 2-3/4 2-1/4
VES-BTA-06006636 150 66 36 11 5/16 2 2-1/8
VES-BTA-06006642 95 66 42 11 5/16 2 2-1/8
VES-BTA-06006648 208 66 48 11.75 5/16 2-3/4 2-1/4
VES-BTA-06006654 236 66 54 13.75 3/8 2-3/4 2-1/4
VES-BTA-06006660 241 66 60 66 3/8 2-3/4 2-1/4
VES-BTA-06006666 258 66 66 15.75 3/8 2-3/4 2-1/4
VES-BTA-06006672 279 66 72 16.75 3/8 2-3/4 2-1/4
VES-BTA-06007236 91 72 36 11 5/16 2 2-1/8
VES-BTA-06007242 111 72 42 11 5/16 2 2-1/8
VES-BTA-06007254 165 72 54 13.75 3/8 2-3/4 2-1/4
VES-BTA-06007266 289 72 66 15.75 3/8 2-3/4 2-1/4
VES-BTA-06007830 149 78 30 11 5/16 2 2-1/8
VES-BTA-06007836 158 78 36 11 5/16 2 2-1/8
VES-BTA-06007842 166 78 42 11.75 5/16 2-3/4 2-1/4
VES-BTA-06007848 142 78 48 11.75 5/16 2-3/4 2-1/4
VES-BTA-06007854 160 78 54 13.75 3/8 2-3/4 2-1/4
VES-BTA-06007860 186 78 60 16.25 3/8 2-3/4 2-1/4
VES-BTA-06007866 192 78 66 15.75 3/8 2-3/4 2-1/4
VES-BTA-06007872 201 78 72 16.75 3/8 2-3/4 2-1/4
VES-BTA-06008430 205 84 30 11 5/16 2 2-1/8
VES-BTA-06008436 198 84 36 11 5/16 2 2-1/8
VES-BTA-06008442 206 84 42 11.75 5/16 2-3/4 2-1/4
VES-BTA-06008448 218 84 48 11.75 5/16 2-3/4 2-1/4
VES-BTA-06008454 224 84 54 13.75 3/8 2-3/4 2-1/4
VES-BTA-06008460 235 84 60 16.25 3/8 2-3/4 2-1/4
VES-BTA-06008466 248 84 66 15.75 3/8 2-3/4 2-1/4
VES-BTA-06008472 255 84 72 16.75 3/8 2-3/4 2-1/4

Uniform Capacity: 7000

SKU Assembled Wt. (lbs.) Width (in.) Length (in.) Height (in.) Plate Thickness (in.) Curb Height (in.) Curb Width (in.)
VES-BTA-07005454 121 54 54 13.75 5/16 2-3/4 2-1/4
VES-BTA-07005466 155 54 66 15.75 3/8 2-3/4 2-1/4
VES-BTA-07006066 168 60 66 15.75 3/8 2-3/4 2-1/4
VES-BTA-07006630 90 66 30 11 5/16 2 2-1/8
VES-BTA-07006636 95 66 36 11 5/16 2 2-1/8
VES-BTA-07006642 106 66 42 11 3/8 2 2-1/8
VES-BTA-07006654 144 66 54 13.75 3/8 2-3/4 2-1/4
VES-BTA-07006666 157 66 66 15.75 3/8 2-3/4 2-1/4
VES-BTA-07007268 242 68 72 16.75 0.5 2.75
VES-BTA-07007230 130 72 30 11 5/16 2 2-1/8
VES-BTA-07007236 99 72 36 11 5/16 2 2-1/8
VES-BTA-07007248 136 72 48 11.75 3/8 2-3/4 2-1/4
VES-BTA-07007254 173 72 54 13.75 3/8 2-3/4 2-1/4
VES-BTA-07007272 220 72 72 16.75 1/2 2-3/4 2-1/4
VES-BTA-07007830 162 78 30 11 3/8 2 2-1/8
VES-BTA-07007842 215 78 42 11.75 3/8 2-3/4 2-1/4
VES-BTA-07007848 220 78 48 11.75 3/8 2-3/4 2-1/4
VES-BTA-07007854 225 78 54 13.75 3/8 2-3/4 2-1/4
VES-BTA-07007860 228 78 60 14.75 1/2 2-3/4 2-1/4
VES-BTA-07007866 231 78 66 15.75 1/2 2-3/4 2-1/4
VES-BTA-07007872 242 78 72 16.75 1/2 2-3/4 2-1/4
VES-BTA-07008430 173 84 30 11 3/8 2 2-1/8
VES-BTA-07008436 201 84 36 11 3/8 2 2-1/8
VES-BTA-07008442 225 84 42 11.75 3/8 2-3/4 2-1/4
VES-BTA-07008454 248 84 54 13.75 3/8 2-3/4 2-1/4
VES-BTA-07008460 252 84 60 14.75 1/2 2-3/4 2-1/4
VES-BTA-07008466 255 84 66 15.75 1/2 2-3/4 2-1/4

Uniform Capacity: 8000

SKU Assembled Wt. (lbs.) Width (in.) Length (in.) Height (in.) Plate Thickness (in.) Curb Height (in.) Curb Width (in.)
VES-BTA-08005430 110 54 30 11 5/16 2 2-1/8
VES-BTA-08005442 115 54 42 11.75 5/16 2-3/4 2-1/4
VES-BTA-08005454 137 54 54 13.75 3/8 2-3/4 2-1/4
VES-BTA-08005466 178 54 66 15.75 3/8 2-3/4 2-1/4
VES-BTA-08005472 182 54 72 16.75 3/8 2-3/4 2-1/4
VES-BTA-08005484 202 54 84 17.625 3/8 2-5/8 3-1/8
VES-BTA-08006078 202 60 78 18.2188 3/8 2-3/4 2-1/4
VES-BTA-08006084 201 60 84 19.625 3/8 2-5/8 3-1/8
VES-BTA-08006630 101 66 30 11 3/8 2 2-1/8
VES-BTA-08006636 112 66 36 11 3/8 2 2-1/8
VES-BTA-08006642 120 66 42 11.75 3/8 2-3/4 2-1/4
VES-BTA-08006654 206 66 54 13.75 1/2 2-3/4 2-1/4
VES-BTA-08006660 214 66 60 16.3125 1/2 2-3/4 2-1/4
VES-BTA-08006666 235 66 66 15.75 1/2 2-3/4 2-1/4
VES-BTA-08006672 238 66 72 16.75 1/2 2-3/4 2-1/4
VES-BTA-08007236 120 72 36 11 3/8 2 2-1/8
VES-BTA-08007254 181 72 54 13.75 1/2 2-3/4 2-1/4
VES-BTA-08007260 185 72 60 16.3125 1/2 2-3/4 2-1/4
VES-BTA-08007266 188 72 66 15.75 1/2 2-3/4 2-1/4
VES-BTA-08007272 203 72 72 16.75 1/2 2-3/4 2-1/4
VES-BTA-08007830 162 78 30 11.75 3/8 2 2-1/8
VES-BTA-08007836 188 78 36 11 3/8 2 2-1/8
VES-BTA-08007842 194 78 42 11.75 3/8 2-3/4 2-1/4
VES-BTA-08007848 196 78 48 11.75 1/2 2-3/4 2-1/4
VES-BTA-08007854 200 78 54 13.75 1/2 2-3/4 2-1/4
VES-BTA-08007860 206 78 60 16.3125 1/2 2-3/4 2-1/4
VES-BTA-08007872 214 78 72 16.75 1/2 2-3/4 2-1/4
VES-BTA-08008442 132 84 42 11.75 3/8 2-3/4 2-1/4
VES-BTA-08008454 175 84 54 13.75 1/2 2-3/4 2-1/4
VES-BTA-08008460 188 84 60 16.3125 1/2 2-3/4 2-1/4
VES-BTA-08008466 211 84 66 15.75 1/2 2-3/4 2-1/4
VES-BTA-08008472 221 84 72 16.75 1/2 2-3/4 2-1/4

Uniform Capacity: 9000

SKU Assembled Wt. (lbs.) Width (in.) Length (in.) Height (in.) Plate Thickness (in.) Curb Height (in.) Curb Width (in.)
VES-BTA-09006054 181 60 54 13.75 1/2 2-3/4 2-1/4
VES-BTA-09006060 185 60 60 14.75 1/2 2-3/4 2-1/4
VES-BTA-09006066 187 60 66 15.75 1/2 2-3/4 2-1/4
VES-BTA-09006072 191 60 72 16.75 1/2 2-3/4 2-1/4
VES-BTA-09006630 85 66 30 11 3/8 2 2-1/8
VES-BTA-09006636 101 66 36 11.75 3/8 2-3/4 2-1/4
VES-BTA-09006648 108 66 48 11.75 1/2 2-3/4 2-1/4
VES-BTA-09006654 115 66 54 13.75 1/2 2-3/4 2-1/4
VES-BTA-09006660 119 66 60 14.75 1/2 2-3/4 2-1/4
VES-BTA-09006666 122 66 66 15.75 1/2 2-3/4 2-1/4
VES-BTA-09006672 125 66 72 16.75 1/2 2-3/4 2-1/4
VES-BTA-09007236 111 72 36 11.75 3/8 2-3/4 2-1/4
VES-BTA-09007242 122 72 42 11.75 1/2 2-3/4 2-1/4
VES-BTA-09007248 168 72 48 11.75 1/2 2-3/4 2-1/4
VES-BTA-09007254 179 72 54 13.75 1/2 2-3/4 2-1/4
VES-BTA-09007260 198 72 60 14.75 1/2 2-3/4 2-1/4
VES-BTA-09007266 212 72 66 15.75 1/2 2-3/4 2-1/4
VES-BTA-09007830 165 78 30 11.75 3/8 2-3/4 2-1/4
VES-BTA-09007836 175 78 36 11.75 3/8 2-3/4 2-1/4
VES-BTA-09007842 182 78 42 11.75 1/2 2-3/4 2-1/4
VES-BTA-09007848 198 78 48 11.75 1/2 2-3/4 2-1/4
VES-BTA-09007854 201 78 54 13.75 1/2 2-3/4 2-1/4
VES-BTA-09007860 211 78 60 14.75 1/2 2-3/4 2-1/4
VES-BTA-09007866 215 78 66 15.75 1/2 2-3/4 2-1/4
VES-BTA-09007872 219 78 72 16.75 1/2 2-3/4 2-1/4
VES-BTA-09008436 188 84 36 11.75 3/8 2-3/4 2-1/4
VES-BTA-09008442 199 84 42 11.75 1/2 2-3/4 2-1/4
VES-BTA-09008448 205 84 48 11.75 1/2 2-3/4 2-1/4
VES-BTA-09008454 223 84 54 13.75 1/2 2-3/4 2-1/4
VES-BTA-09008460 231 84 60 14.75 1/2 2-3/4 2-1/4
VES-BTA-09008466 241 84 66 15.75 1/2 2-3/4 2-1/4

Uniform Capacity: 10000

SKU Assembled Wt. (lbs.) Width (in.) Length (in.) Height (in.) Plate Thickness (in.) Curb Height (in.) Curb Width (in.)
VES-BTA-10005448 152 54 48 11.75 3/8 2-3/4 2-1/4
VES-BTA-10005460 165 54 60 14.75 1/2 2-3/4 2-1/4
VES-BTA-10005472 177 54 72 16.75 1/2 2-3/4 2-1/4
VES-BTA-10006036 123 60 36 11.75 3/8 2-3/4 2-1/4
VES-BTA-10006048 169 60 48 12.25 1/2 2-3/4 2-1/4
VES-BTA-10006060 197 60 59.8125 16.8125 1/2 2-3/4 2-1/4
VES-BTA-10006072 251 60 72 17.8125 1/2 2-3/4 2-1/4
VES-BTA-10006078 264 60 78 18.7188 1/2 2-5/8 3-1/8
VES-BTA-10006630 127 66 30 11.75 3/8 2-3/4 2-1/4
VES-BTA-10006642 177 66 42 11.75 1/2 2-3/4 2-1/4
VES-BTA-10006654 215 66 54 13.75 1/2 2-3/4 2-1/4
VES-BTA-10006666 255 66 66 15.75 1/2 2-3/4 2-1/4
VES-BTA-10006672 262 66 72 16.75 1/2 2-3/4 2-1/4
VES-BTA-10007236 156 72 36 11.75 1/2 2-3/4 2-1/4
VES-BTA-10007248 189 72 48 11.75 1/2 2-3/4 2-1/4
VES-BTA-10007254 199 72 54 13.75 1/2 2-3/4 2-1/4
VES-BTA-10007260 229 72 60 16.3125 1/2 2-3/4 2-1/4
VES-BTA-10007266 311 72 66 15.75 1/2 2-3/4 2-1/4
VES-BTA-10007272 319 72 72 16.75 1/2 2-3/4 2-1/4
VES-BTA-10007842 189 78 42 11.75 1/2 2-3/4 2-1/4
VES-BTA-10007854 245 78 54 13.75 1/2 2-3/4 2-1/4
VES-BTA-10007860 276 78 60 16.75 1/2 2-5/8 3-1/8
VES-BTA-10007866 288 78 66 15.625 1/2 2-5/8 3-1/8
VES-BTA-10007872 299 78 72 16.625 1/2 2-5/8 3-1/8
VES-BTA-10008442 204 84 42 11.75 1/2 2-3/4 2-1/4
VES-BTA-10008466 223 84 66 15.625 1/2 2-5/8 3-1/8

Uniform Capacity: 11000

SKU Assembled Wt. (lbs.) Width (in.) Length (in.) Height (in.) Plate Thickness (in.) Curb Height (in.) Curb Width (in.)
VES-BTA-11006042 144 60 42 11.75 1/ 2-3/4 2-1/4
VES-BTA-11006054 191 60 54 13.75 1/ 2-3/4 2-1/4
VES-BTA-11006060 211 60 60 14.75 1/ 2-3/4 2-1/4
VES-BTA-11006066 226 60 66 15.75 1/ 2-3/4 2-1/4
VES-BTA-11006072 240 60 72 16.75 1/ 2-3/4 2-1/4
VES-BTA-11006630 151 66 30 11.75 1/ 2-3/4 2-1/4
VES-BTA-11006636 162 66 36 11.75 1/ 2-3/4 2-1/4
VES-BTA-11006648 178 66 48 11.75 1/ 2-3/4 2-1/4
VES-BTA-11006654 285 66 54 13.75 1/ 2-3/4 2-1/4
VES-BTA-11006660 317 66 60 14.625 1/ 2-5/8 3-1/8
VES-BTA-11006672 345 66 72 16.625 1/ 2-5/8 3-1/8
VES-BTA-11007230 154 72 30 11.75 1/ 2-3/4 2-1/4
VES-BTA-11007242 182 72 42 11.75 1/ 2-3/4 2-1/4
VES-BTA-11007248 210 72 48 11.75 1/ 2-3/4 2-1/4
VES-BTA-11007254 223 72 54 13.75 1/ 2-3/4 2-1/4
VES-BTA-11007260 241 72 60 14.625 1/ 2-5/8 3-1/8
VES-BTA-11007266 255 72 66 15.625 1/ 2-5/8 3-1/8
VES-BTA-11007830 164 78 30 11.75 1/ 2-3/4 2-1/4
VES-BTA-11007836 216 78 36 11.75 1/ 2-3/4 2-1/4
VES-BTA-11007842 235 78 42 11.75 1/ 2-3/4 2-1/4
VES-BTA-11007848 255 78 48 11.75 1/ 2-3/4 2-1/4
VES-BTA-11007860 266 78 60 14.625 1/ 2-5/8 3-1/8
VES-BTA-11007866 299 78 66 15.625 1/ 2-5/8 3-1/8
VES-BTA-11007872 341 78 72 16.625 1/ 2-5/8 3-1/8
VES-BTA-11008448 255 84 48 11.75 1/ 2-3/4 2-1/4
VES-BTA-11008454 262 84 54 13.75 1/ 2-3/4 2-1/4
VES-BTA-11008472 272 84 72 16.625 1/ 2-5/8 3-1/8

Uniform Capacity: 12000

SKU Assembled Wt. (lbs.) Width (in.) Length (in.) Height (in.) Plate Thickness (in.) Curb Height (in.) Curb Width (in.)
VES-BTA-12006042 166 60 42 11.625 1/ 2-5/8 3-1/8
VES-BTA-12006054 210 60 54 13.625 1/ 2-5/8 3-1/8
VES-BTA-12006066 275 60 66 15.625 1/ 2-5/8 3-1/8
VES-BTA-12006078 292 60 78 16.625 1/ 2-5/8 3-1/8
VES-BTA-12006642 188 66 42 11.625 1/ 2-5/8 3-1/8
VES-BTA-12006648 204 66 48 11.75 1/ 2-5/8 3-1/8
VES-BTA-12006654 235 66 54 13.625 1/ 2-5/8 3-1/8
VES-BTA-12006660 254 66 60 16.75 1/ 2-5/8 3-1/8
VES-BTA-12006666 312 66 66 15.625 1/ 2-5/8 3-1/8
VES-BTA-12006672 322 66 72 16.625 1/ 2-5/8 3-1/8
VES-BTA-12007230 144 72 30 11.75 1/ 2-3/4 2-1/4
VES-BTA-12007242 205 72 42 11.625 1/ 2-5/8 3-1/8
VES-BTA-12007254 257 72 54 13.625 1/ 2-5/8 3-1/8
VES-BTA-12007266 318 72 66 15.625 1/ 2-5/8 3-1/8
VES-BTA-12007830 177 78 30 11.75 1/ 2-3/4 2-1/4
VES-BTA-12007836 195 78 36 11.75 1/ 2-3/4 2-1/4
VES-BTA-12007842 222 78 42 11.75 1/ 2-3/4 2-1/4
VES-BTA-12007848 233 78 48 11.75 1/ 2-3/4 2-1/4
VES-BTA-12007854 255 78 54 13.75 1/ 2-3/4 2-1/4
VES-BTA-12007860 273 78 60 16.8125 1/ 2-5/8 3-1/8
VES-BTA-12007866 352 78 66 15.625 1/ 2-5/8 3-1/8
VES-BTA-12008430 145 84 30 11.75 1/ 2-3/4 2-1/4
VES-BTA-12008454 268 84 54 13.75 1/ 2-3/4 2-1/4
VES-BTA-12008466 275 84 66 15.625 1/ 2-5/8 3-1/8

Uniform Capacity: 15000

SKU Assembled Wt. (lbs.) Width (in.) Length (in.) Height (in.) Plate Thickness (in.) Curb Height (in.) Curb Width (in.)
VES-BTA-15005436 151 54 36 11.75 1/2 2-3/4 2-1/4
VES-BTA-15005448 208 54 48 11.625 1/2 2-5/8 3-1/8
VES-BTA-15005472 308 54 72 16.625 5/8 2-5/8 3-1/8
VES-BTA-15006036 141 60 36 11.625 1/2 2-5/8 3-1/8
VES-BTA-15006048 177 60 48 11.625 1/2 2-5/8 3-1/8
VES-BTA-15006060 235 60 59.8125 16.8125 1/2 2-5/8 3-1/8
VES-BTA-15006066 256 60 66 15.625 1/2 2-5/8 3-1/8
VES-BTA-15006072 284 60 71.8125 17.8125 1/2 2-5/8 3-1/8
VES-BTA-15006636 151 66 36 11.625 1/2 2-5/8 3-1/8
VES-BTA-15006642 183 66 42 11.625 1/2 2-5/8 3-1/8
VES-BTA-15006666 280 66 66 15.625 1/2 2-5/8 3-1/8
VES-BTA-15006672 306 66 72 16.625 1/2 2-5/8 3-1/8
VES-BTA-15007236 162 72 36 11.625 1/2 2-5/8 3-1/8
VES-BTA-15007242 191 72 42 11.625 1/2 2-5/8 3-1/8
VES-BTA-15007248 212 72 48 11.625 1/2 2-5/8 3-1/8
VES-BTA-15007260 269 72 60 16.8125 1/2 2-5/8 3-1/8
VES-BTA-15007266 304 72 66 13.625 1/2 2-5/8 3-1/8
VES-BTA-15007272 373 72 72 18.7813 1/2 2-5/8 3-1/8
VES-BTA-15007836 213 78 36 11.625 1/2 2-5/8 3-1/8
VES-BTA-15007842 220 78 42 11.625 1/2 2-5/8 3-1/8
VES-BTA-15007866 315 78 66 15.625 1/2 2-5/8 3-1/8
VES-BTA-15008442 252 84 42 11.625 1/2 2-5/8 3-1/8
VES-BTA-15008466 365 84 66 15.625 1/2 2-5/8 3-1/8

Uniform Capacity: 20000

SKU Assembled Wt. (lbs.) Width (in.) Length (in.) Height (in.) Plate Thickness (in.) Curb Height (in.) Curb Width (in.)
VES-BTA-20006036 177 60 36 11.75 1/2 2-3/4 2-1/4
VES-BTA-20006048 206 60 48 11.625 1/2 2-5/8 3-1/8
VES-BTA-20006054 250 60 54 13.625 5/8 2-5/8 3-1/8
VES-BTA-20006060 278 60 60 16.9375 5/8 2-5/8 3-1/8
VES-BTA-20006066 305 60 66 15.625 5/8 2-5/8 3-1/8
VES-BTA-20006072 357 60 72 18.9063 5/8 2-5/8 3-1/8
VES-BTA-20006630 184 66 30 11.75 1/2 2-3/4 2-1/4
VES-BTA-20006636 192 66 36 11.625 1/2 2-5/8 3-1/8
VES-BTA-20006642 204 66 42 11.625 1/2 2-5/8 3-1/8
VES-BTA-20006654 261 66 54 13.625 5/8 2-5/8 3-1/8
VES-BTA-20006660 265 66 60 16.9375 5/8 2-5/8 3-1/8
VES-BTA-20006672 274 66 72 16.625 5/8 2-5/8 3-1/8
VES-BTA-20007236 166 72 36 11.625 1/2 2-5/8 3-1/8
VES-BTA-20007248 220 72 48 10.625 5/8 2-5/8 3-1/8
VES-BTA-20007254 304 72 54 13.625 5/8 2-5/8 3-1/8
VES-BTA-20007260 325 72 60 16.9375 5/8 2-5/8 3-1/8
VES-BTA-20007266 338 72 66 15.625 5/8 2-5/8 3-1/8
VES-BTA-20007272 318 72 72 16.625 5/8 2-5/8 3-1/8
VES-BTA-20007830 215 78 30 11.625 1/2 2-5/8 3-1/8
VES-BTA-20007836 235 78 36 11.625 1/2 2-5/8 3-1/8
VES-BTA-20007842 241 78 42 11.625 5/8 2-5/8 3-1/8
VES-BTA-20008454 380 84 54 13.625 5/8 2-5/8 3-1/8
  • UPC & GTIN Available upon request



Made in the USA

If you would like to request a quotation for large quantities of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832

Recently viewed
