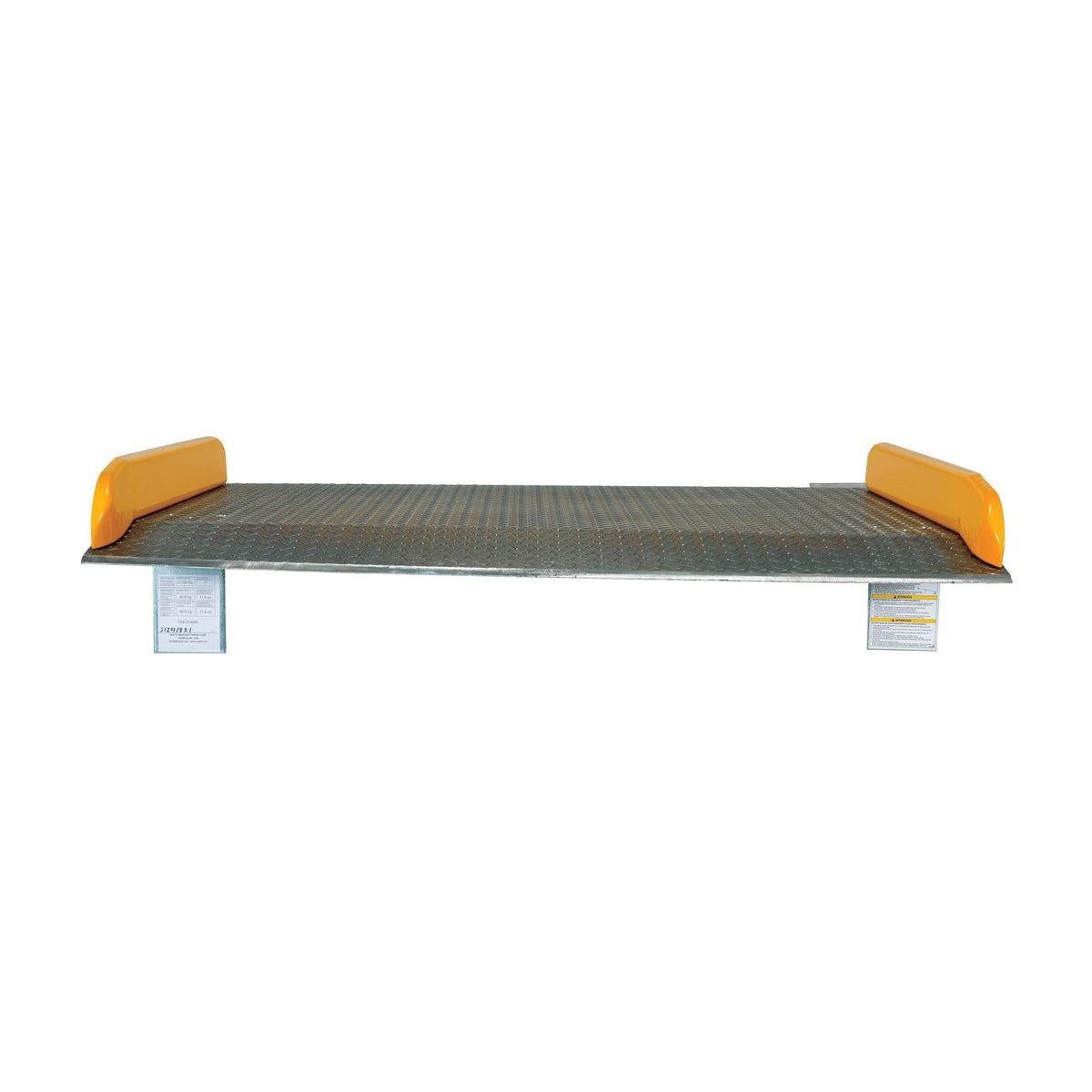

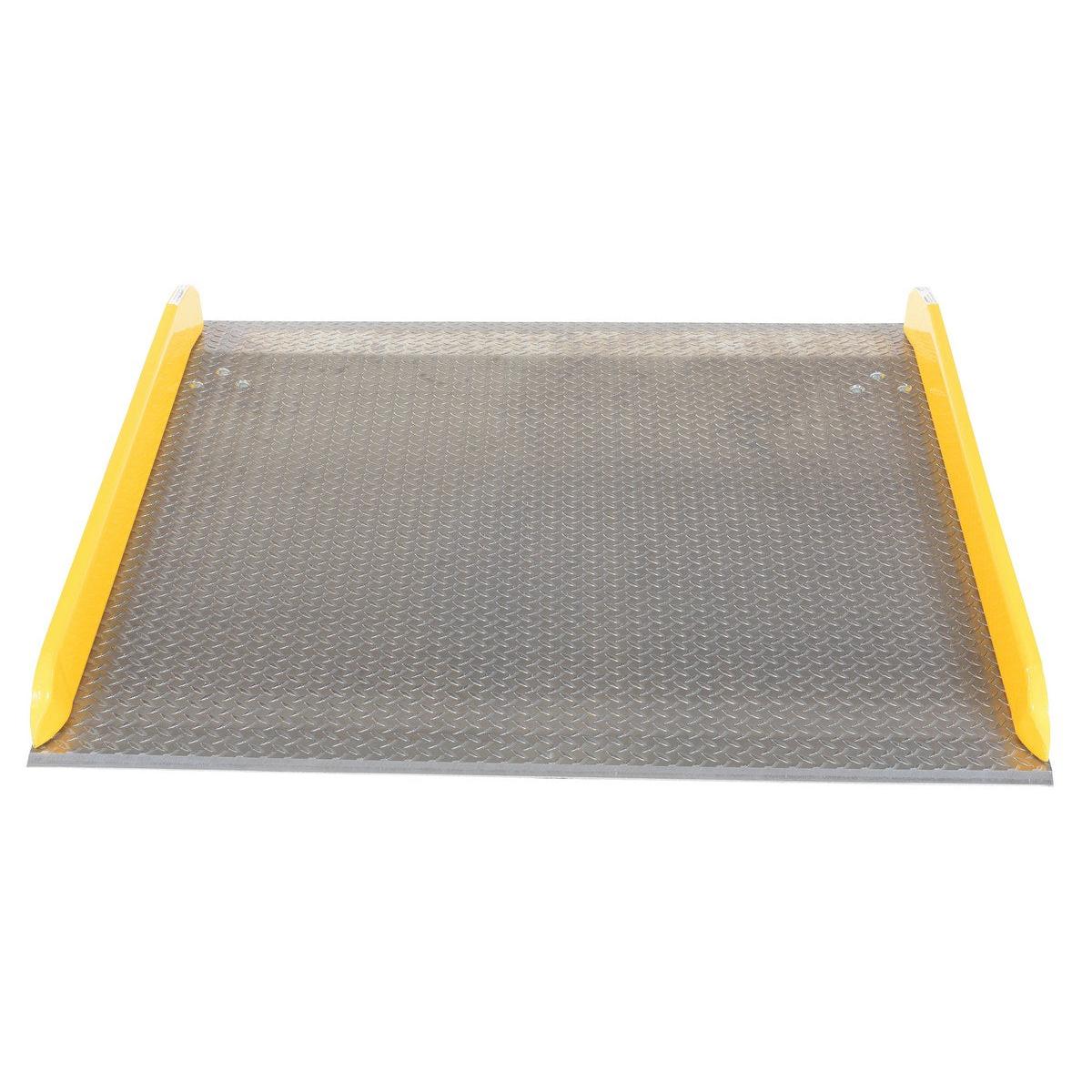

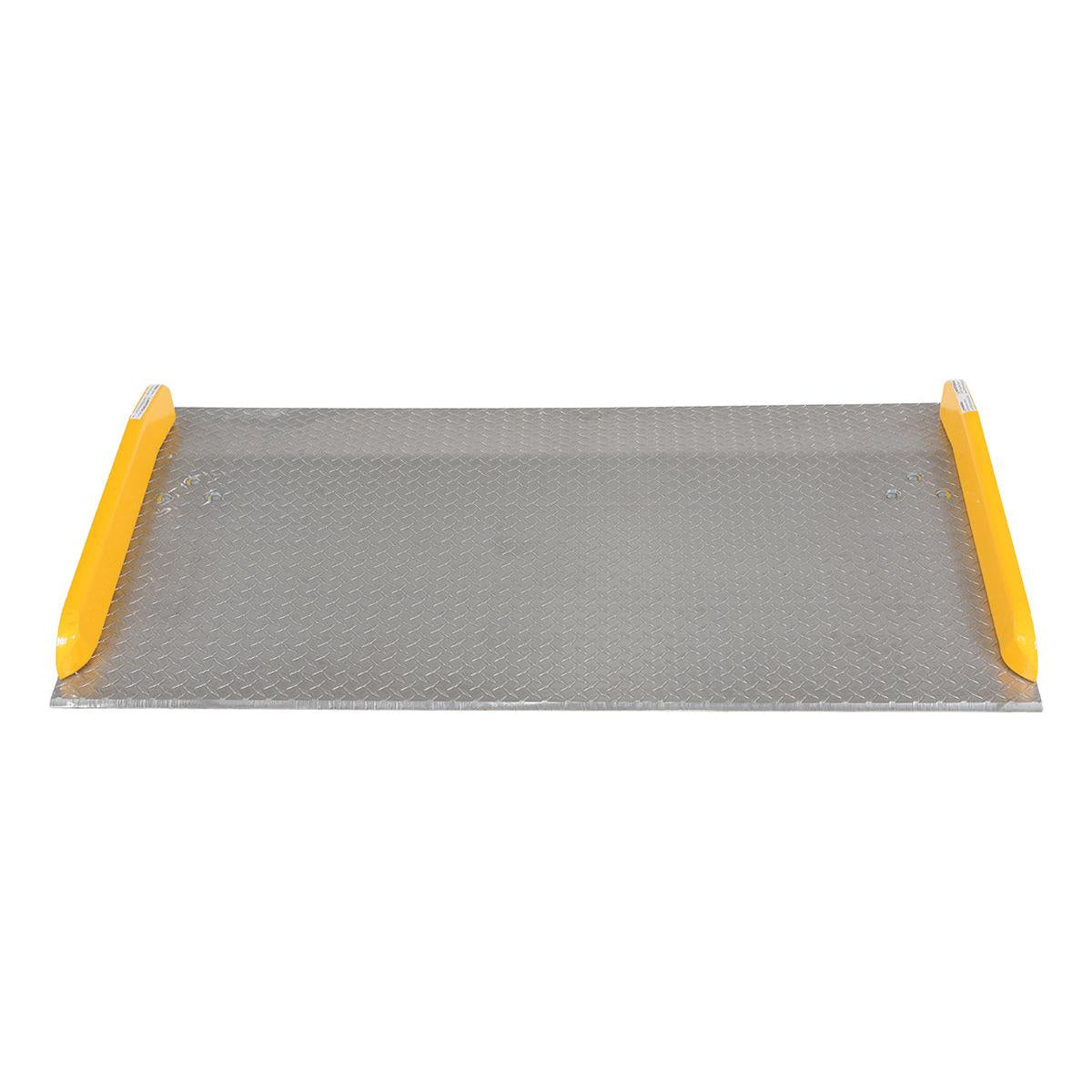

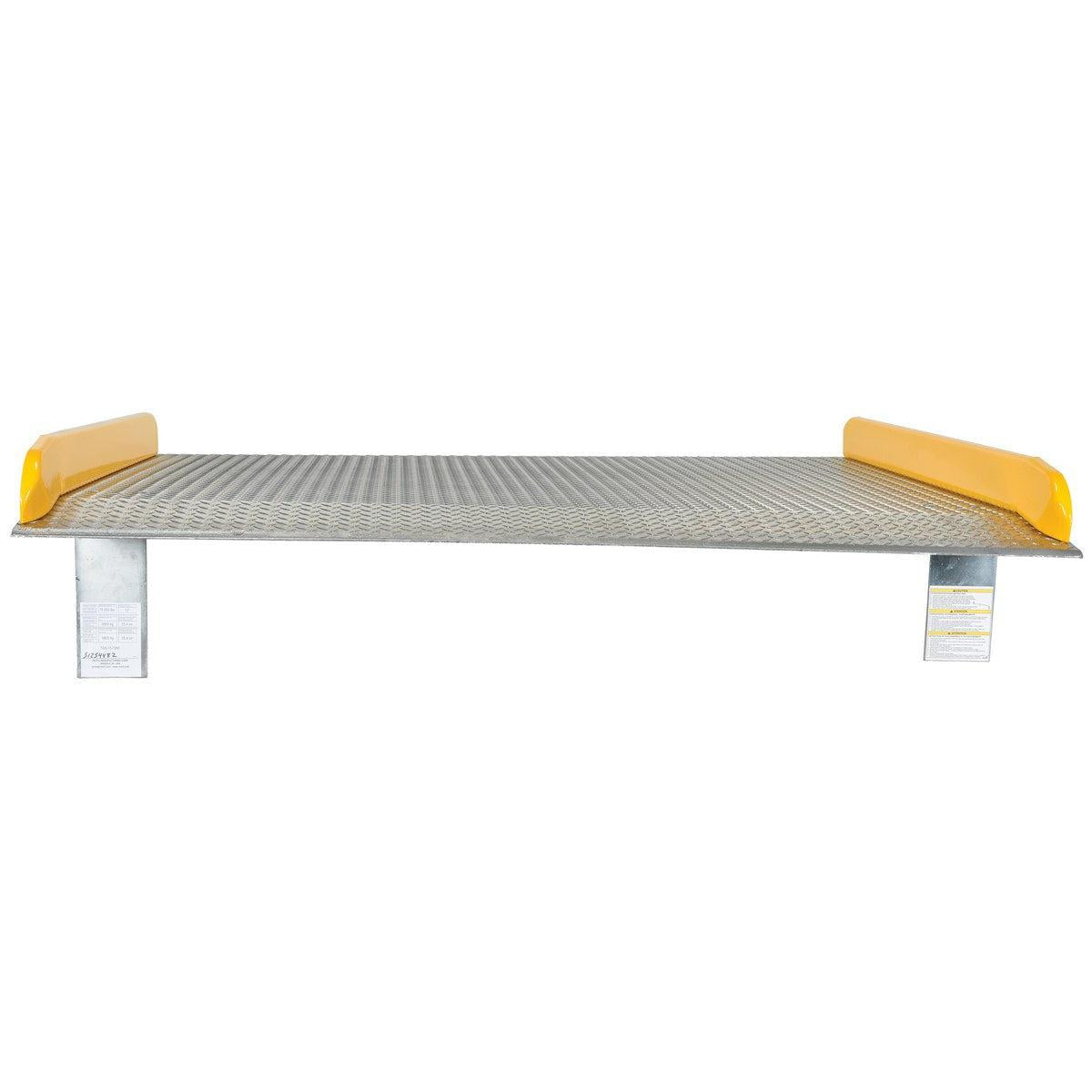

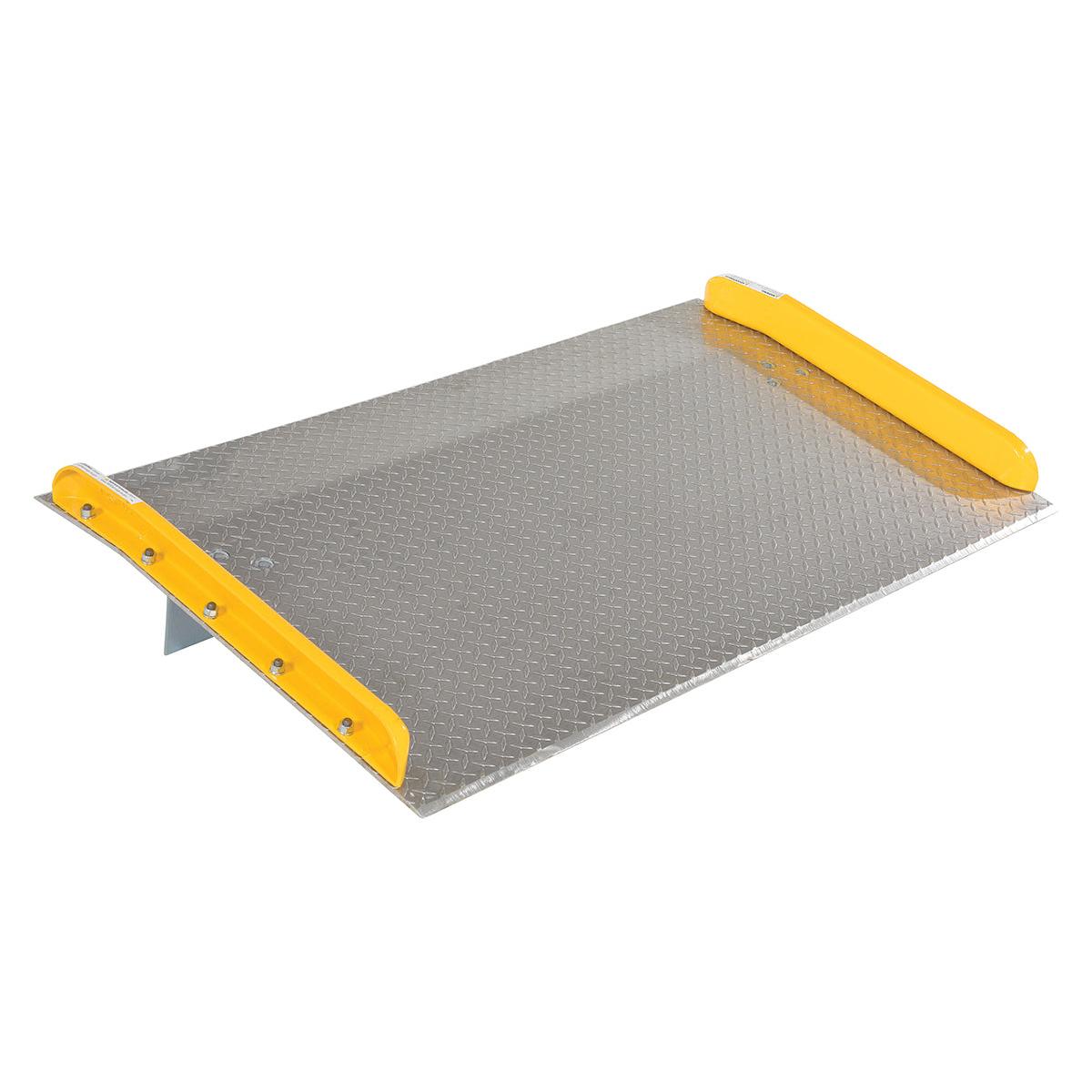

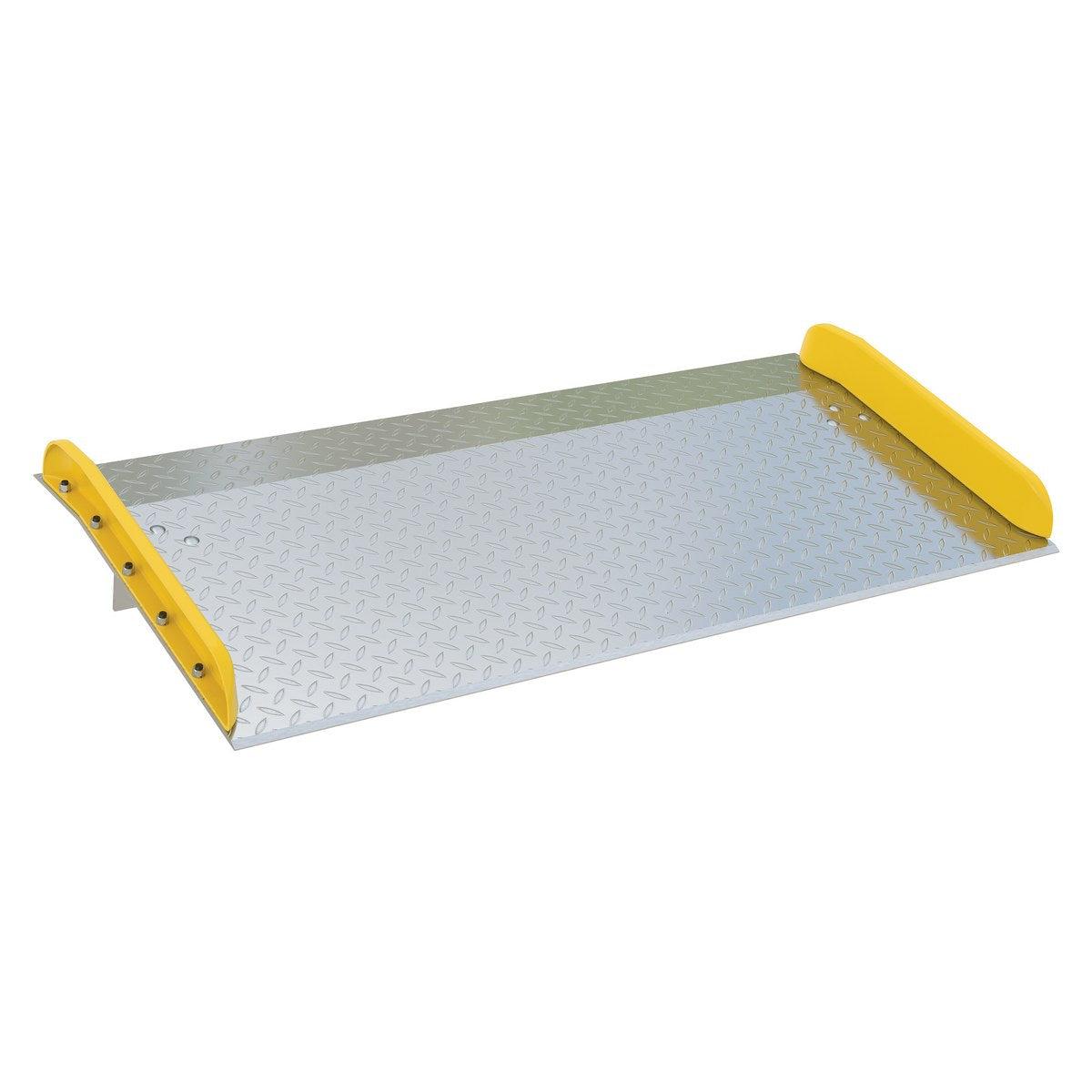

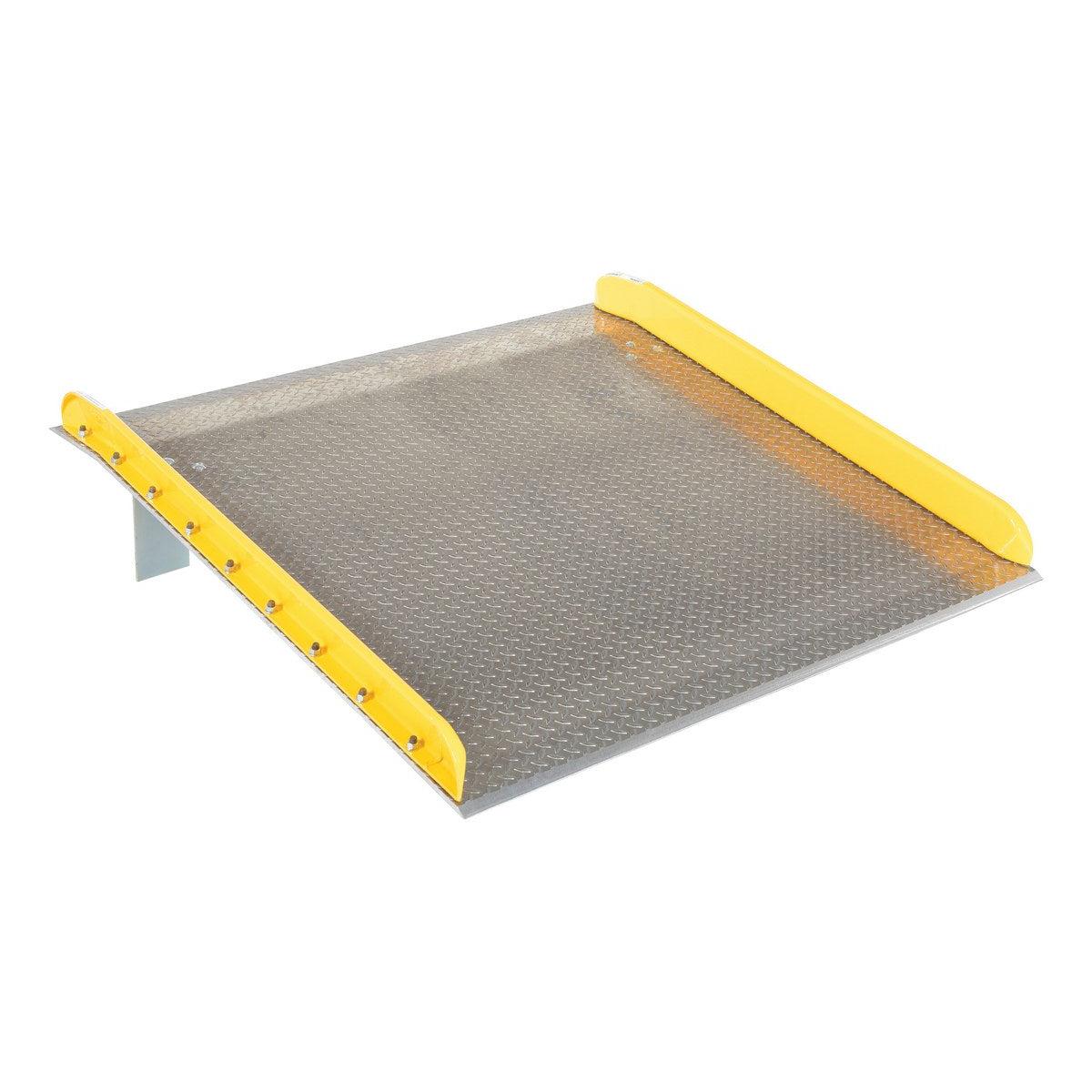

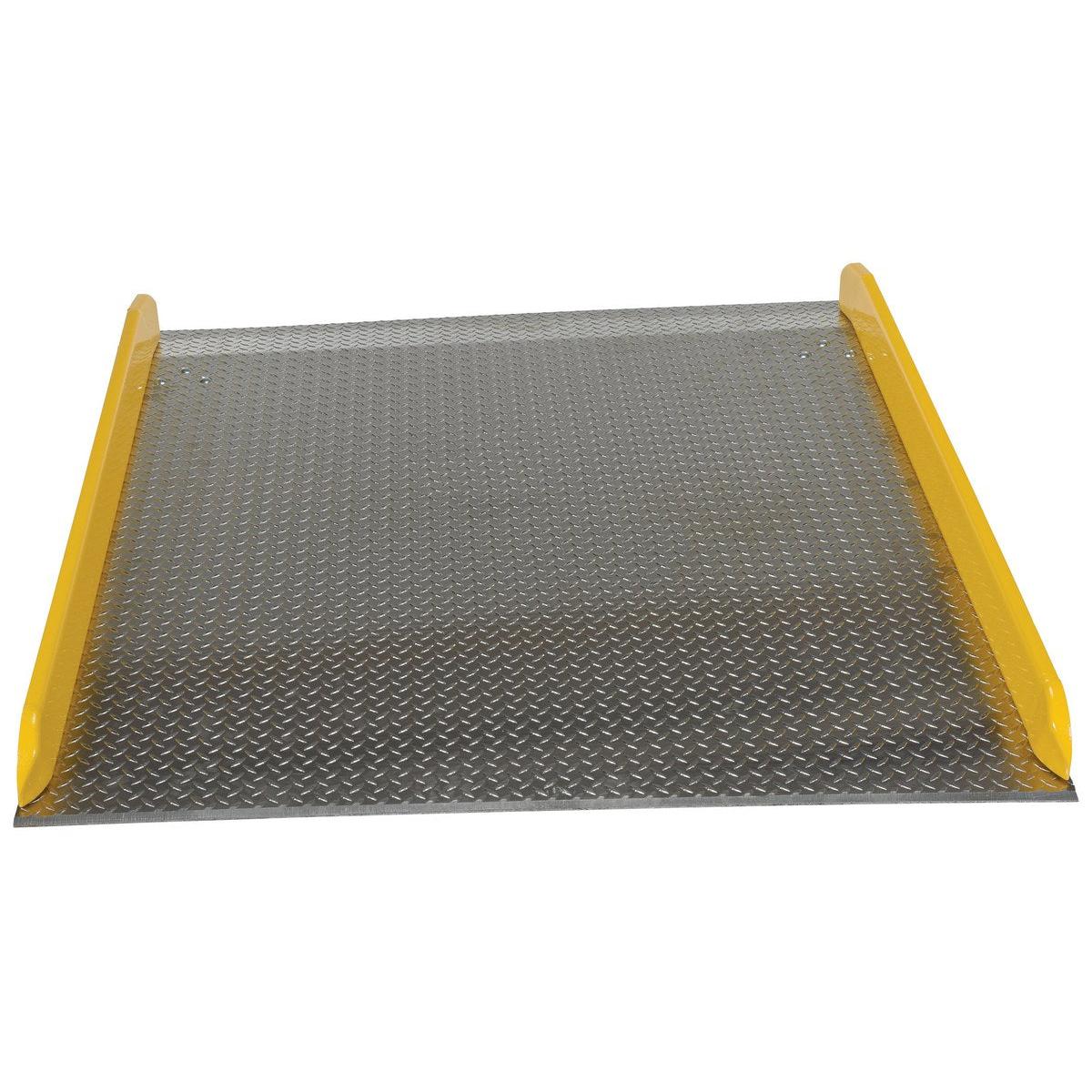

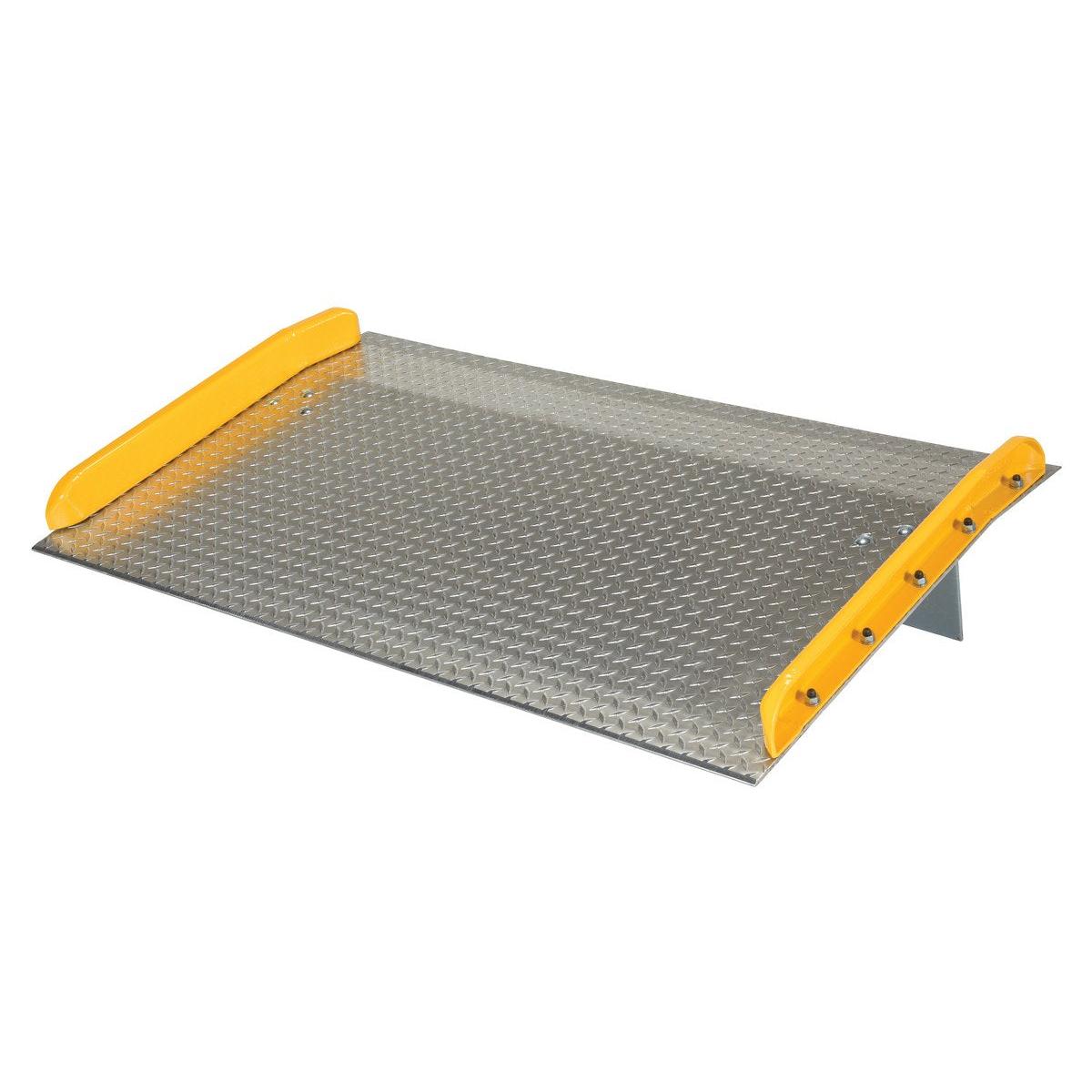

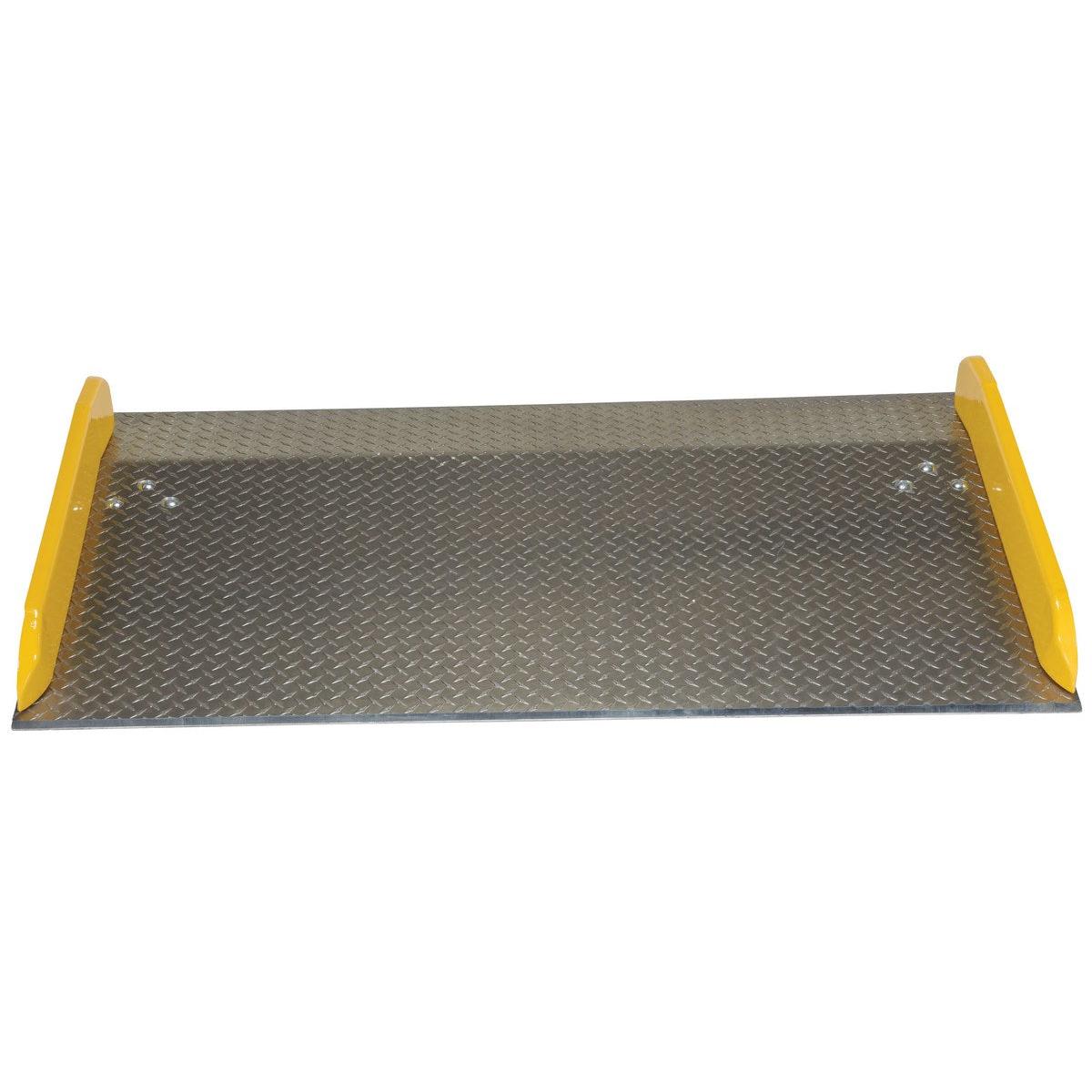

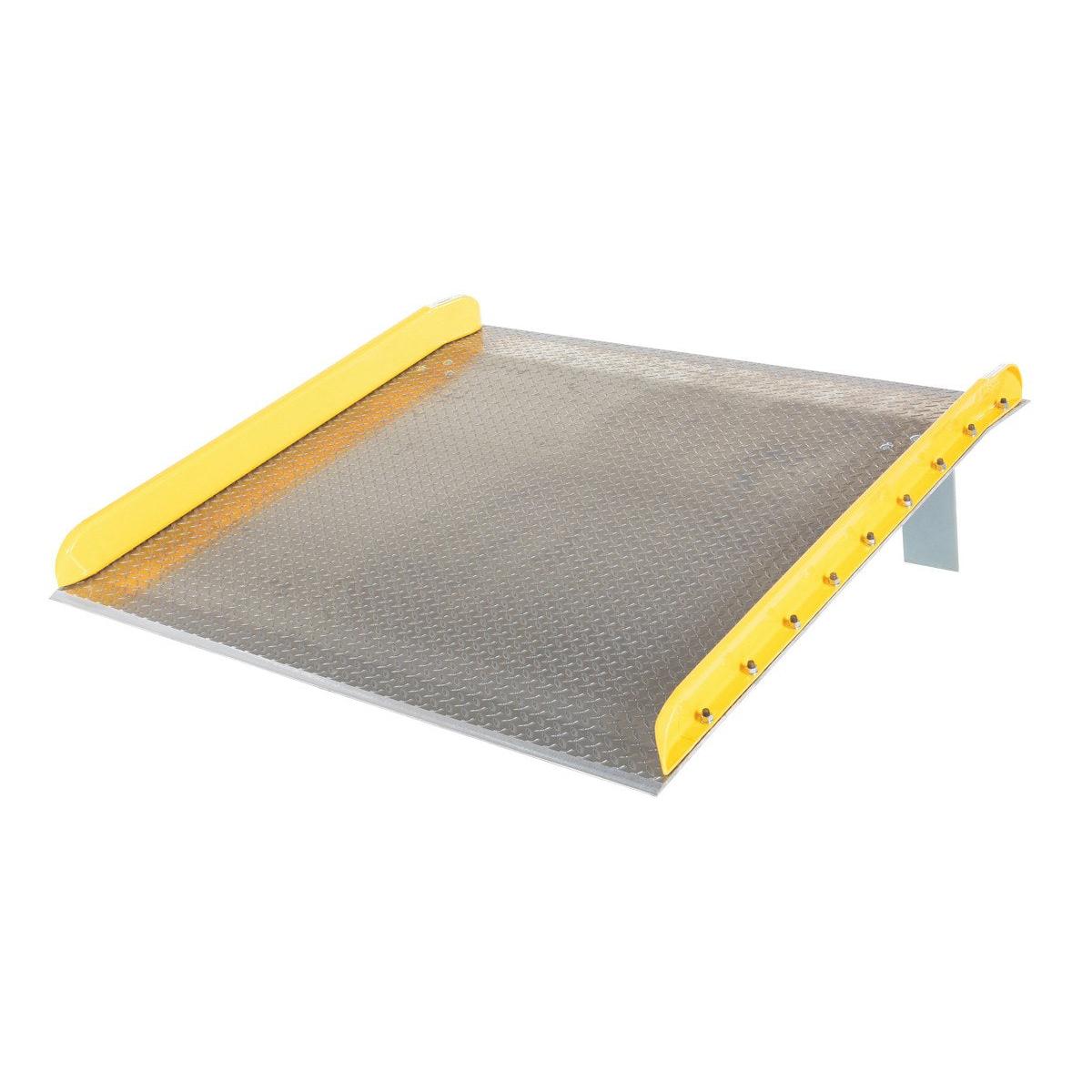

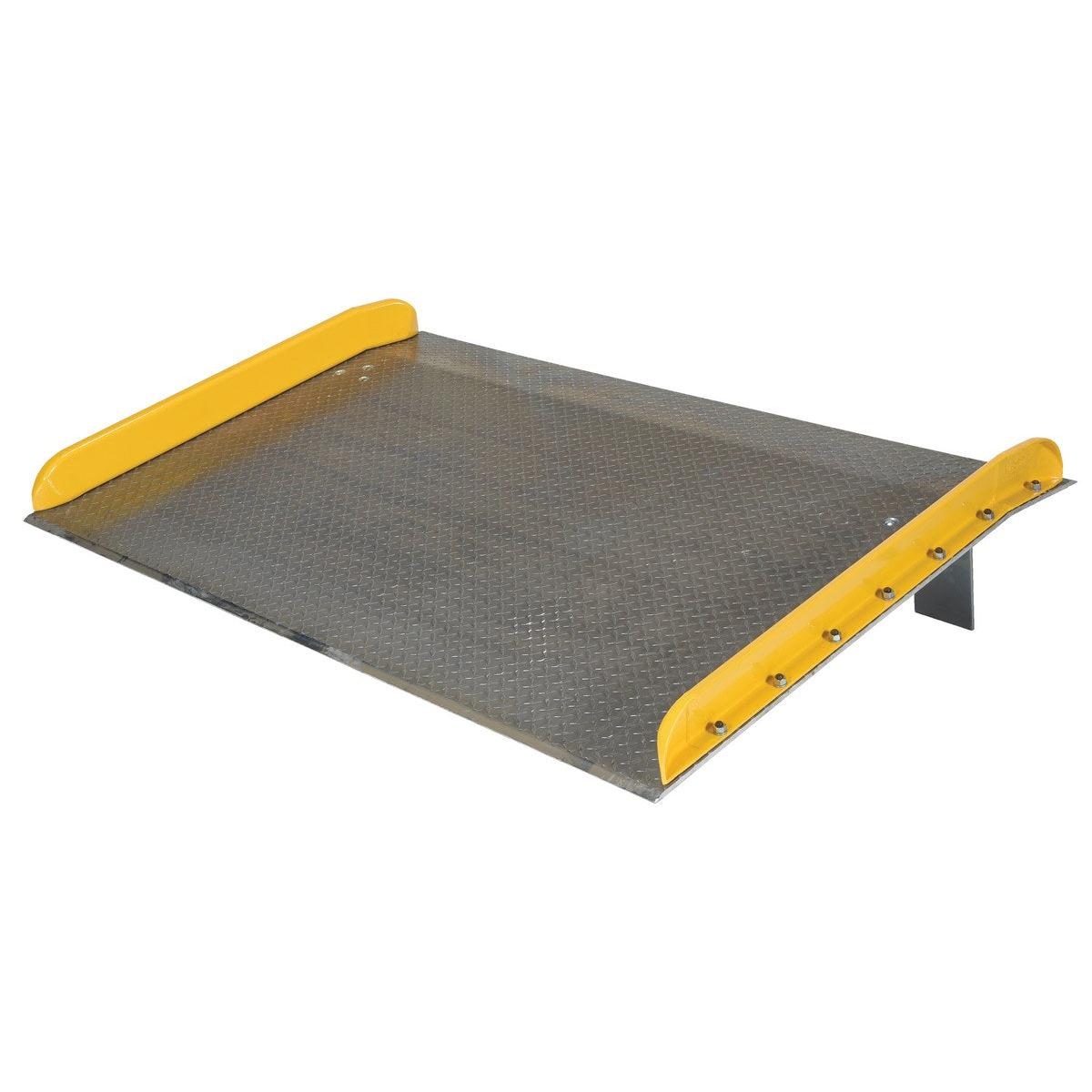

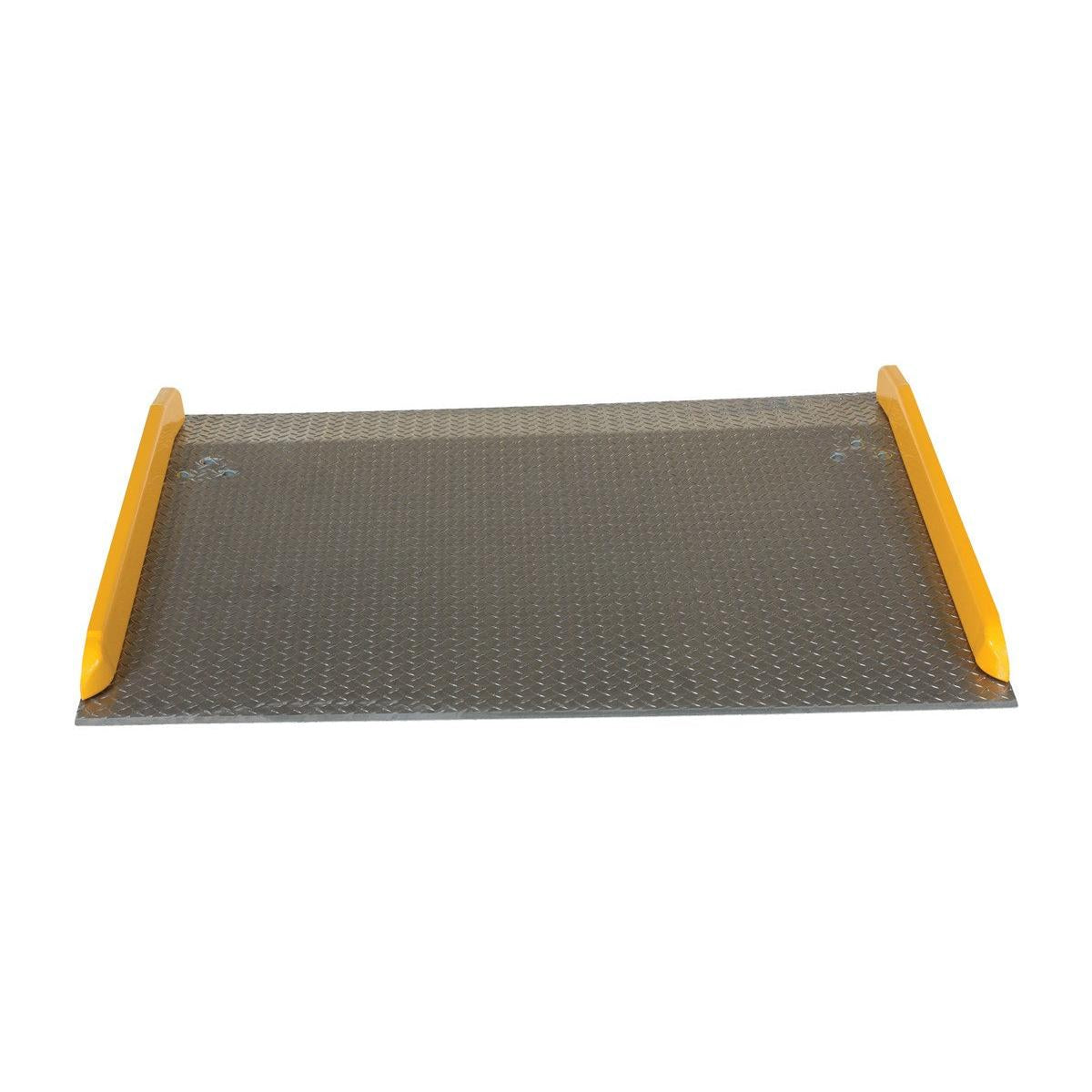

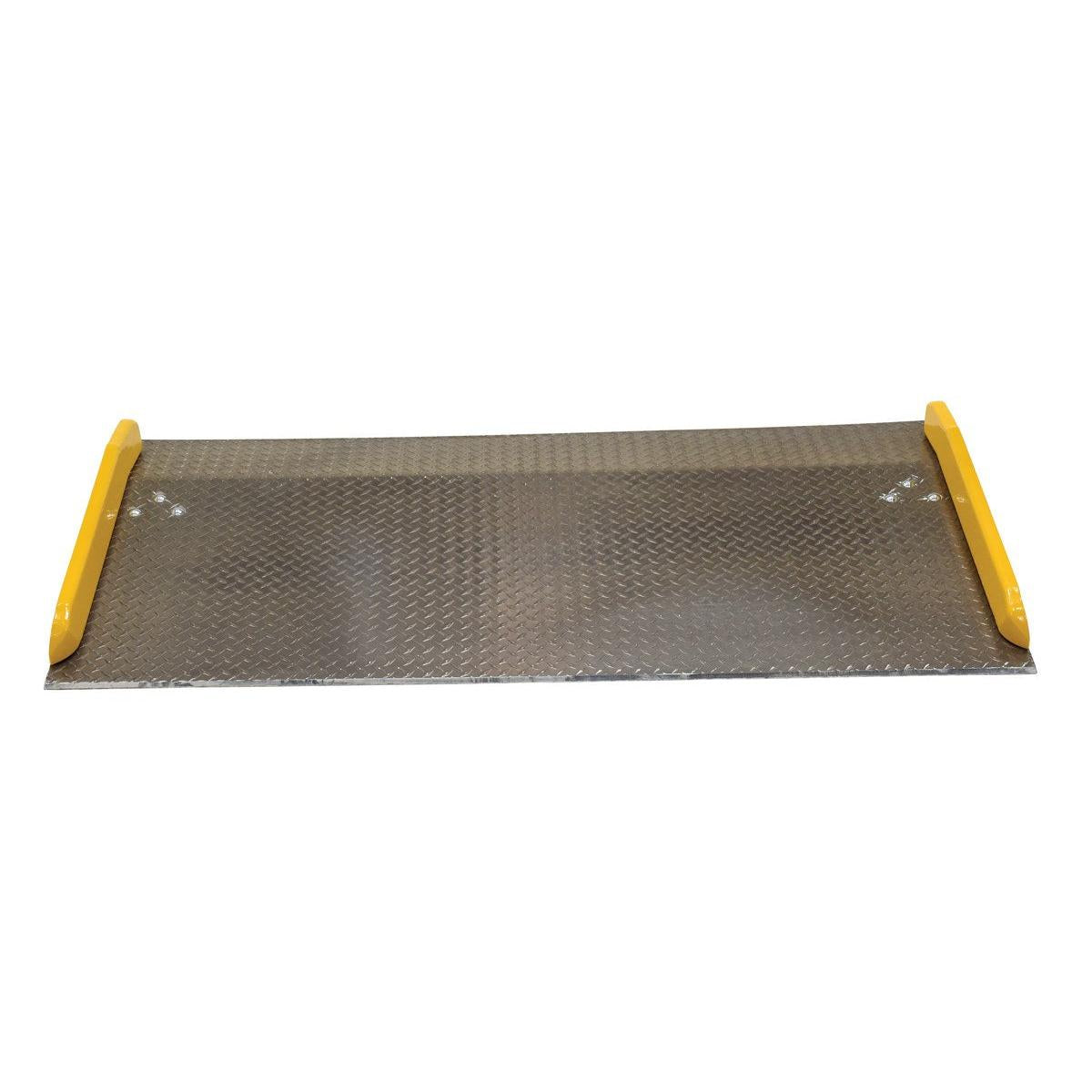

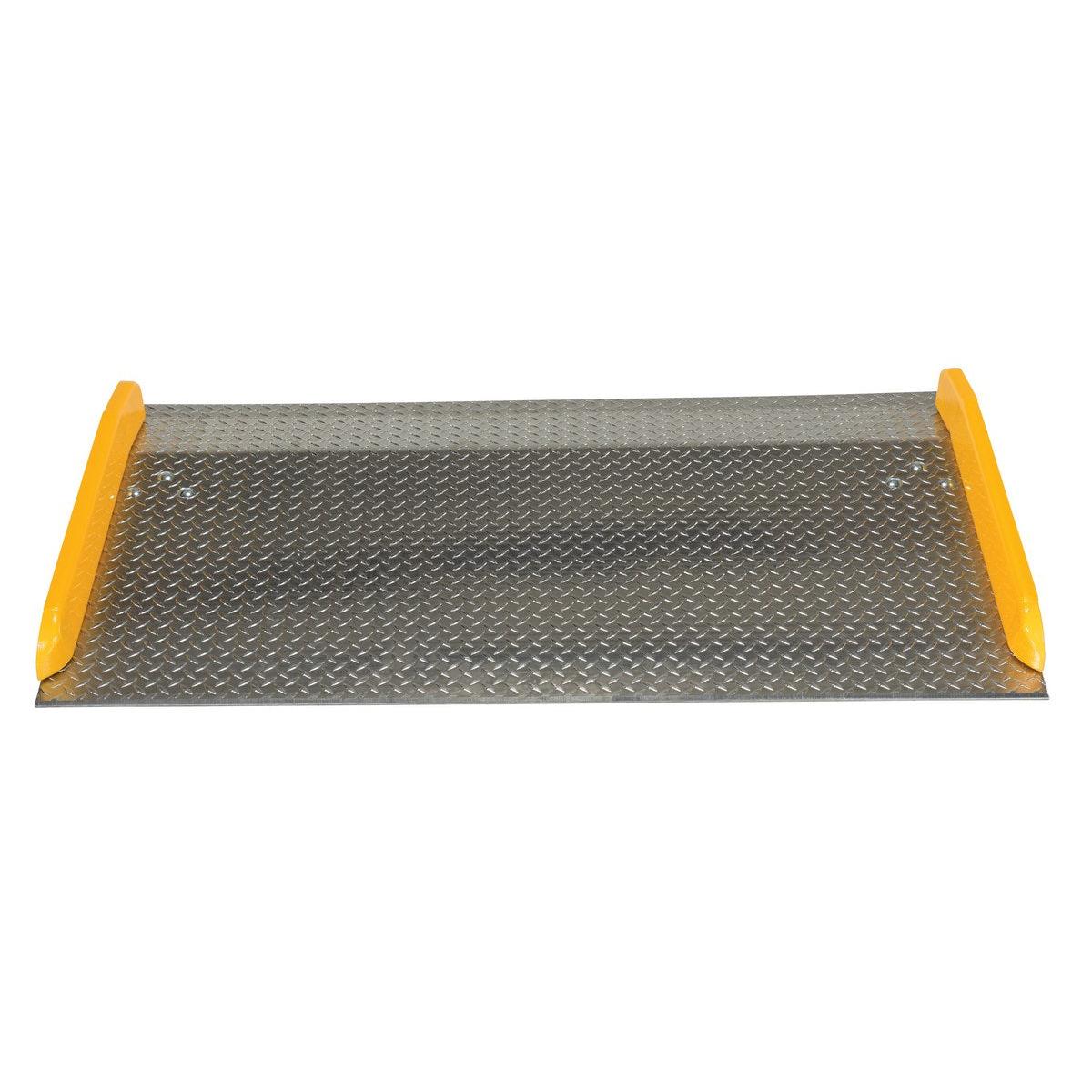

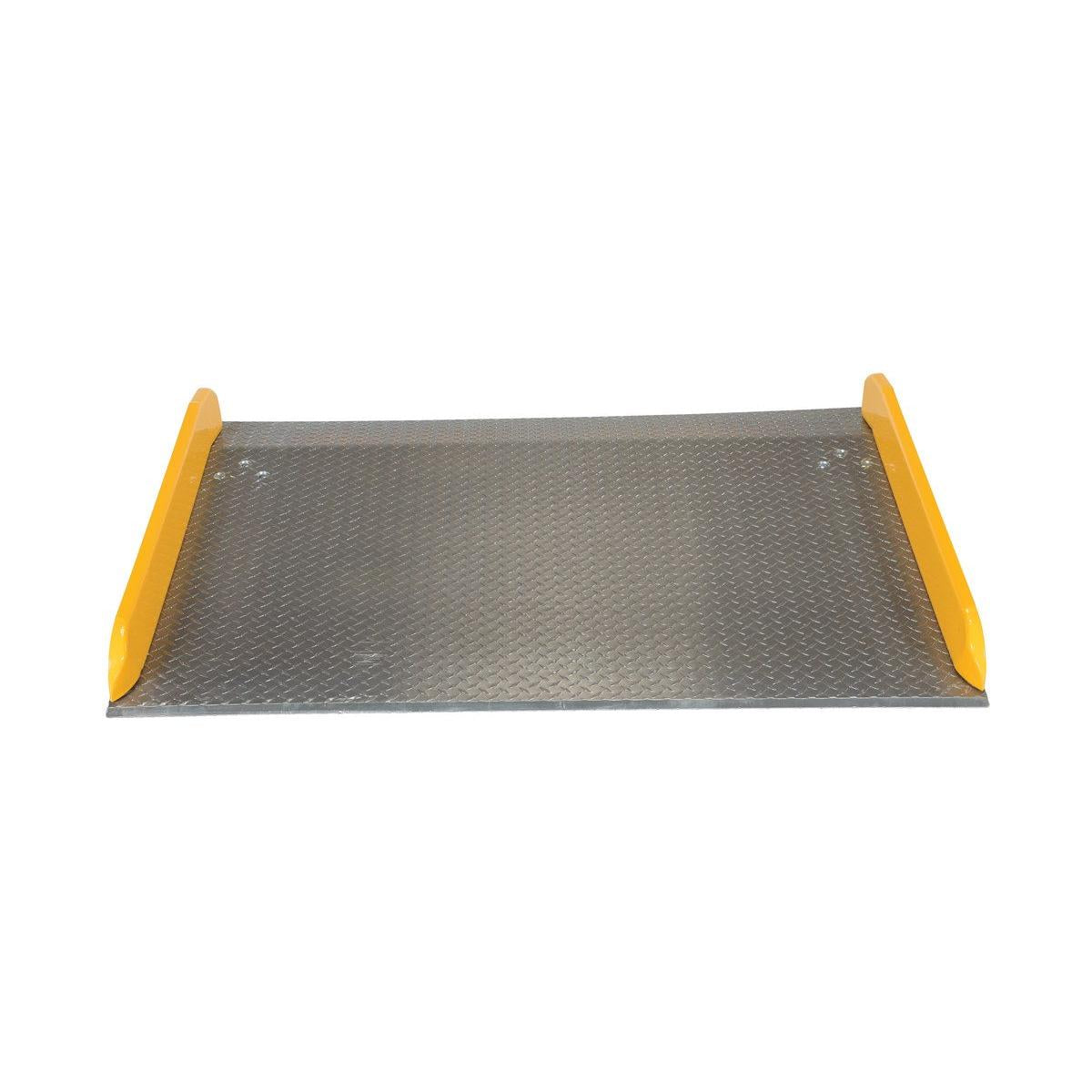

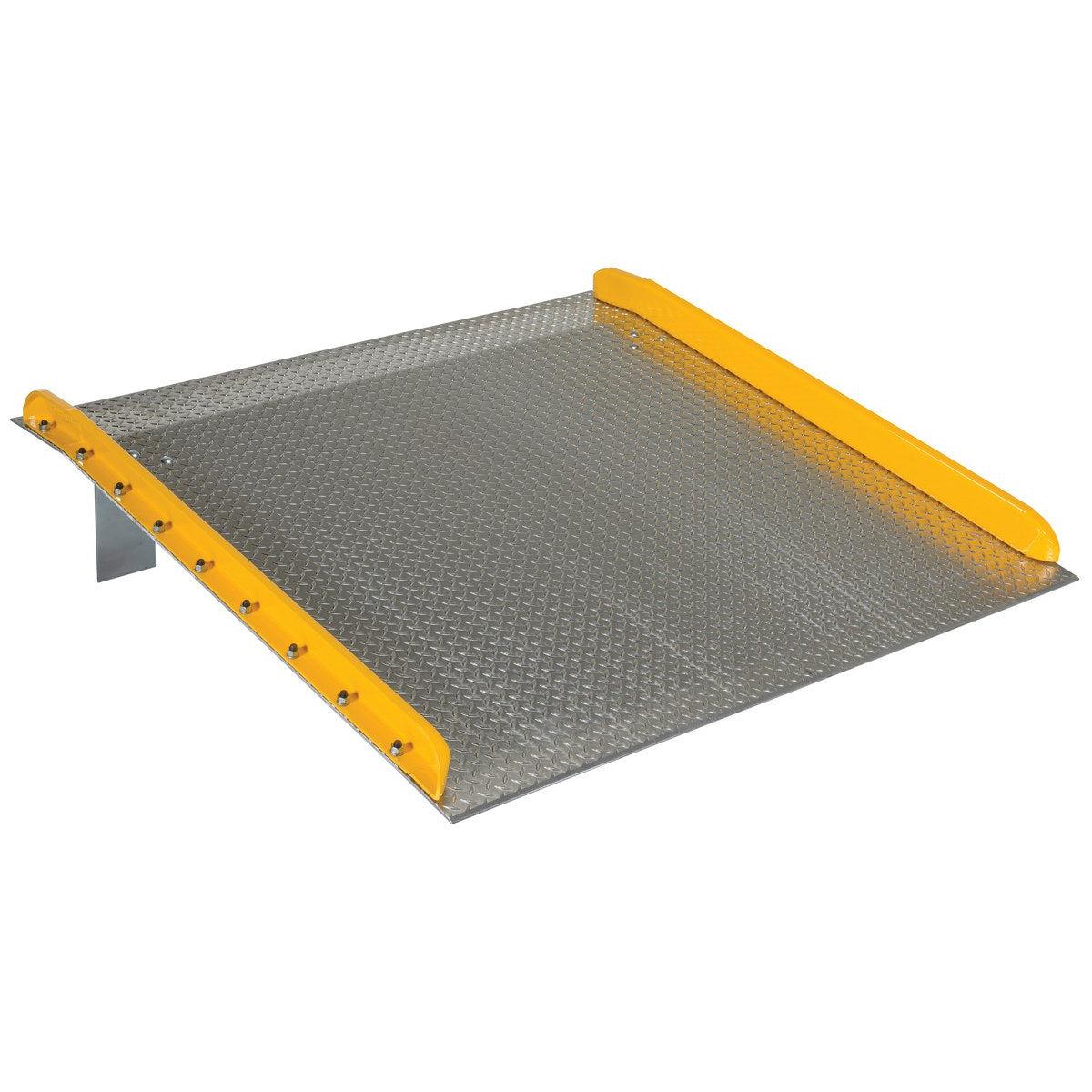

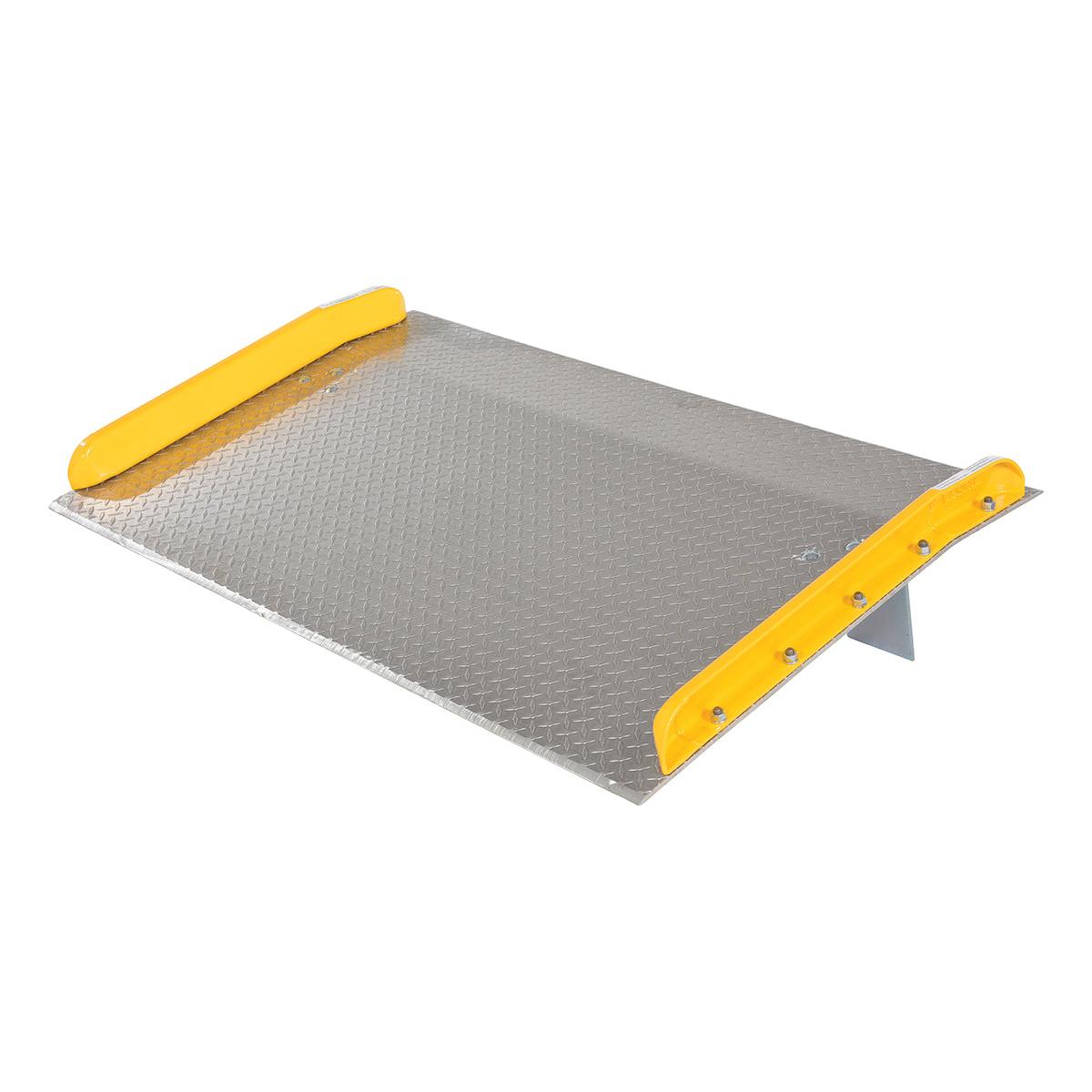

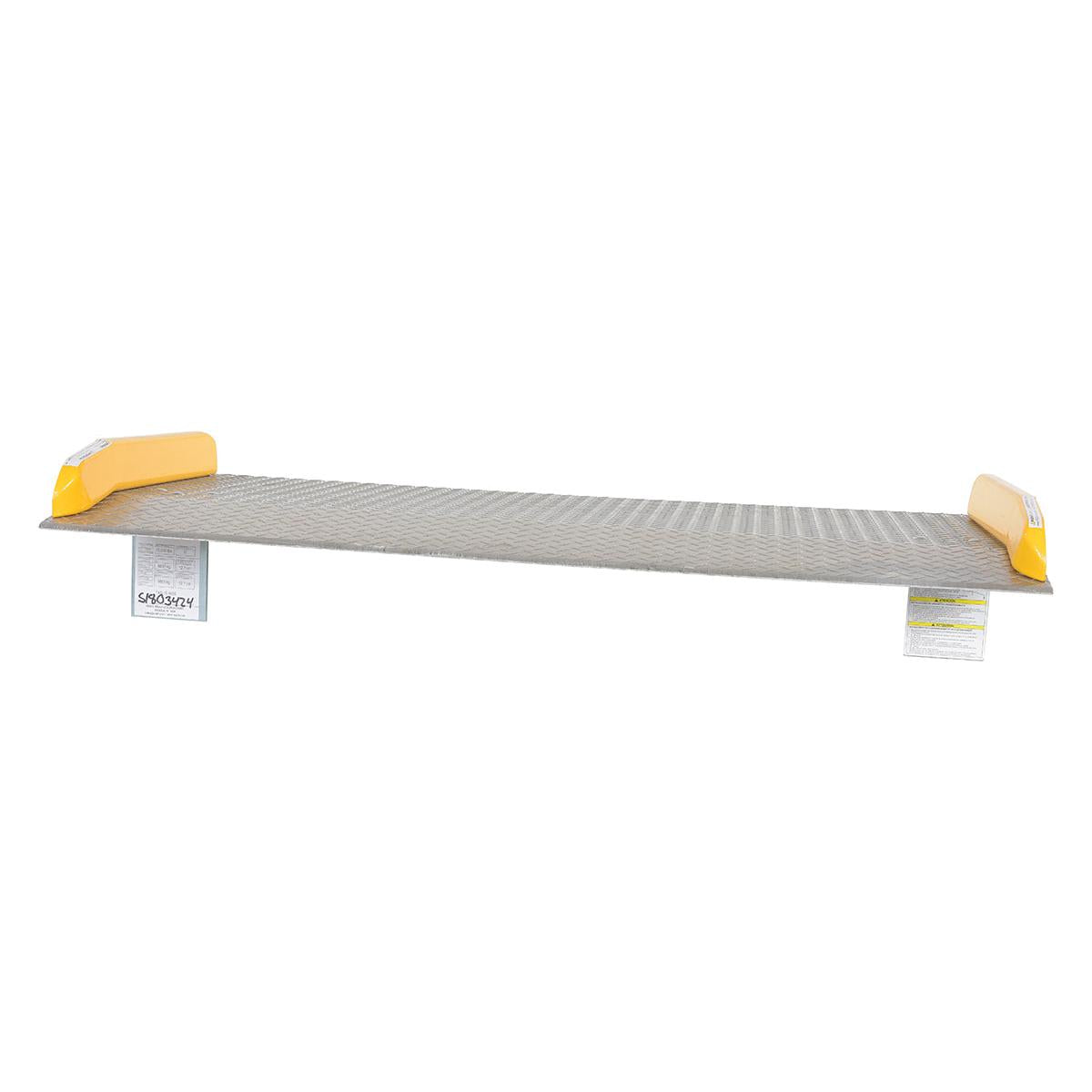

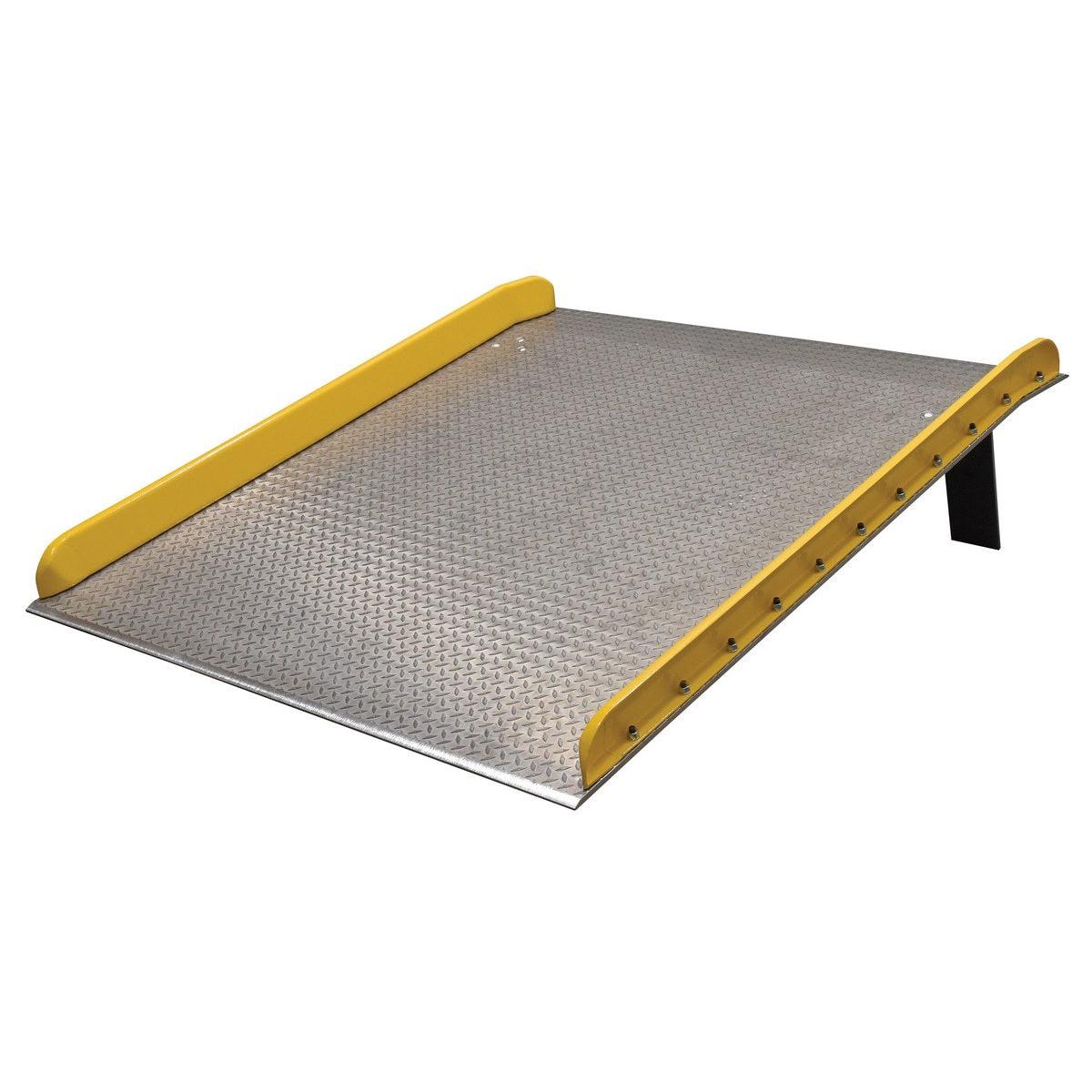

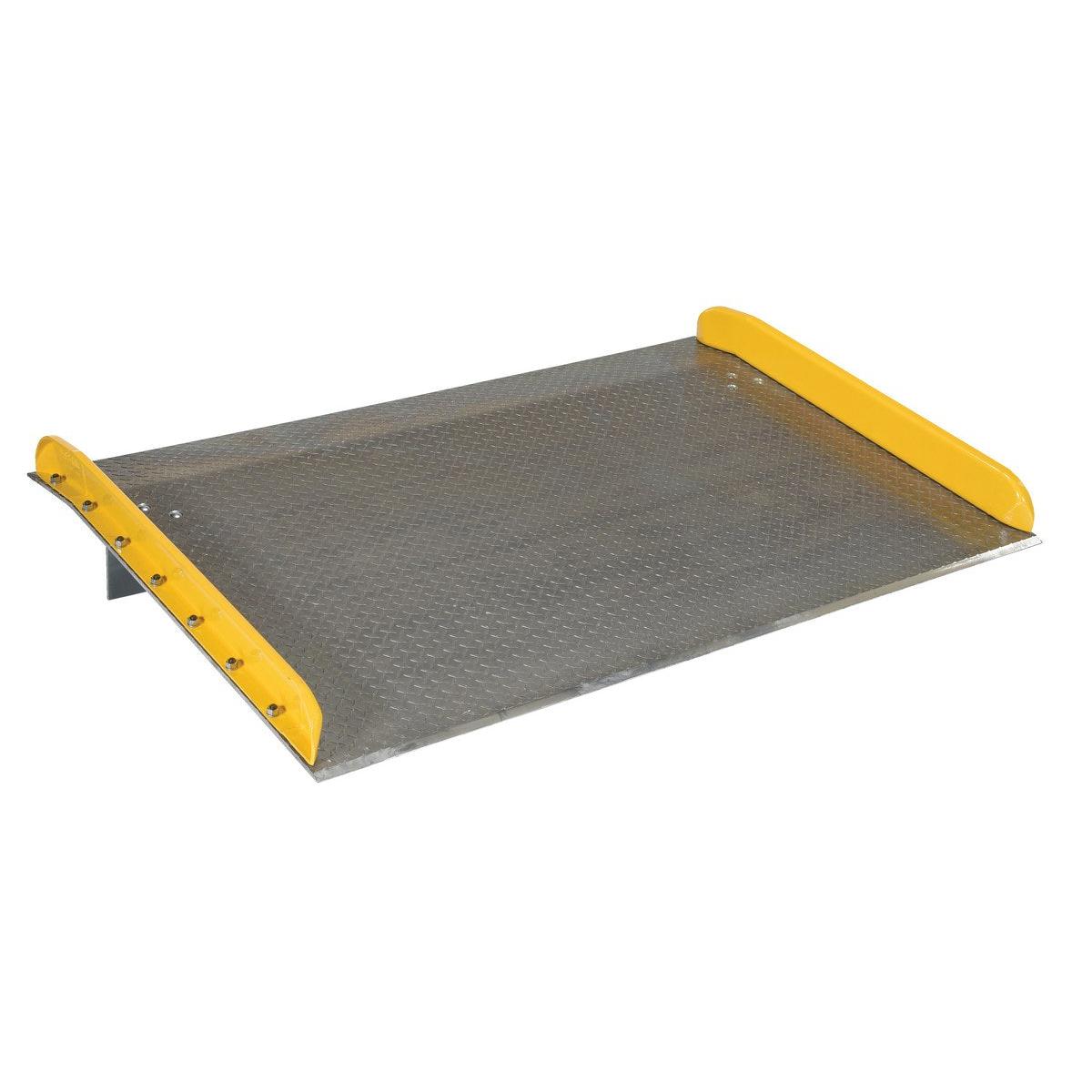

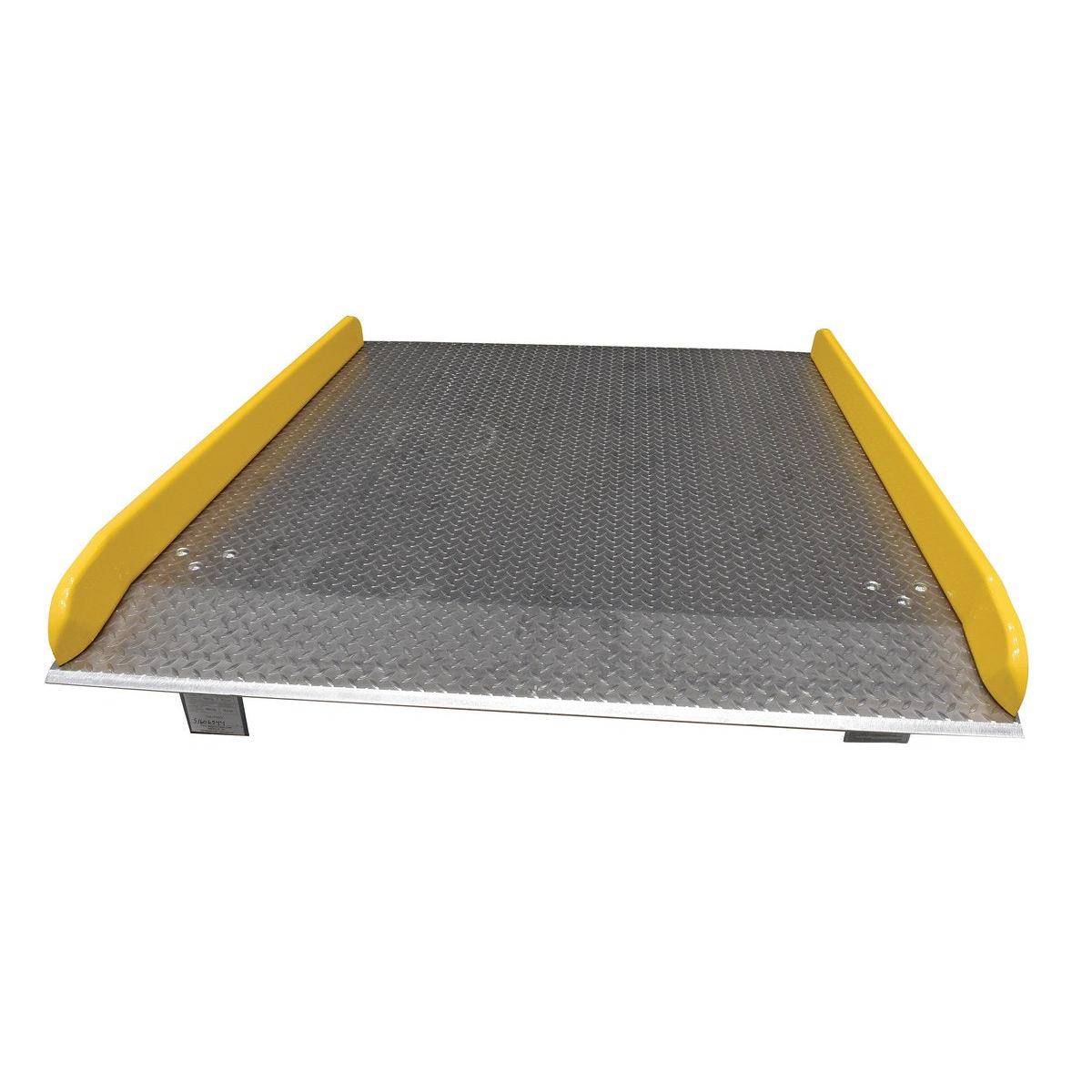

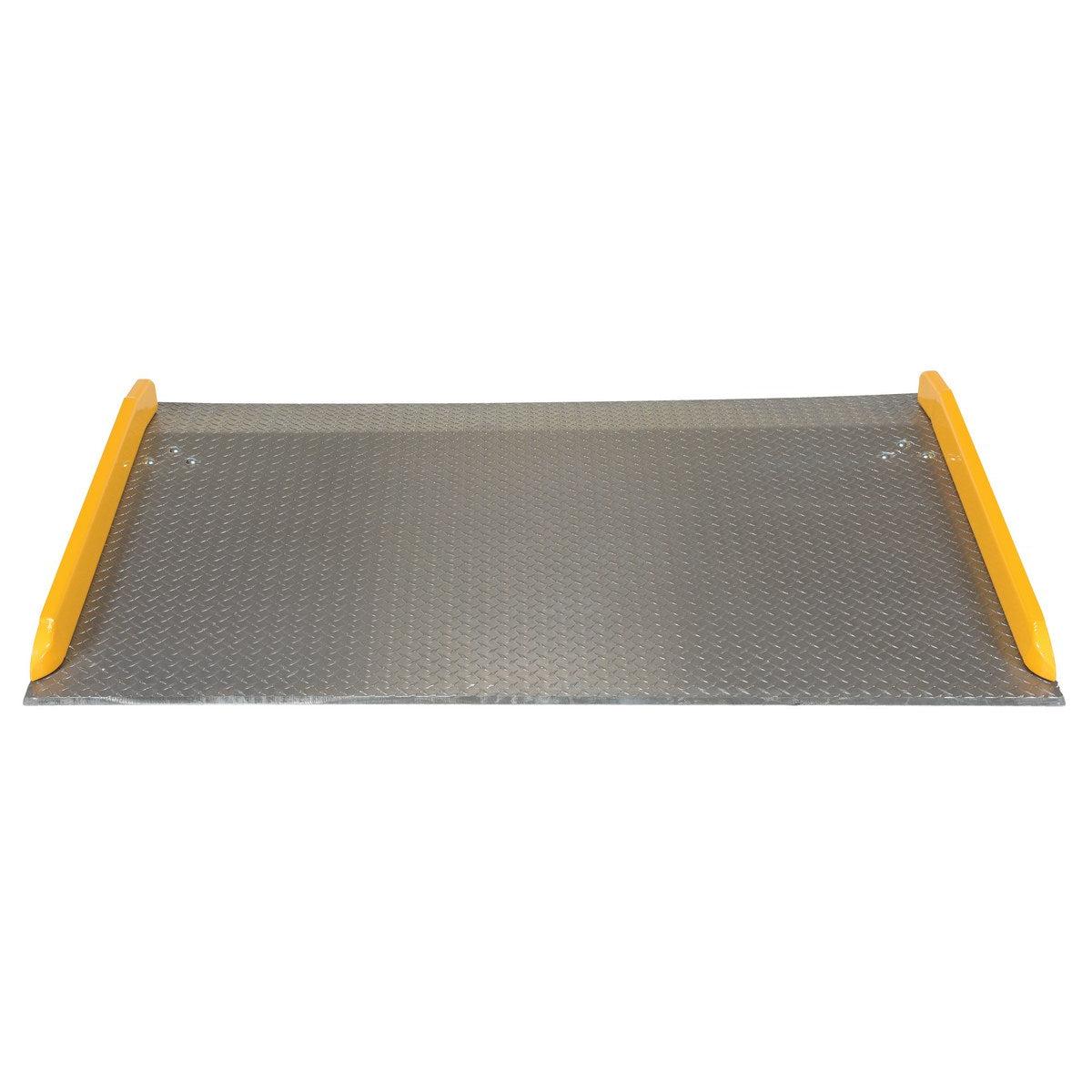

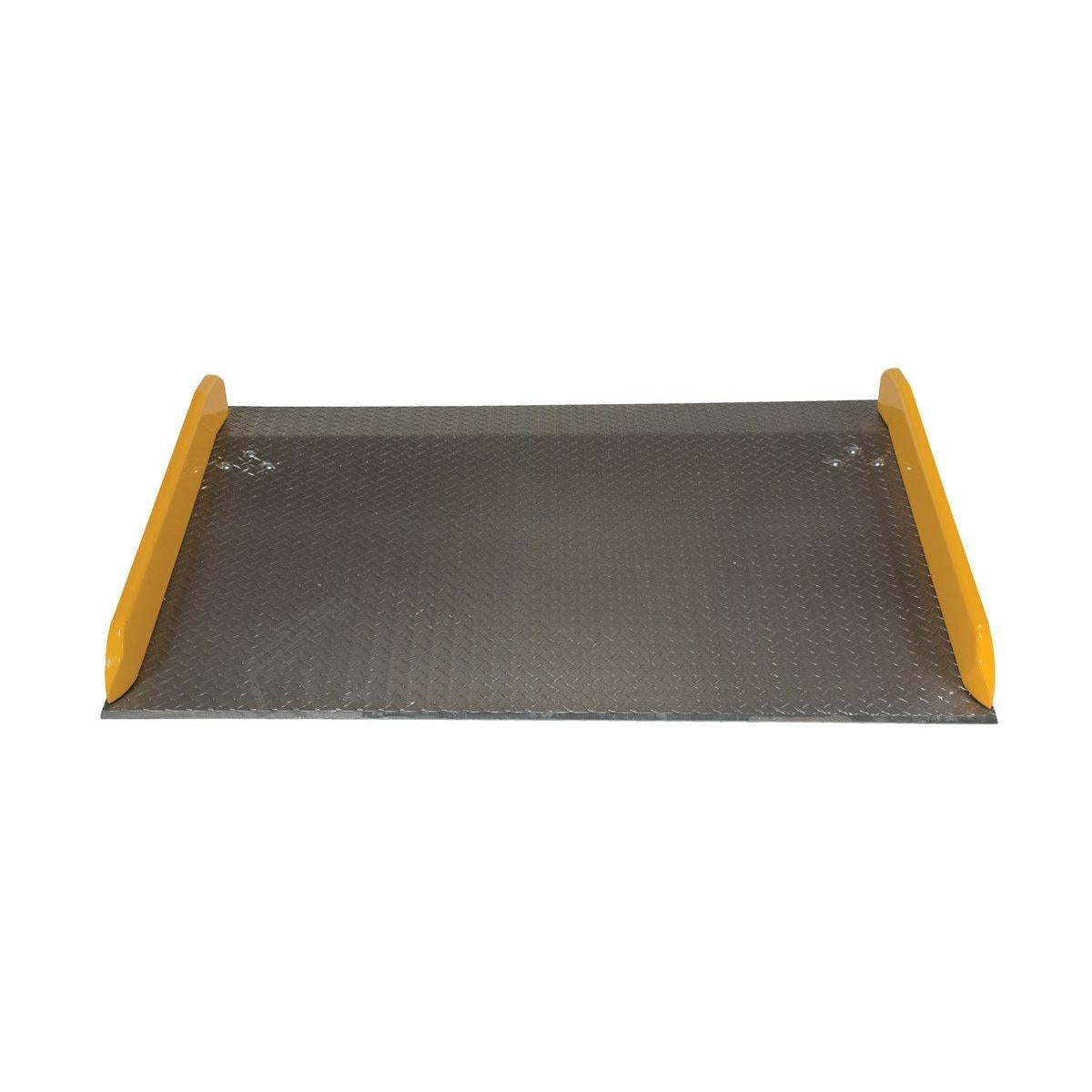

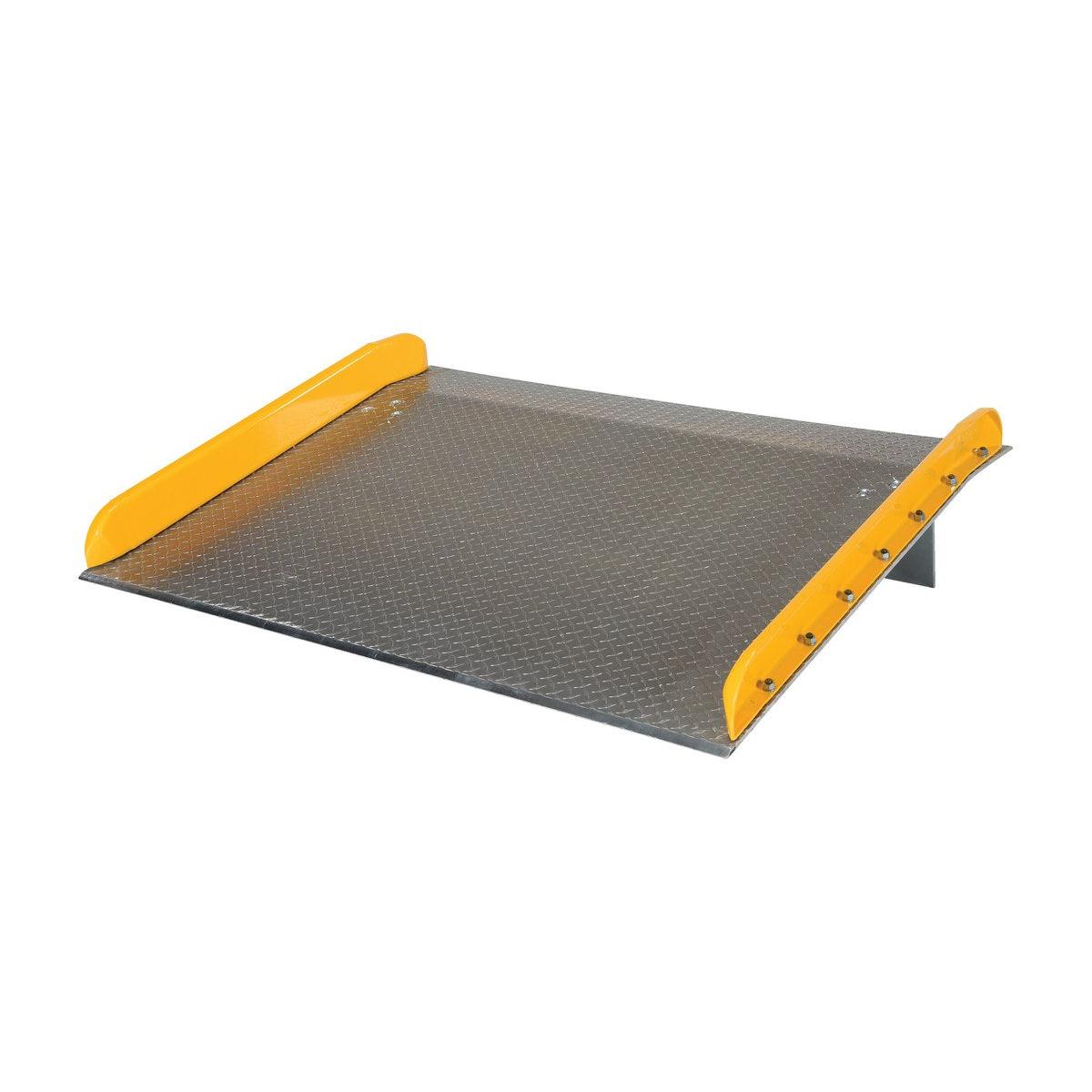

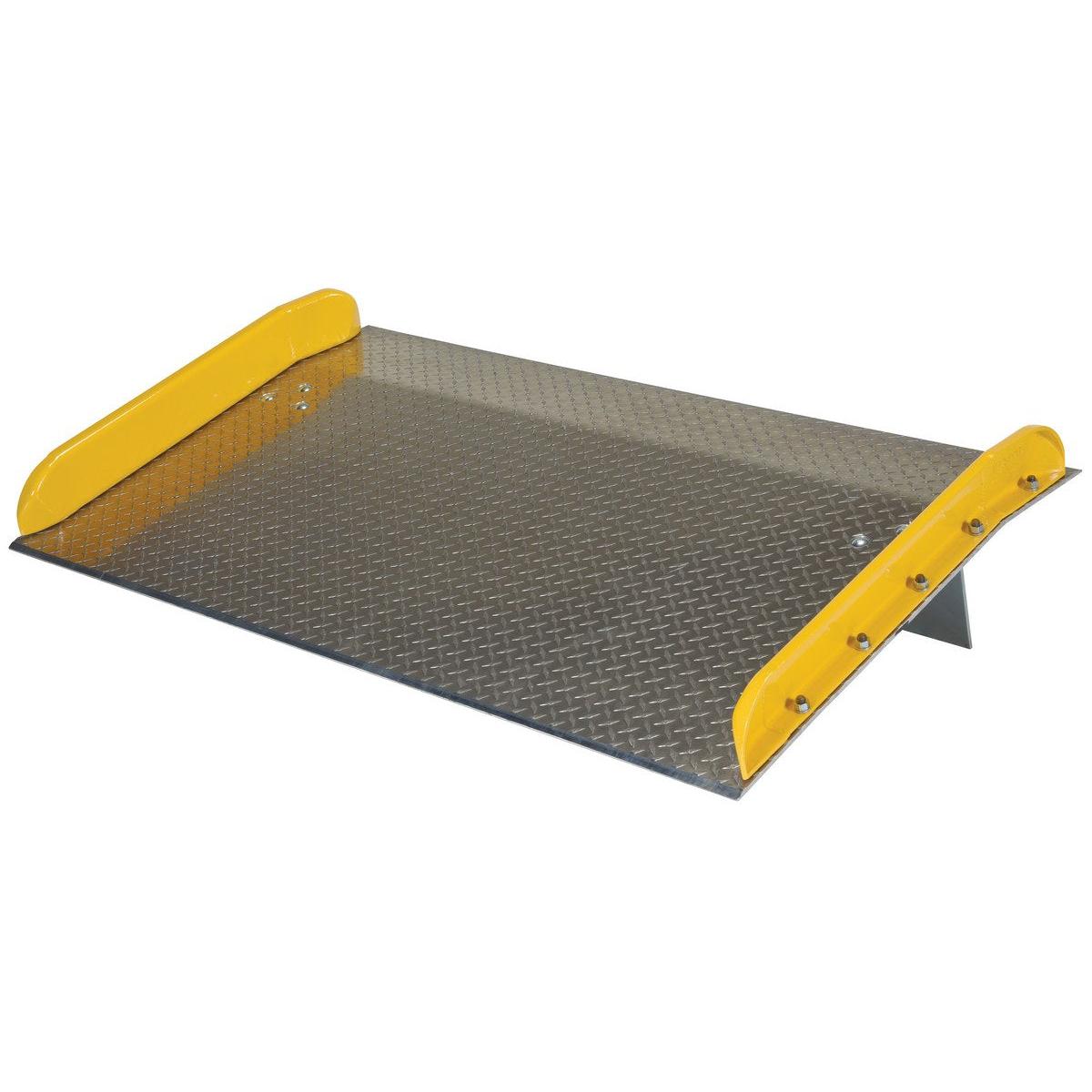

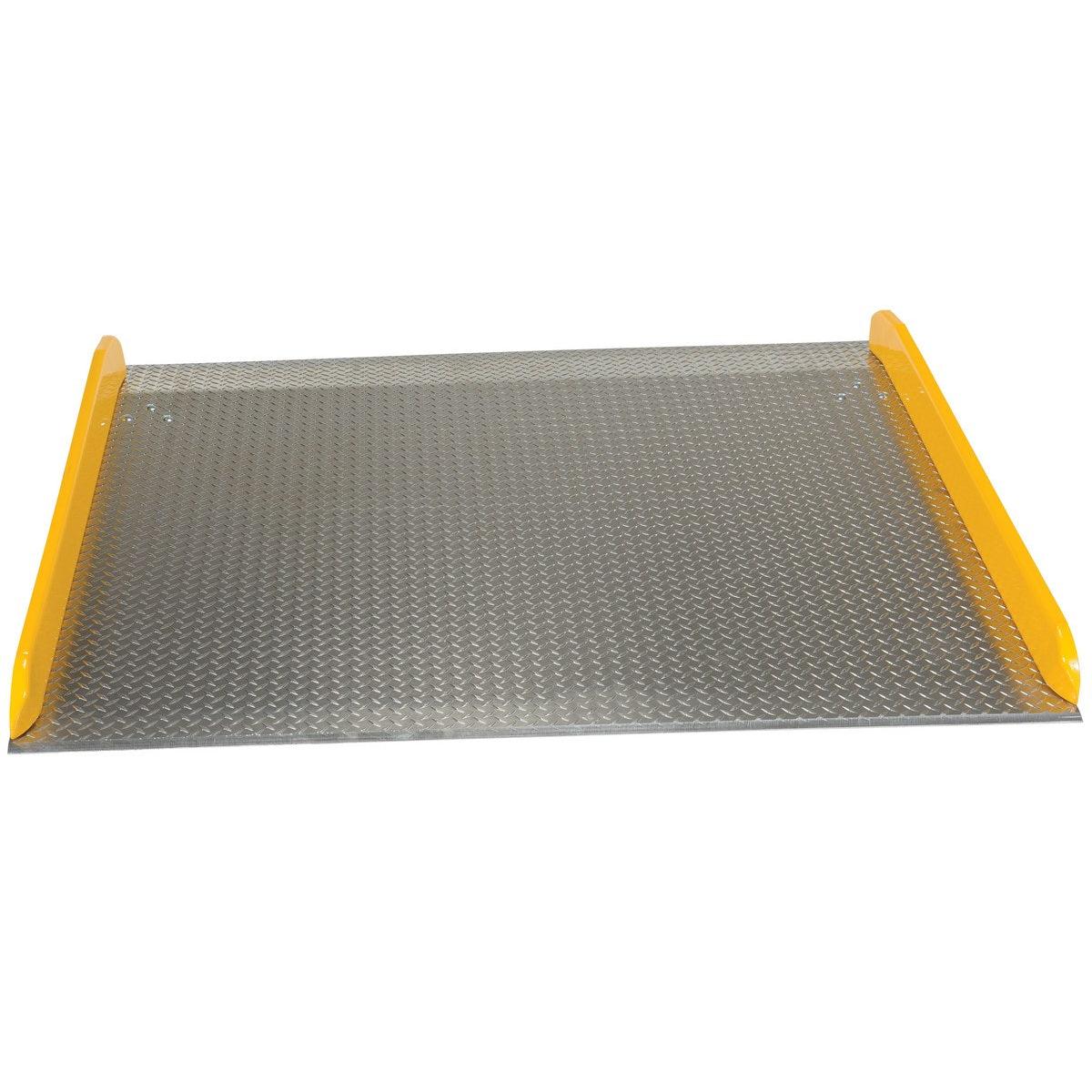

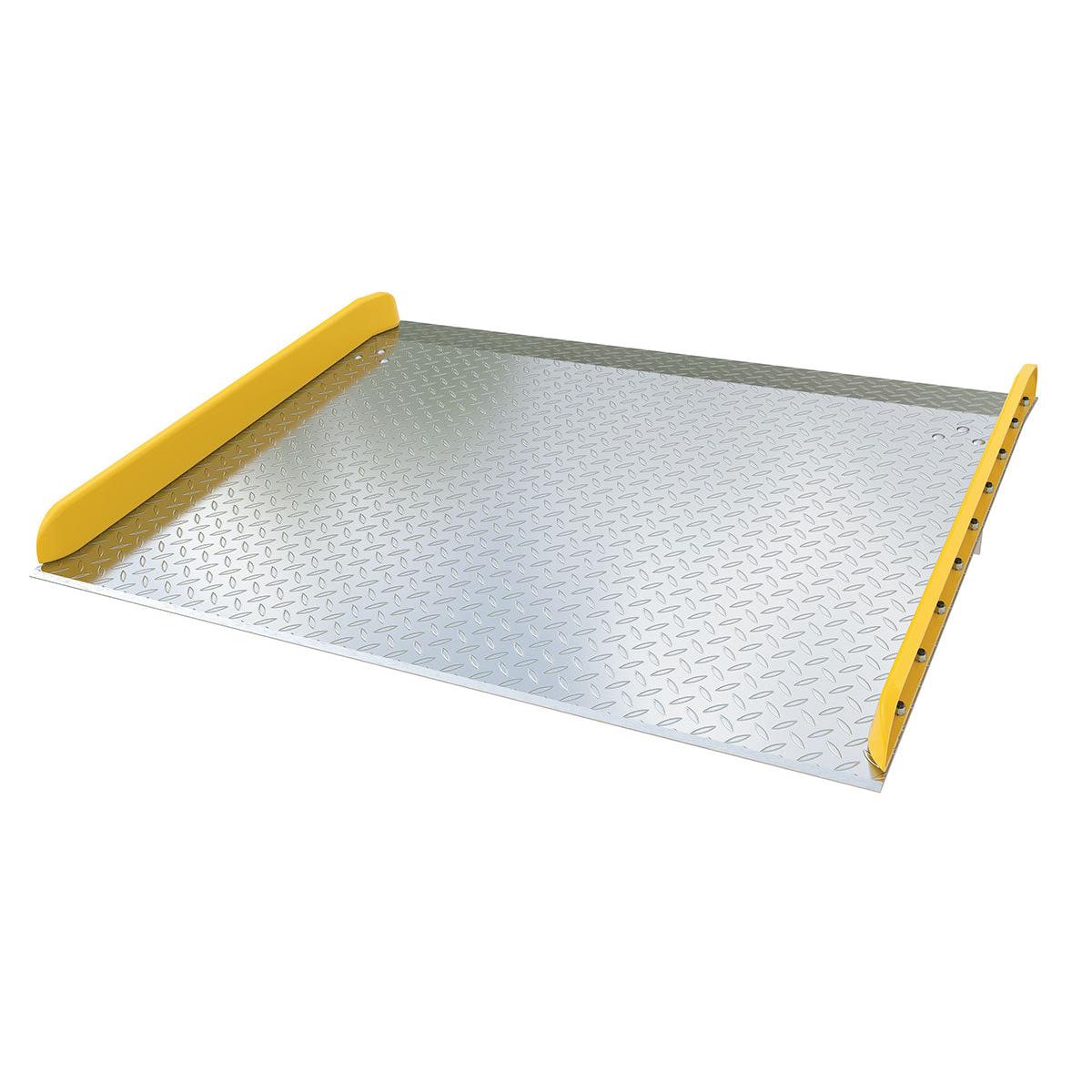

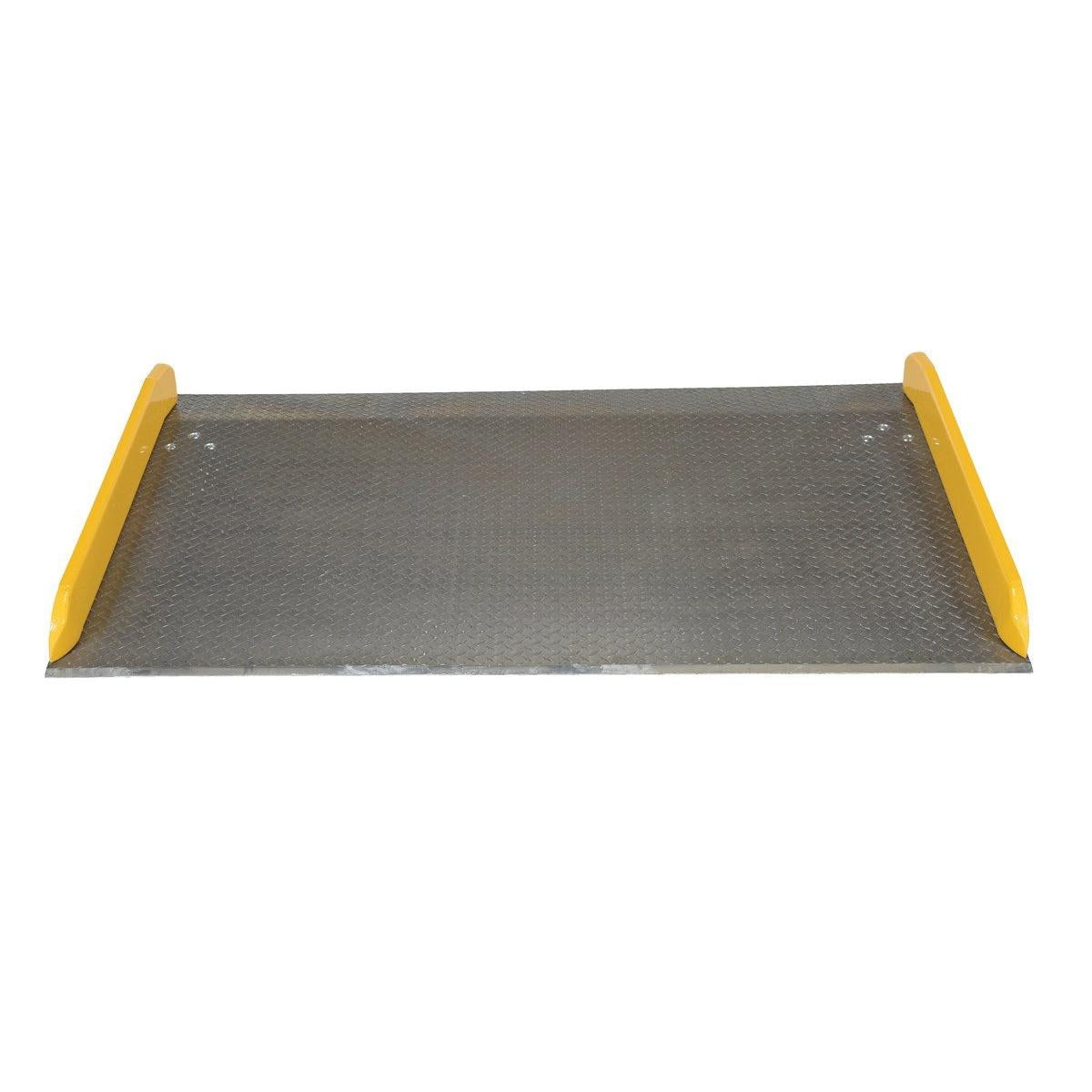

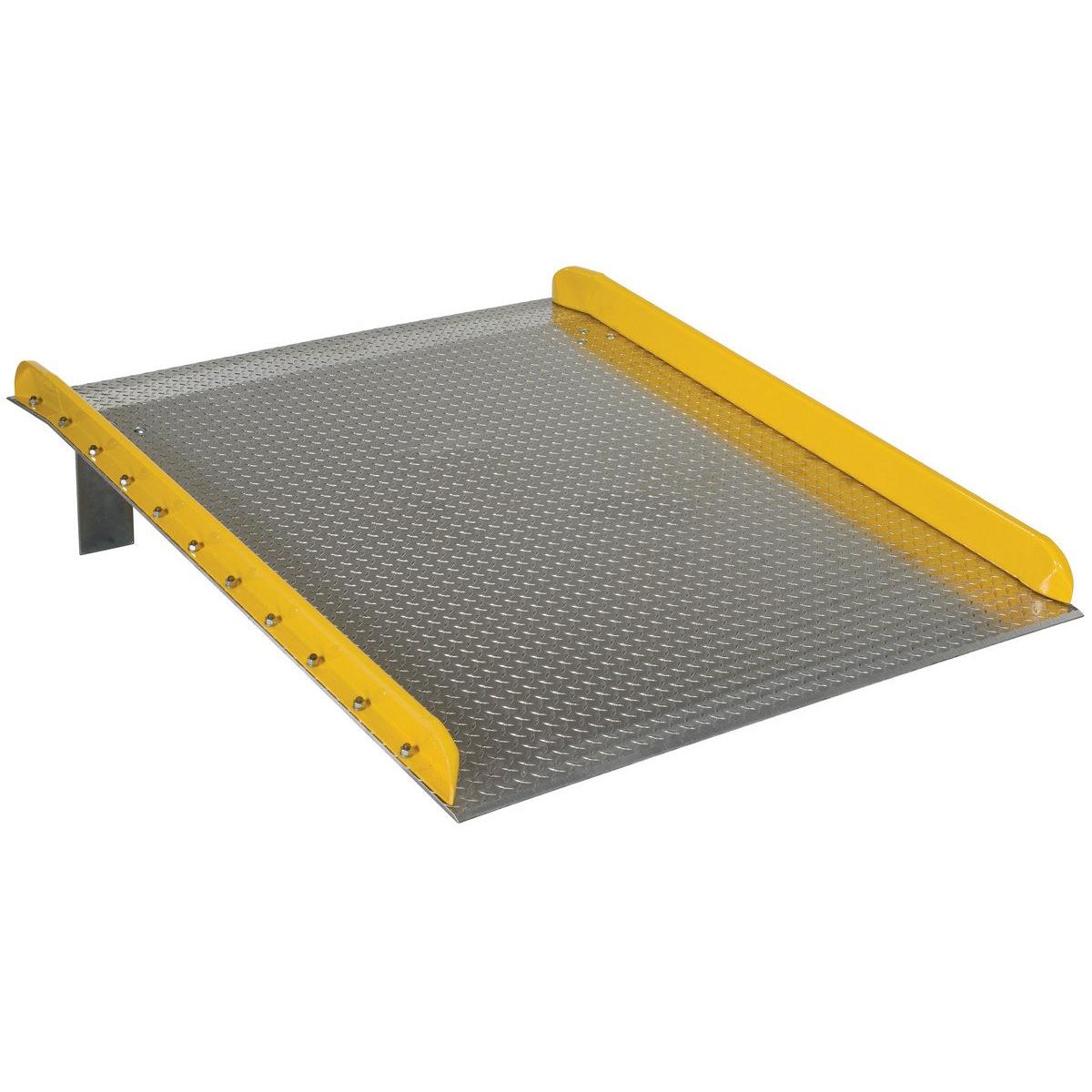

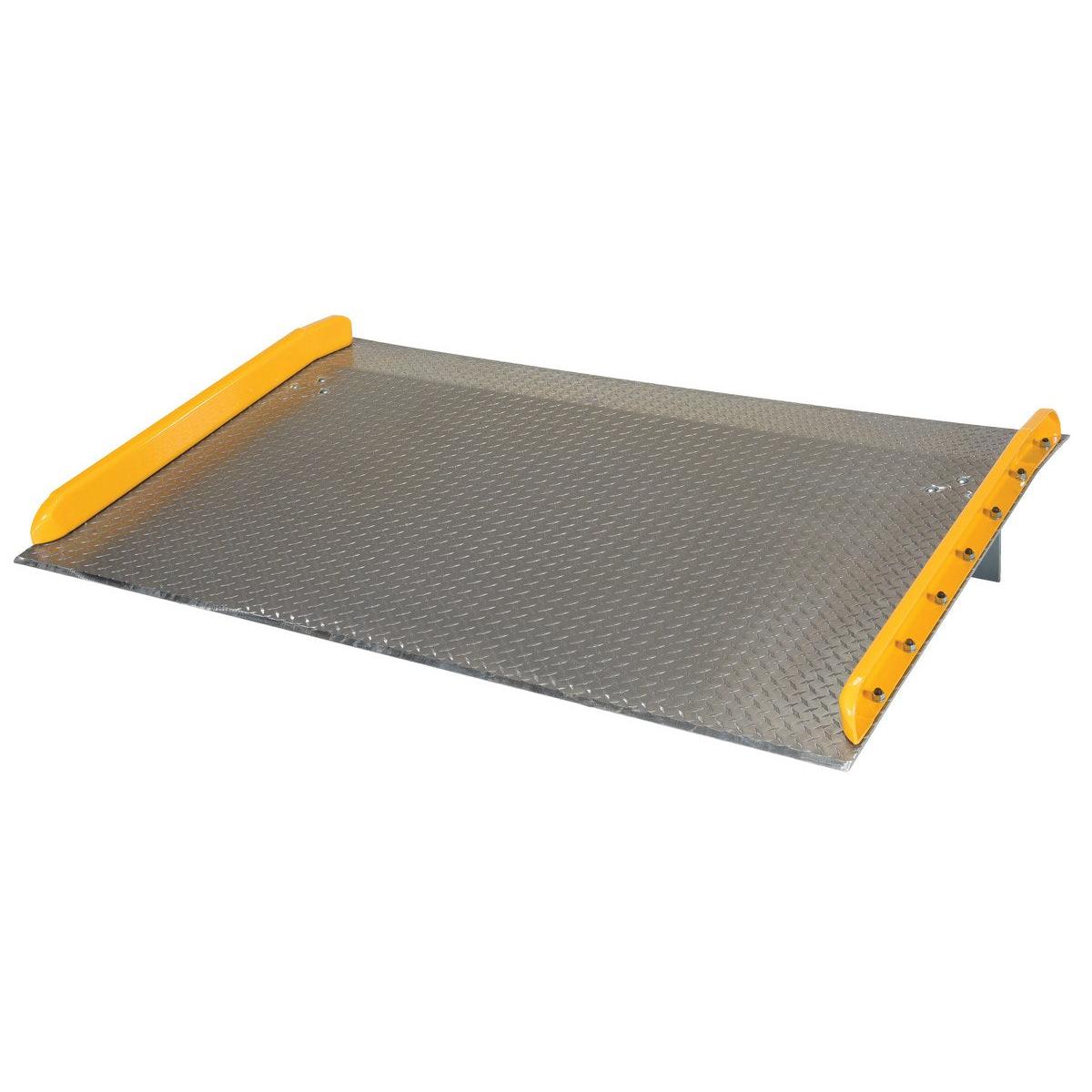

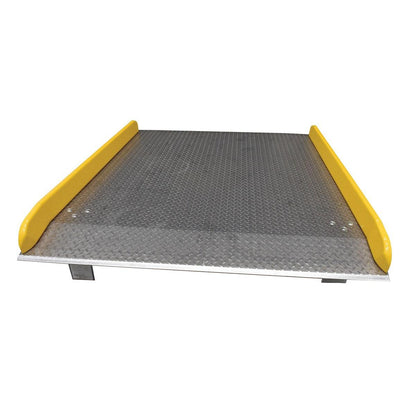

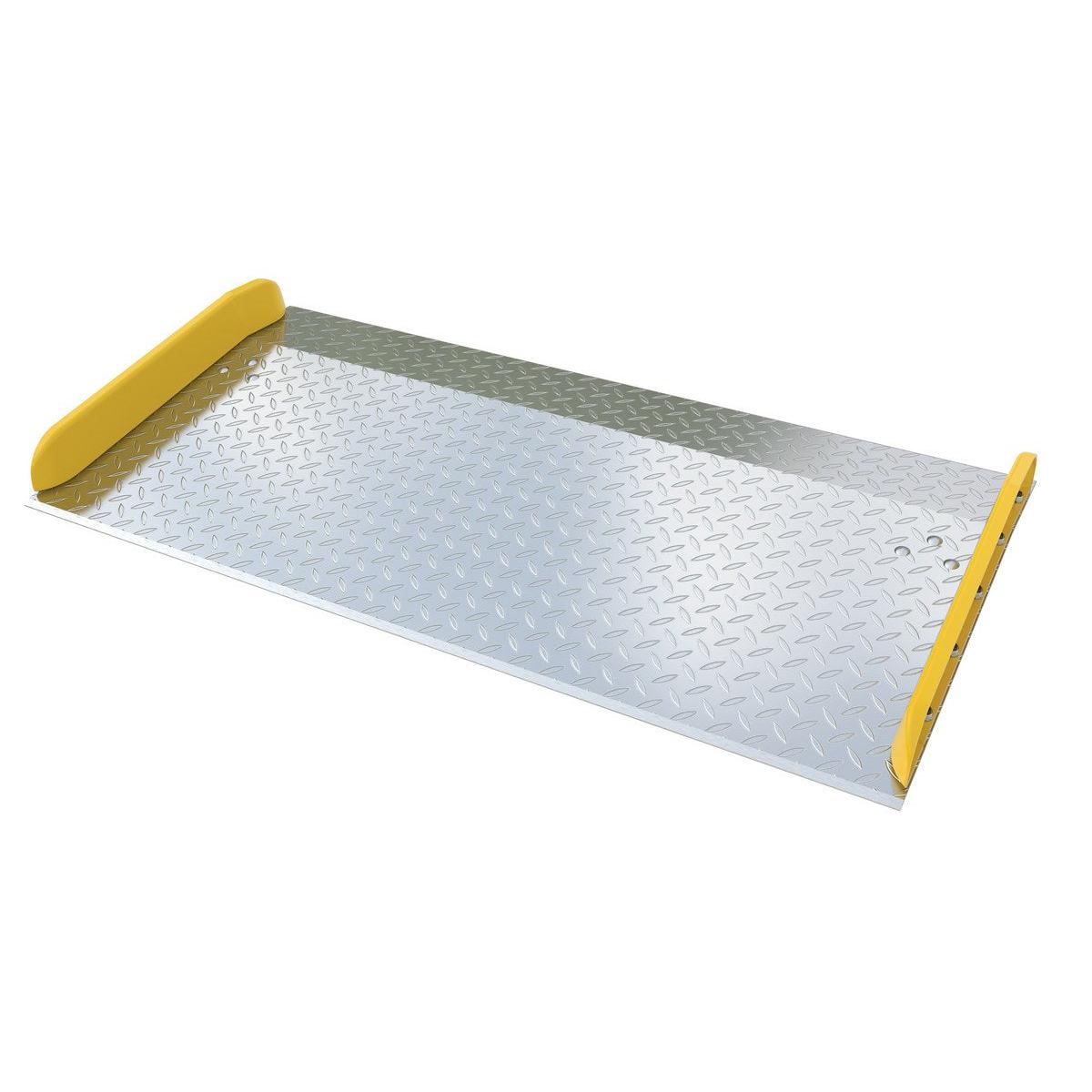

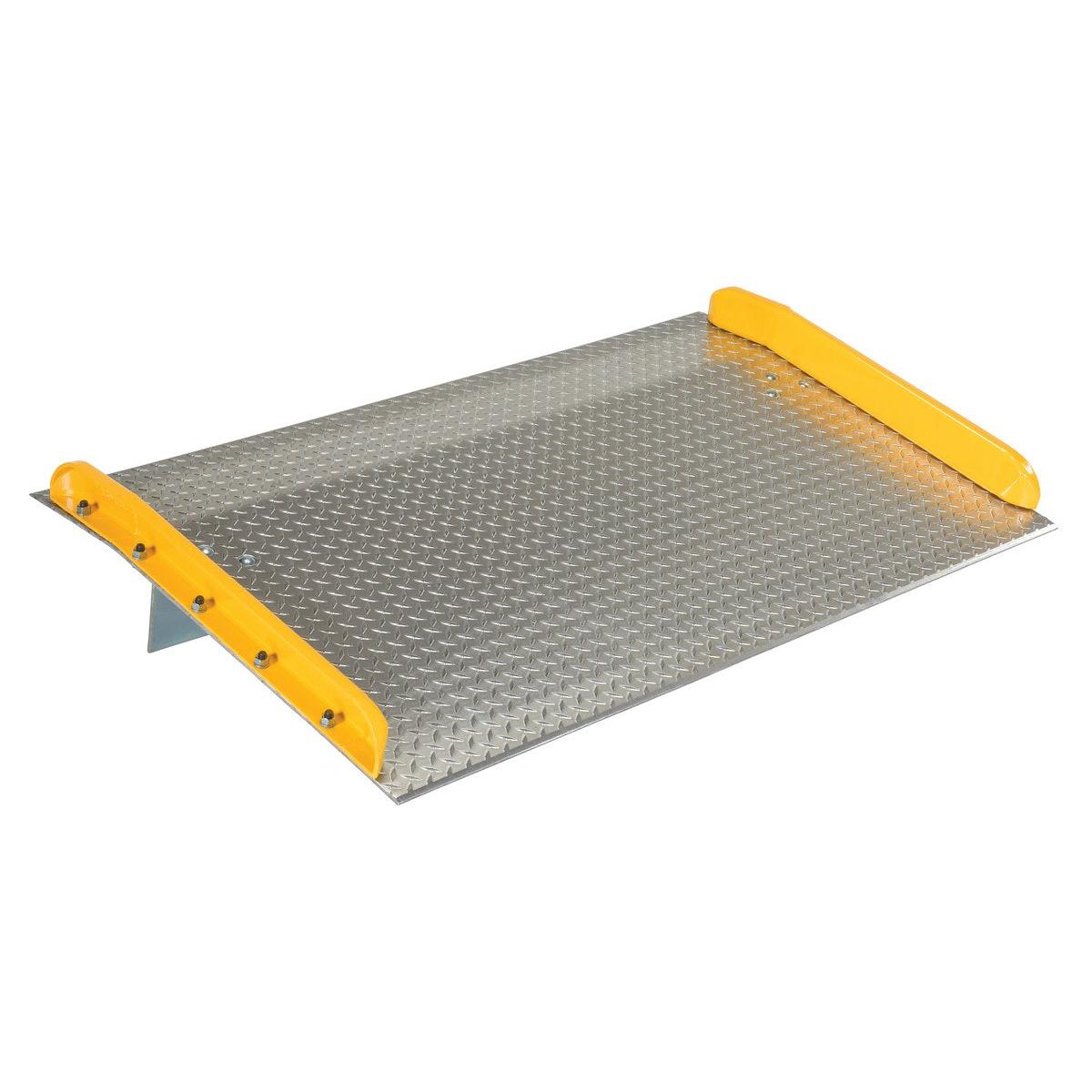

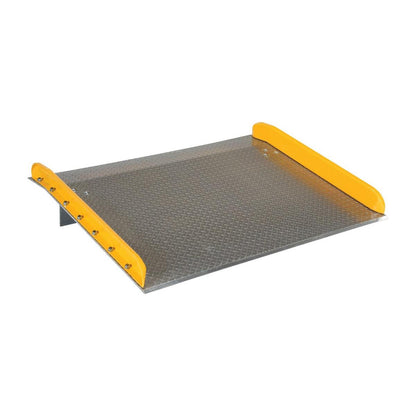

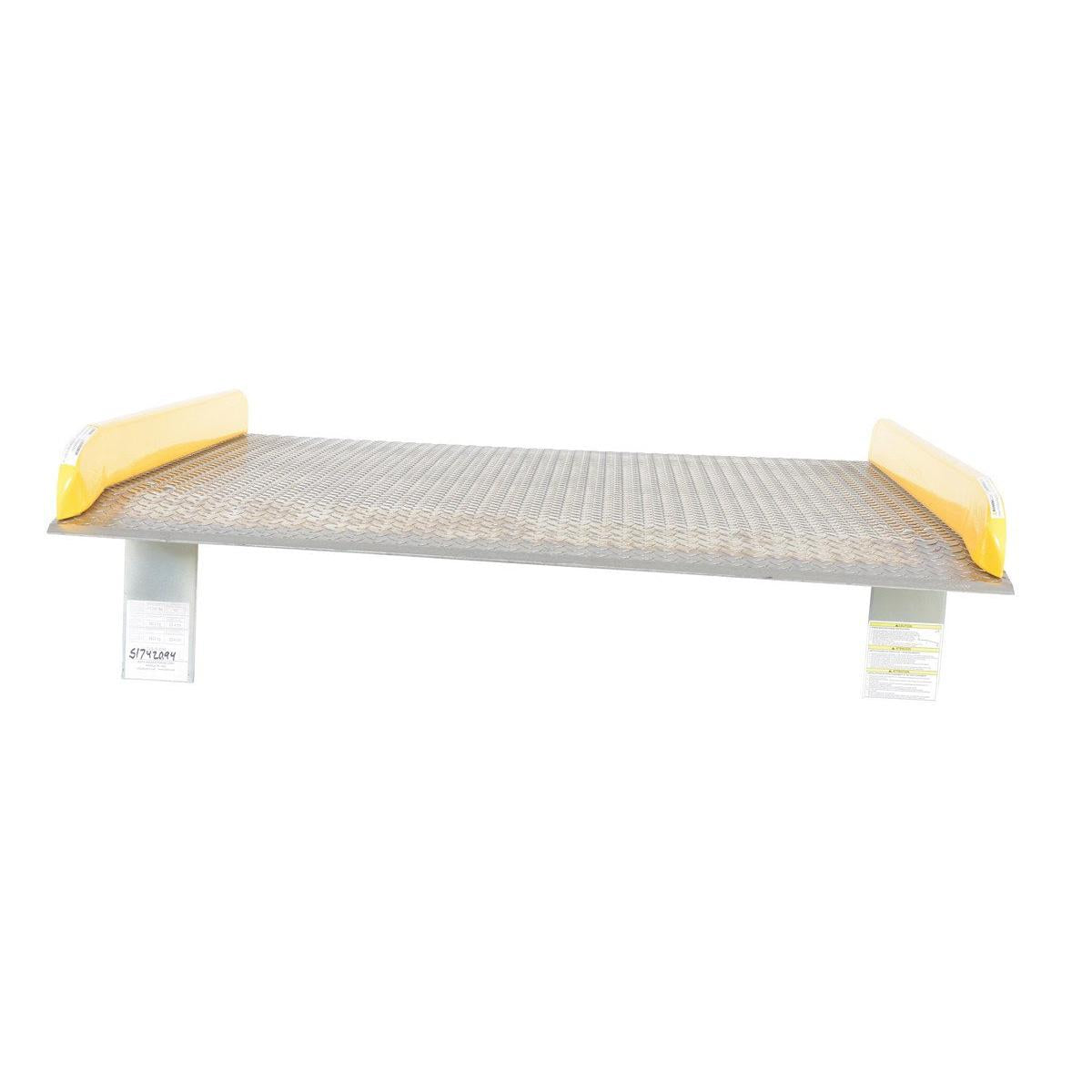

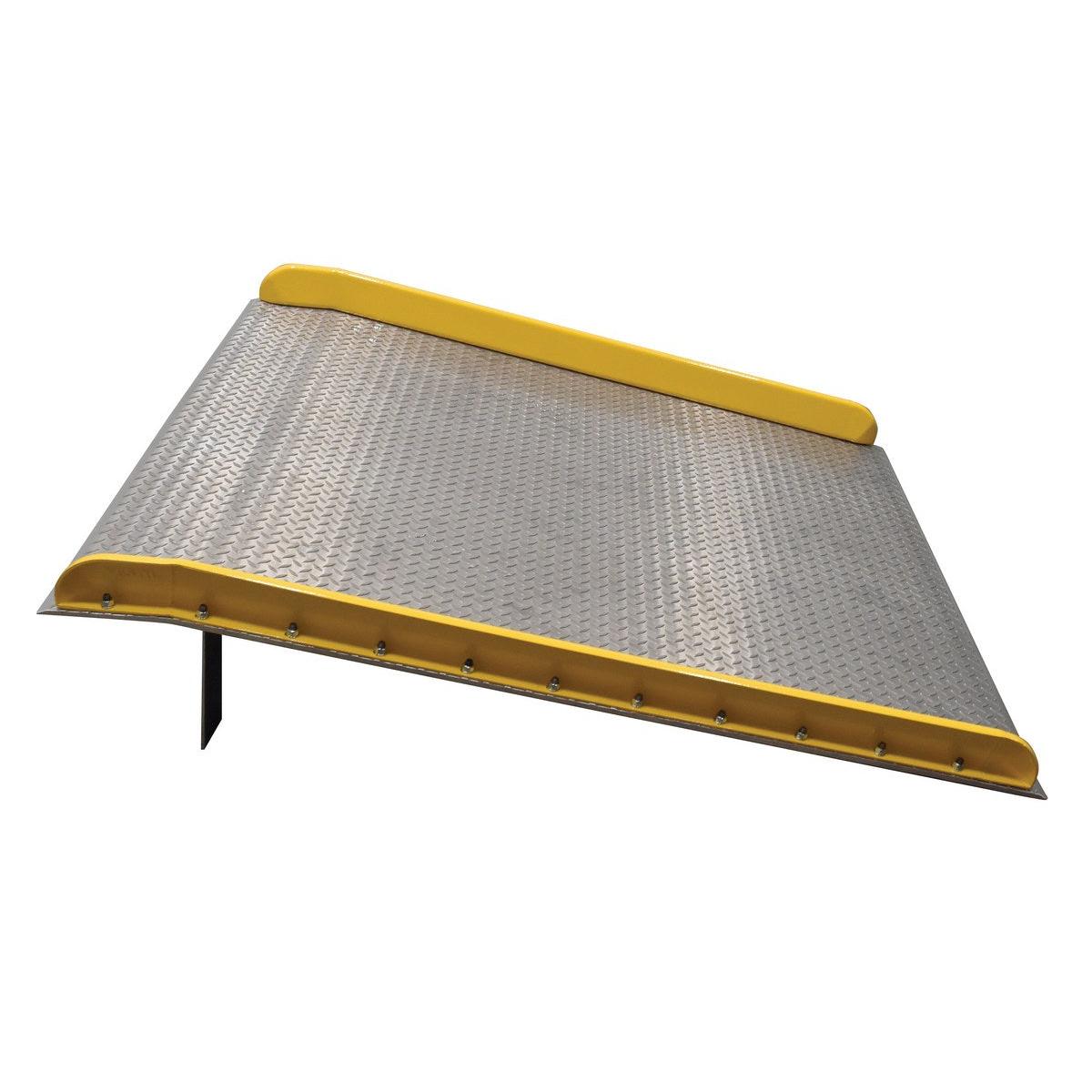

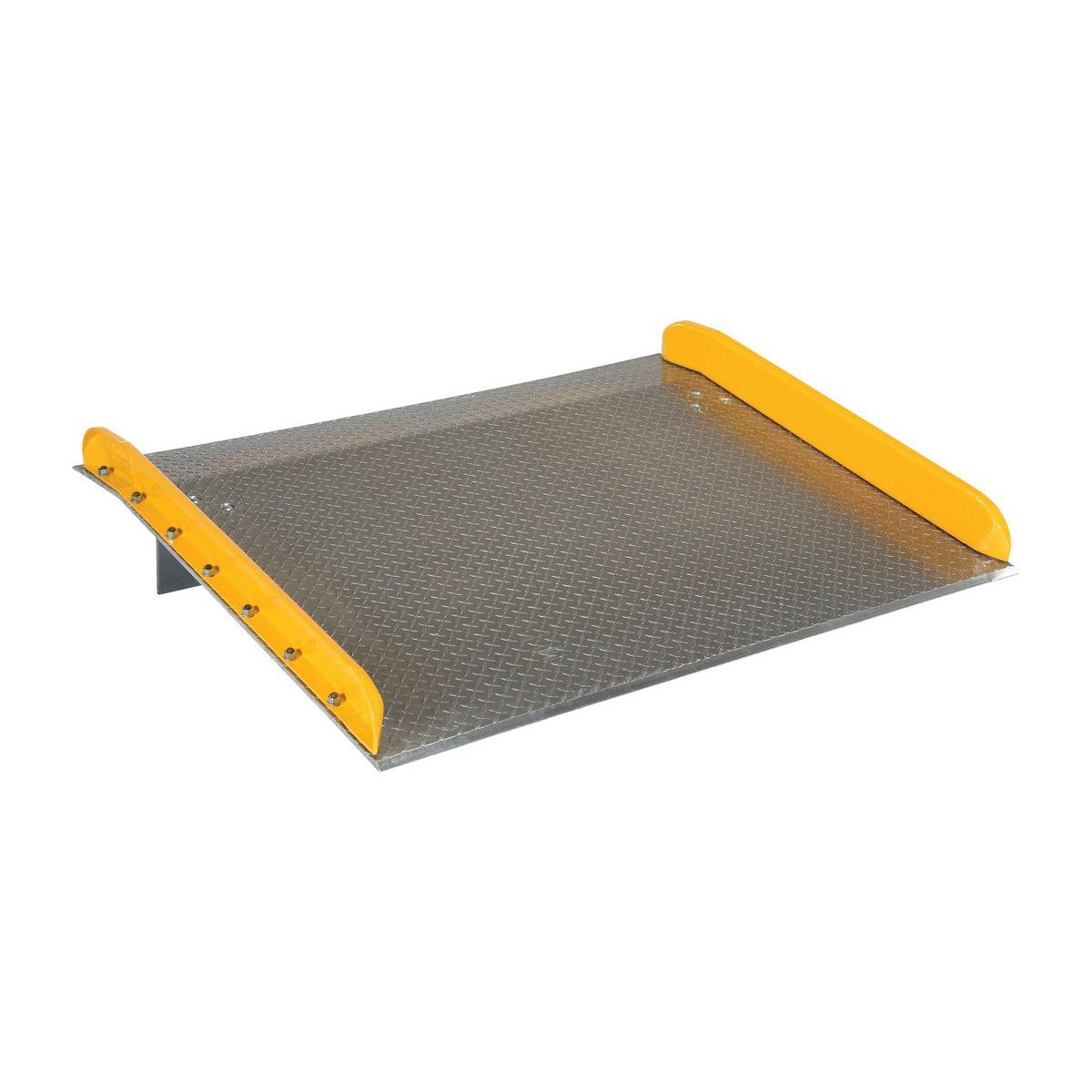

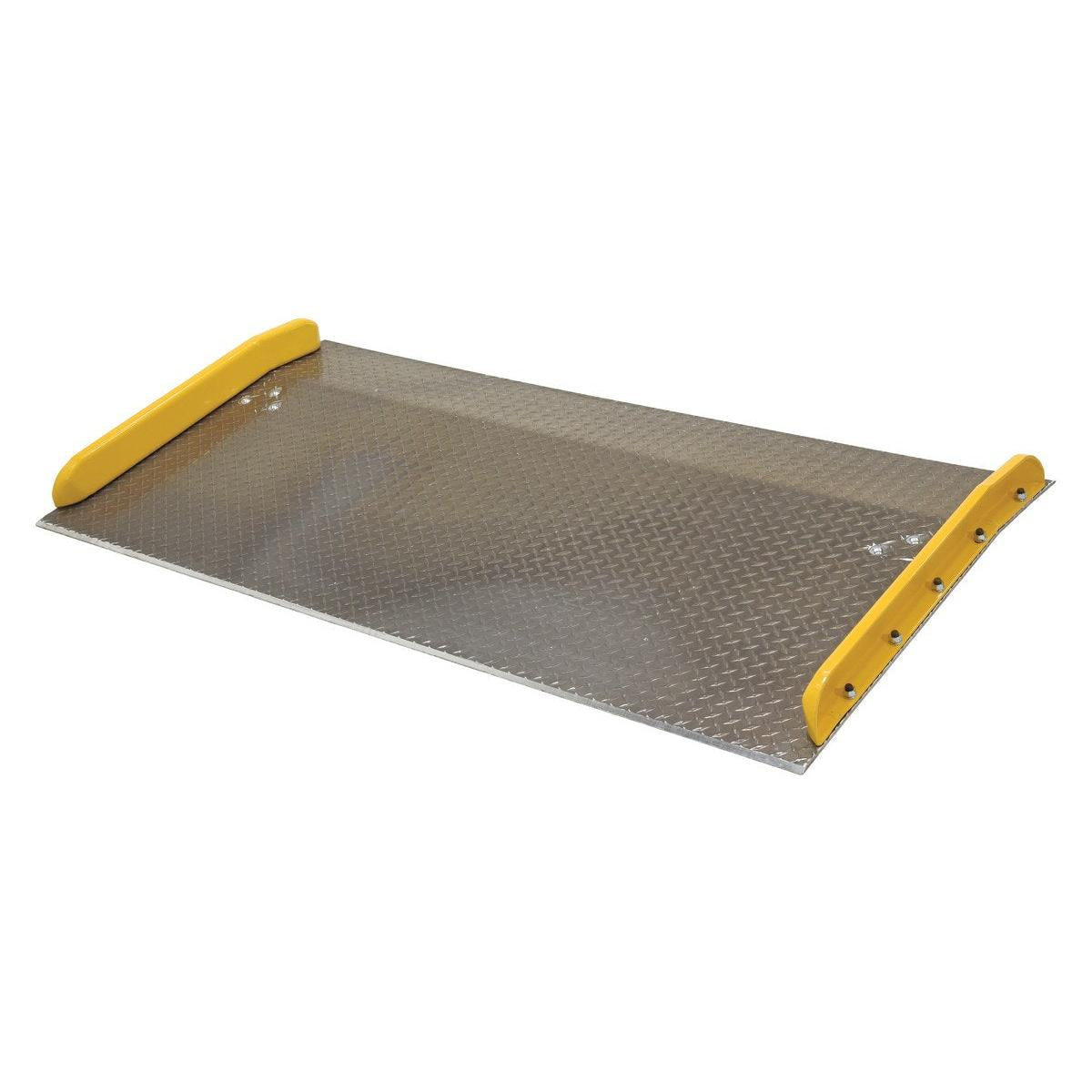

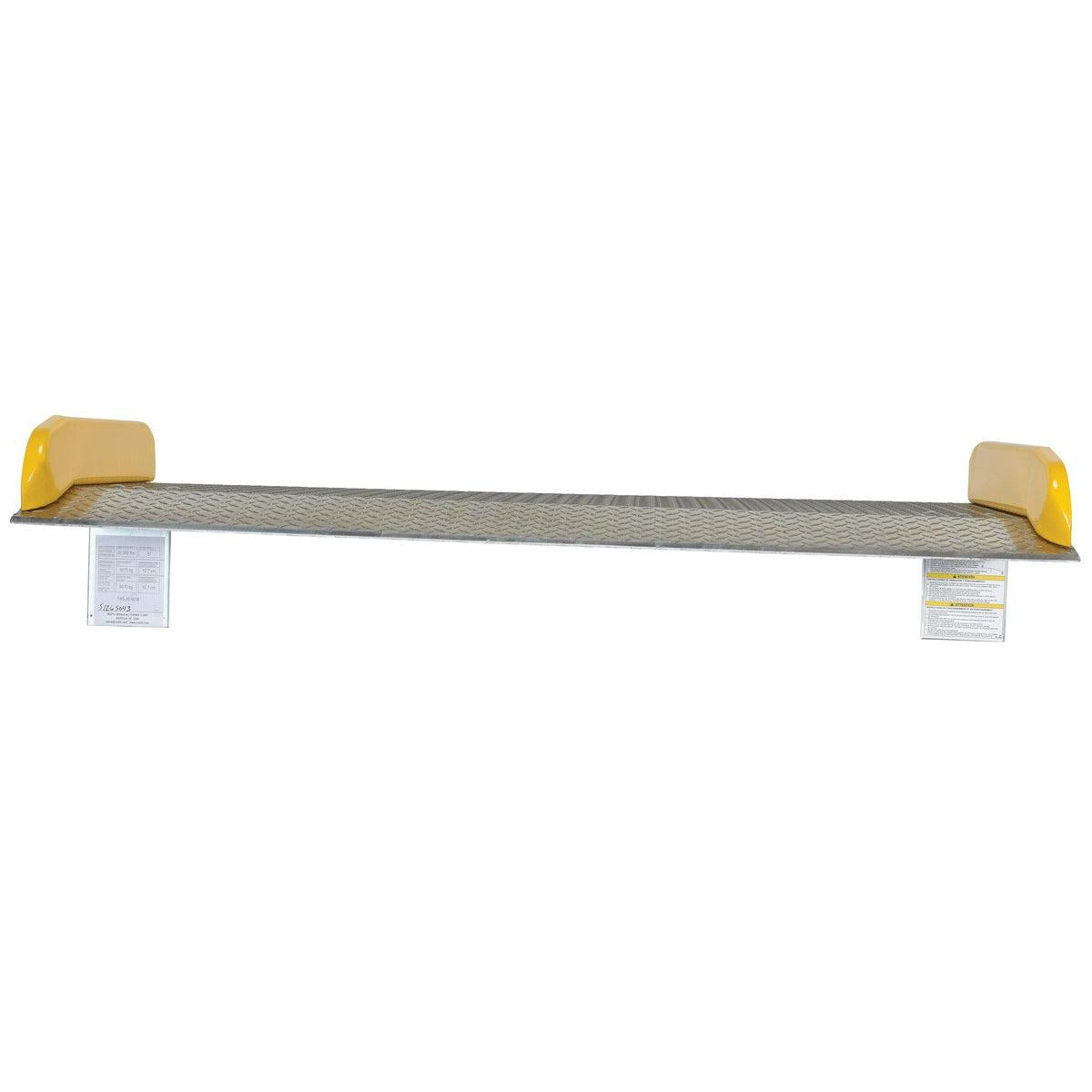

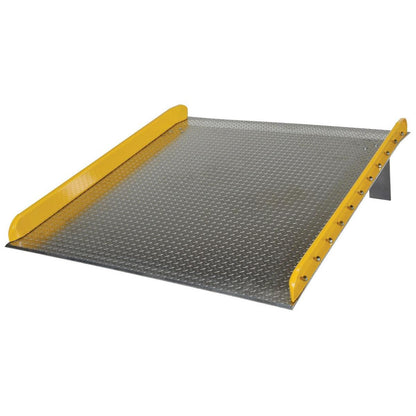

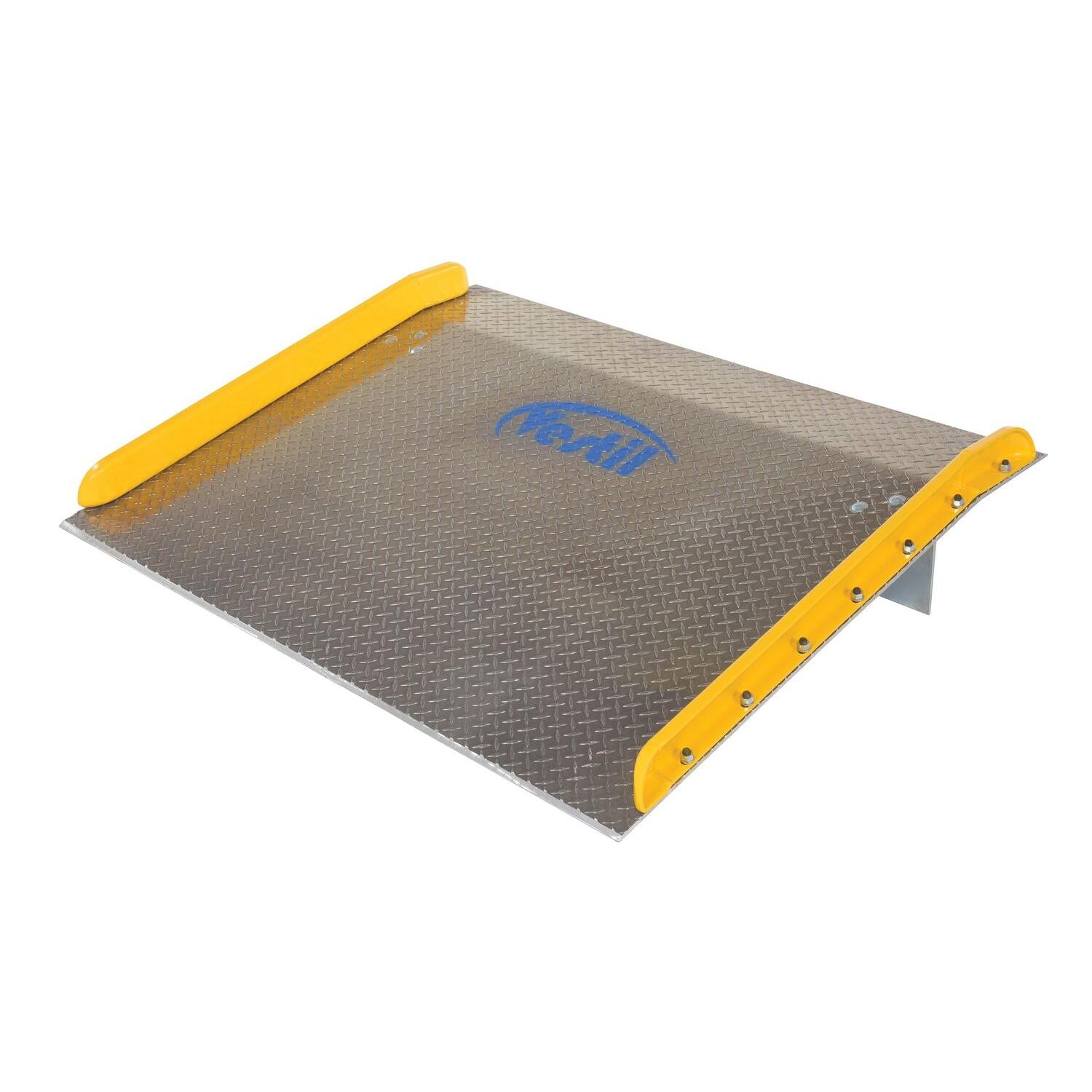

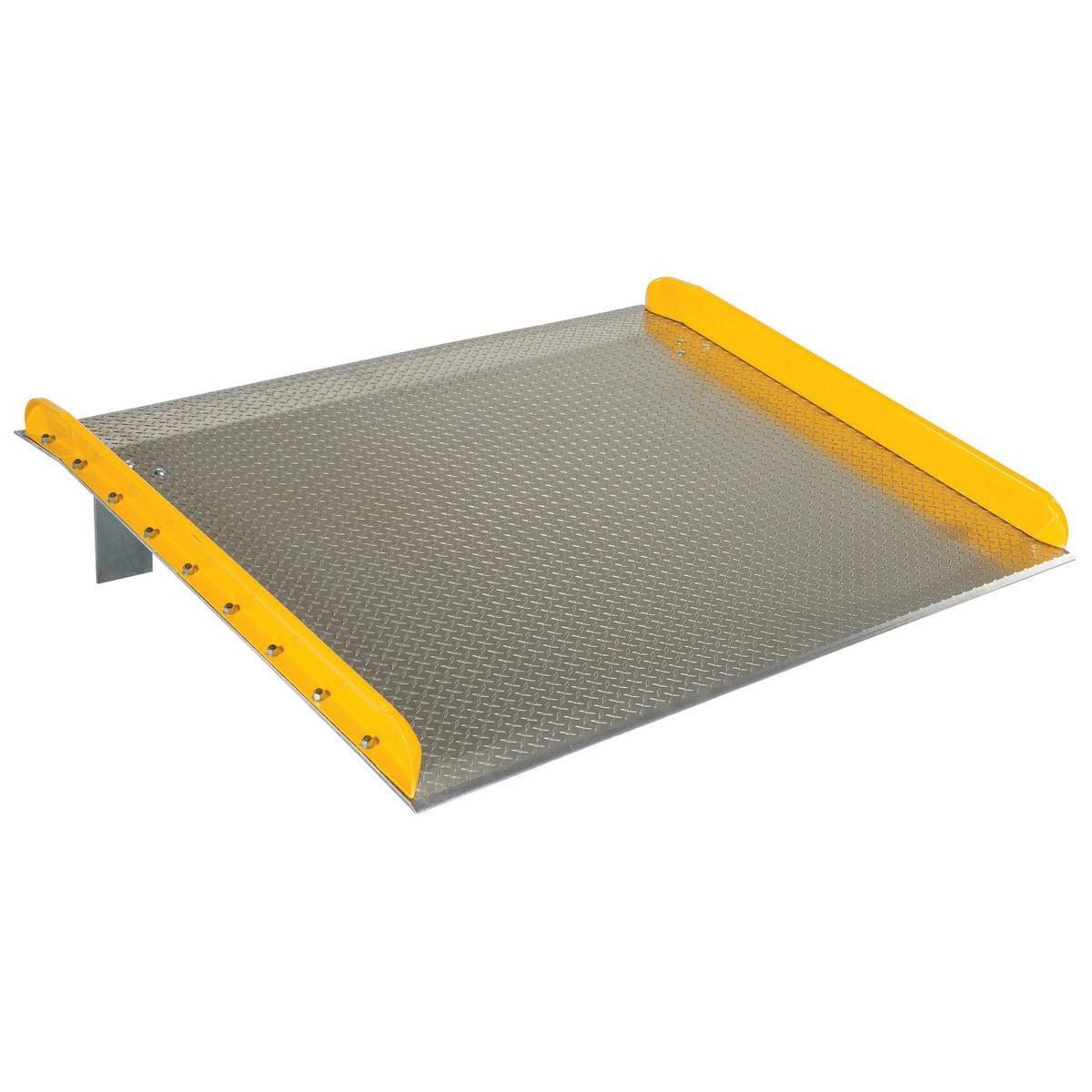

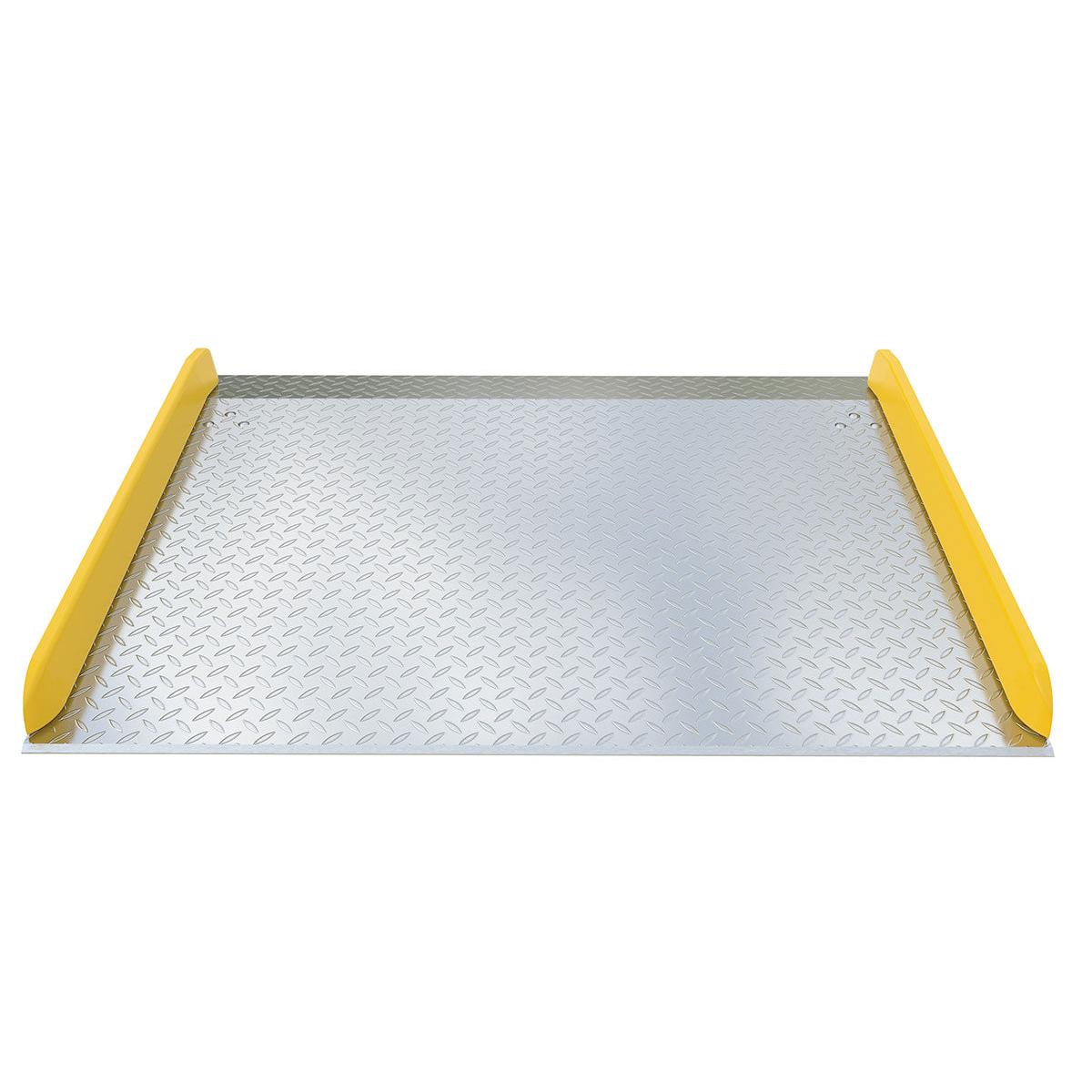

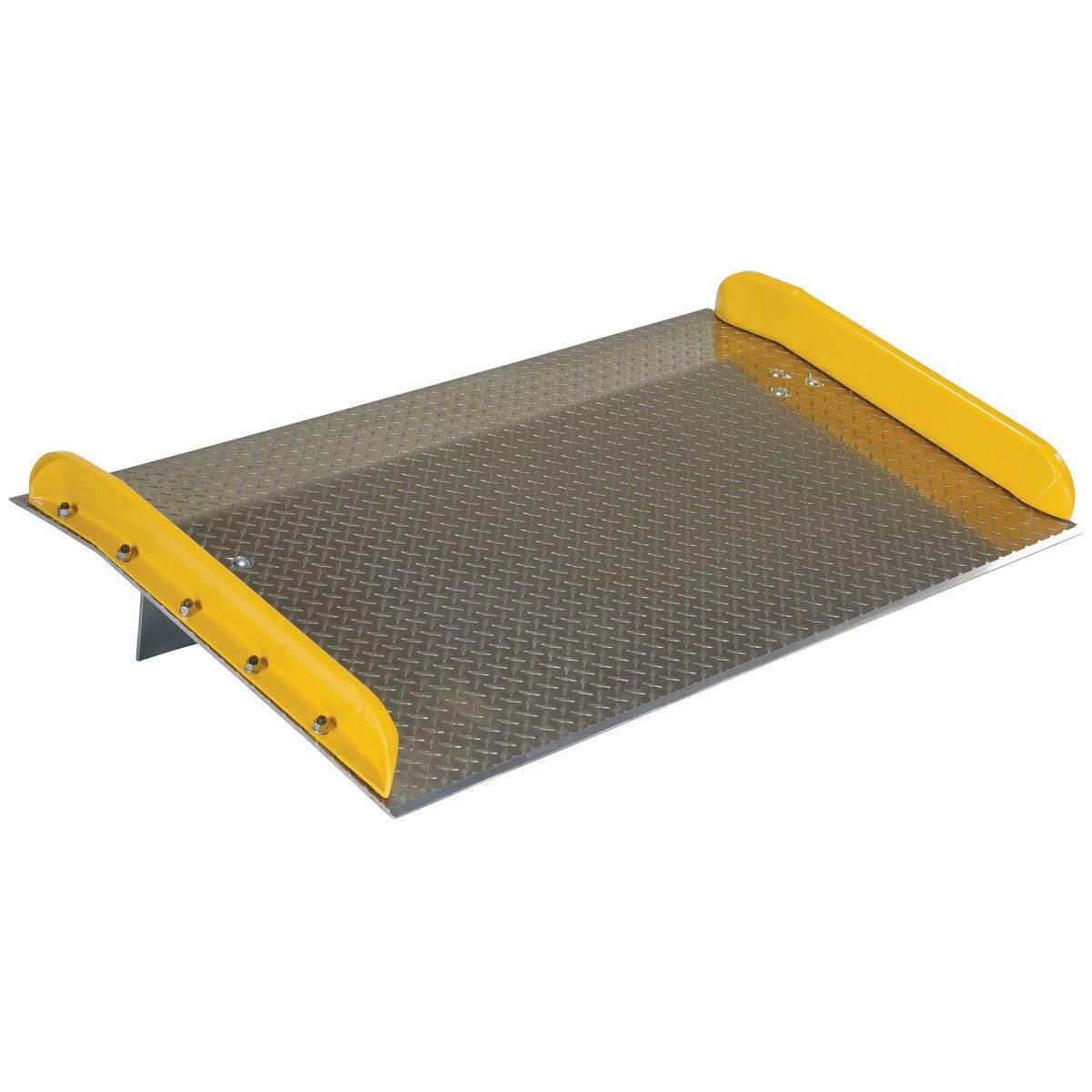

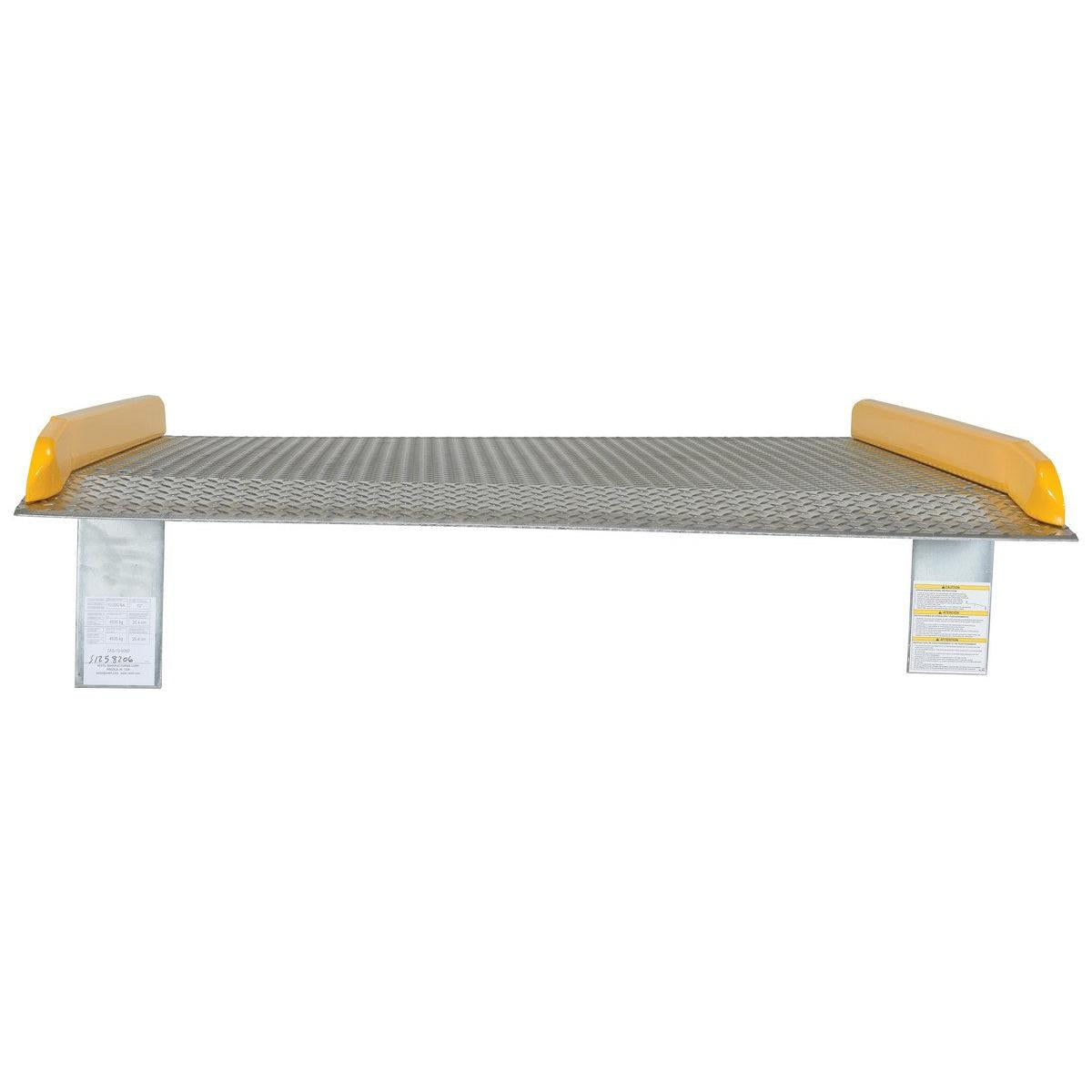

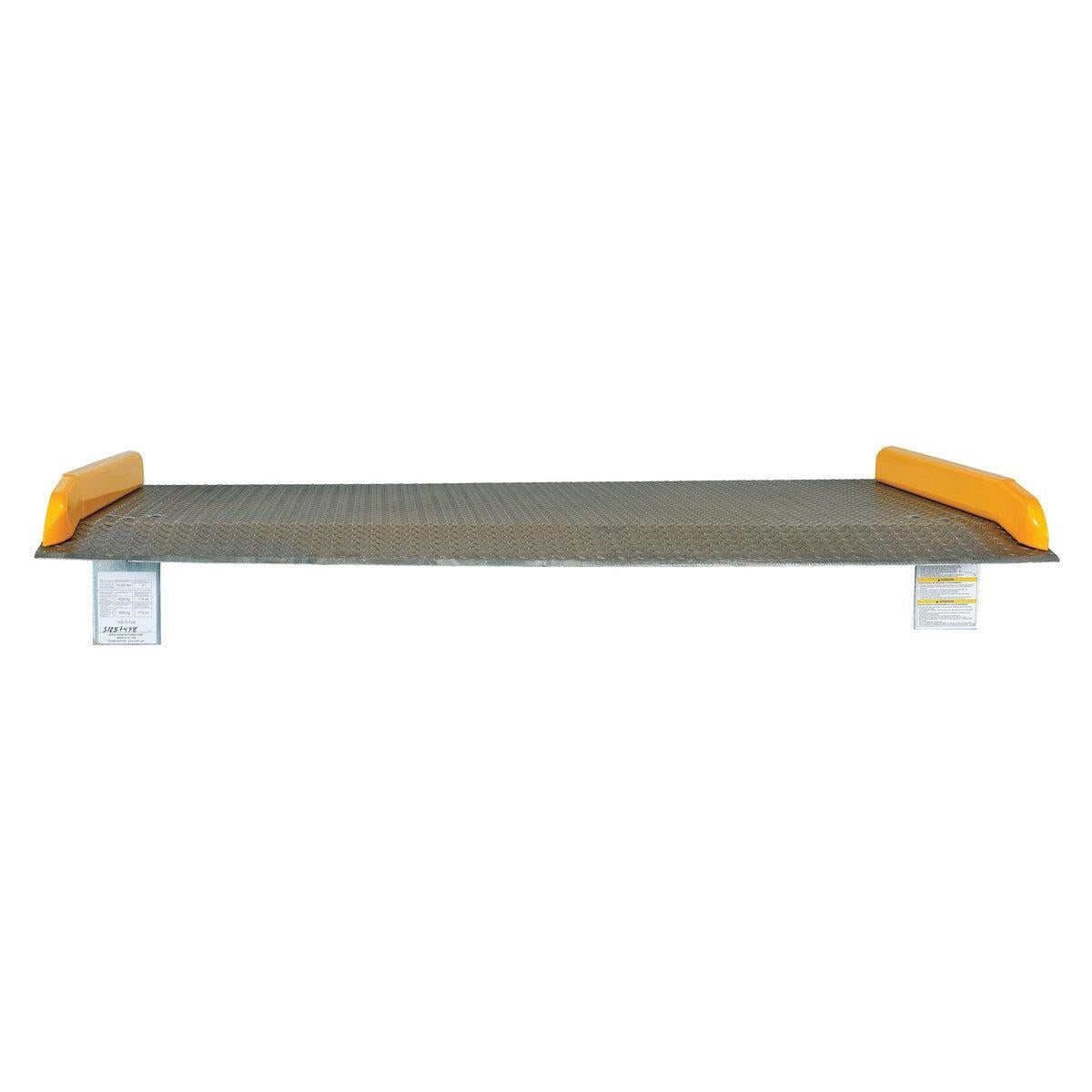

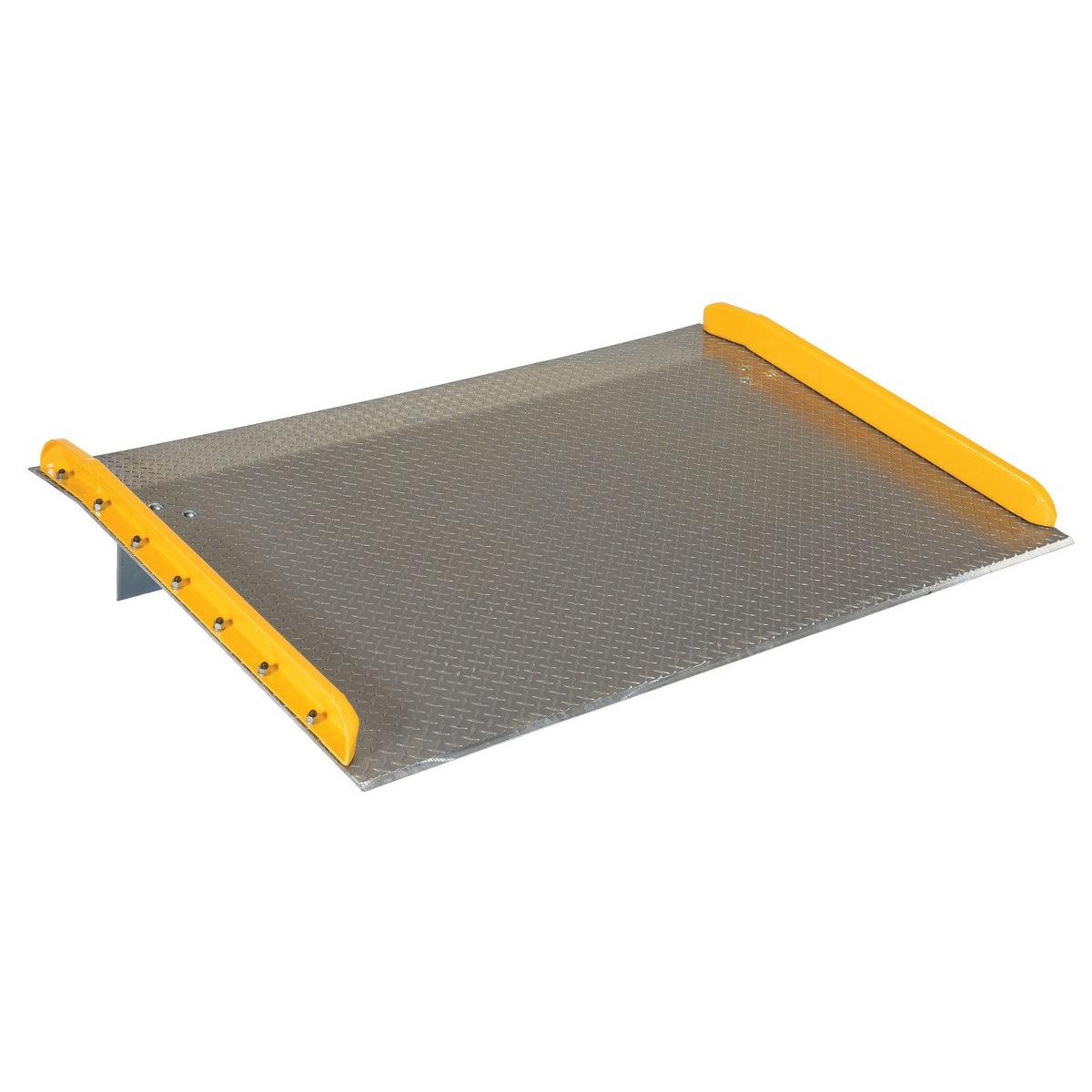

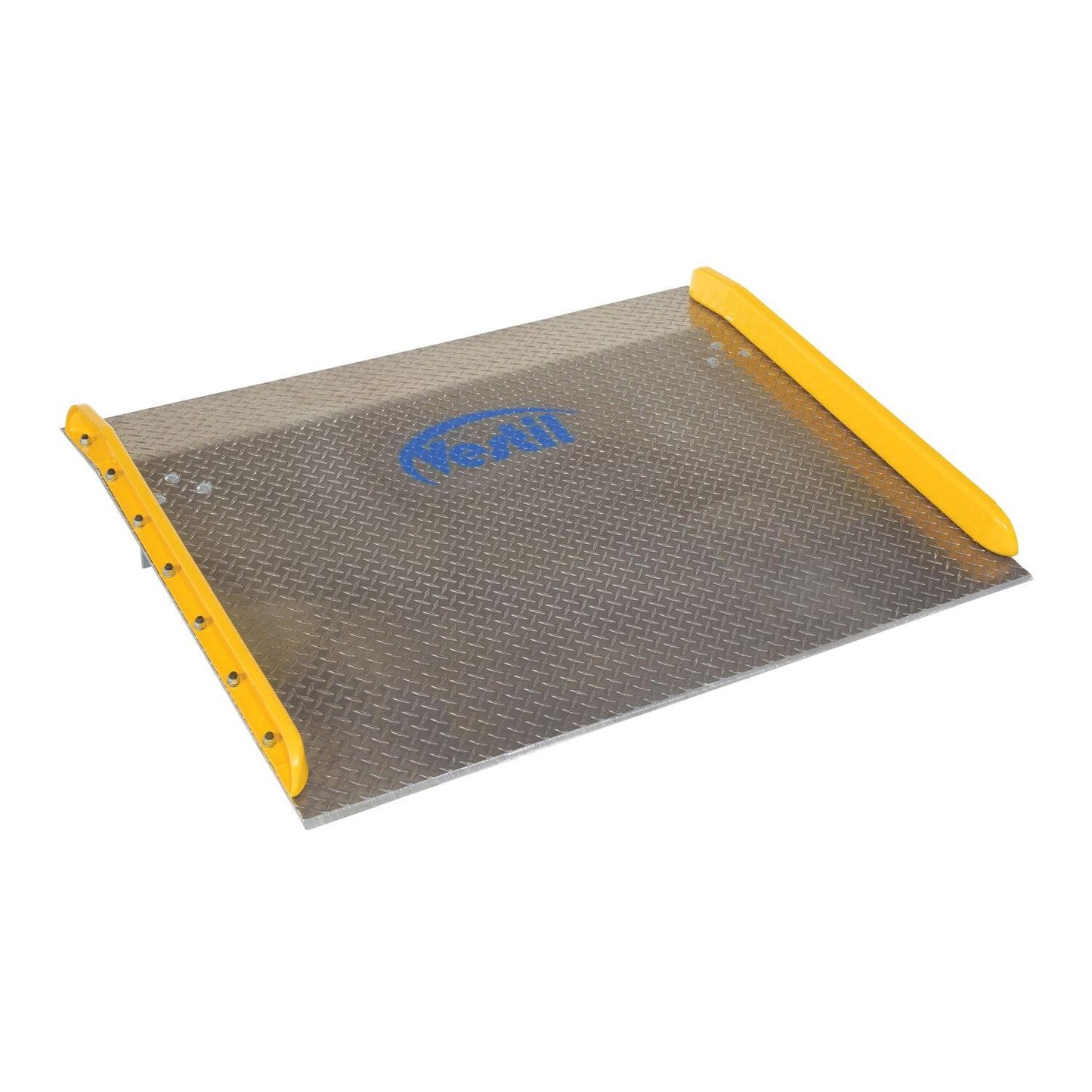

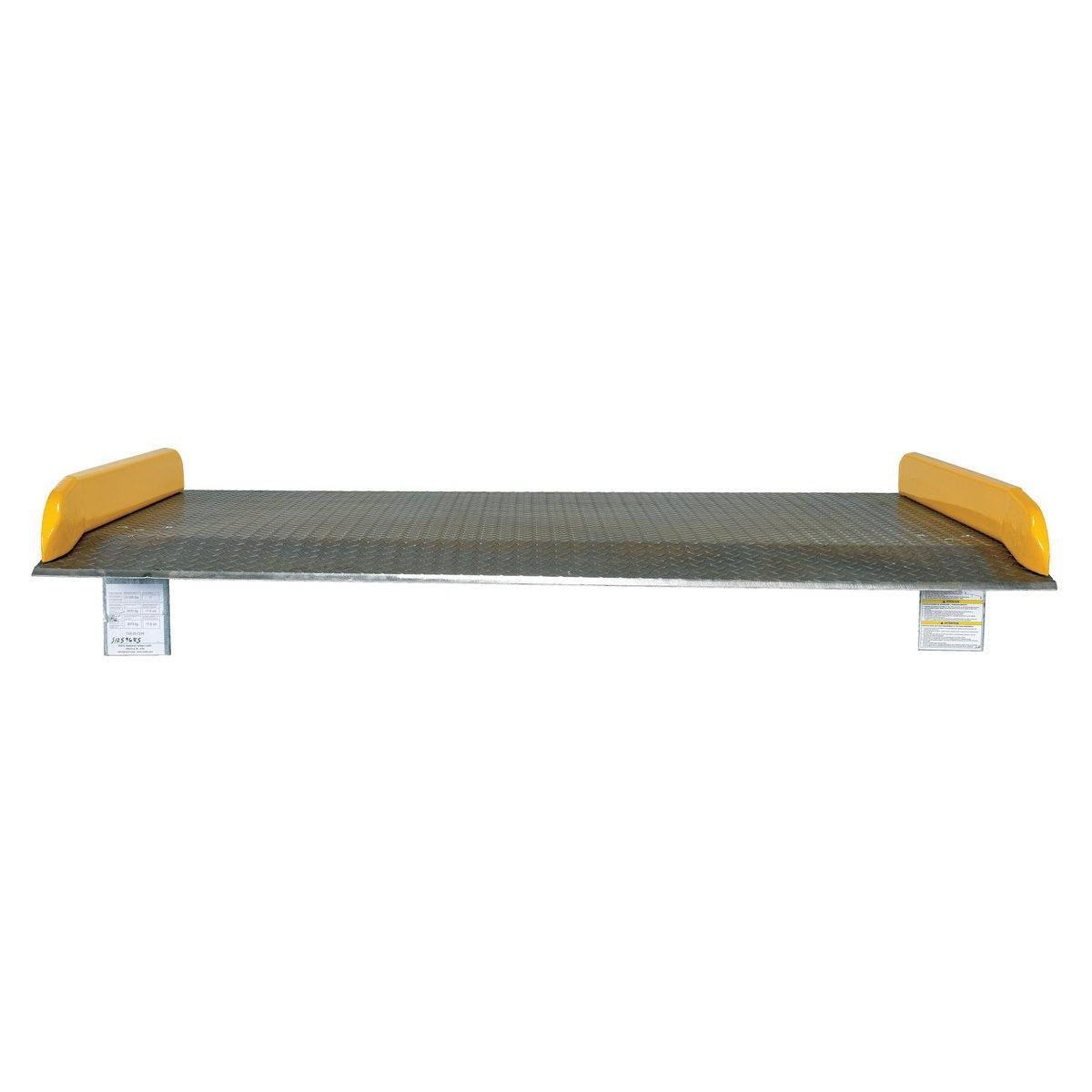

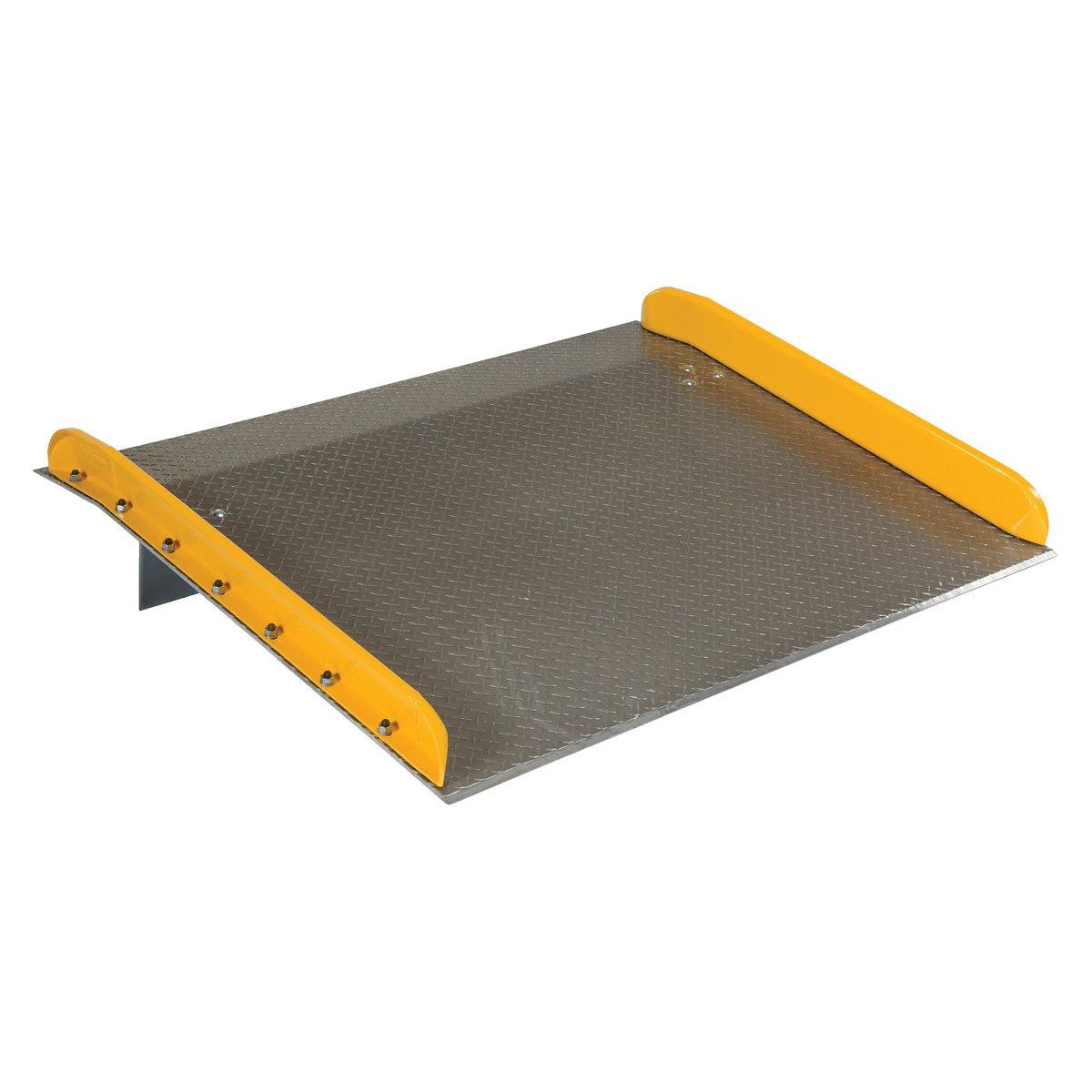

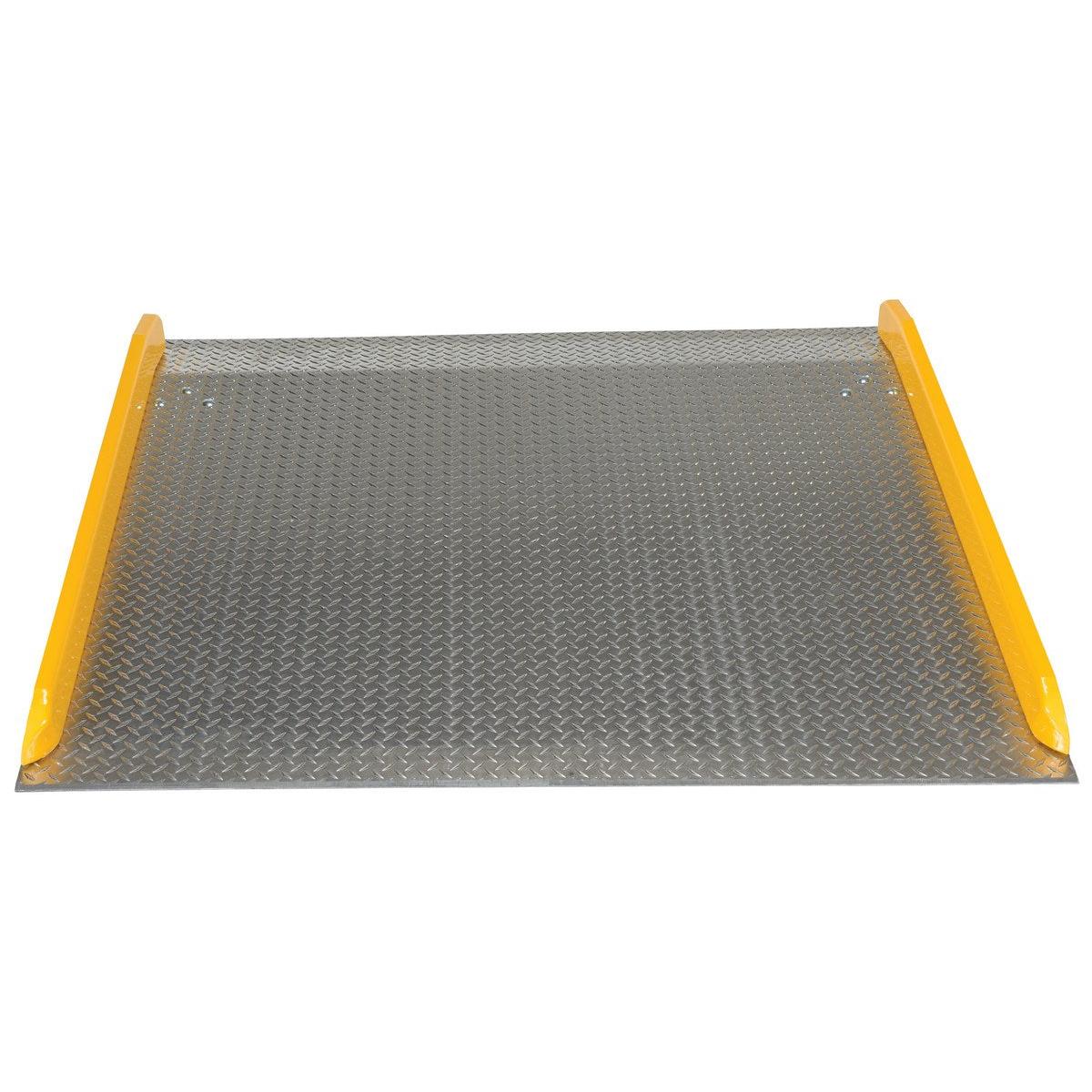

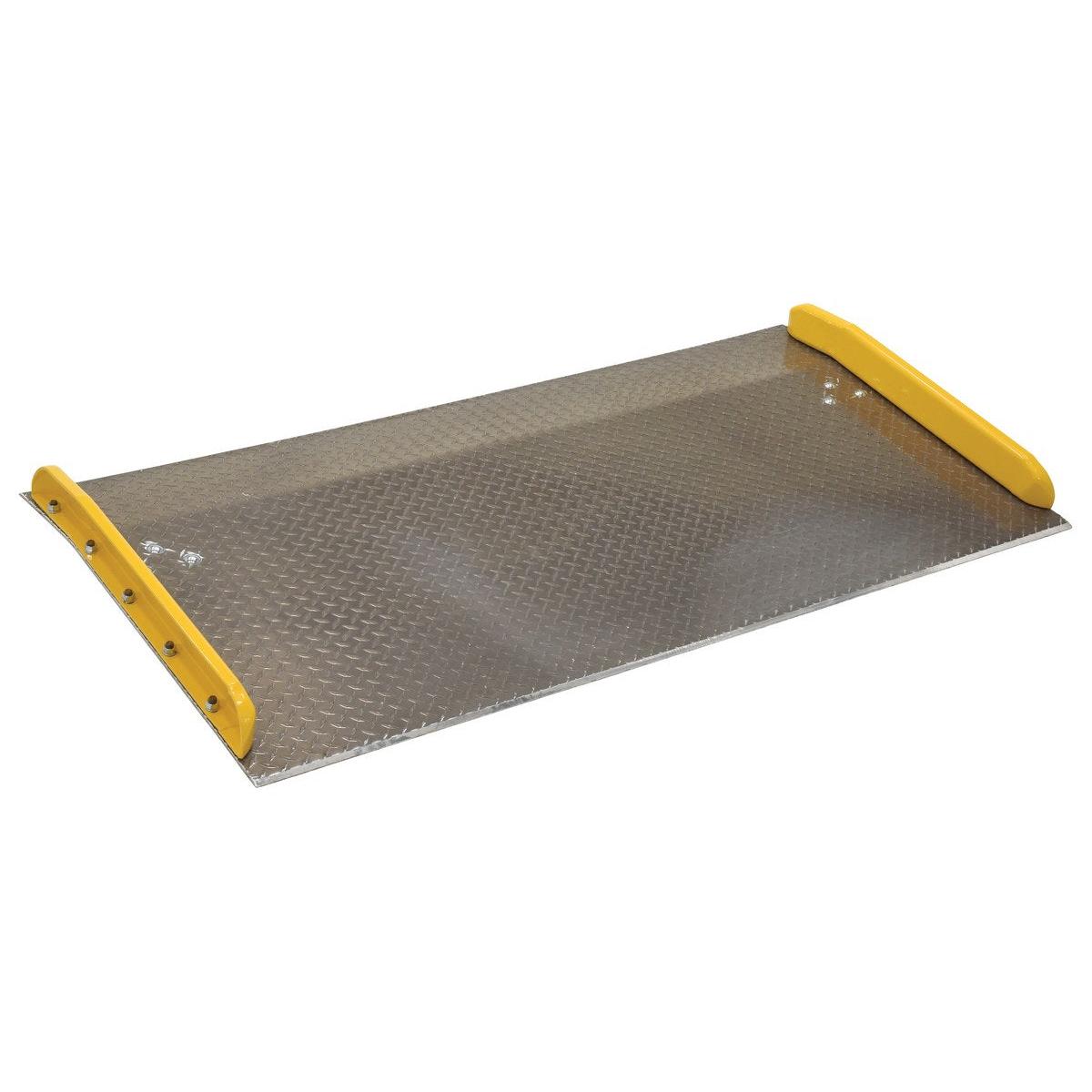

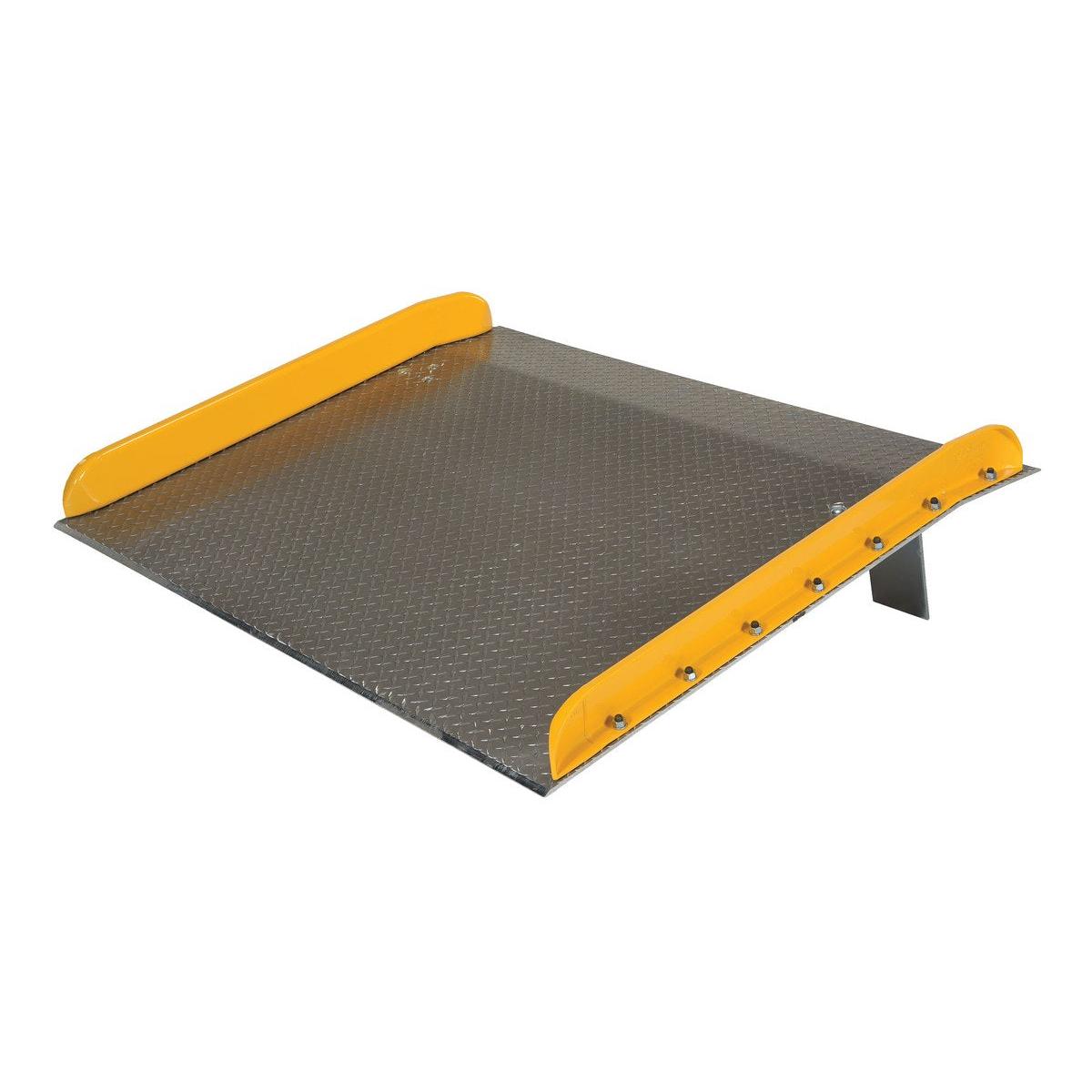

Aluminum Truck Dockboards with Steel Safety Curbs

Aluminum Truck Dockboards with Steel Safety Curbs

VES-TAS-10-6036

  • Free Shipping in the Lower 48 States
  • Call or Email us for large QTY quotes
$938.50 USD
$938.50 USD
Sale Sold out
Capacity
Usable Width
Usable Length

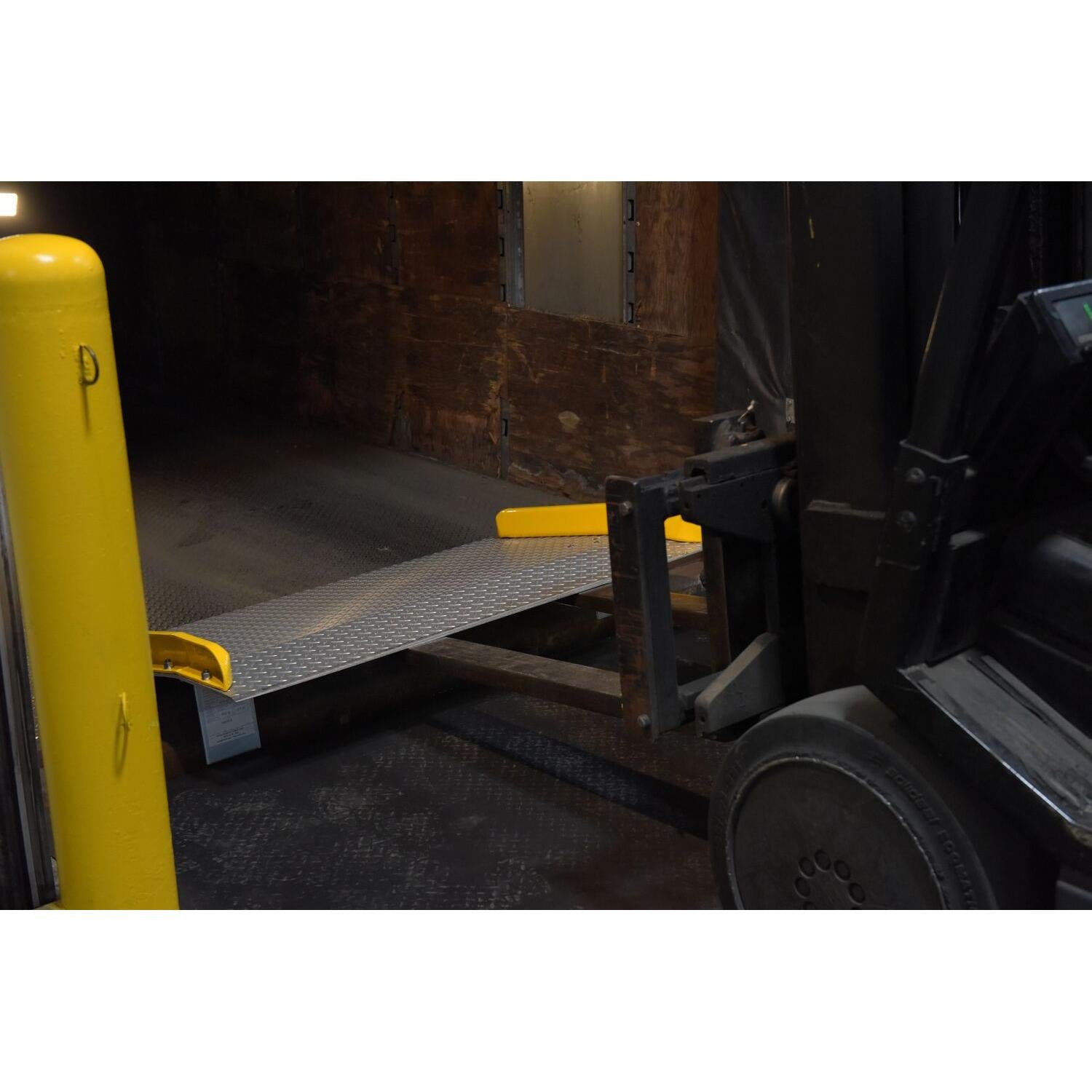

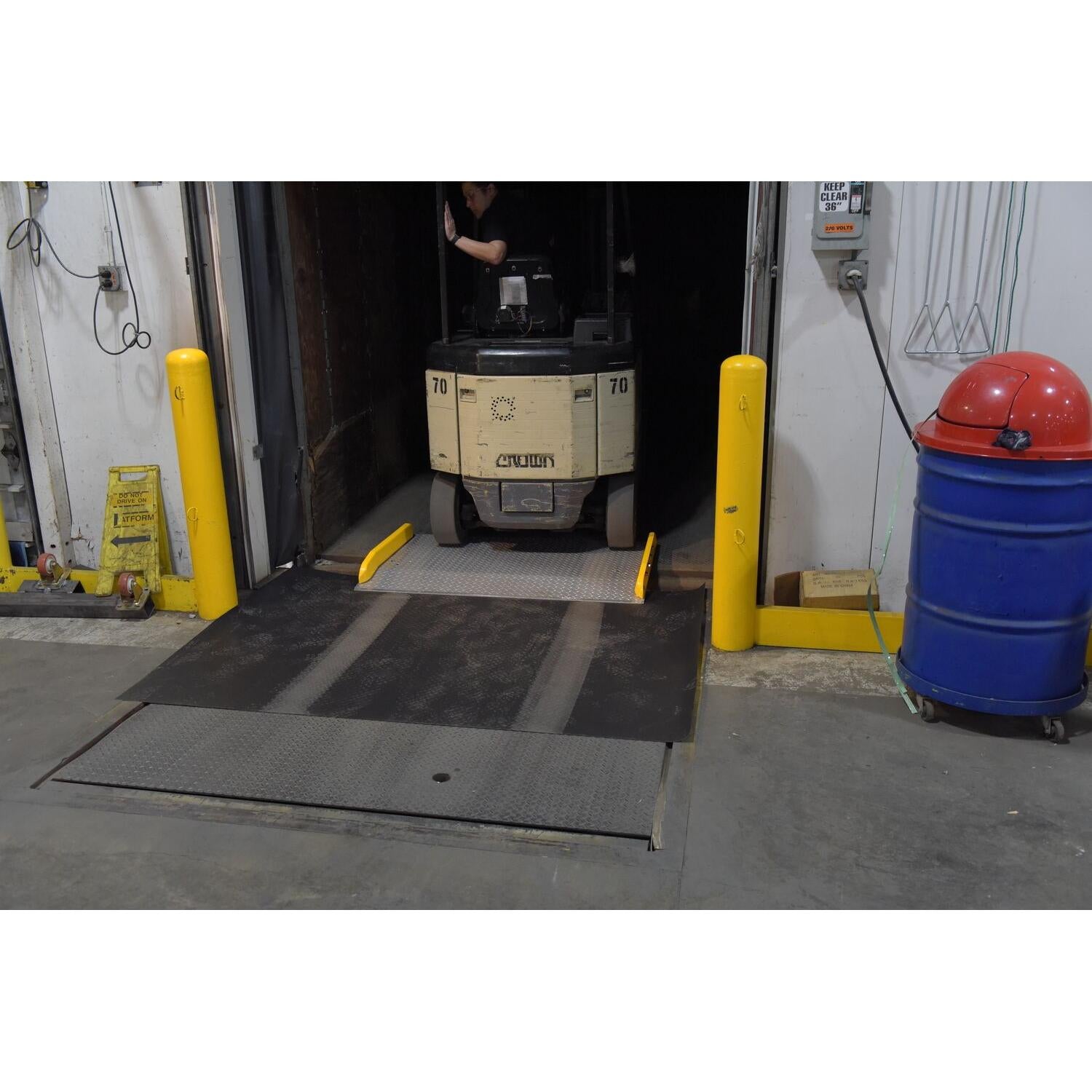

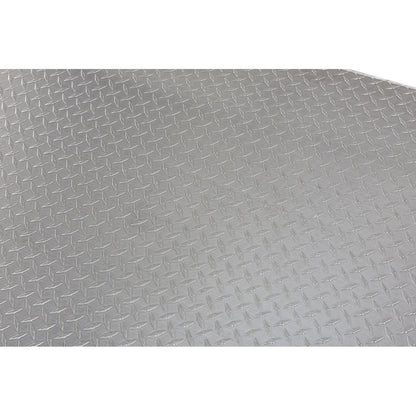

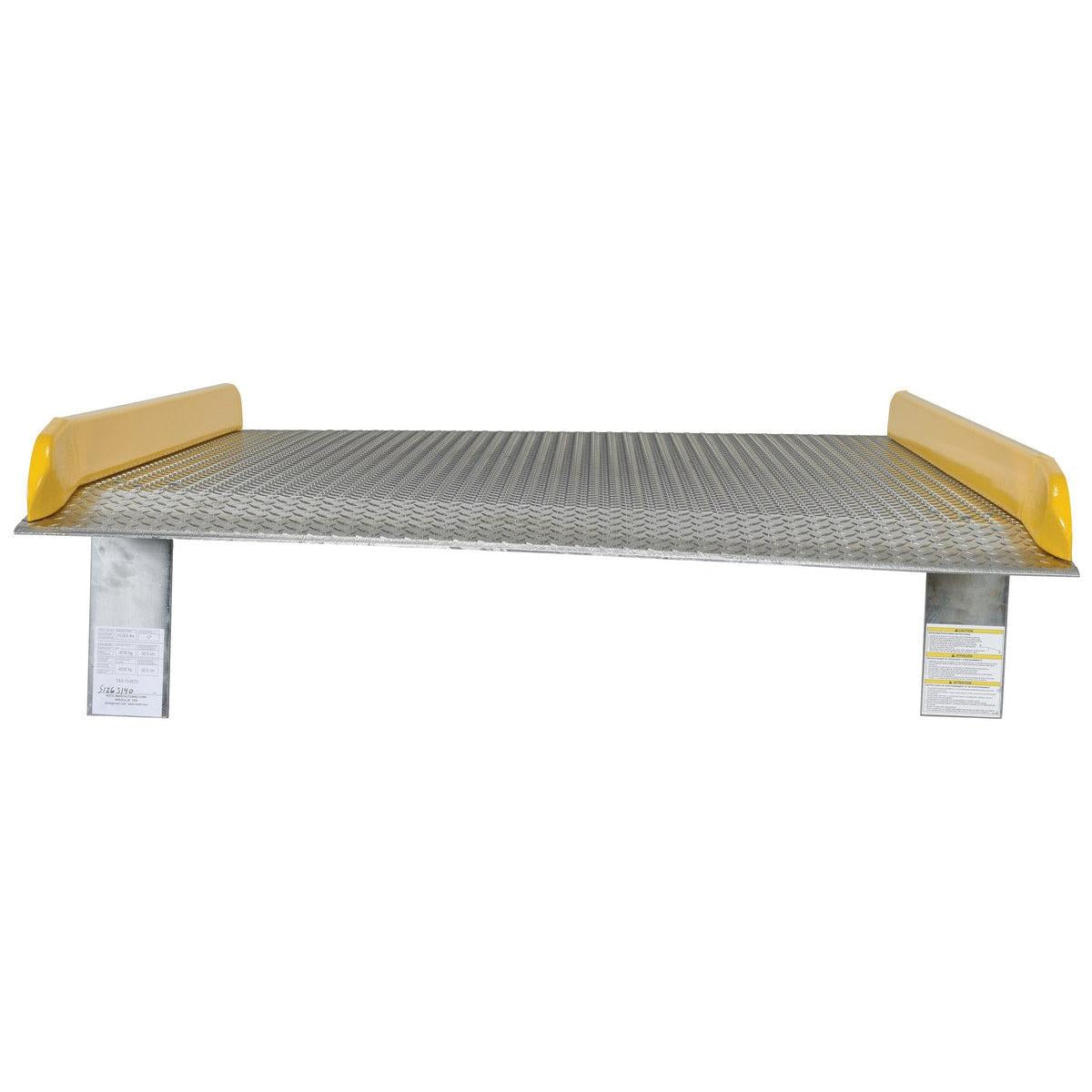

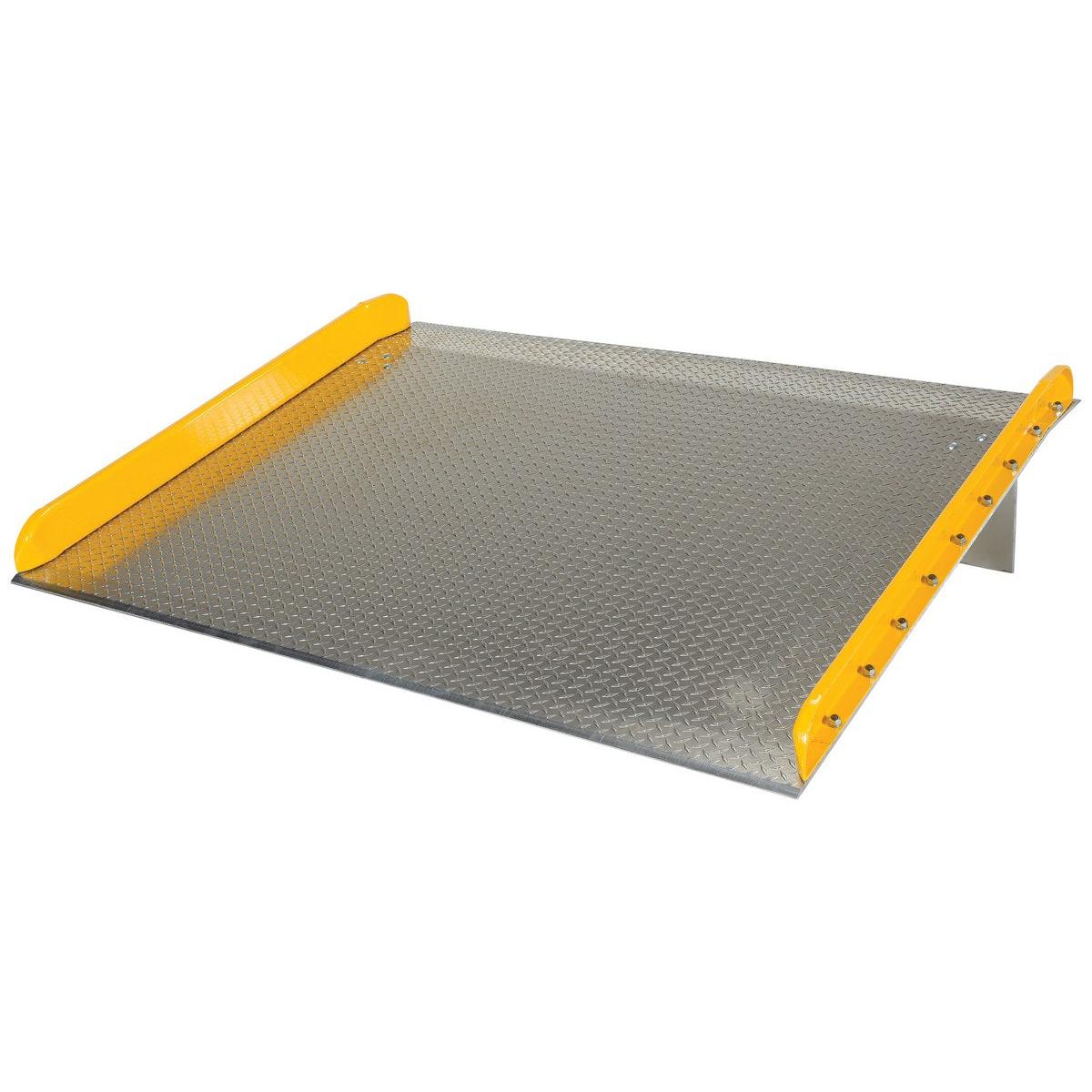

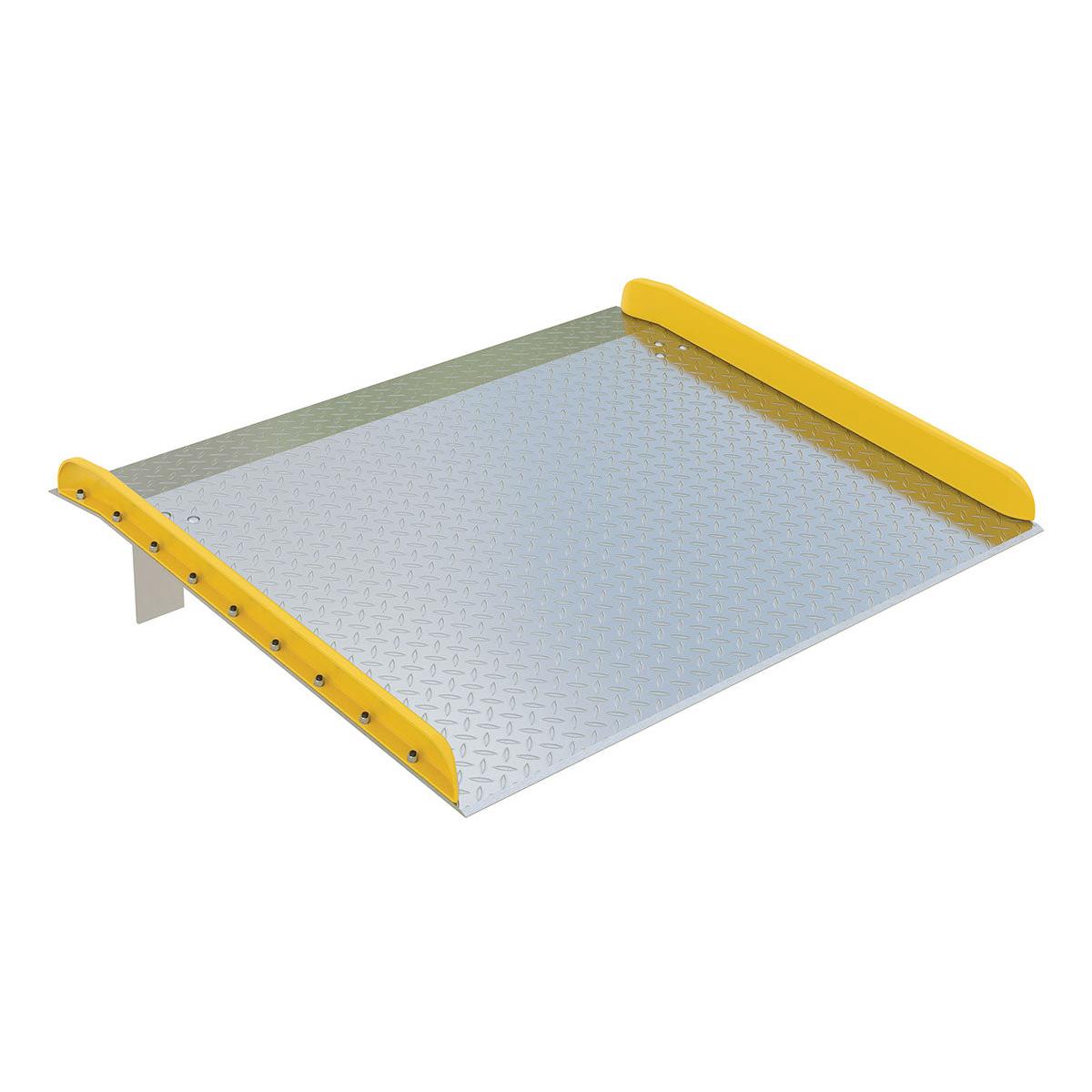

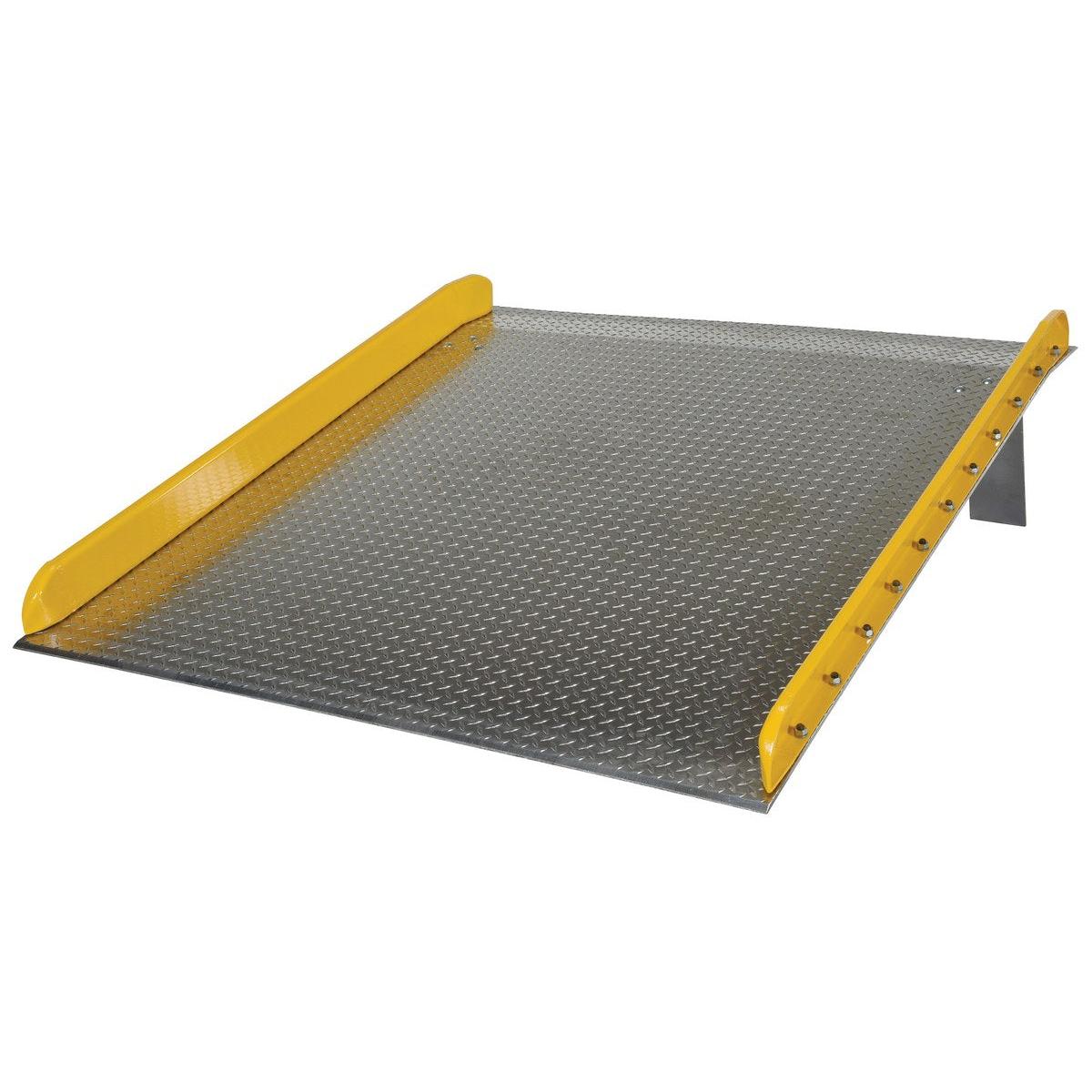

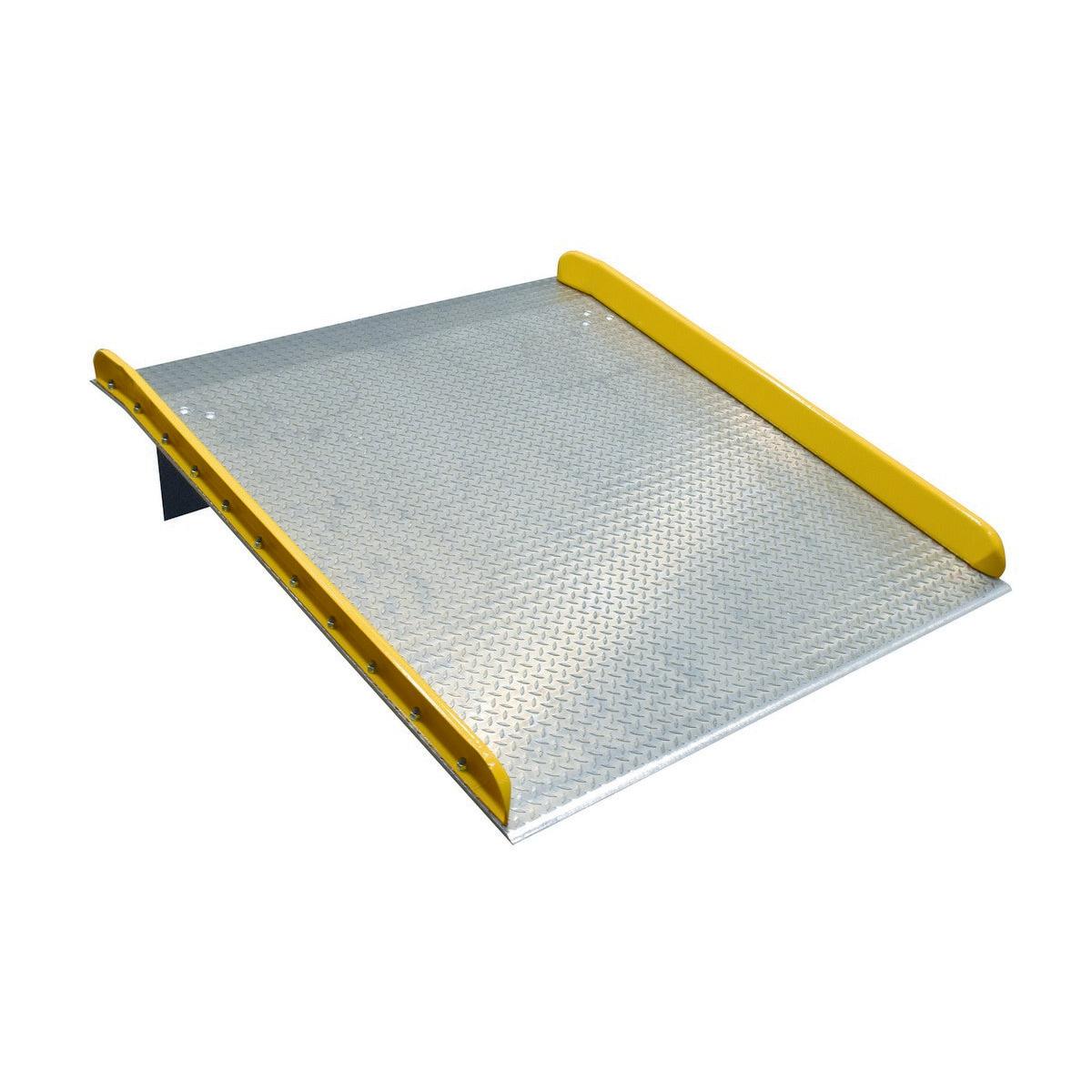

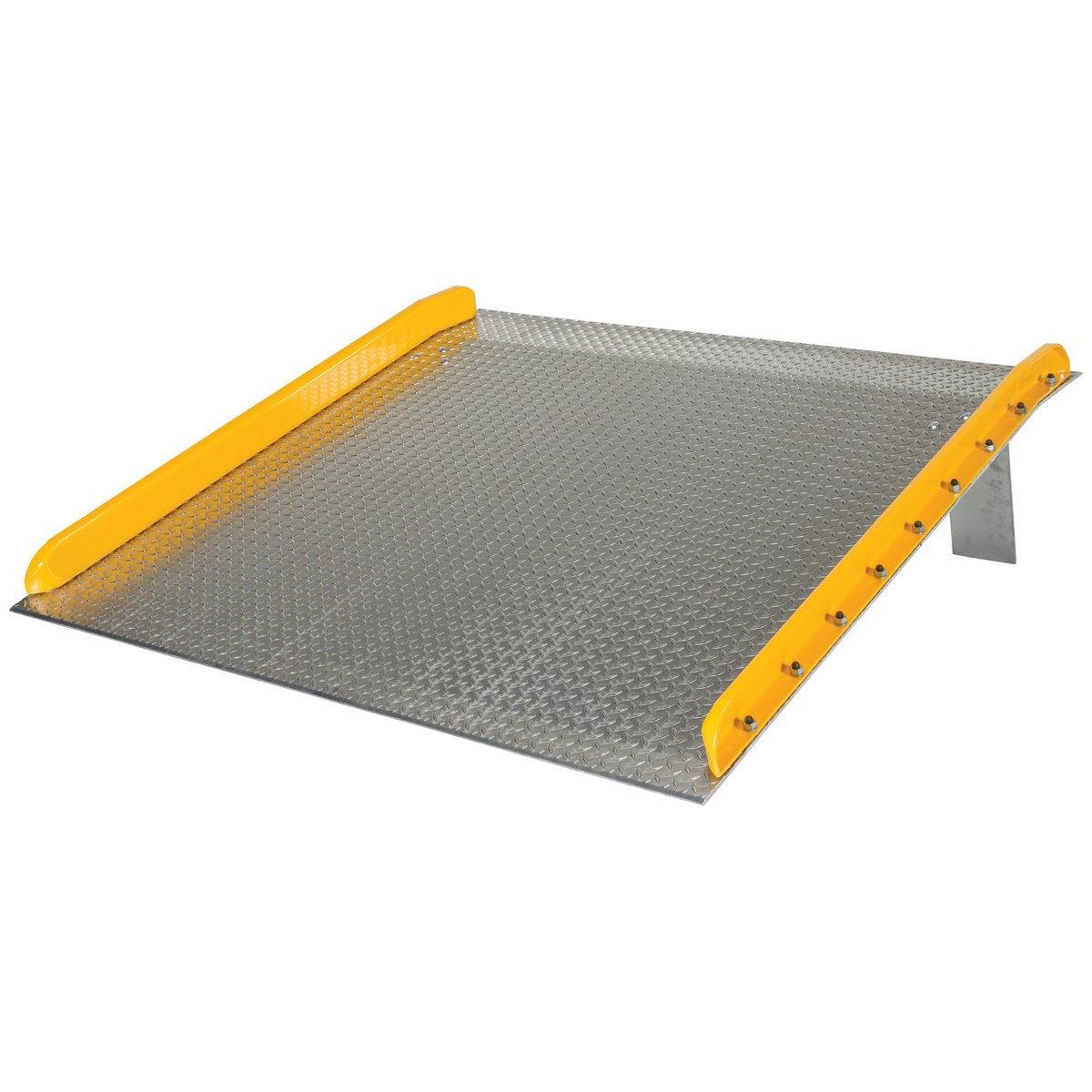

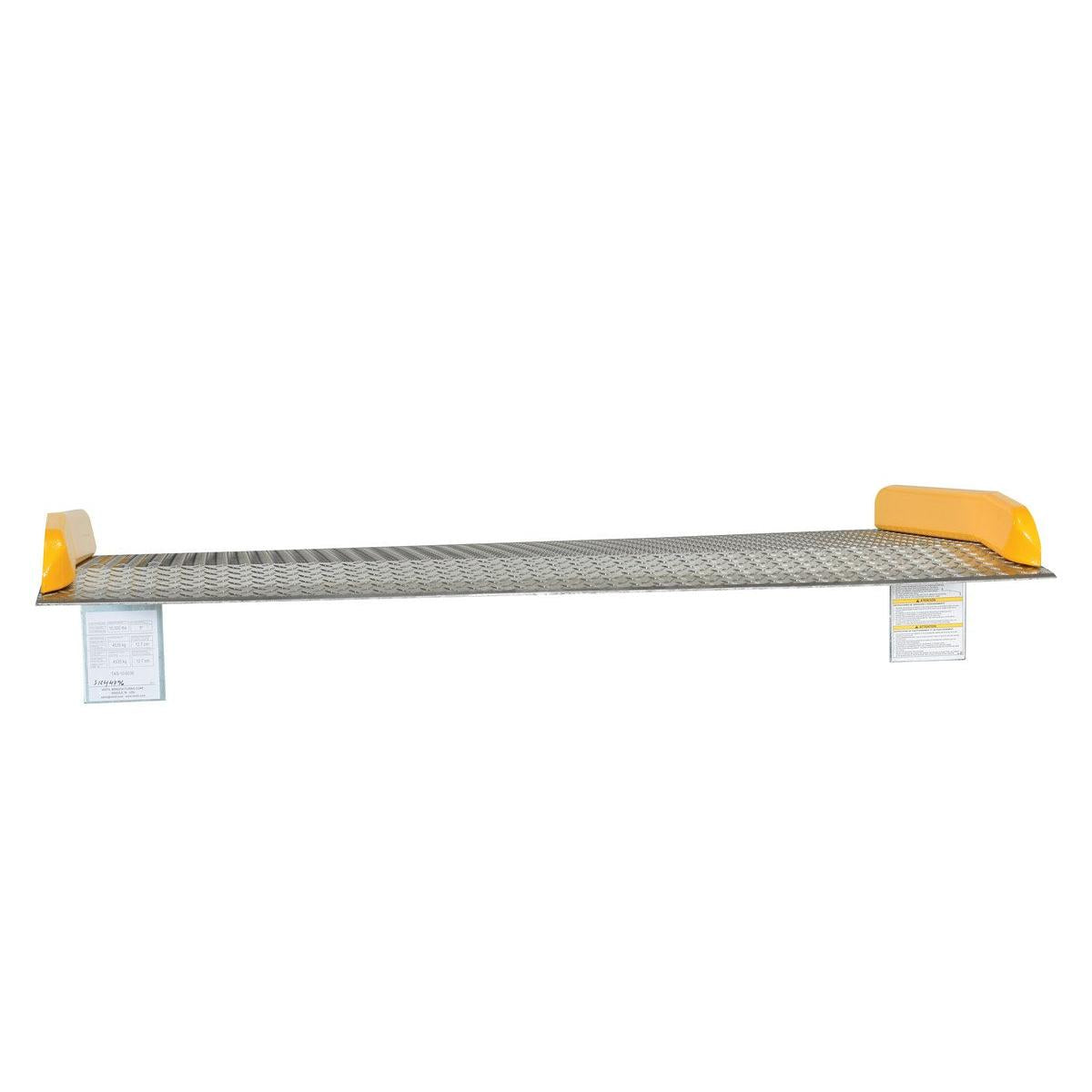

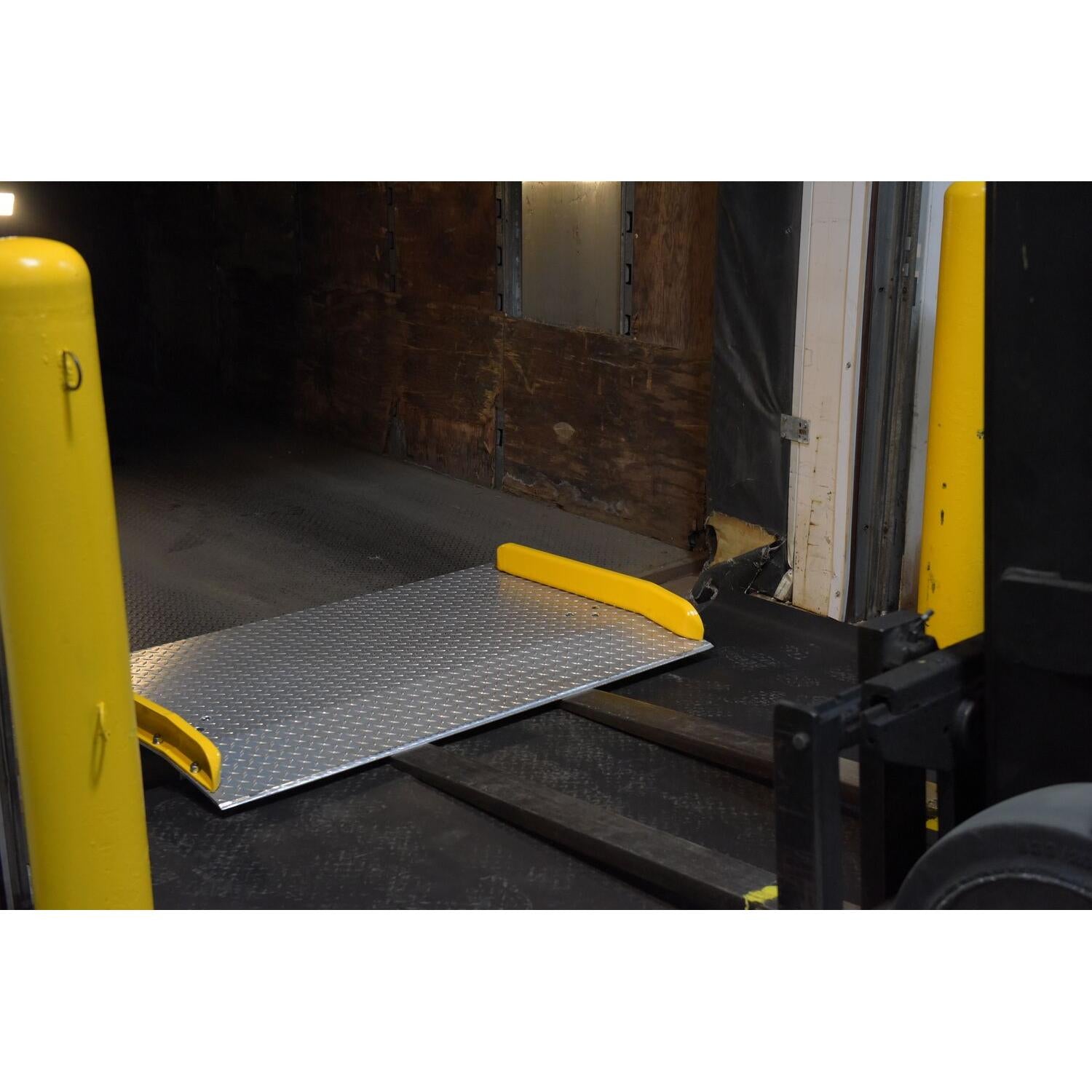

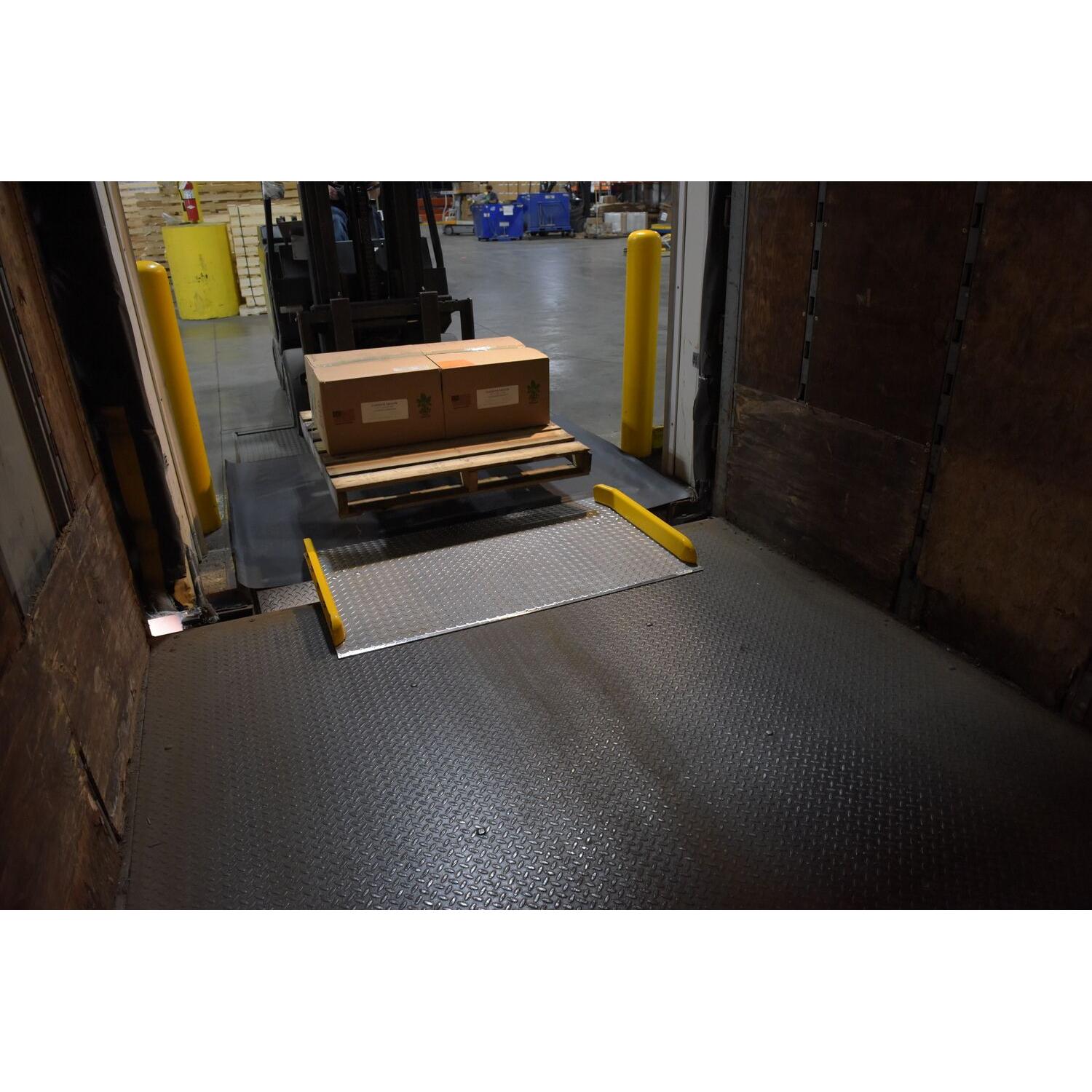

Aluminum Truck Dockboards with Steel Safety Curbs are engineered to create a safe, stable bridge between trucks and loading docks. Their durable aluminum tread plate deck, combined with reinforced steel safety curbs, ensures smooth, secure transitions for forklifts, pallet jacks, and other material handling equipment. Designed for portability and OSHA-compliant safety, these dockboards provide reliable performance in warehouses, distribution centers, and industrial facilities.

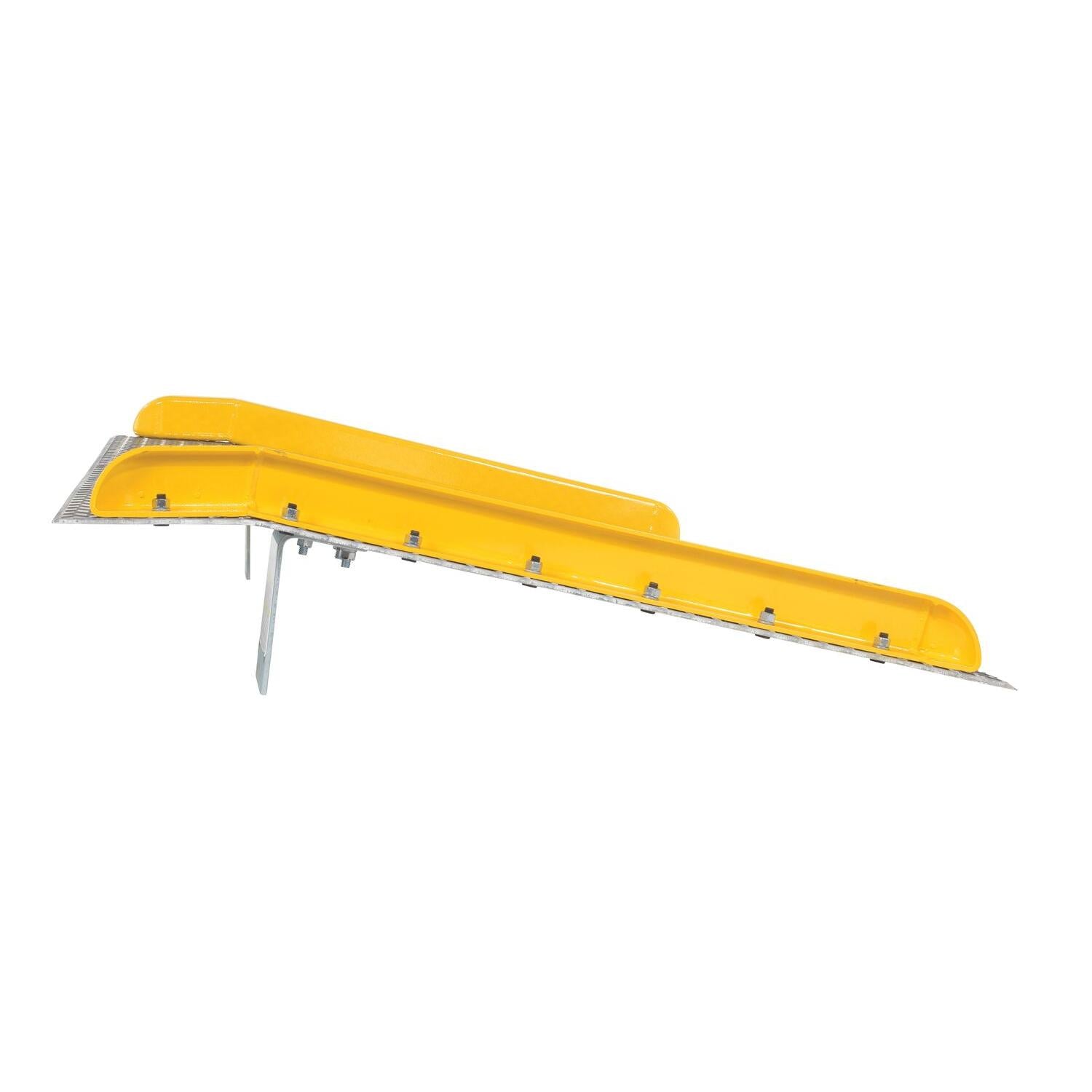

Each dockboard is manufactured from high-strength aluminum, keeping the unit lightweight yet capable of supporting heavy loads. Beveled edges allow for easier equipment entry and exit, while yellow-painted steel curbs provide a visual safety barrier and prevent run-offs. Locking legs are canted for truck portability and added stability. Capacities are based on the type of equipment and load being handled; for three-wheeled forklifts, a board rated at least four times the lifting capacity of the truck is required. Width should always be a minimum of 15 inches greater than the load or equipment span.

Features & Benefits

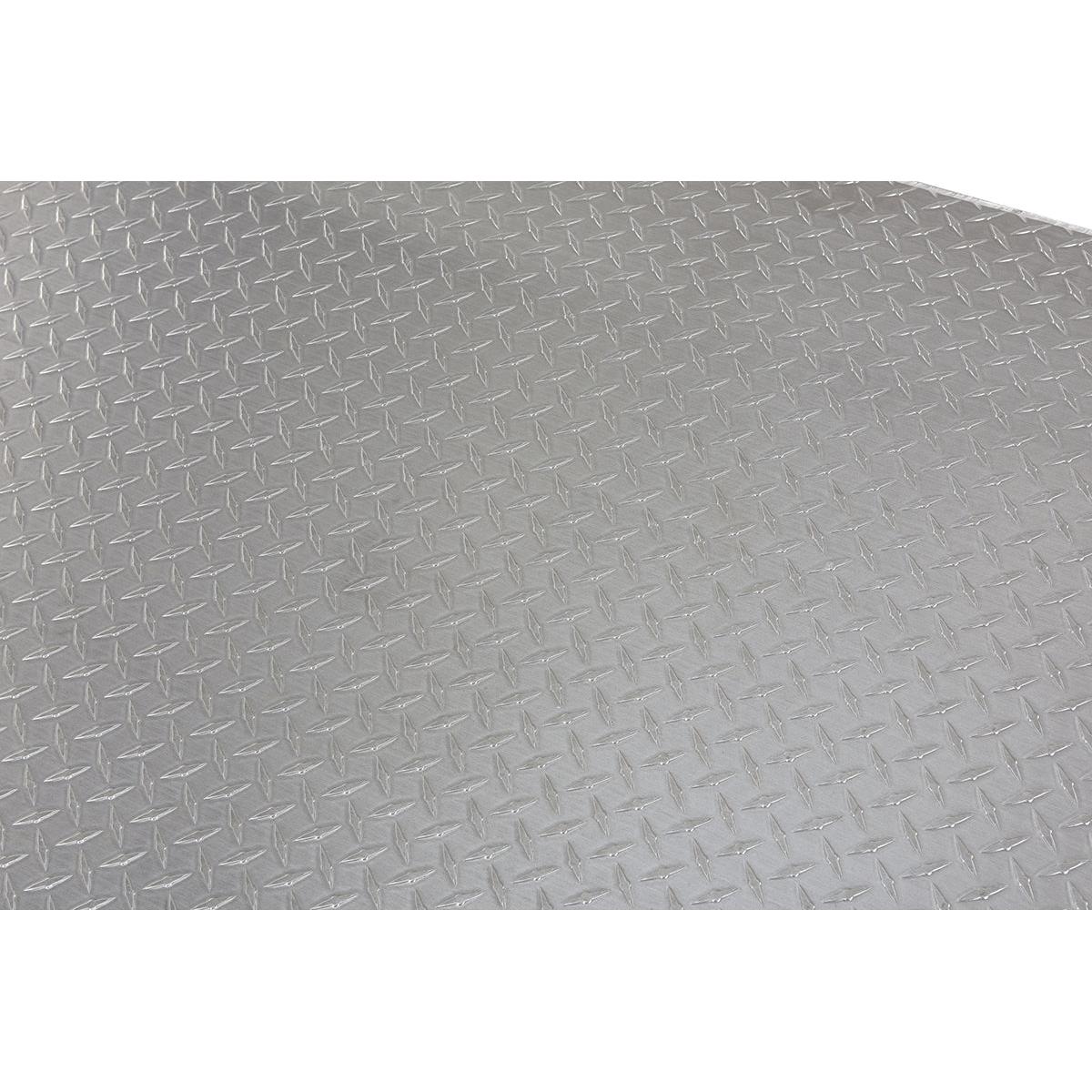

  • High-Strength Aluminum Deck: Durable tread plate resists wear while remaining lightweight for easier handling.

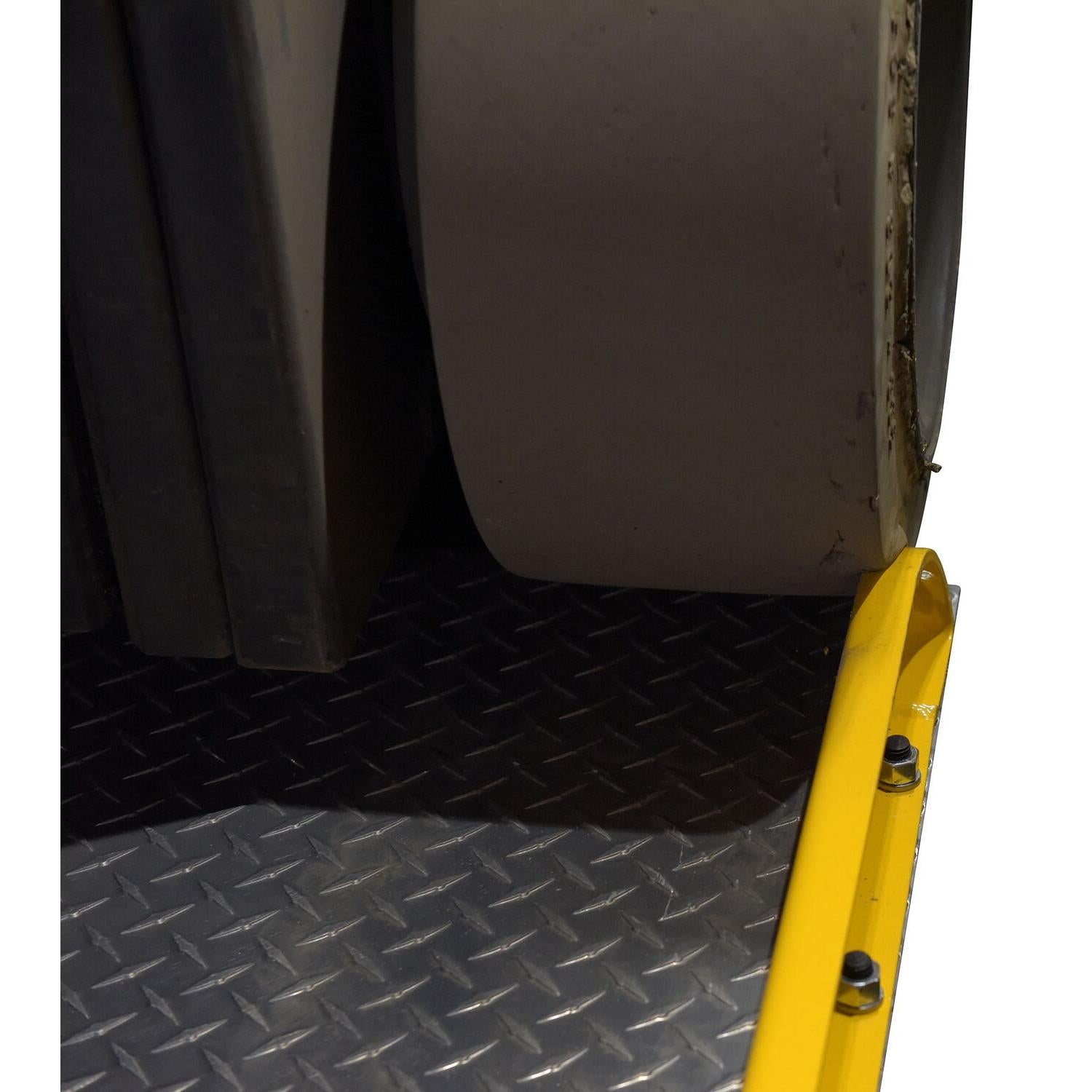

  • Steel Safety Curbs: Heavy-duty, yellow-painted steel curbs protect against run-off and add structural strength.

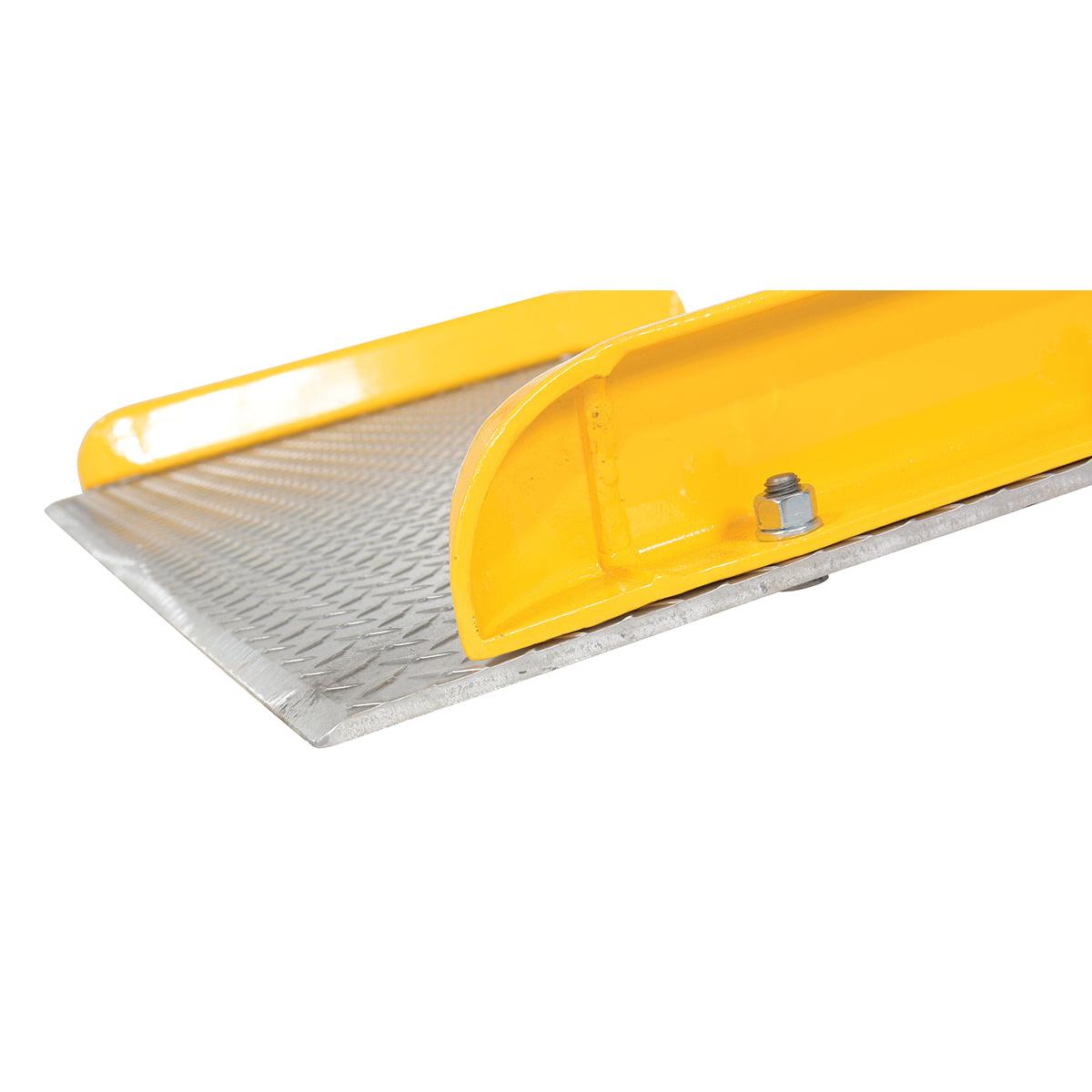

  • Beveled Entry & Exit: Smooth approach reduces equipment jolts and ensures efficient loading.
  • OSHA Compliance: Meets requirements for safety and use in industrial environments.

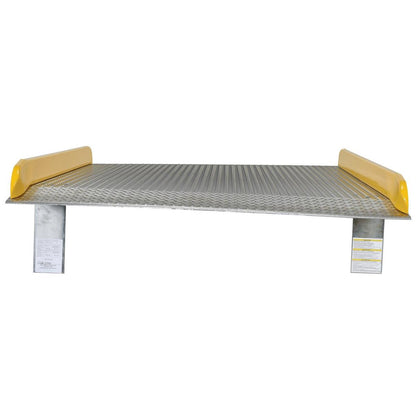

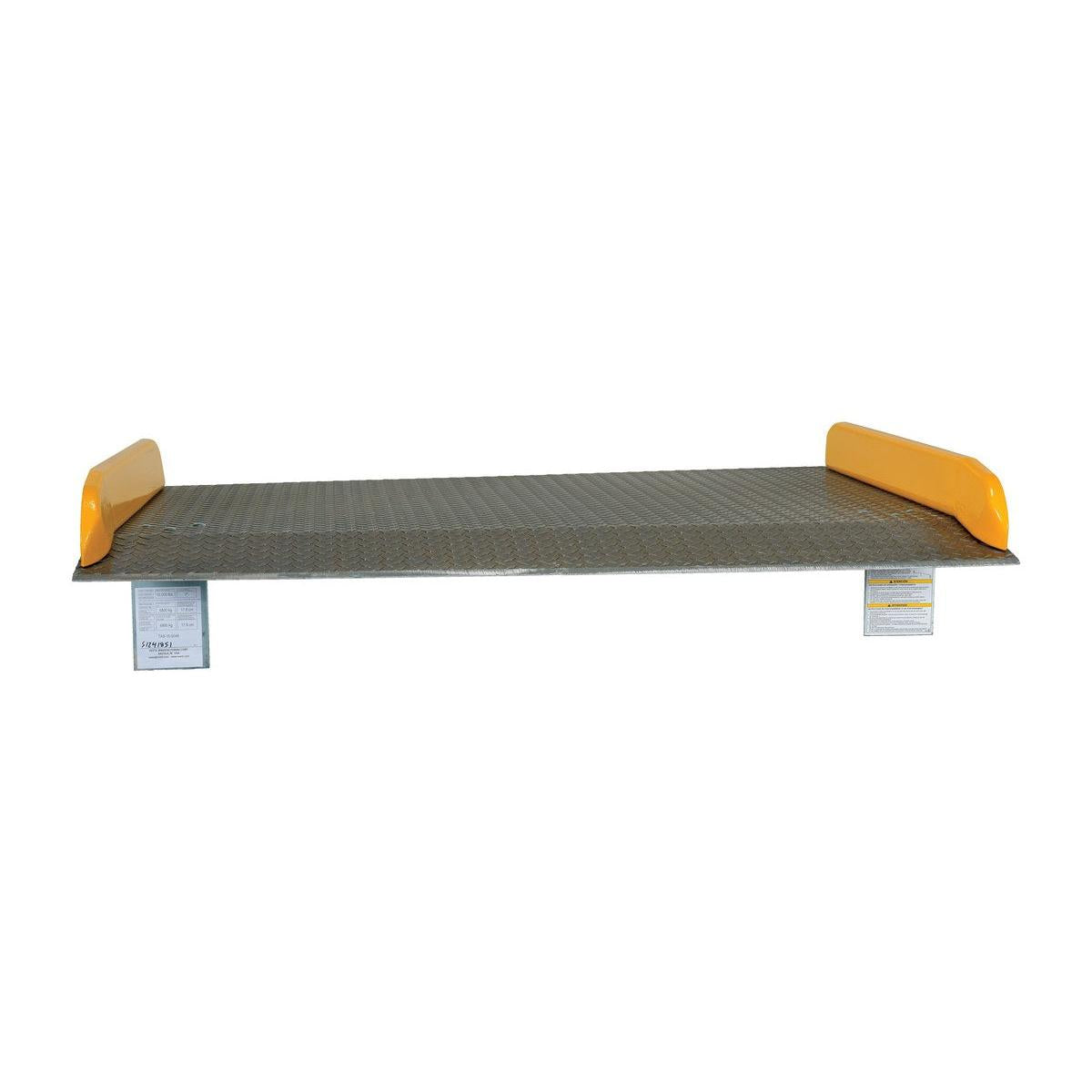

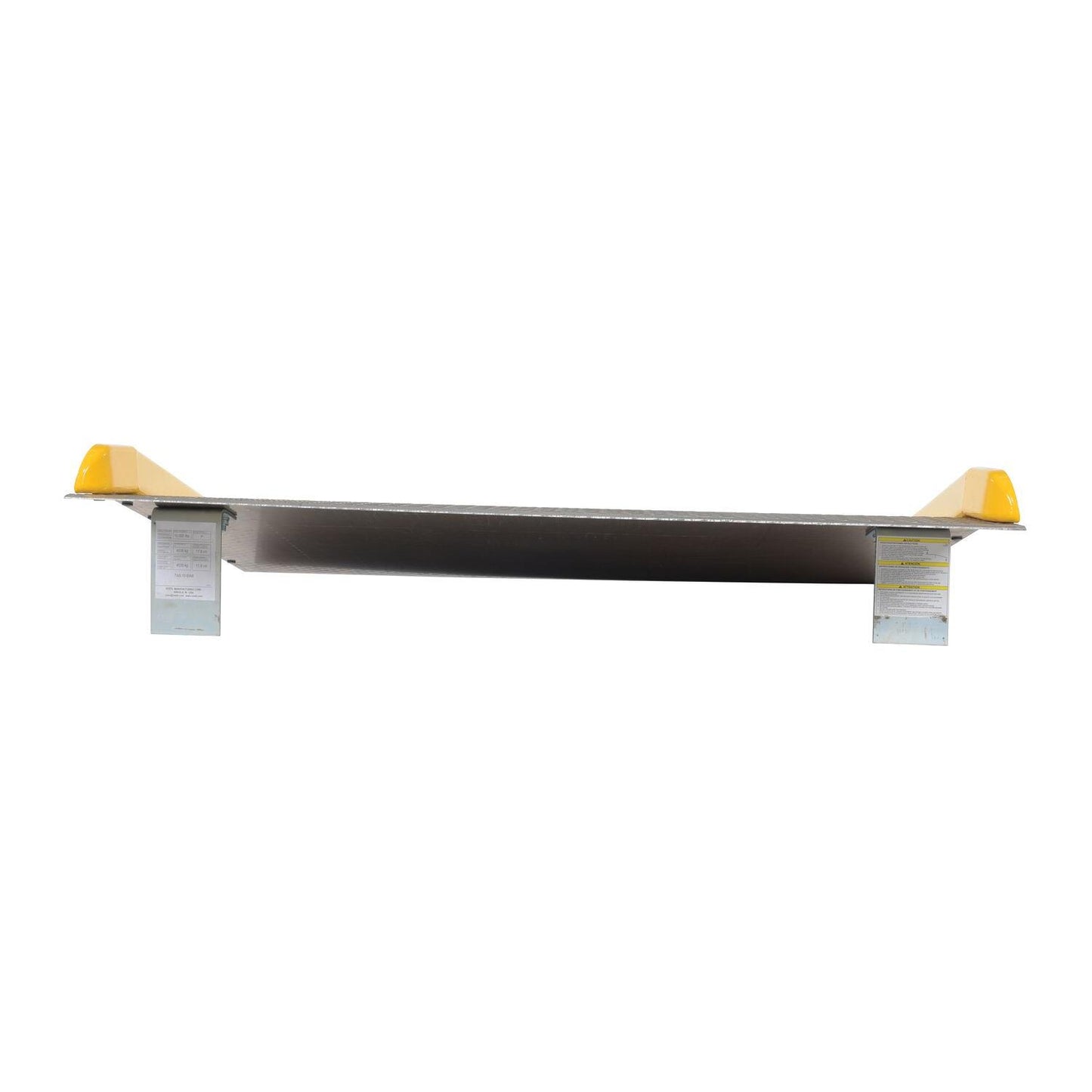

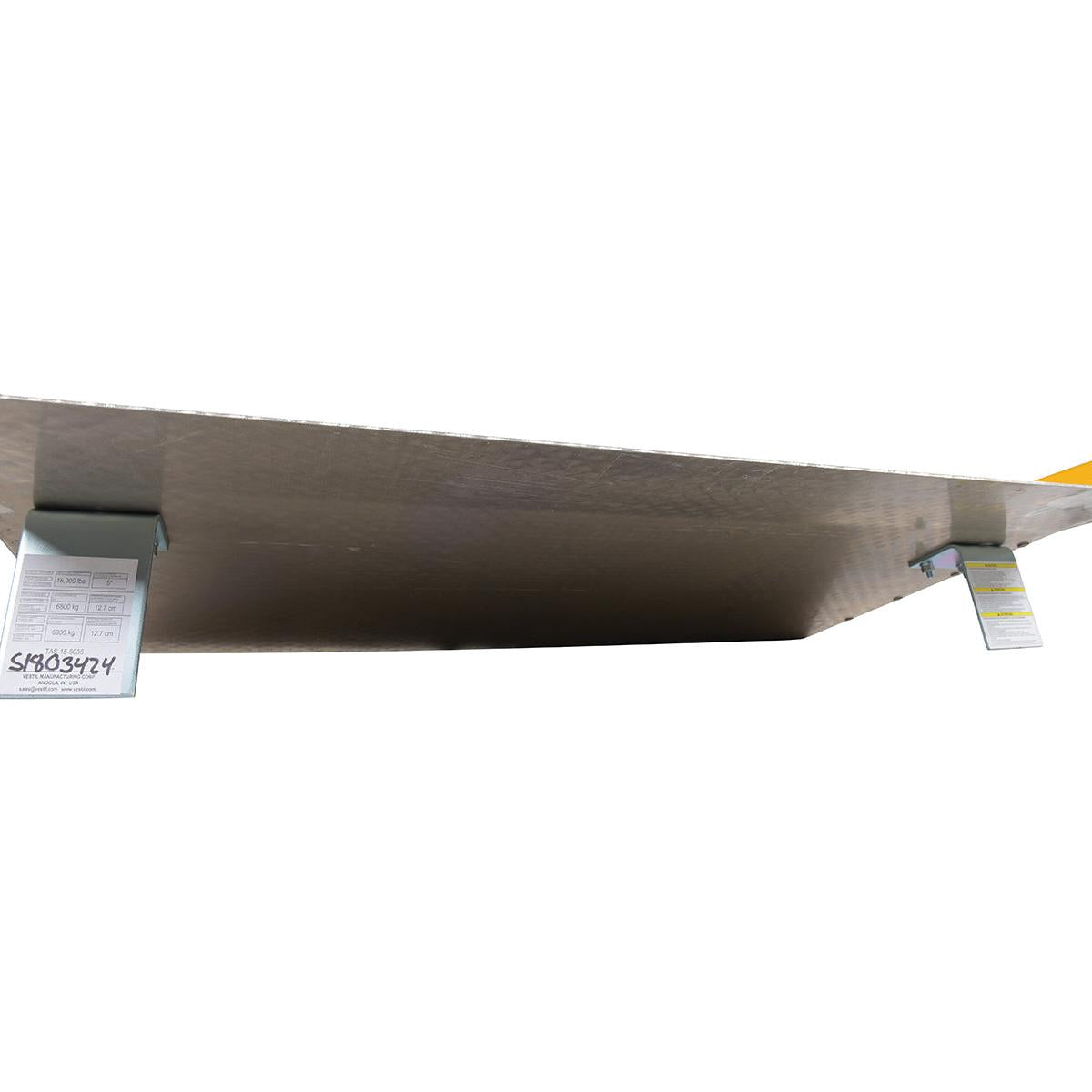

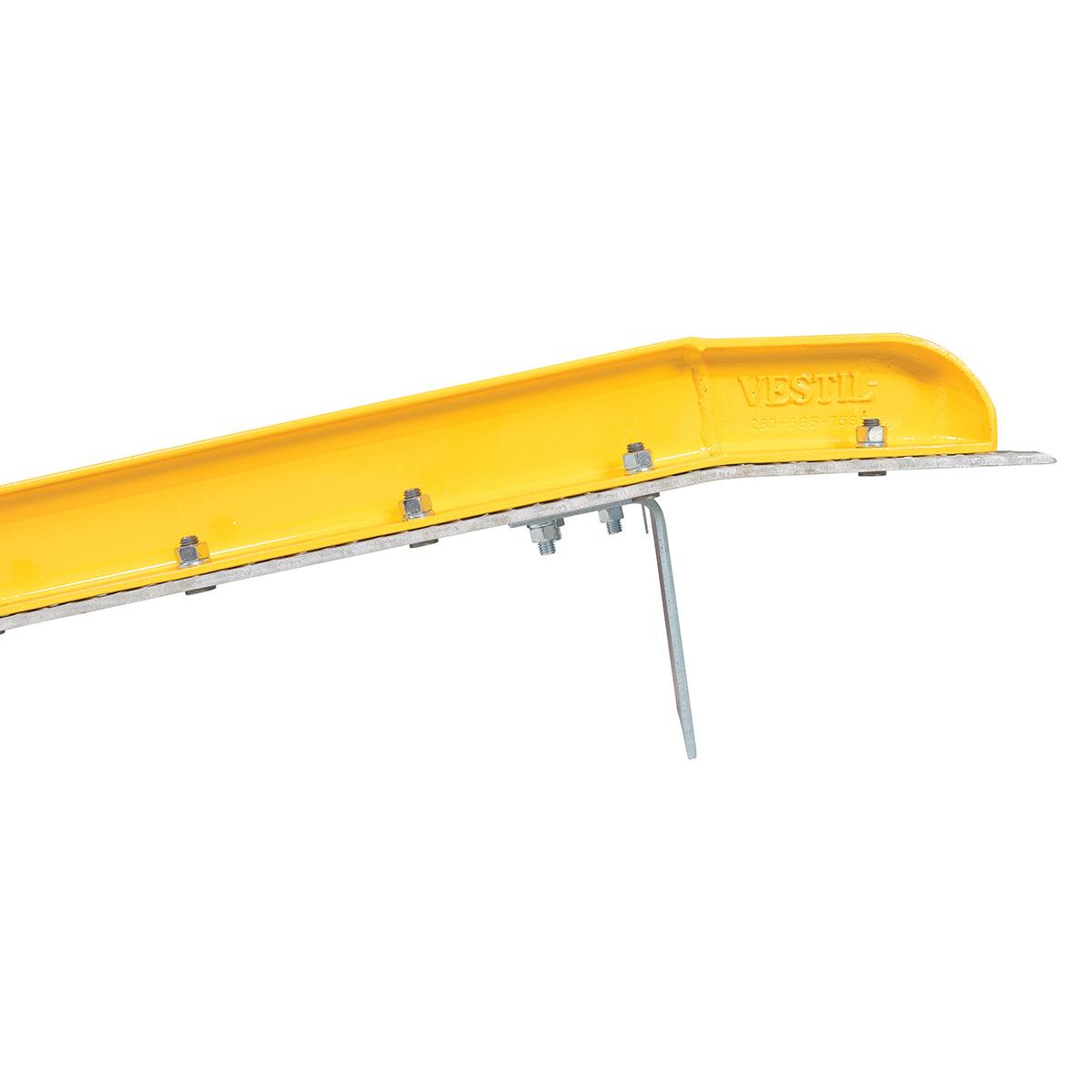

  • Zinc-Plated Locking Legs: Provide stability and reliable load support, with bolted construction for durability.

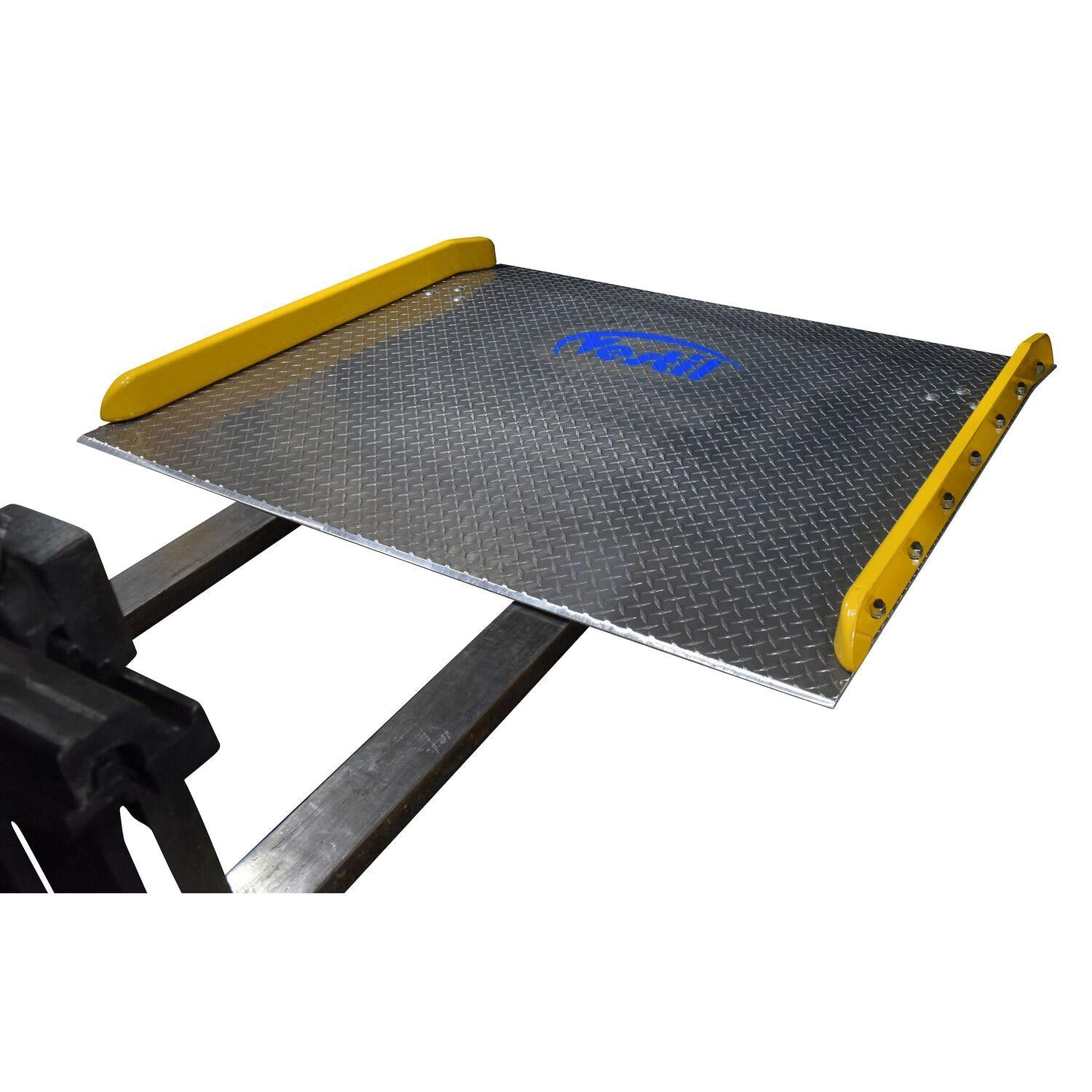

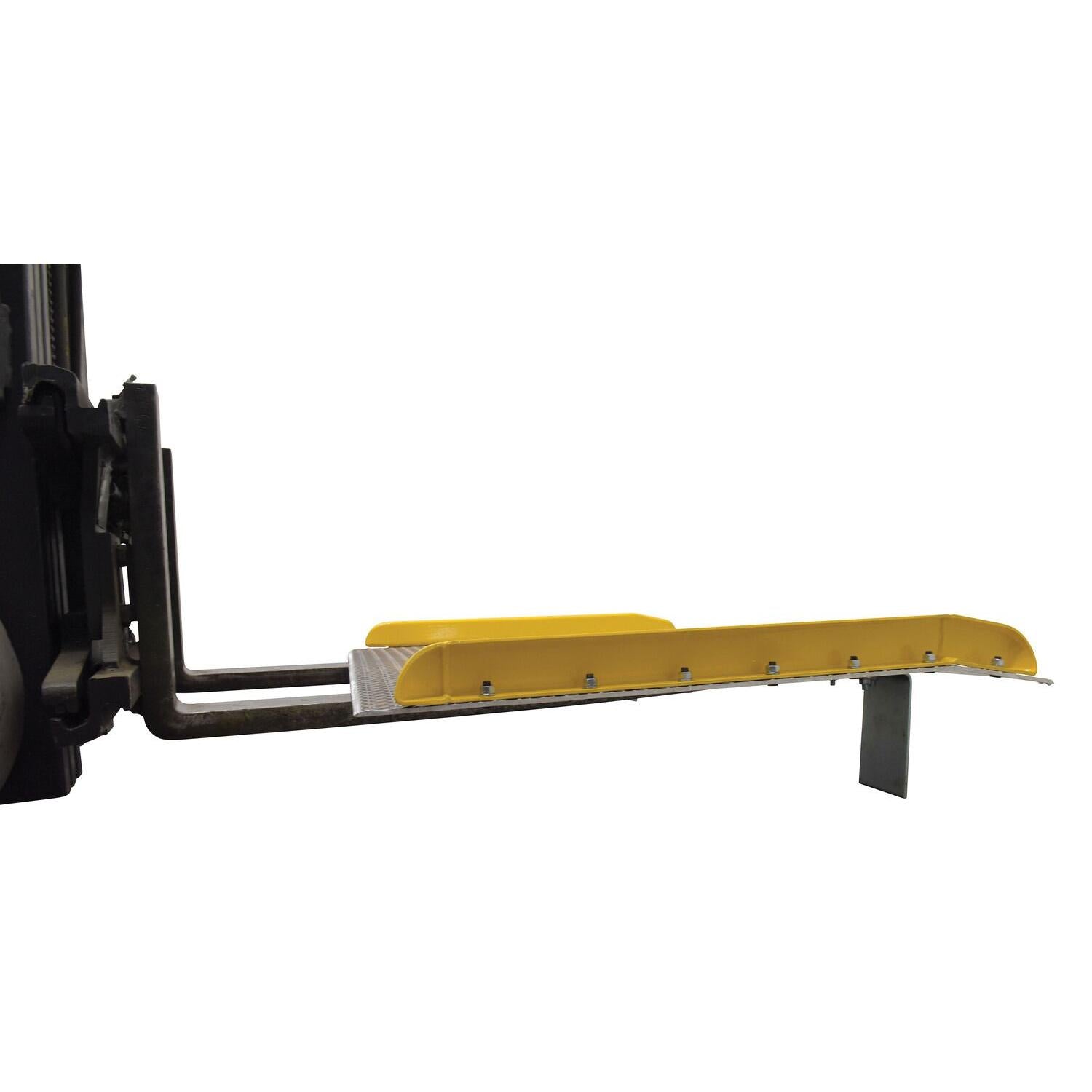

  • Portable Design: Canted leg configuration makes repositioning with a truck easier.

Available Configurations

All models share the same 10,000 lb, 15,000 lb, or 20,000 lb load capacity rating and aluminum-steel construction. The key differences are board width and length, which determine compatibility with dock openings and vehicle size, as well as capacity class.

  • 10,000 lb Capacity Models:
    Available in widths of 60" and 72", with lengths ranging from 36" up to 72".
  • 15,000 lb Capacity Models:
    Same footprint options (60" or 72" widths, 36"–72" lengths), built with reinforced construction for heavier forklift and load handling.
  • 20,000 lb Capacity Models:
    Heavy-duty designs in 60" and 72" widths, lengths from 36" to 72", suited for the heaviest industrial use.

These variations allow you to select the correct dockboard based on capacity needs, dock size, and equipment requirements, ensuring safe and efficient loading operations across a wide range of applications.

Technical Specifications:

  • Material: Aluminum
  • Dockboard Material: Aluminum
  • Color / Finish: Silver (Color Family: Silver)
  • Compliance: OSHA 1910.30(a); ANSI MH 30.2
  • Bend/Bevel Angle (°): 11
  • Location of Legs from Beveled Edge (in): 11
  • Prop 65 Warning Required: Yes
  • Assembly: Assembled
  • Manufacturer Warranty: 90 Days

10,000 lb Capacity - Dimensions & Weights

Model (W×L) Usable W×L (in) Overall W×L×H (in) Assembled Wt. (lb)
60×36 56 × 36 60 × 36 × 11.5625 105
60×48 56 × 48 60 × 48 × 12.5625 129
60×60 56 × 60 60 × 60 × 16.5625 160
60×72 56.25 × 72 60 × 72 × 18.625 220
72×36 68 × 36 72 × 36 × 11.5625 110
72×48 68 × 48 72 × 48 × 12.625 157
72×60 68.25 × 60 72 × 60 × 17.625 252
72×72 68.5 × 72 72 × 72 × 19 231


10,000 lb Capacity - Construction & Geometry

Model (W×L) Plate Thick. (in) Curb Height (in) Height Diff. (in) Bend Dist. from Edge (in) Usable Width (in)
60×36 0.3125 3.56 5 8.81 56
60×48 0.3125 3.56 7 8.81 56
60×60 0.3125 3.56 10 8.81 56
60×72 0.375 4.625 12 8.75 56.25
72×36 0.3125 3.56 5 8.81 68
72×48 0.375 3.625 7 8.81 68
72×60 0.375 4.625 10 8.75 68.25
72×72 0.375 4.00 12 9.00 68.5


15,000 lb Capacity - Dimensions & Weights

Model (W×L) Usable W×L (in) Overall W×L×H (in) Assembled Wt. (lb)
60×36 56 × 36 60 × 36 × 11.625 107
60×48 56.25 × 48 60 × 48 × 13.625 146
60×60 56.25 × 60 60 × 60 × 17.6875 218
60×72 56.25 × 72 60 × 72 × 18.6875 251
72×36 68 × 36 72 × 36 × 11.625 123
72×48 68.25 × 48 72 × 48 × 13.6875 191
72×60 68.25 × 60 72 × 60 × 17.6875 223
72×72 68.5 × 72 72 × 72 × 19 305


15,000 lb Capacity - Construction & Geometry

Model (W×L) Plate Thick. (in) Curb Height (in) Height Diff. (in) Bend Dist. from Edge (in) Usable Width (in)
60×36 0.375 3.625 5 8.75 56
60×48 0.375 4.625 7 8.75 56.25
60×60 0.5 4.75 10 8.75 56.25
60×72 0.5 4.75 12 8.75 56.25
72×36 0.375 3.625 5 8.75 68
72×48 0.5 4.75 7 8.75 68.25
72×60 0.5 4.75 10 8.75 68.25
72×72 0.5 4.75 12 9.00 68.5


20,000 lb Capacity - Dimensions & Weights

Model (W×L) Usable W×L (in) Overall W×L×H (in) Assembled Wt. (lb)
60×36 56.25 × 36 60 × 36 × 12.625 110
60×48 56.25 × 48 60 × 48 × 13.75 186
60×60 56.25 × 60 60 × 60 × 17.6875 218
60×72 56.25 × 72 60 × 72 × 18.6875 272
72×36 68.25 × 36 72 × 36 × 12.625 123
72×48 68.25 × 48 72 × 48 × 13.6875 191
72×60 68.25 × 60 72 × 60 × 17.75 253
72×72 68.25 × 72 72 × 72 × 18.875 380


20,000 lb Capacity - Construction & Geometry

Model (W×L) Plate Thick. (in) Curb Height (in) Height Diff. (in) Bend Dist. from Edge (in) Usable Width (in)
60×36 0.375 4.625 5 8.75 56.25
60×48 0.5 4.75 7 8.75 56.25
60×60 0.5 4.75 10 8.75 56.25
60×72 0.5 4.75 12 8.75 56.25
72×36 0.375 4.625 5 8.75 68.25
72×48 0.5 4.75 7 8.75 68.25
72×60 0.5 4.75 10 8.75 68.25
72×72 0.75 5.00 12 8.75 68.25


Notes

  • Overall Length (ft): Mirrors the inch length (36 in = 3 ft, 48 in = 4 ft, 60 in = 5 ft, 72 in = 6 ft).
  • Assembled Width/Depth vs. Overall W×L: “Assembled Width (in)” = overall width; “Assembled Depth (in)” = overall length.
  • Height Differential (in): Listed for each model; corresponds to the 11° (≈19%) grade.
  • Curb Height: Varies by size/capacity (see tables); all are steel safety curbs.
  • Bend Distance from Beveled Edge: Slight model-to-model differences are shown; constant leg location = 11 in (already captured in the shared list).

Please note: UPC & GTIN Available for all products on this line at request.

Made in the USA
