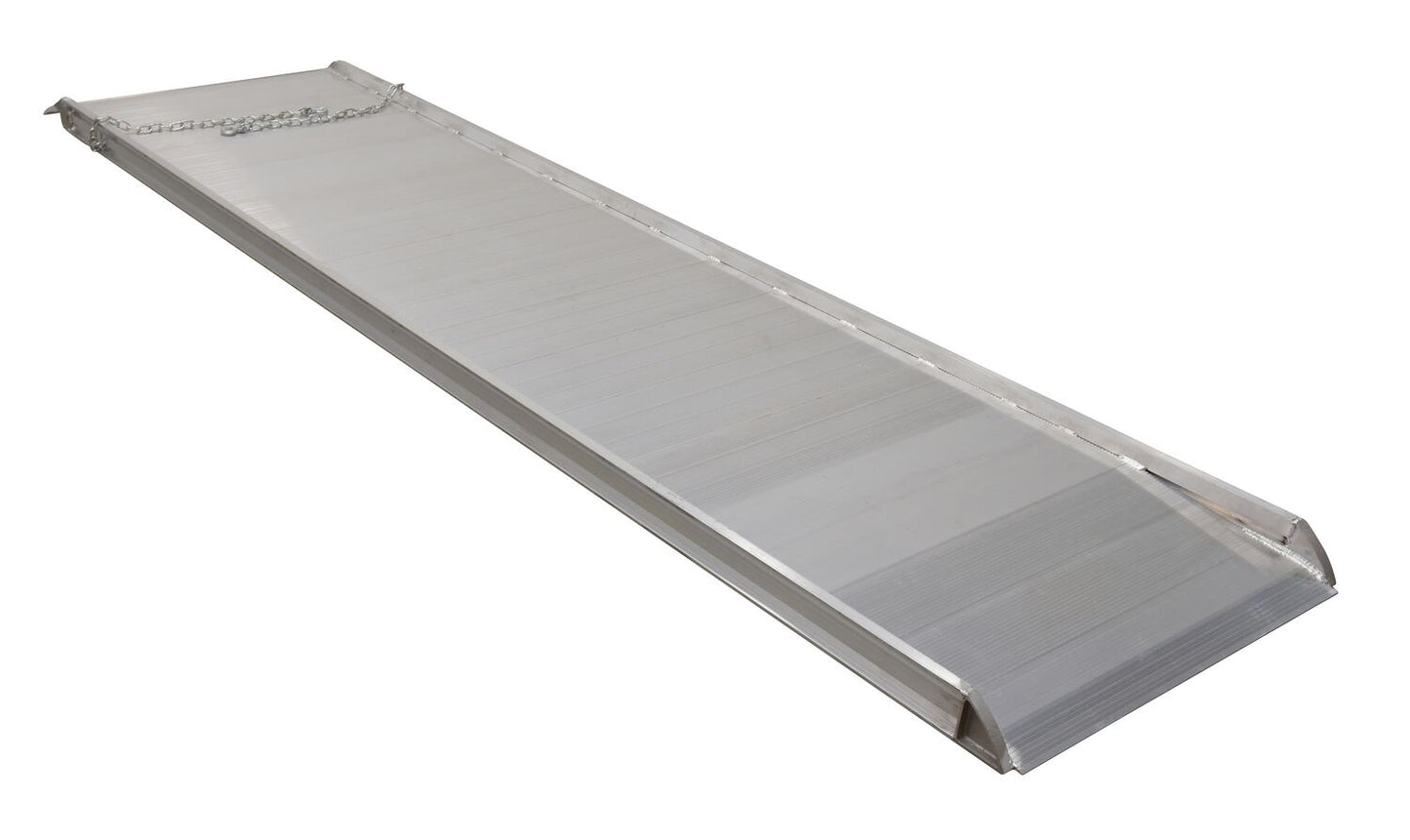

Name: Aluminum Walk Ramp — AWR Series — 38-In Width
Brand: Line Dividers
SKU: VES-AWR-38-4A

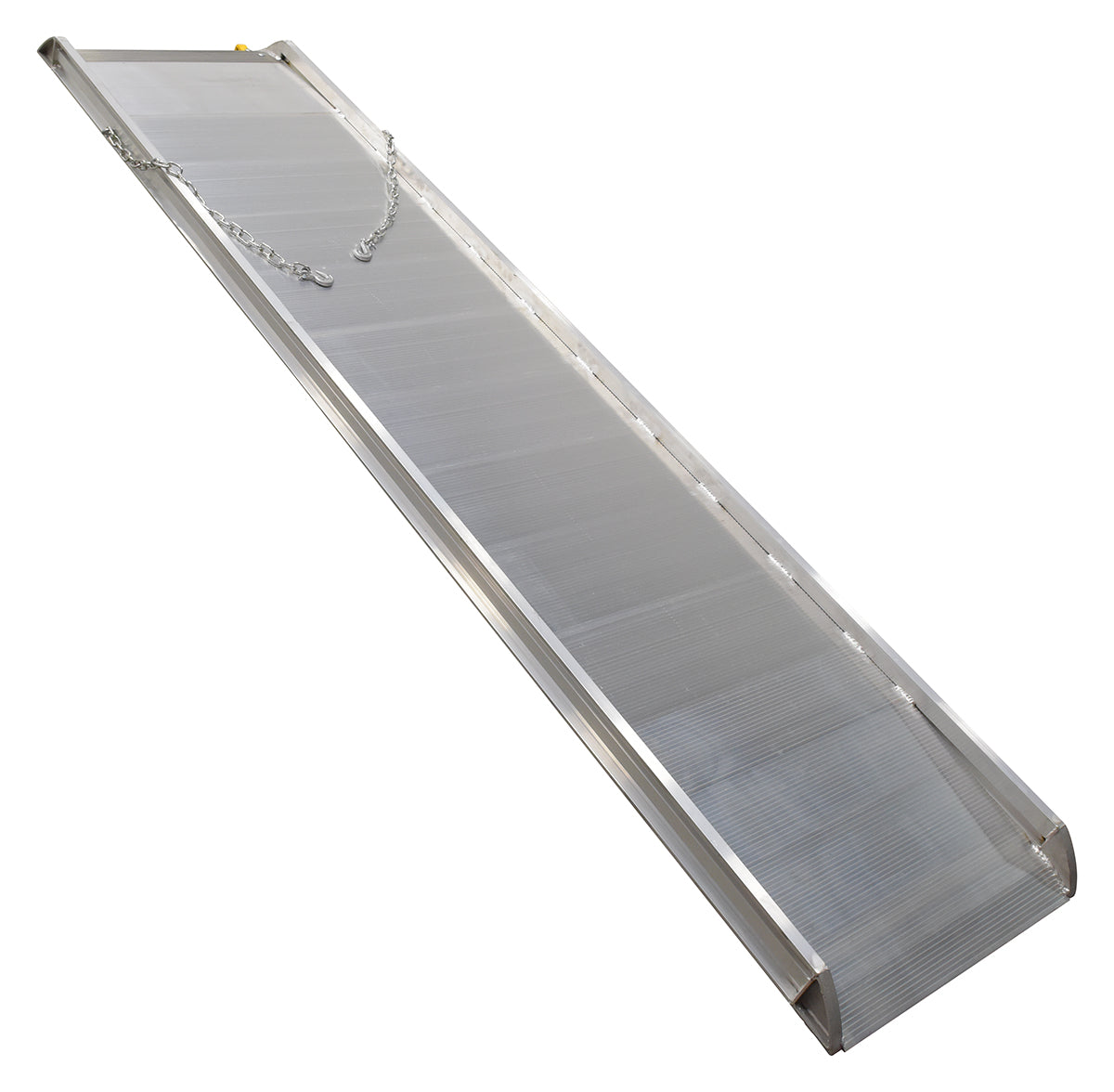

The aluminum walk-ramp series provides a reliable solution for loading and unloading where a dock is not available. Constructed from high-strength aluminum alloy with a non-skid tread surface and equipped with 1½-inch (38 mm) safety curbs on each side, these ramps ensure safe, efficient transfer between ground level and truck beds. Heavy-duty steel chains with grab hooks are included on each side to secure the ramp to the vehicle.

Choose the A-style overlap design that rests on the truck bed, or the B-style steel-hook mount design for extension platforms. For added stability, models with handrails are also available. With capacities ranging from 1,000 lb (≈454 kg) to 3,000 lb (≈1,360 kg) and widths of 28″ or 38″ (71 cm or 96.5 cm), this series adapts to many operational environments. The unpainted silver aluminum finish complements industrial settings and resists corrosion for long-term durability.

Ideal for delivery personnel, warehouse teams, and distribution operations, this lightweight, portable ramp offers a safe path from ground to truck — without the need for a fixed dock or permanent infrastructure.

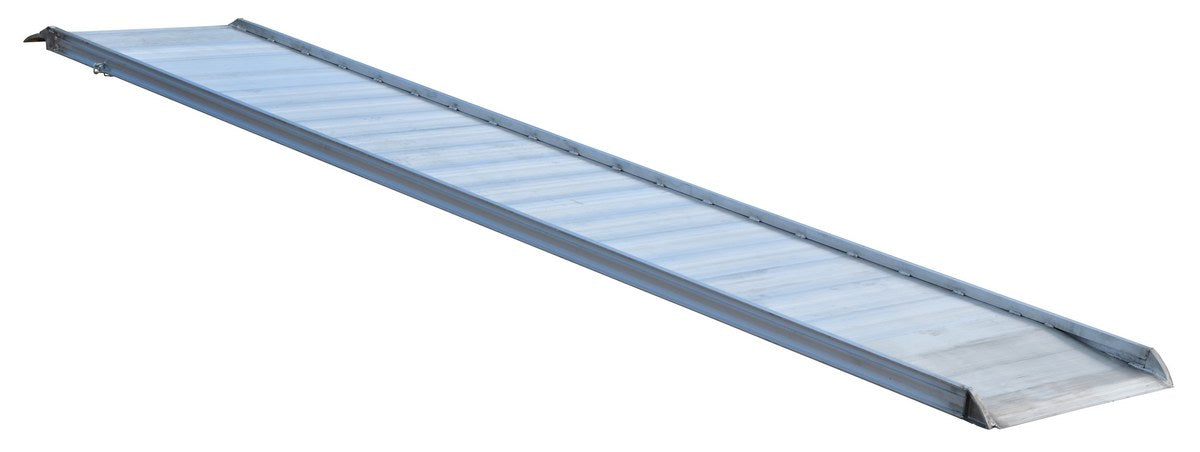

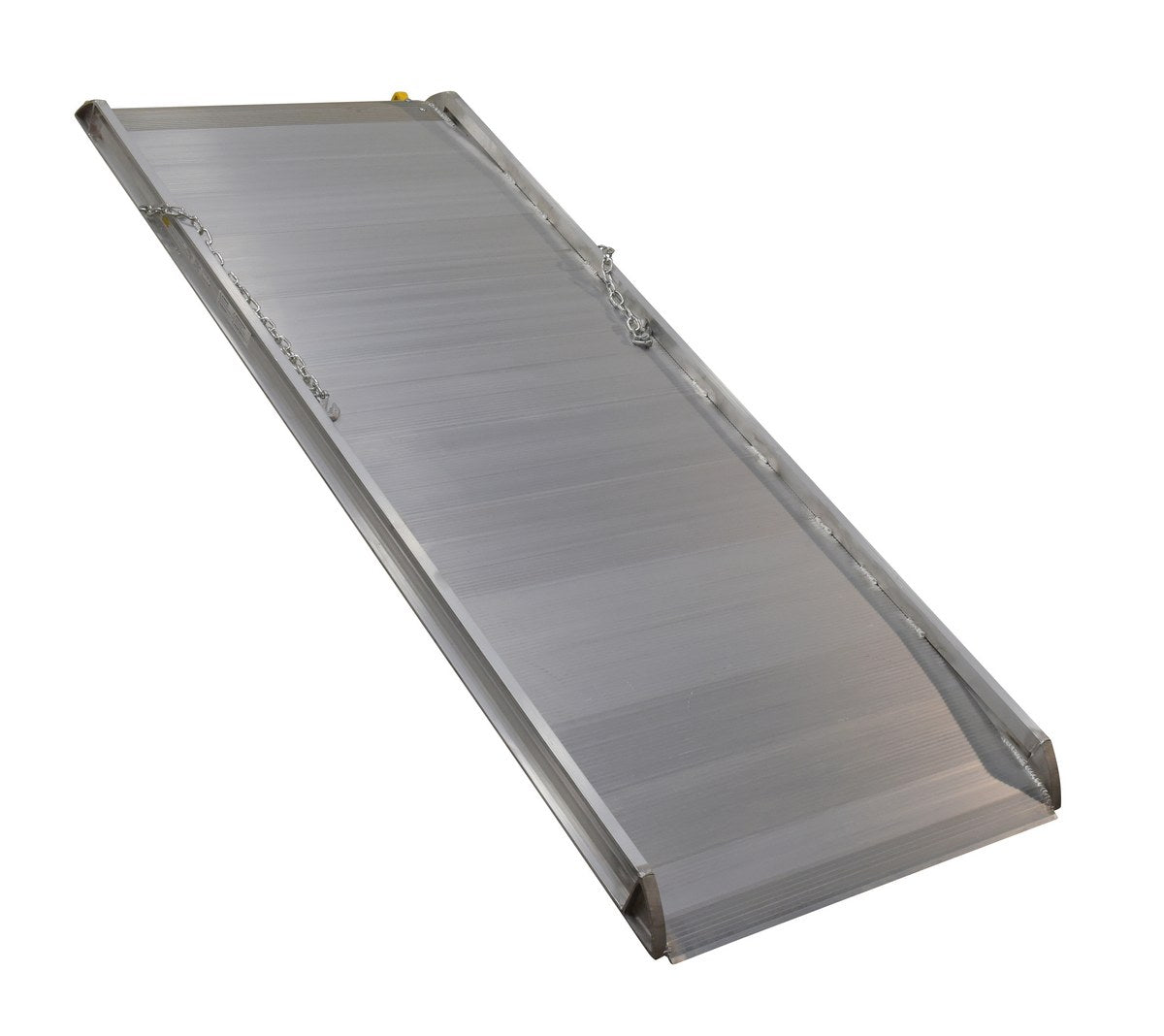

Aluminum Walk Ramp — 38″ Width

Portable aluminum walk ramp for safe loading and unloading where no dock is available.
Available in multiple lengths with A-Style (overlap) or B-Style (hook) mounting and optional handrails for enhanced safety.

This series is designed to provide a strong, portable connection between ground level and truck beds when no fixed loading dock is present. Constructed from corrosion-resistant aluminum with a non-skid surface and 1.5-inch (38 mm) safety curbs along each side, these ramps support safe foot traffic and cart transport in warehouse, delivery, and distribution environments.

This product listing covers all 38-inch usable-width models.

Mounting Options:

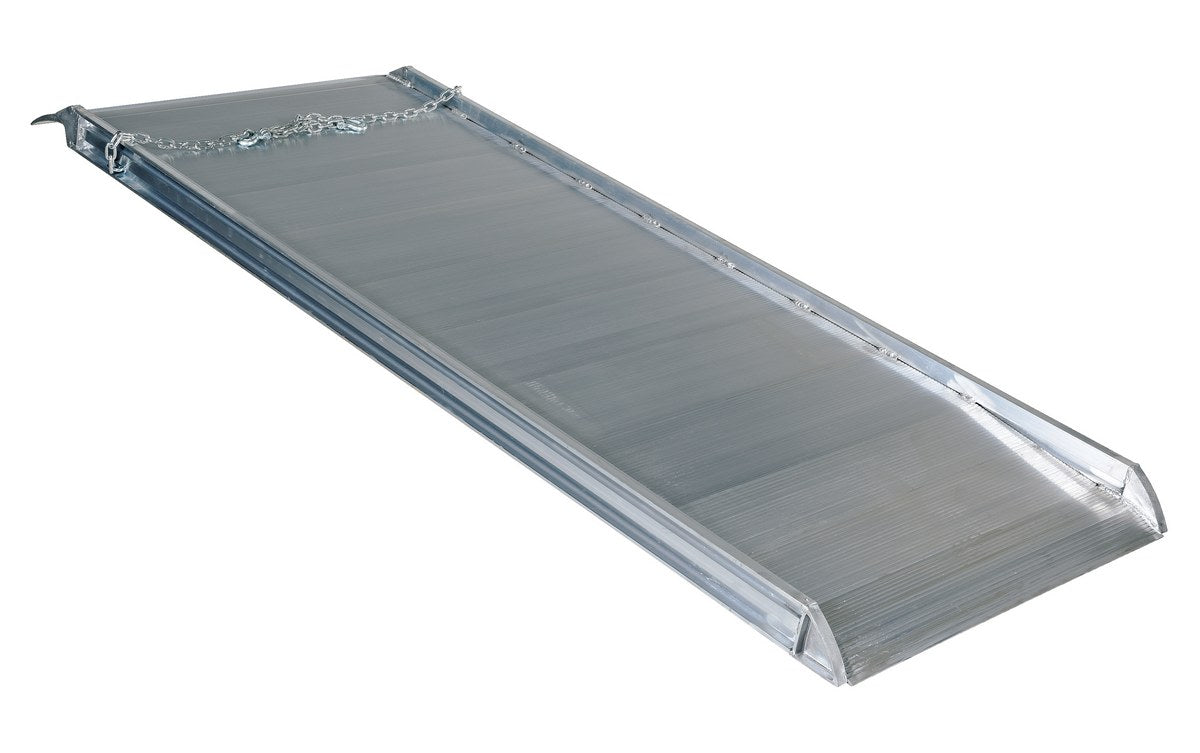

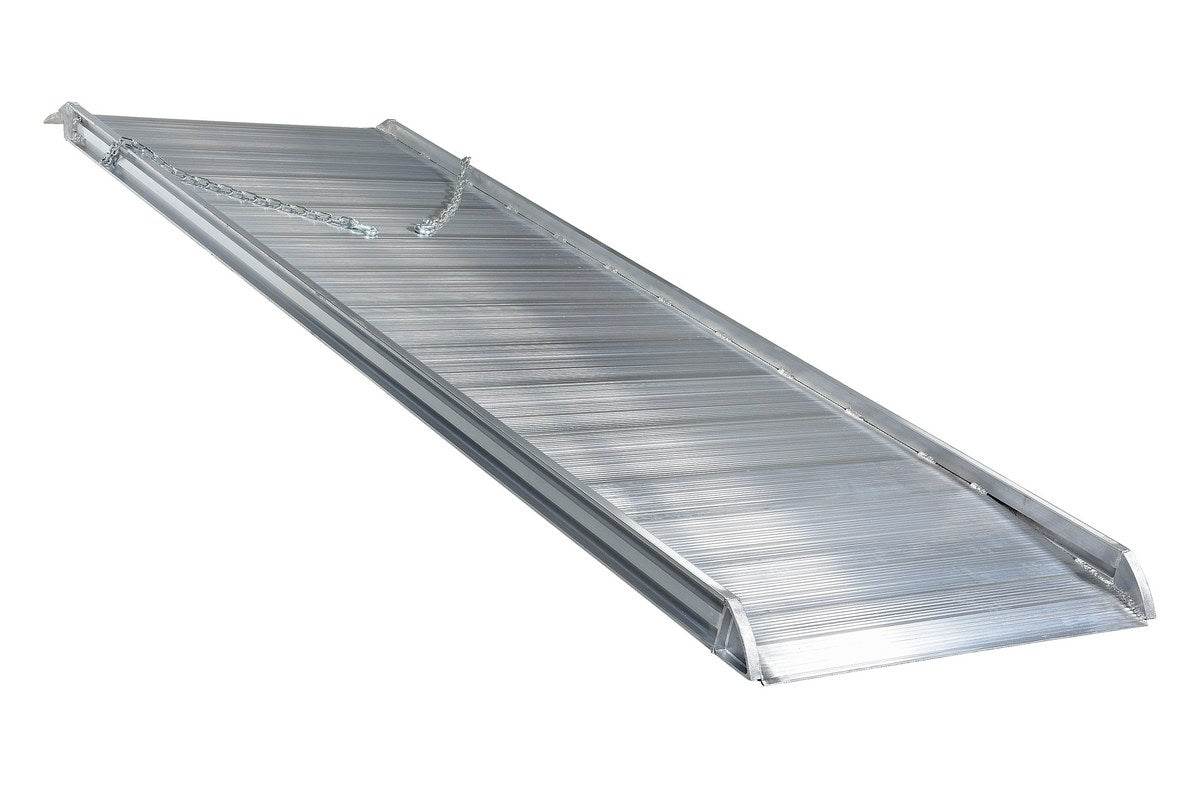

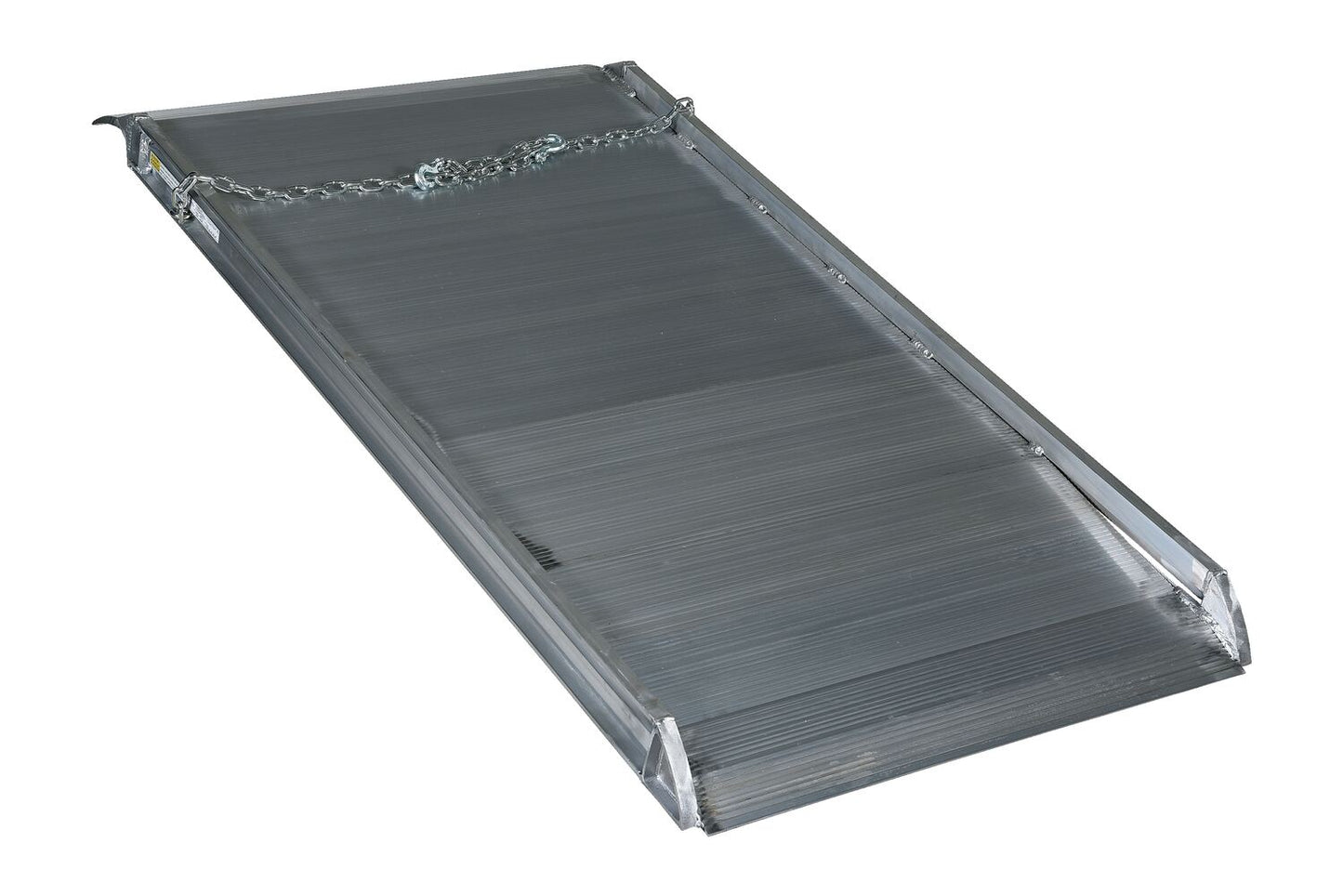

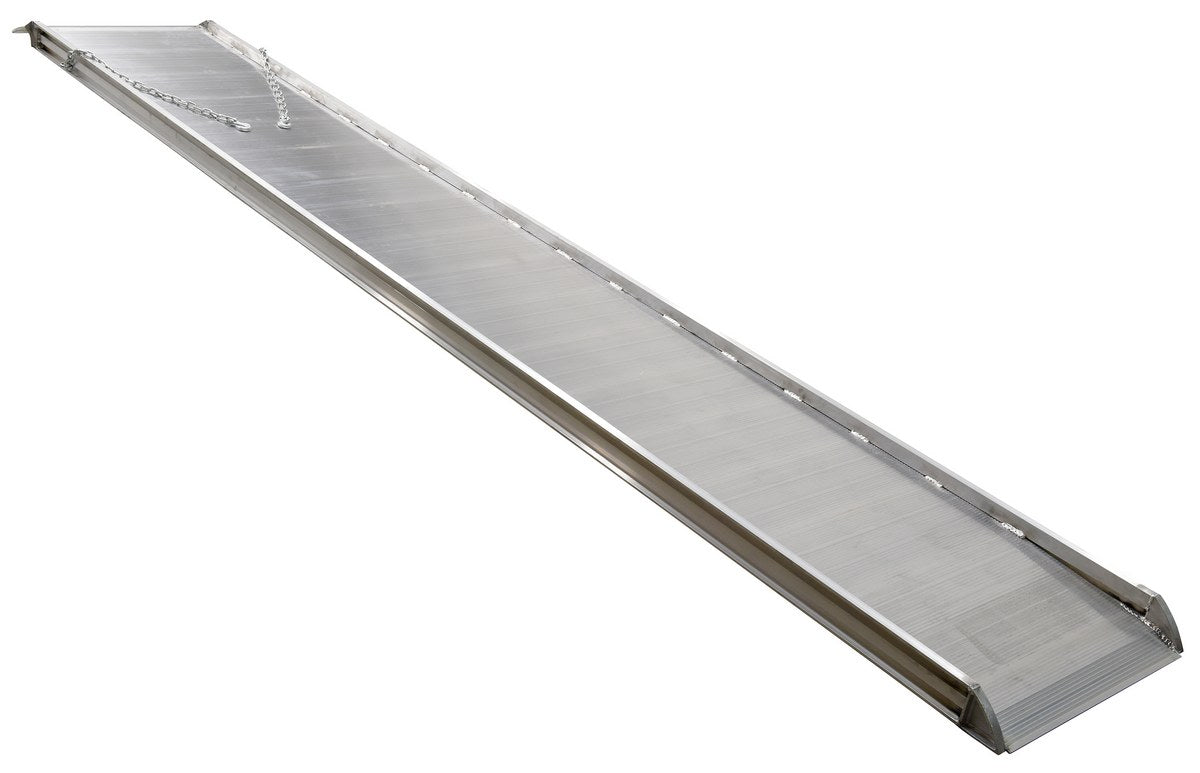

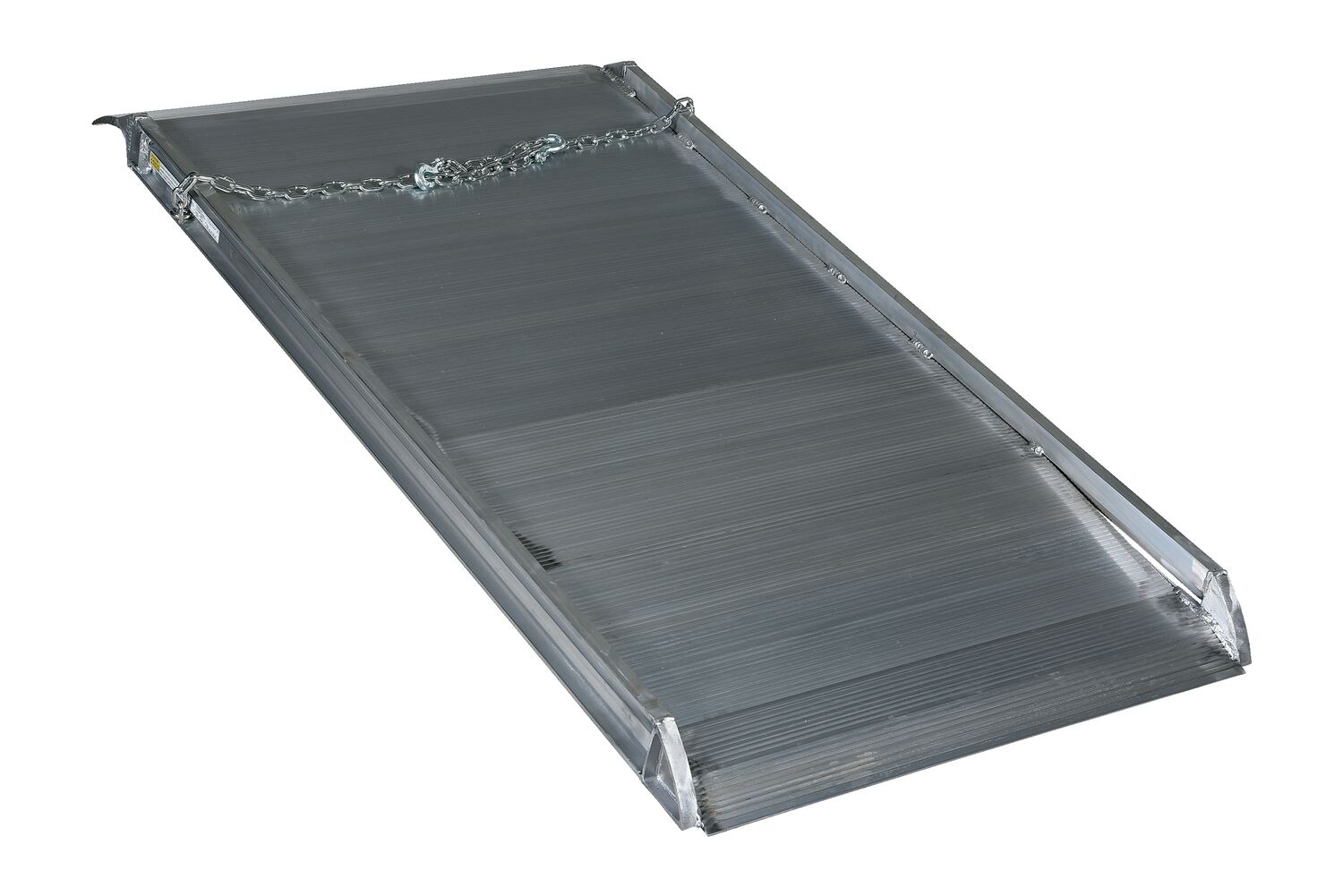

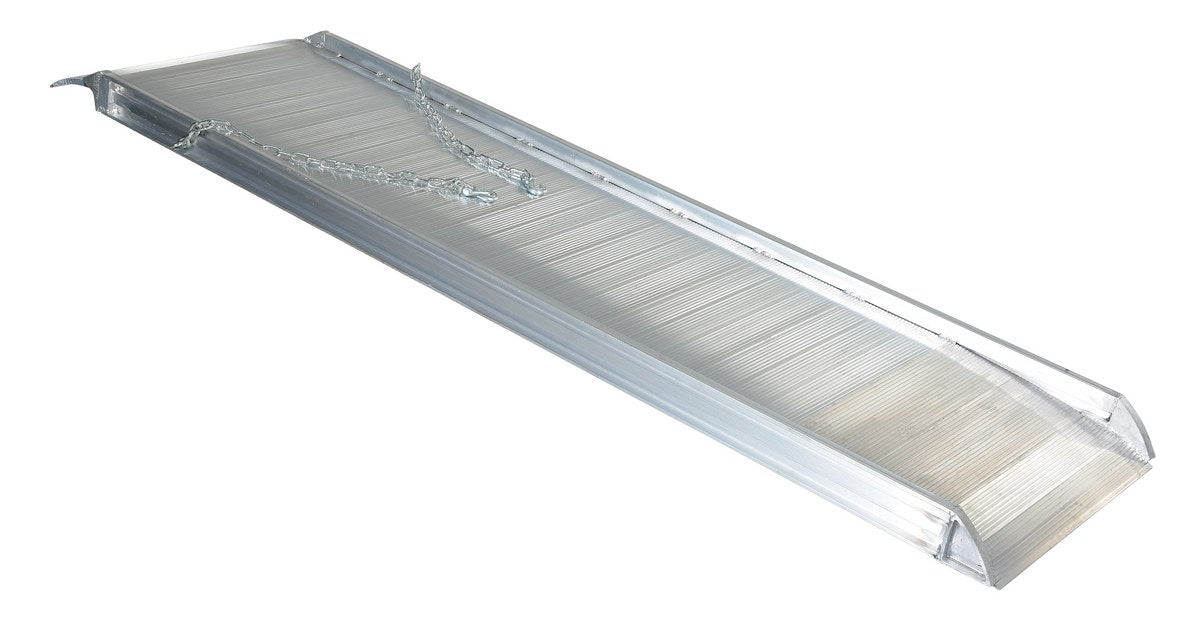

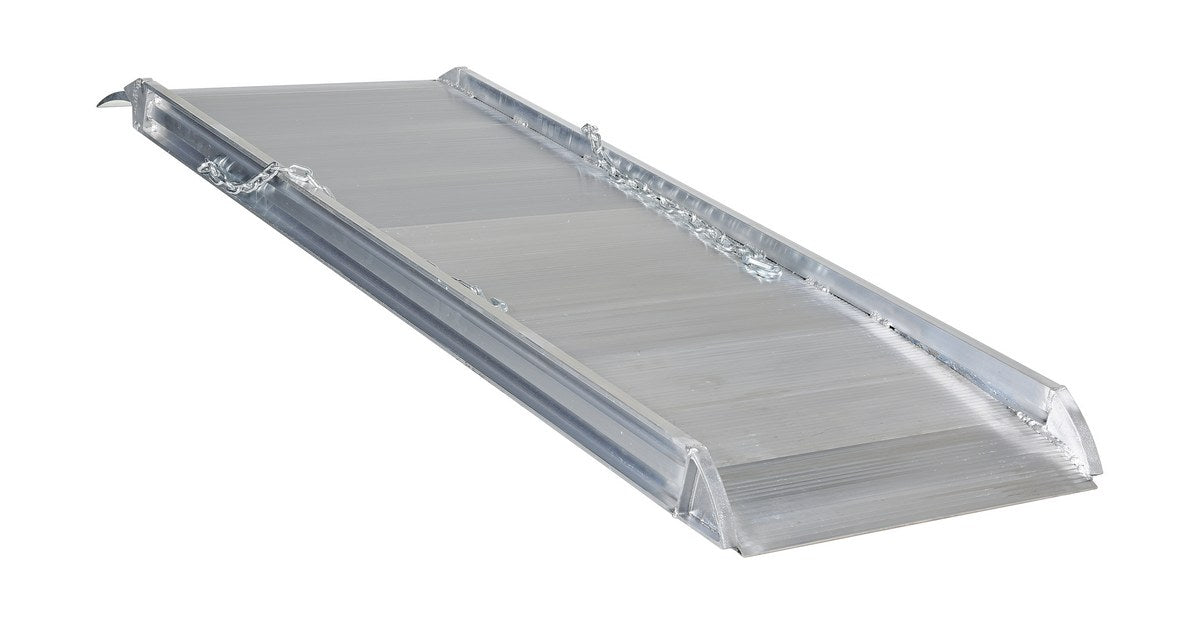

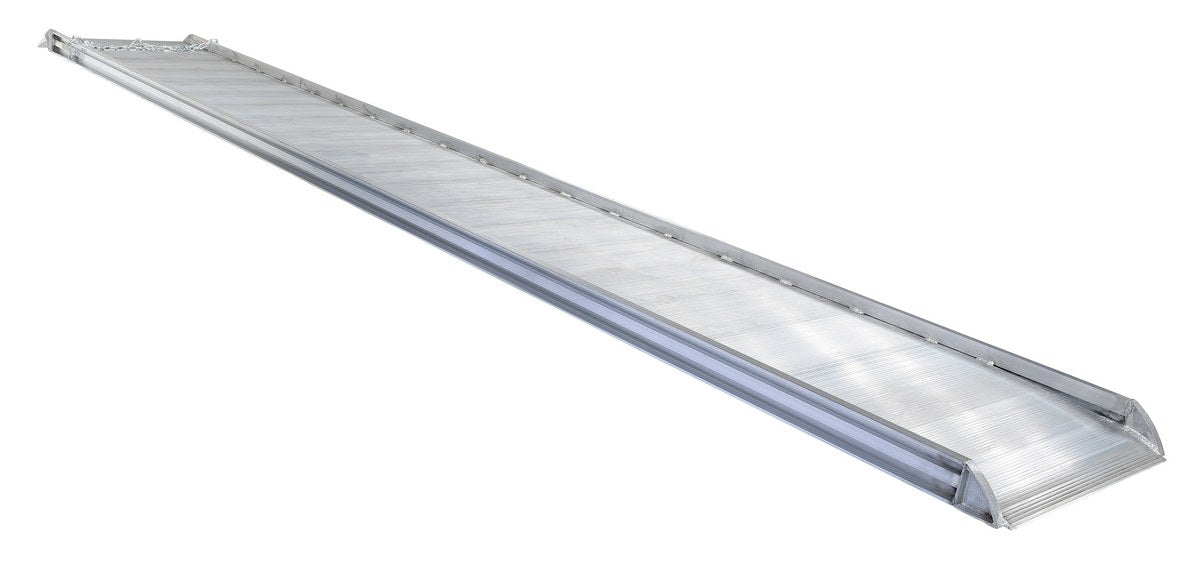

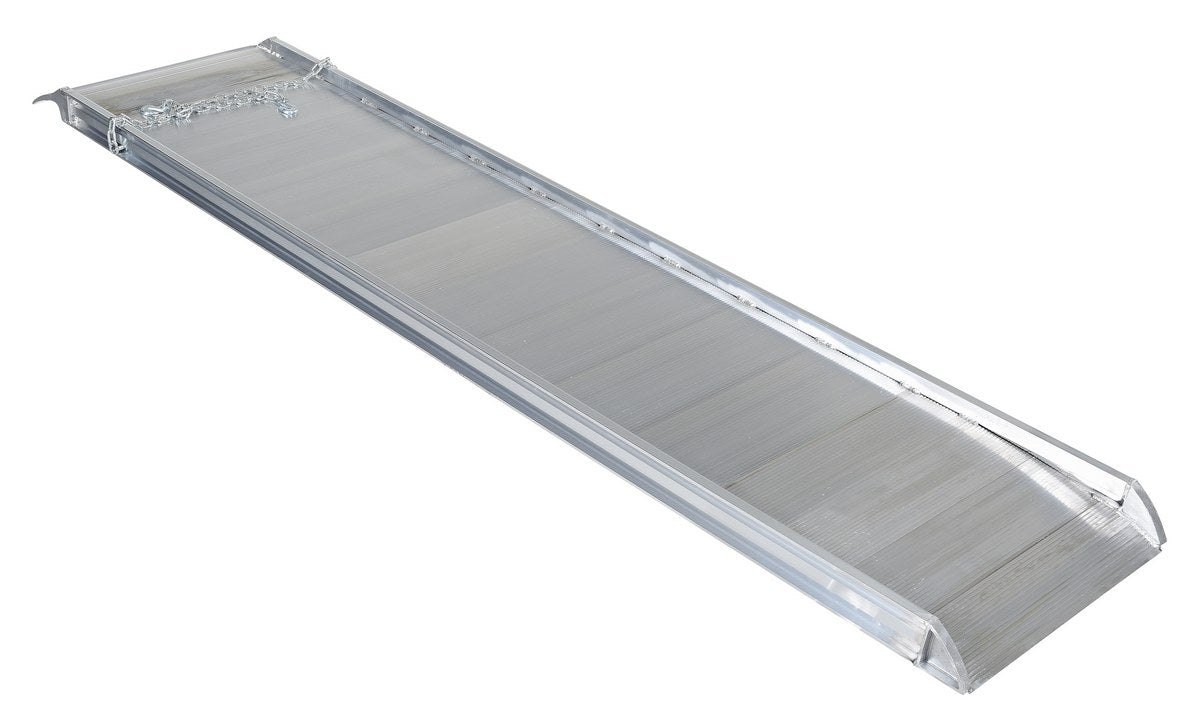

	A-Style (Overlap Mount): Best for: most general loading operations. Rests directly on the truck bed. Simple and universal. No modification required

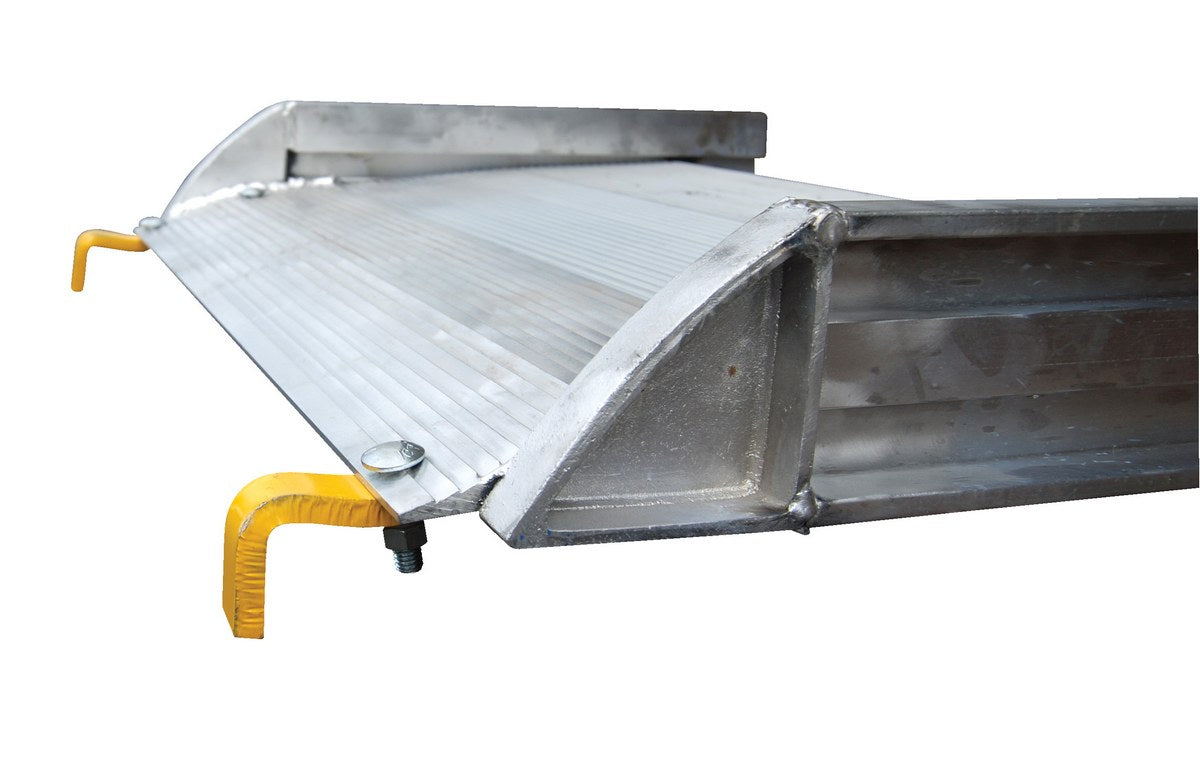

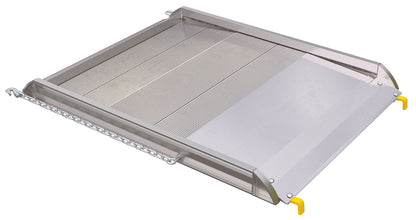

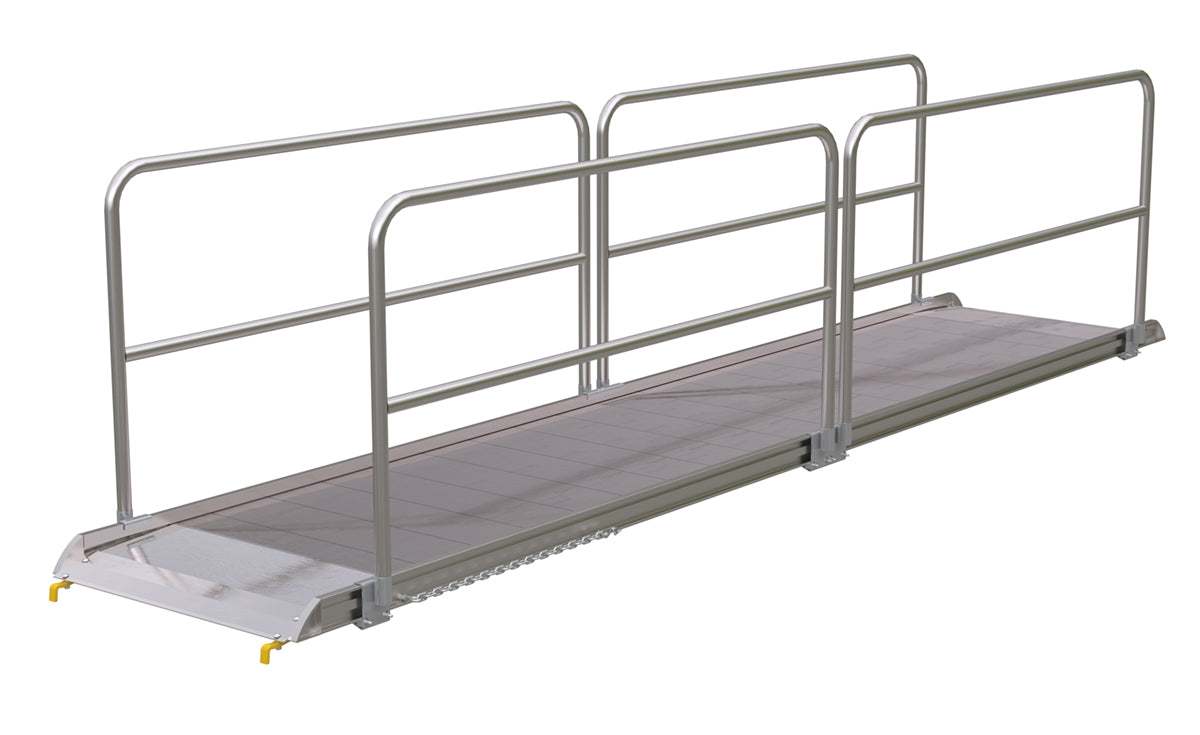

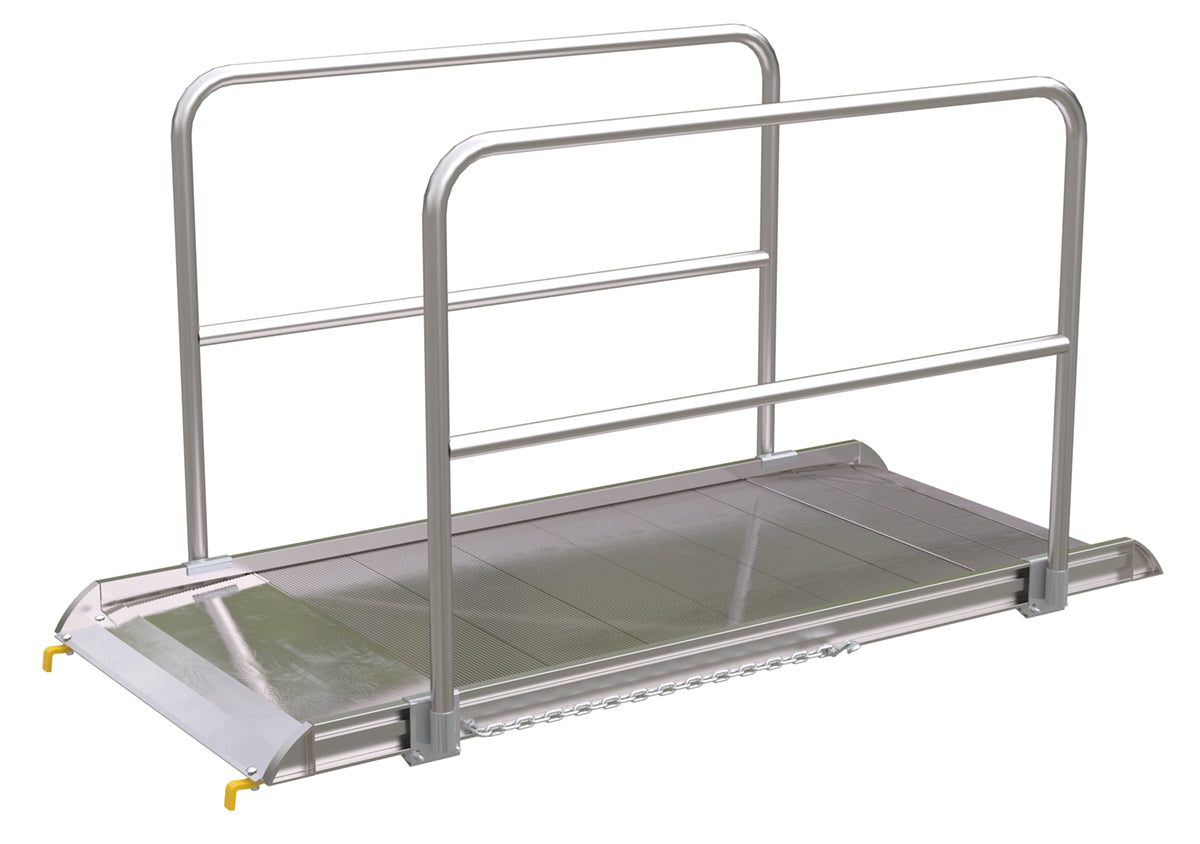

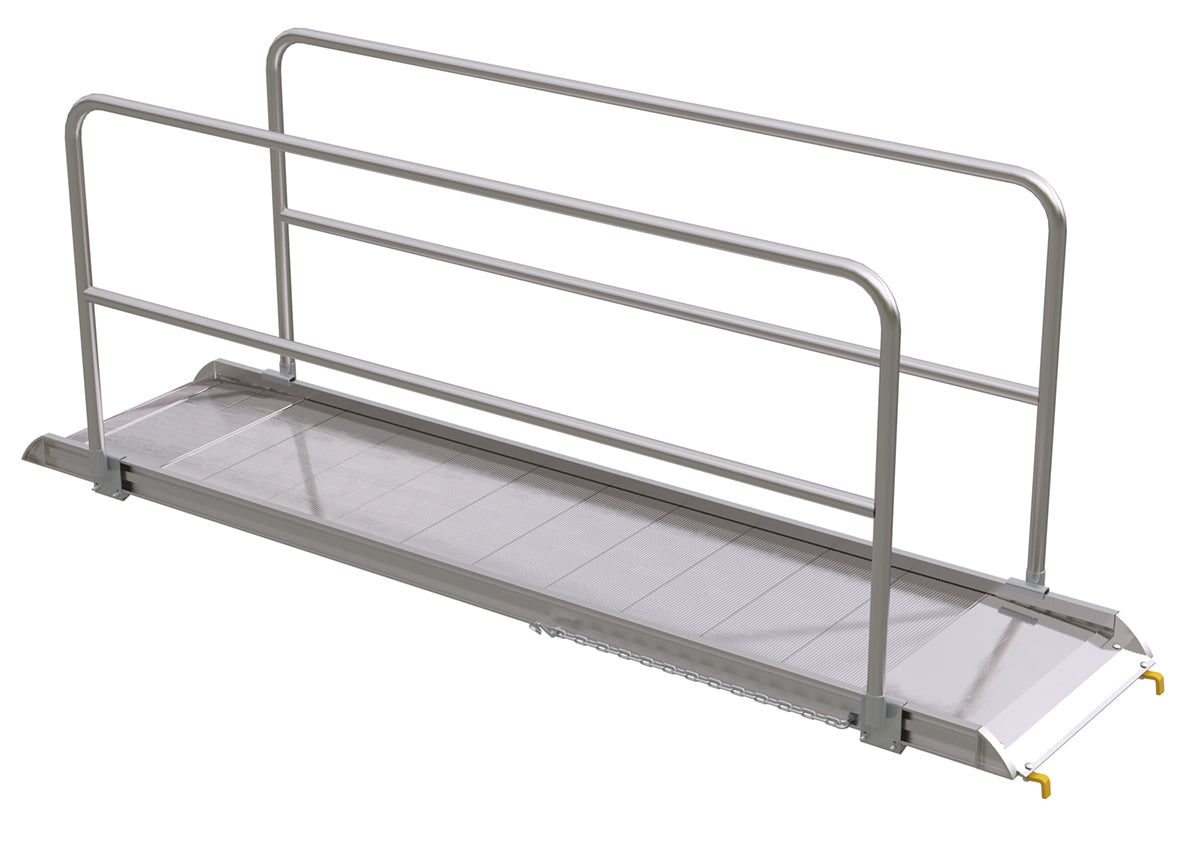

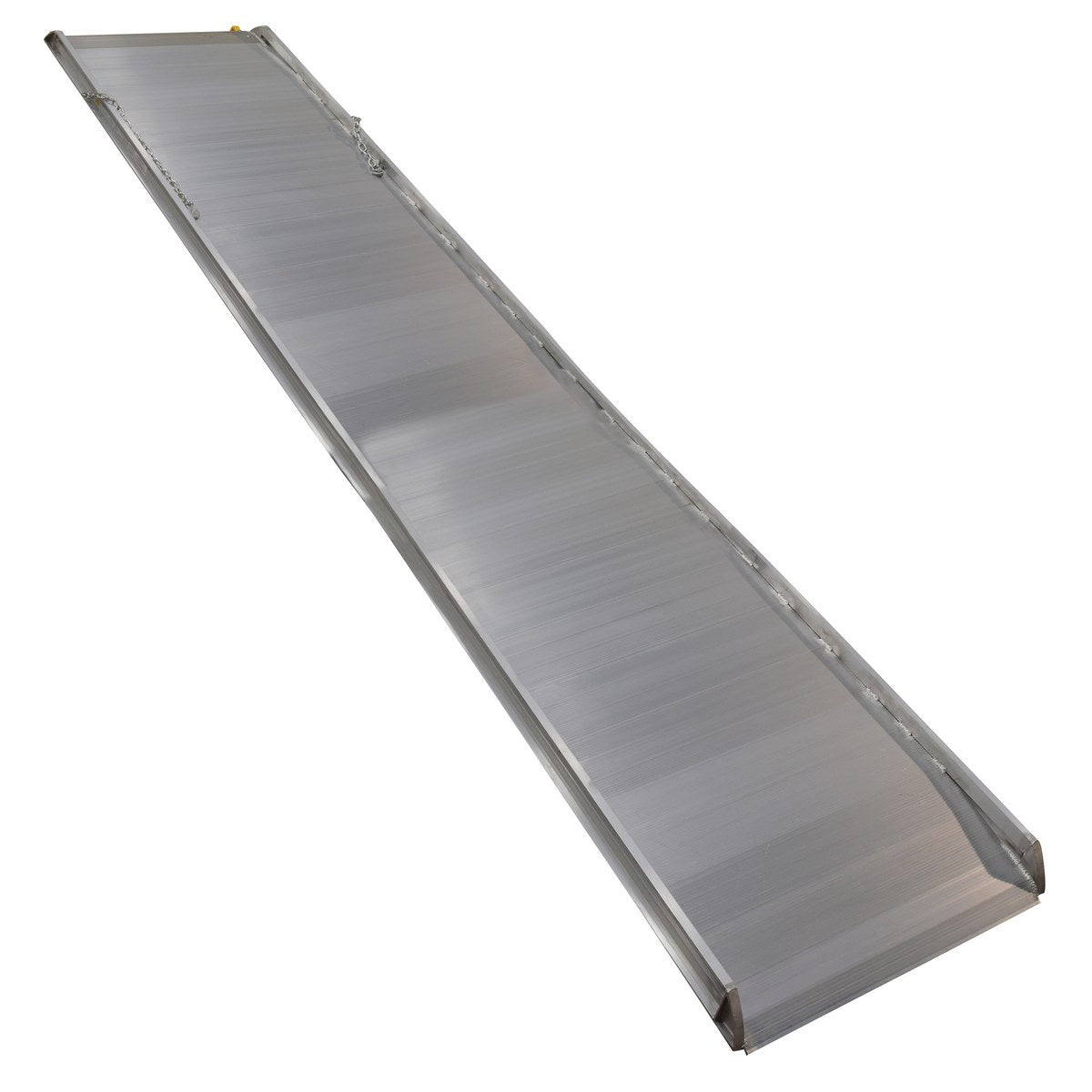

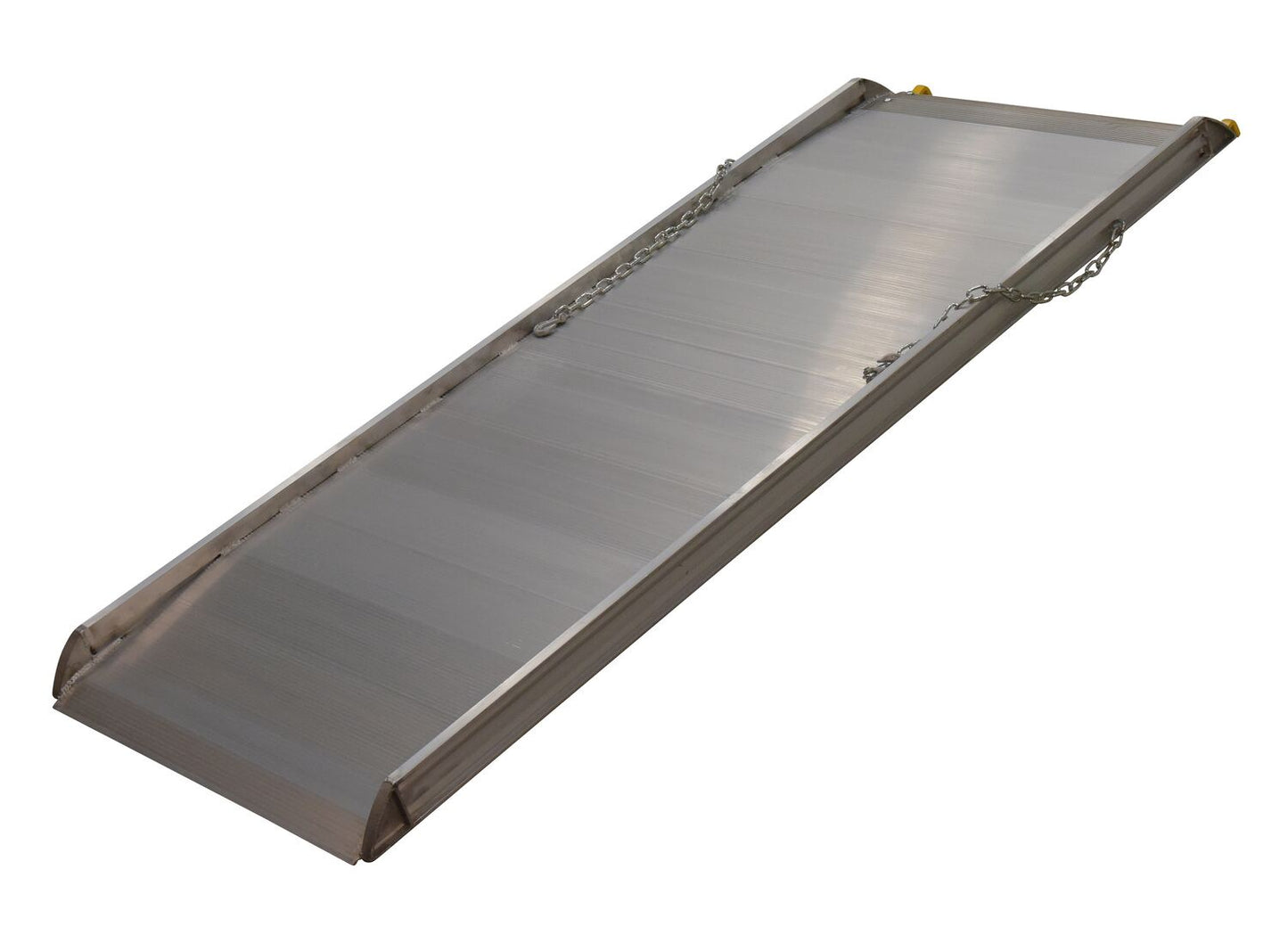

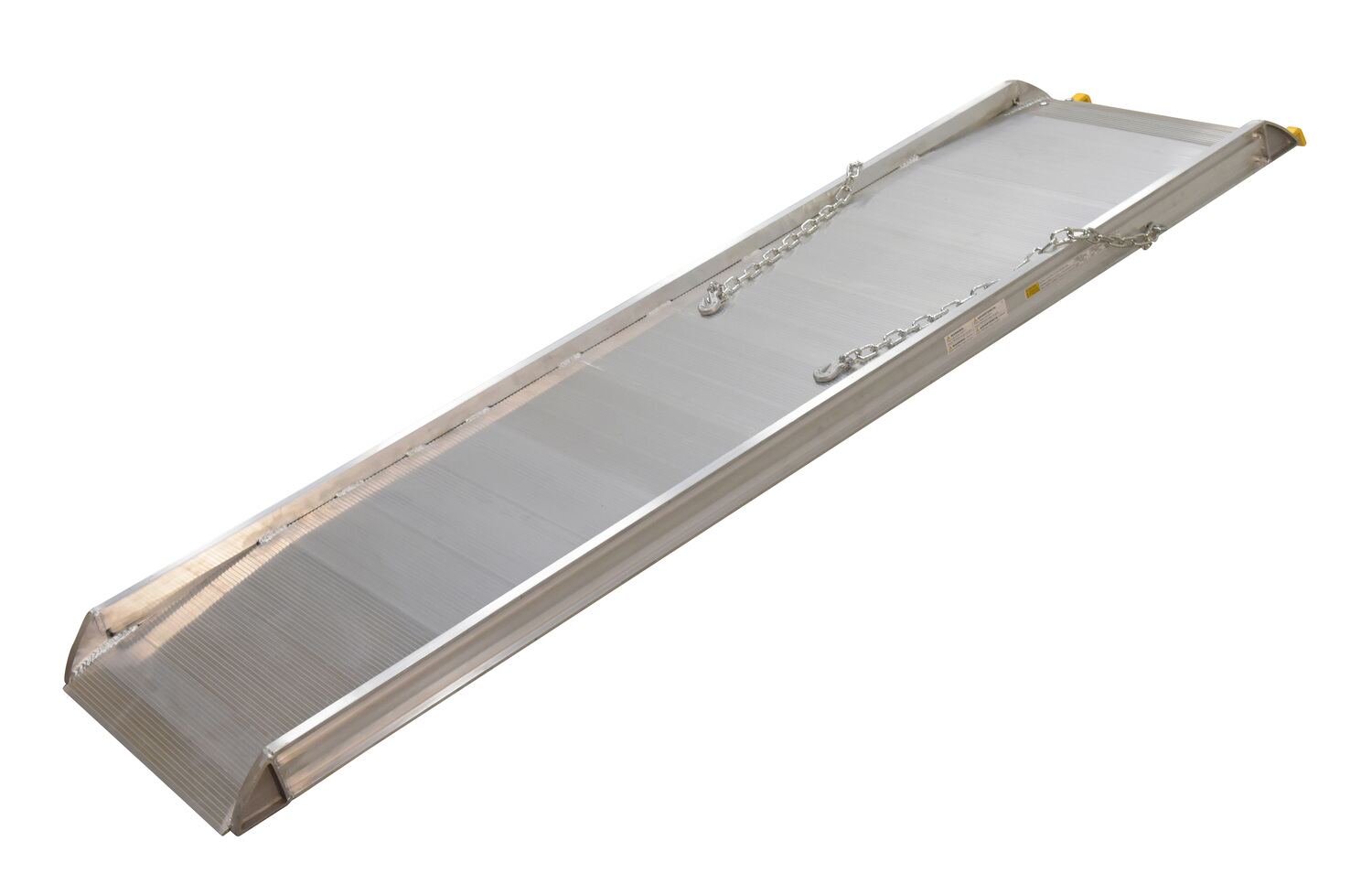

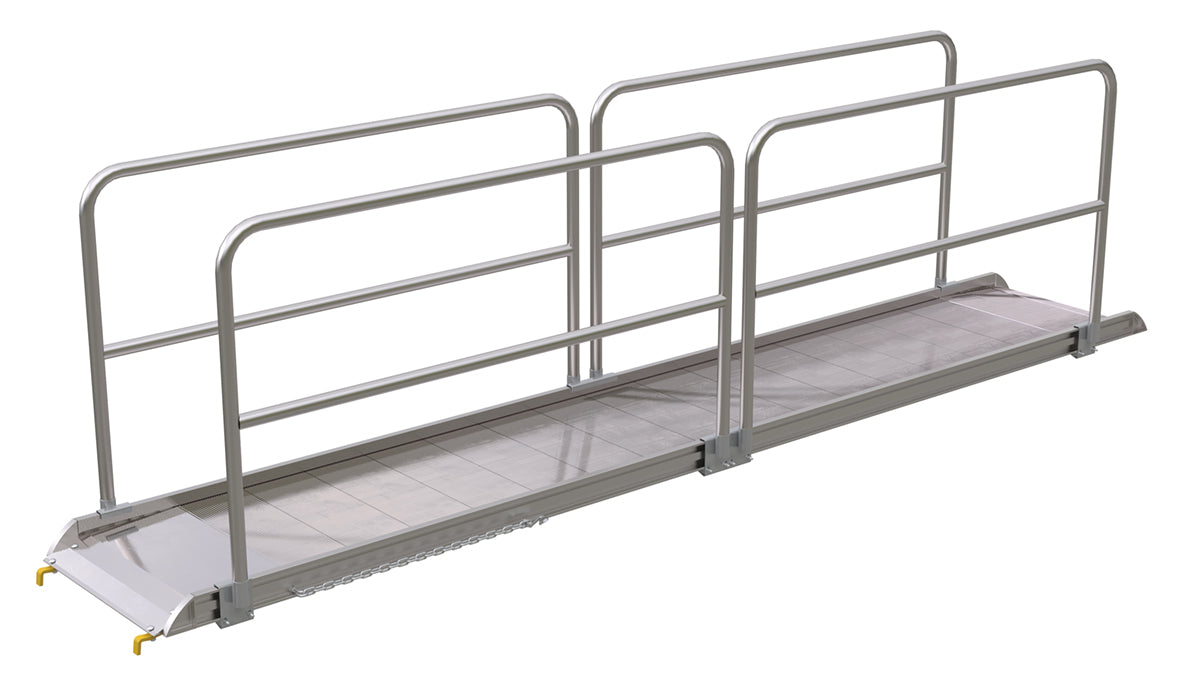

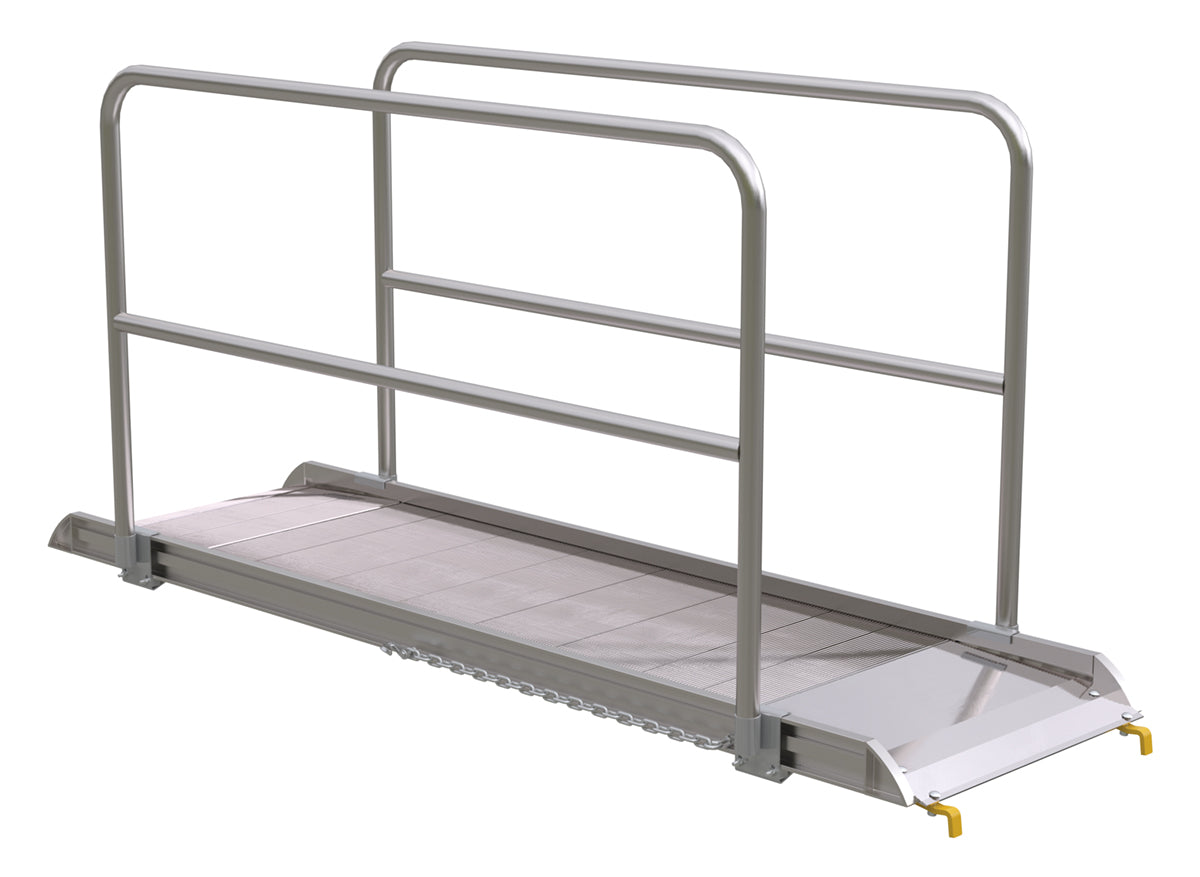

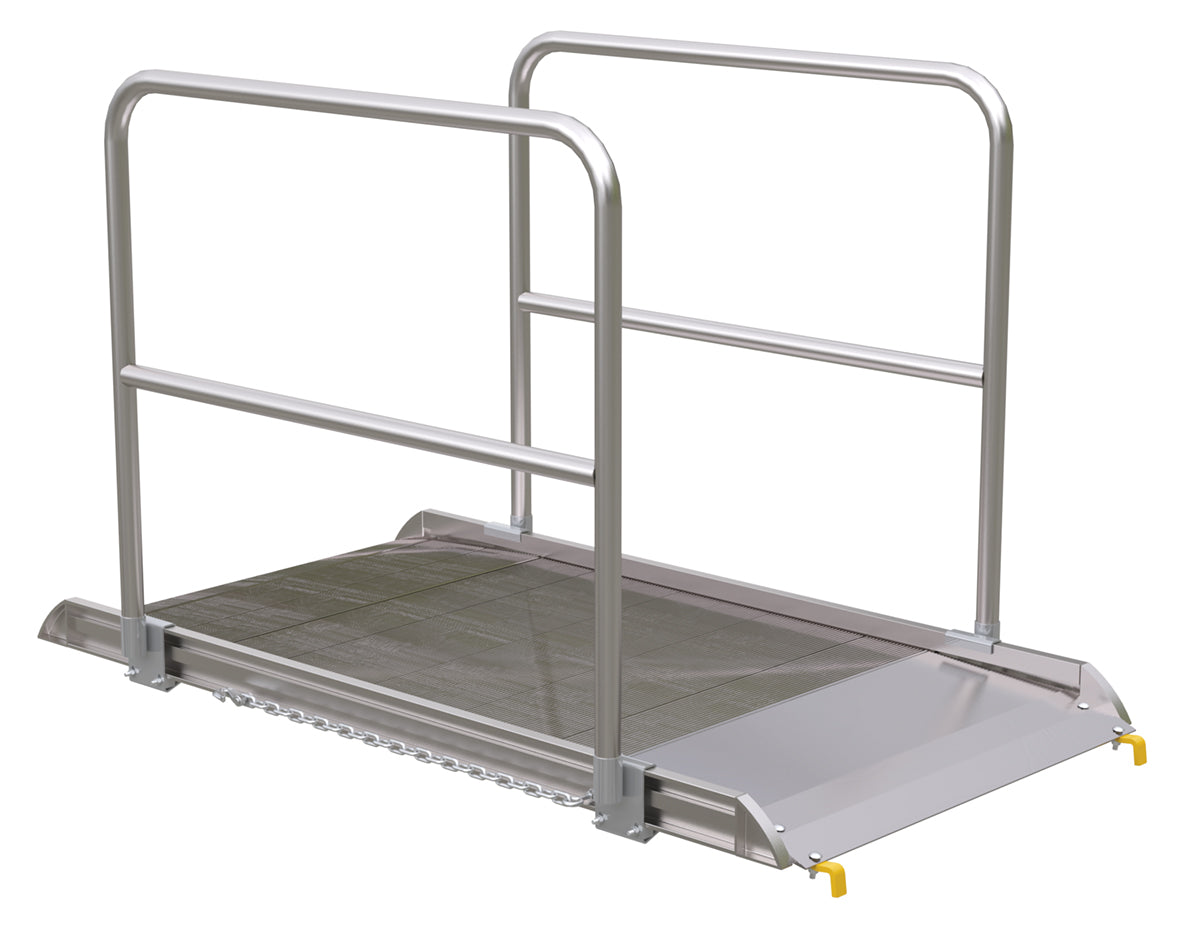

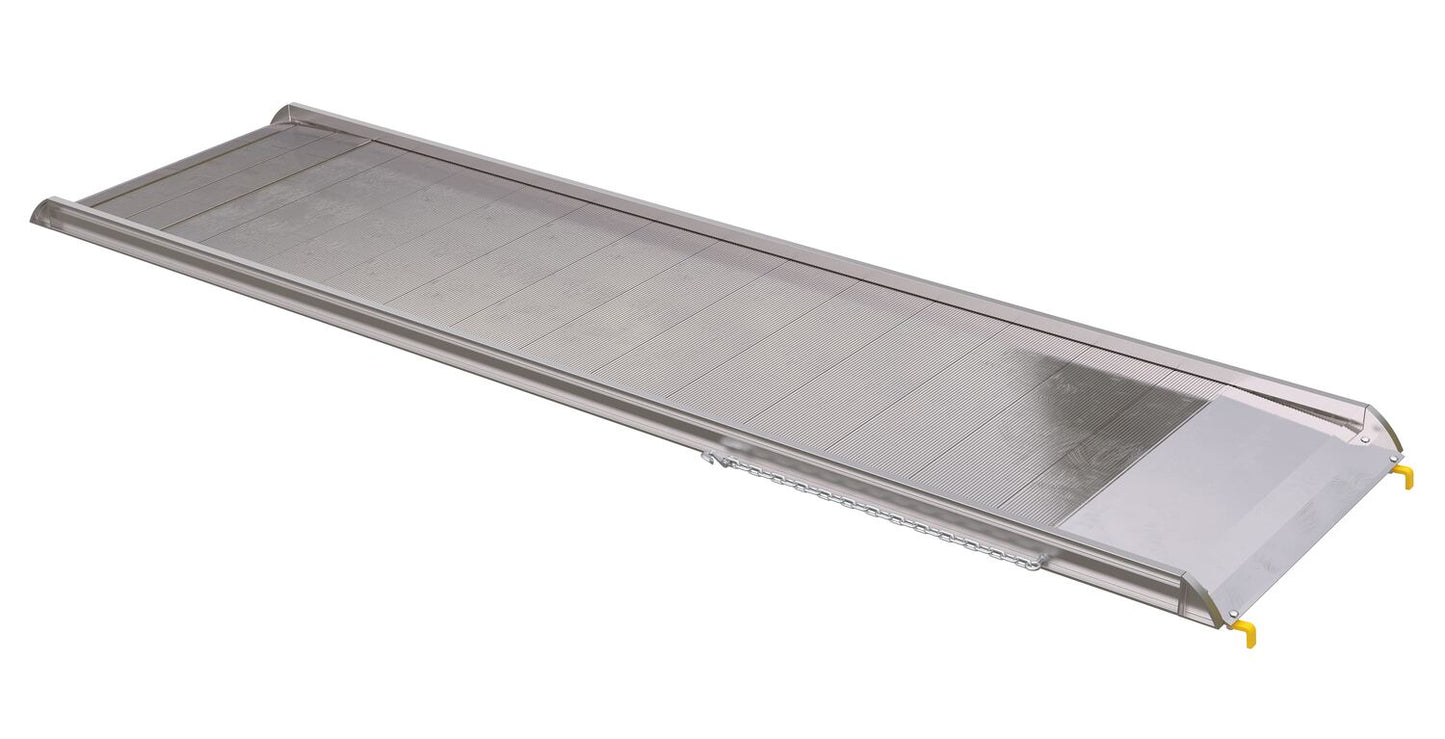

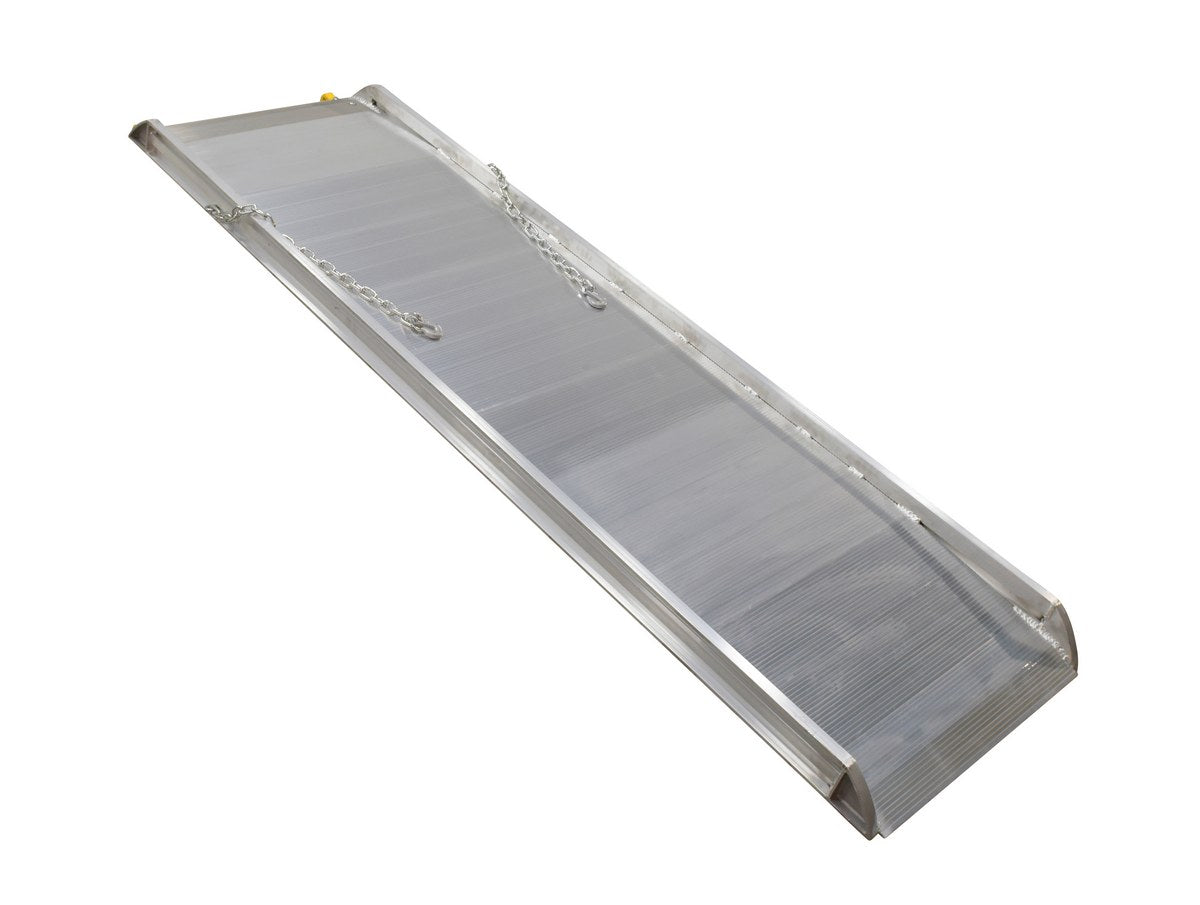

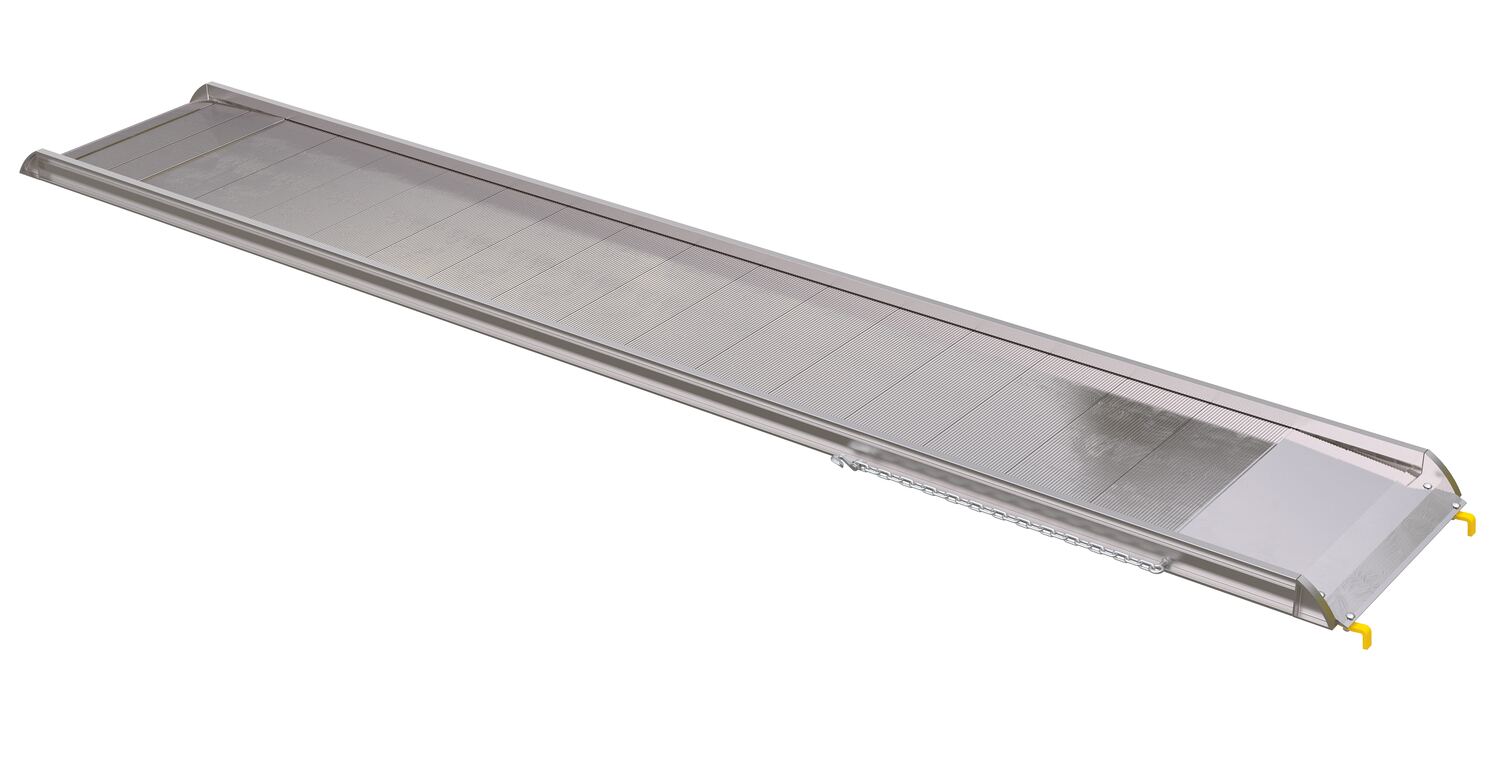

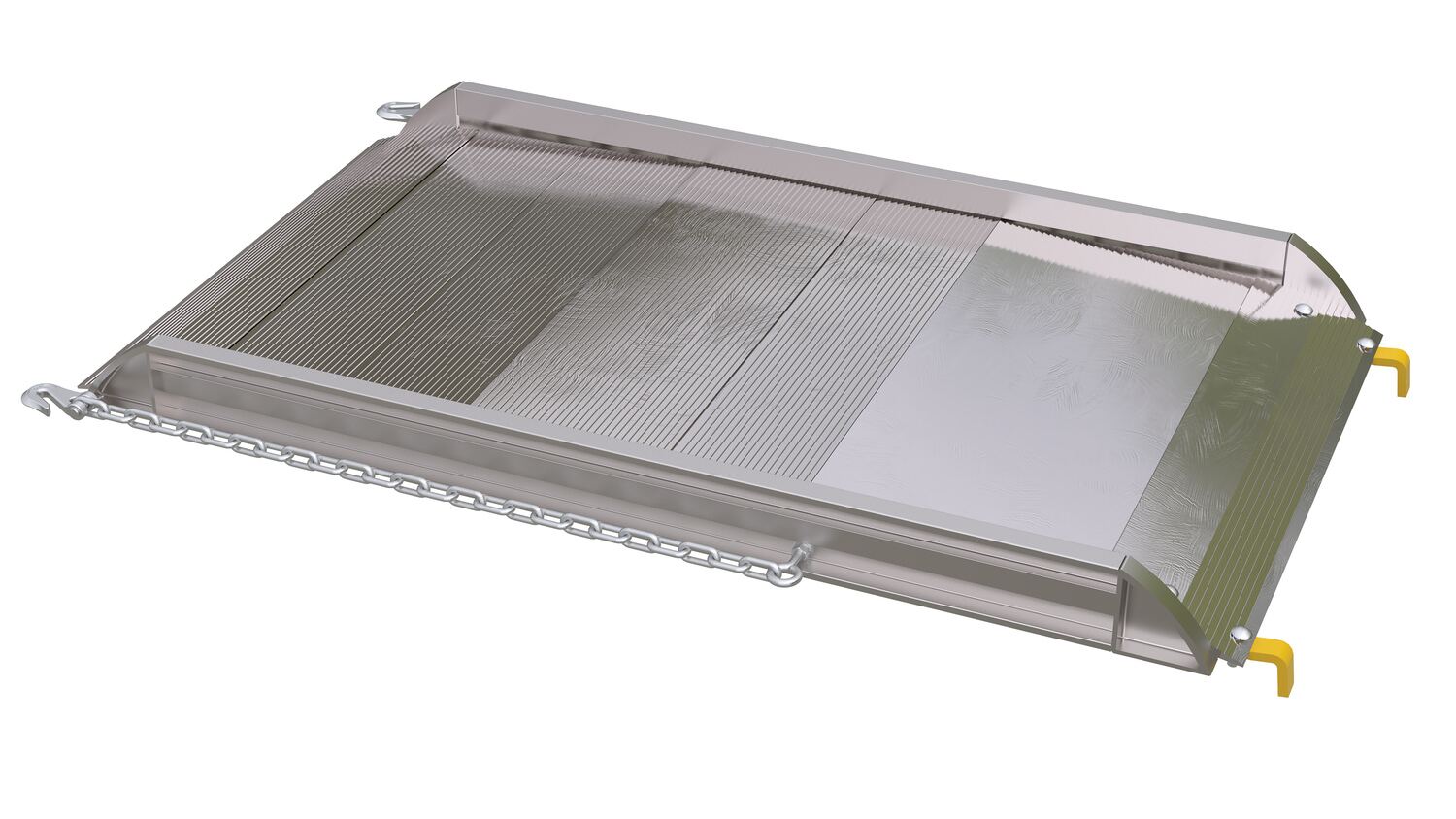

	B-Style (Steel Hook Mount): Best for: trucks with compatible mounting points. Uses hook connection for added security. More locked-in feel.

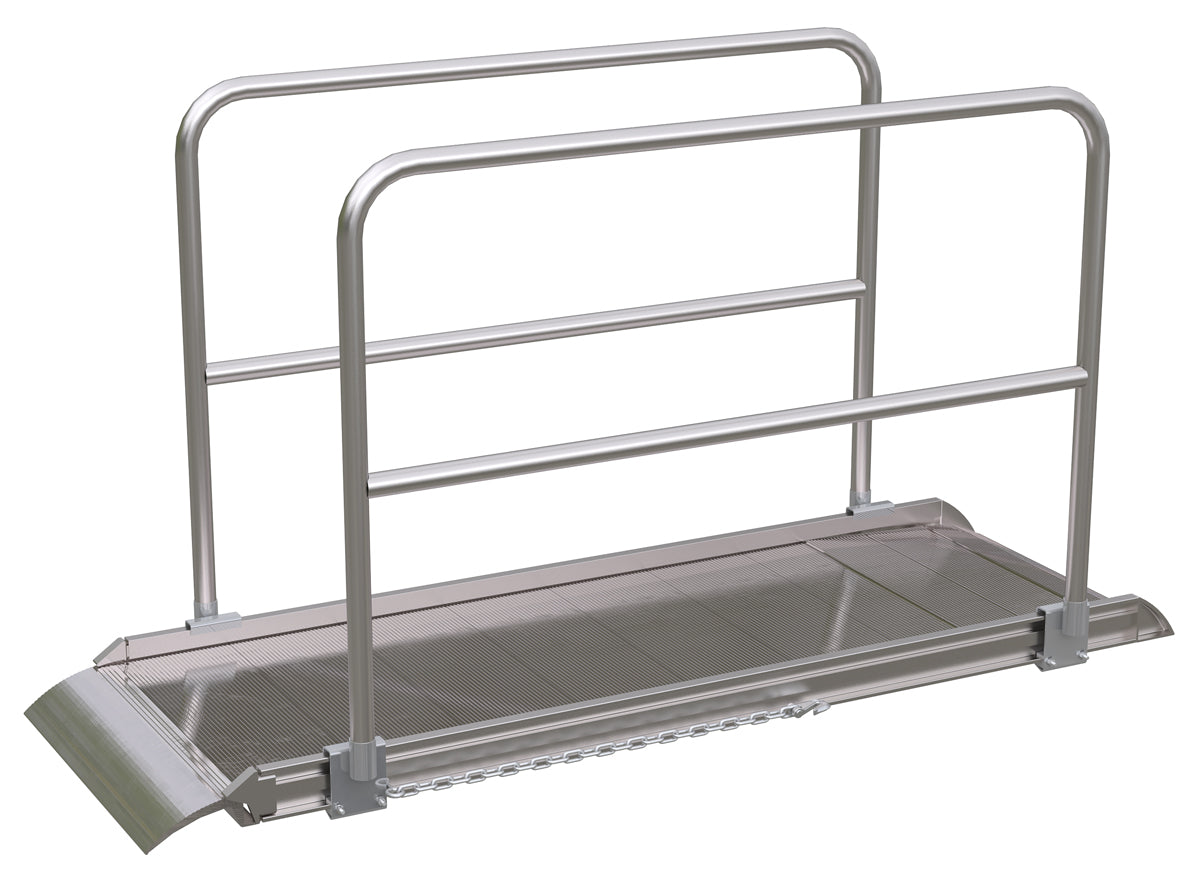

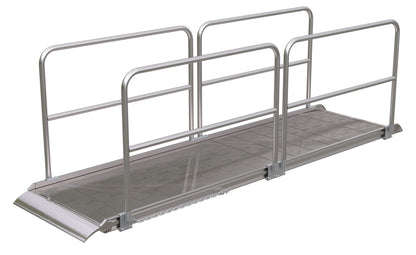

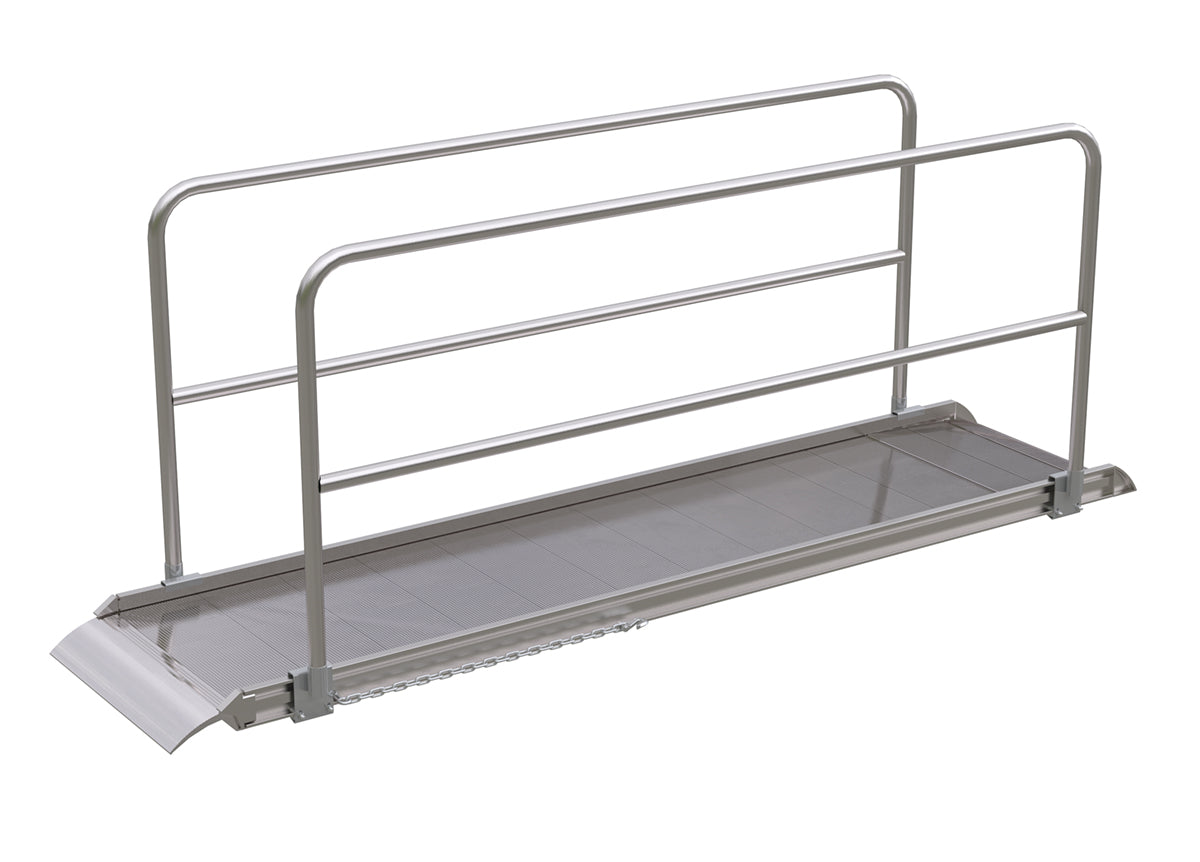

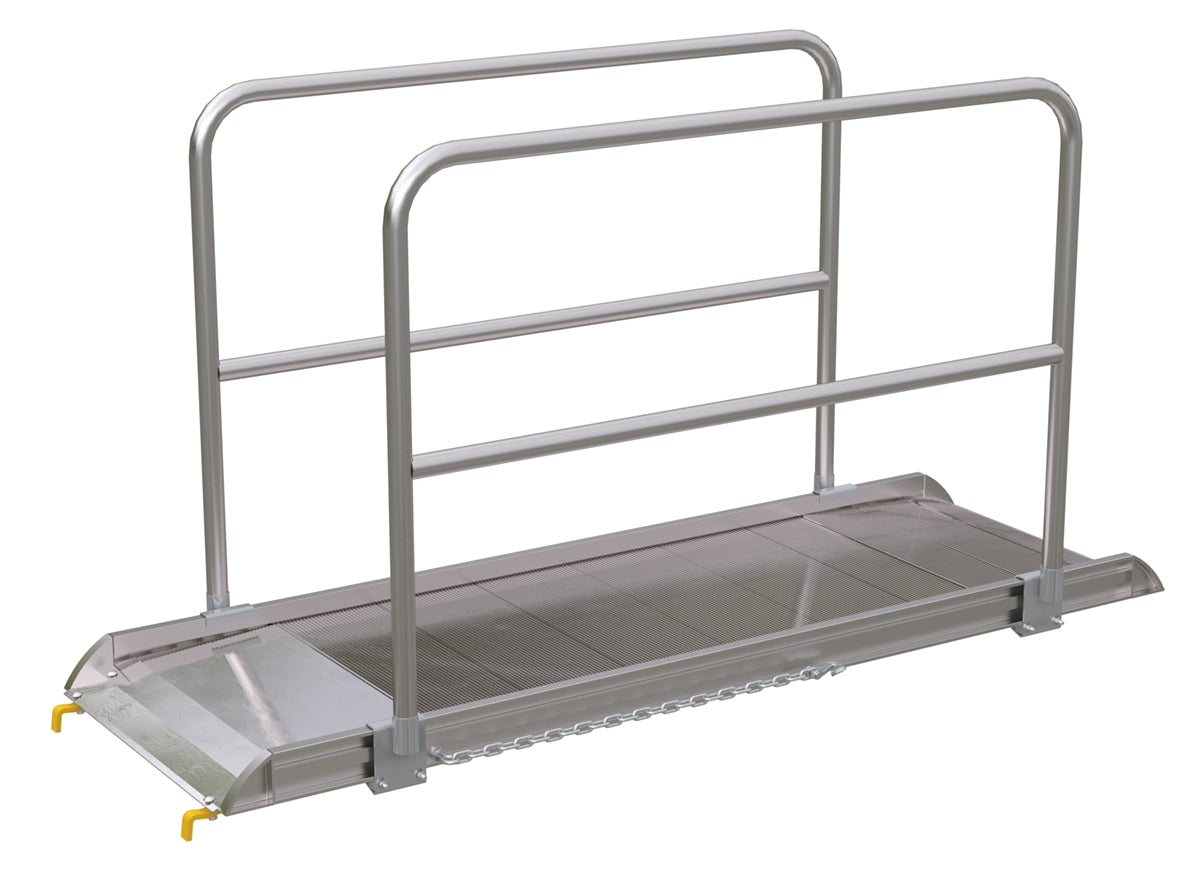

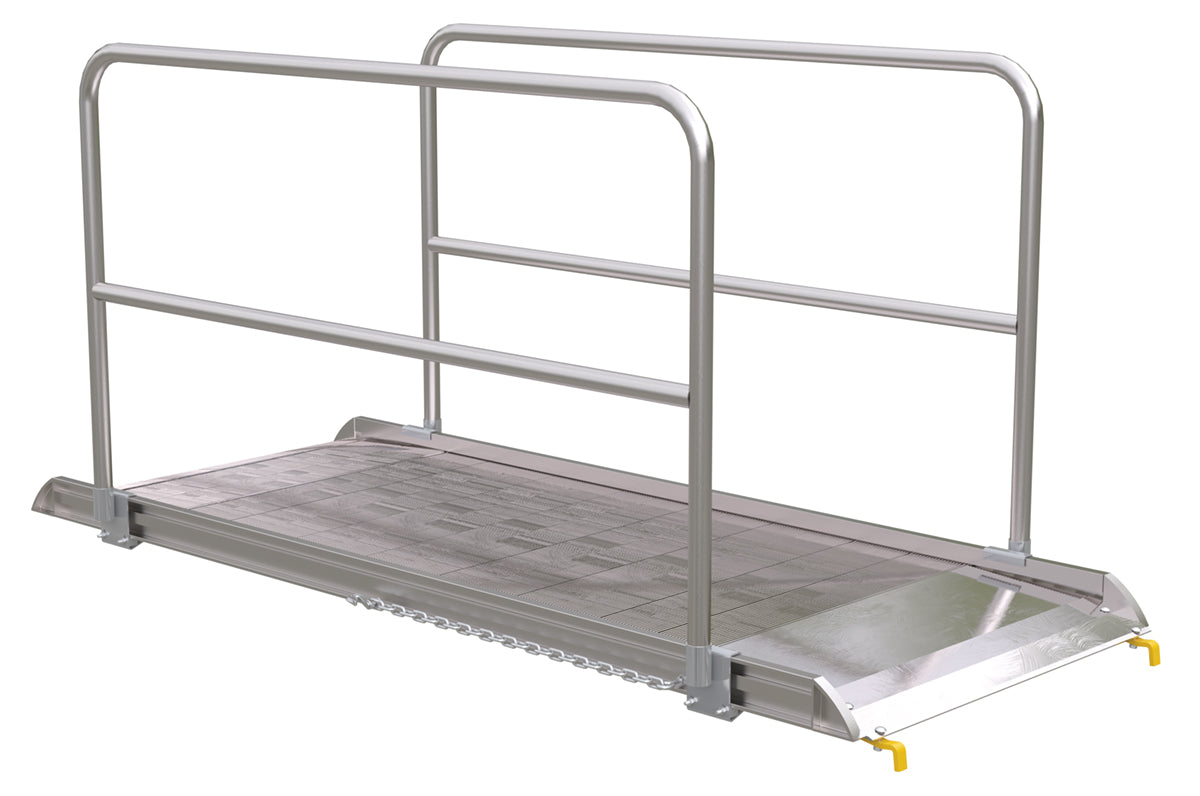

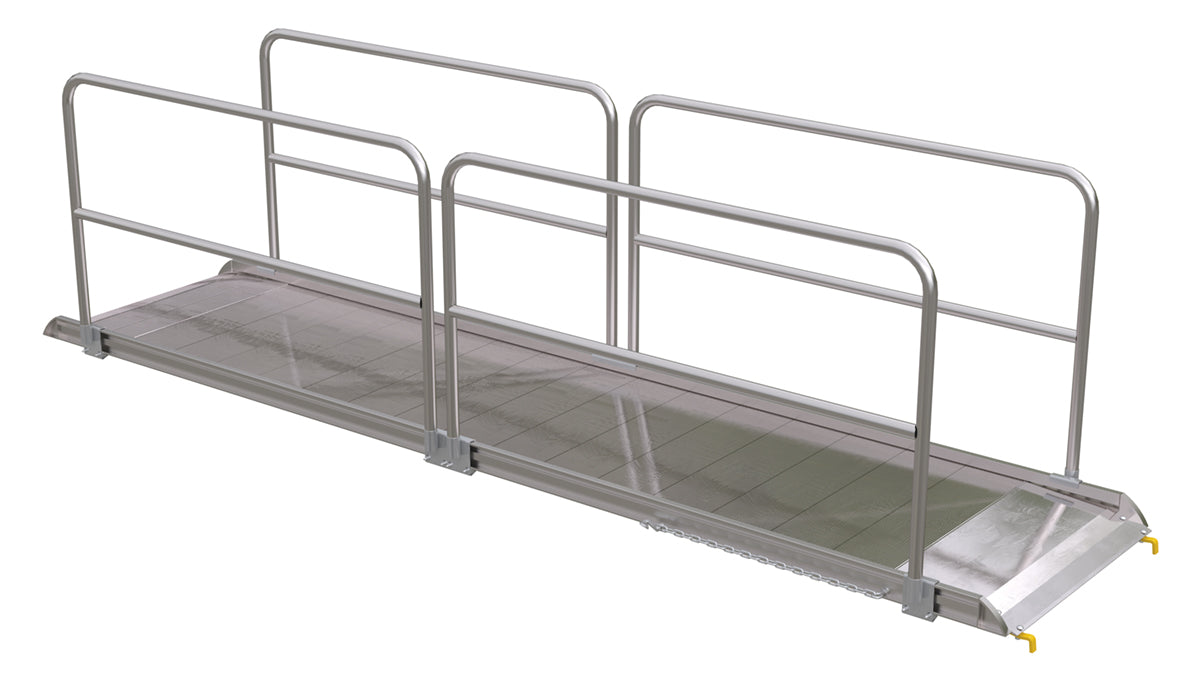

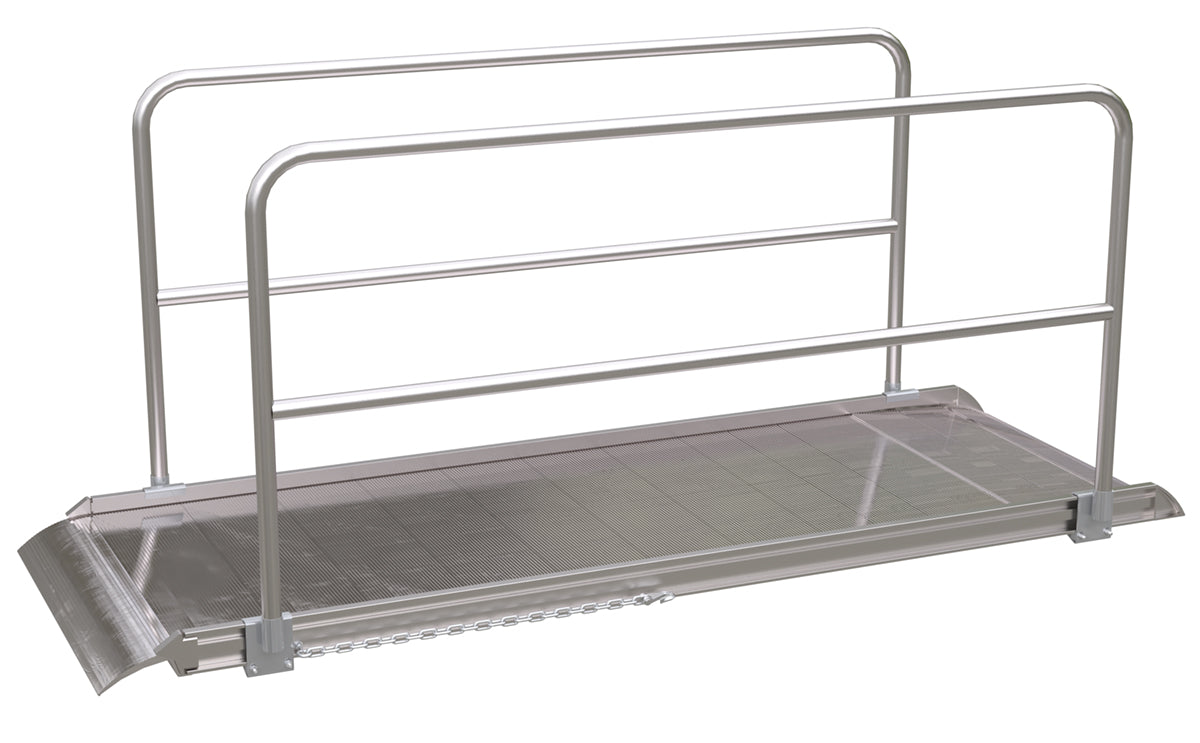

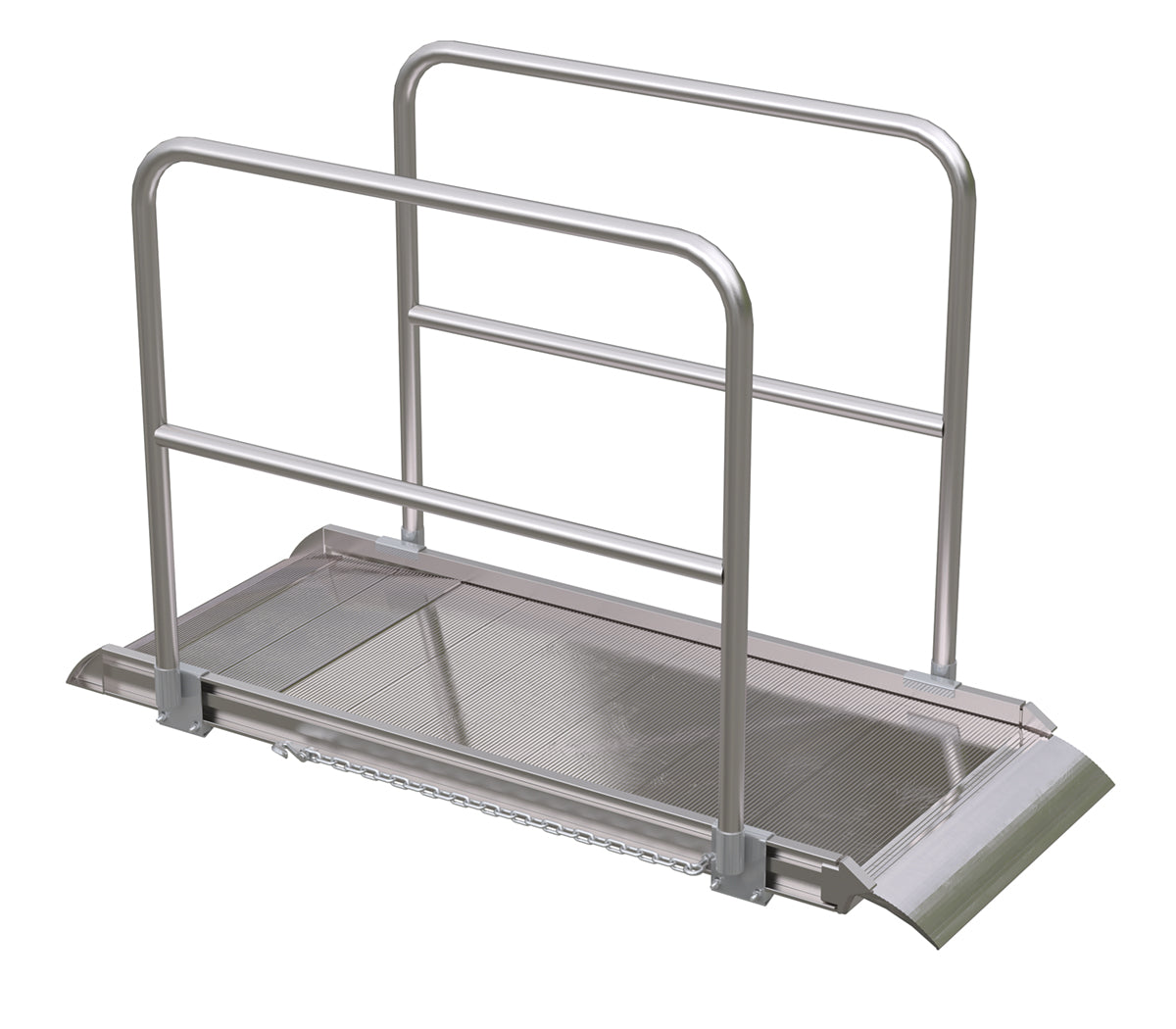

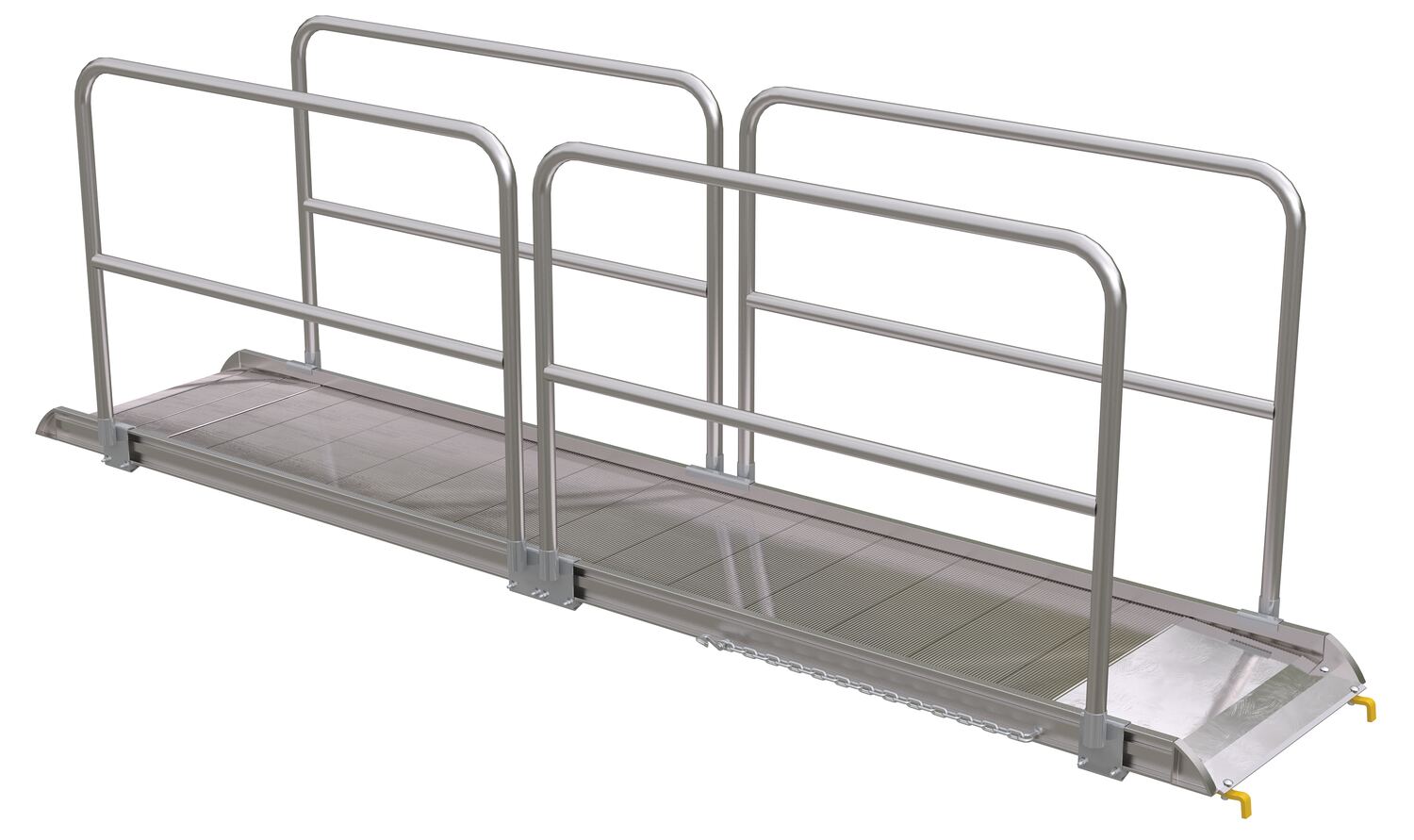

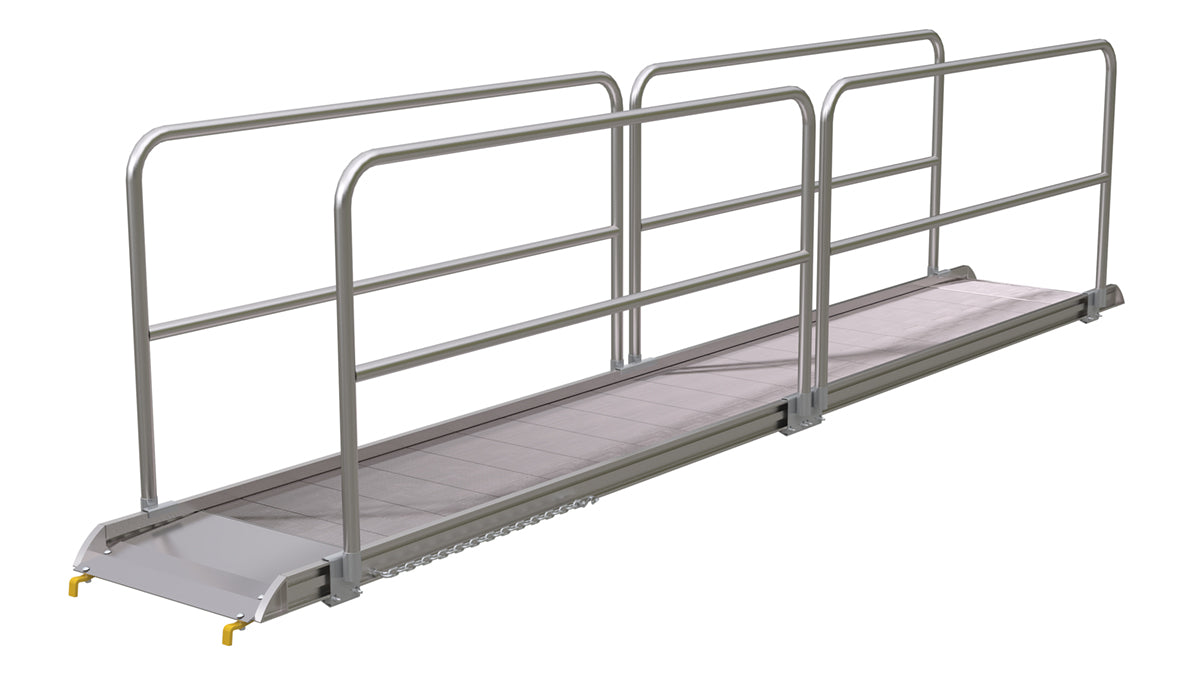

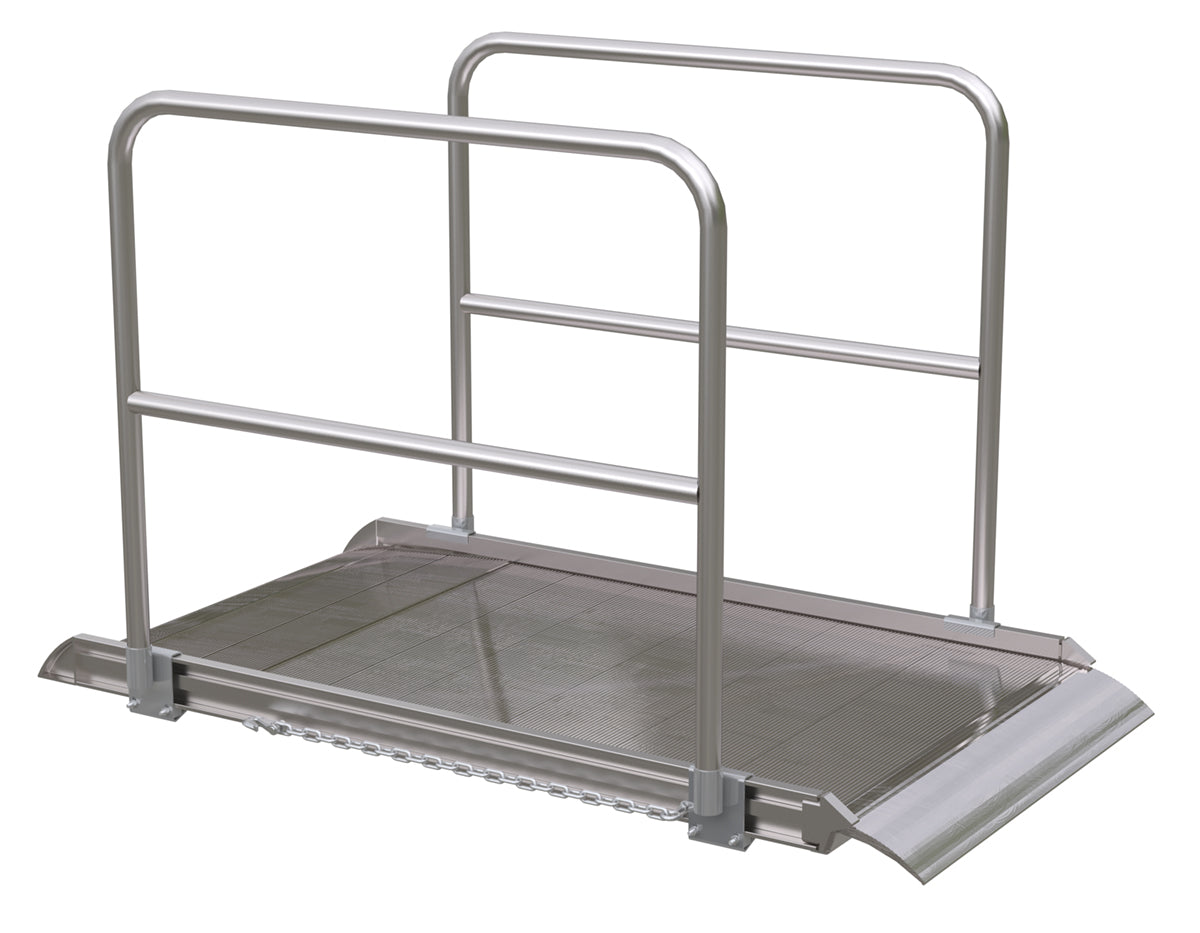

Handrail Option (HR):

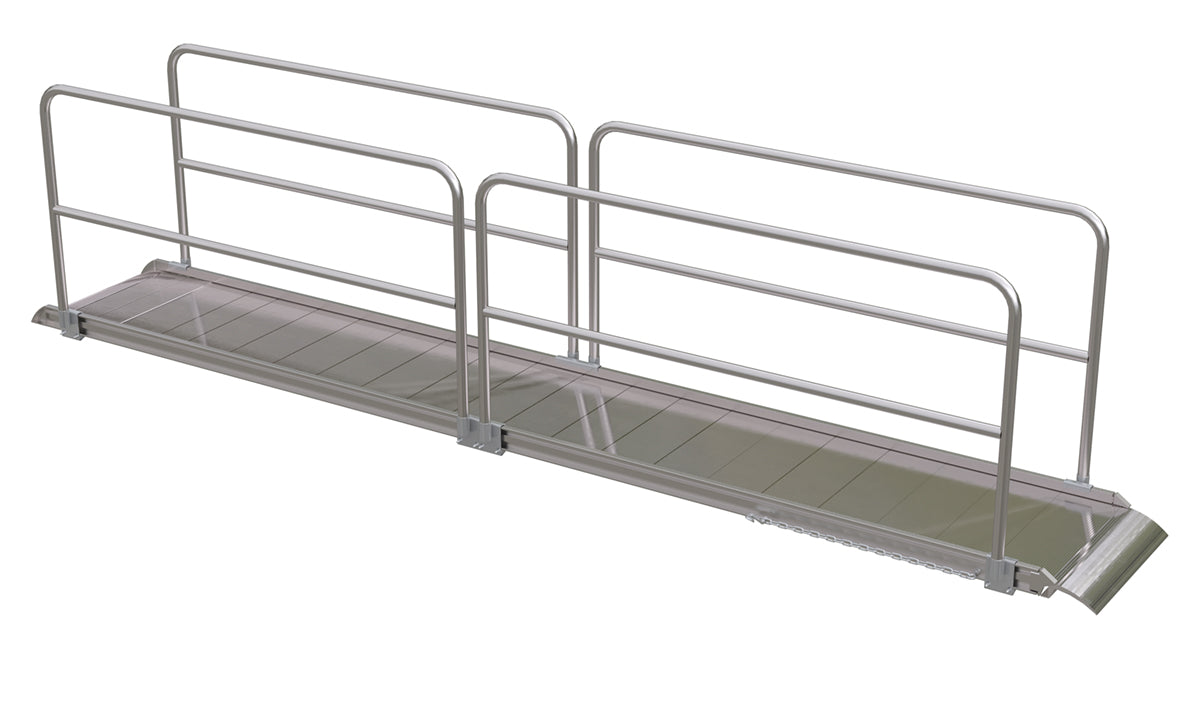

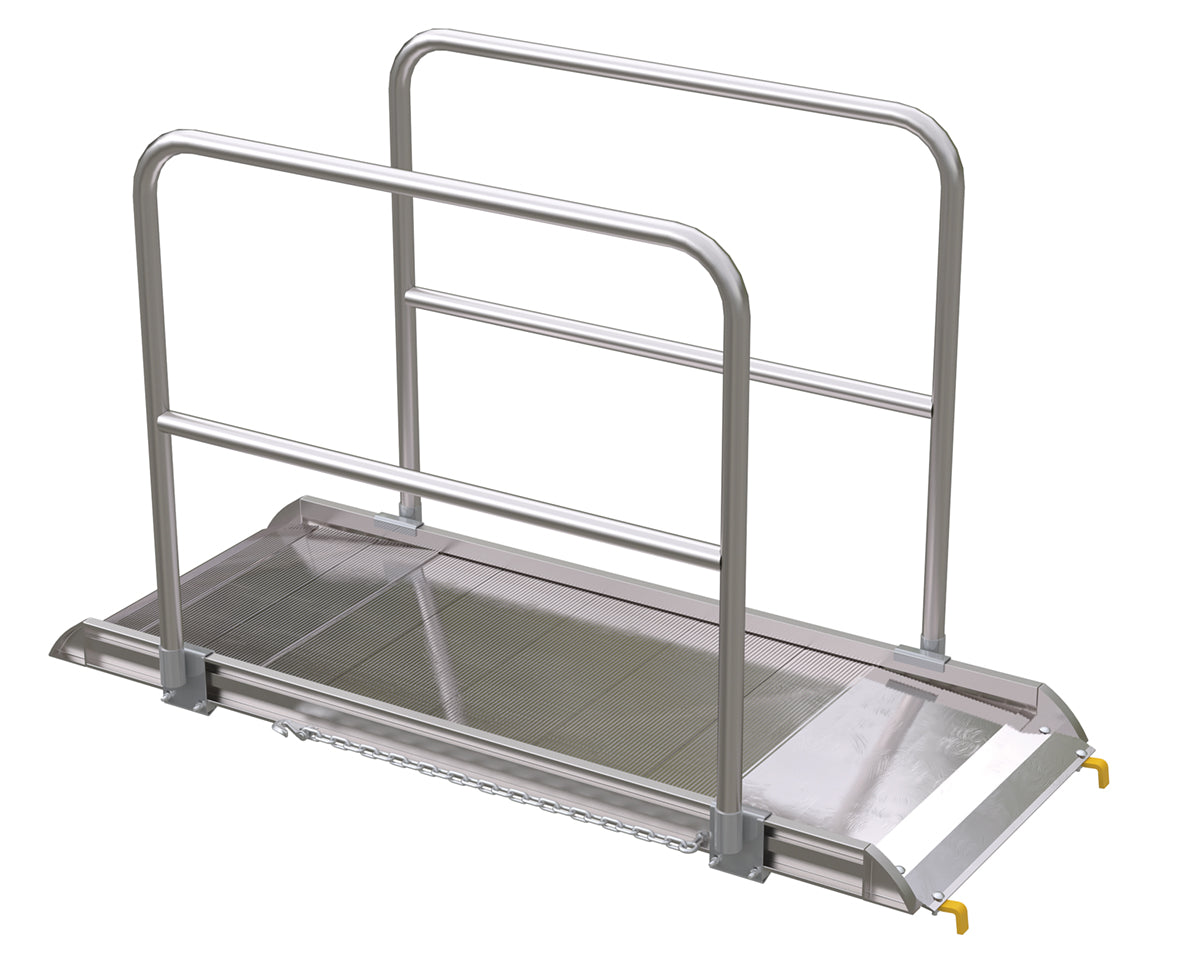

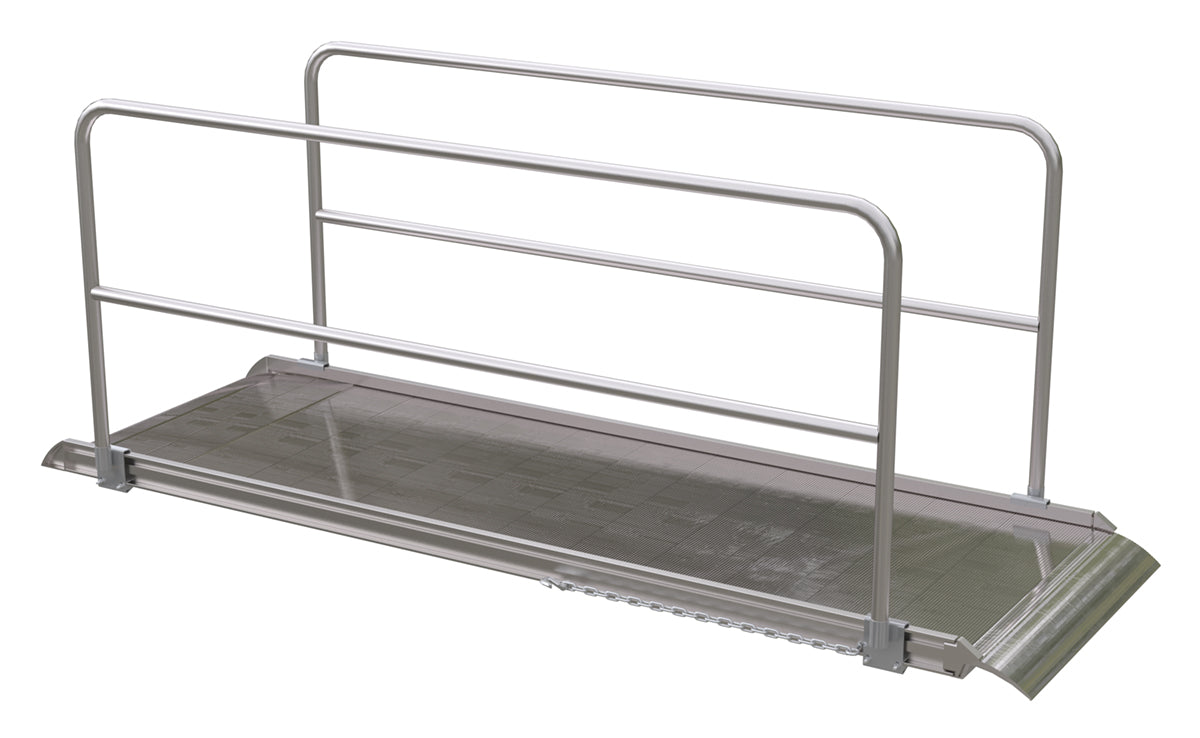

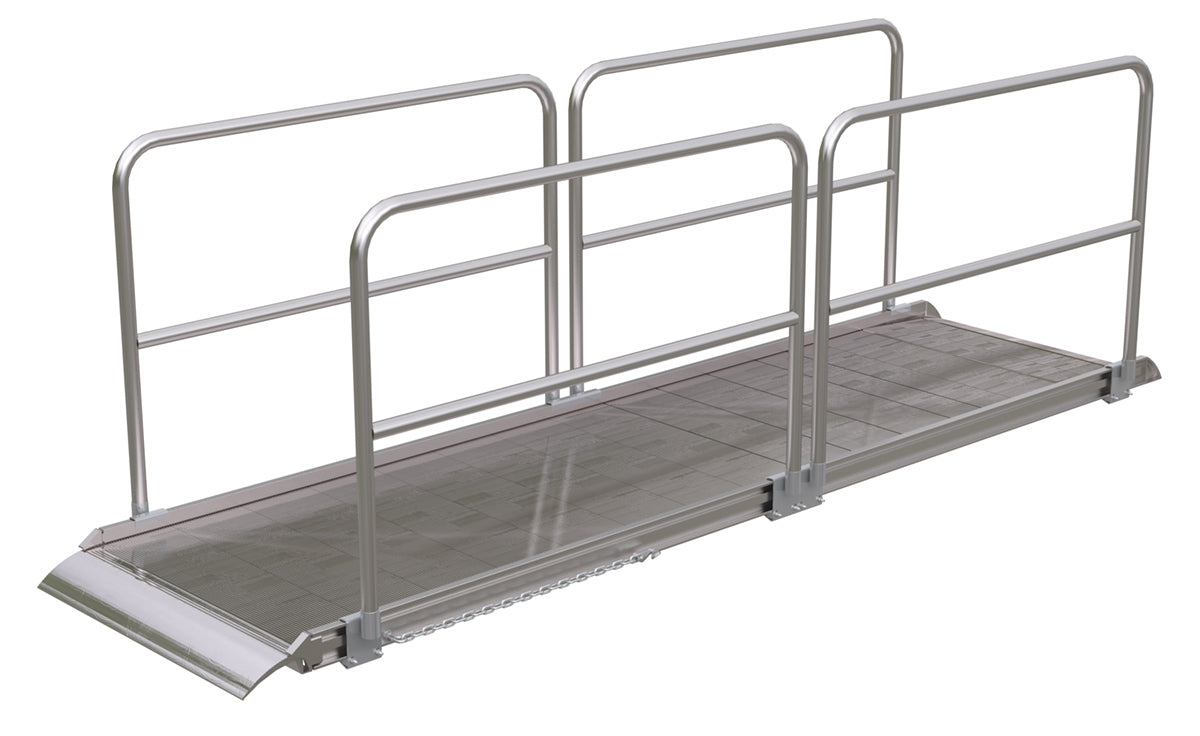

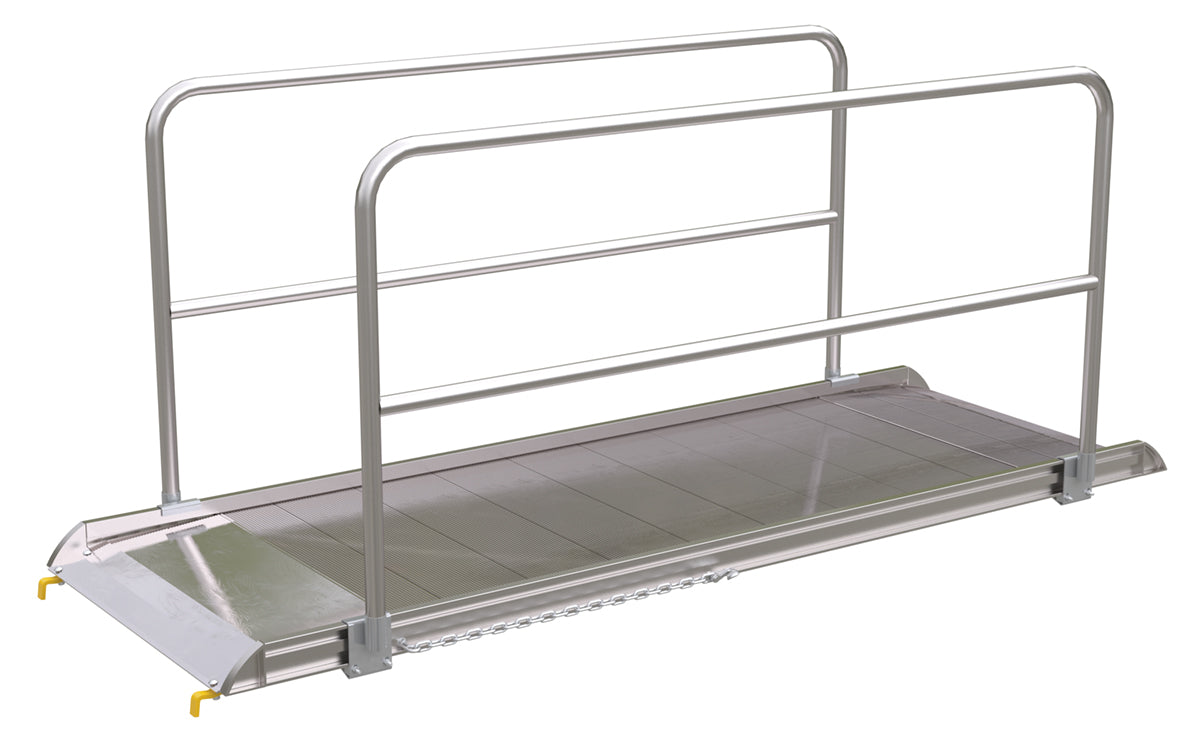

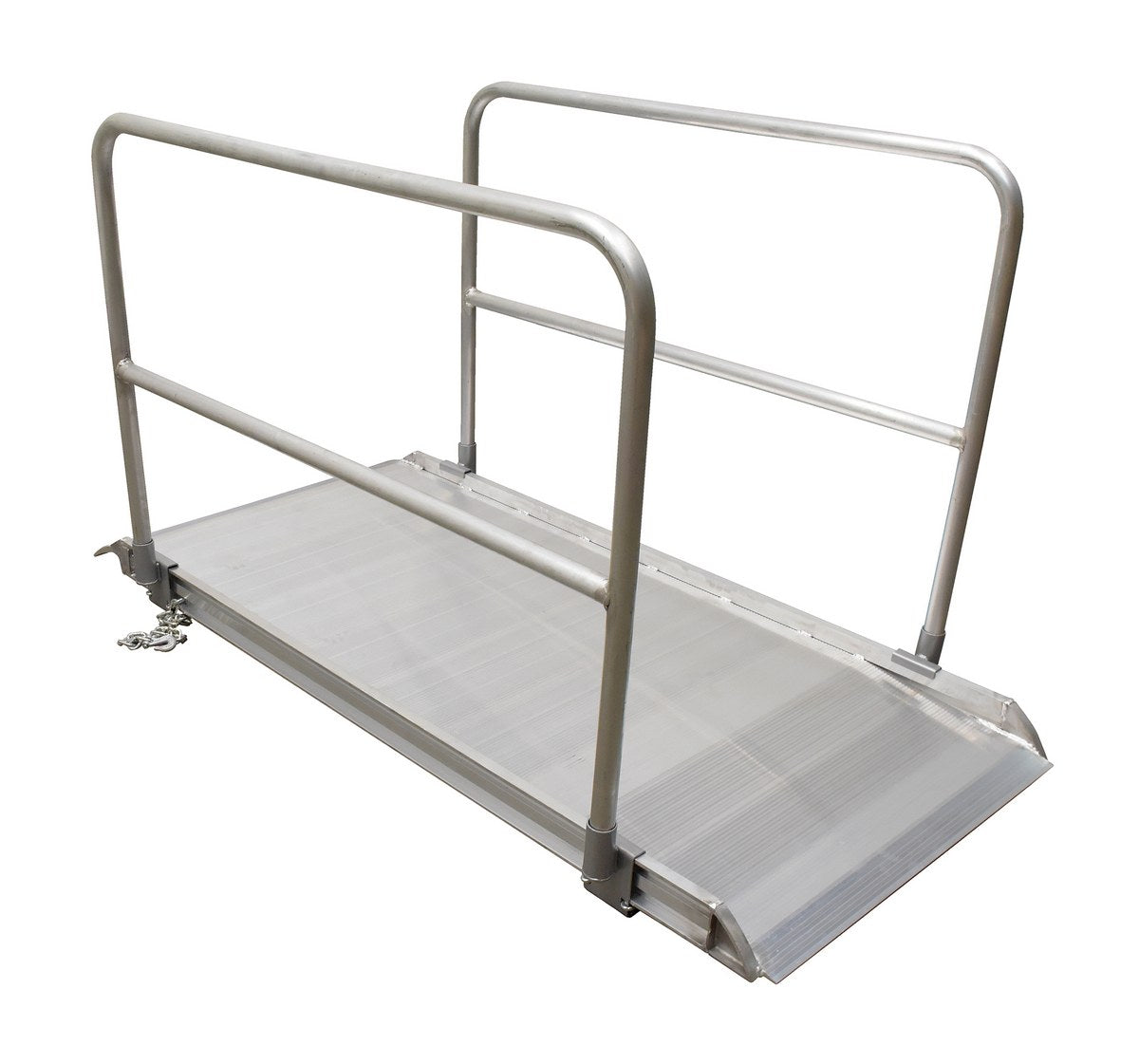

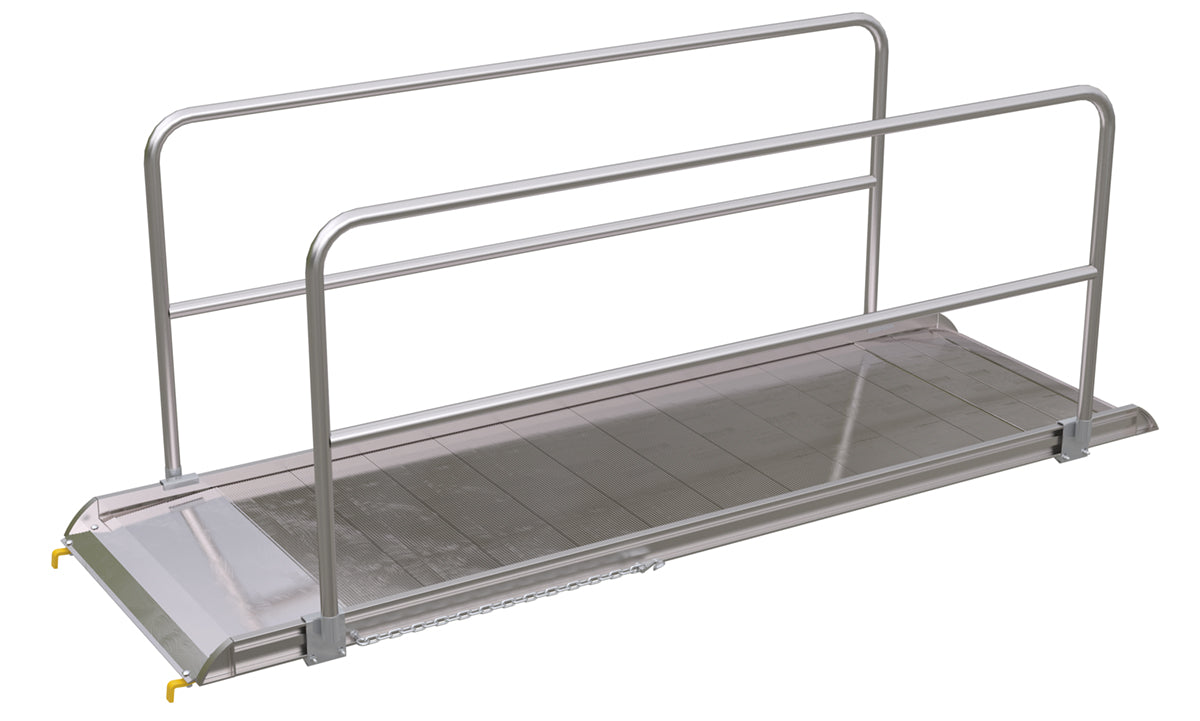

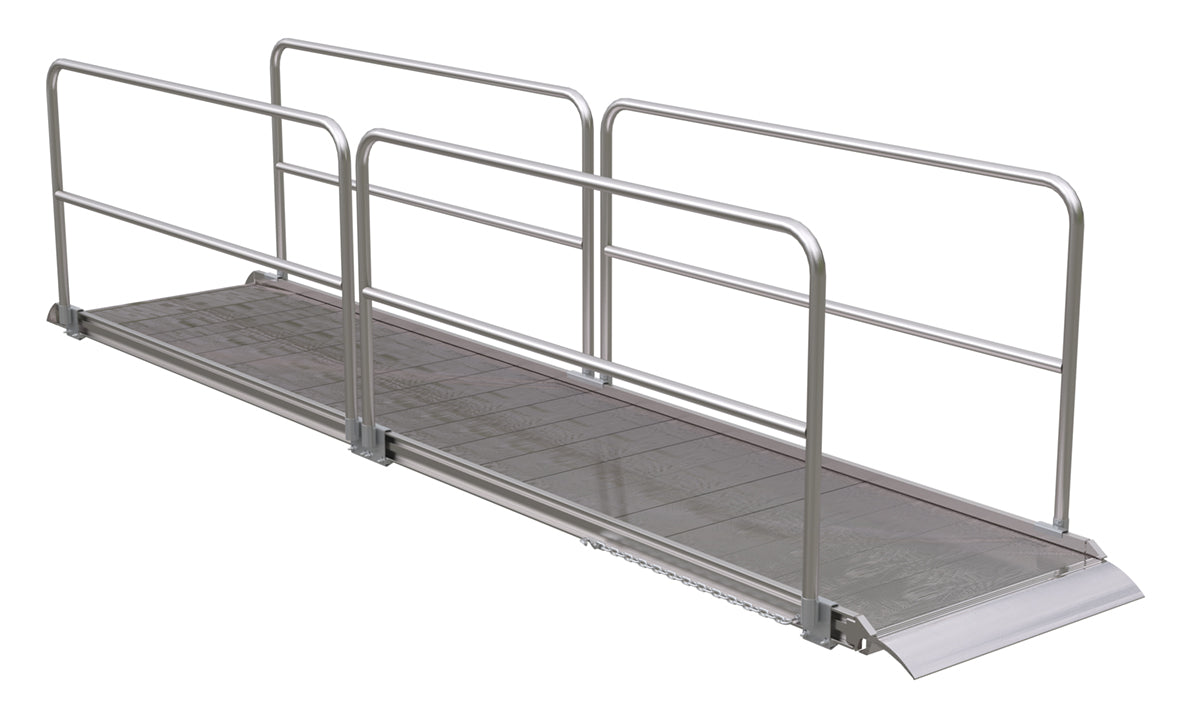

AWR models may be ordered with bolt-on handrails for one or both sides.
Handrails improve stability and user confidence, especially at longer ramp lengths or steeper heights.

Width:

Usable width: 38 in (96.5 cm)
Best suited for larger carts, increased maneuvering space, and higher stability requirements.

Ramp length:

Ramp length determines slope. Longer ramps reduce angle, making movement easier and safer.

Truck Bed Height	Suggested Ramp Length
18–24 in (46–61 cm)	6 ft (72 in)
24–30 in (61–76 cm)	8 ft (96 in)
30–36 in (76–91 cm)	10 ft (120 in)
36–42 in (91–107 cm)	12 ft (144 in)
42–48 in (107–122 cm)	14–16 ft (168–192 in)

If uncertain, choosing the longer length results in a more manageable slope.

How to Select

1. Choose ramp length according to truck bed height

2. Select mounting style:

A-Style: overlap
B-Style: hook

3. Select handrail option: Yes/No

Technical specifications:

Feature	Detail
Material	Aluminum alloy (unpainted silver finish)
Tread Surface	Non-skid pattern
Side Curbs	1.5 in (38 mm) high, both sides
Mounting Style Options	A-Style (overlap) or B-Style (steel hook)
Handrail Option	Available
Usable Width	38 in (96.5 cm)
Capacity Range	1,000–3,000 lb (454–1,361 kg), model-dependent
Length Range	4–16 ft (48–192 in)

Made in the USA
