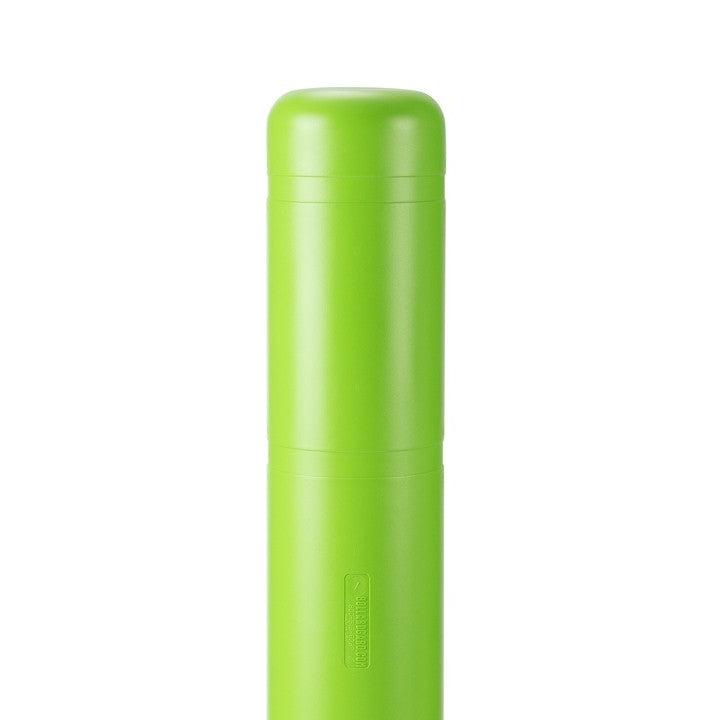

52" BollardFlex Flexible Parking Bollard – Asphalt Installation

52" BollardFlex Flexible Parking Bollard – Asphalt Installation

SKU:INN-BF-52A-RENT

Regular price $425.25 USD
Regular price Sale price $425.25 USD
Sale Sold out
  • Call or Email us for large QTY, corporate, or government quotes
Color: Red
Tape color

52" BollardFlex Flexible Parking Bollard – Asphalt Installation

The 52" BollardFlex Flexible Parking Bollard is a highly visible, flexible delineator designed for parking areas, traffic lanes, building approaches, pedestrian zones, and other locations where a permanent-looking marker needs the ability to flex when contacted.

The system combines a 1-5/8" round galvanized steel post, heavy-duty steel base, flexible spring assembly, and a rigid 7.35" OD BollardGard™ HDPE cover. The flexible mounting system allows the bollard to move through 360 degrees with approximately 9 lb of pressure, helping it accommodate incidental contact while continuing to function as a visible traffic and parking delineator.

This model is configured specifically for asphalt installation and includes the required mounting hardware. A wide range of bollard-cover and reflective-tape colors allows the system to be configured for visibility, facility identification, or traffic-management requirements.

Features & Benefits

  • 360° Flexible Design: Spring-mounted system flexes in any direction with approximately 9 lb of pressure.
  • 52" Overall Bollard Height: Provides a prominent visual marker for parking, traffic, and pedestrian applications.
  • Galvanized Steel Internal Post: 1-5/8" round galvanized steel post provides internal support beneath the BollardGard™ cover.
  • Heavy-Duty Steel Base: 9.5" square, 7-gauge steel base plate provides the mounting foundation for the flexible system.
  • Asphalt Installation Hardware Included: Supplied with four 5/8" × 5" hex lag screws, Mungo plugs, and washers.
  • Durable HDPE Bollard Cover: .125" wall HDPE cover provides a clean finished appearance around the internal steel post.
  • UV-Stable Cover: Designed for exterior exposure and long-term color stability.
  • High-Visibility Color Options: Available in a broad selection of bollard-cover colors for traffic, parking, and facility applications.
  • 3M™ Reflective Material: Available with 3M™ #5100 Scotchlite™ Film in multiple colors for increased nighttime and low-light visibility.
  • Made in the USA: Proudly manufactured in the United States.

Technical Specifications

Product Type Flexible Parking / Traffic Delineator Bollard
Installation Type Asphalt Mount
Overall Bollard Height 52"
Bollard Cover Outside Diameter 7.35"
Bollard Cover Wall Thickness .125" HDPE
Internal Post 1-5/8" Round Galvanized Steel Post
Base Plate 9.5" Square, 7-Gauge Standard Steel
Flexibility 360°
Flexing Force Approximately 9 lb
Materials HDPE / Steel
Asphalt Mounting Hardware (4) 5/8" × 5" Hex Lag Screws, Mungo Plugs & Washers
Warranty 1 Year Against Manufacturer Defects

Bollard Cover Colors

The BollardGard™ cover is available in a wide range of high-visibility and architectural colors:

Black, Blue, Brown, Bright Green, Federal Yellow, Gray, Green, Light Gray, Orange, Red, Tan, White, and Yellow.

Reflective Options

For increased visibility in low-light environments, the bollard can be configured with 3M™ #5100 Scotchlite™ Film.

Available reflective colors include Black, Blue, Green, Orange, Red, White, and Yellow.

Flexible 360° Delineation

The BollardFlex™ system is designed to provide a highly visible lane or parking marker while allowing the post to flex when contacted. The spring-mounted assembly moves in any direction rather than remaining completely rigid.

This makes the system particularly useful in locations where conventional rigid bollards or parking blocks may not be desirable, while still providing a clearly defined visual boundary for drivers and pedestrians.

Asphalt Installation

This version is supplied specifically for asphalt installation. The mounting kit includes four 5/8" × 5" hex lag screws, Mungo plugs, and washers for securing the 9.5" square steel base.

Proper installation is important to the operation of the flexible system. Follow the asphalt installation instructions and verify that the mounting area is suitable for the supplied anchoring method before installation.

Common Applications

  • Parking-space delineation
  • Parking lots and garages
  • Vehicle lane guidance
  • Building approaches and corners
  • Pedestrian and vehicle separation
  • Traffic-flow guidance
  • Drive-through lanes
  • Commercial facilities
  • Institutional properties
  • Temporary or permanent traffic layouts

BollardGard™ HDPE Cover

The internal galvanized steel post is concealed by a rigid BollardGard™ HDPE cover, providing a clean finished appearance and helping protect the exposed post surface from weather and cosmetic wear.

The cover measures 7.35" outside diameter with a .125" wall thickness and is available in multiple colors to improve visibility or coordinate with facility requirements.

Important Application Note

The BollardFlex™ system is intended primarily for traffic delineation, parking guidance, and visual separation. Its flexible design allows it to yield when contacted rather than function as a rigid crash barrier. No certified crash rating or specific vehicle-impact classification has been provided with the supplied product information.

Made in the USA

The BollardFlex™ Flexible Parking Bollard is proudly manufactured in the United States for parking, traffic-control, commercial, and institutional applications.

Made in the USA

Technical Resources

View Asphalt Installation Instructions

View BollardFlex Assembly Guide

View Mechanical Drawings
