72" BollardFlex Flexible Parking Bollard – Concrete Installation

72" BollardFlex Flexible Parking Bollard – Concrete Installation

SKU:INN-BF-72C-BLNT

Regular price $453.25 USD
Regular price Sale price $453.25 USD
Sale Sold out
  • Call or Email us for large QTY, corporate, or government quotes

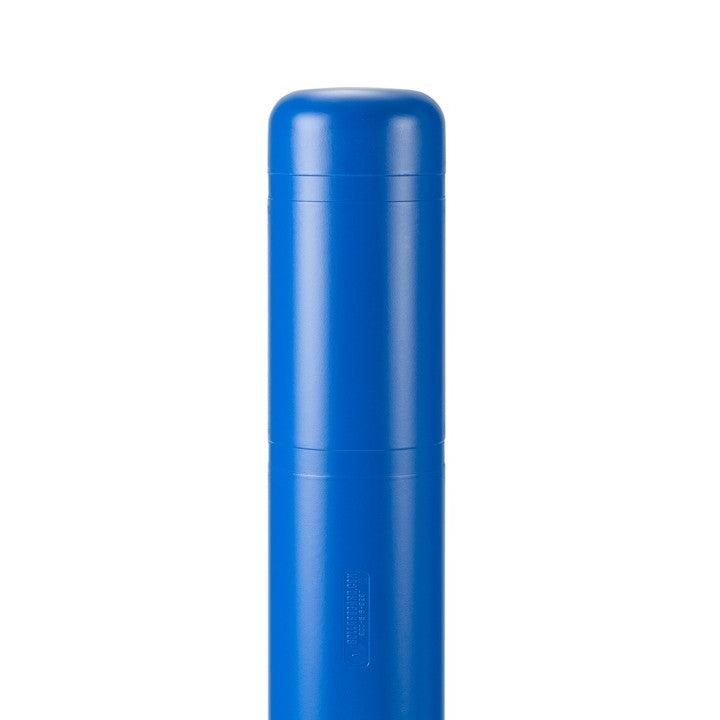

Color: Blue
Tape color

72" BollardFlex Flexible Parking Bollard – Concrete Installation

The 72" BollardFlex Flexible Parking Bollard is a tall, highly visible delineator designed for accessible parking areas, parking lots, traffic lanes, pedestrian routes, building approaches, and other locations where a flexible marker is preferred over a completely rigid post.

The system combines a 1-5/8" round galvanized steel post, heavy-duty spring assembly, steel mounting base, and a rigid 7.35" OD BollardGard™ HDPE cover. The flexible mounting system allows the bollard to move through 360 degrees with approximately 9 lb of pressure, helping it accommodate incidental contact while continuing to function as a visible parking and traffic delineator.

This model is configured specifically for concrete installation and includes four 1/2" × 4" wedge bolts. Its 72" overall height provides increased visibility around parked vehicles and in busy traffic or pedestrian environments.

Features & Benefits

  • 360° Flexible Design: Heavy-duty spring system allows the bollard to flex in any direction with approximately 9 lb of pressure.
  • 72" Overall Height: Tall profile provides increased visibility in parking and traffic-control applications.
  • Well Suited for Accessible Parking Areas: The increased height helps the post remain visible around parked vehicles and pedestrian routes.
  • Galvanized Steel Internal Post: 1-5/8" round galvanized steel post provides internal support beneath the BollardGard™ cover.
  • Heavy-Duty Steel Base: 9.5" square, 7-gauge steel base plate provides a substantial mounting foundation.
  • Concrete Installation Hardware Included: Supplied with four 1/2" × 4" wedge bolts.
  • Durable HDPE Bollard Cover: .125" wall HDPE cover provides a clean finished exterior around the internal steel structure.
  • UV-Stable Cover: Designed for exterior exposure and long-term color stability.
  • Two Reflective Bands: Two 1" reflective bands increase visibility in parking and low-light environments.
  • 3M™ Reflective Material: Available with 3M™ #5100 Scotchlite™ Film in multiple colors.
  • Made in the USA: Proudly manufactured in the United States.

Technical Specifications

Product Type Flexible Parking / Traffic Delineator Bollard
Model BF-72C
Installation Type Concrete Mount
Overall Height 72"
Bollard Cover Outside Diameter 7.35"
Bollard Cover Wall Thickness .125" HDPE
Internal Post 1-5/8" Round Galvanized Steel Post
Base Plate 9.5" Square, 7-Gauge Standard Steel
Flexibility 360°
Flexing Force Approximately 9 lb
Materials HDPE / Steel
Concrete Mounting Hardware (4) 1/2" × 4" Wedge Bolts
Reflective Bands Two 1" Bands
Warranty 1 Year Against Manufacturer Defects

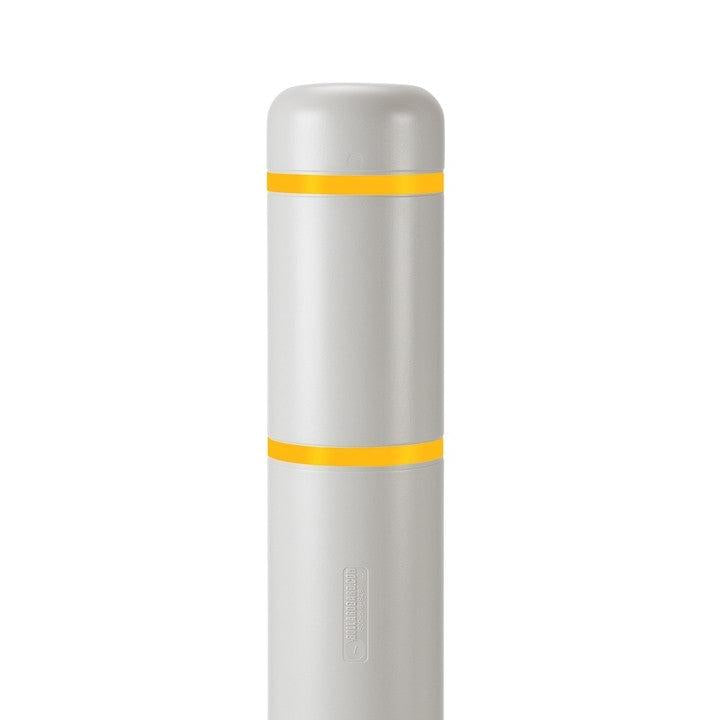

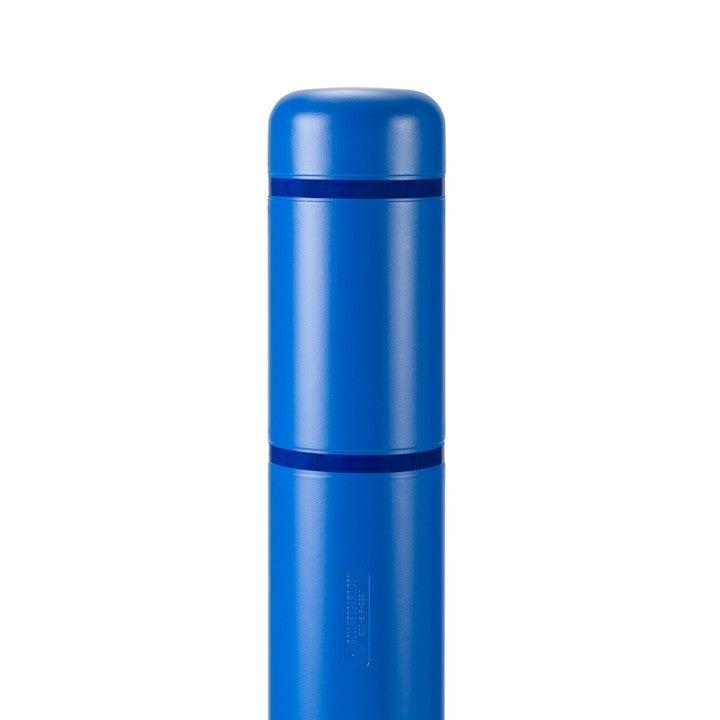

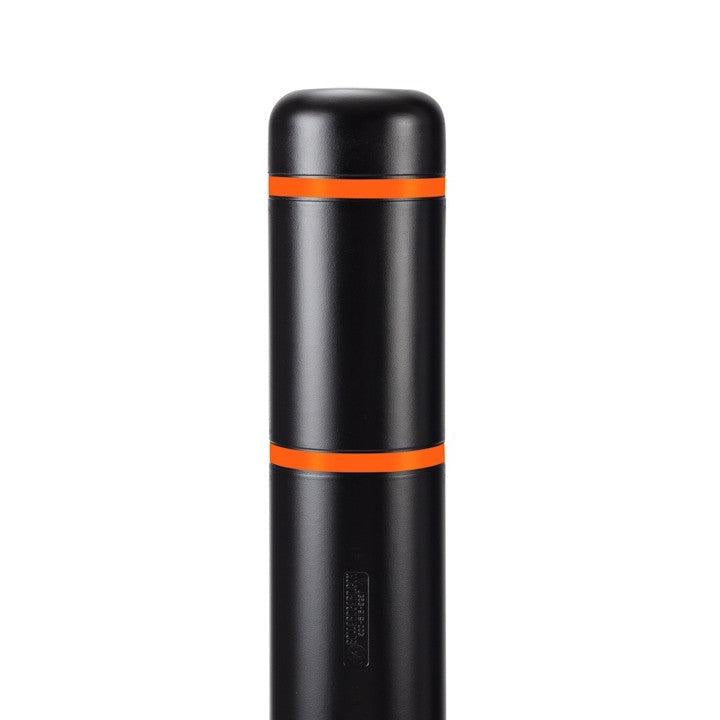

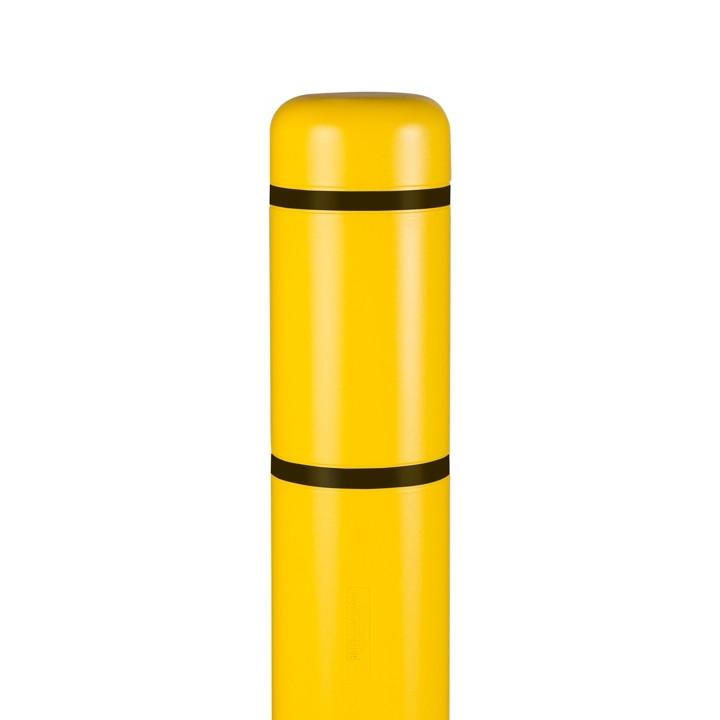

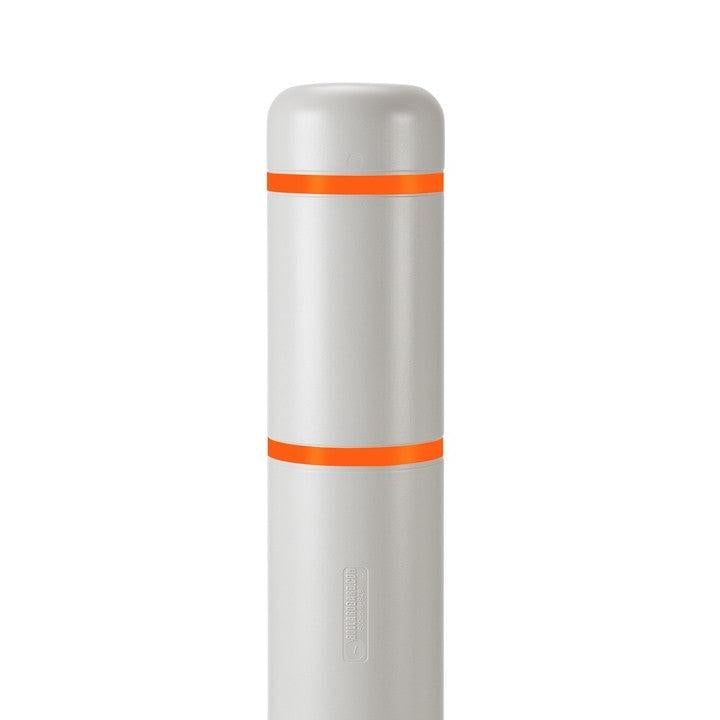

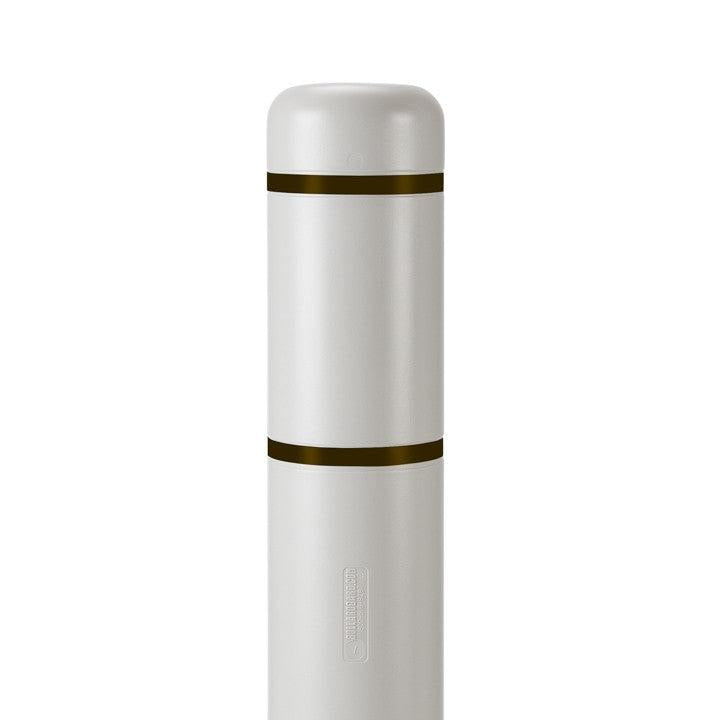

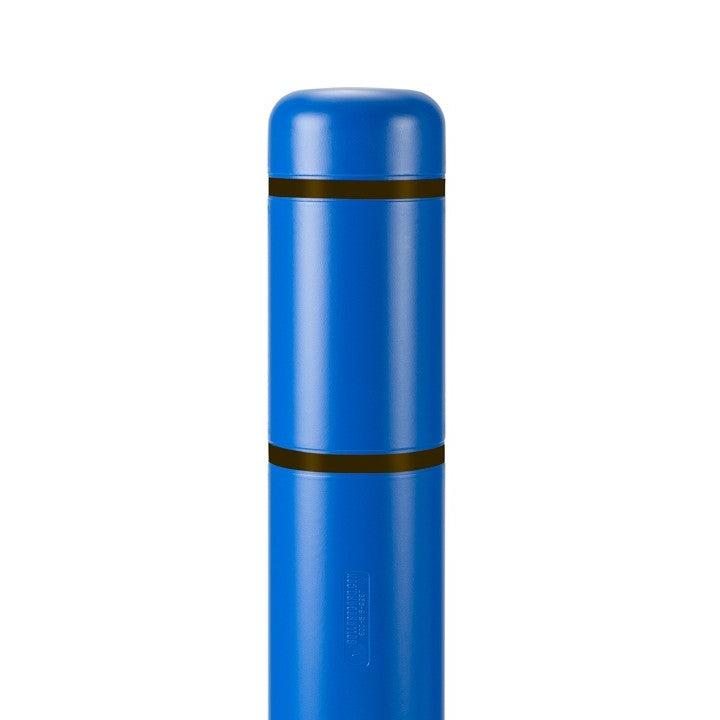

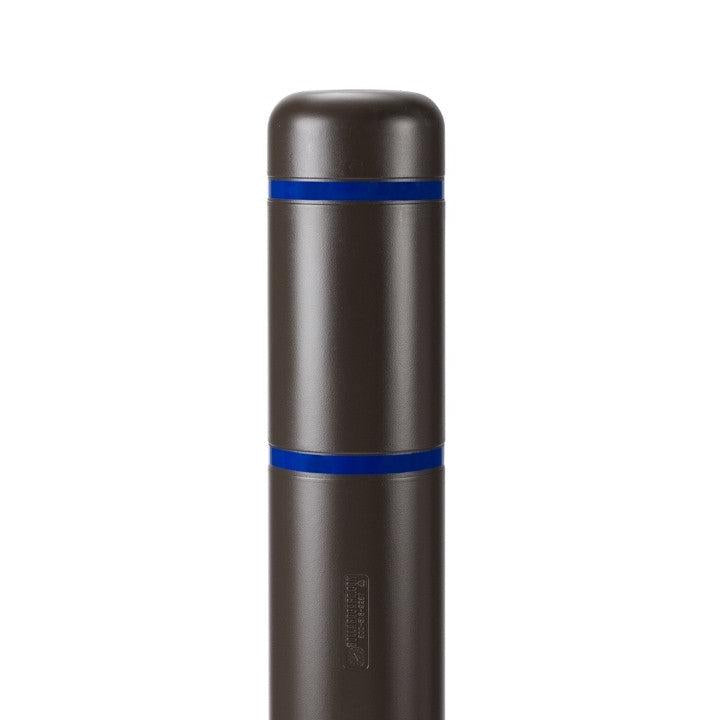

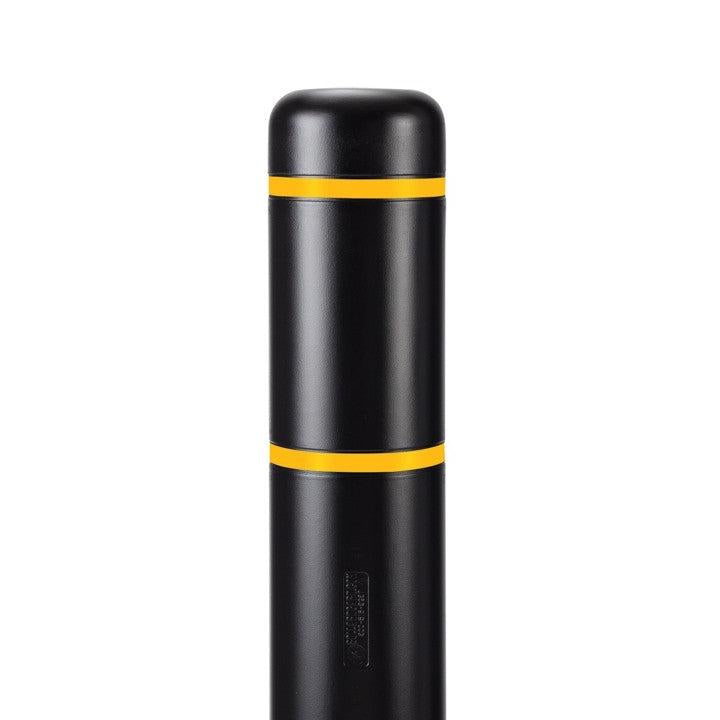

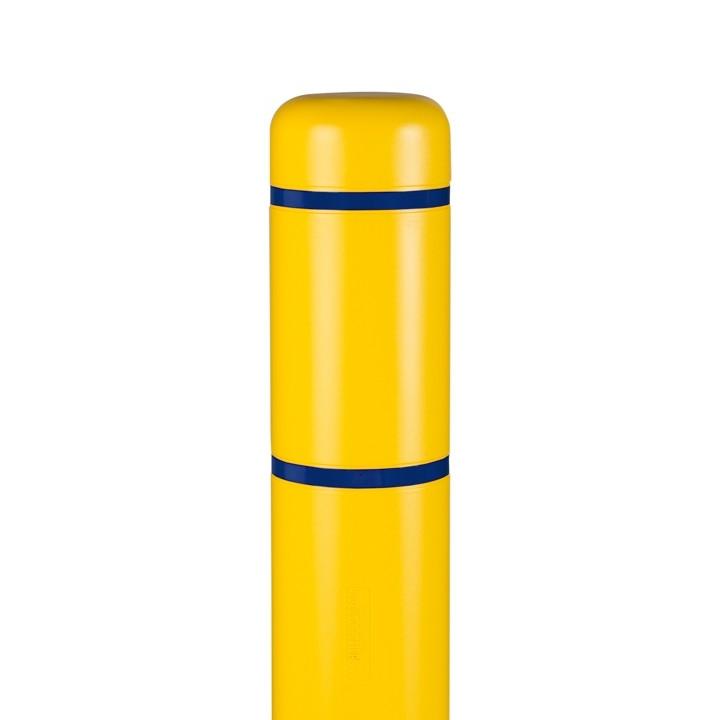

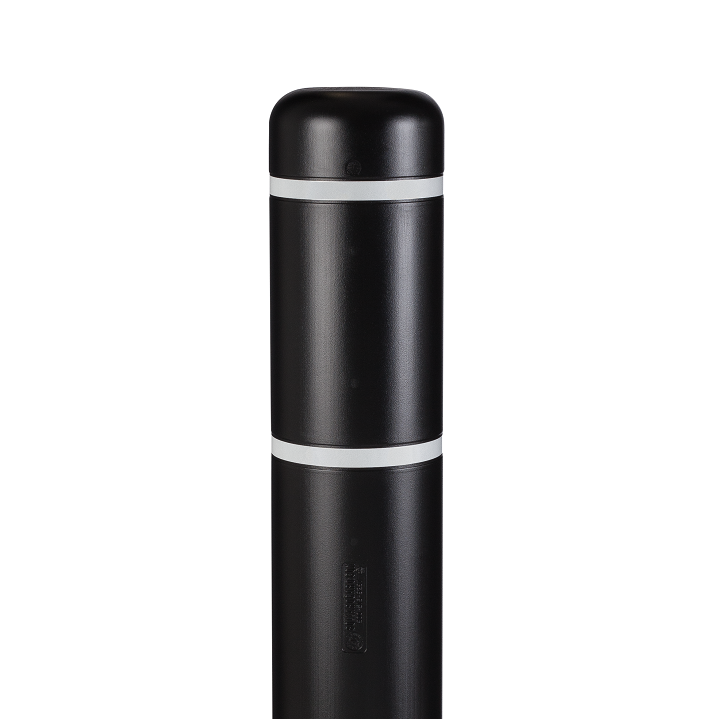

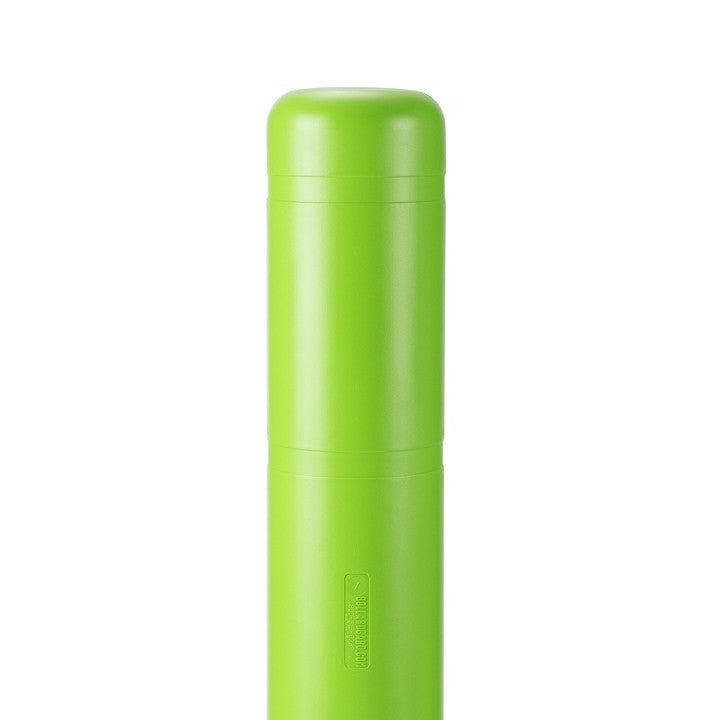

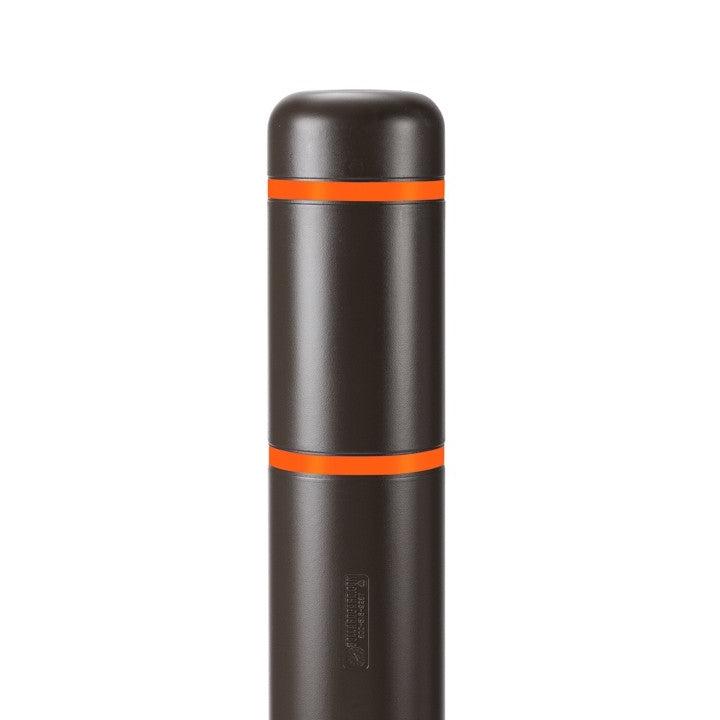

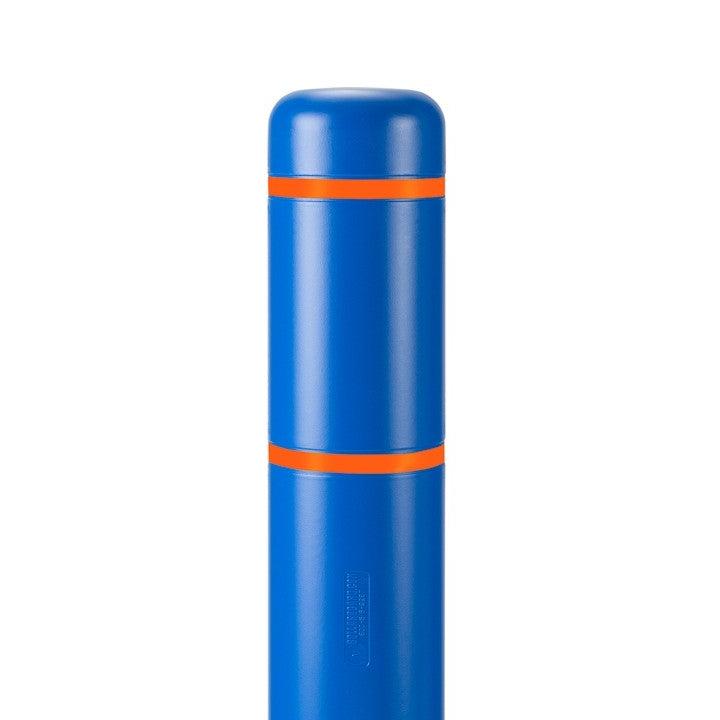

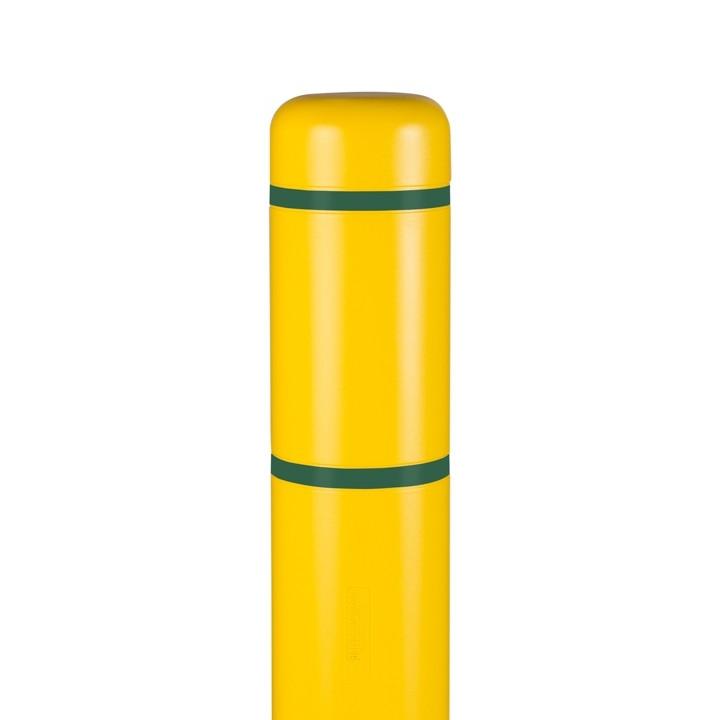

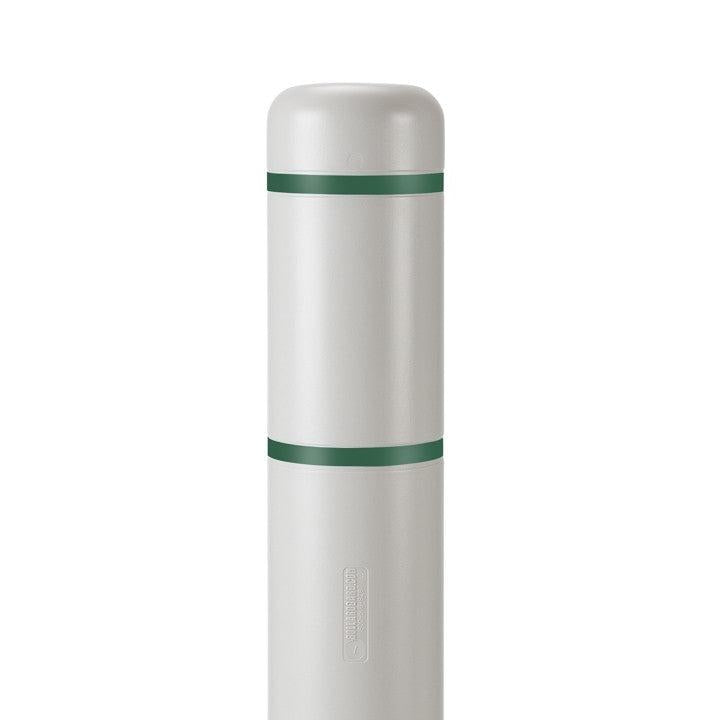

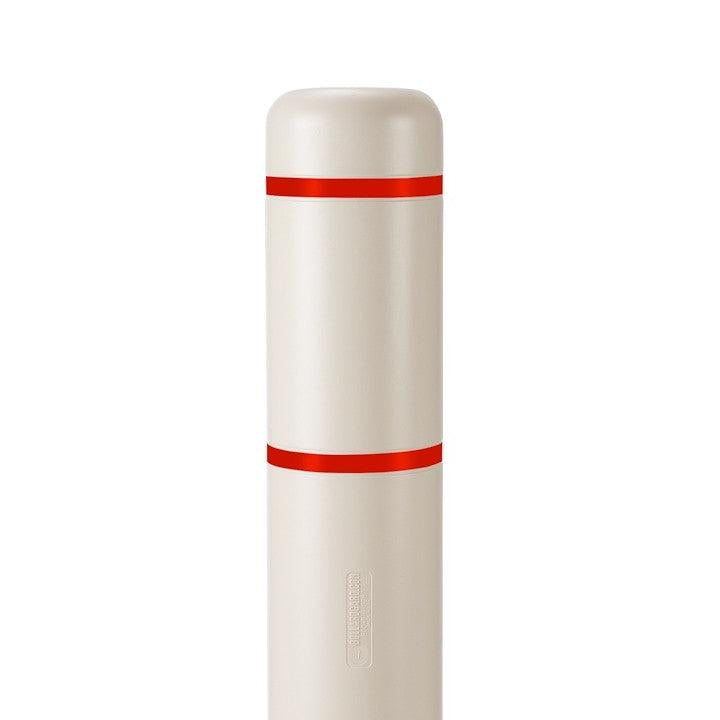

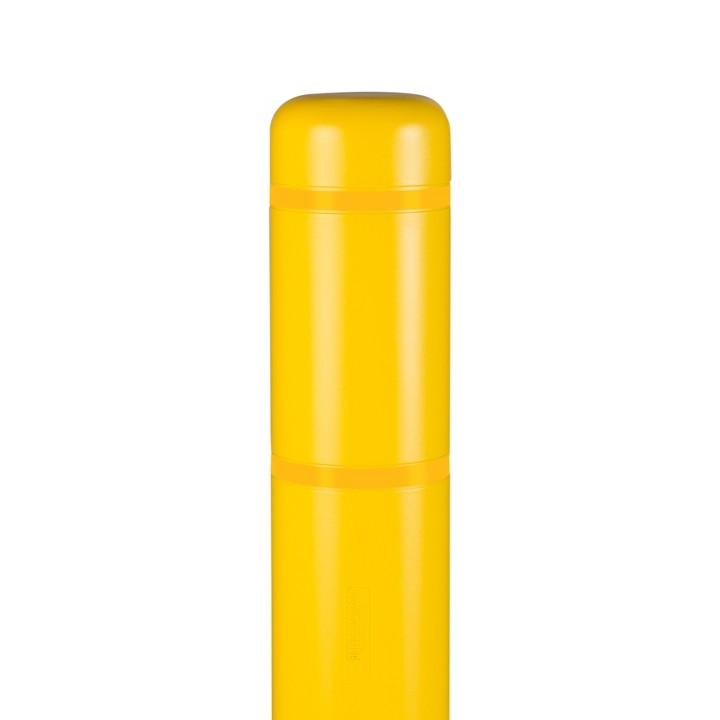

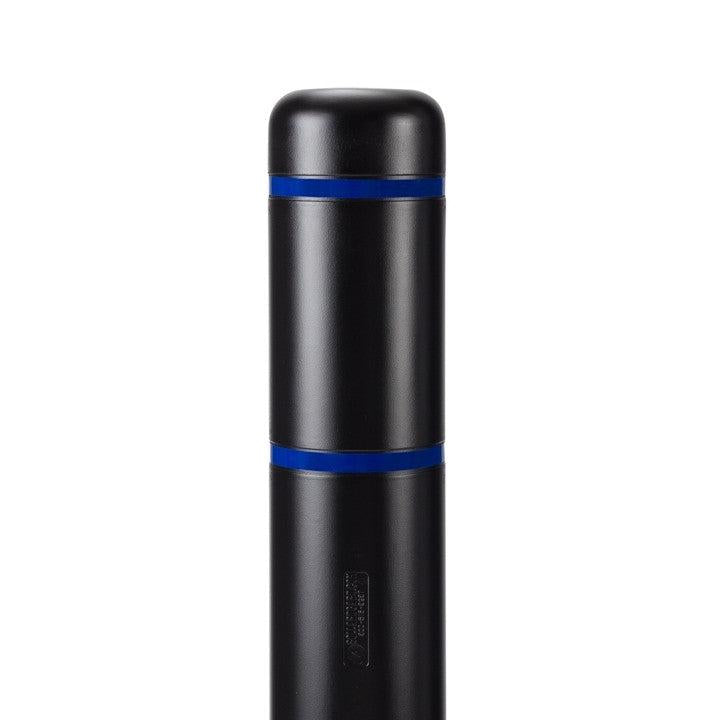

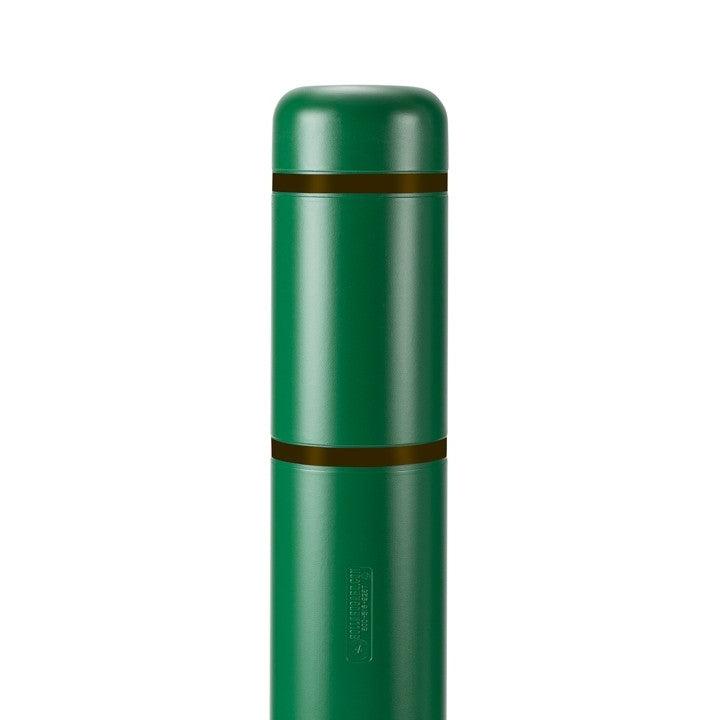

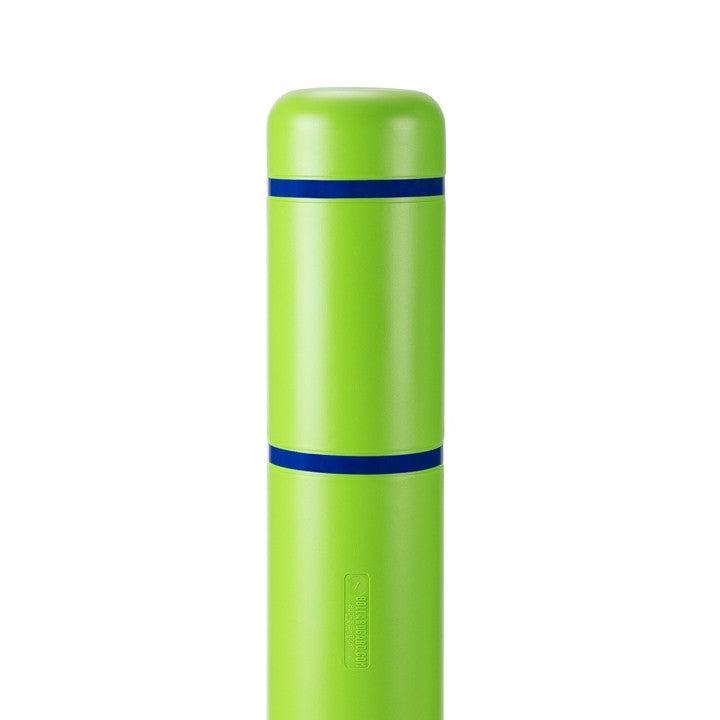

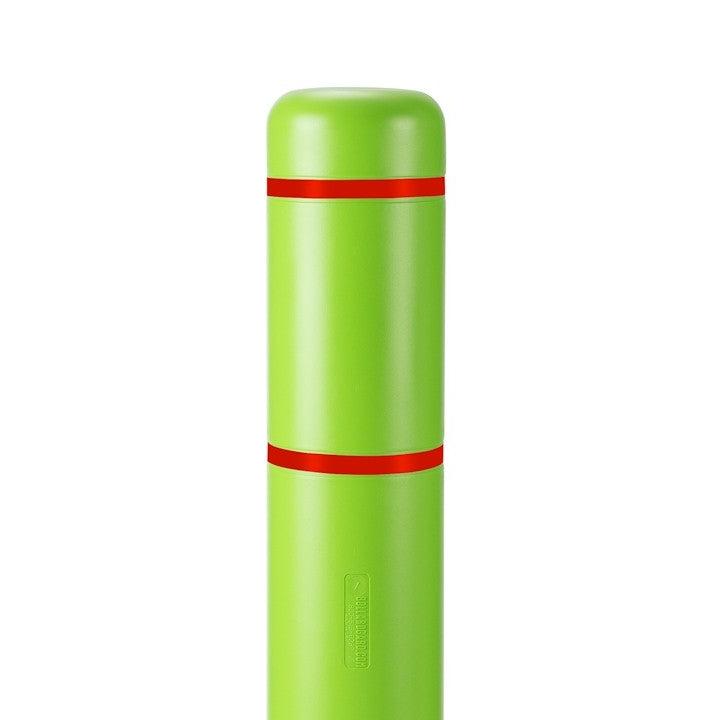

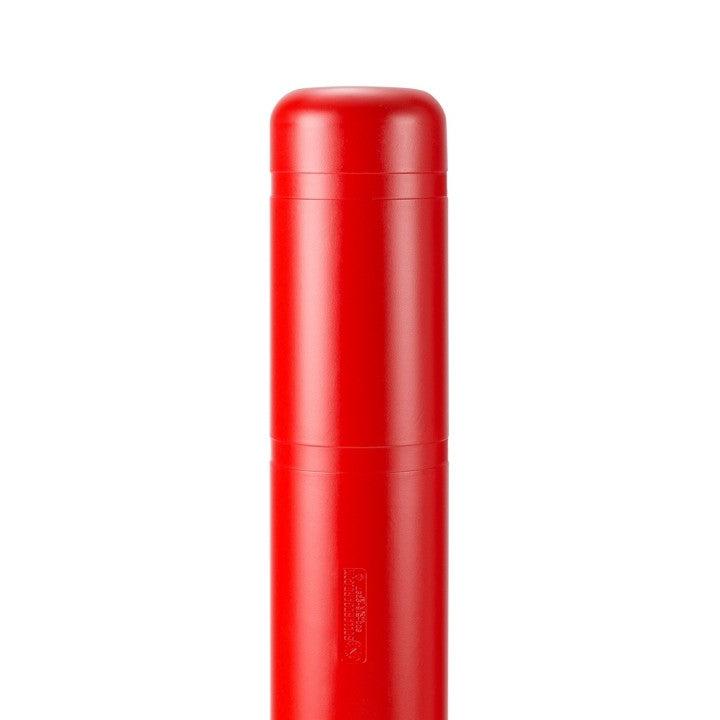

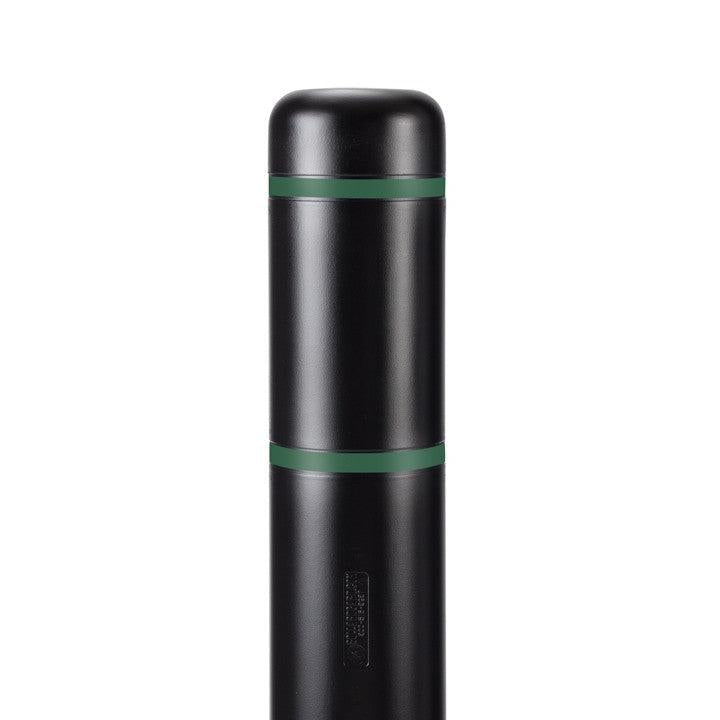

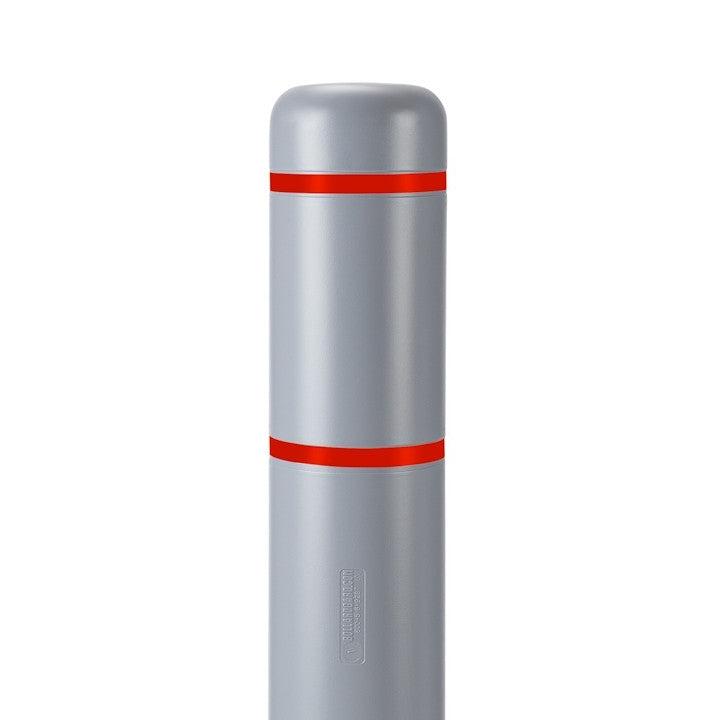

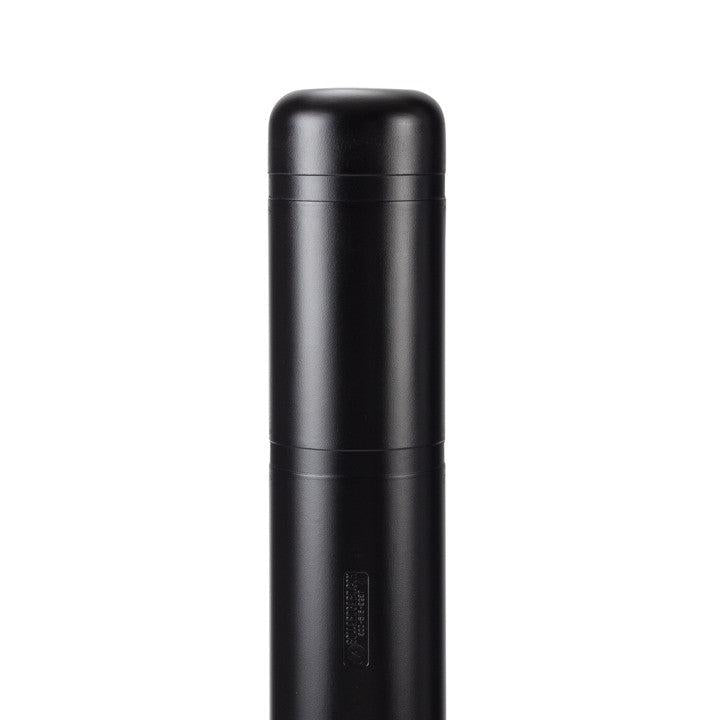

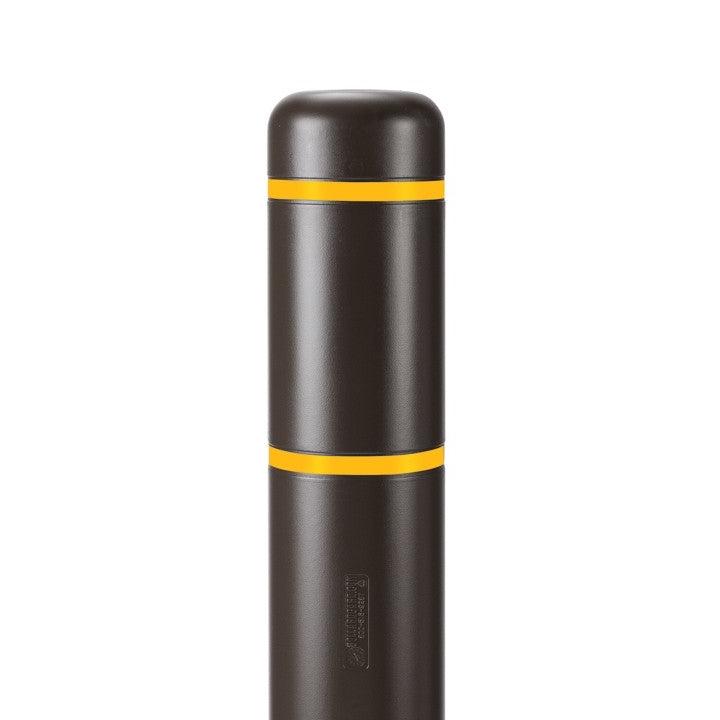

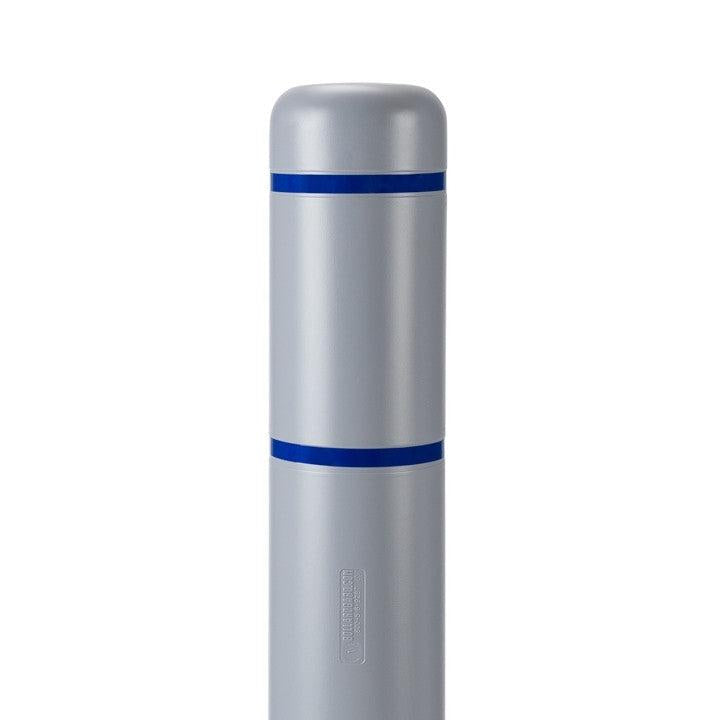

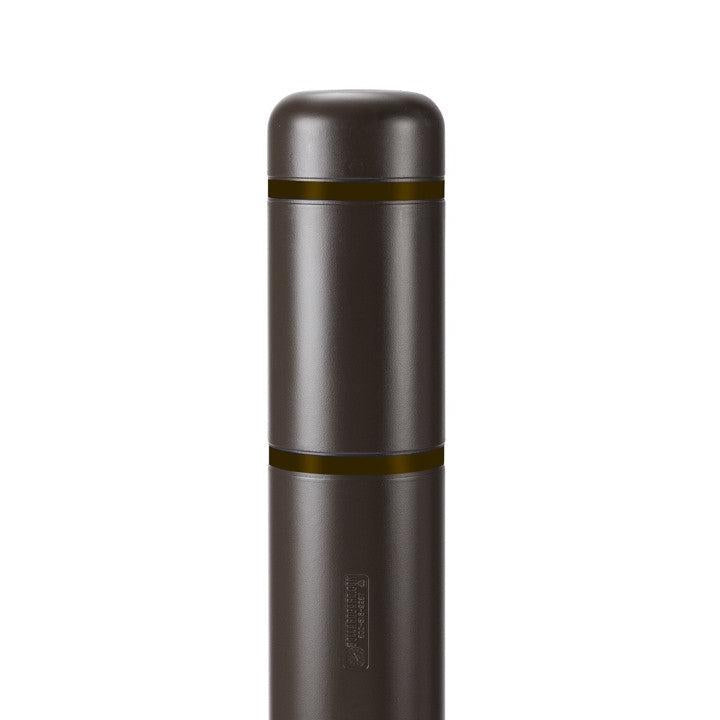

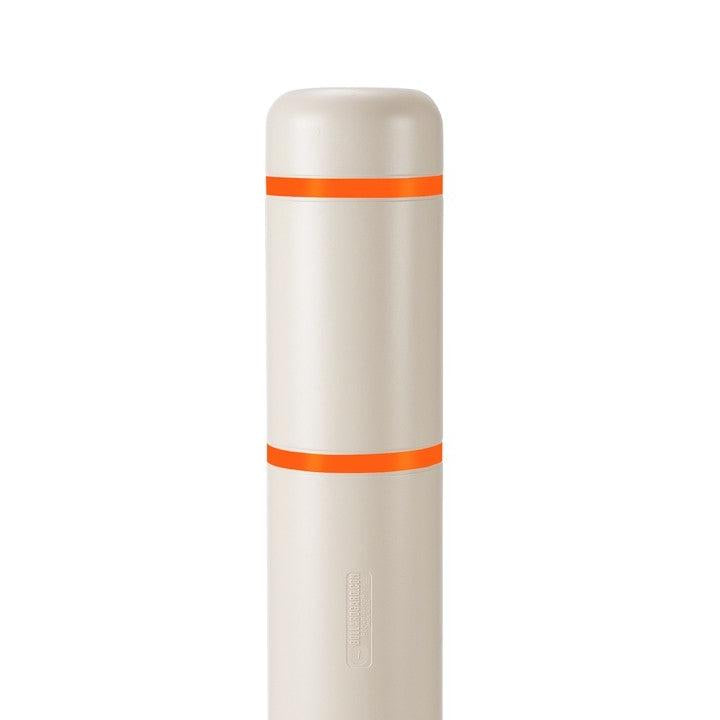

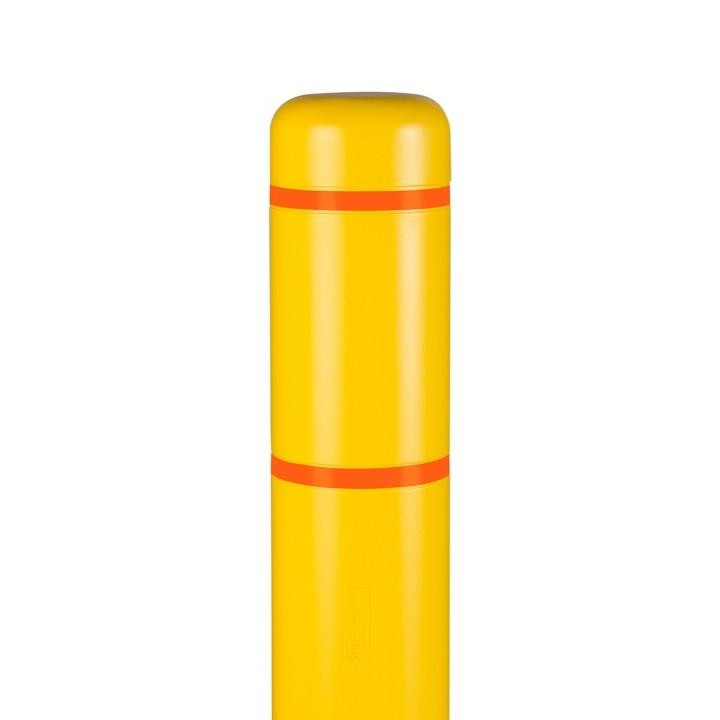

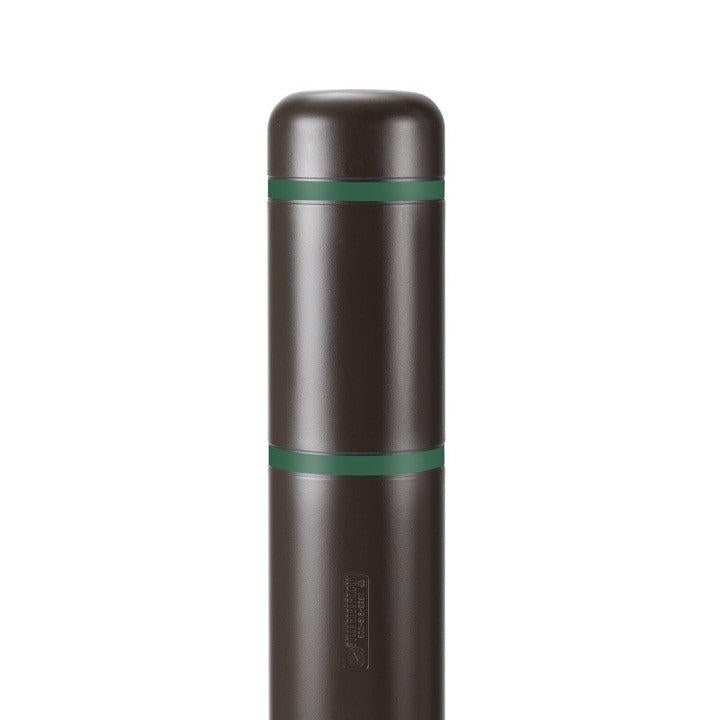

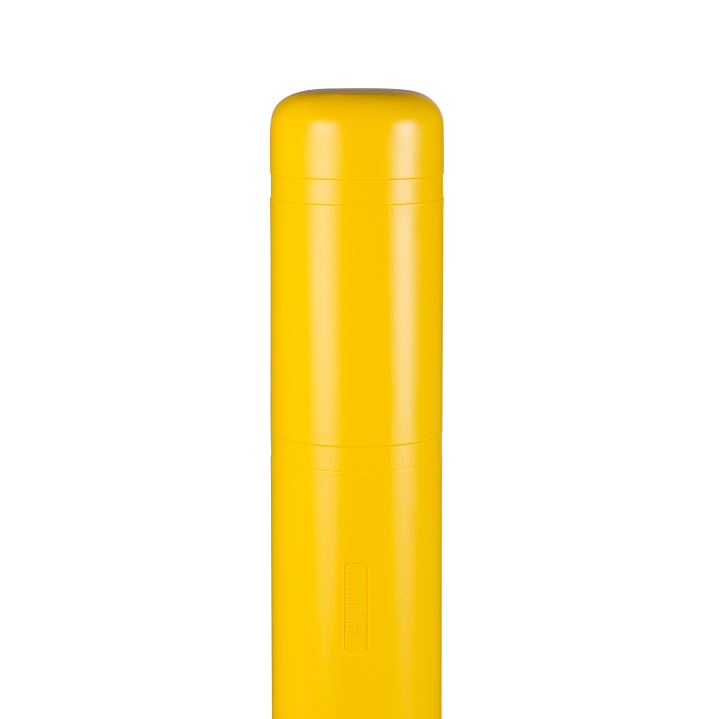

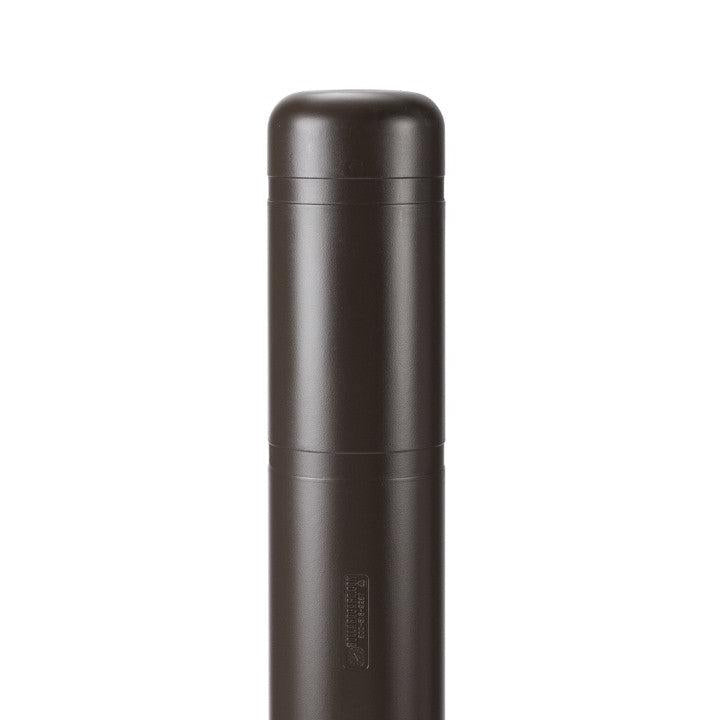

Bollard Cover Colors

The BollardGard™ cover is available in the following standard colors:

Black, Blue, Brown, Gray, Green, Light Gray, Red, White, and Yellow.

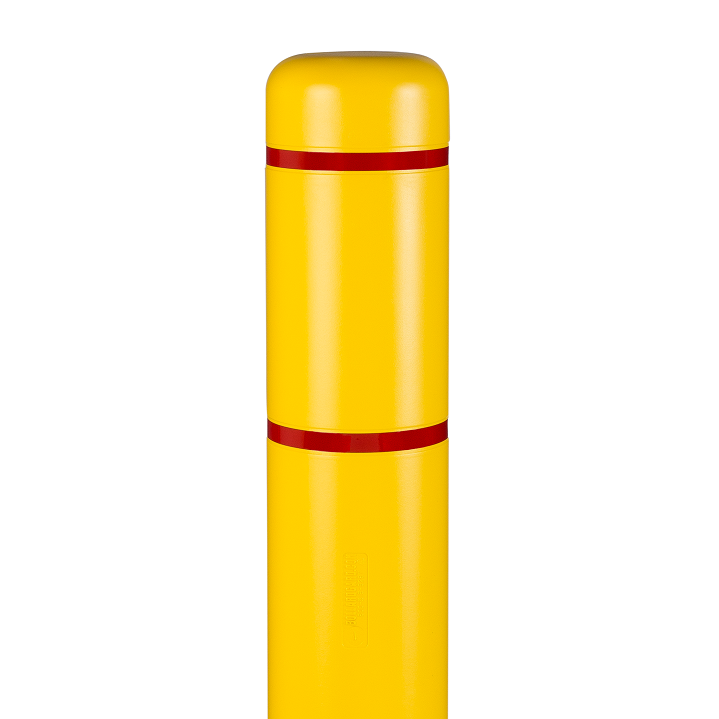

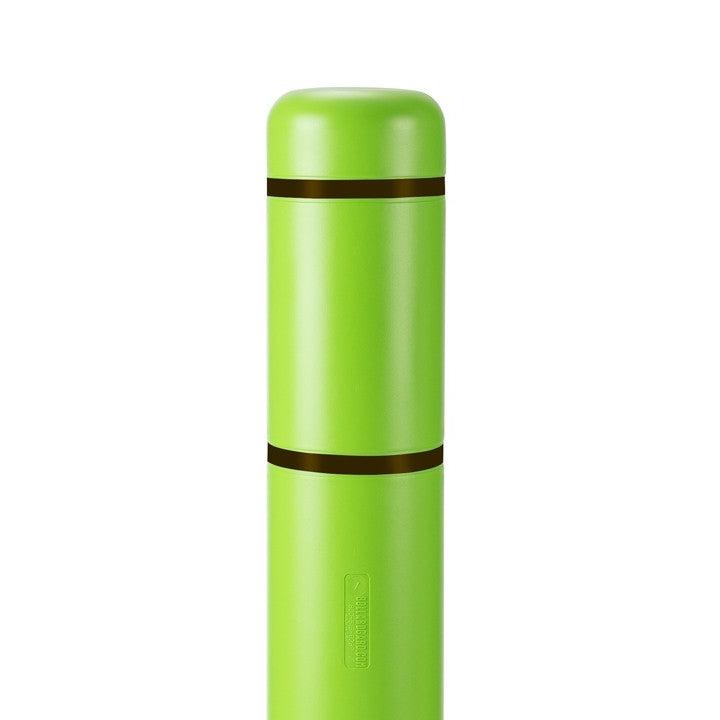

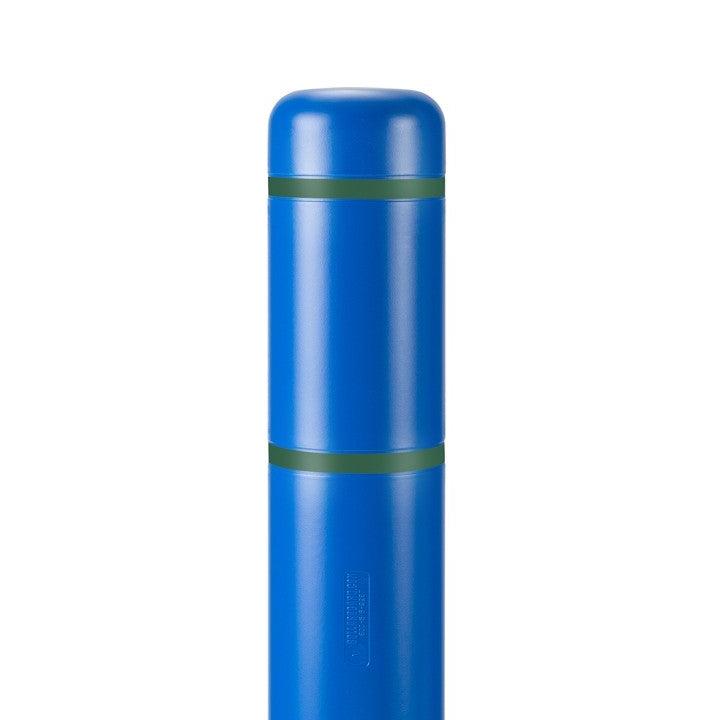

Reflective Options

Two 1" reflective bands can be used to increase visibility in parking, traffic, and low-light environments.

The bands are available in 3M™ #5100 Scotchlite™ Film in Black, Blue, Green, Orange, Red, White, and Yellow. A no-tape configuration may also be selected where reflective material is not required.

Flexible 360° Delineation

The BollardFlex system provides a tall, clearly visible parking or traffic marker while allowing the post to flex when contacted. Rather than remaining completely rigid, the heavy-duty spring assembly allows movement through a full 360° range.

This makes the system useful for locations where traffic guidance and visual separation are important but a conventional rigid post may not be desirable.

Designed for Accessible Parking Areas

At 72" high, this BollardFlex model is particularly useful around accessible parking spaces and other parking environments where a taller delineator needs to remain visible around vehicles.

The bollard itself does not include an accessible-parking sign. Any signage required for the installation should be selected and installed according to applicable codes and project requirements.

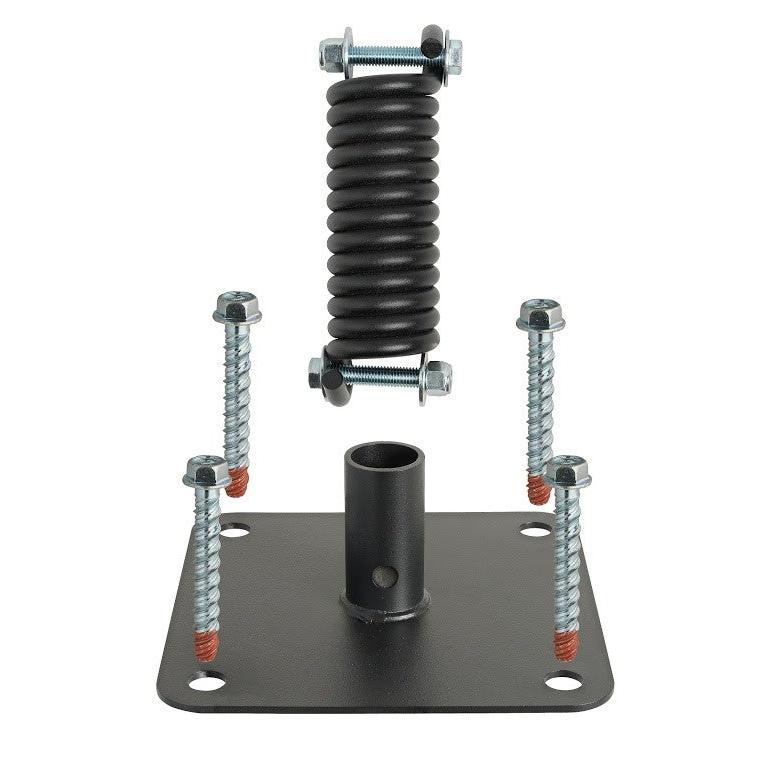

Concrete Installation

This version is configured specifically for concrete installation. The mounting kit includes four 1/2" × 4" wedge bolts for securing the 9.5" square steel base plate to a suitable concrete surface.

Proper installation is important to the stability and operation of the flexible system. Follow the concrete installation instructions and verify that the concrete substrate is appropriate for the supplied anchoring method before installation.

Common Applications

  • Accessible parking areas
  • Parking-space delineation
  • Parking lots and garages
  • Vehicle lane guidance
  • Pedestrian and vehicle separation
  • Building approaches and corners
  • Drive-through lanes
  • Traffic-flow guidance
  • Commercial facilities
  • Municipal and institutional properties

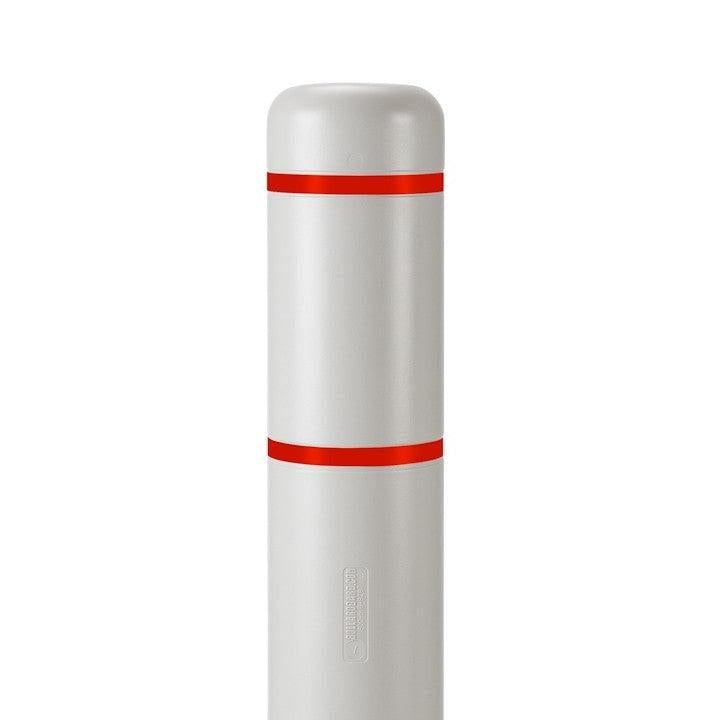

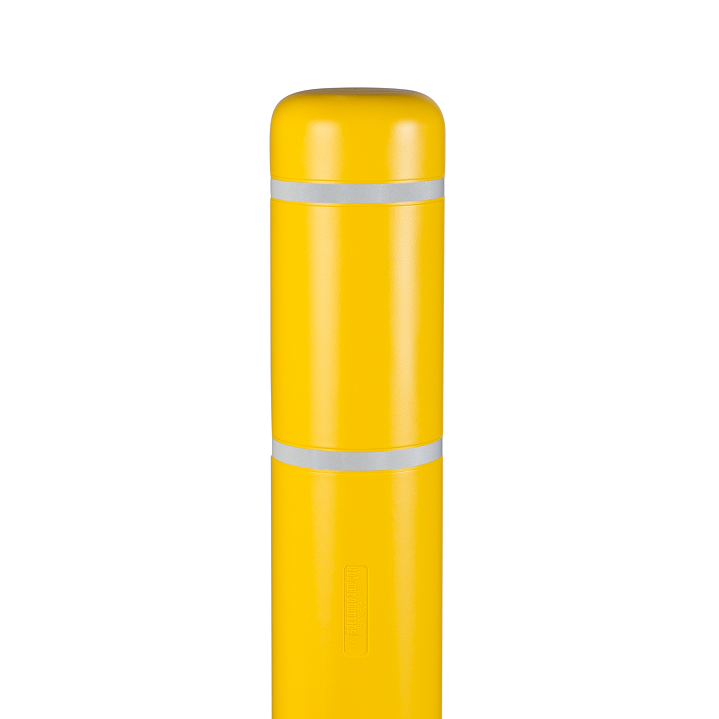

BollardGard™ HDPE Cover

The internal galvanized steel post is concealed by a rigid 72" BollardGard™ HDPE cover, providing a clean finished exterior and helping shield the exposed steel structure from weather and cosmetic wear.

The cover measures 7.35" outside diameter with a .125" wall thickness and is available in multiple colors and reflective-film options.

Important Application Note

The BollardFlex system is intended primarily for parking delineation, traffic guidance, and visual separation. Its flexible construction allows the post to yield when contacted rather than function as a rigid crash barrier.

No certified crash rating, vehicle-impact rating, or specific impact-speed classification has been provided with the supplied product information.

Made in the USA

The 72" BollardFlex Flexible Parking Bollard is proudly manufactured in the United States for parking, traffic-control, commercial, municipal, and institutional applications.

Made in the USA

Technical Resources

View Concrete Installation Instructions

View Mechanical Drawings

Need Multiple Bollards or Project Pricing?

Request a Quote
For large quantities or project-specific requirements, contact LineDividers at sales@linedividers.com or call 1-800-288-2832.
