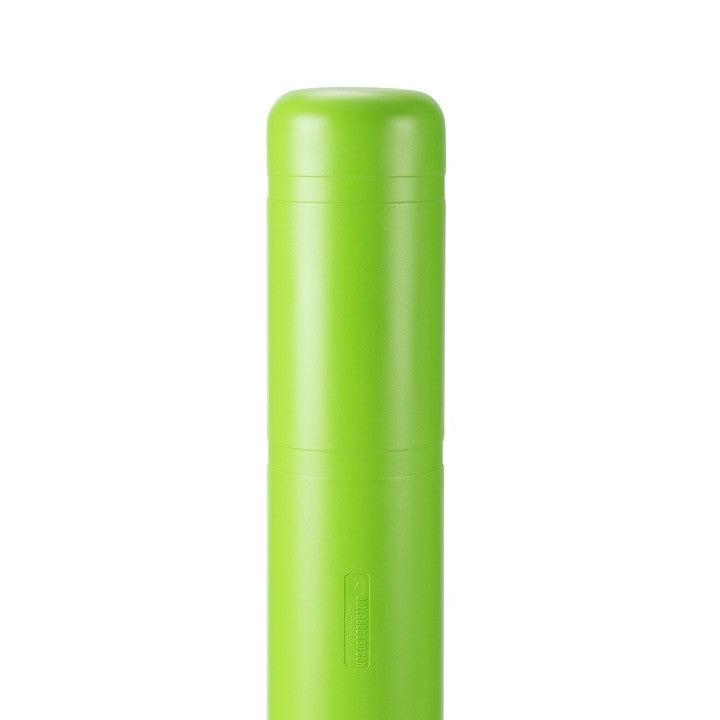

52" BollardFlex Flexible Bollard with 8' Signpost – Concrete Installation

52" BollardFlex Flexible Bollard with 8' Signpost – Concrete Installation

SKU:INN-BF-52C-SP-YENT

Regular price $484.99 USD
Regular price Sale price $484.99 USD
Sale Sold out
  • Call or Email us for large QTY, corporate, or government quotes
Color: Yellow
Tape color

52" BollardFlex Flexible Bollard with 8' Signpost – Concrete Installation

The 52" BollardFlex Flexible Bollard with 8' Signpost combines a highly visible parking and traffic delineator with an elevated galvanized steel signpost, making it well suited for locations where both vehicle-level guidance and regulatory or informational signage are required.

The system features a 7.35" OD × 52" BollardGard™ HDPE cover installed over a galvanized steel post and heavy-duty flexible spring assembly. The bollard can flex through a 360° range of motion with approximately 9 lb of pressure, allowing the assembly to yield during incidental contact rather than remain completely rigid.

An integrated 96" (8') galvanized steel signpost extends the finished system to approximately 102" overall height. This model is configured specifically for concrete installation and includes four 1/2" × 4" wedge bolts for securing the base to a suitable concrete surface. Sign is not included.

Features & Benefits

  • 360° Flexible Design: Heavy-duty spring system allows the bollard and signpost assembly to flex in any direction with approximately 9 lb of pressure.
  • Integrated 8' Signpost: Provides an elevated mounting point for compatible parking, regulatory, directional, and informational signs.
  • 102" Finished Overall Height: Tall configuration improves visibility around parked vehicles and pedestrian areas.
  • 52" BollardGard™ Cover: Rigid HDPE cover provides a clean, highly visible exterior around the lower steel post.
  • Galvanized Steel Post: 1-5/8" round galvanized steel post provides internal support and serves as the signpost structure.
  • Heavy-Duty Steel Base: 9.5" square, 7-gauge steel base plate provides the mounting foundation for the flexible system.
  • Concrete Mounting Hardware Included: Supplied with four 1/2" × 4" wedge bolts.
  • Two Reflective Bands: Two 1" reflective bands increase visibility in parking and low-light environments.
  • 3M™ Reflective Material: Available with 3M™ #5100 Scotchlite™ Film in multiple colors.
  • UV-Stable HDPE Cover: Designed for exterior exposure and long-term color stability.
  • Sign Not Included: Compatible signage can be selected separately for the intended application.
  • Made in the USA: Proudly manufactured in the United States.

Technical Specifications

Product Type Flexible Bollard & Signpost System
Model BFS52
Installation Type Concrete Mount
Finished Overall Height 102"
Bollard Cover Height 52"
Bollard Cover Outside Diameter 7.35"
Bollard Cover Wall Thickness .125" HDPE
Signpost 96" (8') × 1-5/8" Round Galvanized Steel – Silver
Base Plate 9.5" Square, 7-Gauge Standard Steel
Flexibility 360°
Flexing Force Approximately 9 lb
Materials HDPE / Steel
Concrete Mounting Hardware (4) 1/2" × 4" Wedge Bolts
Reflective Bands Two 1" Bands
Sign Not Included
Warranty 1 Year Against Manufacturer Defects

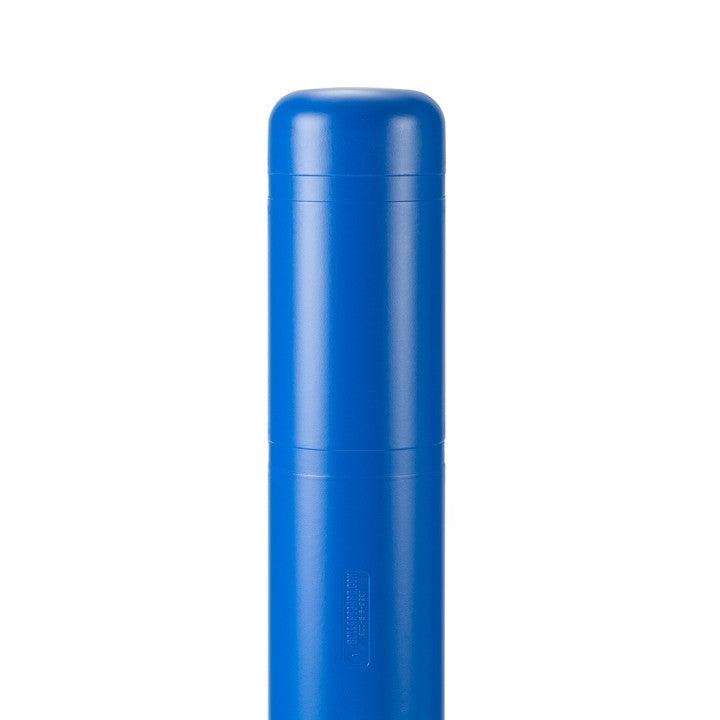

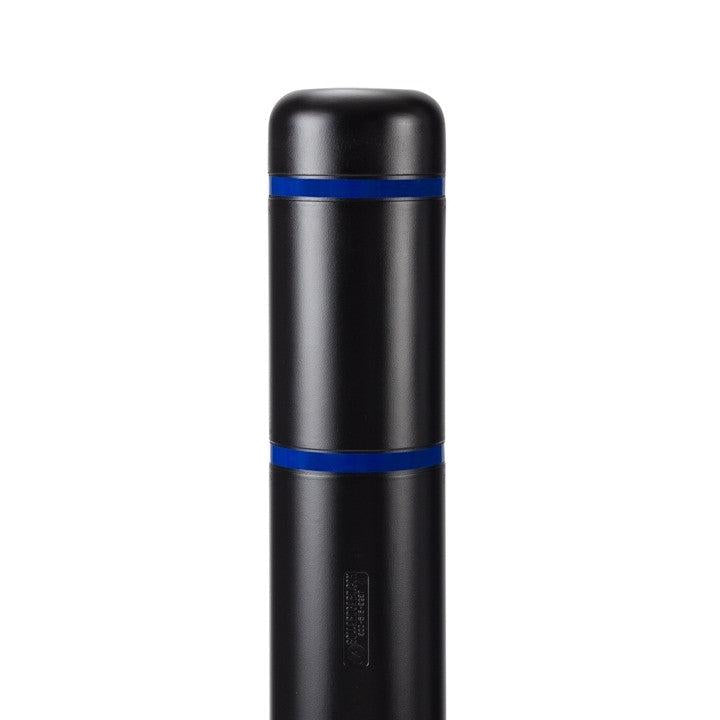

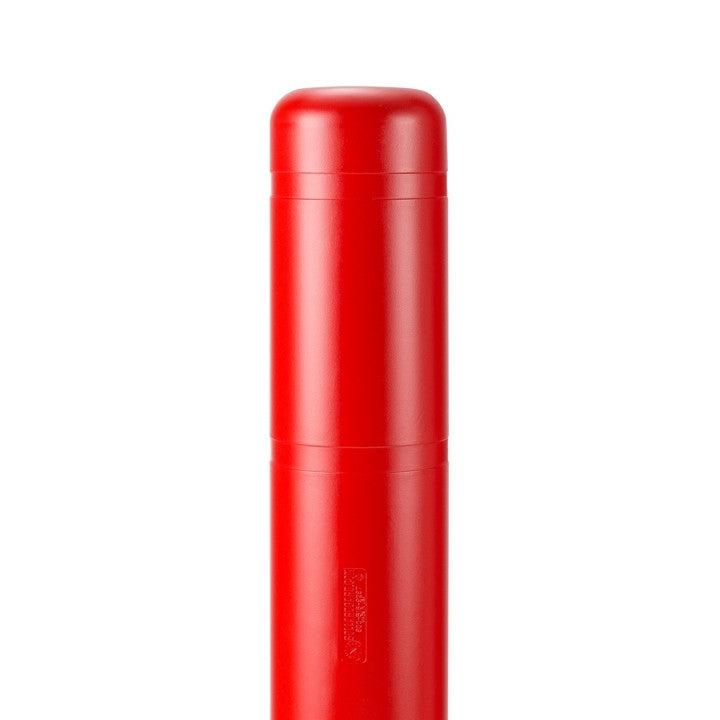

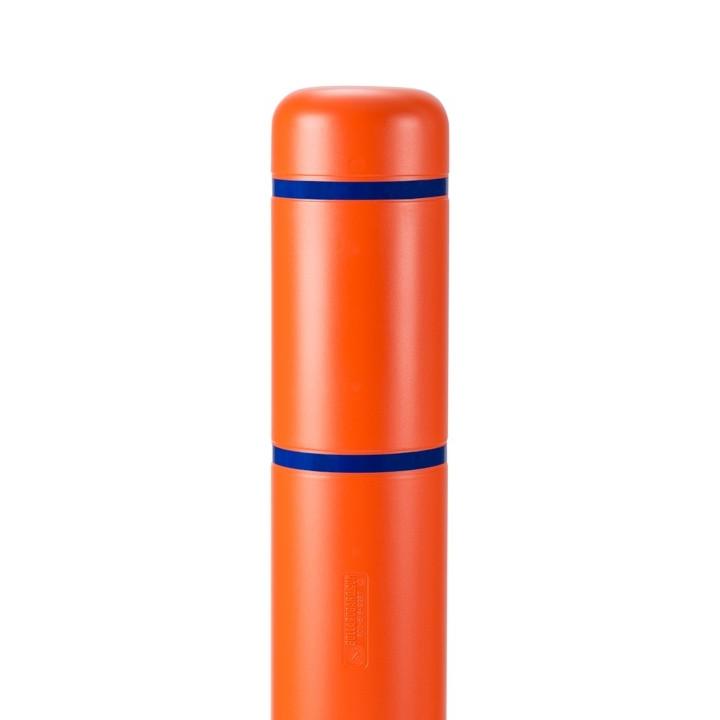

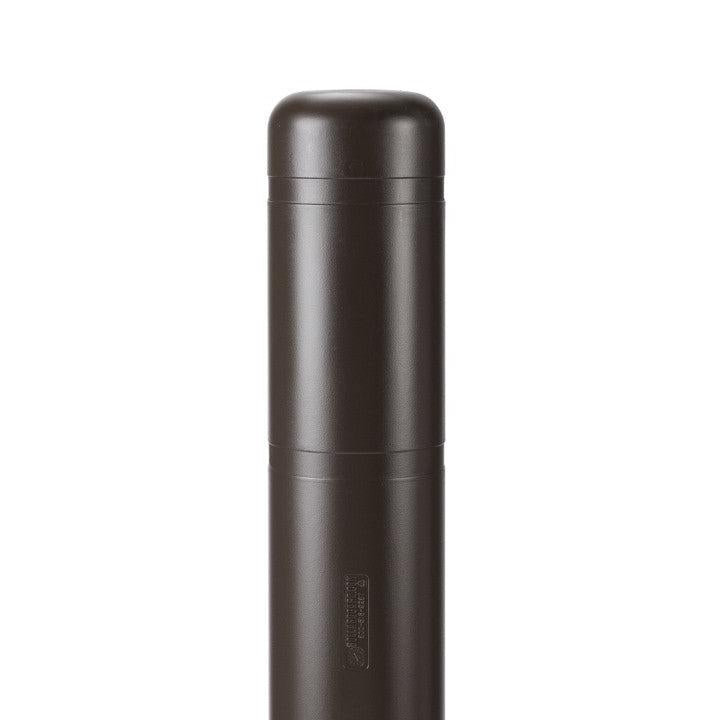

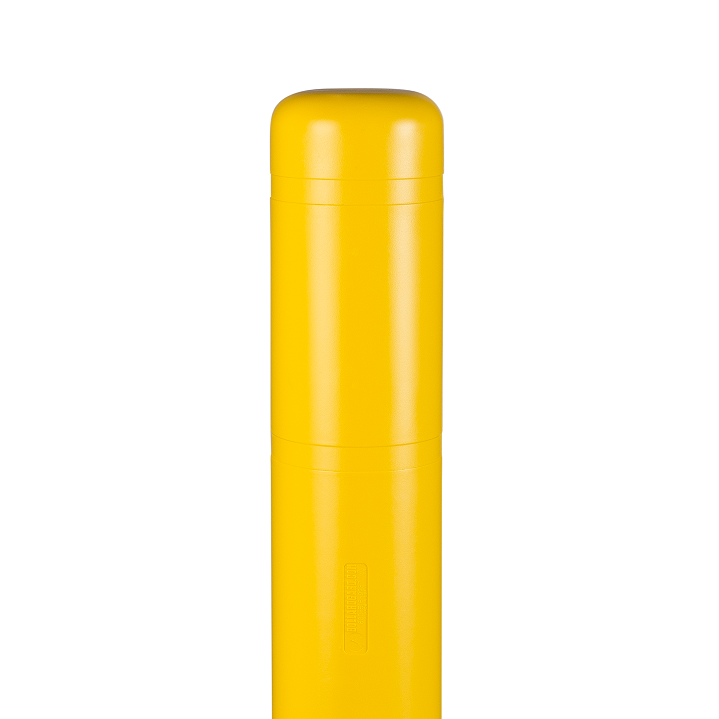

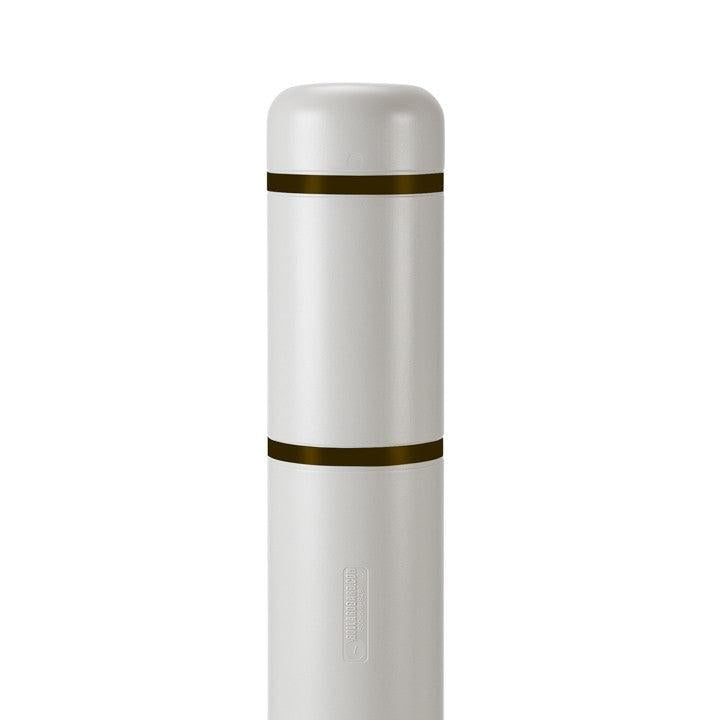

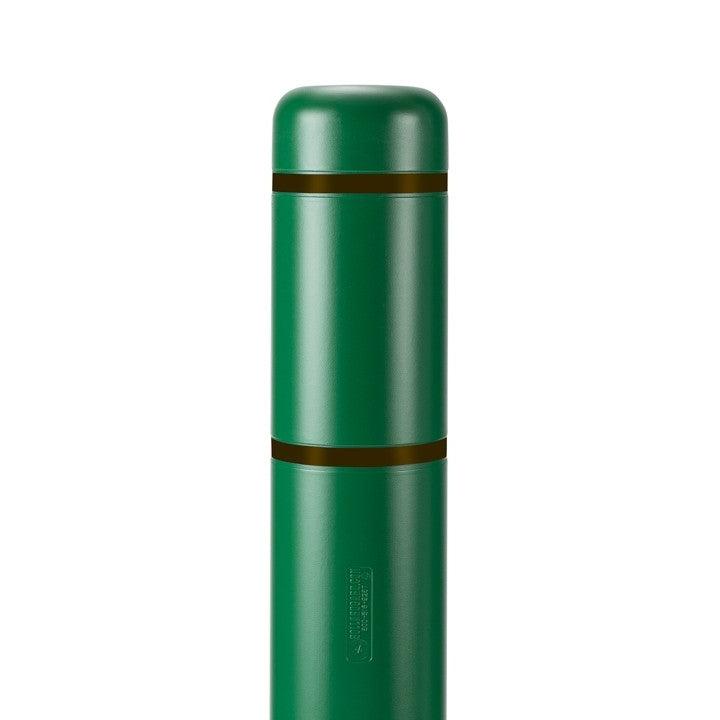

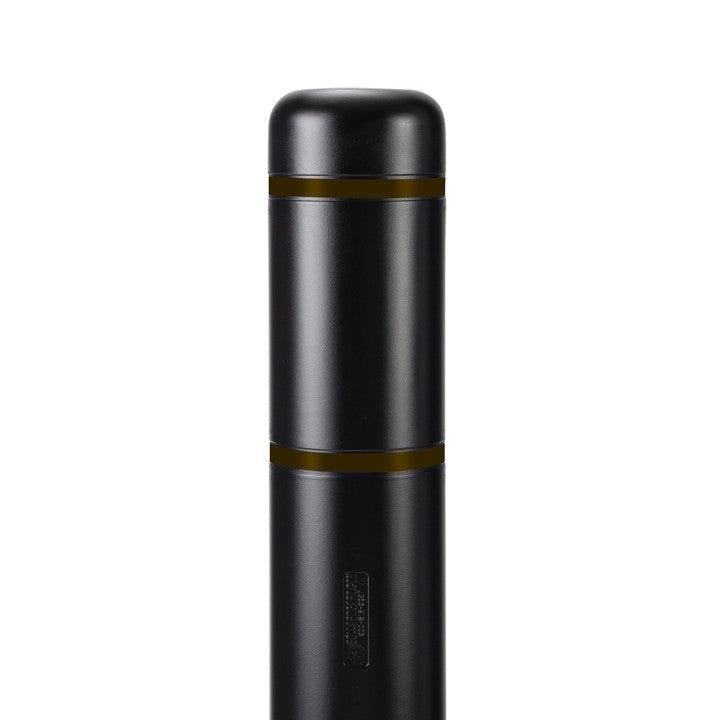

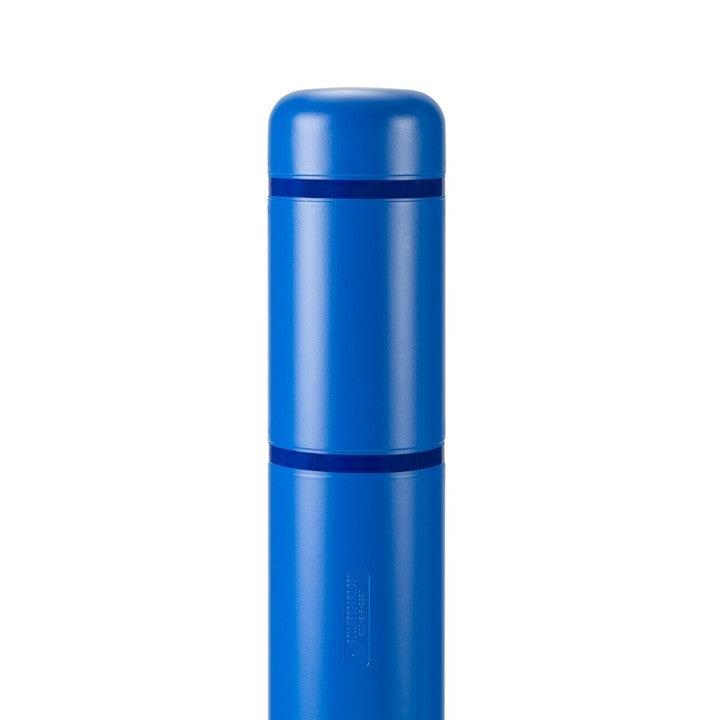

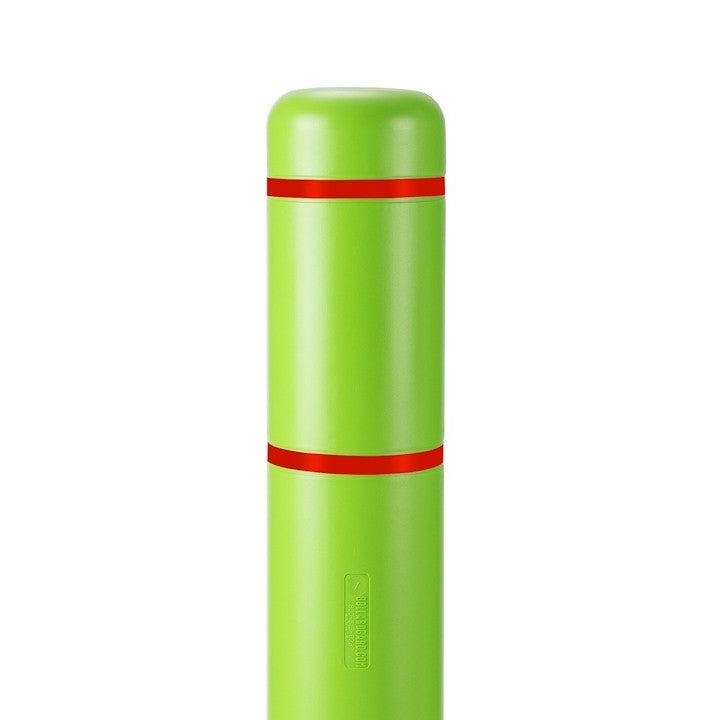

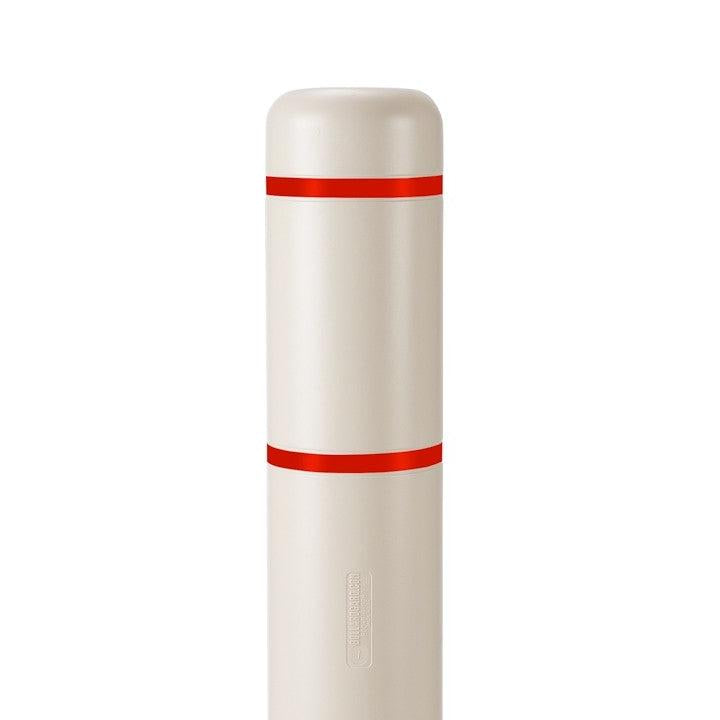

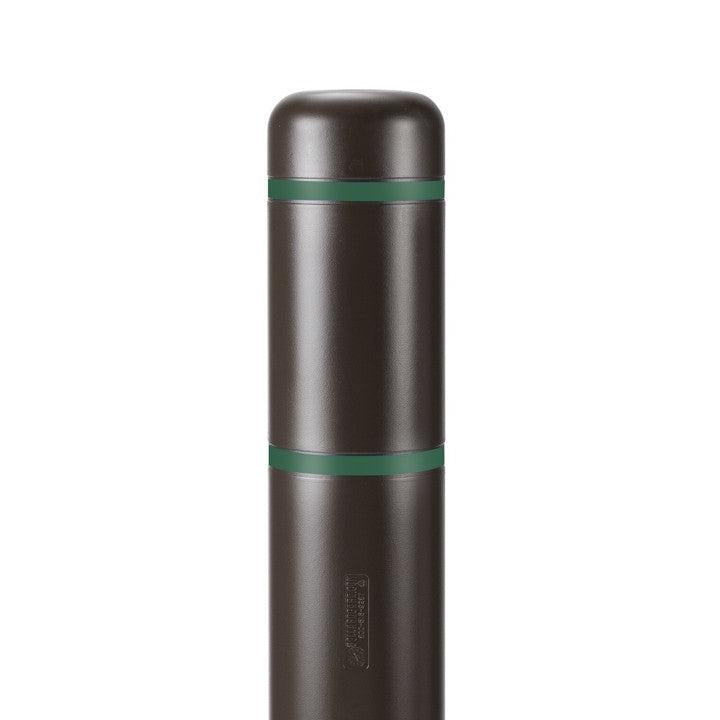

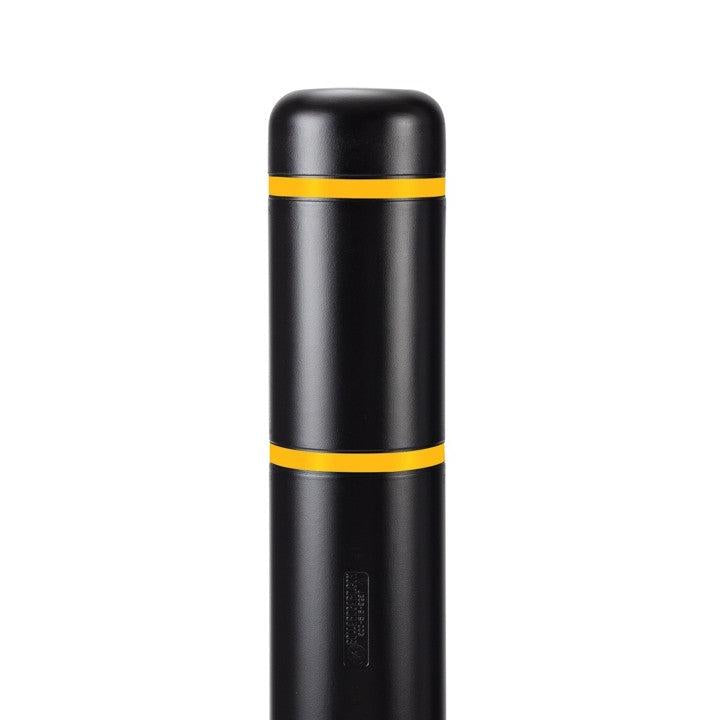

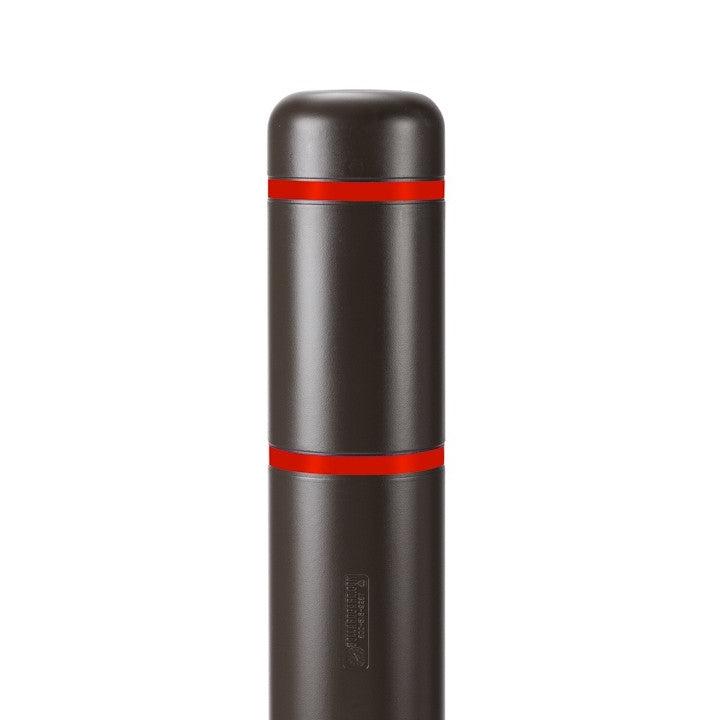

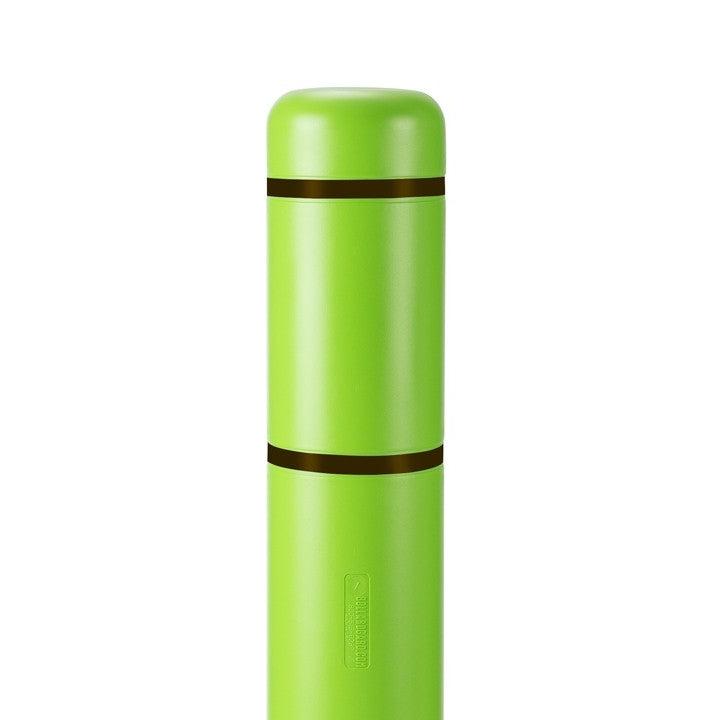

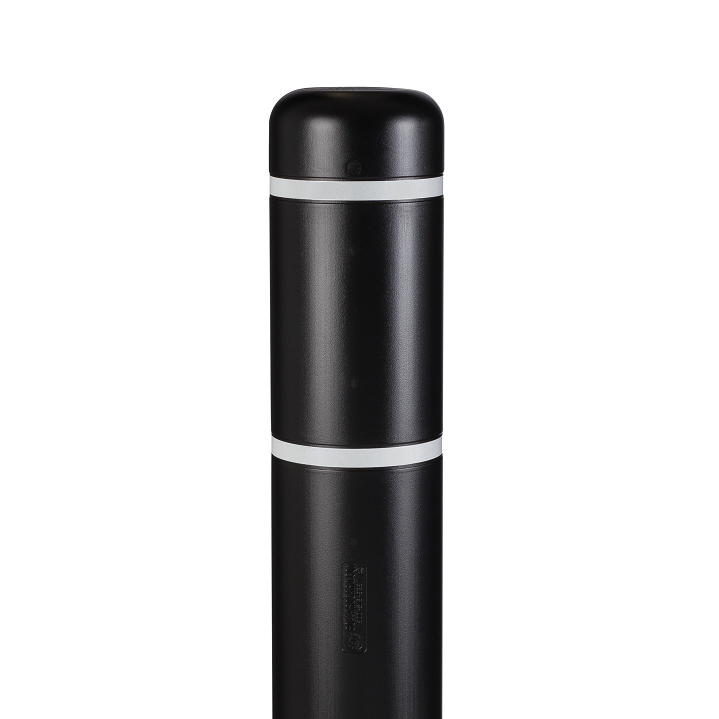

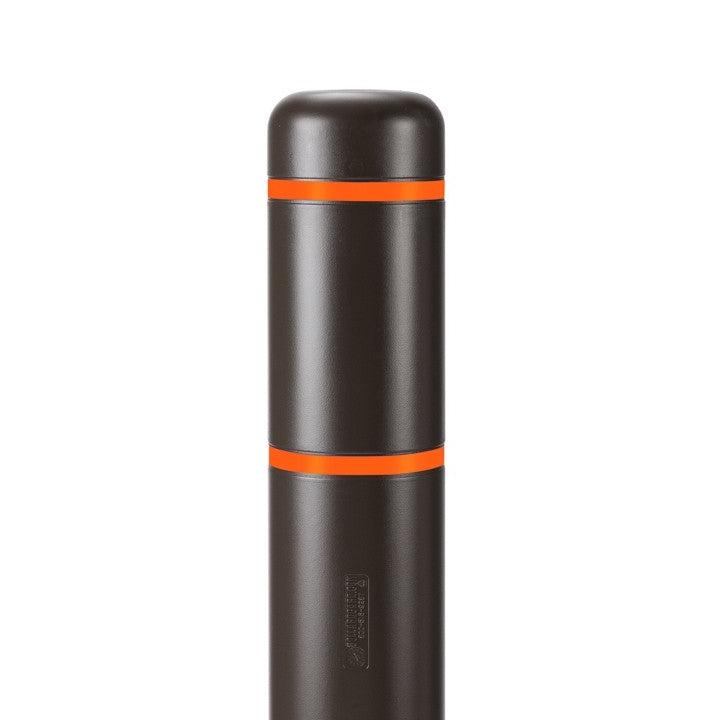

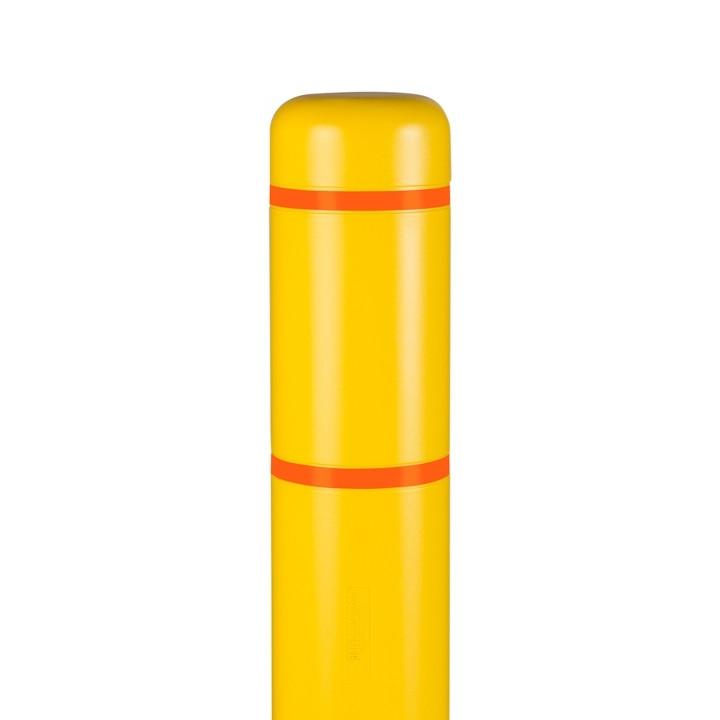

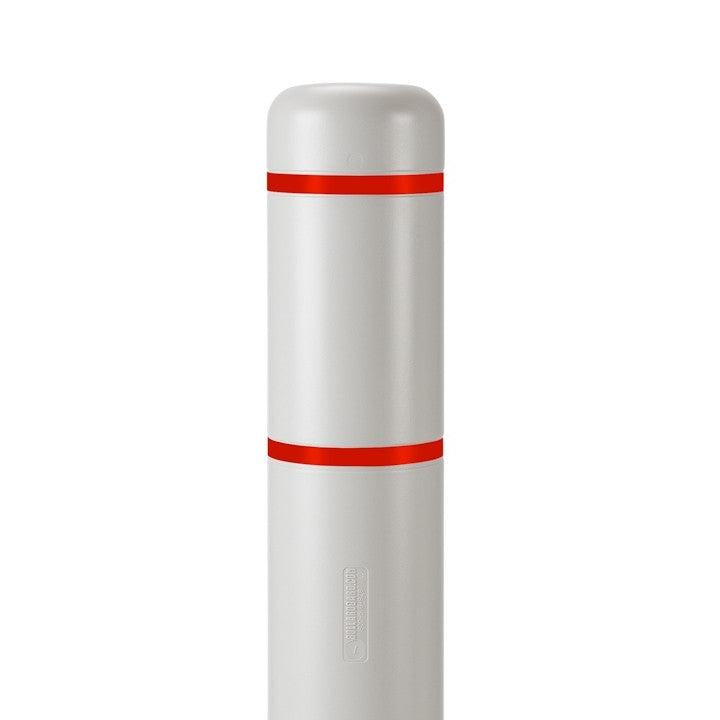

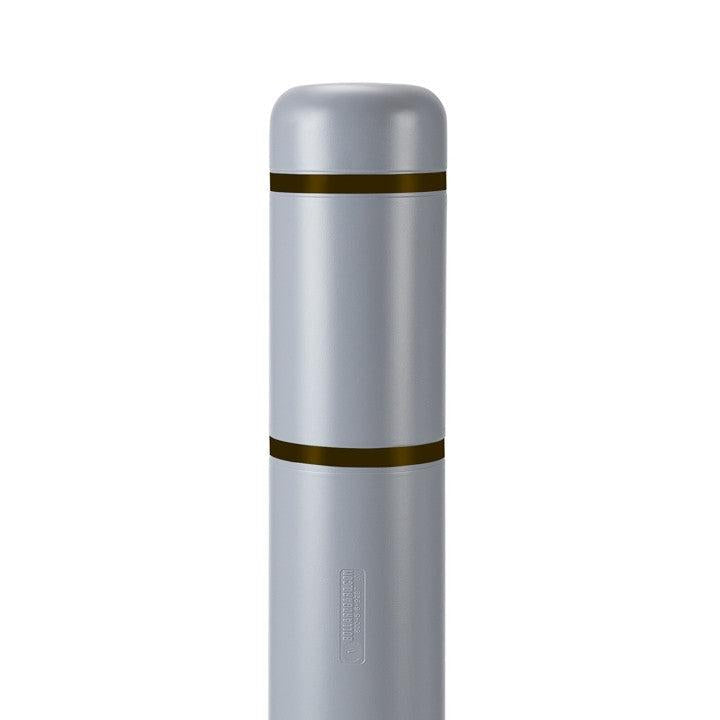

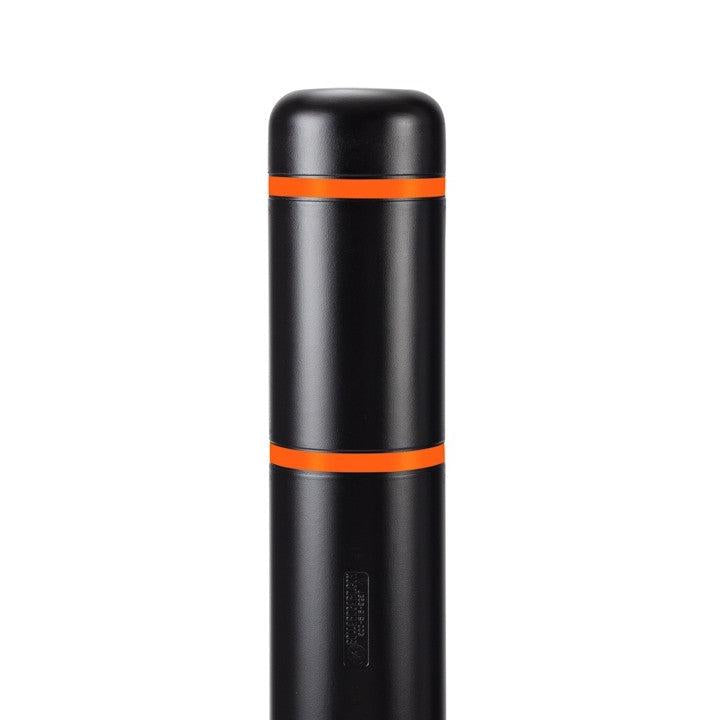

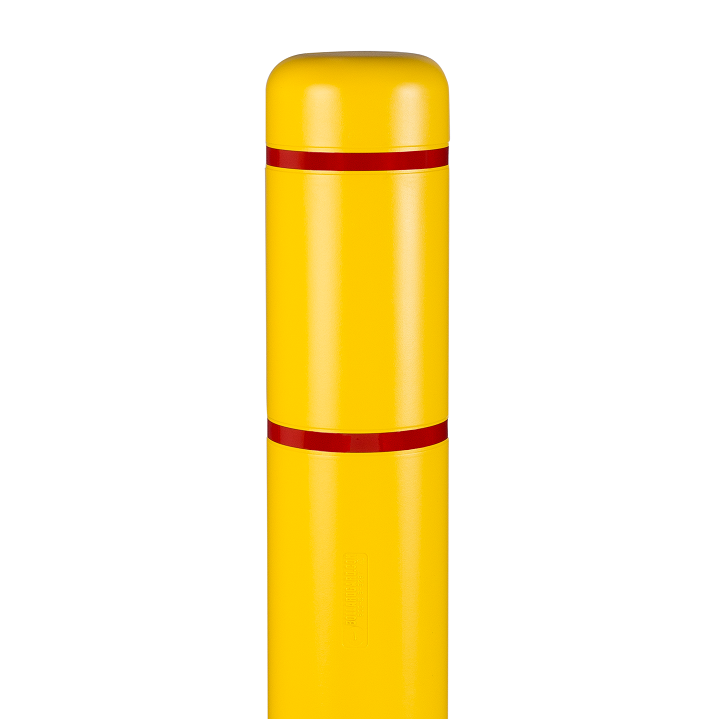

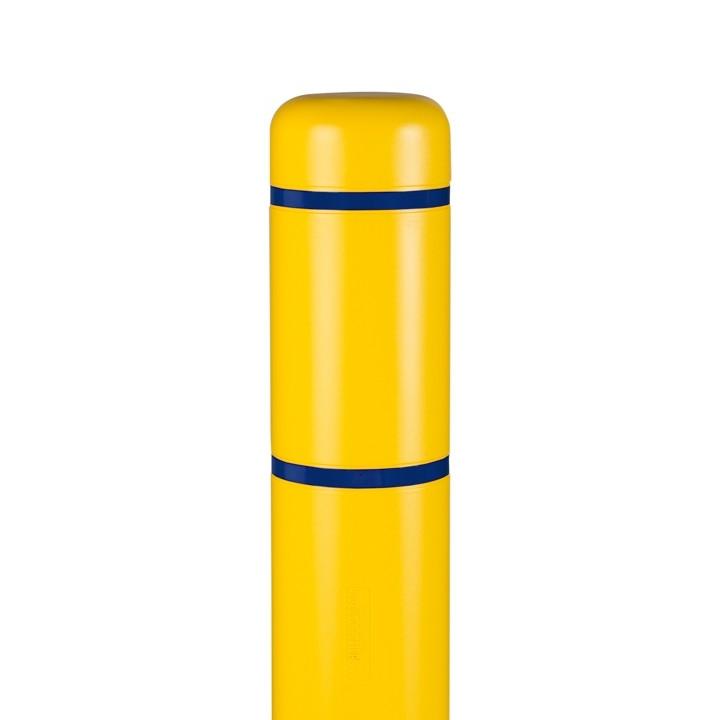

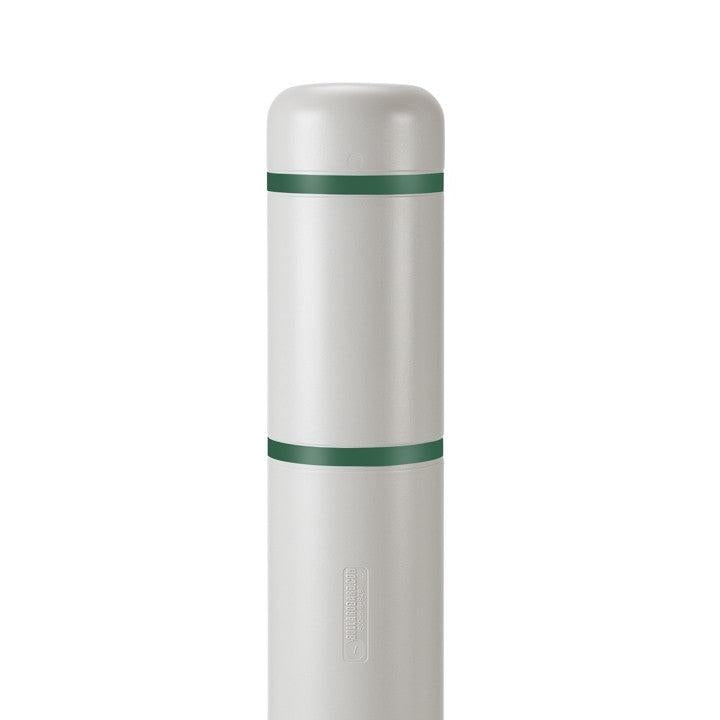

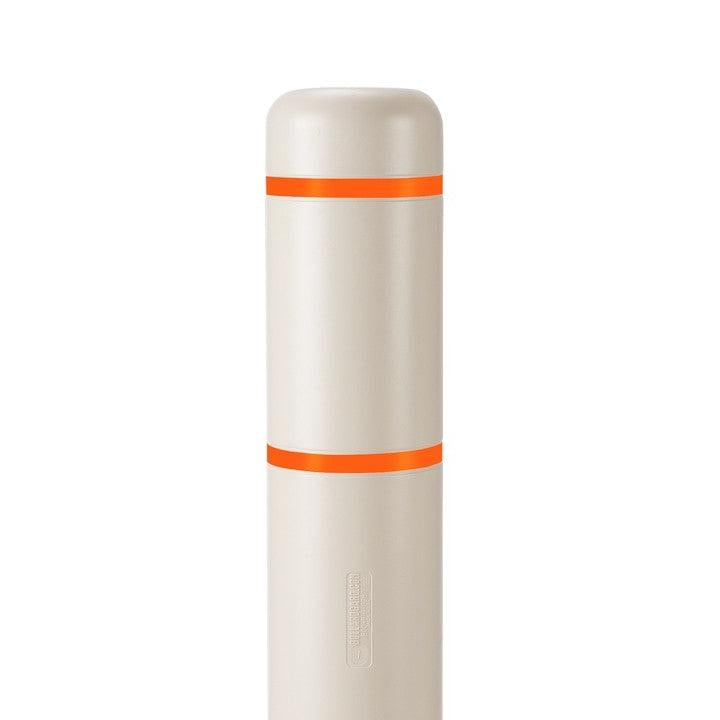

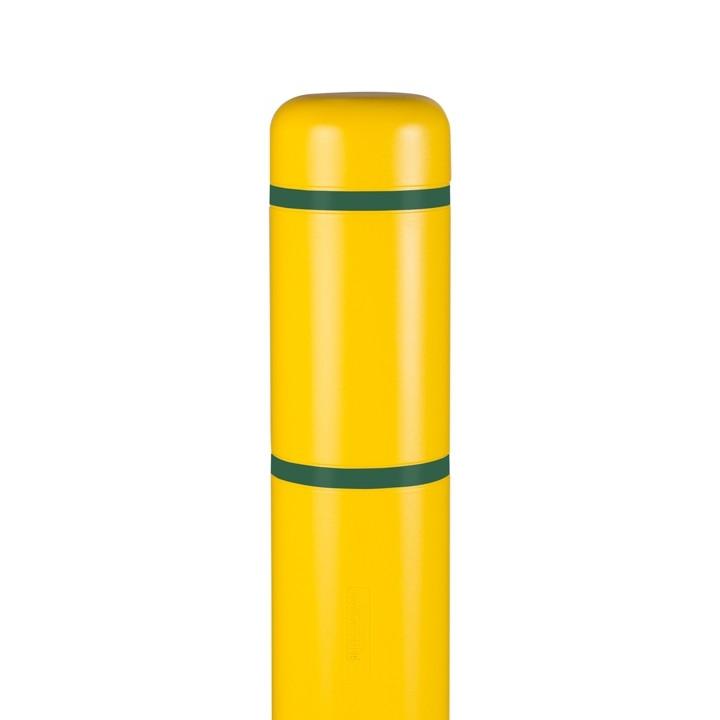

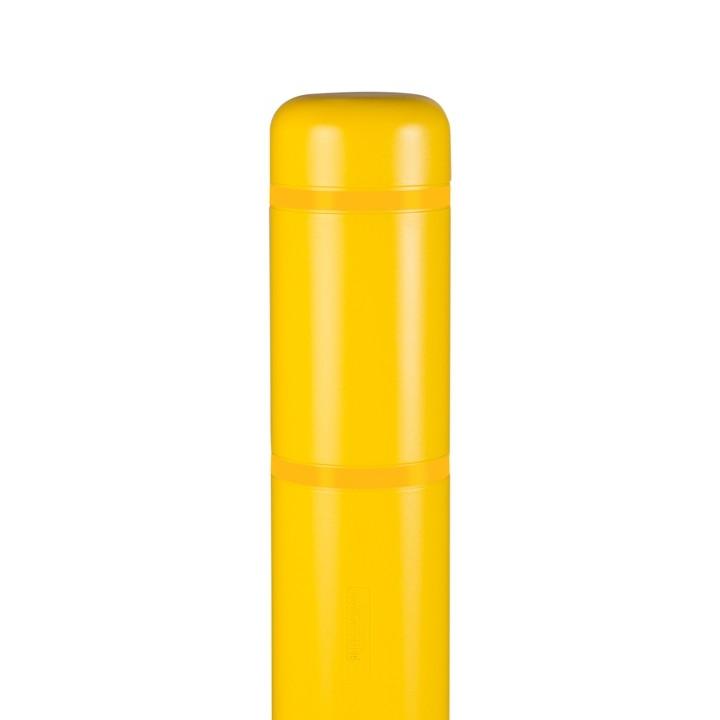

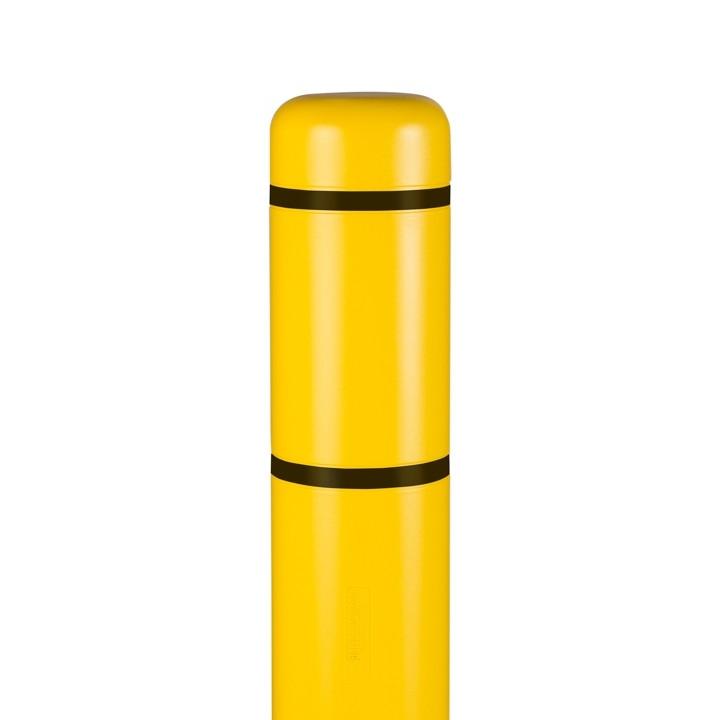

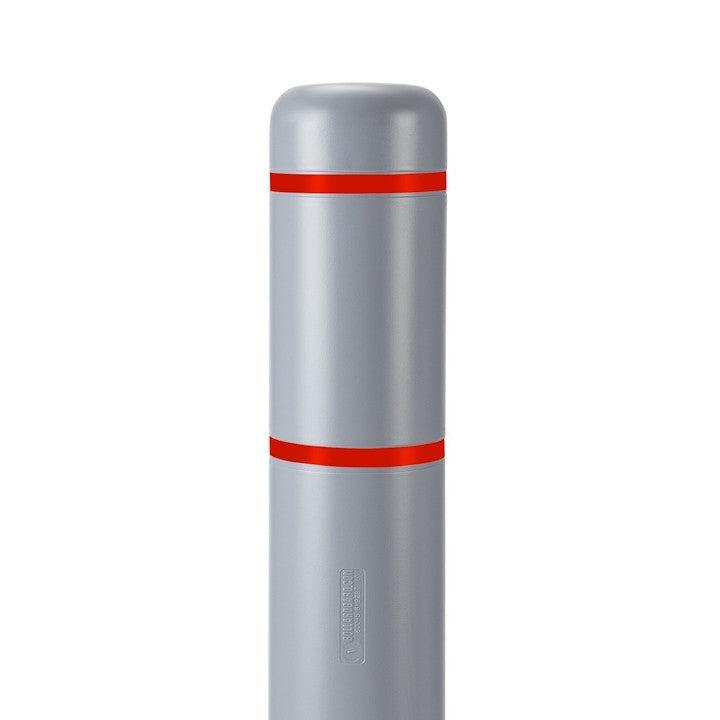

Bollard Cover Colors

The BollardGard™ cover is available in the following standard colors:

Black, Blue, Brown, Gray, Green, Light Gray, Red, White, and Yellow.

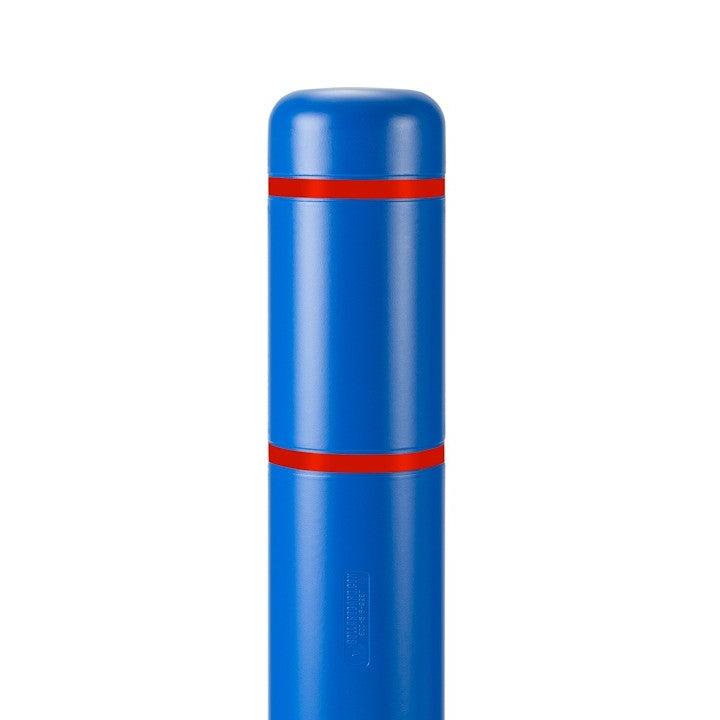

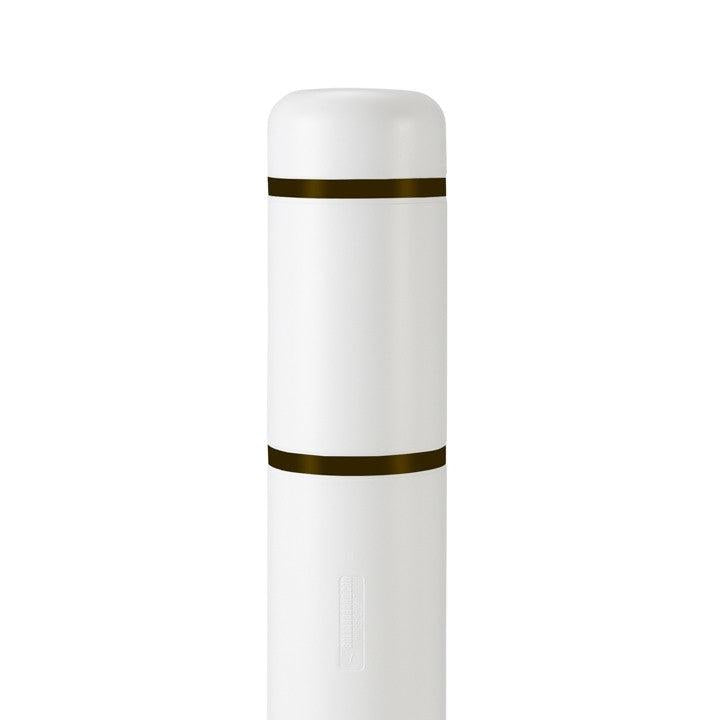

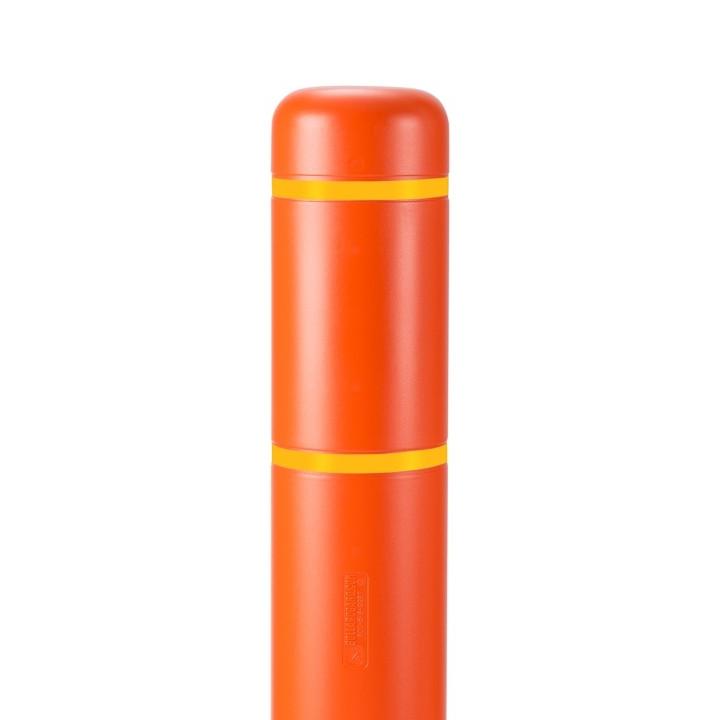

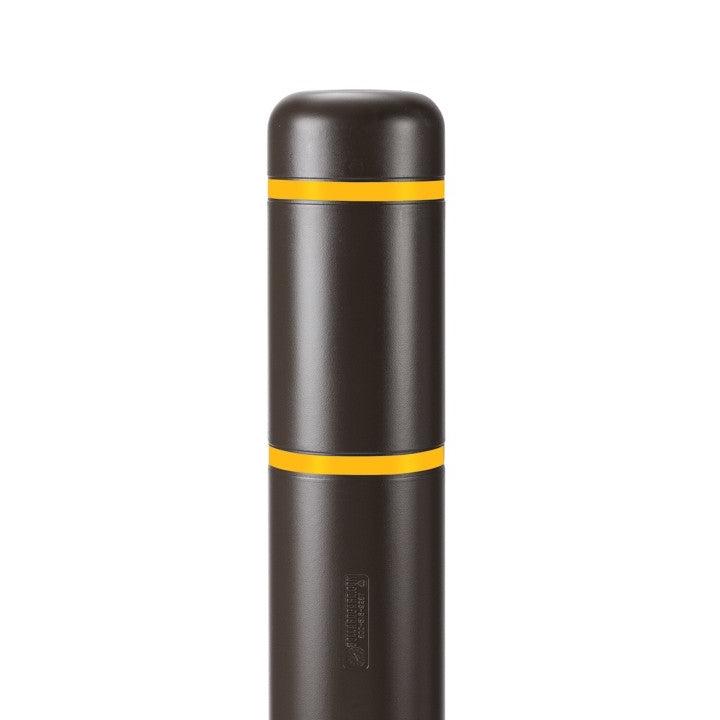

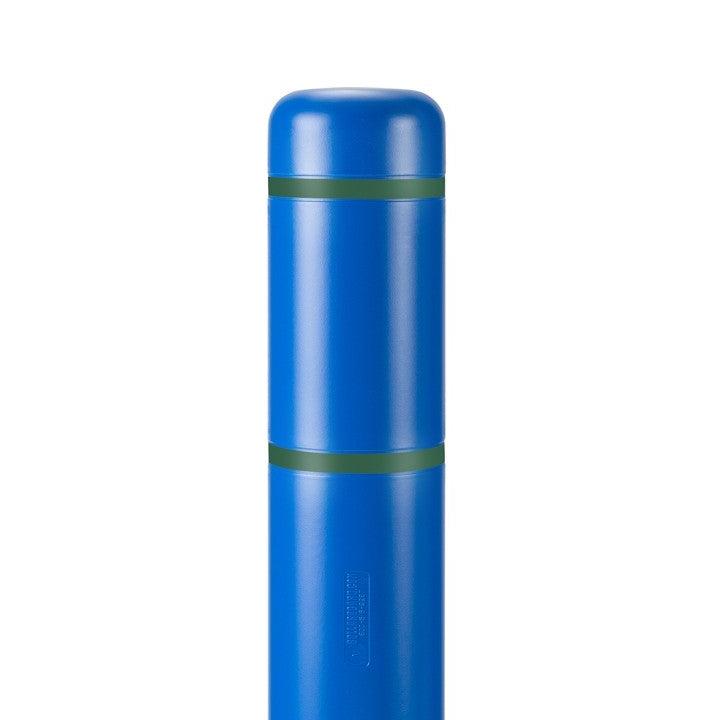

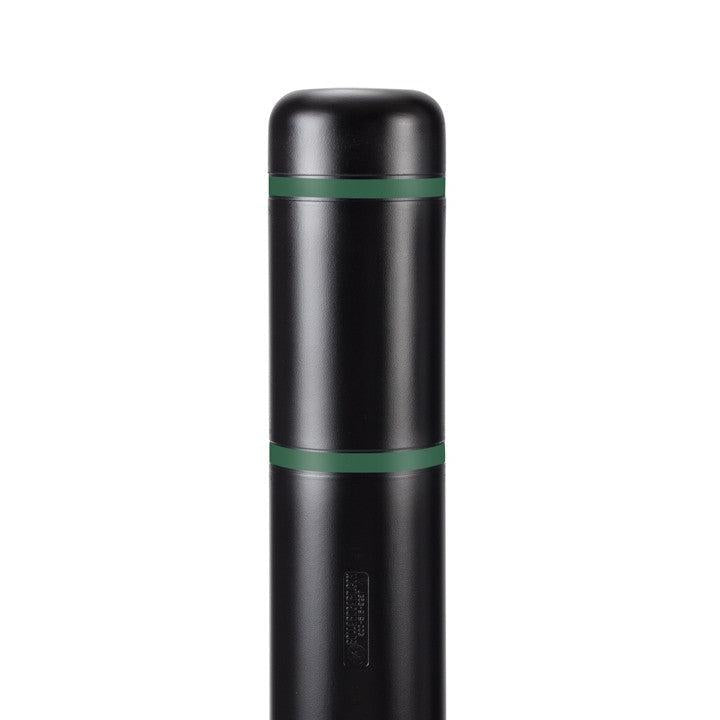

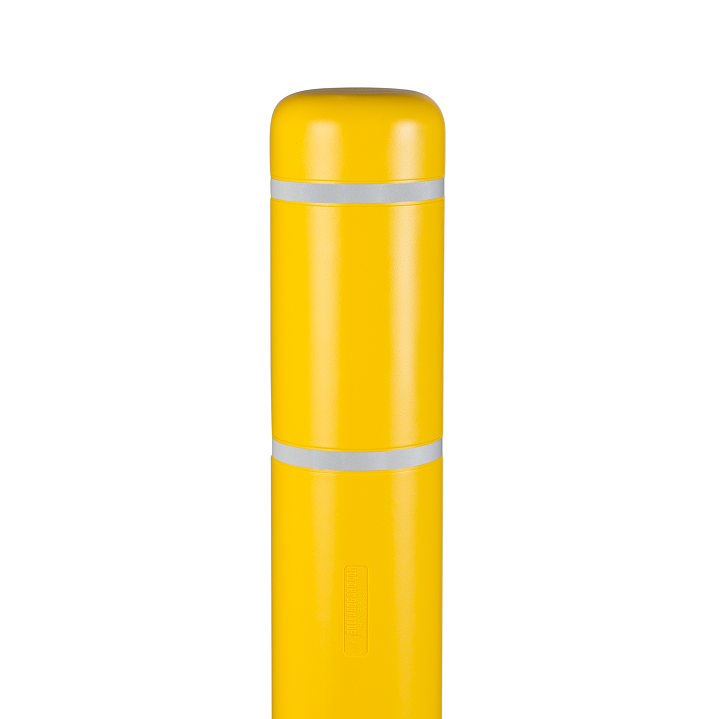

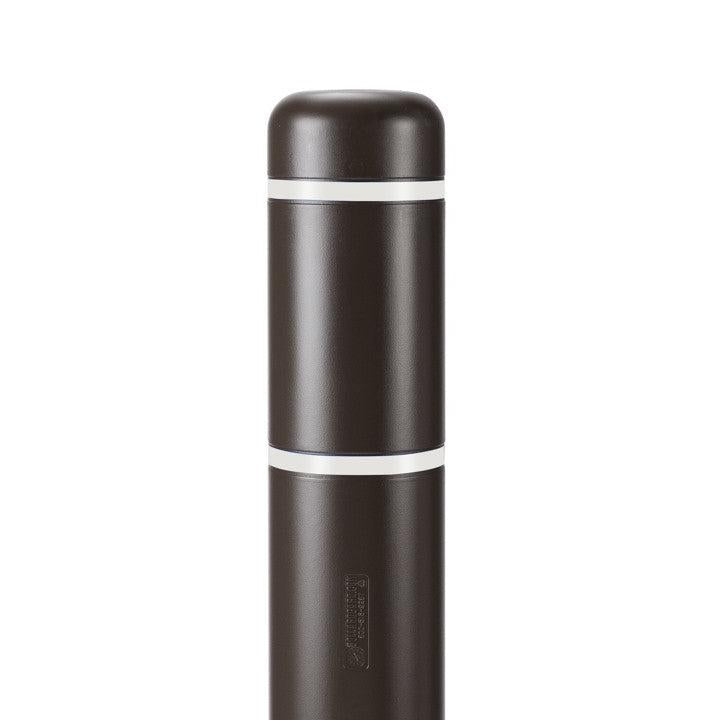

Reflective Options

Two 1" reflective bands can be used to increase visibility in parking, traffic, and low-light environments.

The bands are available in 3M™ #5100 Scotchlite™ Film in Black, Blue, Green, Orange, Red, White, and Yellow.

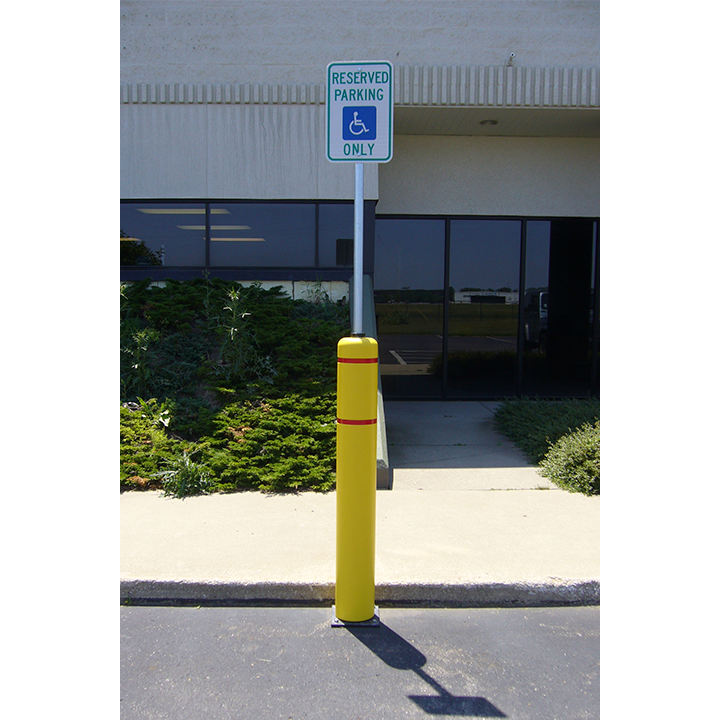

Integrated 8' Signpost

The galvanized steel signpost allows the BollardFlex system to combine vehicle-level delineation with elevated sign placement from a single installation point.

Its 96" post provides substantial vertical space for compatible steel regulatory or informational signage, making the system useful for accessible parking, reserved parking, directional signs, traffic-control areas, and other locations where both a visible bollard and elevated sign are needed.

Sign is not included.

Flexible 360° Delineation

The BollardFlex system uses a heavy-duty spring assembly that allows the post to flex through a full 360° range of motion rather than remain completely rigid.

This flexible construction helps the system accommodate incidental vehicle contact while continuing to serve as a visible parking or traffic delineator and elevated sign support.

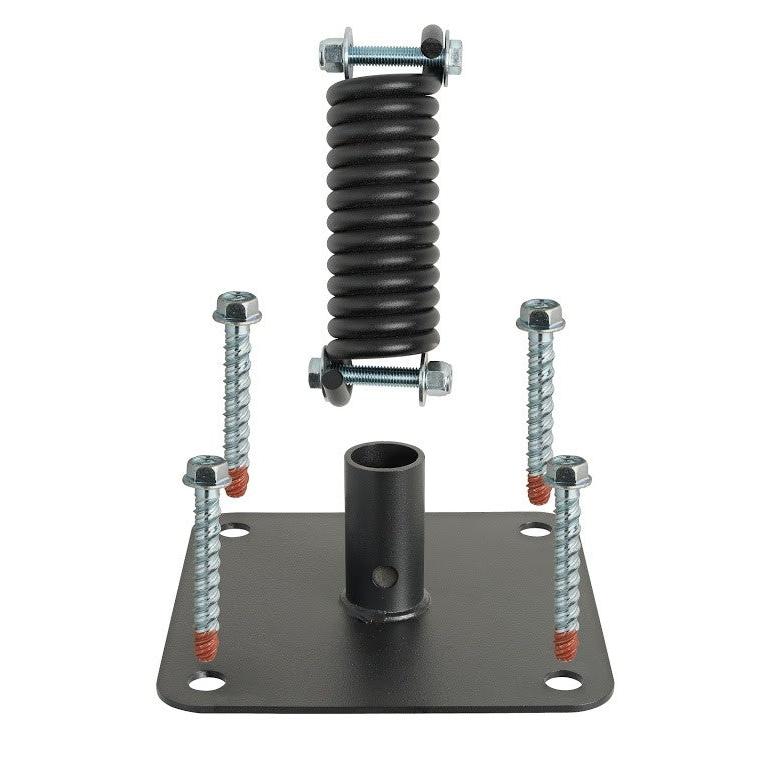

Concrete Installation

This model is configured specifically for concrete installation. The mounting kit includes four 1/2" × 4" wedge bolts for securing the 9.5" square steel base plate to a suitable concrete surface.

The base should be properly anchored before the post and sign components are installed. Follow the concrete installation instructions and verify that the concrete substrate is appropriate for the supplied anchoring method.

Common Applications

  • Accessible parking signage
  • Reserved parking areas
  • Parking lots and garages
  • Parking-space delineation
  • Traffic-control signage
  • Vehicle lane guidance
  • Pedestrian and vehicle separation
  • Directional signage
  • Commercial facilities
  • Municipal and institutional properties

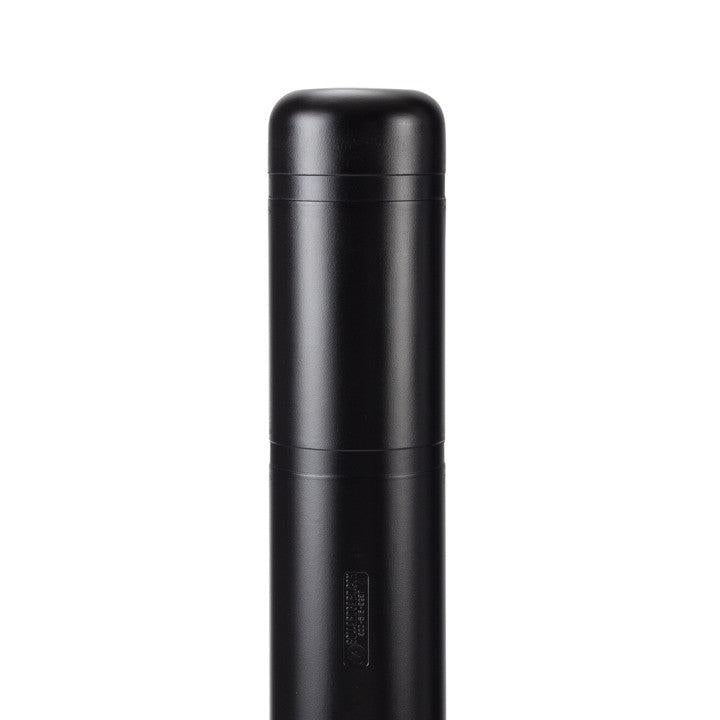

BollardGard™ HDPE Cover

The lower portion of the galvanized steel post is concealed by a rigid 52" BollardGard™ HDPE cover, providing a clean finished appearance and a highly visible surface around the flexible assembly.

The cover measures 7.35" outside diameter with a .125" wall thickness and is available in multiple colors and reflective-film options.

Important Application Note

The BollardFlex system is designed primarily for parking delineation, traffic guidance, sign support, and visual separation. Its flexible construction allows the assembly to yield when contacted rather than function as a rigid crash barrier.

No certified crash rating, vehicle-impact rating, or specific impact-speed classification has been provided with the supplied product information.

Made in the USA

The 52" BollardFlex Flexible Bollard with 8' Signpost is proudly manufactured in the United States for parking, traffic-control, commercial, municipal, and institutional applications.

Made in the USA

Technical Resources

View Concrete Installation Instructions

View BollardFlex Assembly Guide

View Mechanical Drawings
