Bolt Down Anti-Slip Plates

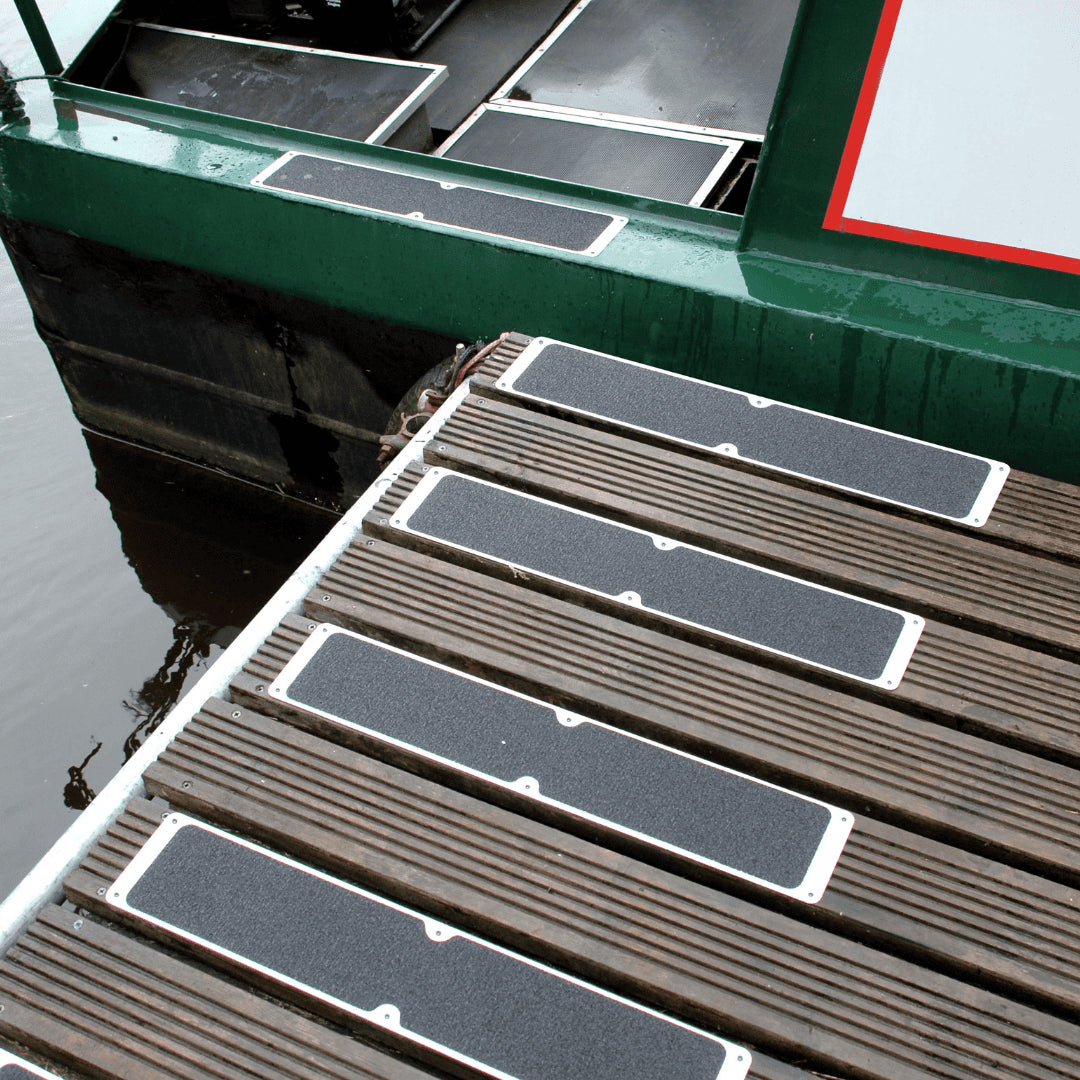

Bolt Down Anti-Slip Plates provide dependable traction in locations where adhesive-backed anti-slip tapes are unsuitable, such as wet, loose, or porous surfaces. Designed for mechanically fixed installation, they deliver reliable slip resistance on walkways, stairs, platforms, and outdoor access points exposed to moisture, debris, snow, and heavy foot traffic.

Each plate is manufactured from weather-resistant aluminum or 304 stainless steel and supplied with pre-drilled eyelets for secure fastening. A factory-applied, die-cut anti-slip surface—available in standard, coarse, or alternative grades—ensures consistent traction in demanding environments. Rounded edges improve safety and reduce snagging, while mechanical fixing using screws, nails, bolts, or rivets (not included) eliminates the risk of adhesive failure. Plates perform within a service temperature range of -30°F to 158°F, with recommended installation at 50°F or above.

Features and Benefits

• Mechanical Fixing: Ideal for wet, loose, or porous substrates where adhesives cannot bond.
• Durable Metal Base: Aluminum or 304 stainless steel resists corrosion and outdoor exposure.
• High-Traction Surface: Choice of anti-slip grades to suit different environments.
• Flexible Installation: Suitable for permanent or removable applications using standard fixings.
• Pre-Drilled Design: Ready for fast installation with factory-applied anti-slip material.
• Safe Edge Profile: Rounded corners reduce snagging and trip hazards.

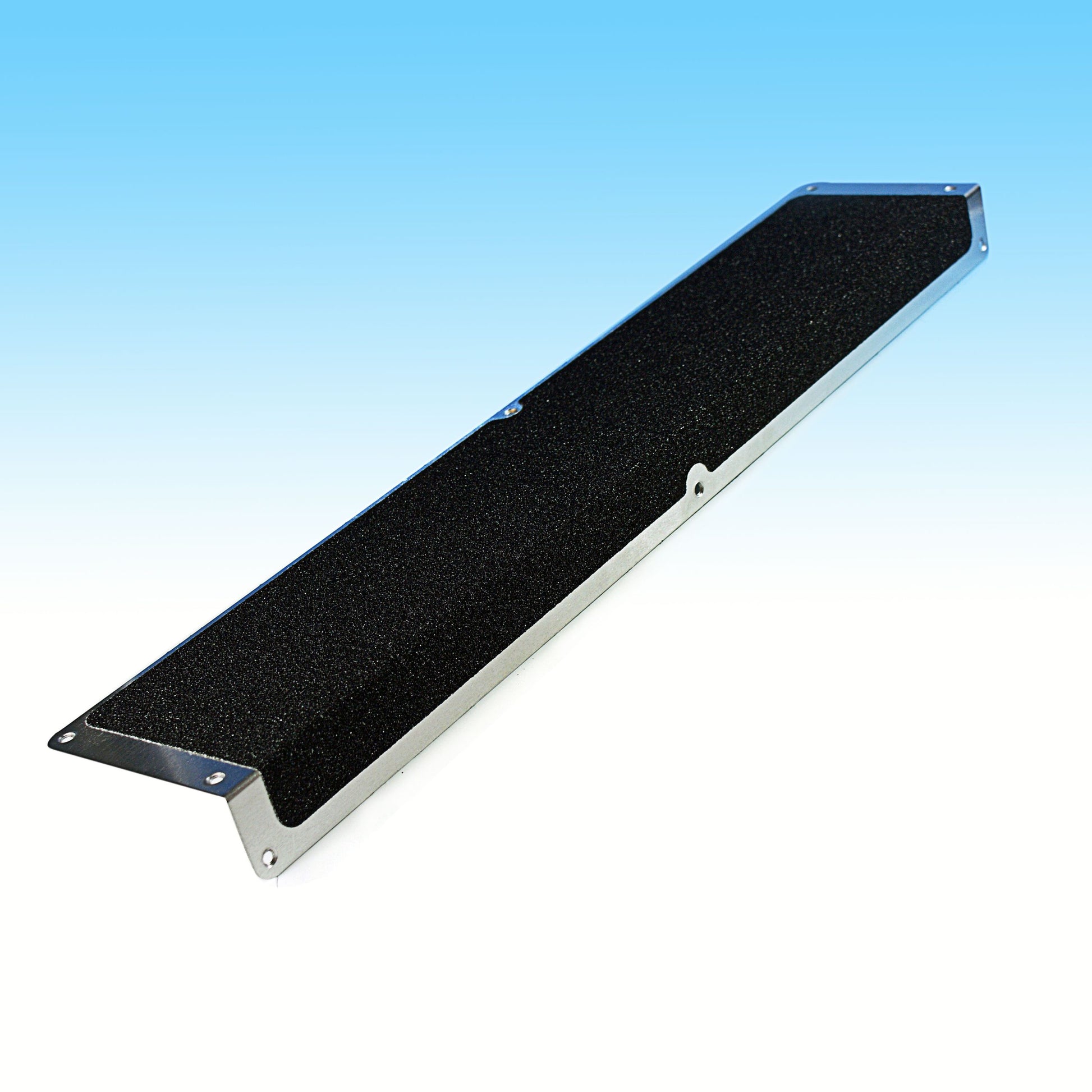

• Multiple Plate Styles: Flat and L-shaped options for walkways, stair nosings, and ledges.
• Custom Options Available: Sizes and surface grades can be tailored to application needs.

Additional Information

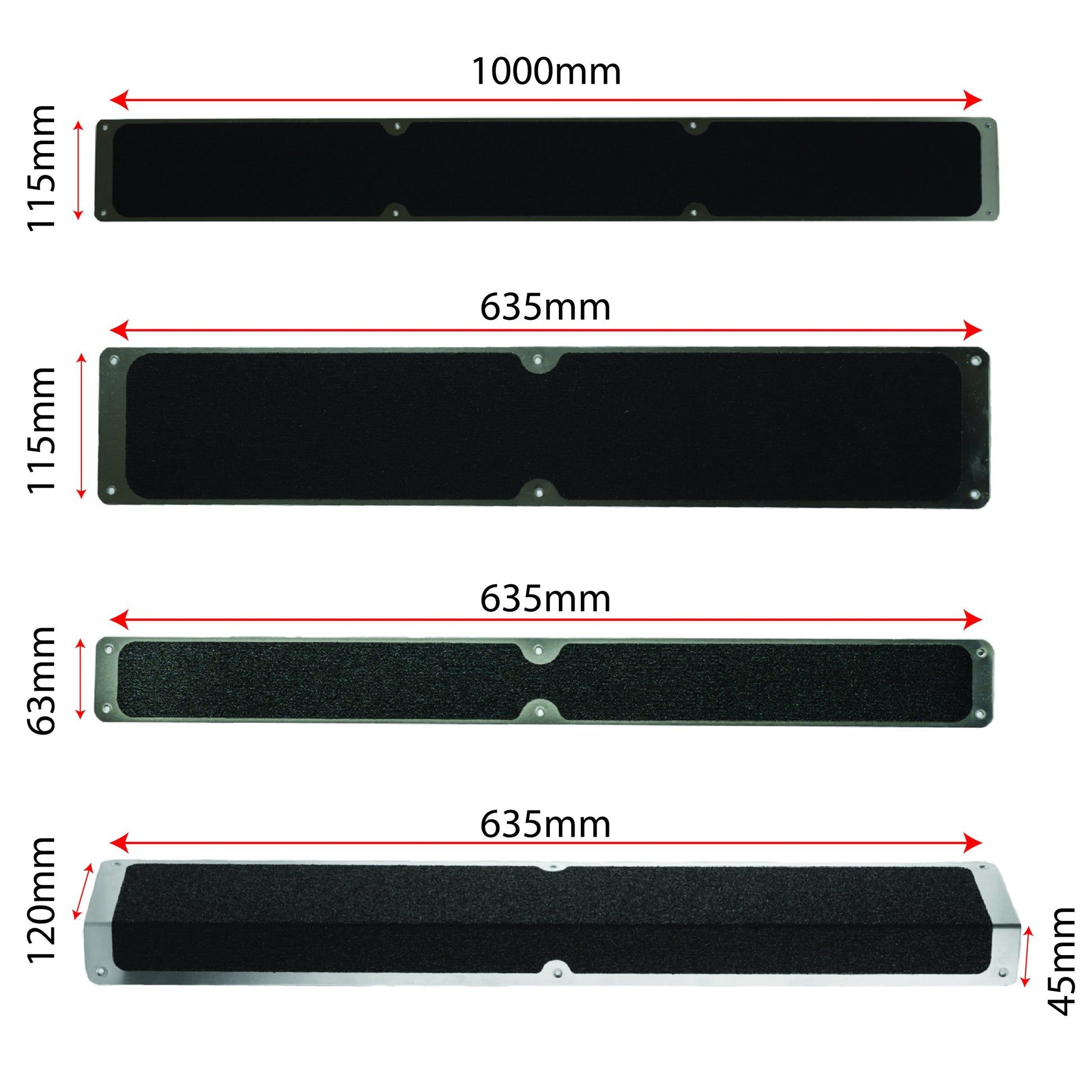

Bolt Down Anti-Slip Plates are available in sizes including 2.48″ × 25″, 4.5″ × 25″, 4.5″ × 39″, and an L-shaped 4.7″ × 1.7″ × 25″ format for stair nosings and ledges. Custom dimensions and material combinations can be produced depending on order quantity, making them suitable for industrial sites, docks, exterior walkways, and high-risk access areas where traditional tapes are not effective.

Technical Specifications

• Base Plate Thickness: 0.06″ aluminum
• Anti-Slip Surface Coating: 0.04″ aluminum oxide abrasive layer
• Standard Sizes:
  • 2.5″ × 25″
  • 5″ × 25″
  • 5″ × 39″
  • 5″ × 2″ × 25″ L-shape
• Available Sizes: Custom dimensions available depending on order quantity
• Service Temperature Range: -7.6°F to +158°F
• Water Resistance: 10 months (PSTC-35)
• Chemical Resistance: 8 months (PSTC-35)
• Motor Oil Resistance: Excellent (PSTC-35)
• Upper Surface Service Life: 24+ months (PSTC-9)
• Base Plate Service Life: 40+ months (PSTC-9)

Independent laboratory testing was performed by Adhesive Technical Services Ltd (England), with test results available upon request.

Documents:

Brochure

Swatches

Technical Data Sheet

Made in the USA
