Dual Breakaway Barrier Gate

Dual Breakaway Barrier Gate is designed to create controlled access points within post & panel barrier systems while maintaining fast, reliable emergency egress. Its magnetic breakaway panels keep the gate aligned and closed during normal operation, yet release instantly under applied pressure to provide a safe exit path, ideal for queues, partition walls, and managed entry points.

Engineered for commercial and public environments, the gate integrates into modular barrier layouts and supports clear or black infill panels depending on visibility and privacy needs. The magnetic closure helps maintain consistent alignment over repeated use, and the system supports optional printed graphics for wayfinding and messaging.

Features and Benefits:

• Emergency egress ready: Dual magnetic breakaway design releases quickly under applied pressure.
• Secure day-to-day operation: Strong magnetic closure helps keep the gate aligned during normal use.
• Modular integration: Designed to work within post & panel barrier configurations for controlled access.
• Flexible configuration: Offered in multiple widths/heights (custom sizes available).
• Panel options: Clear or black infill panels for visibility or privacy.
• Installation versatility: Supports fixed floor-plate mounting or portable heavy-base setups.
• Messaging-ready: Compatible with printed graphics for signage and direction.

The gate system is well-suited for applications where controlled access, safety compliance, and layout flexibility are required simultaneously. Embedded hinges and magnetic alignment reduce mechanical wear while supporting repeated use in high-traffic areas.

The Dual Breakaway Barrier Gate is designed to be paired with any Beltrac Retractable Belt Stanchion (available separately), including Magnetic Base Stanchions.

Technical Specifications

• Gate type: Dual magnetic breakaway swing gate
• Width options (center post to center post): 42", 48", 64" (custom widths available)
• Height range (base to top): 40" to 72" (custom heights available)
• Infill options: 1/4" Clear Acrylic panel or black panel
• Closure system: NdFeB N35 magnetic breakaway array
• Magnetic base: 18 embedded magnets
• Base diameter: 7.667"
• Base depth: 0.394"
• Floor plate material: 16-gauge AISI 430 ferritic stainless steel
• Floor plate diameter: 7.48"
• Floor plate depth: 0.059"
• Portable heavy base diameter: 14.5" (sloped base)
• Portable heavy base depth: 2.0"
• Mounting type: Adhesive floor plate or portable weighted base
• System compatibility: Post & panel barrier/queue configurations
• Graphic customization: Supported
• Intended environment: Indoor commercial applications

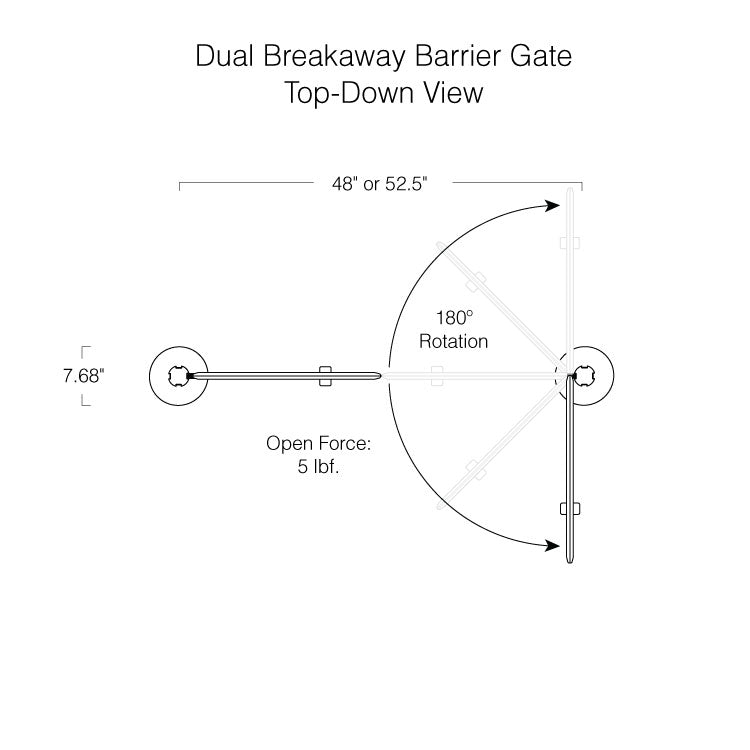

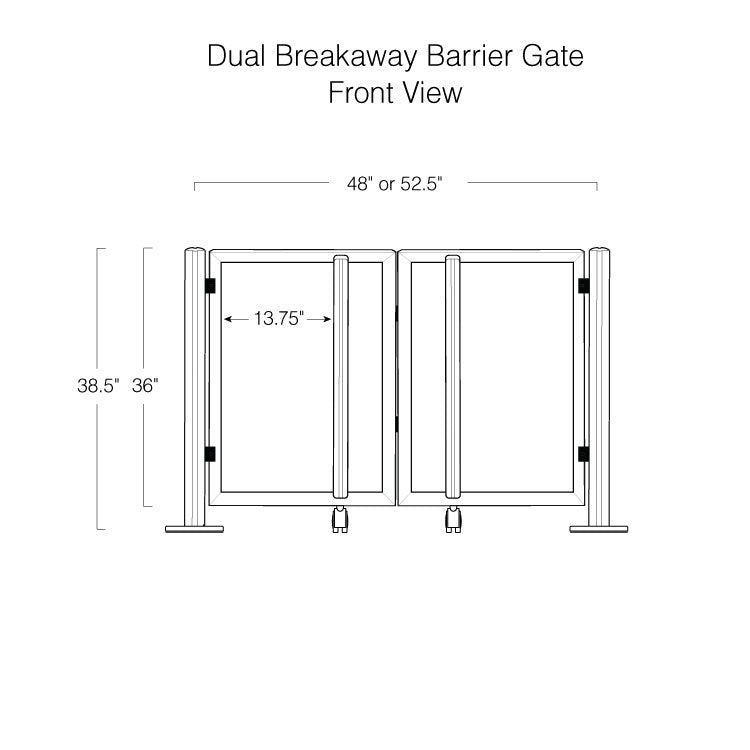

Technical Drawing



Technical Data Sheet

Installation Guide

Made in the USA
