Vestil
Galvanized Folding Gates
Galvanized Folding Gates
SKU:VES-VSSG-465
- Call or Email us for large QTY quotes
Couldn't load pickup availability

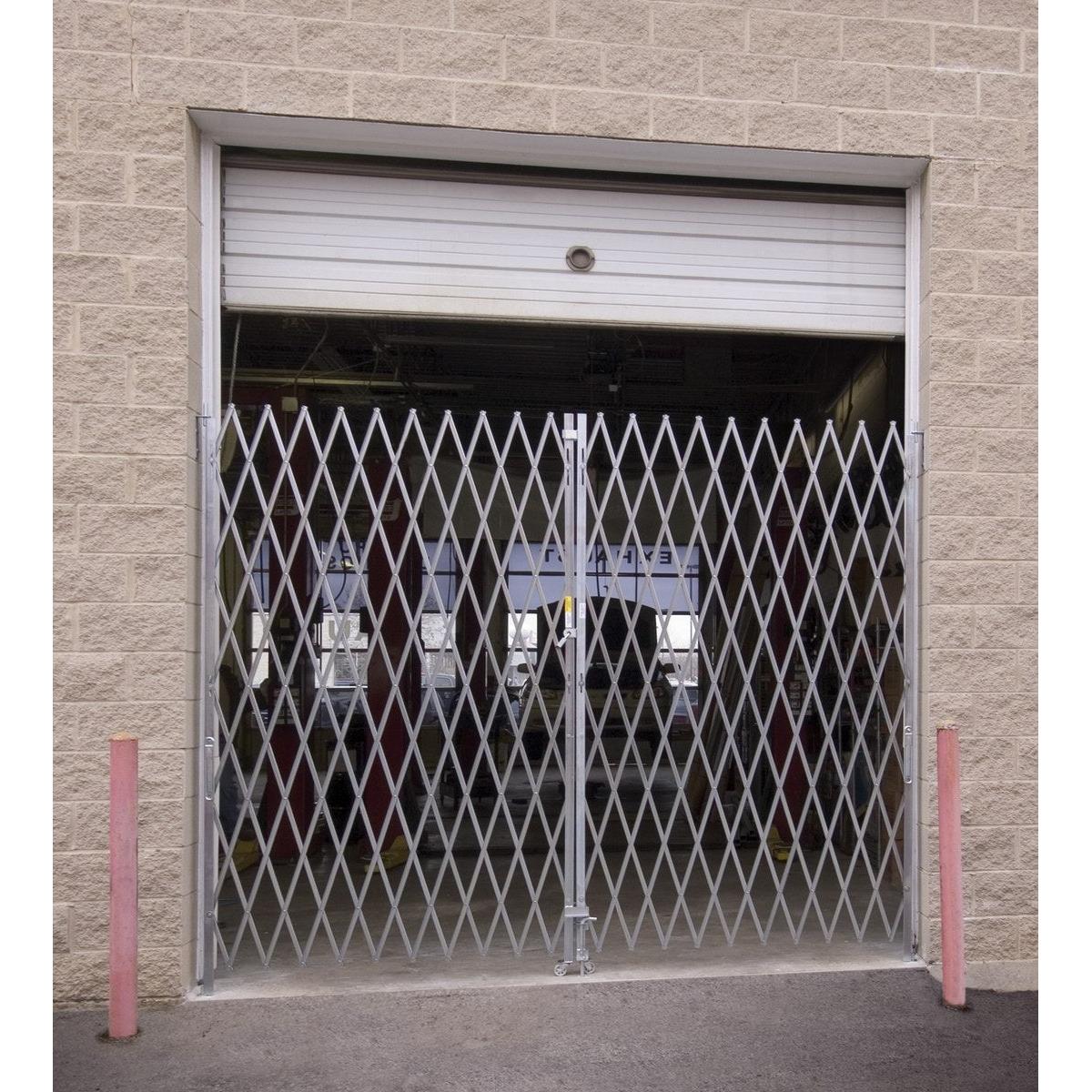

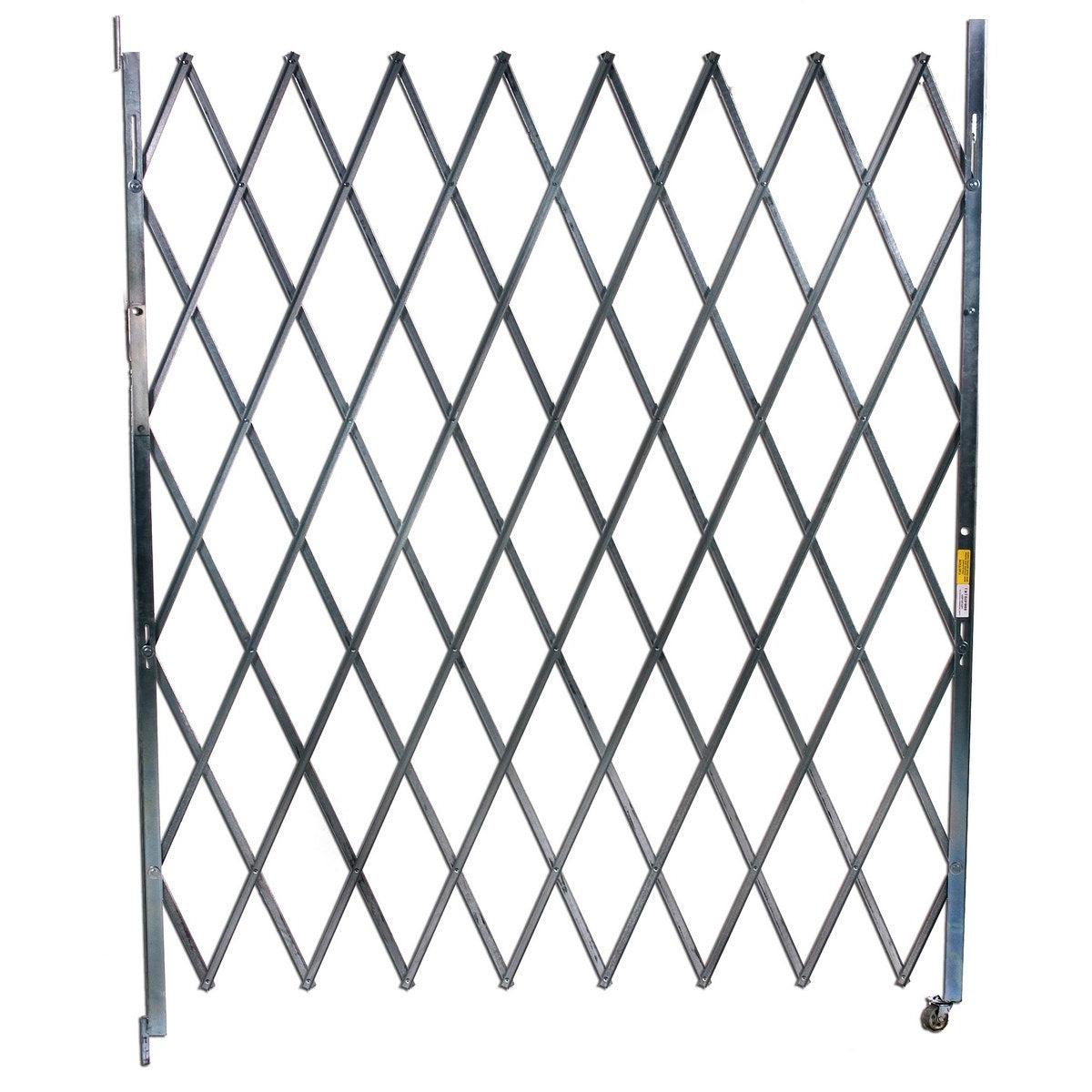

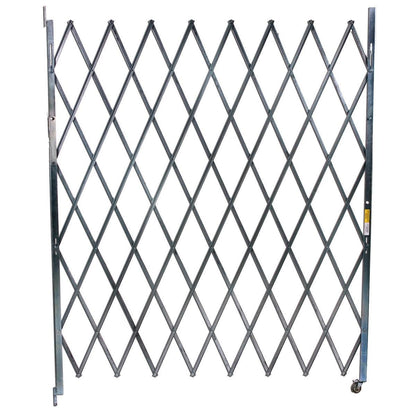

Galvanized Folding Gates provide an effective and durable solution for securing building access points while allowing airflow and visibility. Ideal for loading docks, storefronts, and service areas, these gates restrict unauthorized entry during off-hours while enabling open access during the day. Available in both single and double-door configurations, they offer flexible security options for various applications.
Constructed from heavy-duty 14-gauge galvanized steel, these folding gates are built for long-term indoor or outdoor use. Aircraft-grade rivets and 1-1/2" x 1-1/2" vertical angles ensure structural integrity, while 2" casters and steel wheels allow smooth extension and retraction. The center drop pin secures the gate in the extended position, and mounting hardware is included for quick installation. On single gates, the lock is located on the right side; left-side locks are available upon request.
Features and Benefits:
- Heavy-duty 14-gauge galvanized steel construction for durability and corrosion resistance
- Available in single or double-door models for flexible access control
- 2" steel casters and wheels ensure smooth, quick gate retraction and extension
- Center drop pin fits into pre-drilled holes to secure gate when extended
- Aircraft-grade rivets and welded vertical angles provide enhanced strength
- Galvanized finish suitable for both indoor and outdoor environments
- Includes mounting hardware, “L” brackets, and drop pin for easy installation
- Right-side locking standard on single gates (left-side locking available by request)
Additional Information:
These gates are ideal for facilities requiring visibility, ventilation, and reliable access control. Custom sizes and configurations may be available upon request.
- Galvanized Steel Angle 6 In. to 9 In. L Bracket Available Separately
Please Note this product Requires a Quote Inquiry
Technical Specifications:
-
Fencing Accessory Category:Gates
-
Gate Thickness (in): 1.5
-
Gate Style: Square/Elled Corners
-
Gate Type: Walk Gate/Single Panel
- Color / Finish: Gray
-
Fencing Material:Galvanized
-
Contact Type Allowed: Above Ground
-
Gauge: 14
- UPC / GTIN Available by Request
| Single Folding Gates | ||||
|---|---|---|---|---|
| Model | Overall Usable Width (FT.) | Collapsed Height (FT.) | In Use Height (FT.) | Weight (lbs) |
| VSSG-465 | 3' to 4' | 6-1/2 | 6 | 45 |
| VSSG-470 | 3' to 4' | 7 | 6-1/2 | 50 |
| VSSG-475 | 3' to 4' | 7-1/2 | 7 | 88 |
| VSSG-480 | 3' to 4' | 8 | 7-1/2 | 95 |
| VSSG-485 | 3' to 4' | 8-1/2 | 8 | 100 |
| VSSG-565 | 4' to 5' | 6-1/2 | 6 | 50 |
| VSSG-570 | 4' to 5' | 7 | 6-1/2 | 55 |
| VSSG-575 | 4' to 5' | 7-1/2 | 7 | 93 |
| VSSG-580 | 4' to 5' | 8 | 7-1/2 | 100 |
| VSSG-585 | 4' to 5' | 8-1/2 | 8 | 15 |
| VSSG-665 | 5' to 6' | 6-1/2 | 6 | 60 |
| VSSG-670 | 5' to 6' | 7 | 6-1/2 | 65 |
| VSSG-675 | 5' to 6' | 7-1/2 | 7 | 118 |
| VSSG-680 | 5' to 6' | 8 | 7-1/2 | 105 |
| VSSG-685 | 5' to 6' | 8-1/2 | 8 | 110 |
| VSSG-765 | 6' to 7' | 6-1/2 | 6 | 65 |
| VSSG-770 | 6' to 7' | 7 | 6-1/2 | 75 |
| VSSG-775 | 6' to 7' | 7-1/2 | 7 | 113 |
| VSSG-780 | 6' to 7' | 8 | 7-1/2 | 120 |
| VSSG-785 | 6' to 7' | 8-1/2 | 8 | 125 |
| VSSG-865 | 7' to 8' | 6-1/2 | 6 | 75 |
| VSSG-870 | 7' to 8' | 7 | 6-1/2 | 115 |
| VSSG-875 | 7' to 8' | 7-1/2 | 7 | 123 |
| VSSG-880 | 7' to 8' | 8 | 7-1/2 | 130 |
| VSSG-885 | 7' to 8' | 8-1/2 | 8 | 130 |
| VSSG-970 | 8' to 9' | 7 | 6-1/2 | 120 |
| VSSG-975 | 8' to 9' | 7-1/2 | 6 | 128 |
| VSSG-980 | 8' to 9' | 8 | 7-1/2 | 135 |
| VSSG-1070 | 9' to 10' | 7 | 6-1/2 | 135 |
| VSSG-1080 | 9' to 10' | 8 | 7-1/2 | 140 |
| Double Folding Gates | ||||
| Model | Overall Usable Width (FT.) | Collapsed Height (FT.) | In Use Height (FT.) | Weight (lbs) |
| VPFG-865 | 6' to 8' | 6-1/2 | 6 | 120 |
| VPFG-870 | 6' to 8' | 7 | 6-1/2 | 125 |
| VPFG-875 | 6' to 8' | 7-1/2 | 7 | 133 |
| VPFG-880 | 6' to 8' | 8 | 7-1/2 | 150 |
| VPFG-885 | 6' to 8' | 8-1/2 | 8 | 153 |
| VPFG-1065 | 8' to 10' | 6-1/2 | 6 | 125 |
| VPFG-1070 | 8' to 10' | 7 | 6-1/2 | 135 |
| VPFG-1075 | 8' to 10' | 7-1/2 | 7 | 176 |
| VPFG-1080 | 8' to 10' | 8 | 7-1/2 | 160 |
| VPFG-1085 | 8' to 10' | 8-1/2 | 8 | 170 |
| VPFG-1265 | 10' to 12' | 6-1/2 | 6 | 140 |
| VPFG-1270 | 10' to 12' | 7 | 6-1/2 | 145 |
| VPFG-1275 | 10' to 12' | 7-1/2 | 7 | 153 |
| VPFG-1280 | 10' to 12' | 8 | 7-1/2 | 175 |
| VPFG-1285 | 10' to 12' | 8-1/2 | 8 | 180 |
| VPFG-1465 | 12' to 14' | 6-1/2 | 6 | 170 |
| VPFG-1470 | 12' to 14' | 7 | 6-1/2 | 185 |
| VPFG-1475 | 12' to 14' | 7-1/2 | 7 | 175 |
| VPFG-1480 | 12' to 14' | 8 | 7-1/2 | 195 |
| VPFG-1485 | 12' to 14' | 8-1/2 | 8 | 200 |
| VPFG-1665 | 14' to 16' | 6-1/2 | 6 | 190 |
| VPFG-1670 | 14' to 16' | 7 | 6-1/2 | 195 |
| VPFG-1675 | 14' to 16' | 7-1/2 | 7 | 200 |
| VPFG-1680 | 14' to 16' | 8 | 7-1/2 | 215 |
| VPFG-1685 | 14' to 16' | 8-1/2 | 8 | 220 |
| VPFG-1870 | 16' to 18' | 7 | 6-1/2 | 210 |
| VPFG-1875 | 16' to 18' | 7-1/2 | 7-1/2 | 218 |
| VPFG-1880 | 16' to 18' | 8 | 7 | 235 |
| VPFG-2070 | 18' to 20' | 7 | 6-1/2 | 210 |
| VPFG-2080 | 18' to 20' | 8 | 7-1/2 | 235 |
Made in USA
If you would like to request a Quotation for Large Quantities or Custom Powder-Coat Colorsof this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
