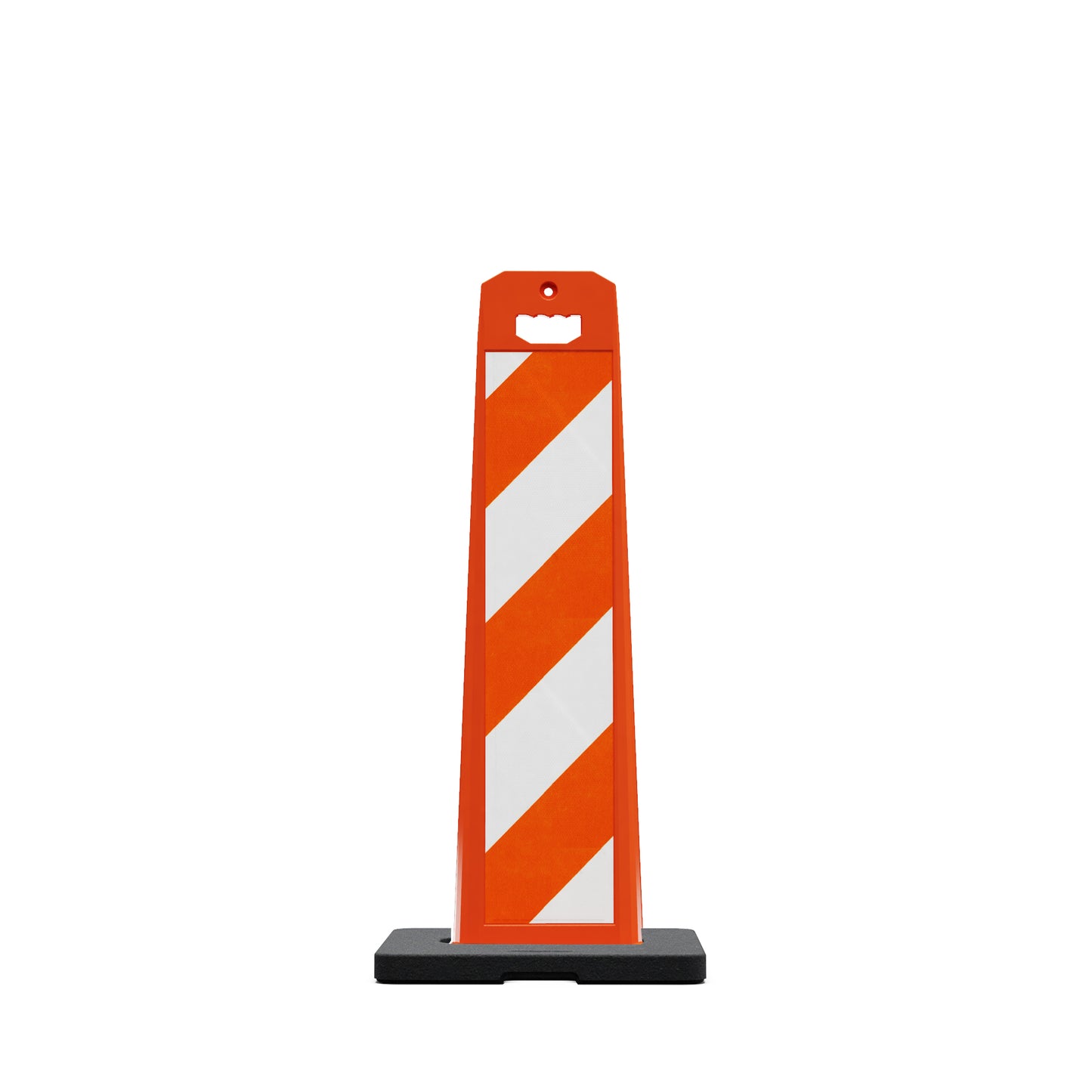

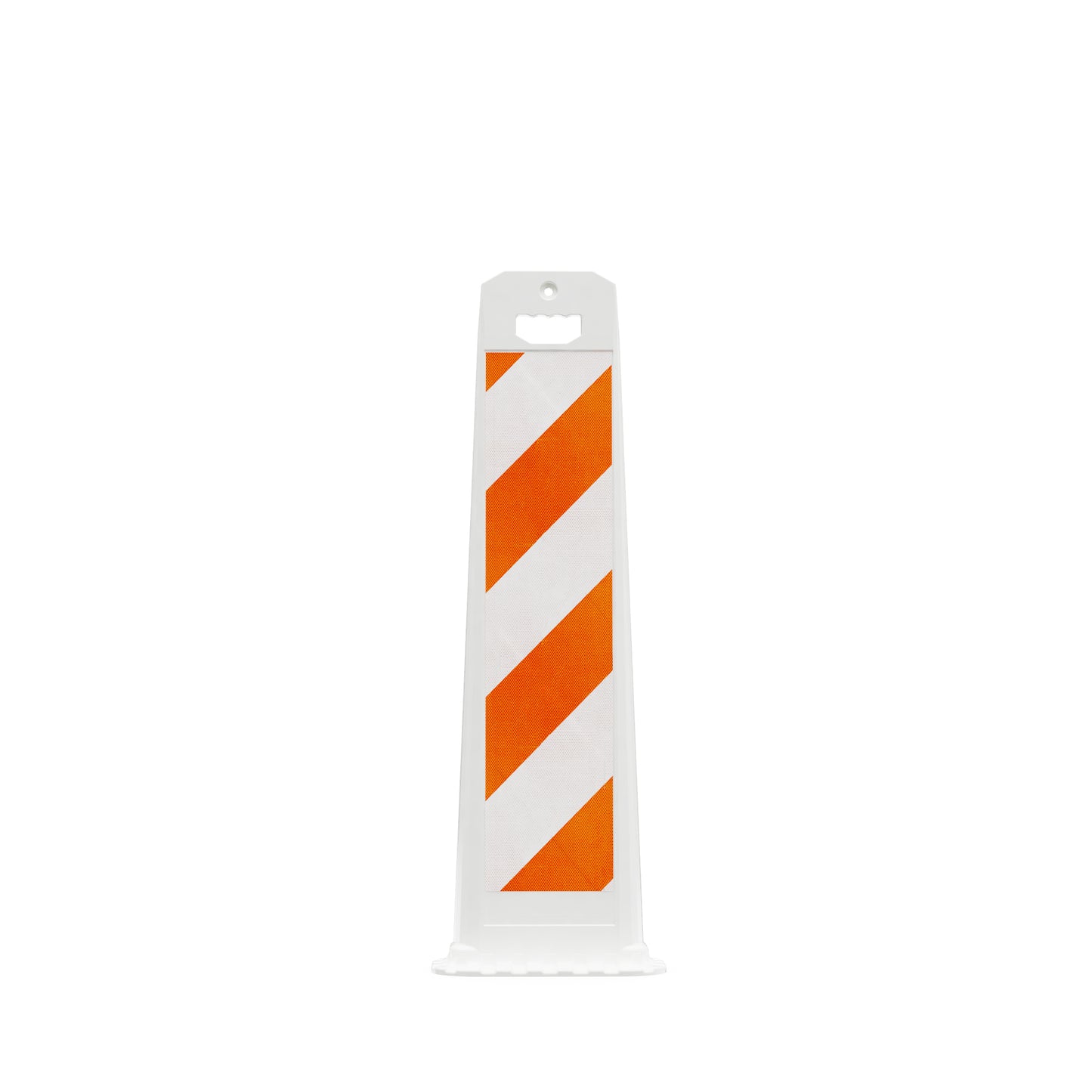

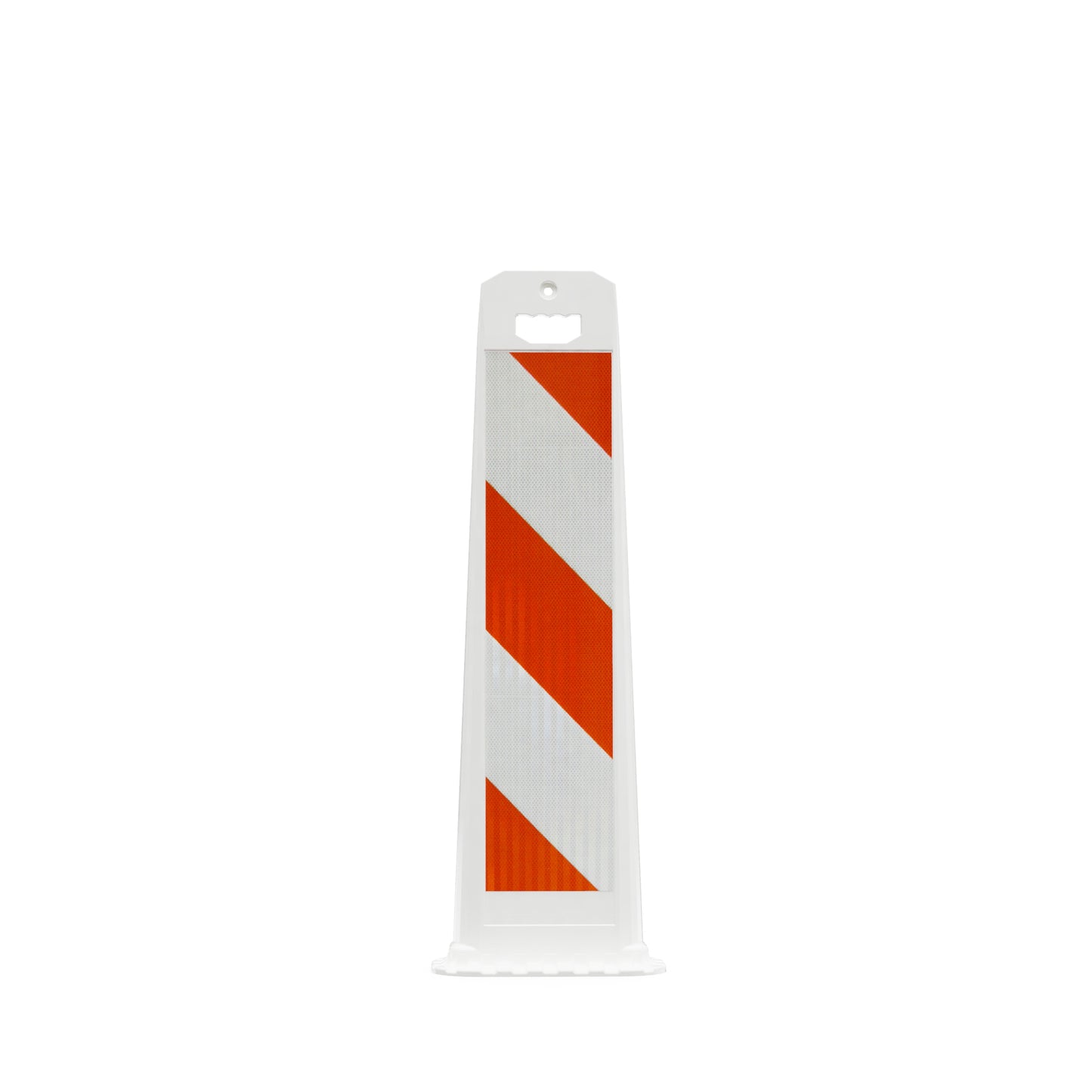

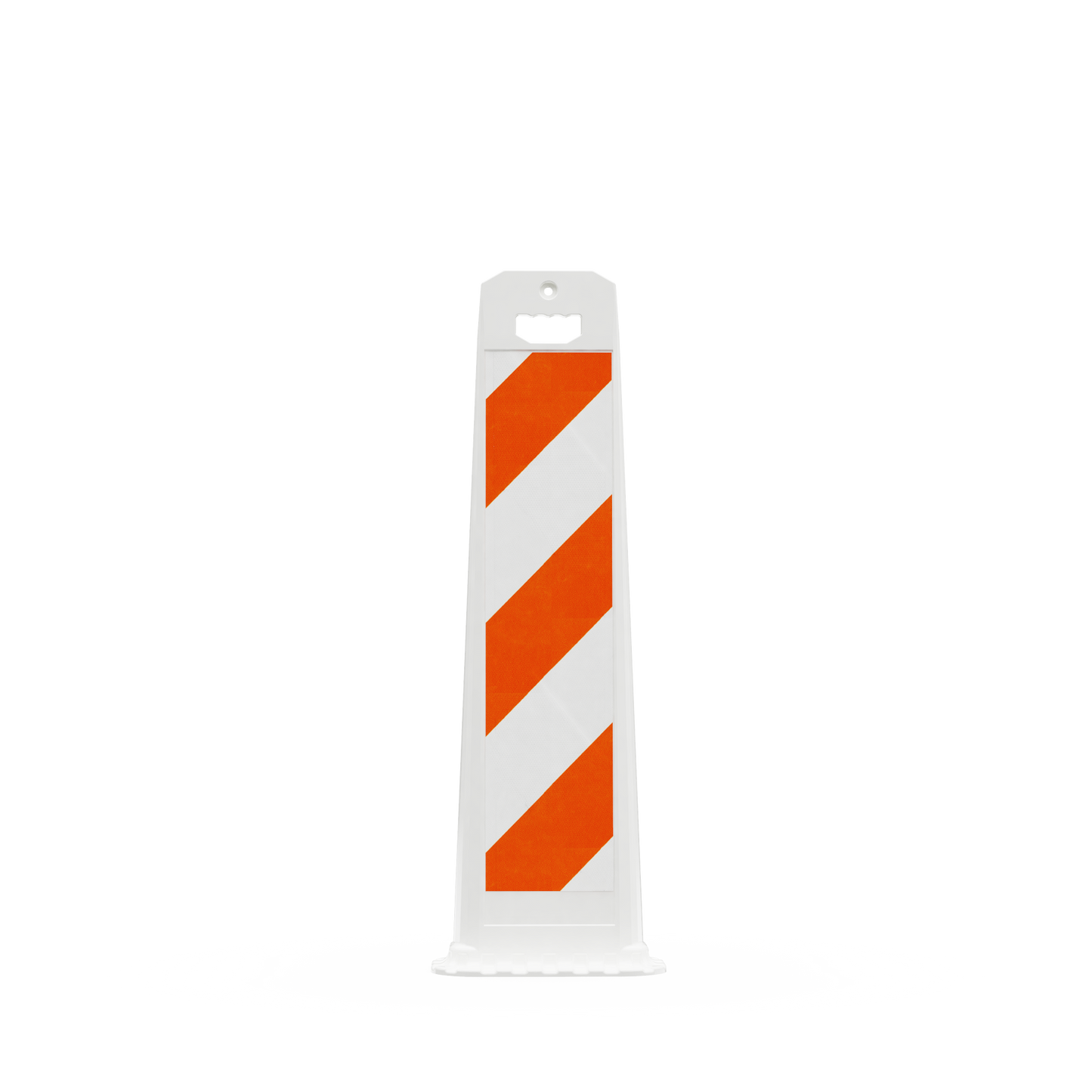

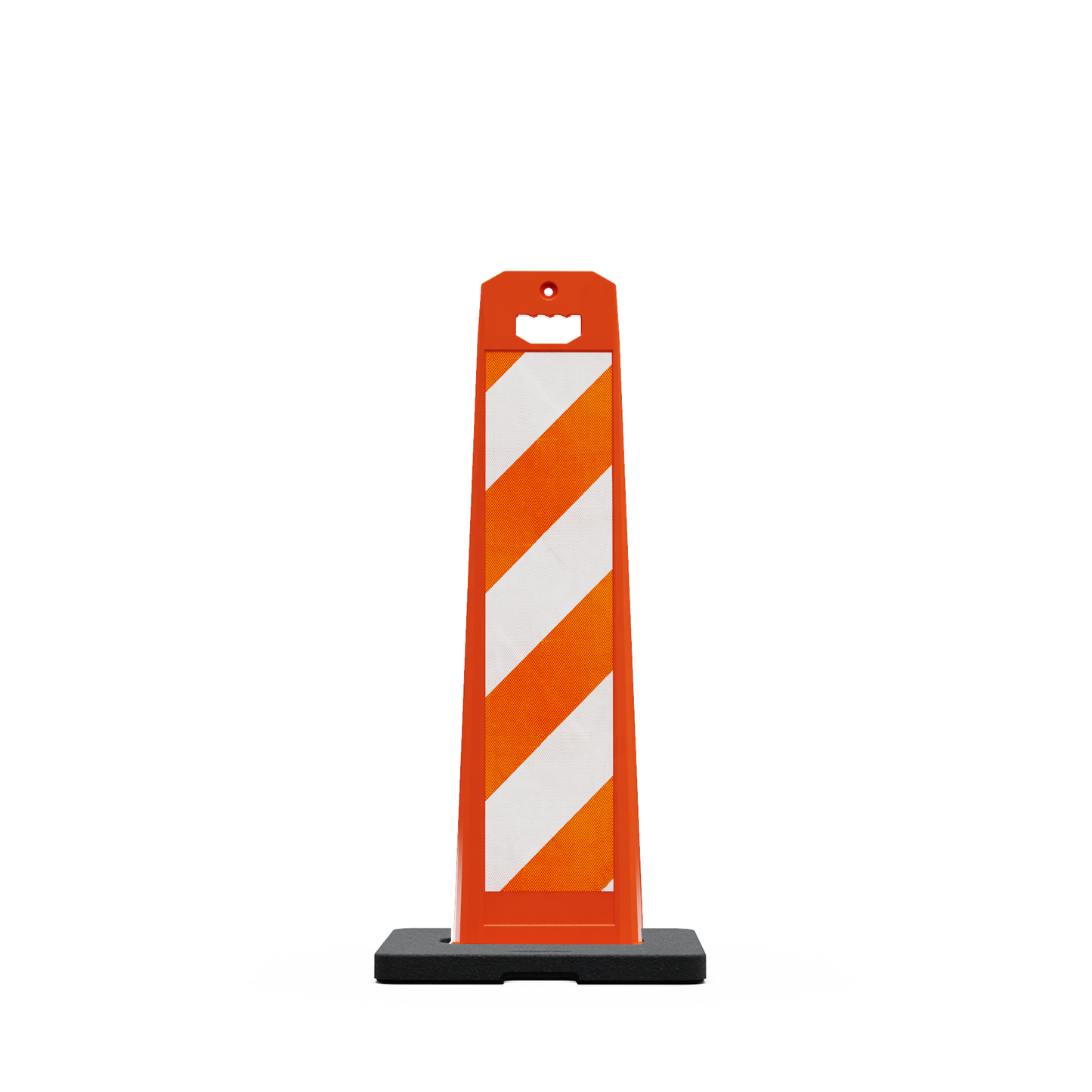

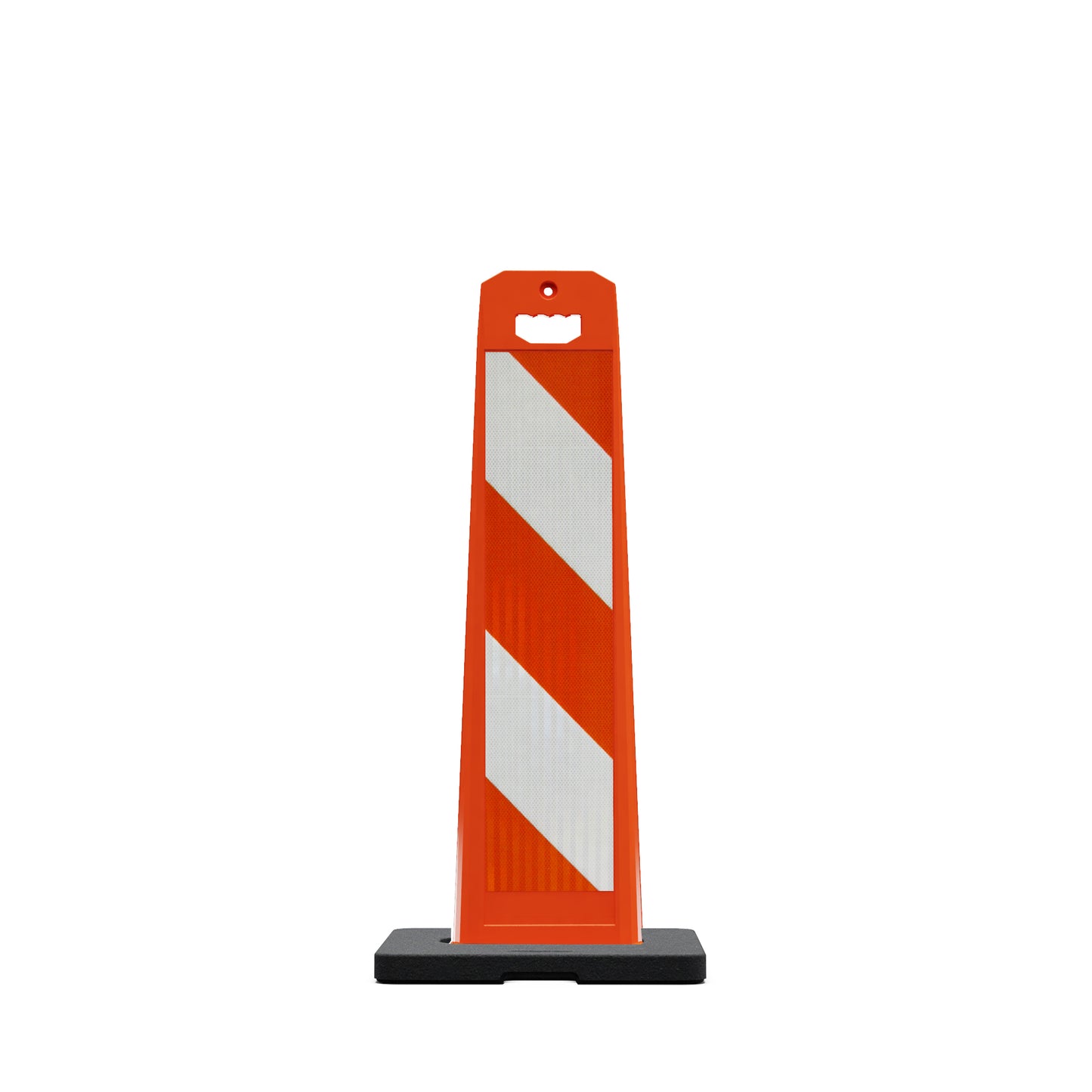

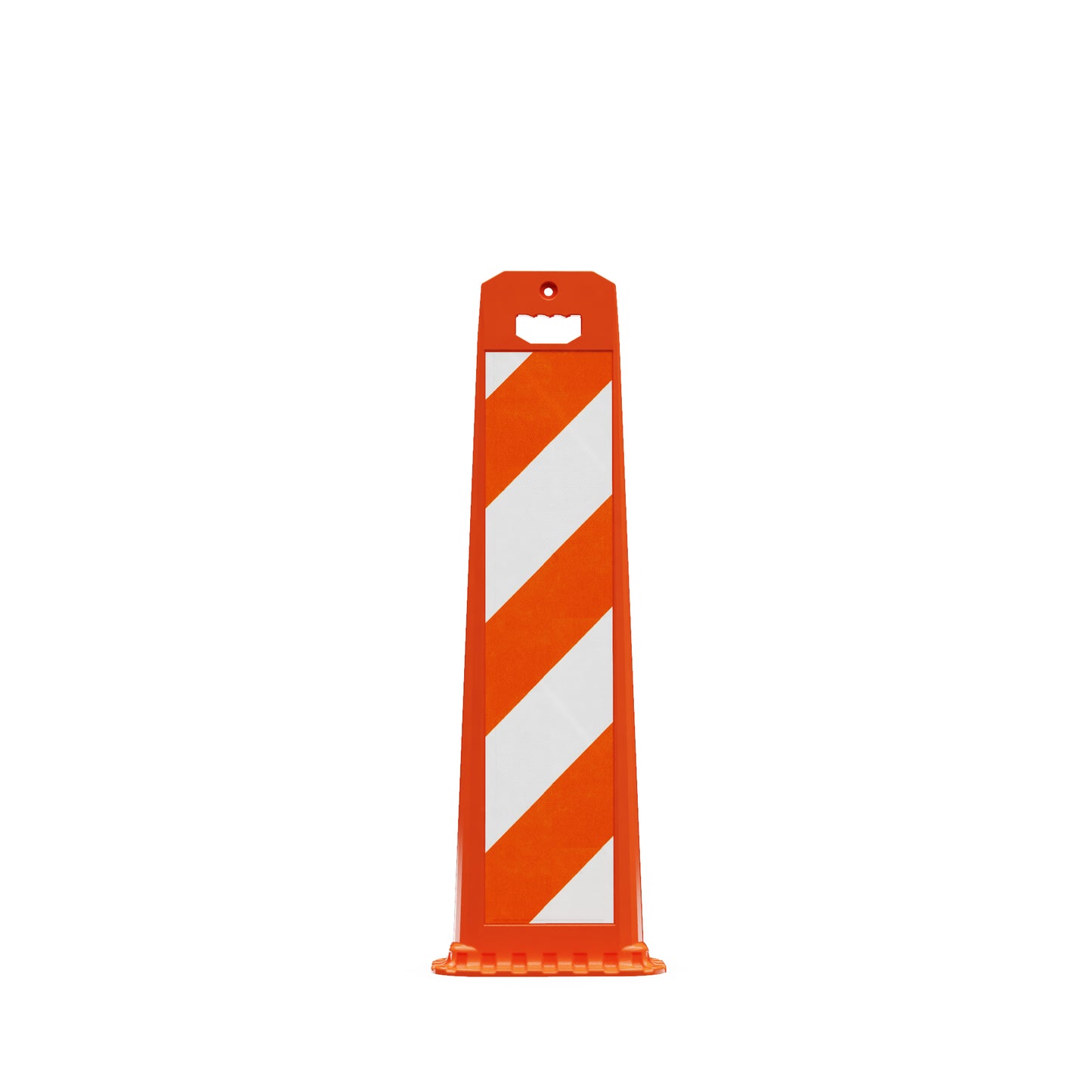

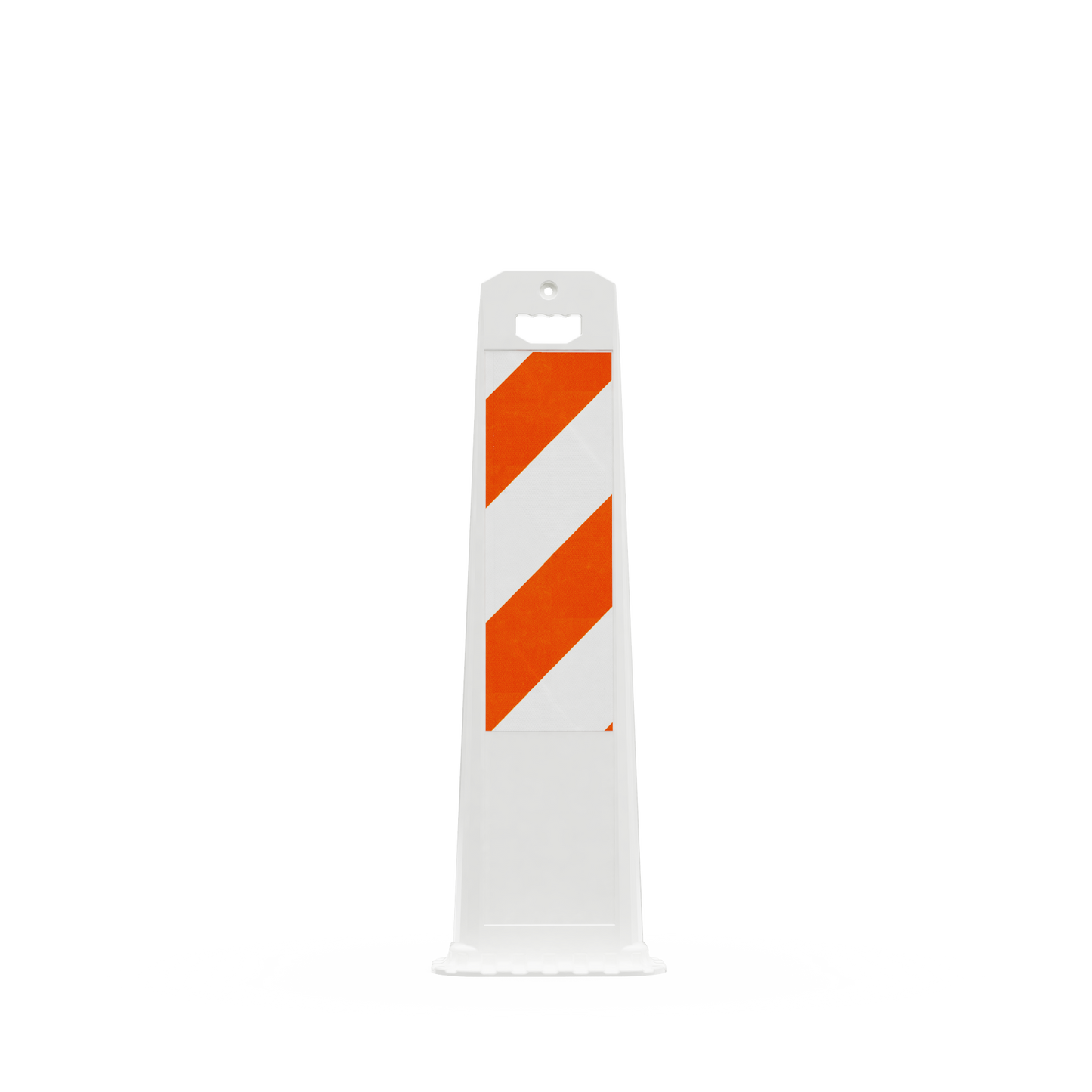

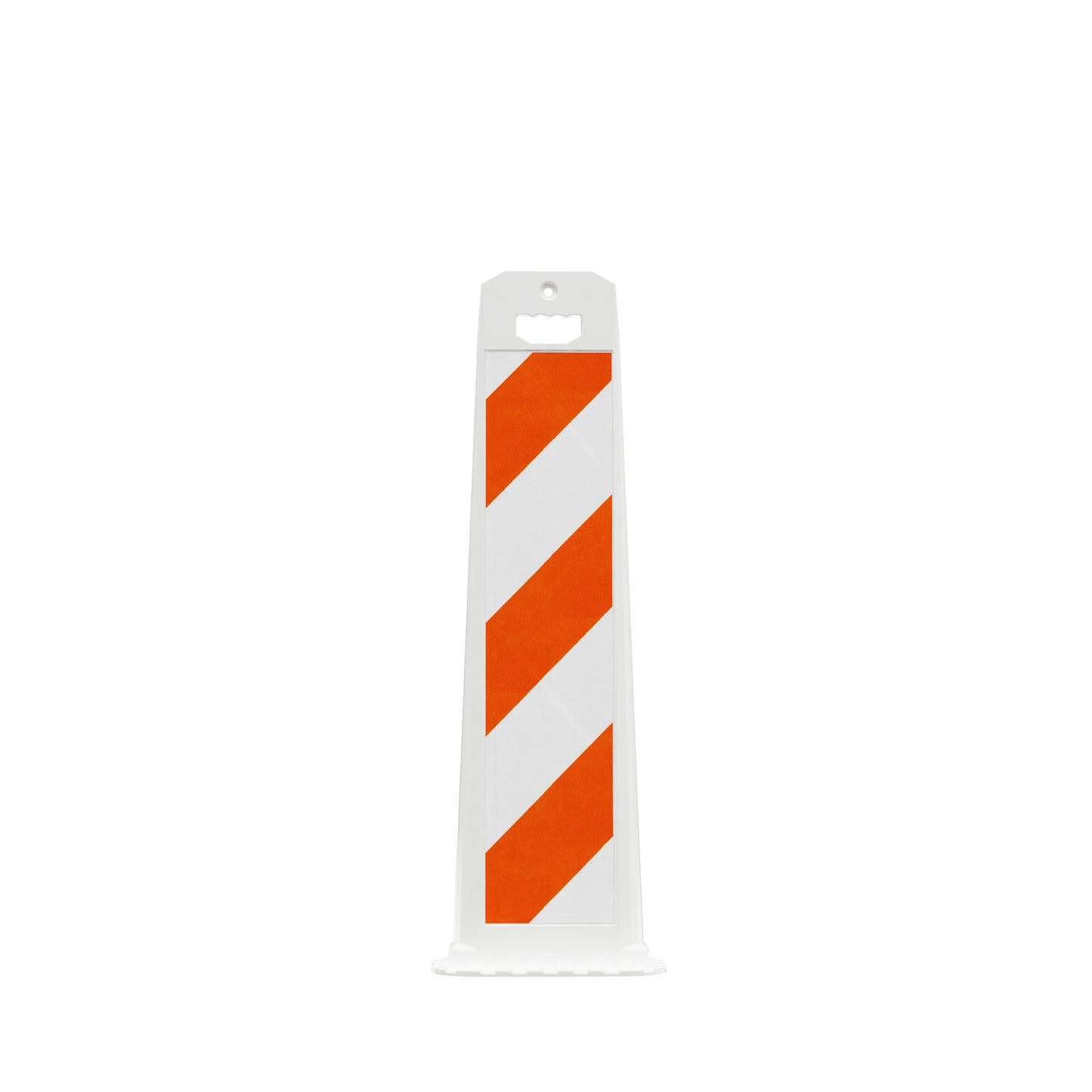

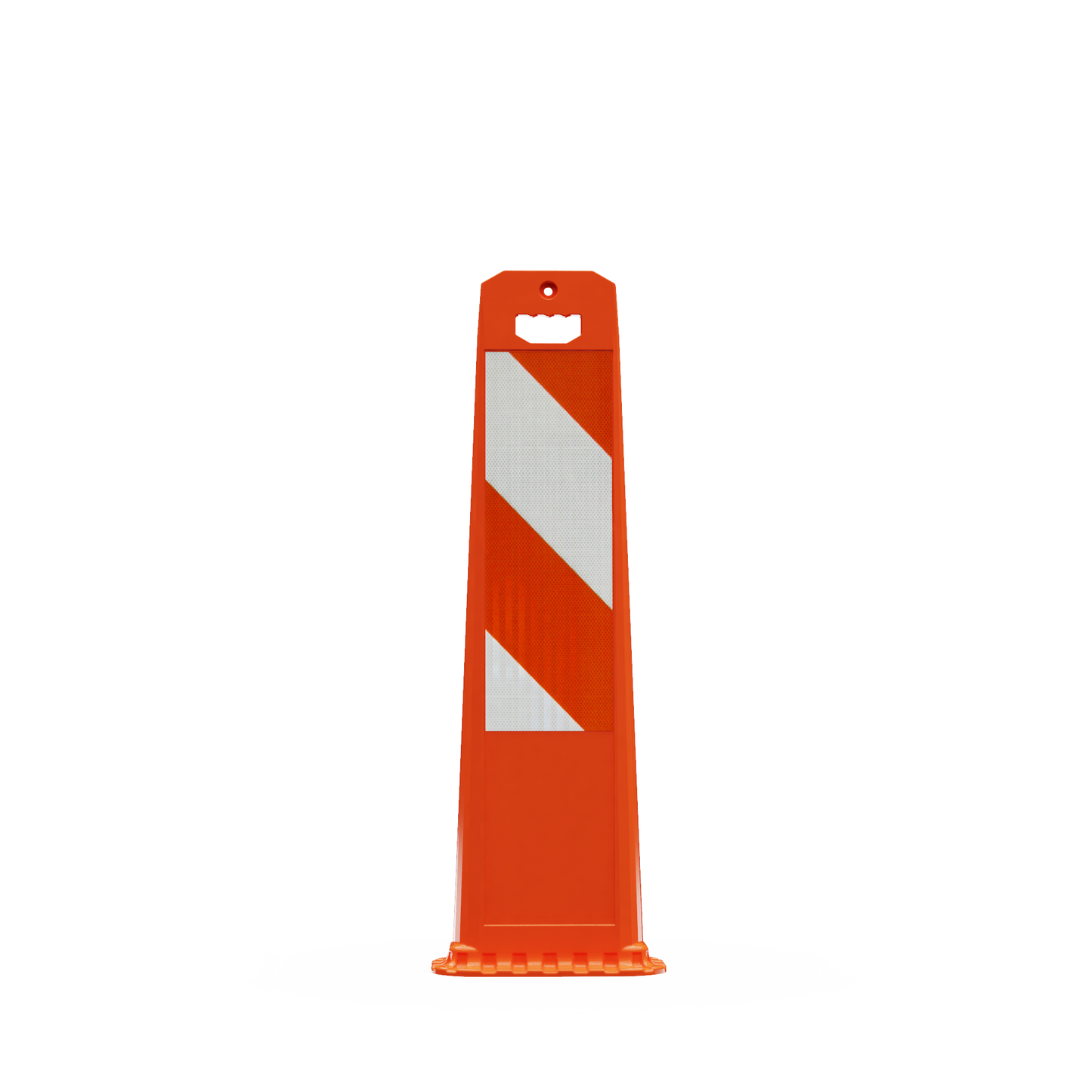

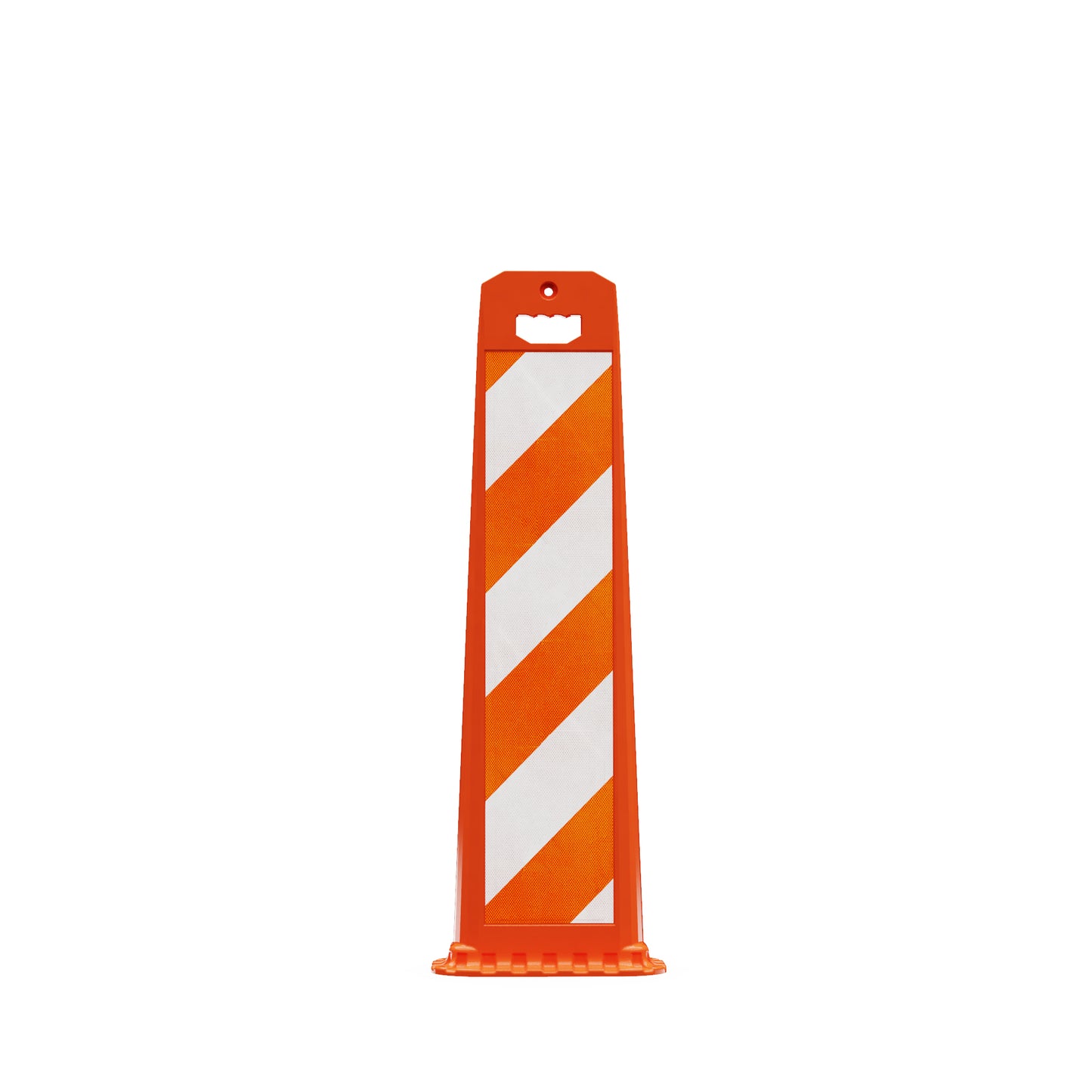

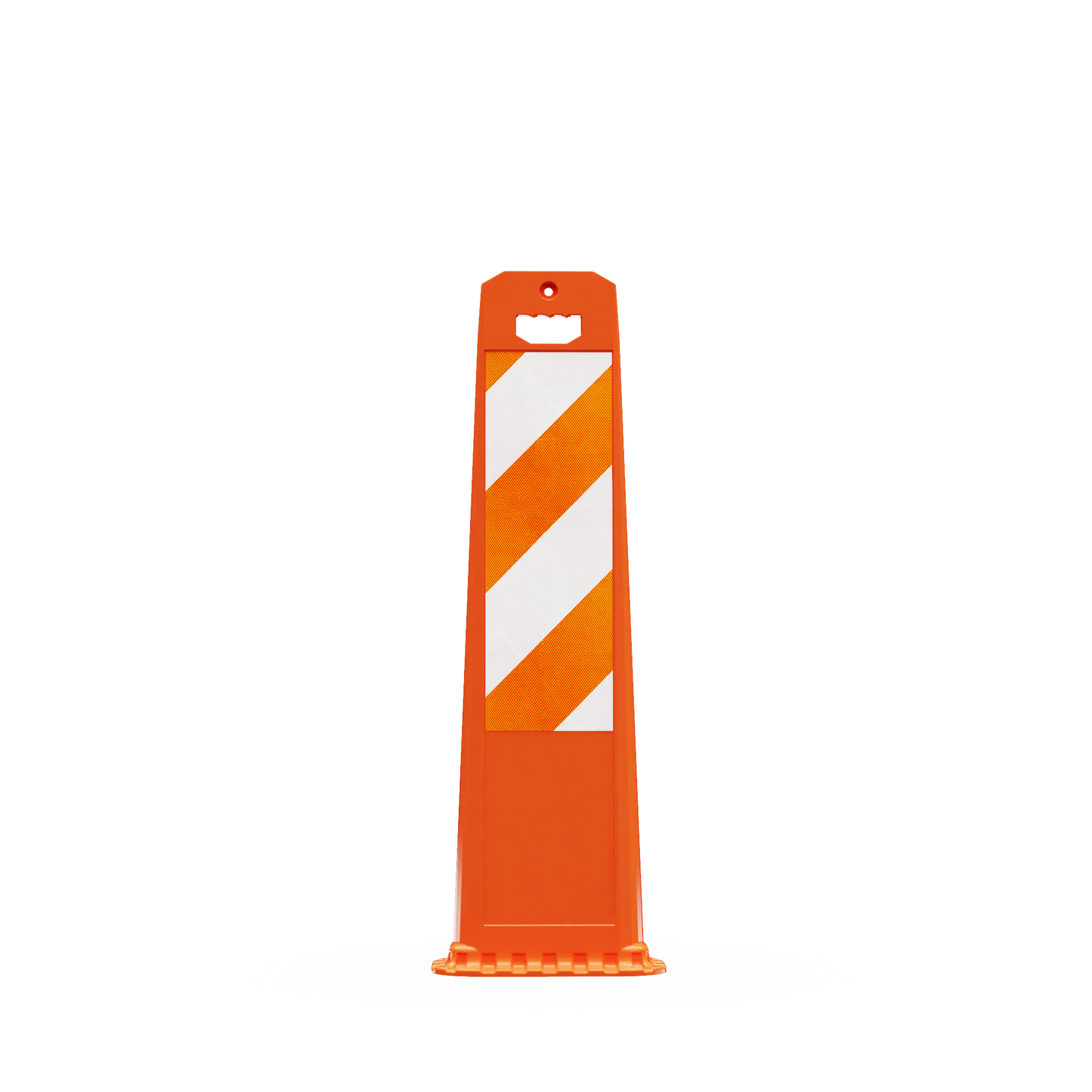

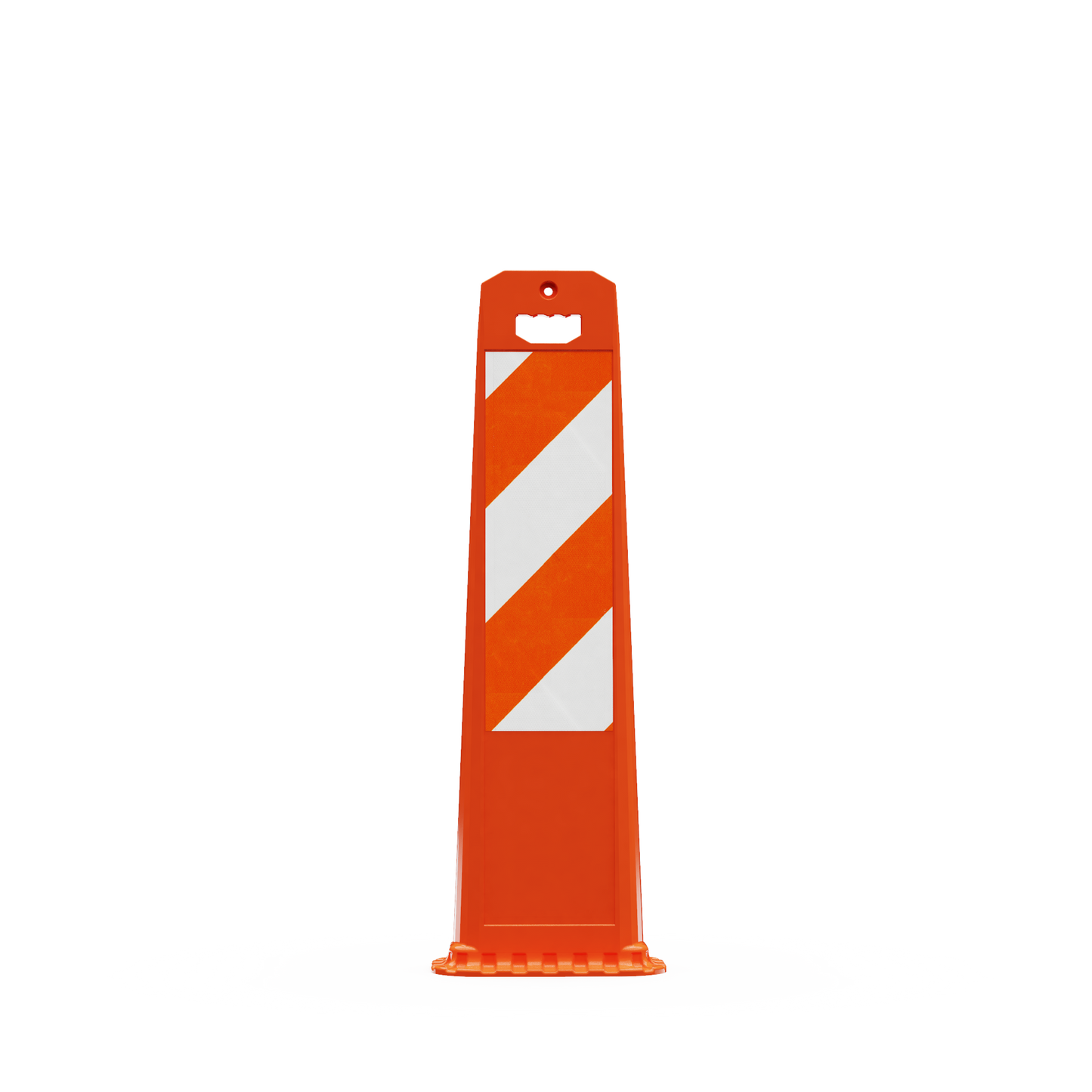

Gemstone Vertical Panel

This Gemstone Vertical Panel is a traffic safety device designed to delineate and restrict construction sites, highways, and crowded streets. This channelizer is made to be extra visible to prevent accidents and protect pedestrians, workers and vehicles.

Features and Benefits:

• Strong flange withstands repeated impacts and high heats

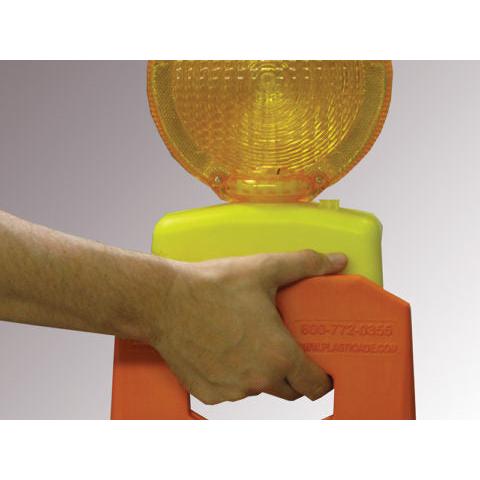

• The oversized comfort grip handle makes transportation and placement easy and quick

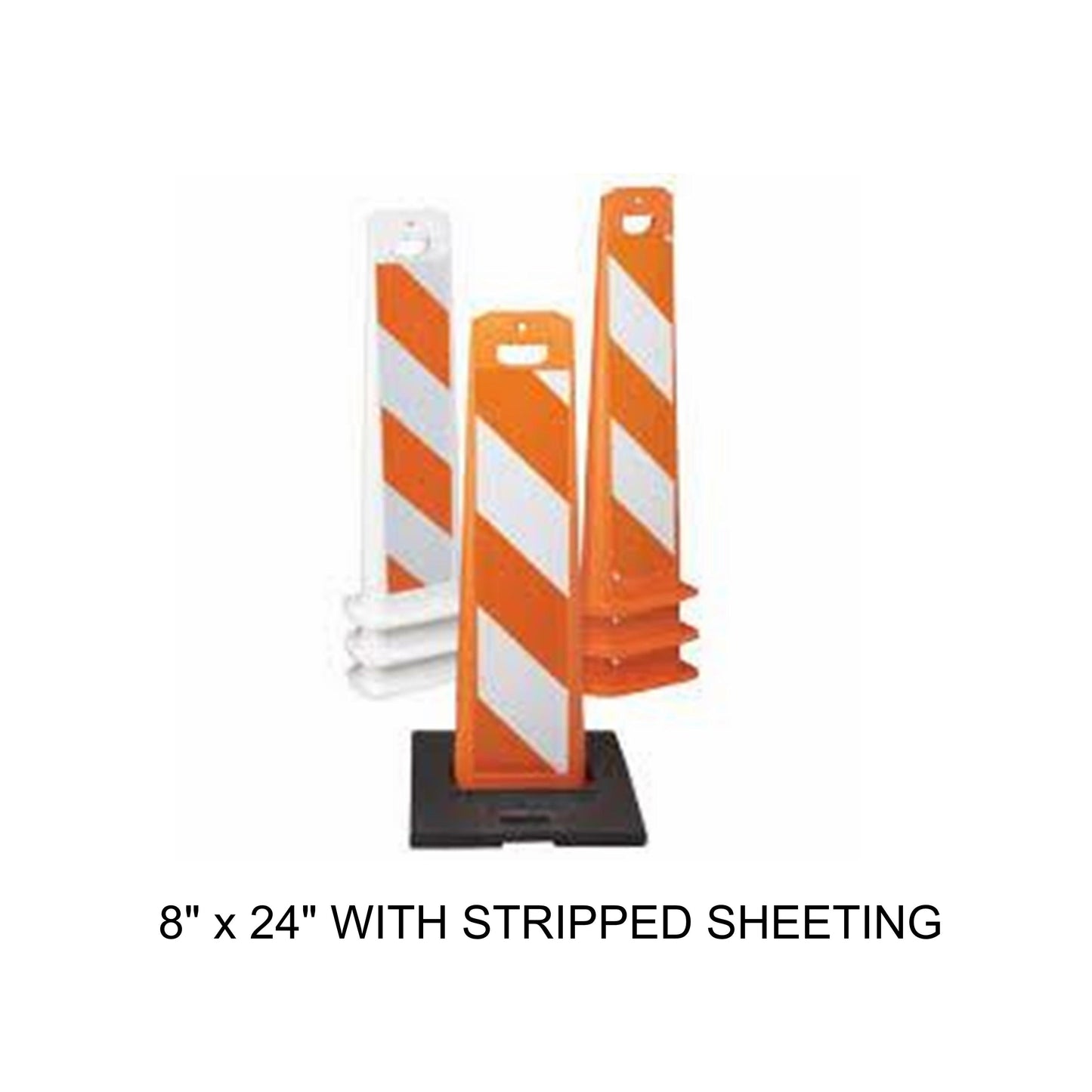

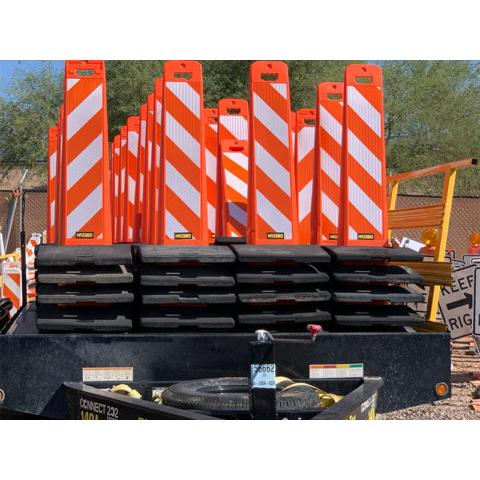

• Designed to maximize storage and transportation space by stacking with or without bases
• Built with durable low-density polyethylene and a special sidewall design for strength

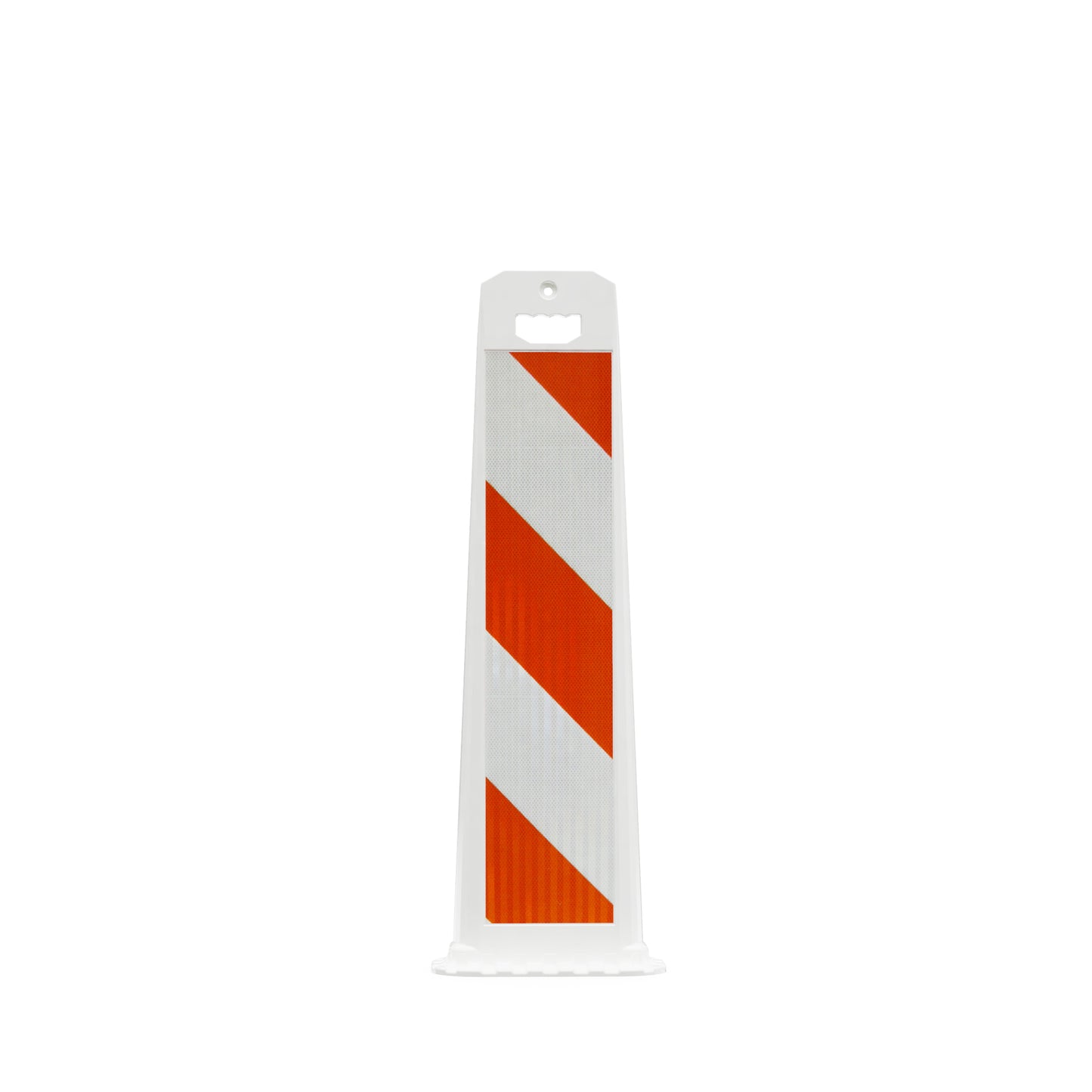

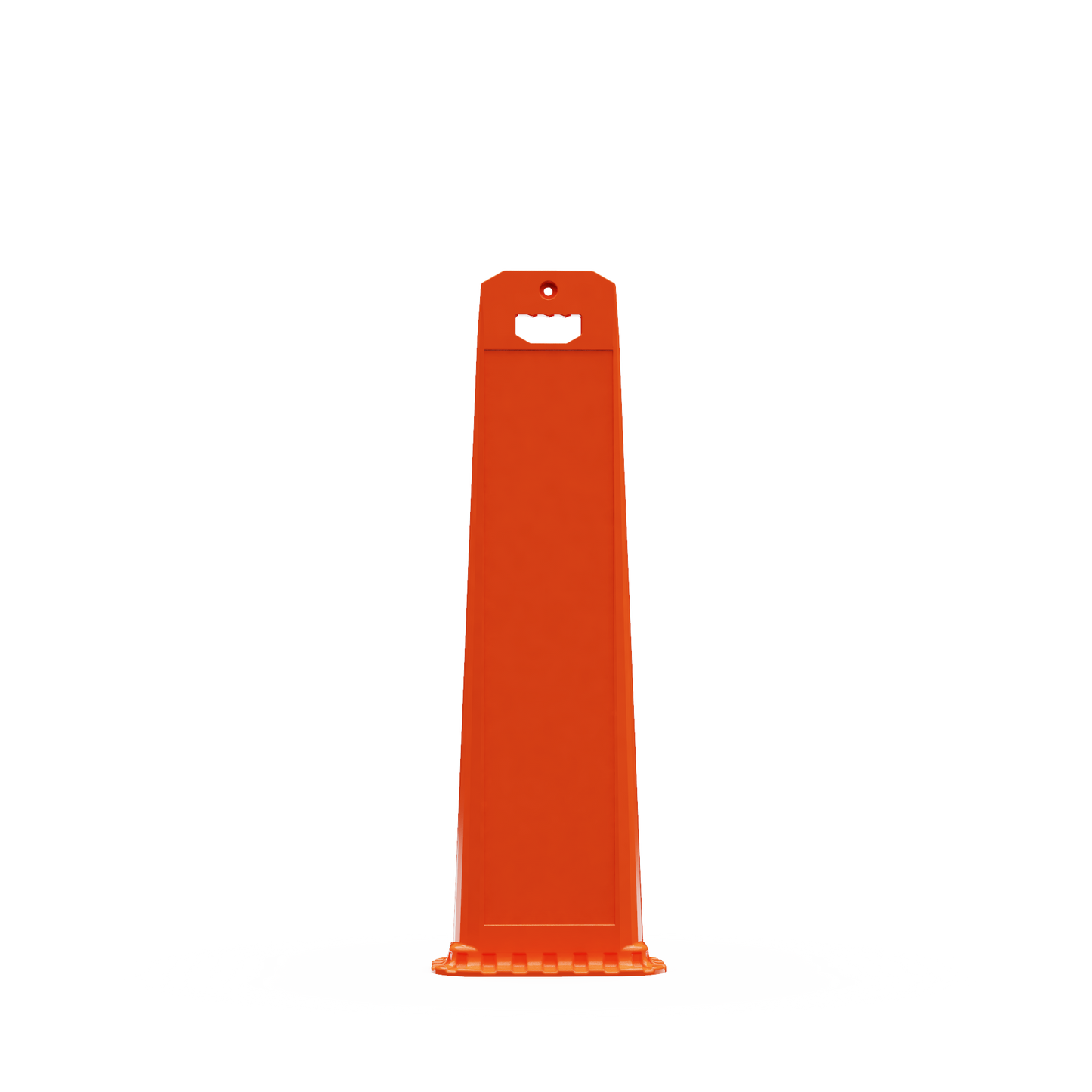

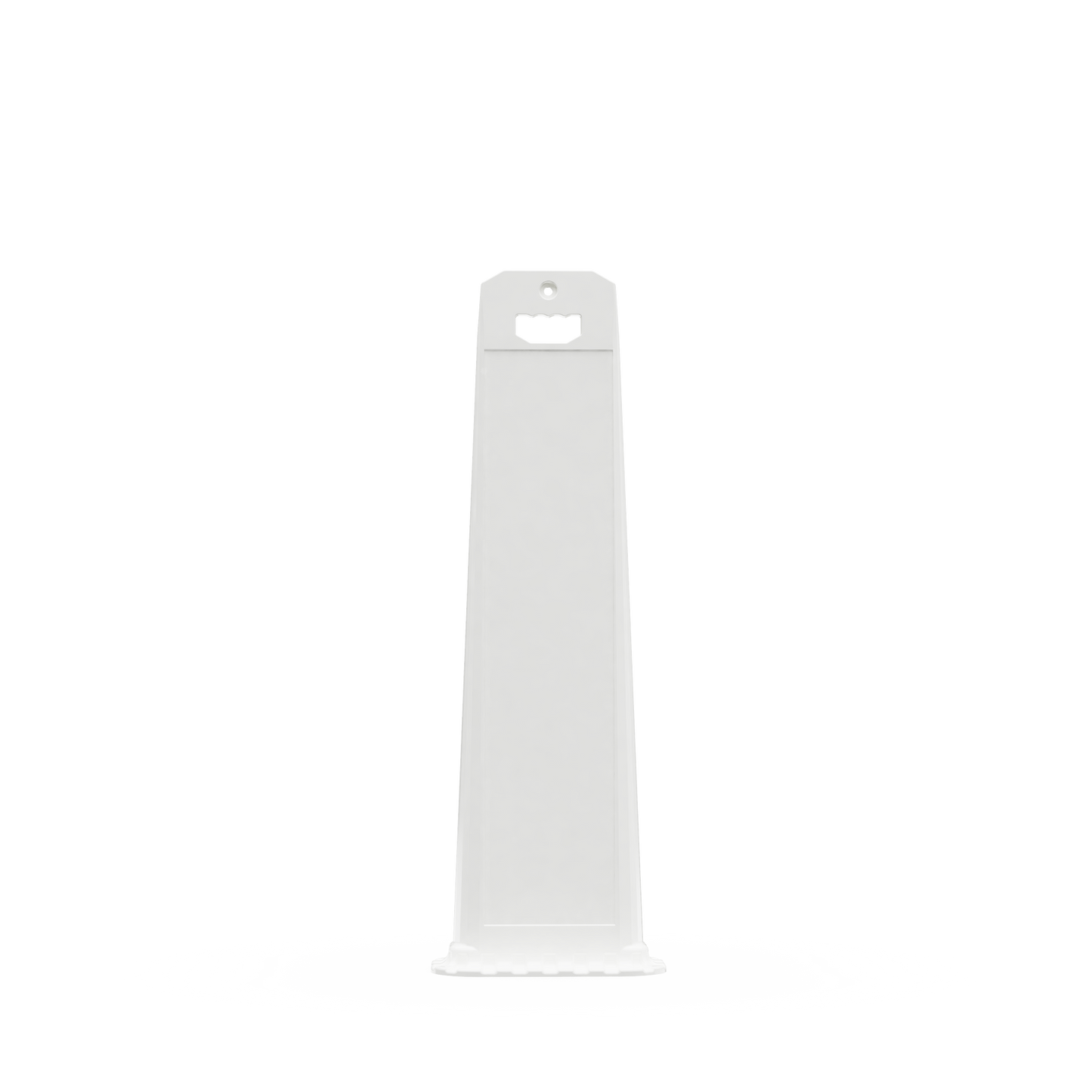

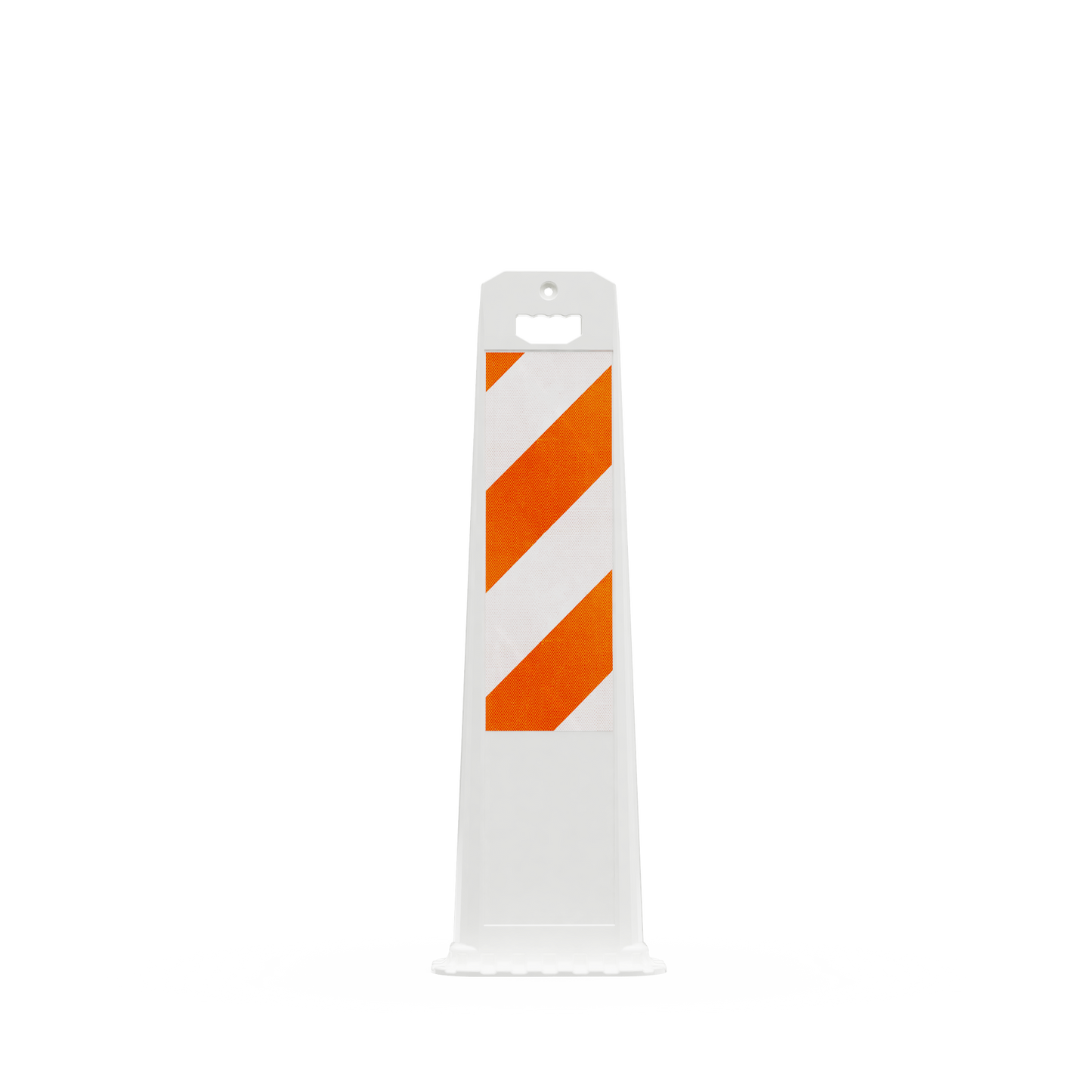

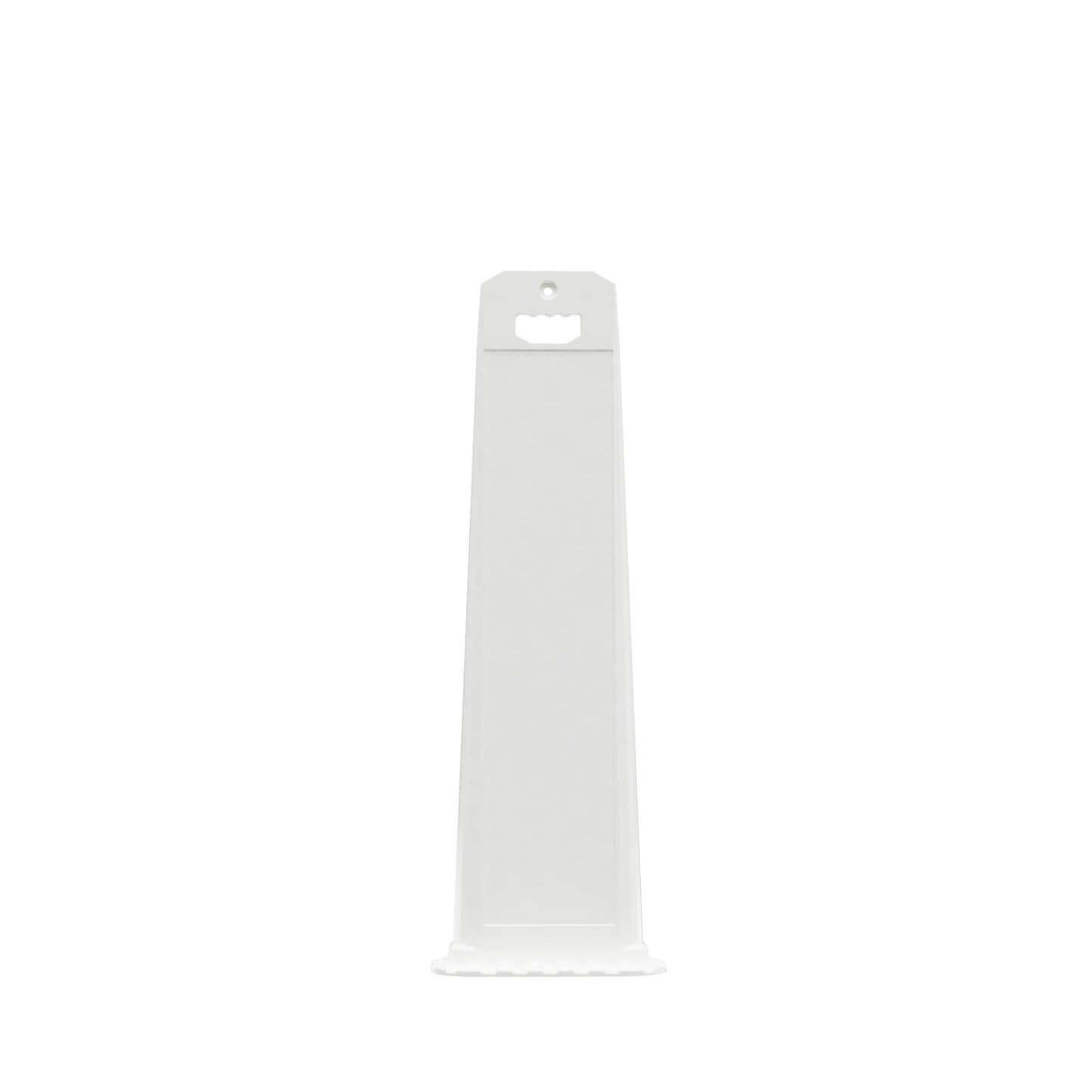

• Available in orange and white with flashing light mounting receptacle and reflective sheeting for extra visibility

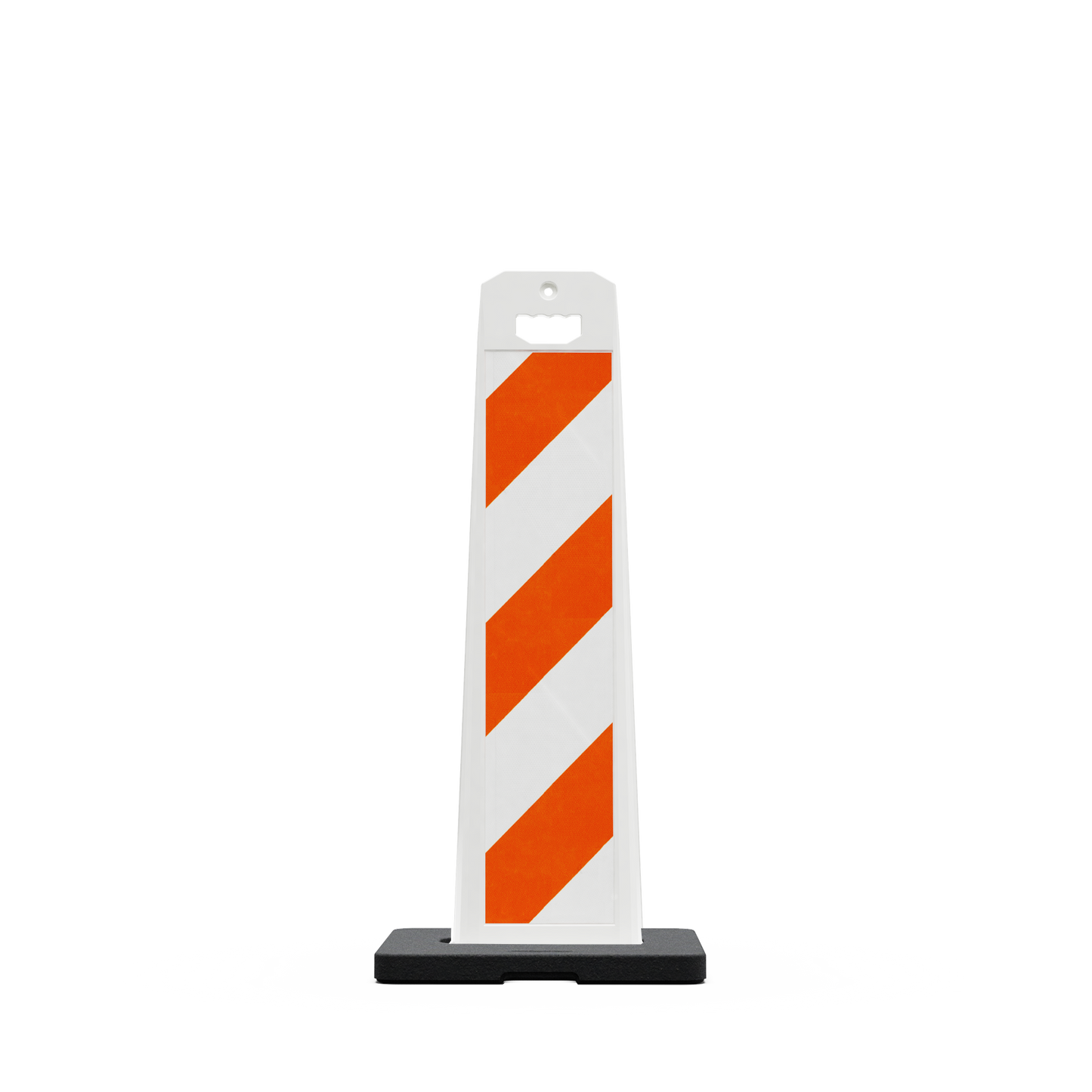

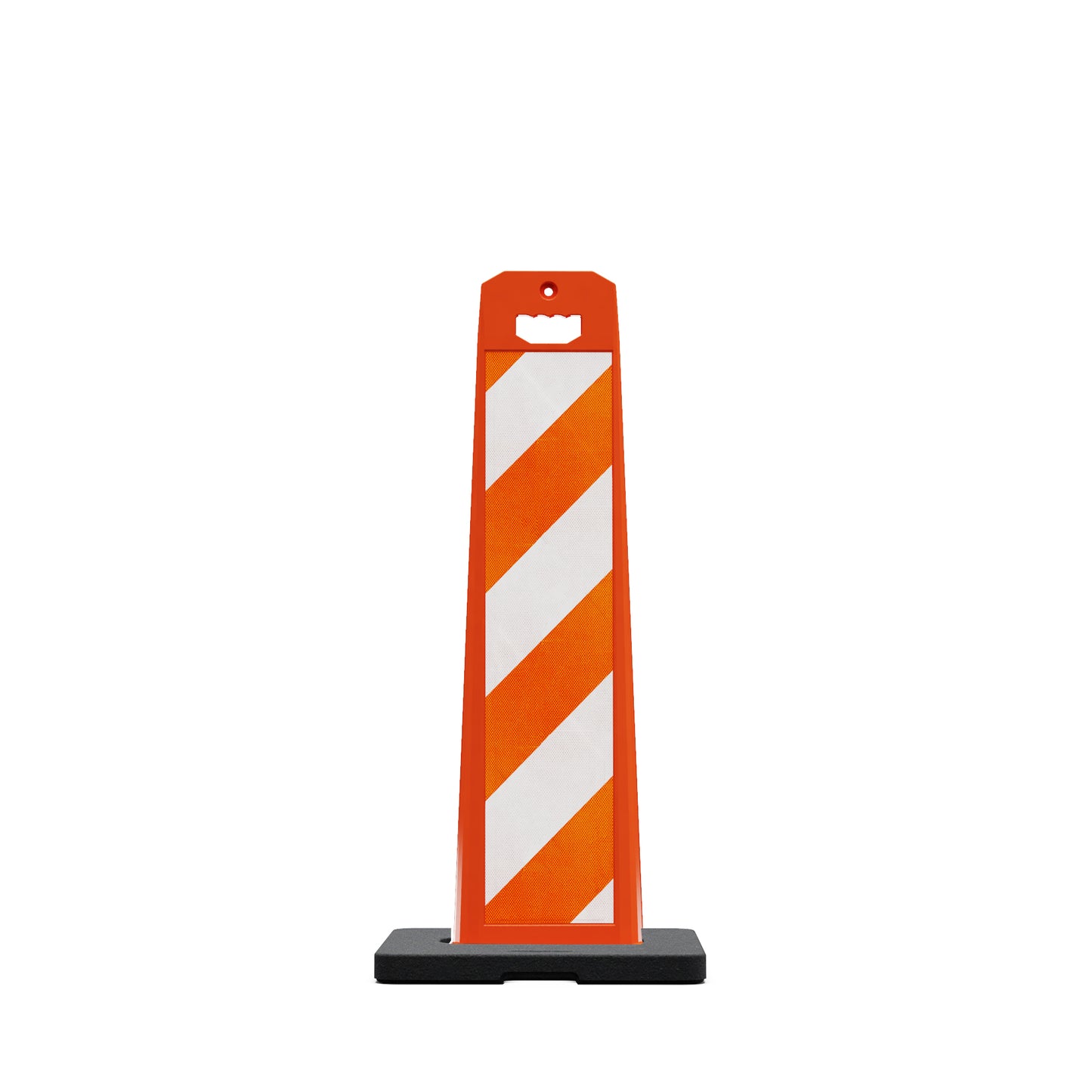

• Recycled Rubber Bases in 20lbs or 30lbs won´t chip, crack, or warp and resist heavy weather conditions, water, and oil.
• Additional Recycled rubber bases  available
• MASH Accepted WZ-300
• Meets MUTCD Standards
• Proudly made in the USA

This out-standing Gemstone vertical panel is made of low-density polyethylene with a special sidewall design that makes it strong and eye-catching, the bright colors combined with stripped reflective sheeting ensure high visibility at all times. It can hold a flashing light to protect vehicles at night. It comes with two recycled rubber options to adapt to windy areas, can be stacked with or without bases and has a oversized handle that makes them easy to carry, place and transport.

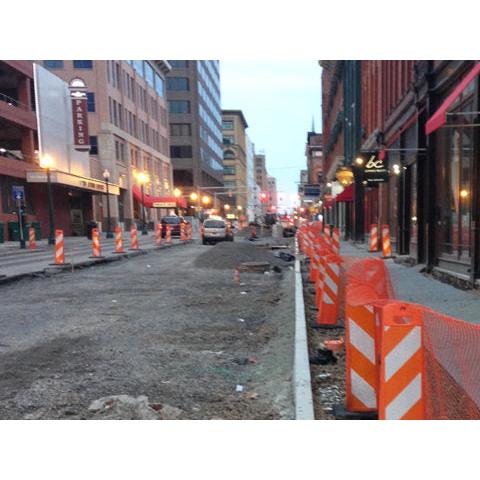

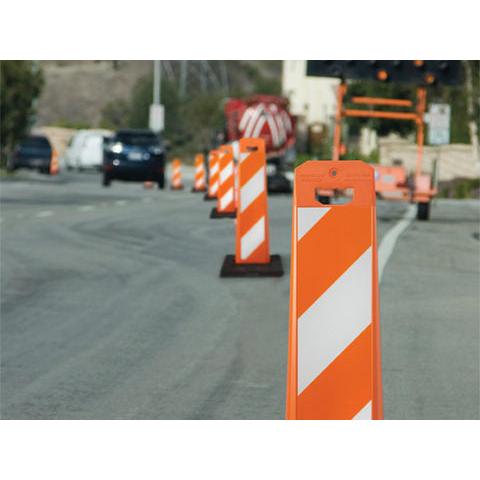

This Gemstone vertical panel is the perfect Traffic Delineator for heavy traffic areas construction sites, it provides a slick, very bright and visible device designed to prevent accidents and protect workers, pedestrians and vehicles while being economical and durable.

Made in the USA

If you would like to request a quotation for large quantities of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832

Technical Specifications:

• Dimensions: 14.75"W
 x 44.5"H
• Weight: 4 lbs
• Colors: White and Orange

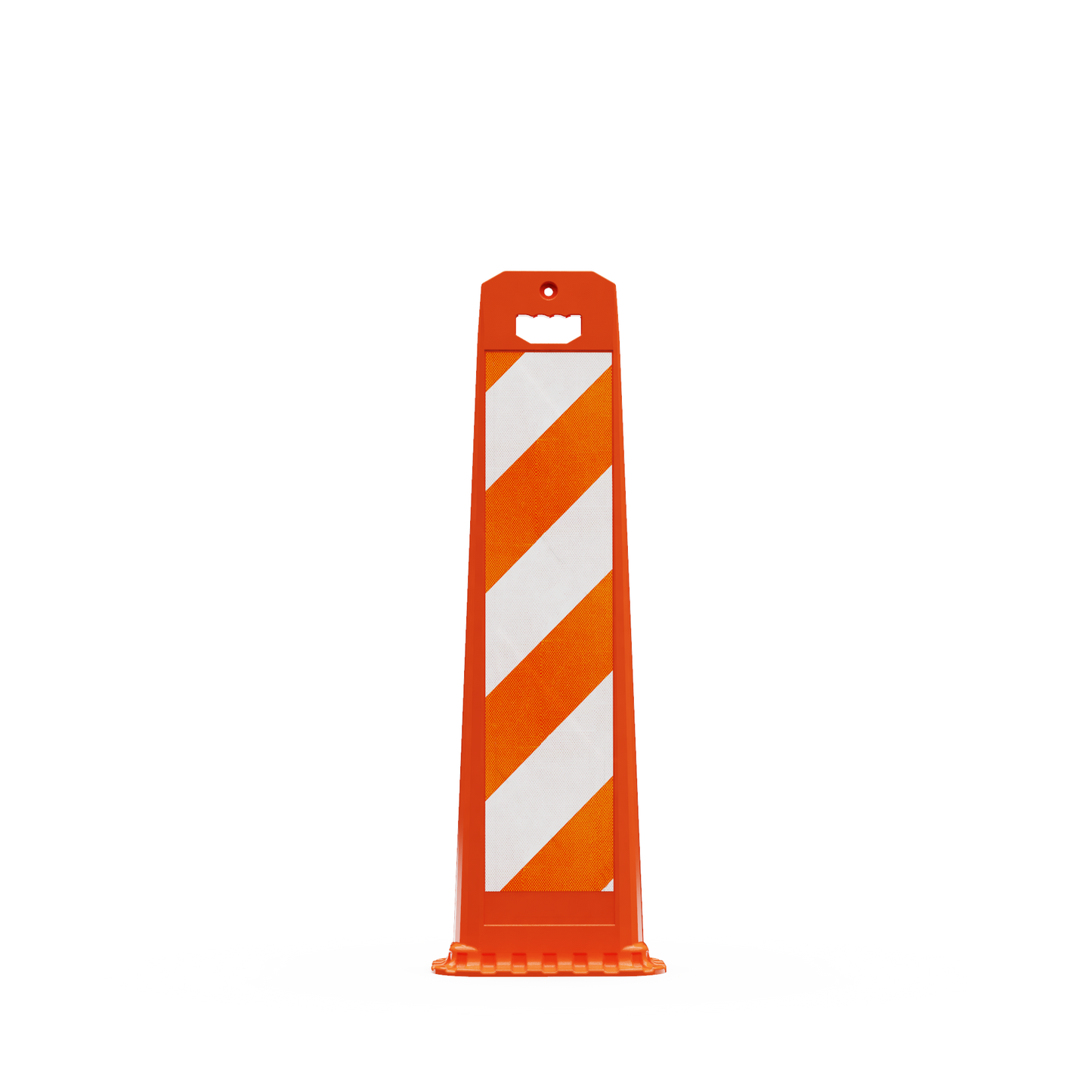

• Reflective Sheeting: 8” x 24” - 8” x 34” - 8” x 36” in EG, HIP and DG
• Rubber Bases: 20 lb. base: 20.25" x 20.25", opening 12.75" x 5.75"
• 30 lb. base: 20.25" x 28.25", opening 12.75" x 5.75"

Technical Documents and Certifications:

State Reference Guide
Learn more about traffic product certifications and specifications for your state.

Alabama
AL QPL
Certified for use

Alaska
No QPL
AK Standard Specifications
AK Standard Drawings
Certified for use:
DOT Sheeting Requirement – ASTM D4956, Type IV
Plasticade meets the specification by supplying 3M™ High Intensity Prismatic Grade

Arizona
No QPL
AZ State Supplement
AZ Traffic Control Guidelines
AZ Standard Specifications
Certified for use:
DOT Sheeting Requirement – ASTM D4956, Type IV
Plasticade meets the specification by supplying 3M™ High Intensity Prismatic Grade
Sheeting size is 8" x 36"

Arkansas
No QPL
AR Standard Specifications
Certified for use:
DOT Sheeting Requirement – ASTM D4956, diamond grade
Plasticade meets the specification by supplying 3M™ Diamond Grade™

California
CA QPL
CA State Manual
Certified for use:
DOT Sheeting Requirement – ASTM D4956, Type I/II
Plasticade meets the specification by supplying 3M™ Engineer Grade

Colorado
CO QPL
CO DOT
CO Work Zone Devices
Certified for use:
DOT Sheeting Requirement – ASTM D4956, Type II, Type III, or Type IV
Plasticade meets the specification by supplying 3M™ High Intensity Prismatic Grade

Connecticut
CT QPL
CT Standard Specifications
Certified for use

Delaware
No QPL
DE DOT
Certified for use

Florida
Florida QPL
Florida Standard Specifications
Certified for use:
APL #102-028-023
Approval number must appear on the product.

Georgia
GA QPL
Certified for use:
DOT Sheeting Requirement – ASTM D4956, diamond grade
Plasticade meets the specification by supplying 3M™ Diamond Grade™
Sheeting size is 8" x 36"

Hawaii
No QPL
HI Standard Specifications
Certified for use

Idaho
Idaho QPL
ID State Supplement
ID Traffic Manual
Certified for use

Indiana
No QPL
IN State Manual 2011
IN Work Zone Devices
IN Standard Specifications
Certified for use

Iowa
IA QPL
IA Traffic Safety Manual
Certified for use:
DOT Sheeting Requirement – ASTM D4956, diamond grade
Plasticade meets the specification by supplying 3M™ Diamond Grade™ Fluorescent

Kentucky
No QPL
KY Standard Specifications
KY Standard Drawings
Approved Materials
Certified for use

Maine
Maine QPL
ME Temporary Traffic Control
ME Standard Specifications
Certified for use

Massachusetts
MA QPL
MA MUTCD
Certified for use

Michigan
No QPL
MI State Manual
MI Work Zone Device Drawings
MI Standard Specifications
Certified for use

Minnesota
Minnesota QPL
MN State Manual
MN Work Zone Devices
MN Standard Specifications
Certified for use

Missouri
No QPL
MO State Manual
Standards and Specifications
Certified for use

Montana
MT QPL
MT Standard Drawings
MT Manuals and Specifications
Certified for use

Nebraska
NE QPL
NE Standard and Special Plans Manual
Certified for use

New Hampshire
No QPL
NH DOT
NH Notes to MUTCD
NH Standard Specifications
Certified for use

New Mexico
No QPL
NM Standard Specifications
Certified for use

New York
No QPL
NY State Supplement
NYSDOT Standard Drawings
NY Standard Specifications
Certified for use

North Carolina
NC QPL
NC State Supplement
Certified for use

North Dakota
No QPL
ND Work Zone Devices
ND Standard Specifications
Certified for use

Ohio
OH APL
OH State Manual
Temporary Traffic Control Manual
Traffic Control for Work Zones Guidelines
Certified for use

Oklahoma
OK QPL
OK Work Zone Devices
OK Standard Specifications
Certified for use:
DOT Sheeting Requirement – ASTM D4956, Type IV
Plasticade meets the specification by supplying 3M™ High Intensity Prismatic Grade

Rhode Island
No QPL
Approved Materials List
RI Standard Details
RI Standard Specifications
Under Evaluation

South Dakota
No QPL
SD Standard Specifications
Certified for use

Tennessee
TN QPL
Certified for use:
DOT Sheeting Requirement – ASTM D4956, Type IV
Plasticade meets the specification by supplying 3M™ High Intensity Prismatic Grade

Texas
TX Compliant Work Zone Devices
Texas MUTCD
TX Standard Traffic Drawings
Certified for use:
8" x 36" sheeting on panel. Must use 30 lb. base. DOT Sheeting Requirement – ASTM D4956, Type III
Plasticade meets the specification by supplying 3M™ High Intensity Prismatic Grade

Utah
UT APL
UT State Manual
UT Work Zone Devices
UT Standard Specifications
Certified for use:
DOT Sheeting Requirement – ASTM D4956, diamond grade
Plasticade meets the specification by supplying 3M™ Diamond Grade™ Fluorescent
Sheeting size is 8" x 34" - meets 270 square inch minimum requirement

Vermont
No QPL
VT DOT
Certified for use

Virginia
No QPL
VA Roadside and Safety Devices
VA State Supplement
Certified for use:
DOT Sheeting Requirement – ASTM D4956, Type III
Plasticade meets the specification by supplying 3M™ High Intensity Prismatic Grade

Wisconsin
No QPL
WI State Supplement
Certified for use

Wyoming
No QPL
WY Standard Work Zone Devices
WY MUTCD
Certified for use
