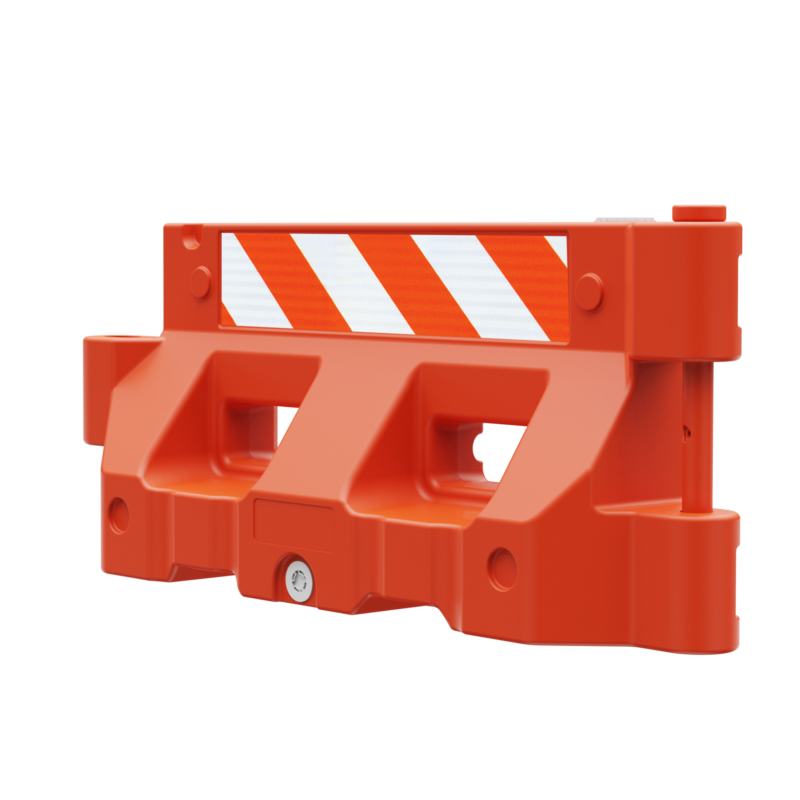

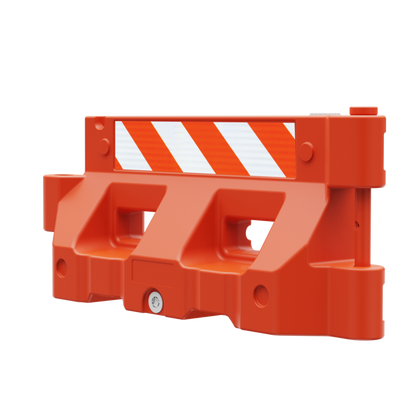

Hydrocade Water Filled Barricade System

The Hydrocade Water Filled Barricade System is a durable, high-visibility longitudinal channelizing device designed for construction zones, traffic management, and crowd control. Its polyethylene one-piece design and interlocking system provide secure, continuous barrier lines that can adapt to virtually any roadway layout. With the ability to turn up to 90 degrees and adjust to curbs, it ensures effective delineation for vehicles, pedestrians, and workers alike.

Built to withstand harsh conditions, the Hydrocade is crash tested for TL-3 MASH acceptance and meets MUTCD standards. Each barricade is lightweight when empty for easy handling, yet achieves significant stability when filled with up to 81 gallons of water, reaching a deployable weight of 745 lbs. Forklift access points allow safe repositioning, while durable connector pins ensure strong, reliable unions between units.

Features and Benefits

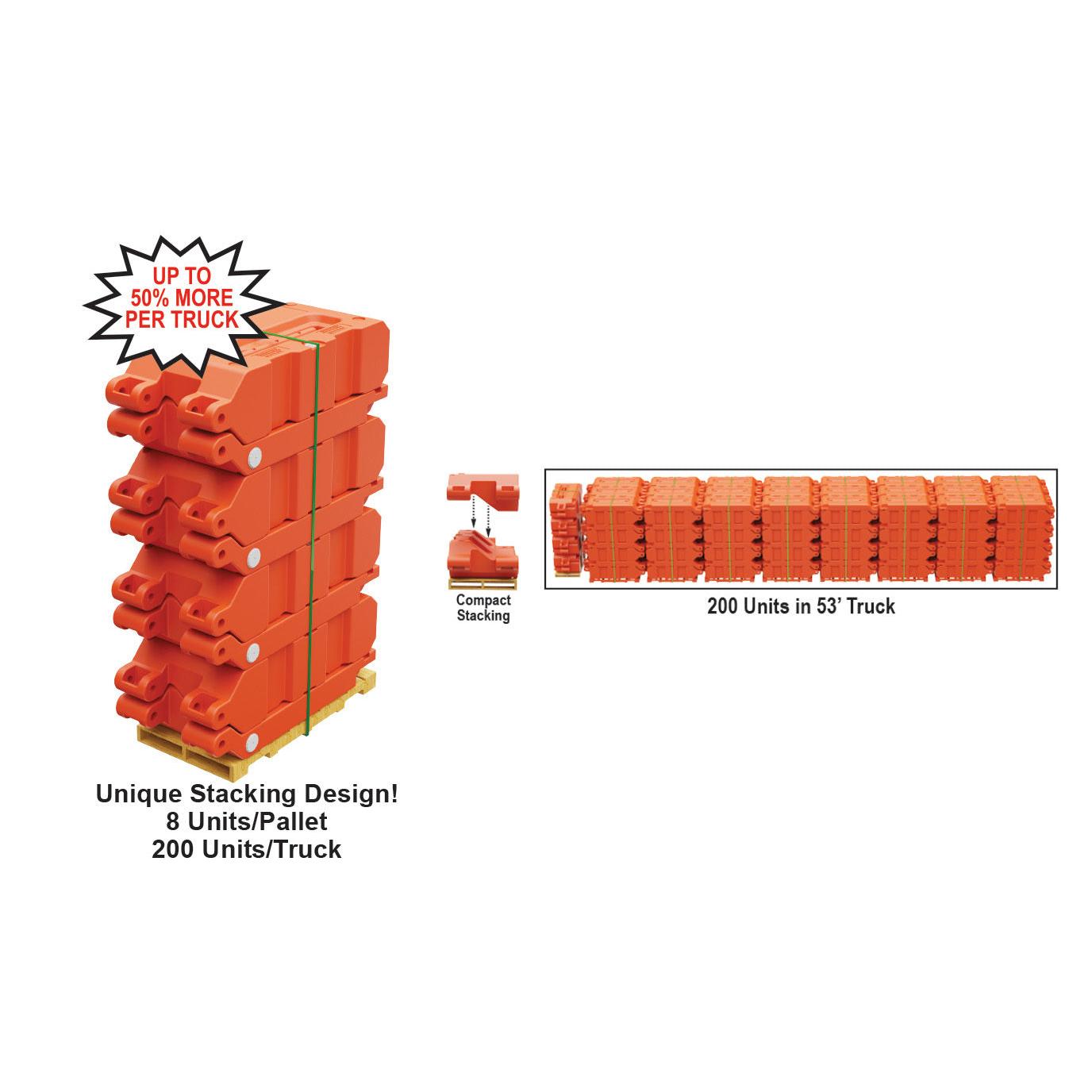

• Stackable design – Up to 200 units per truckload, carrying 50% more per load for lower transport costs and efficient storage.
• Durable polyethylene construction – Impact resistant, designed for long service life.
• Water-fill design – Holds up to 81 gallons for a secure deployable weight of 745 lbs.
• Lightweight when empty – Just 67 lbs. for easy transport and handling without machinery.
• Interlocking system with connector pins – Creates straight or curved barrier lines, turning up to 90°. Connector Pin included.
• Crash tested for safety – Meets TL-3 MASH acceptance standards and submitted to FHWA.
• MUTCD compliant – Ensures full roadway safety standard compliance.

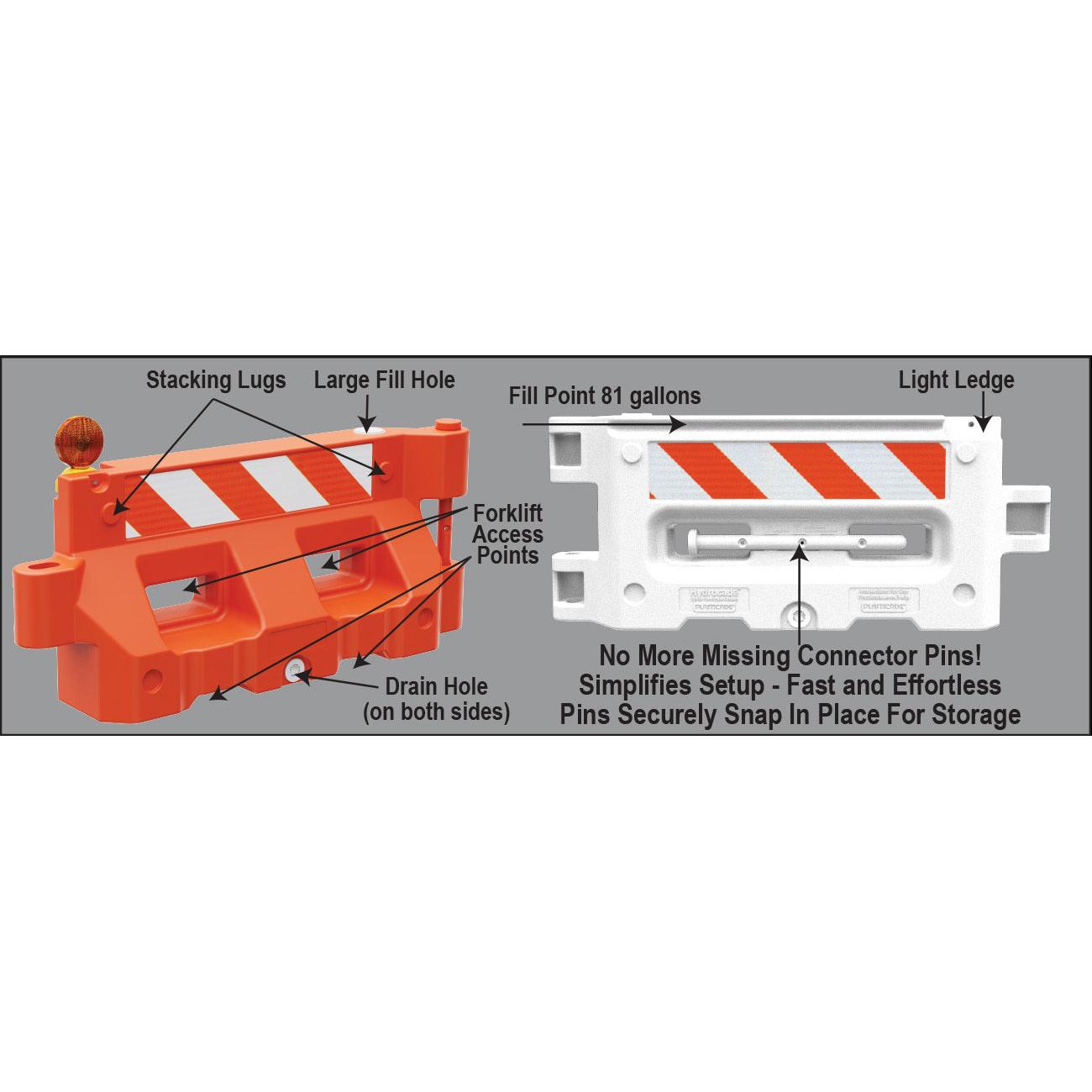

• Forklift access points – Simple relocation even when filled.
• Adaptable to terrain – Adjusts to curbs and inclines up to 6 degrees.
• Customizable visibility – Available with no sheeting, engineer-grade reflective sheeting, or high-intensity prismatic reflective sheeting.
• Accessory compatible – Accepts one barricade light and optional fence panels for added security.

Additional Information

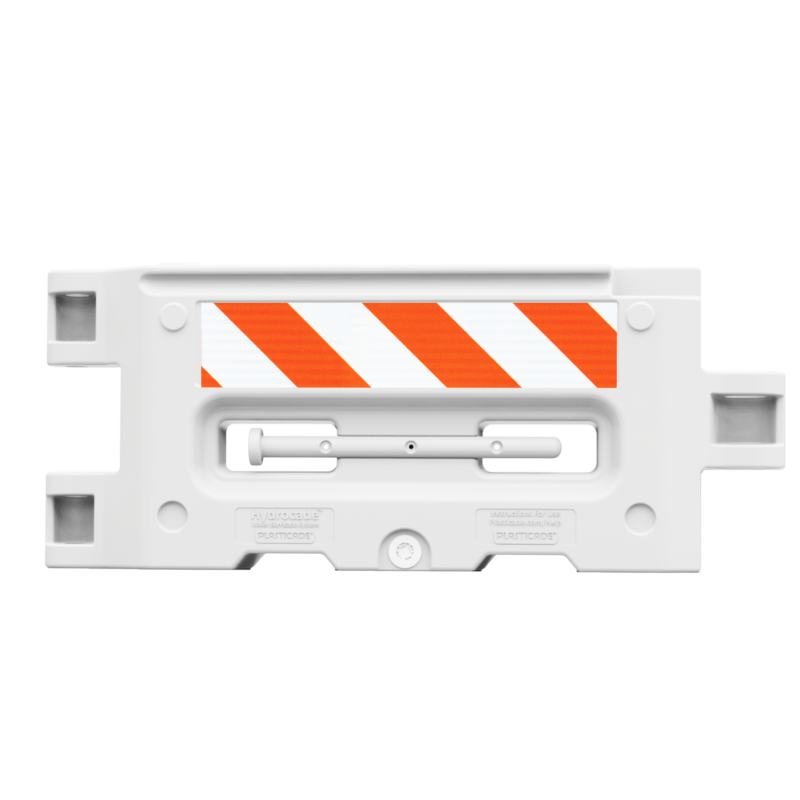

• Connector pins are sturdy, easy to install, and snap into place for compact storage.
• Each barricade is leak tested to guarantee quality and durability.

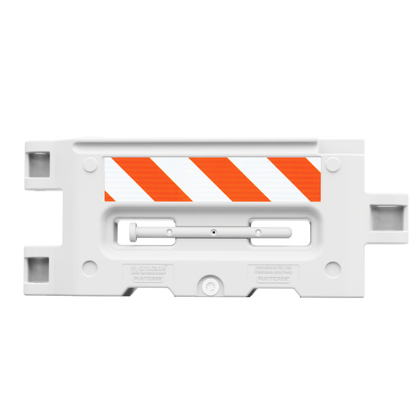

• Available in Orange or White, with or without reflective sheeting options.
• Fence panel additions raise overall height to 96" (not MASH tested with fencing).
• Designed with strength-enhancing channels to increase impact resistance.
• Component parts are available separately (see Accessories and Replacement Parts above)


Technical Specifications:

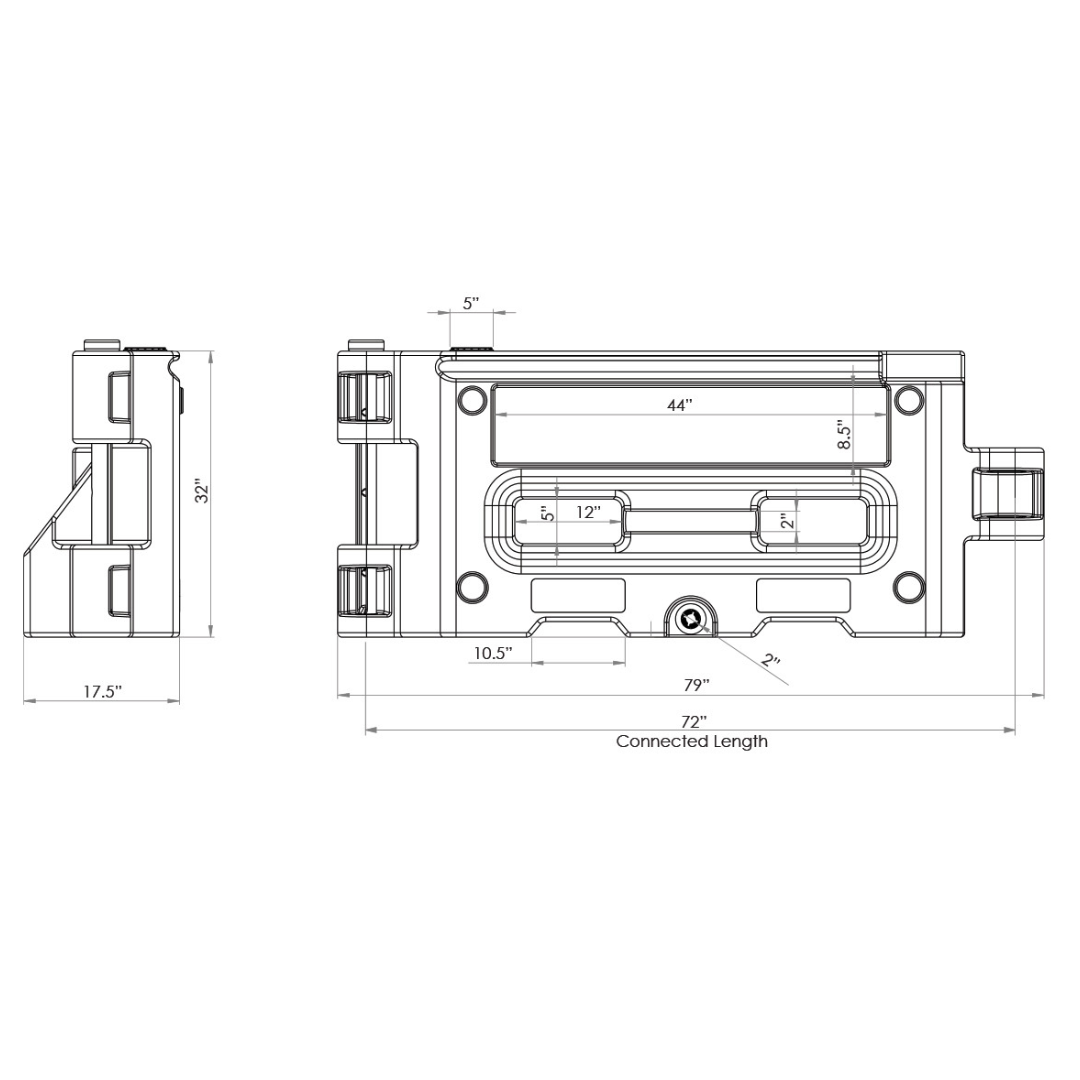

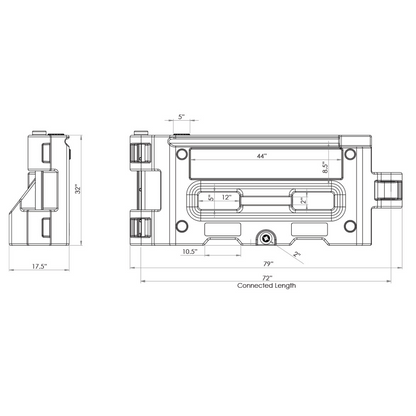

• Overall Dimensions: 79” L x 17.5” D x 32” H
• Top Width: 8”

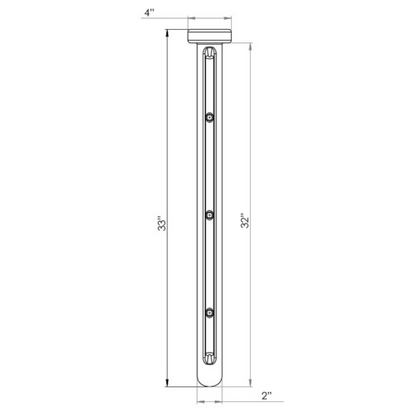

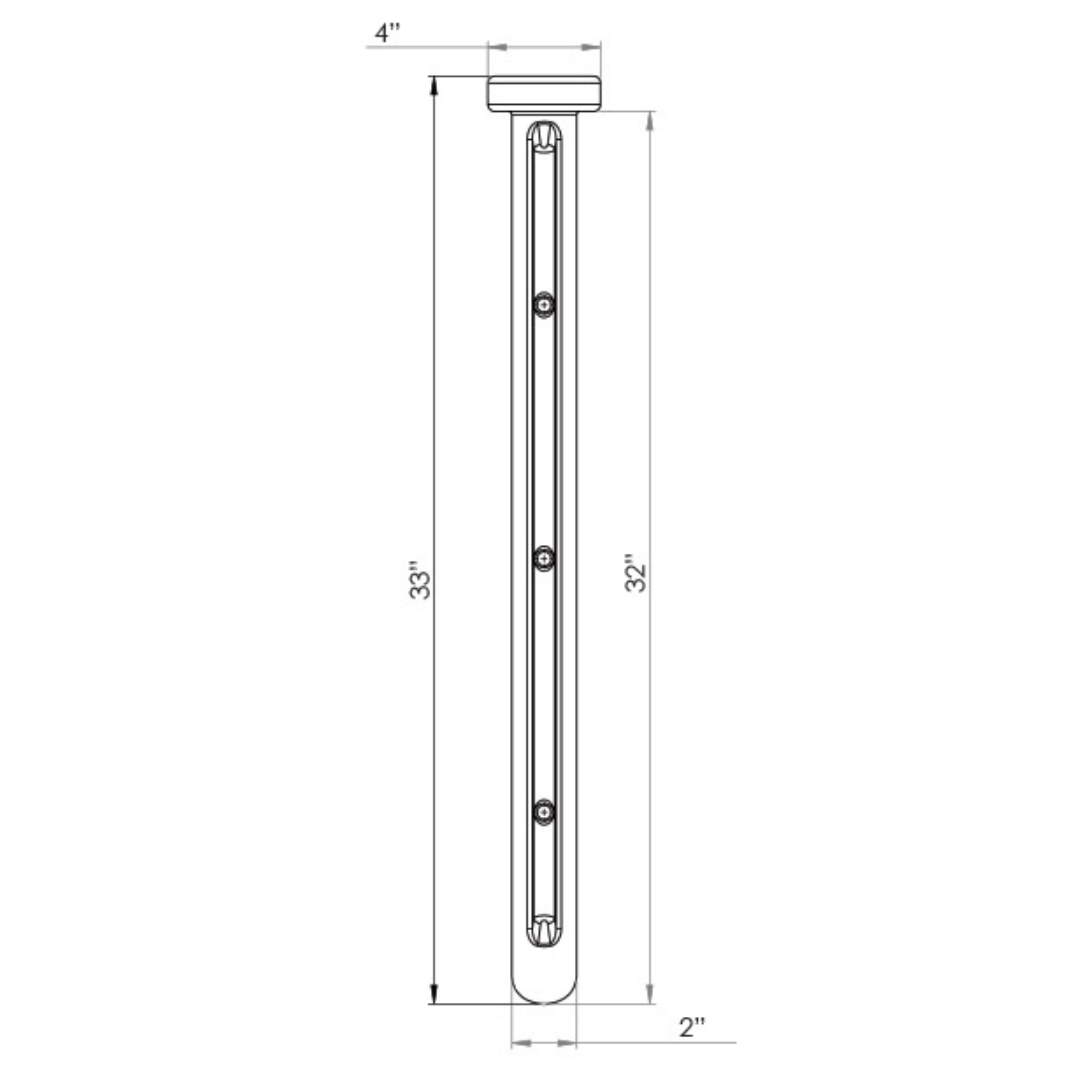

• Pin Dimensions: 33” L x 4” W (at head of pin)
• Weight: Empty – 67 lbs., Water filled – 745 lbs.

Made in the USA
