Low Profile Rack Guards

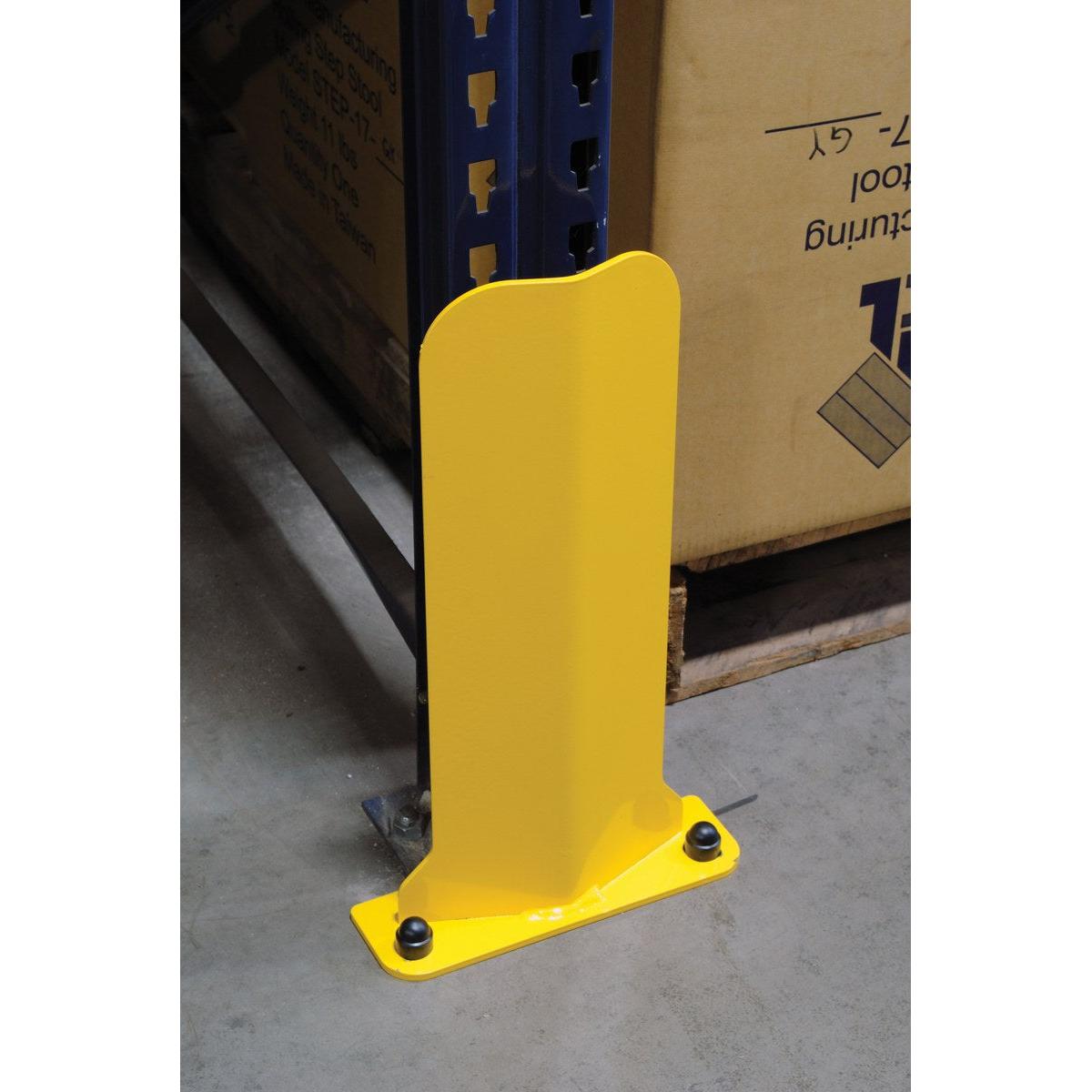

Low Profile Rack Guards provide reliable protection for pallet racking, wall corners, and other structural elements exposed to potential impact from forklifts, pallet trucks, and carts. Their compact design delivers effective defense while maintaining floor space efficiency in high-traffic warehouse environments.

Constructed from laser-cut, heavy-duty steel, these guards are designed for quick and easy installation with only two pre-drilled mounting holes per unit—reducing install time compared to traditional rack guards. The safety yellow powder-coated finish increases visibility and offers superior durability for long-term performance.

Features & Benefits

• Low Profile Design - Offers effective impact protection without obstructing aisle space
• Heavy-Duty Steel Construction - Ensures rugged durability in demanding environments
• Two Pre-Drilled Mounting Holes - Allows for fast, secure installation
• Laser-Cut Components - Ensure precise fit and consistent quality
• Powder-Coated Safety Yellow Finish - Increases visibility and resists wear

Additional Information

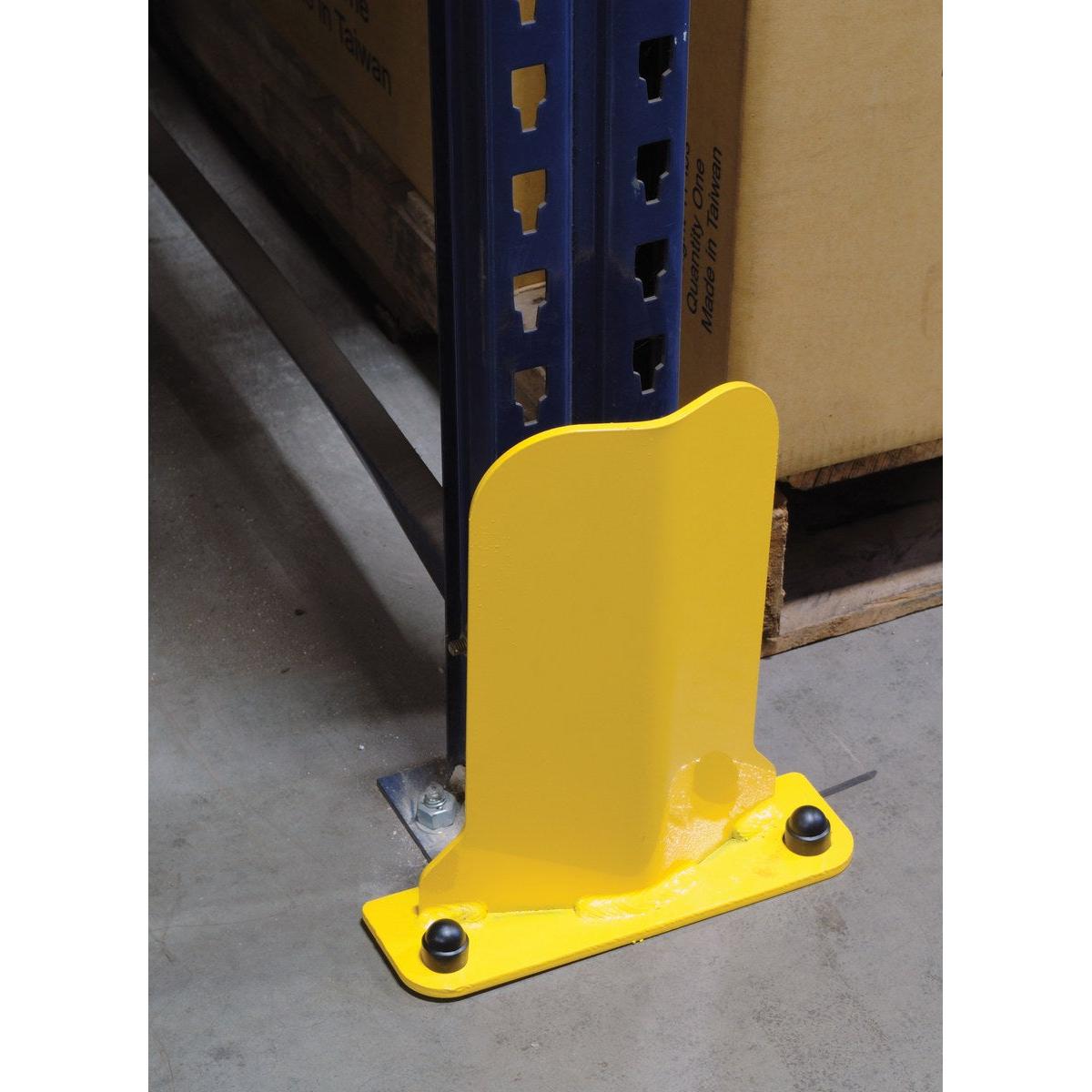

• Ideal for protecting rack ends, vertical supports, and exposed structural corners
•  ½" Anchor Bolts sold separately
• Suitable for warehouses, manufacturing facilities, and logistics centers

Technical Specifications:

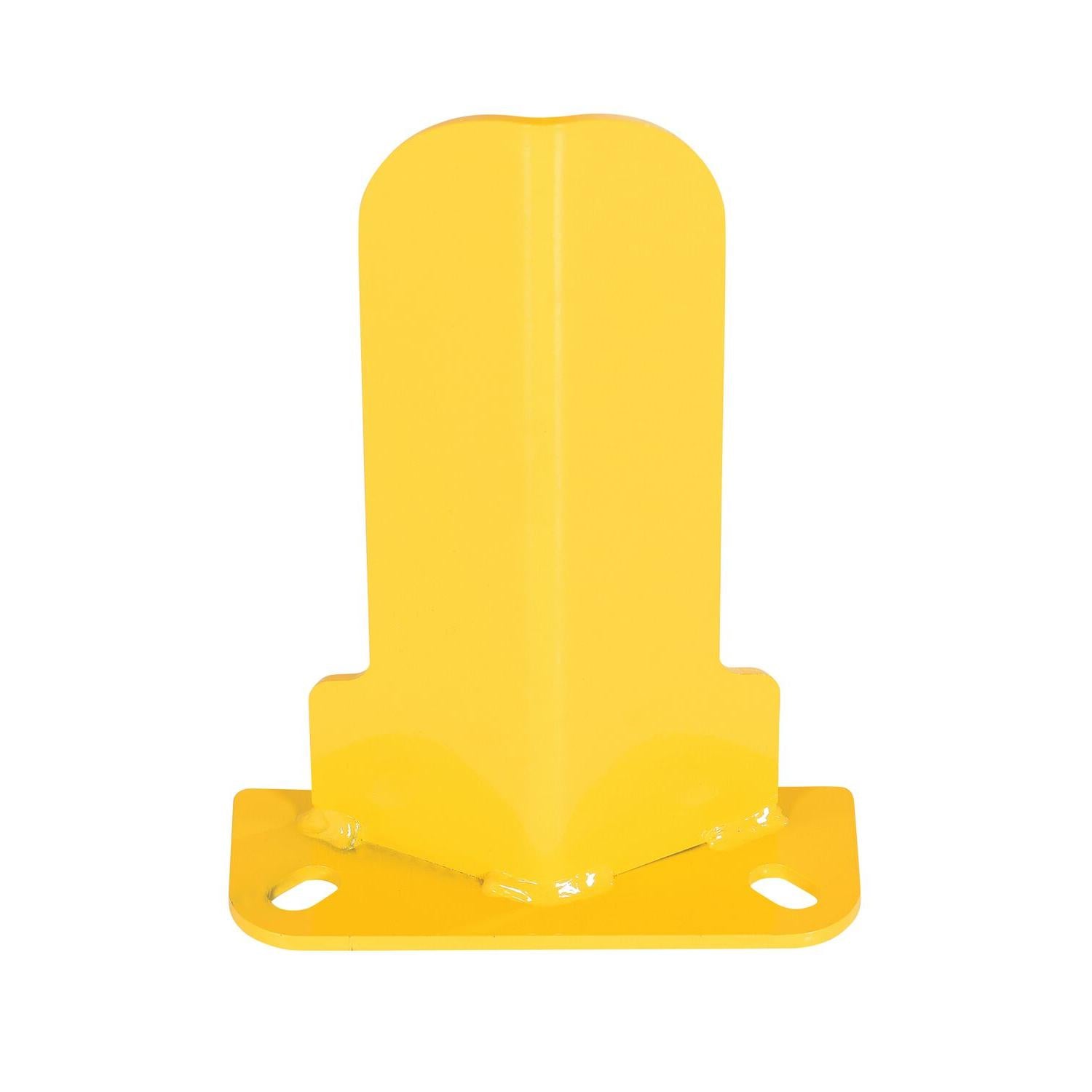

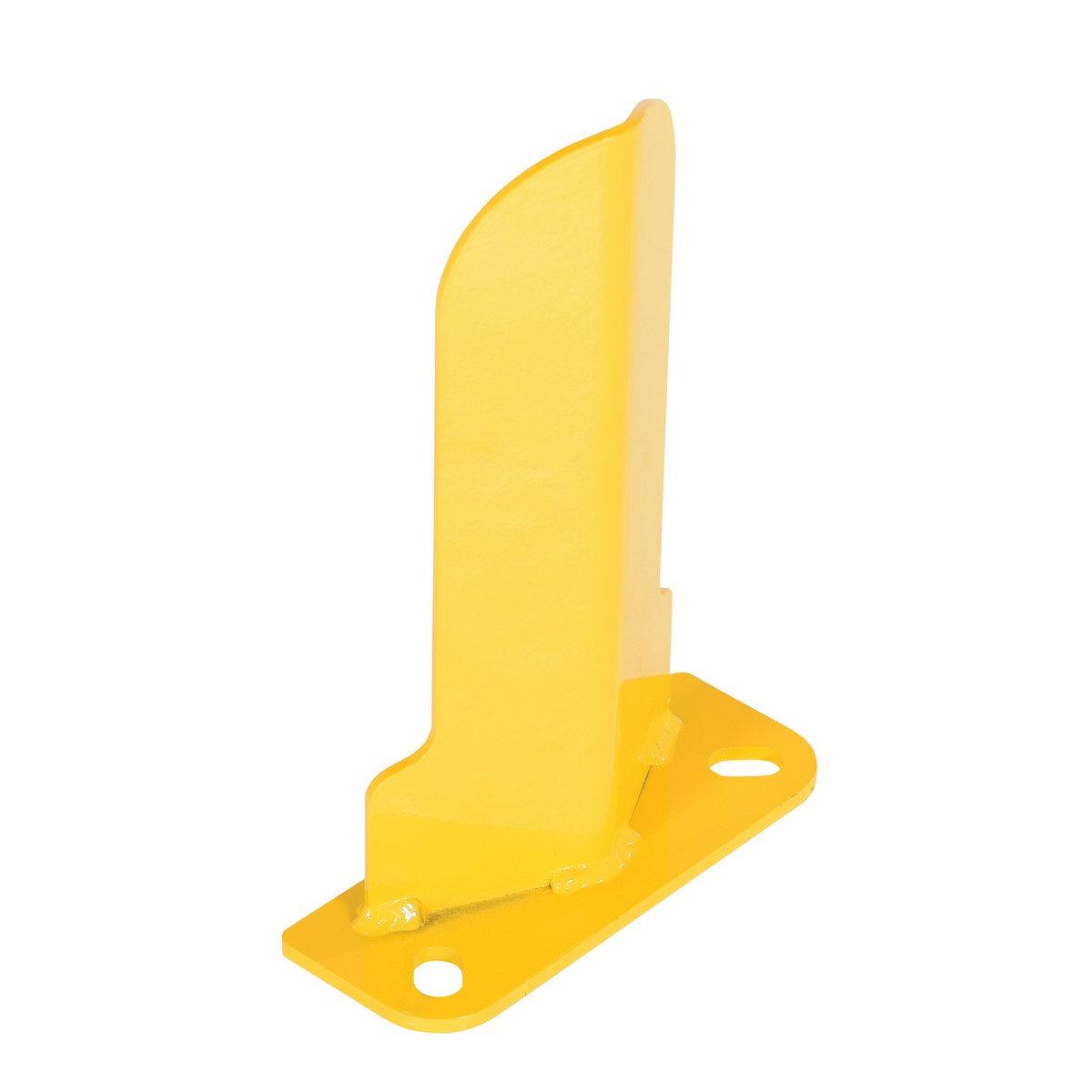

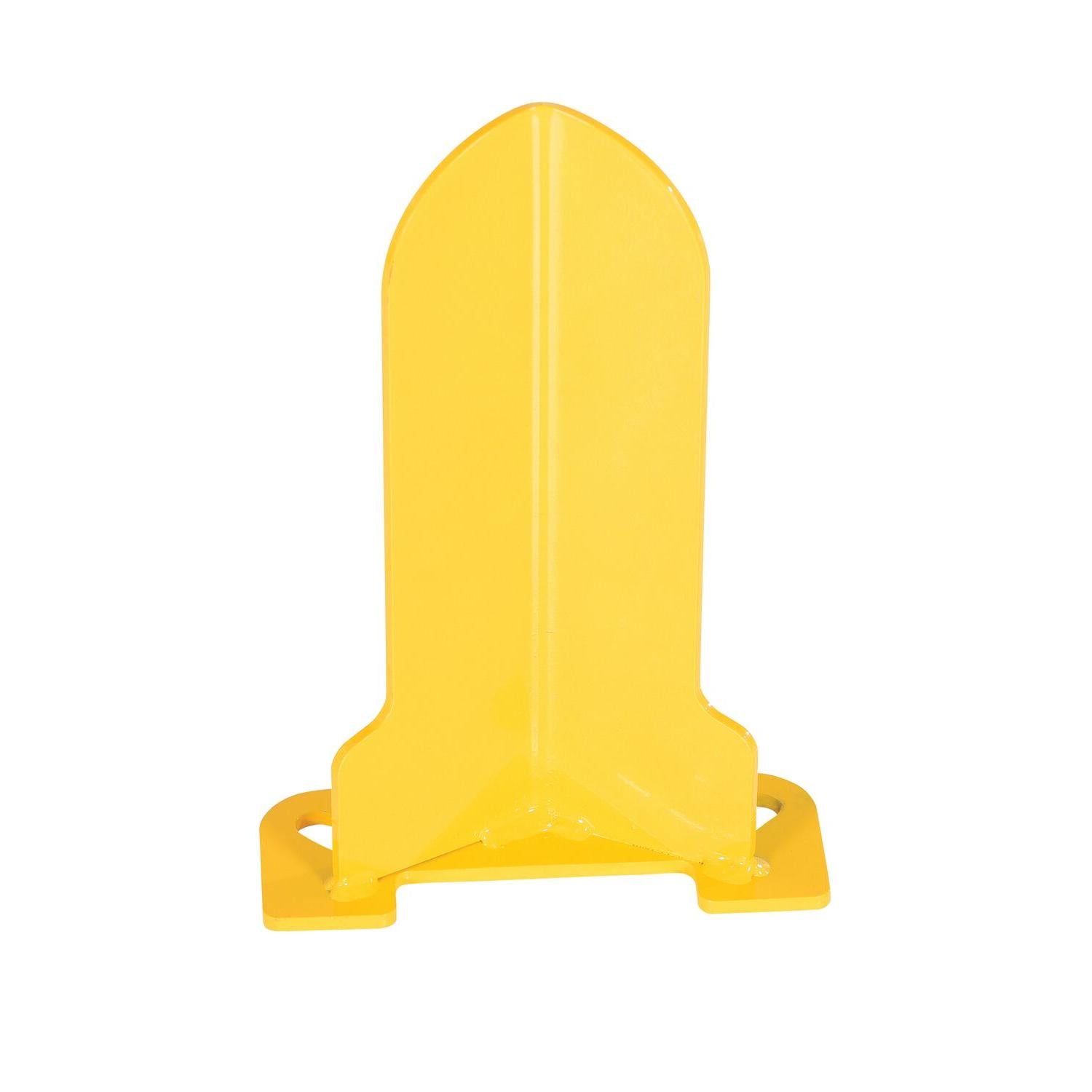

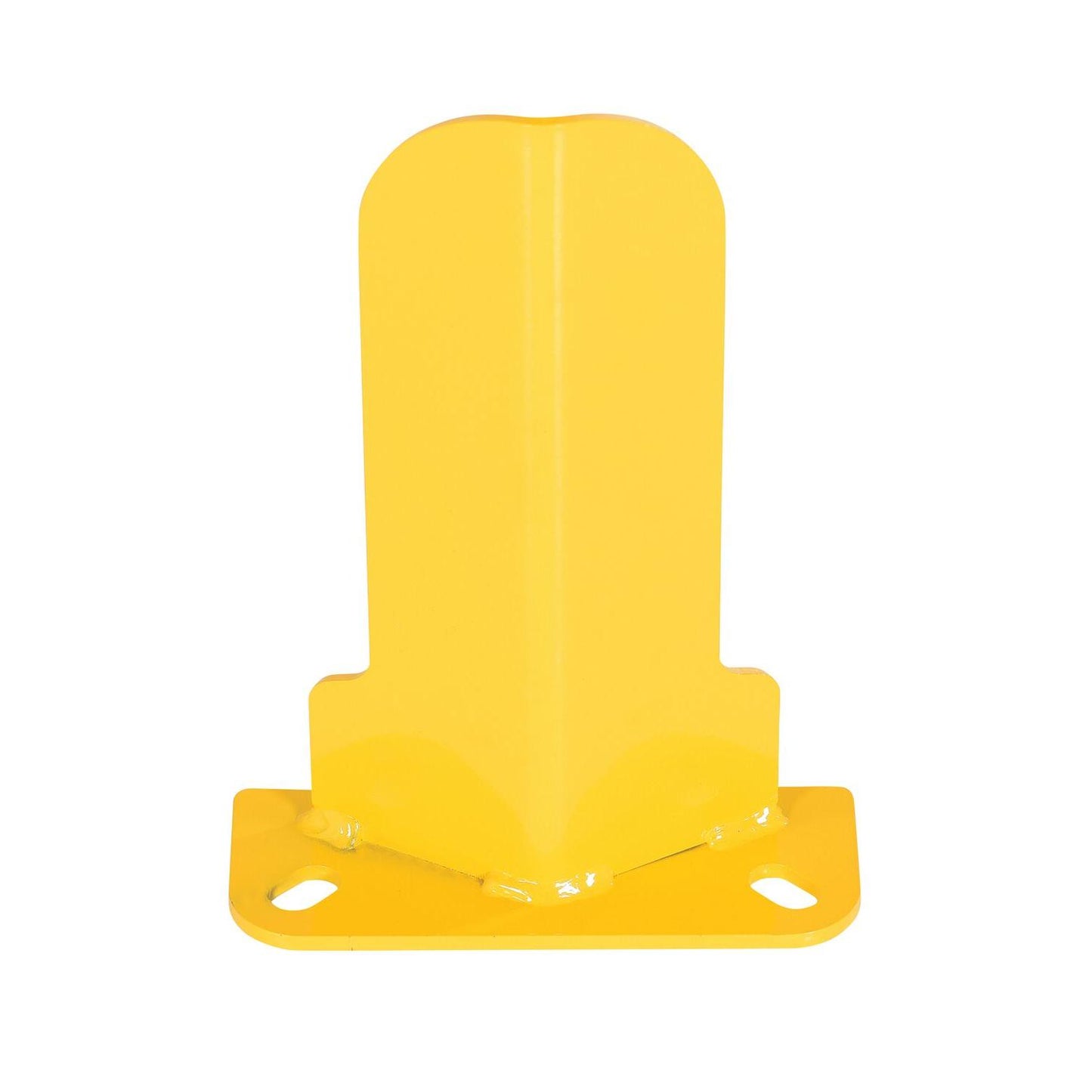

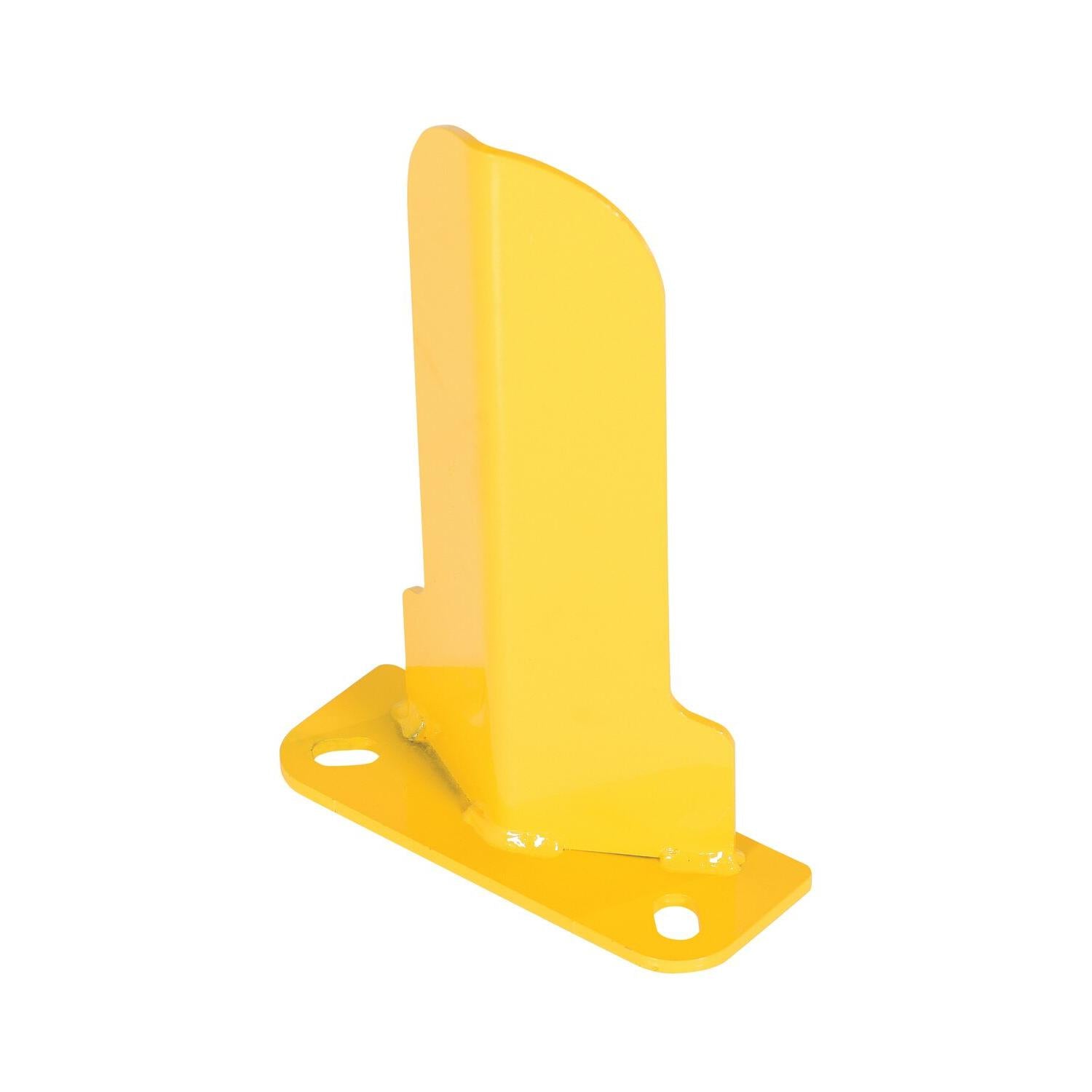

NPG4-12

• Total Ship Wt.(lbs.): 5
• Size: 8"W x 3"L x 11.875"H

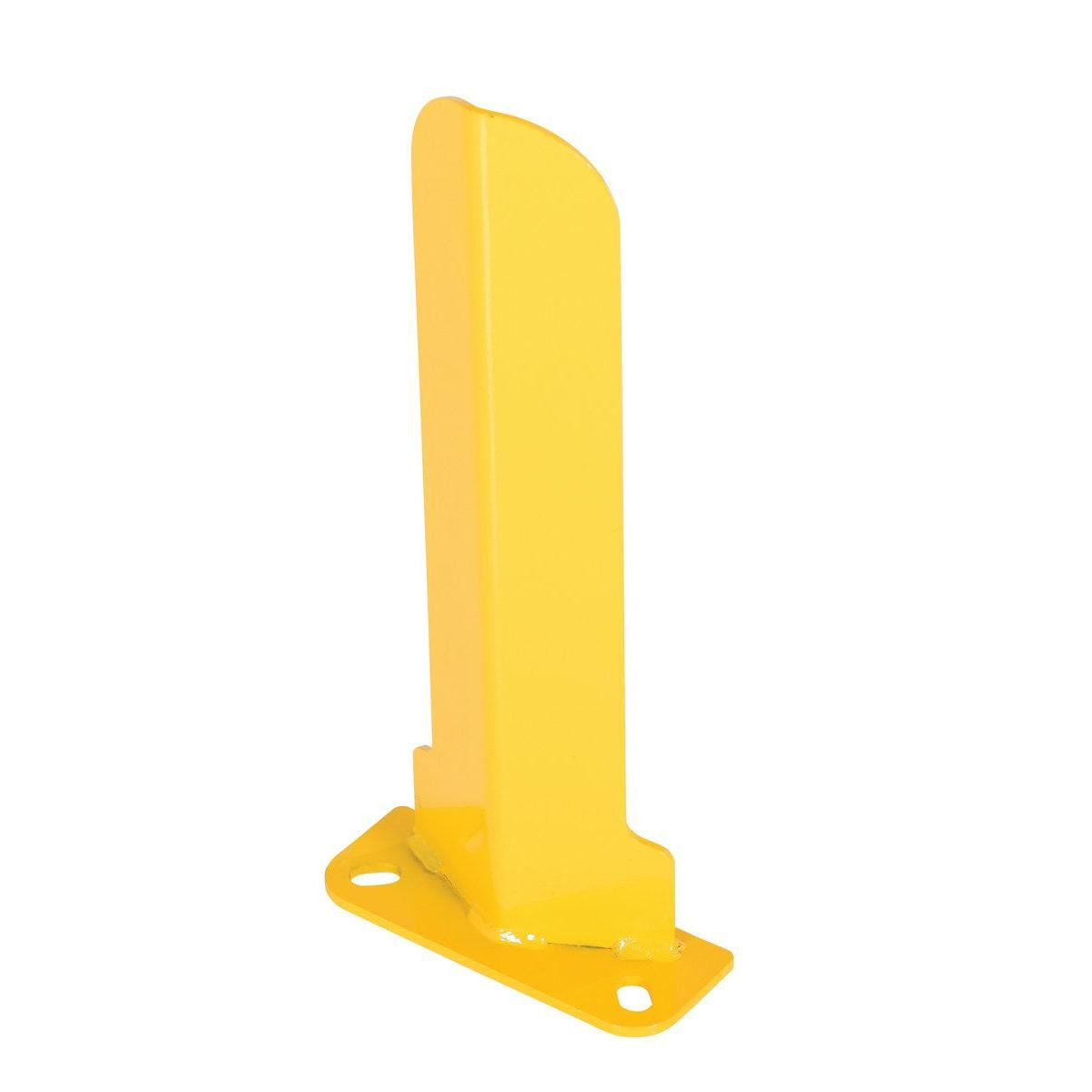

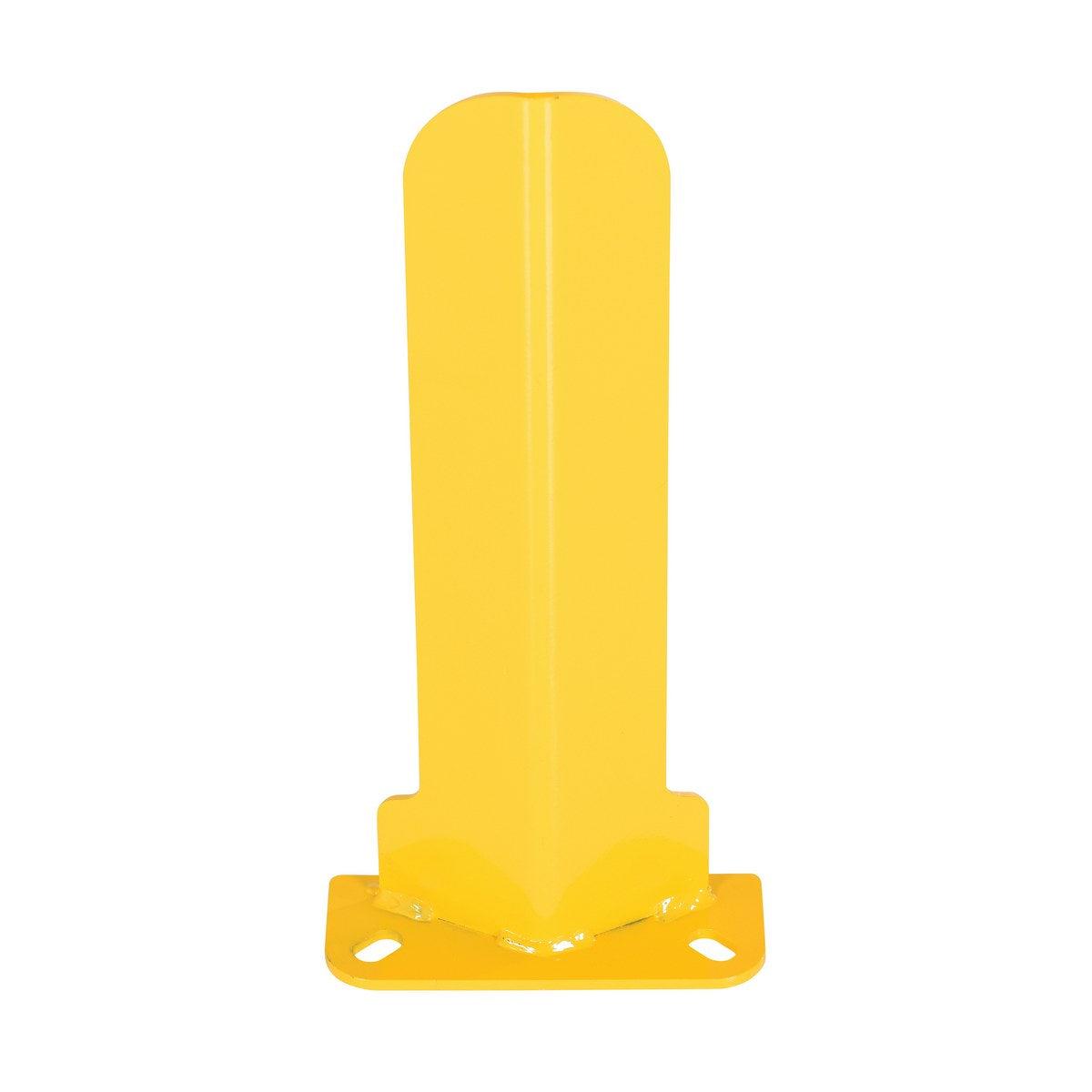

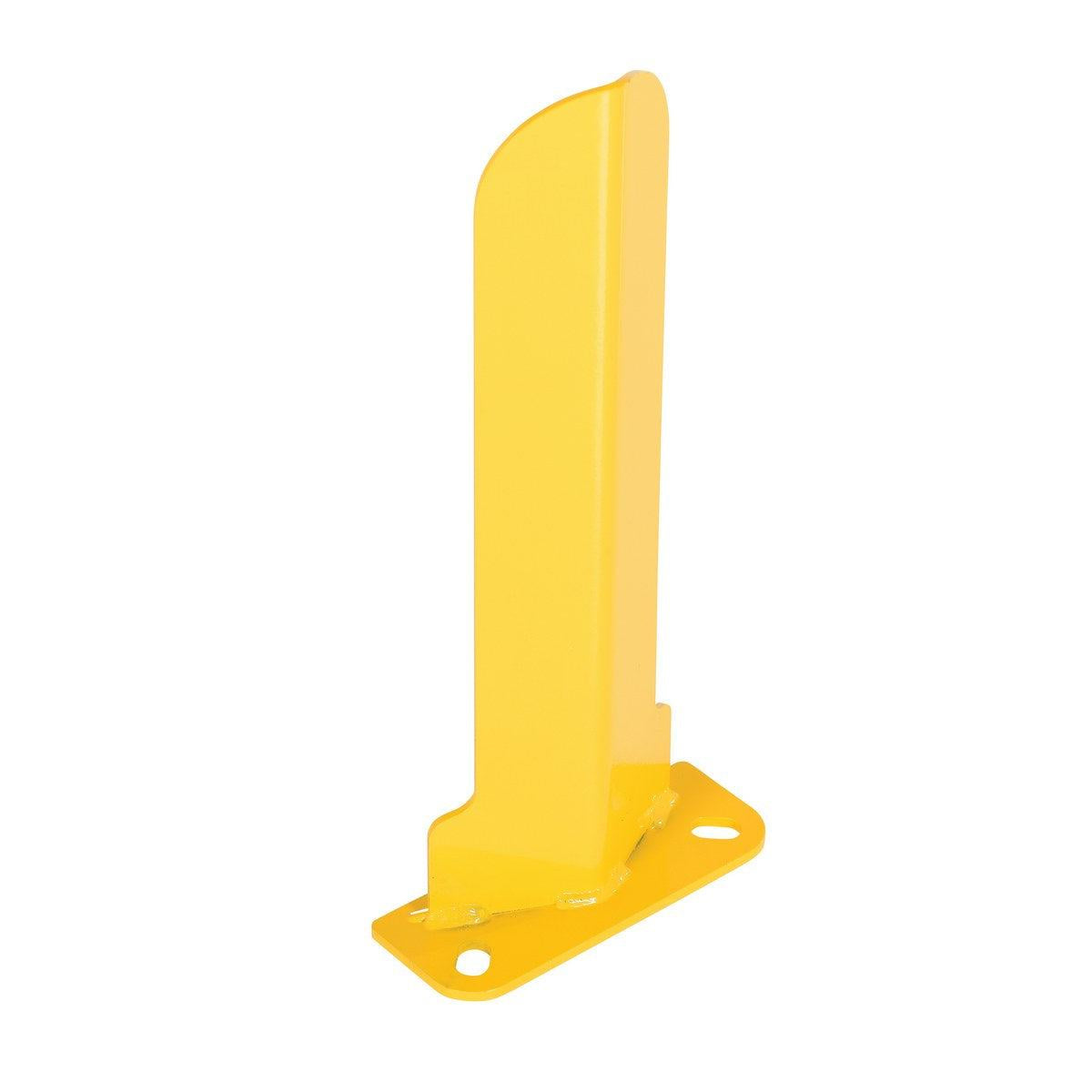

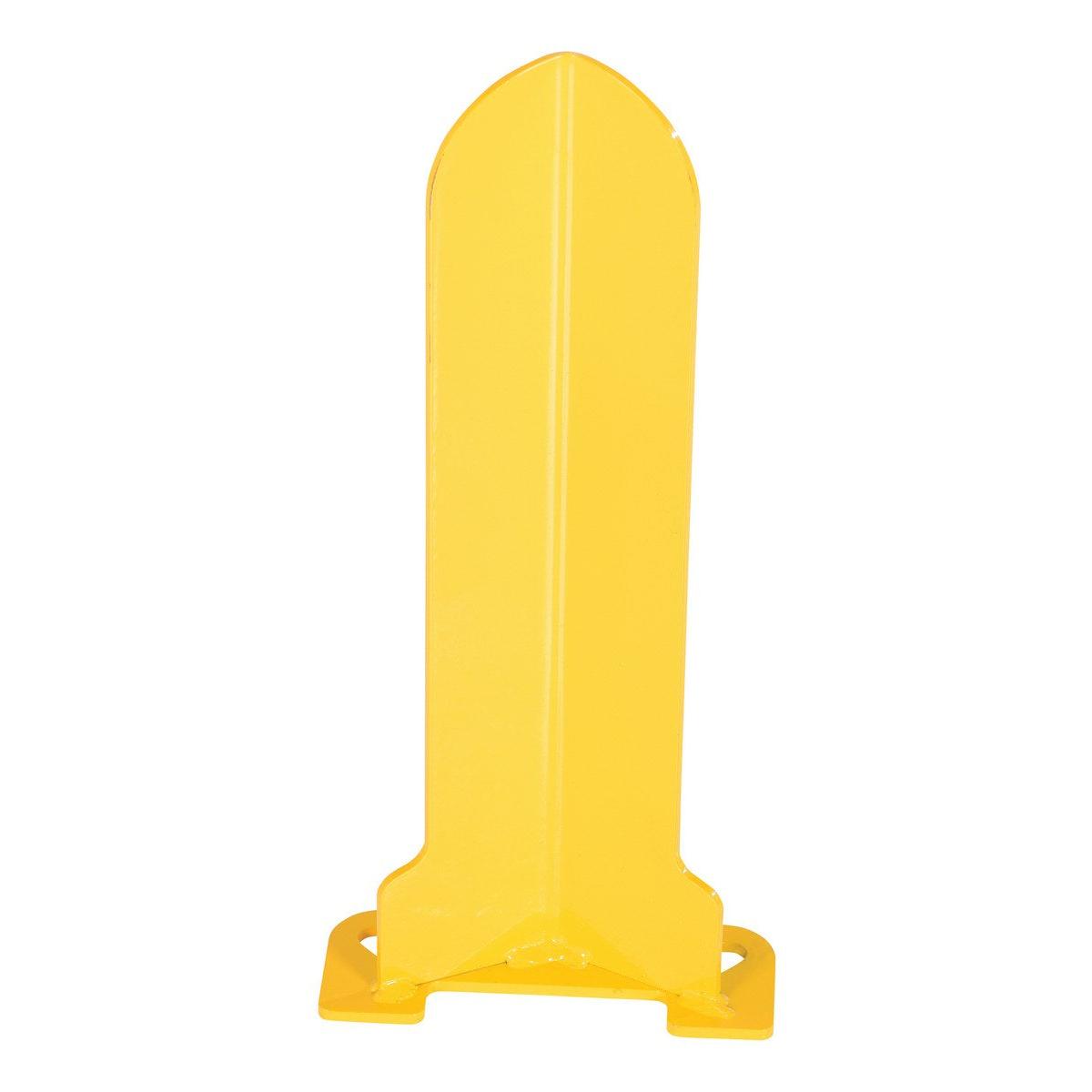

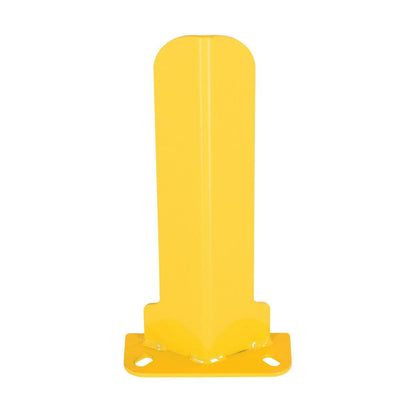

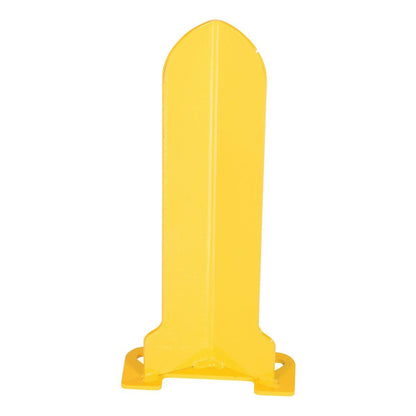

NPG4-18

• Total Ship Wt.(lbs.): 7
• Size: 8"W x 3"L x 17.875"H

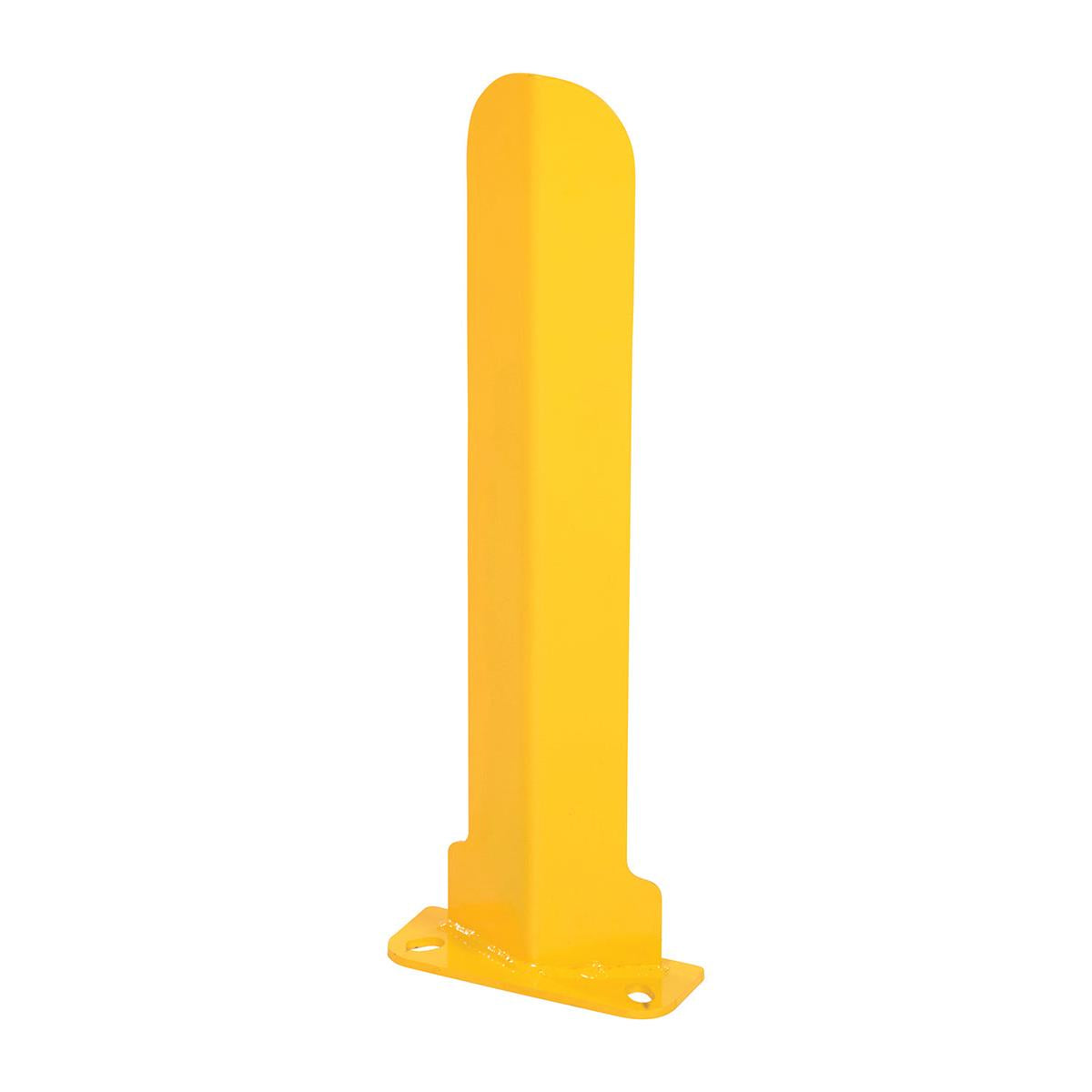

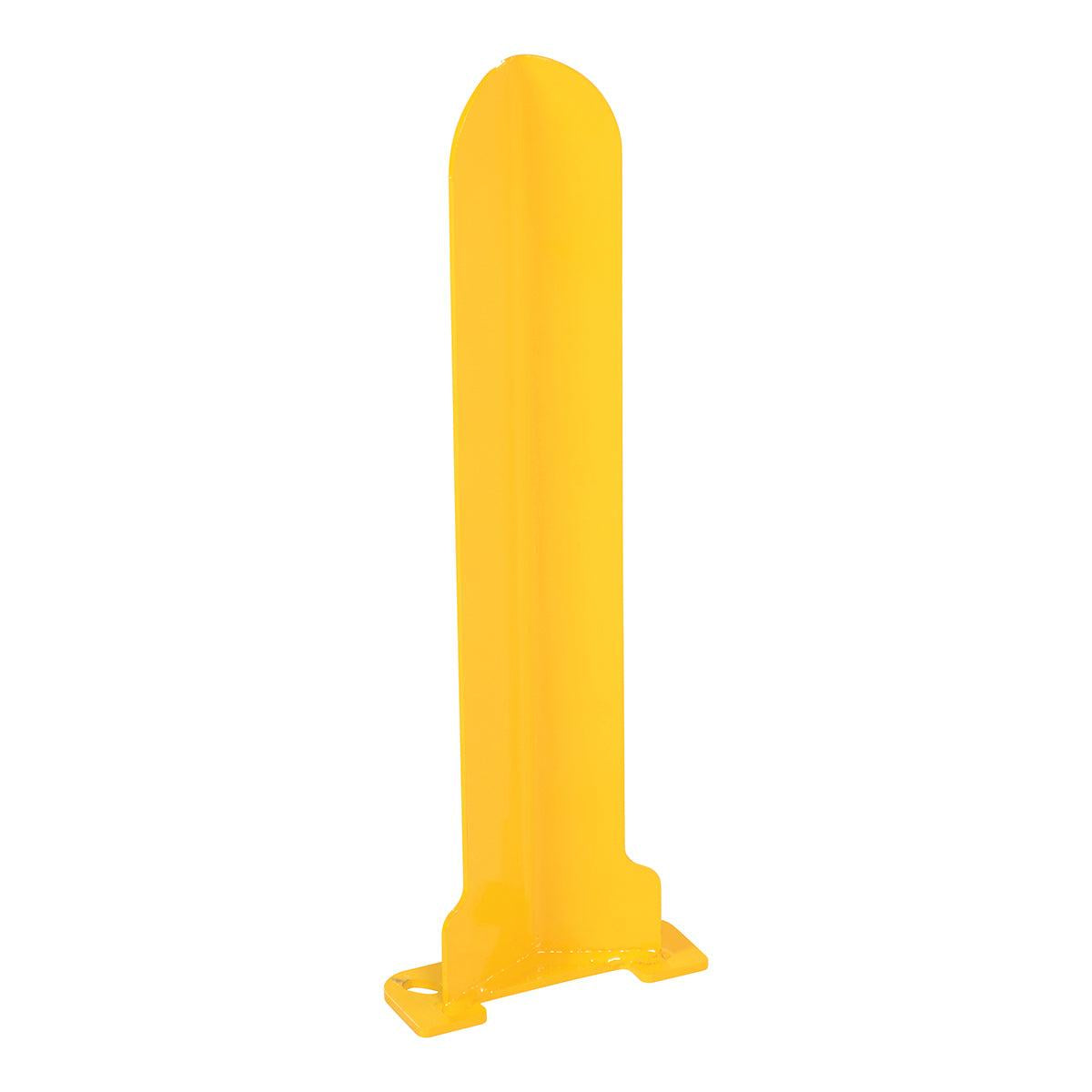

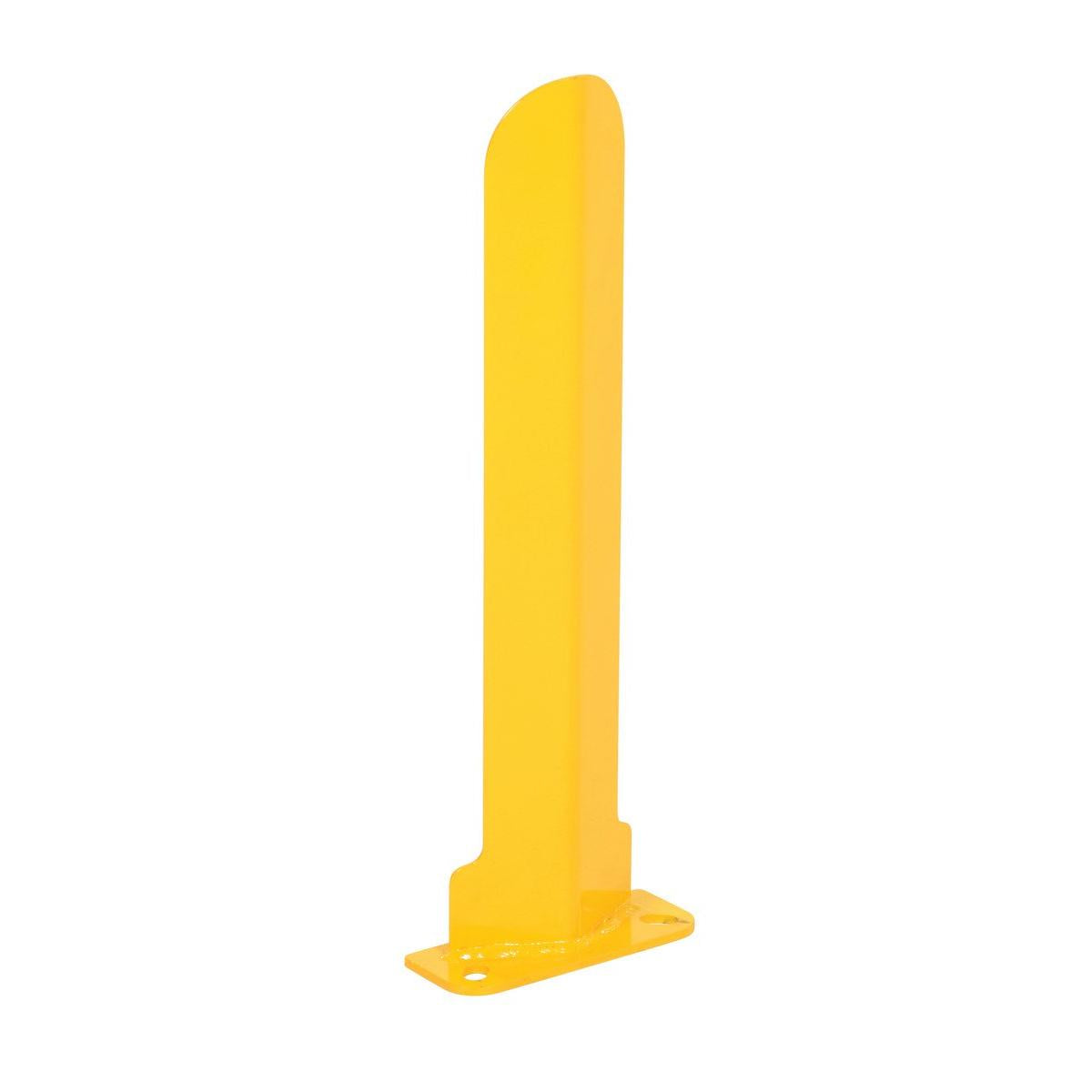

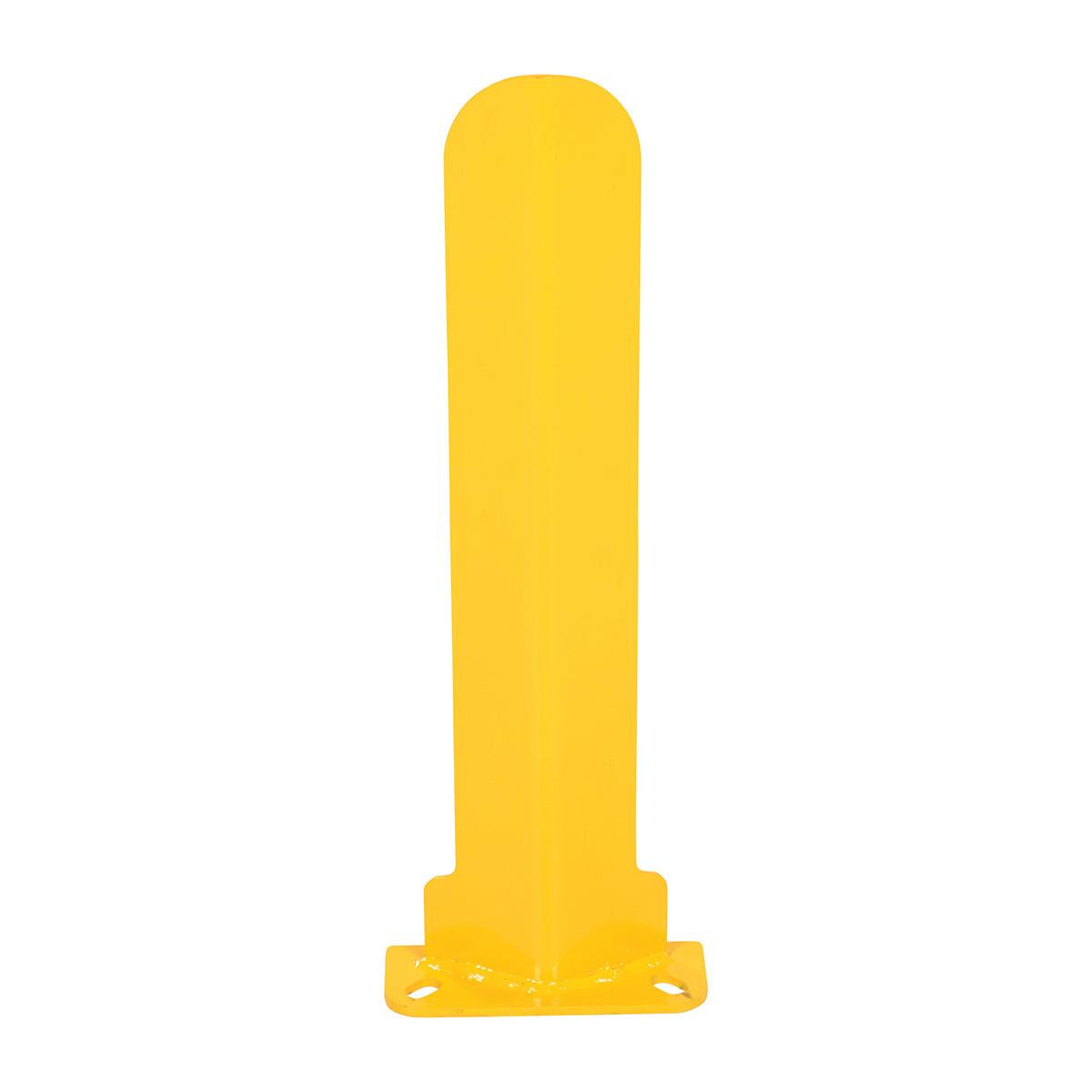

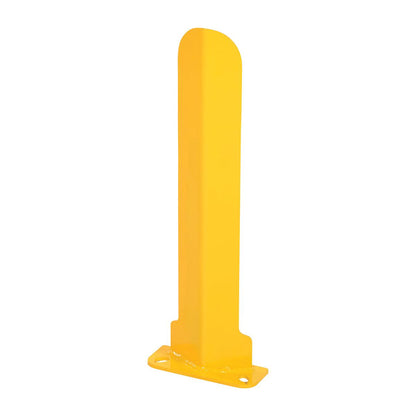

NPG4-24

• Total Ship Wt.(lbs.): 9
• Size: 8"W x 3"L x 23.875"H

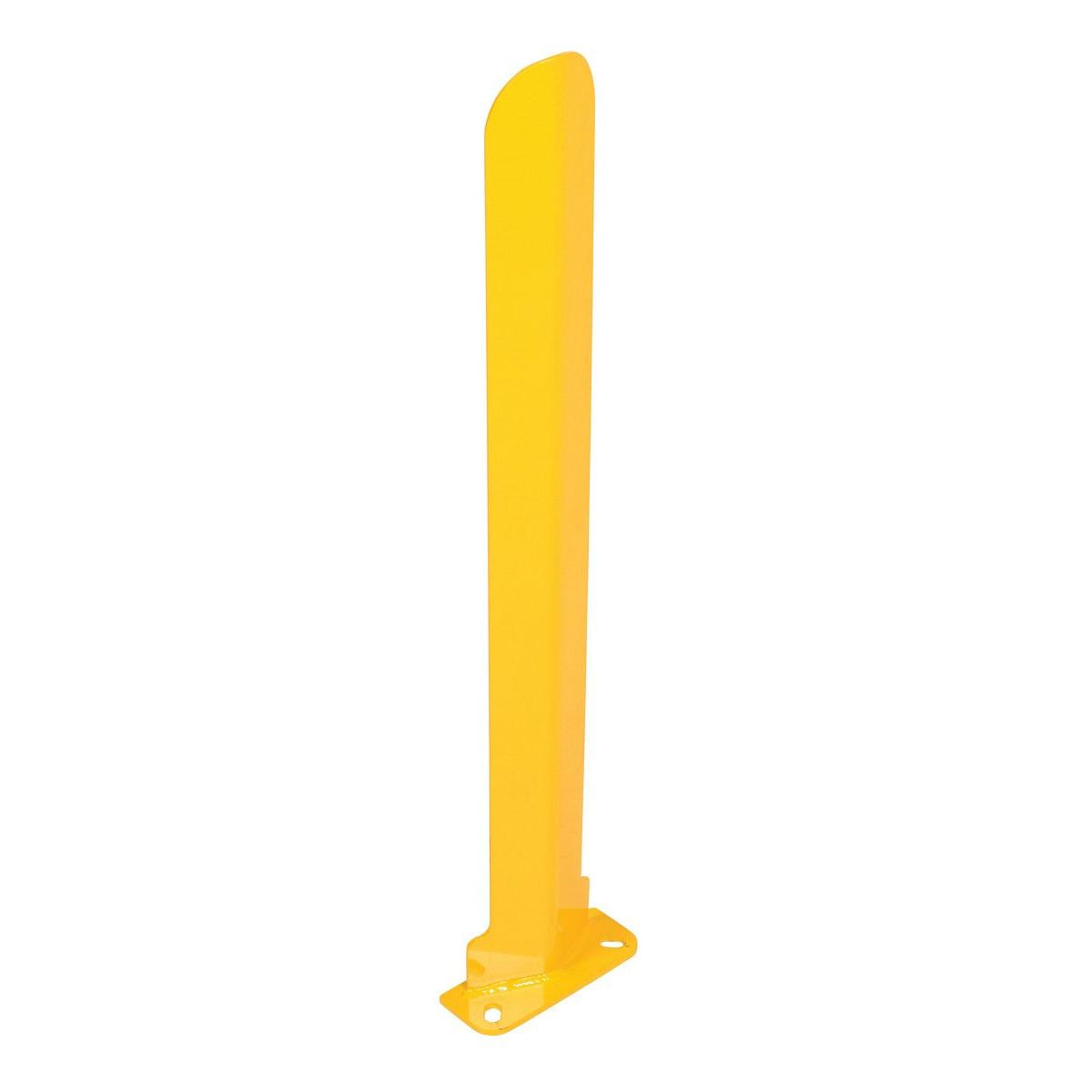

NPG4-36

• Total Ship Wt.(lbs.): 15
• Size: 8"W x 3"L x 35.875"H

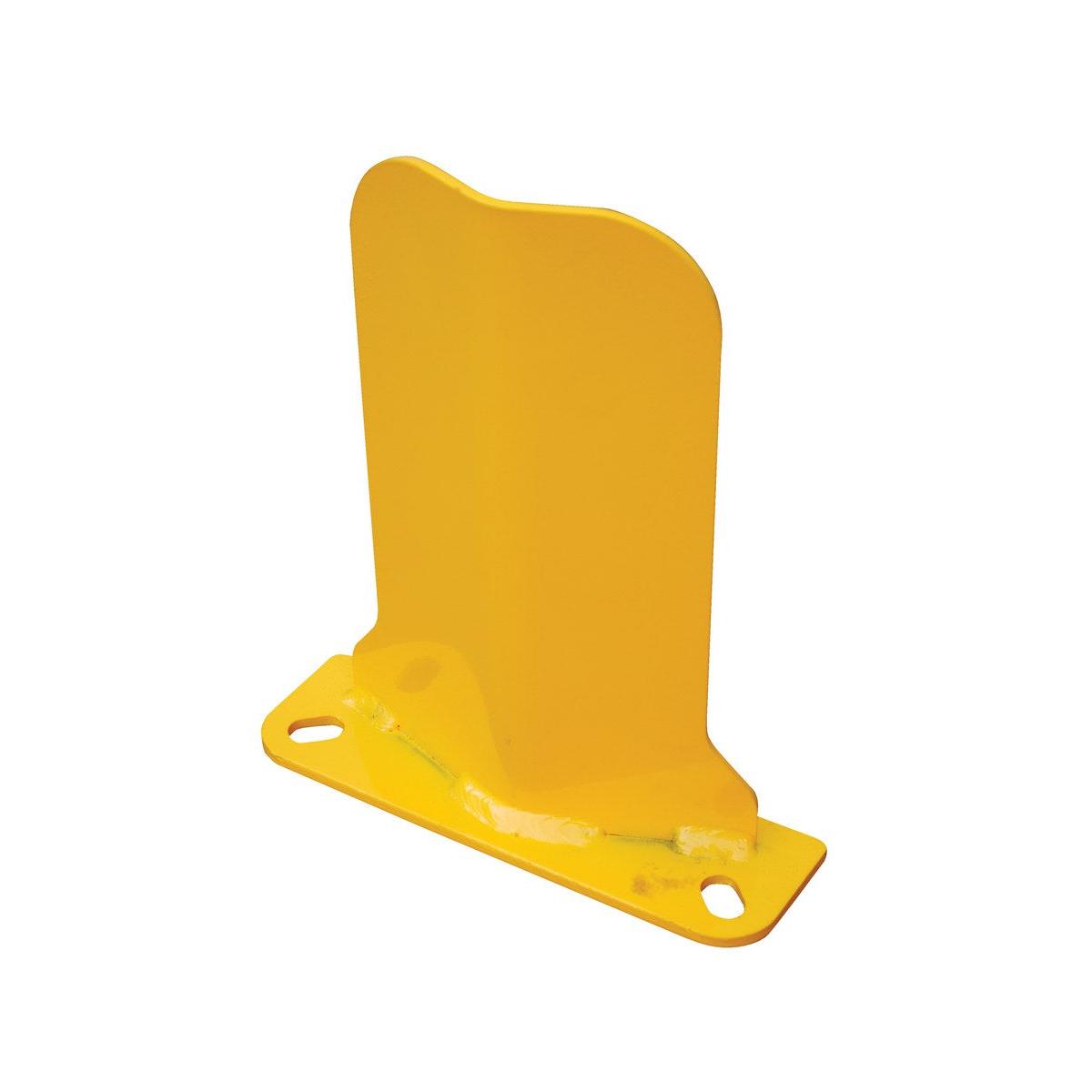

NPG6-12

• Total Ship Wt.(lbs.): 7
• Size: 10"W x 3"L x 11.875"H

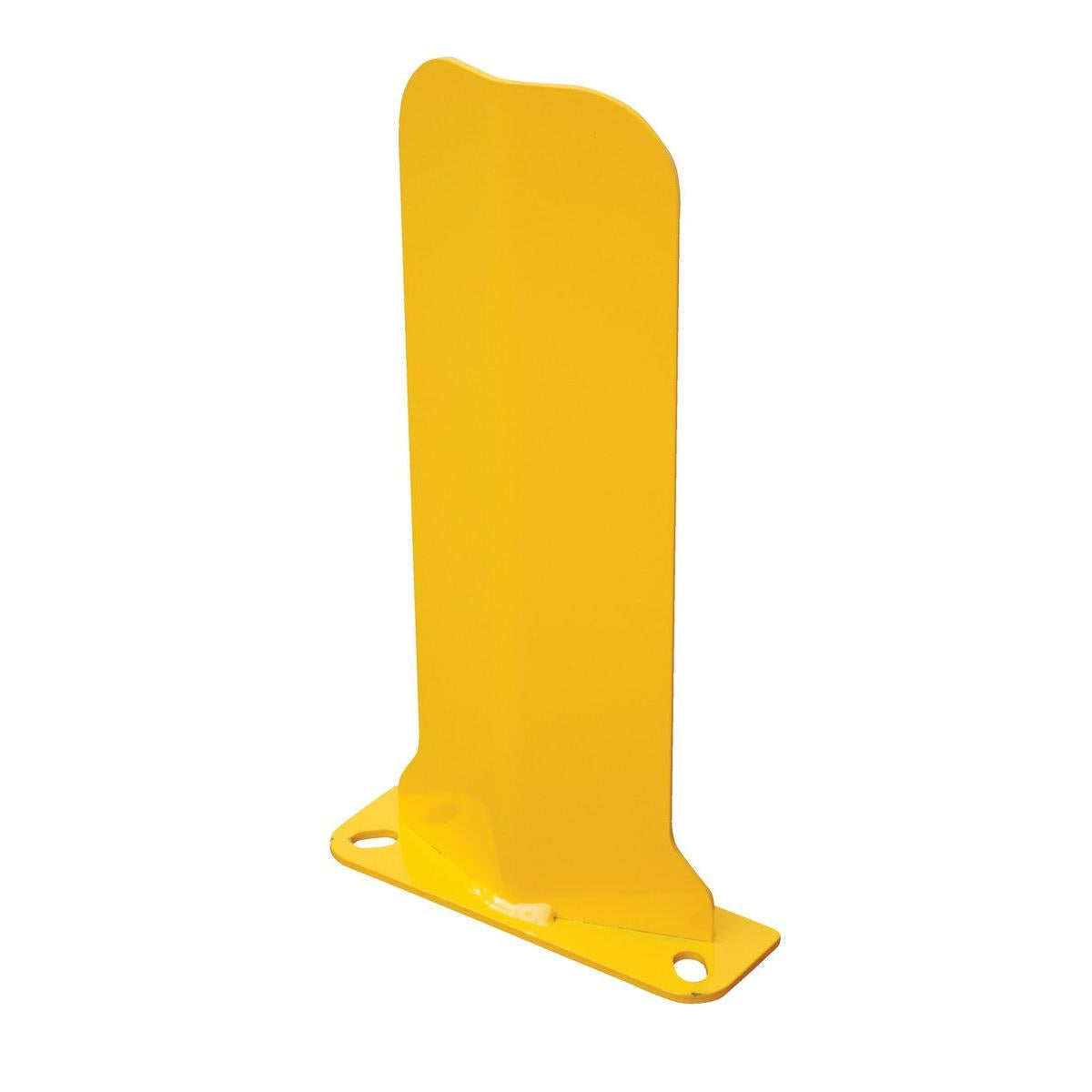

NPG6-18

• Total Ship Wt.(lbs.): 8
• Size: 10"W x 3"L x 17.875"H

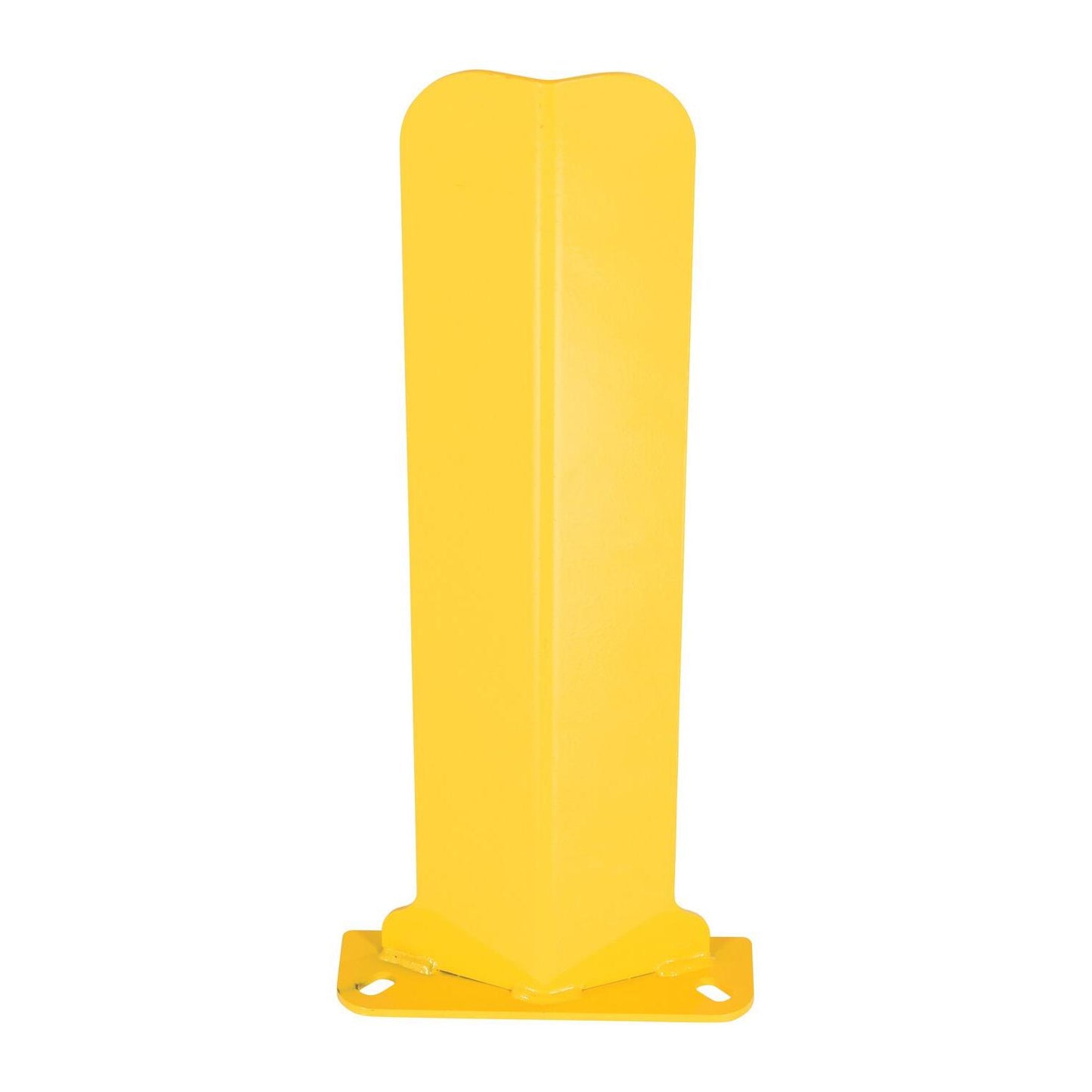

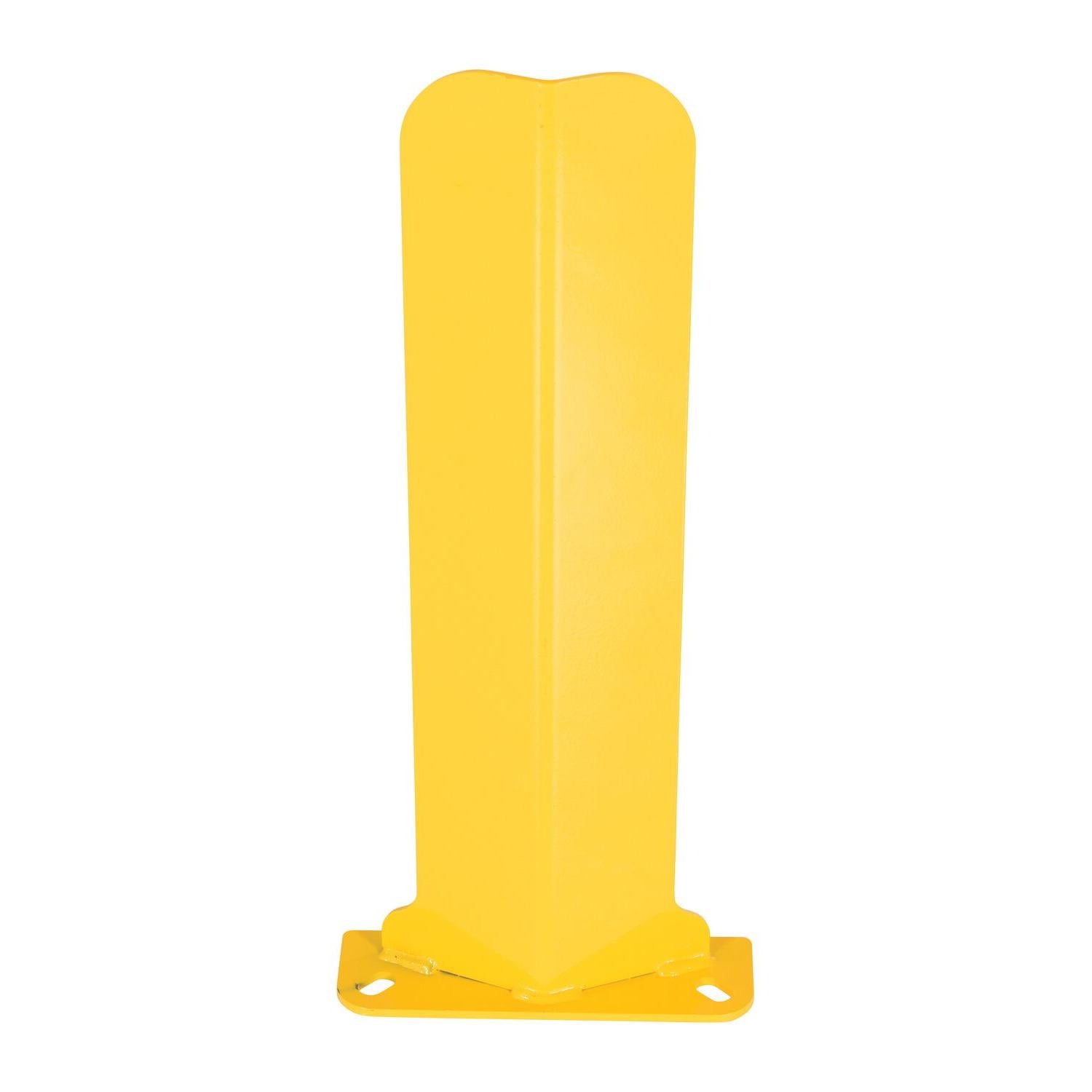

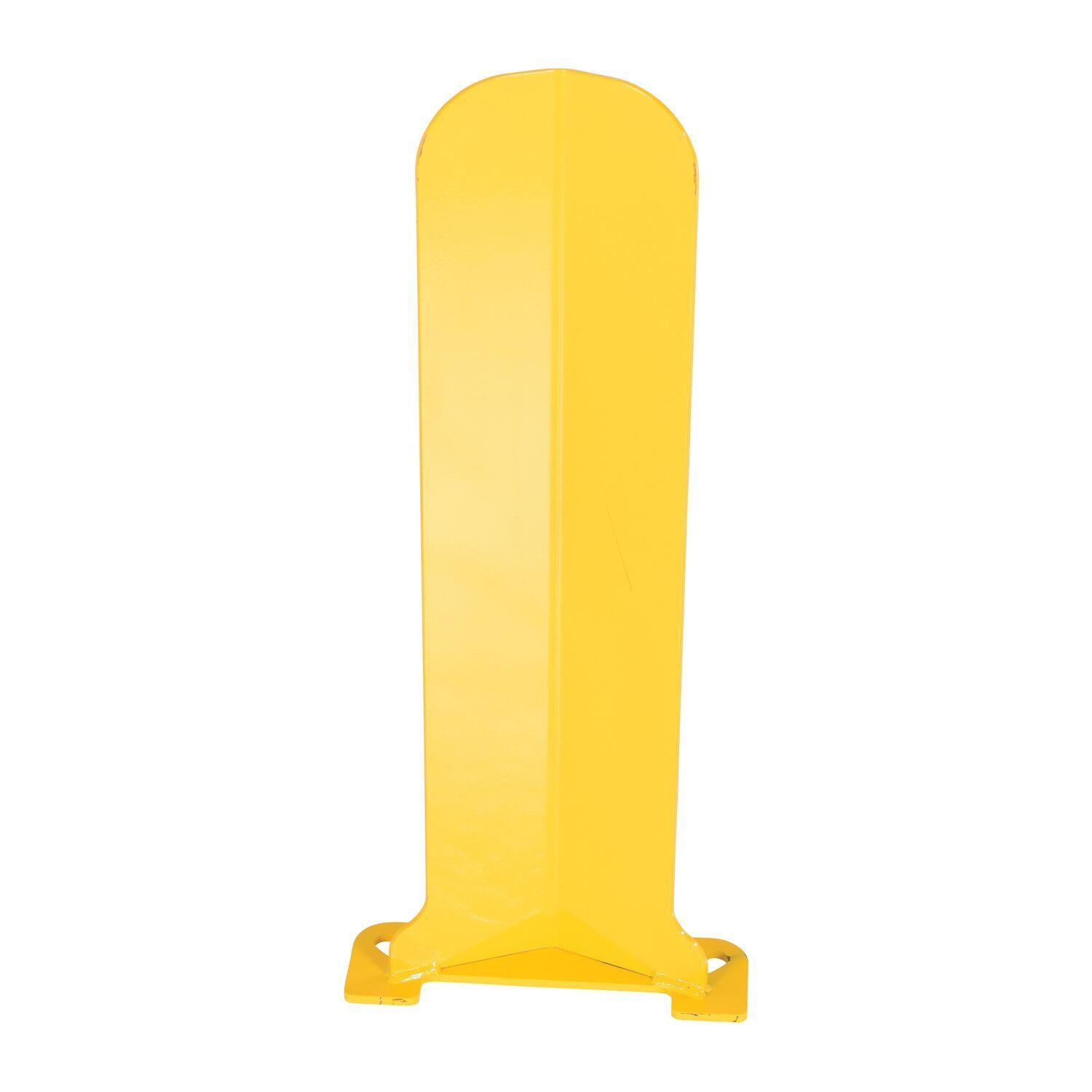

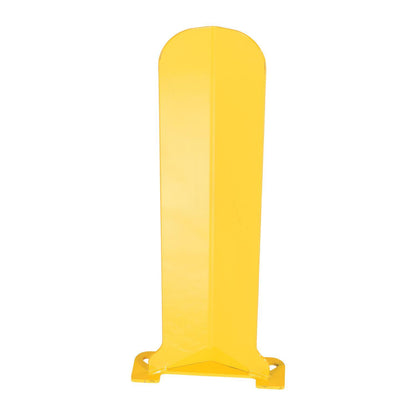

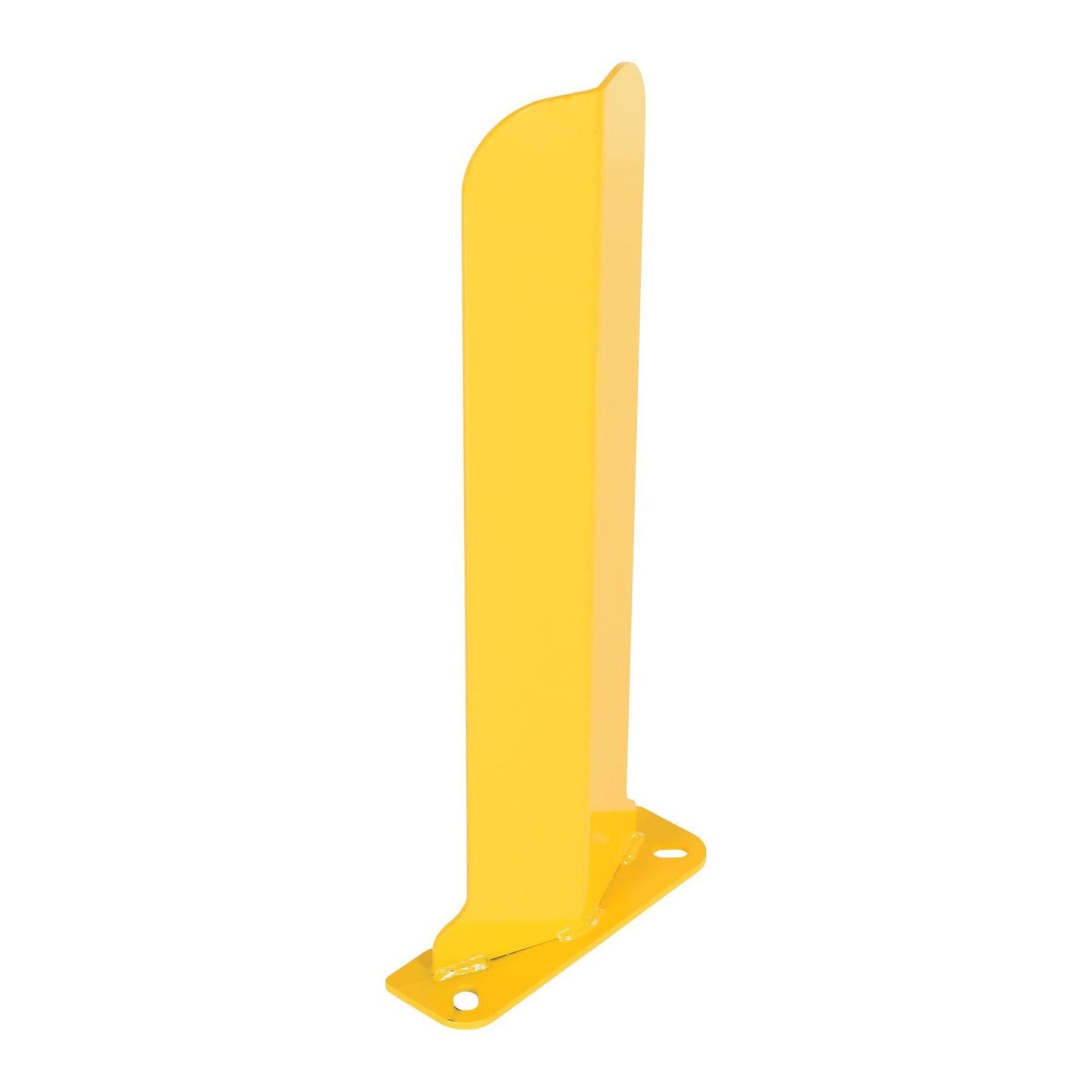

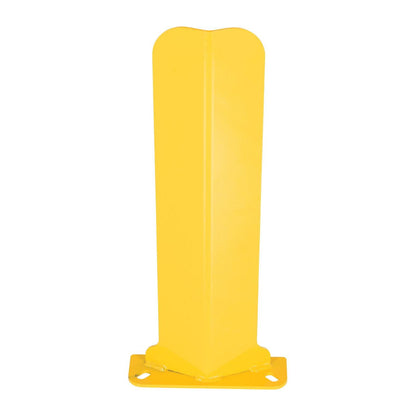

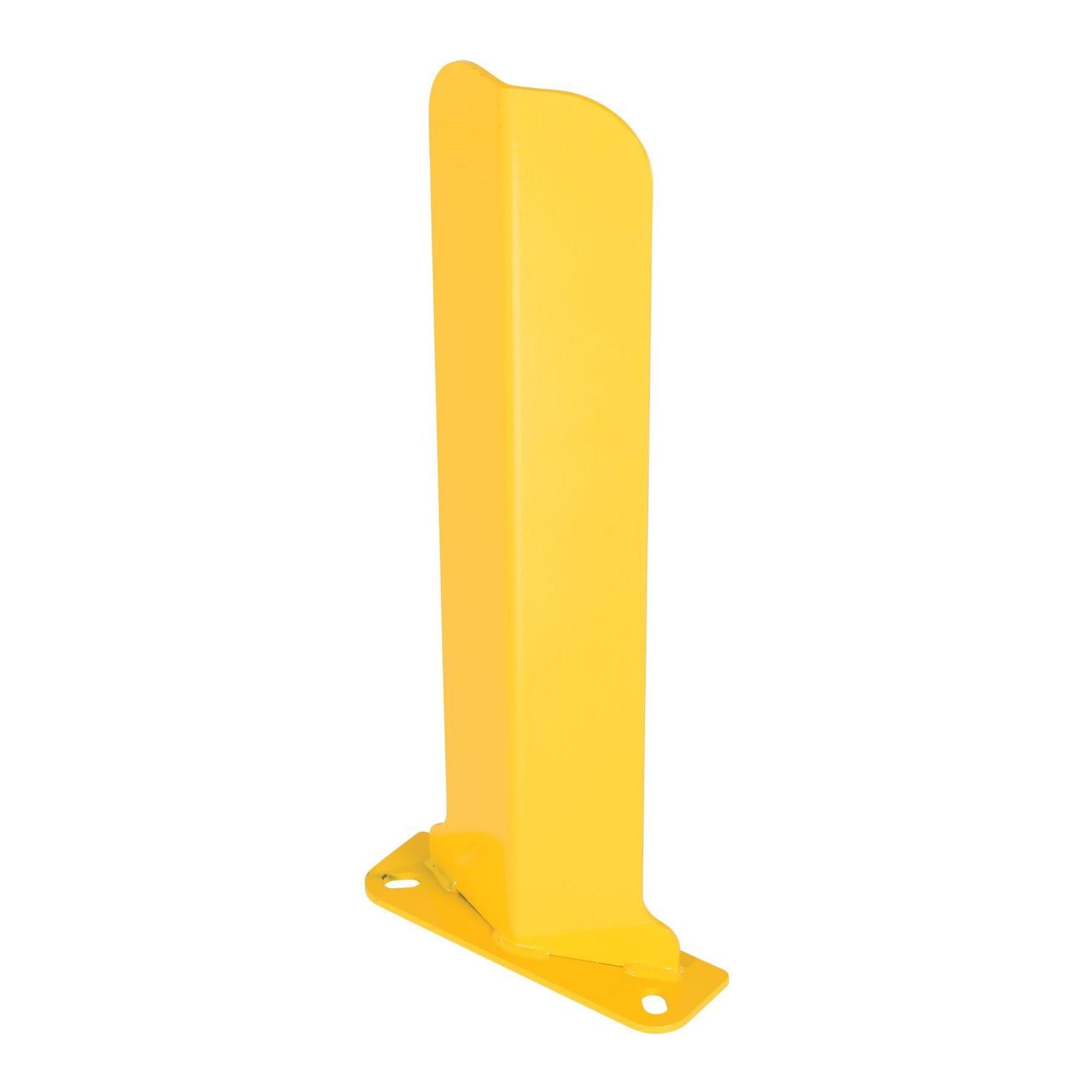

NPG6-24

• Total Ship Wt.(lbs.): 11
• Size: 10"W x 3"L x 23.875"H

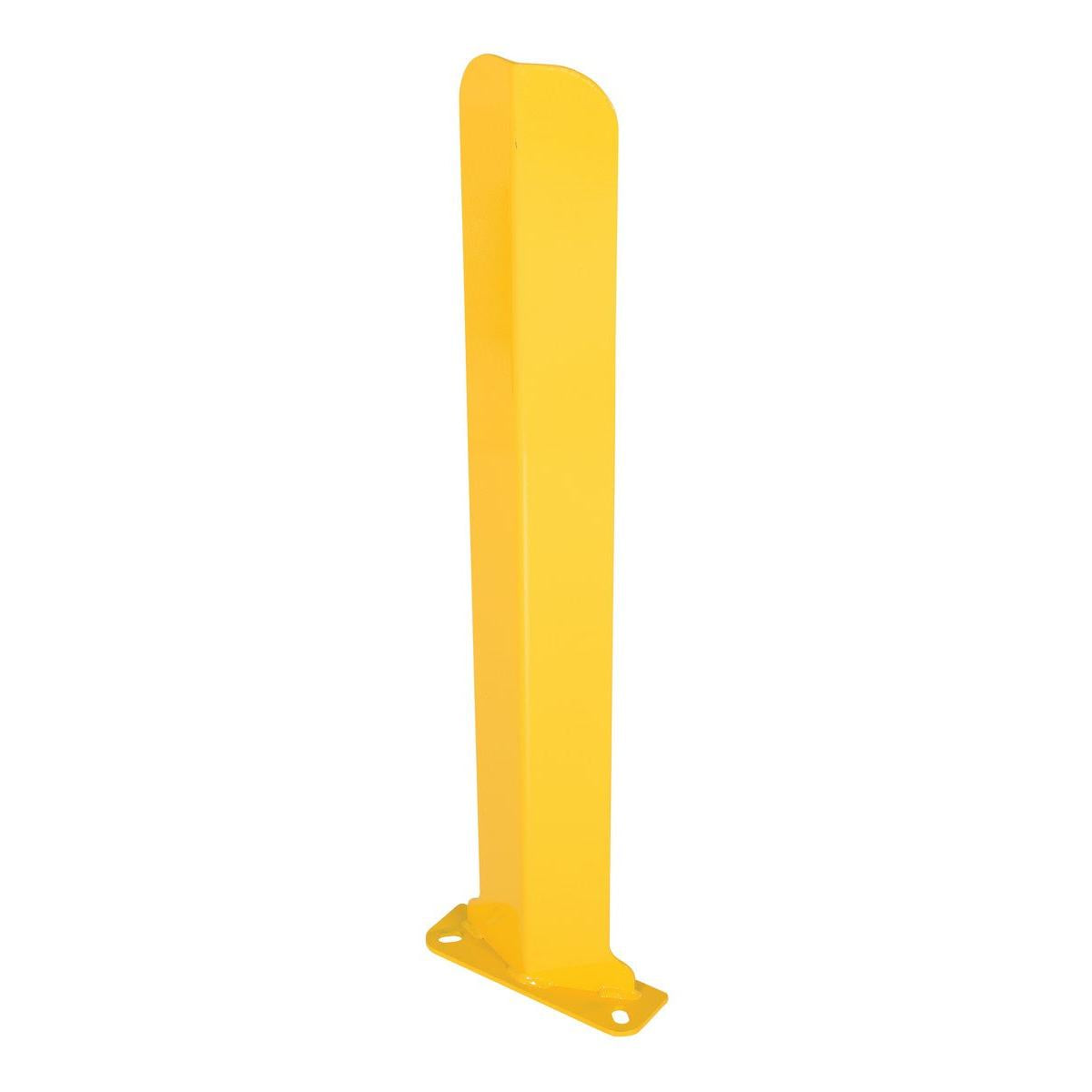

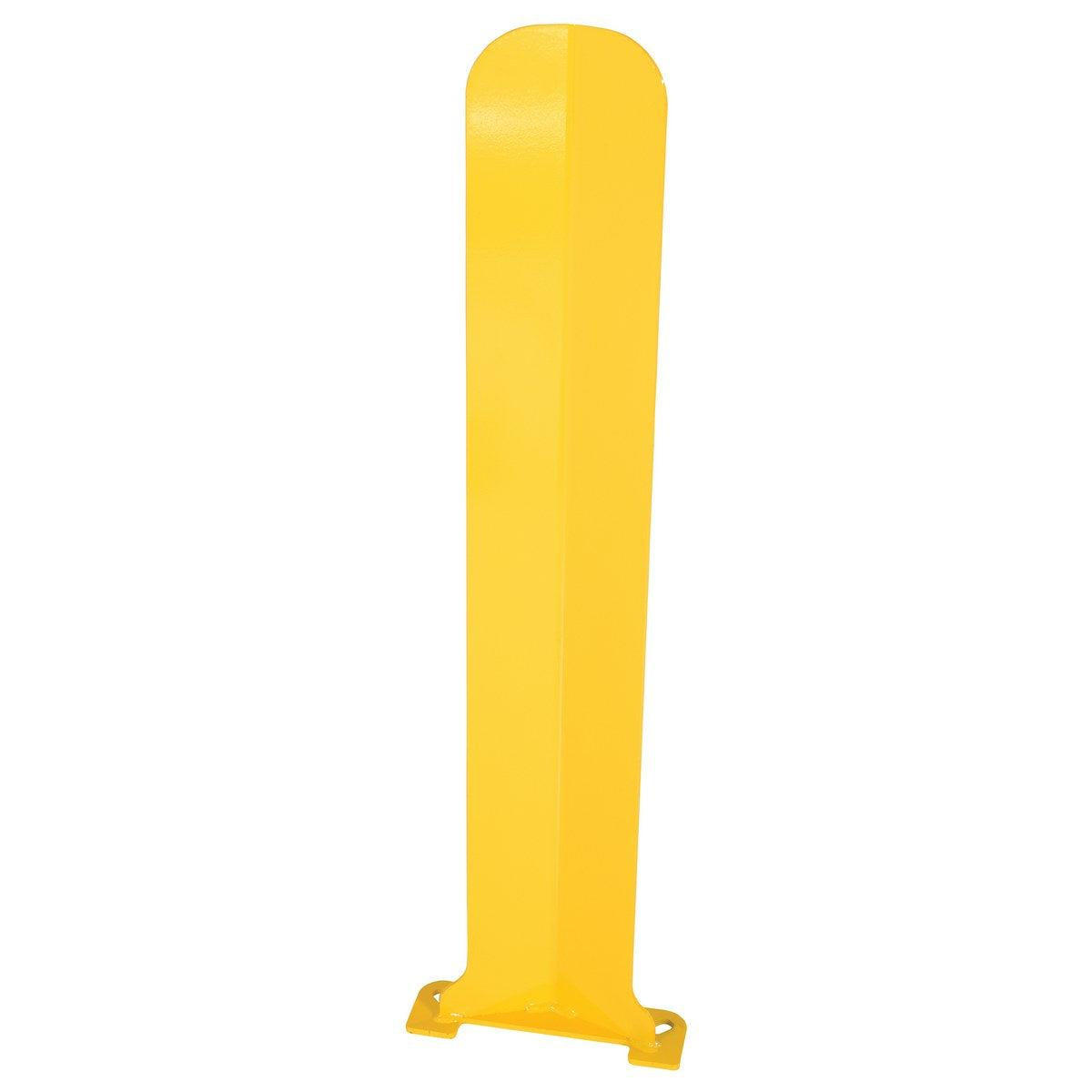

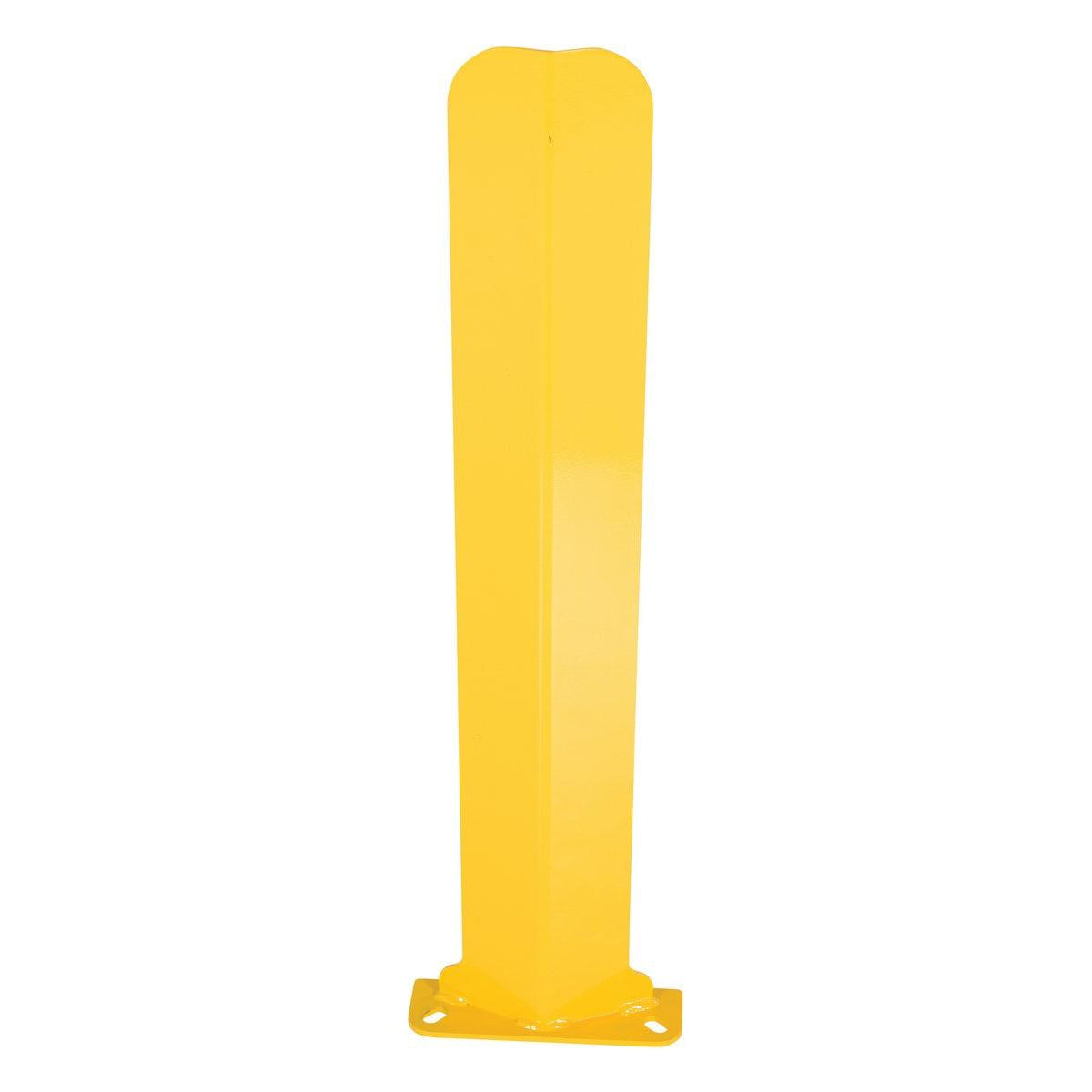

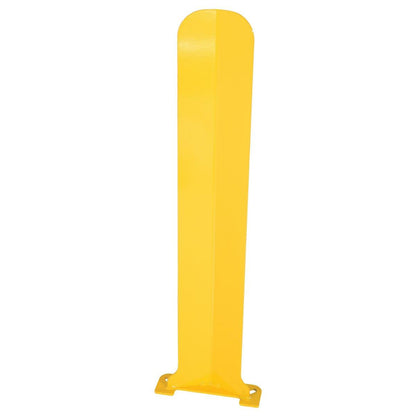

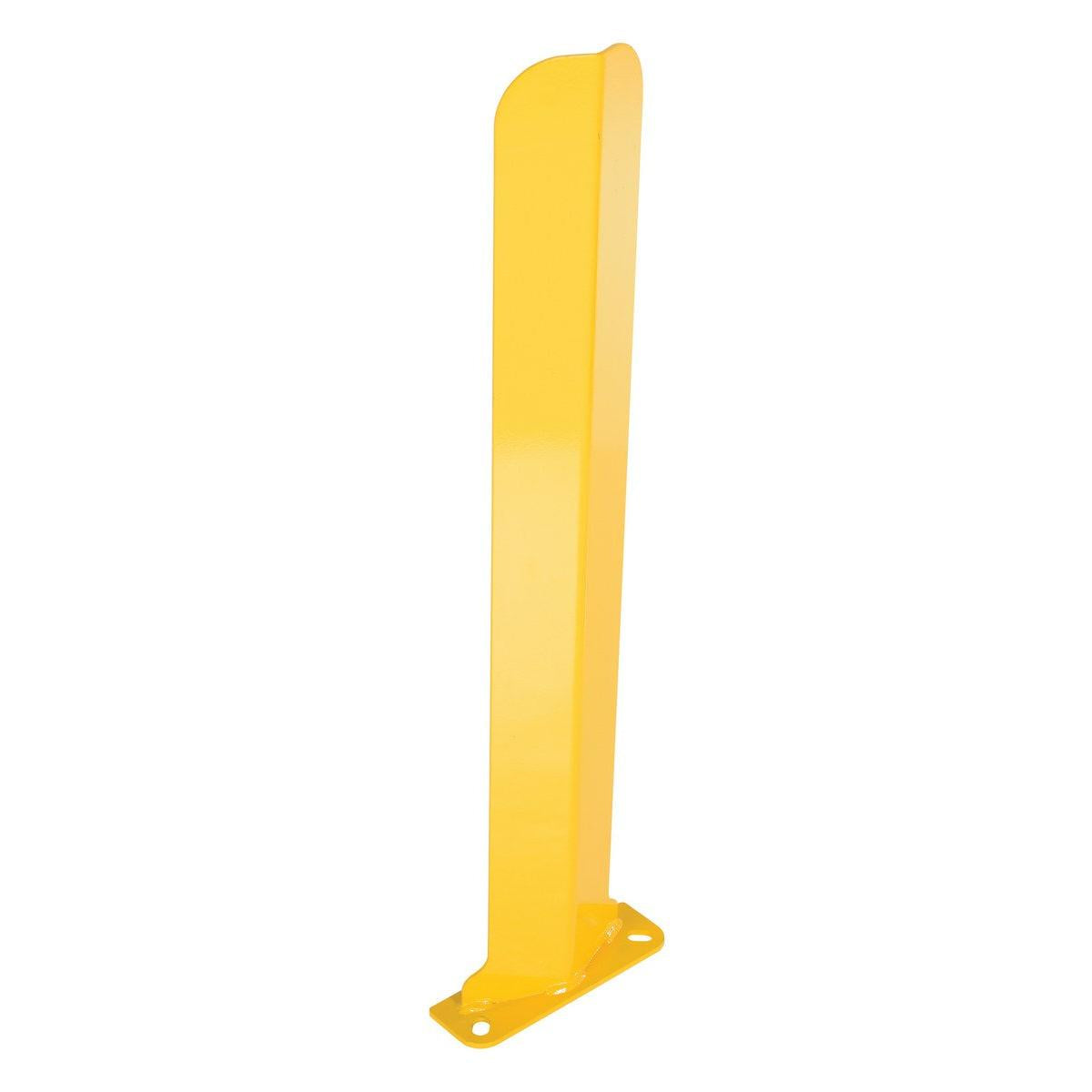

NPG6-36

• Total Ship Wt.(lbs.): 16
• Size: 10"W x 3"L x 35.875"H

NPG4 Technical Specifications

• C Channel Thickness (in.): 3/16
• Usable Width (in.): 4-1/4
• Usable Length (in.): 1
• Mounting Hole Slotted Size (in.): 5/8 x 1
• Construction Steel C Channel (in.): 4
• Mounting Hole (qty.): 2
• Material: Steel
• Color Family: Yellow
• CPO-Prop 65 Warning Required
• Assembled
• Attachment Method: Bolt On
• Installation Hardware Included: No
• Manufacturer Warranty: 30 Days

NPG6 Technical Specifications

• C Channel Thickness (in.): 3/16
• Usable Width (in.): 6-1/4
• Usable Length (in.): 1
• Mounting Hole Slotted Size (in.): 5/8 x 1
• Construction Steel C Channel (in.): 6
• Mounting Hole (qty.): 2
• Material: Steel
• Color Family: Yellow
• CPO-Prop 65 Warning Required
• Assembled
• Attachment Method: Bolt On
• Installation Hardware Included: No
• Manufacturer Warranty: 30 Days


Made in the USA

If you would like to request a Quotation for Large Quantities or Custom Powder-Coat Colors of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
