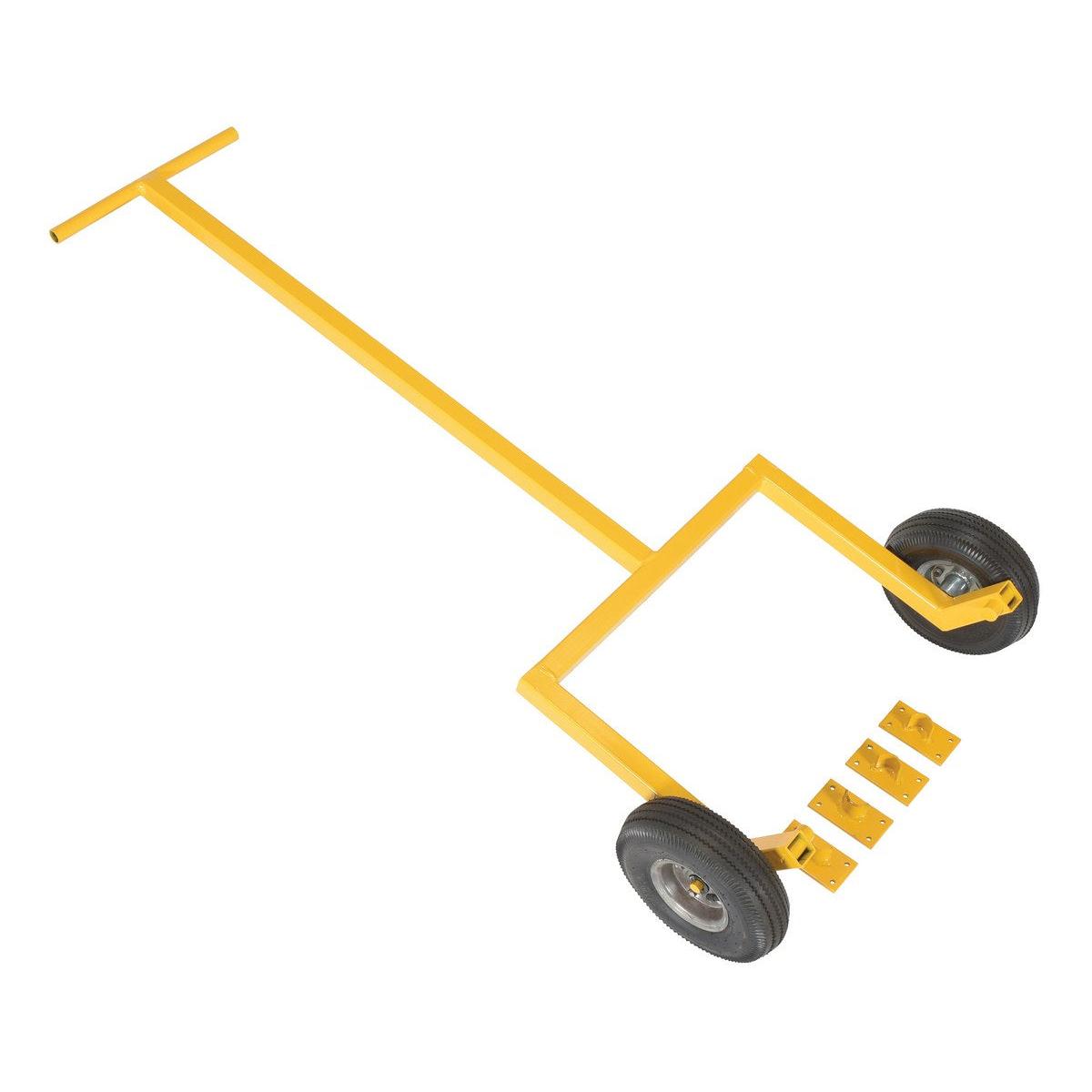

Portable Wheel Riser Caddy – For 18" and 24" Wide Units

The Portable Wheel Riser Caddy provides a simple and efficient way to move heavy aluminum wheel risers from one location to another. Designed for durability and operator safety, this caddy allows a single person to easily transport risers without the need for forklifts or additional lifting equipment.

Each caddy includes a pair of steel mounting brackets and two large pneumatic wheels for smooth movement over uneven warehouse or dock surfaces. The rugged steel construction and durable brown liquid-paint finish ensure long-term reliability even in demanding industrial environments.

Features and Benefits

• Enhanced Portability: Allows easy movement of wheel risers between loading bays or storage areas.
• Heavy-Duty Construction: Built from steel for maximum durability and long service life.
• Smooth Mobility: Equipped with large pneumatic wheels to roll effortlessly on industrial floors.
• Operator-Friendly Design: Ergonomic height and balance allow single-person handling.
• Includes Mounting Brackets: (1) pair included with each caddy for secure wheel riser attachment.
• Protective Finish: Liquid brown paint coating provides resistance to wear and corrosion.

Technical Specifications:

• Wheel Type/Size: (2) pneumatic wheels, 10-1/4" × 3-1/2"
• Finish: Durable liquid paint, brown
• Included Hardware: (1) pair of mounting brackets per caddy
• Overall Length: 10-1/4"
• Overall Height: 65"
• Intended Use: For transporting aluminum wheel risers (by width-specific model)

Specification	Wheel Riser Caddy for 18" Wide Units	Wheel Riser Caddy for 24" Wide Units
Model	VES-R-CAD-18	VES-R-CAD-24
Overall Width	31-1/4"	37-1/4"
Compatibility	For 18" wide wheel risers	For 24" wide wheel risers
Approx. Weight	41.11 lbs	42.18 lbs
Mechanical Drawing

Made in the USA
