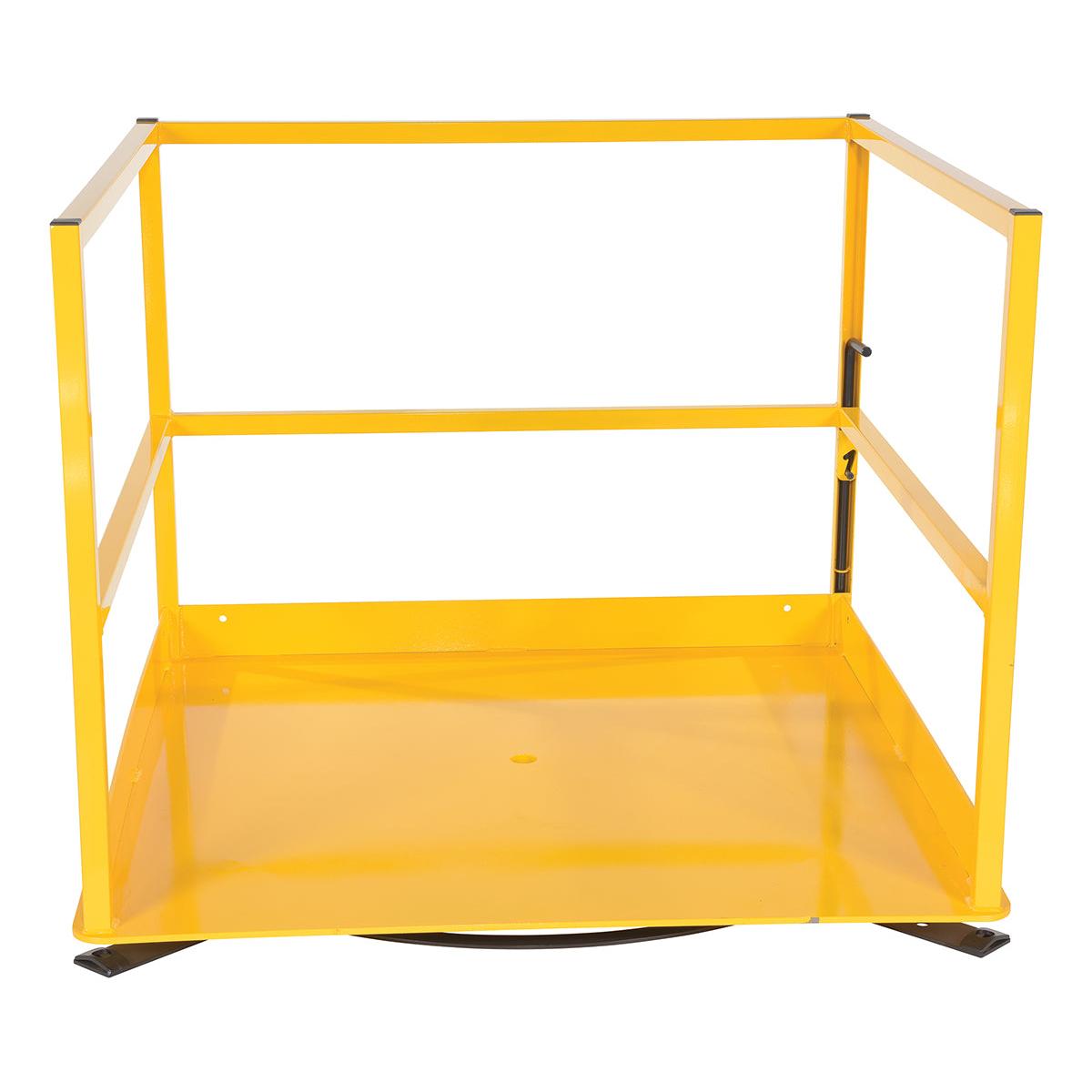

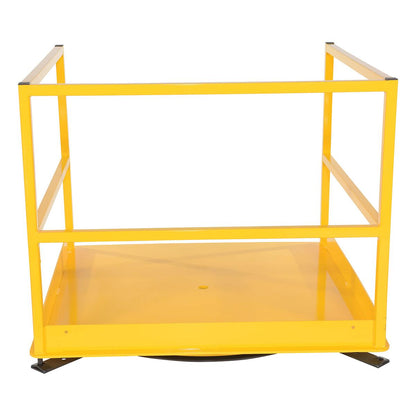

Rotating Mezzanine Safety Gate System

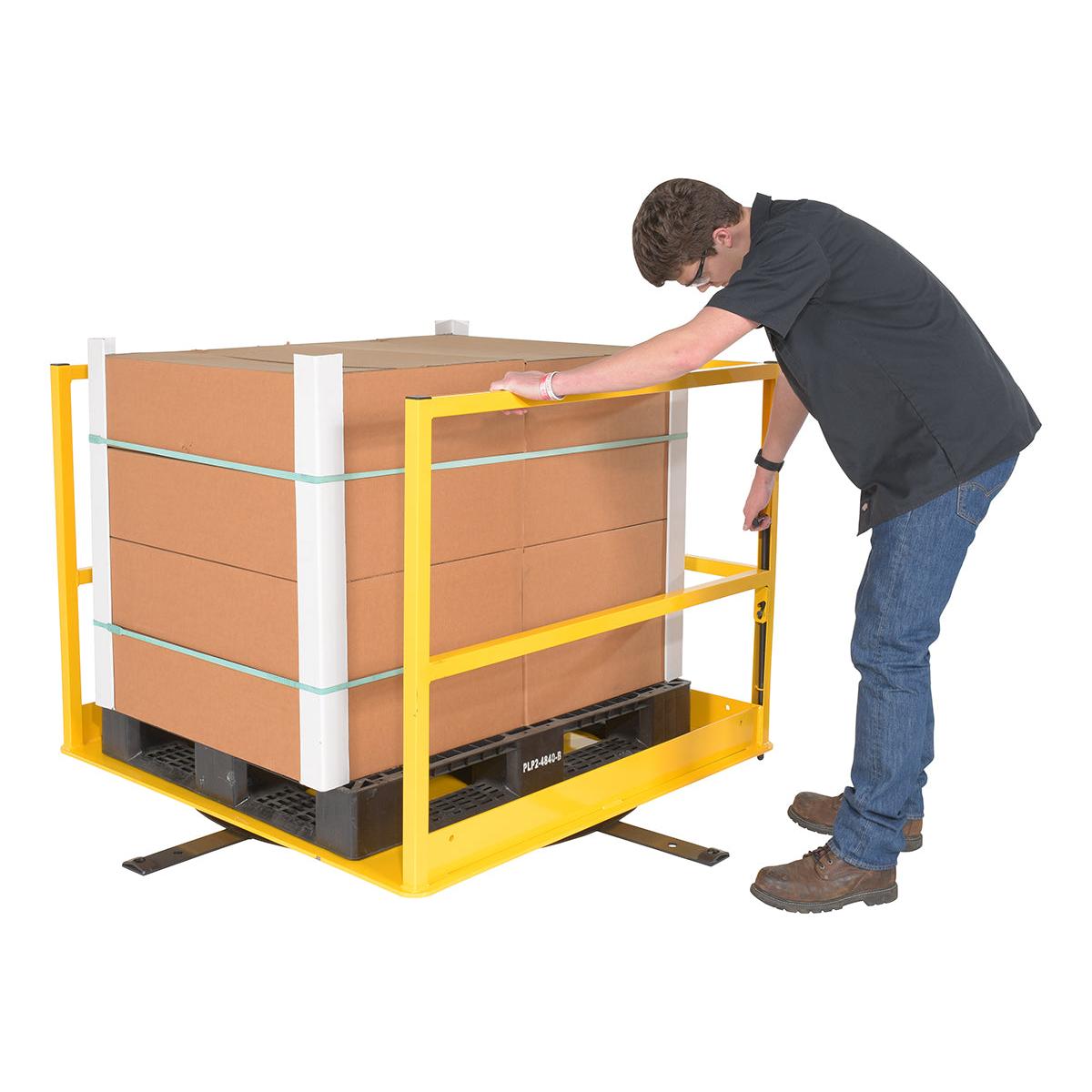

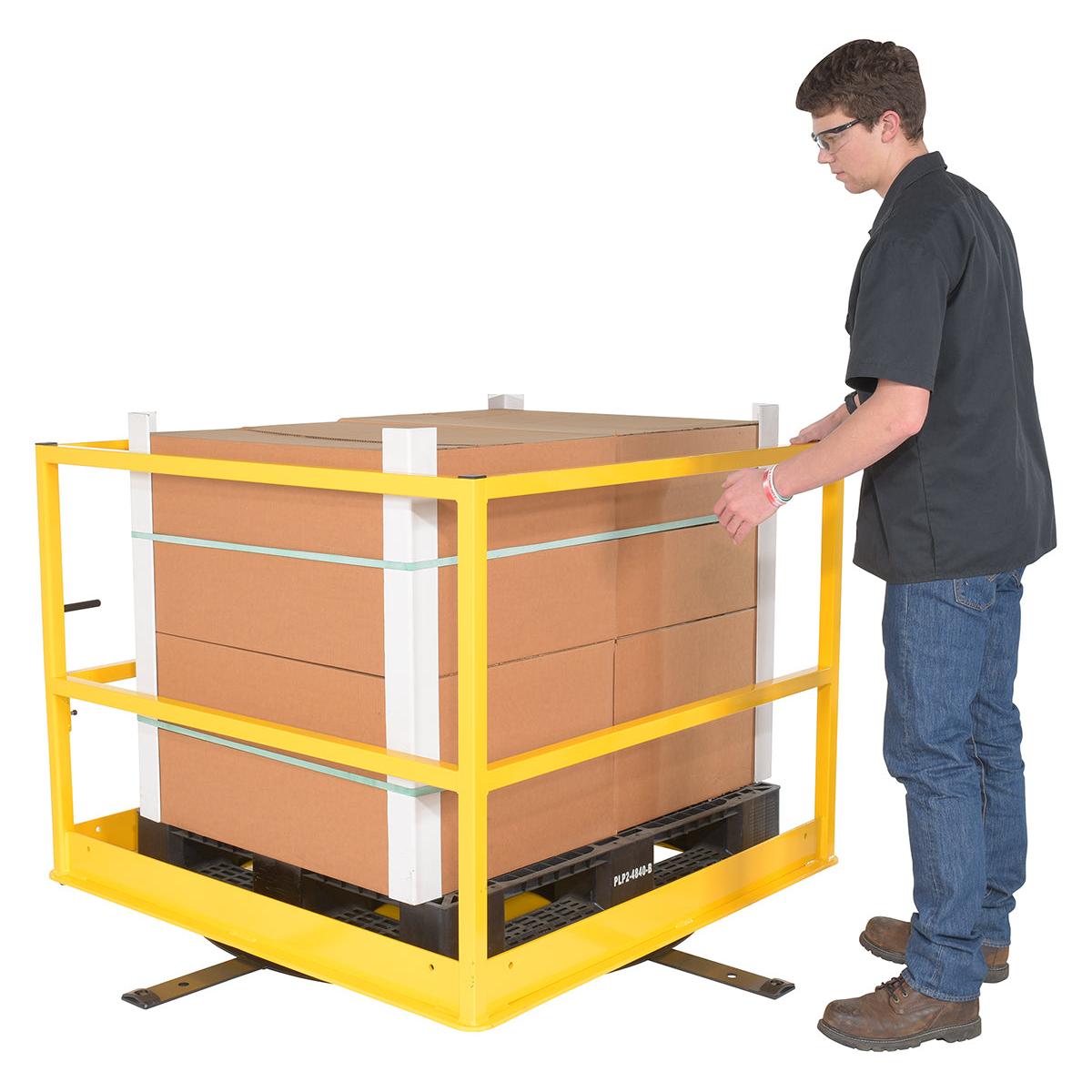

The Rotating Mezzanine Safety Gate System is engineered to enhance workplace safety during elevated loading and unloading operations. Ideal for mezzanine platforms, this gate system allows for safe pallet transfer while maintaining fall protection and controlled access. Its 360-degree rotating design enables efficient movement and alignment with minimal manual effort.

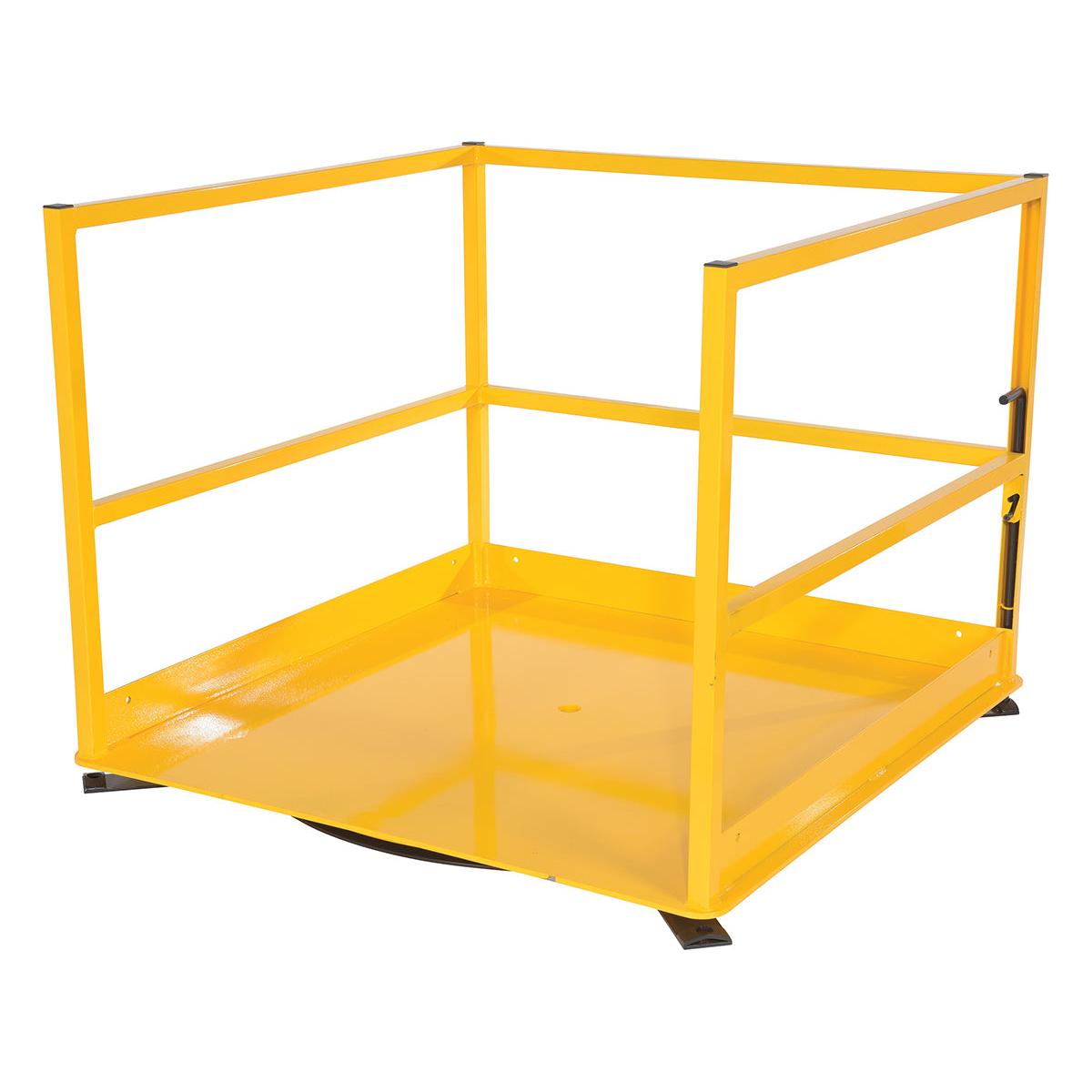

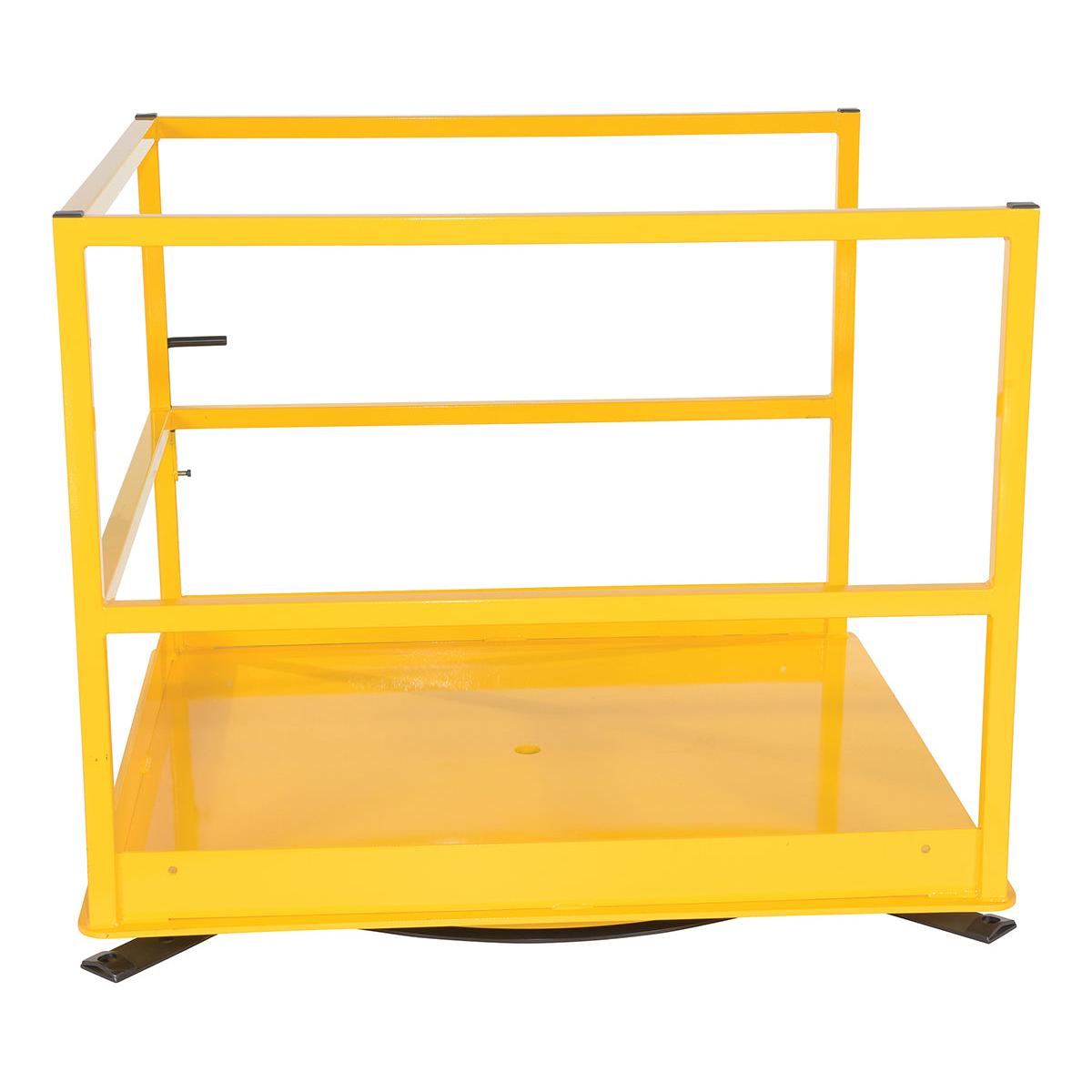

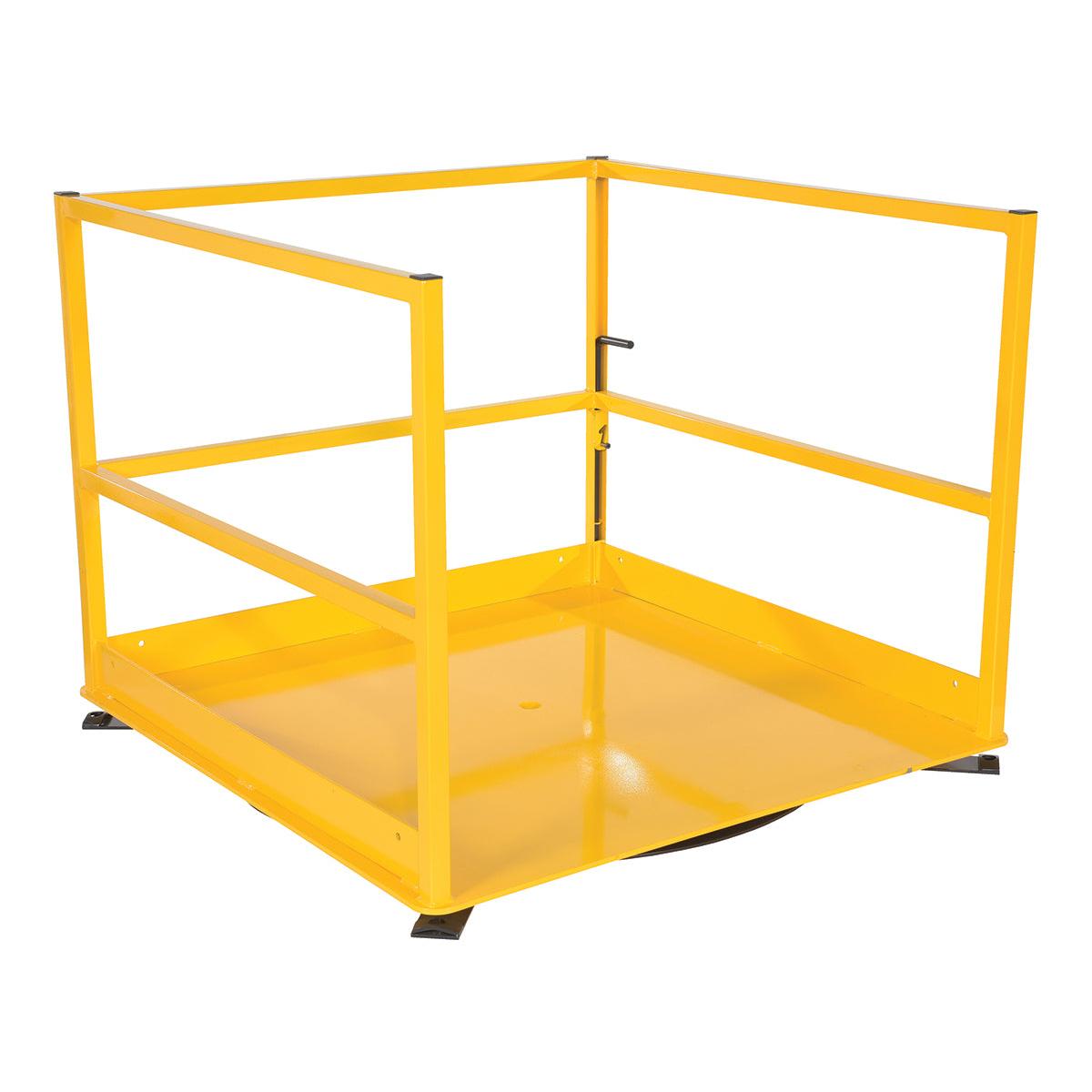

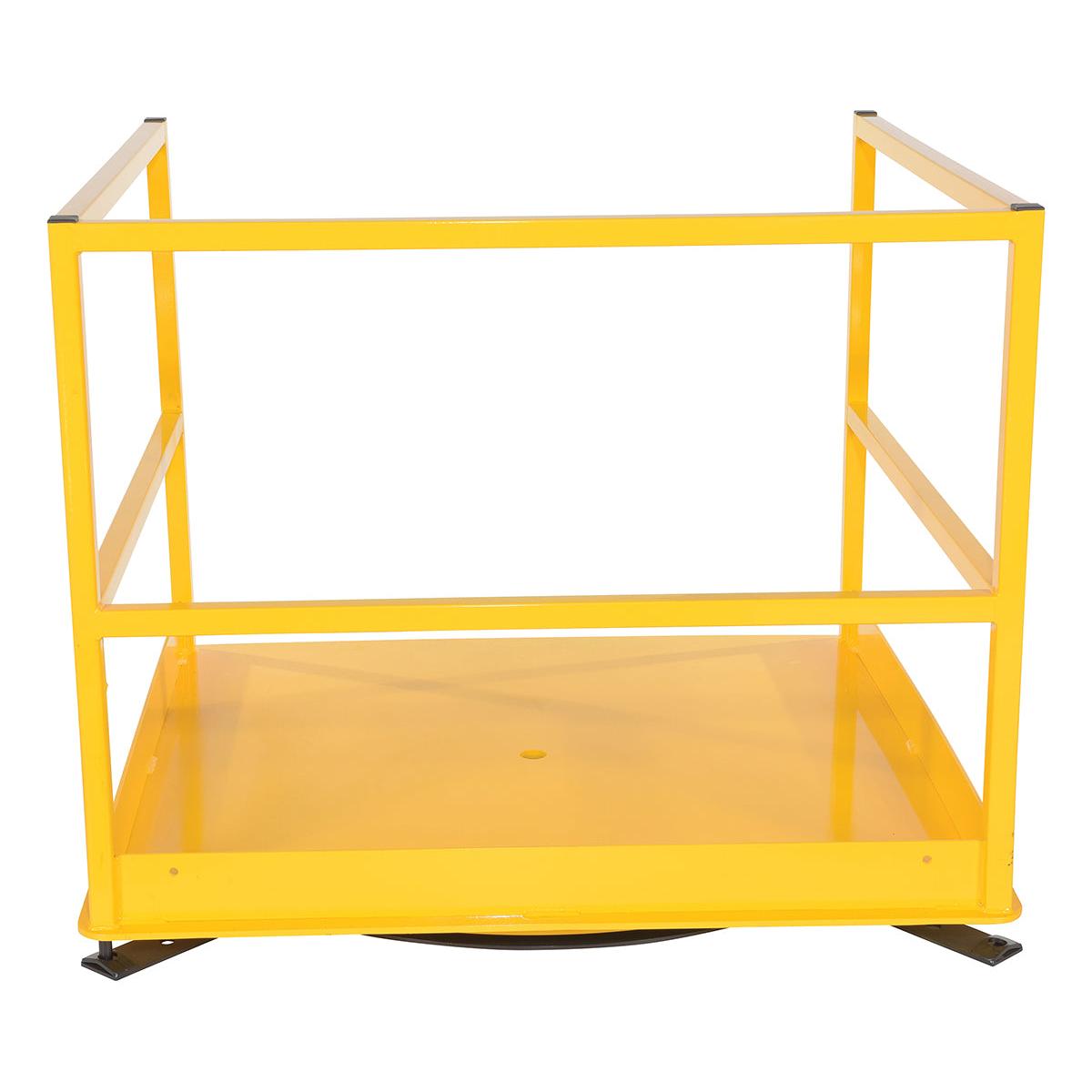

Constructed from heavy-duty steel with a durable yellow and black powder-coated finish, the unit provides robust protection for both personnel and materials. Three enclosed sides and one open side offer a secure enclosure while allowing easy forklift access. Raised lips on the enclosed sides help prevent smaller items from sliding off during transfer.

Features & Benefits:

• Rotating Design – Full 360° rotation allows easy positioning for loading and unloading
• Safe Transfer Access – Single open side enables secure pallet movement without compromising safety
• Heavy-Duty Steel Construction – Built to withstand demanding industrial environments
• High Visibility Finish – Yellow powder coating enhances visibility and resists wear
• Raised Containment Lips – Prevent items from shifting or falling during movement

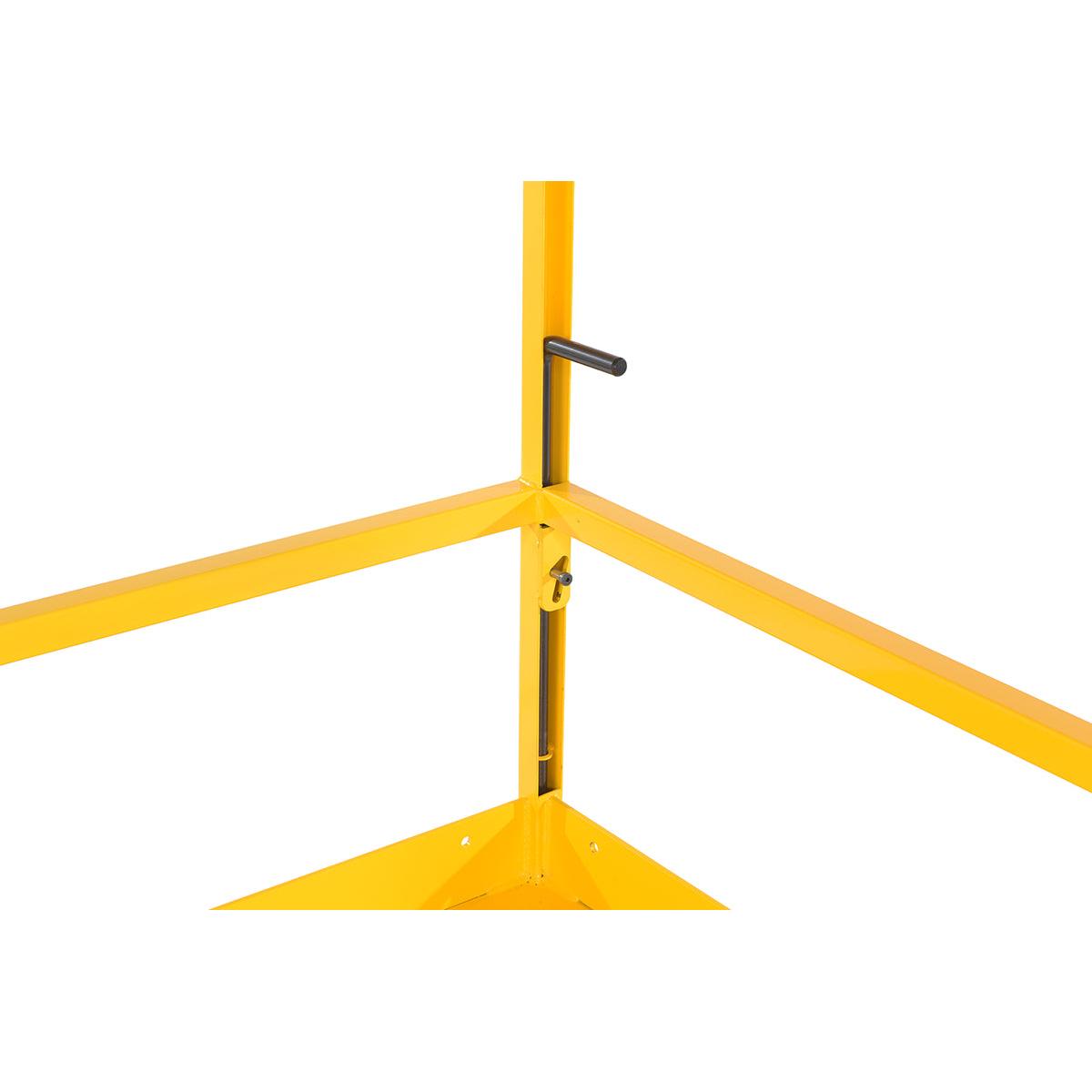

• Manual Operation – Easy-to-use design requires minimal labor to operate

Technical Specifications:

• Total Ship Wt.(lbs.): 659
• Size: 53"W x 53"L x 42.1875"H
• Color: Yellow
• Uniform Capacity (lb.): 5000
• Hardware Included: Yes

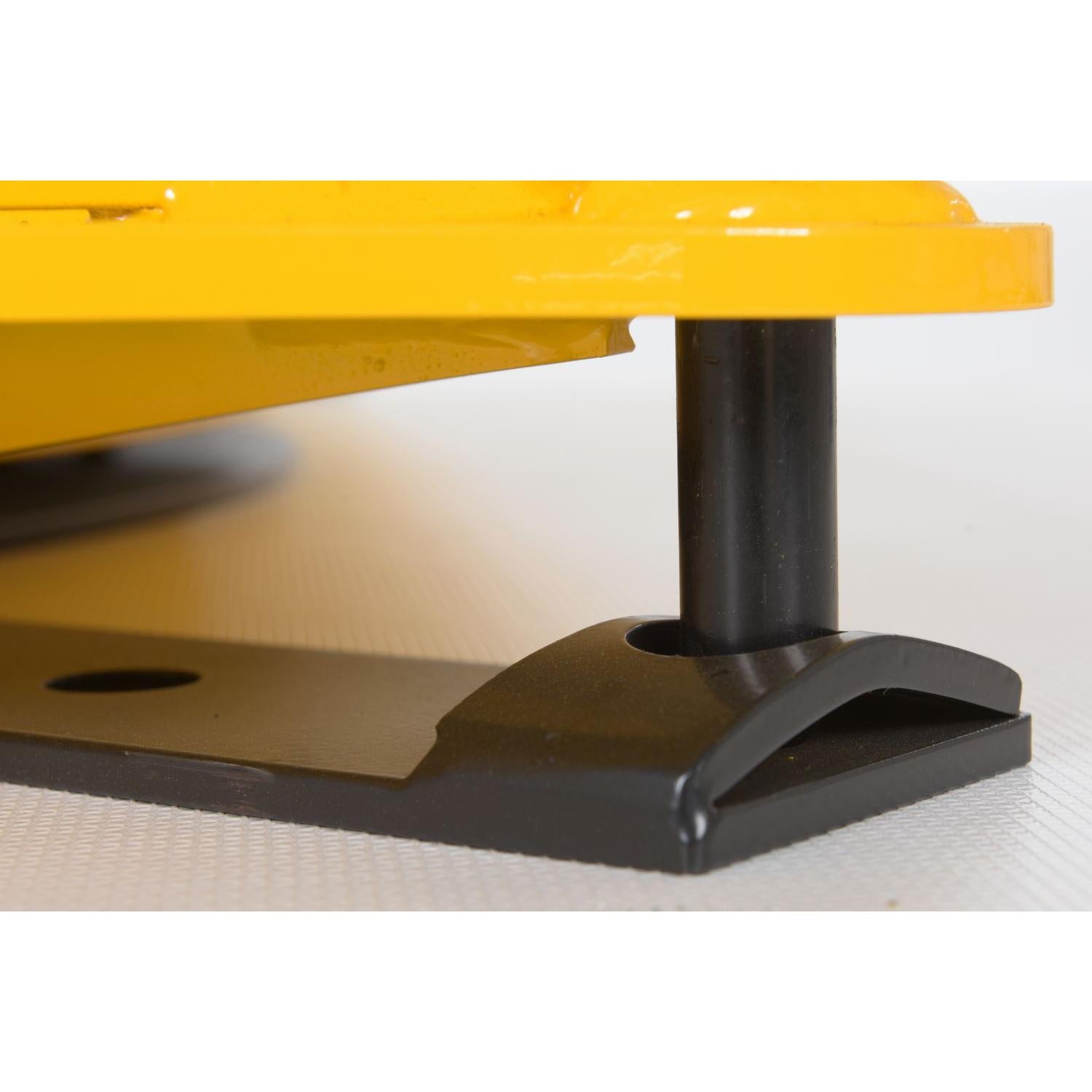

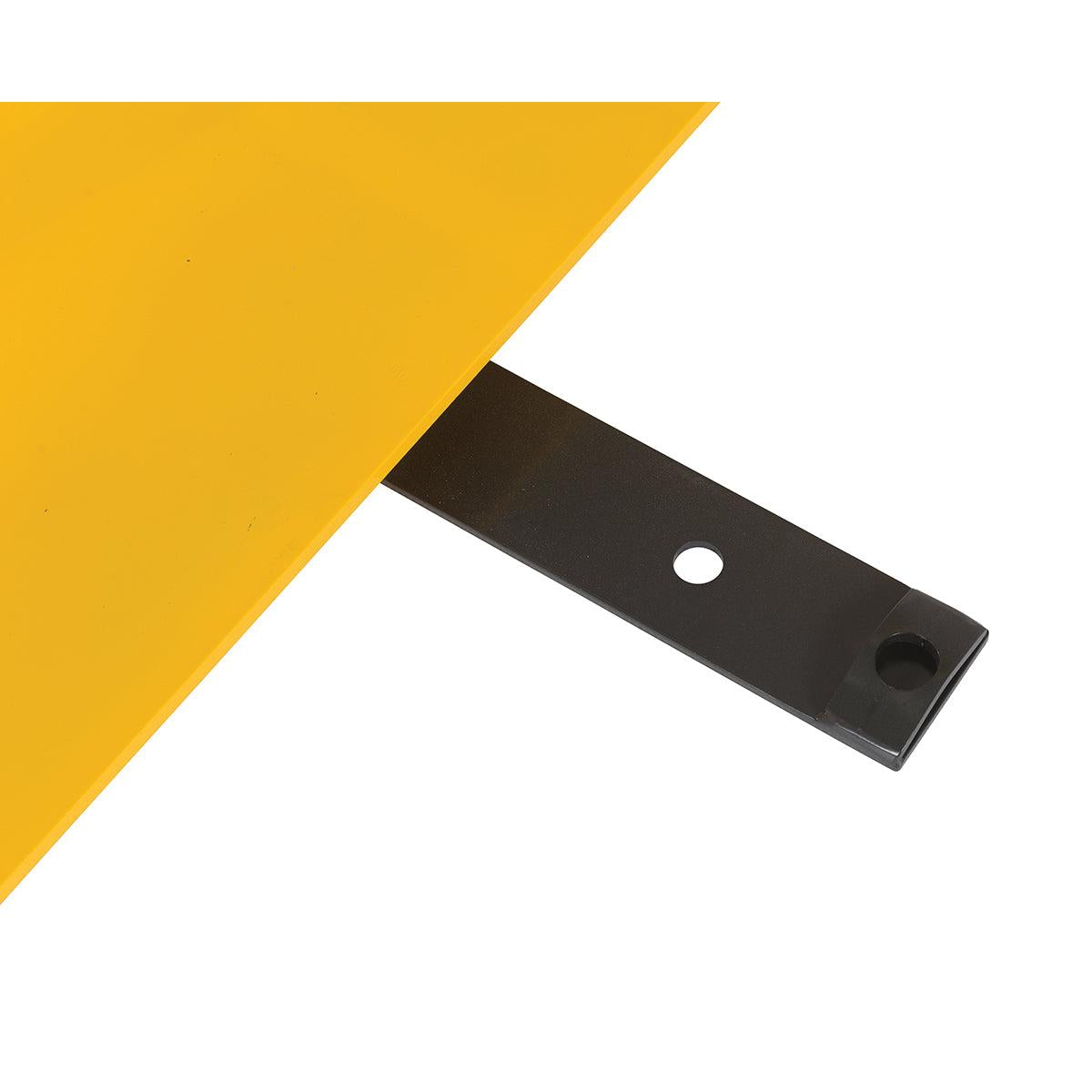

• Base Plate Mounting Holes: 4

• Base Plate Hole Diameter (in.): 7/8
• Handrail Length (in.): 51-1/2
• Handrail Height (in.): 39-3/16

• Midrail Height (in.): 16-7/8
• Configuration: 3 gated sides, 1 open side
• Material: Steel
• Rotation: 360°
• Overall Height (in): 42.1875

• Overall Width (in): 53

• Overall Depth (in): 73.37553

• Inside Width (in): 48.5

• Inside Depth (in): 50.75
• Toe Board Height (in): 4

• Bolt Hole Diameter (in): 0.4375

• Attachment Method: Lag Bolts

• Installation Hardware Included: Yes

• UPC: 691215363396
• GTIN: 00691215363396
• Manufacturer Warranty: 90 Days

Made in the USA

If you would like to request a quotation for large quantities of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
