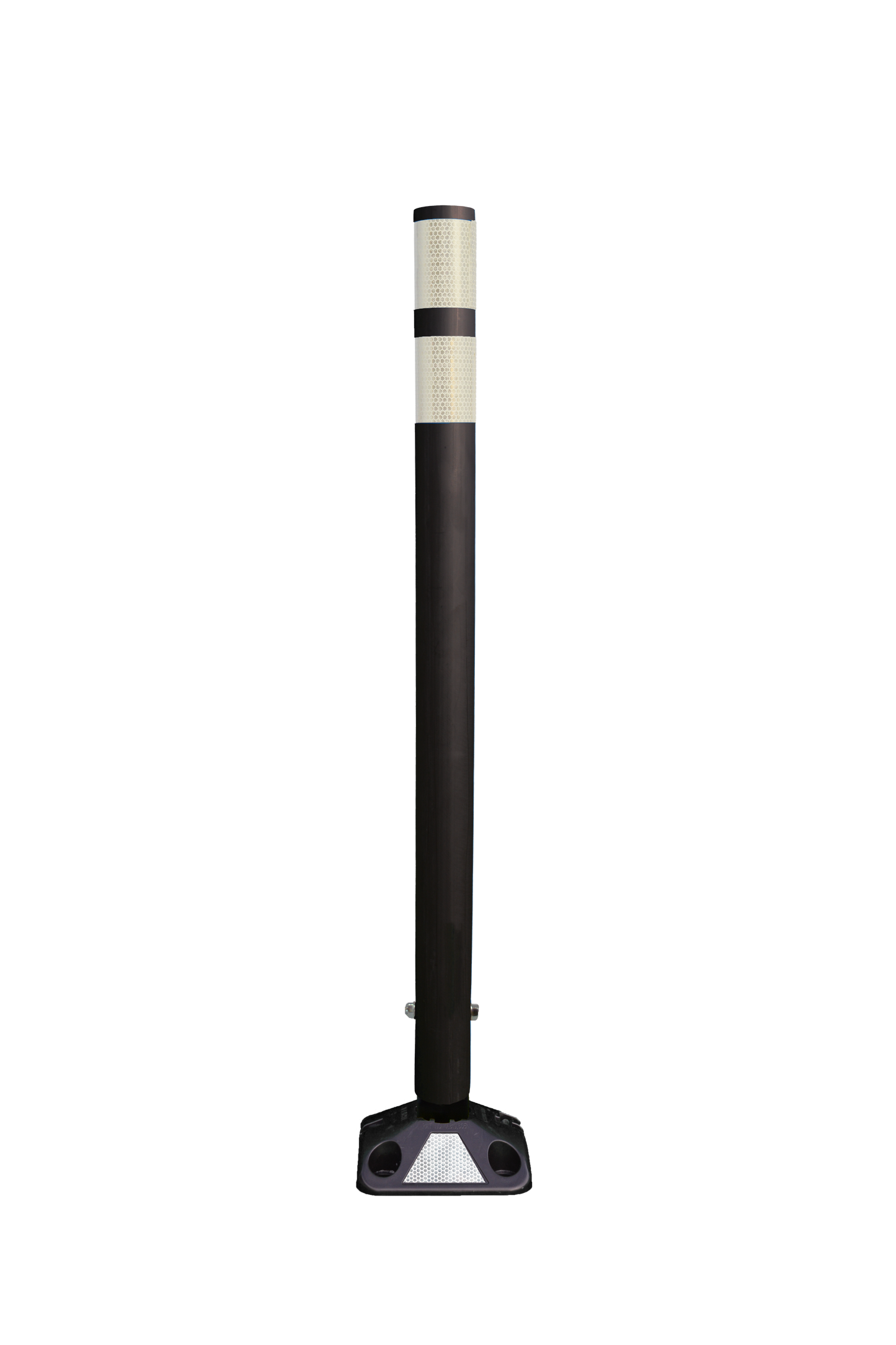

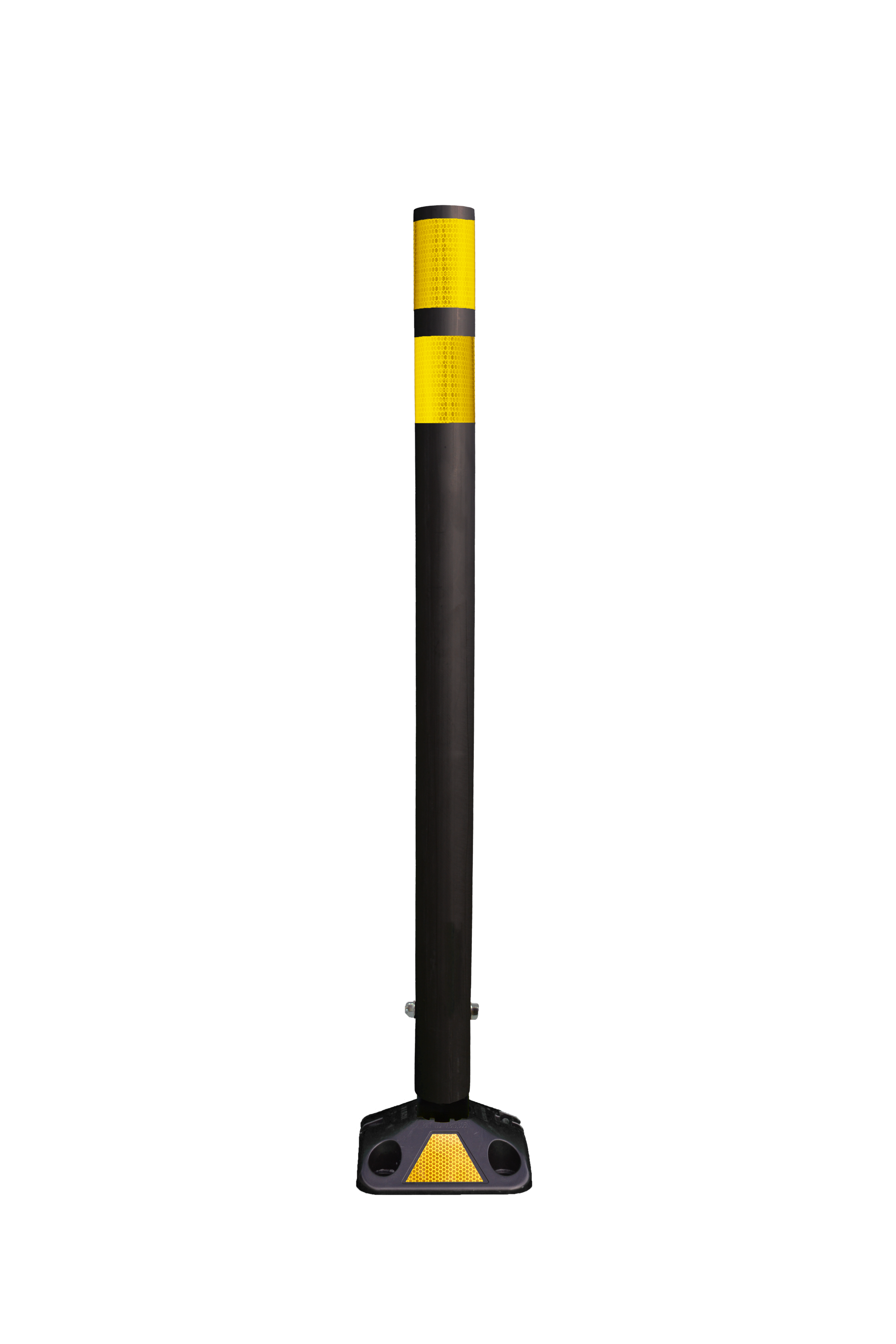

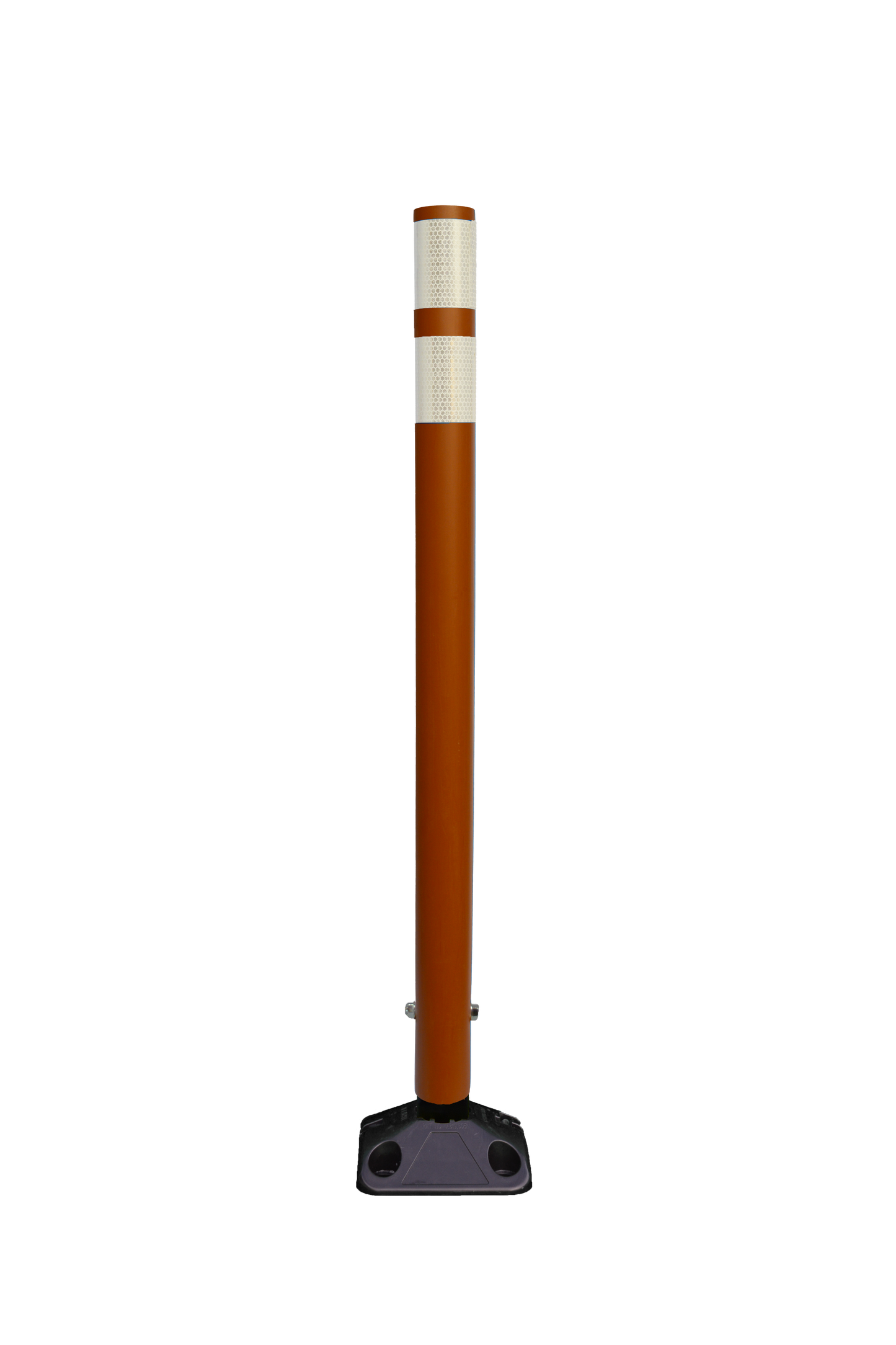

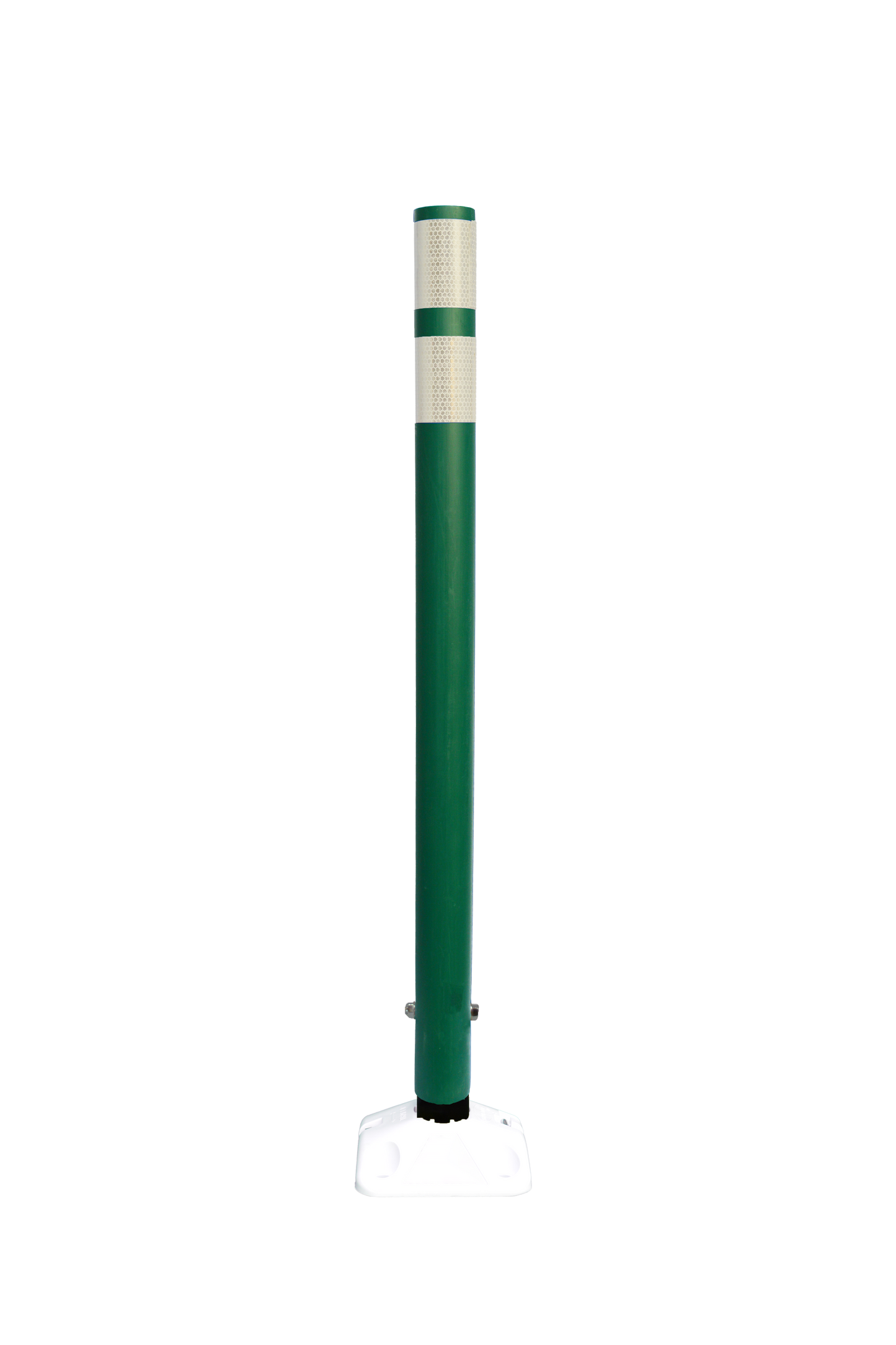

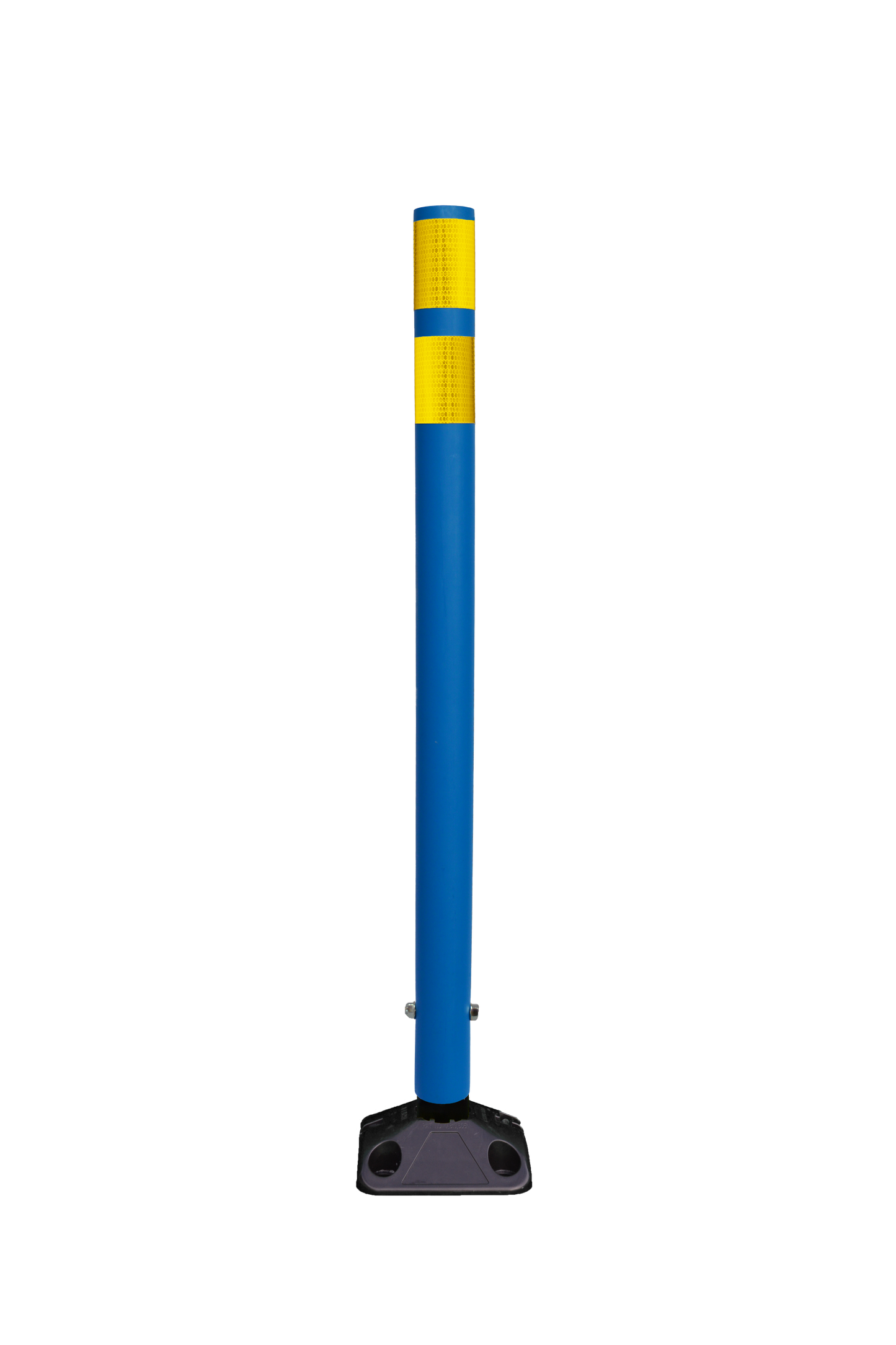

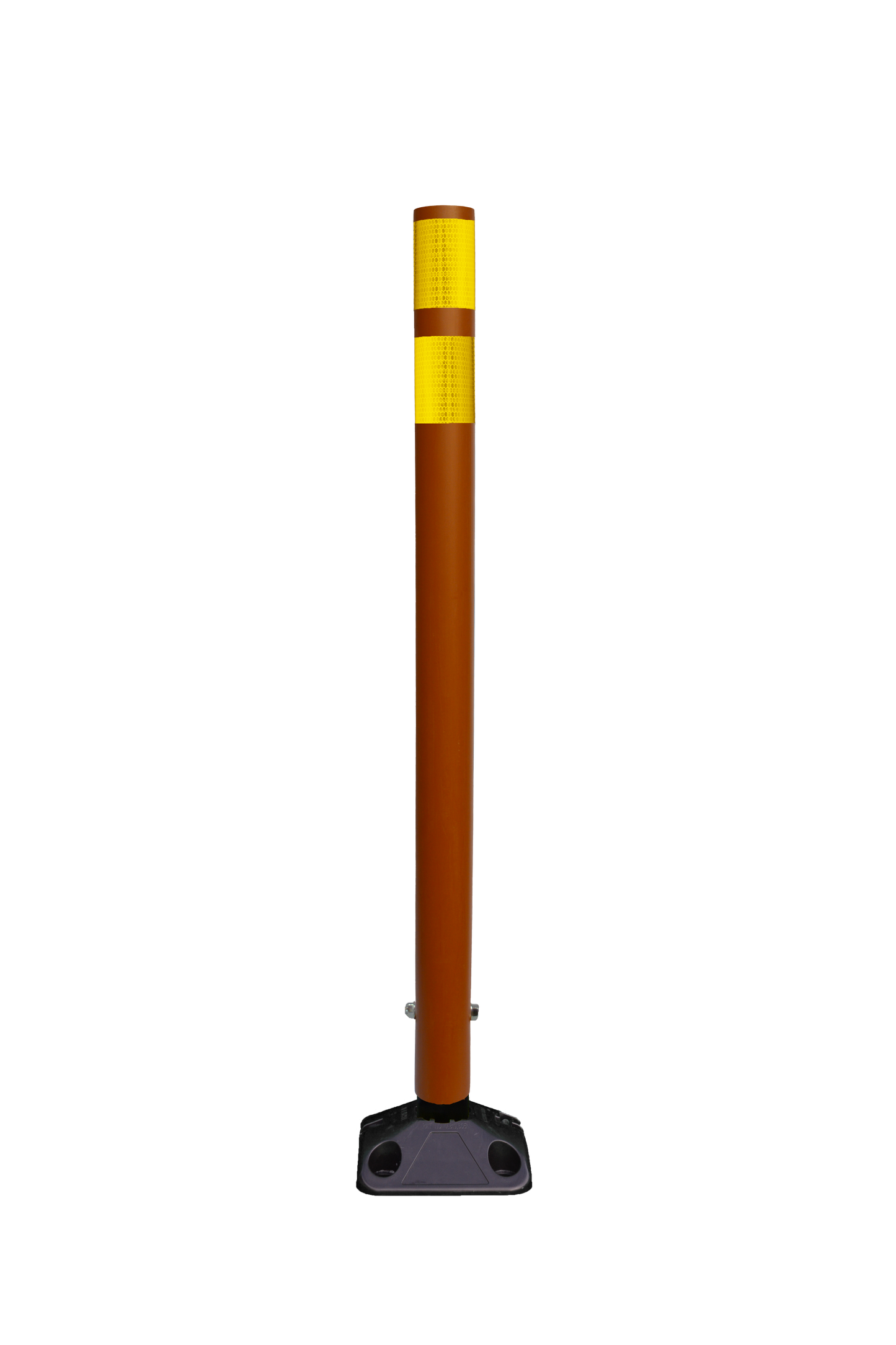

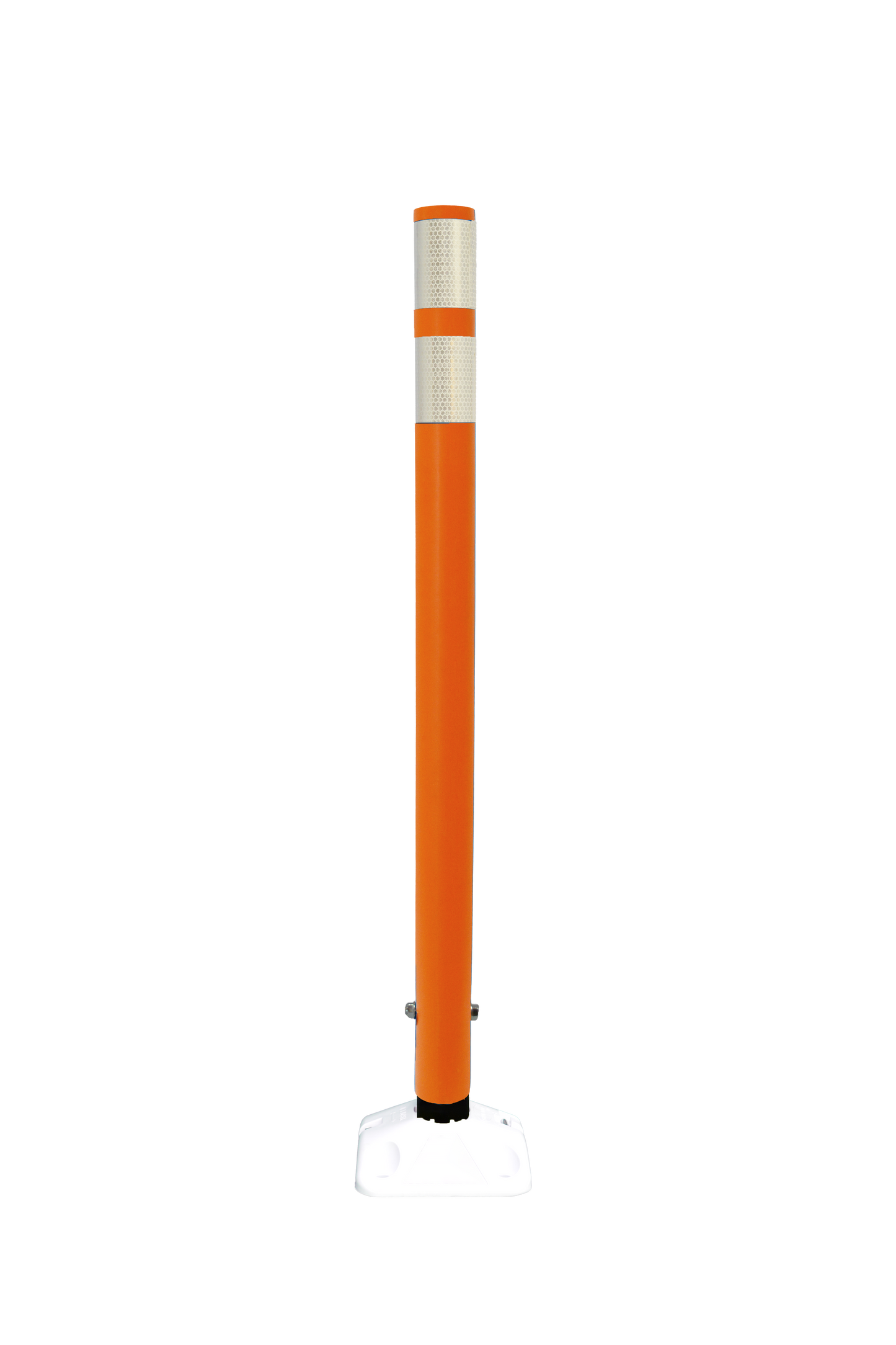

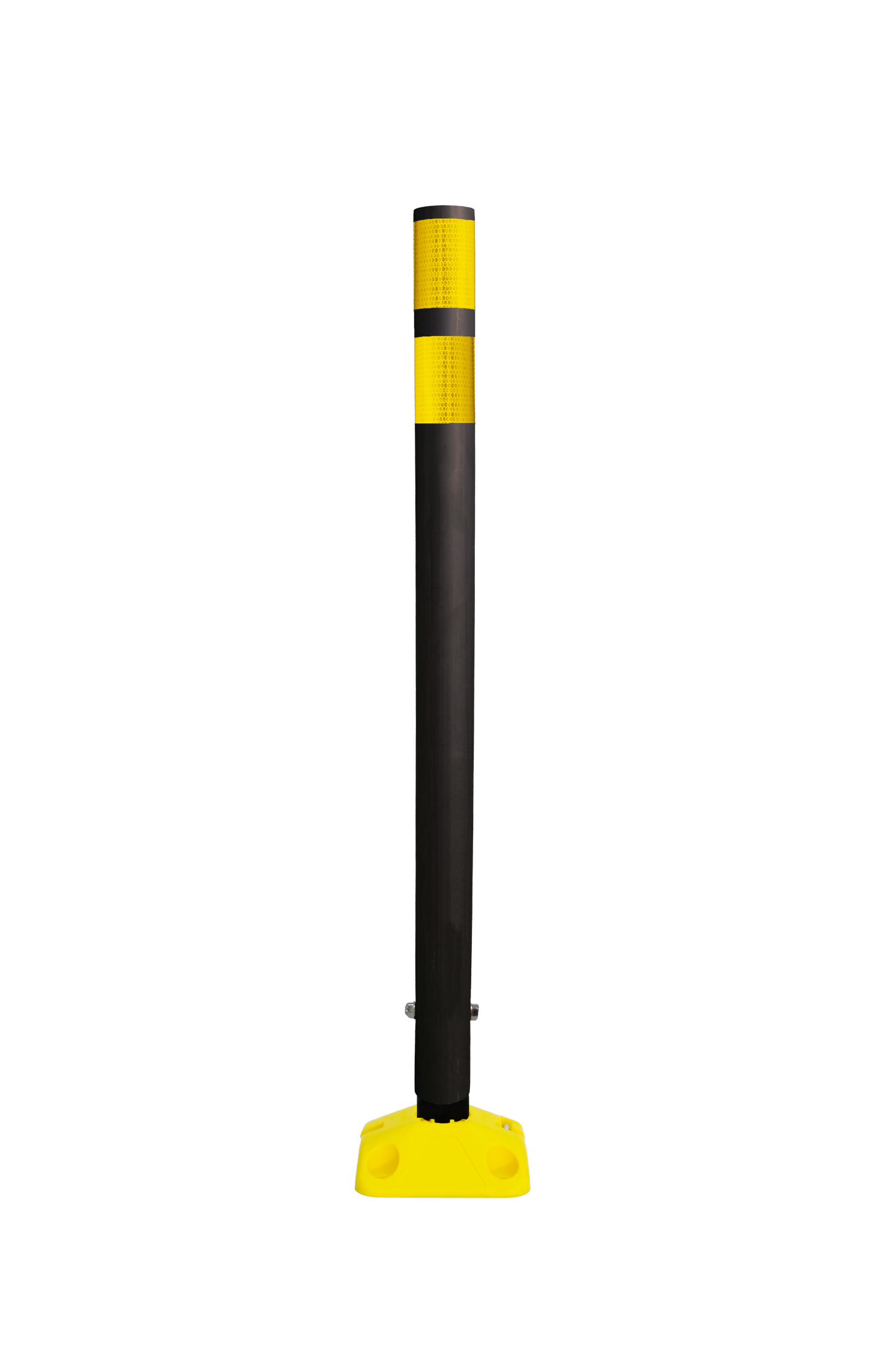

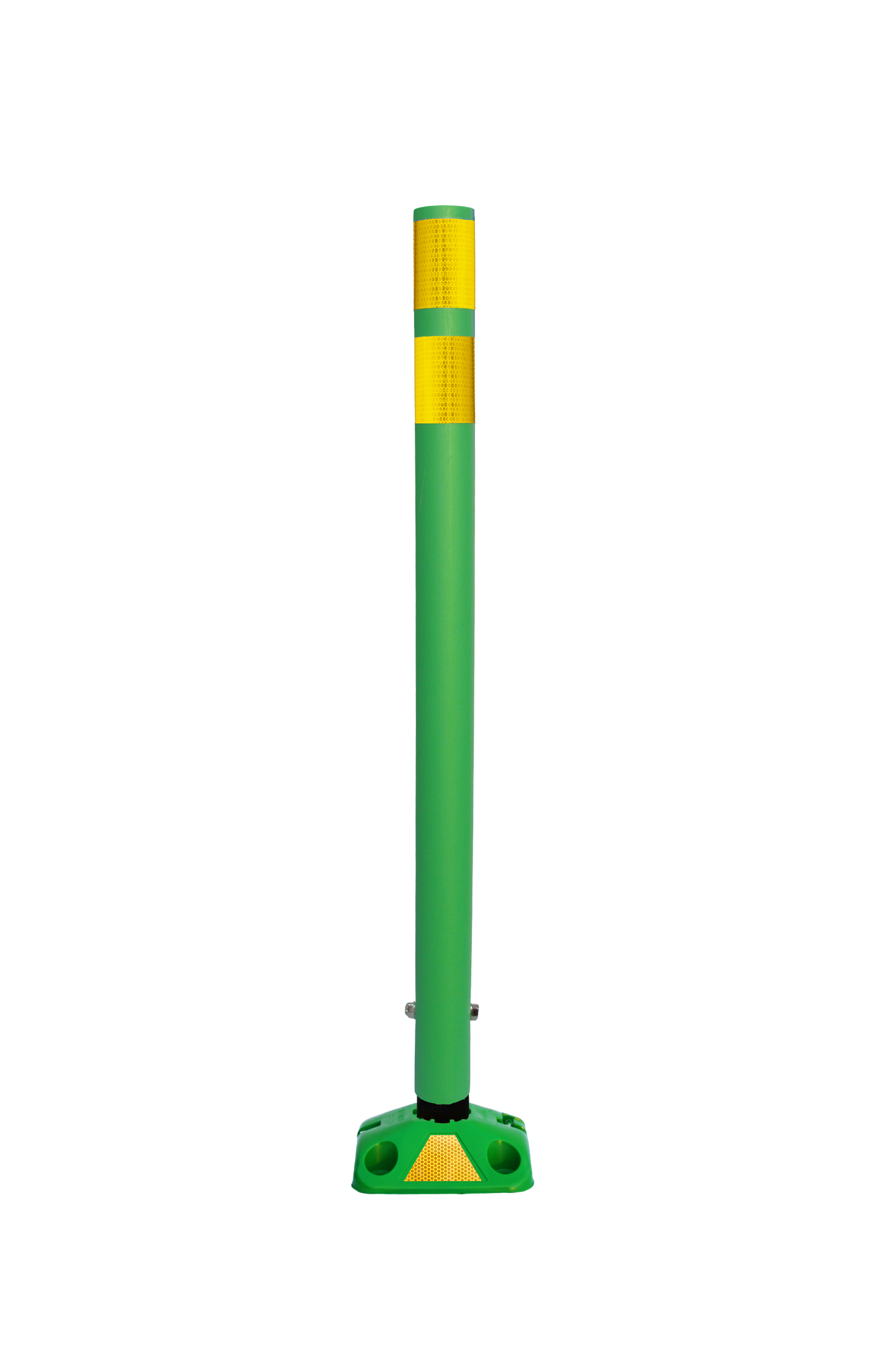

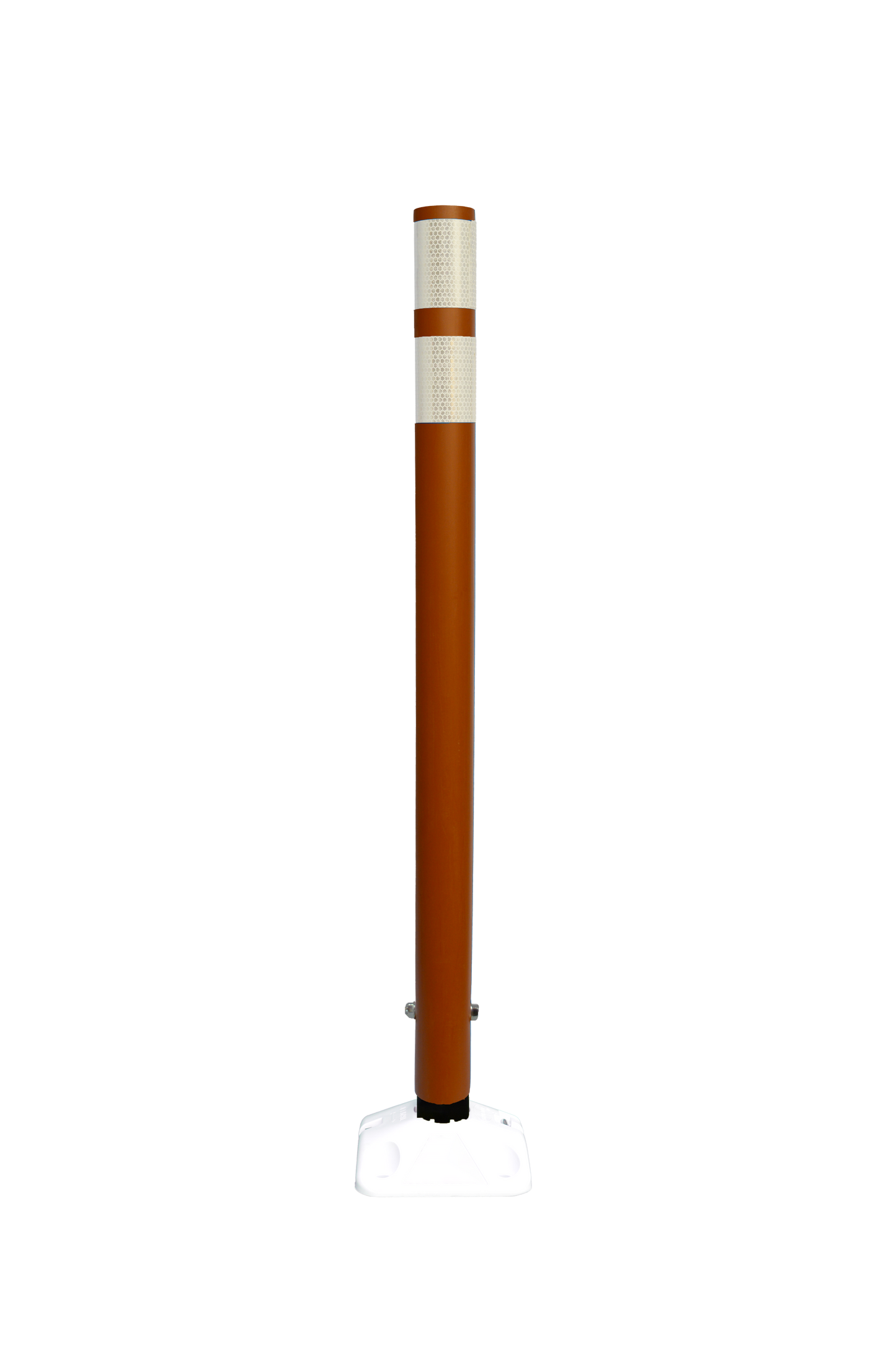

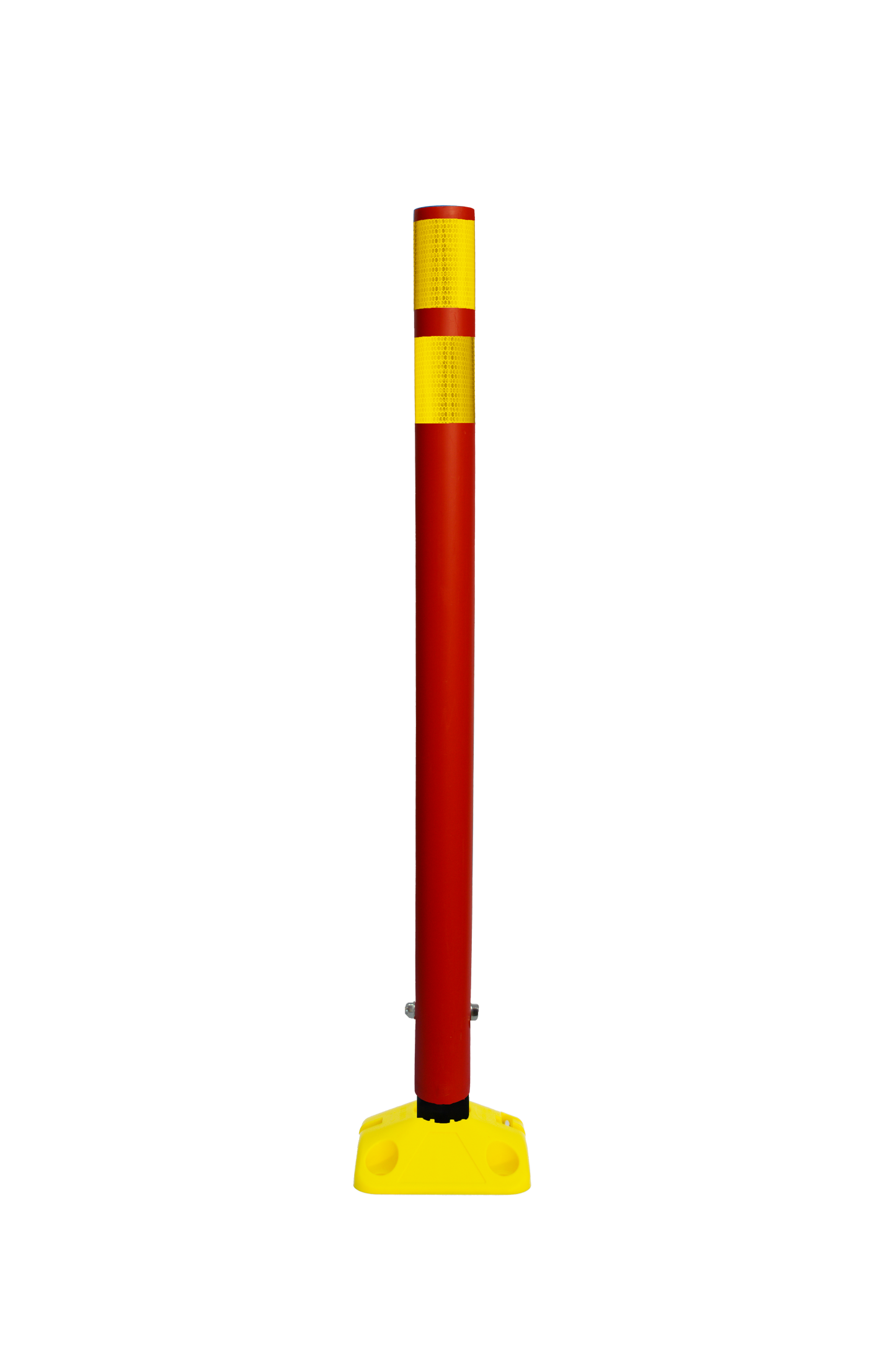

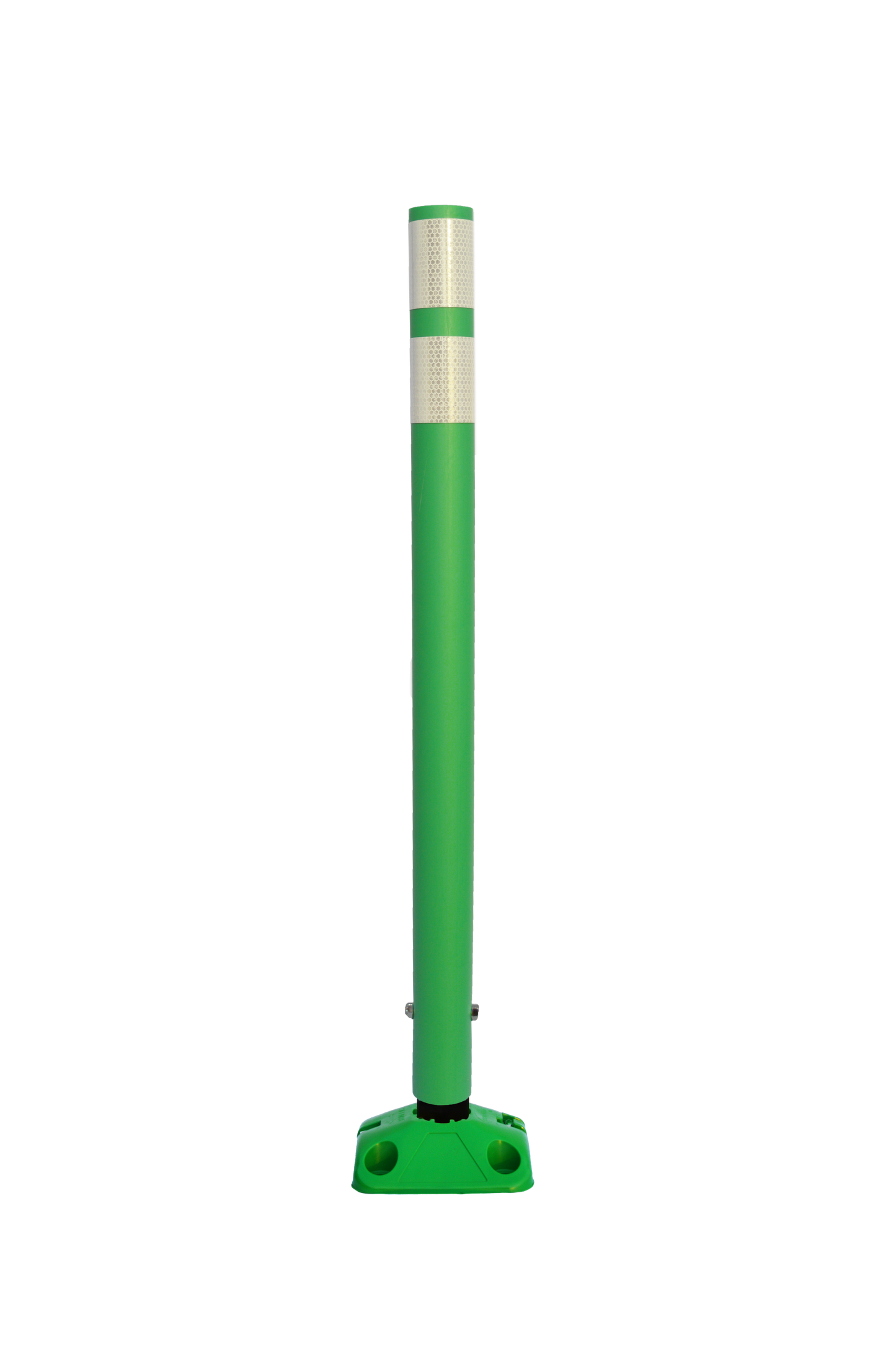

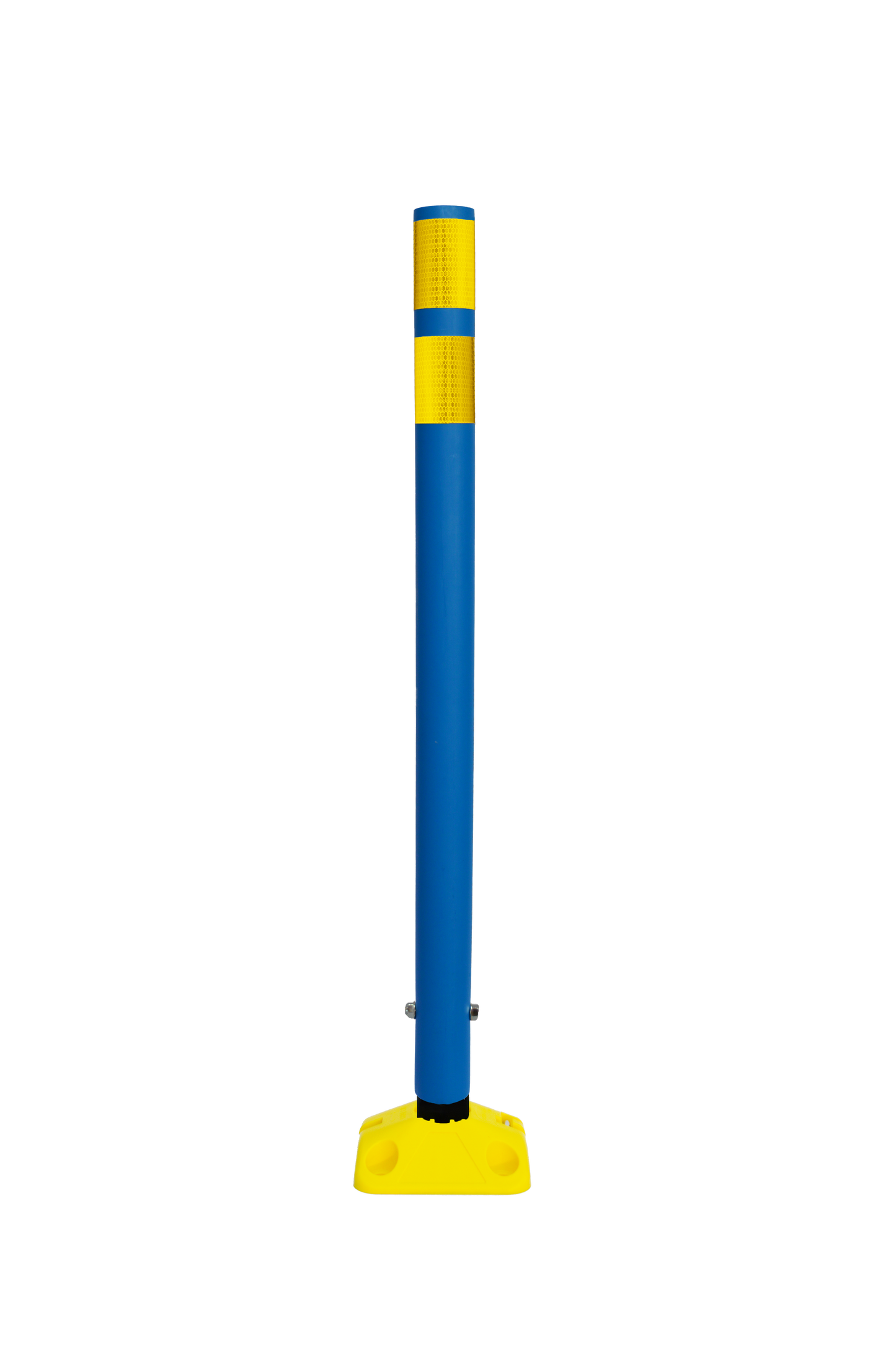

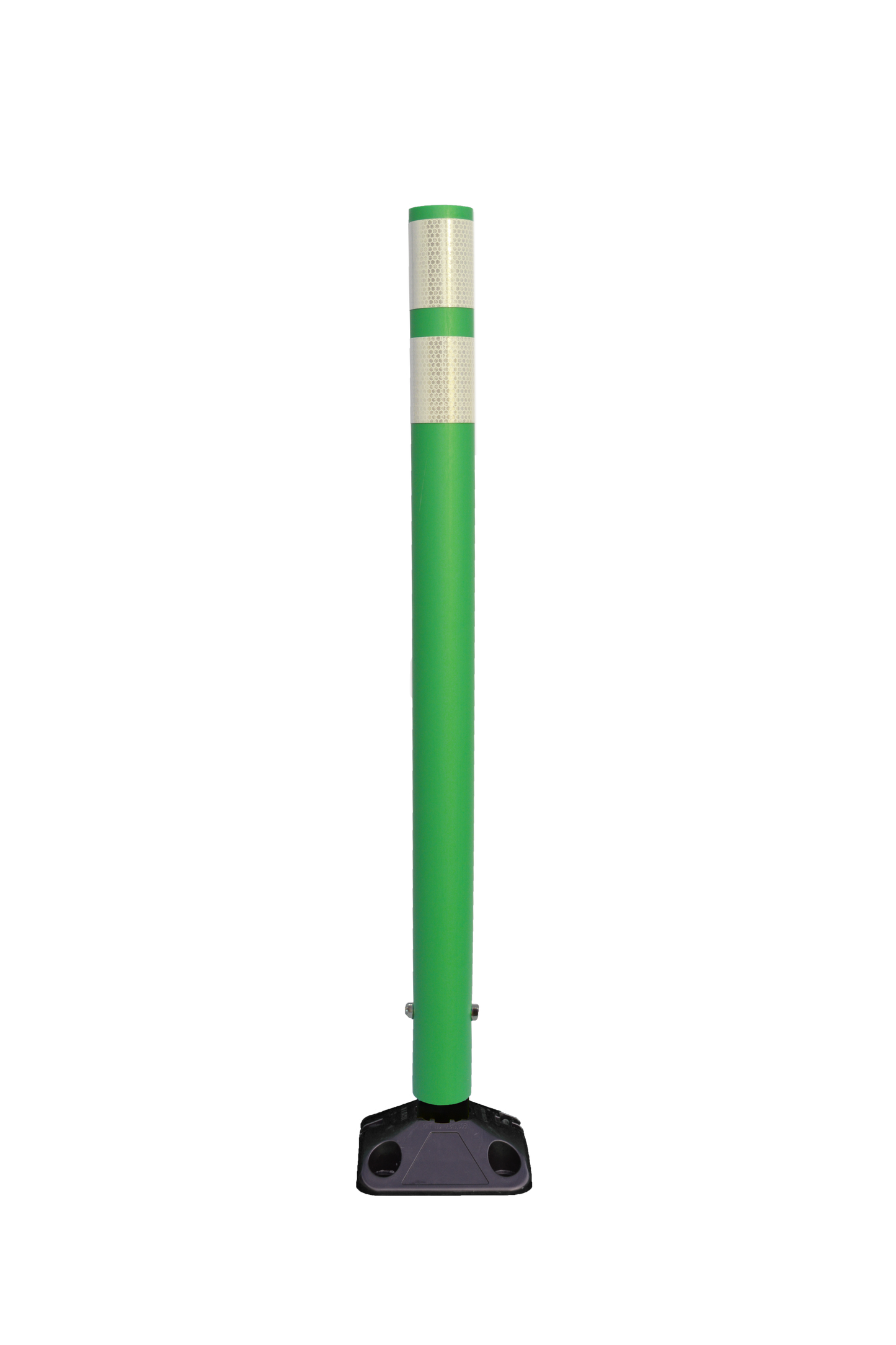

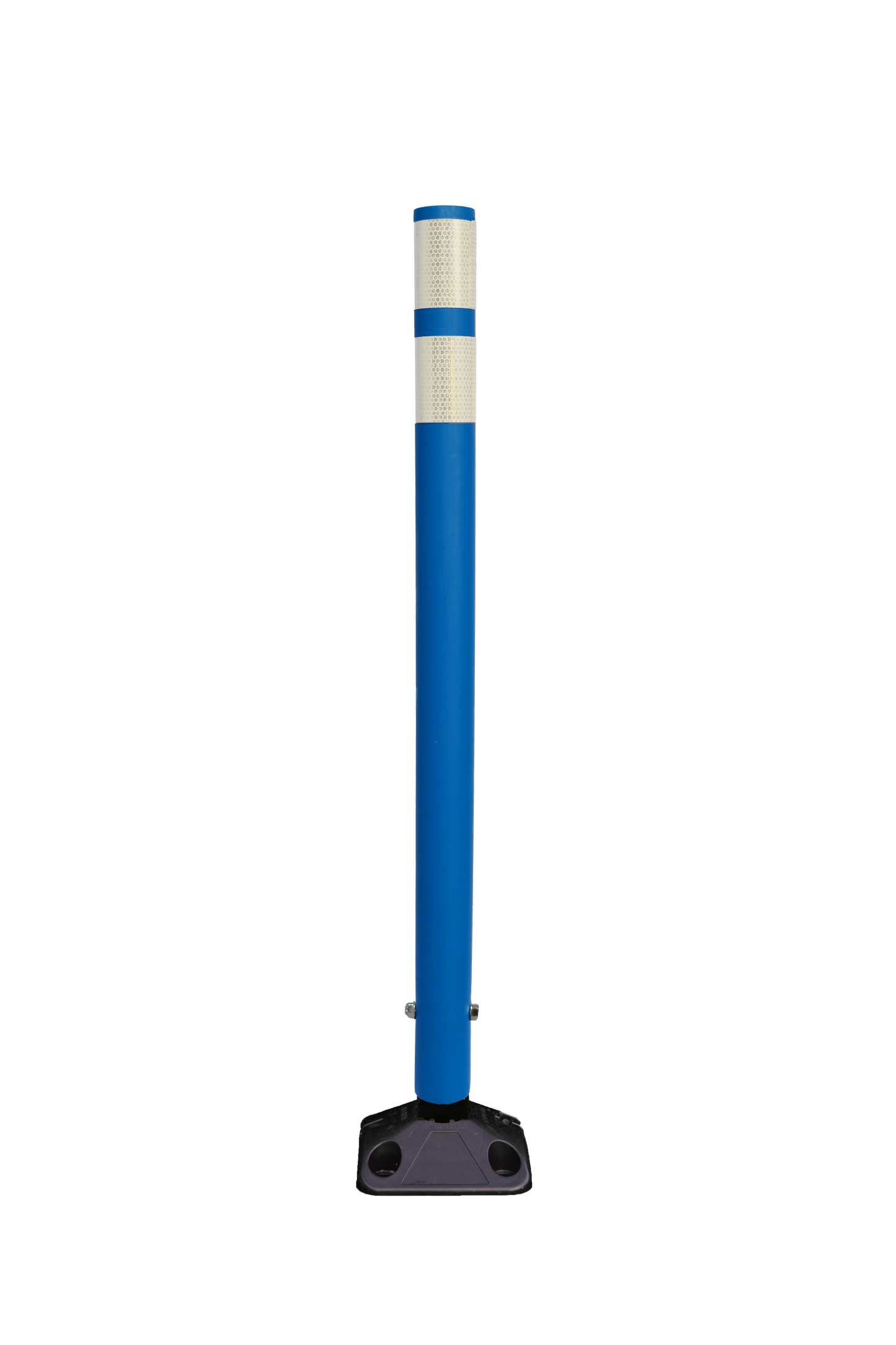

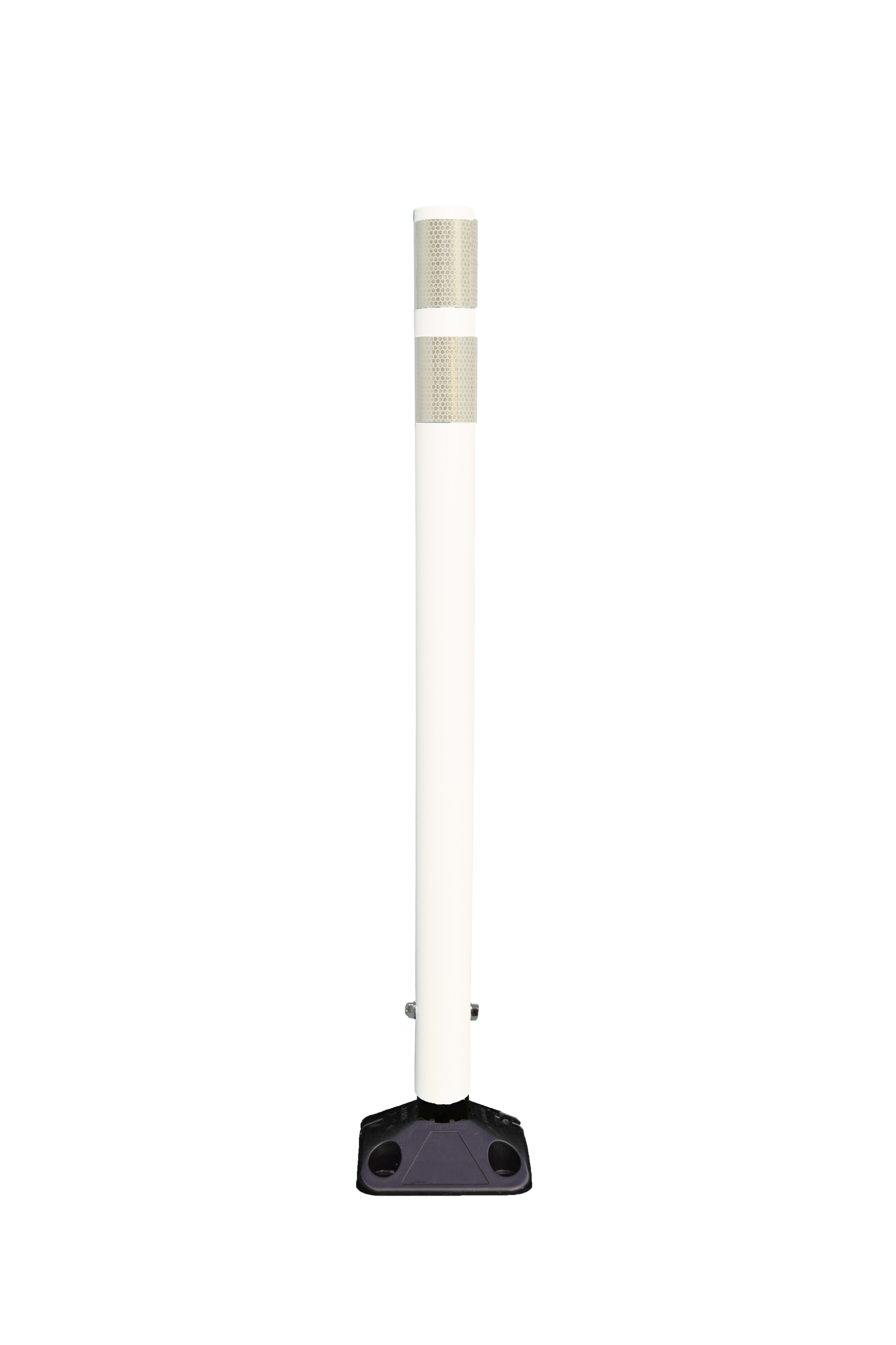

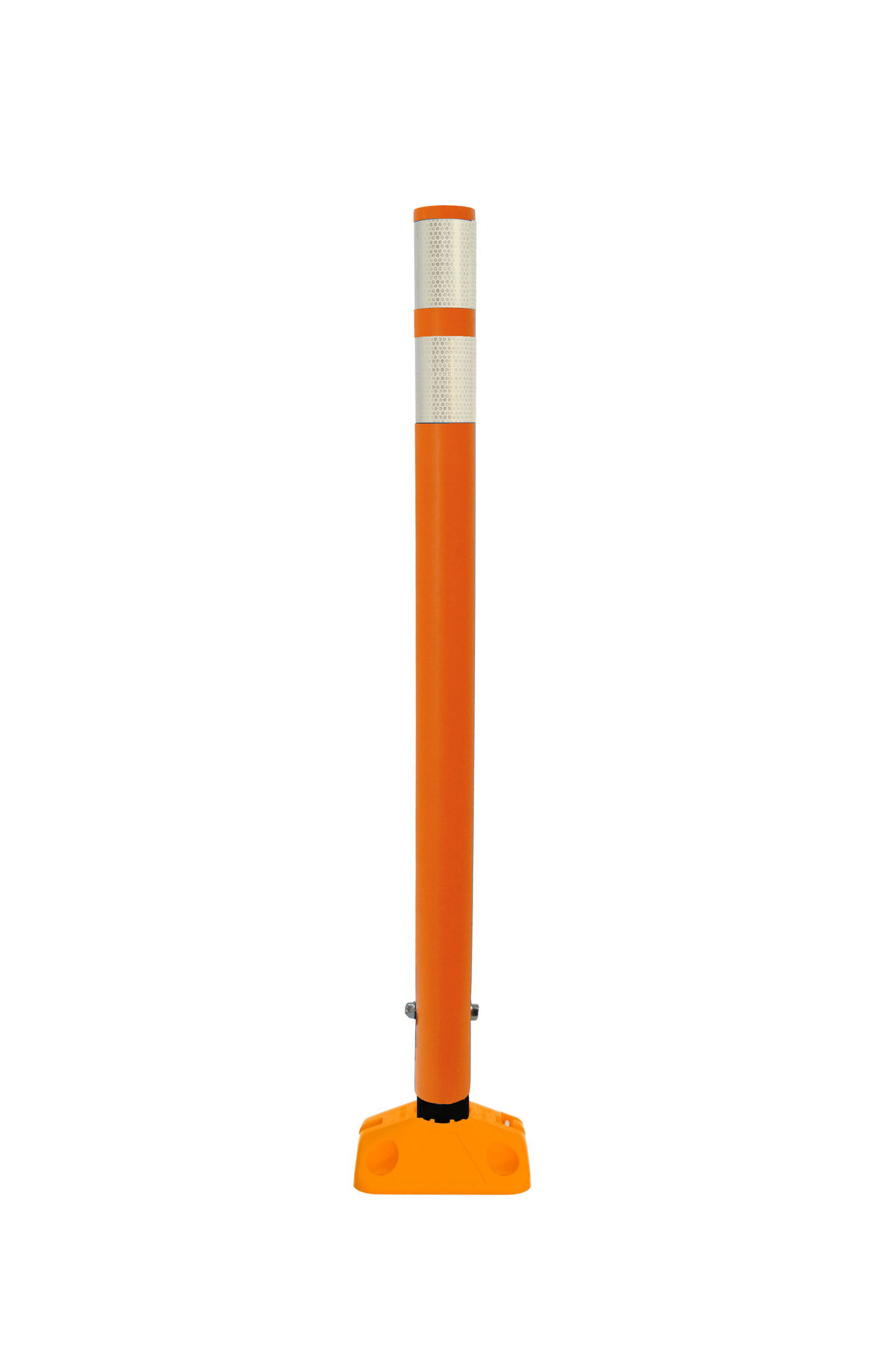

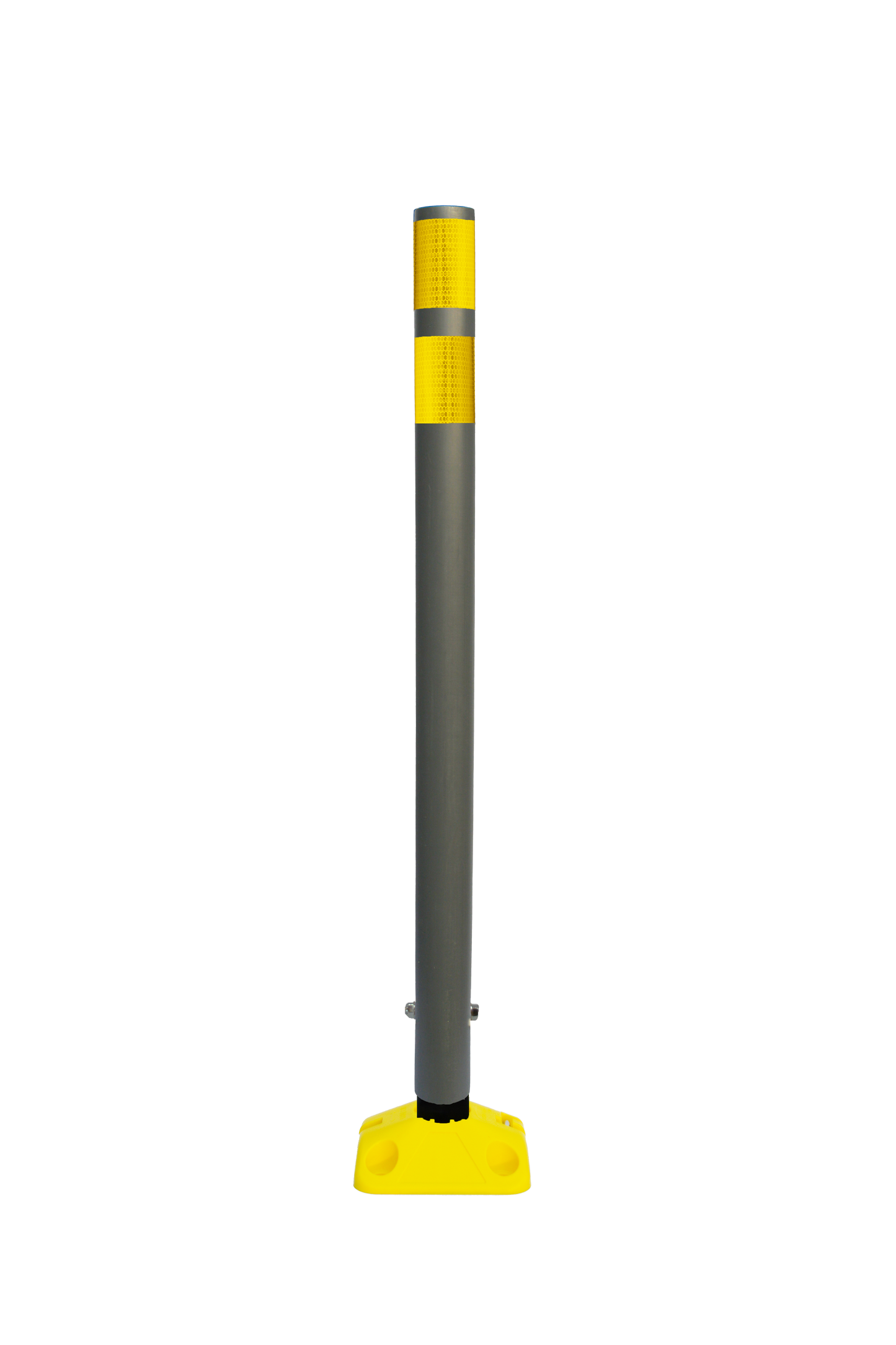

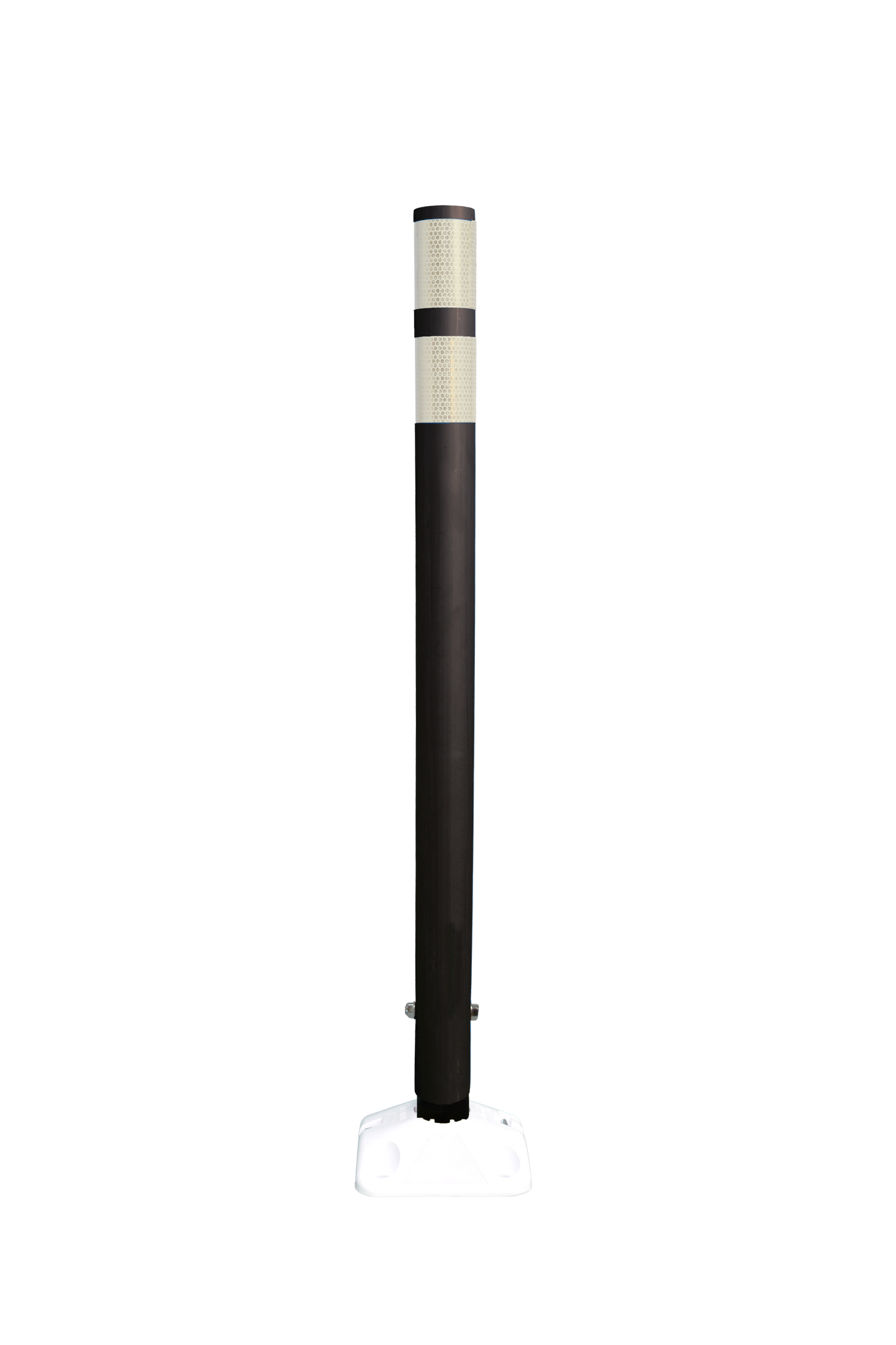

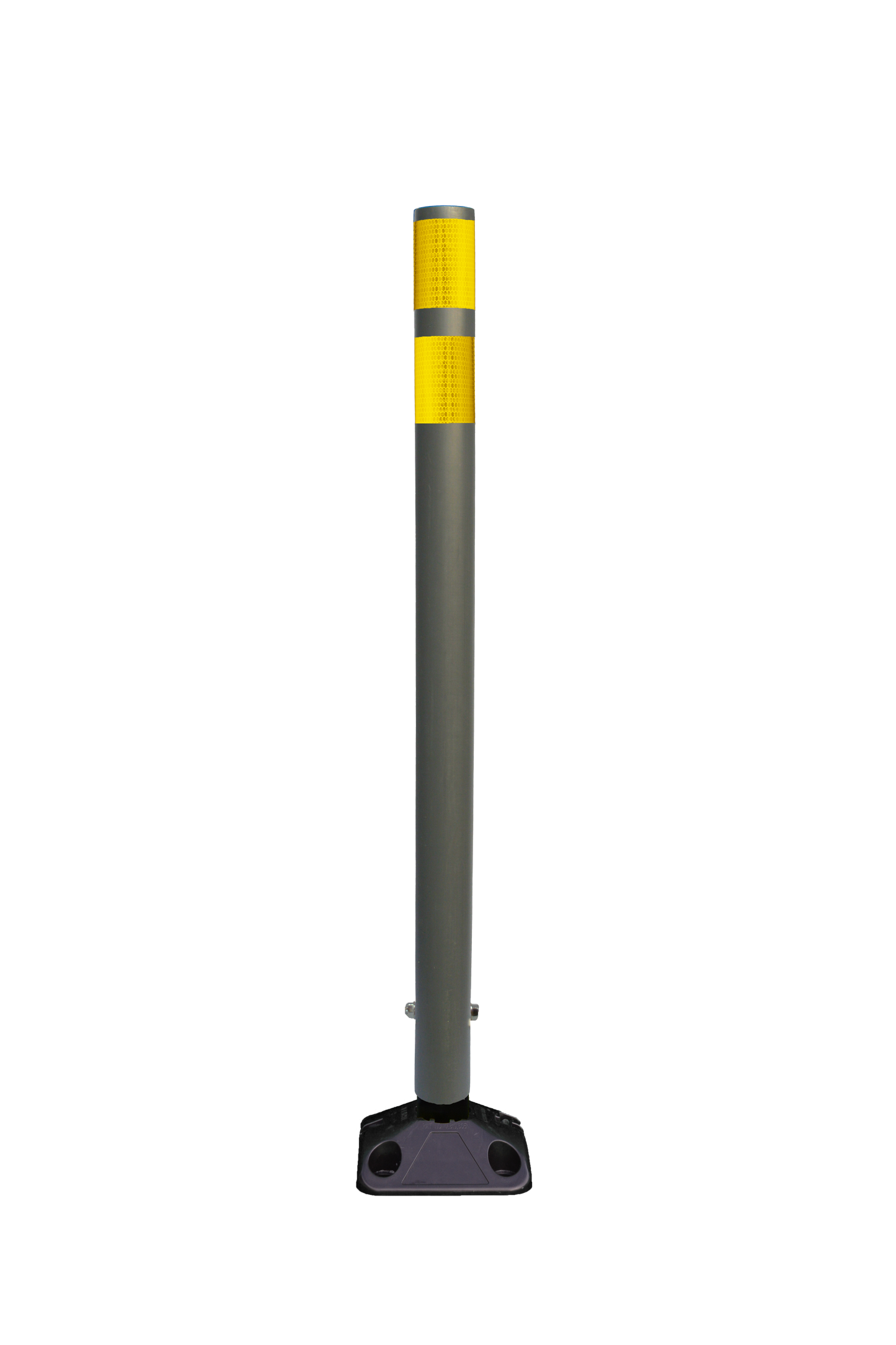

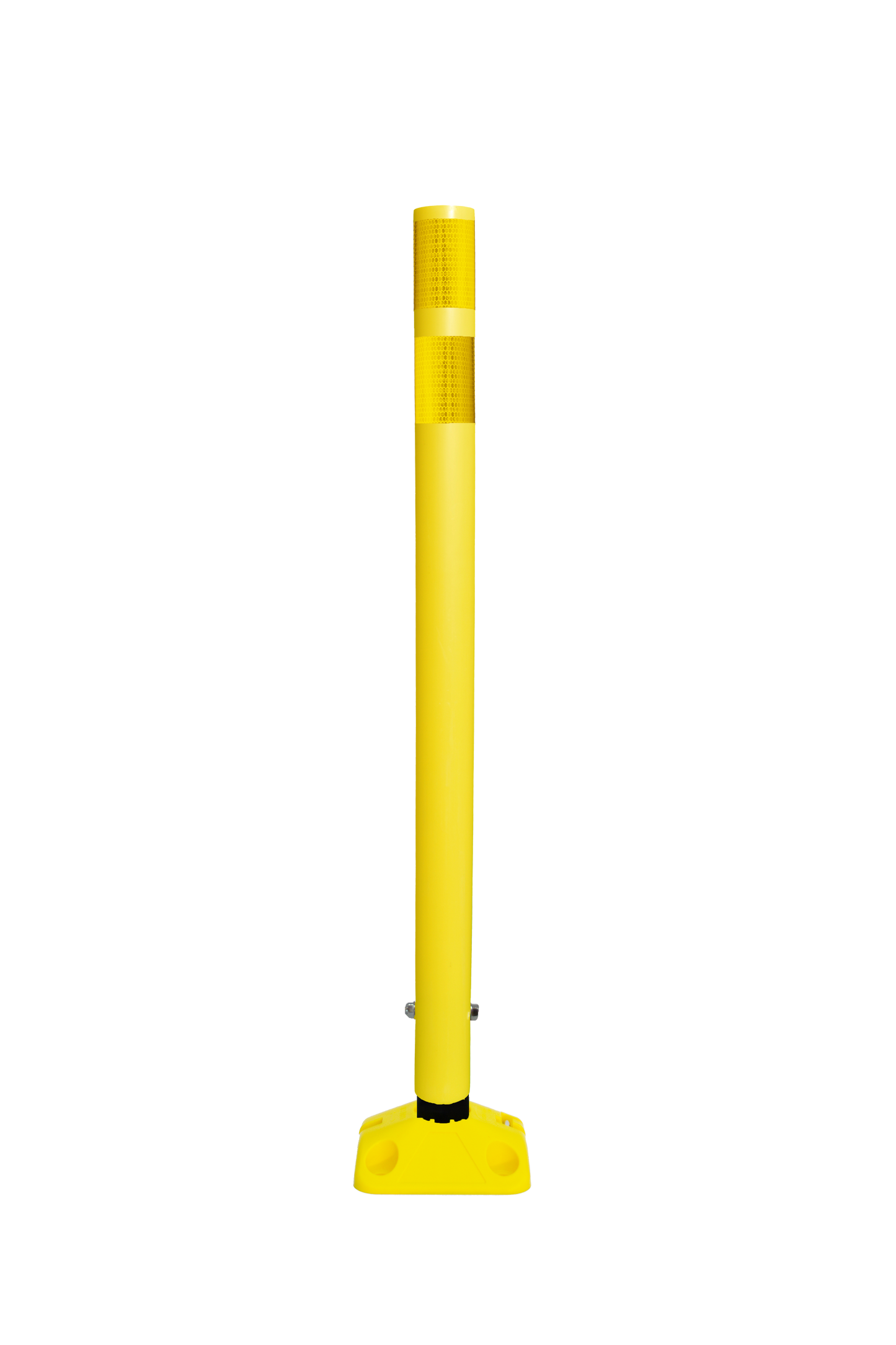

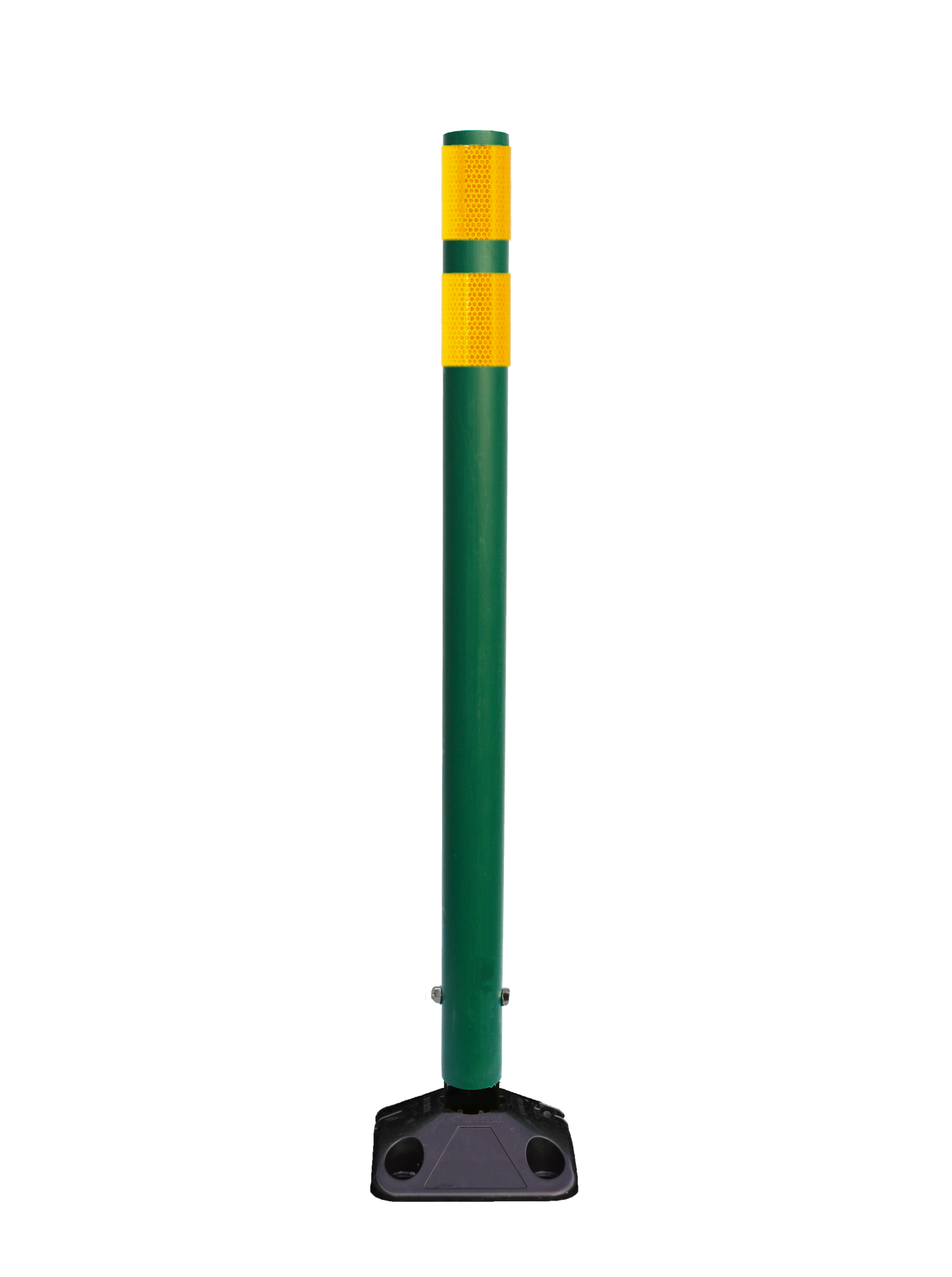

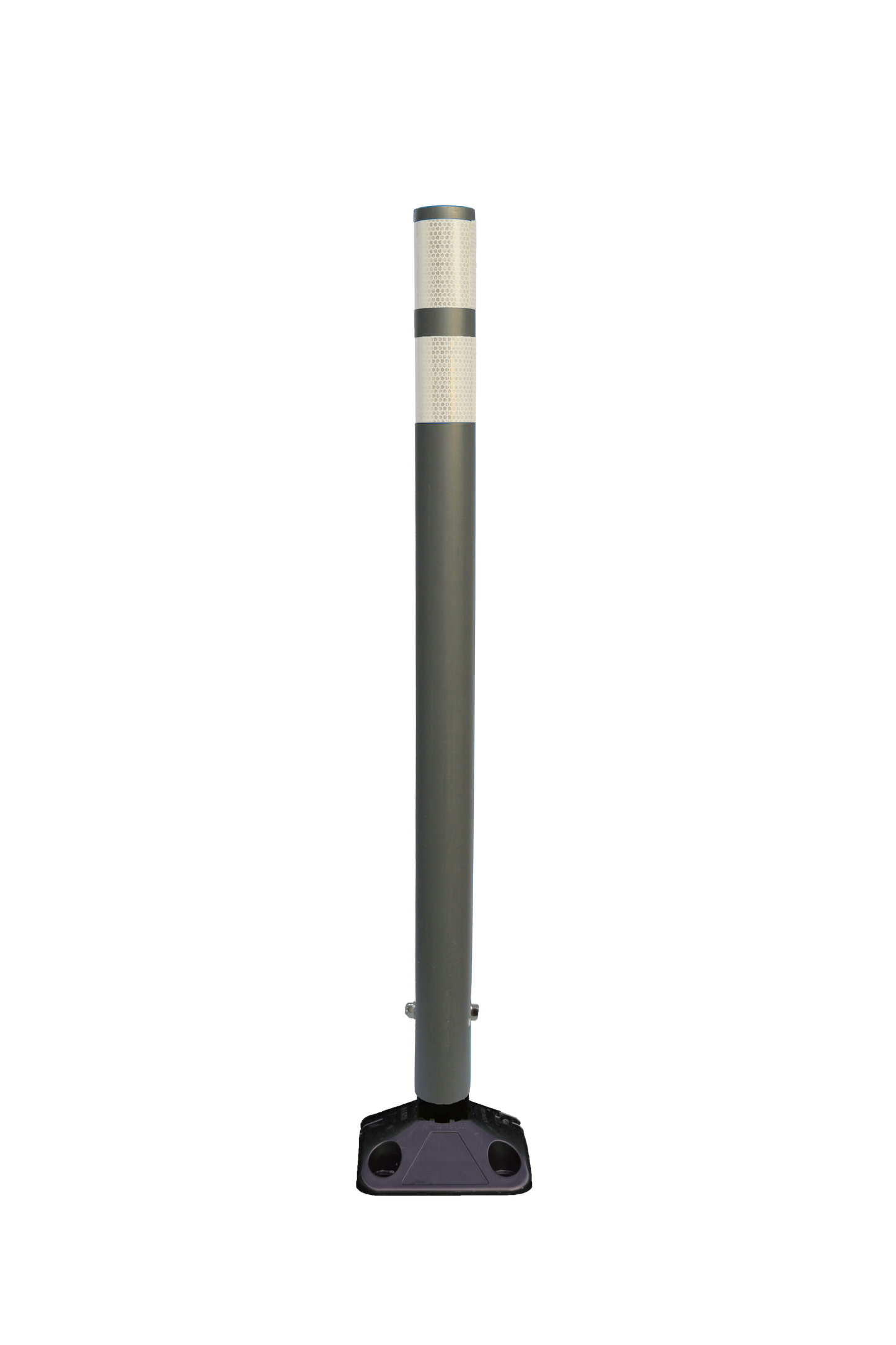

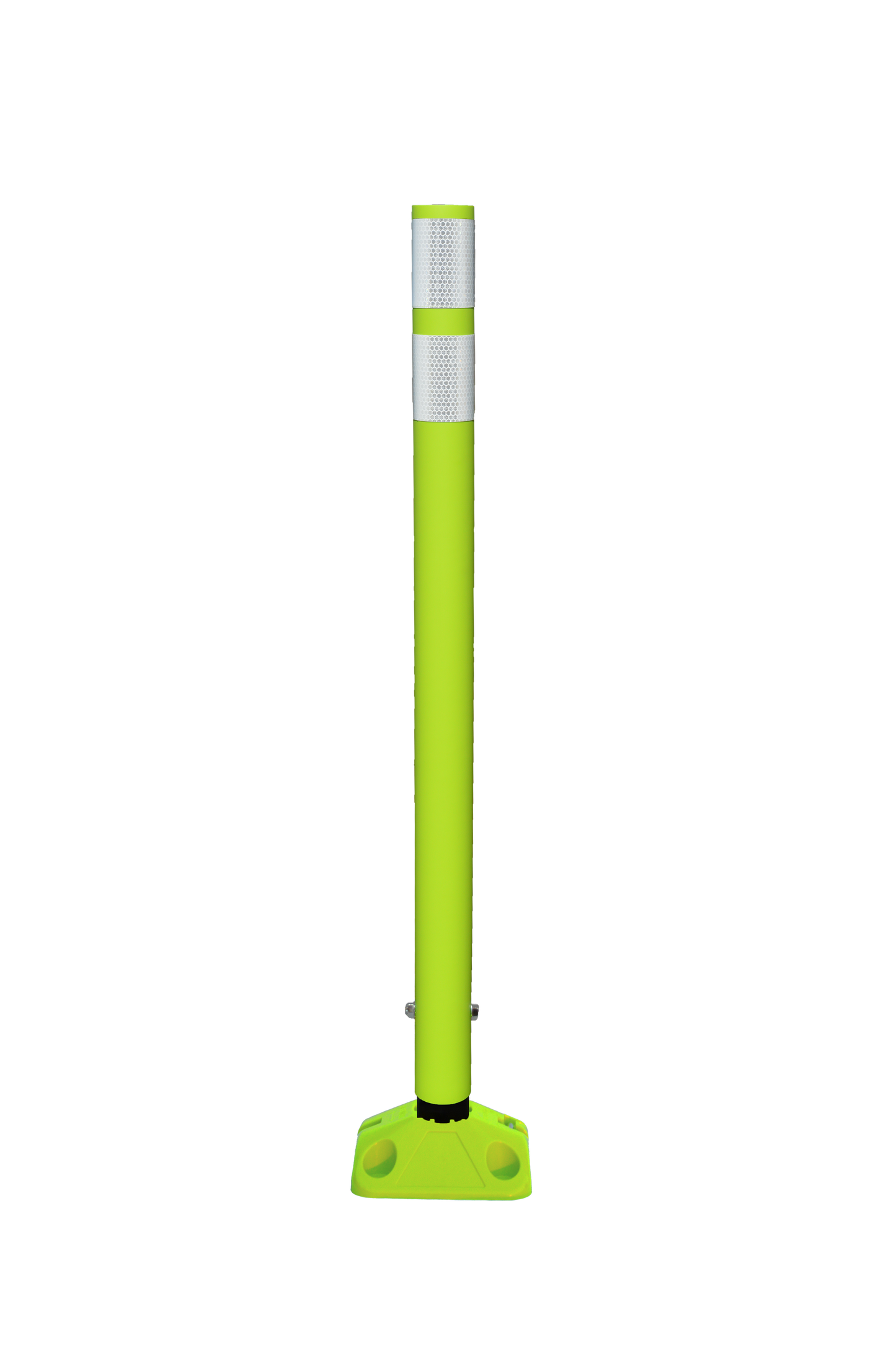

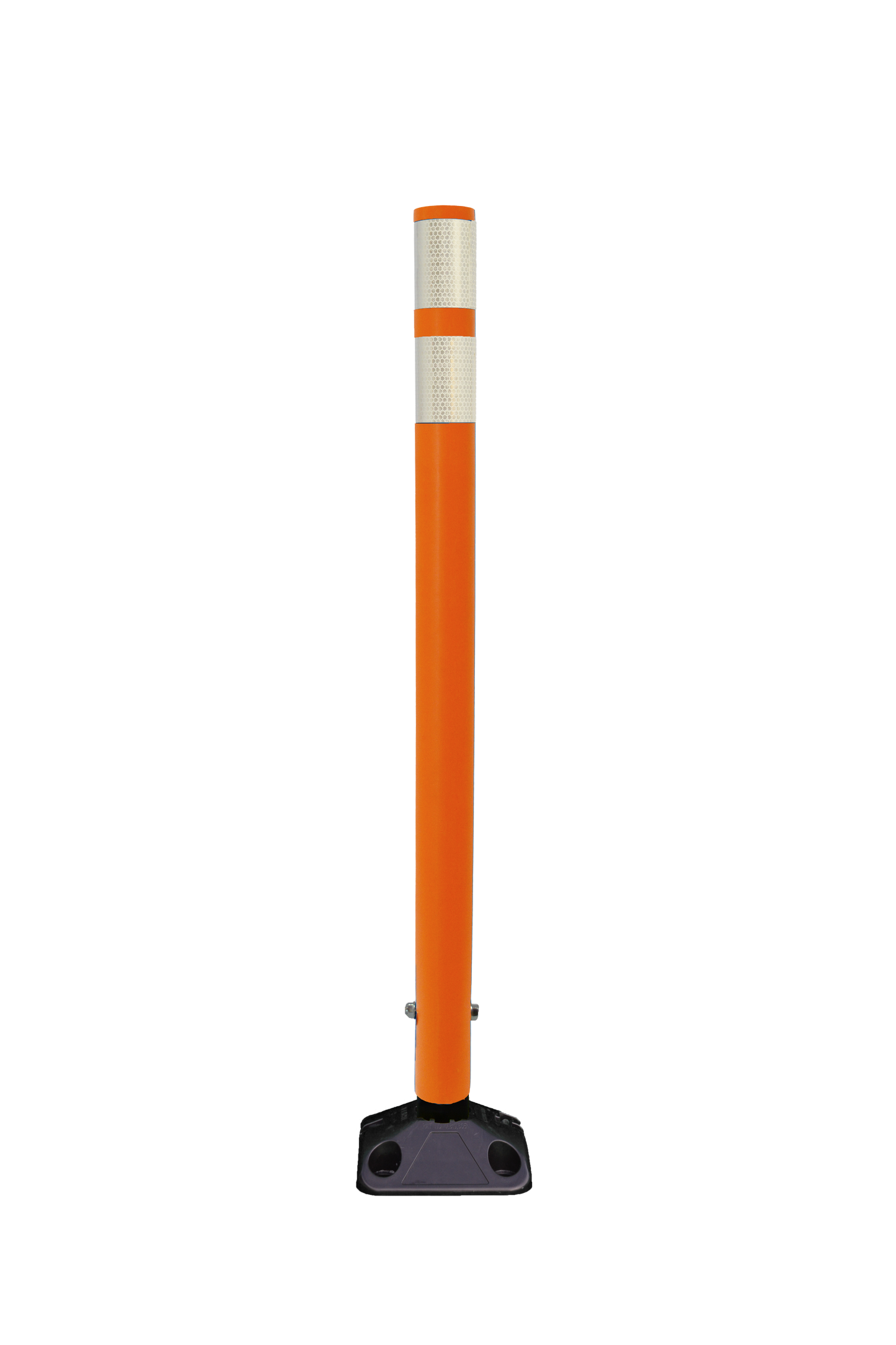

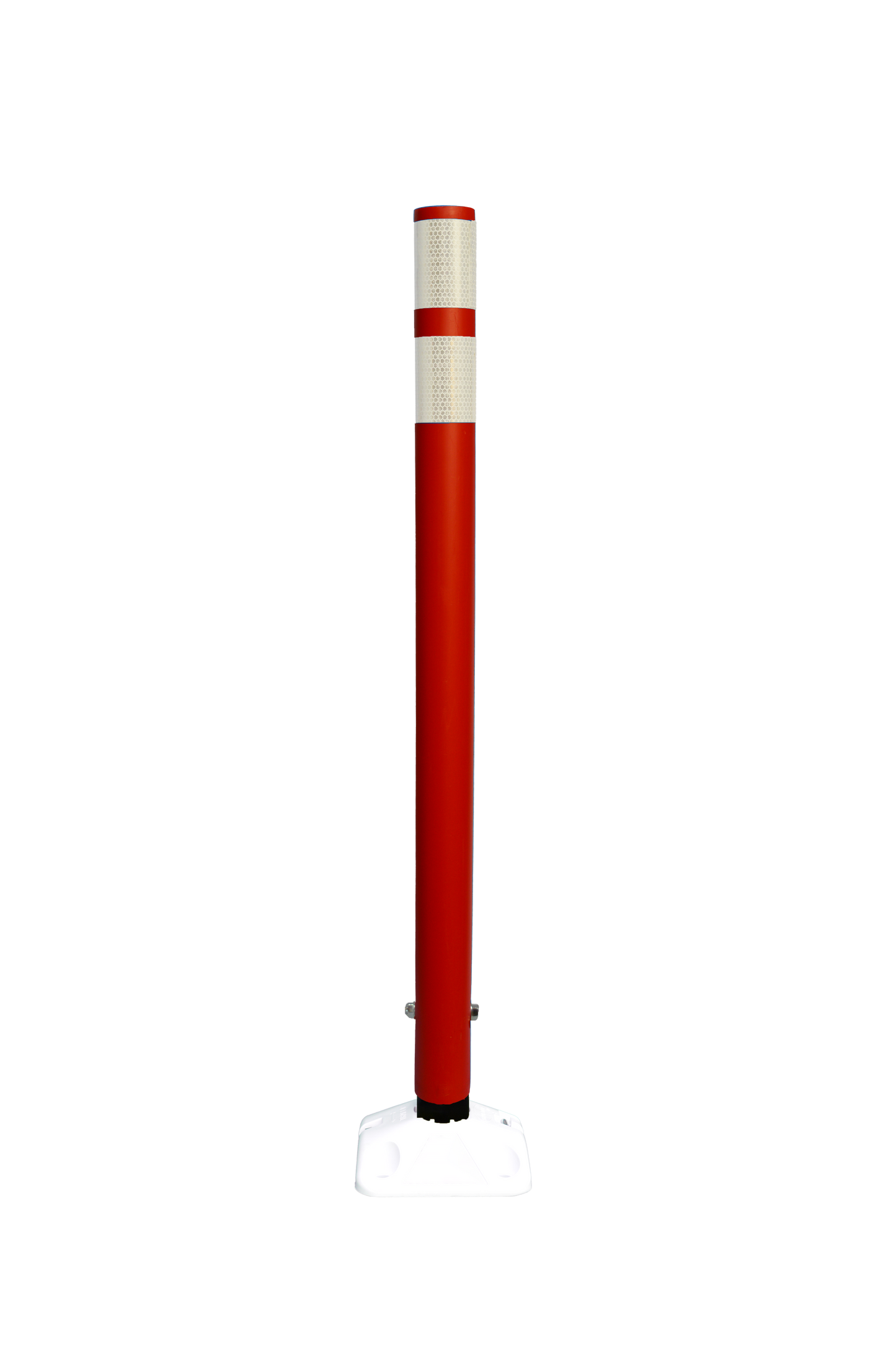

The Shur-Flex® Surface Mount Flexible Delineator Post is a durable, self-righting traffic delineator designed for lane separation, object marking, hazard identification, pedestrian guidance, bike paths, and other traffic-control applications. Its flexible surface-mount design helps the post recover after impact while maintaining high visibility in demanding roadway and parking-area environments.

This multi-hit delineator uses the patented Shur-Flex® system with a non-mechanical flexible joint, a round delineator post, and a surface-mounted thermoplastic base. Available in multiple post heights, post colors, base colors, top styles, and reflective sheeting options, this product can be configured for a wide range of permanent or semi-permanent traffic safety installations.

Features & Benefits:

Self-Righting Flexible Design: Non-mechanical Shur-Flex® system helps the post return upright after impact.
Multi-Hit Performance: Designed to withstand repeated impacts while requiring minimal field maintenance.
360° Visibility: Round post design allows reflective sheeting wraps to provide visibility from multiple approach angles.
Surface-Mount Installation: Base can be installed using a bolt-down or epoxy mounting system, depending on the application.
Replaceable Components: Three-piece design allows the post, flexible insert, or base to be replaced individually when needed.
Fast Field Service: Post replacement can be completed quickly without special tools, reducing technician exposure in traffic areas.
High-Visibility Sheeting Options: Compatible with multiple reflective sheeting colors, sizes, and grades.
UV-Stabilized Construction: Premium UV inhibitor package helps maintain long-lasting color performance outdoors.
Sustainable Material Content: Posts are manufactured using no less than 70% recycled materials.
MASH Category 1 Device: Certified to comply with MASH Category 1 traffic-control device requirements.

Common Applications:

Lane delineation and traffic guidance
Bike path and pedestrian safety areas
Object markers and hazard markers
Highway crossover markers
Headwalls, culverts, and narrow mounting areas
Parking lots, roadways, and work-zone traffic control

Technical Specifications:

Product Type: Flexible surface-mount traffic delineator post
Design: Three-piece system with round post, Shur-Flex® flexible insert, and thermoplastic surface-mount base
Post Style Options: Round top or flat top
Post Height Options: 18", 24", 28", 36", 42", 48", 54", and 60"
Post Diameter: 2-1/4" O.D. SD post
Base Options: Multiple surface-mount base configurations, including 7" x 7" fixed base options
Post Color Options: White, yellow, orange, black, and additional color configurations depending on selected variant
Base Color Options: White, yellow, orange, black, and additional color configurations depending on selected variant
Reflective Sheeting Types: Type III/IV High Intensity, Type V AR1000, and Type XI Diamond Grade options
Reflective Sheeting Sizes: 3" x 3", 3" x 4", 3" x 8" wraps, 3" x 9", and 3" x 12"
Reflective Sheeting Colors: White, yellow, orange, red, green, and blue options
Mounting Method: Bolt-down or epoxy installation
Included Hardware: Varies by configuration; bolt-down installations may use anchor bolts, washers, and nylon plugs
Certification: MASH Category 1 Traffic Control Device compliance certification

Installation Note: For bolt-down installation, the manufacturer recommends using the supplied 5/8" nylon plugs and 1/2" x 3-1/2" hex lag bolts with washers. Drill 5/8" diameter holes 3-1/2" deep using the base as the pattern, clean the holes, insert plugs flush with the surface, and tighten bolts to the recommended torque range of 30–38 ft-lbs. Do not over-tighten.

Made in the USA
