Single Breakaway Barrier Gate

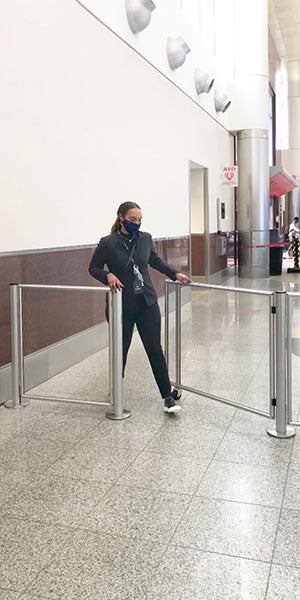

The Dual Breakaway Barrier Gate adds a controlled access point to Post & Panel barrier walls while maintaining safe emergency egress. Magnetic swing panels remain firmly aligned during normal operation and release instantly under applied pressure, allowing the gate to open in both directions with full rotation. The system integrates directly into Beltrac Post & Panel configurations, including retrofit installations, making it suitable for permanent partitions, temporary crowd control layouts, and managed pedestrian flow environments.

Engineered for commercial interior use, the gate uses high-strength magnetic closure to balance security and safety without mechanical latching hardware. Available in fixed magnetic-base or portable heavy-base configurations, the system supports clear or black infill panels and optional custom decals. The modular structure is designed for repeated use in high-traffic areas and functions as both a safety device and a communication surface within barrier installations.

Features and Benefits:

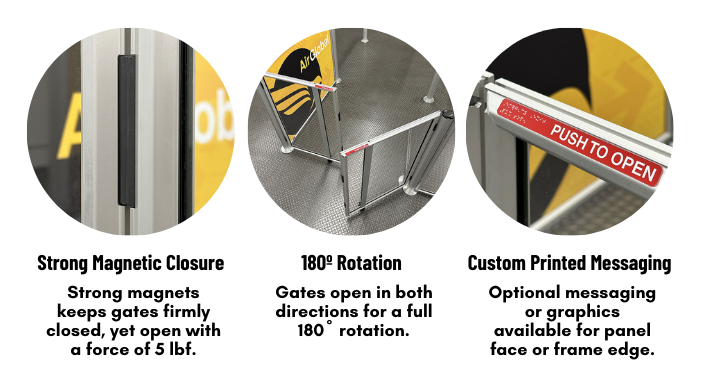

• Adds an access point to Post & Panel barrier walls

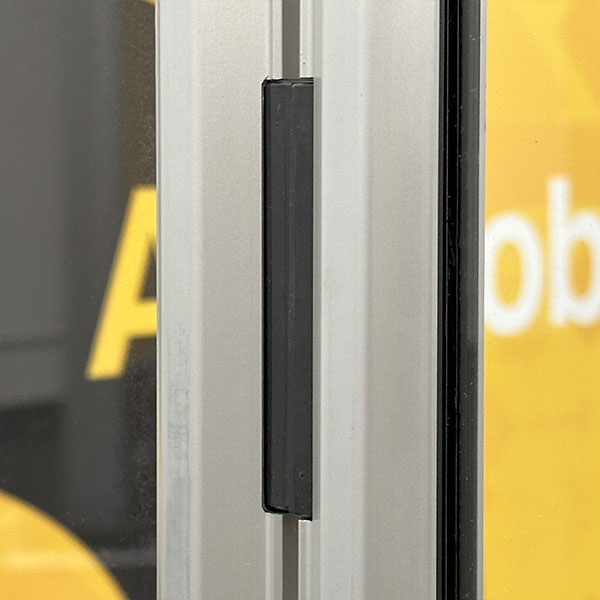

• Dual magnetic breakaway design enables emergency egress

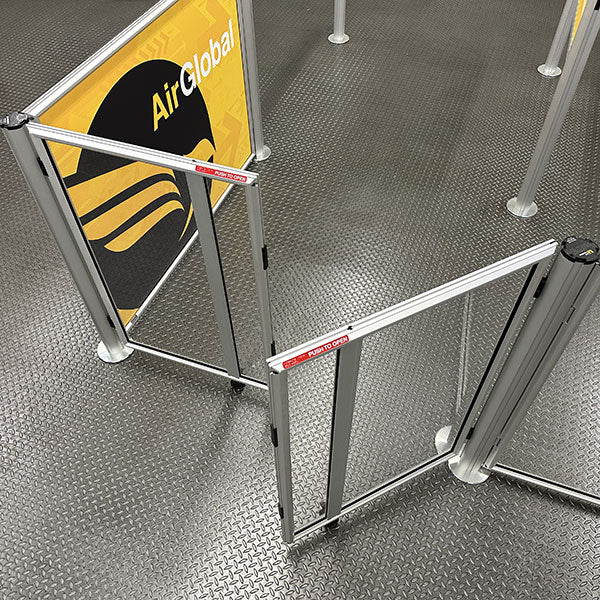

• Opens in both directions with 180° swing rotation
• Magnets release at approximately 5 lbf applied pressure
• Seamlessly integrates with Beltrac barrier systems
• Available as kit with two magnetic-base stanchions
• Fixed magnetic base or portable weighted base options
• Clear or black infill panel choices

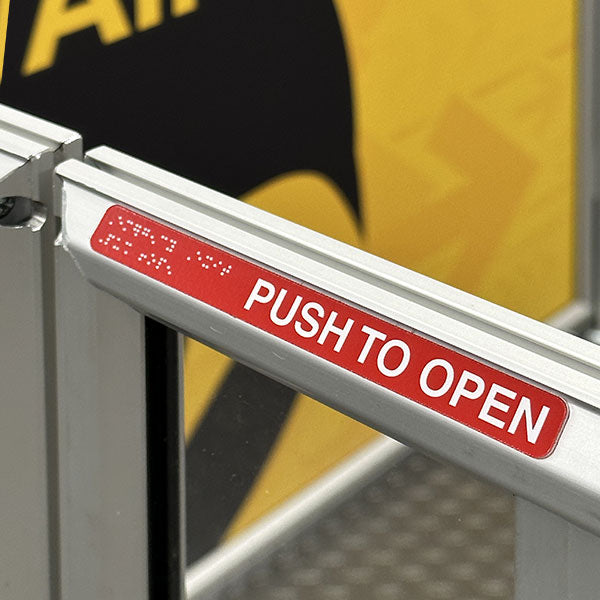

• Custom printed messaging and decals supported
• Retrofit compatible with existing installations

The gate assembly is designed to maintain magnetic connection with up to a 1/8" alignment gap while allowing rapid breakaway under emergency force. Embedded hinge hardware reduces wear and maintains consistent gate positioning after repeated operation, making it suitable for long-term deployment in public-facing environments.

The Single Breakaway Barrier Gate is designed to be paired with any Beltrac Retractable Belt Stanchion (available separately), including Magnetic Base Stanchions.

Technical Specifications

• Gate type: Dual magnetic breakaway swing gate
• Width options (center post to center post): 42", 48", 64"
• Custom widths: Available
• Height range (base to top): 40" to 72"
• Custom heights: Available
• Infill options: Clear panel or black panel
• Swing rotation: 180° dual-direction opening
• Breakaway force: 5–7 lbs applied pressure
• Magnetic system: NdFeB Grade N35 magnets
• Magnetic base: 18 embedded magnets
• Magnetic base diameter: 7.667"
• Magnetic base depth: 0.394"
• Floor plate material: 16 gauge AISI 430 ferritic stainless steel
• Floor plate diameter: 7.48"
• Floor plate depth: 0.059"
• Portable heavy base diameter: 14.5" sloped base
• Portable heavy base depth: 2.0"
• Alignment tolerance: Up to 1/8" magnetic gap
• Mounting options: Adhesive floor plate or portable base
• System compatibility: Beltrac Post & Panel barrier systems
• Installation environment: Indoor commercial use

Technical Drawing



Technical Data Sheet

Installation Guide

Made in the USA
