Enhance loading dock safety with high-performance Steel Dock Barricades, designed to prevent forklift roll-offs and unauthorized access through open dock doors. These durable steel barriers are ideal for warehouses, distribution centers, and industrial facilities requiring controlled access and impact resistance.

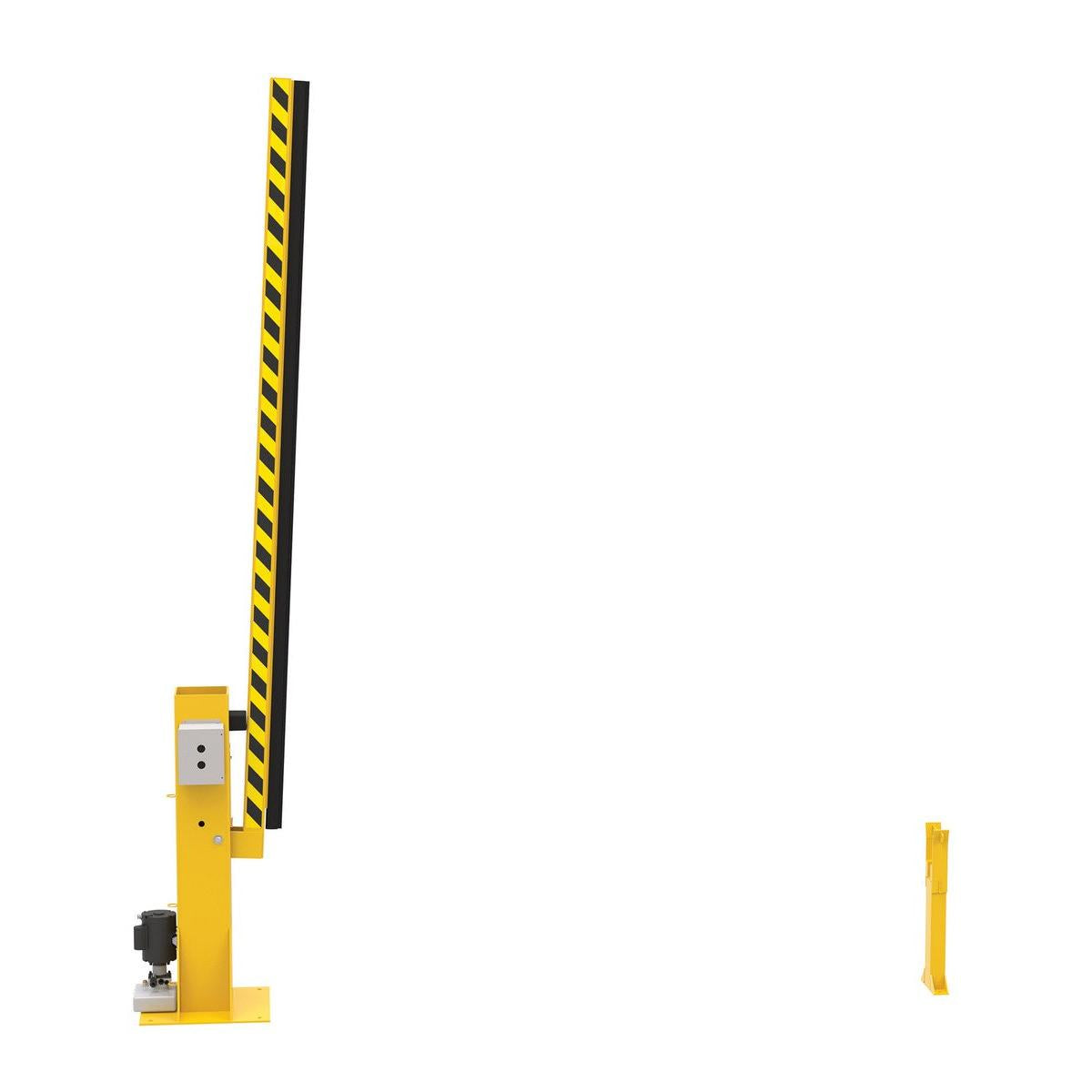

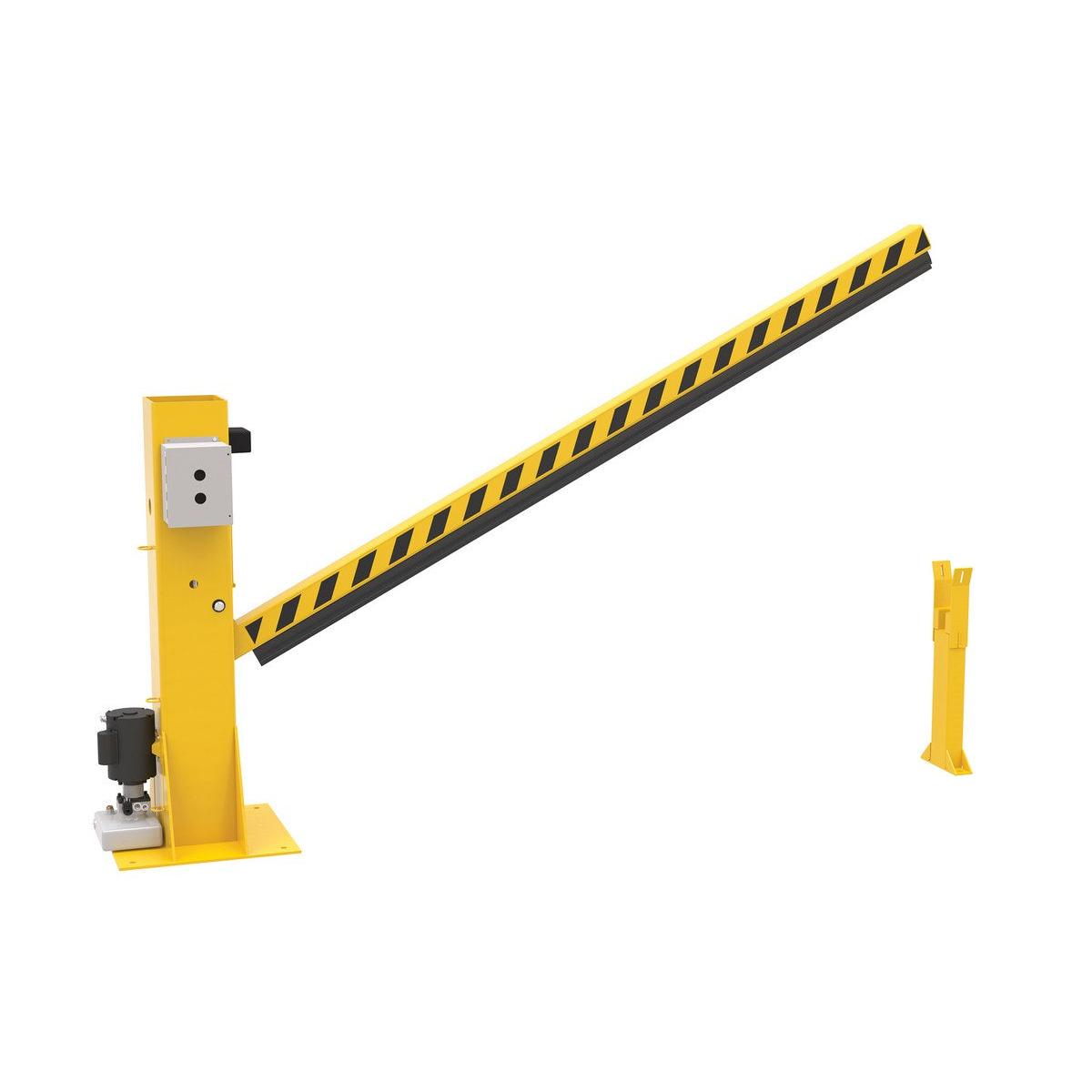

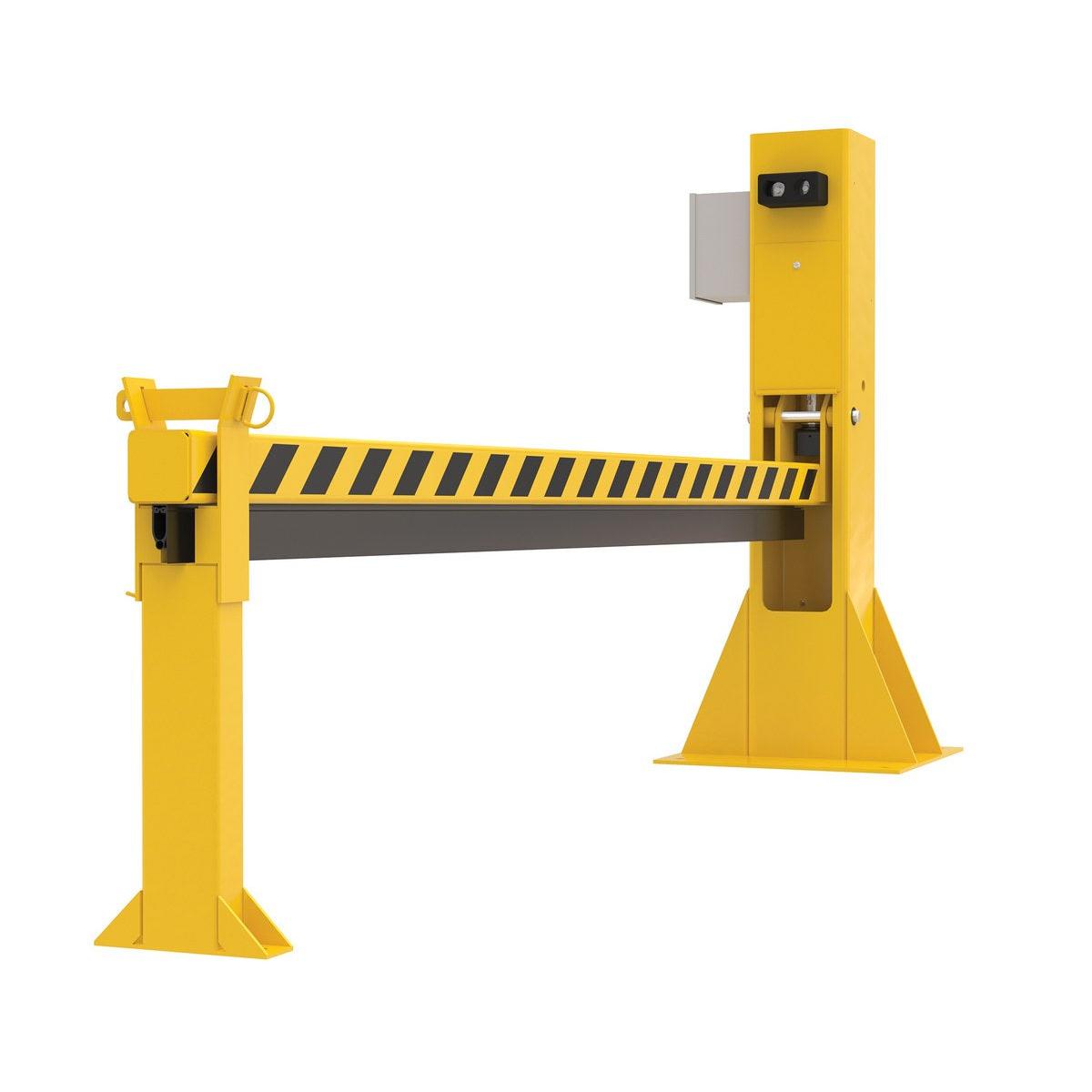

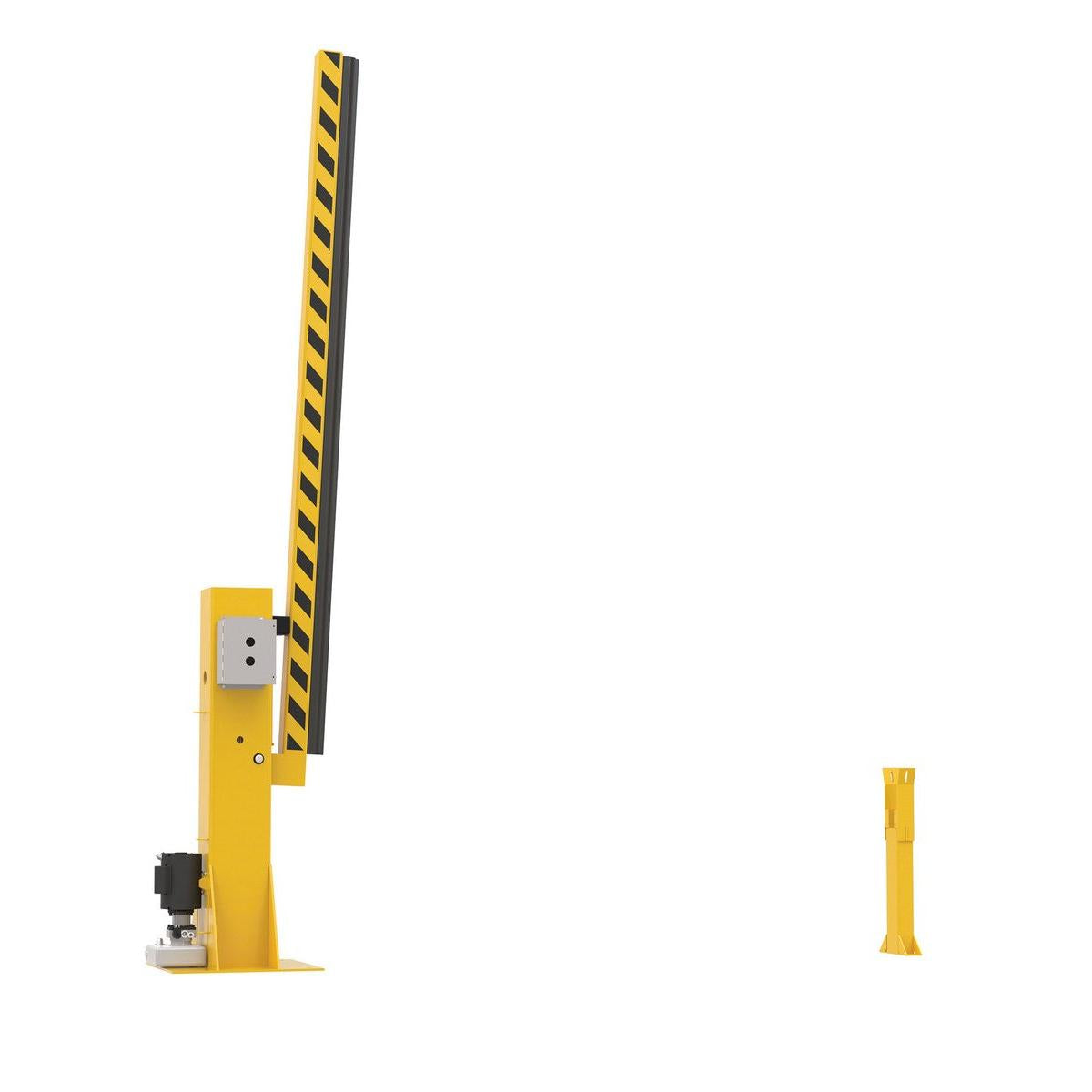

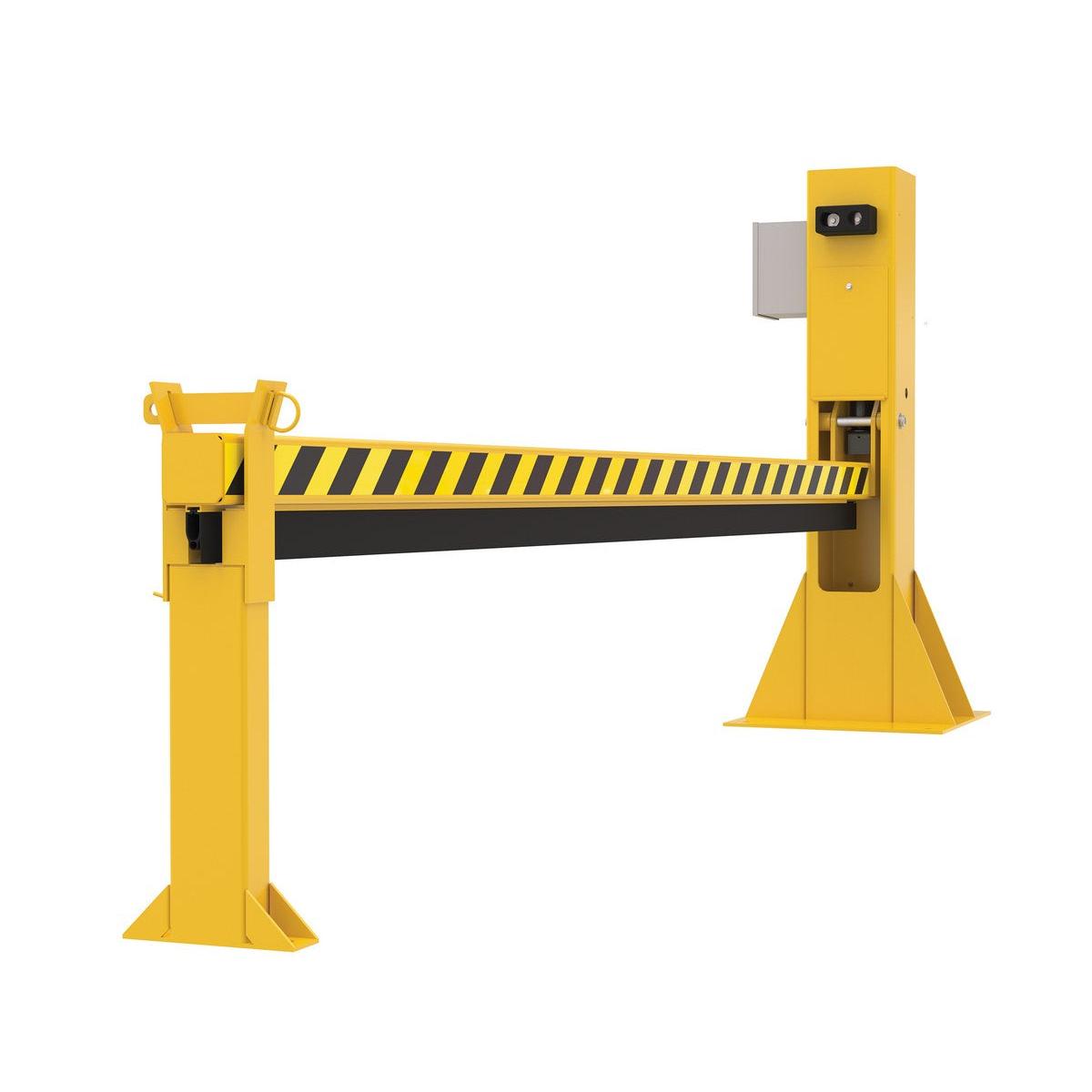

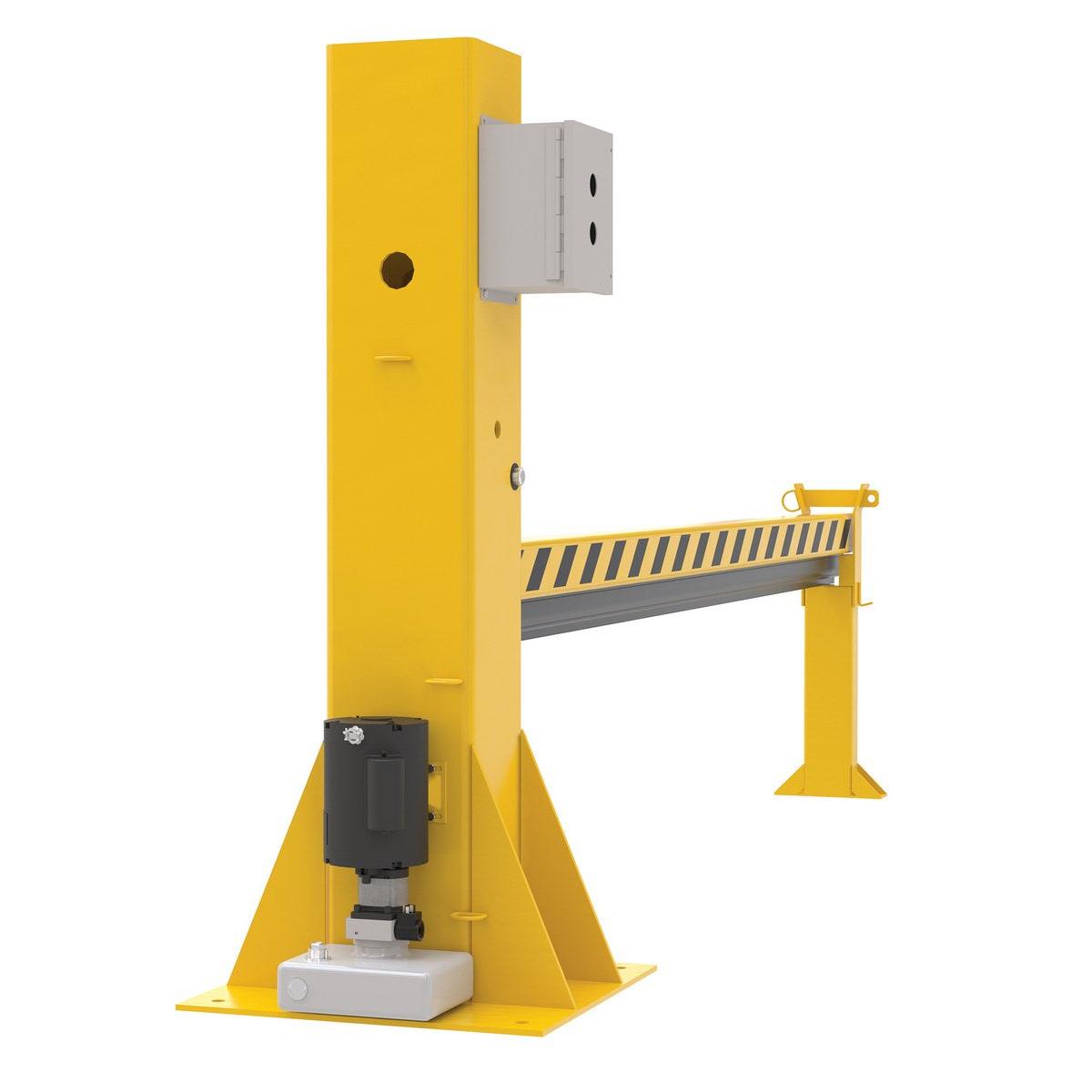

Choose between a Manual Hand Crank model for basic applications or an Electric/Hydraulic version for effortless operation. The electric model features a safety stop circuit that senses obstructions and reverses arm direction upon contact. Installation is quick and simple—anchor to the floor and plug in.
Features & Benefits:
- Heavy-duty steel construction – stops a loaded 4,000 lb forklift at 4 mph
- Electric/Hydraulic model includes bottom-arm obstruction sensor for added safety
- Lock bar restricts arm rotation (padlock not included)
- Safety yellow finish with black/yellow tape improves visibility

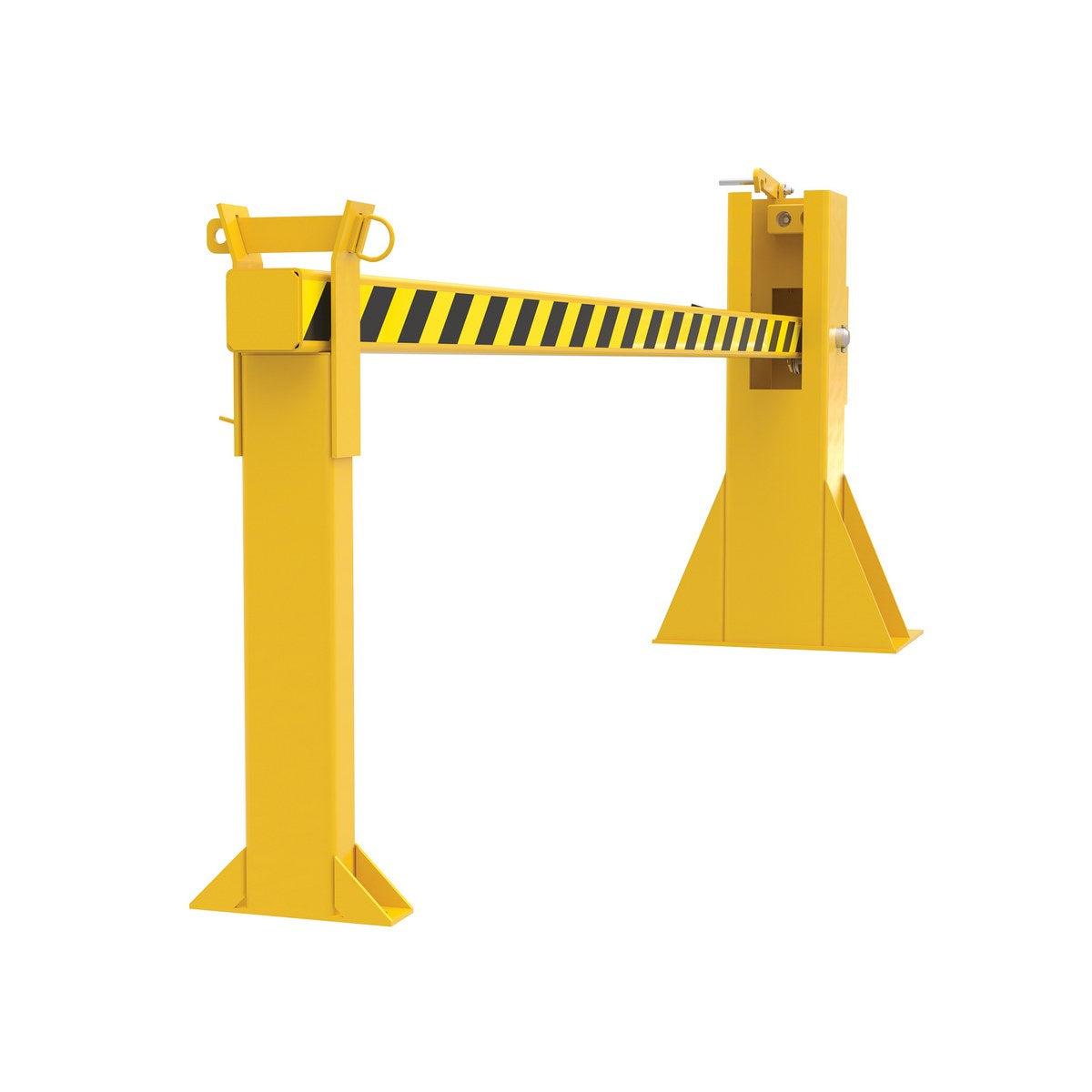

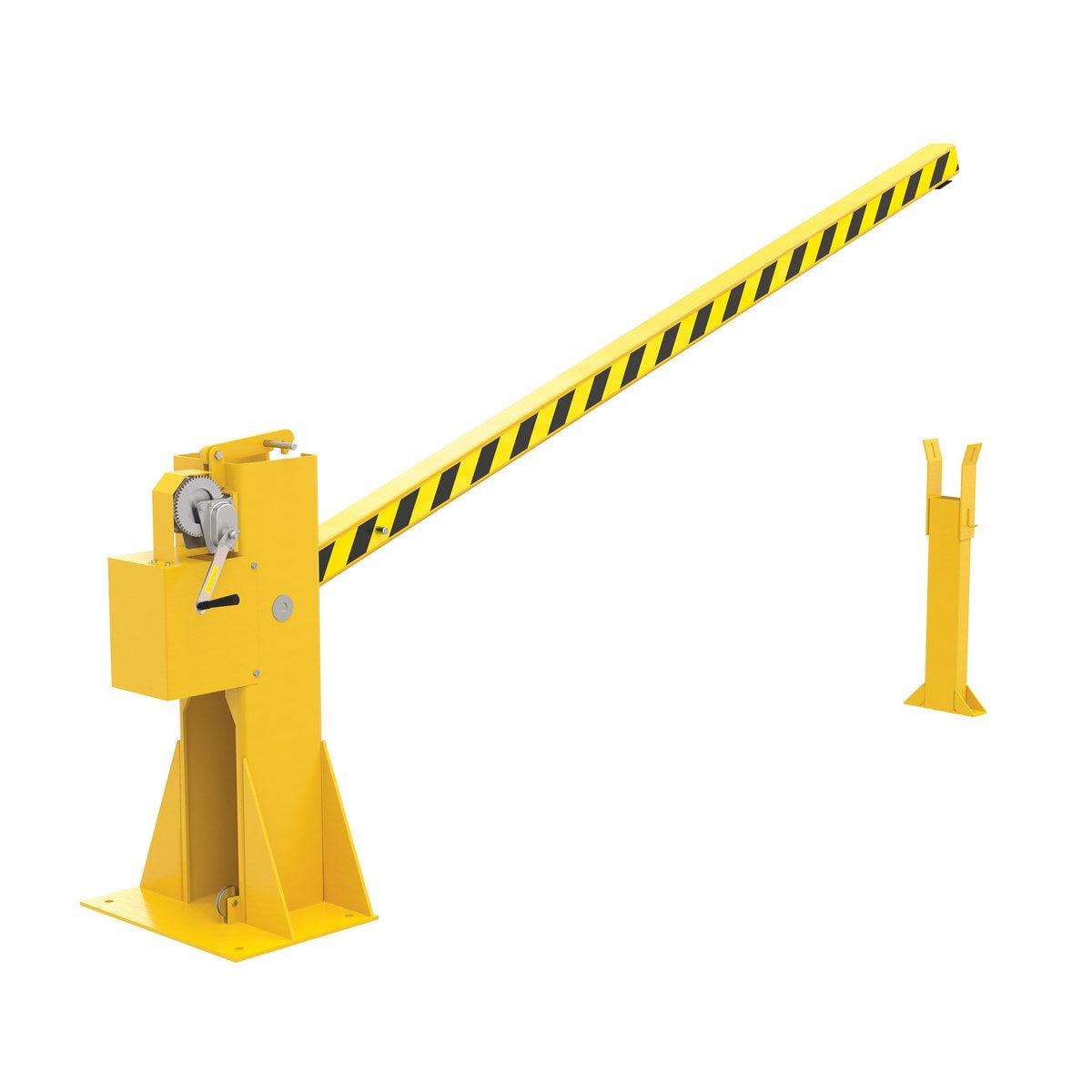

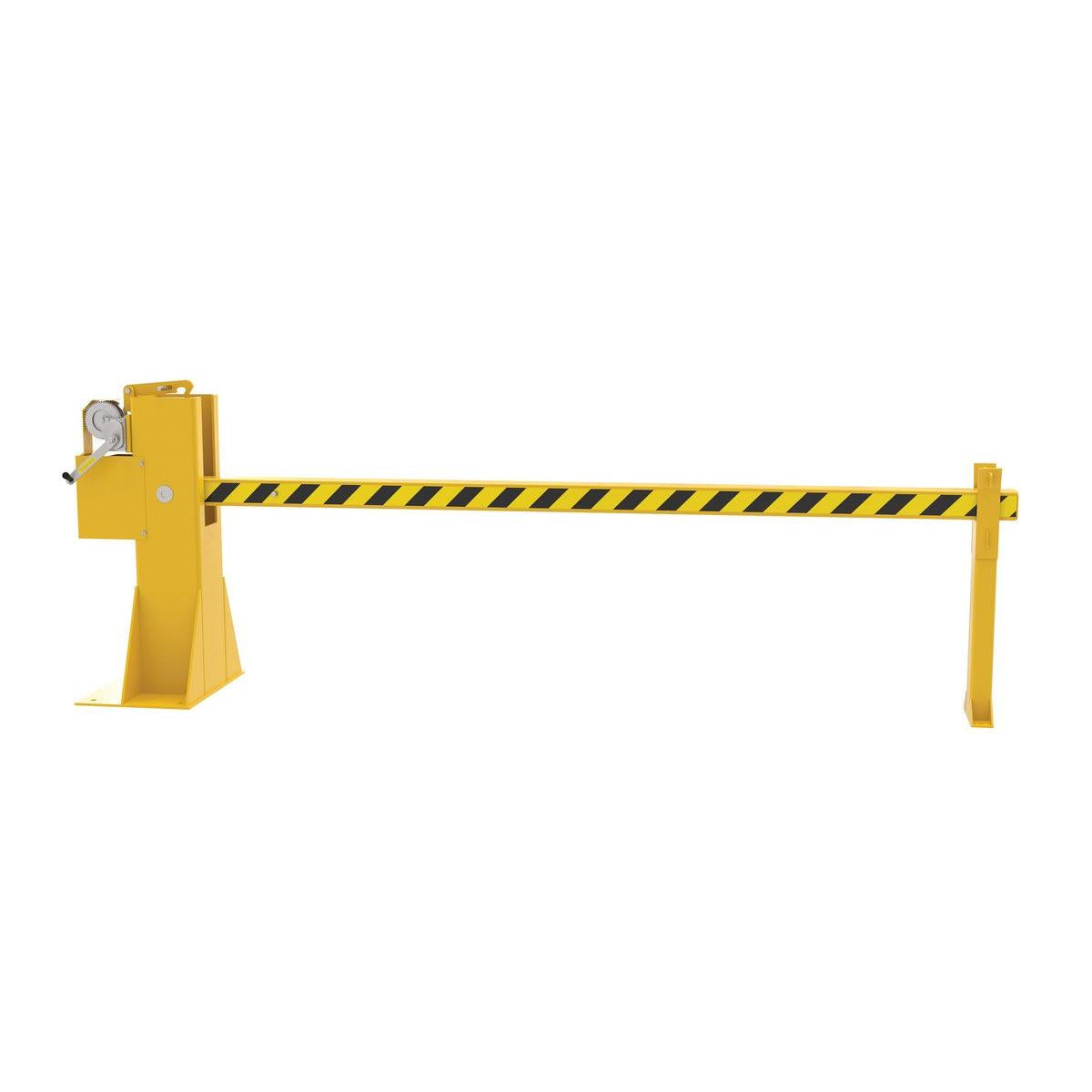

- Manual hand crank allows easy arm operation without power
Additional Info:

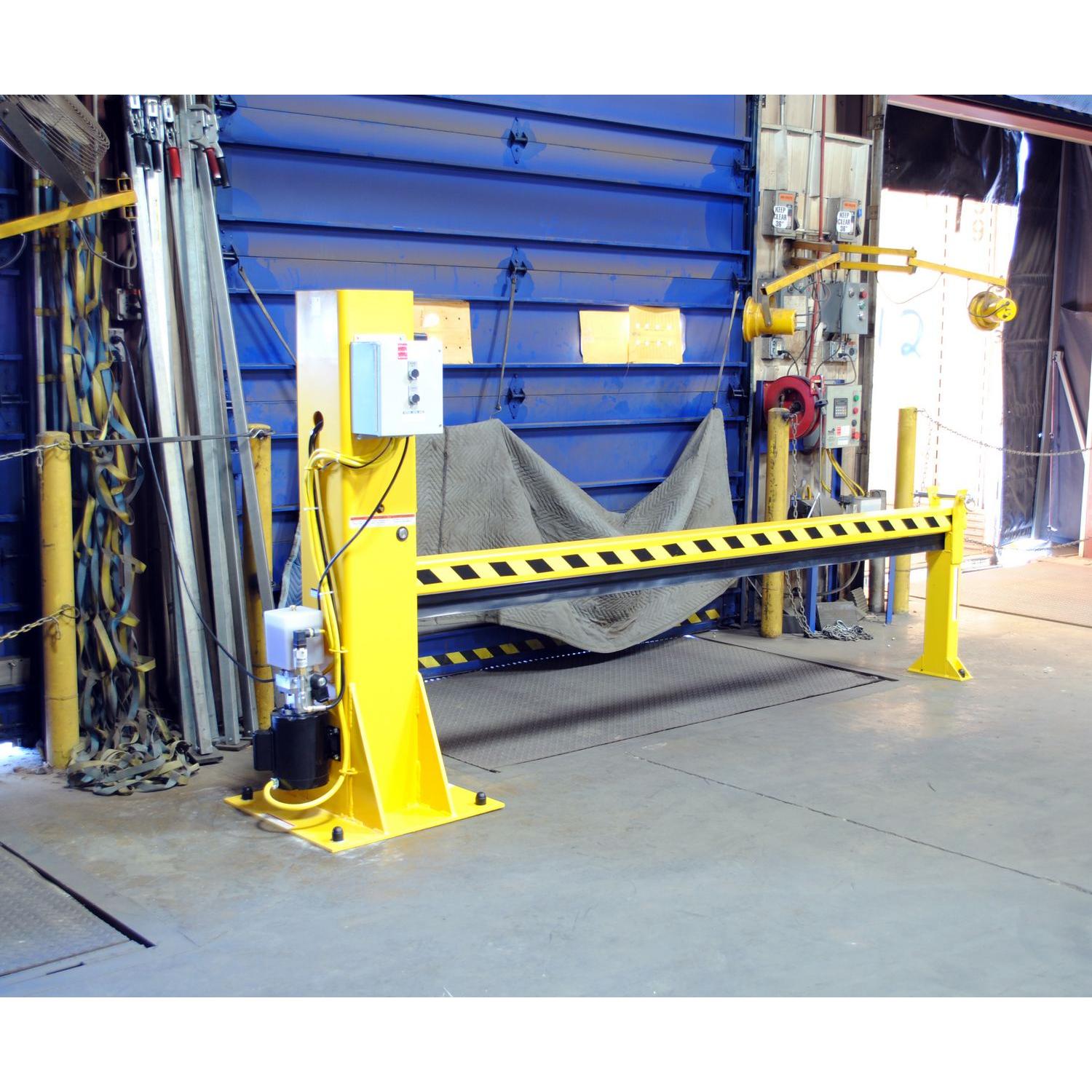

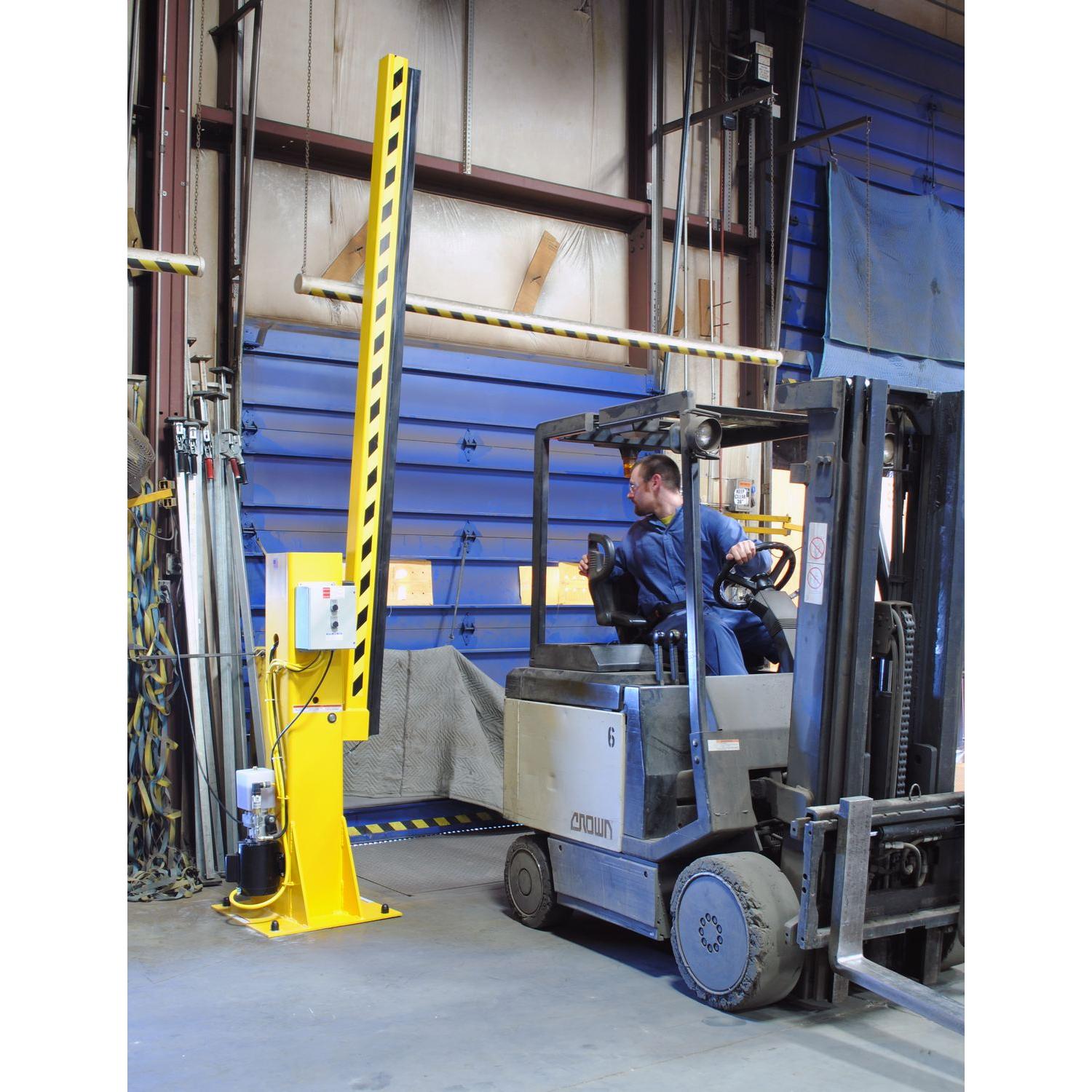

- Designed for loading dock doorways and openings
- Electric model includes a bumper-style safety stop circuit
- Both models offer a compact, floor-mounted design for space efficiency
- Quick installation – just anchor and connect power for the electric version
Technical Specifications:
| Model | Operation | Door Size (W x H) | Arm Height Raised | Arm Height Lowered | Overall (WxL) | Weight (lbs) | UPC | GTIN |
|---|---|---|---|---|---|---|---|---|

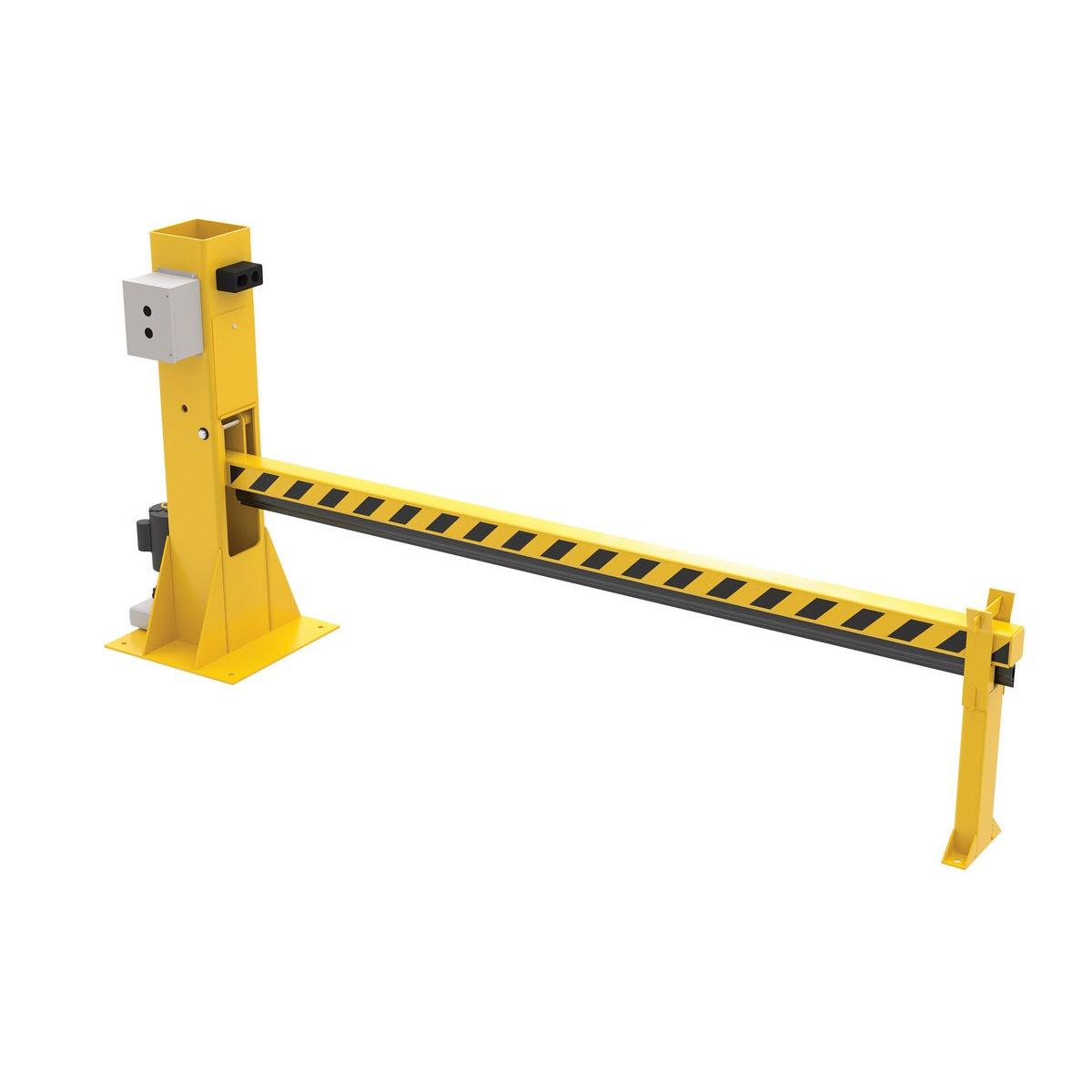

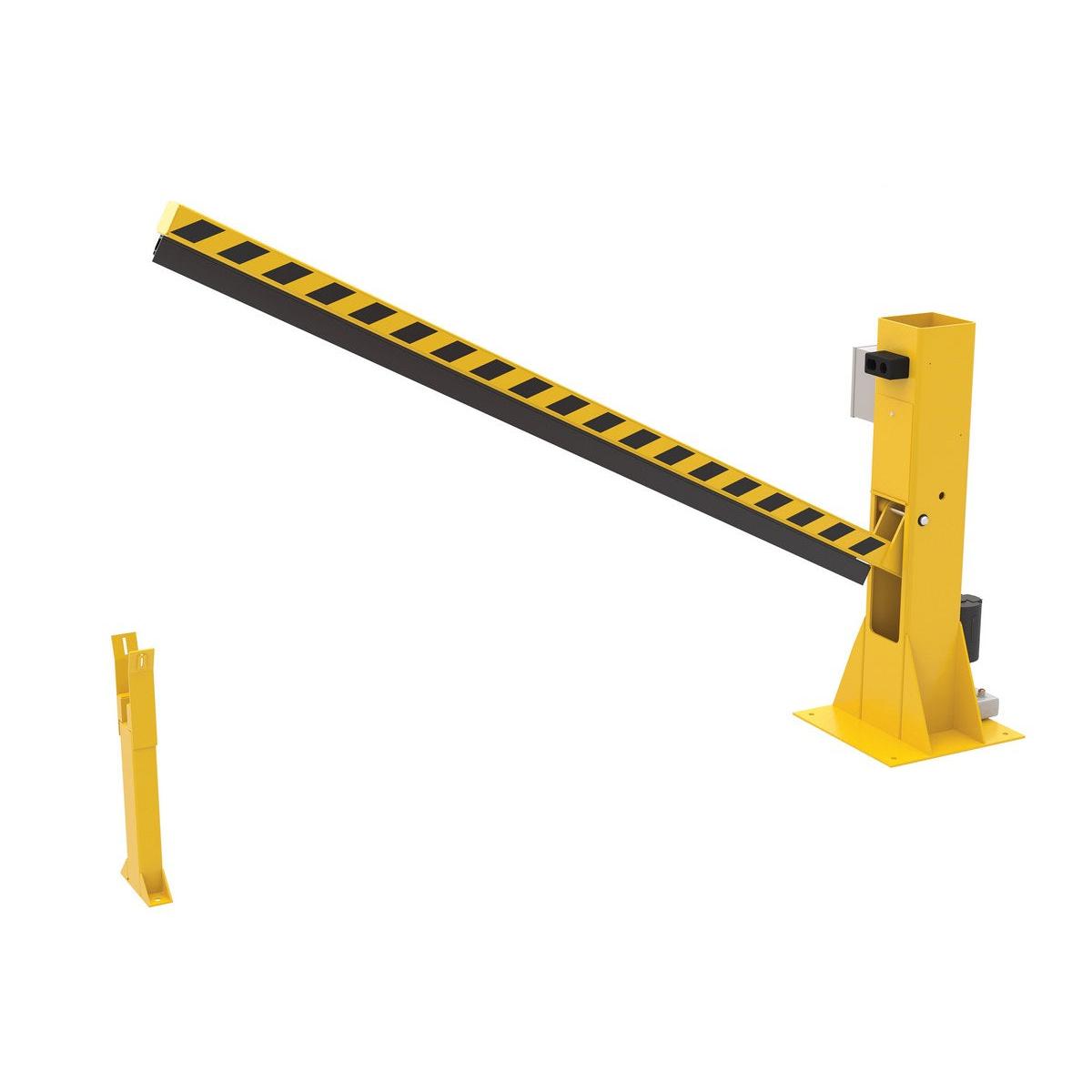

| VES-DJG-100 | Electric | 8' x 8' | 148-5/8" | 28-1/2" | 24"x130-3/4" | 686 | 691215013529 | 00691215013529 |

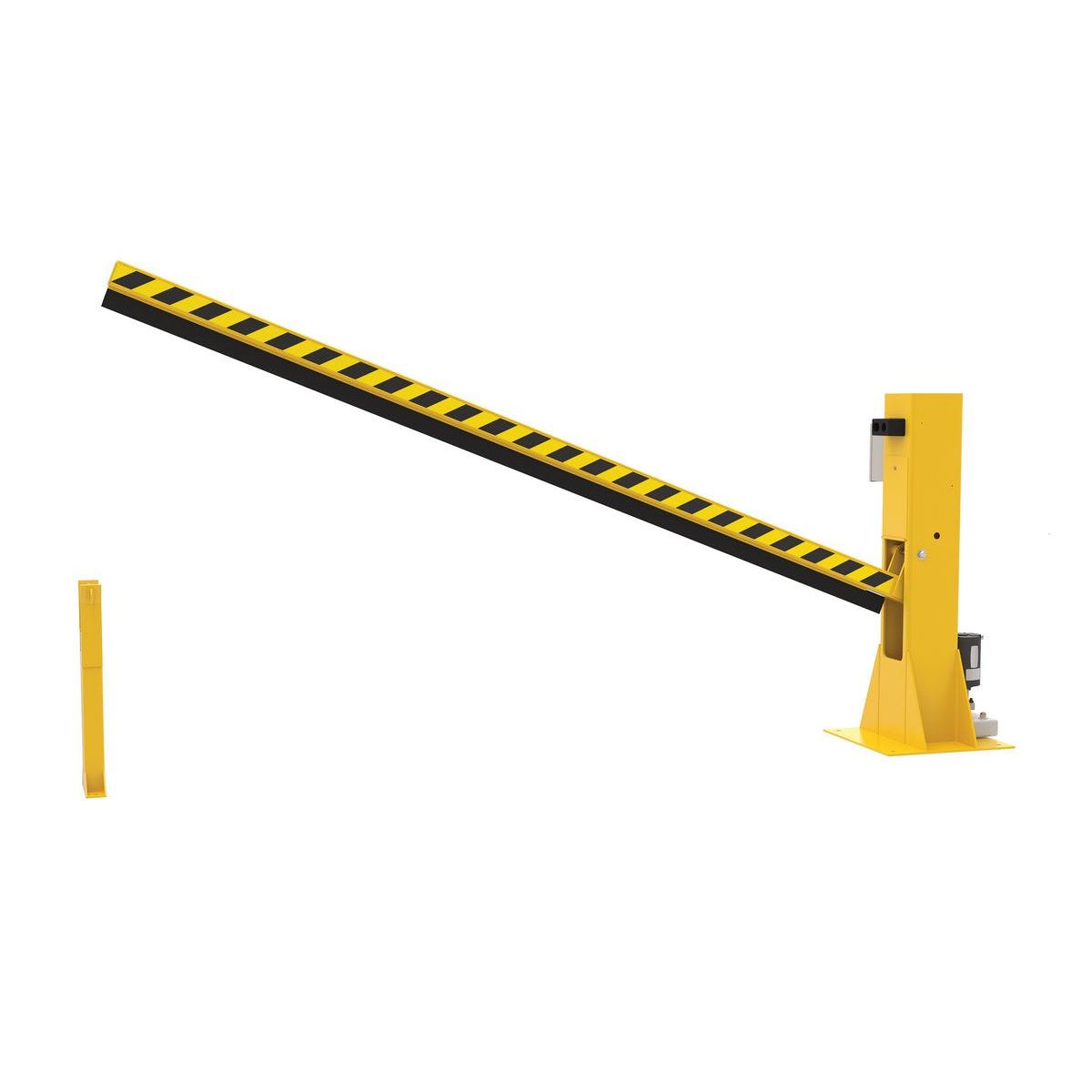

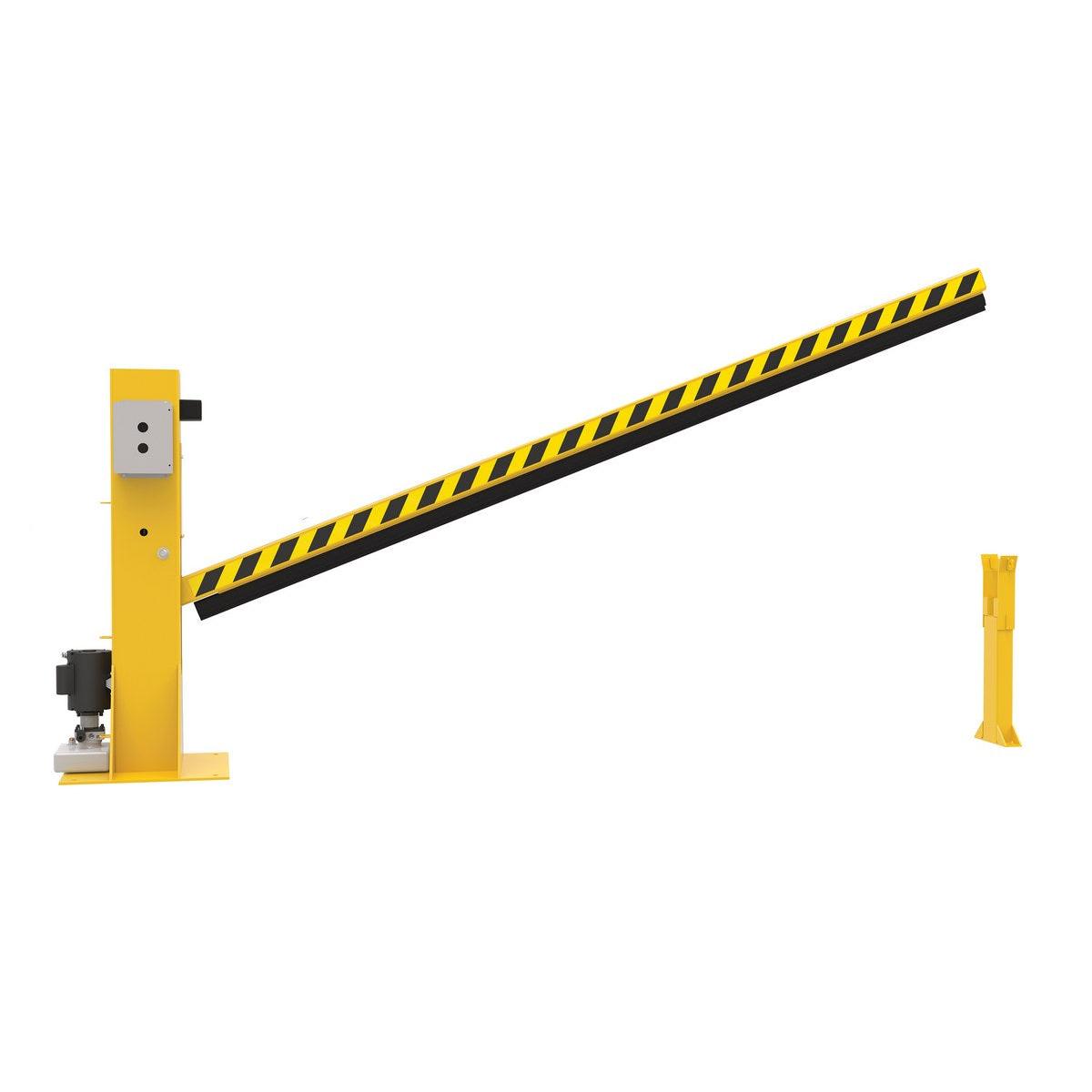

| VES-DJG-100-10 | Electric | 10' x 10' | 172-5/8" | 28-1/2" | 24"x154-3/4" | 753 | 691215060219 | 00691215060219 |

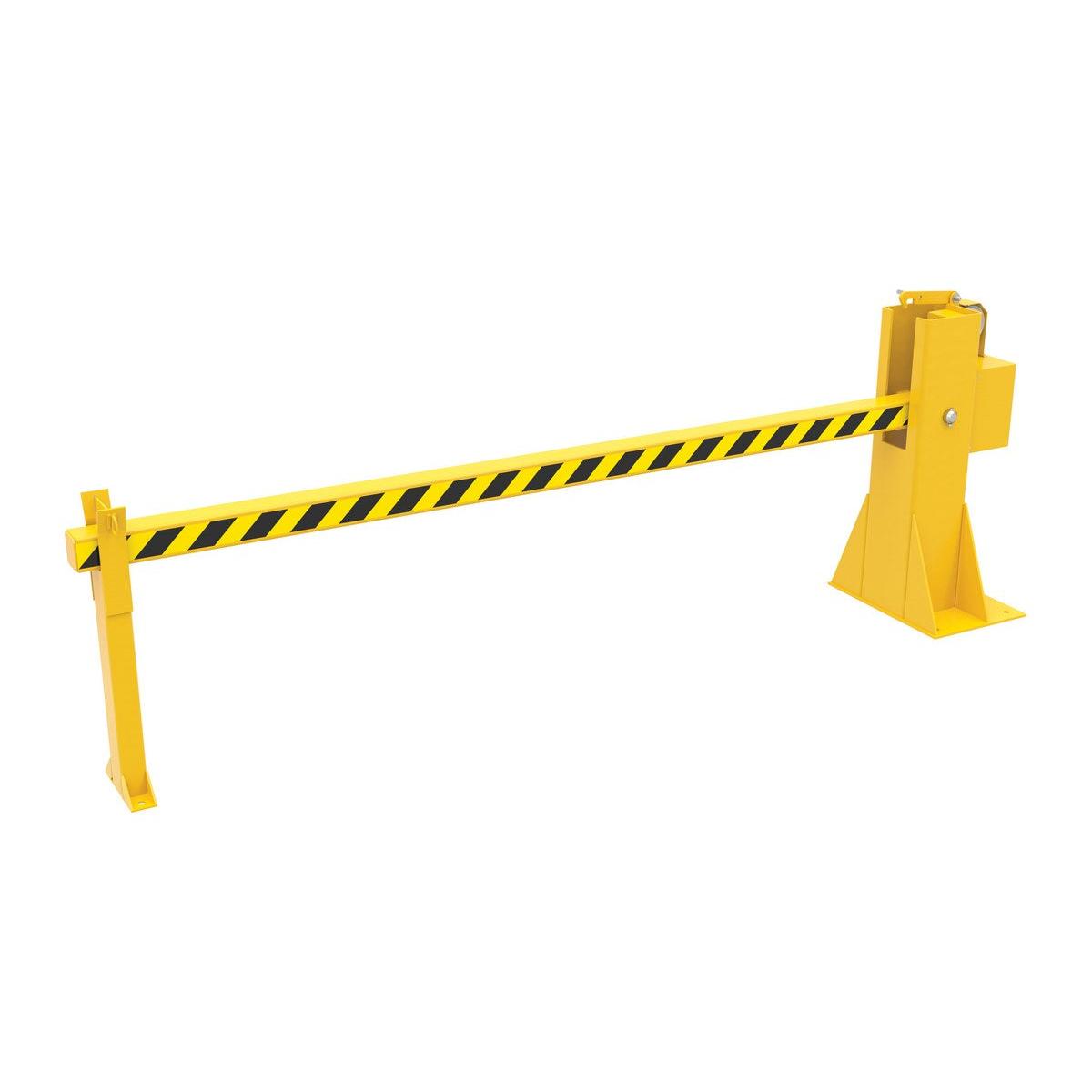

| VES-DJG-100MW | Mechanical Winch | 8' x 8' | 149" | 32" | 24"x133-1/4" | 539 | 691215013536 | 00691215013536 |
- Impact Rating (lb. at mph.): 4,000 at 4
- Base Plate Width (in.): 24
- Base Plate Length (in.): 24
- Motor Horsepower (Electric model): 3/4
- AC Voltage/Phase (Electric model): 115/1
- Hand Control Voltage (Electric model): 24
- Material: Steel
- Color / Finish: Yellow
- Mounting Hole Diameter: 7/8 in
- Mounting Hardware Included: No
- Manufacturer Warranty: 1 Year
Made in the USA
