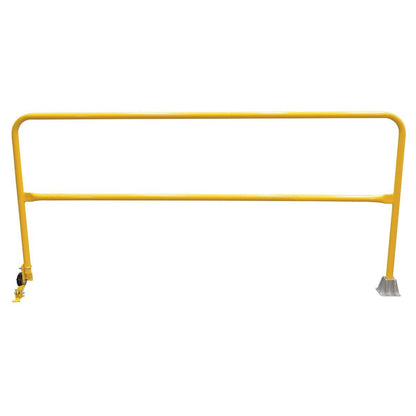

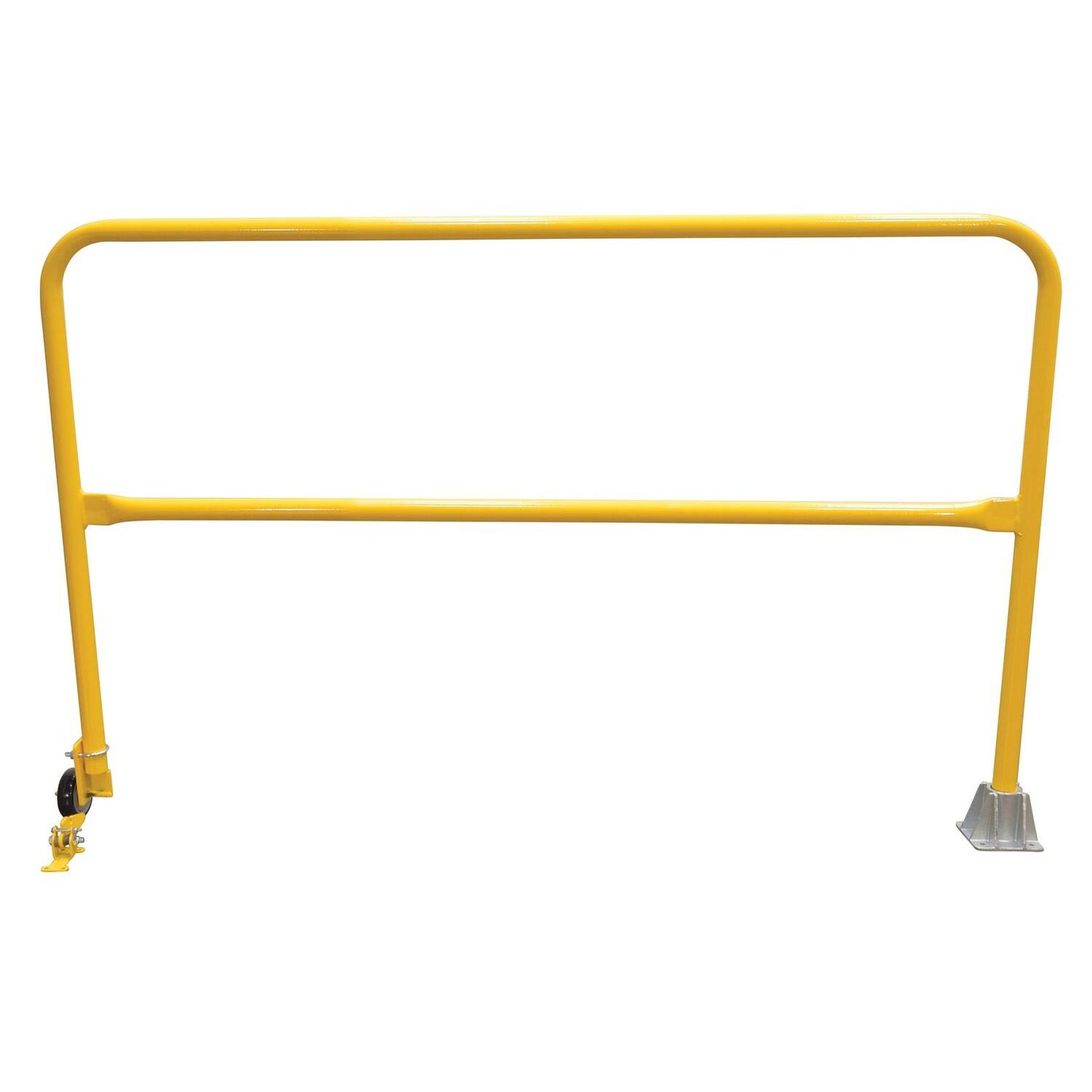

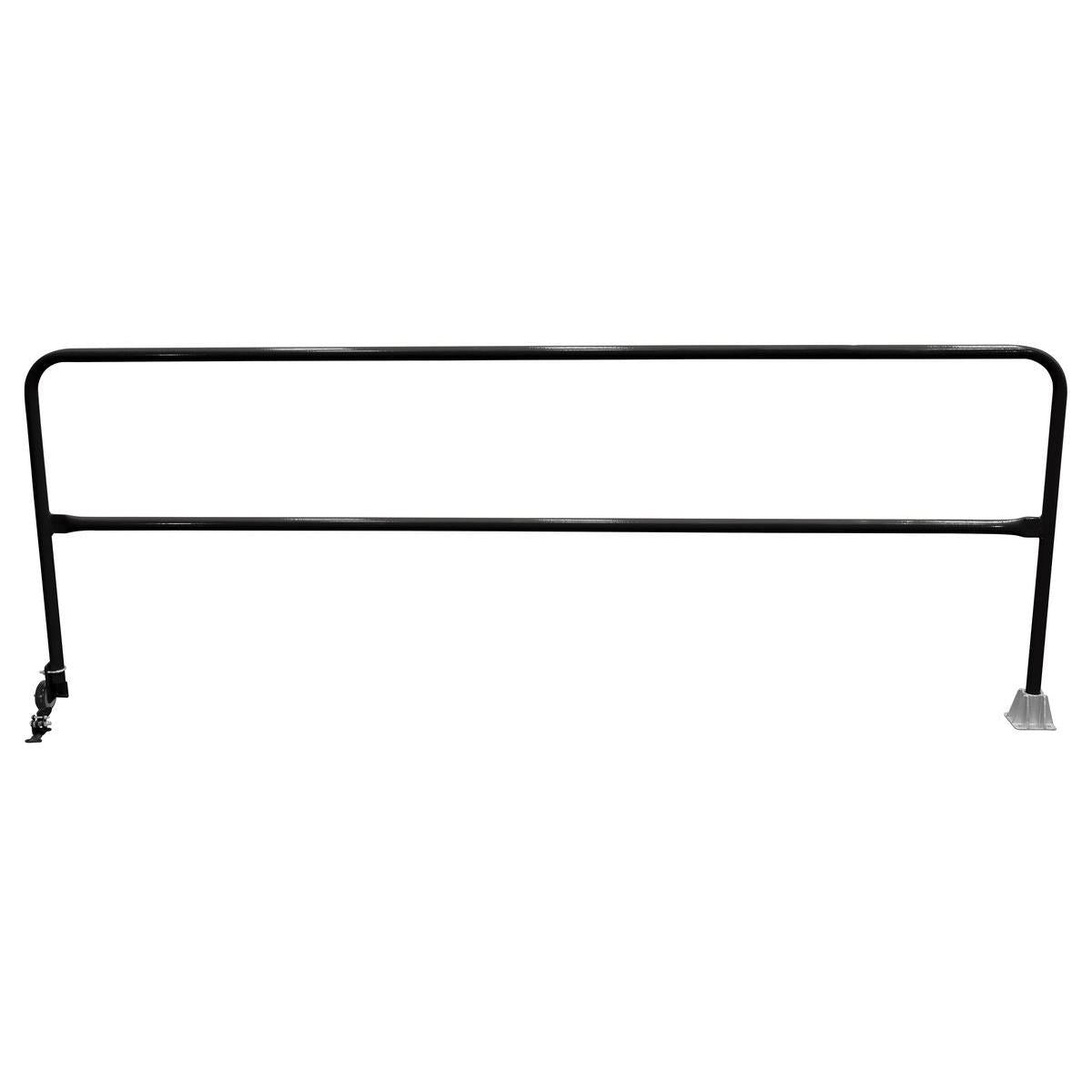

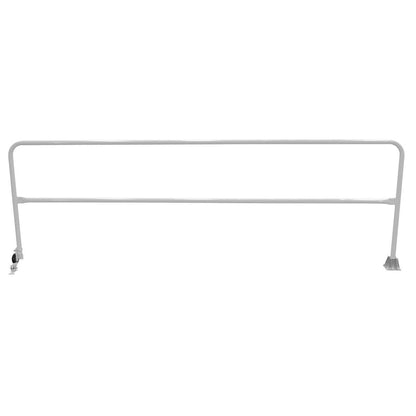

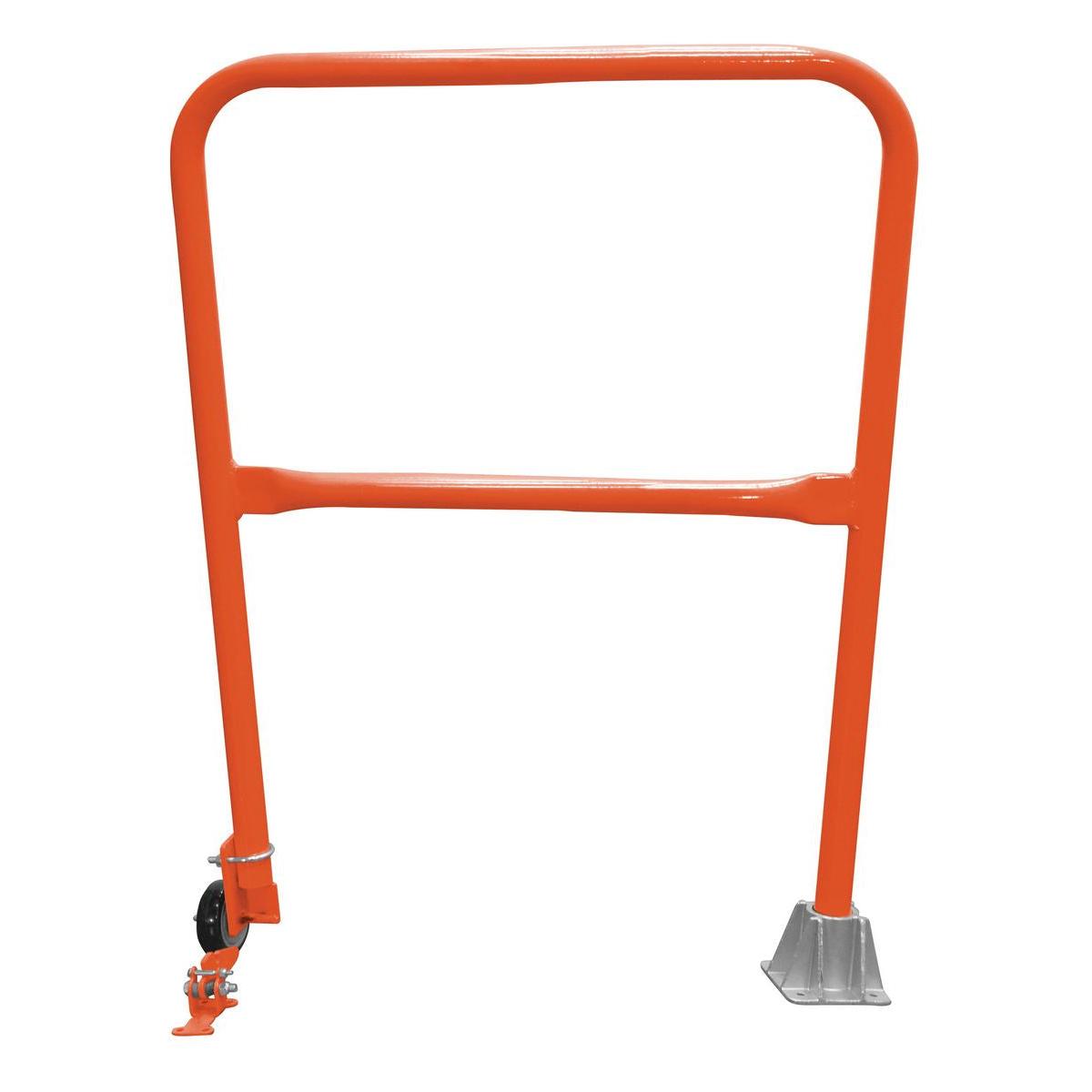

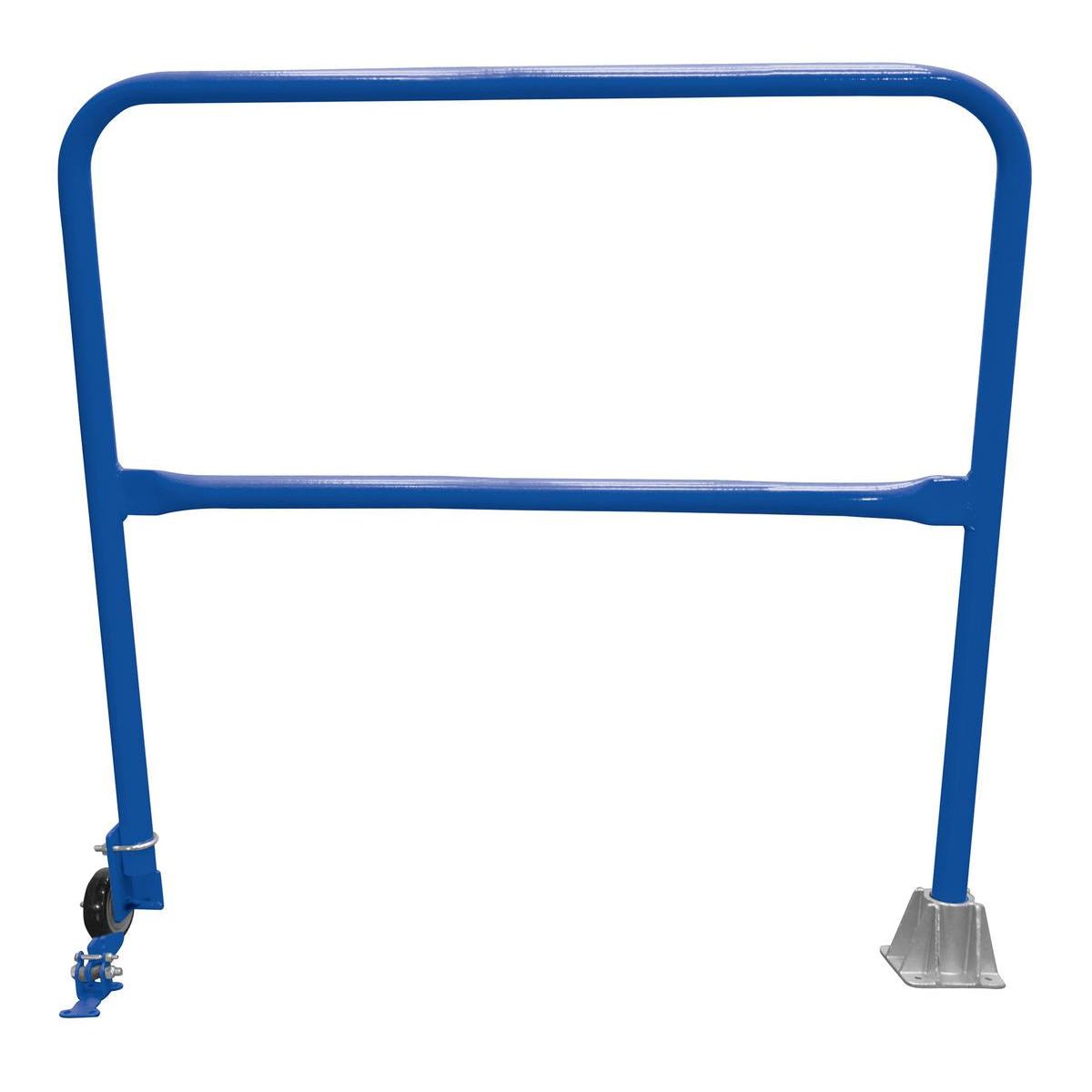

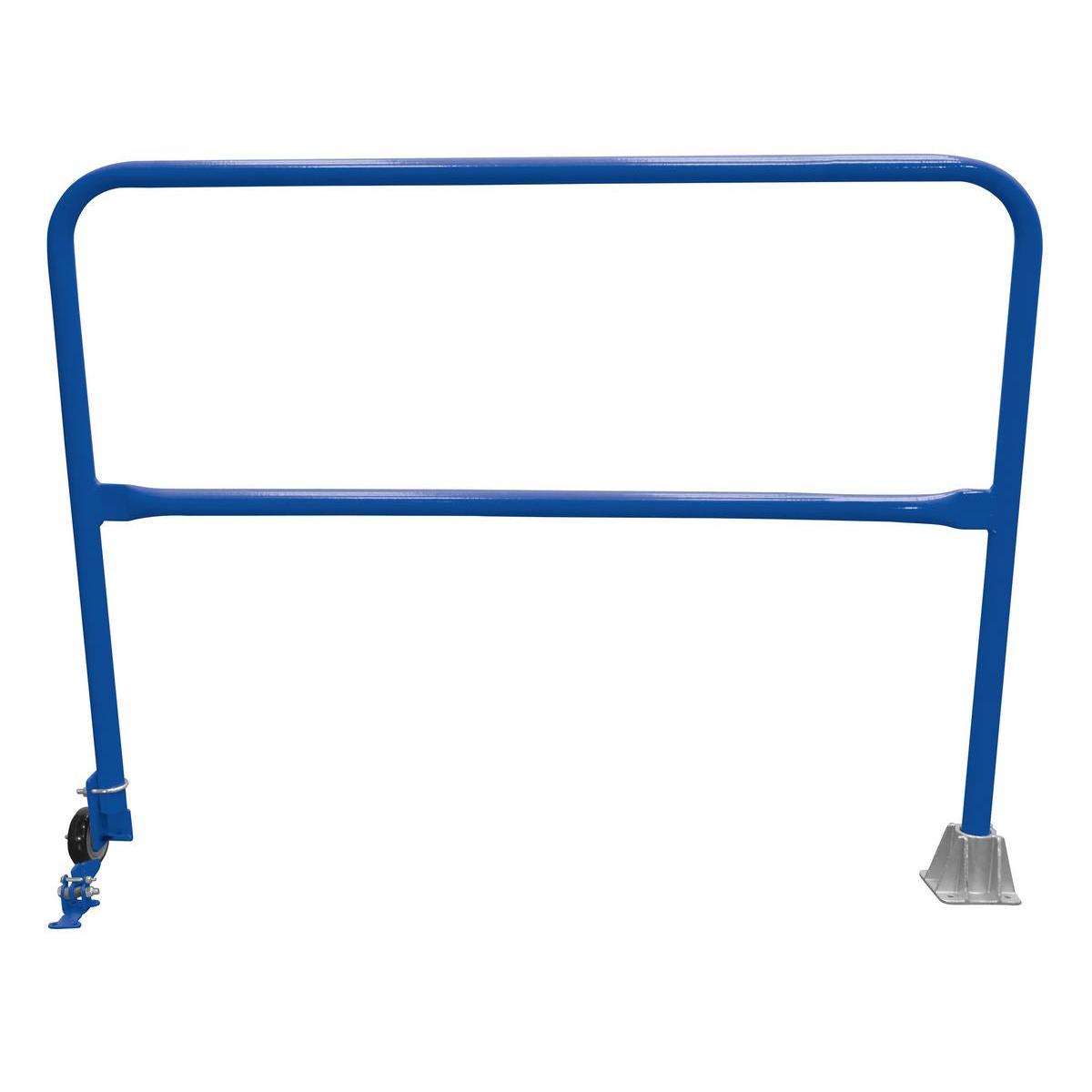

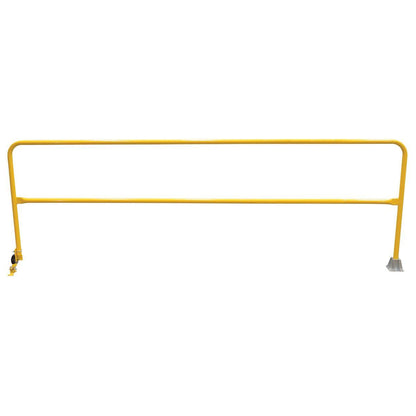

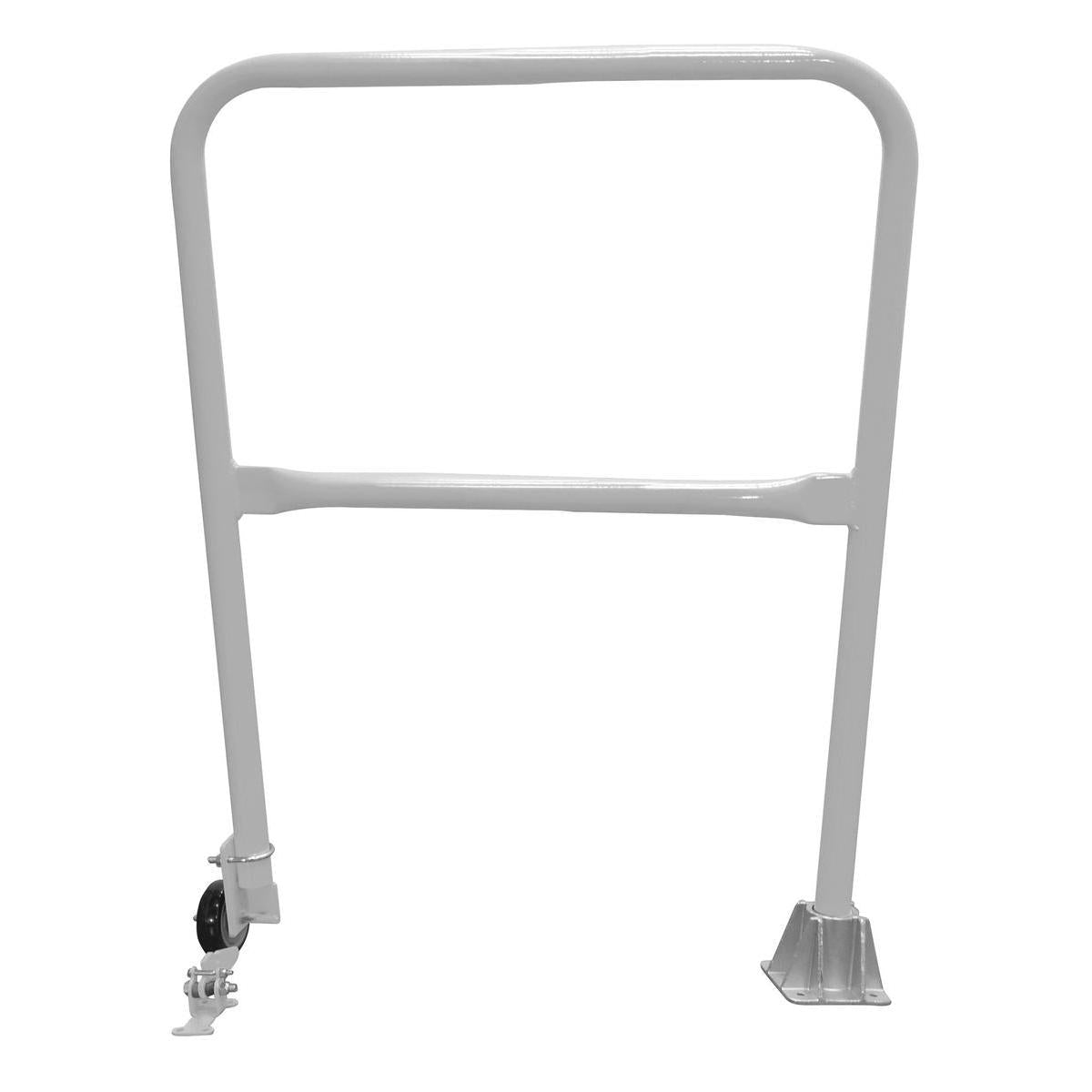

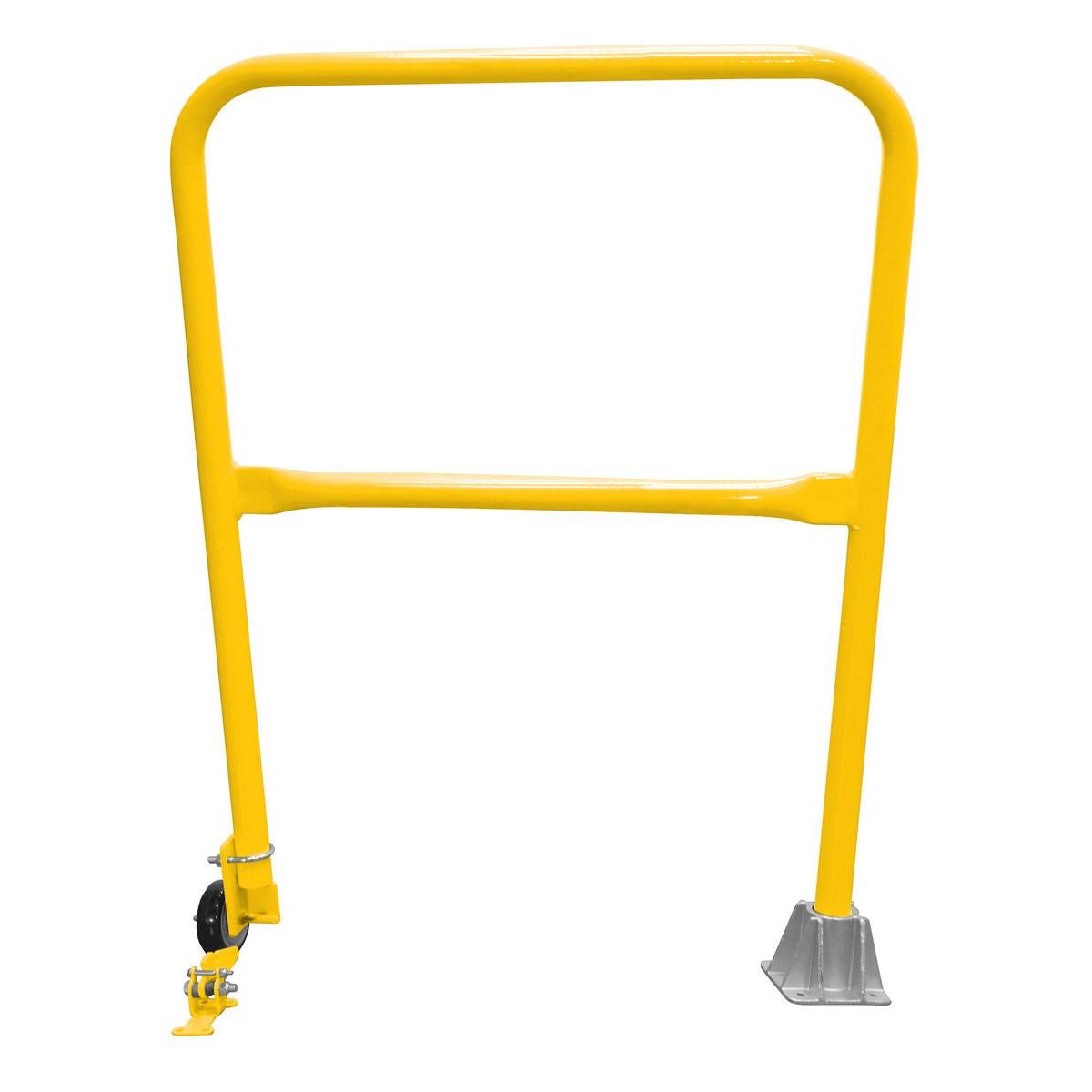

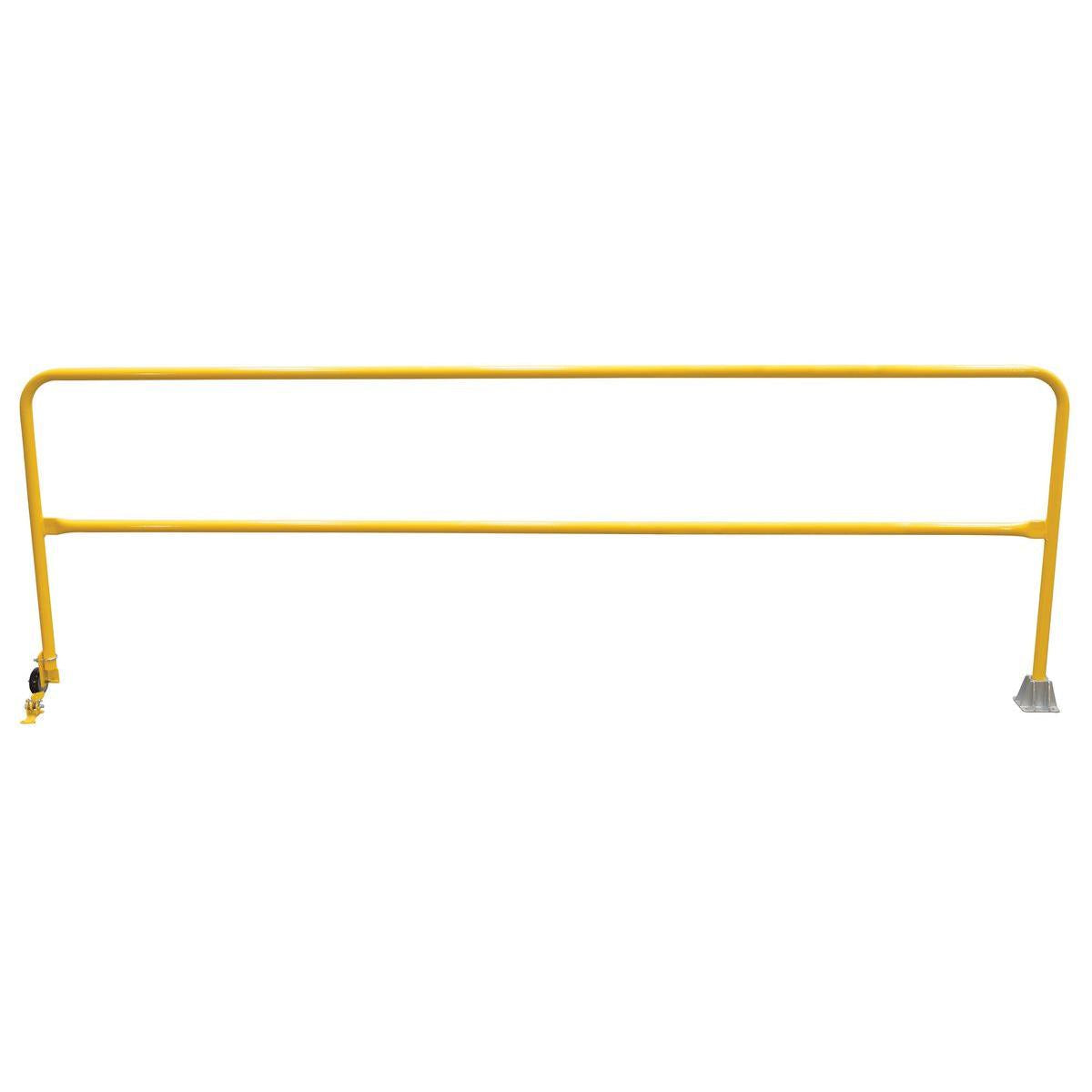

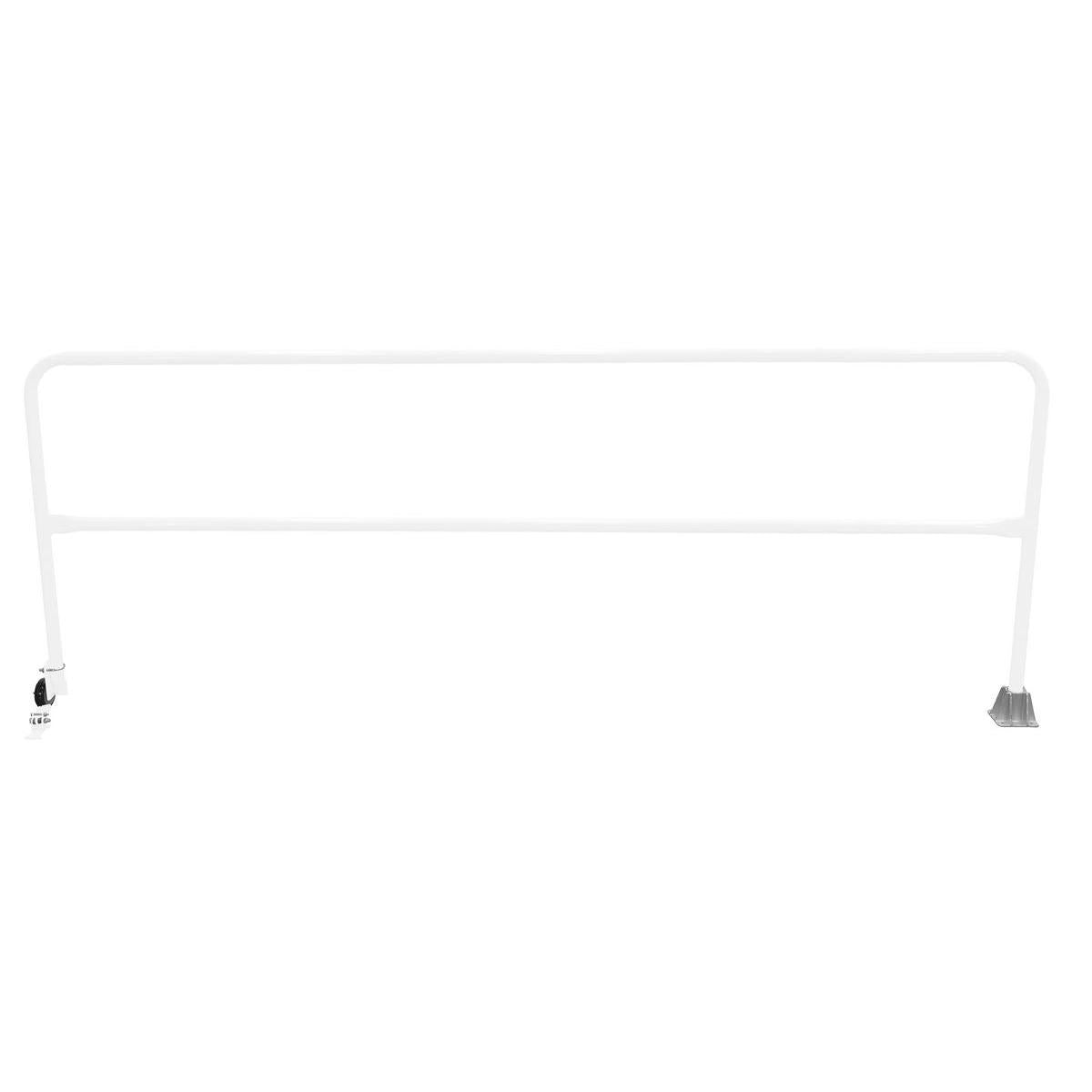

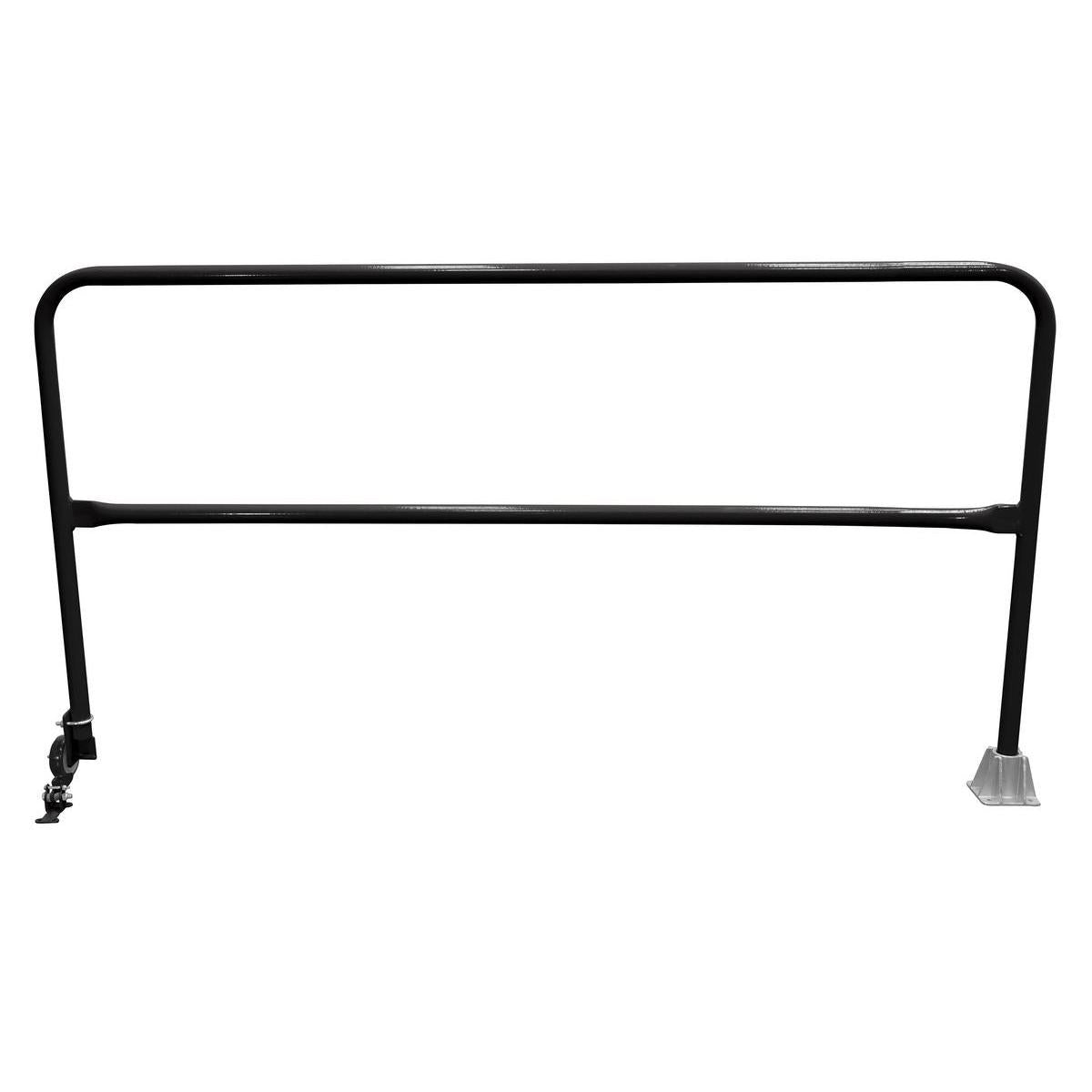

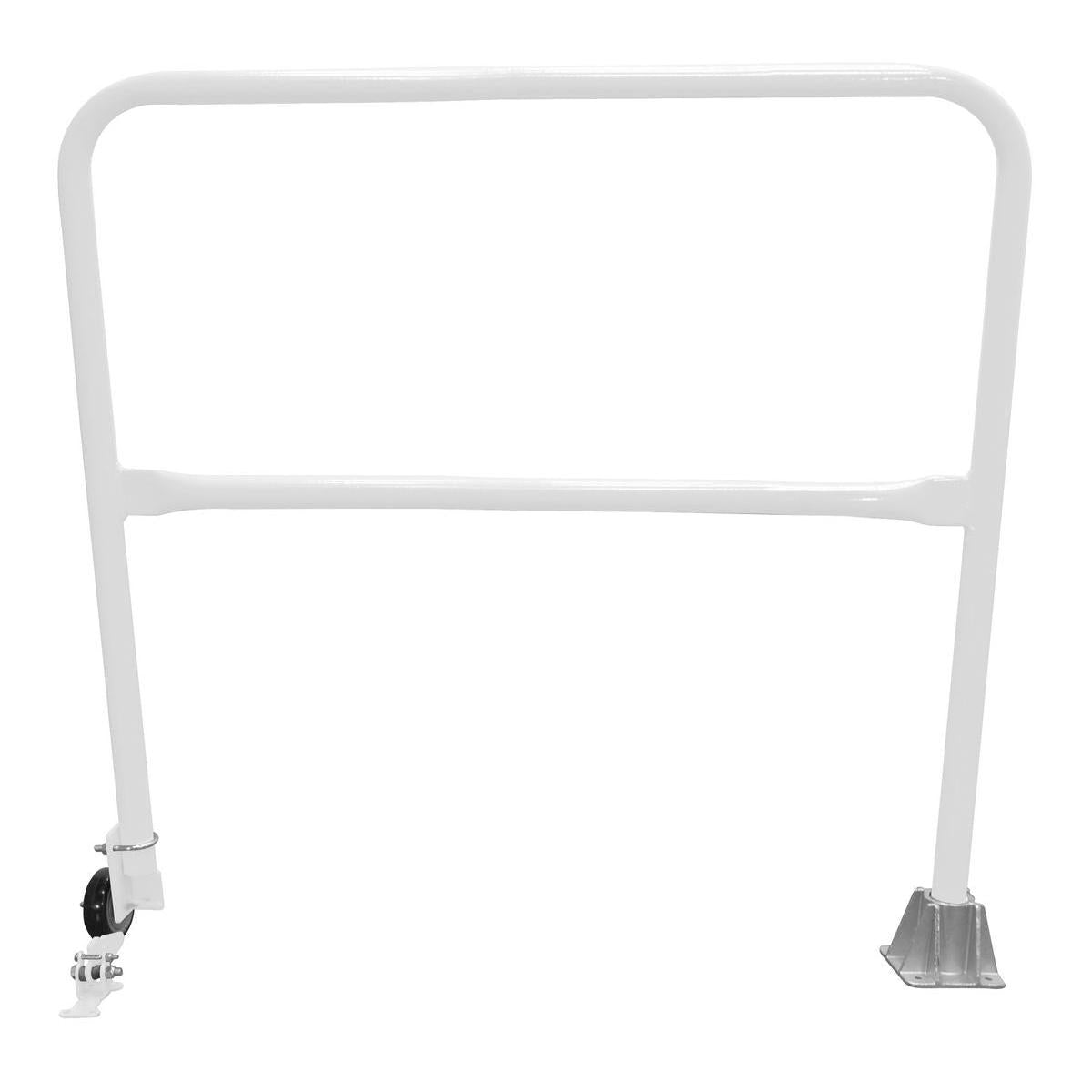

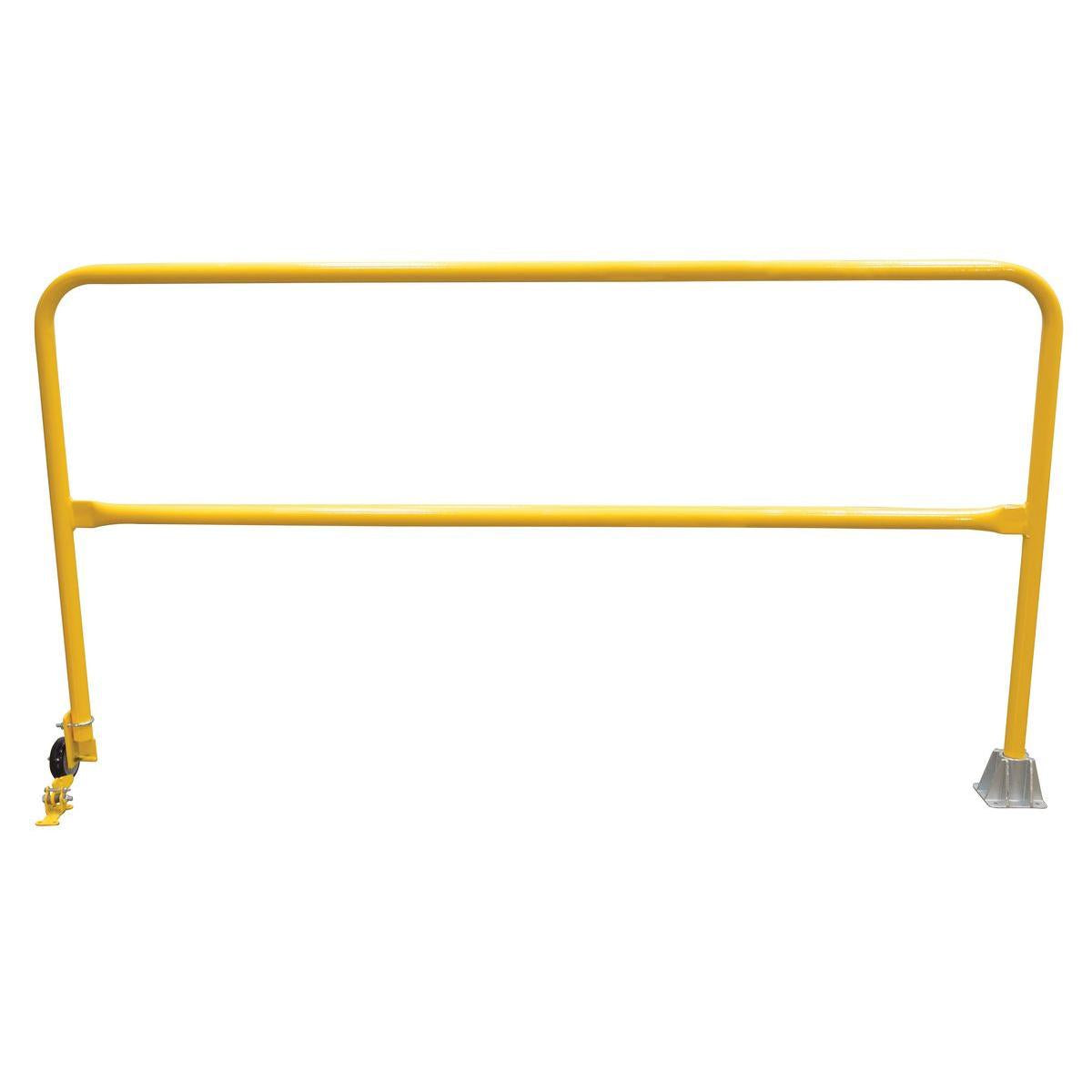

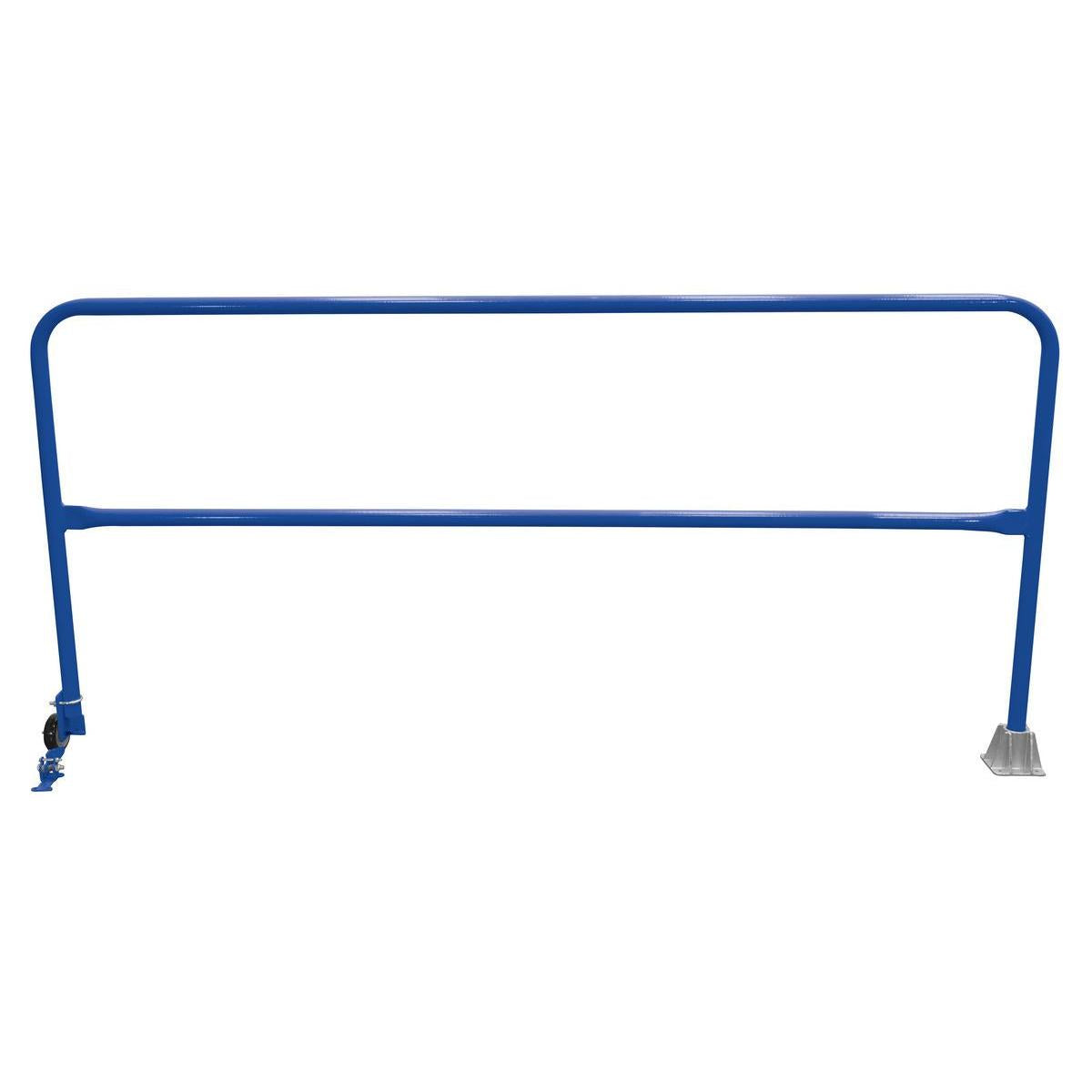

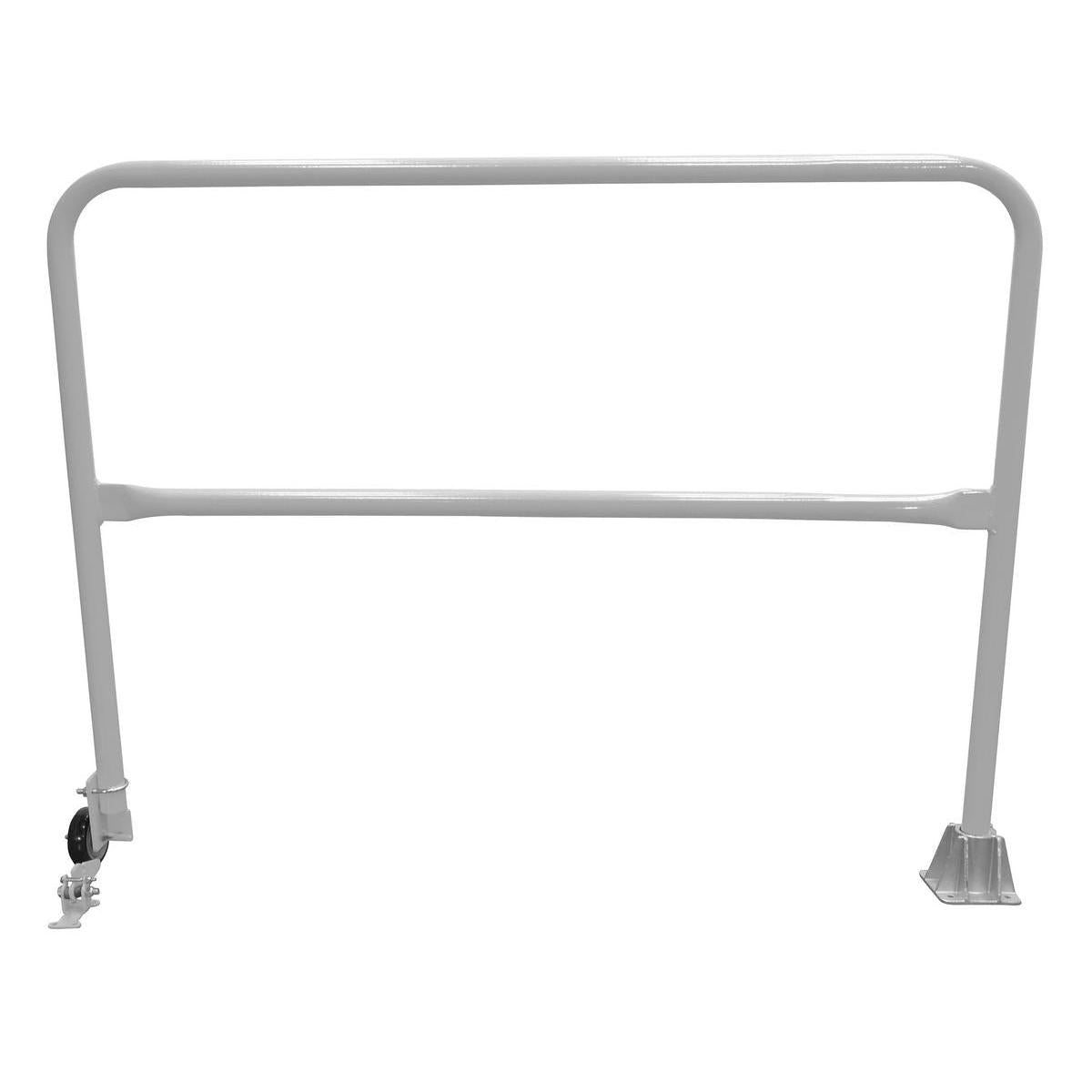

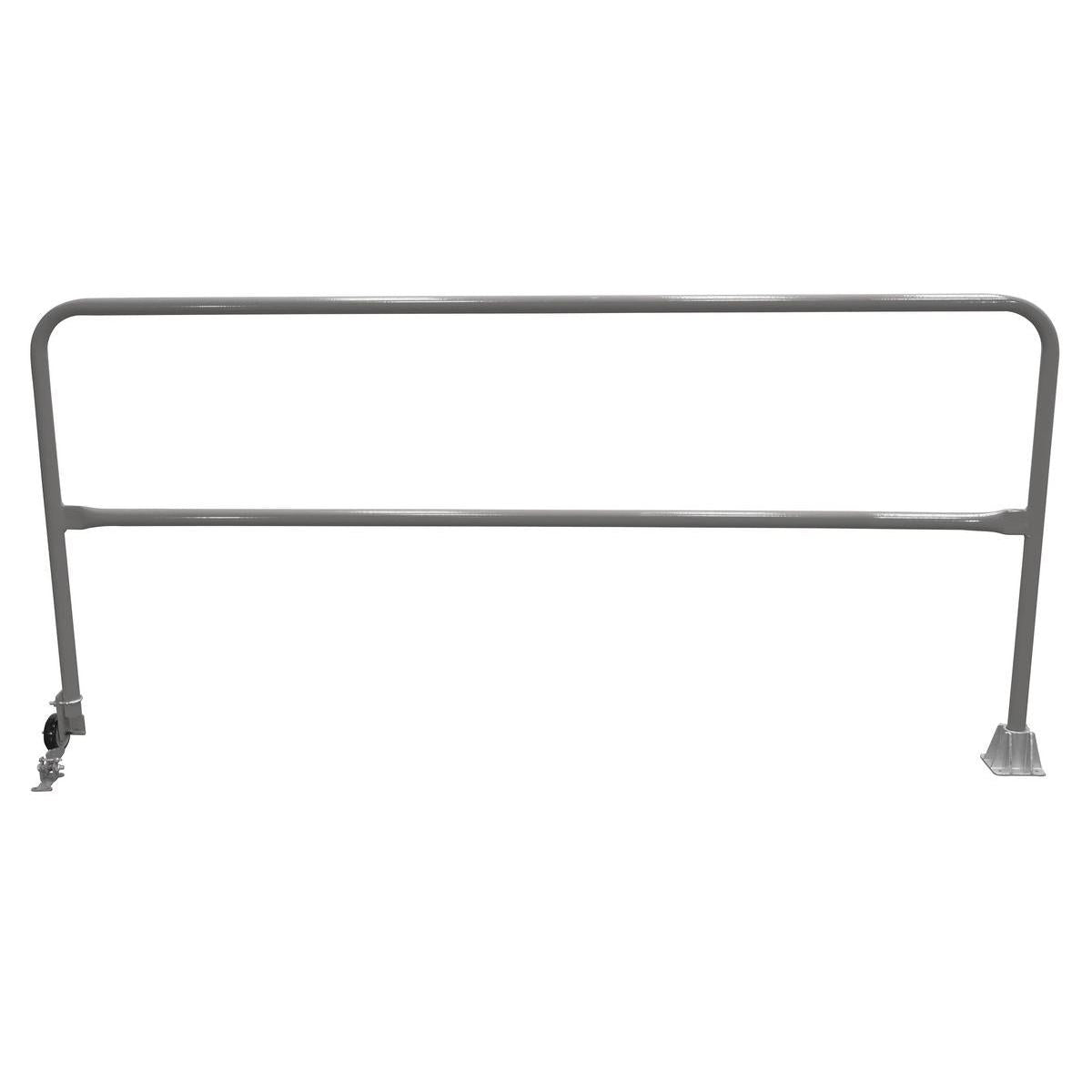

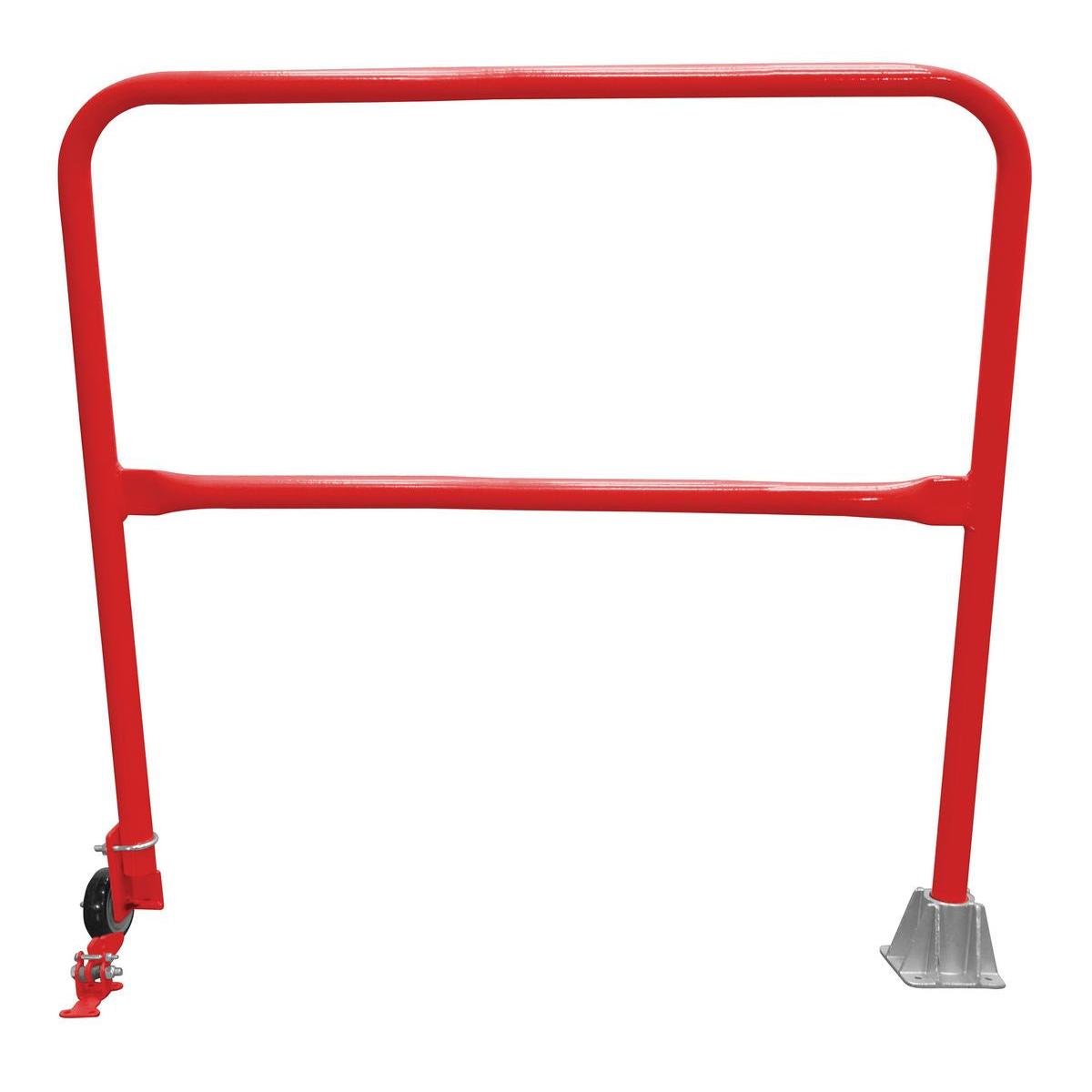

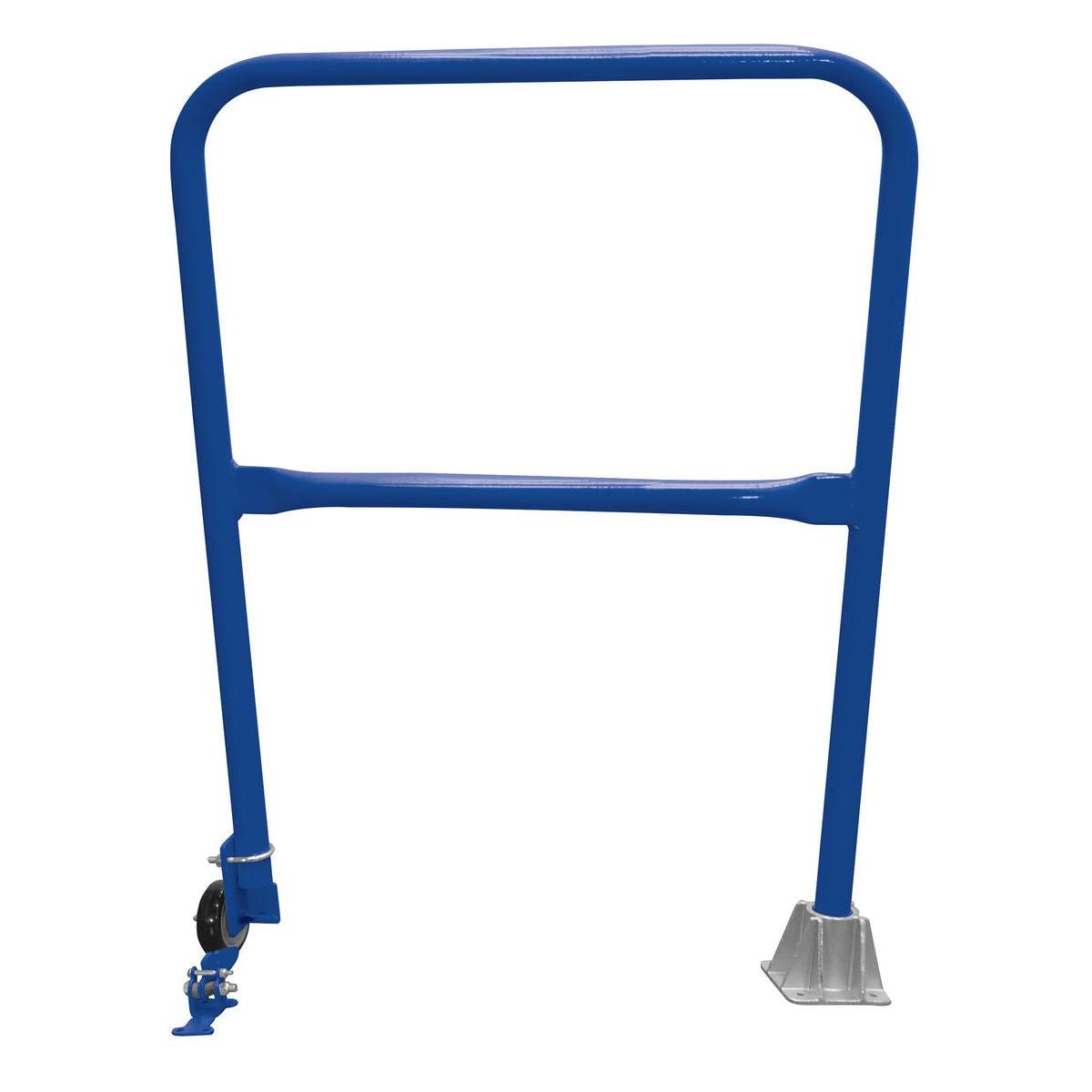

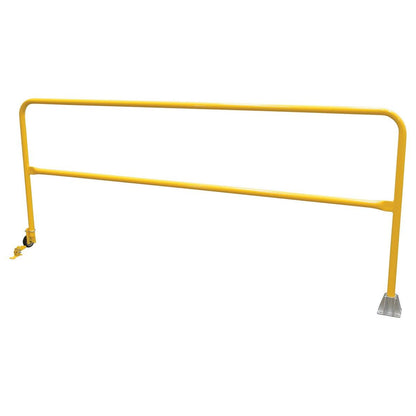

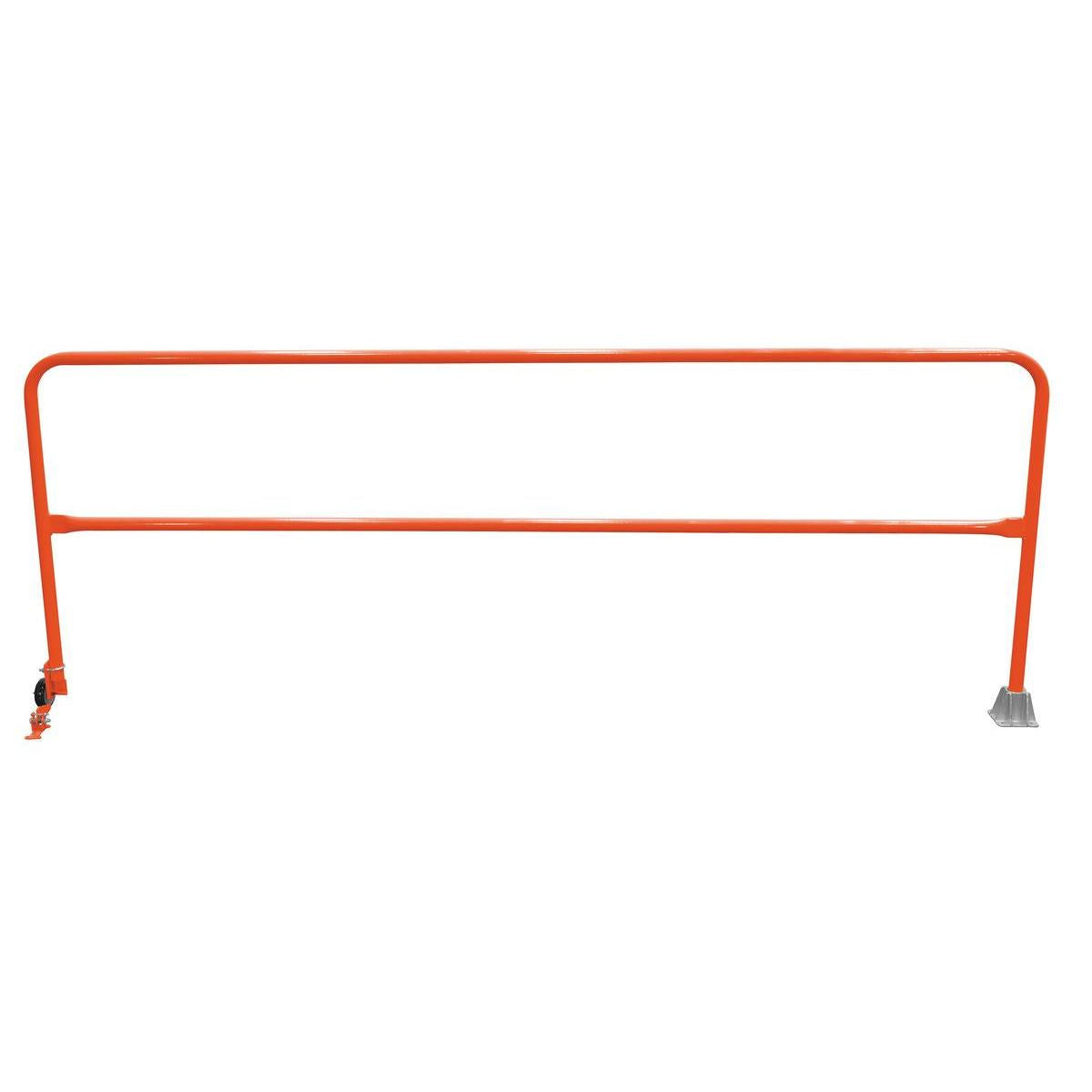

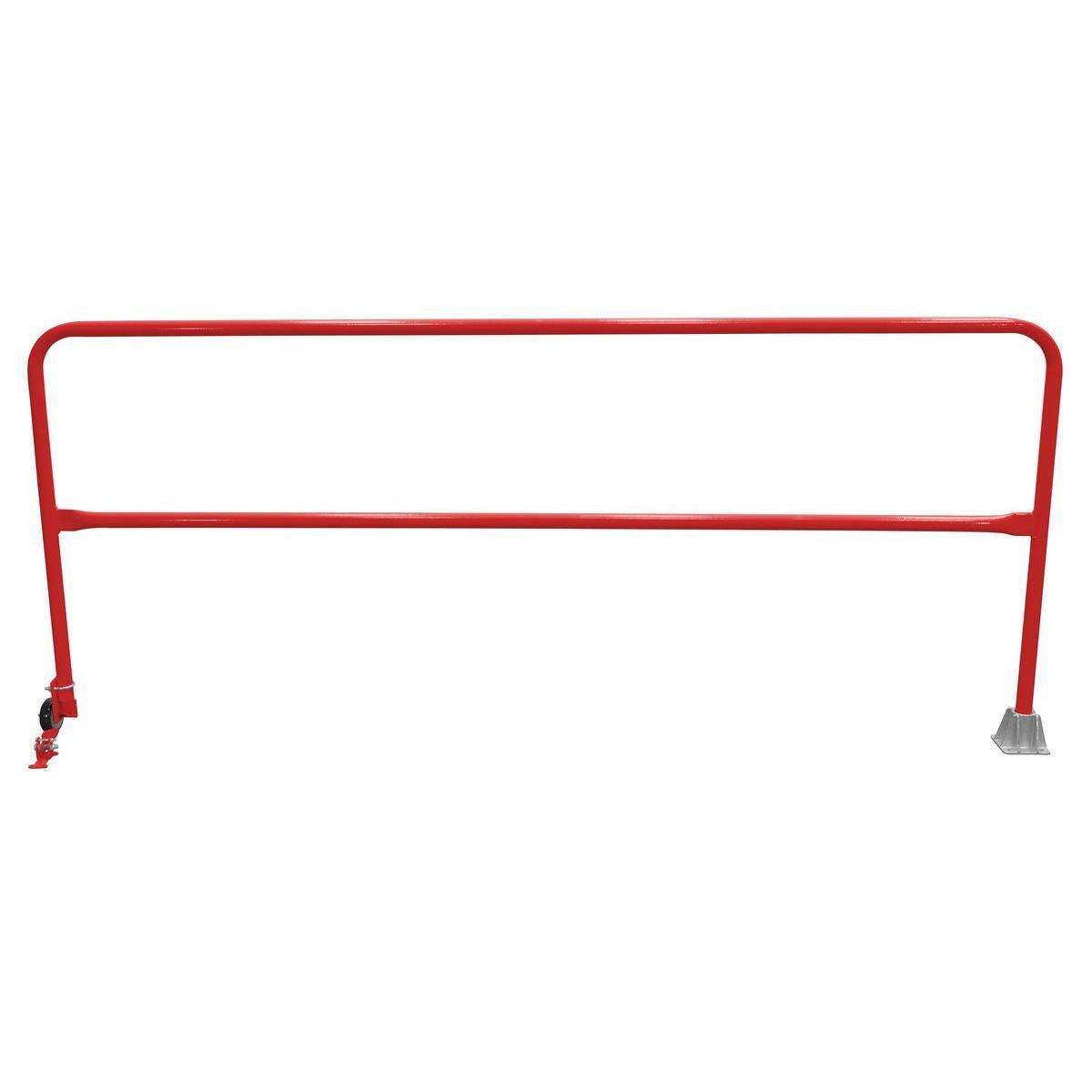

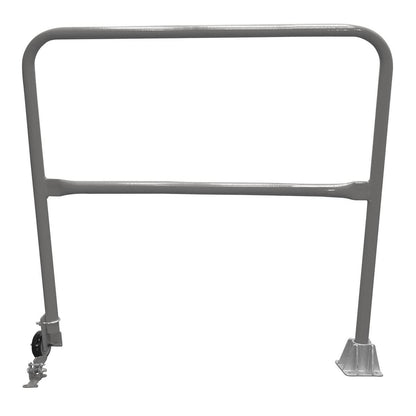

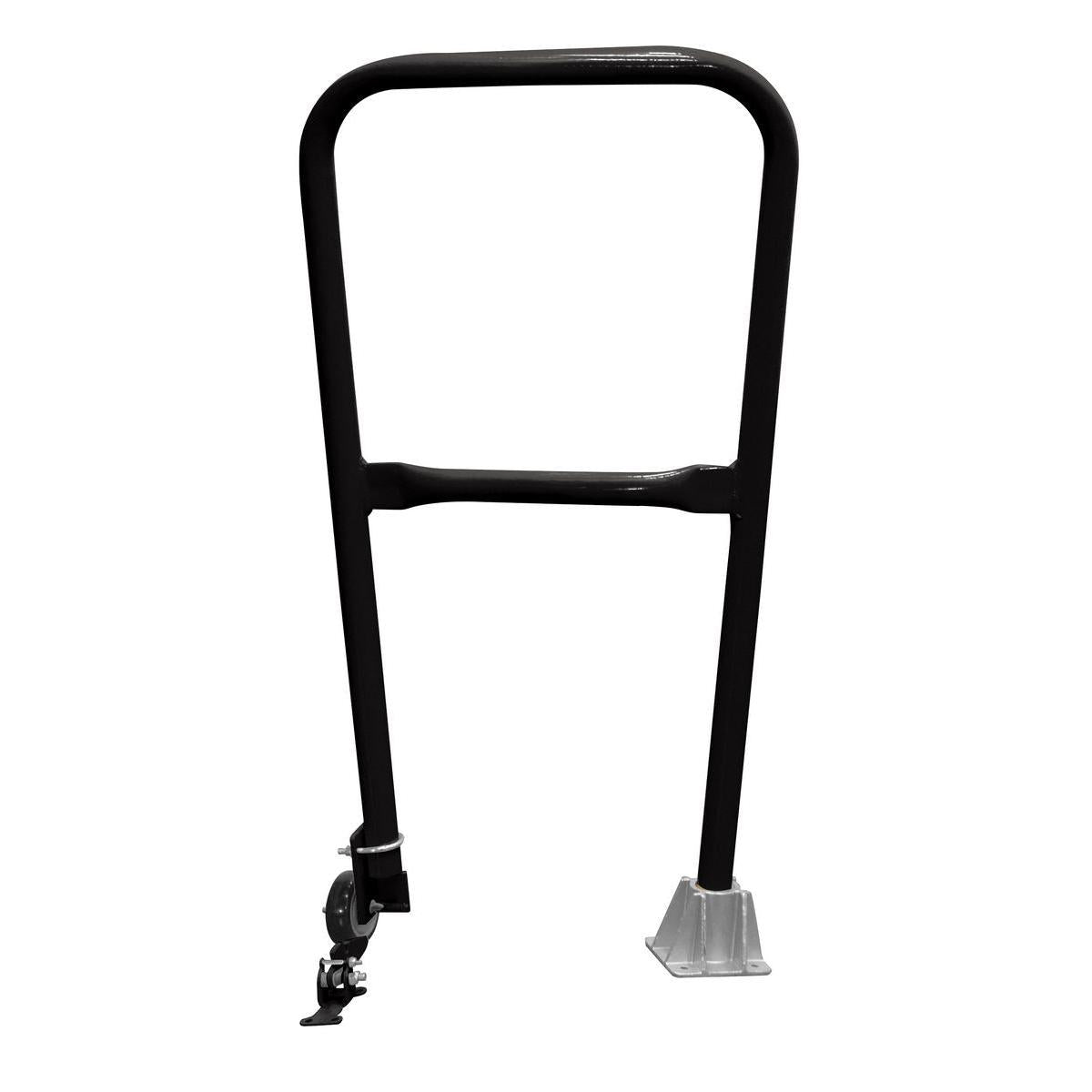

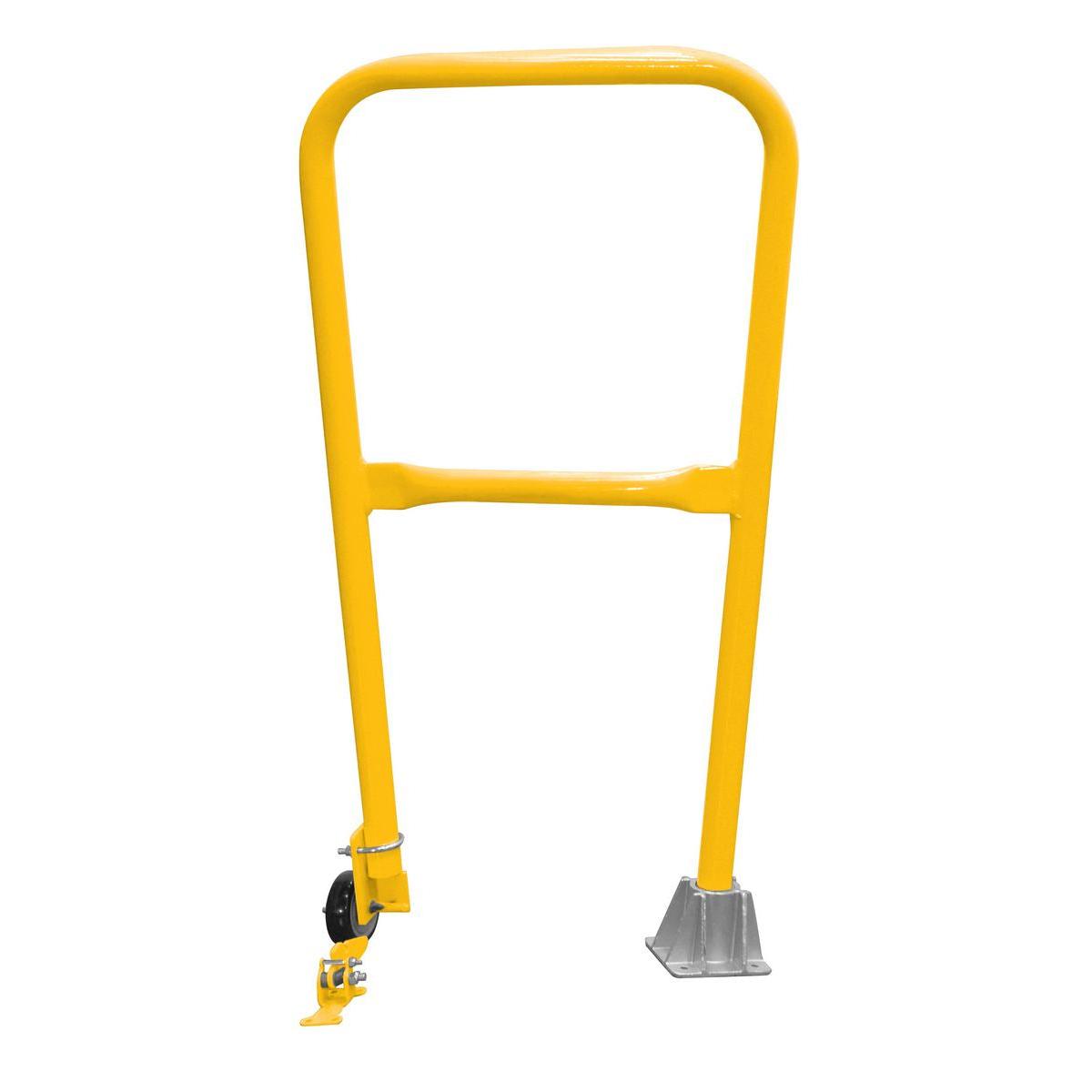

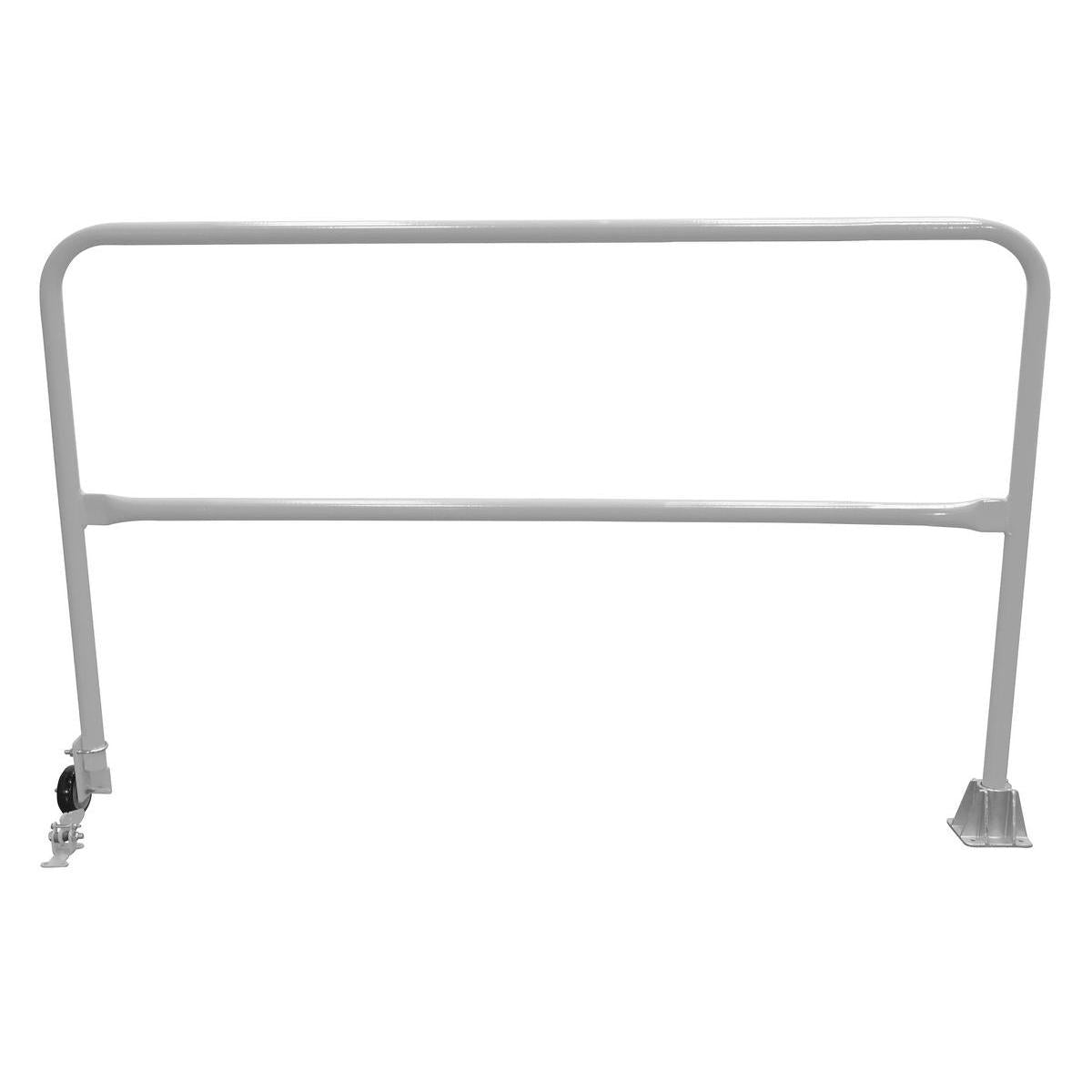

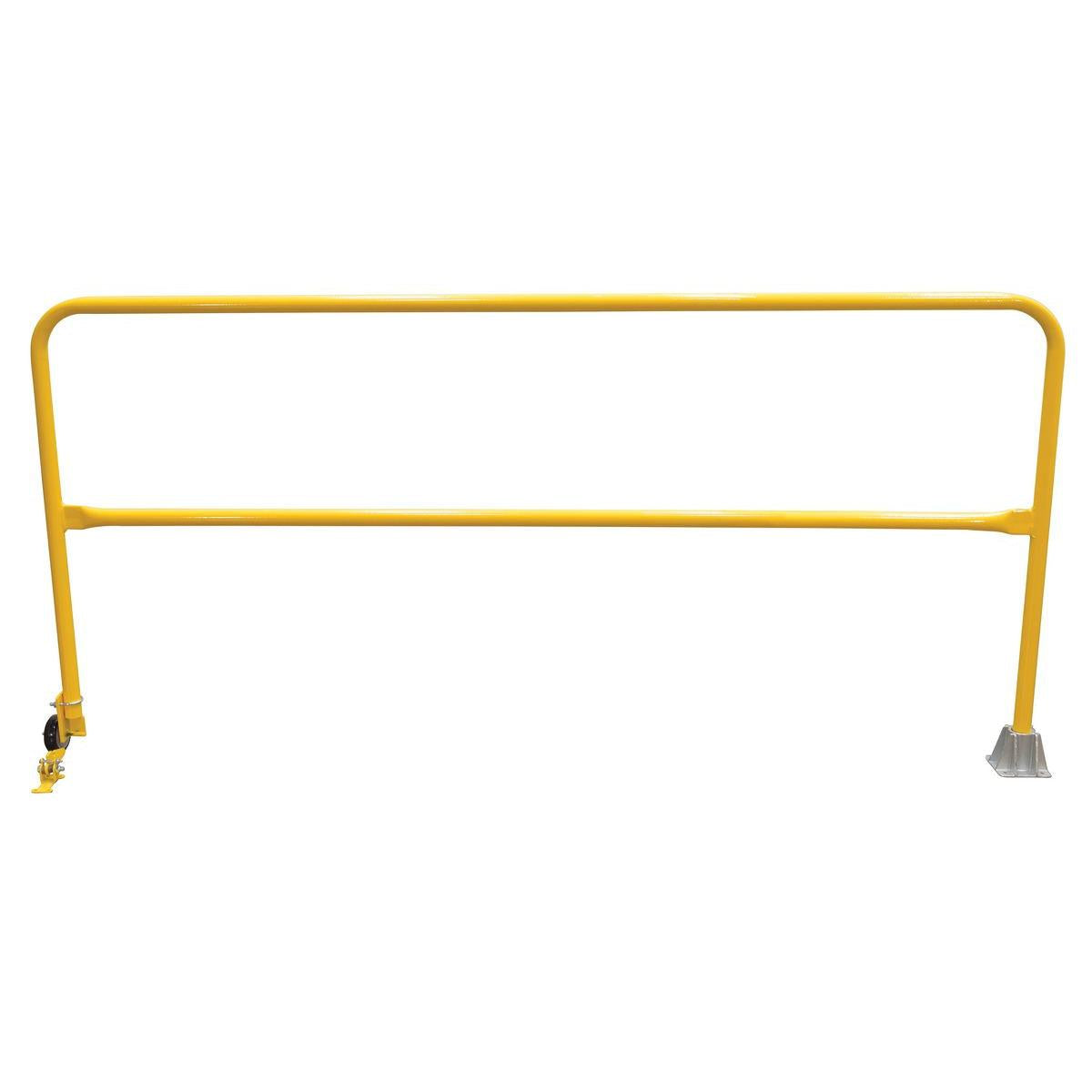

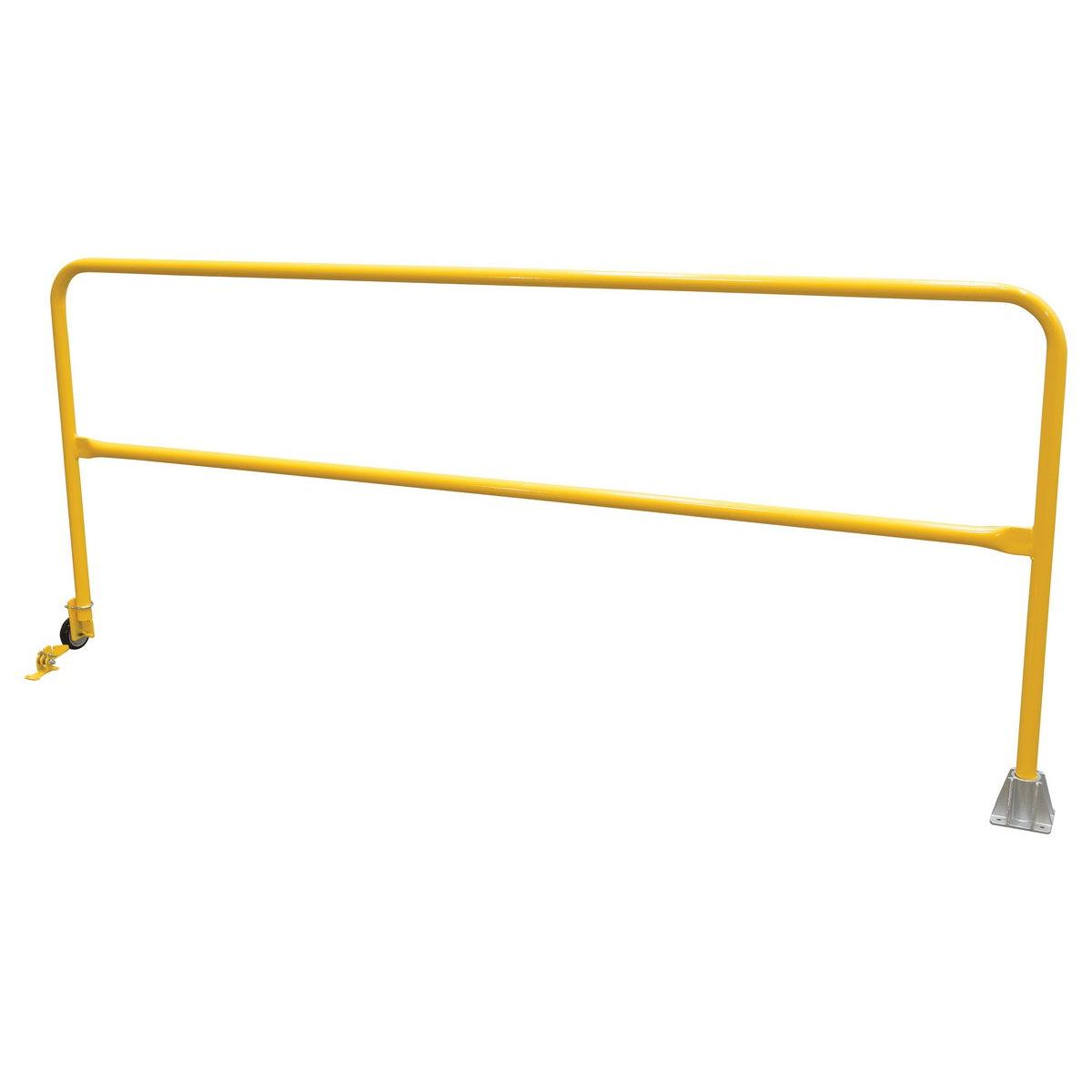

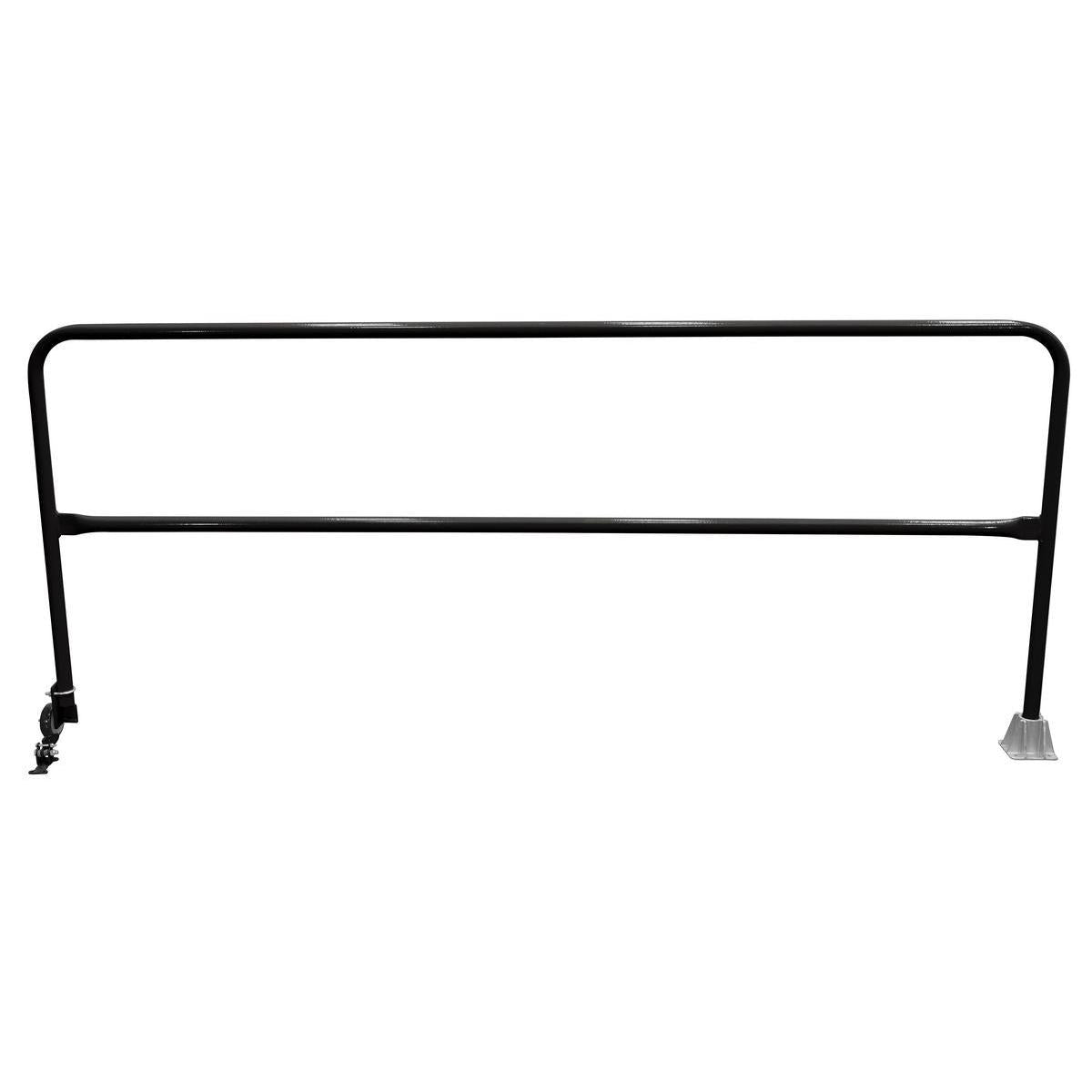

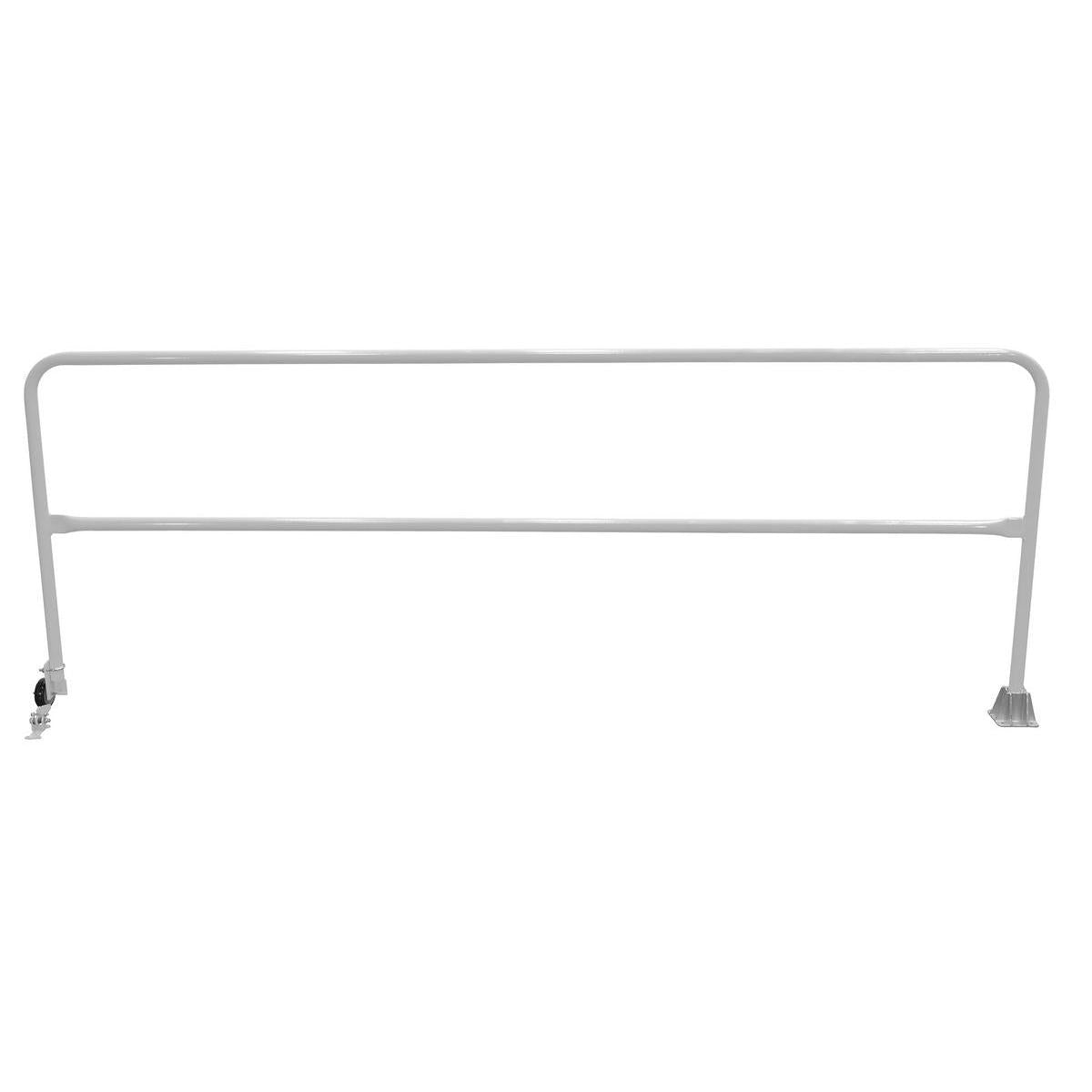

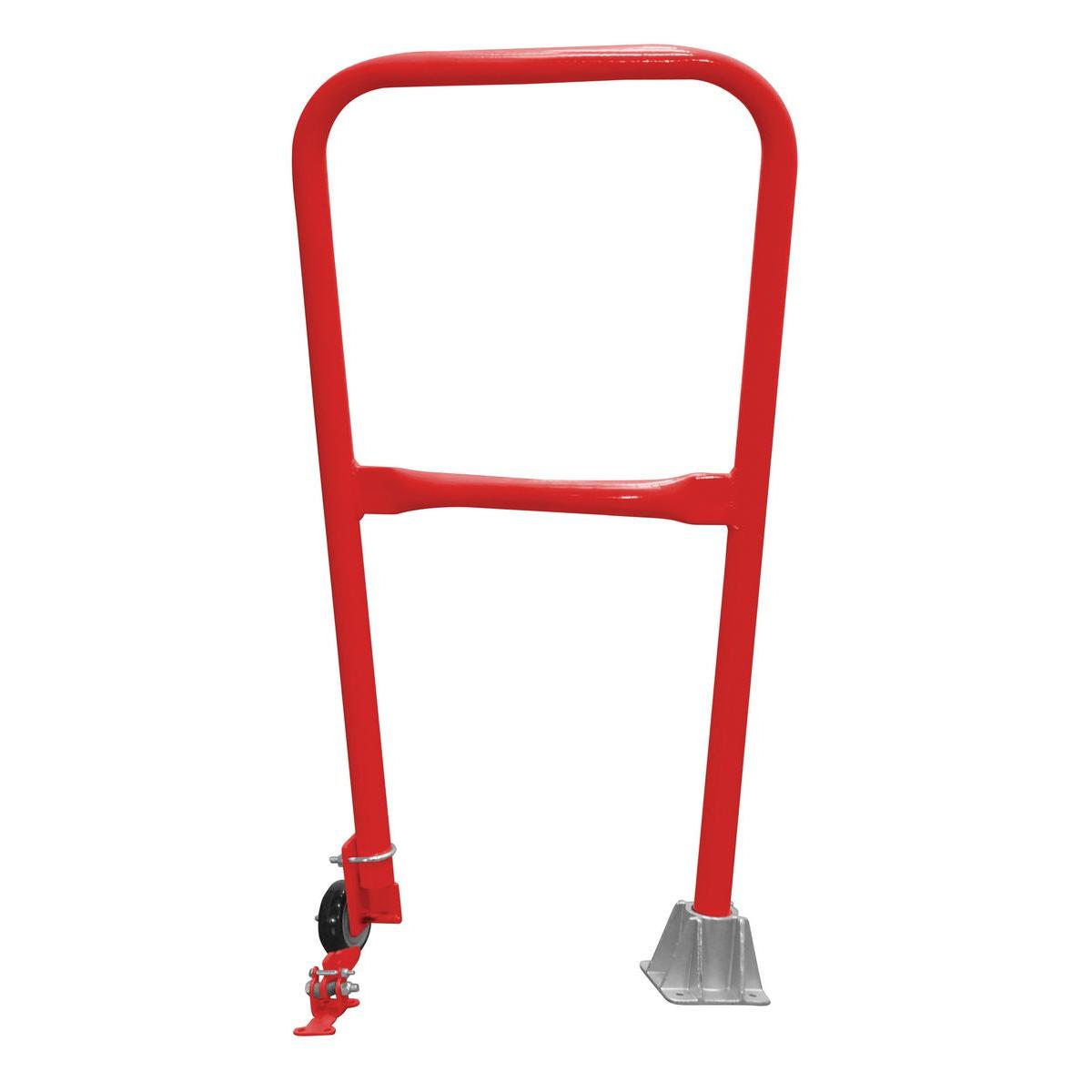

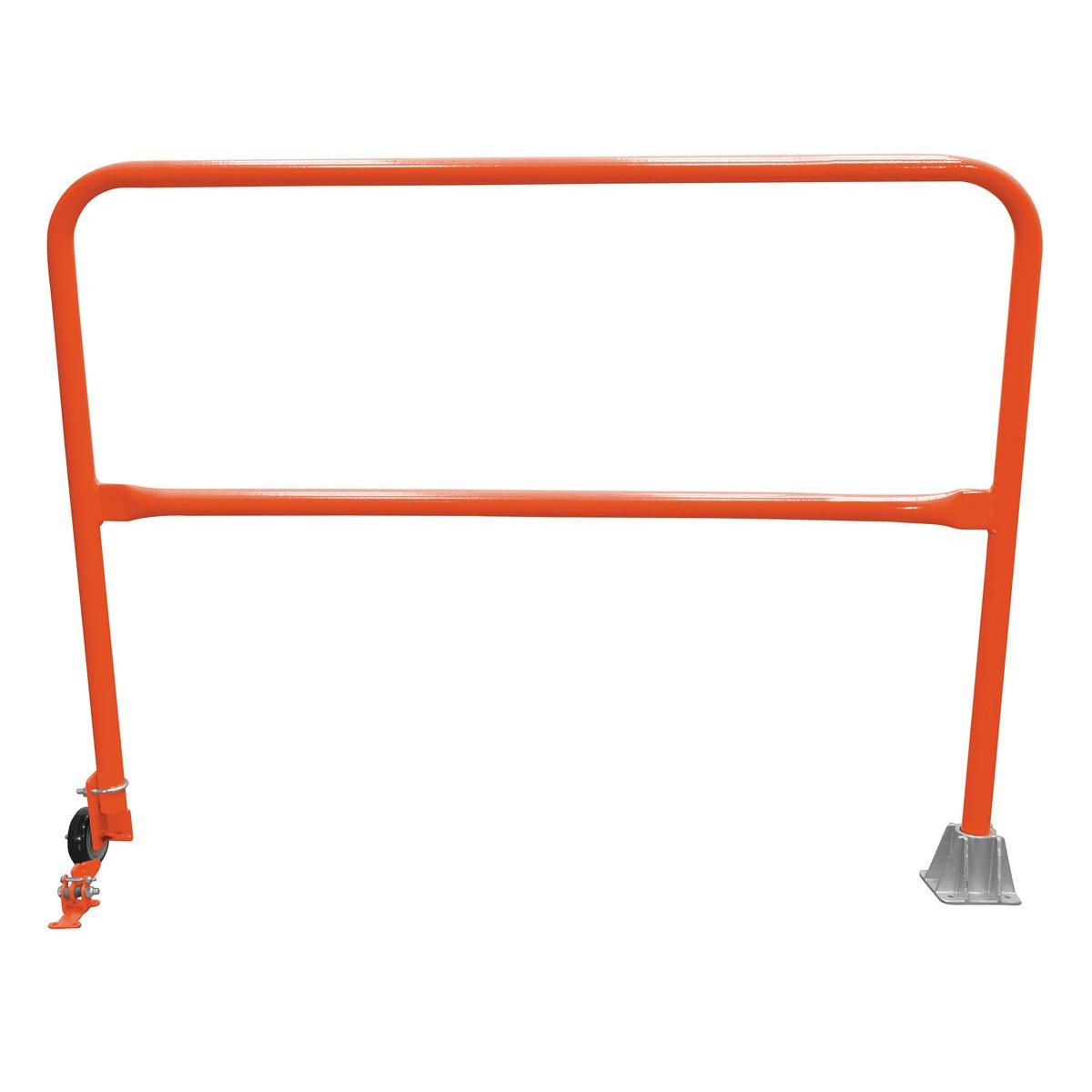

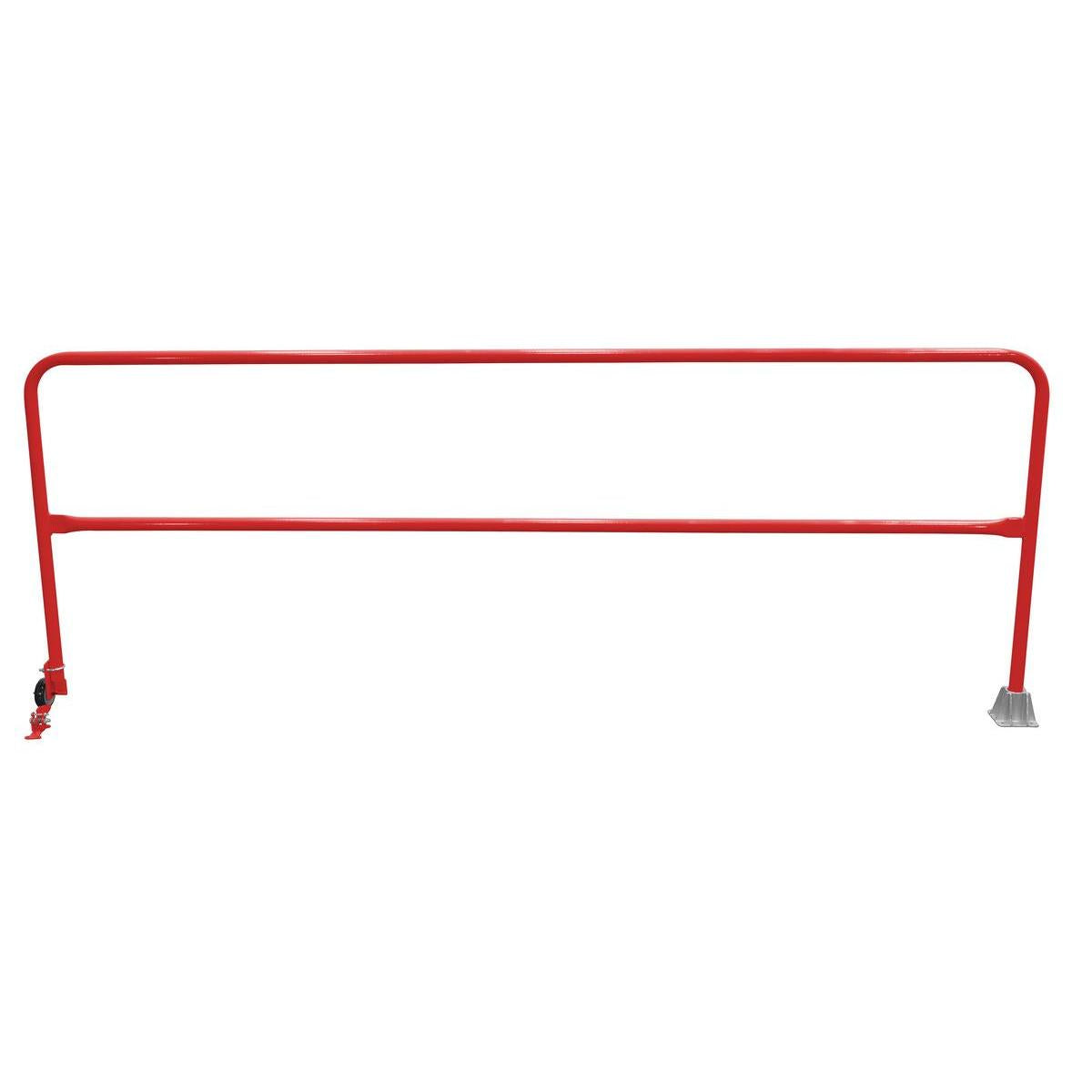

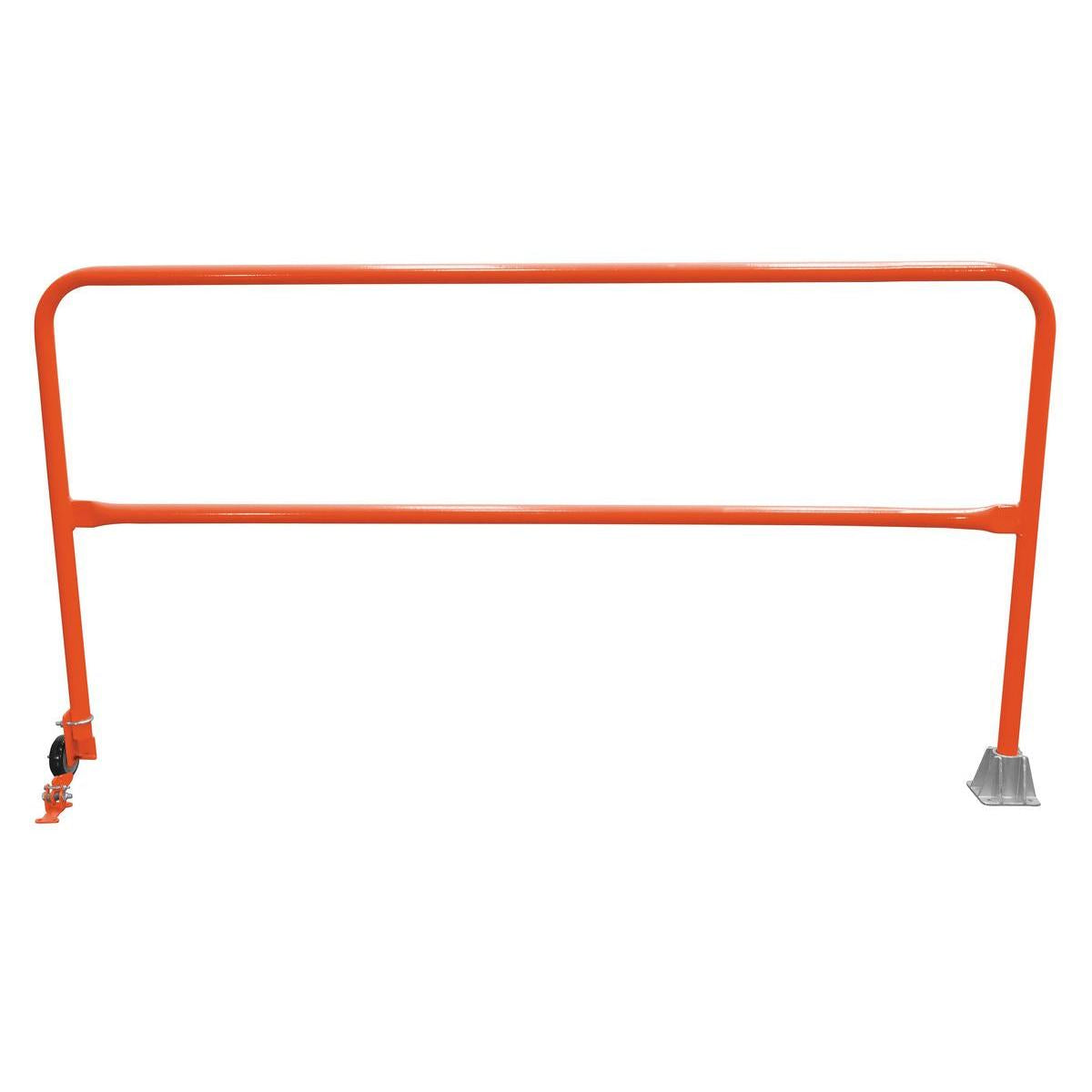

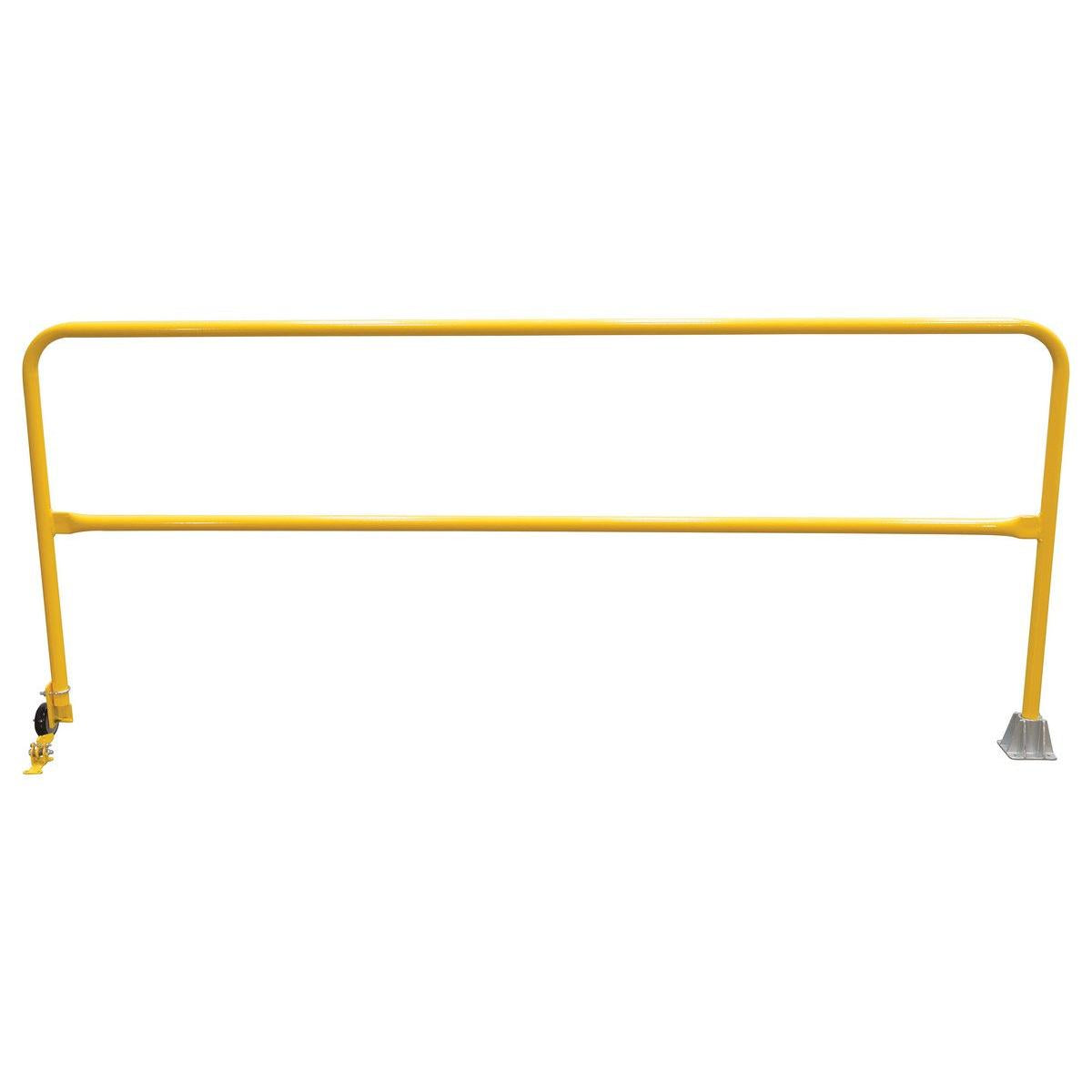

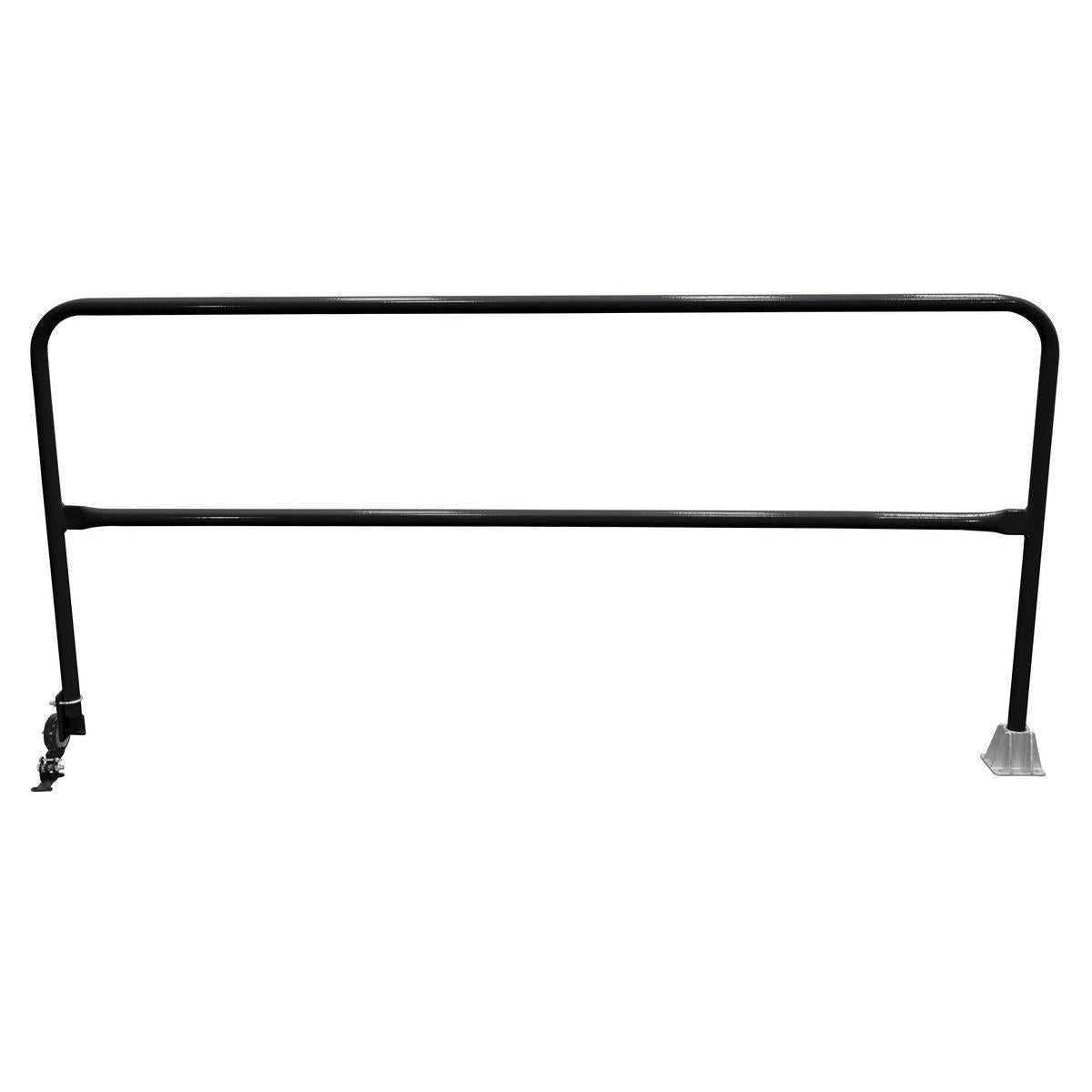

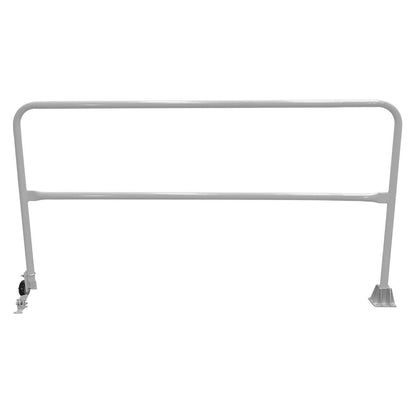

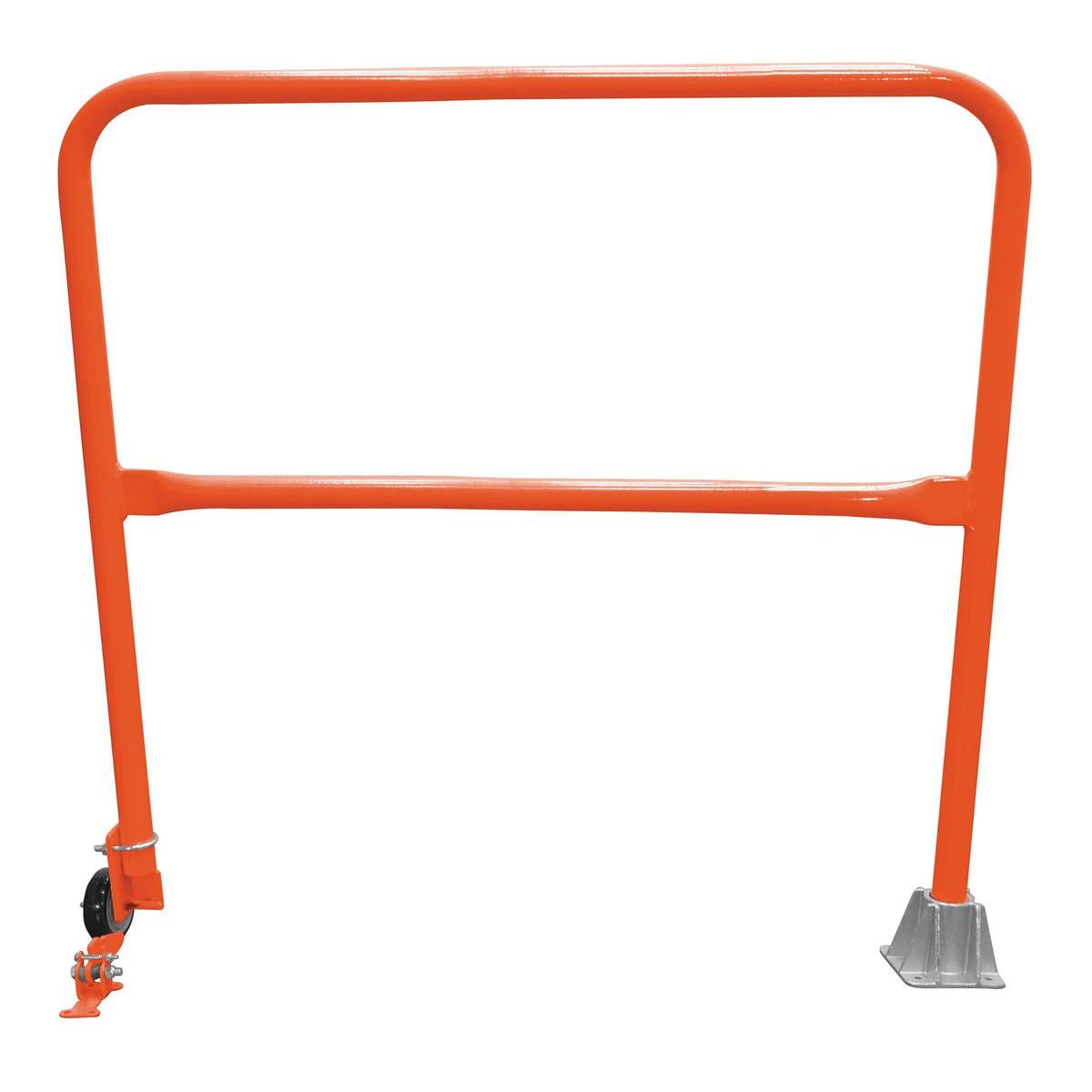

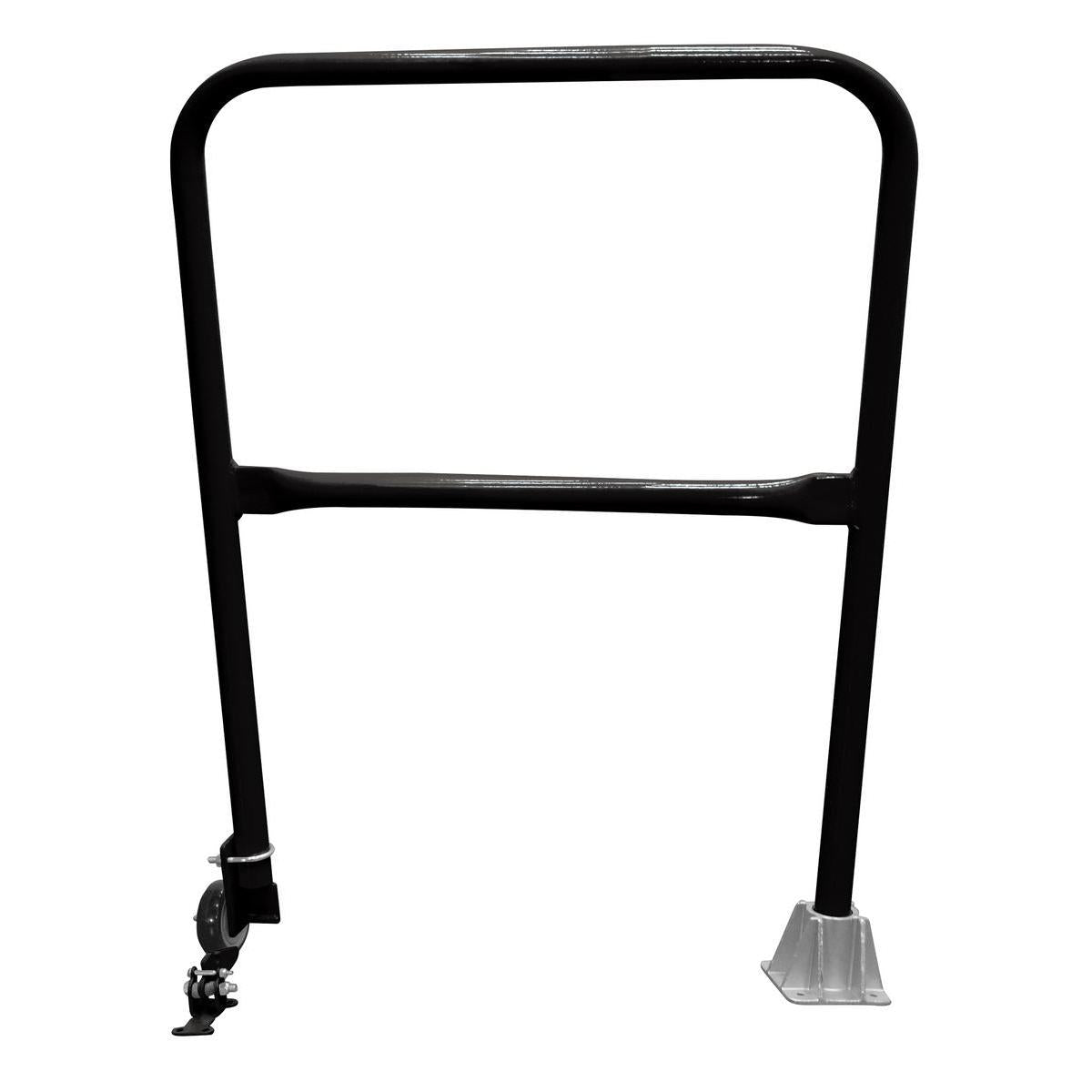

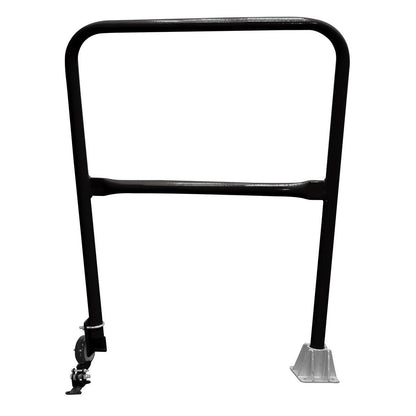

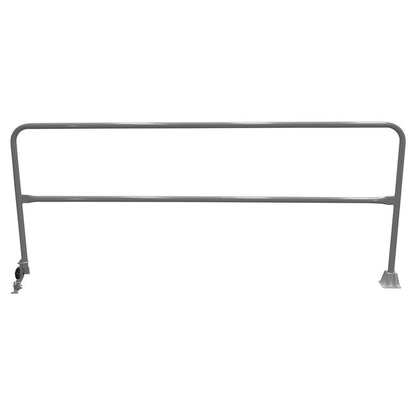

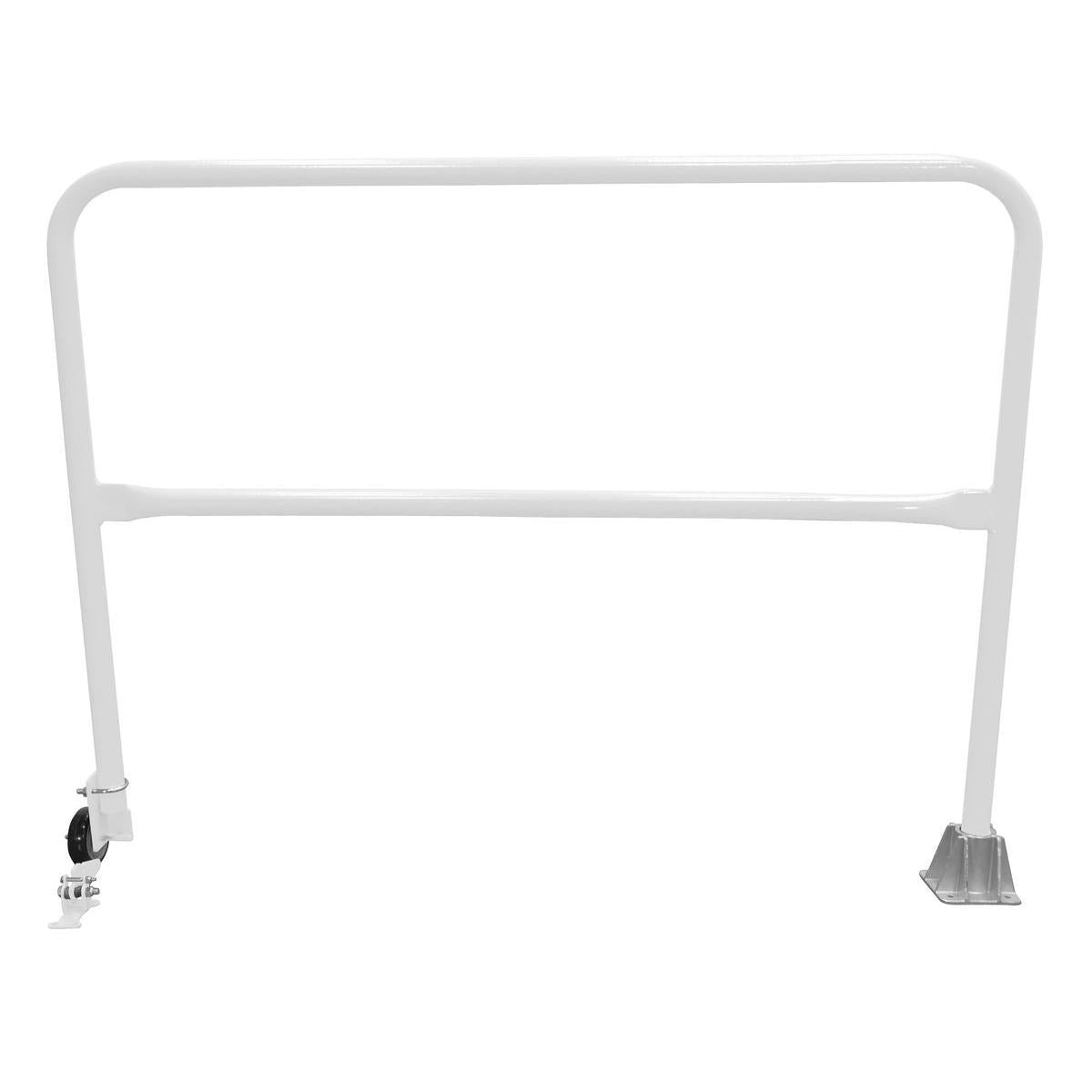

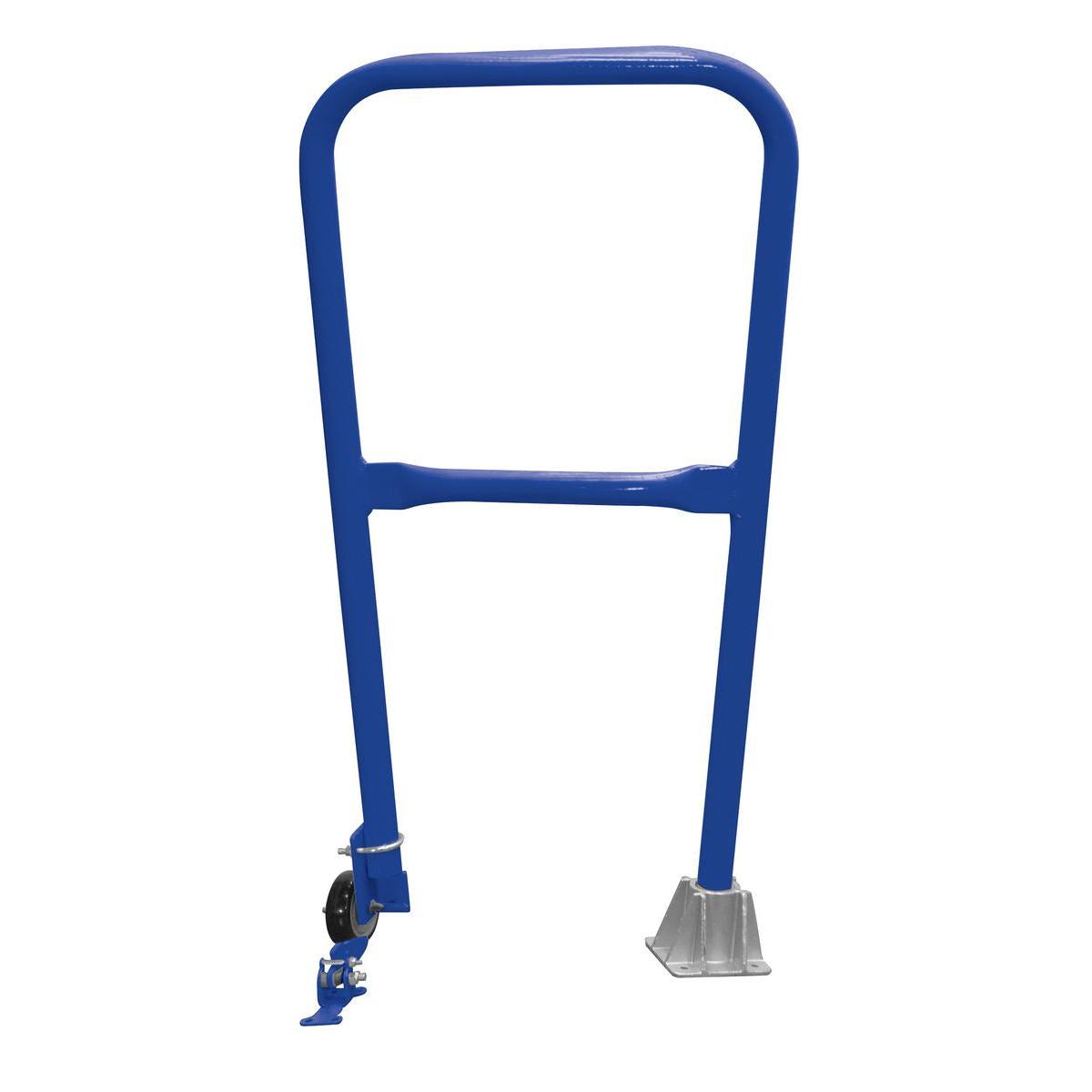

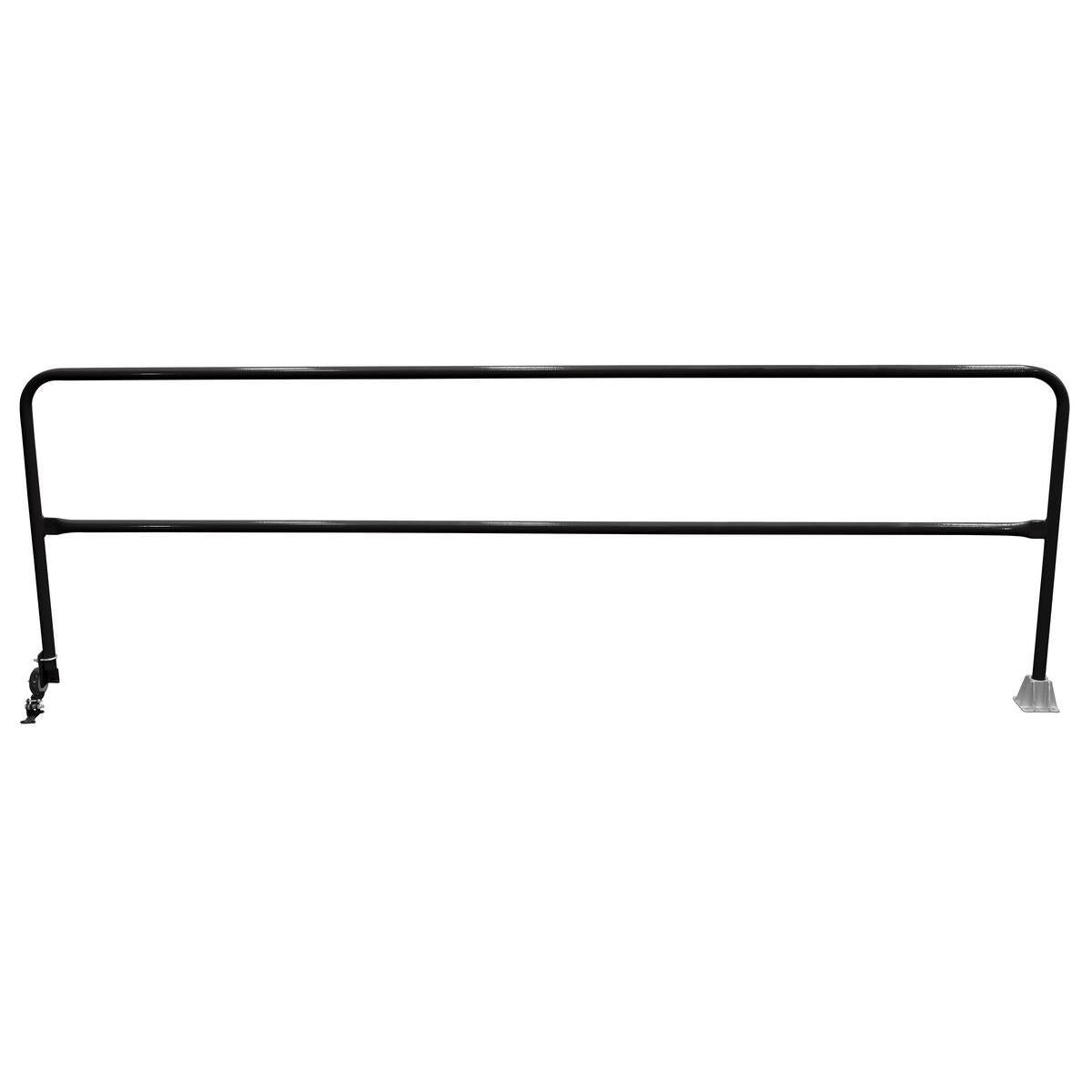

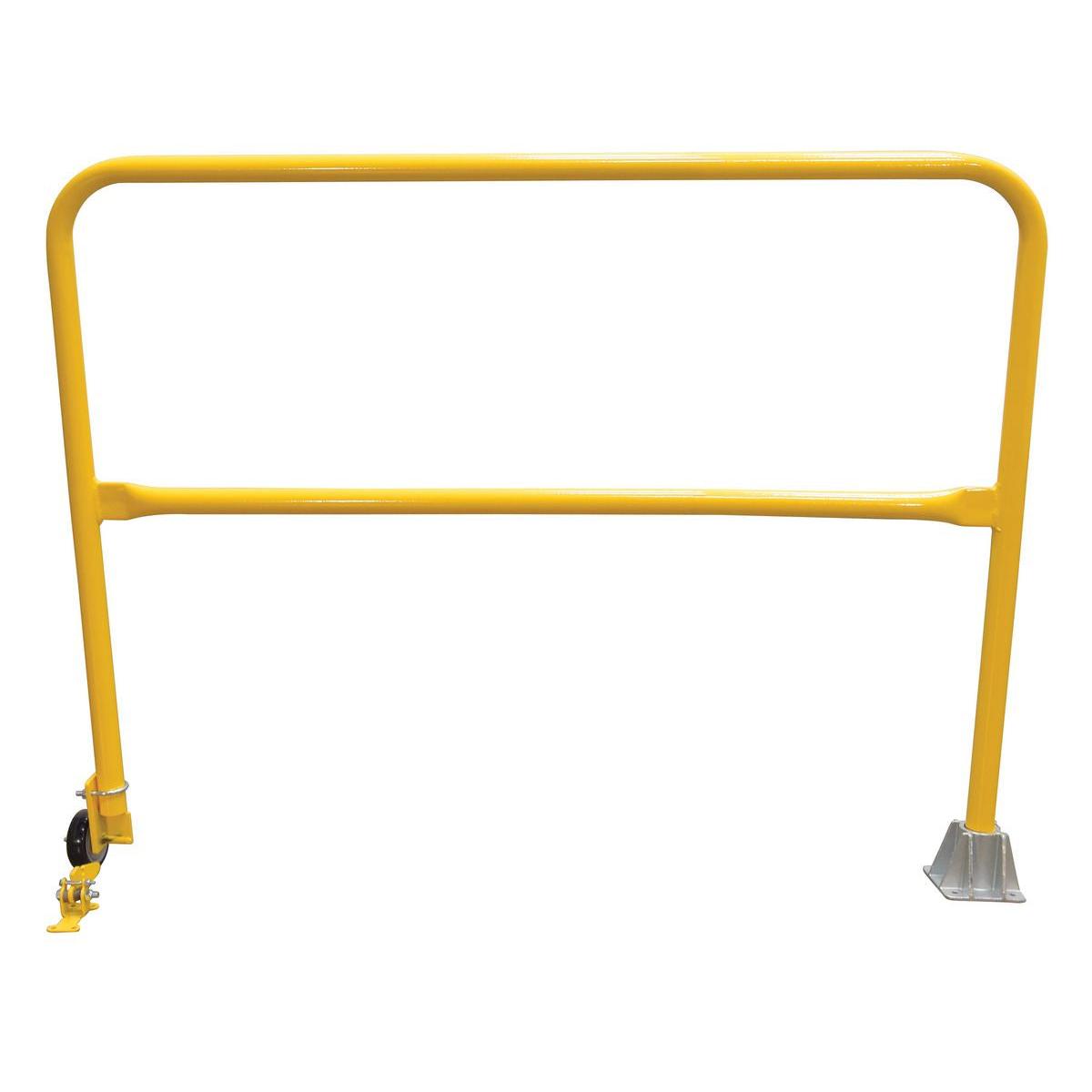

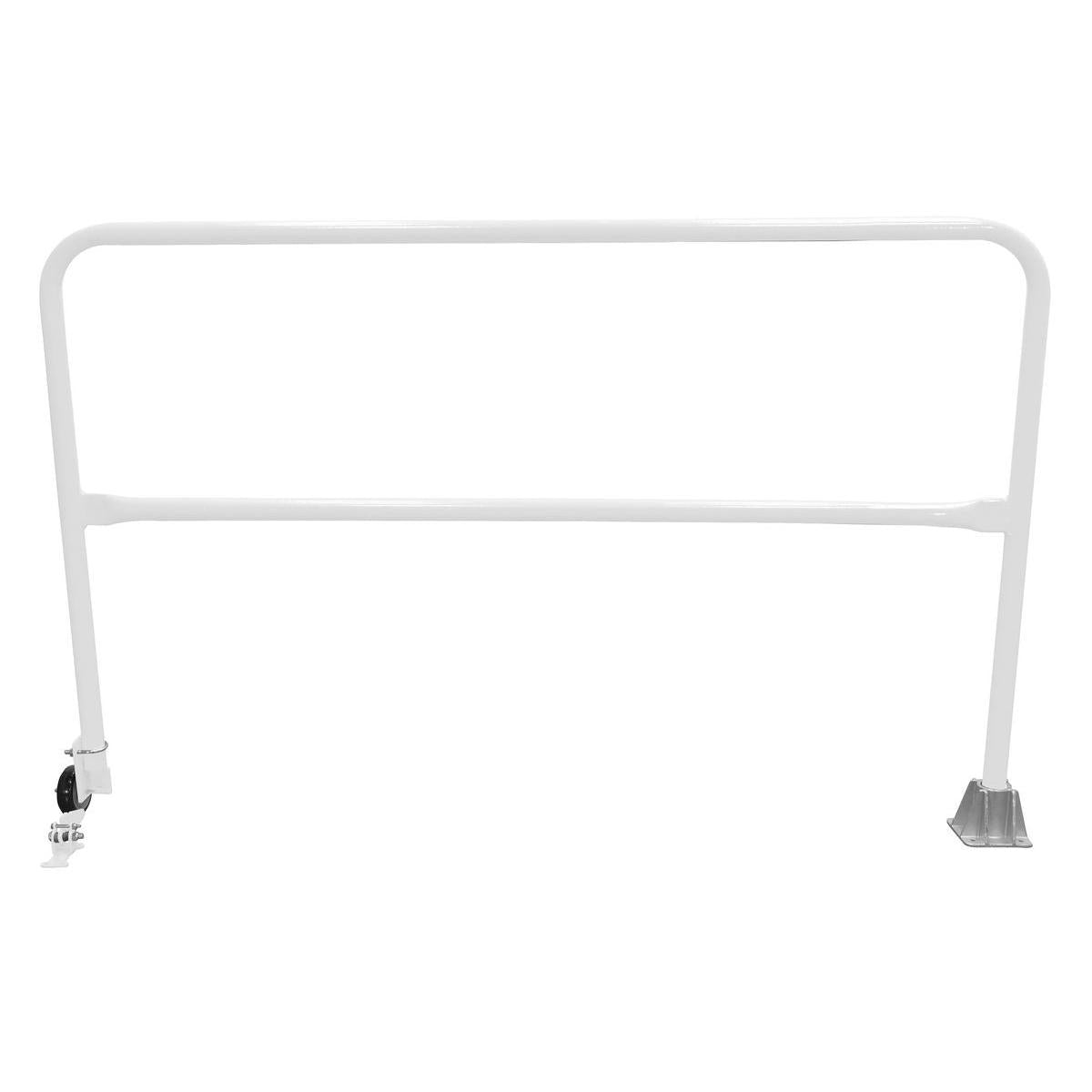

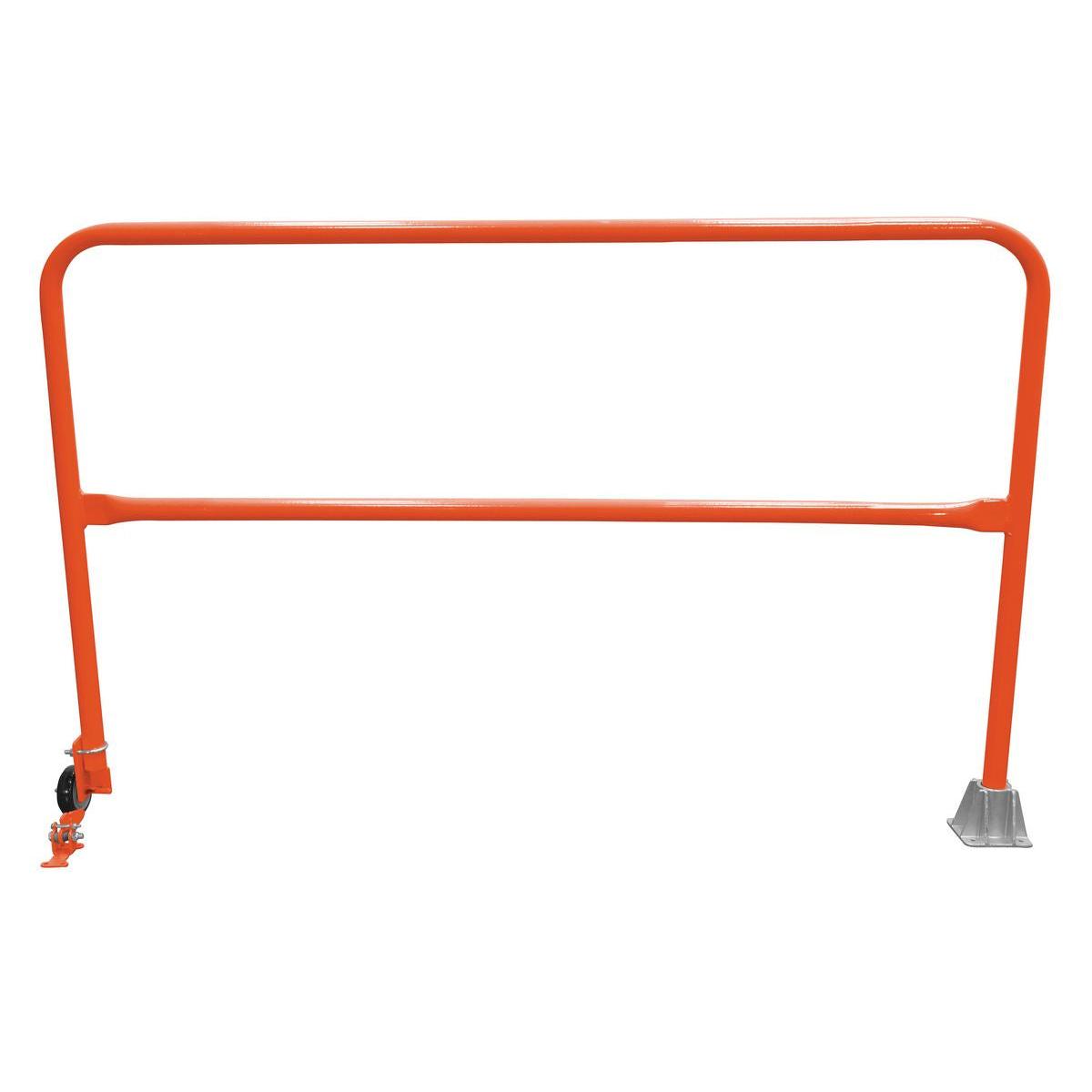

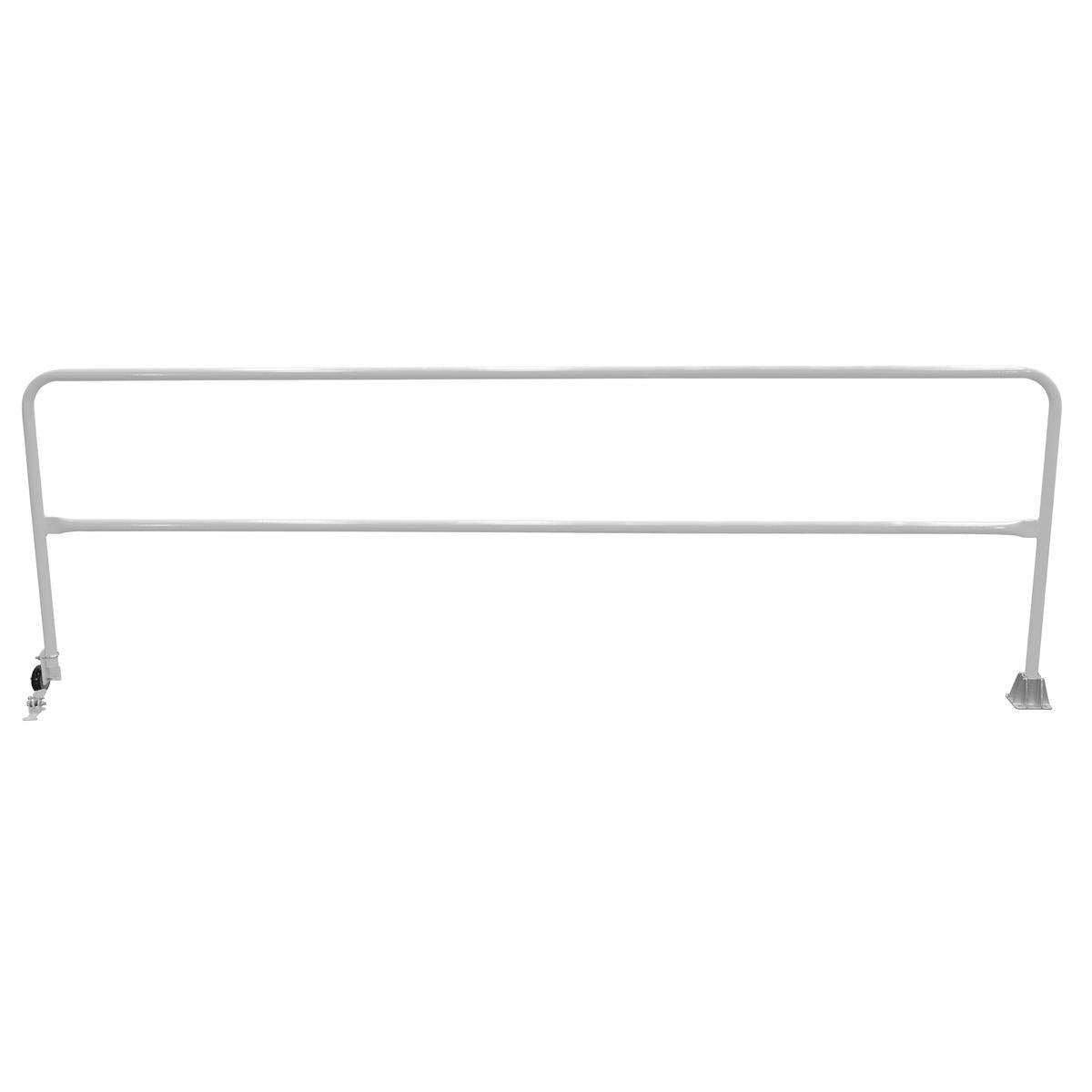

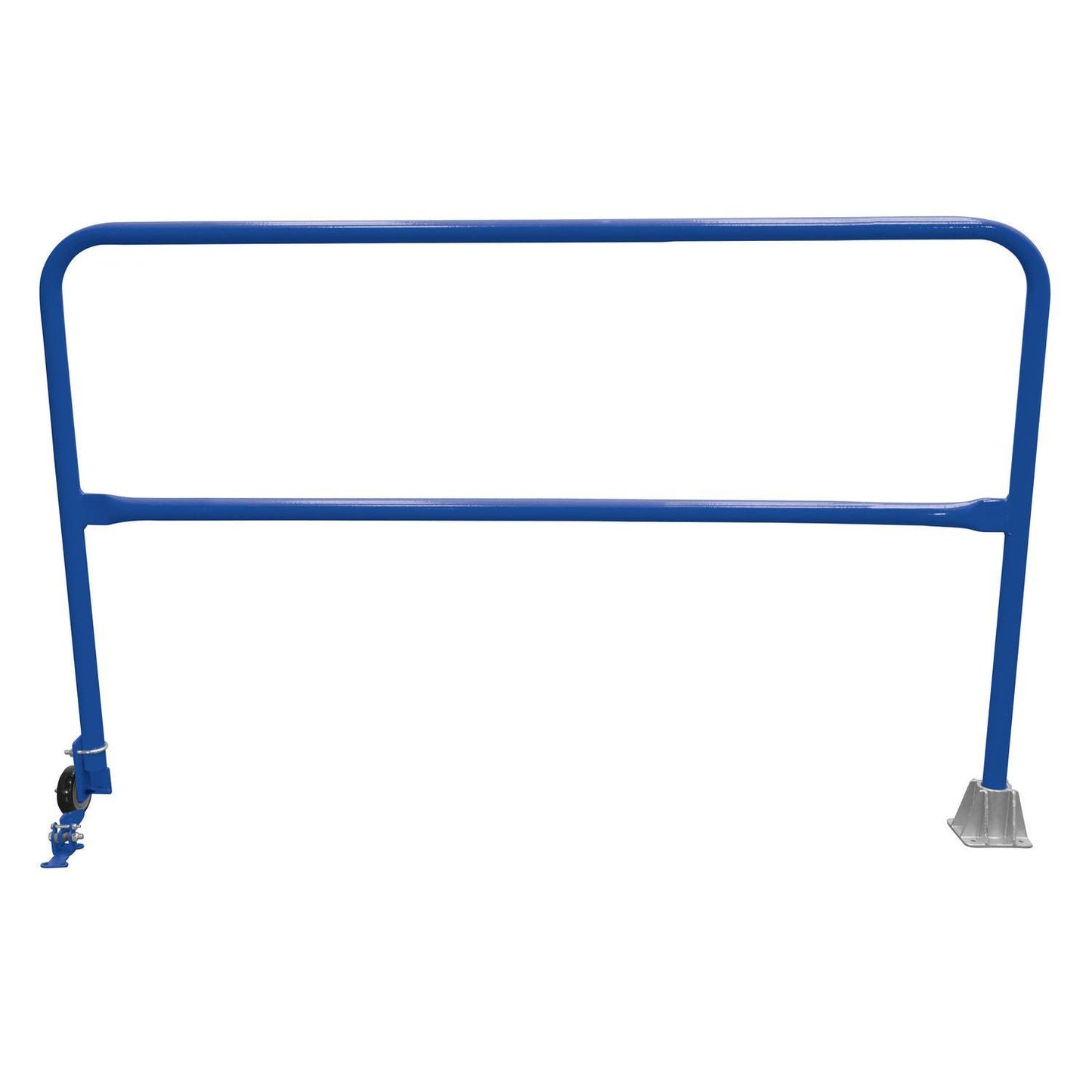

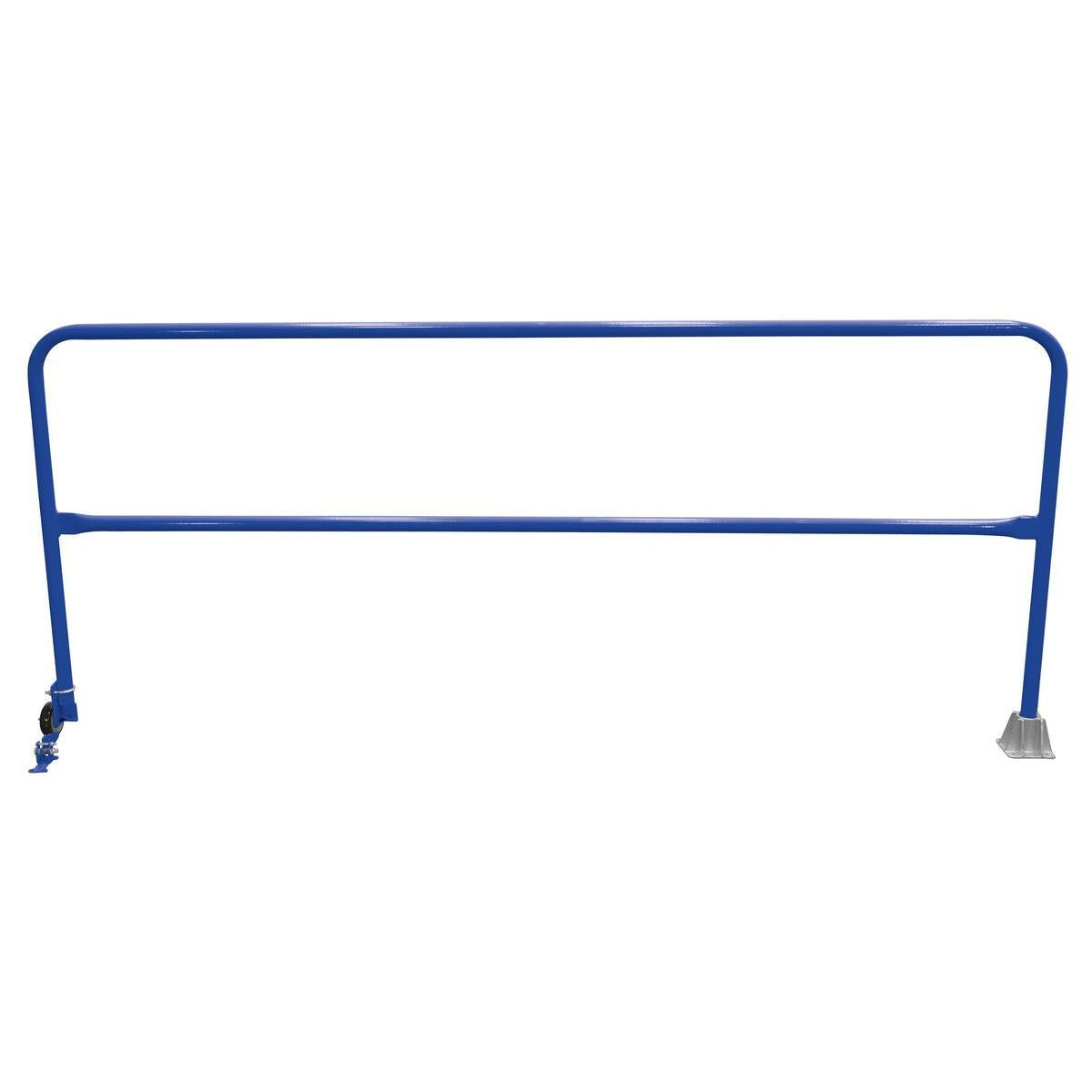

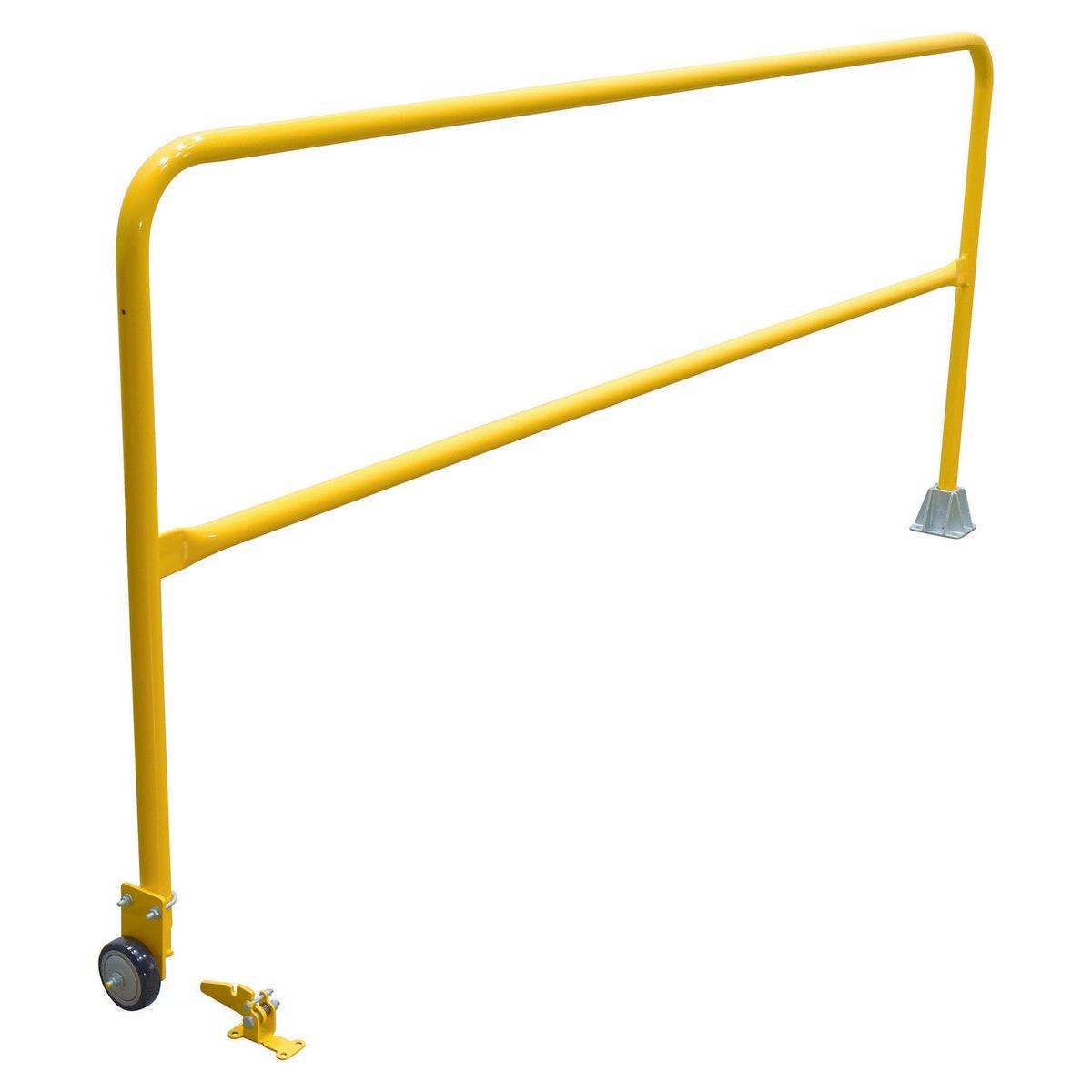

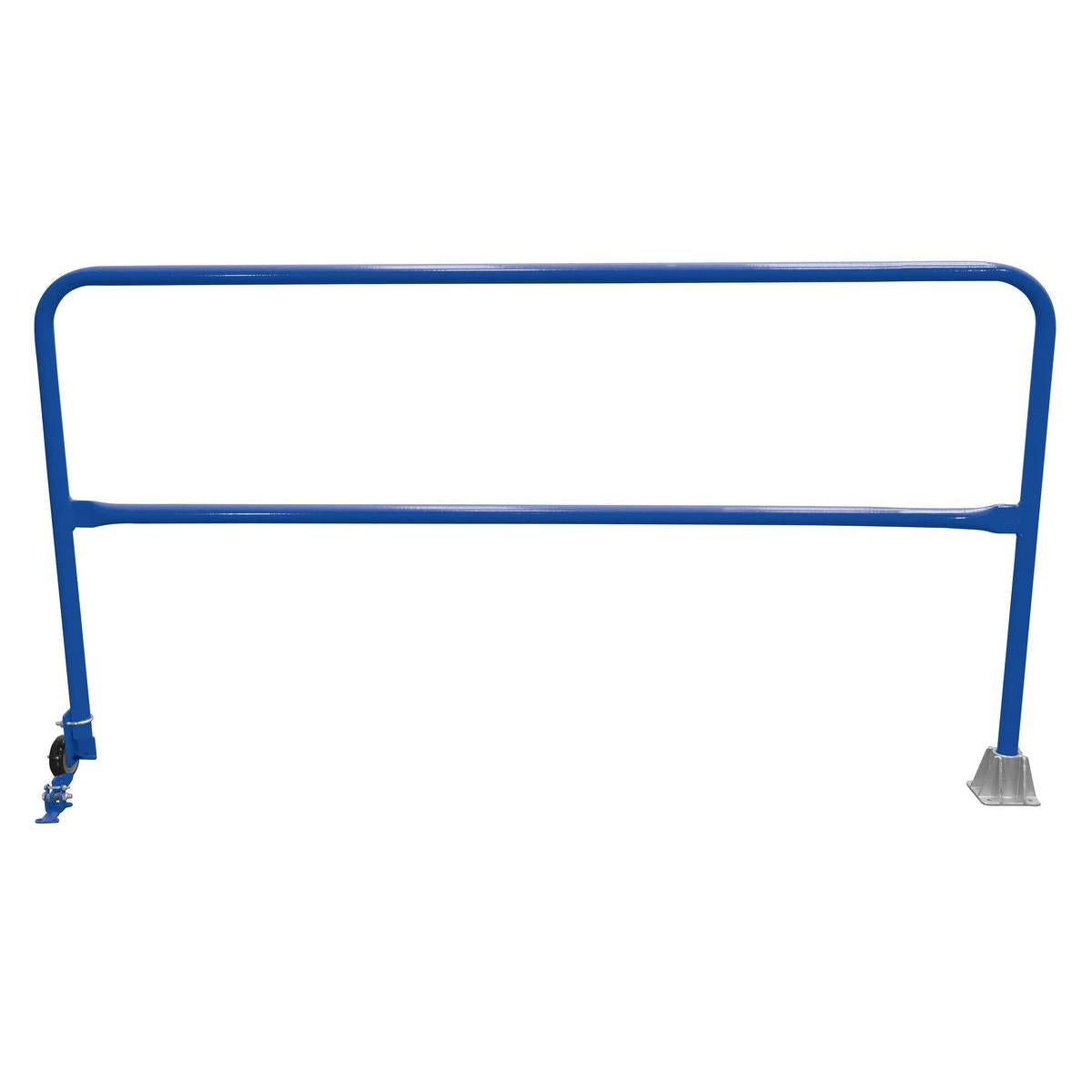

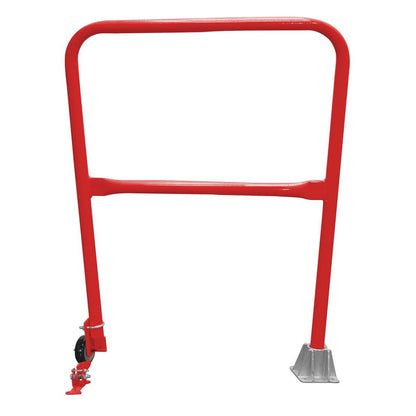

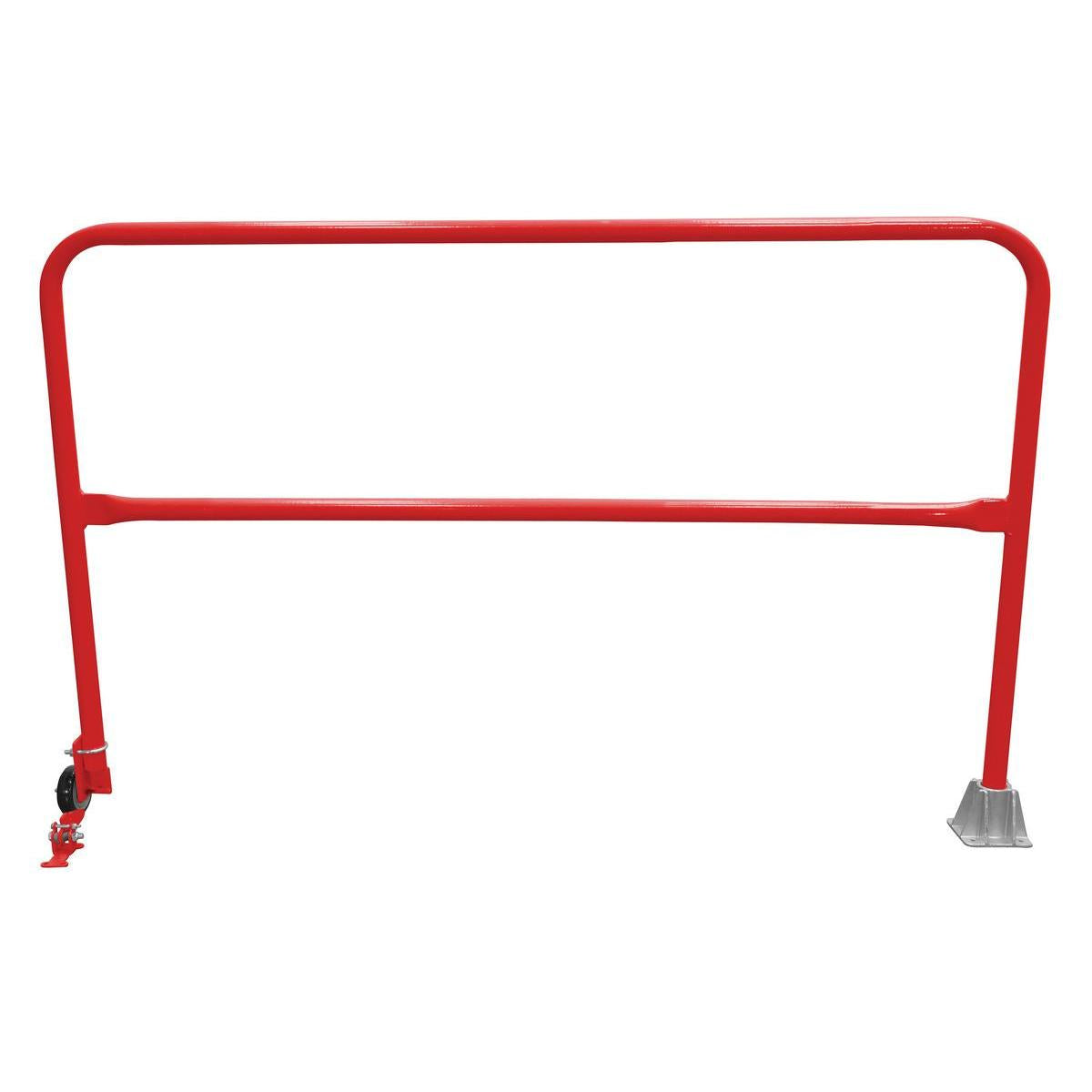

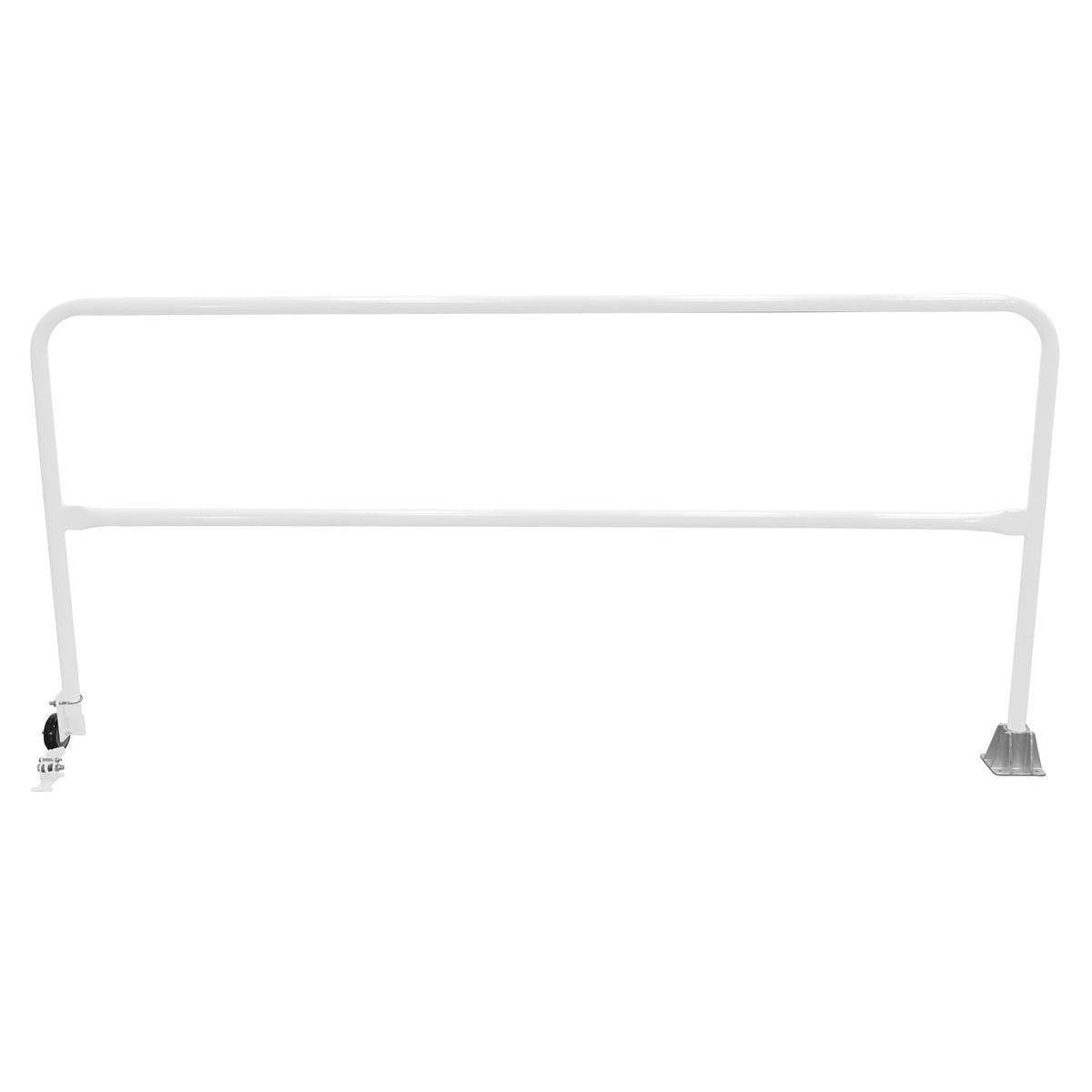

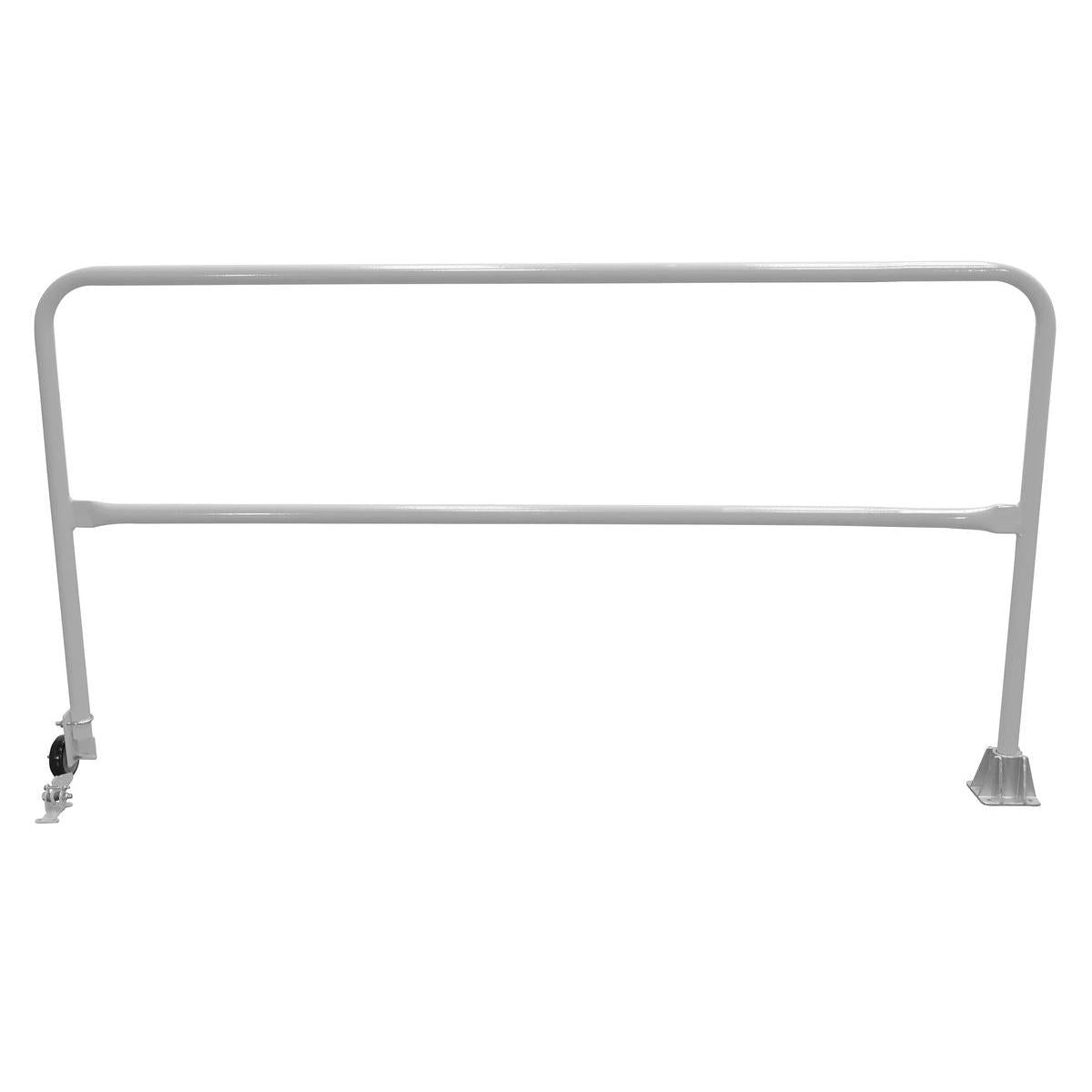

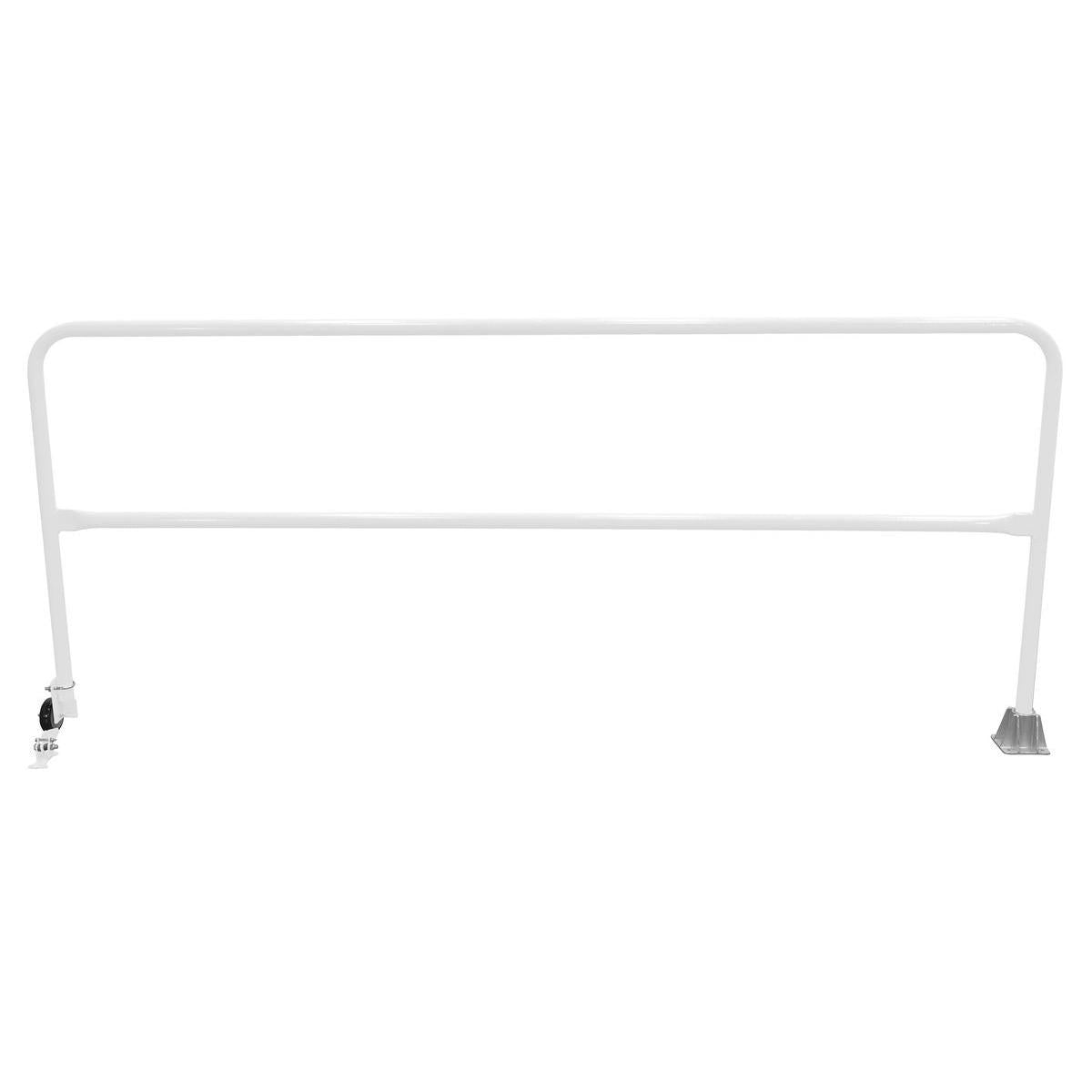

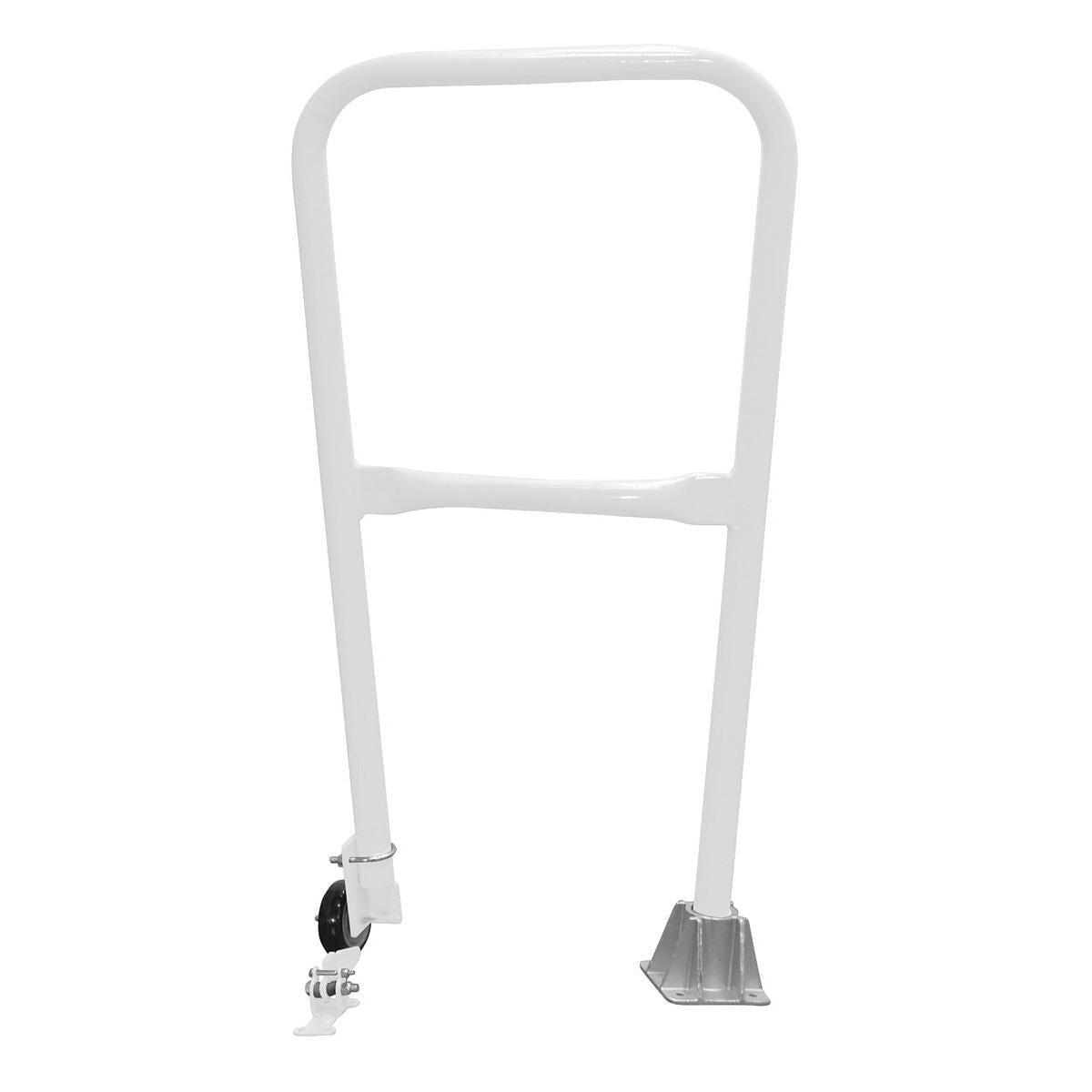

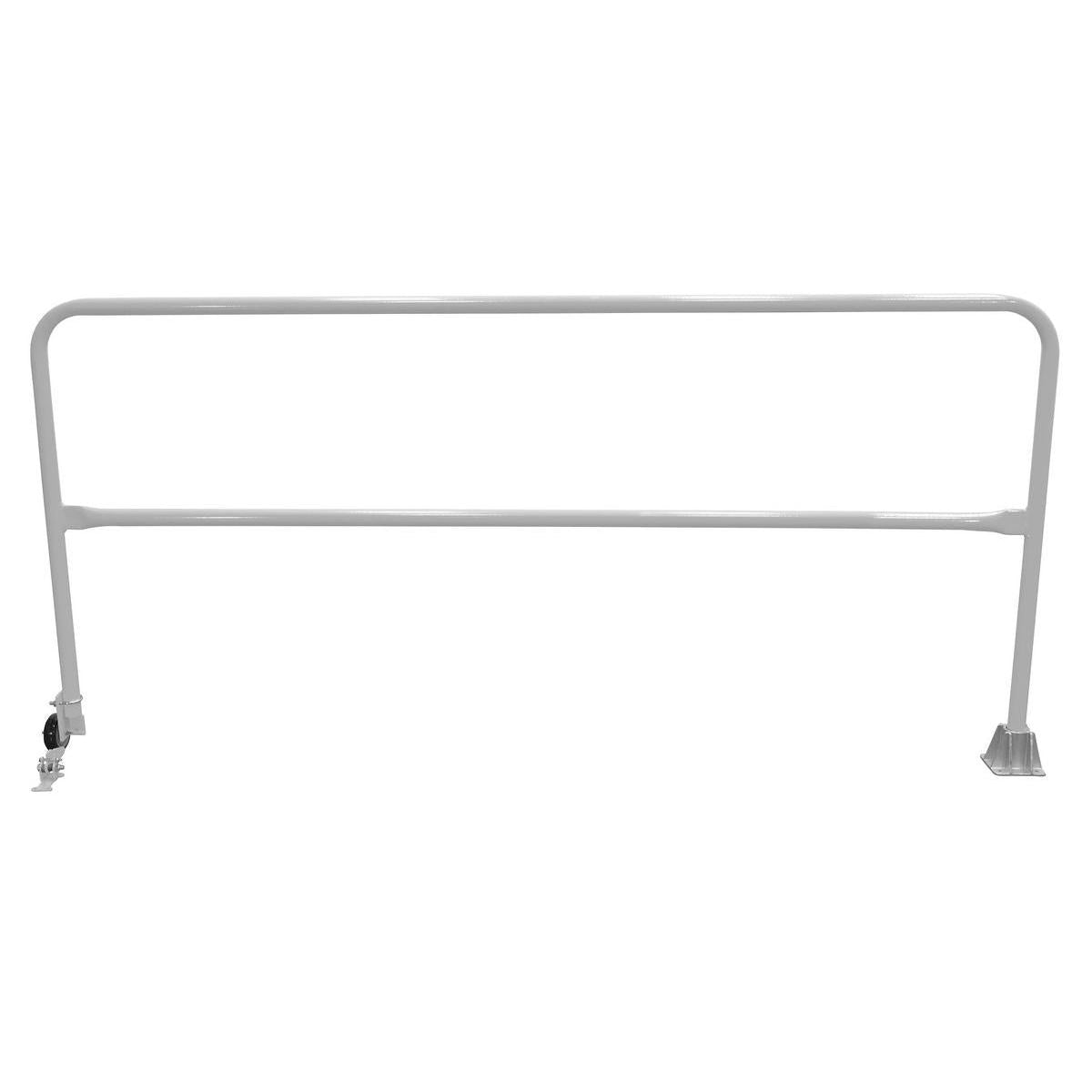

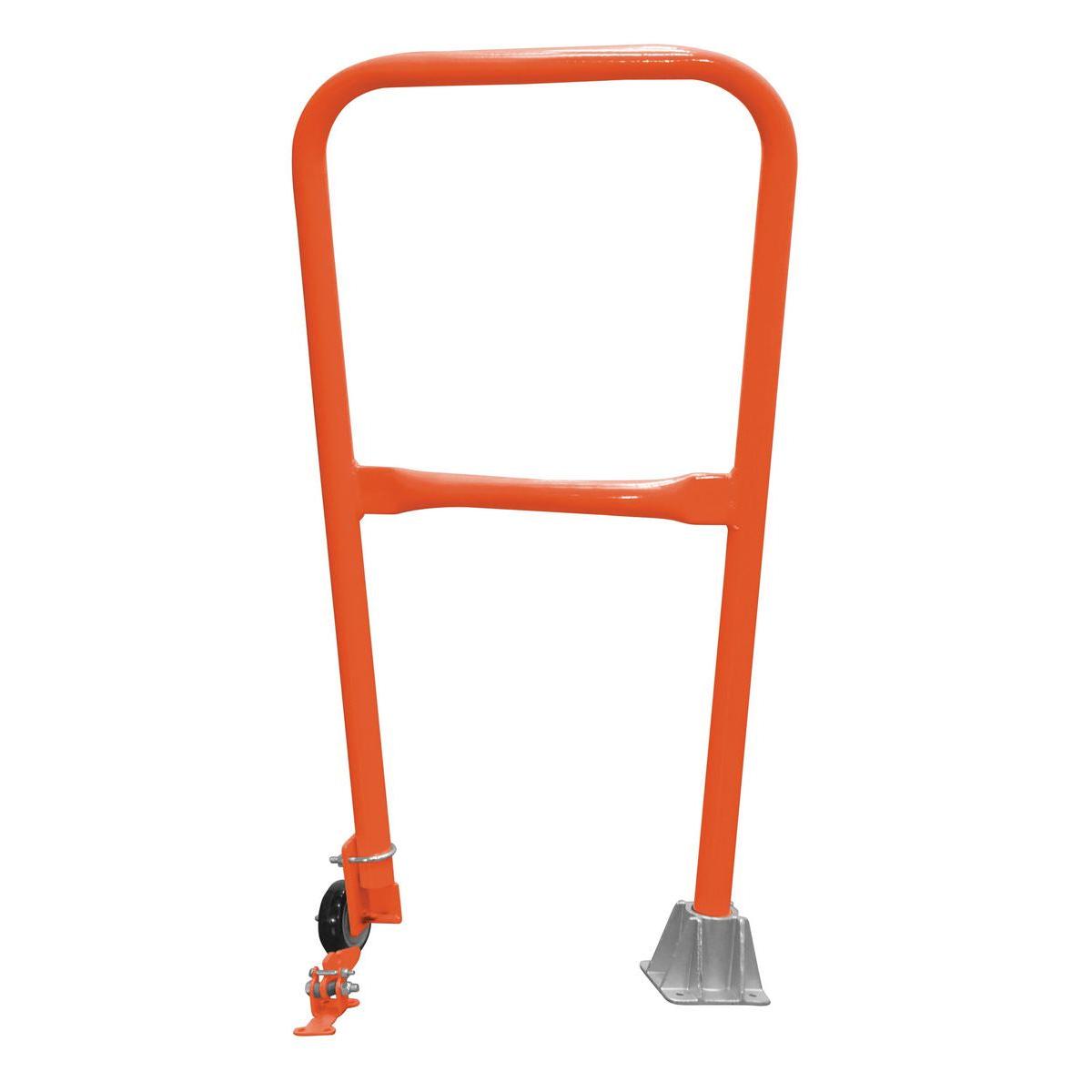

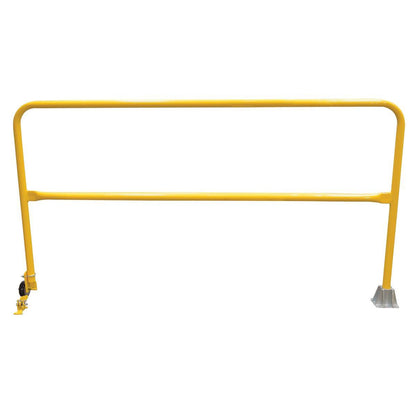

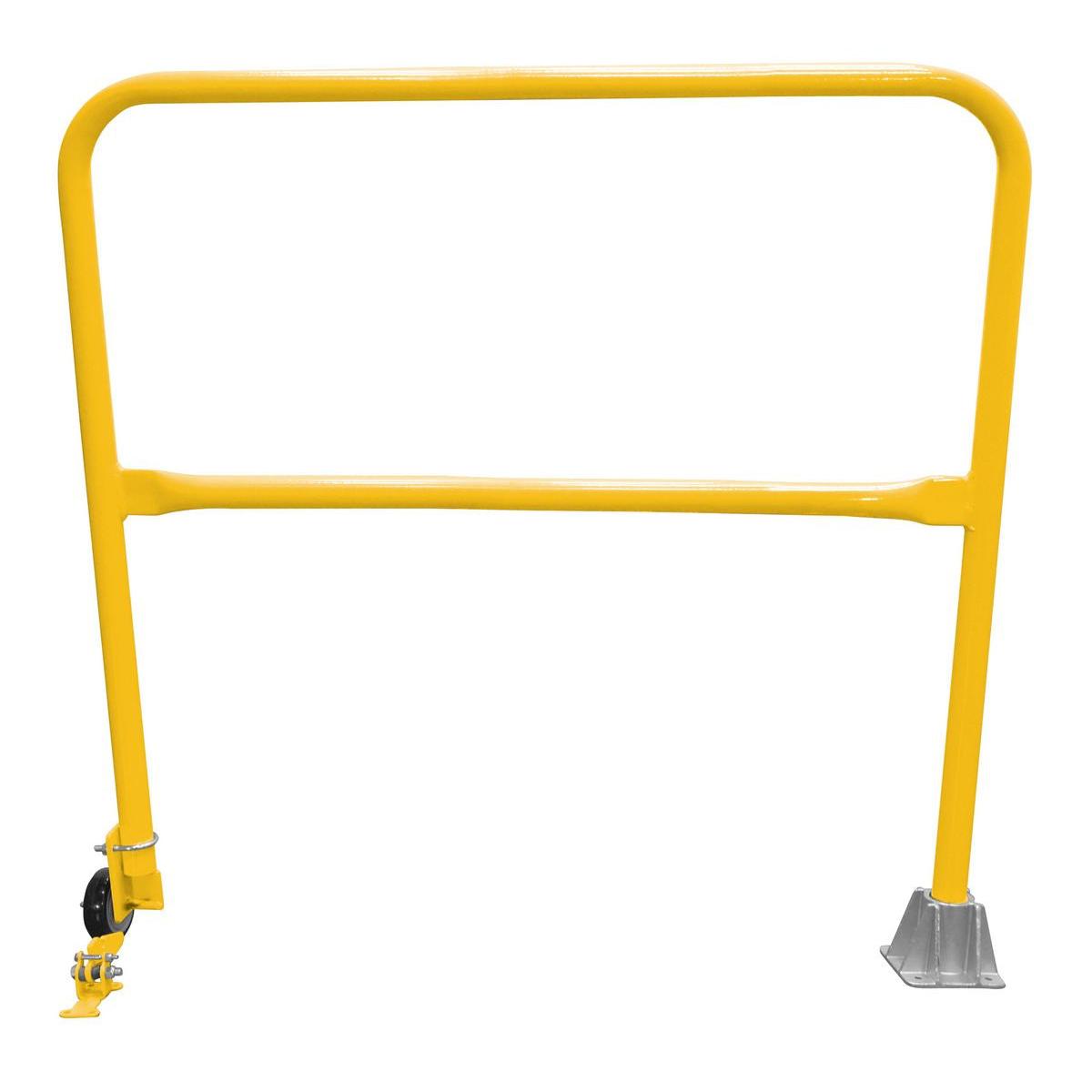

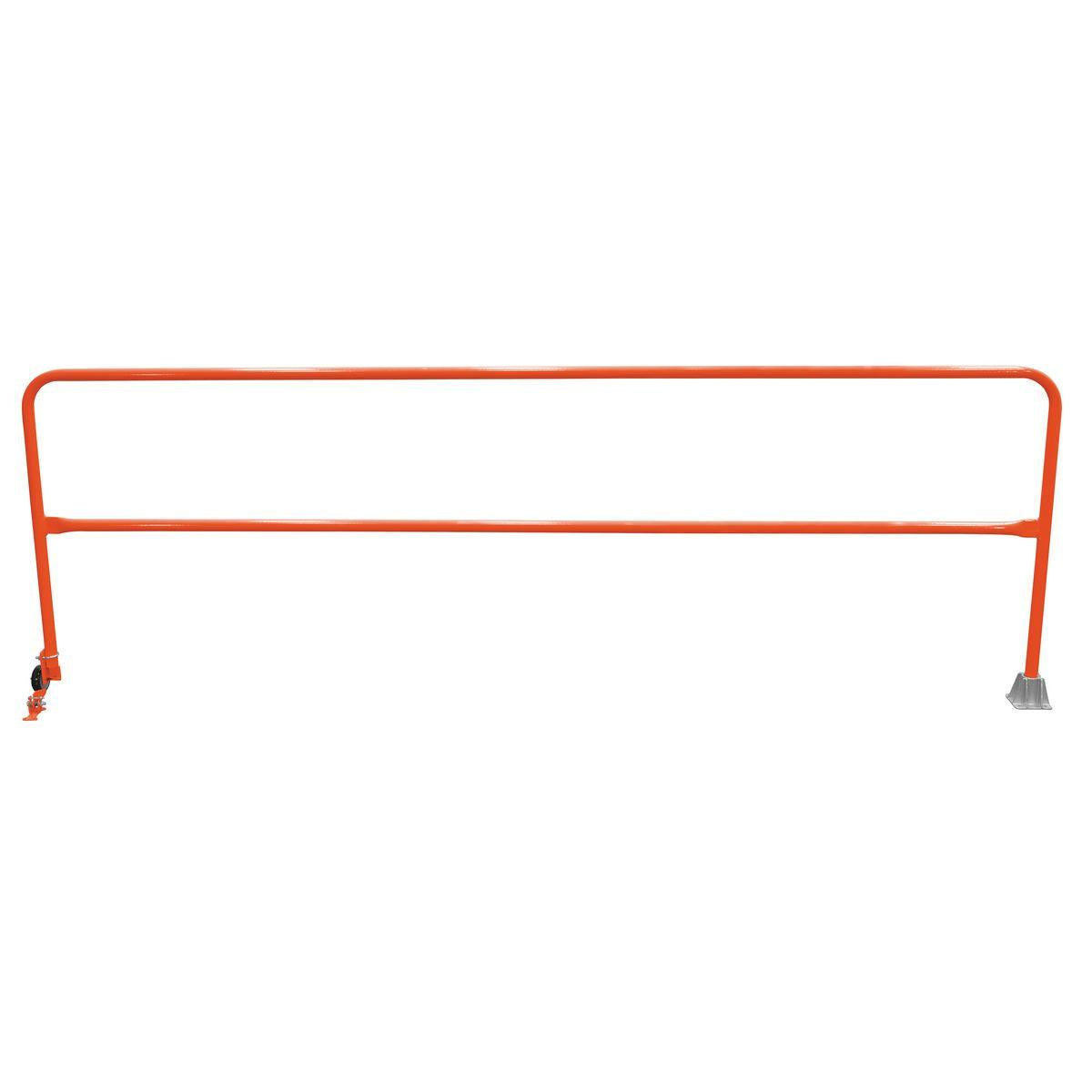

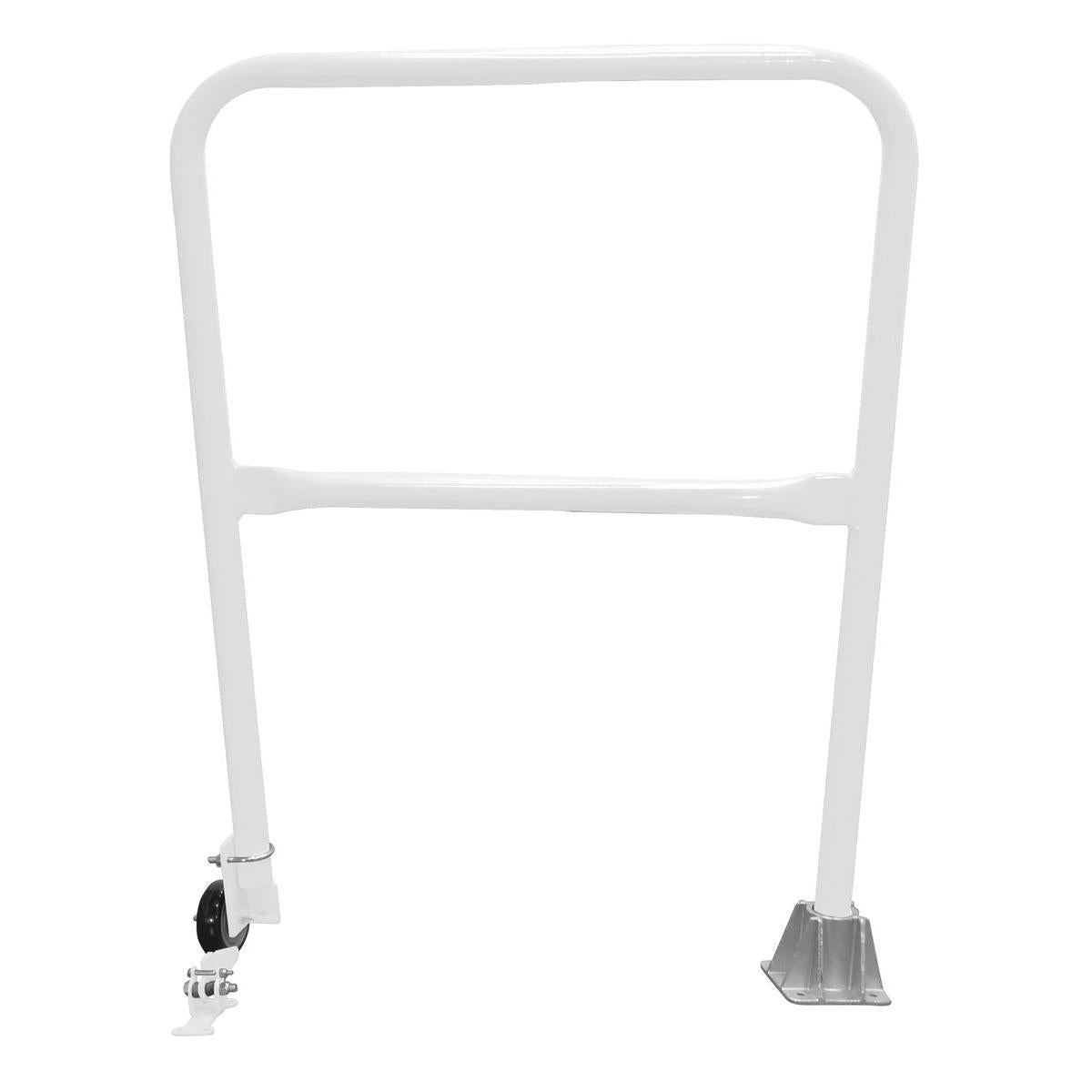

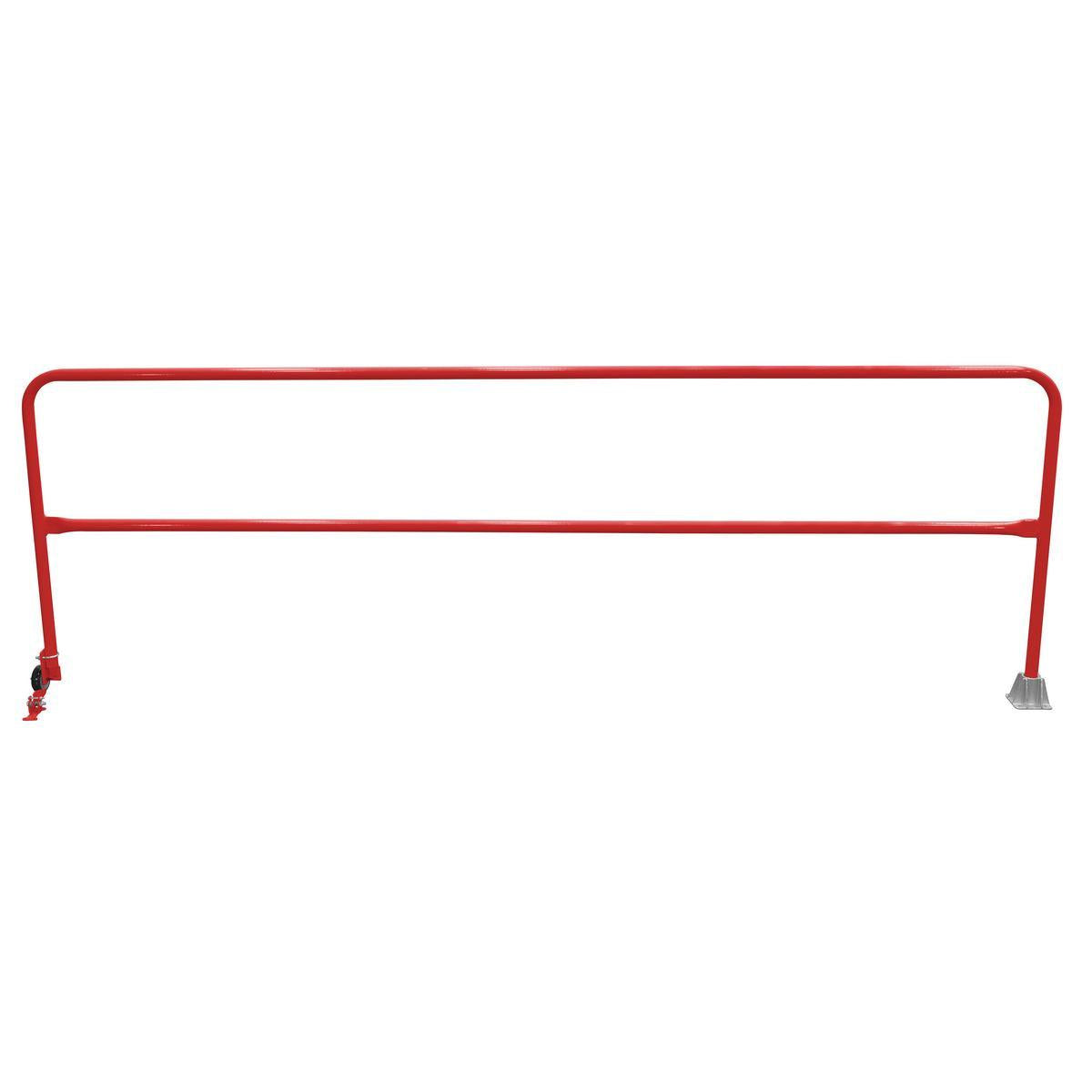

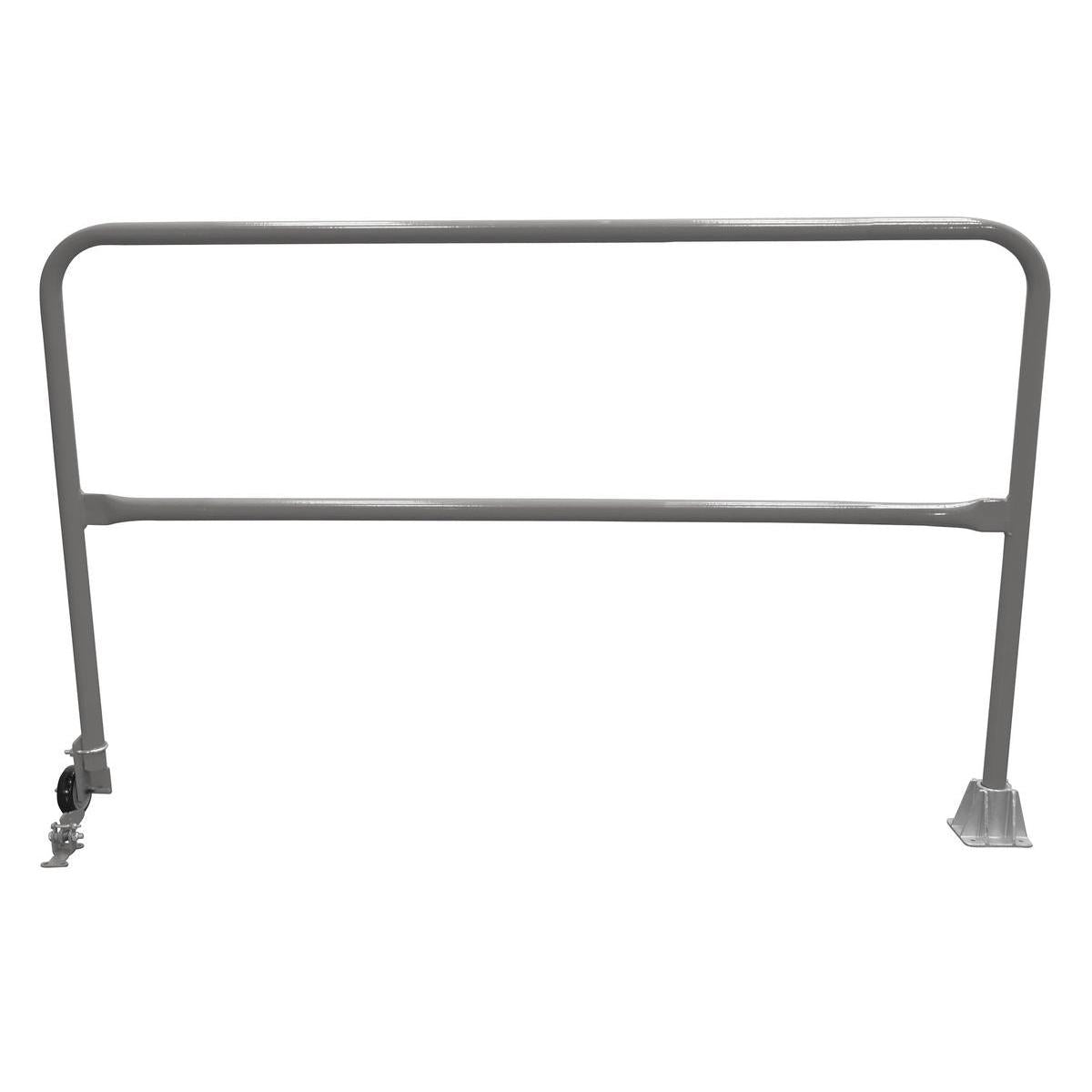

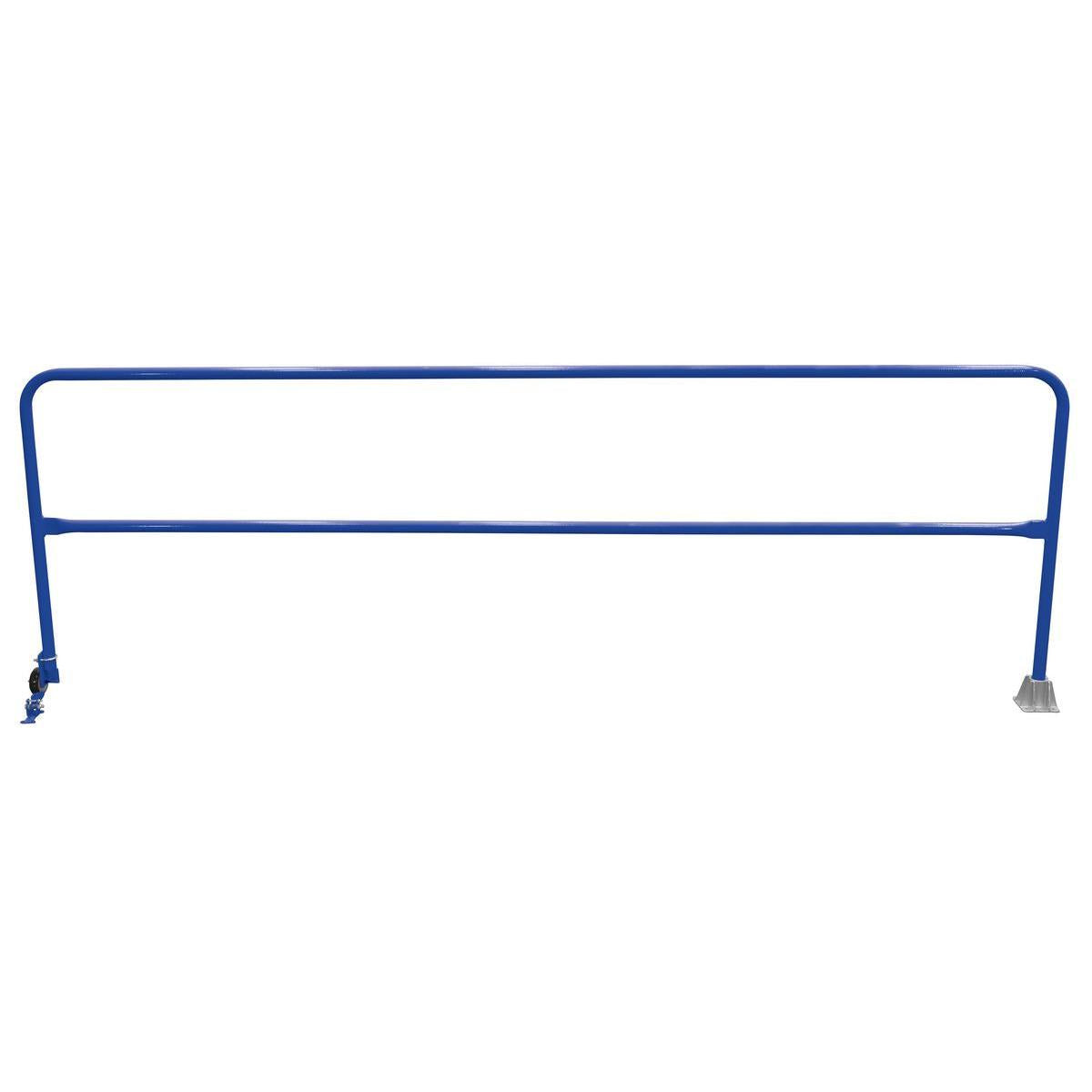

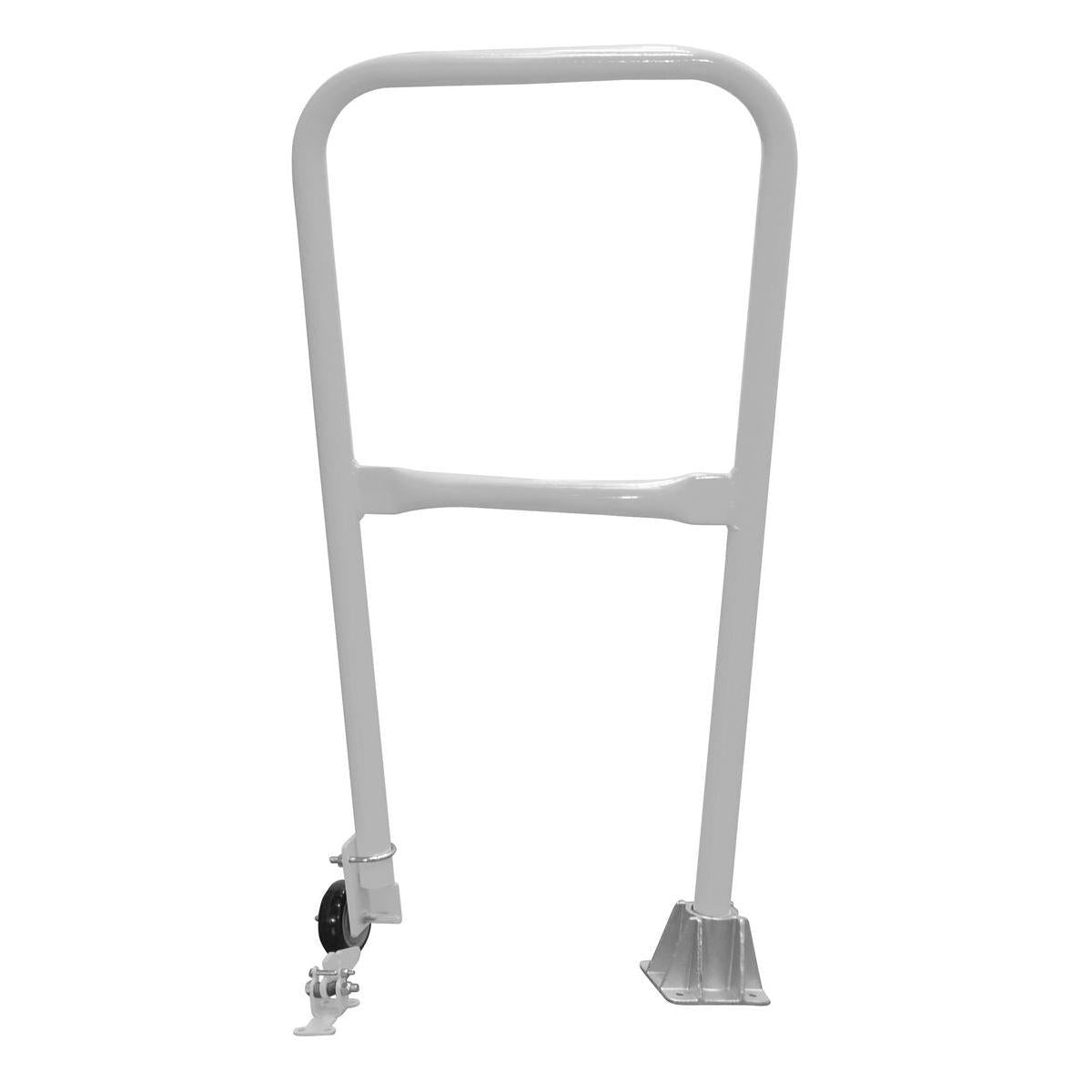

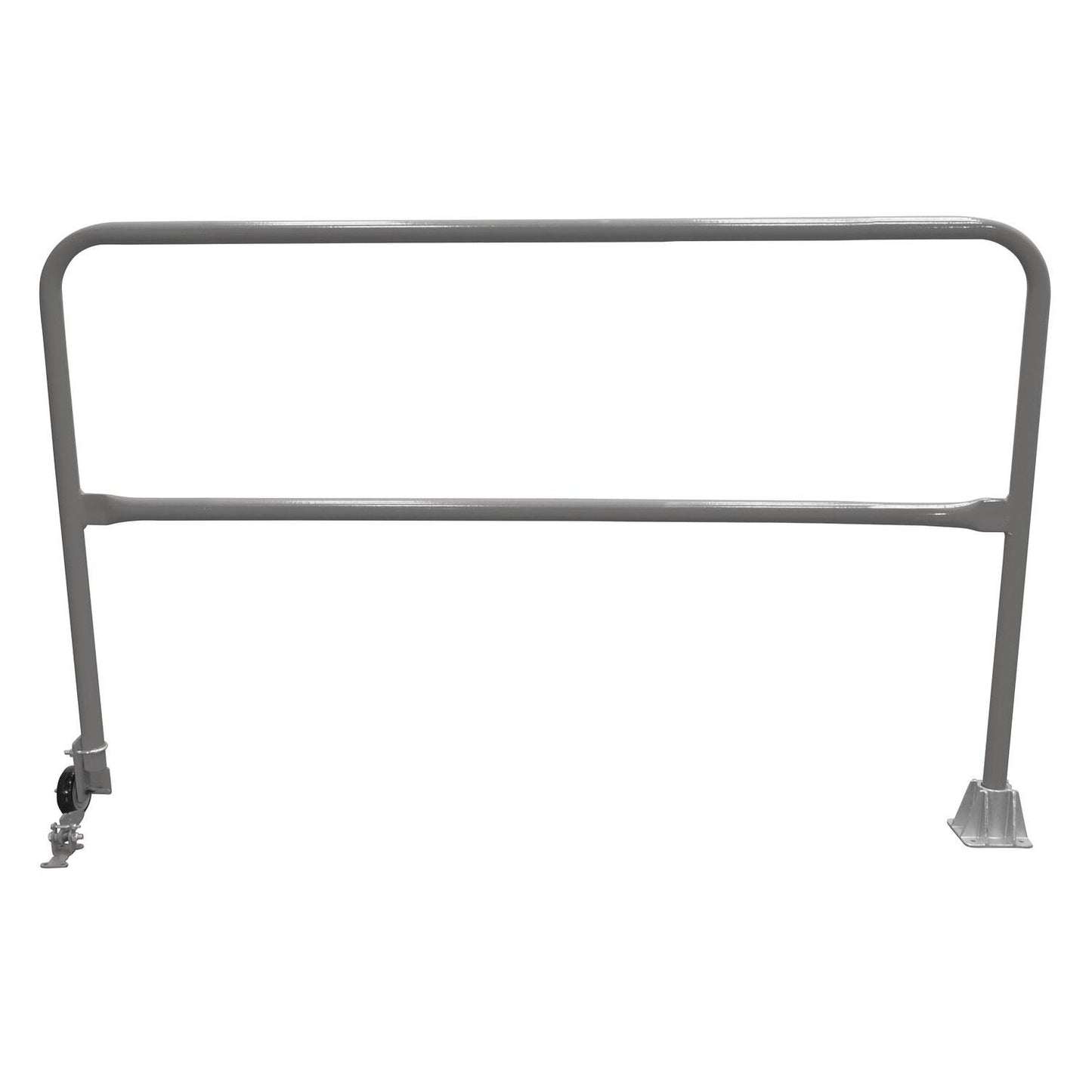

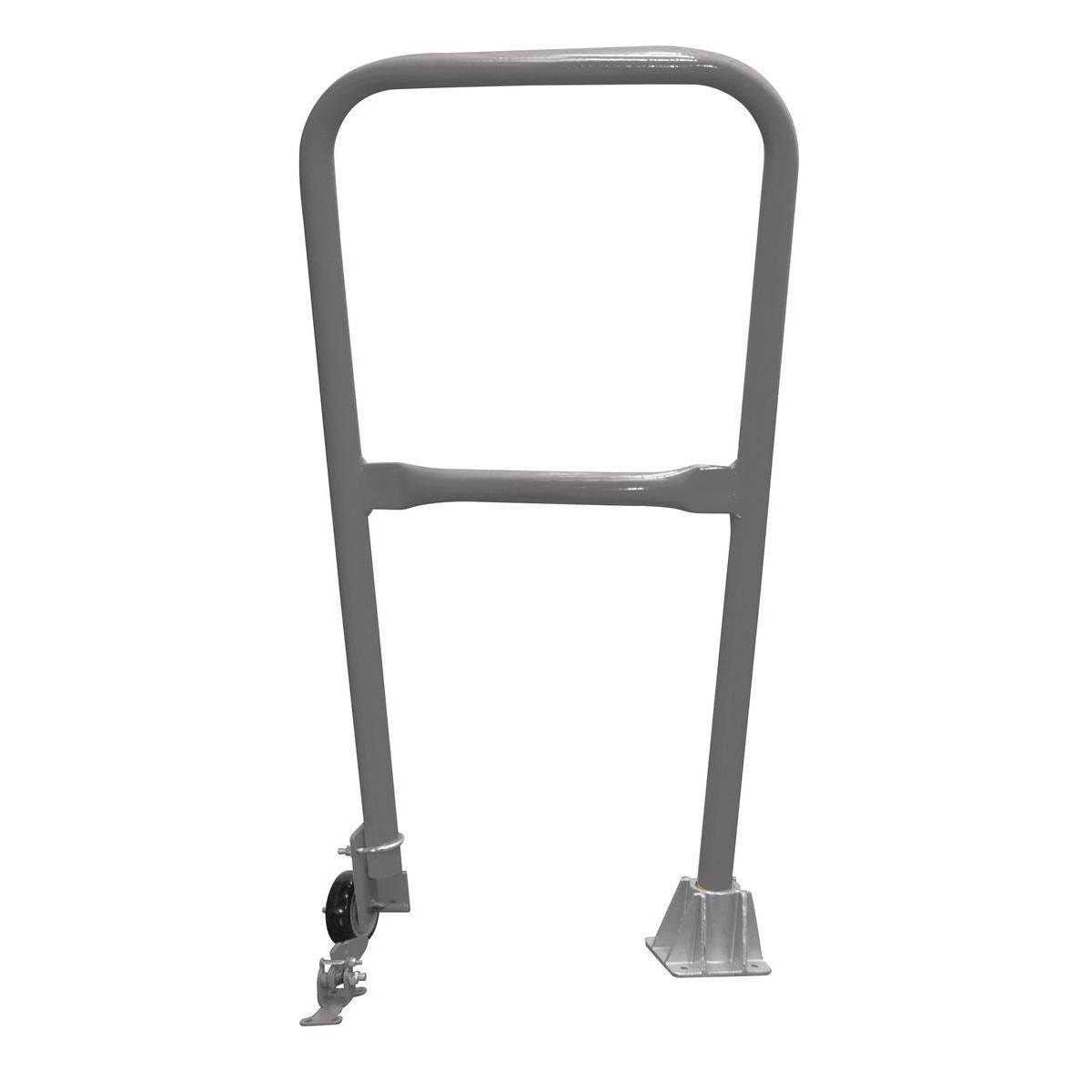

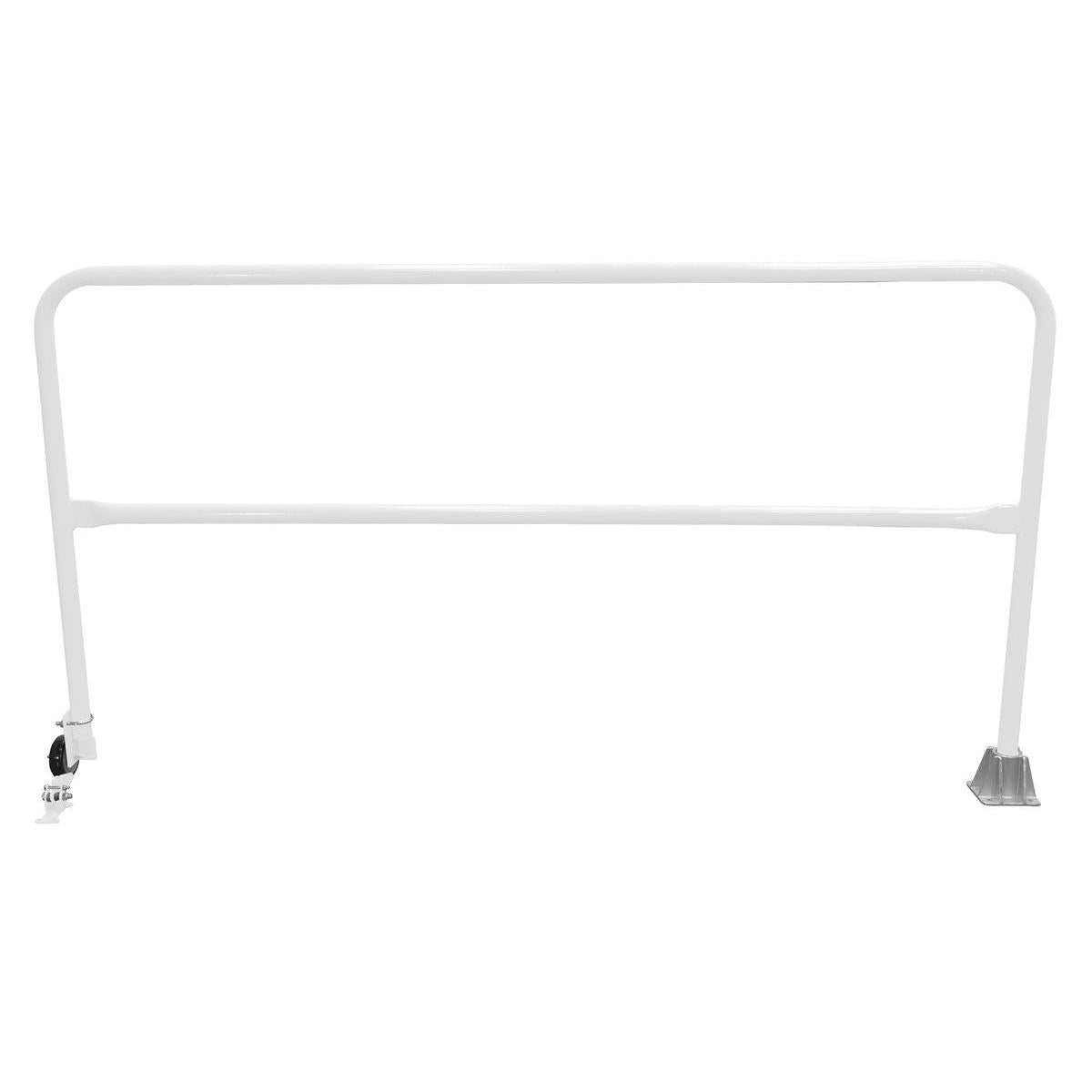

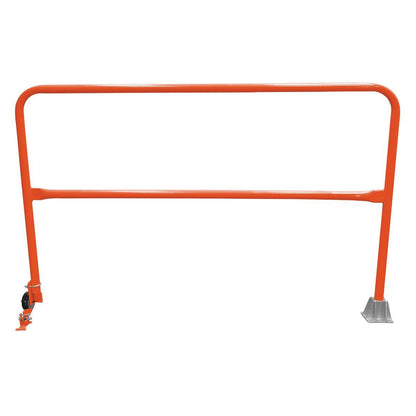

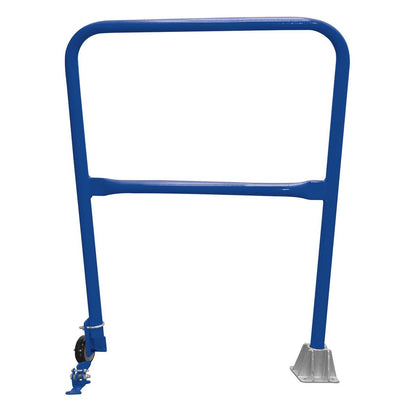

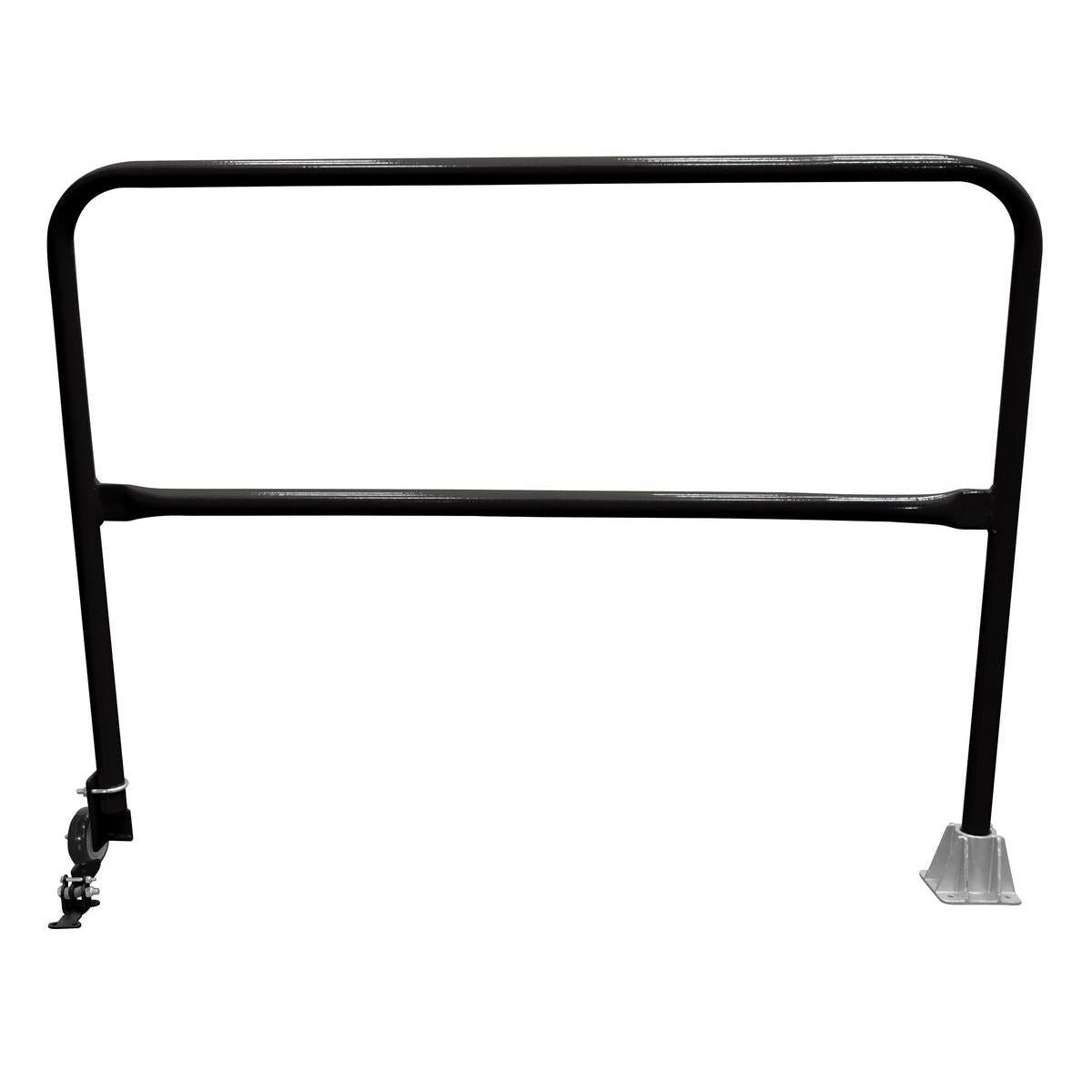

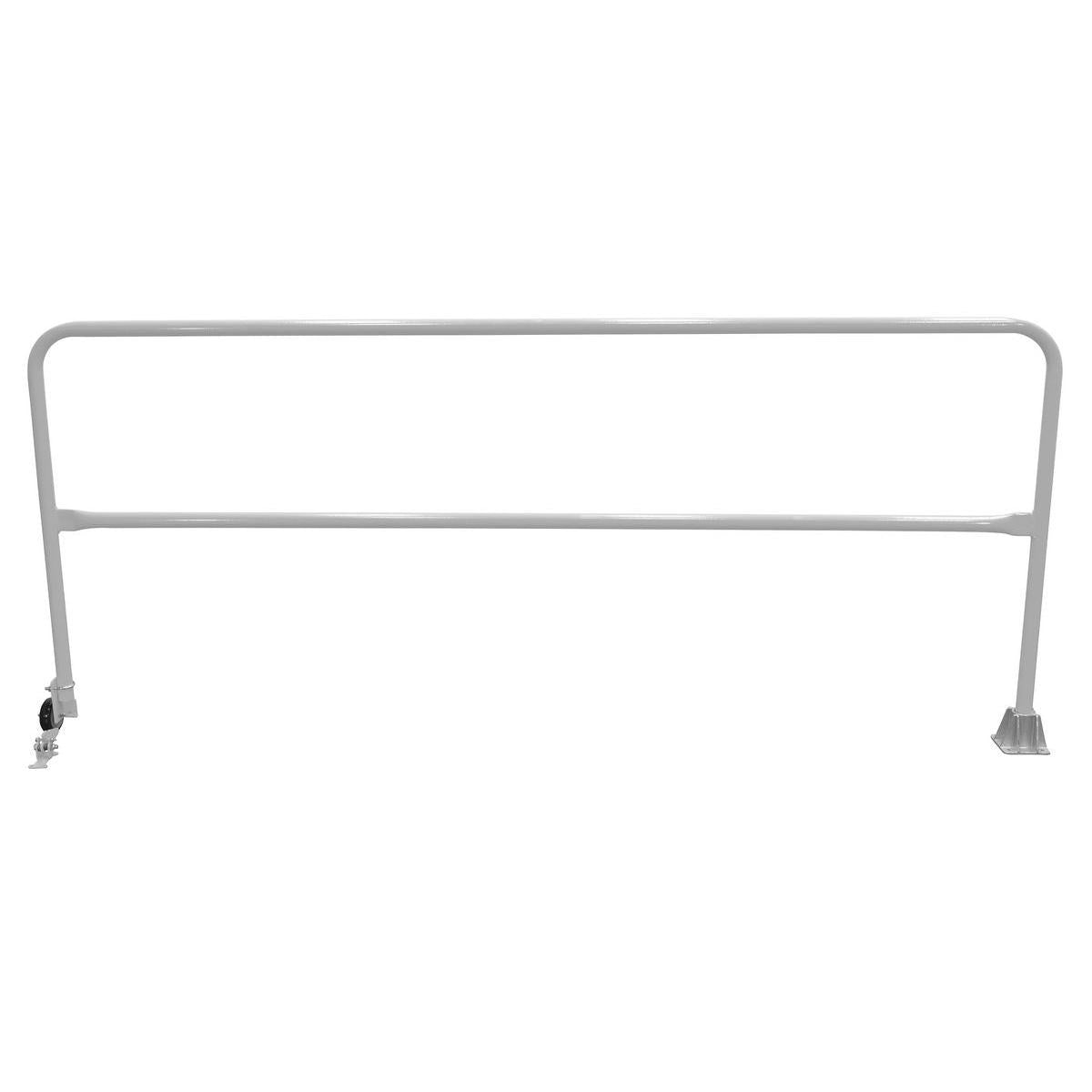

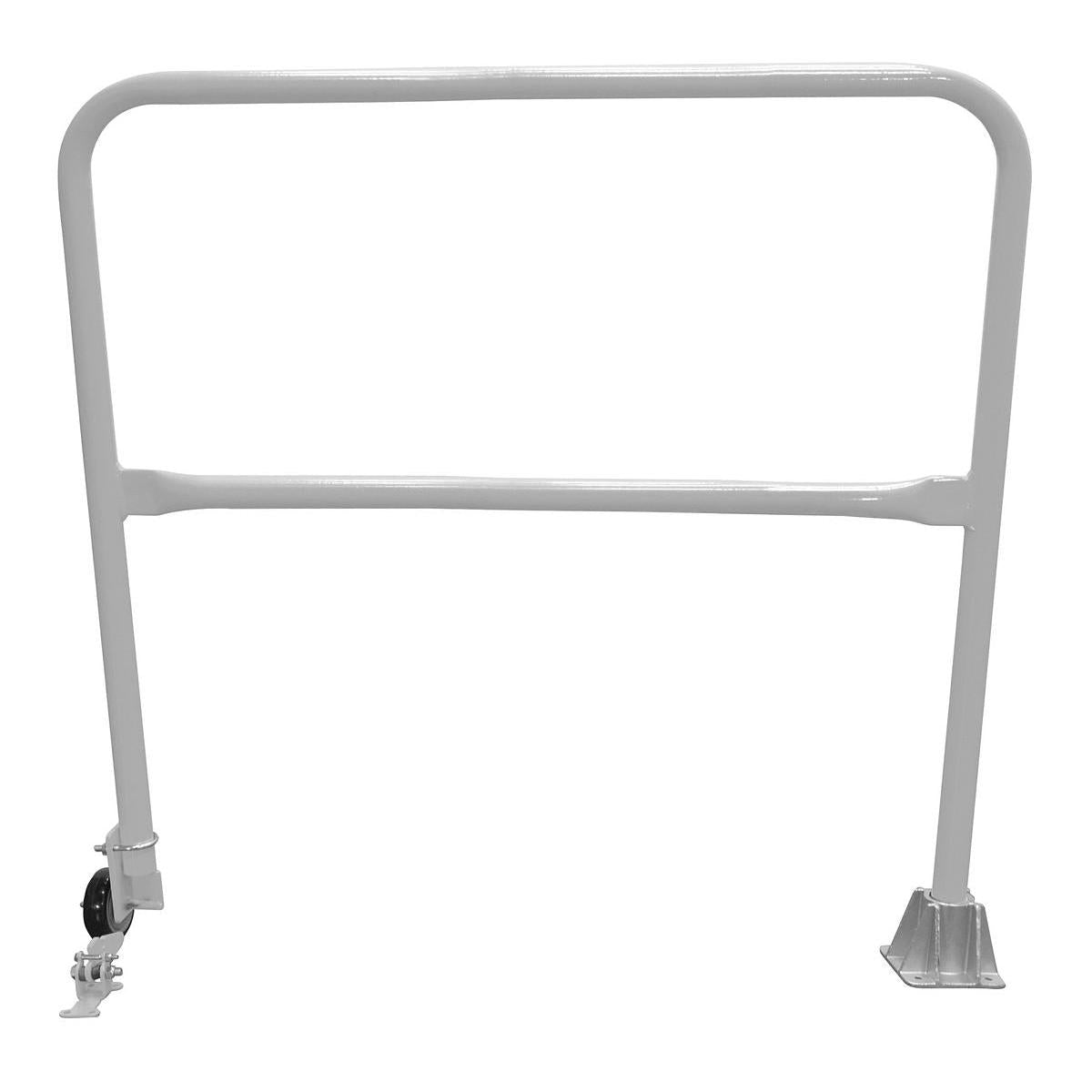

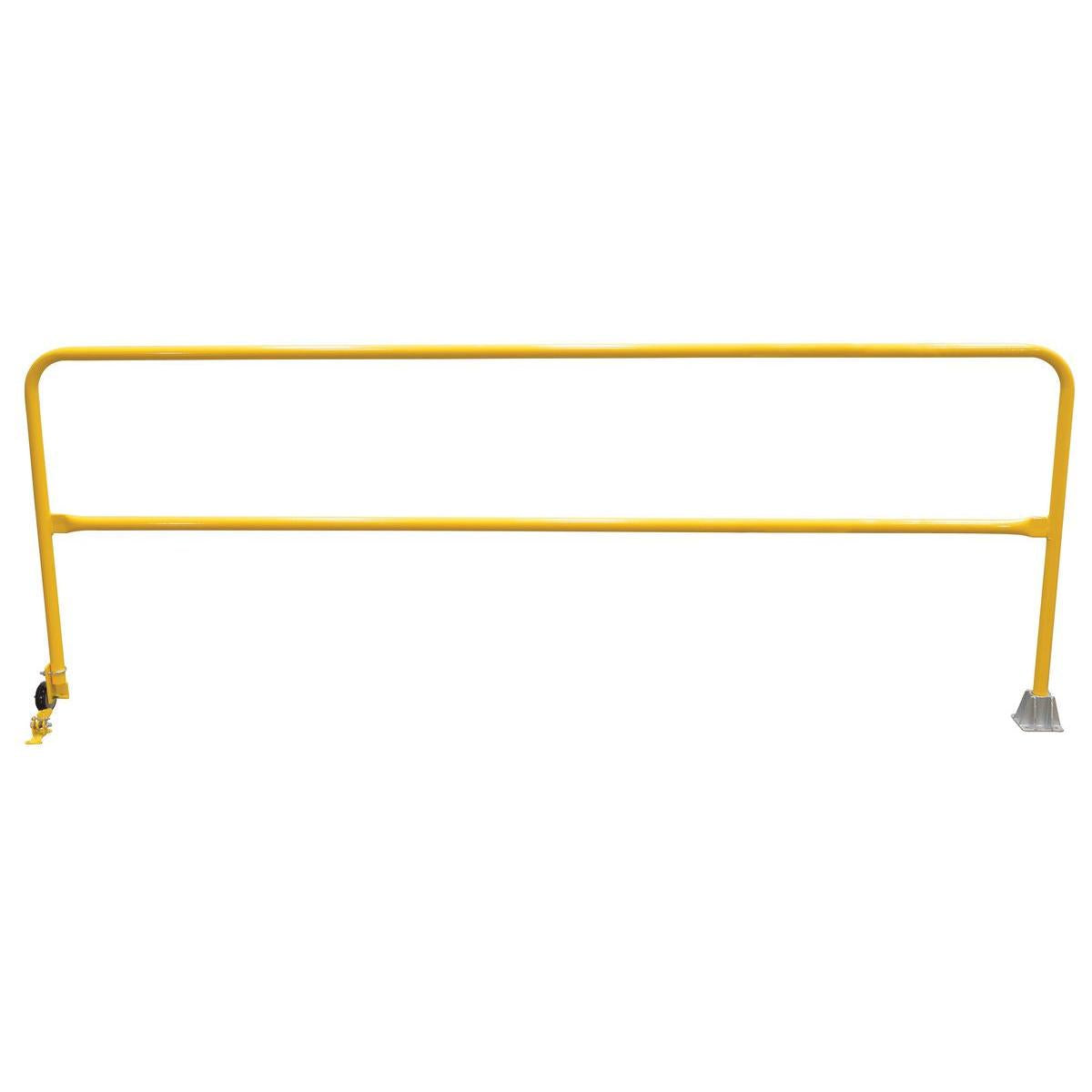

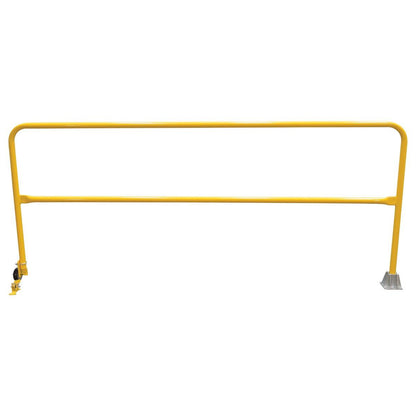

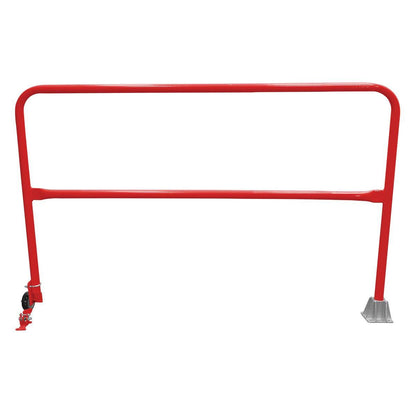

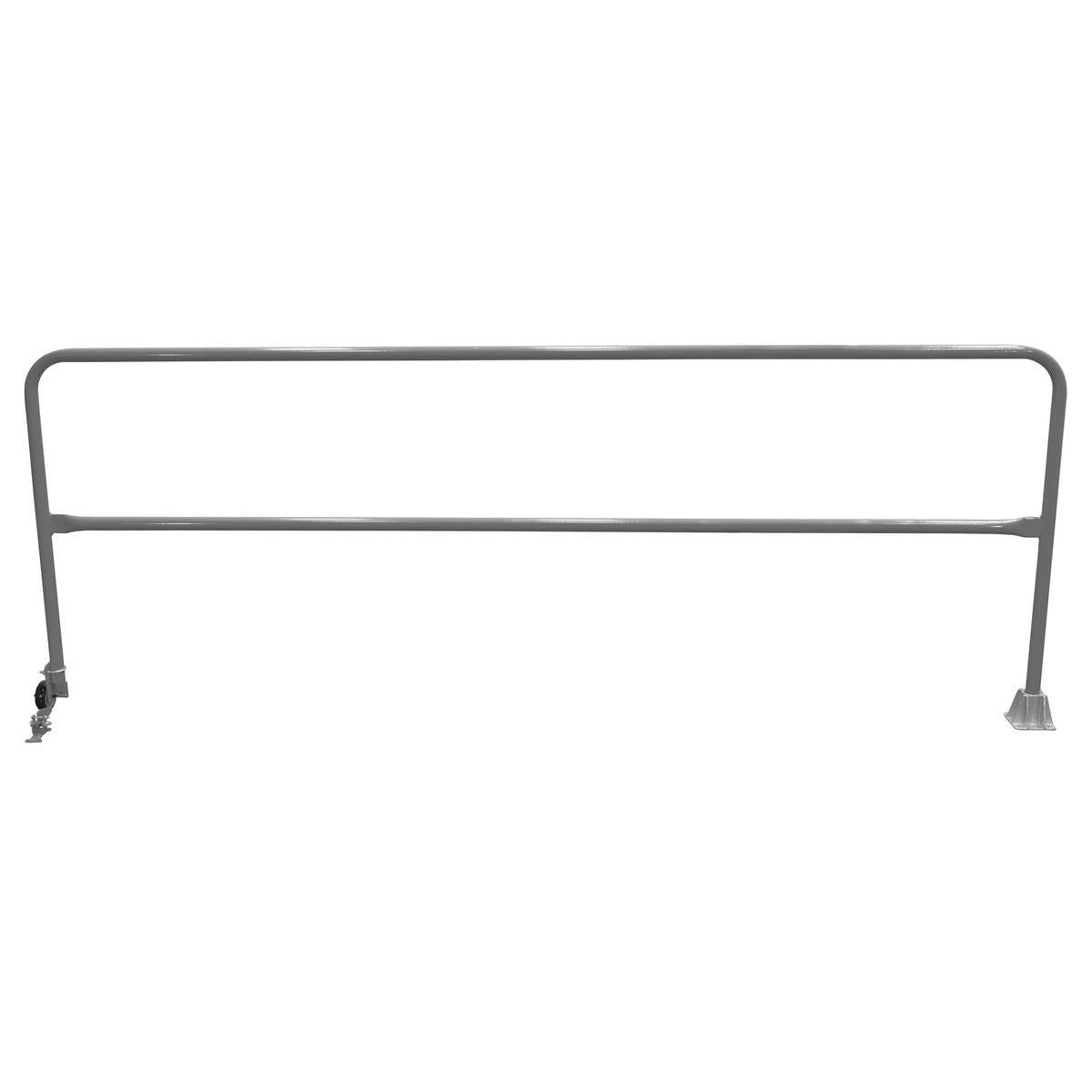

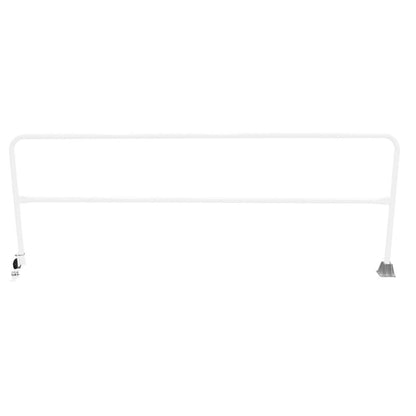

Steel Dock Safety Swing Gates

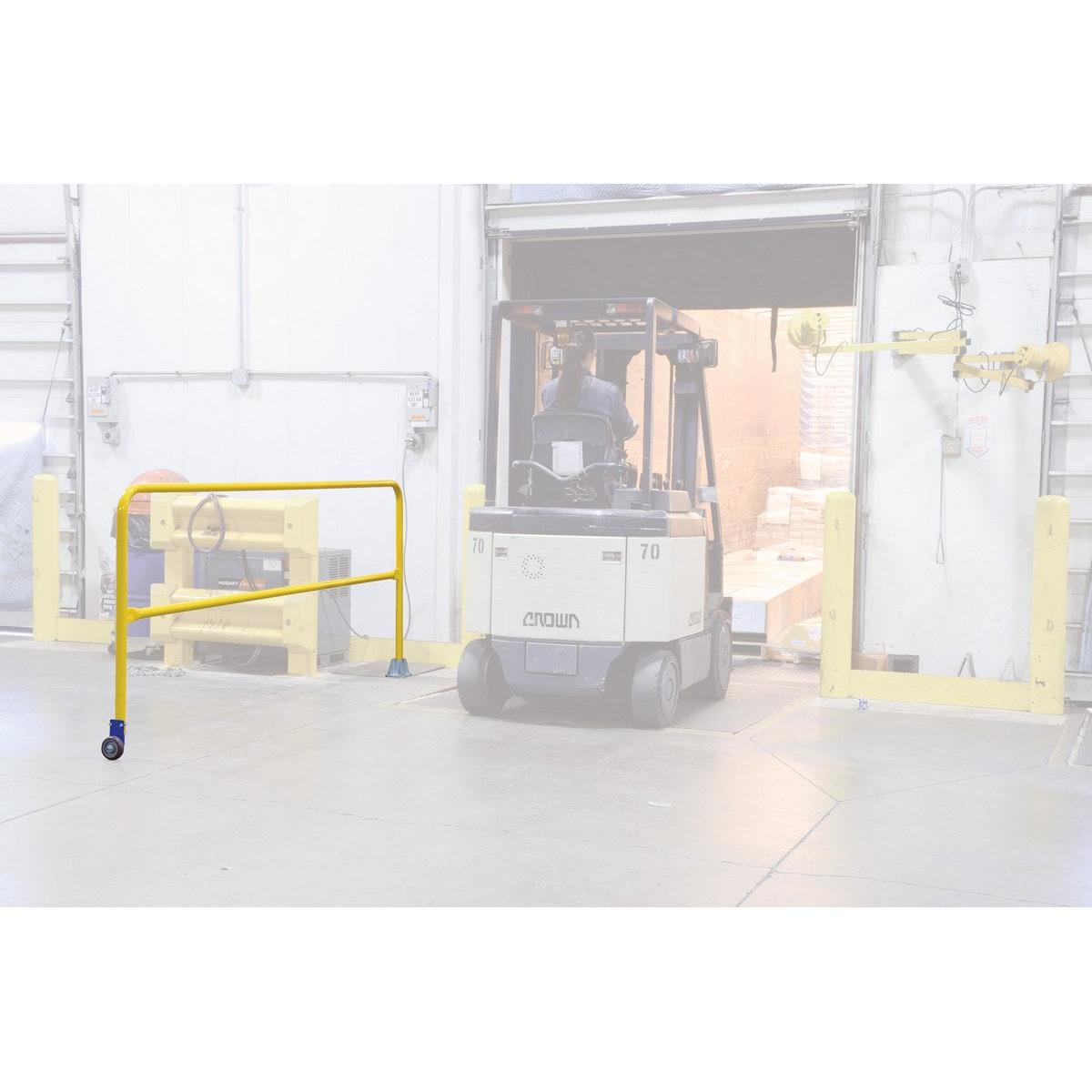

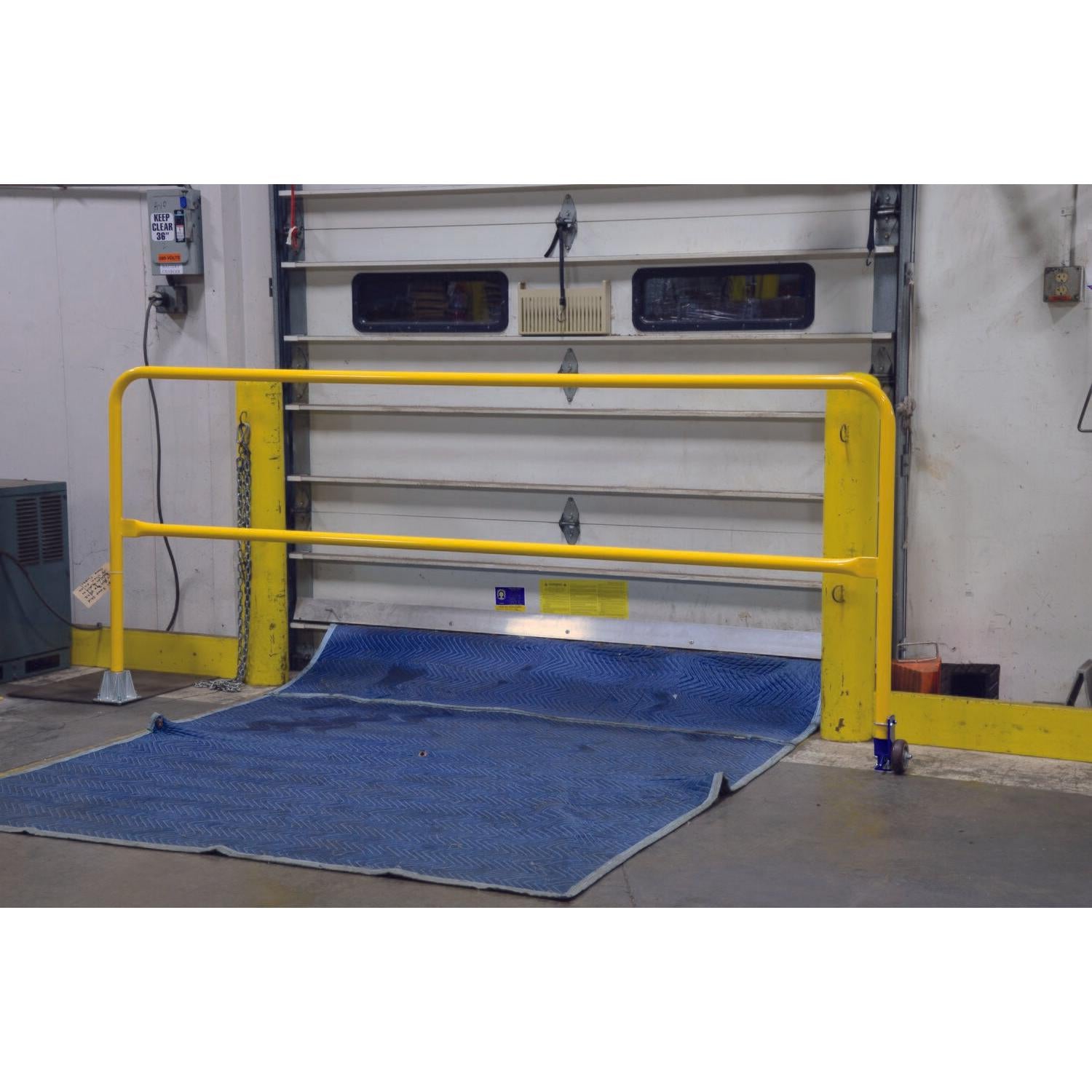

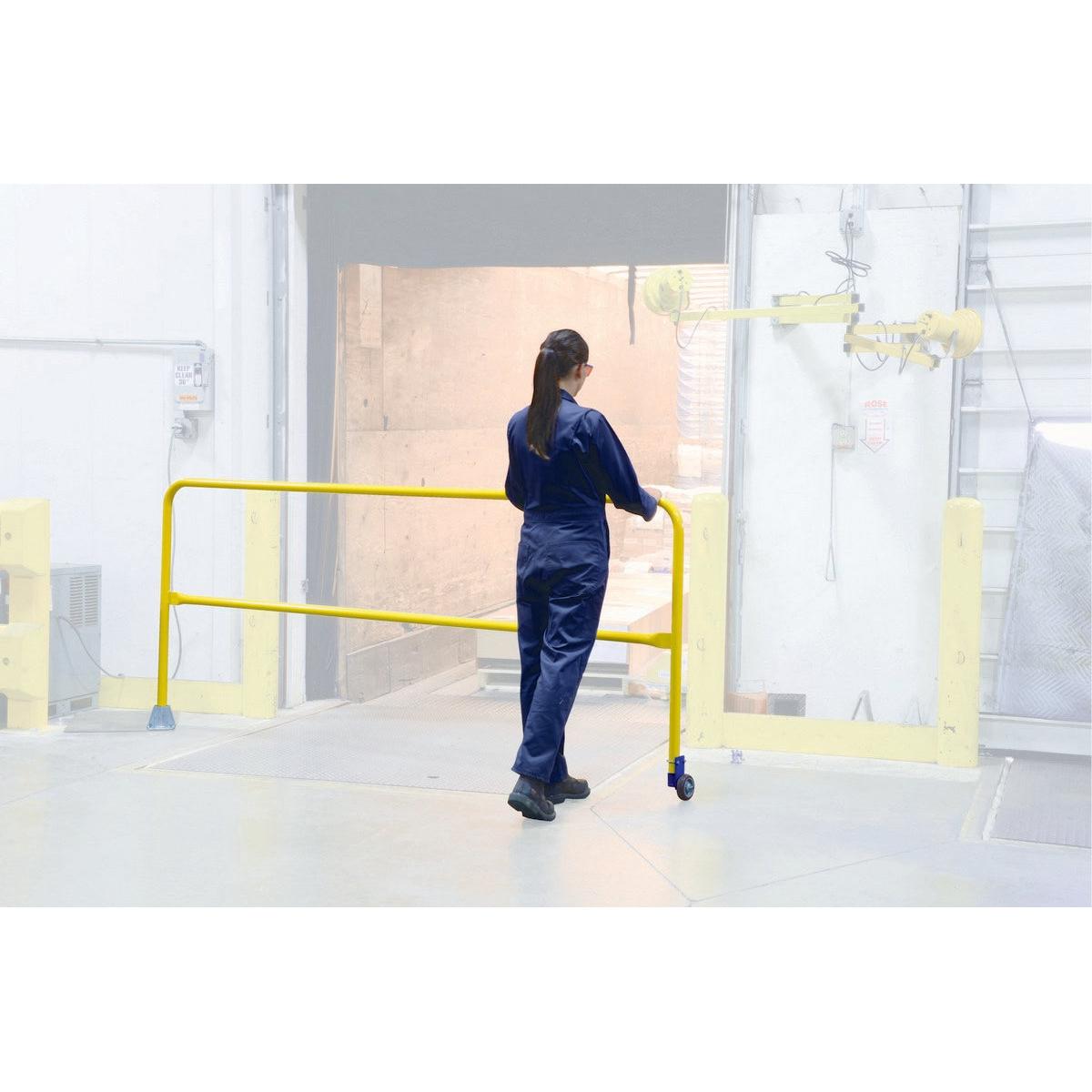

Steel Dock Safety Swing Gates provide a cost-effective and reliable way to prevent falls from docks, mezzanines, and other elevated work areas. Designed for both safety and convenience, these gates swing easily out of the way when access is needed, then lock securely in place during operation to protect personnel from accidental falls.

Constructed from schedule 10 steel pipe for long-lasting durability, each gate features a top rail at 46-1/4" and a mid-rail at 25" to meet common safety requirements. The integrated 4" poly-on-poly wheel allows smooth movement, while the foot release lock ensures the gate stays firmly positioned when closed.

Features & Benefits:

• Fall Protection – Safeguards open edges on docks, mezzanines, and floor openings
• Durable Steel Construction – Made from schedule 10 pipe (1-5/8" O.D.) for strength and longevity
• Smooth Operation – 4" poly-on-poly wheel enables easy swinging motion

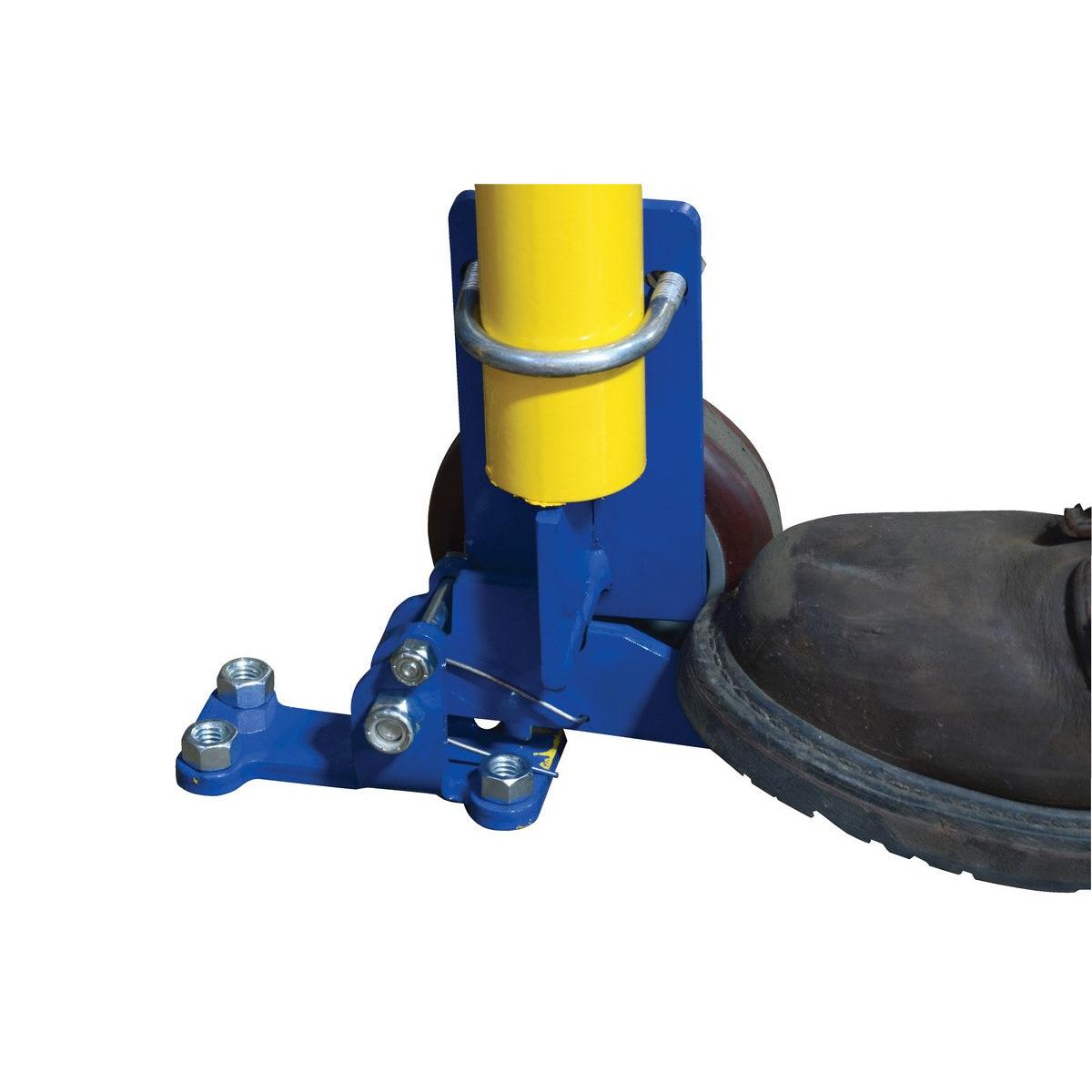

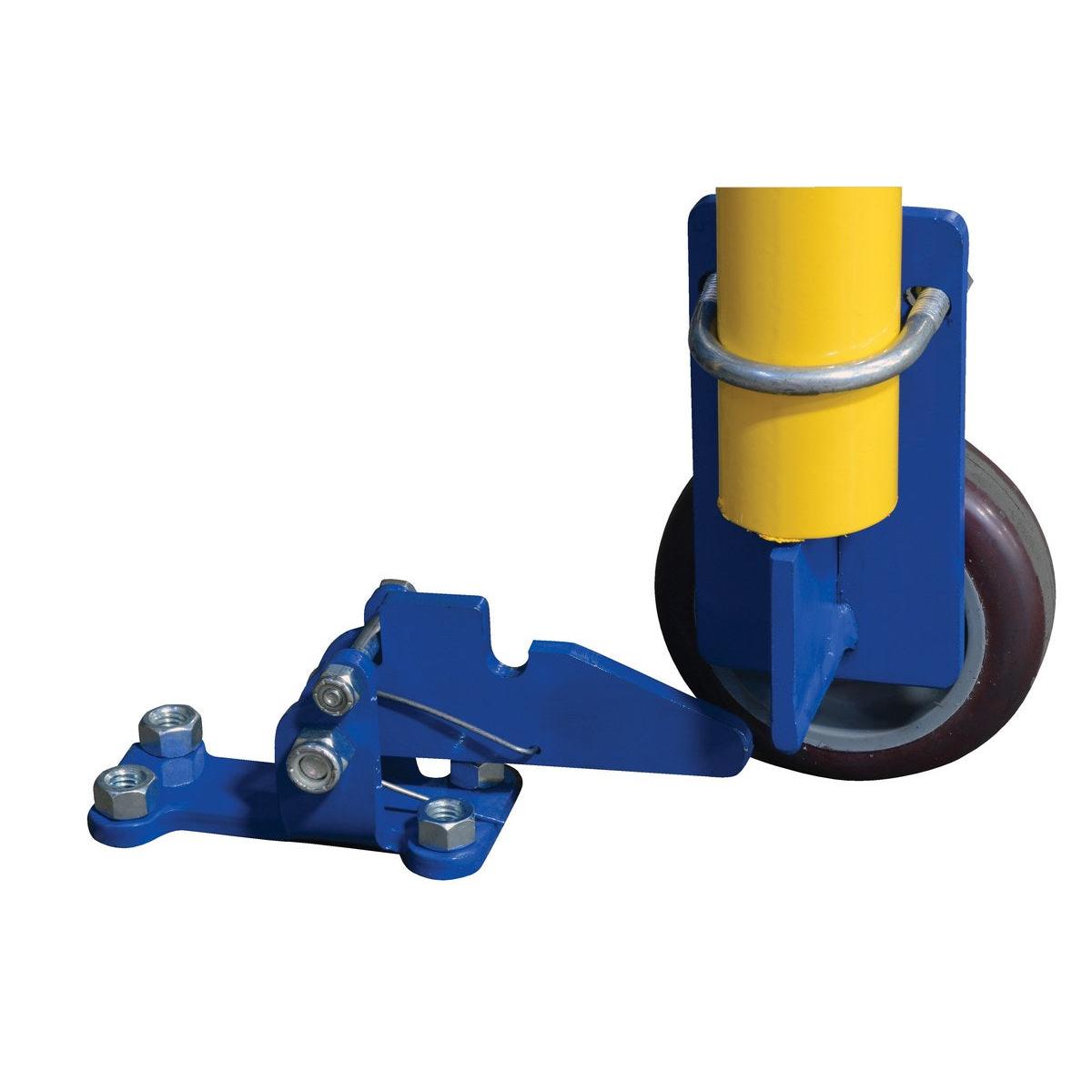

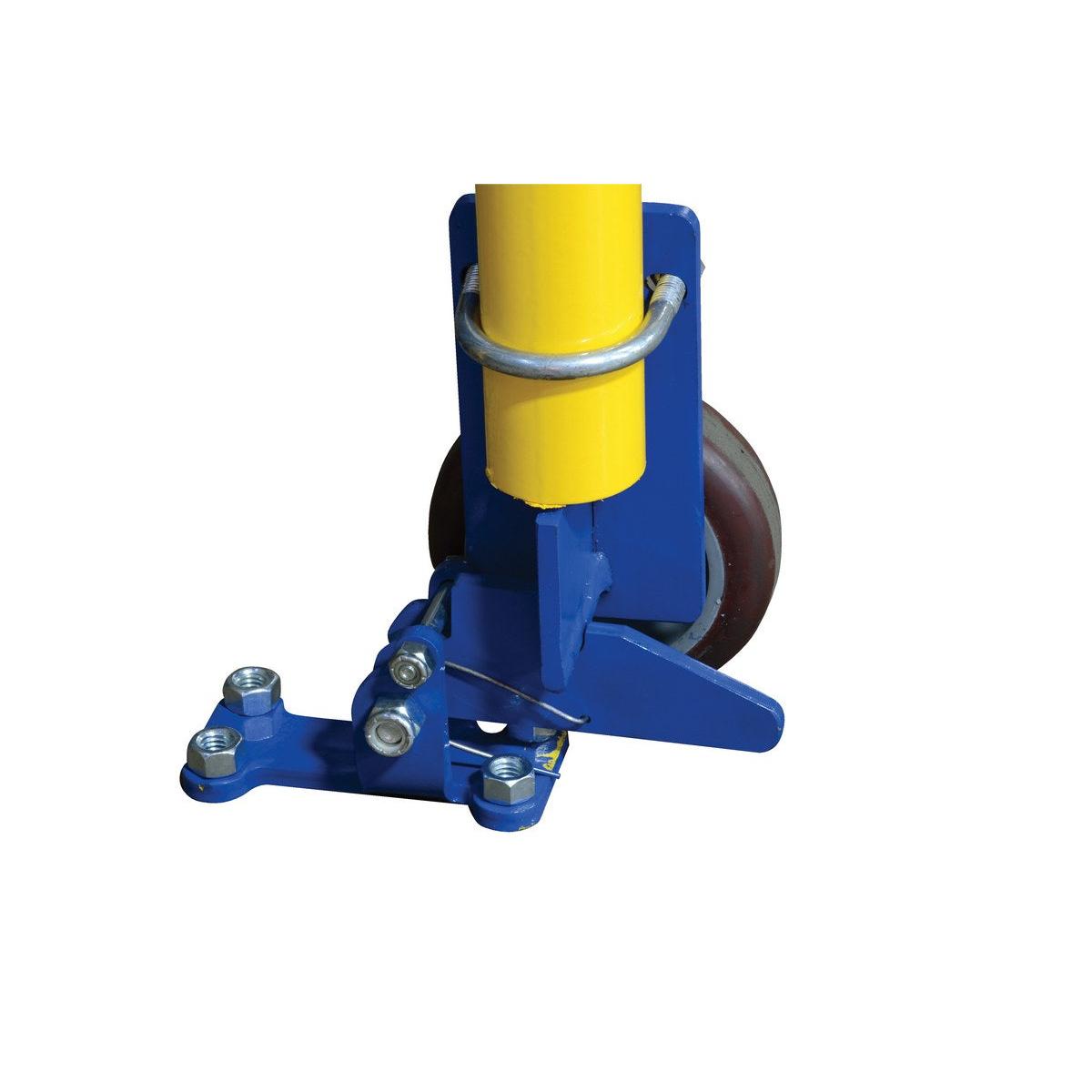

• Secure Locking – Foot release lock keeps railing firmly in place during use
• Easy Installation – Pre-drilled base plate for quick surface mounting
• Multiple Color Options – Available in yellow, black, blue, gray semi-gloss, orange, red, silver, and white
• Size Versatility – Offered in lengths from 2 ft. to 11 ft.

Additional Information:

• Includes cast single socket for installation
• Available Opening Widths: 24", 36", 48", 60", 72", 84", 96", 108", 120", and 132"

Technical Specifications:

Model	Opening Width	Weight (lbs)
	24"	30
	36"	35
	48"	39
	60"	43
	72"	46
	84"	50
	96"	55
	108"	84
	120"	63
	132"	90

• Gate Material: Metal
• Top Rail Height (in.): 46-1/4
• Mid-Rail Height (in.): 24-7/16
• Hardware Included: Yes
• Base Plate Mounting Hole Qty: 4
• Base Plate LxW (in.): 4-1/2 x 4-1/2

• Base Plate Mounting Hole Diameter (in.): 3/8
• Base Plate Thickness (in.): 1/4
• Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/4
• Wheel Material: Poly-on-Poly
• Rigid Caster Diameter (in.): 4

• Rigid Caster Width (in.): 1-1/4
• Caster Material: Polyurethane
• Caster Color: Black
• Steel Pipe (Schedule): 10
• Pipe O.D. (in.): 1-5/8
• Interior / Exterior
• Available Colors:
  • Yellow
  • Black
  • Blue
  • Gray semi-gloss
  • Orange
  • Red
  • Silver
  • White
• Manufacturer Warranty: 90 Days

Made in the USA

If you would like to request a quotation for large quantities of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
