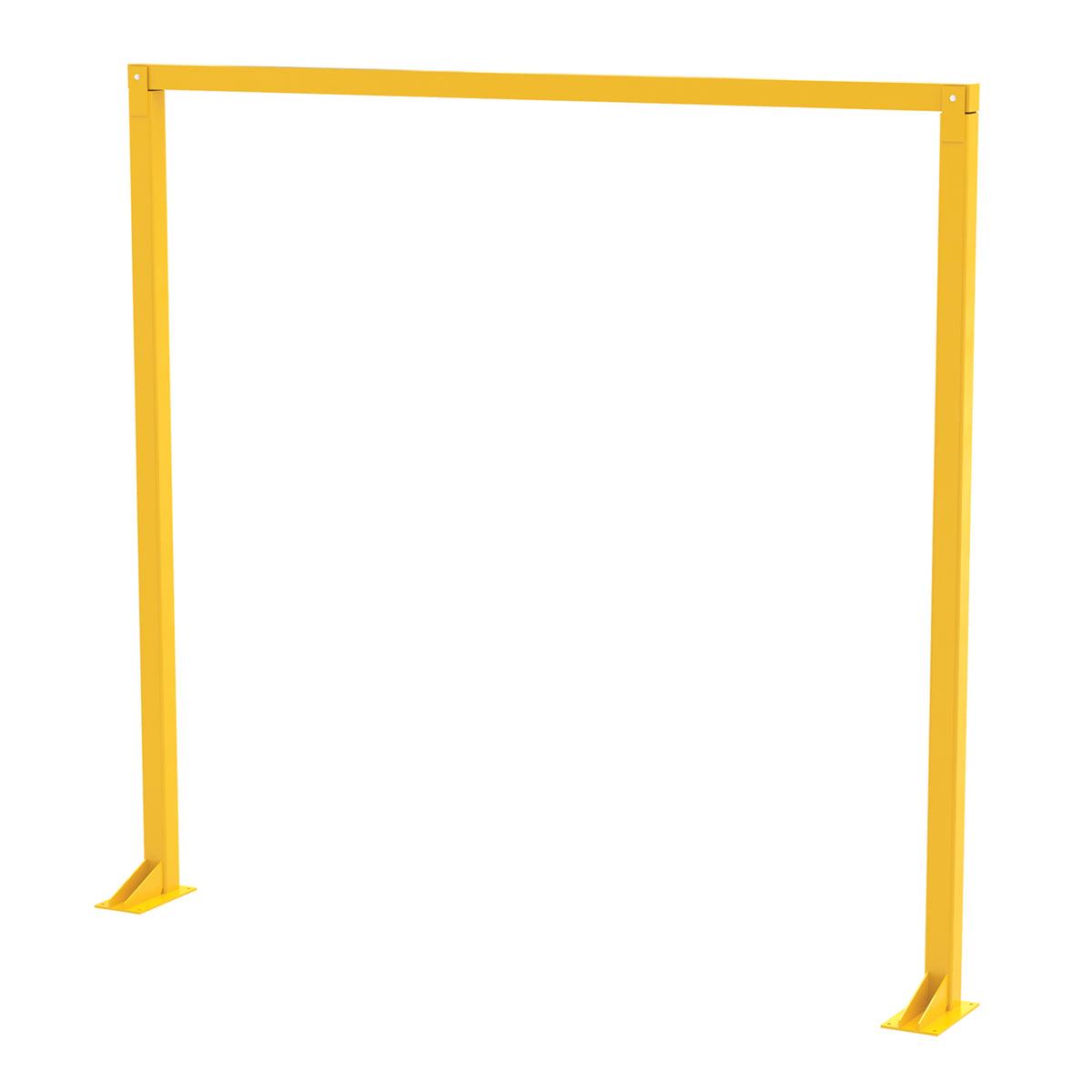

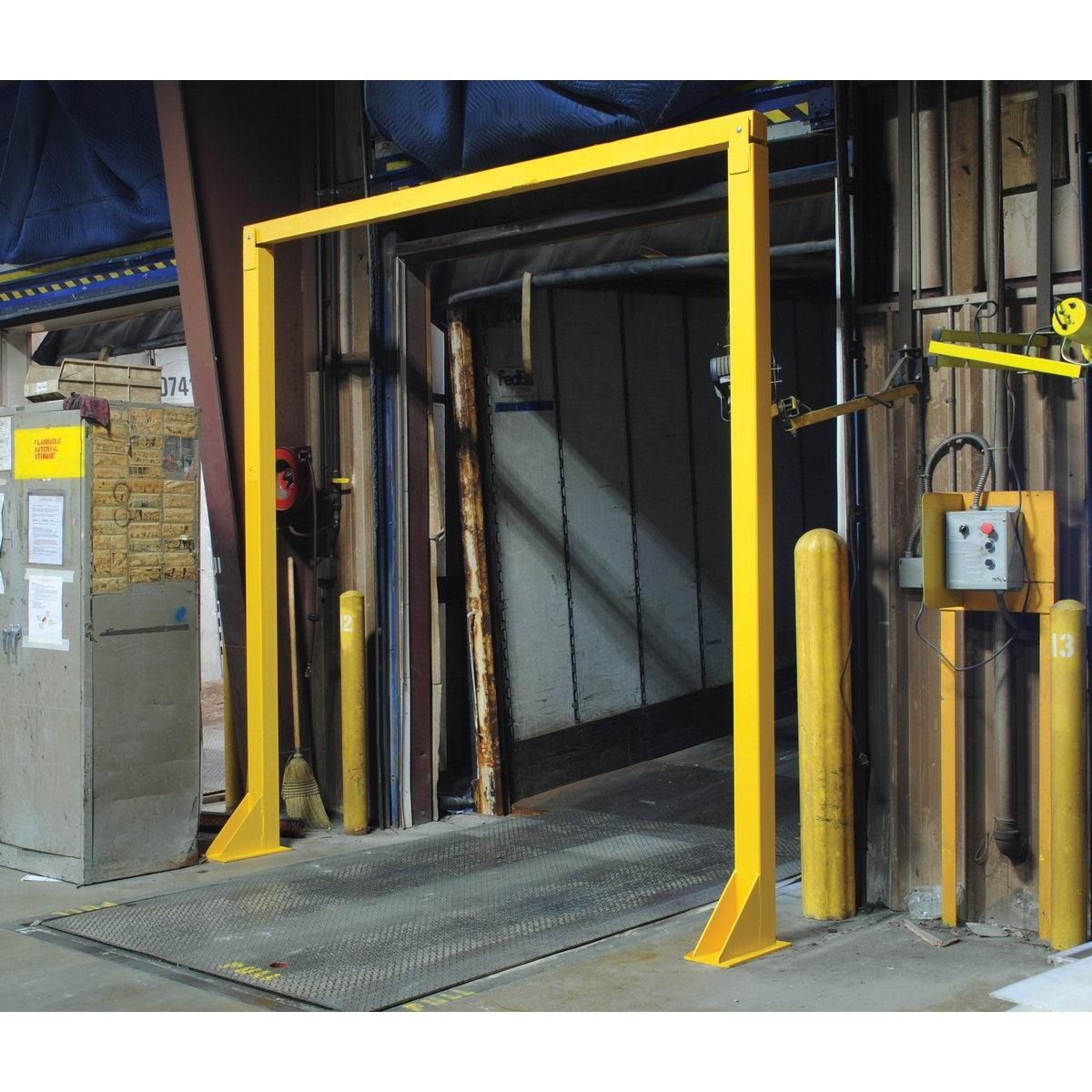

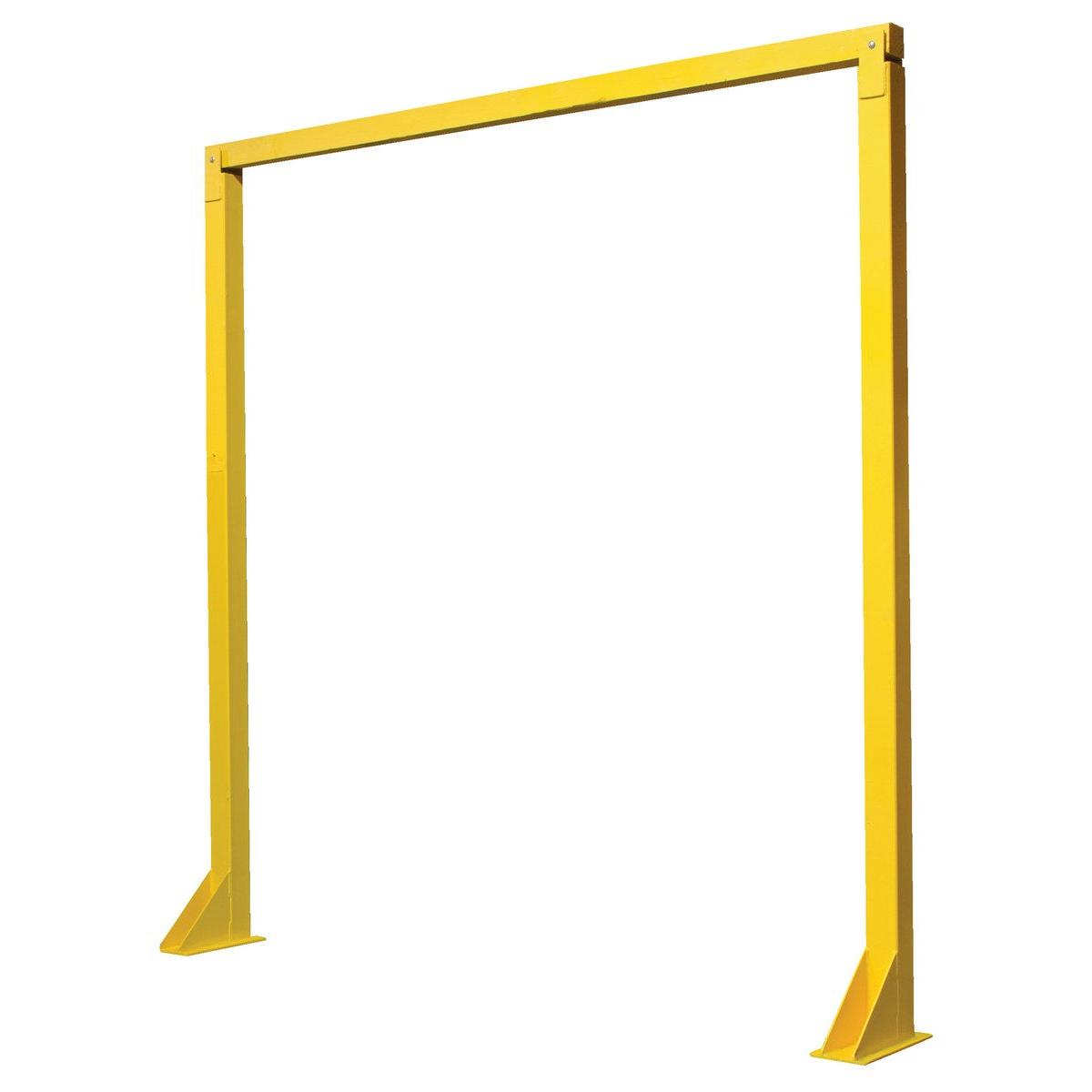

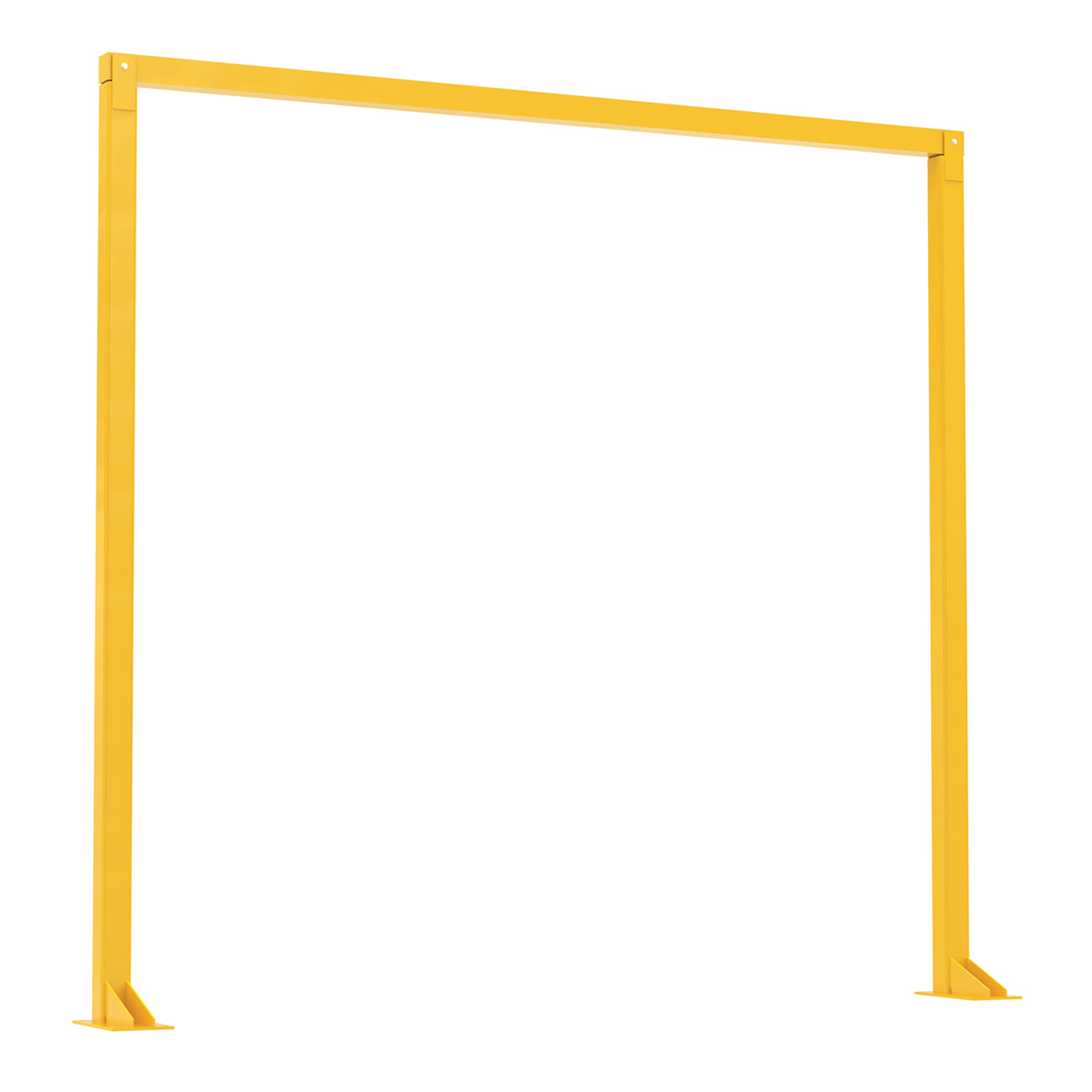

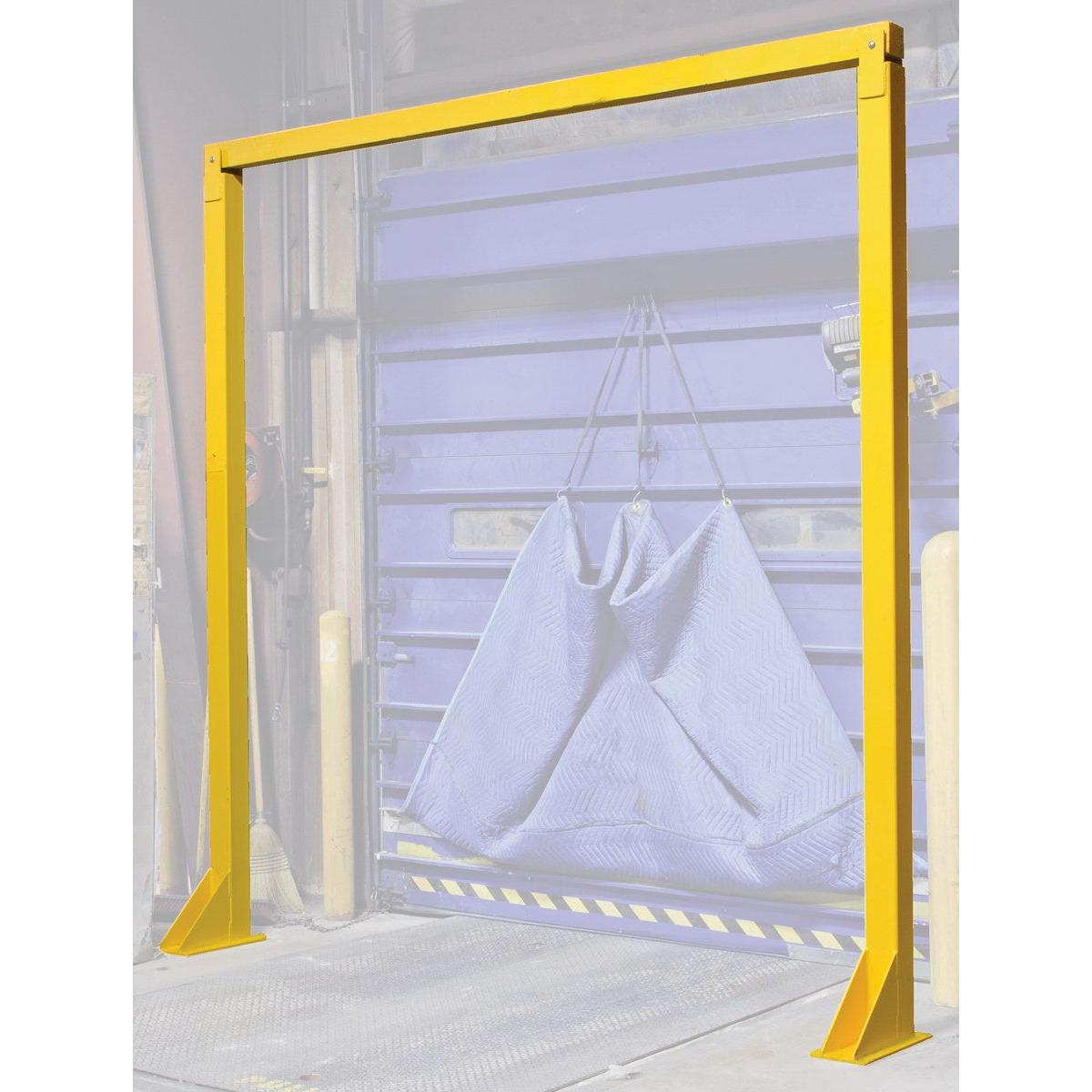

Steel Economical Overhead Door Warning Barrier

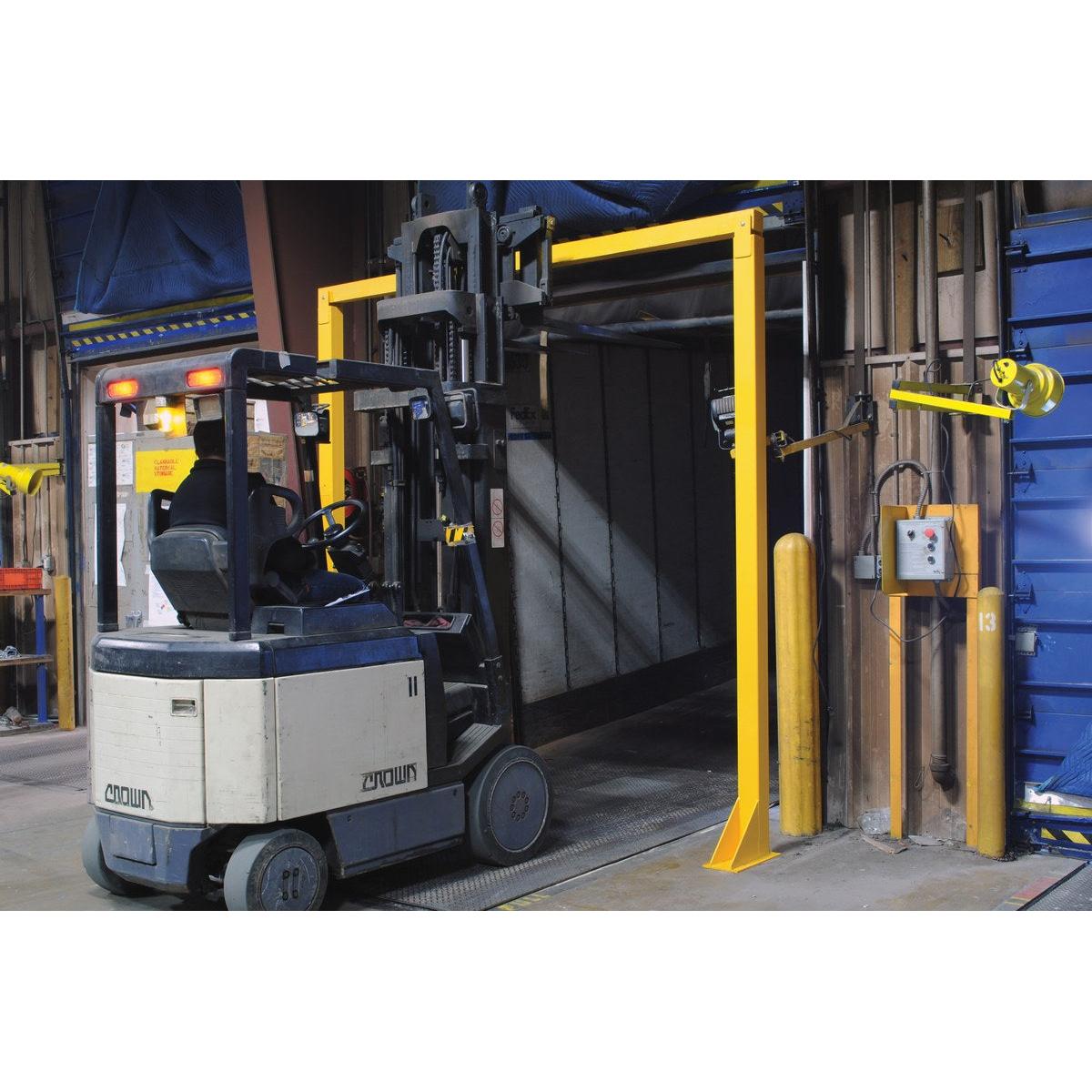

The Steel Economical Overhead Door Warning Barrier provides an effective visual alert system to protect overhead doors from potential damage caused by forklift and vehicle traffic. Designed to warn - not stop - oncoming equipment, this barrier reduces costly repairs by clearly signaling overhead clearance zones.

Constructed with durable tubular steel uprights and a replaceable wooden beam, the barrier delivers long-term service with minimal maintenance. Its design ensures zero interference with the operation of overhead doors.

Features & Benefits

• Warning System Design - Helps prevent damage by signaling clearance without acting as a collision stop
• Replaceable Wooden Beam - Top beam is easily and cost-effectively replaced if damaged
• Steel Uprights - Tubular steel construction ensures long-lasting structural support
• Door-Compatible - Will not obstruct or interfere with overhead door movement
• High Visibility - Safety yellow finish enhances visibility for vehicle operators

Additional Information

• Not intended as a physical barrier for forklift impact
• Ideal for loading docks, warehouses, and industrial entryways
• Simple maintenance with only the wooden beam needing replacement as needed
• Installation Hardware sold separately

Technical Specifications:

10 Ft. x 10 Ft.

• Total Ship Wt.(lbs.): 505
• Size: 132"W x 15"L x 122.125"H
• UPC: 691215015974
• GTIN: 00691215015974
• Inside Width (in): 120
• Accommodates Door Width (ft.): 10

• Accommodates Door Height (ft.): 10

8 Ft. x 10 Ft.

• Total Ship Wt.(lbs.): 475
• Size: 108"W x 15"L x 122.125"H
• UPC: 691215015981
• GTIN: 00691215015981
• Inside Width (in): 96
• Accommodates Door Width (ft.): 8

• Accommodates Door Height (ft.): 10

8 Ft. x 8 Ft.

• Total Ship Wt.(lbs.): 358
• Size: 108"W x 15"L x 98.125"H
• UPC: 691215015998
• GTIN: 00691215015998
• Inside Width (in): 96
• Accommodates Door Width (ft.): 8

• Accommodates Door Height (ft.): 8


9 Ft. x 10 Ft.

• Total Ship Wt.(lbs.): 490
• Size: 120"W x 15"L x 122.125"H
• UPC: 691215016001
• GTIN: 00691215016001
• Inside Width (in): 108
• Accommodates Door Width (ft.): 9

• Accommodates Door Height (ft.): 10


• Color: Yellow
• Upright Diameter (in): 4 x 4
• Bolt Holes (qty.): 8
• Material: Steel
• Color / Finish: Safety Yellow
• Installation Hardware Included: Yes
• Additional Contents: Floor Mounting hardware is NOT Included, Hardware to attach beam is included
• Manufacturer Warranty: 90 Days

Made in the USA
