Steel Expand-A-Gate with Wall and Rack Mount 144 In. Length

The Steel Expand‑A‑Gate with Wall and Rack Mount provides rapid, swing‑out access control for aisles, loading bays, and maintenance zones. Permanently anchored to a wall, rack upright, or end‑of‑aisle guard, the gate pivots smoothly into position to block traffic and folds flat against the mounting surface when access is restored—ideal for facilities that require frequent, repeatable safety barriers without floor obstructions.

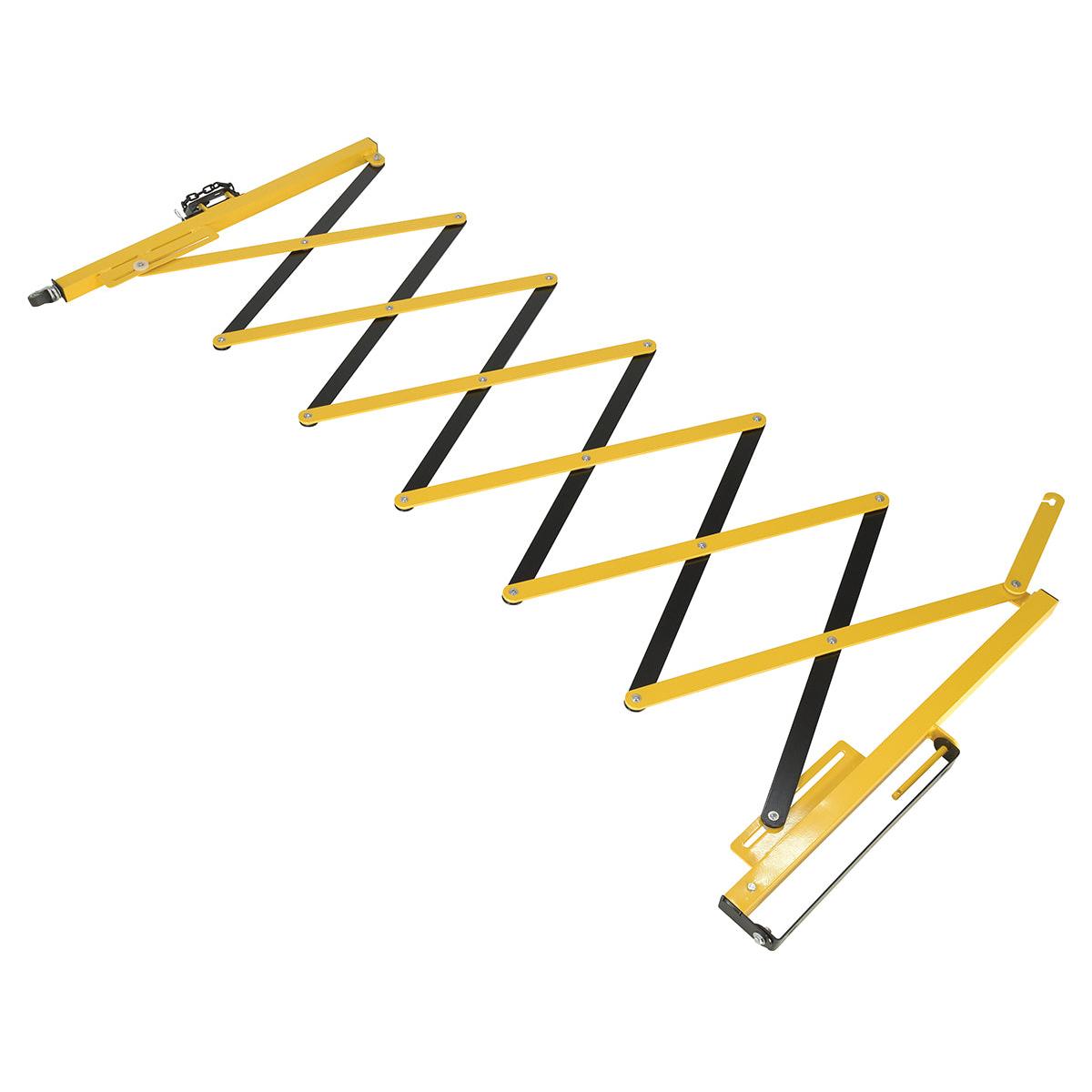

Constructed from heavy‑gauge steel and finished in a high‑visibility yellow coating, the scissor‑style gate expands to 144 inches (12 ft) to secure wide openings. Interlocking ends allow connection to additional gates for extended coverage, while the nestable design minimizes storage depth when installed on racks. Unit ships knocked down with a complete wall‑/rack‑mount kit for quick on‑site assembly.

Key Features & Benefits

• Wall / Rack Mount Kit Included – Fixed hinge bracket enables swing‑out deployment at a permanent location.

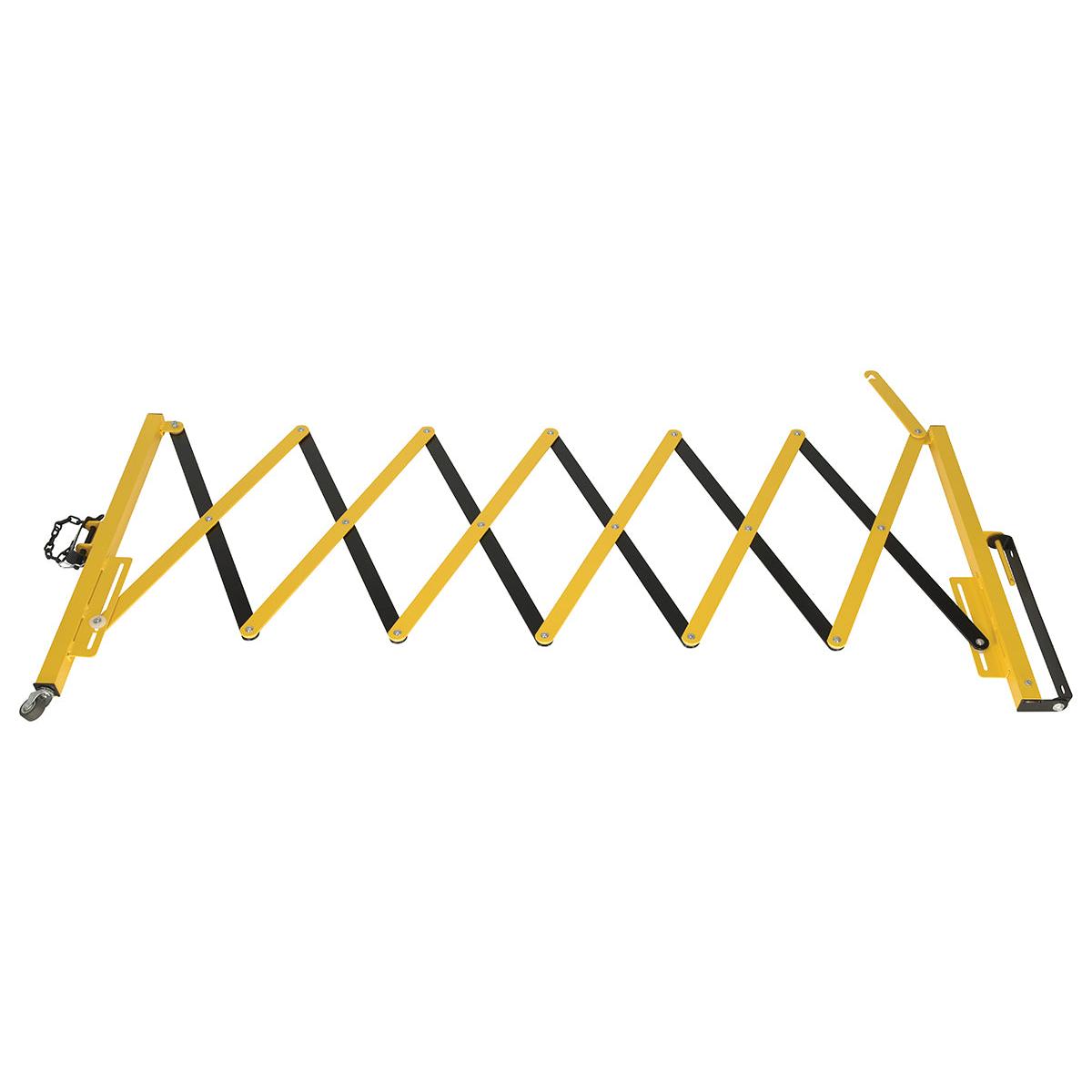

• 12‑Foot Expansion – Scissor action extends up to 144 in. to block large areas; interlocks with additional gates.
• Heavy‑Duty Steel Construction – Provides long‑term durability and impact resistance in industrial settings.
• High‑Visibility Yellow Finish – Bright coating offers clear visual warning for pedestrians and equipment operators.
• Smooth Swivel Operation – Folds flat against the wall or rack when not in use, keeping aisles clear.

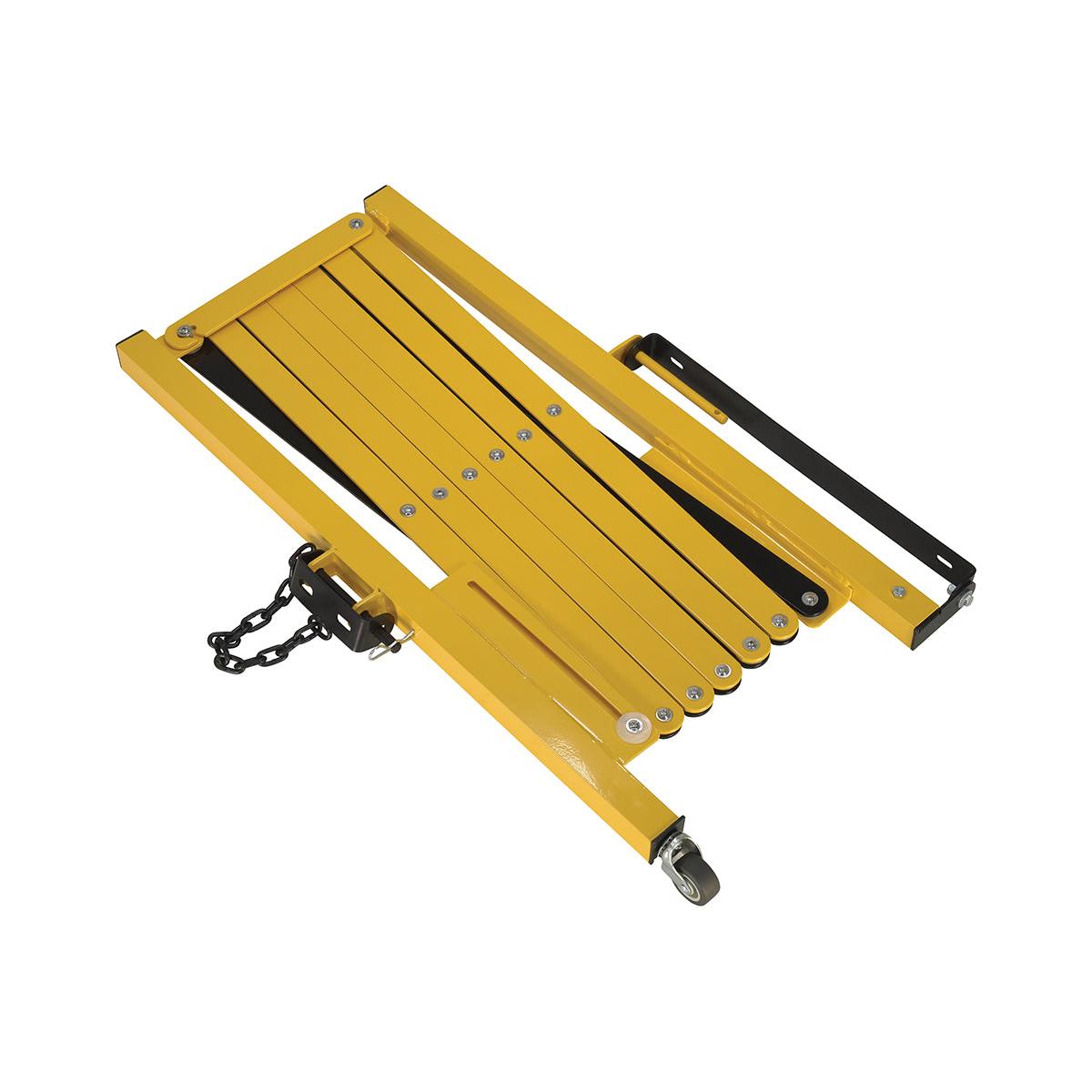

• Nestable Design – Minimal stowed depth conserves valuable space at end‑of‑aisle or rack locations.

Additional Information:

• Ships knocked down; all mounting hardware included for concrete, block, or steel rack installation.
• Ideal for warehouses, distribution centers, retail stockrooms, and maintenance corridors where fixed barriers are impractical.
• Multiple gates can be interlocked for custom lengths or “L” configurations around machinery or work zones.

Technical Specifications:

• Total Ship Wt.(lbs.): 62
• Size: 2.75"W x 20.3125"L x 38.3125"H
• Overall Expanded Width (in.): 144-3/16
• Expanded Gate Width (in.): 139
• Caster Quantity/Diameter/Width (in.): (1) 2 x 7/8

• Caster Type: Swivel
• Color / Finish: Black and Yellow

• Material: Steel

• Adjustable Length: No

• Maximum Length (in): 20.3125

• Adjustable Width: Yes

• Minimum Width (in): 138.9375
• Maximum Width (in): 143.6875

• Depth (in): 20.3125

• Interlocking: Yes

• Reflective: No

• Installation Hardware Included: Yes
• UPC: 691215112222
• GTIN: 00691215112222
• Manufacturer Warranty: 90 Days

Made in the USA
