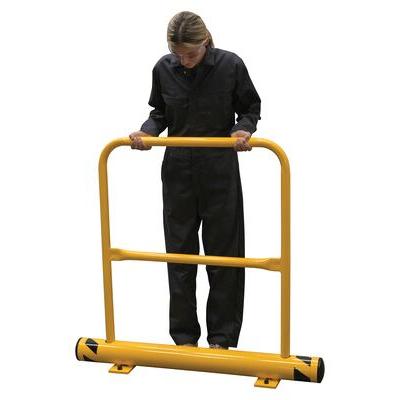

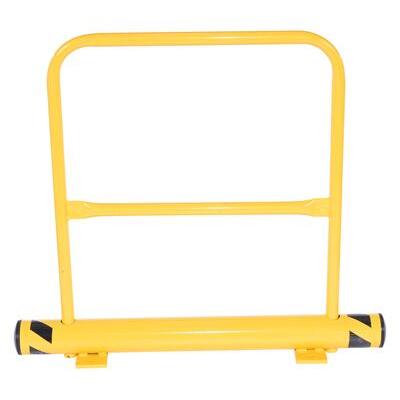

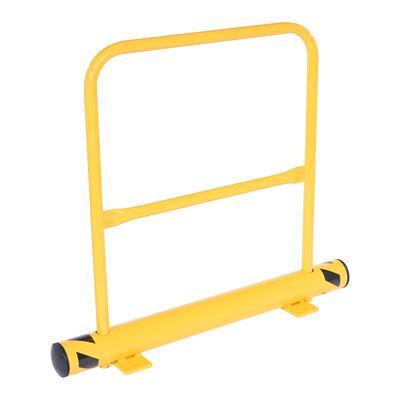

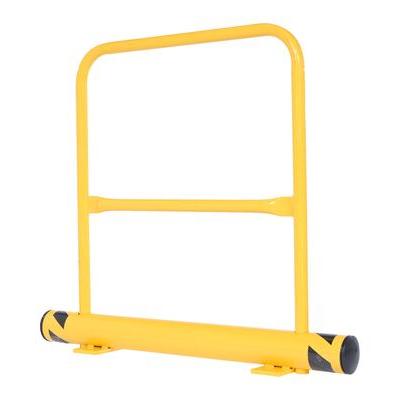

Steel Floor Stop Bollard 48 In. Length with Handrail 42 In. Height

This Steel Floor Stop Bollard with Handrail is engineered to provide both horizontal impact protection and enhanced pedestrian safety in high-traffic industrial environments. The integrated handrail, featuring both mid and top rails, ensures added security for personnel while maintaining effective barriers against equipment or vehicle intrusion.

Built from welded steel with a 1/2" thick base plate and finished in a highly visible yellow powder coat, the unit resists wear, corrosion, and impact. The 42-inch tall handrail features rounded corners for improved safety and comfort. Pre-drilled mounting holes allow for quick and secure installation, and both the handrail and black rubber end caps are removable for flexible use and maintenance.

Key Features & Benefits

• Dual-Purpose Design – Combines crash protection and pedestrian guidance in one solution.

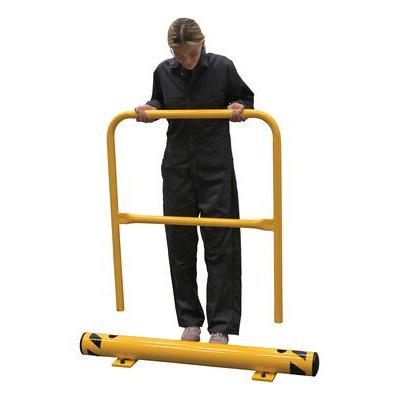

• Removable Handrail – Mid and top rails enhance personnel safety and can be detached as needed.
• Heavy-Duty Steel Construction – Durable welded design stands up to industrial wear and impact.
• Bright Yellow Powder Coat Finish – Increases visibility while resisting corrosion.
• Easy Installation – Pre-drilled base plate simplifies floor mounting on concrete surfaces.

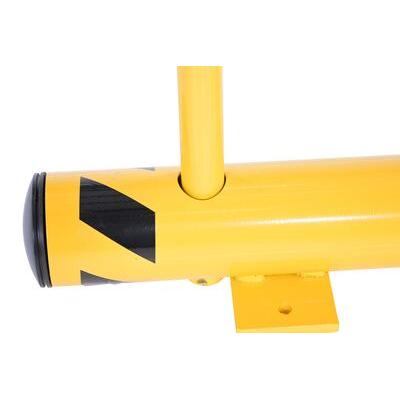

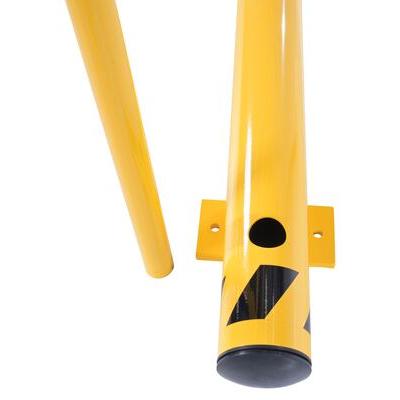

• Rubber End Caps – Removable caps protect edges and enhance safety.

Ideal for warehouses, loading zones, production areas, and other workspaces where protecting personnel and assets is essential. Suitable for both temporary and permanent installations.

Mounting Kits available separately.

Replacement caps are available here.

Technical Specifications:

• Total Ship Wt.(lbs.): 56
• Size: 8"W x 49"L x 42"H
• Anchor Bolt Kit: AS-125-4PK
• Guard Diameter O.D. (in.): 4-1/2
• Bolt Holes (qty.): 4
• Cap Material: Plastic
• Handrail Height (in.): 42
• Plate Width (in.): 4
• Plate Length (in.): 8
• Hole Diameter (in.): 1/2
• Bollard Material: Steel

• Color / Finish: Yellow

• Outside Diameter (in.): 5

• Length (in.): 48
• Bolt Hole Diameter (in.): 0.53125

• Installation Hardware Included: No

• UPC: 691215375511
• GTIN: 00691215375511
• Manufacturer Warranty: 90 Days

Made in the USA

If you would like to request a quotation for large quantities of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
