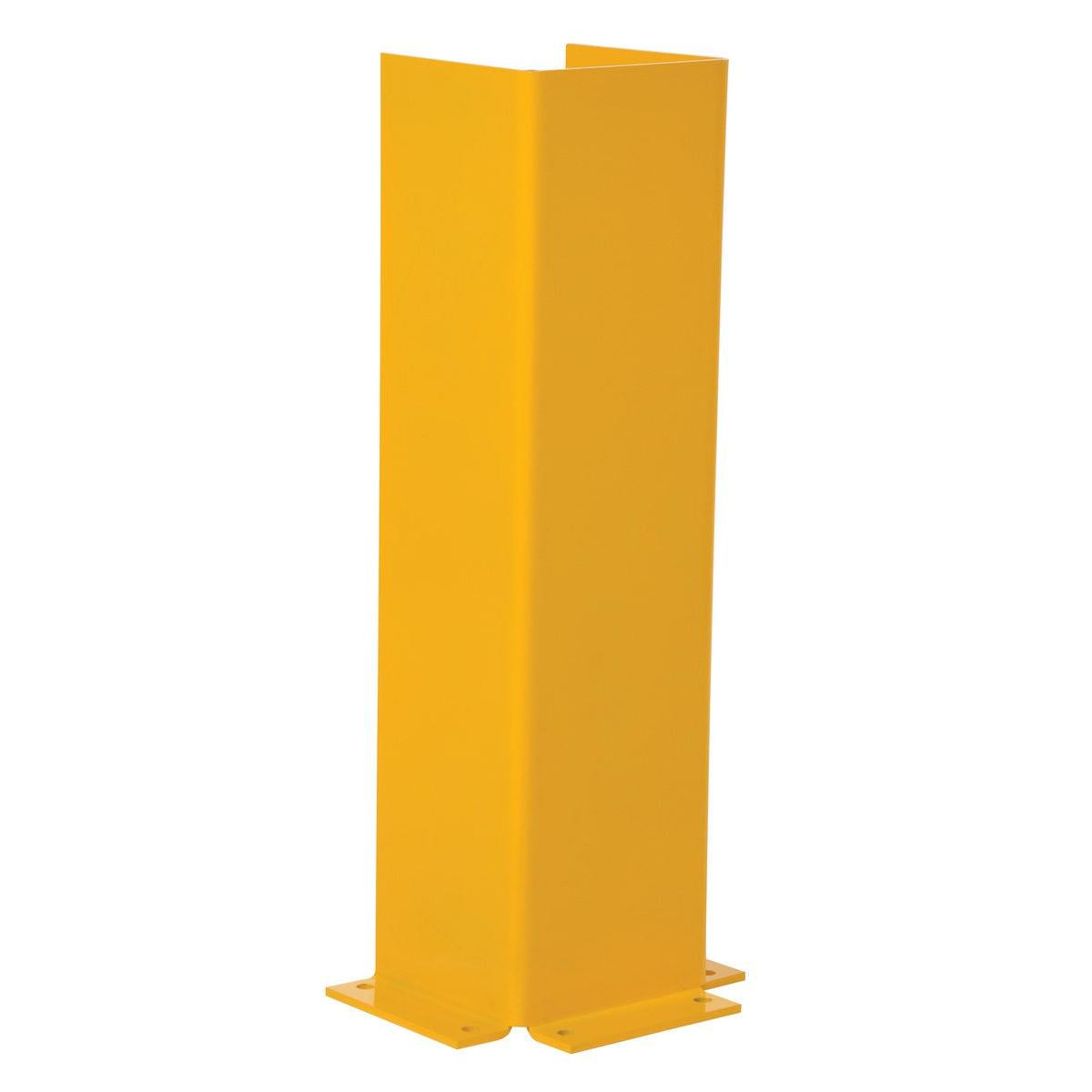

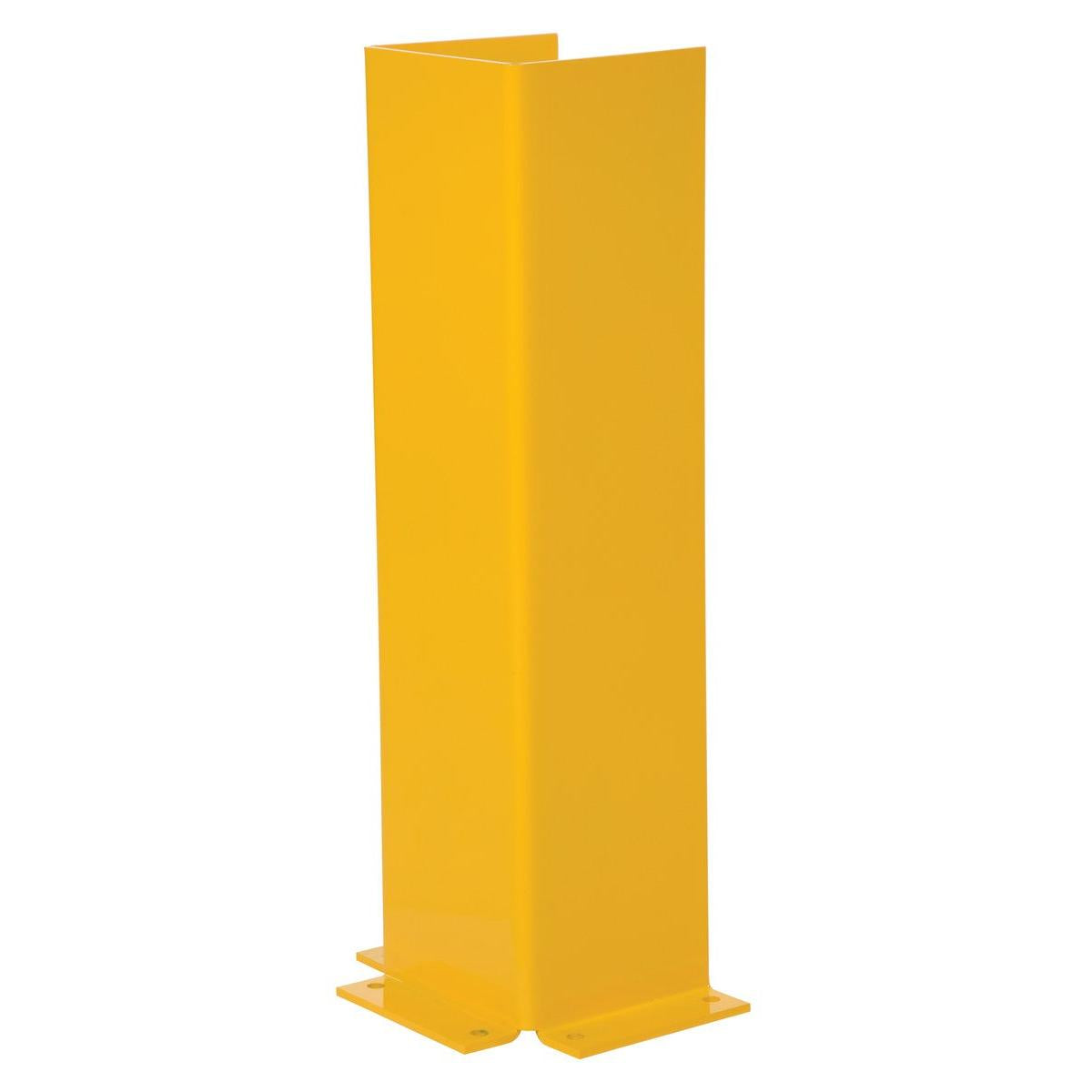

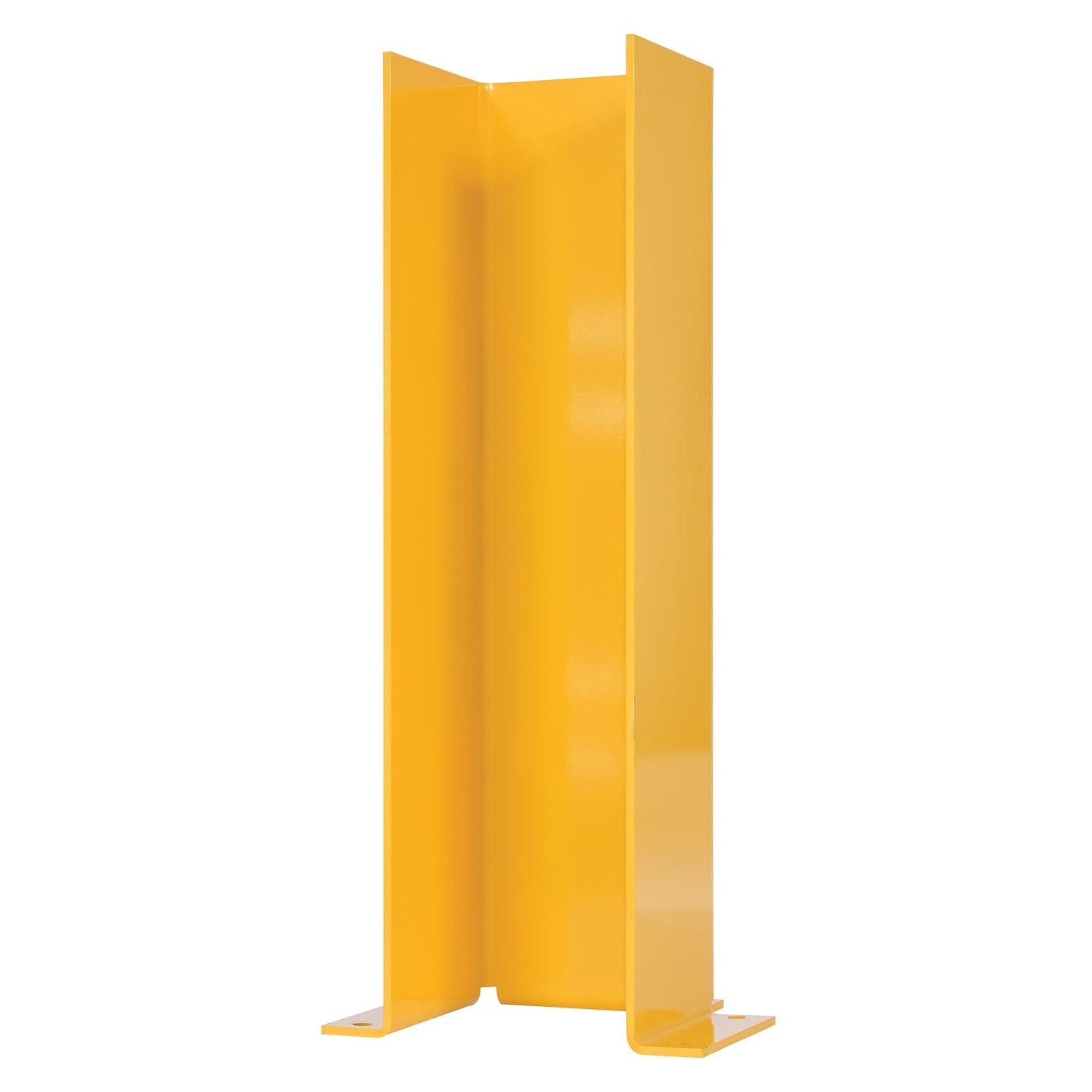

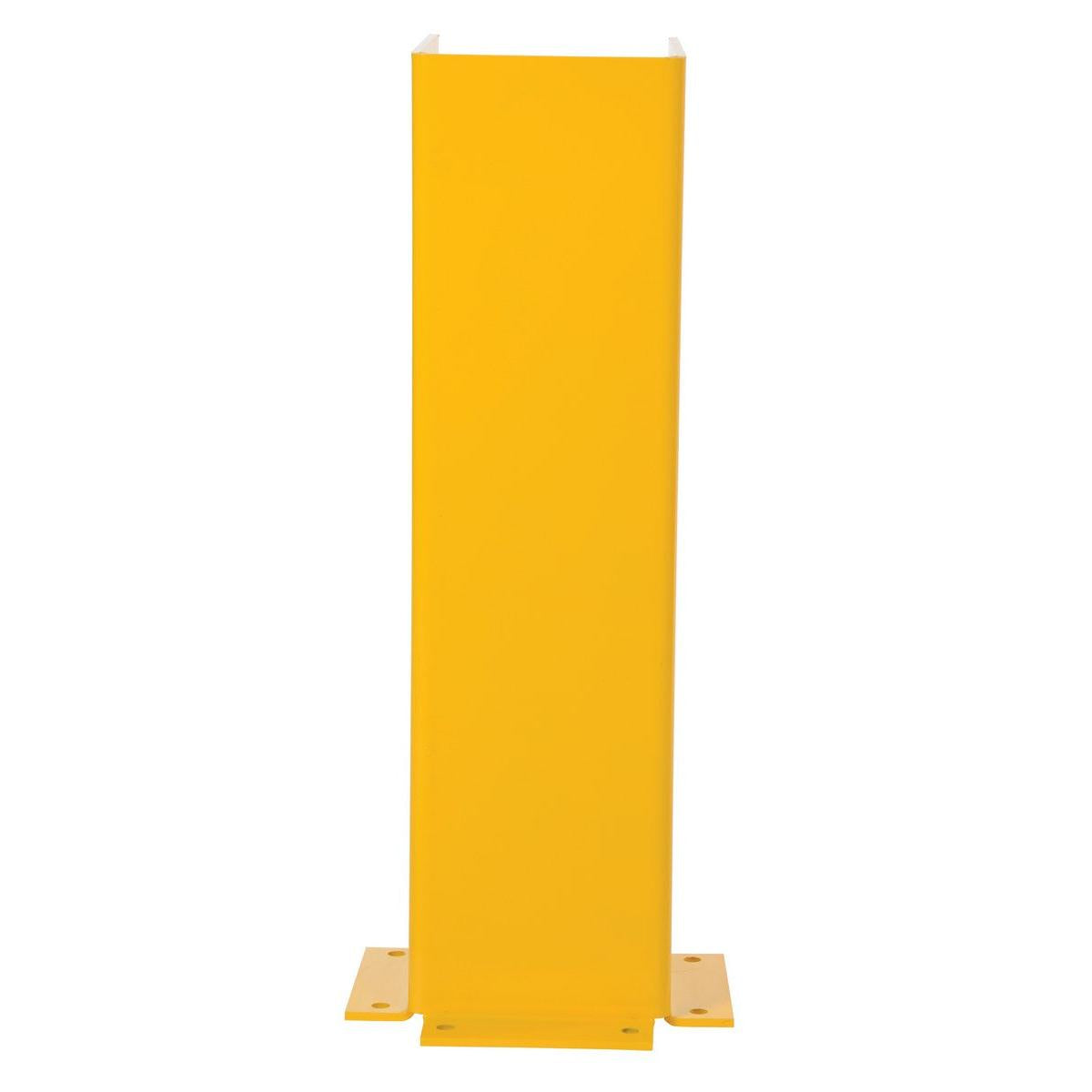

Steel Gantry and Jib Column Guard Protector 42 In.

The Steel Gantry and Jib Column Guard Protector is engineered to shield structural steel columns, pipes, and tubing from accidental impact by carts, forklifts, and other mobile equipment. Its high-strength steel construction and precision-fit design make it ideal for protecting support structures associated with fixed jib arms and gantry cranes in industrial settings.

Finished in a high-visibility yellow powder coat, this guard enhances workplace safety while offering long-term durability. Pre-drilled mounting holes allow for fast and secure installation around critical support columns.

Key Features & Benefits

• Heavy-Duty Steel Construction – Built from thick solid steel for superior impact resistance.
• Purpose-Built Design – Protects square steel columns, ideal for gantry and jib crane installations.
• High-Visibility Finish – Yellow powder coating promotes safety awareness and resists corrosion.

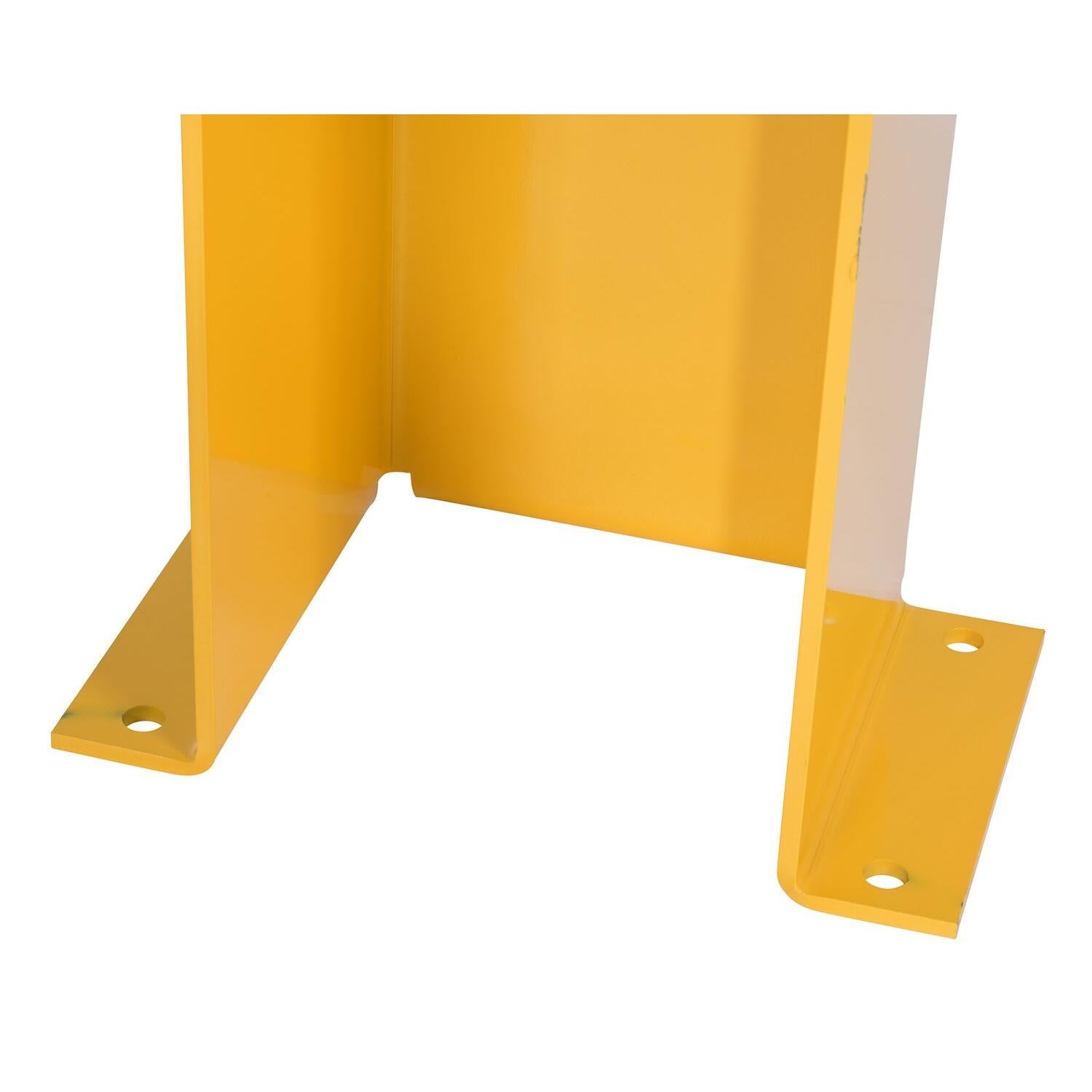

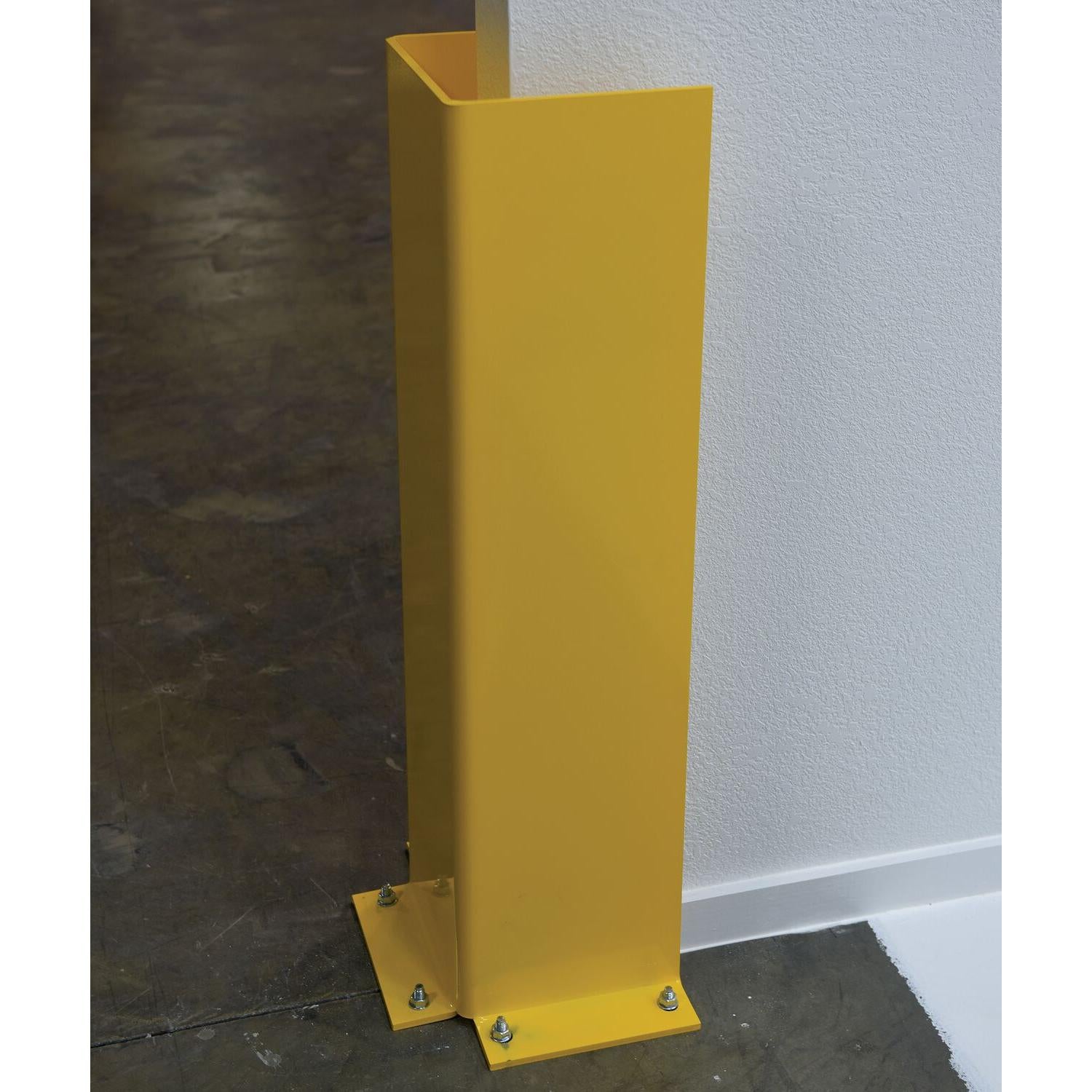

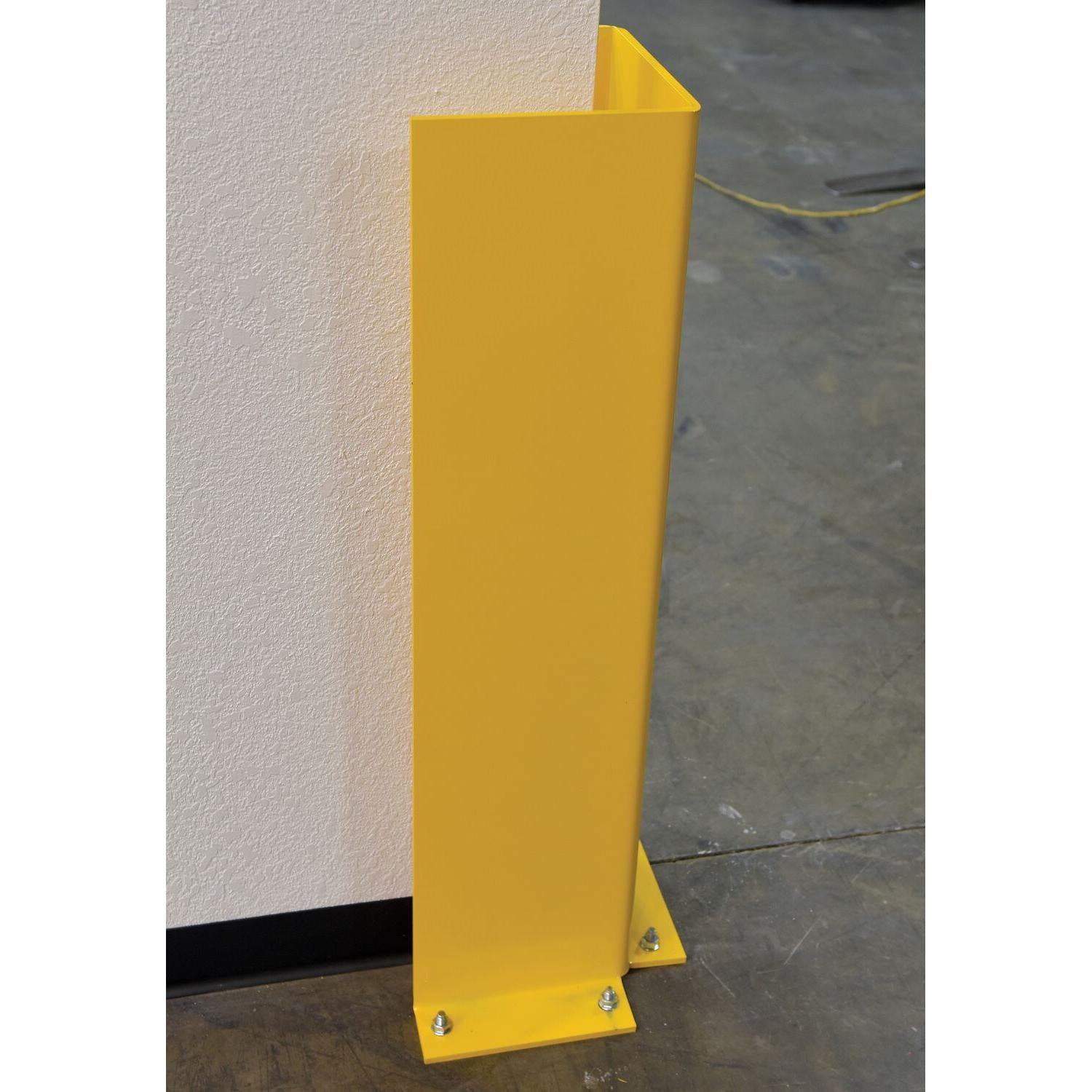

• Quick Installation – Includes pre-drilled mounting holes for straightforward lag-down placement.
• Worksite Safety Enhancement – Helps prevent costly repairs and downtime from equipment collision.

Additional Information:

Suitable for use in warehouses, production lines, or any environment with crane systems or steel supports at risk of damage. Designed for both new installations and retrofit safety upgrades.

Technical Specifications:

• Total Ship Wt.(lbs.): 180
• Size: 19.5"W x 12.75"L x 42"H
• Steel Thickness (in.): 3/8
• Bolt Holes (qty.): 6
• Usable Width (in.): 12-3/4

• Usable Length (in.): 9-3/8
• Impact Resistance (rating): 4000 lbs. @ 4 mph
• Overall Height (in.): 42

• Overall Width (in.): 19-1/2
• Overall Depth (in.): 12-3/4
• Anchor Hole Size (in.): 13/16
• Color / Finish: Yellow

• Material: Steel

• Mounting Method: Bolt Down
• Reflective: No

• Stackable: No

• UPC: 691215010955

• GTIN: 00691215010955

• Manufacturer Warranty: 90 days

Made in the USA

If you would like to request a quotation for large quantities of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
