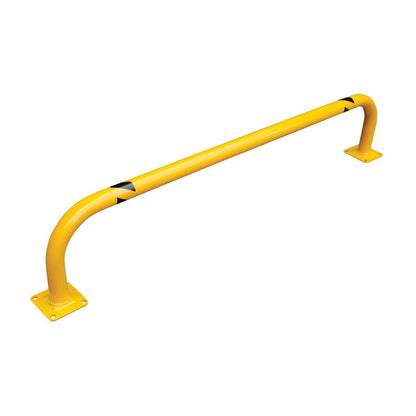

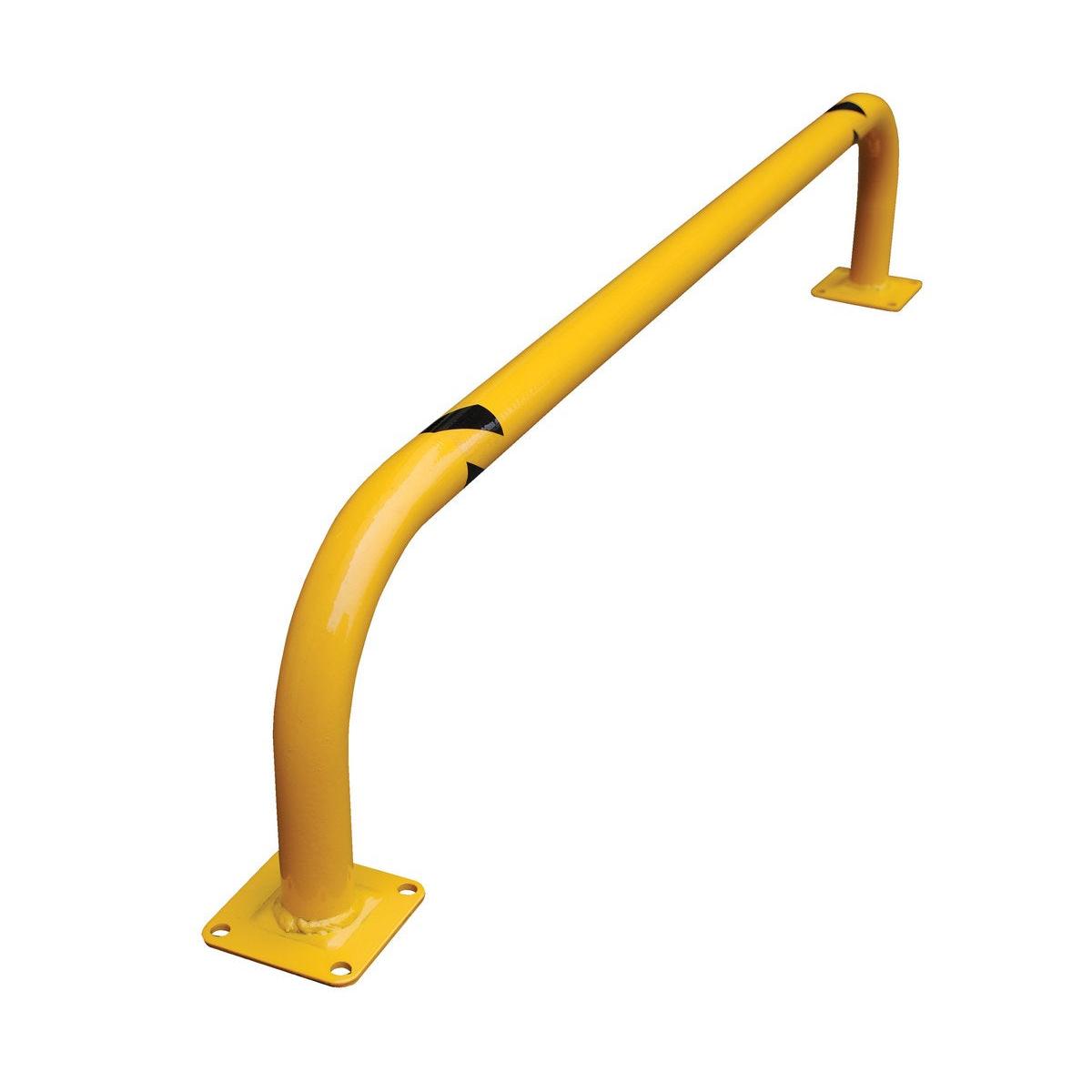

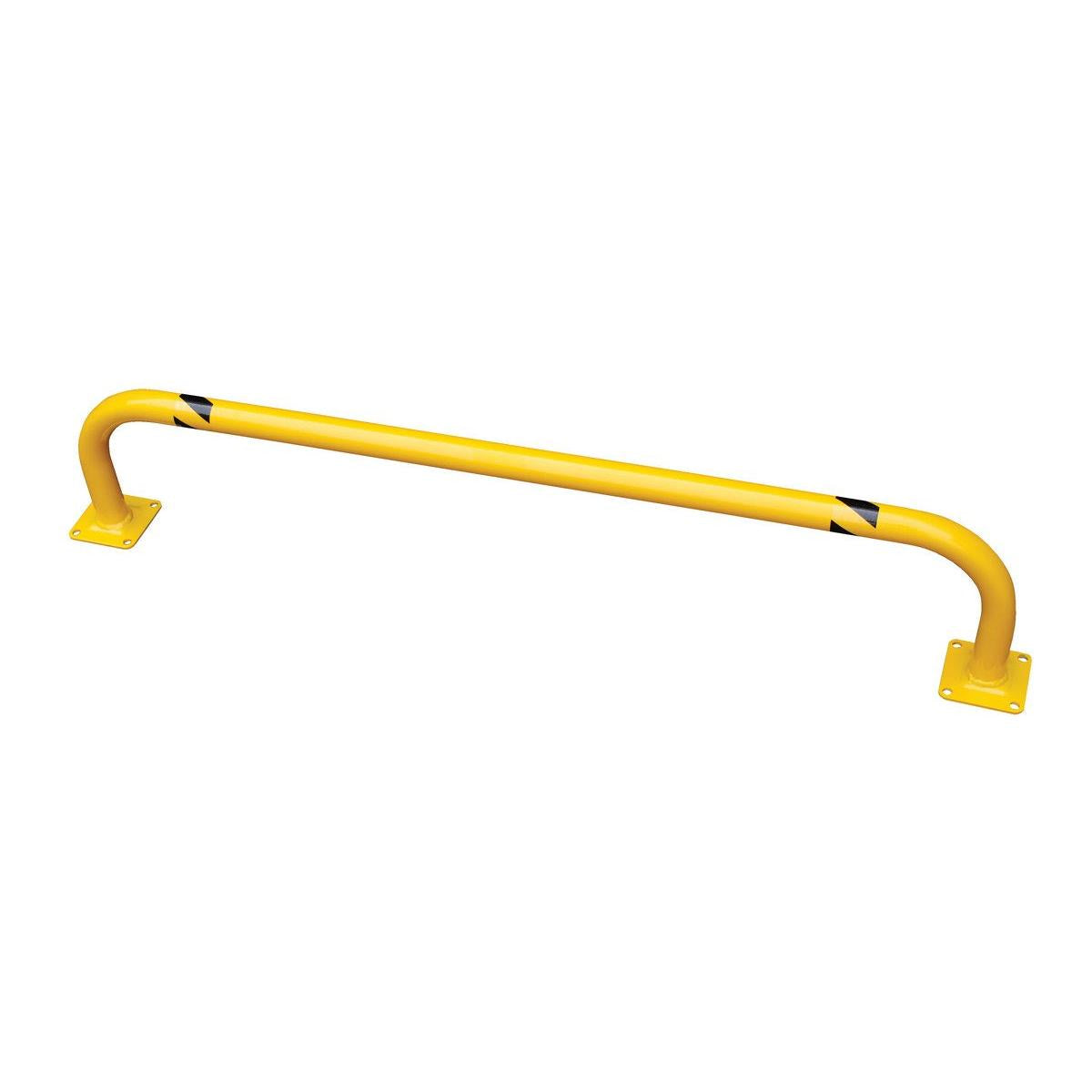

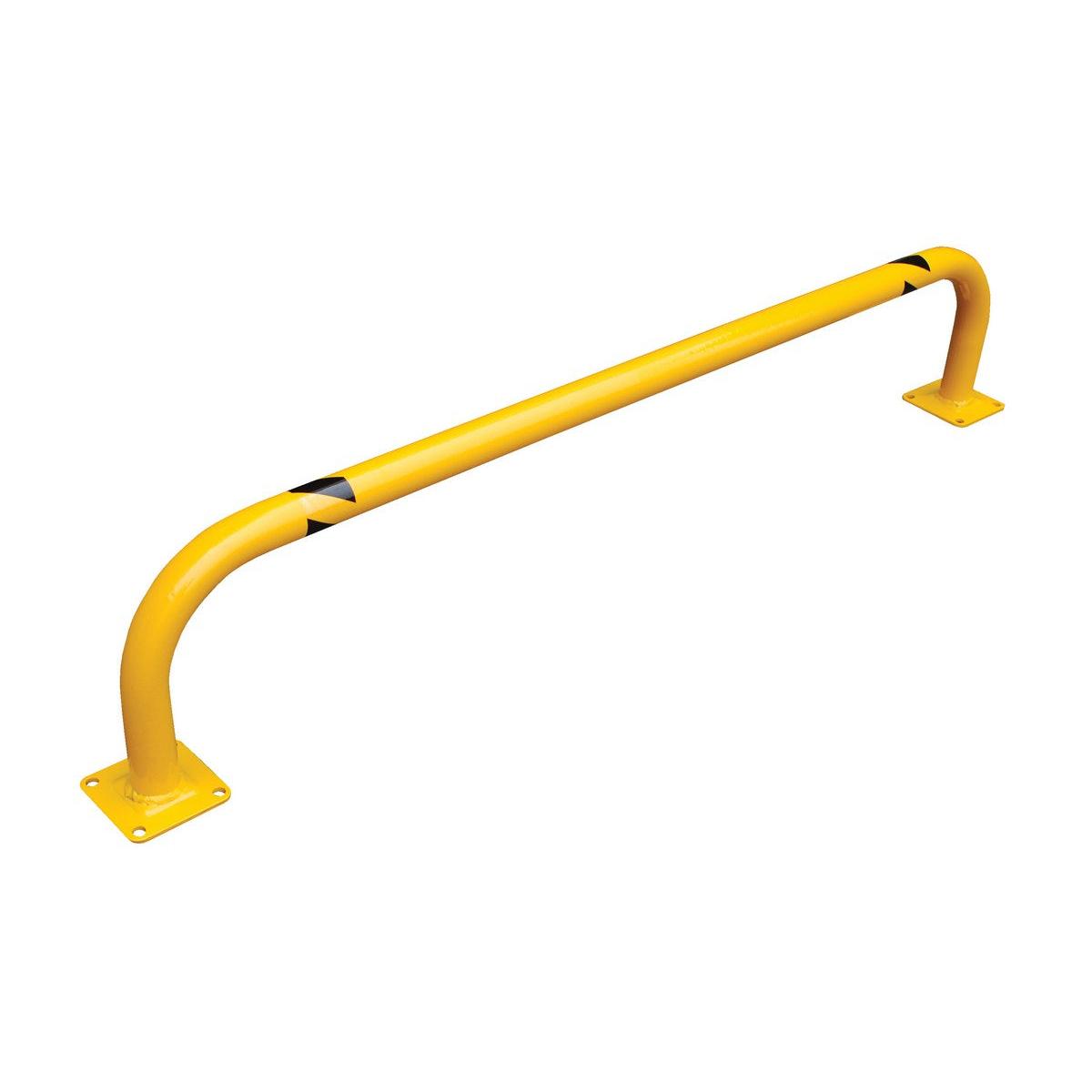

Steel Low Profile Rack Guard Bollard 36 In. x 9 In.

The Steel Low Profile Rack Guard Bollard is designed to protect pallet racking, machinery, and facility infrastructure from low-height impact in high-traffic areas. Its compact design offers critical protection without obstructing visibility or workflow, making it ideal for both indoor and outdoor applications.

Constructed from heavy-duty welded steel, this guard features a durable yellow powder-coated finish for high visibility and corrosion resistance. Two base plates, each with four pre-drilled mounting holes, ensure secure and efficient installation.

Key Features & Benefits

• Low-Profile Design – Protects against fork truck and cart damage without impeding line of sight.
• Heavy-Duty Steel Construction – Built to withstand frequent industrial impact.
• Durable Powder-Coated Finish – High-visibility yellow coating resists wear and environmental exposure.
• Quick Installation – Includes two base plates with pre-drilled mounting holes for fast, secure setup.
• Versatile Use – Suitable for indoor and outdoor protection in warehouses, loading docks, and manufacturing areas.

Ideal for safeguarding structural assets in narrow aisles, entry points, or anywhere traditional bollards may not fit. Helps reduce damage-related downtime and improves workplace safety compliance.

Mounting Kits available separately.

Technical Specifications:

• Total Ship Wt.(lbs.): 7
• Size: 38.3125"W x 4"L x 9.375"H
• Anchor Bolt Kit: AS-383-4PK
• Base Plate Width (in.): 4
• Base Plate Length (in.): 4
• Guard Diameter (in.): 1-11/16

• Bolt Hole (qty.): 8
• Bollard Length (in.): 36
• Width (in.): 38.3125

• Height (in.): 9.375

• Depth (in.): 4

• Color / Finish: Yellow

• Material: Steel
• Bolt Hole Diameter (in.): 0.875
• Installation Hardware Included: No
• UPC: 691215027731
• GTIN: 00691215027731
• Manufacturer Warranty: 90 Days

Made in the USA
