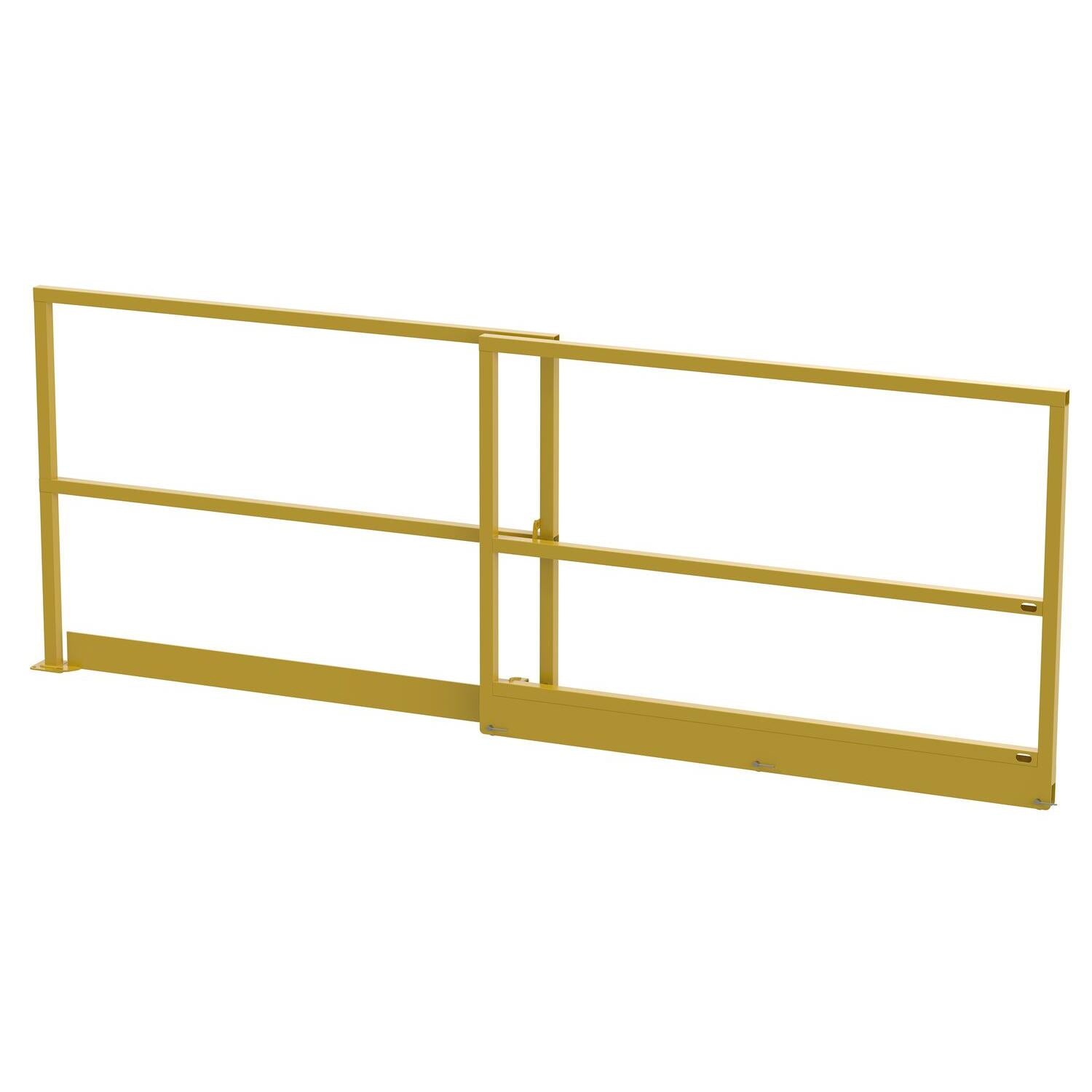

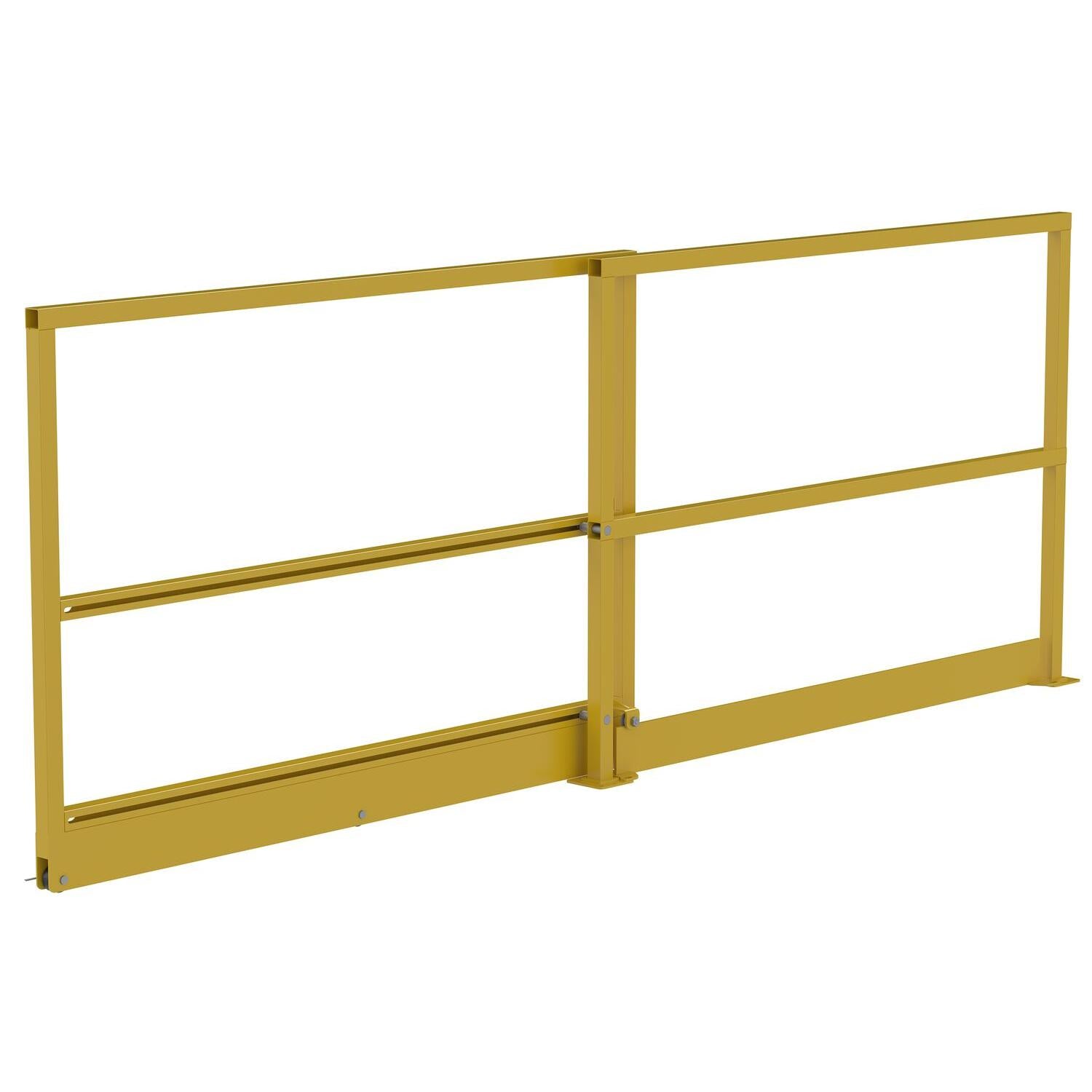

Steel Mezzanine Sliding Gate

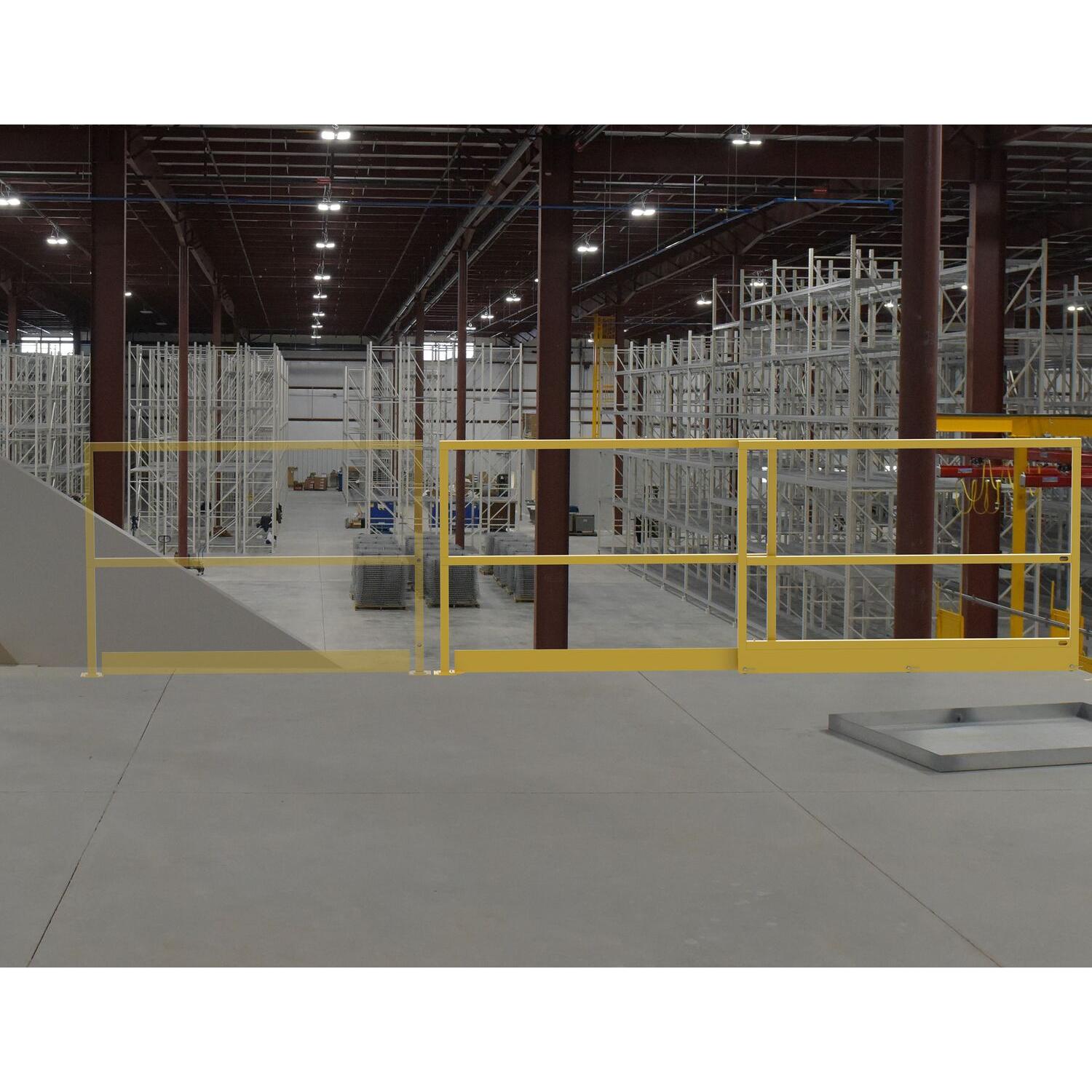

Protect personnel and enhance safety in elevated work areas with the Steel Mezzanine Sliding Gate. Designed for use with mezzanines and Vestil SQ rails, this gate provides secure edge protection while allowing quick, unobstructed access for materials and workers. Its sliding mechanism ensures easy operation without requiring additional overhead clearance, making it ideal for environments with height restrictions.

Built for durability and convenience, the gate features a 42" tall rail to prevent accidental falls and a 4" toe board to stop objects from rolling off elevated platforms. Pre-drilled mounting holes enable quick surface installation, and the gate can be locked in the closed position for added security (lock not included). The high-visibility yellow finish increases workplace awareness and safety.

Features & Benefits:

• Sliding Design – Smooth horizontal movement saves vertical space; ideal for low-clearance areas
• Enhanced Safety – 42" rail height and 4" toe board meet common safety standards
• Quick Installation – Pre-drilled holes allow for fast and easy surface mounting
• Secure Access Control – Lockable in closed position for controlled entry (lock not included)
• High-Visibility Finish – Powder-coated yellow for improved visibility and workplace safety
• Mezzanine Compatible – Works with standard mezzanine structures and SQ rails

Technical Specifications:

• Total Ship Wt.(lbs.): 130
• Size: 6"W x 115.375"L x 42"H
• Color: Yellow
• Overall Closed Width (in.): 115-1/4
• Overall Open Width (in.): 62-1/16
• Overall Depth (in.): 6-1/16

• Overall Height (in.): 42
• Midrail Height (in.): 21-3/16
• Base Plate Width (in.): 4

• Base Plate Length (in.): 4
• Base Plate Number of Mounting Holes: 4
• Base Plate Hole Diameter (in.): 7/16

• Base Plate Thickness (in.): 3/16
• Base Plate Quantity: 2
• Material: Steel
• Bolt Hole Diameter (in): 0.4375

• Attachment Method: Lag Bolts

• Installation Hardware Included: No
• UPC: 691215377041
• GTIN: 00691215377041
• Manufacturer Warranty: 90 Days

Made in the USA
