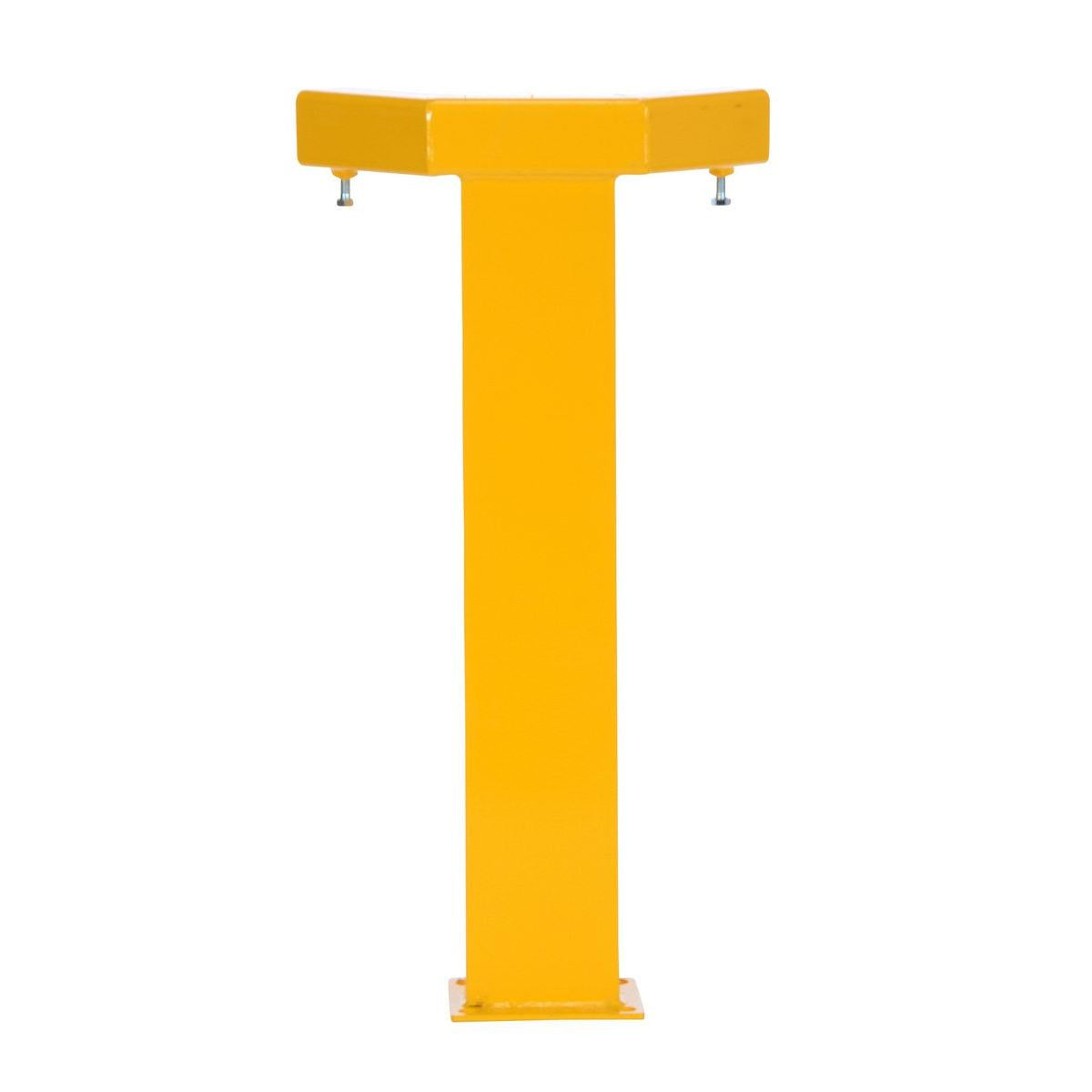

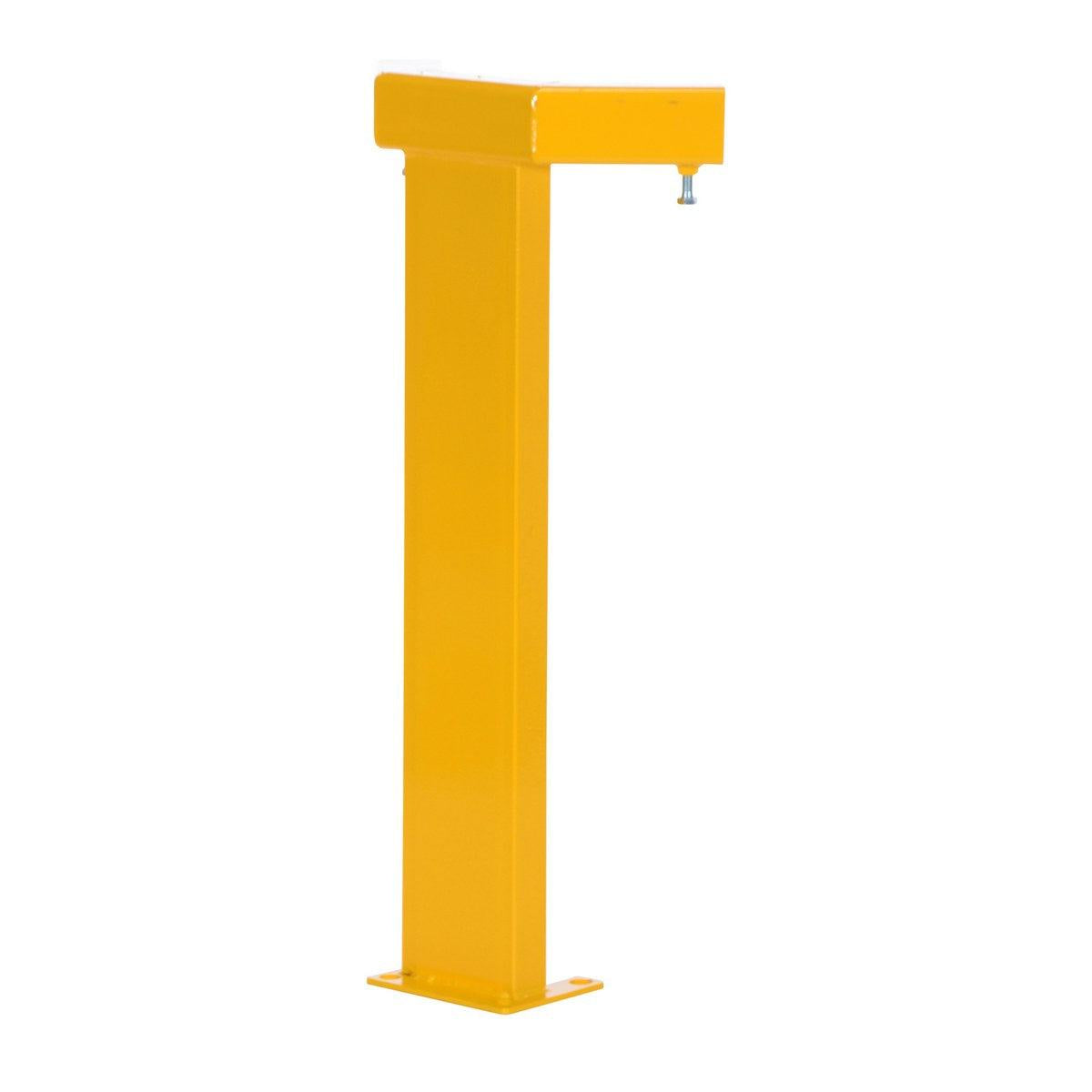

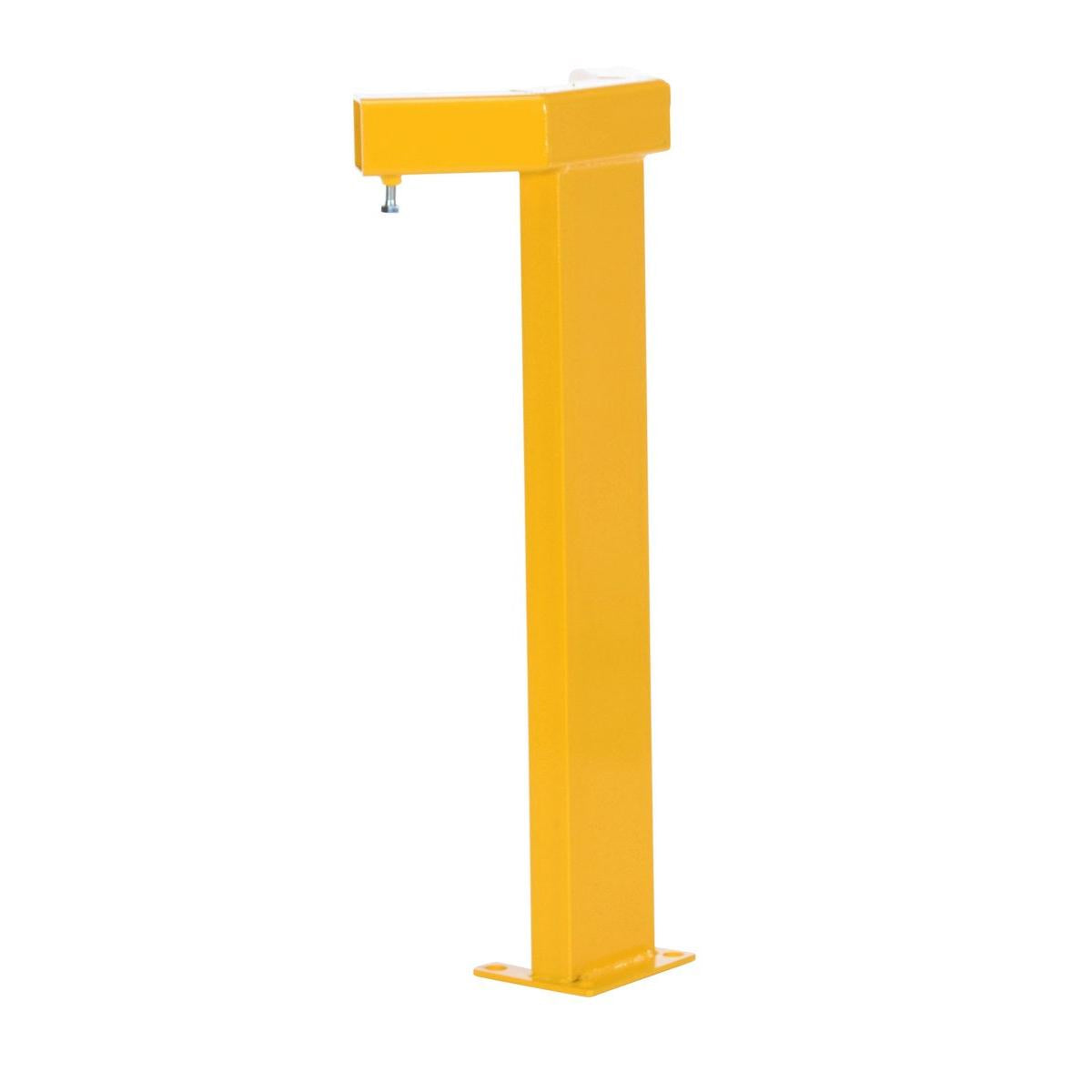

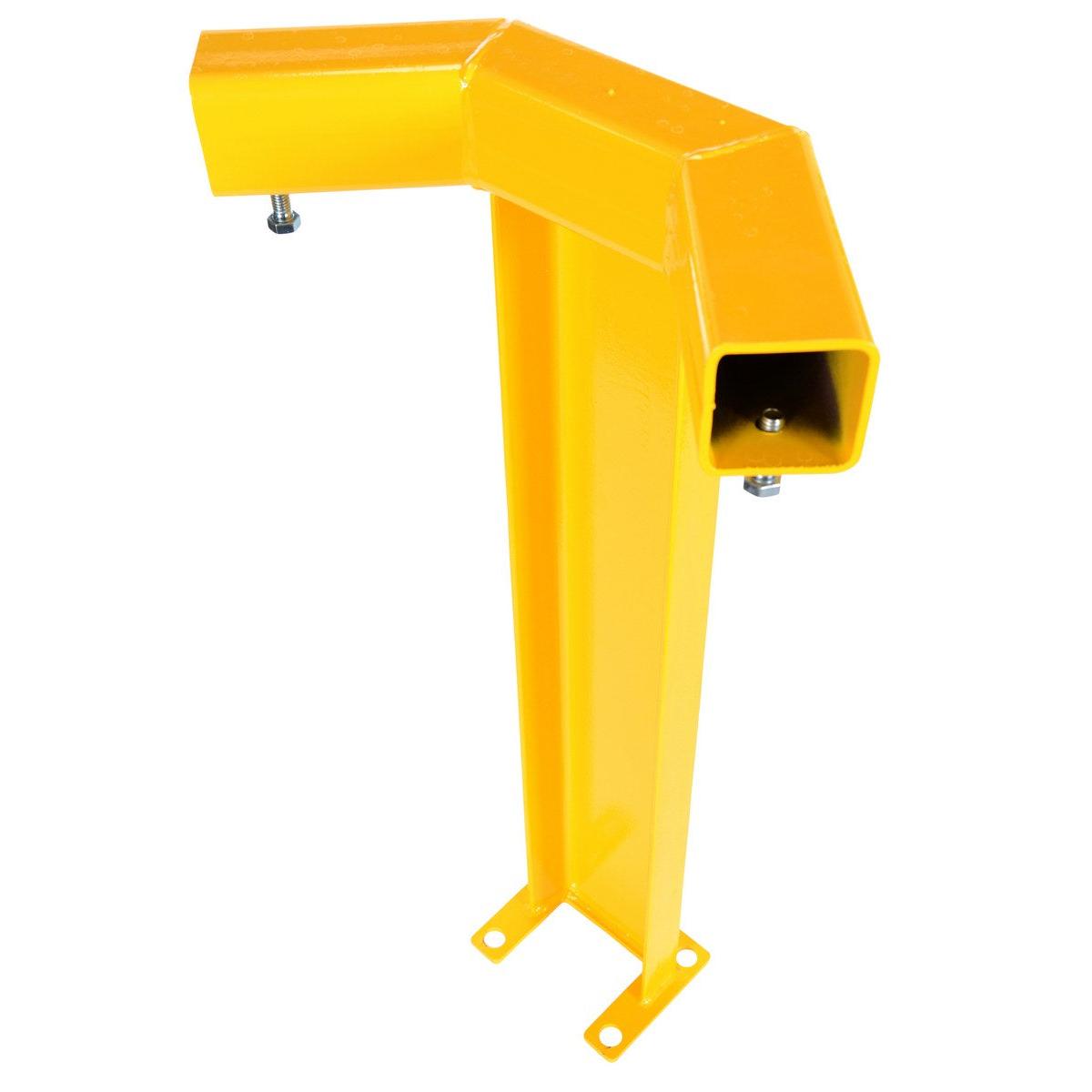

Steel Modular Guard System Corner Post - 1 Rail 7-5/8 In. x 6 In. x 36 In.

The Steel Modular Guard System Corner Post is designed to serve as a critical component in creating protective barriers around machinery, inventory, and walkways. This corner post supports a single rail section and facilitates clean 90-degree transitions in guard rail layouts, enhancing protection at turning points in high-traffic industrial environments.

Constructed from heavy-duty square steel tubing, this post provides rugged durability and long service life. Designed for quick, bolt-on installation, it enables secure rail connections with minimal hardware. Its modular design allows for custom-fit configurations using compatible rail lengths and additional posts.

Key Features & Benefits

• Modular Design – Easily integrates with other system components to accommodate custom layouts.
• Heavy-Duty Steel Construction – Square steel tubing ensures structural strength and long-lasting use.
• Simple Installation – Secures rail with a single bolt per connection for fast assembly.
• Corner Post Functionality – Supports a 90° directional change within the modular guard system.
• Flexible Applications – Ideal for warehouses, loading docks, production areas, and pedestrian zones.

Additional Information:

This corner post is part of a fully modular guard rail system. Rails and additional posts are sold separately, allowing facilities to design protection systems that suit their specific space and safety needs. Wall-mount options available for further adaptability.

Mounting Kits available separately.

Technical Specifications:

• Total Ship Wt.(lbs.): 37
• Size: 6"W x 7.625"L x 36"H
• Anchor Bolt Kit: AS-344-4PK
• Component: Mounting Corner Post
• Rail Style: Single
• Hole Mount (qty.): 4

• Width (in.): 6
• Height (in.): 36
• Depth (in.): 7.625
• Thickness (in.): .875

• Color / Finish: Yellow
• Material: Steel
• Installation Hardware Included: No
• UPC: 691215028257
• GTIN: 00691215028257
• Manufacturer Warranty: 90 Days

Made in the USA
