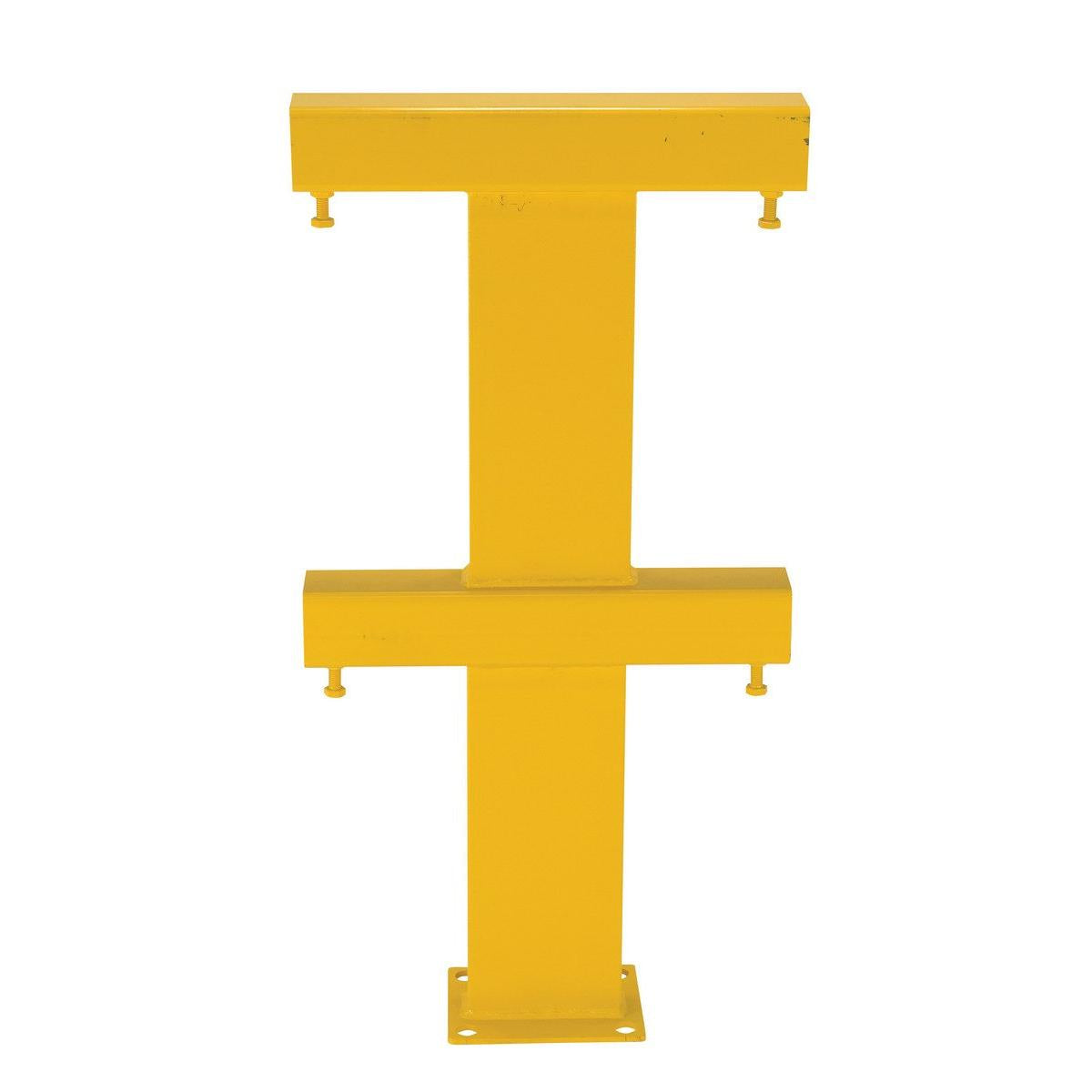

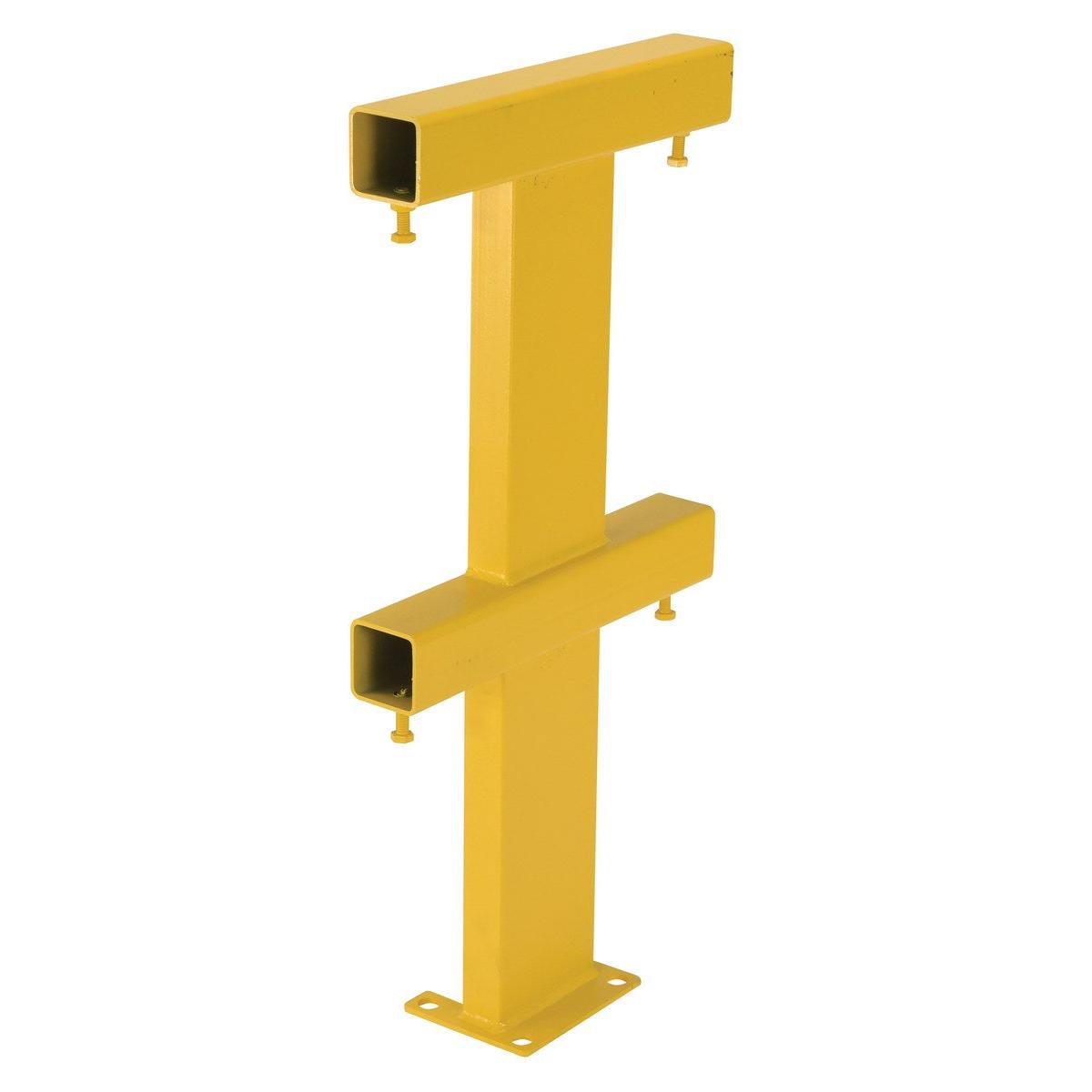

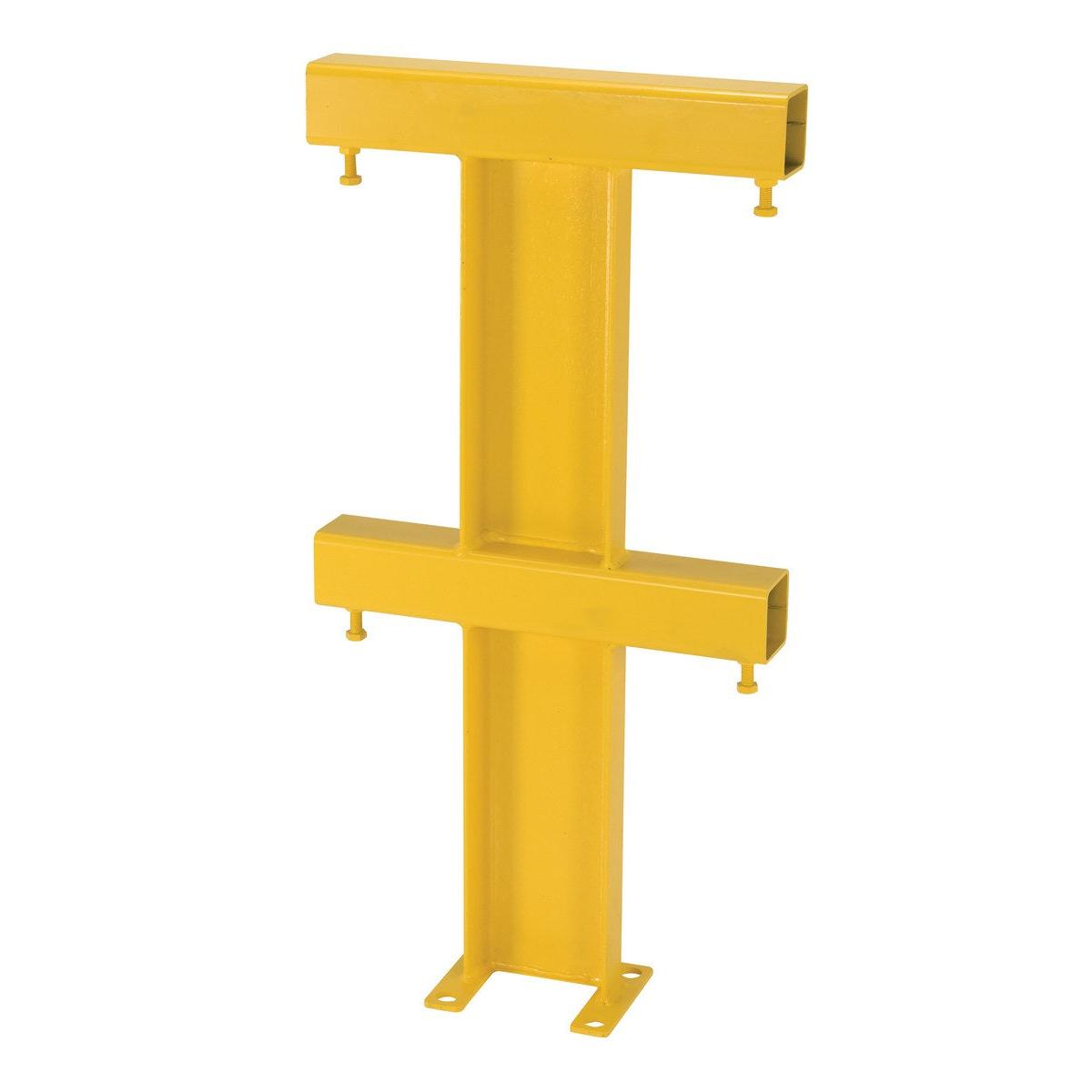

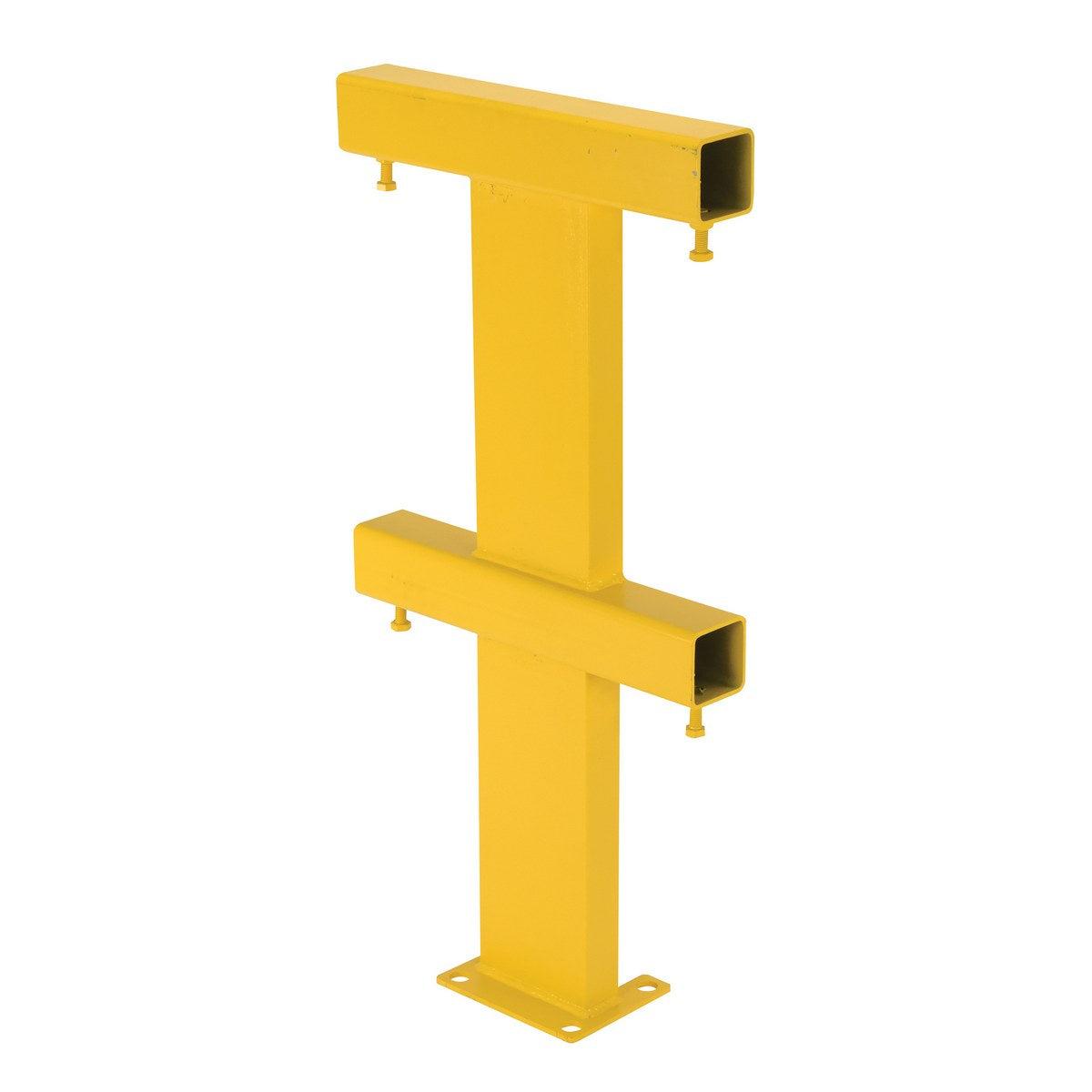

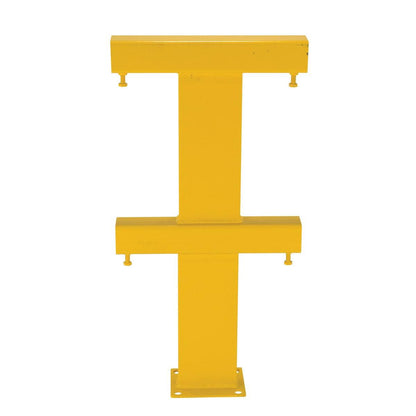

Steel Modular Guard System Straight Post - 2 Rail 7-5/8 In. x 18 In. x 36 In.
Steel Modular Guard System Straight Post - 2 Rail 7-5/8 In. x 18 In. x 36 In.
SKU:VES-MG-SP-36-2
Couldn't load pickup availability
The Steel Modular Guard System Straight Post serves as a key structural element in building customized barrier systems for protecting personnel, equipment, and inventory. This straight post supports inline rail connections, enabling continuous runs of guard rail in high-traffic or high-risk areas such as warehouses, manufacturing floors, and loading zones.
Engineered from heavy-duty square steel tubing, the post delivers long-lasting strength and resistance to industrial wear. With a user-friendly bolt-on rail connection, installation is fast and secure. The modular design allows for flexible configurations using various rail lengths and additional posts.
Key Features & Benefits
- Modular Design – Easily integrates with other system components to accommodate custom layouts.
- Heavy-Duty Steel Construction – Square steel tubing ensures structural strength and long-lasting use.
- Simple Installation – Secures rail with a single bolt per connection for fast assembly.
- Straight Post Functionality – Supports uninterrupted rail segments for linear protection.
- Versatile Use – Ideal for safeguarding foot traffic lanes, equipment perimeters, and facility infrastructure.
Additional Information:
The straight post is part of a modular guard rail system designed for maximum adaptability. Compatible rails, corner posts, and wall-mount options are sold separately, allowing tailored safety solutions for a wide range of industrial environments.
Mounting Kits available separately.
Technical Specifications:
- Total Ship Wt.(lbs.): 68
- Size: 18"W x 7.625"L x 36"H
- Anchor Bolt Kit: AS-344-4PK
- Component: Mounting Straight Post
- Rail Style: Double
- Hole Mount (qty.): 4
- Mounting Plate Width (in.): 7-5/8
- Mounting Plate Length (in.): 6
- Mounting Plate Hole Diameter (in.): 7/8
- Mounting Plate Thickness (in.): 1/4
- Width (in.): 18
- Height (in.): 36
- Depth (in.): 7.625
- Thickness (in.): .875
- Color / Finish: Yellow
- Material: Steel
- Installation Hardware Included: No
- UPC: 691215028356
- GTIN: 00691215028356
- Manufacturer Warranty: 90 Days
Made in the USA
