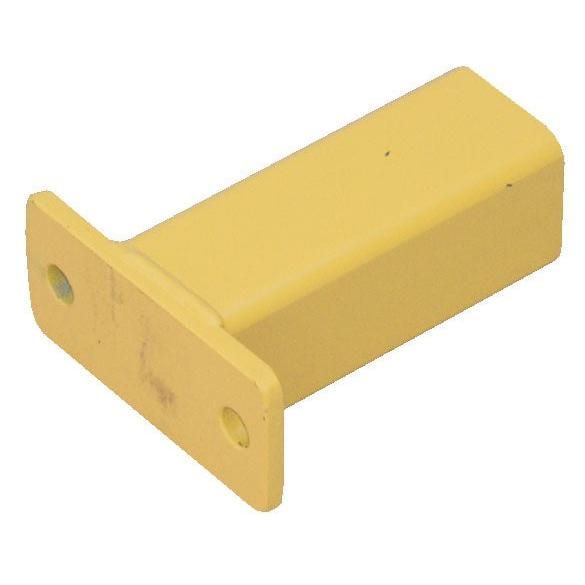

Steel Modular Guard Wall Mount for Inner Post Tubing Option 6-7/8 In. x 3 In. x 6 In.

The Steel Modular Guard Wall Mount is engineered to provide a secure anchoring point for modular guard rail systems where floor posts are impractical. This wall-mount option is designed to accept rail tubing via an inner post connection, which is ideal for creating protective barriers along walls in high-traffic or equipment-sensitive environments.

Fabricated from heavy-duty steel, this mount offers lasting strength and support for modular rail configurations. It simplifies guard rail installation in areas with limited floor space or structural constraints, without sacrificing protection.

Key Features & Benefits

• Wall-Mounted Design – Eliminates the need for floor-mounted posts, perfect for tight or restricted areas.
• Inner Tubing Connection – Accepts modular rail tubing internally for a secure, streamlined fit.
• Heavy-Duty Steel Construction – Provides strong, reliable support for modular safety barriers.
• Space-Saving Solution – Ideal for warehouse walls, production floors, or facility perimeters.
• Modular Compatibility – Fully integrates with Steel Modular Guard System components for seamless layouts.

Additional Information:

Compatible with modular guard rail tubing of corresponding dimensions. Designed for use with straight rail sections or as part of a larger custom-fit barrier system. Hardware and other system components sold separately.

Technical Specifications:

• Total Ship Wt.(lbs.): 7
• Size: 3"W x 6.875"L x 6"H
• Component: Wall Mounting
• Mounting Style: Inner Fit Post Tubing
• Bolt Hole (qty.): 2

• Square Tube Width/Height (in.): 2-1/2 x 2-1/2
• Color / Finish: Yellow
• Material: Steel
• Height (in.): 6

• Length (in.): 6.875
• Reflective: No
• UPC: 691215028363
• GTIN: 00691215028363
• Manufacturer Warranty: 90 Days

Made in the USA
