Type III Steel Upright with Multiple Feet Barricade

PLA-3504-EG-L-DRILL-KIT
  • $126.99
Shipping calculated at checkout.


The Steel Post with multiple feet option is a Steel Barricade composed of two square tube uprights, two feet and 3 Power Boards. The Steel Posts and feet are made of galvanized, 14 gauge hot rolled high carbon steel and the angle iron feet are made of 10-AWG iron. The Plastic power boards can be chosen from a variety of sizes, sheeting grades and design.

Features and Benefits:

  • 14 AWG hot rolled high carbon steel square tube uprights that are extra stiff and durable
  • Universal mounting holes for easy assembly
  • Accepts two barricade lights that ensure night vision
  • Steel Square Tube Feet & Angle Iron Feet won’t bend
  • Stiff, and durable plastic 1" x 8" board give visibility to barricade
  • Order 3M retroreflective sheeting in various direction configurations and grades for one or both board sides
  • Ensures high visibility
  • Helps guide traffic
  • Kit includes everything you need to set up the barricade
  • NCHRP-350 Accepted - Meets MUTCD Standards
  • Component parts also sold separately

    The Steel Post with multiple feet option is a steel barricade designed to be extra durable, heavyweight and resistant to heavy wind. It comes with pre-drilled holes and for assembling barricade lights and power boards. This Barricade is quick and easy to set up and comes with high quality 3M Reflective Sheeting to provide protection in any working site. It comes in a kit so you don't have to worry about anything.

      Made in the USA

      If you would like to request a quotation for large quantities of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832

      Technical Specifications:

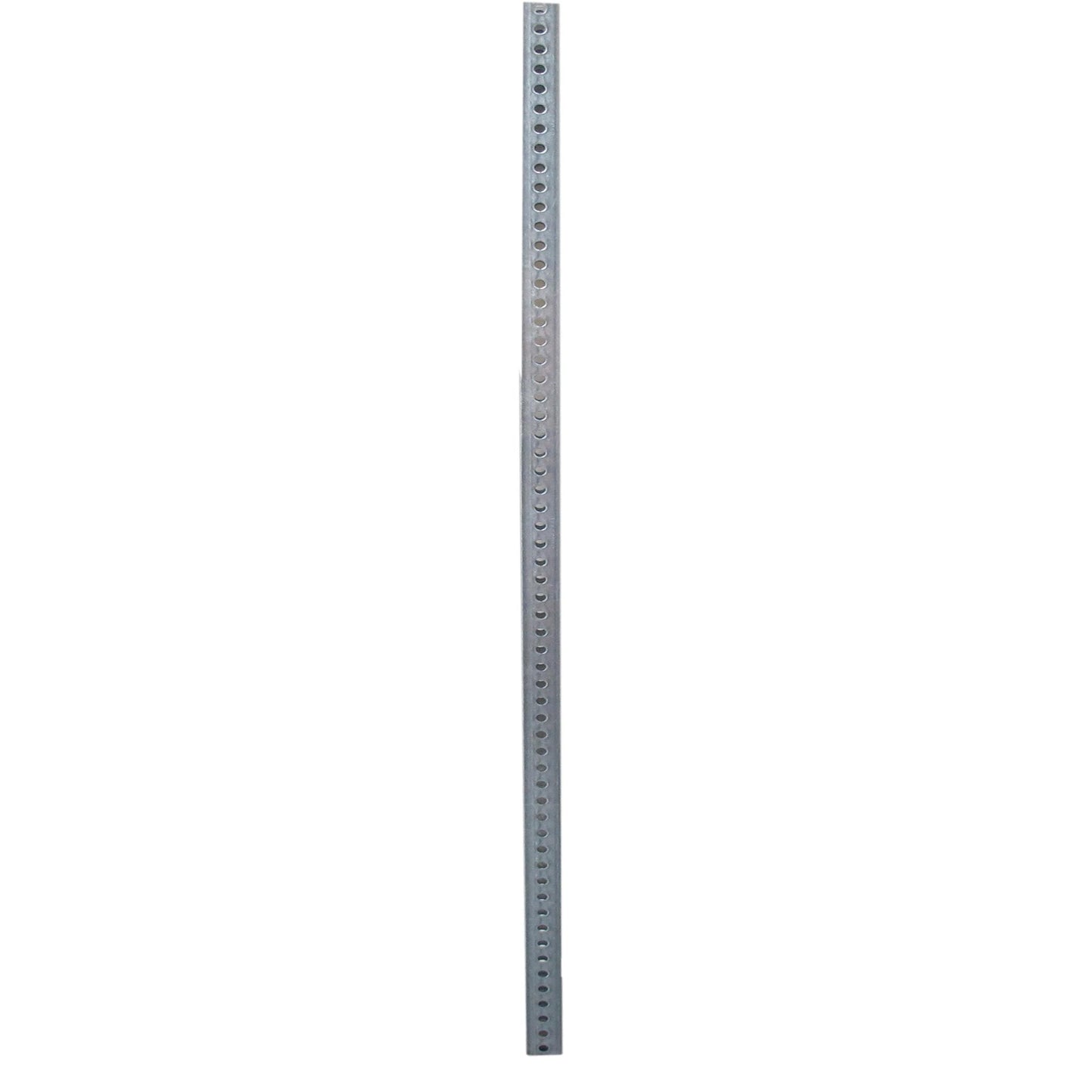

      • Galvanized, 14 AWG hot rolled high carbon steel square tube uprights: 1.75" x 1.75" x 63" - 9 lbs.
      • Uprights contain holes for boards 11/32" and holes for lights 9/16"
      • Universal mounting holes, accepts two barricade lights

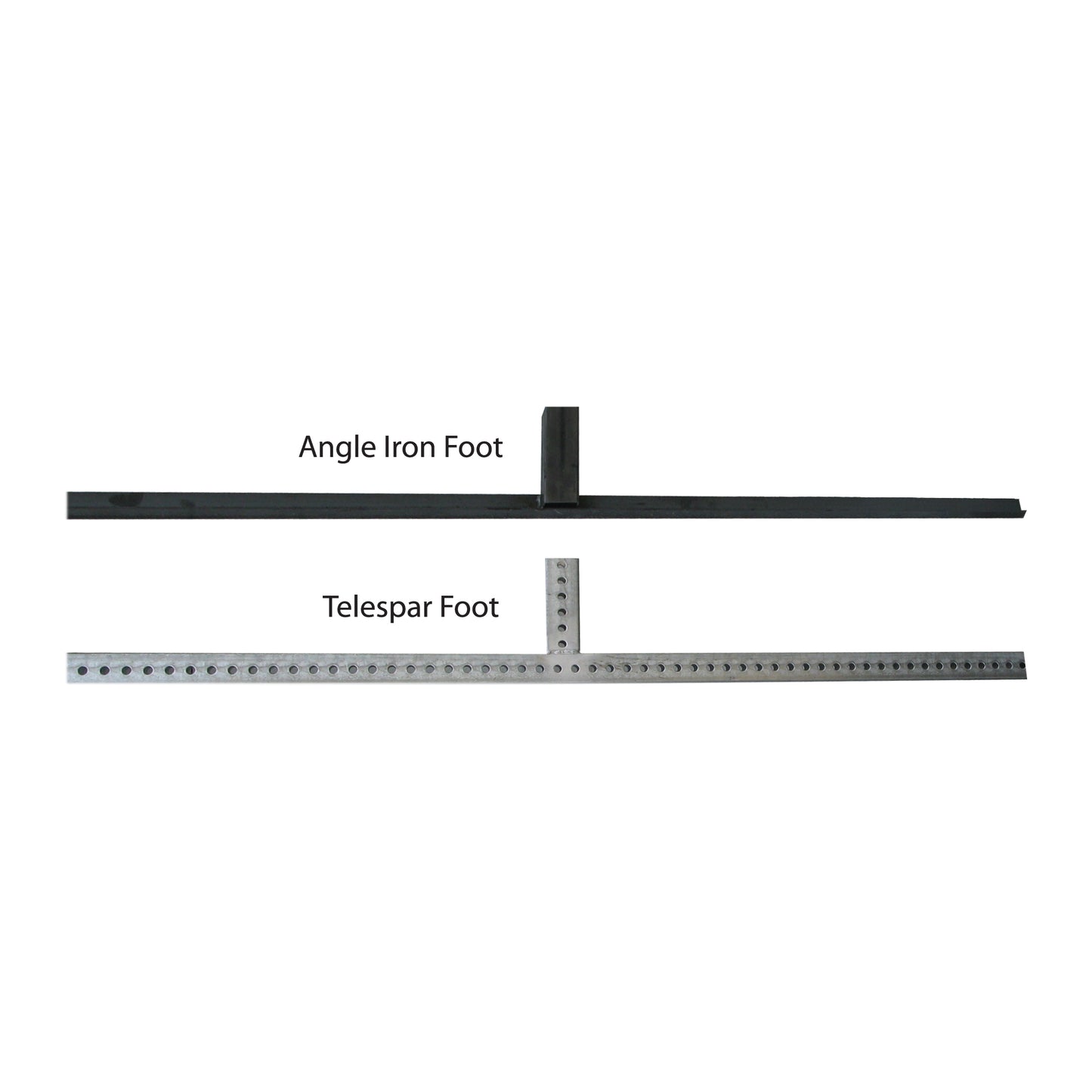

      • Feet: steel square tube or angle iron

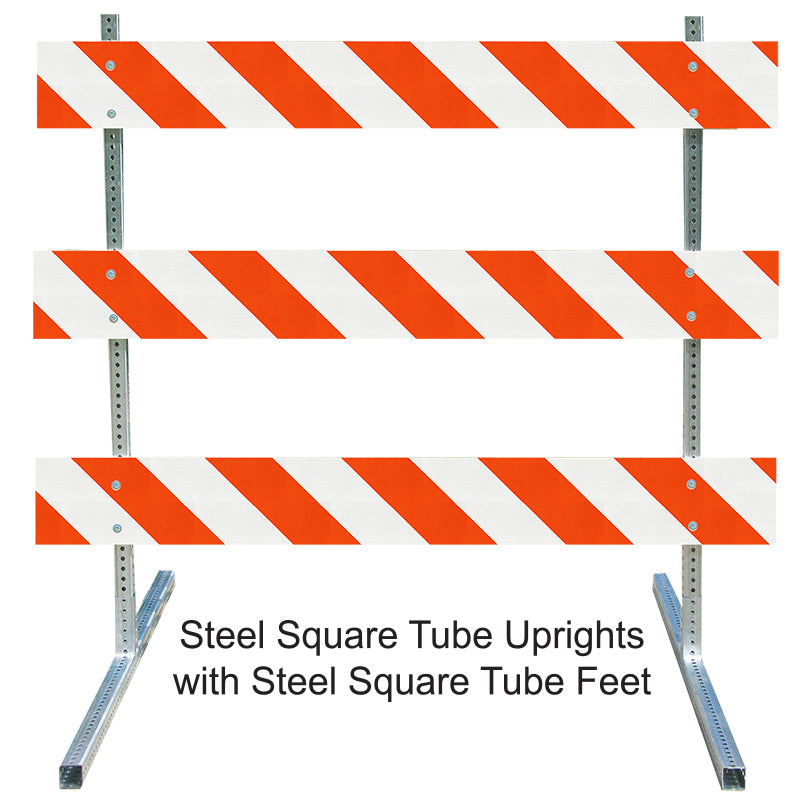

      • Steel Square Tube Feet: 1.75" x 1.75" x 60", Riser 6" - 10 lbs.
        • Galvanized, 14 AWG hot rolled high carbon steel

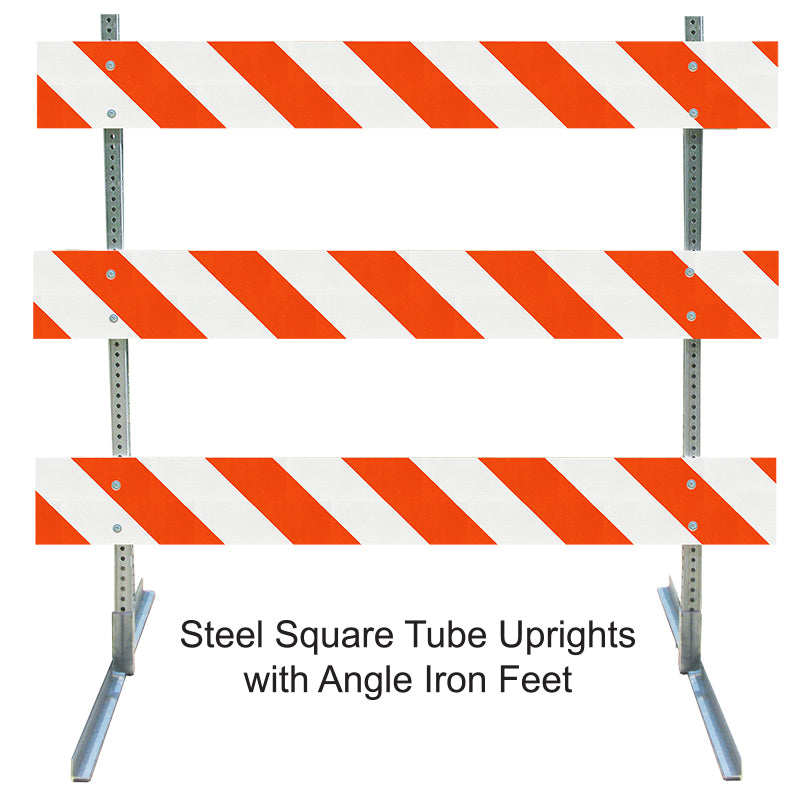

      • Angle Iron Feet: 1.5" x 1.5" x 60", Riser 6" - 7 lbs.
        • 10-AWG angle iron

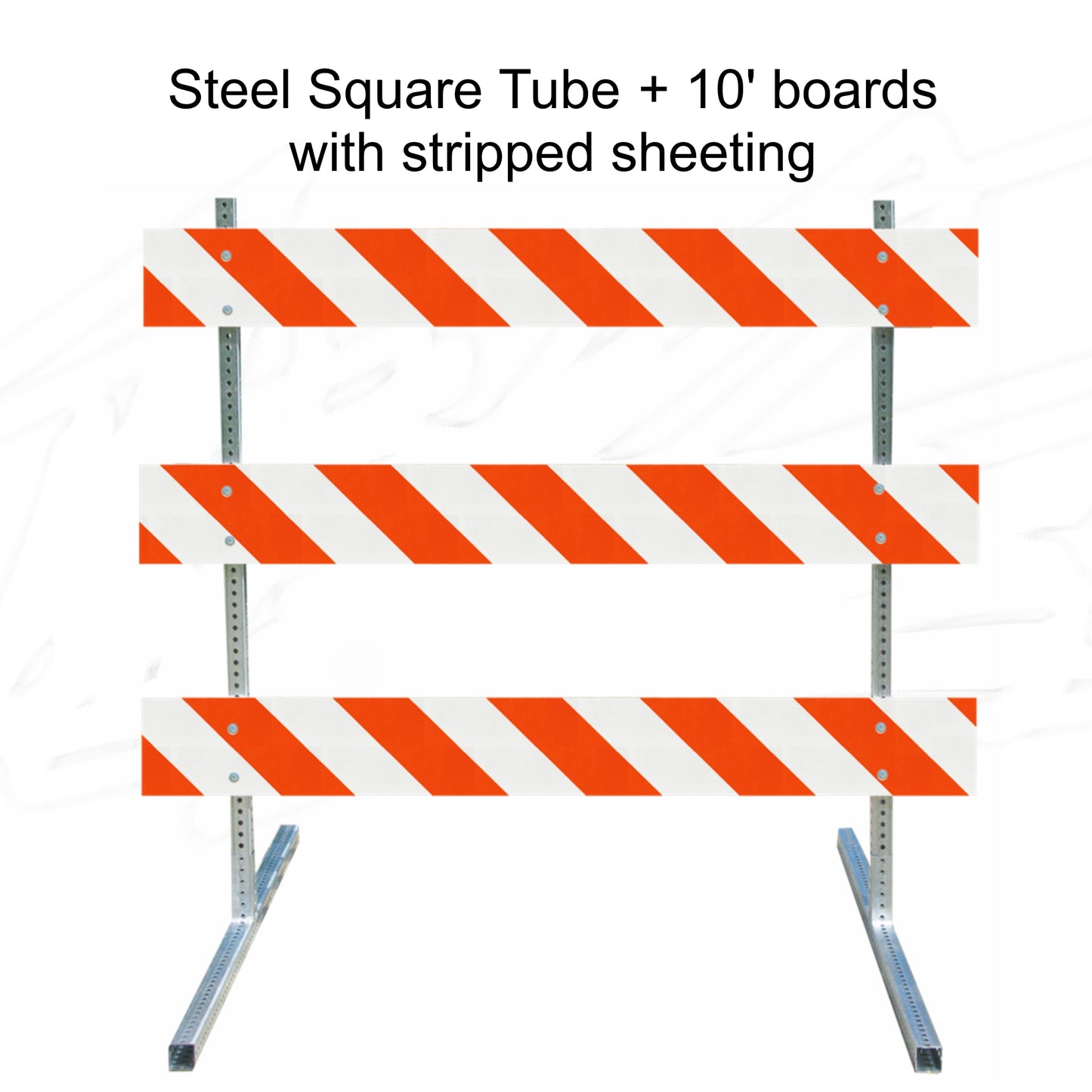

      • Durable plastic 1" x 8" board available in 4', 6', 8', 10', and 12', also available separately
      • Order none, one or both sides with sheeting in EG, HIP & DG

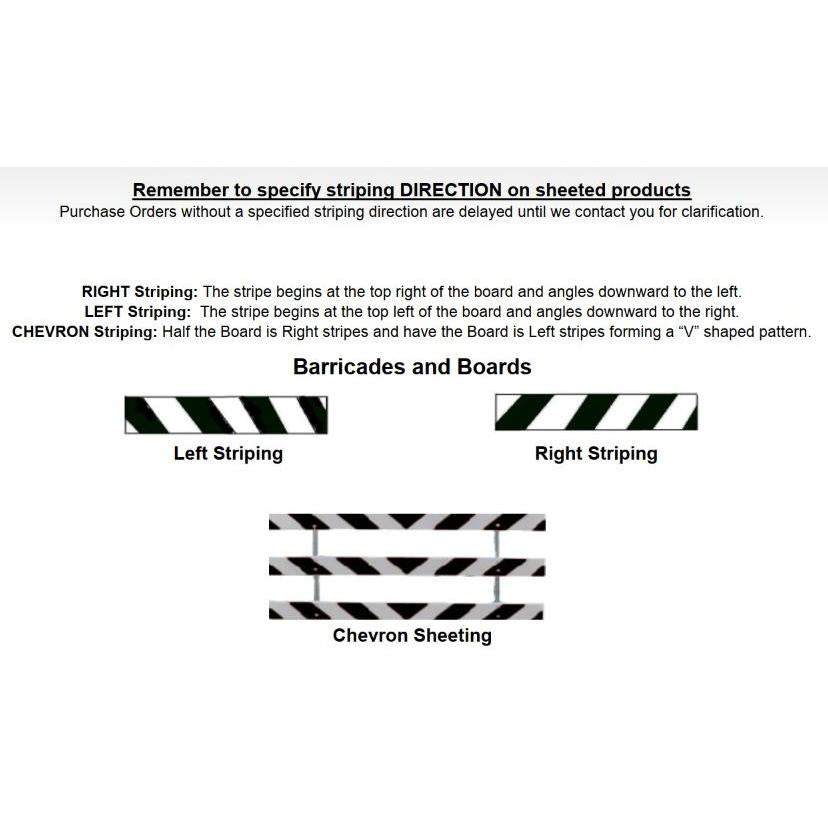

      • 3M retroreflective striped sheeting available in various directions, Chevron sheeting is also available
      • Kits with assembly hardware included
      • NCHRP-350 Accepted - Meets MUTCD Standards
      • Component parts also sold separately

      Technical Documents and Certifications:

      State Reference Guide
      Learn more about traffic product certifications and specifications for your state.

      Alaska
      No QPL
      AK Standard Specifications
      AK Standard Drawings
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type III
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Arizona
      No QPL
      AZ State Supplement
      AZ Traffic Control Guidelines
      AZ Standard Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Arkansas
      No QPL
      AR Standard Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956 Type VII, Type VIII, or Type IX
      Plasticade meets the specification by supplying 3Mâ„¢ Diamond Gradeâ„¢

      California
      CA QPL
      CA State Manual
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type I/II
      Plasticade meets the specification by supplying 3Mâ„¢ Engineer Grade

      Colorado
      CO QPL
      CO DOT
      CO Work Zone Devices
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade


      Connecticut
      CT QPL
      CT Standard Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Delaware
      No QPL
      DE DOT
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type III
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Florida
      Florida QPL
      Florida Standard Specifications
      Certified for use:
      FL DOT approval 102-002-033
      Approved for use with signs.
      DOT Sheeting Requirement – ASTM D4956, Type III
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Georgia
      GA QPL
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Hawaii
      No QPL
      HI Standard Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Idaho
      Idaho QPL
      ID State Supplement
      ID Traffic Manual
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type III
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Illinois
      No QPL
      IL State Supplement
      IL Standard Specifications
      IL Design Standards
      Certified for use:

      DOT Sheeting Requirement – ASTM D4956, Type III/IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Indiana
      No QPL
      IN State Manual 2011
      IN Work Zone Devices
      IN Standard Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Iowa
      IA QPL
      IA Traffic Safety Manual
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956 Type VII non-fluorescent
      Plasticade meets the specification by supplying 3Mâ„¢ Diamond Gradeâ„¢
      Only use 6' boards

      Kansas
      KS QPL
      KS Standard Specifications
      KS Special Provisions
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type III
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Kentucky
      No QPL
      KY Standard Specifications
      KY Standard Drawings
      Approved Materials
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type III
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Louisiana
      LA Approved Products
      LA QPL Drums
      LA Standard Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type III
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Massachusetts
      MA QPL
      MA MUTCD
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade



      Michigan
      No QPL
      MI State Manual
      MI Work Zone Device Drawings
      MI Standard Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type III
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Minnesota
      Minnesota QPL
      MN State Manual
      MN Work Zone Devices
      MN Standard Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956 Type XI
      Plasticade meets the specification by supplying 3Mâ„¢ Diamond Gradeâ„¢

      Mississippi
      MS QPL
      MS Standard Drawings
      MS Standard Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Missouri
      No QPL
      MO State Manual
      Standards and Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Montana
      MT QPL
      MT Standard Drawings
      MT Manuals and Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type III
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Nebraska
      NE QPL
      NE Standard and Special Plans Manual
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956 Type XI
      Plasticade meets the specification by supplying 3Mâ„¢ Diamond Gradeâ„¢

      Nevada
      NV QPL
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      New Hampshire
      No QPL
      NH DOT
      NH Notes to MUTCD
      NH Standard Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type III
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      New Mexico
      No QPL
      NM Standard Specifications
      Certified for use

      New York
      No QPL
      NY State Supplement
      NYSDOT Standard Drawings
      NY Standard Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type I or Type III
      Plasticade meets the specification by supplying 3Mâ„¢ Engineer Grade or 3Mâ„¢ High Intensity Prismatic Grade

      North Dakota
      No QPL
      ND Work Zone Devices
      ND Standard Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Ohio
      OH APL
      OH State Manual
      Temporary Traffic Control Manual
      Traffic Control for Work Zones Guidelines
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      South Carolina
      SC QPL and MUTCD Supplement
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type III
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      South Dakota
      No QPL
      SD Standard Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Tennessee
      TN QPL
      Certified for use
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Texas
      TX Compliant Work Zone Devices
      Texas MUTCD
      TX Standard Traffic Drawings
      Certified for use:
      8' rails or less. DOT Sheeting Requirement – ASTM D4956, Type III
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Utah
      UT APL
      UT State Manual
      UT Work Zone Devices
      UT Standard Specifications
      Certified for use:
      Use only 4' rails. DOT Sheeting Requirement – ASTM D4956 Type XI
      Plasticade meets the specification by supplying 3Mâ„¢ Diamond Gradeâ„¢ Certified for use. 8""-12"" rails; 4' minimum length.

      Vermont
      No QPL
      VT DOT
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Virginia
      No QPL
      VA Roadside and Safety Devices
      VA State Supplement
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Washington
      WA QPL
      WA State MUTCD
      WA Design Standards
      WA Traffic Manual
      WA Standard Plans
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Washington DC
      No QPL
      DC Standard Specifications
      DC Temporary Traffic Control Manual
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type III
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      West Virginia
      No QPL
      WV State Supplement
      WV Special Provisions
      WV Standard Specifications
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type III
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Wisconsin
      No QPL
      WI State Supplement
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade

      Wyoming
      No QPL
      WY Standard Work Zone Devices
      WY MUTCD
      Certified for use:
      DOT Sheeting Requirement – ASTM D4956, Type IV
      Plasticade meets the specification by supplying 3Mâ„¢ High Intensity Prismatic Grade
