Steel Rigid Tube Post – Drop-In Style for 2 Ribbed Guard Rails

Protecting personnel, equipment, and inventory from accidental impacts is essential in every industrial or commercial setting. The Steel Rigid Tube Post – Drop-In Style provides the structural support needed for 2-Ribbed Guard Rails, combining strength, accessibility, and efficiency. Its drop-in design allows rails to be easily removed or repositioned without dismantling the entire system, ideal for applications that require frequent access or layout changes.

Built from durable steel with a baked-in yellow powder-coated finish, these posts ensure visibility and long-term resistance to wear and corrosion. The pre-drilled base design simplifies surface mounting and guarantees a stable, reliable connection between rails and posts.

Features and Benefits

• Heavy-Duty Construction: Rigid steel tubing provides long-lasting impact protection.
• Quick Drop-In Design: Rails slide easily into post saddles for fast installation and access.
• Powder-Coated Finish: Durable baked-on yellow coating improves visibility and resists corrosion.
• Pre-Drilled Mounting Holes: Simplifies floor anchoring and ensures consistent installation.
• Modular Compatibility: Designed for 2-Ribbed Steel Guard Rails (sold separately).
• Indoor/Outdoor Use: Suitable for warehouses, docks, machinery zones, and pedestrian aisles.

Available Configurations

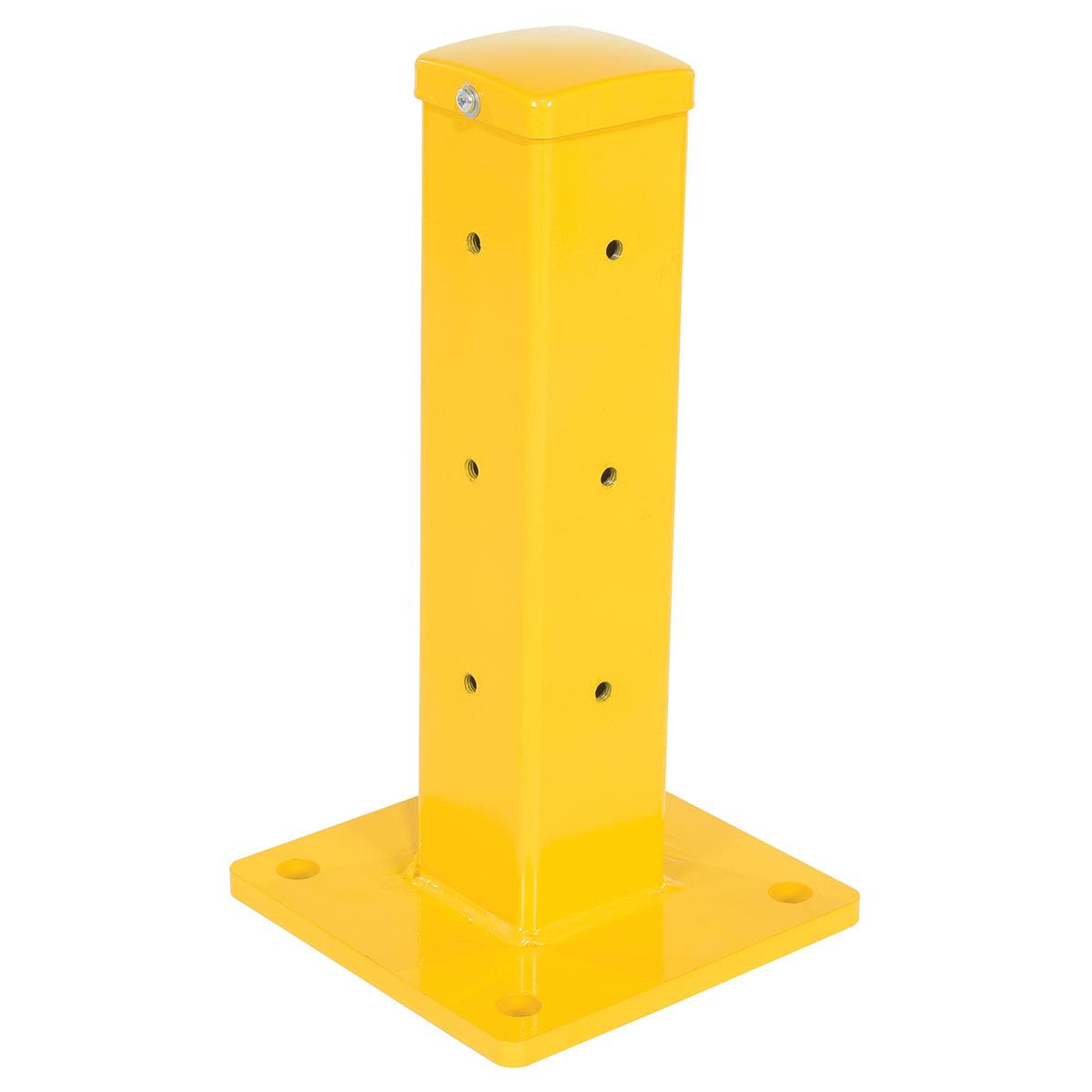

• 18 in. Height: Compact protection ideal for low barriers or pallet protection.

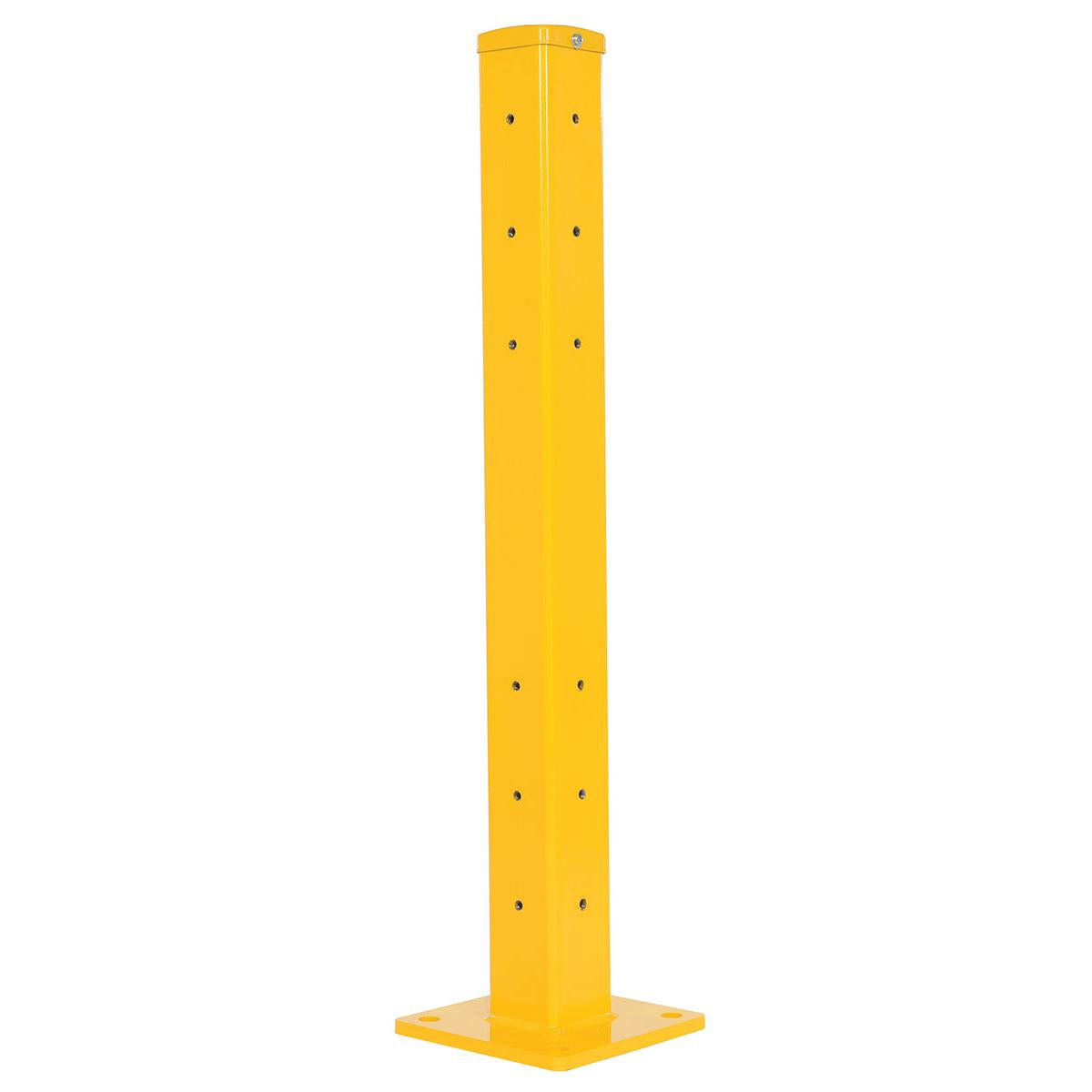

• 42 in. Height: Standard height for personnel and equipment safety barriers.

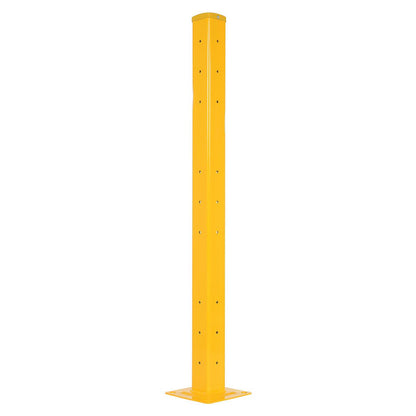

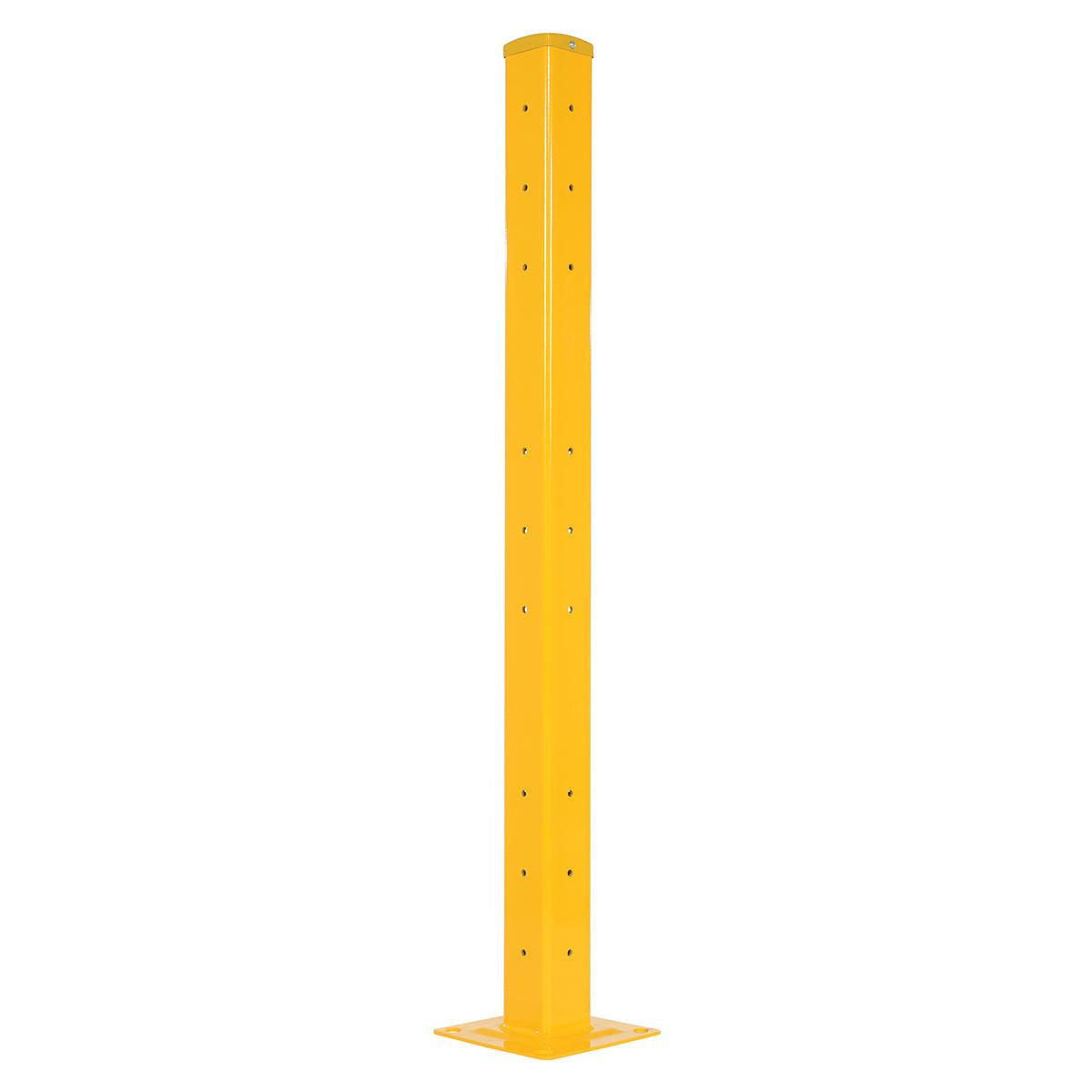

• 60 in. Height: Added vertical coverage for taller machinery and high-impact zones.

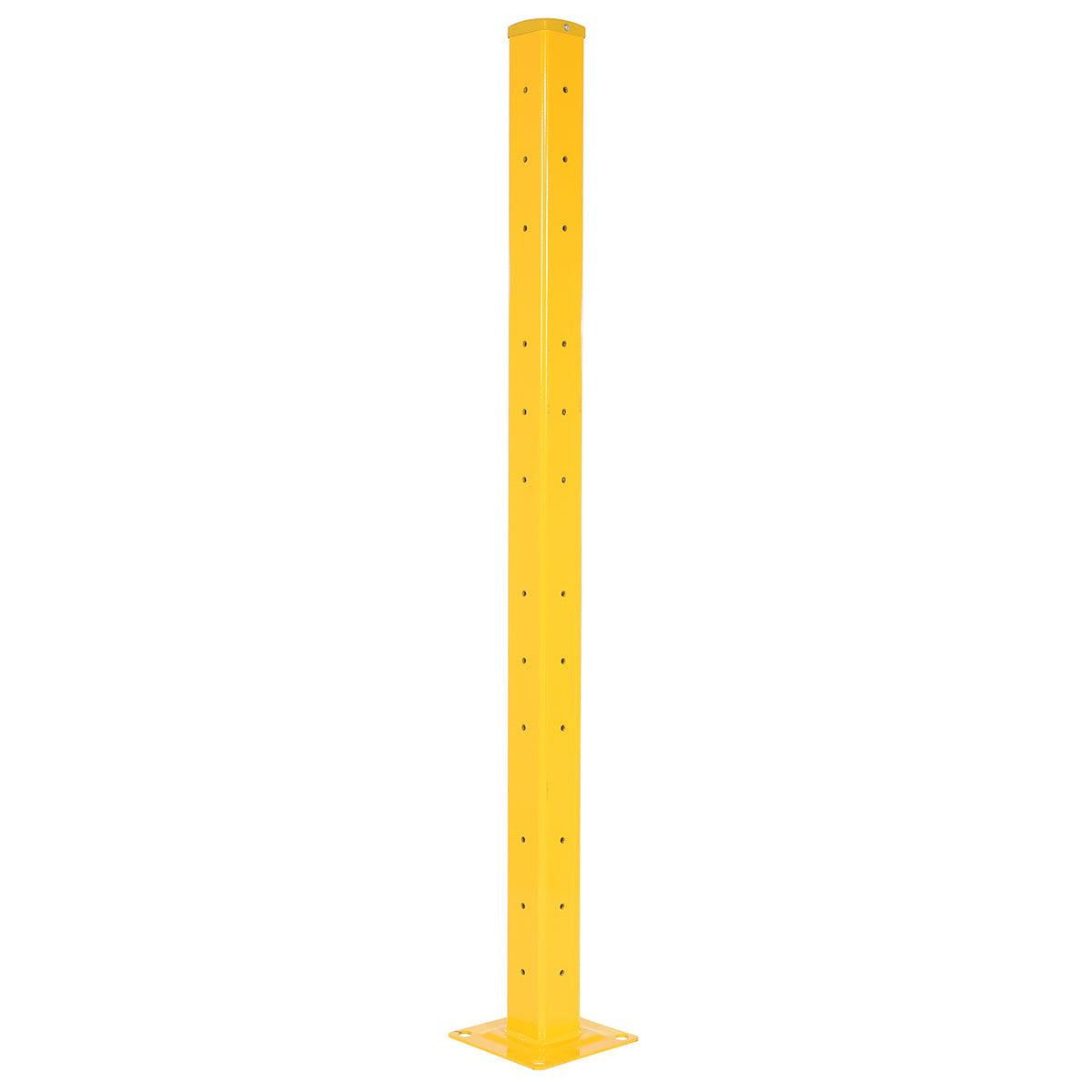

• 72 in. Height: Maximum protection for heavy-traffic or high-clearance areas.

Additional Information

Each post includes drop-in rail brackets and hardware for quick assembly. Rails and mounting anchors are sold separately. When extending an existing guard rail line, only one additional post is required. The bright yellow finish ensures compliance with common safety visibility standards while maintaining a clean, professional appearance in any facility.

Technical Specifications:

• Material: Steel
• Color / Finish: Yellow (powder-coated)
• System Compatibility: Structural Guard Rails; 2-Ribbed Drop-In rails
• Mounting Style: Drop-In (rails seat in post saddles)
• Base Plate Size (W × L): 9.875 in × 9.875 in
• Base Plate Thickness: 0.625 in
• Base Plate Mounting Holes / Ø: 4 holes / 0.9375 in
• Assembled Width × Depth: 9.875 in × 9.875 in
• Assembly: Assembled
• Reflective: No
• CPO-Prop 65 Warning Required: Yes
• Approval Drawing Required?: No
• Manufacturer Warranty: 90 Days


Made in the USA
