Steel Rigid Tube Post – Drop-In Style for 3 Ribbed Guard Rails

Protecting personnel, equipment, and storage areas from accidental impact is essential in any industrial environment. The Steel Rigid Tube Post – Drop-In Style offers the structural strength and convenience needed for 3-Ribbed Guard Rail systems, allowing quick installation, easy removal, and dependable performance in high-traffic areas. Its drop-in design enables rails to be positioned or replaced without removing hardware, making it ideal for applications where access or reconfiguration is frequently required.

Constructed from heavy-duty steel with a baked-in yellow powder-coated finish, these posts deliver exceptional visibility, durability, and corrosion resistance both indoors and outdoors. The pre-drilled base plate ensures secure anchoring and straightforward installation on a wide variety of surfaces.

Features and Benefits

• Rigid Steel Construction: Provides long-lasting strength and impact resistance.
• Drop-In Design: Allows rails to slide into post saddles for quick installation or removal.
• 3-Rib Reinforced Compatibility: Designed for use with 3-Ribbed Drop-In Guard Rails (sold separately).
• Powder-Coated Finish: Durable baked-on yellow coating resists wear and enhances visibility.
• Pre-Drilled Mounting Holes: Simplifies surface anchoring and alignment.
• Modular System: Compatible with additional rails and posts for flexible layouts.
• Indoor/Outdoor Use: Ideal for warehouses, production areas, loading zones, and pedestrian aisles.

Available Models

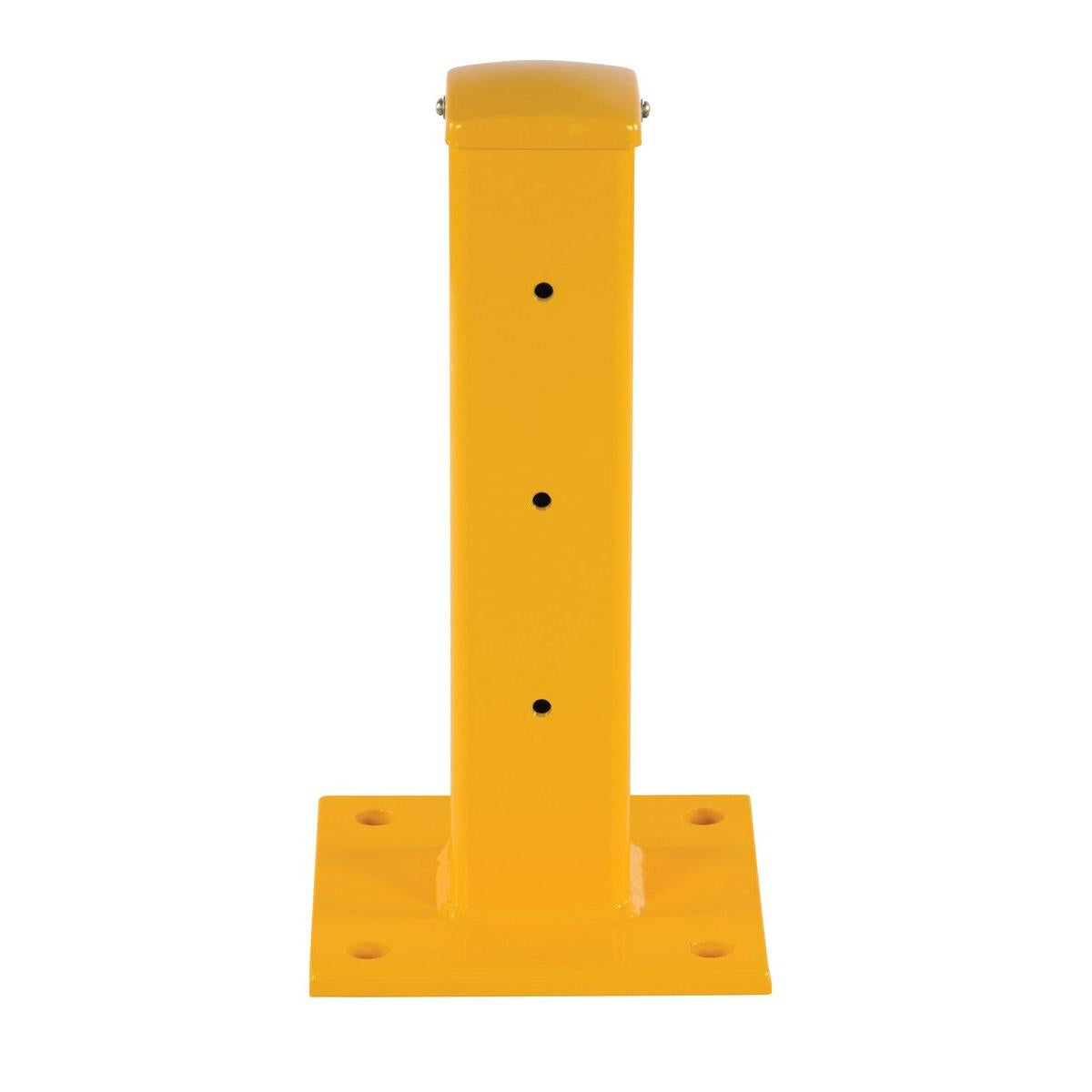

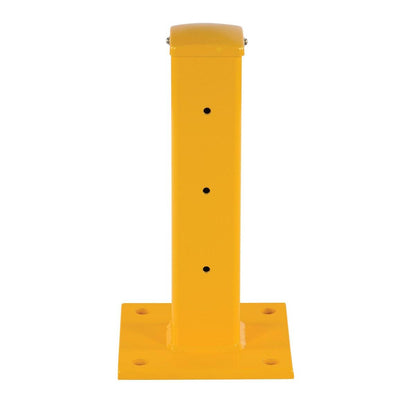

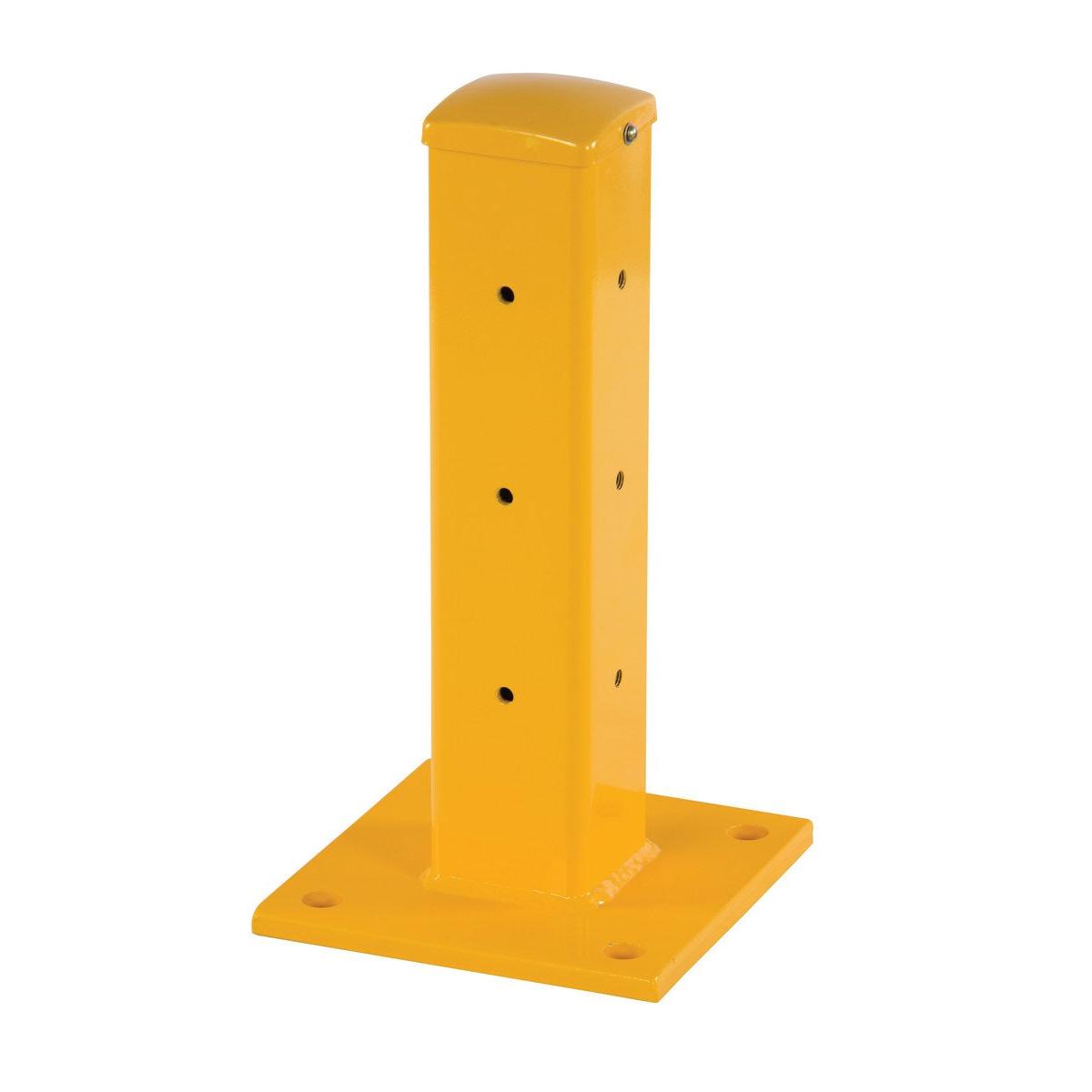

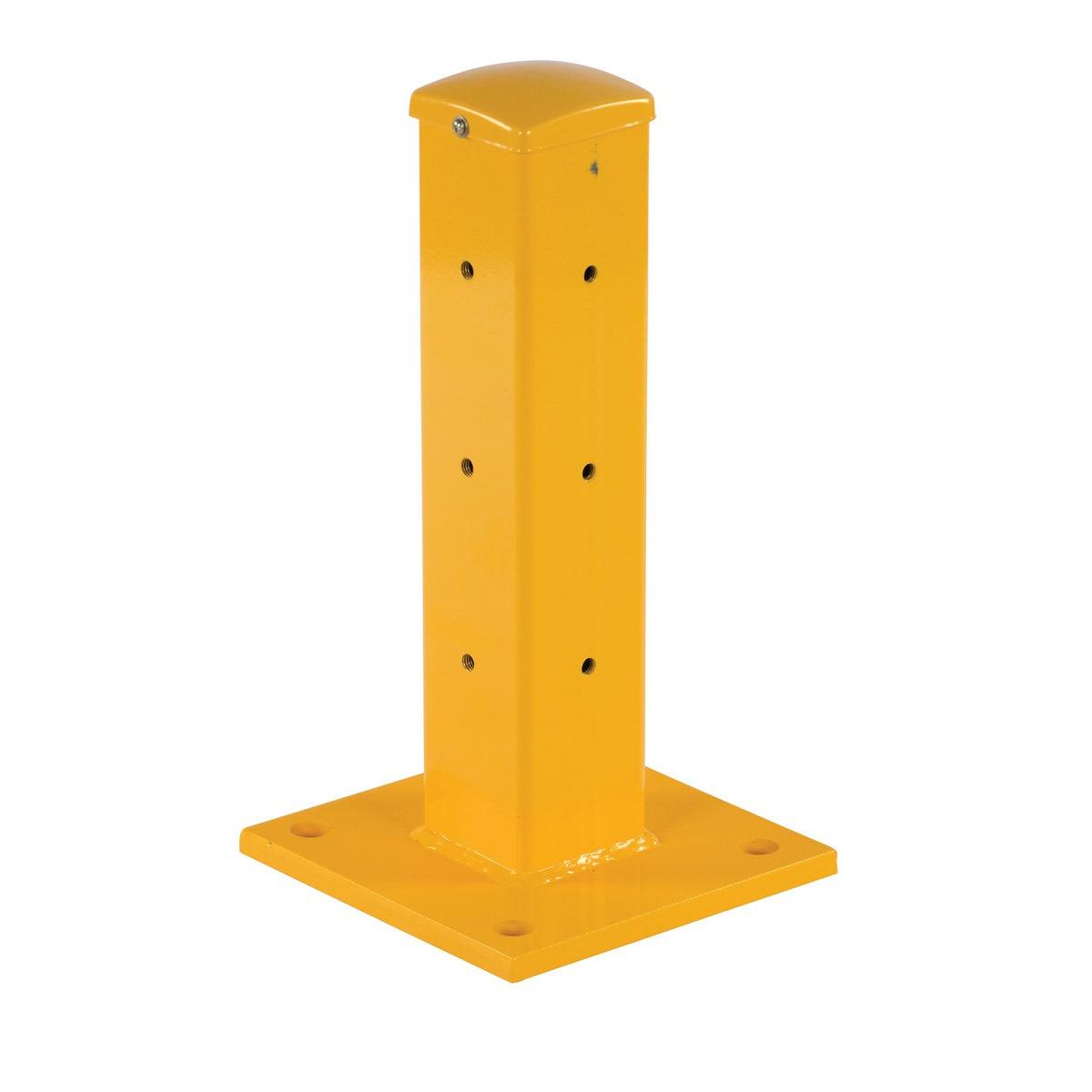

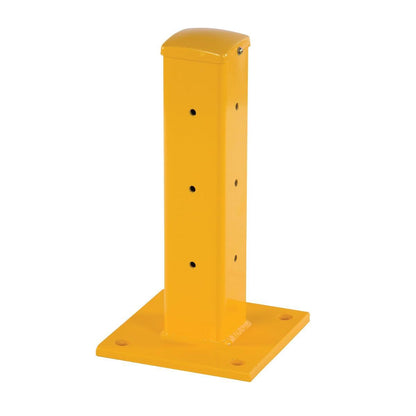

• 18 in. Height: Compact post ideal for low barriers or equipment-level protection.

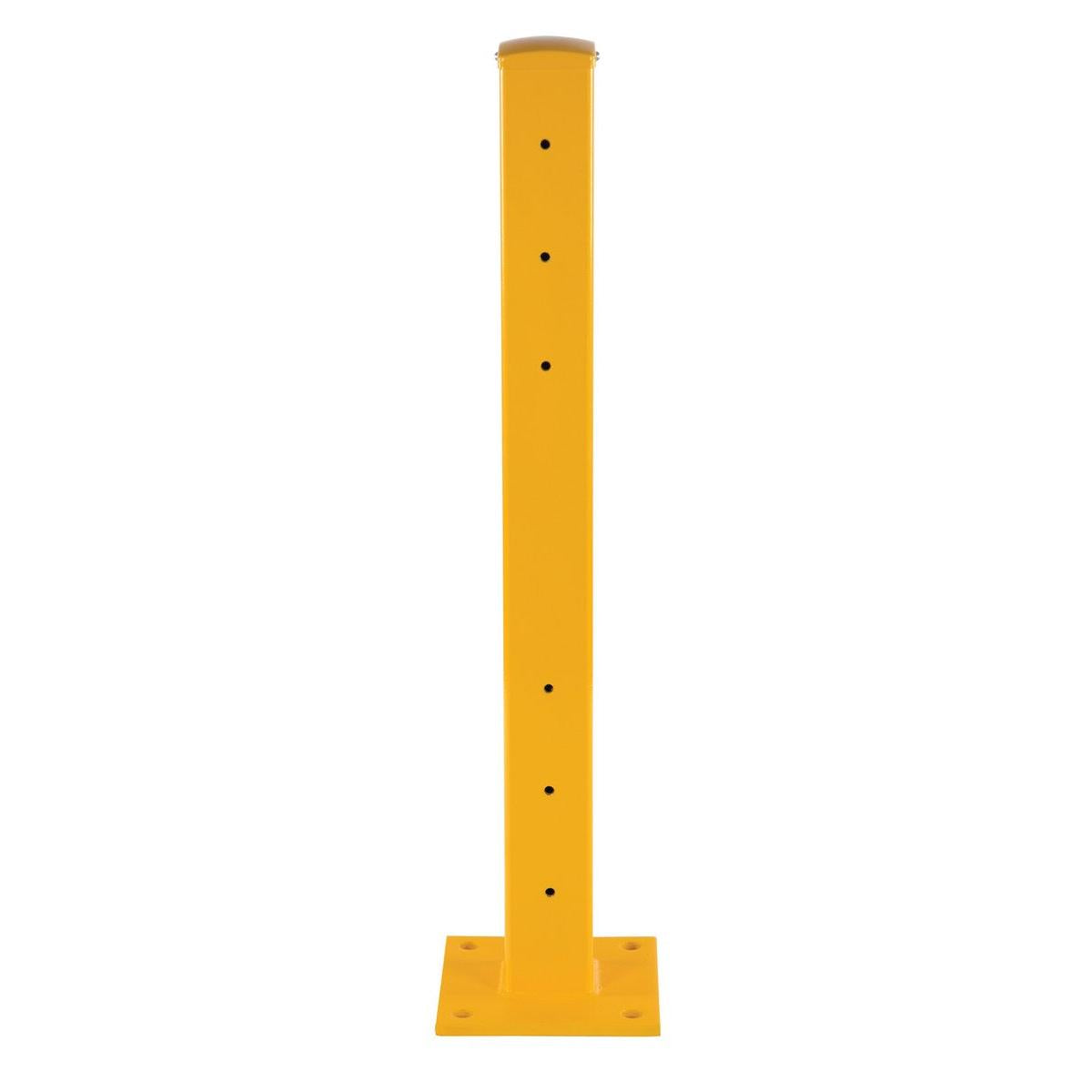

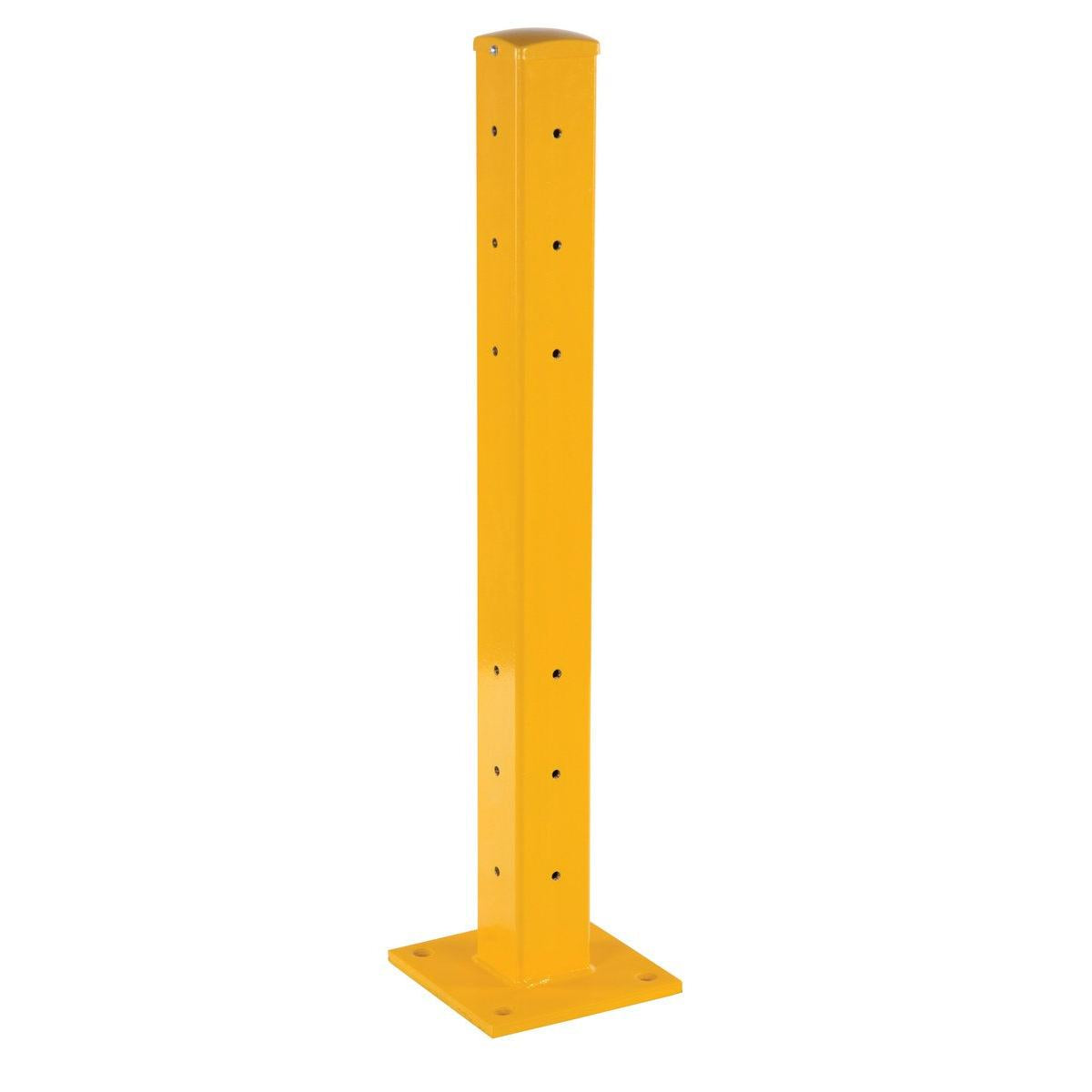

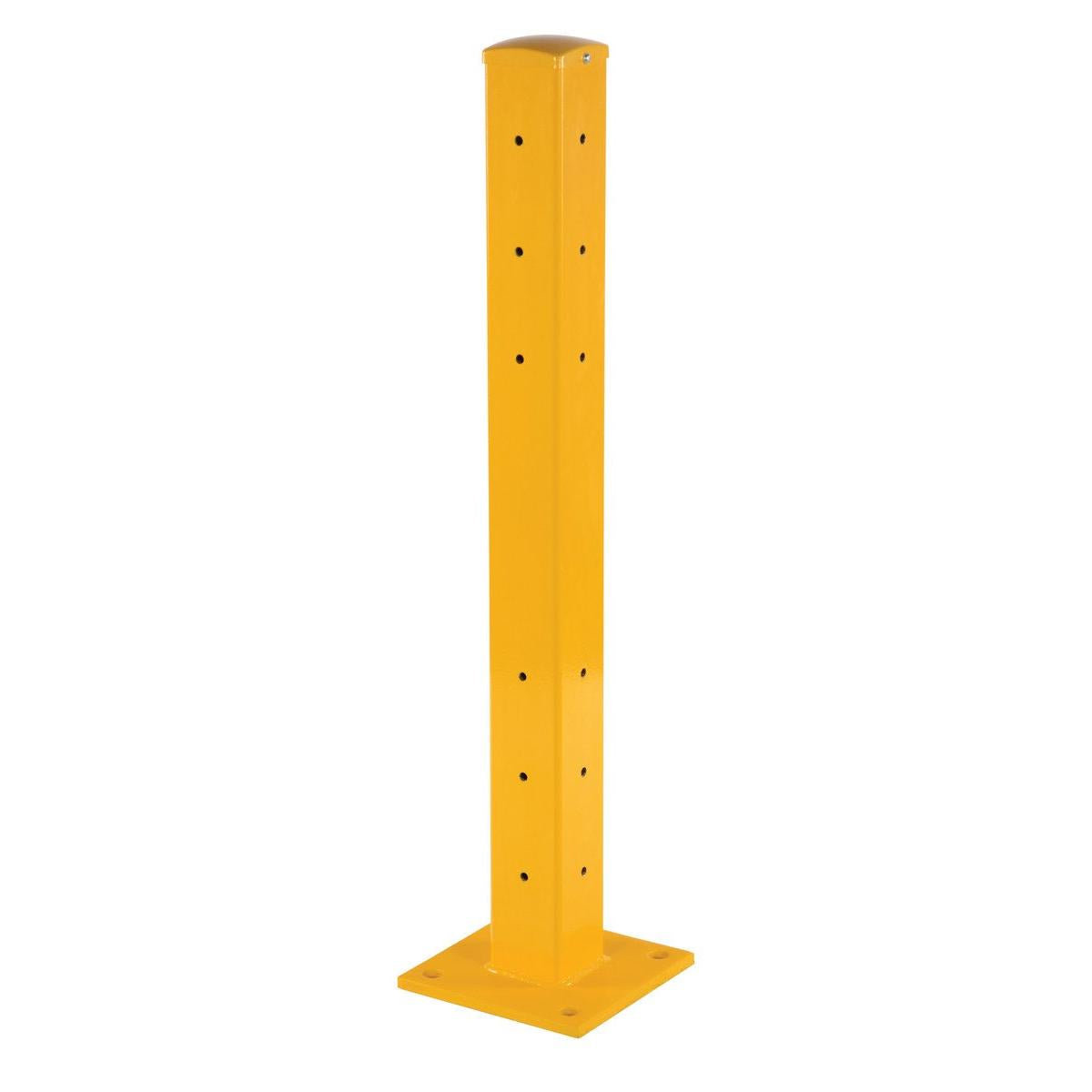

• 42 in. Height: Standard height for personnel and machinery separation.

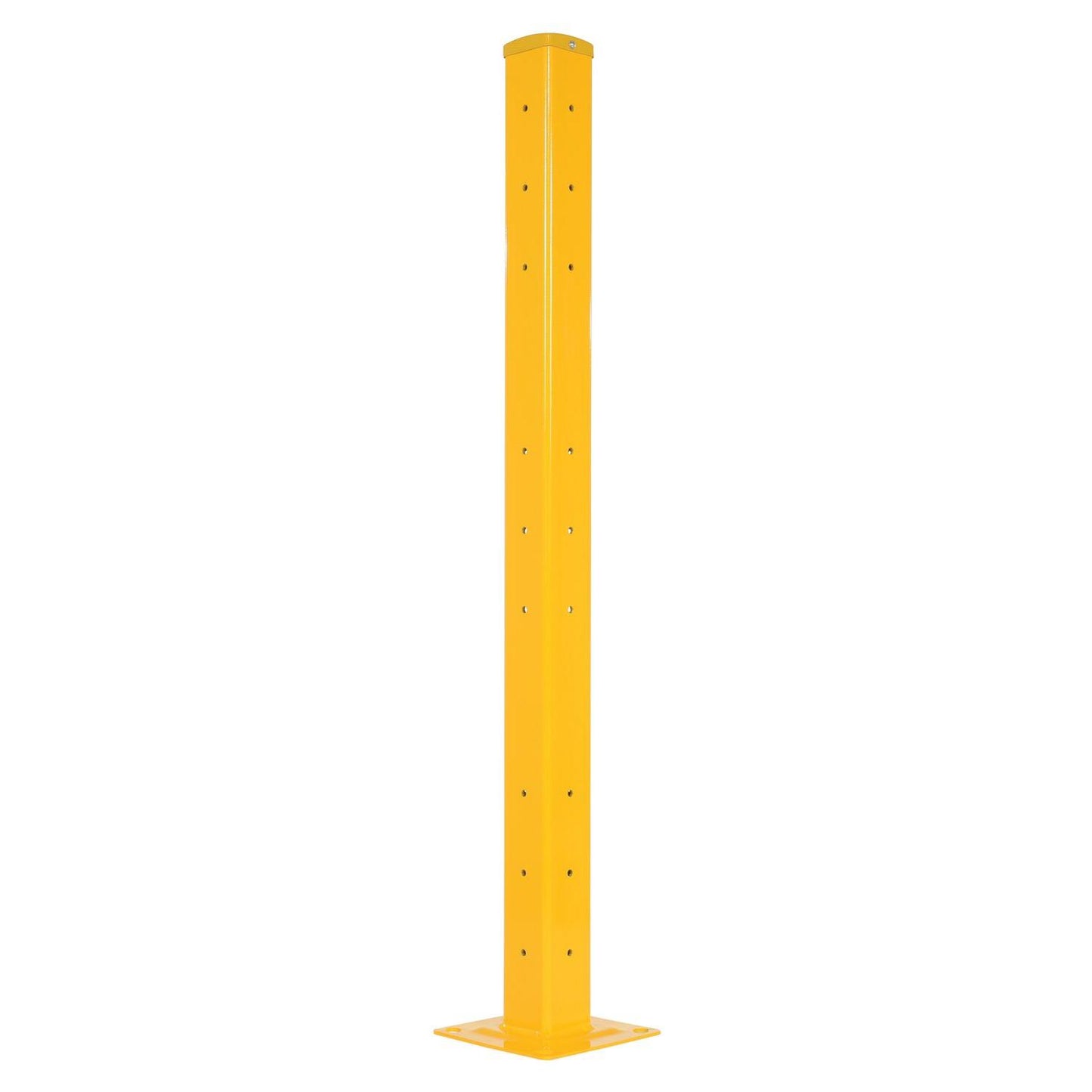

• 60 in. Height: Provides taller protection for equipment-heavy or high-impact areas.

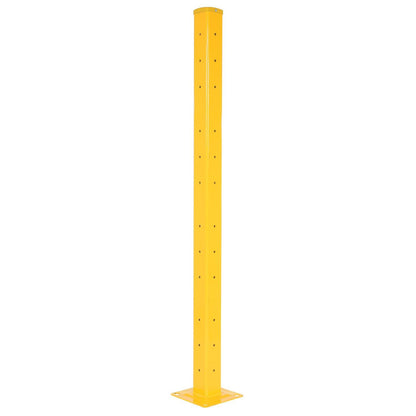

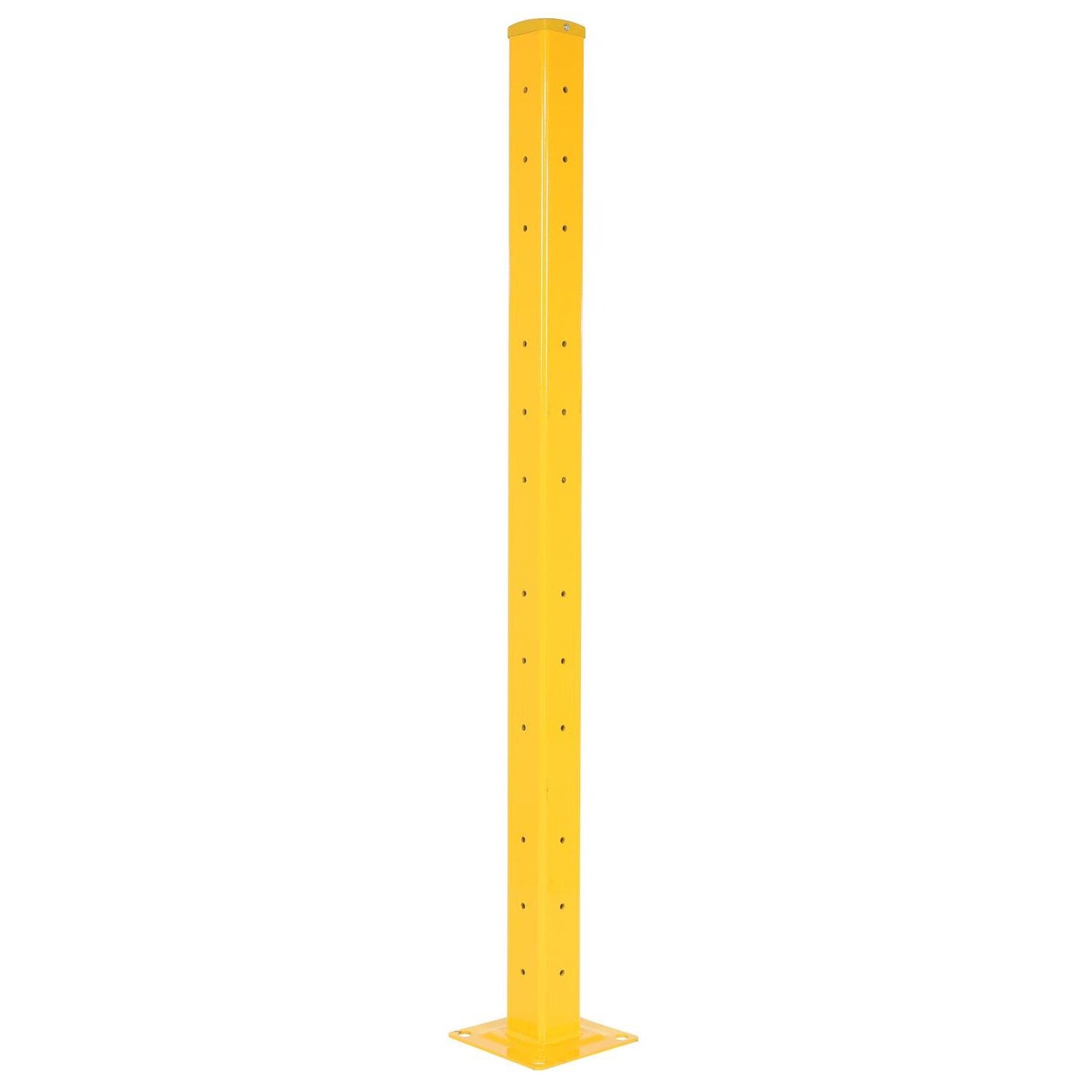

• 72 in. Height: Maximum protection for heavy-traffic or high-clearance applications.

Additional Information

Each post includes drop-in saddles and hardware for secure rail placement. Rails and mounting anchors are sold separately. When extending an existing guard rail system, only one additional post is required. The modular design allows for easy expansion or reconfiguration while maintaining industrial-grade protection and OSHA-compliant visibility.

Technical Specifications:

• Material: Steel
• Color / Finish: Yellow (powder-coated)
• System Compatibility: Structural Guard Rails; 3-Ribbed Drop-In rails
• Mounting Style: Drop-In (rails seat in post saddles)
• Impact Capacity: 10,000 lbs
• Base Plate Size (W × L): 9.875 in × 9.875 in
• Base Plate Thickness: 0.625 in
• Base Plate Mounting Holes / Ø: 4 holes / 0.9375 in
• Assembled Width × Depth: 9.875 in × 9.875 in
• Assembly: Assembled
• Reflective: No
• CPO-Prop 65 Warning Required: Yes
• Approval Drawing Required?: No
• Manufacturer Warranty: 90 Days


Made in the USA
