Steel Rounded Rack Guards

Steel Rounded Rack Guards provide robust protection for pallet rack uprights against impact damage caused by forklifts, pallet trucks, and carts. The curved, three-sided design ensures comprehensive coverage from multiple approach angles, helping to prevent costly structural repairs and inventory loss.

Built with heavy-duty Schedule 10 steel and finished in high-visibility yellow powder coat, these guards are designed to endure industrial environments while improving workplace safety. The rounded profile allows racking to seat deeper within the guard, minimizing the risk of incidental contact. Easy to install using the pre-drilled mounting holes.

Features & Benefits

• 3-Sided Rounded Design - Offers wraparound protection and minimizes accidental impact
• Schedule 10 Steel Construction - Durable build withstands repeated collisions
• 4" and 6" Wide Guard Openings - Compatible with common rack upright sizes
• High-Visibility Powder Coat Finish - Enhances safety awareness in busy areas
• Four Pre-Drilled Mounting Holes - Allows for quick and secure installation

Additional Information

• Ideal for use in warehouses, distribution centers, and manufacturing facilities
• Model 4 requires ½" Anchor Bolts; Model 6 requires ¾" Anchor Bolts (sold separately)

• Designed to prolong the life of racking systems and reduce operational downtime

Technical Specifications:

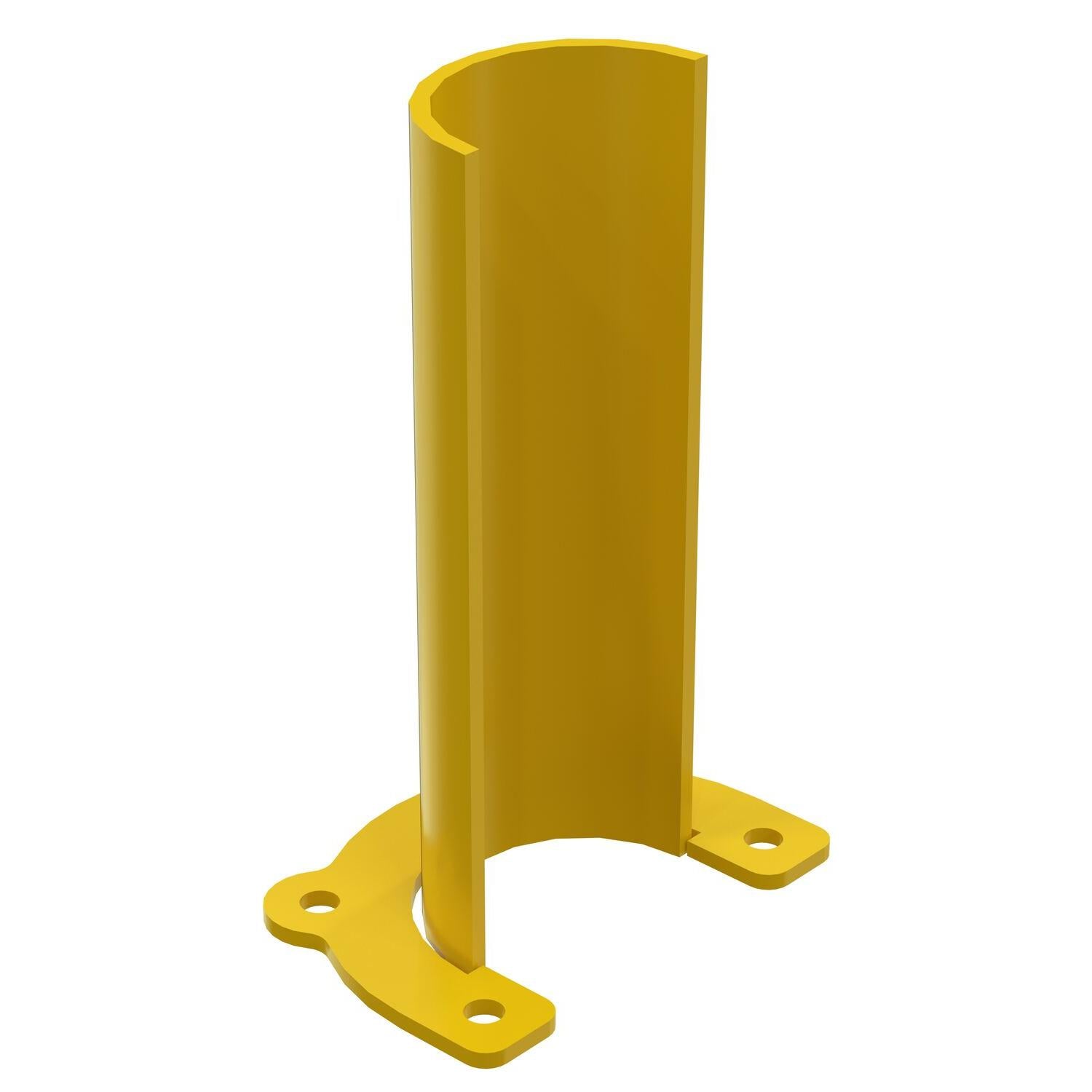

RRG-12-4-YL

• Total Ship Wt.(lbs.): 11
• Size: 7.25"W x 6.5"L x 12"H
• Guard Opening Width (In.): 4

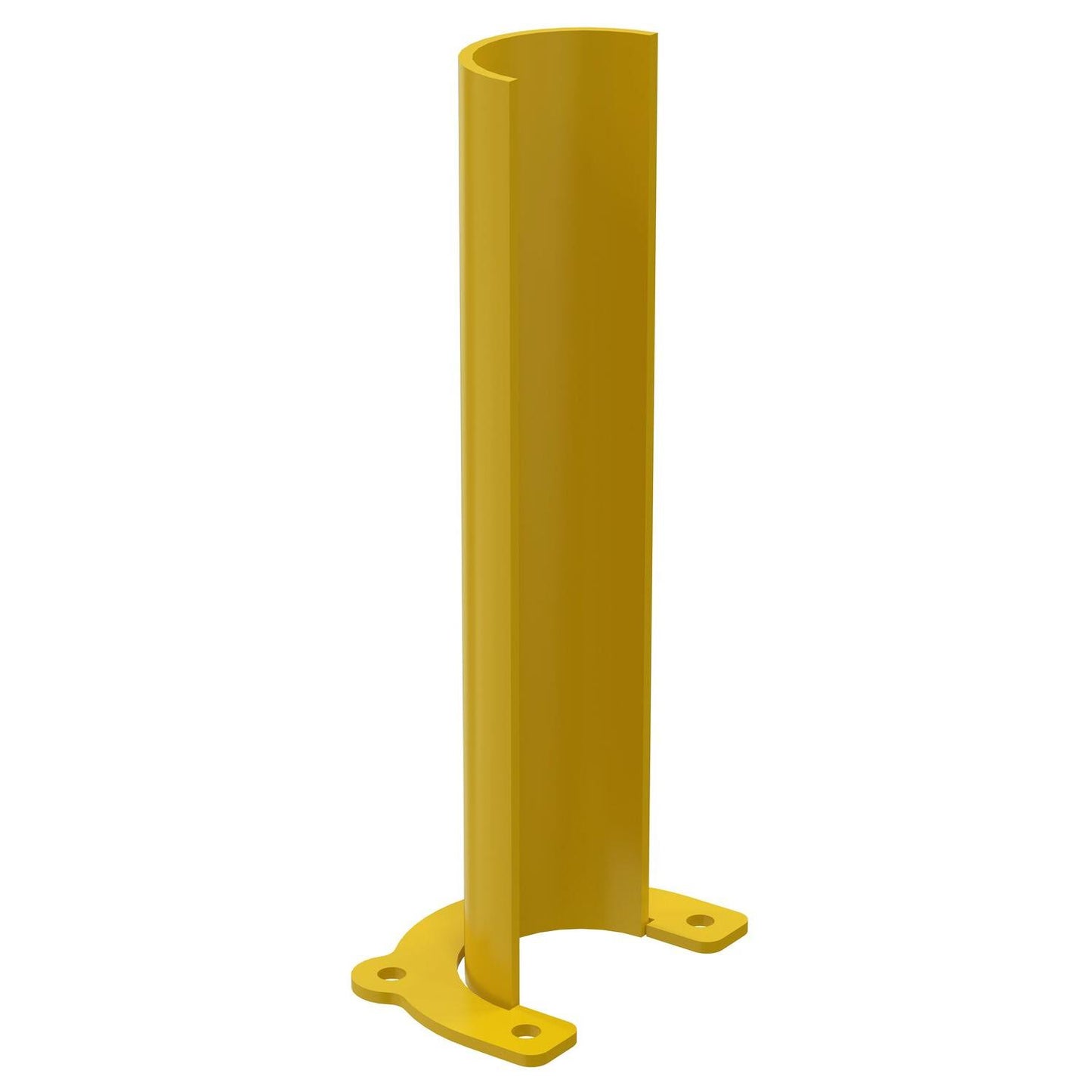

RRG-18-4-YL

• Total Ship Wt.(lbs.): 16
• Size: 7.25"W x 6.5"L x 18"H
• Guard Opening Width (In.): 4

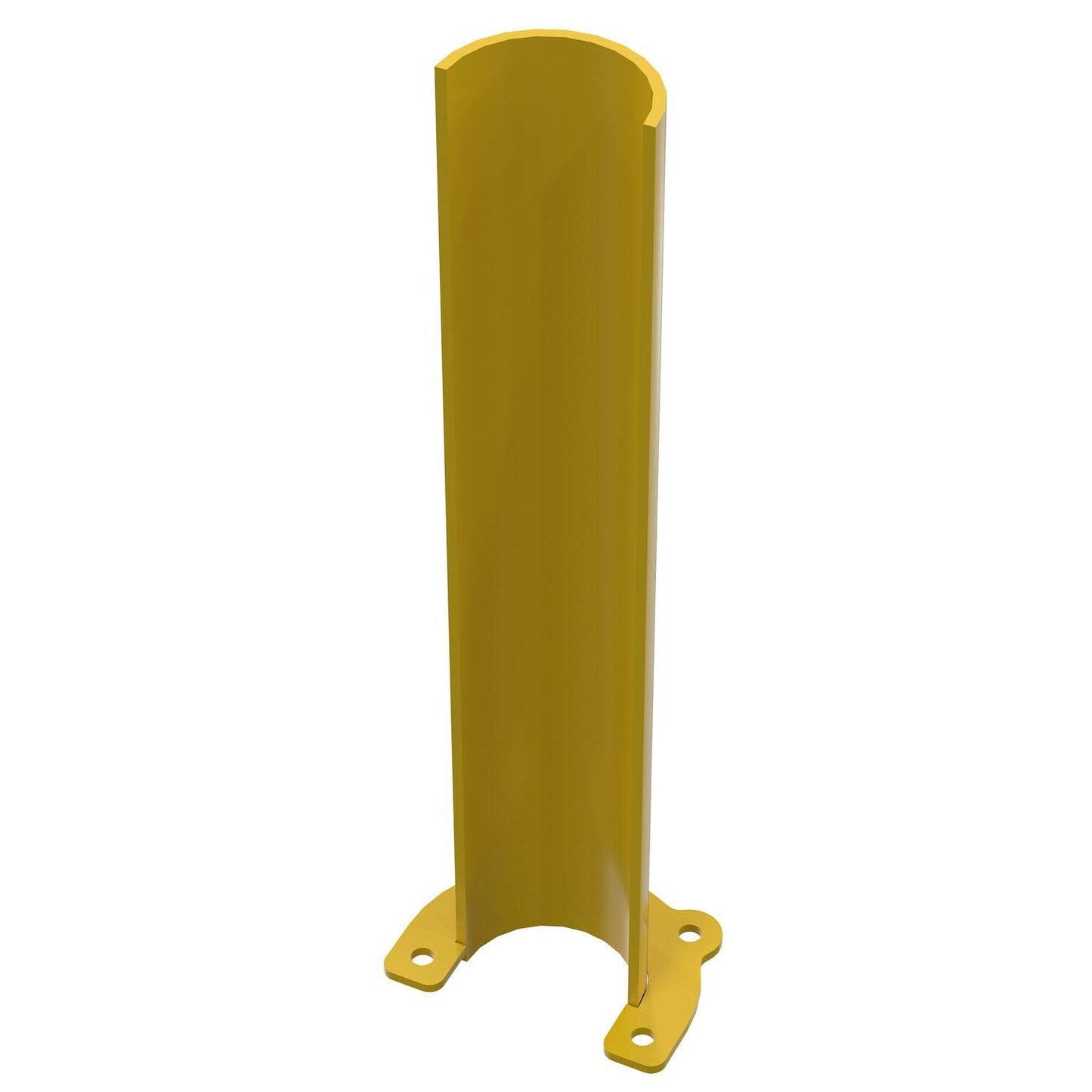

RRG-24-4-YL

• Total Ship Wt.(lbs.): 21
• Size: 7.25"W x 6.5"L x 24"H
• Guard Opening Width (In.): 4

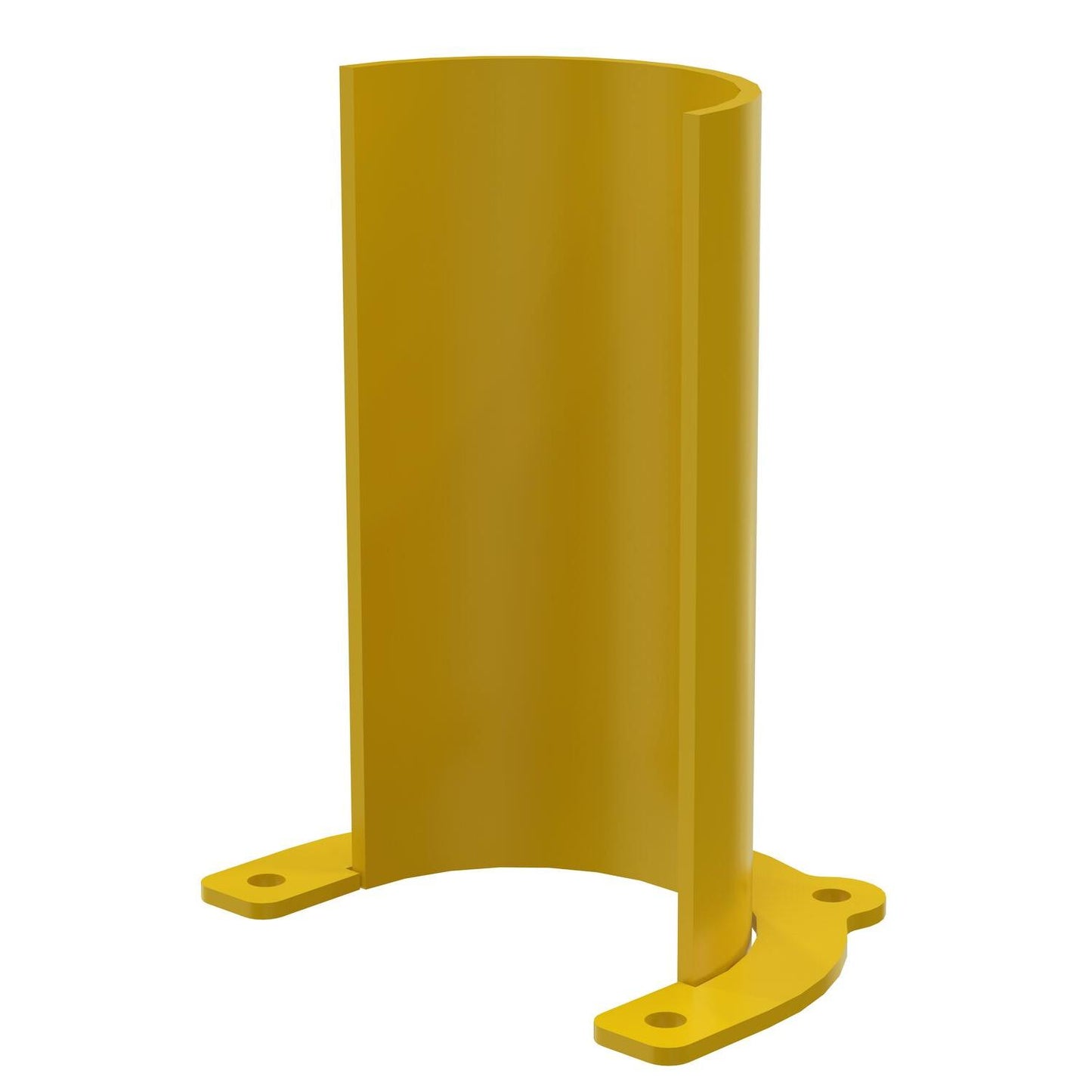

RRG-12-6-YL

• Total Ship Wt.(lbs.): 12
• Size: 9.25"W x 6.5"L x 12"H
• Guard Opening Width (In.): 6

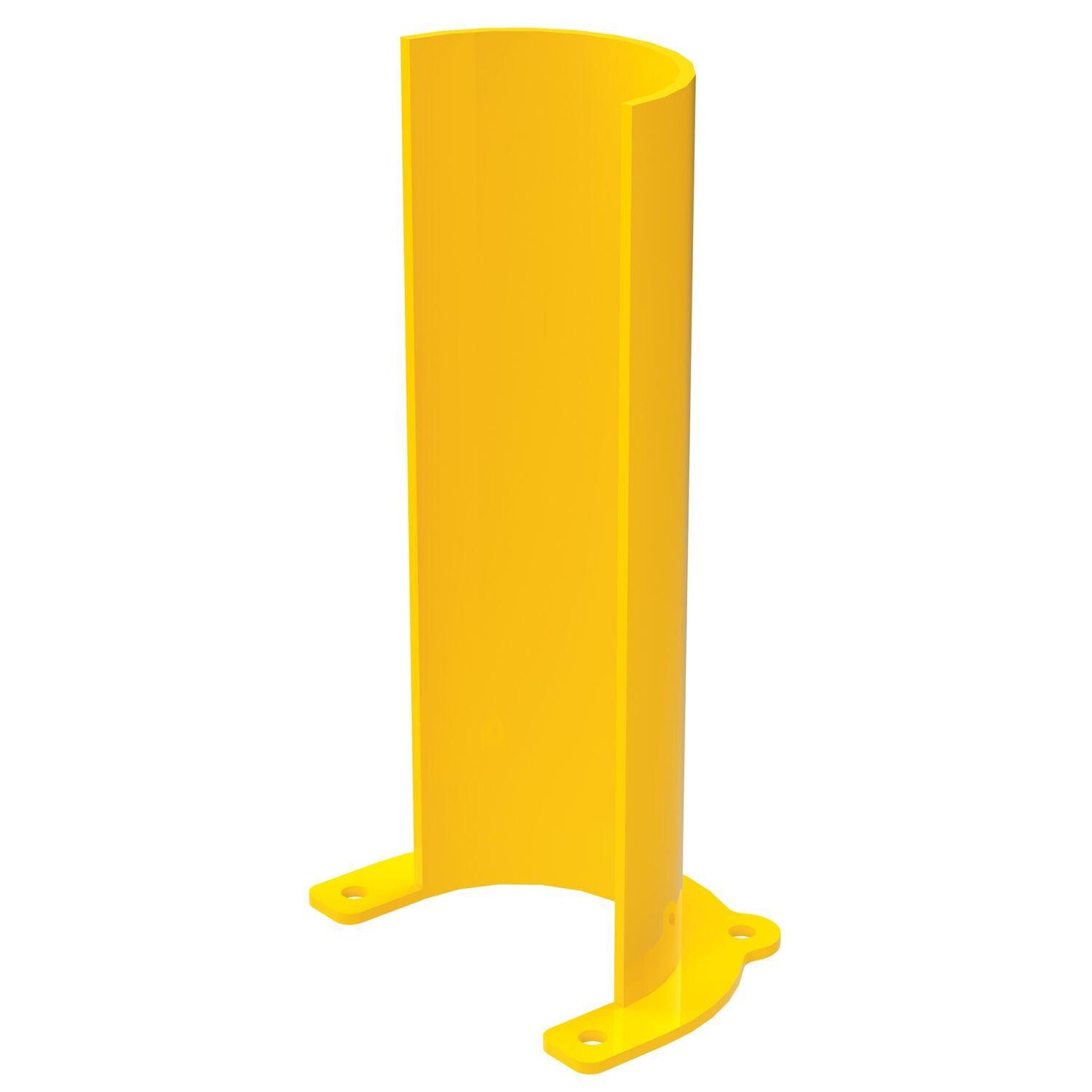

RRG-18-6-YL

• Total Ship Wt.(lbs.): 17
• Size: 9.25"W x 6.5"L x 18"H
• Guard Opening Width (In.): 6

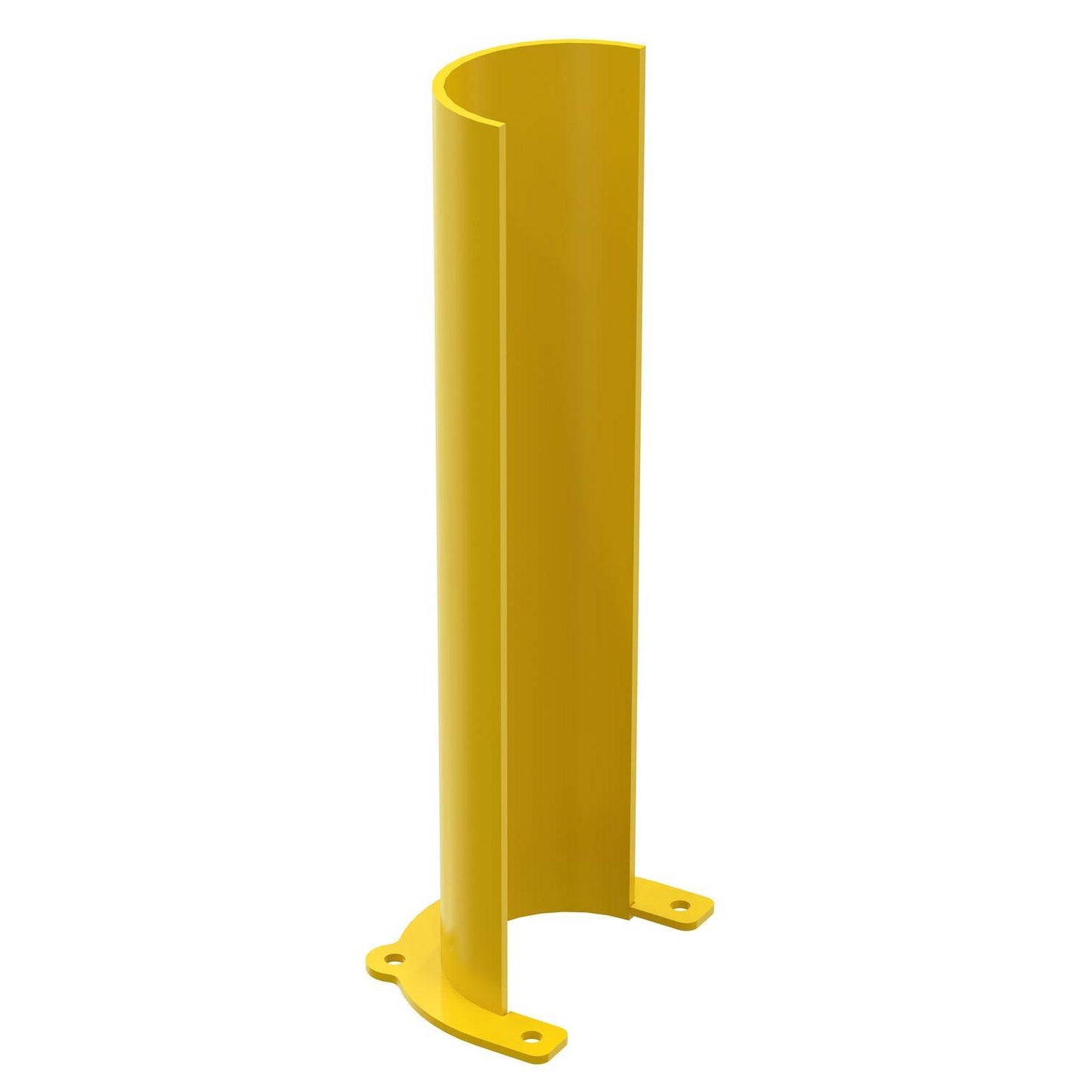

RRG-24-6-YL

• Total Ship Wt.(lbs.): 22
• Size: 9.25"W x 6.5"L x 24"H
• Guard Opening Width (In.): 6


4 Inch Guard Opening Width

• Mounting Plate Width (In.): 7.25
• Mounting Plate Length (In.): 6.5
• Mounting Hole Quantity: 4
• Mounting Hole Diameter (In.): .5625
• Steel Type: Schedule 10
• Guard Opening Width (In.): 4
• Material: Steel
• Color Family: Yellow
• Assembled
• Attachment Method: Bolt On
• Installation Hardware Included: No
• Manufacturer Warranty: 30 Days

6 Inch Guard Opening Width

• Mounting Plate Width (In.): 9.25
• Mounting Plate Length (In.): 6.5
• Mounting Hole Quantity: 4
• Mounting Hole Diameter (In.): .5625
• Steel Type: Schedule 10
• Guard Opening Width (In.): 6
• Material: Steel
• Color Family: Yellow
• Assembled
• Attachment Method: Bolt On
• Installation Hardware Included: No
• Manufacturer Warranty: 30 Days


Made in the USA

If you would like to request a Quotation for Large Quantities or Custom Powder-Coat Colors of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
