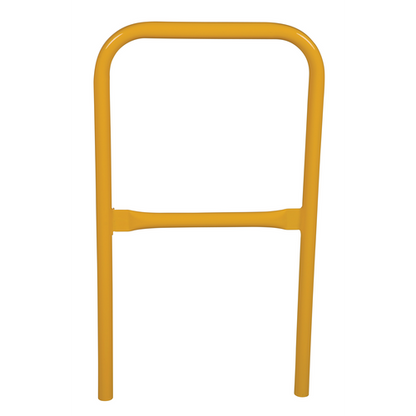

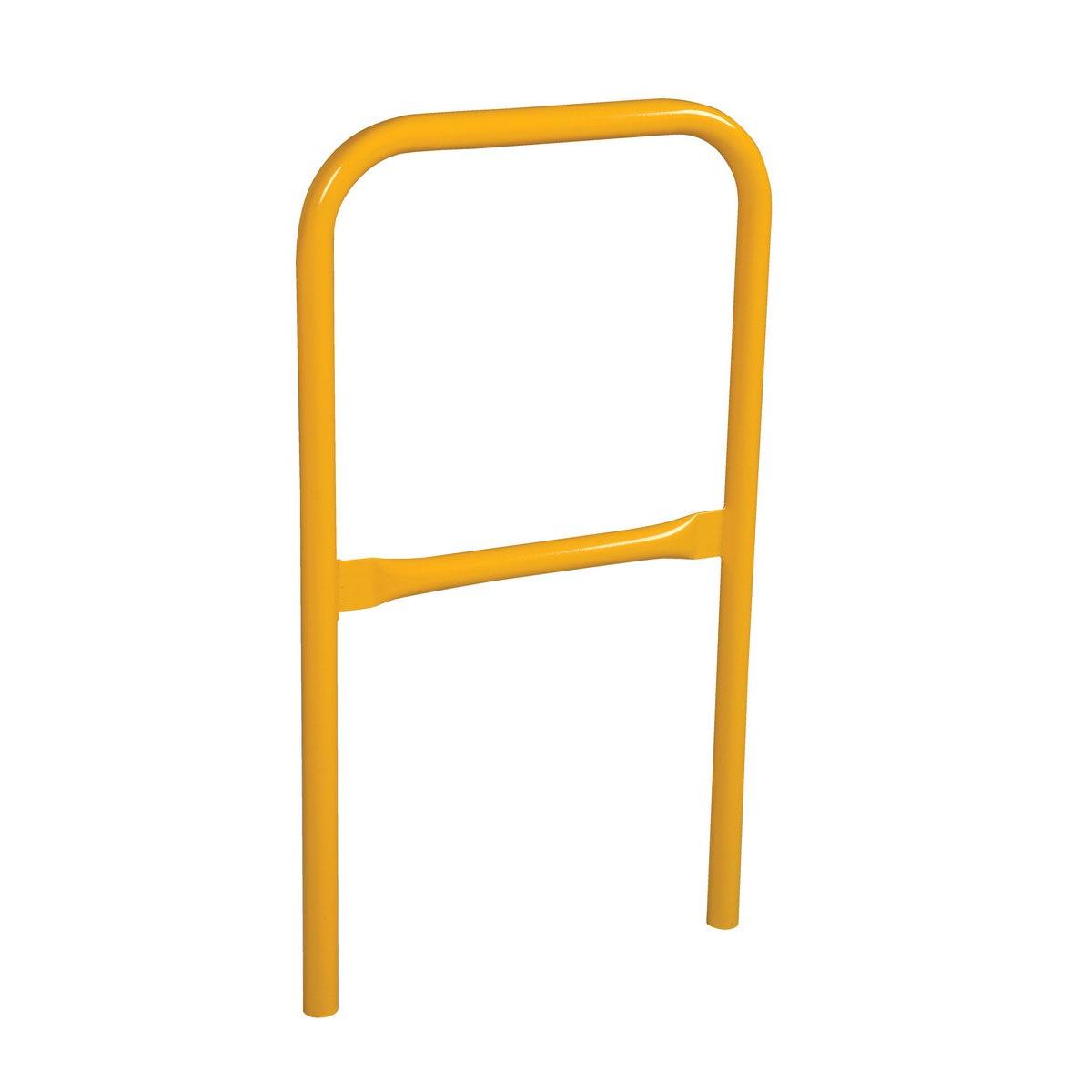

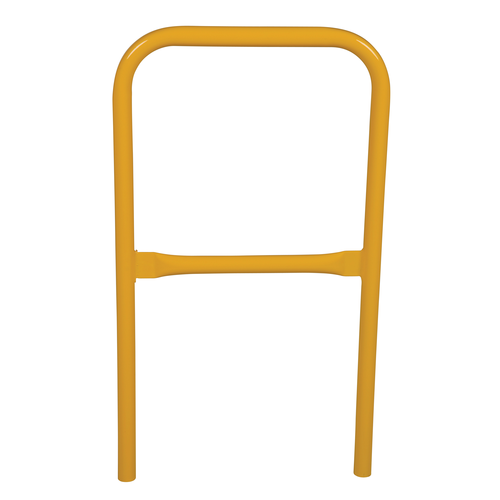

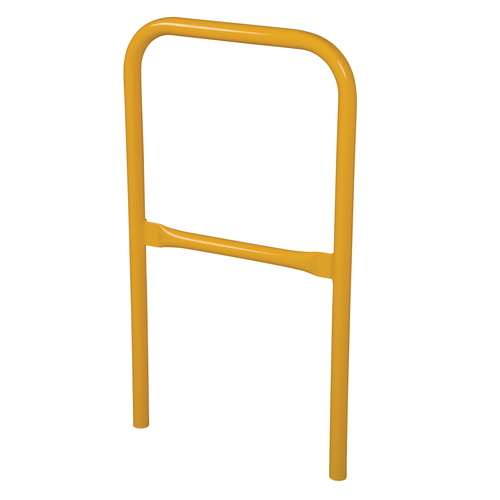

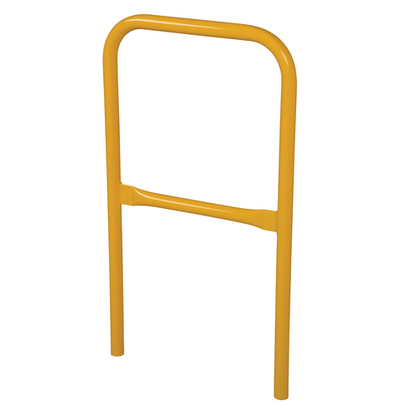

Steel Safety Railing 2 Ft.

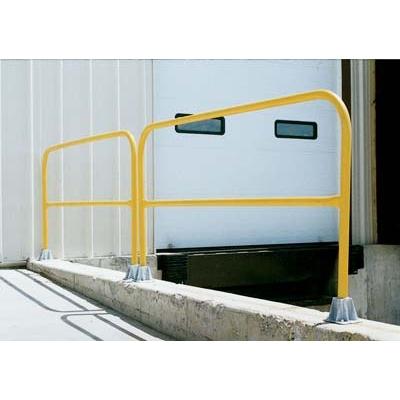

The steel safety railings are designed to protect personnel from uneven walkways, mezzanine drop-offs, and other hazardous areas, helping maintain a safe and controlled environment. Constructed from schedule 10 steel with a 1-5/8" outside pipe diameter, these railings offer a stable and highly visible barrier suitable for both permanent and temporary installations.

These 42" high railings include a 21" mid-rail and are finished with a durable baked-in powder coat for corrosion resistance. A range of mounting options (such as socket sleeves, cast steel bases, or removable barricade bases) ensures versatility for various applications.

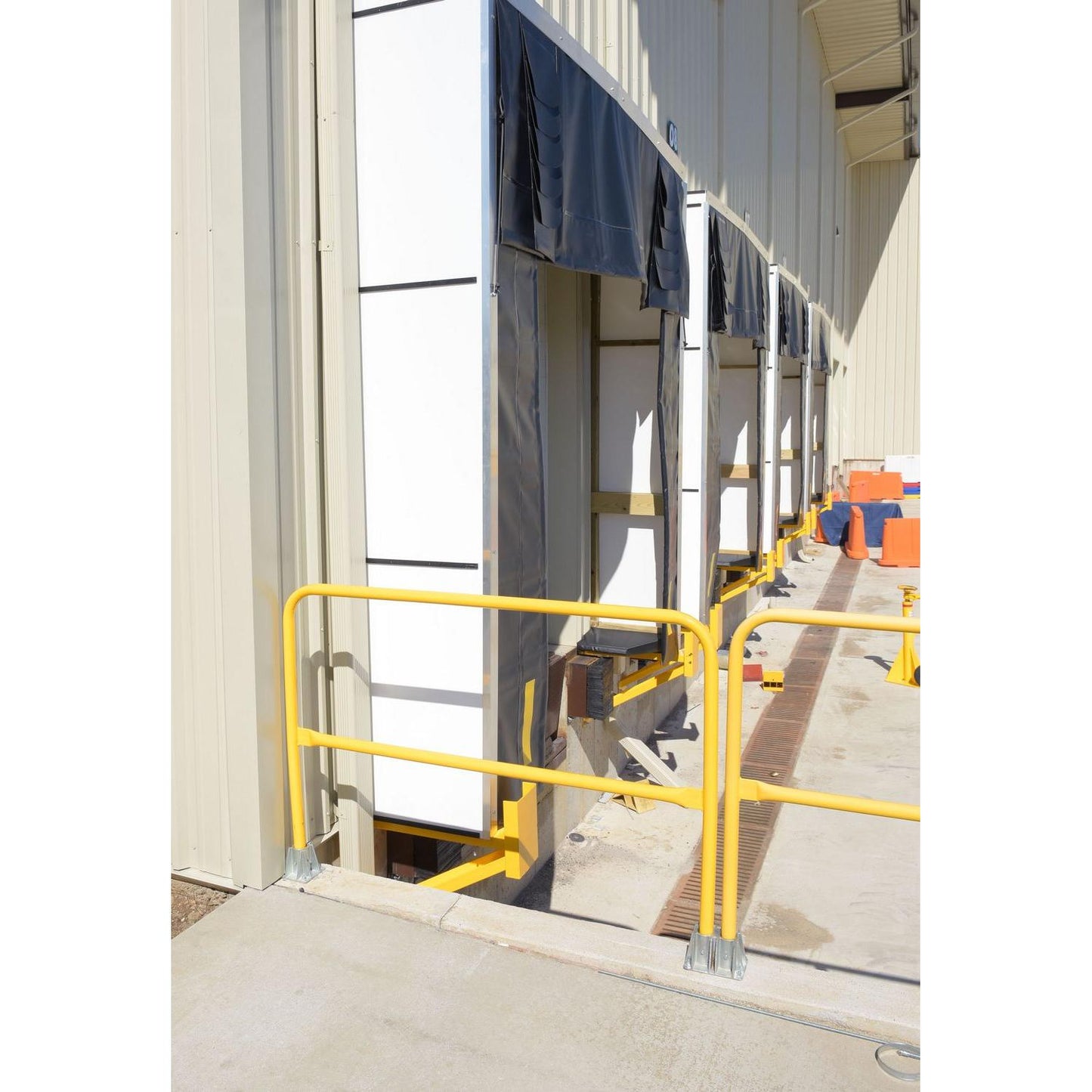

All models comply with OSHA General Industry requirements for guardrail systems (29 CFR 1910.29), making them ideal for warehouses, loading docks, construction sites, and more.

Key Features & Benefits

• Heavy-Duty Steel Construction – Schedule 10 steel with 1-5/8" OD ensures structural durability.
• OSHA Compliant – Meets 29 CFR 1910.29 guardrail requirements for safety in industrial settings.
• High-Visibility Finish – Powder-coated yellow finish enhances visibility and workplace safety.
• Ergonomic Design – 42" high handrail with 21" mid-rail offers personal stability and fall prevention.

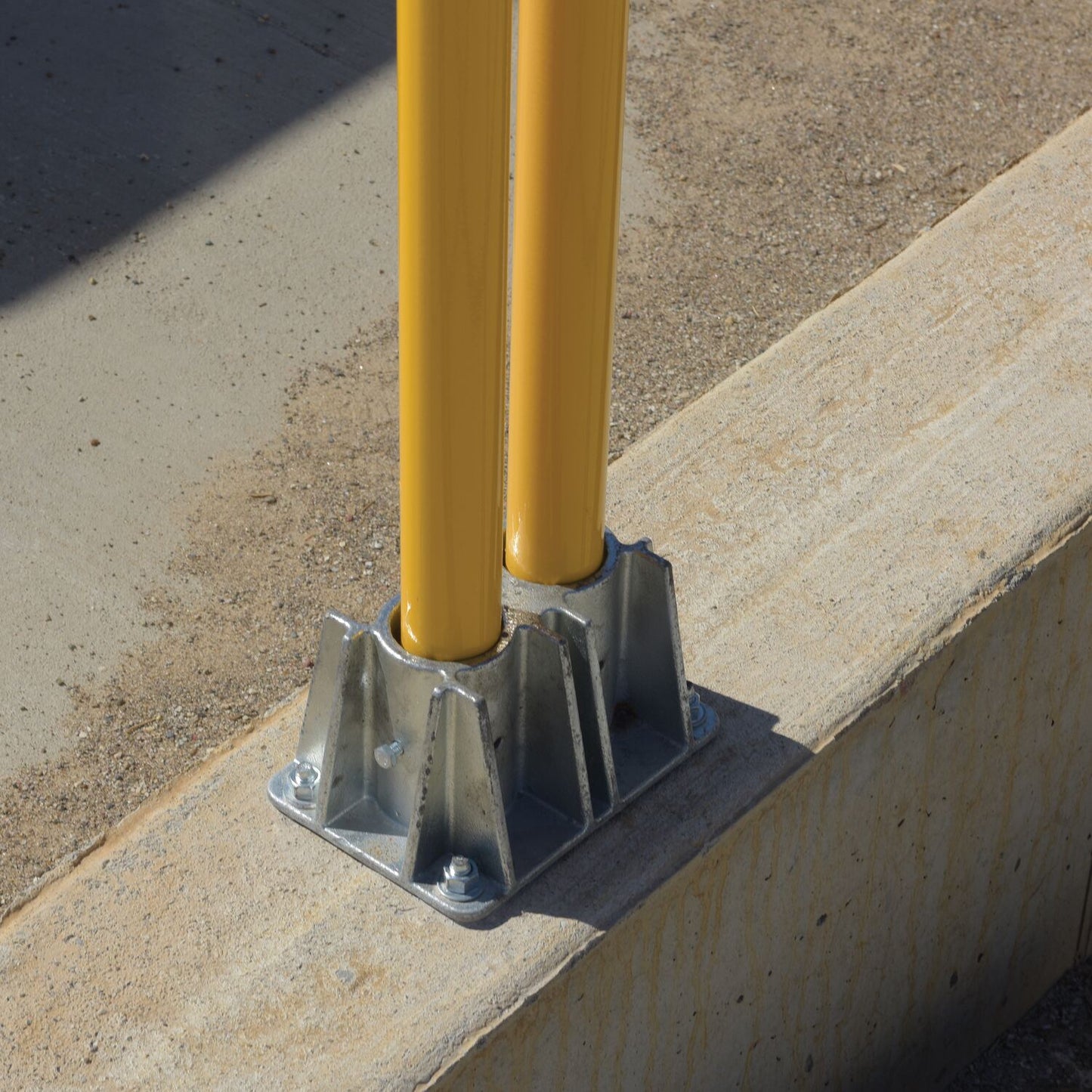

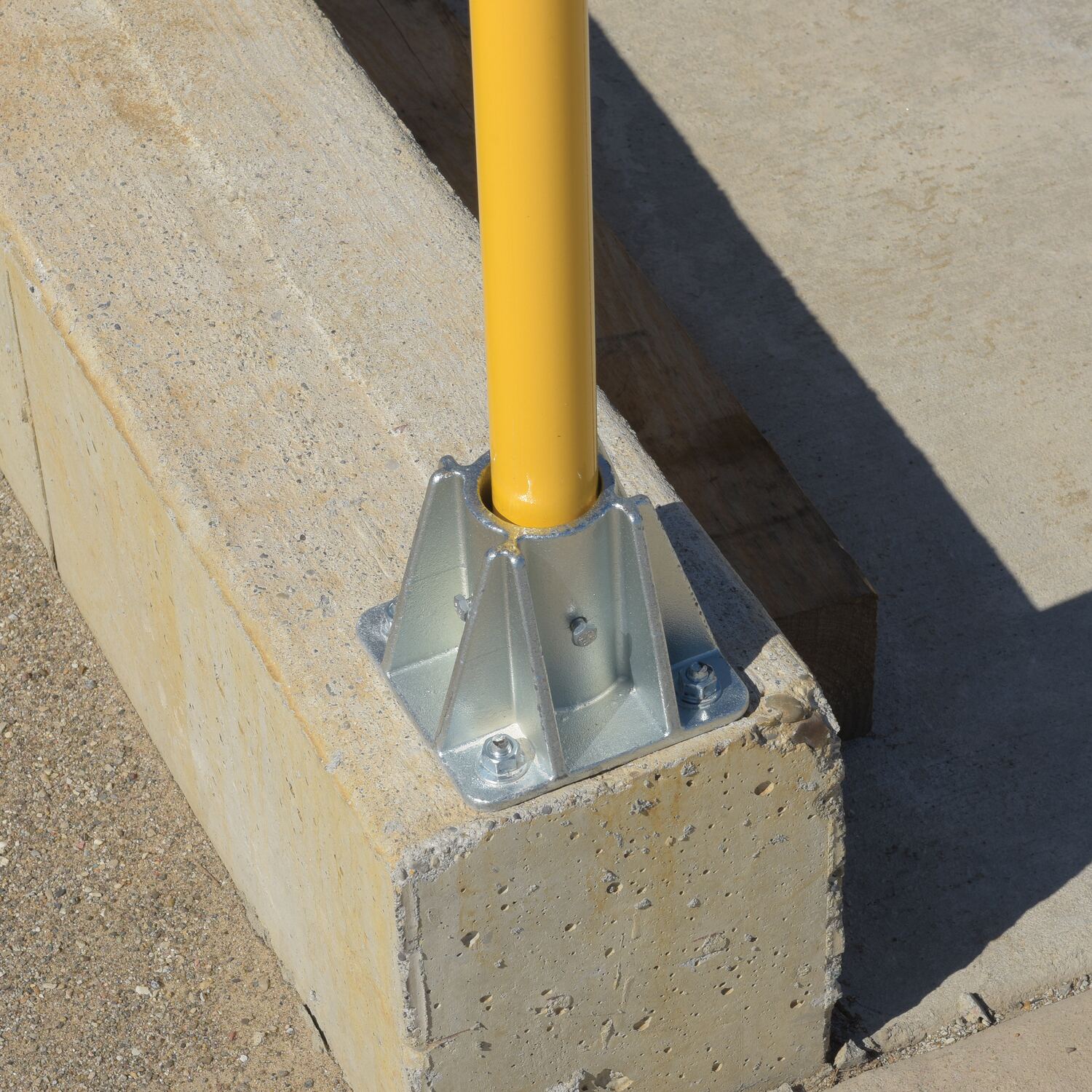

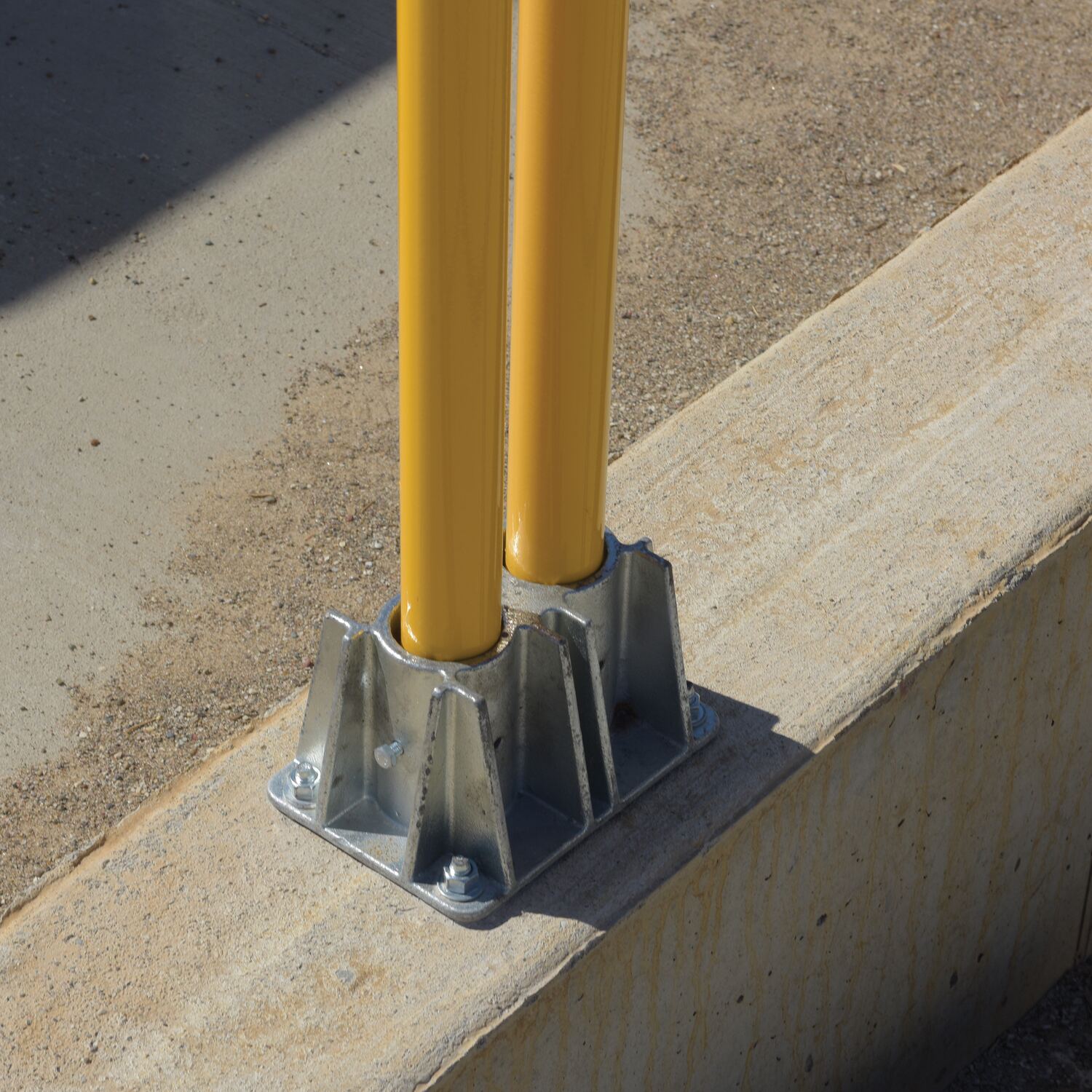

• Flexible Mounting Options – Choose from socket sleeves, cast steel base, or removable barricade base.
• Toe Board Compatibility – Cast steel sockets accept 2" x 4" or 2" x 6" wood when toe boards are required.
• Quick Installation – Pre-drilled lag down holes speed up installation time.
• Color Customization Available – Custom colors available, please contact us for custom orders with a protective Powder-Coat Finish.
• Applications – Ideal for warehouses, train stations, hotels, universities, municipalities, restaurants, superstores, military, and construction projects.

Available with a powder coat finish in a variety of standard colors. Select the color you need from the dropdown menu above.

Additional Information

Optional Toe Boards can be mounted under the baseplate for added protection against falling objects. Ideal for warehouses, manufacturing floors, loading docks, and mezzanines where worker safety is a priority. Mounting Hardware and Toe Boards sold separately.

Looking for additional parts? Explore all compatible accessories for Steel Safety Railing systems in the Steel Safety Railing Accessories Collection.

Technical Specifications:

• Total Ship Wt.(lbs.): 19
• Size: 1.625"W x 24"L x 42"H
• Midrail Height (in.): 21
• Steel Pipe Schedule: 10
• Anchor Bolt Kit: AS-383-4PK
• Pipe Outside Diameter (in.): 1-5/8
• OSHA compliant: 29 CFR 1910.23
• Material: Steel
• Adjustable Length: No
• Maximum Length (in): 24
• Adjustable Width: No
• Maximum Width (in): 1.625
• Depth (in): 1.625
• Rail Diameter (in): 1.625
• Available Colors:
  • Yellow (always in stock. Other colors made to order)

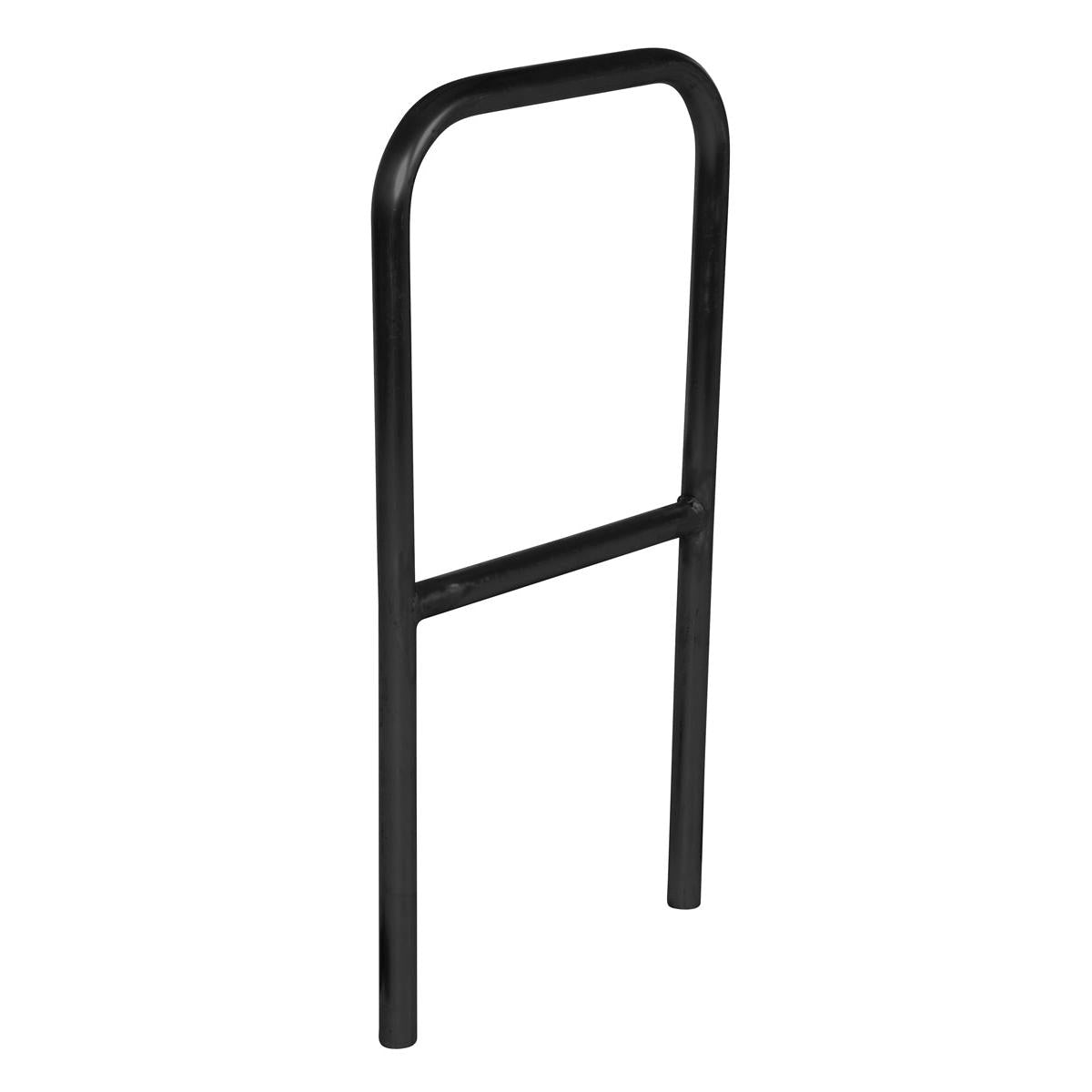

  • Black

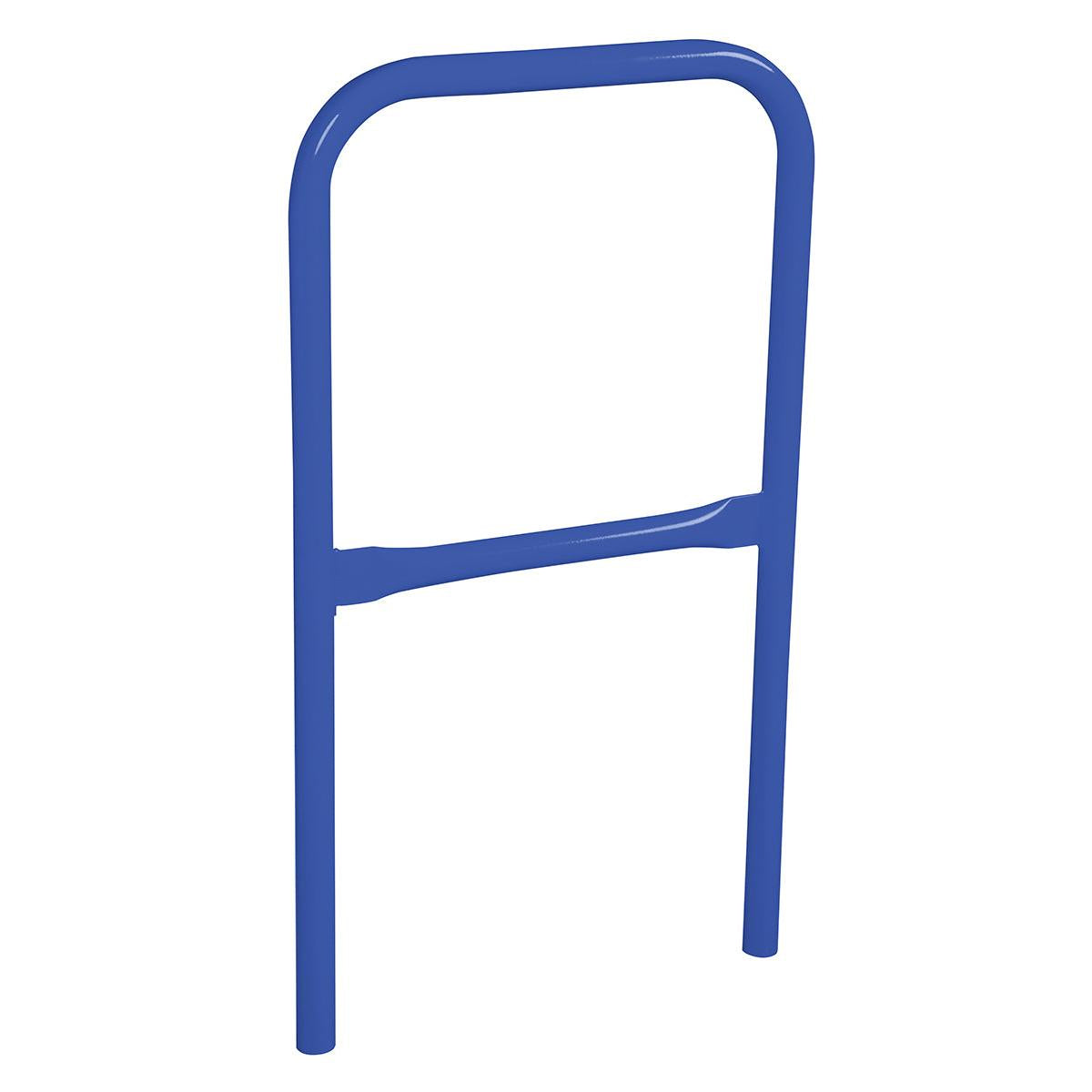

  • Blue
  • Gray

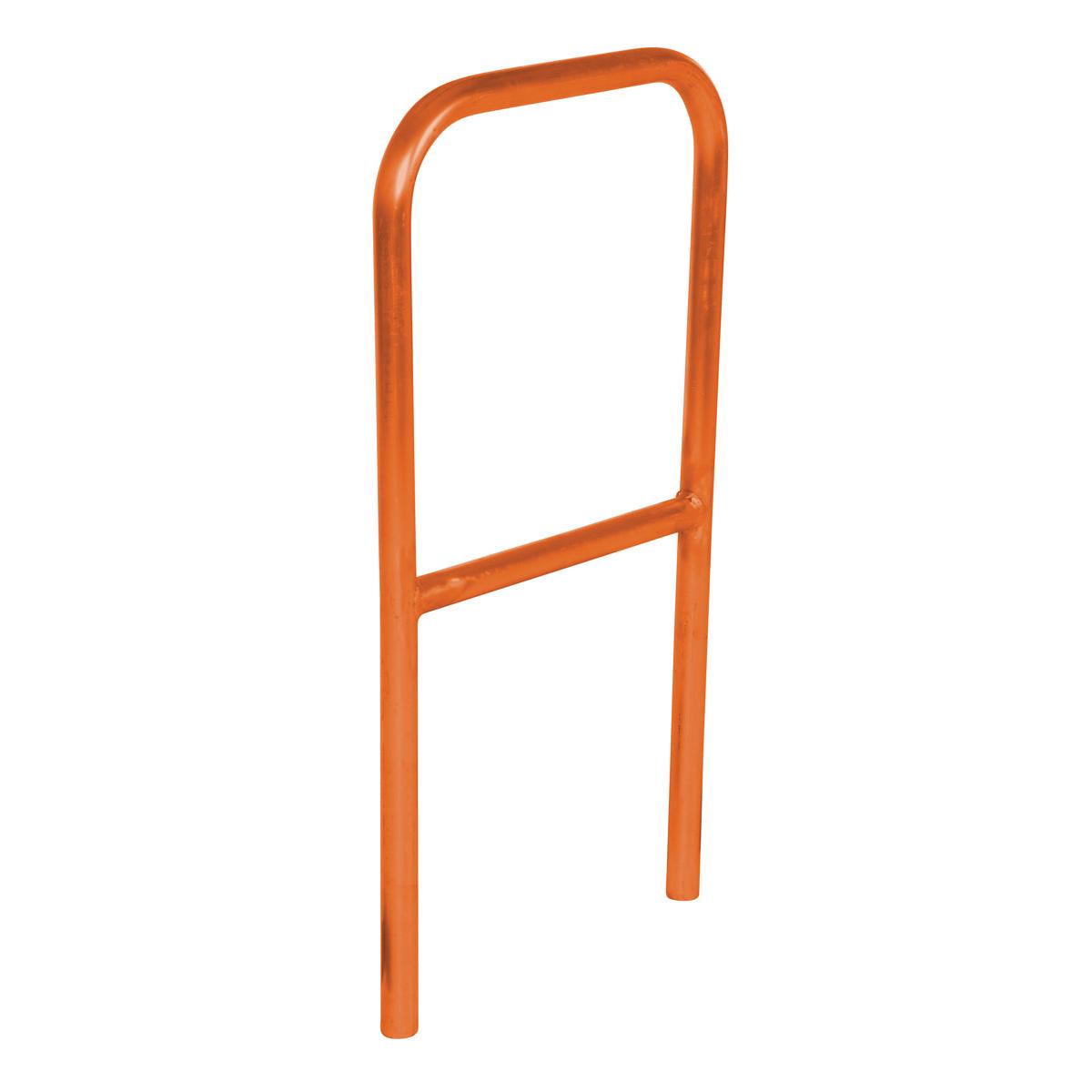

  • Orange
  • Red

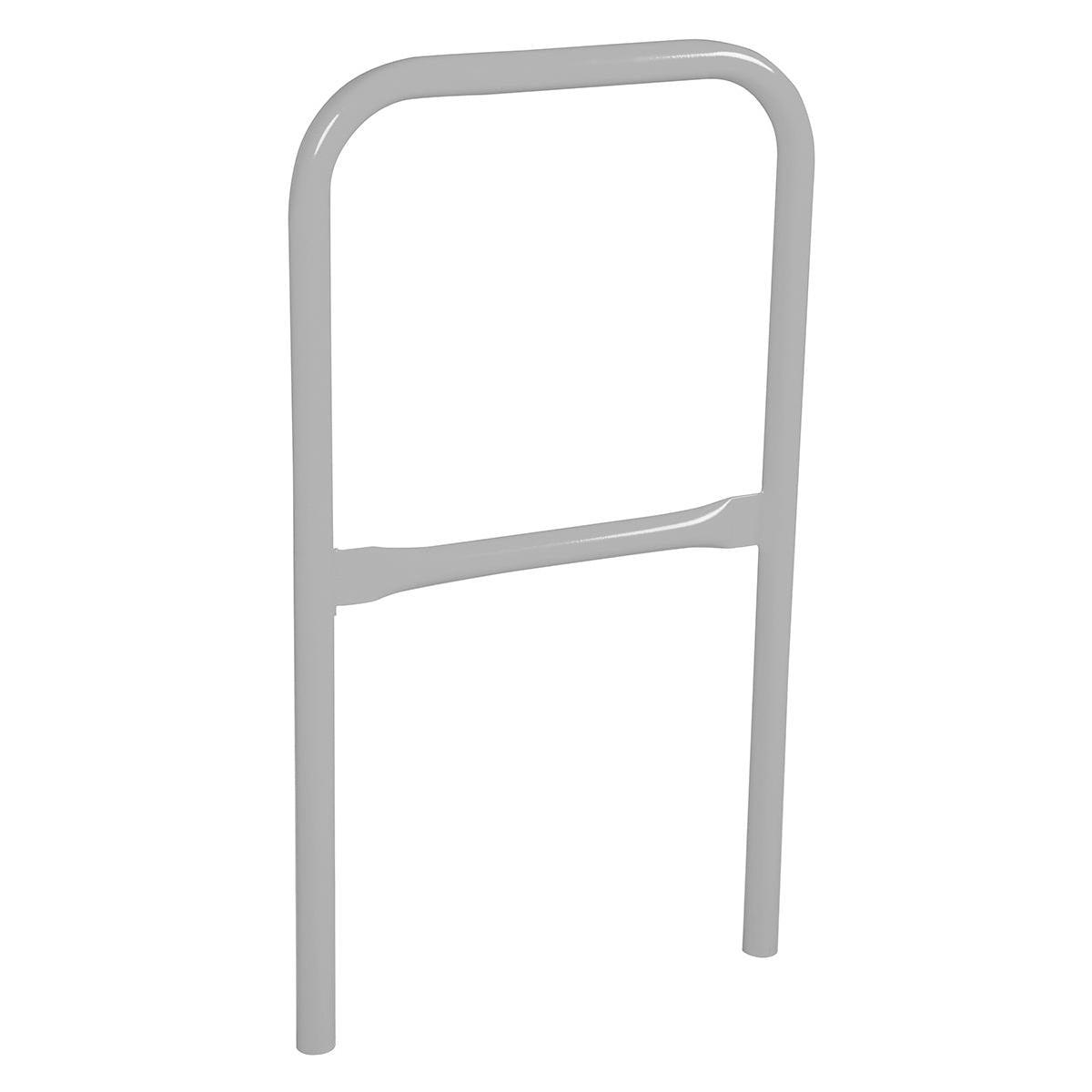

  • Silver

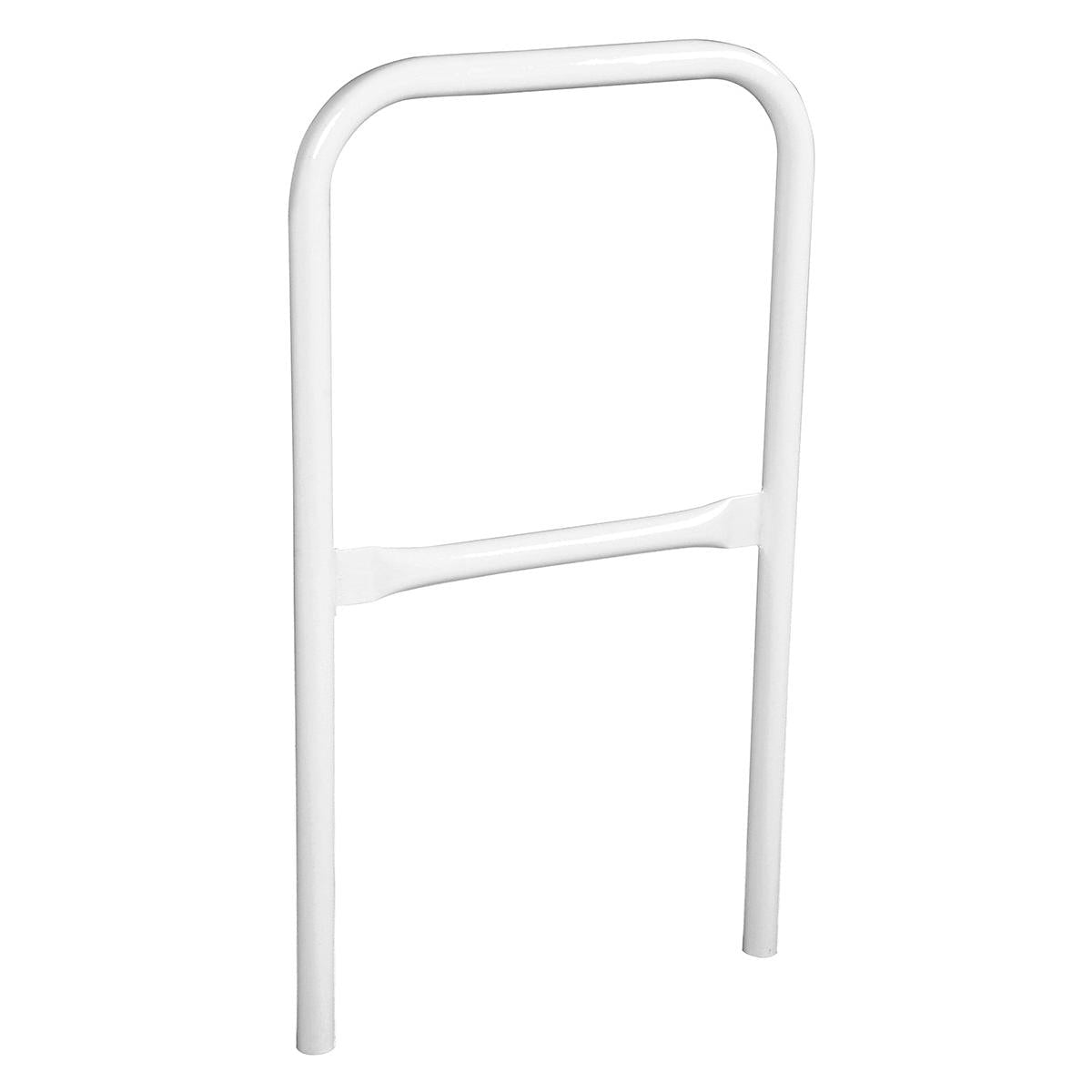

  • White
• Interlocking: No

• Reflective: No

• Installation Hardware Included: No
• Manufacturer Warranty: 90 Days

Made in the USA
