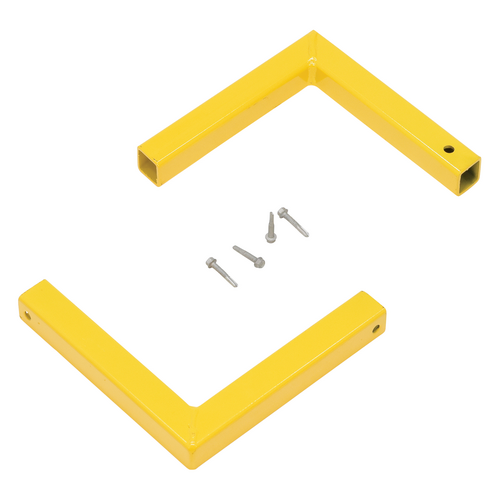

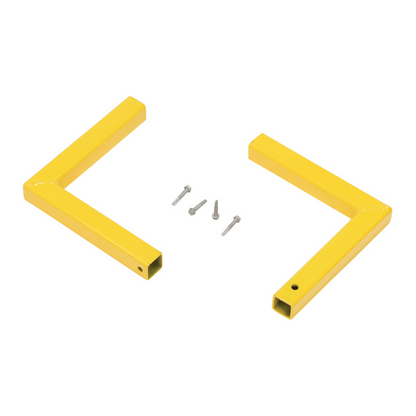

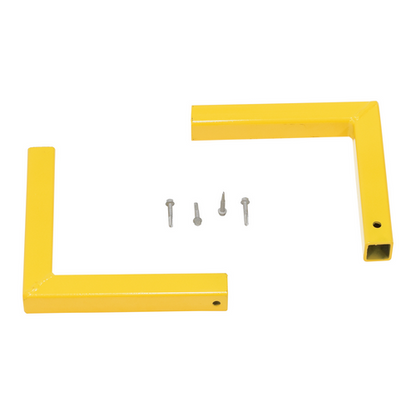

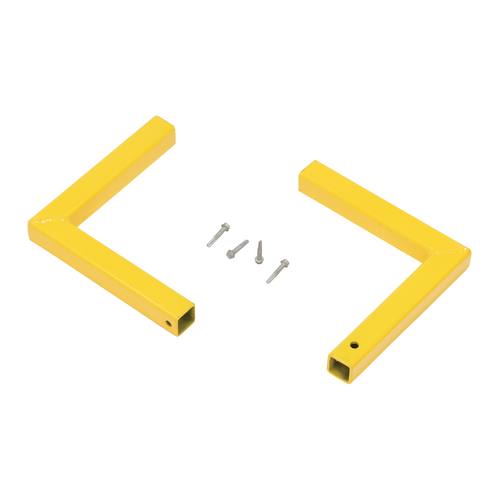

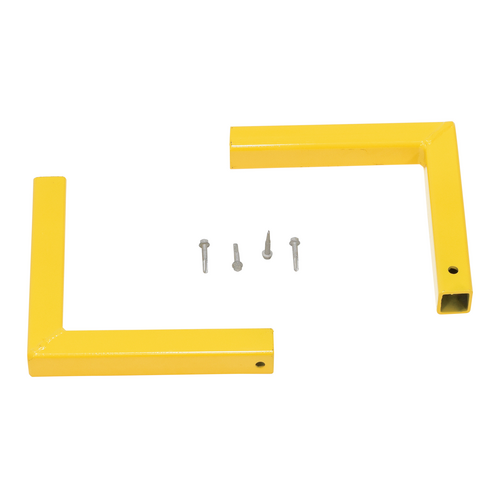

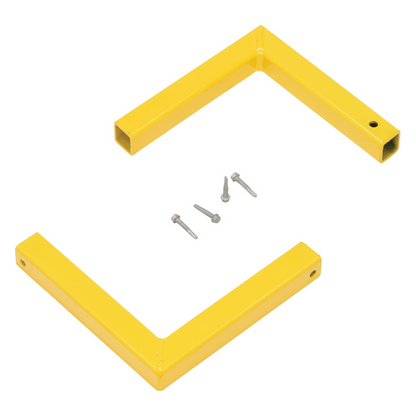

Steel Square Safety Handrail Corner Connectors

Steel Square Safety Handrail Corner Connectors provide a secure and efficient method to join square safety Steel Square Safety Handrails at 90-degree angles, enhancing perimeter protection around critical areas. Ideal for use in high-traffic industrial and commercial zones, these connectors help create continuous barriers around loading docks, walkways, mezzanines, and floor openings.

Manufactured from durable steel and finished in high-visibility safety yellow powder coating, these connectors are built for long-lasting performance and maximum visibility in demanding environments.

Features & Benefits

• Designed for Square Rail Systems - Compatible with standard square steel handrails
• Economical Safety Solution - Enhances protection for personnel and equipment
• Ideal for Industrial Applications - Suitable for walkways, mezzanines, docks, and more
• Powder-Coated Finish - Durable and highly visible for improved workplace safety

Additional Information
Corner connectors are sold in pairs and are essential for completing turns in modular safety handrail systems. Their welded steel construction ensures lasting strength, while the yellow finish meets OSHA visibility standards. Easy to install and integrate with existing systems.

Technical Specifications:

• Total Ship Wt.(lbs.): 10
• Size: 8.625"W x 8.625"L x 1.25"H
• Color: Yellow
• Attachment Method: Slide-In
• Added length to rail (in.): 3-7/8
• Hex Head Self Tapping Screw (qty.): 4
• UPC: 691215010887
• GTIN: 00691215010887
• Assembled Depth (in): 8.625
• Assembled Width (in): 8.625
• Assembled Height (in): 1.25
• Material: Steel
• CPO-Prop 65 Warning Required: Yes
• Assembled
• Indoor / Outdoor
• Function: Slide In Handrail Corner Connectors
• Attachment Method: Slide In and secured with 4 Hex Head Self Tapping Screws (Included)
• Fastener Type: Screw
• Thread Sizes: #12-24 x 7/8 Inch Long
• Shape: Square
• Package Quantity: 2
• Package Contents: (Pair) Square Safety Handrail Corner Connectors and Hardware
• Manufacturer Warranty: 30 Days

Made in the USA

If you would like to request a Quotation for Large Quantities or Custom Powder-Coat Colors of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
