Steel Square Safety Handrail Toe Board

The Steel Square Safety Handrail Toe Board is an essential accessory for enhancing personnel protection in elevated or high-traffic work areas. Designed to be used with Steel Square Safety Handrails, the toe board prevents tools, materials, or debris from falling off edges, minimizing trip hazards and increasing compliance with safety standards.

Manufactured from heavy-duty welded steel and finished in a high-visibility safety yellow powder coat, this toe board is built for durability and long-term performance in industrial environments. It is easily installed to existing rail systems, making it an efficient and cost-effective safety upgrade.

Features & Benefits

• Economical Protection - Safeguards personnel and equipment from falling hazards
• Heavy-Duty Steel Construction - Ensures structural integrity and long service life
• Powder Coated Safety Yellow - Enhances visibility and resists wear
• Easy Installation - Designed for quick attachment to square handrail systems
• Ideal for Industrial Use - Perfect for docks, walkways, mezzanines, and floor openings

Additional Information
This toe board is designed to meet general industry safety requirements and is recommended wherever elevated platforms or drop-offs are present. Use with compatible handrail systems for complete perimeter protection.

Technical Specifications:

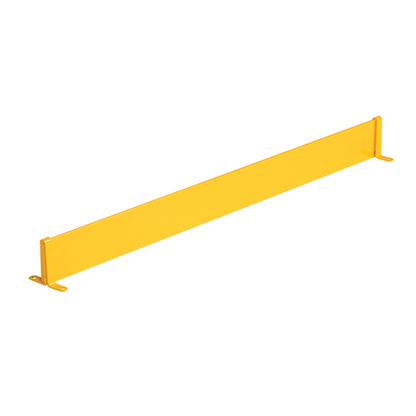

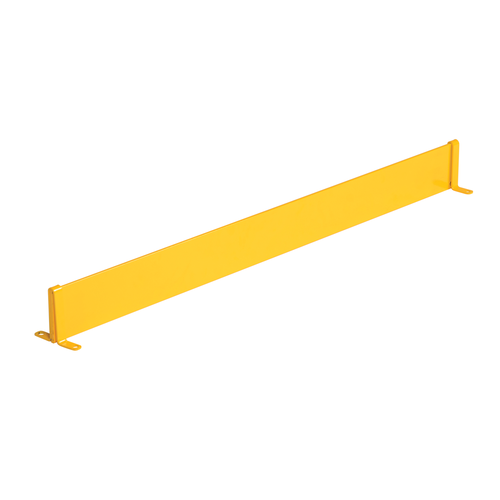

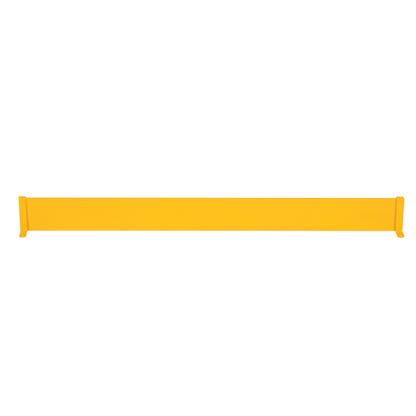

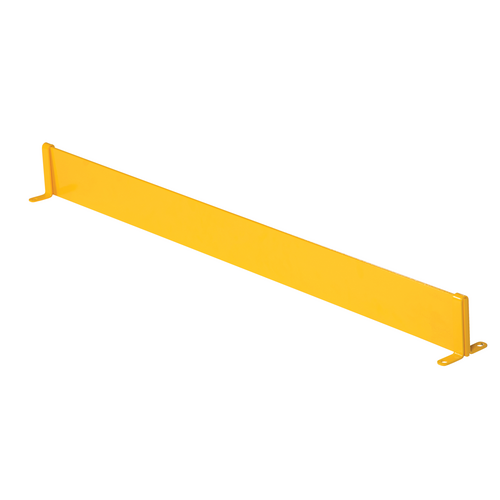

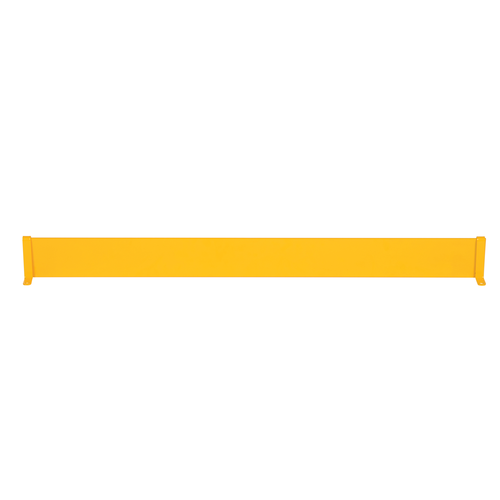

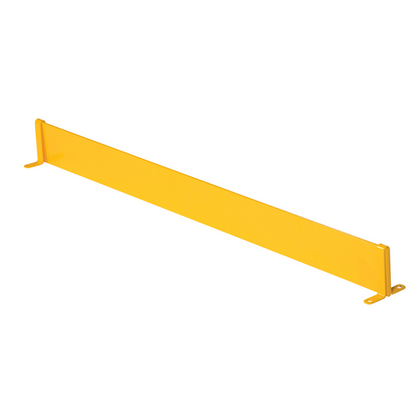

• 48In. Steel Square Safety Handrail Toe Board
  • Total Ship Wt.(lbs.): 9
  • Size: 3.875"W x 44.625"L x 4"H
  • Usable Length (in.): 43
  • Anchor Plate (qty.): 2
  • SKU: VES-TOE-B-48-N

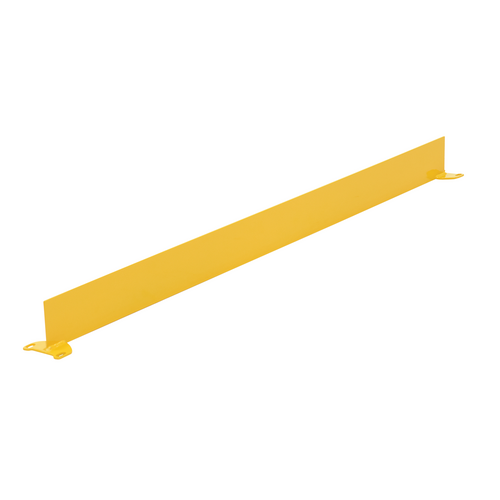

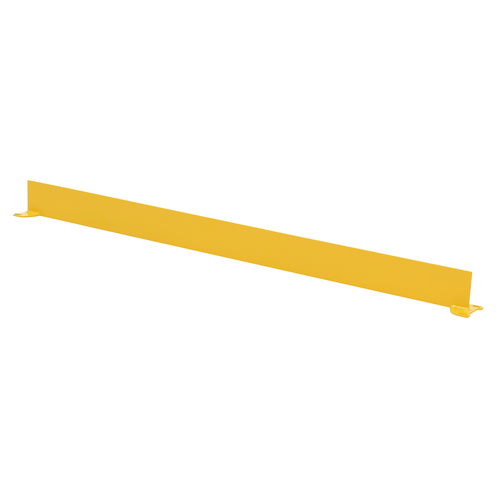

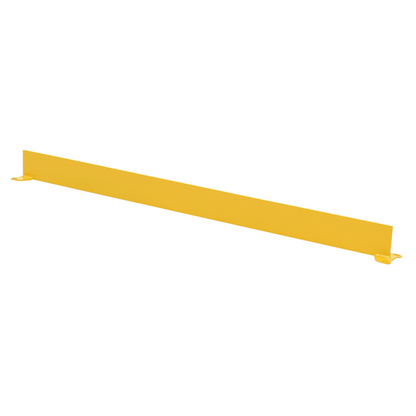

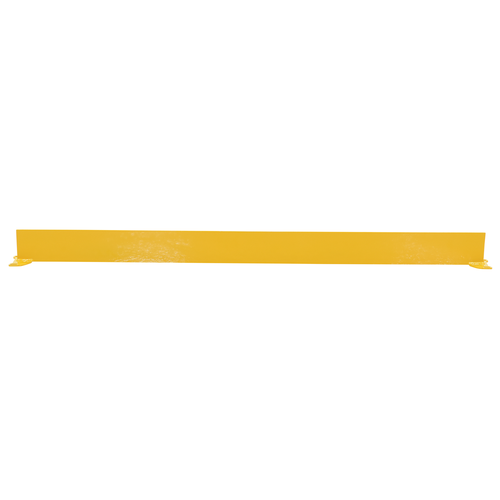

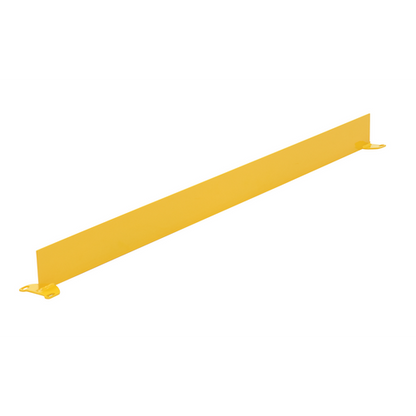

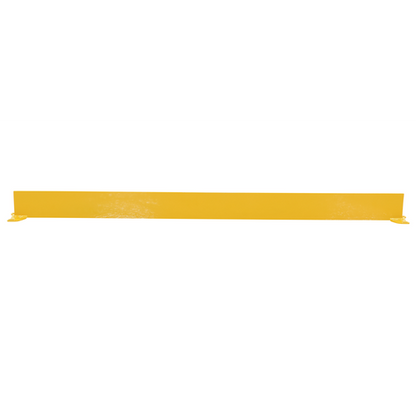

• 60In. Steel Square Safety Handrail Toe Board

  • Total Ship Wt.(lbs.): 12
  • Size: 3.875"W x 56.625"L x 4"H
  • Usable Length (in.): 55
  • Anchor Plate (qty.): 2
  • SKU: VES-TOE-B-60-N

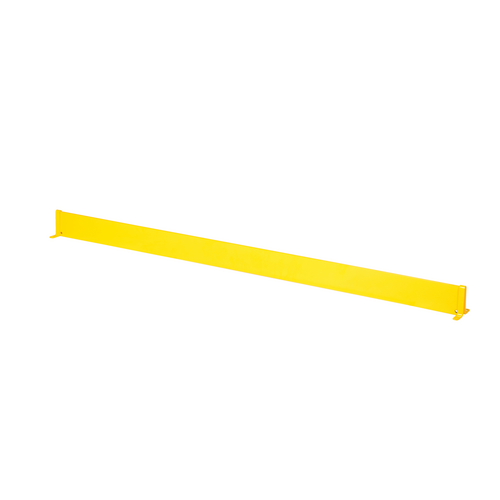

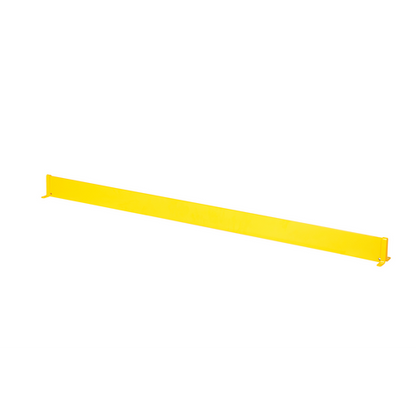

• 72In. Steel Square Safety Handrail Toe Board

  • Total Ship Wt.(lbs.): 16
  • Size: 3.875"W x 68.625"L x 4"H
  • Usable Length (in.): 67
  • Anchor Plate (qty.): 2
  • SKU: VES-TOE-B-72-N

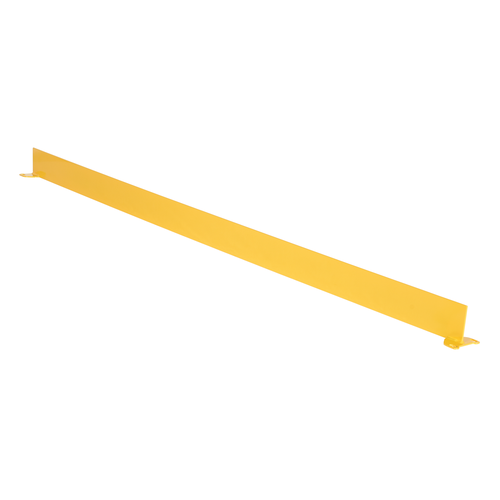

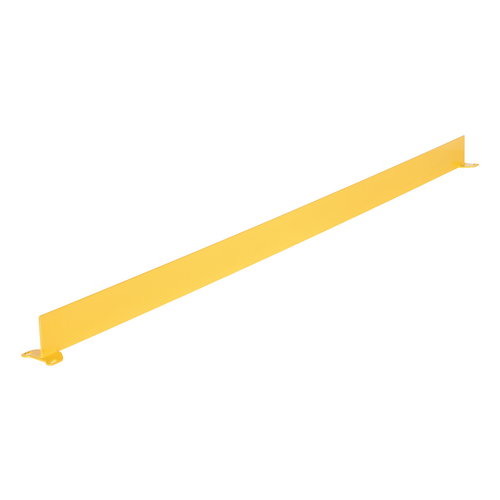

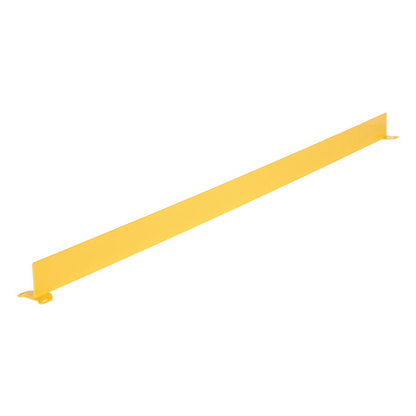

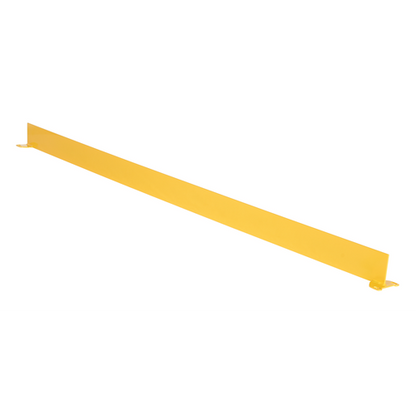

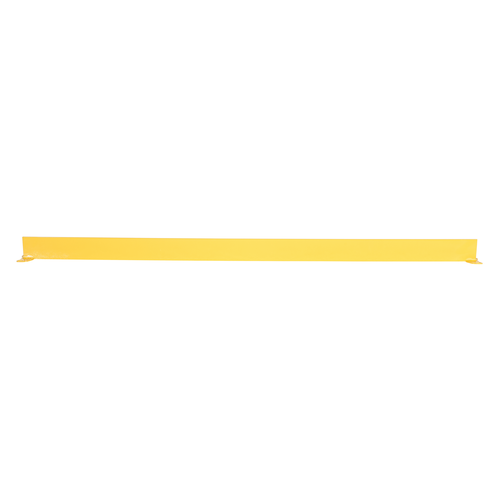

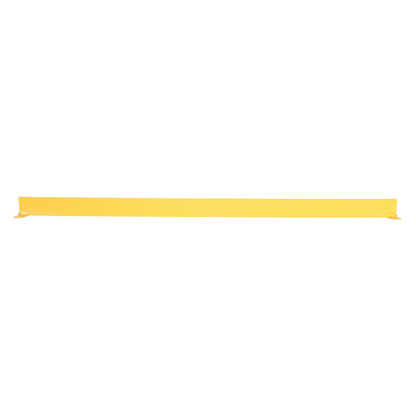

• 84In. Steel Square Safety Handrail Toe Board

  • Total Ship Wt.(lbs.): 19
  • Size: 3.875"W x 80.625"L x 4"H
  • Usable Length (in.): 79
  • Anchor Plate (qty.): 2
  • SKU: VES-TOE-B-84-N

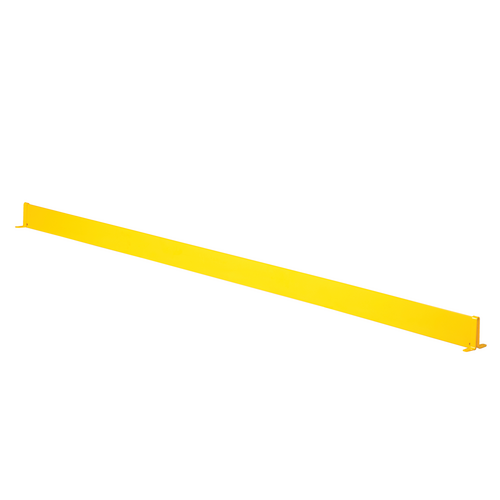

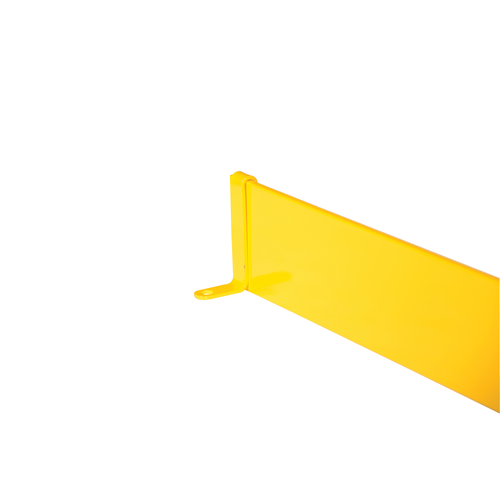

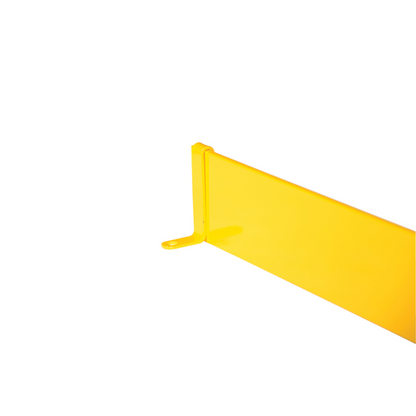

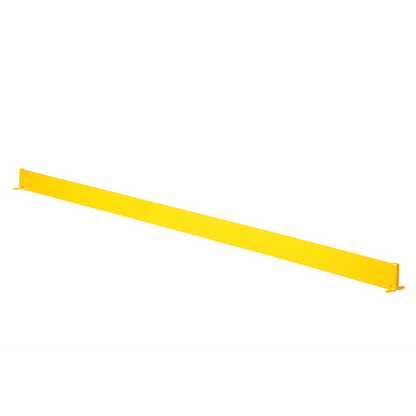

• 96In. Steel Square Safety Handrail Toe Board

  • Total Ship Wt.(lbs.): 22
  • Size: 3.875"W x 22.625"L x 4"H
  • Usable Length (in.): 91
  • Anchor Plate (qty.): 2
  • SKU: VES-TOE-B-96-N

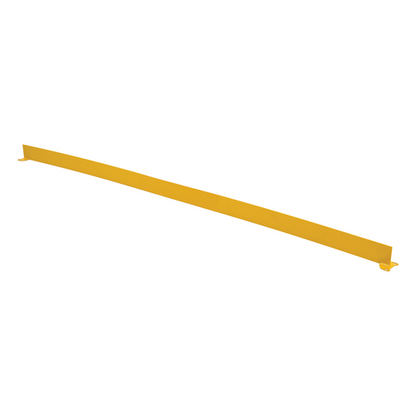

• 108In. Steel Square Safety Handrail Toe Board

  • Total Ship Wt.(lbs.): 30
  • Size: 3.875"W x 51.625"L x 4"H
  • (2) Pieces Usable Length Each (in.): 49-3/4
  • Anchor Plate (qty.): 4
  • SKU: VES-TOE-B-108-N

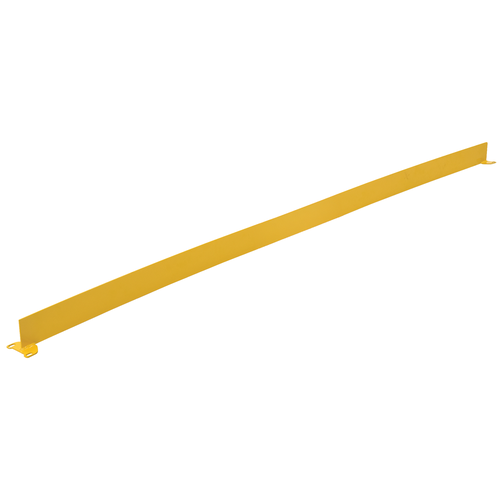

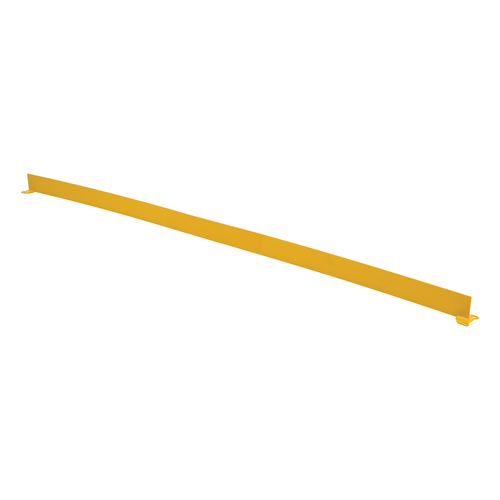

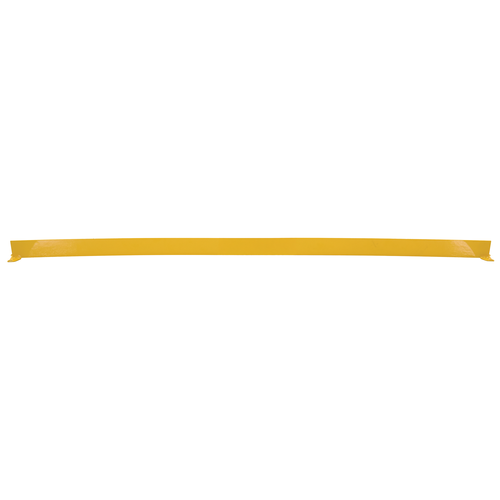

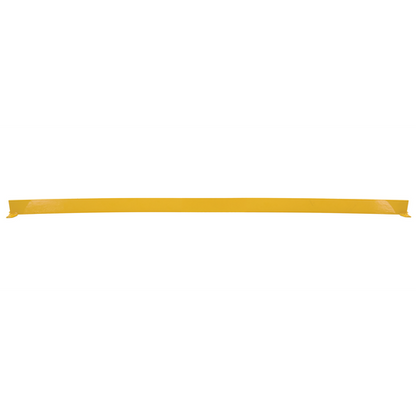

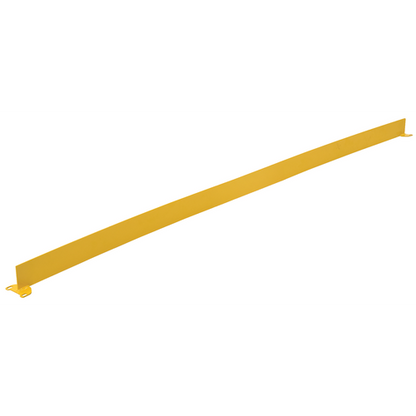

• 120In. Steel Square Safety Handrail Toe Board

  • Total Ship Wt.(lbs.): 86
  • Size: 3.875"W x 120"L x 4"H
  • Anchor Plate (qty.): 4
  • SKU: VES-TOE-B-120-N


• Anchor Plate Width (in.): 3-7/8
• Anchor Plate Thickness (in.): 3/16
• Mounting Hole Slotted (in.): 7/16 x 7/8
• Assembled Width (in): 3.875
• Assembled Height (in): 4
• Material: Steel
• CPO-Prop 65 Warning Required(Yes/No): Yes
• Assembled

• Available Colors:
  • Yellow (always in stock. Other colors made to order)
• Indoor / Outdoor
• Attachment Method: Bolt on
• Fastener Type: Bolt
• Manufacturer Warranty: 90 Days

Made in the USA
