Steel Structural Rack Guard

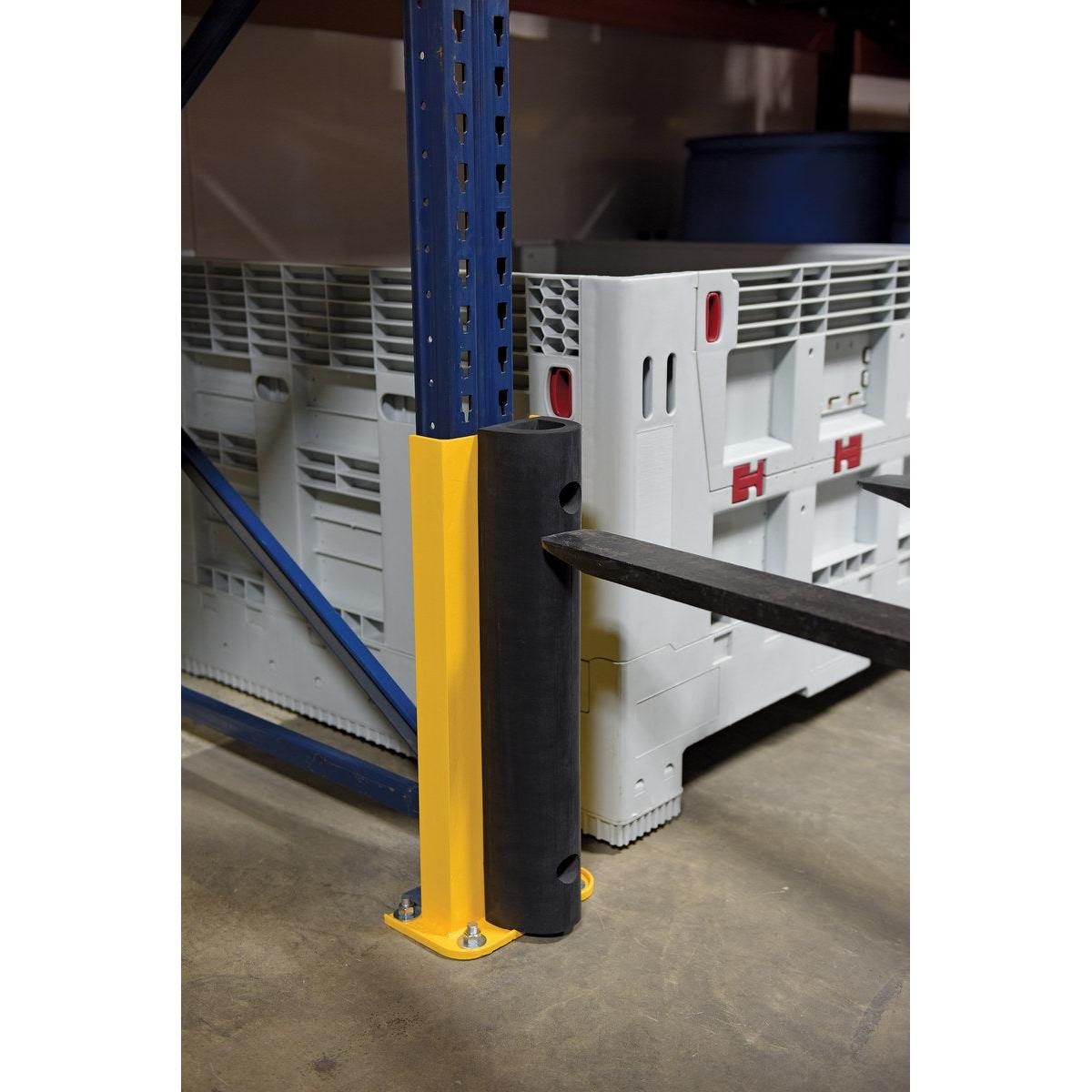

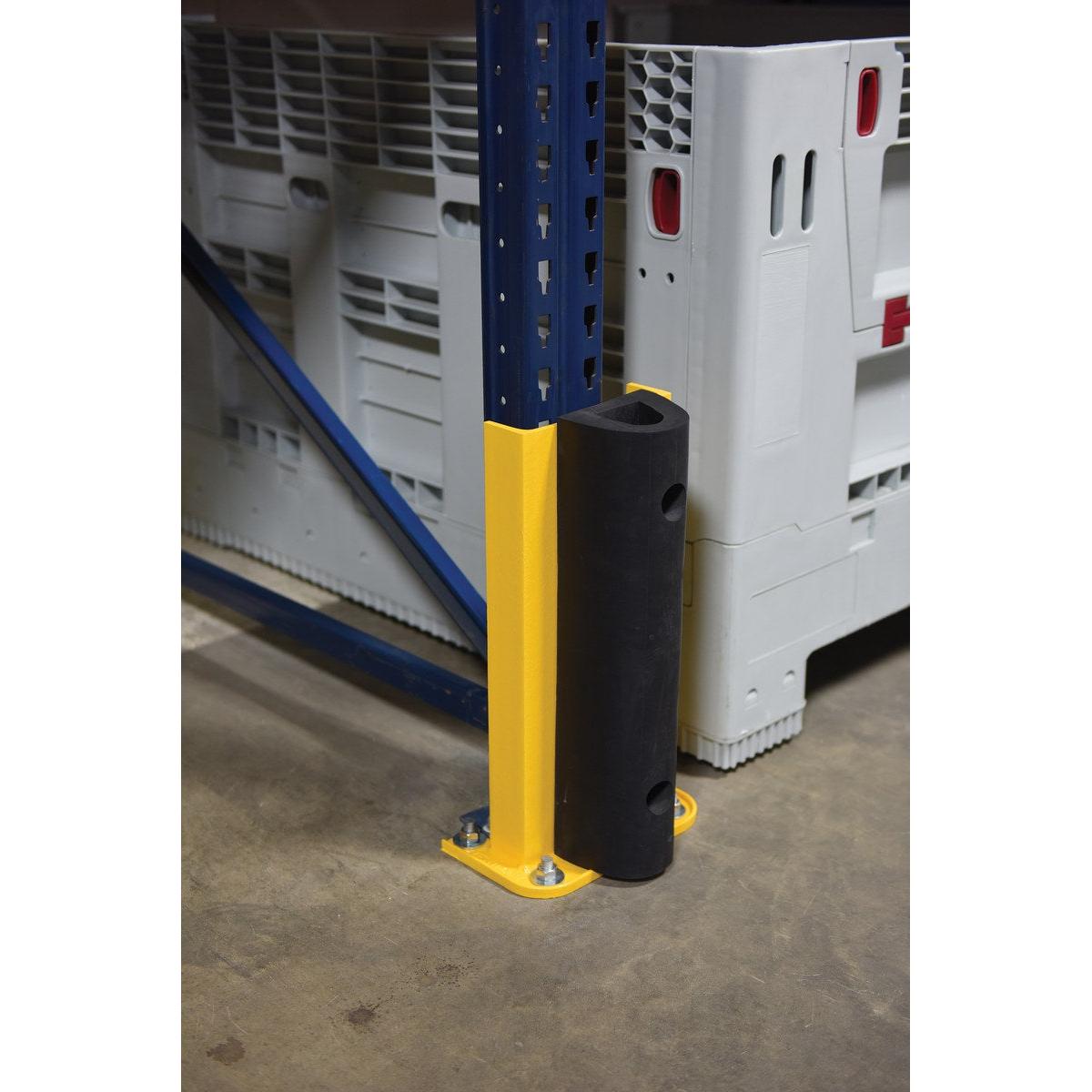

Structural Rack Guards offer a cost-effective solution for protecting pallet rack uprights, building corners, and other vulnerable structures in high-traffic warehouse or industrial environments. Designed to absorb and deflect impact from forklifts and other equipment, these guards enhance facility safety and help prevent costly damage.

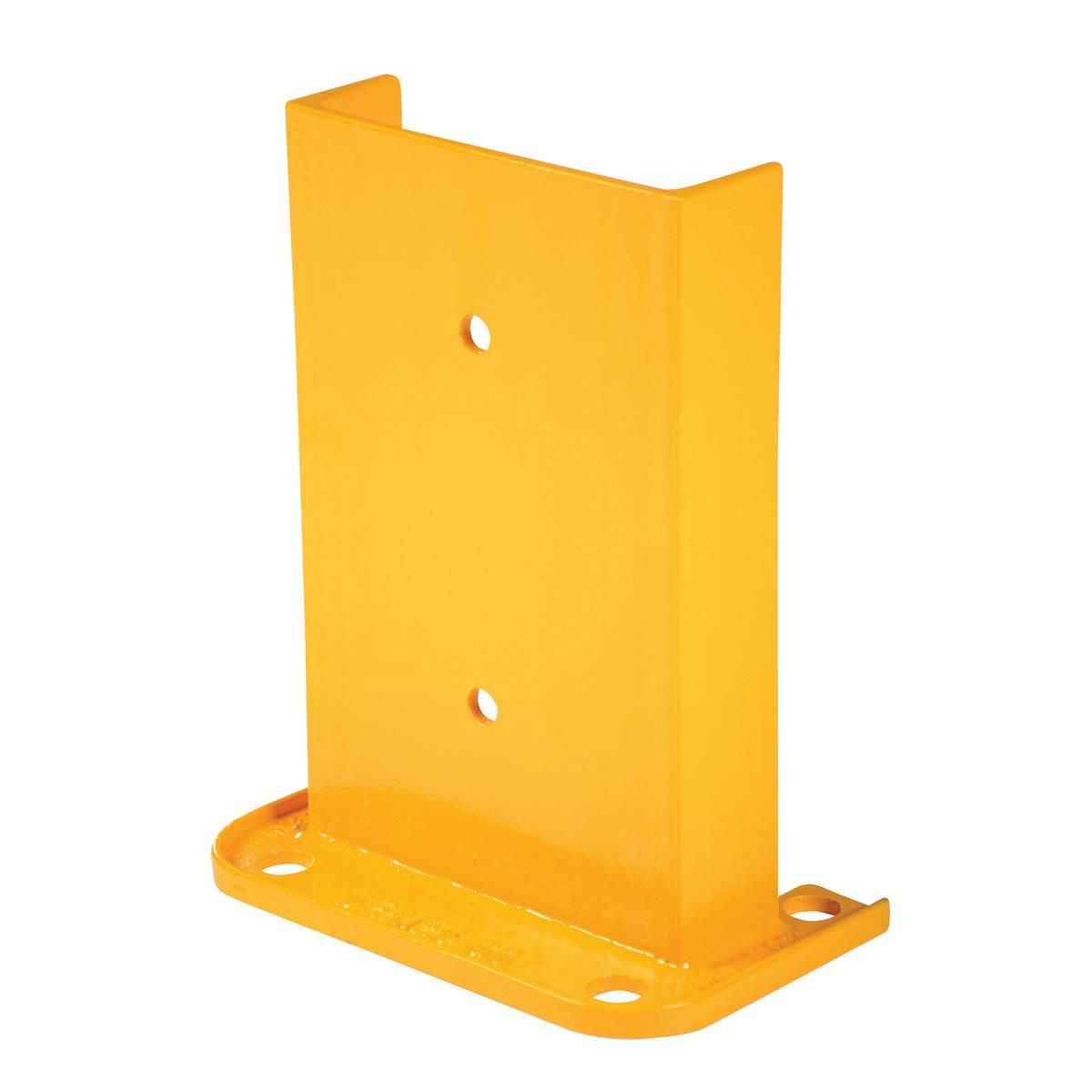

Manufactured from heavy-duty 6" or 8" steel "C" channel, these guards are available with or without integrated rubber bumpers for added shock absorption. The safety yellow powder-coated finish ensures high visibility, while pre-drilled mounting holes allow for fast, secure installation to concrete surfaces.

Features & Benefits

• Durable “C” Channel Steel Construction - Provides long-lasting protection against forklift and pallet impact
• Safety Yellow Powder Coat Finish - Enhances visibility and resists wear in tough environments
• Pre-Drilled Mounting Base - Four mounting holes offer fast and stable installation

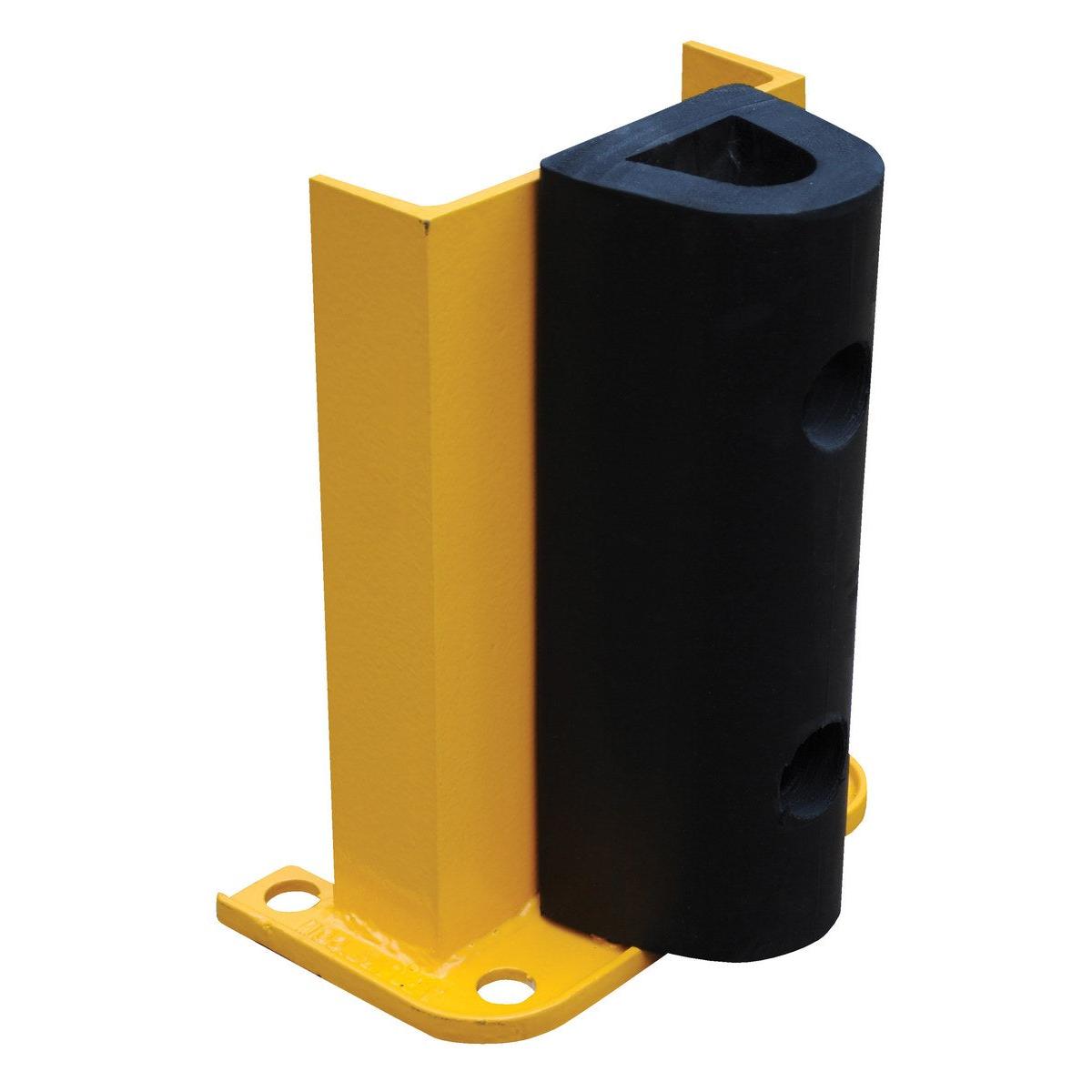

• Optional Rubber Bumper - Adds cushioning to reduce impact force (select models)
• Economical Protection - Safeguards infrastructure at an affordable cost
• Optional Rubber Bumper - Protects equipment and structures from damage

Additional Information

• Model G6 requires ½" Anchor Bolts; Model G8 requires ¾" Anchor Bolts (sold separately)
• Designed for mounting to concrete surfaces
• Ideal for use in distribution centers, warehouses, and manufacturing facilities

Technical Specifications:

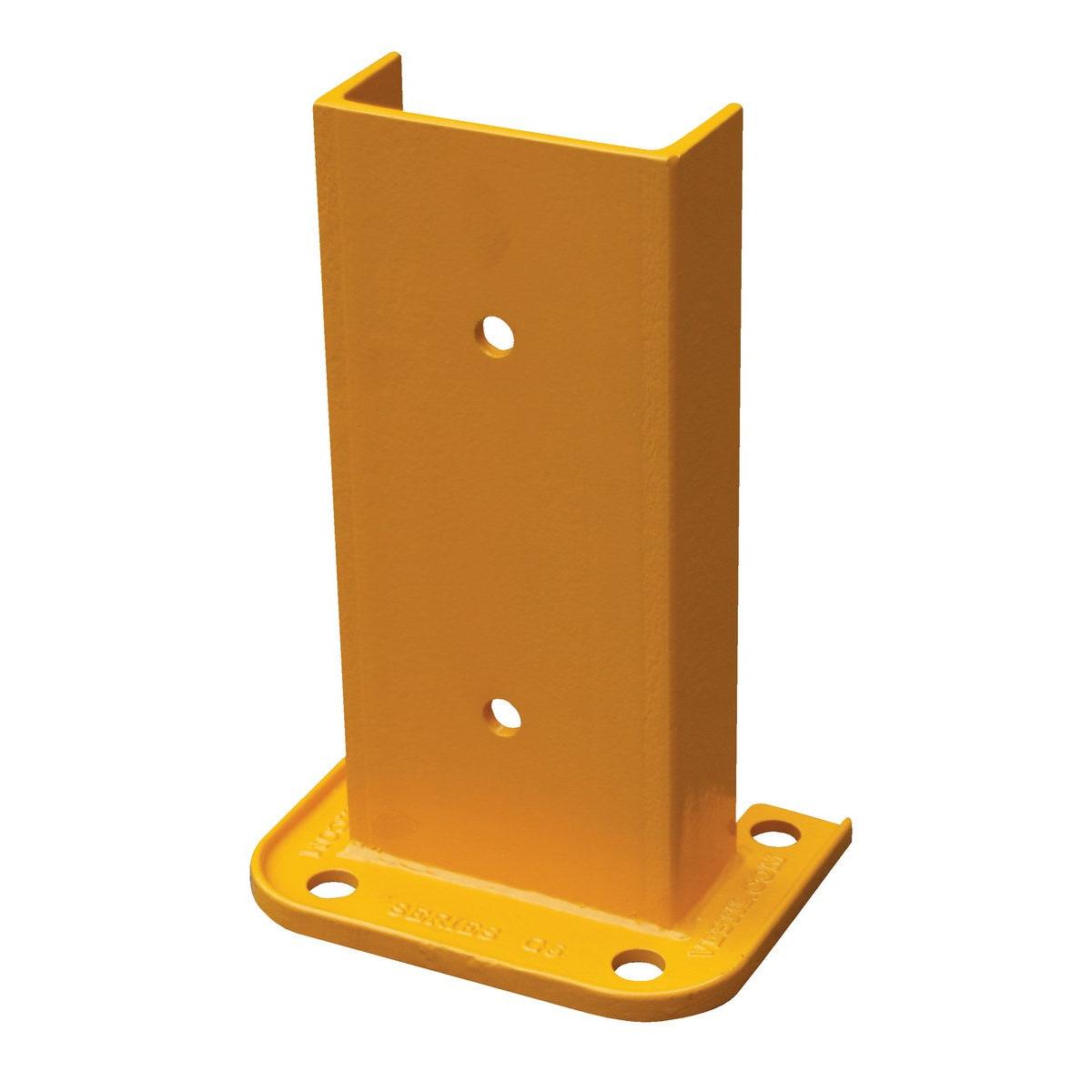

G6-12

• 8.0625"W x 6"L x 12.25"H

• Total Ship Wt.(lbs.): 12

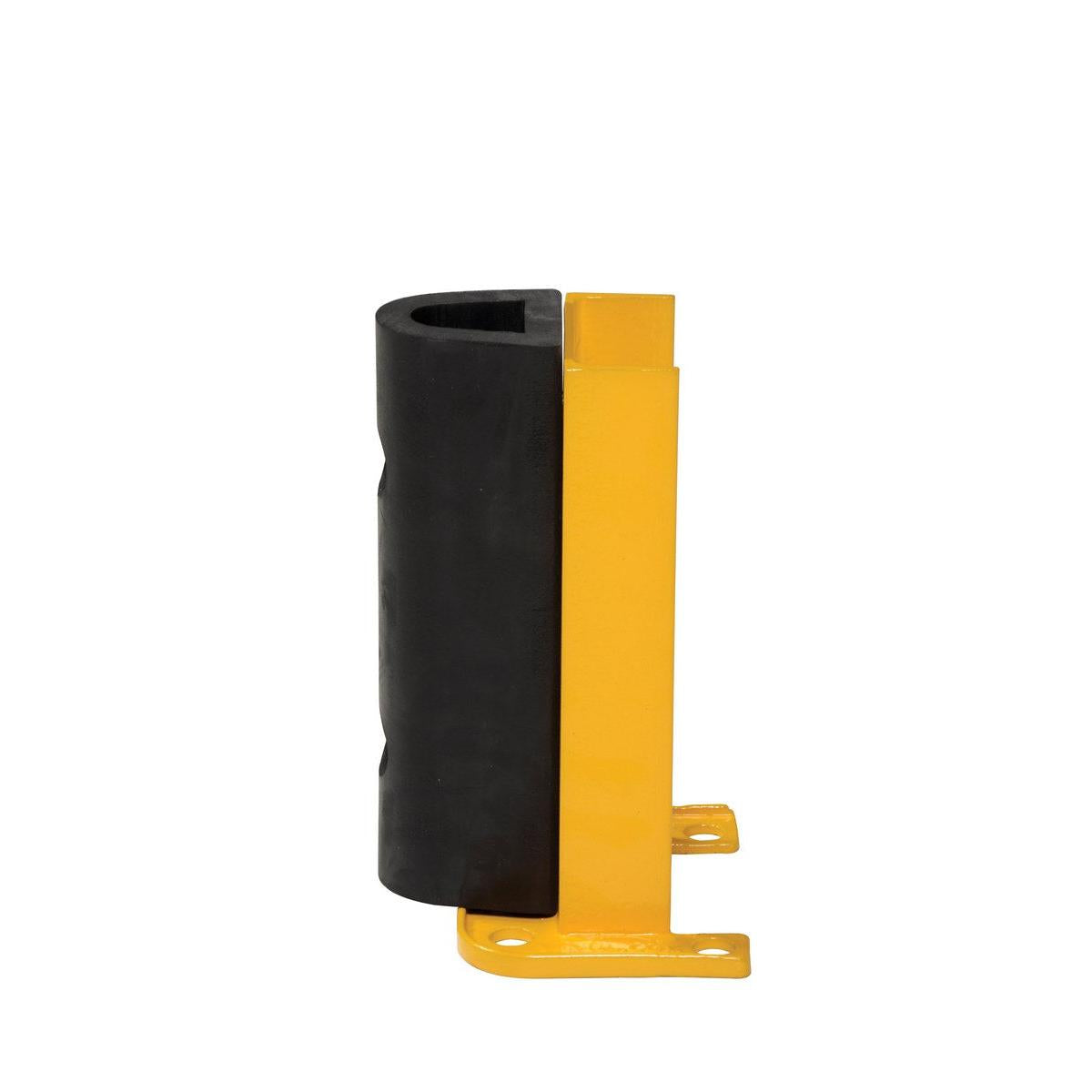

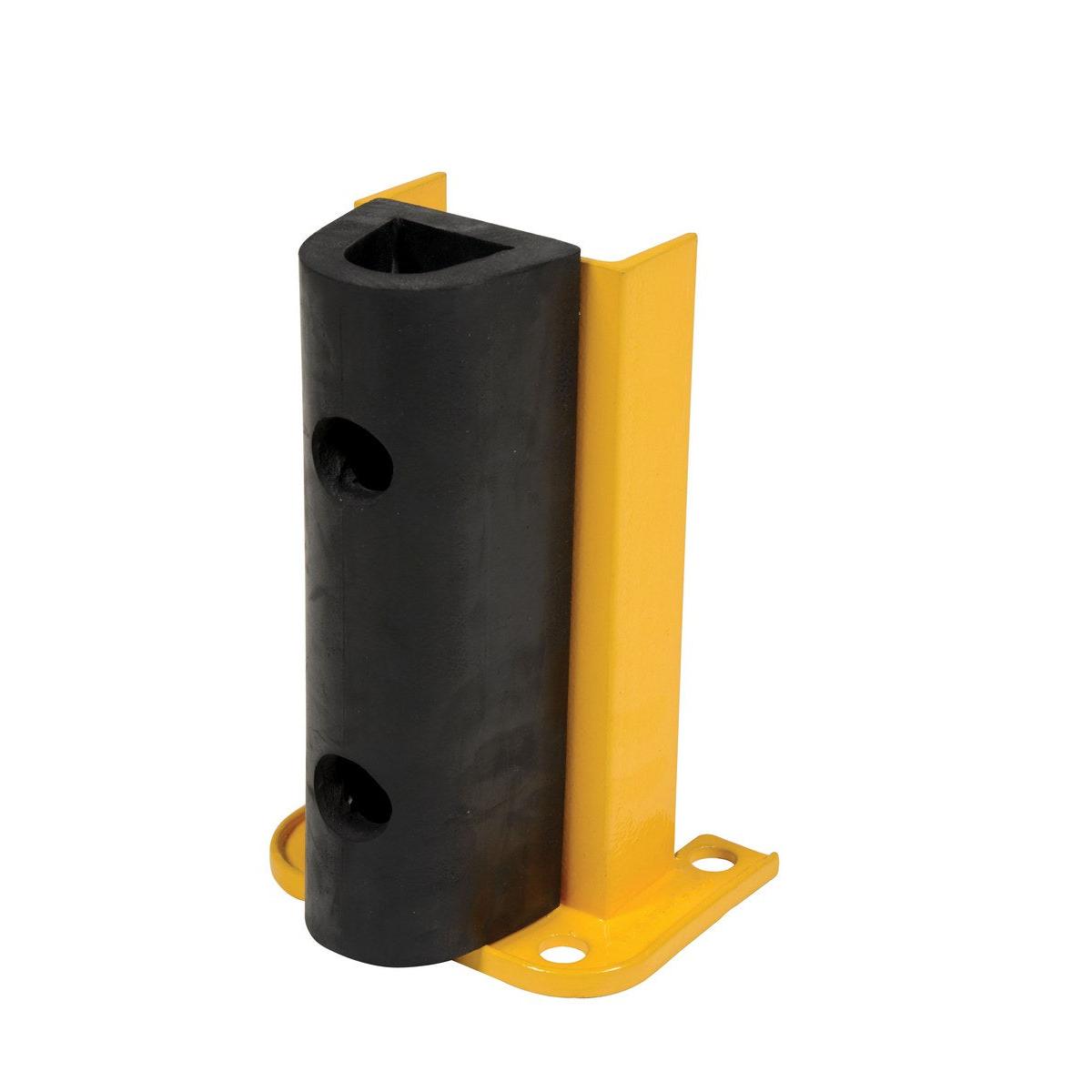

G6-12-B

• 8.0625"W x 7.75"L x 12.25"H
• Total Ship Wt.(lbs.): 12
• Usable Length (in.): 2-7/8
• Plate Width (in.): 8-1/16
• Plate Length (in.): 6
• Mounting Plate Thickness (in.): 1/4

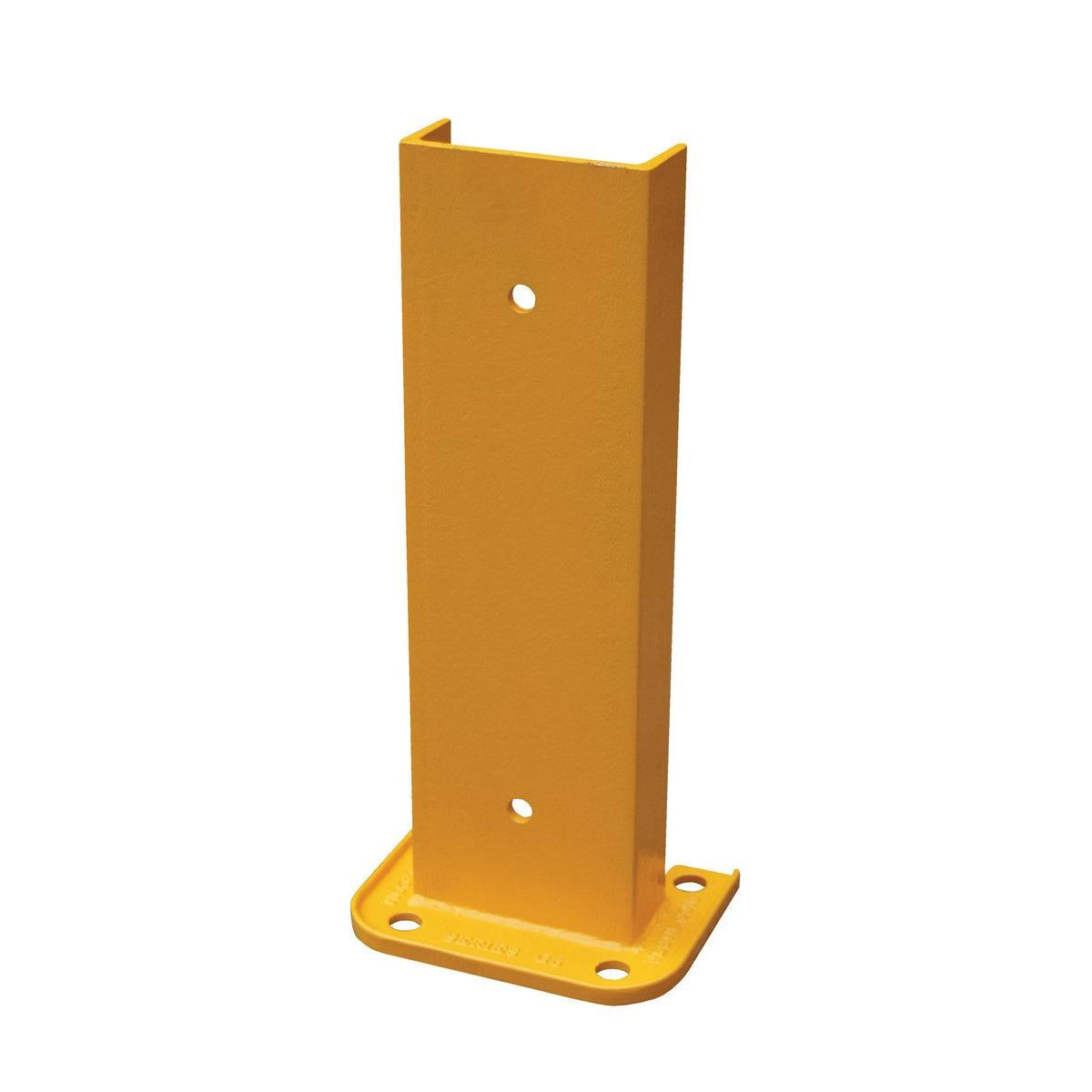

G6-18

• 8.0625"W x 6"L x 18.25"H

• Total Ship Wt.(lbs.): 16

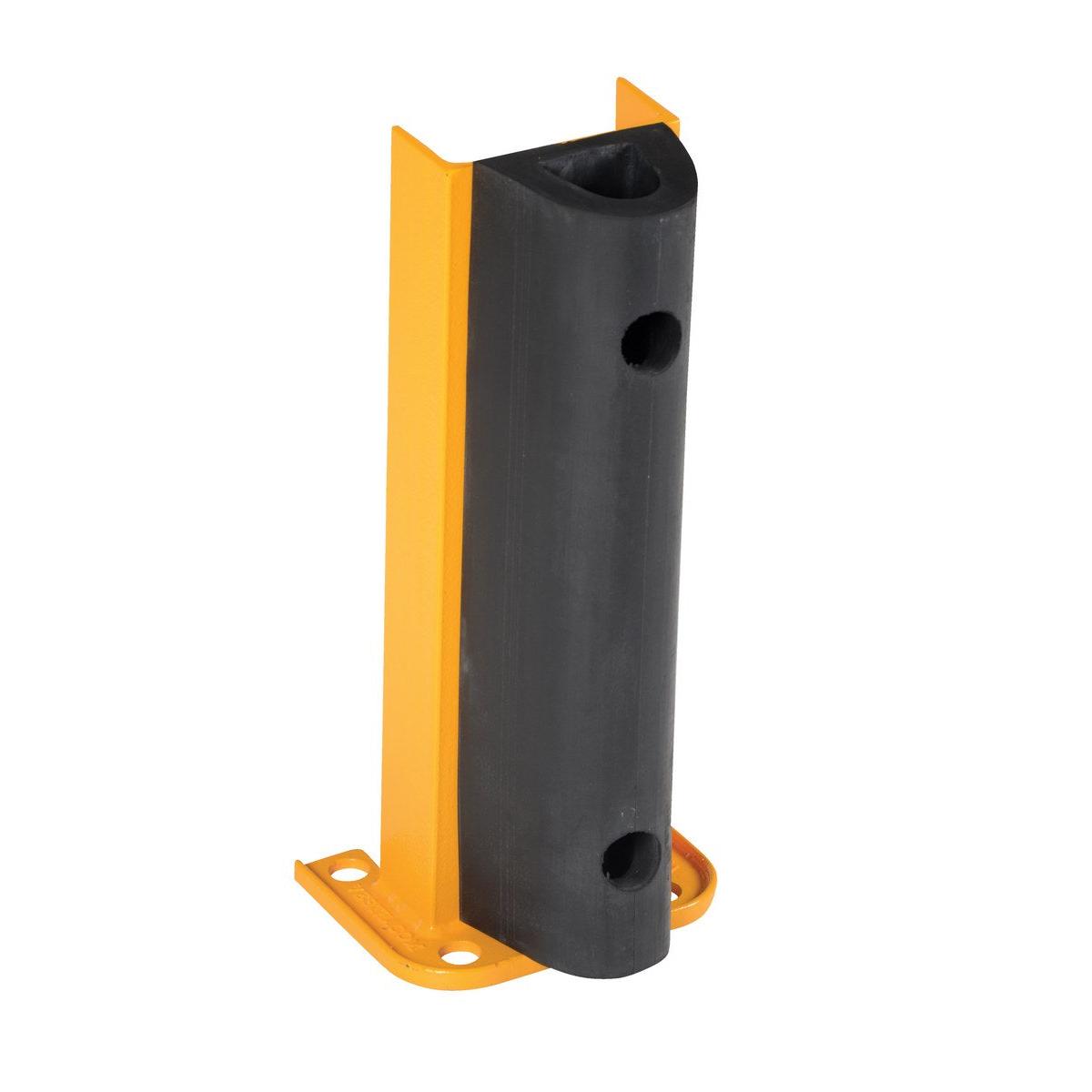

G6-18-B

• 8.0625"W x 7.75"L x 18.25"H

• Total Ship Wt.(lbs.): 25
• Usable Length (in.): 2-7/8
• Plate Width (in.): 8-1/16
• Plate Length (in.): 6
• Mounting Plate Thickness (in.): 1/4

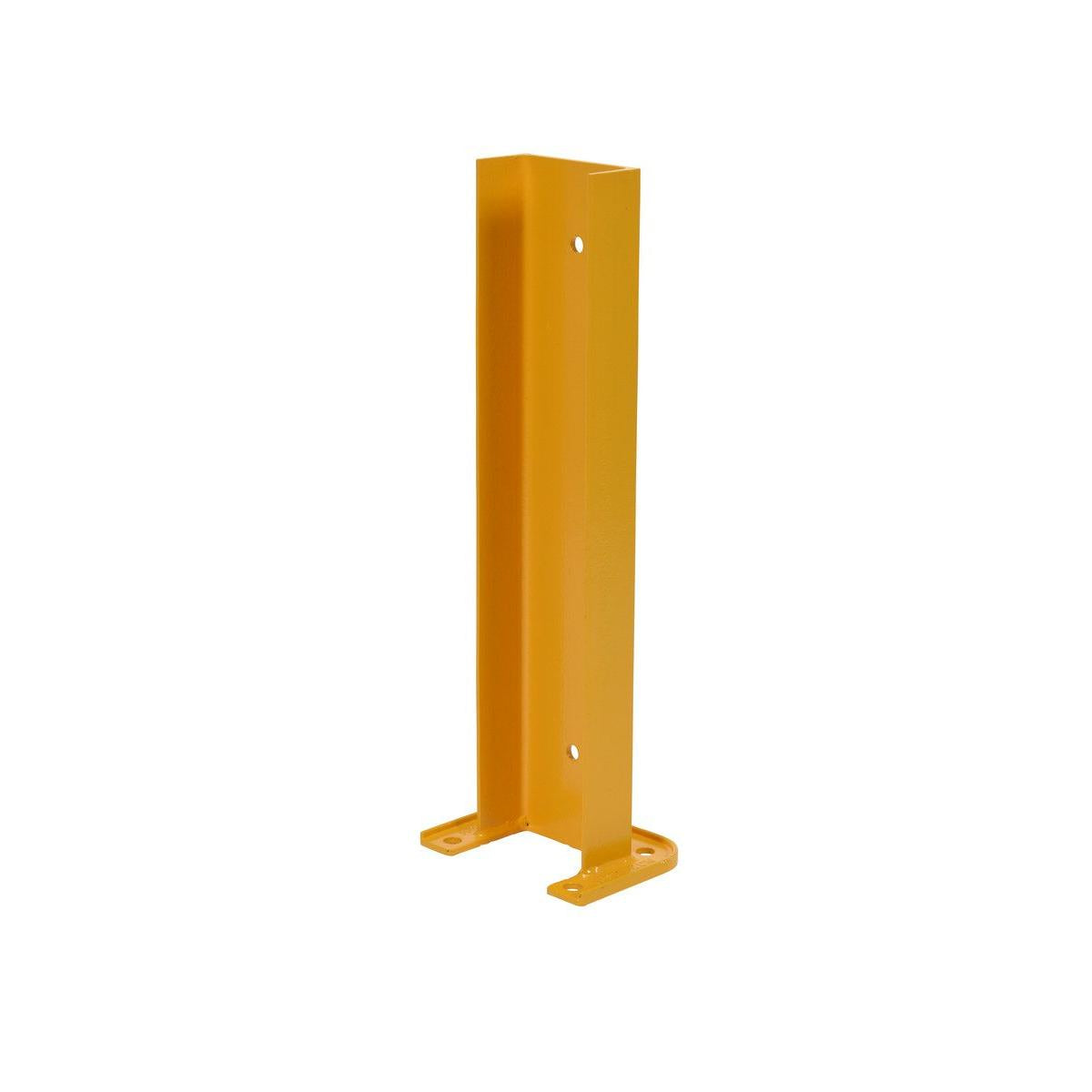

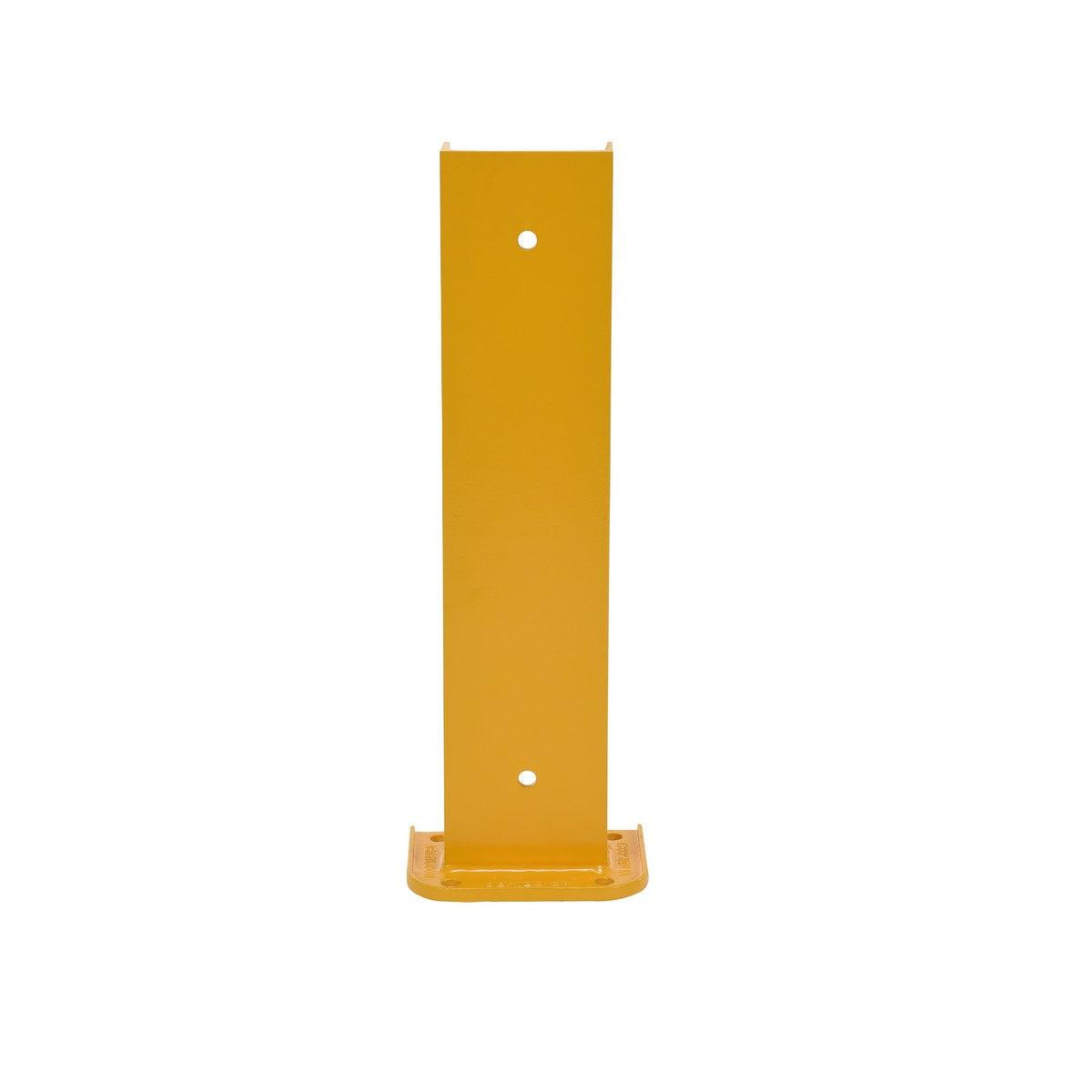

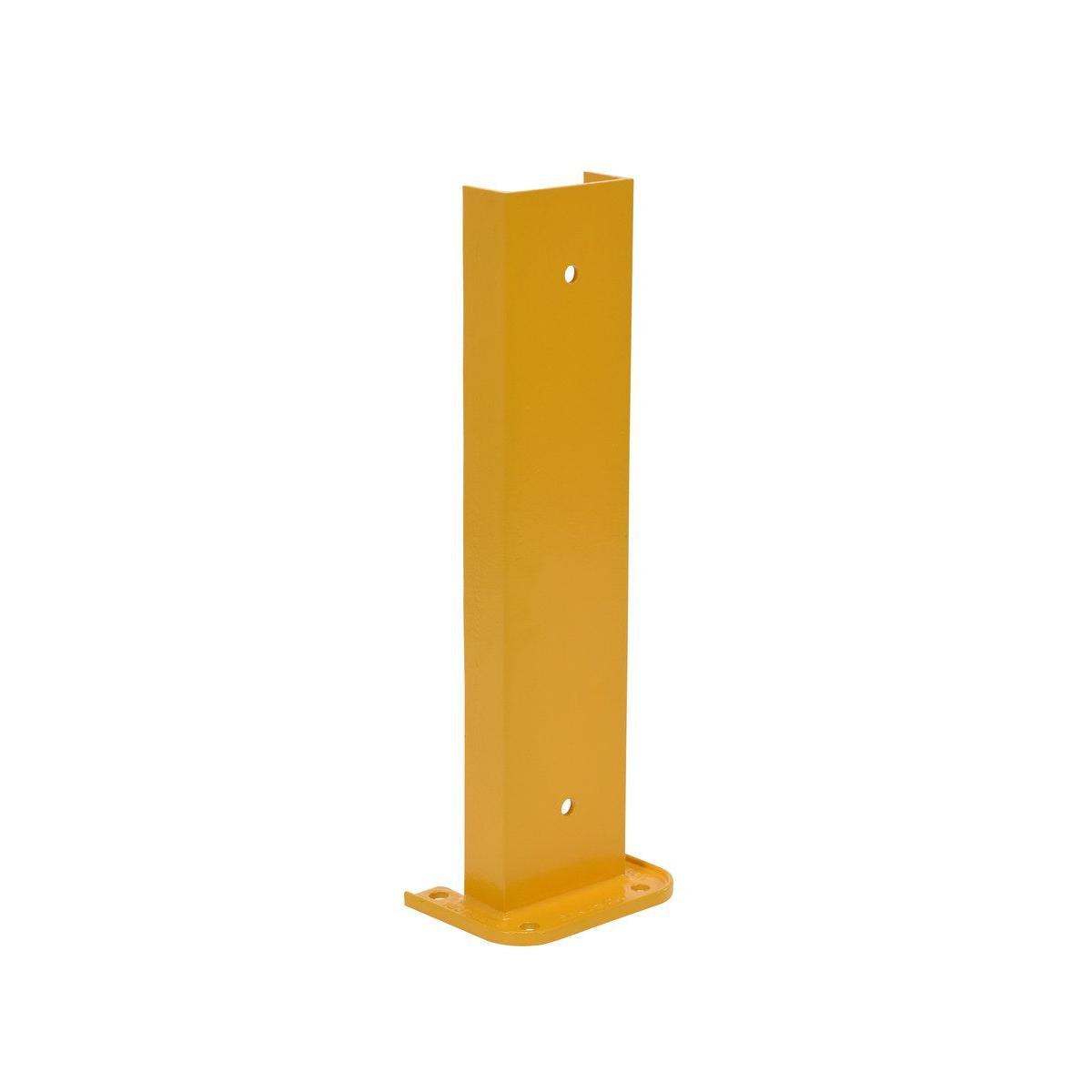

G6-24

• 8.0625"W x 6"L x 24.25"H

• Total Ship Wt.(lbs.): 22

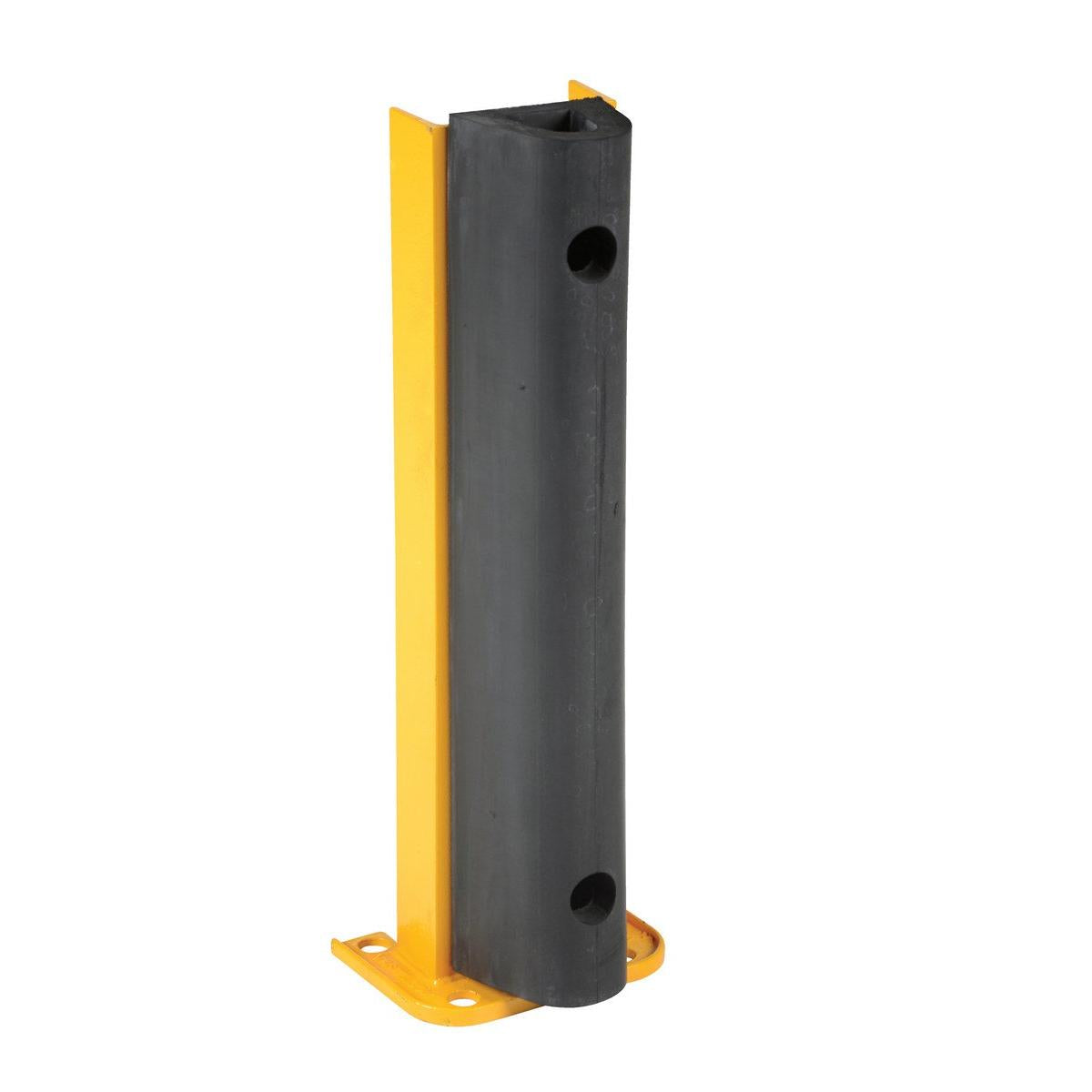

G6-24-B

• 8.0625"W x 7.75"L x 24.25"H

• Total Ship Wt.(lbs.): 42
• Usable Length (in.): 2-7/8
• Plate Width (in.): 8-1/16
• Plate Length (in.): 6
• Mounting Plate Thickness (in.): 1/4

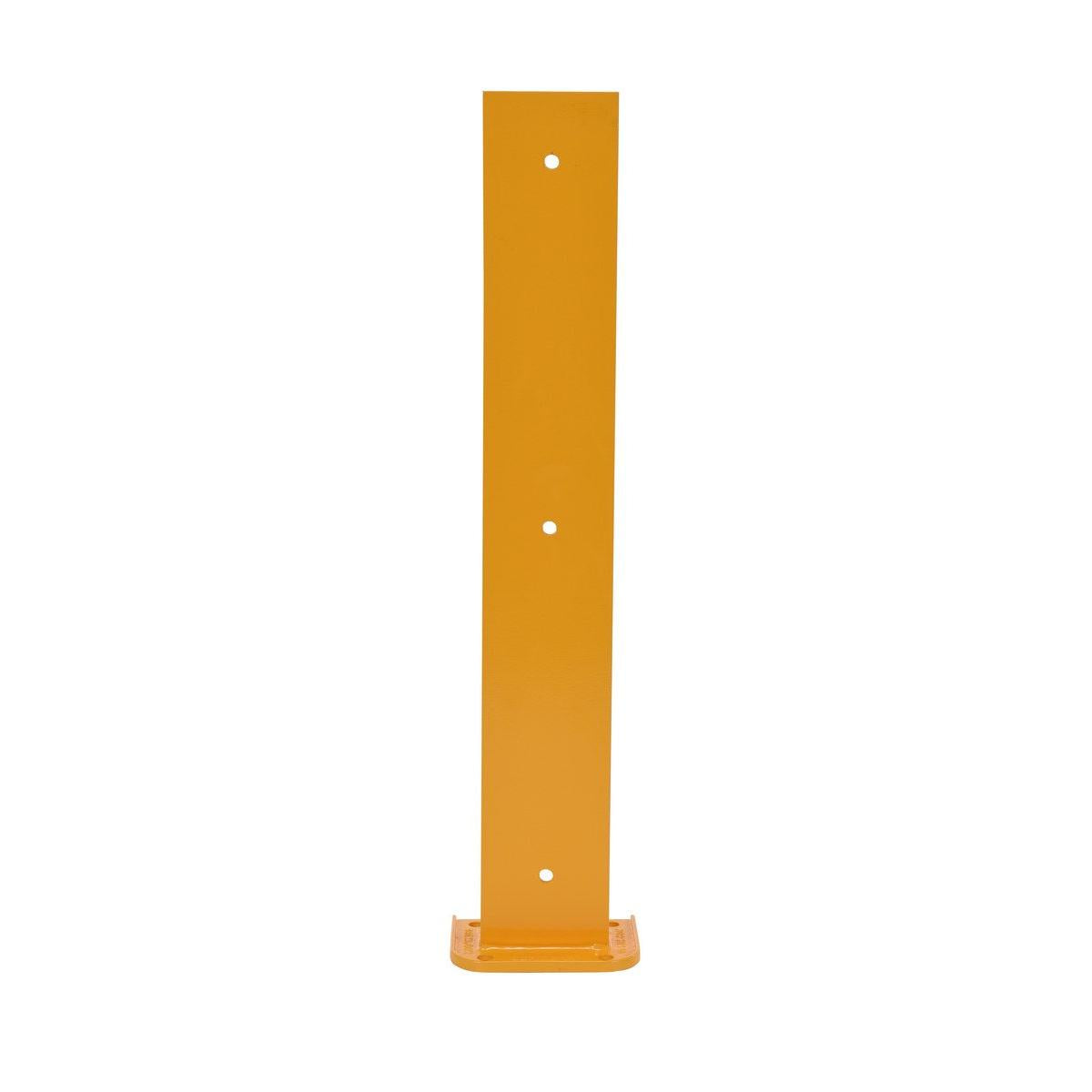

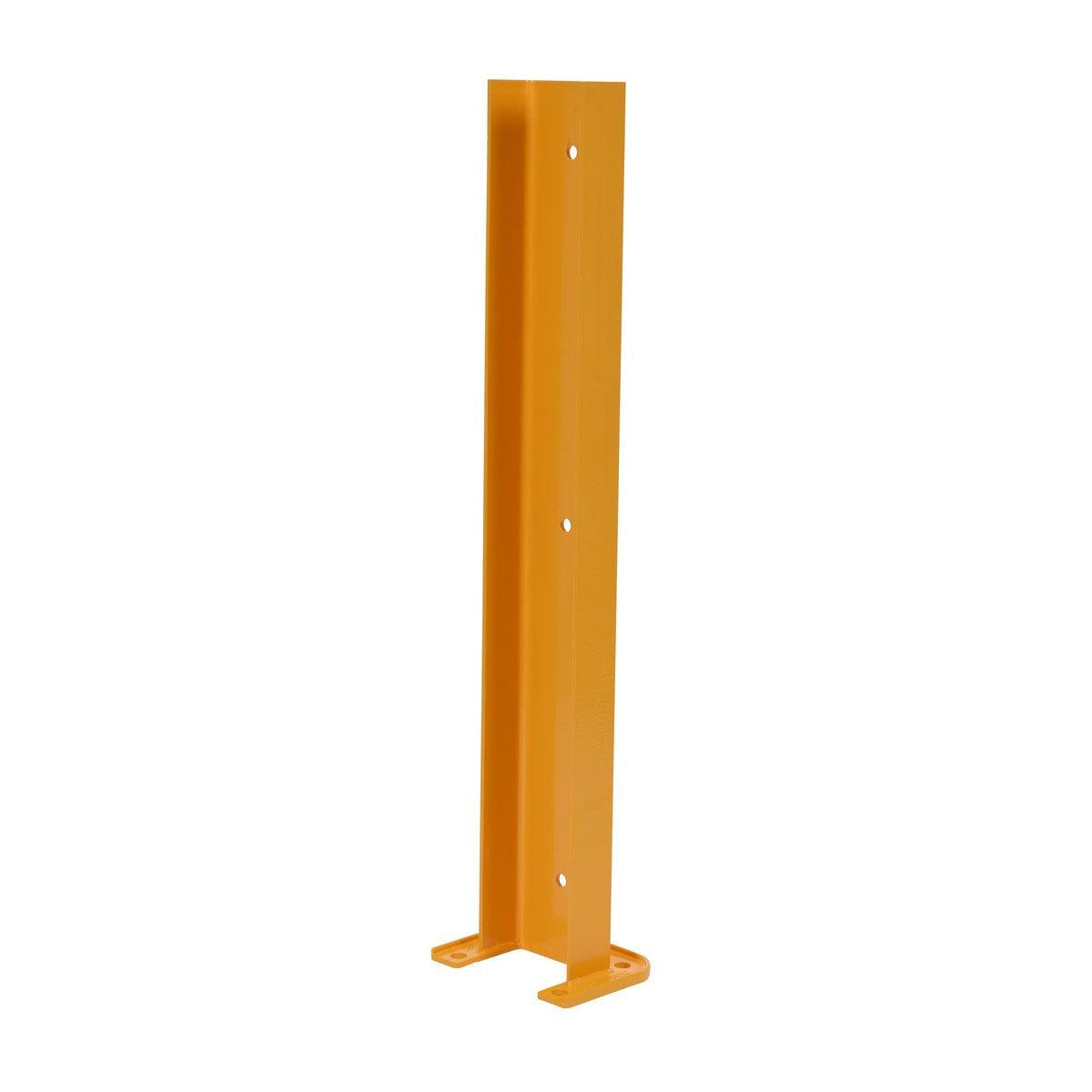

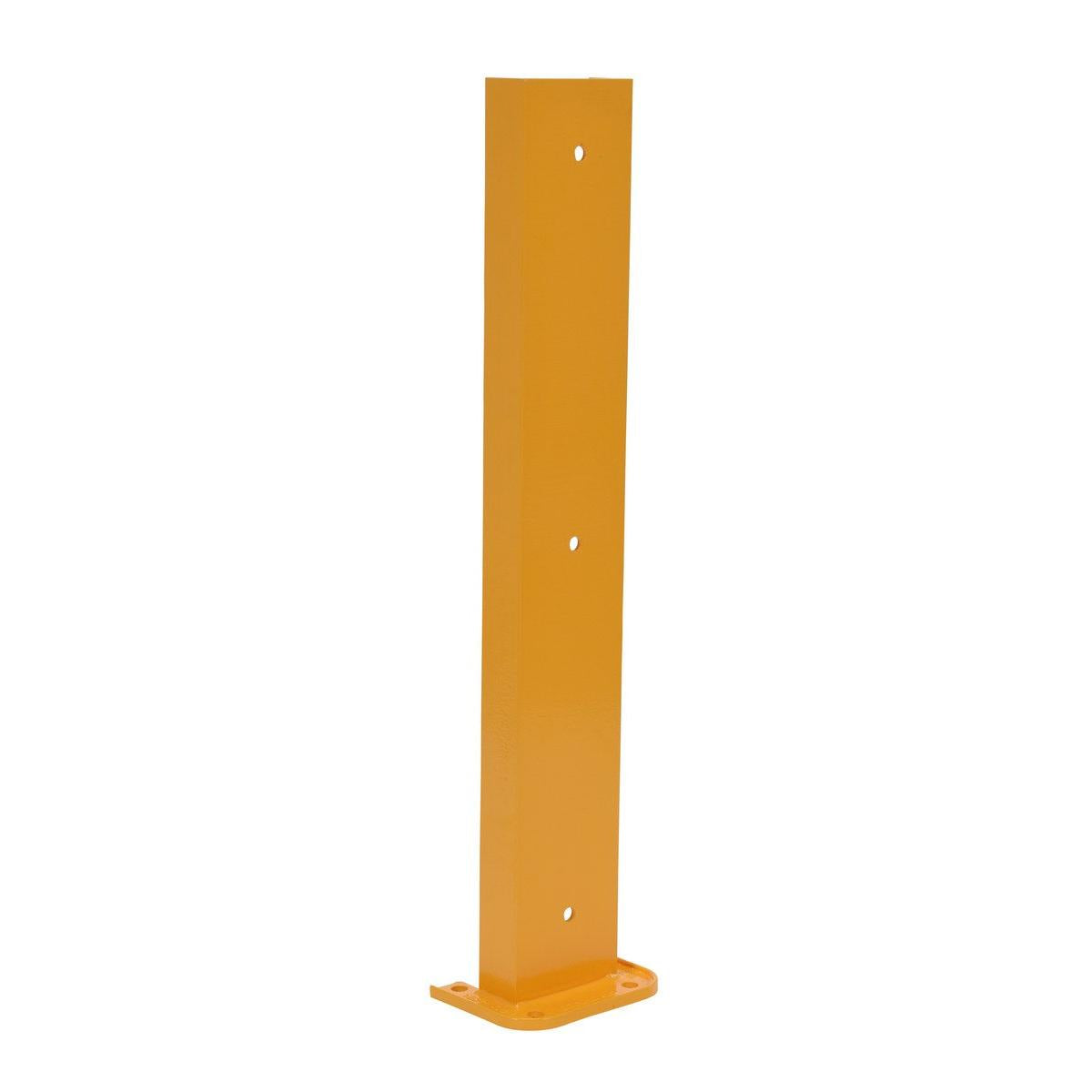

G6-36

• 8.0625"W x 6"L x 36.25"H

• Total Ship Wt.(lbs.): 31

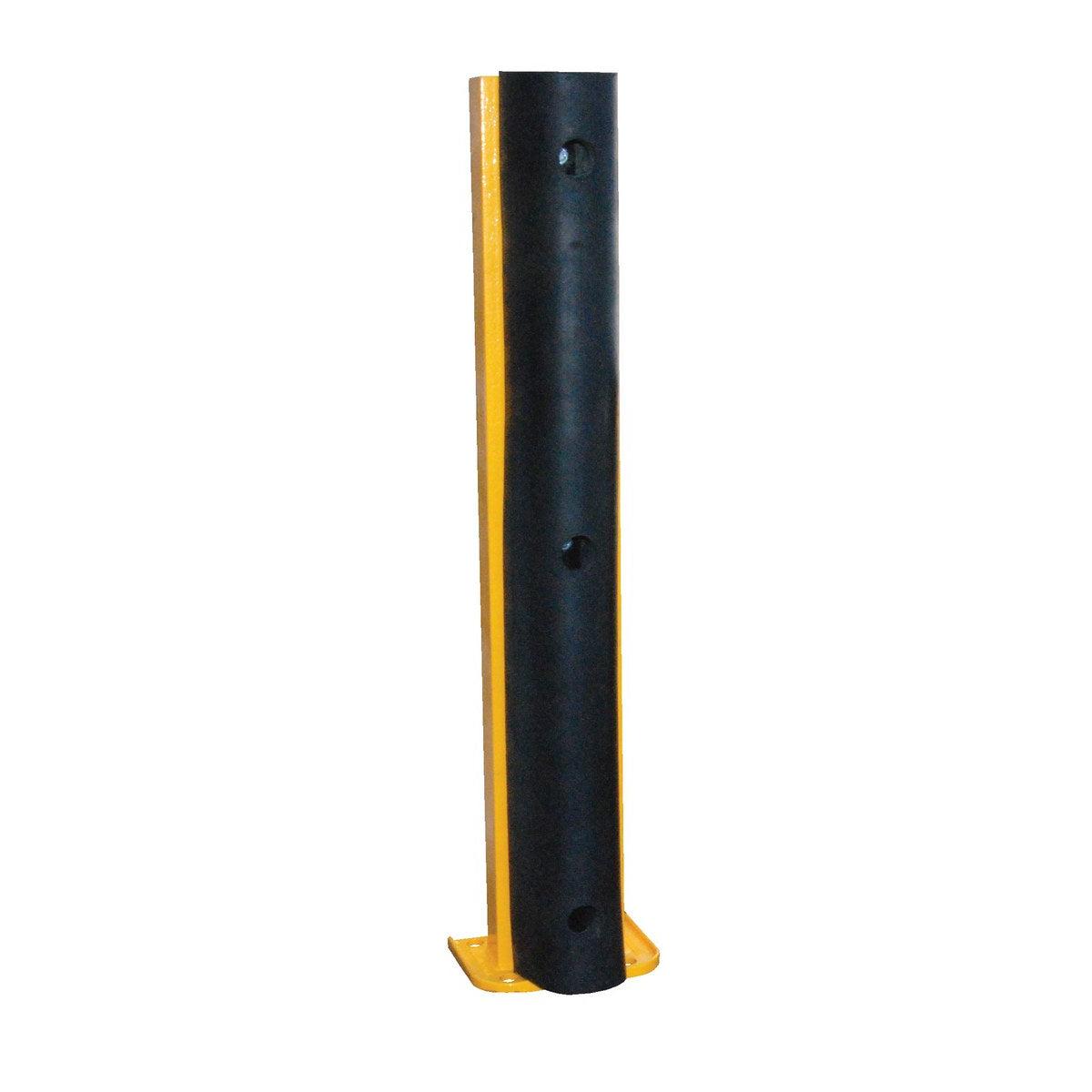

G6-36-B

• 8.0625"W x 7.75"L x 36.25"H

• Total Ship Wt.(lbs.): 44
• Usable Length (in.): 2-7/8
• Plate Width (in.): 8-1/16
• Plate Length (in.): 6
• Mounting Plate Thickness (in.): 1/4

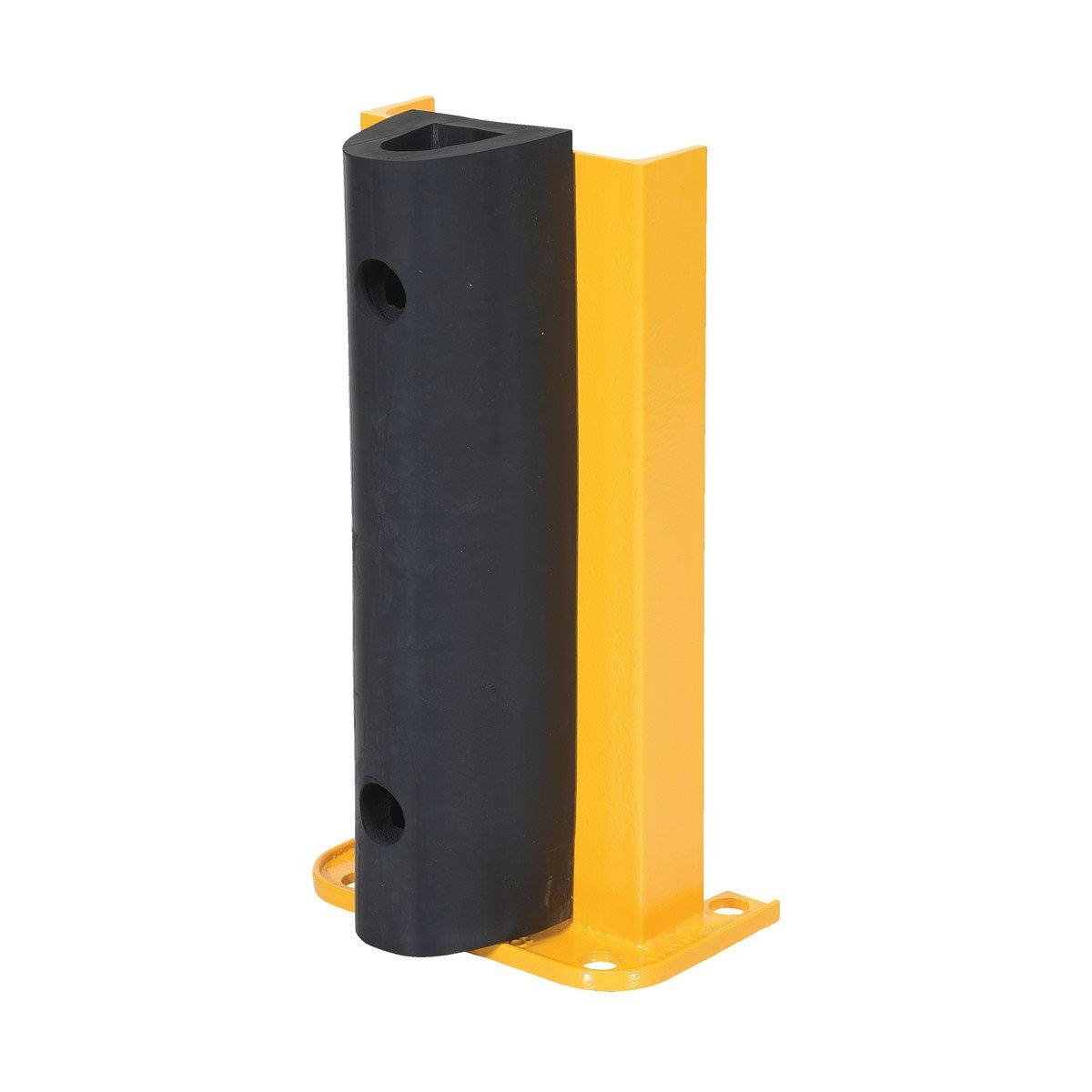

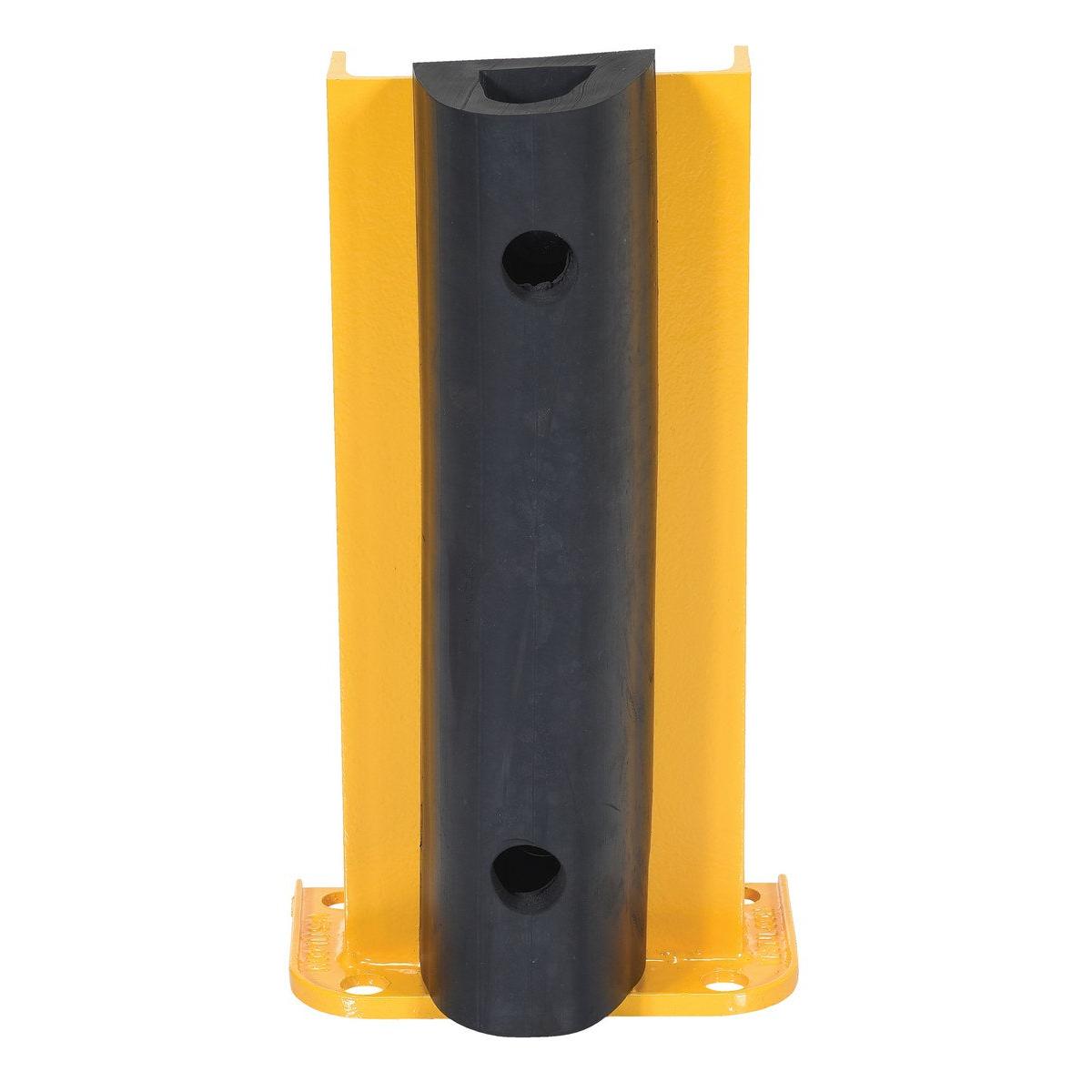

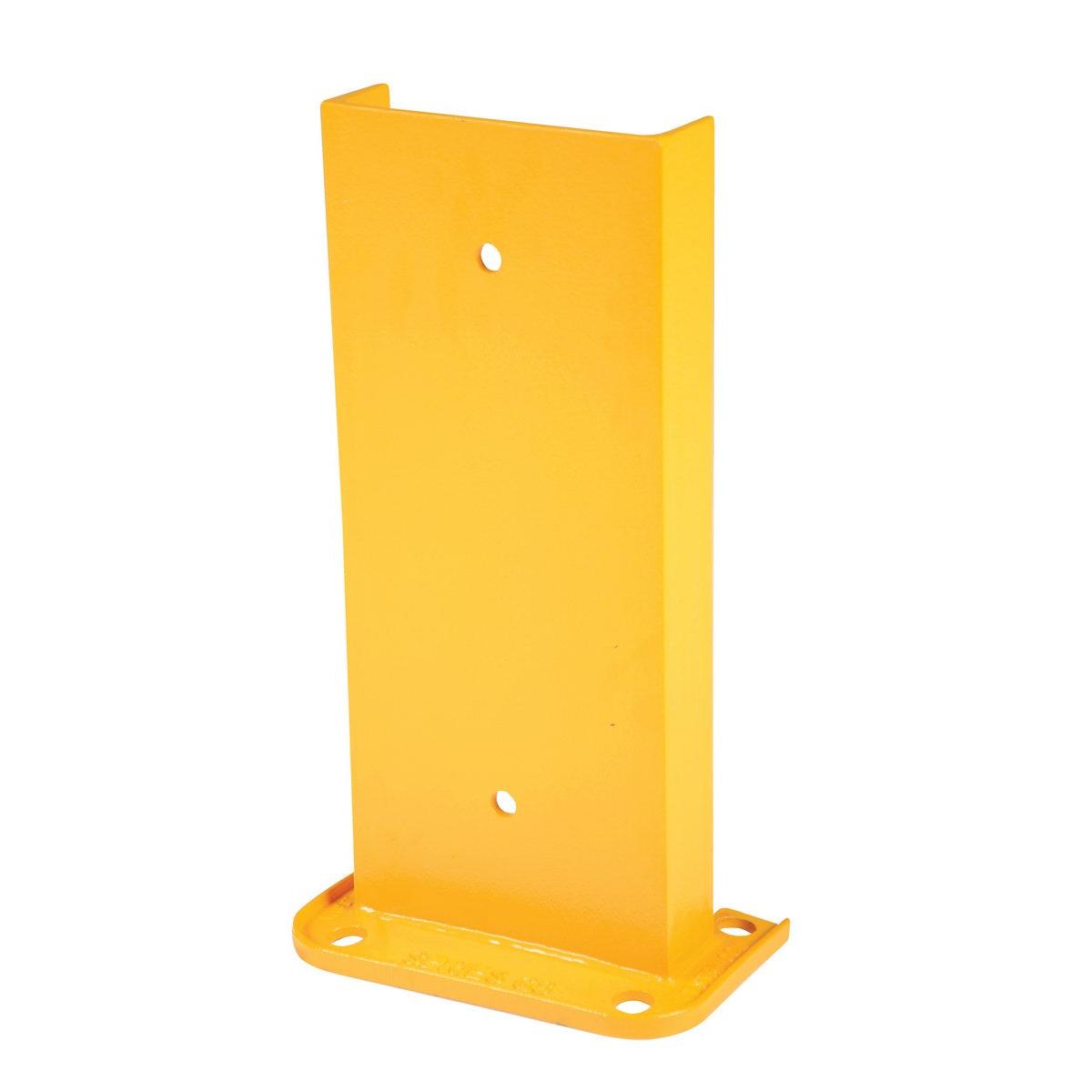

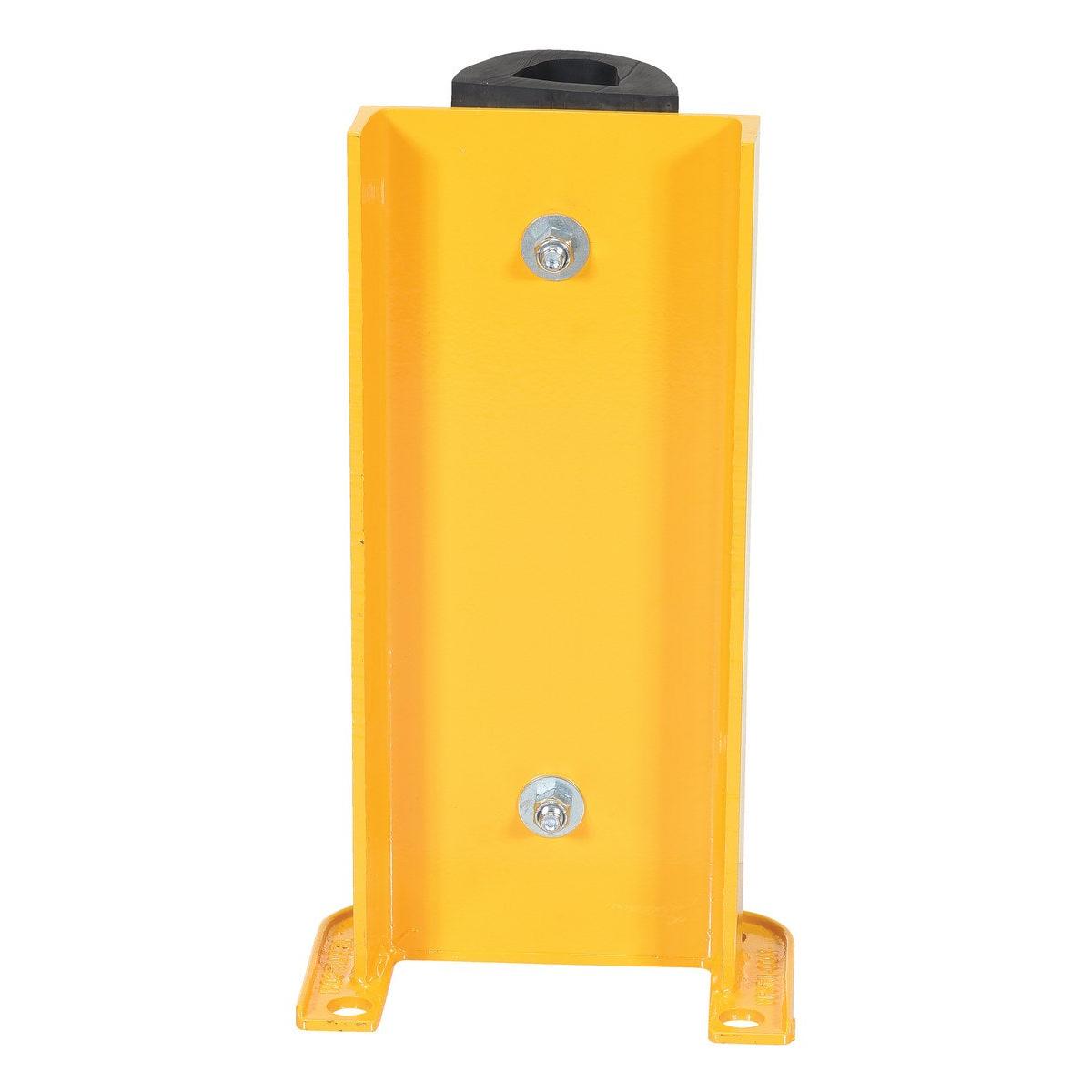

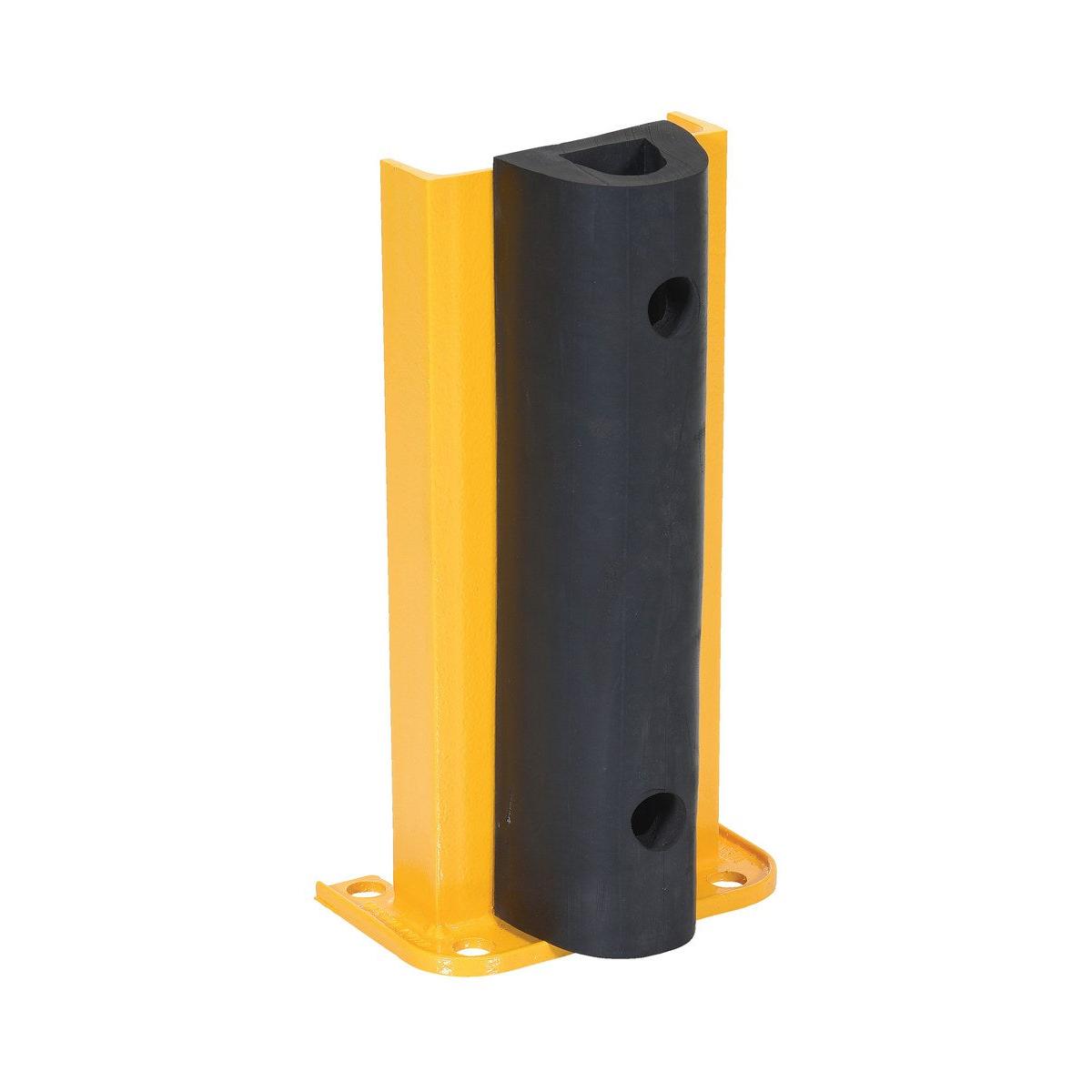

G8-18

• 10.0625"W x 6"L x 18.25"H

• Total Ship Wt.(lbs.): 21

G6-18-B

• 10.0625"W x 7.8125"L x 18.25"H

• Total Ship Wt.(lbs.): 38
• Usable Length (in.): 2-11/16
• Plate Width (in.): 10-1/16
• Plate Length (in.): 6
• Mounting Plate Thickness (in.): 1/4

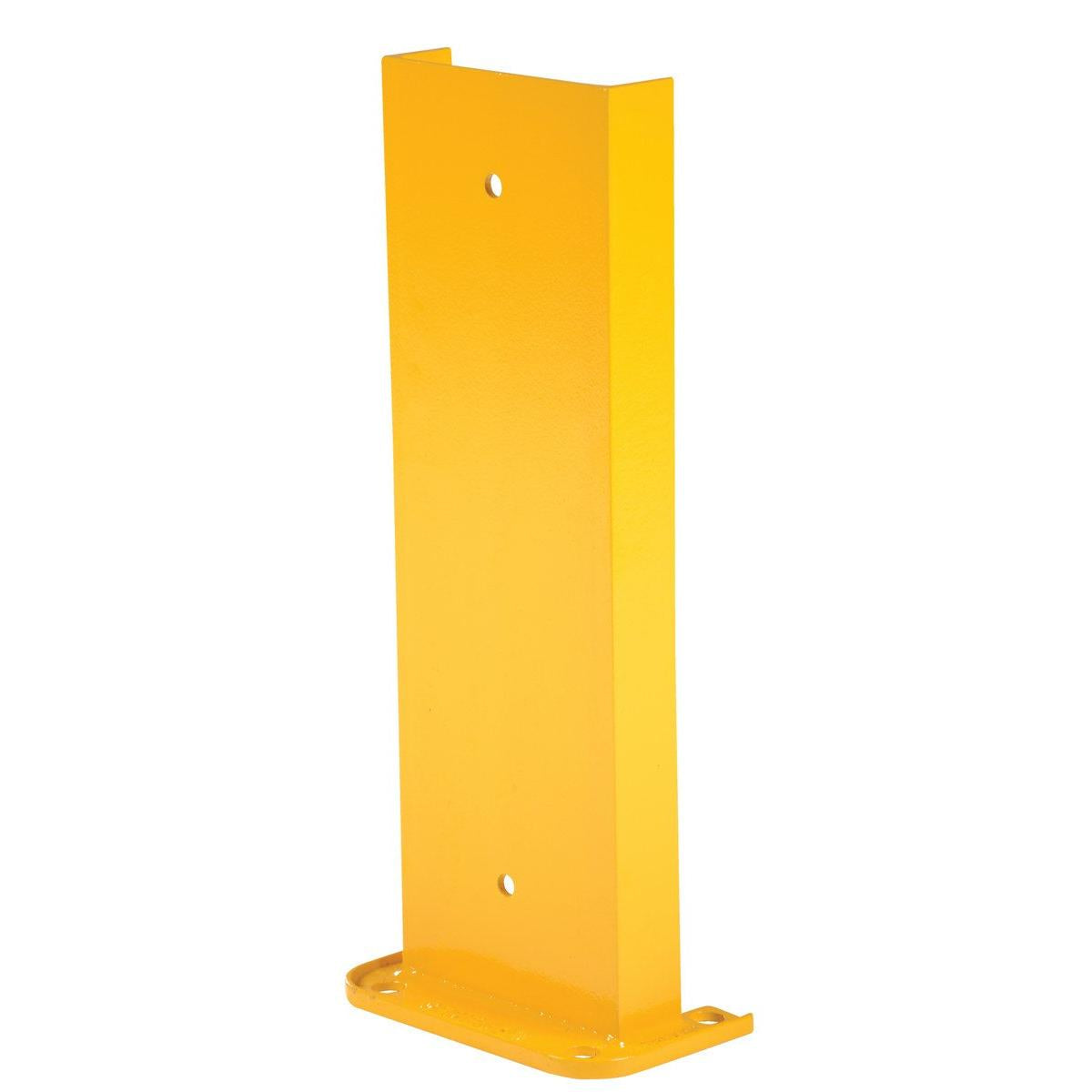

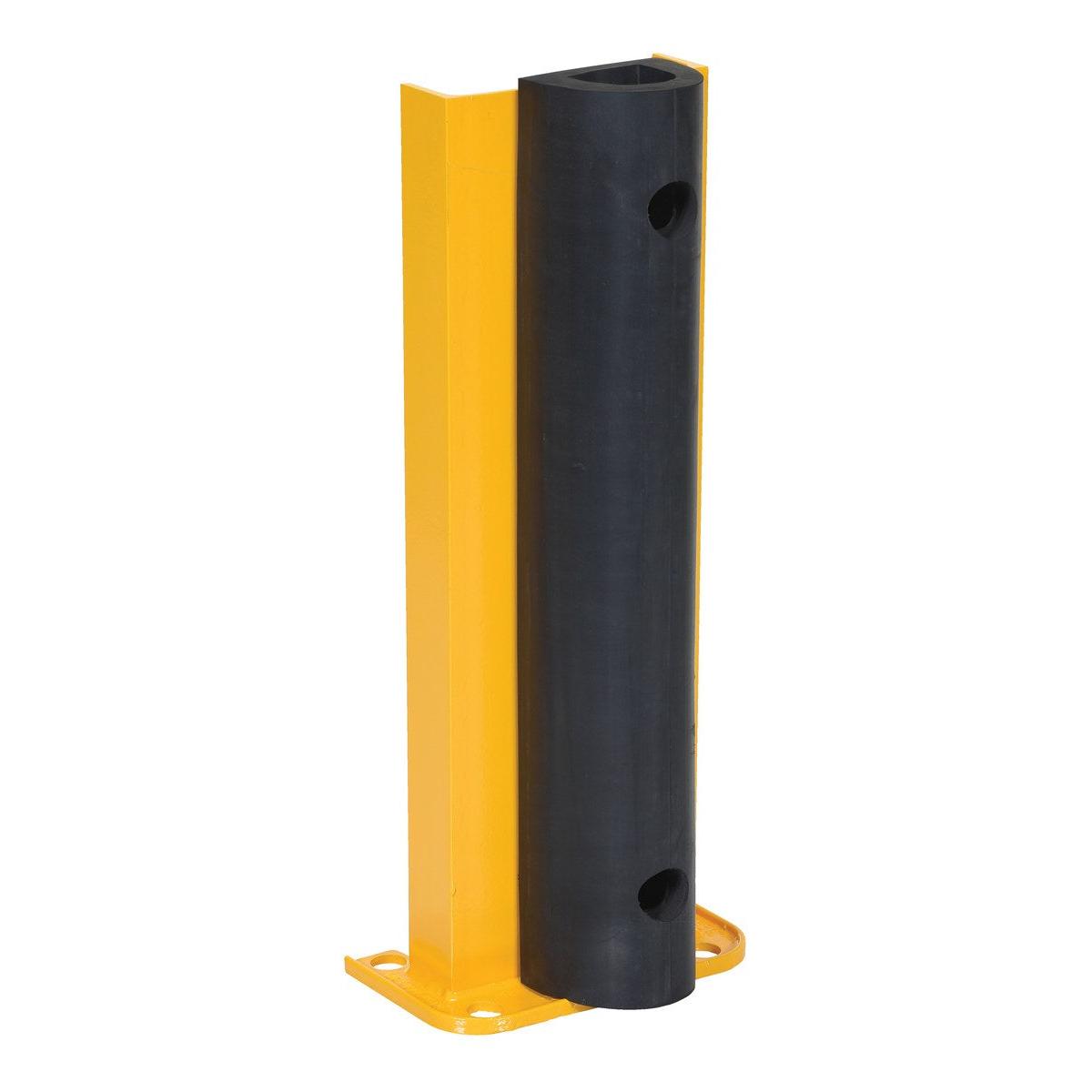

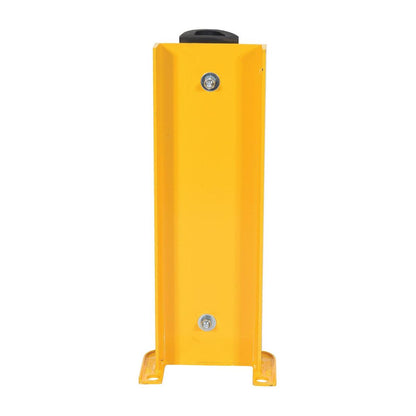

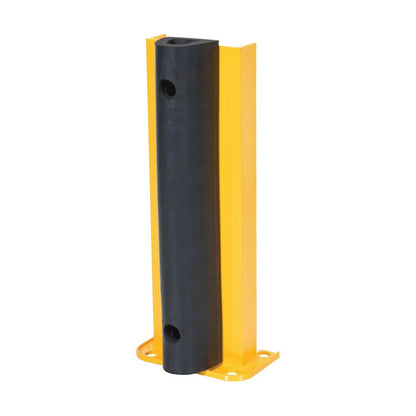

G8-24

• 10.0625"W x 6"L x 24.25"H

• Total Ship Wt.(lbs.): 28

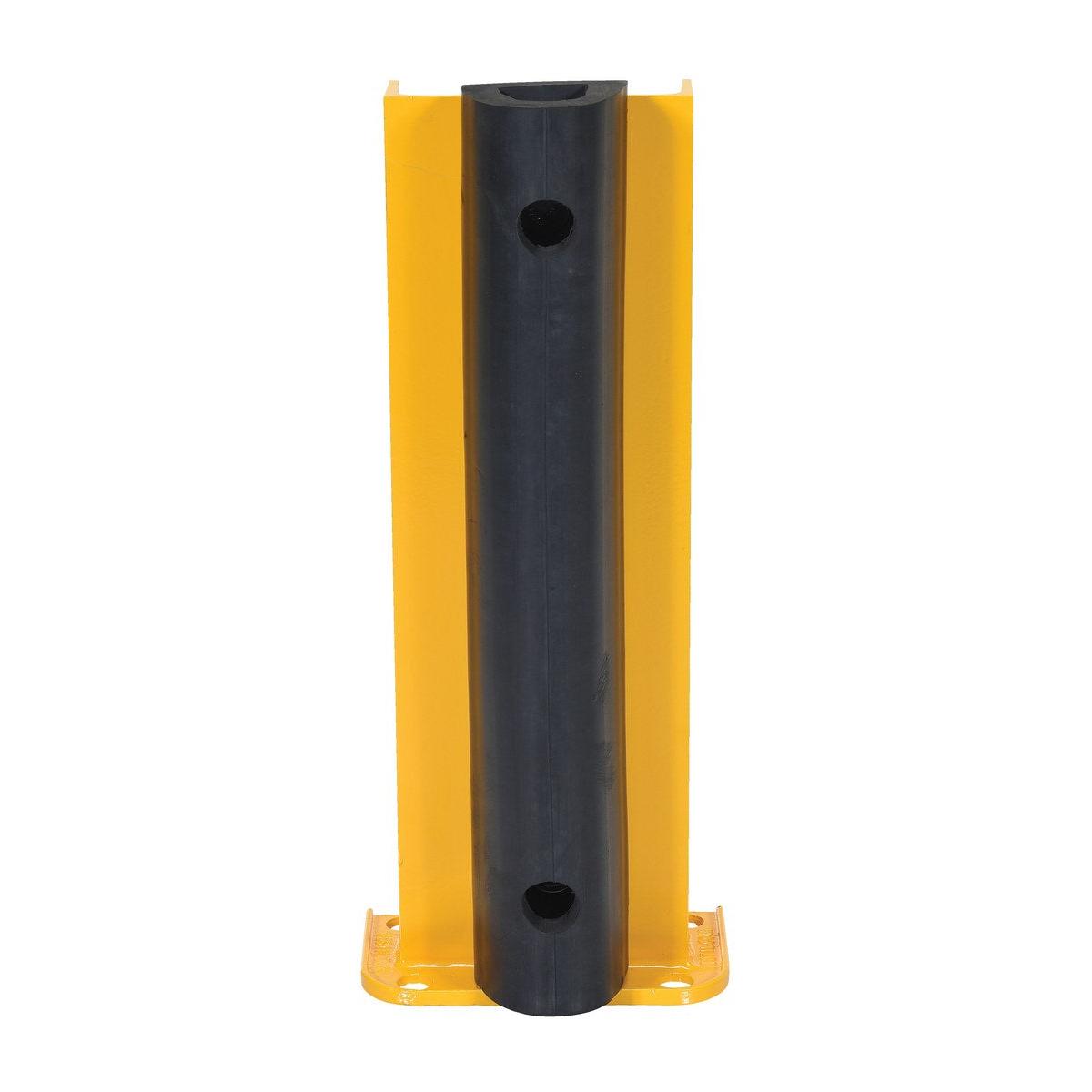

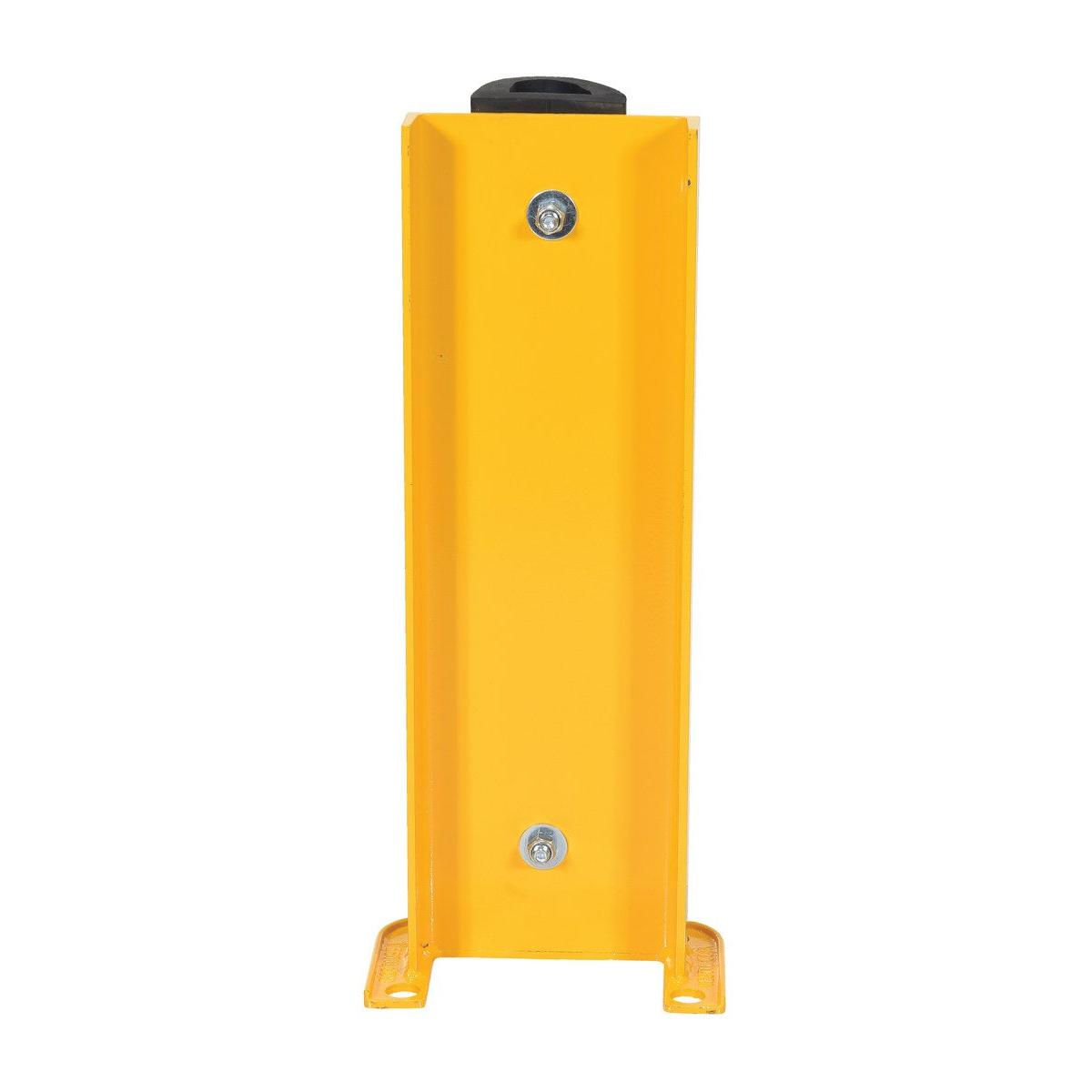

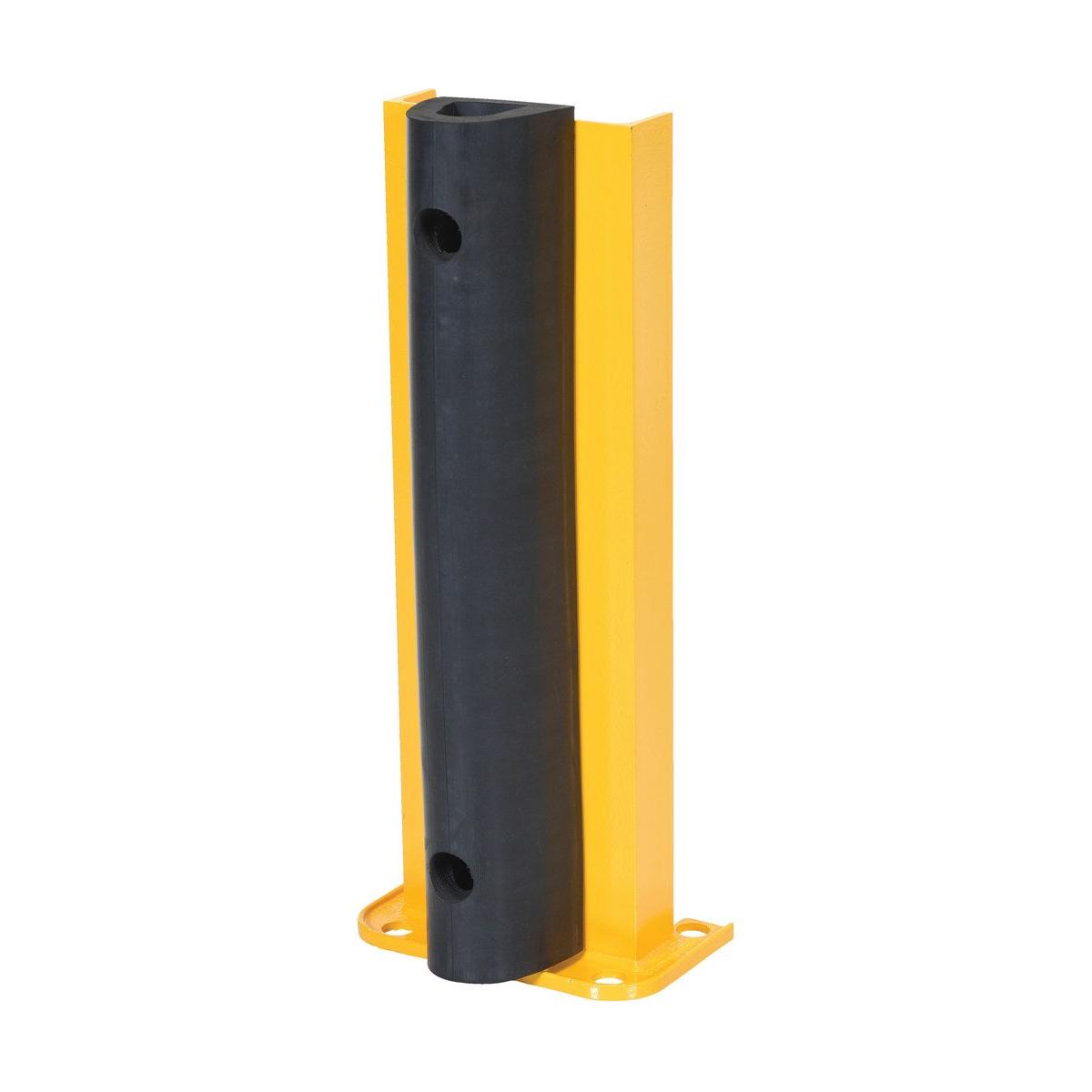

G6-24-B

• 10.0625"W x 7.8125"L x 24.25"H

• Total Ship Wt.(lbs.): 51
• Usable Length (in.): 2-11/16
• Plate Width (in.): 10-1/16
• Plate Length (in.): 6
• Mounting Plate Thickness (in.): 1/4

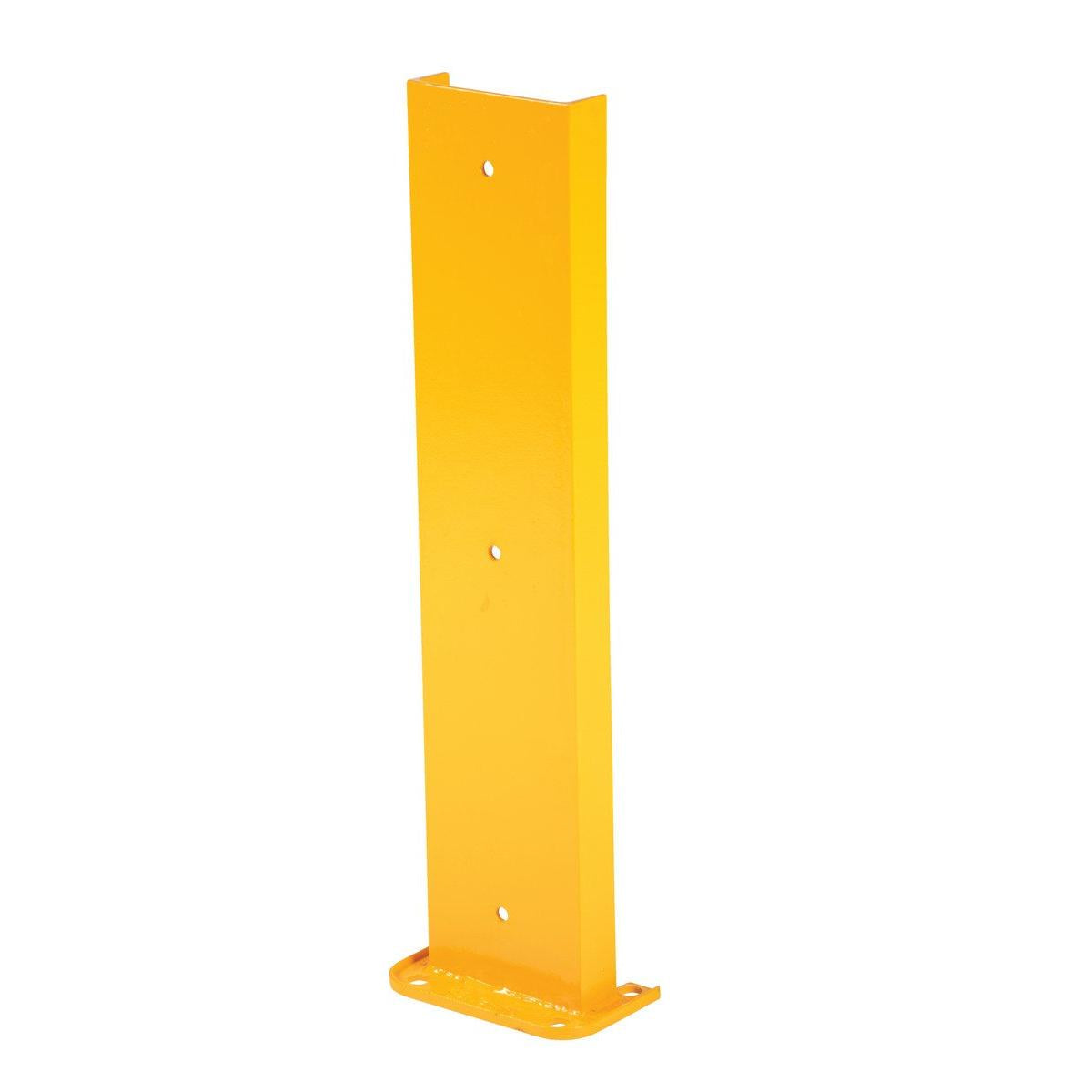

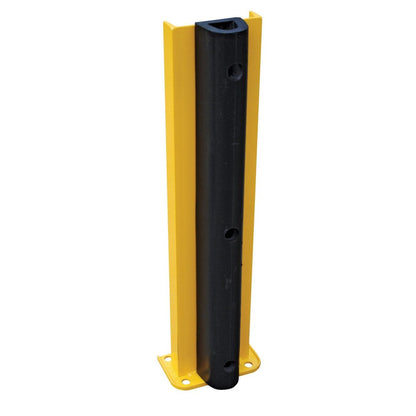

G8-36

• 10.0625"W x 6"L x 36.25"H

• Total Ship Wt.(lbs.): 37

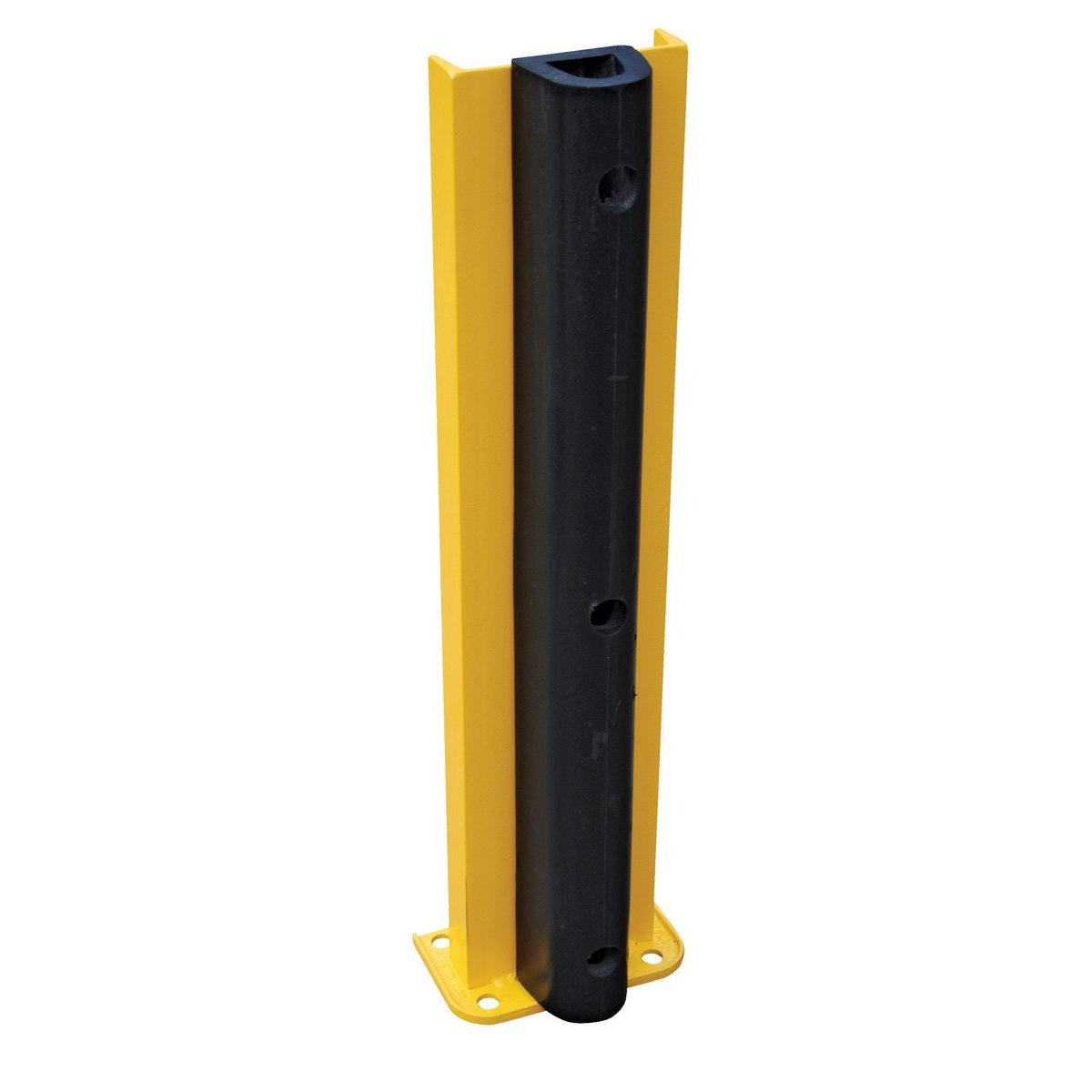

G6-36-B

• 10.0625"W x 7.8125"L x 36.25"H

• Total Ship Wt.(lbs.): 53
• Usable Length (in.): 2-11/16
• Plate Width (in.): 10-1/16
• Plate Length (in.): 6
• Mounting Plate Thickness (in.): 1/4

G6 Technical Specifications

• C Channel Thickness (in.): 0.20
• Usable Width (in.): 4-9/16
• Usable Length (in.): 3-11/16
• Mounting Hole Size (in.): 5/8
• Construction Steel C Channel (in.): 6
• Mounting Hole (qty.): 4
• Material: Steel
• Color Family: Yellow
• CPO-Prop 65 Warning Required
• Assembled
• Attachment Method: Bolt On
• Installation Hardware Included: No
• Manufacturer Warranty: 30 Days

G8 Technical Specifications

• C Channel Thickness (in.): 0.220
• Usable Width (in.): 6-9/16
• Usable Length (in.): 3-11/16
• Mounting Hole Size (in.): 7/8
• Construction Steel C Channel (in.): 8
• Mounting Hole (qty.): 4
• Material: Steel
• Color Family: Yellow
• CPO-Prop 65 Warning Required
• Assembled
• Attachment Method: Bolt On
• Installation Hardware Included: No
• Manufacturer Warranty: 30 Days

Made in the USA
