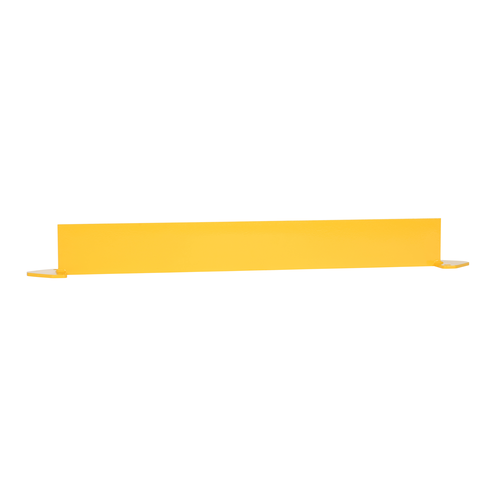

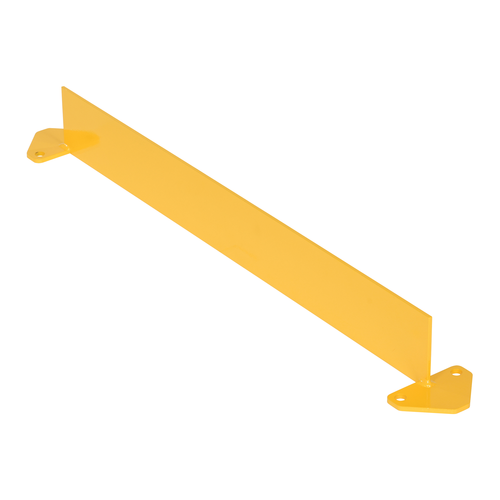

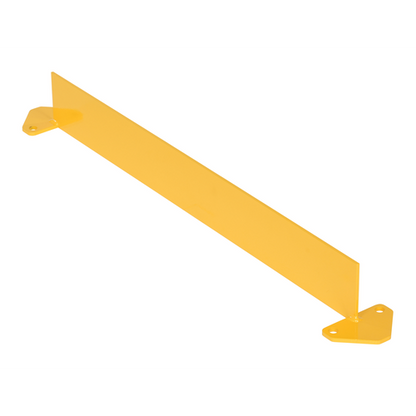

Steel Toe Board for Steel Safety Railings with Welded Baseplate

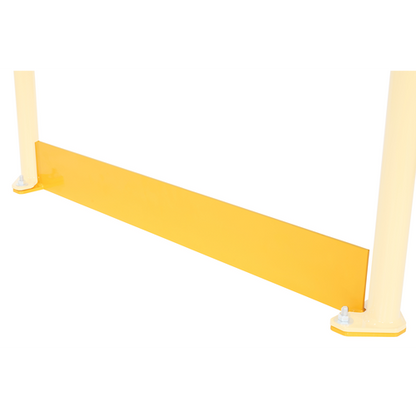

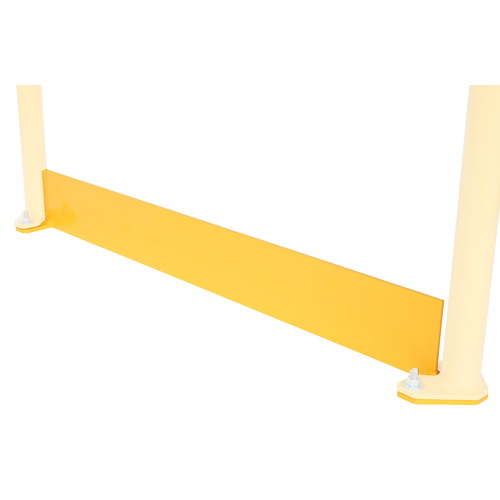

The Steel Toe Board is a critical safety accessory designed for use with Steel Safety Railings with Welded Baseplate. Installed at the base of the railing, the toe board helps prevent tools, materials, or debris from falling into pedestrian or work zones below—offering added protection for personnel in elevated areas such as mezzanines, loading docks, and platforms.

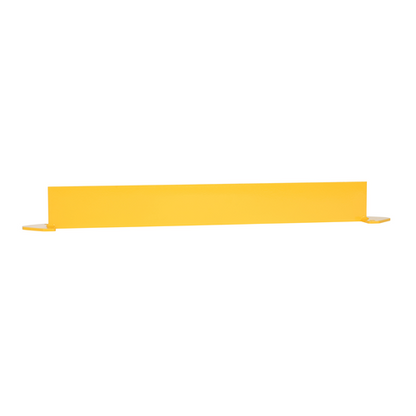

Fabricated from 0.1875"-thick steel, the toe board features a rigid upright design and pre-drilled mounting holes for quick and secure attachment beneath the railing baseplate. Finished in a high-visibility powder-coated yellow, it enhances workplace safety while resisting corrosion and wear.

Key Features & Benefits

• Heavy-Duty Steel Construction – Built from 0.1875" thick steel for maximum durability and protection.
• Enhanced Fall Protection – Helps prevent objects from rolling or falling off elevated work areas.
• Easy Installation – Pre-drilled mounting holes ensure a fast, secure fit to compatible safety railing baseplates.
• High-Visibility Finish – Powder-coated yellow for improved visibility and long-lasting durability.
• Compatible Design – Specifically engineered for use with Steel Safety Railings with Welded Baseplate.

Toe boards are recommended for any elevated surface where there is risk of falling objects. Complies with OSHA guidelines for guardrail systems when toe board protection is required. Mounting hardware sold separately.

Technical Specifications:

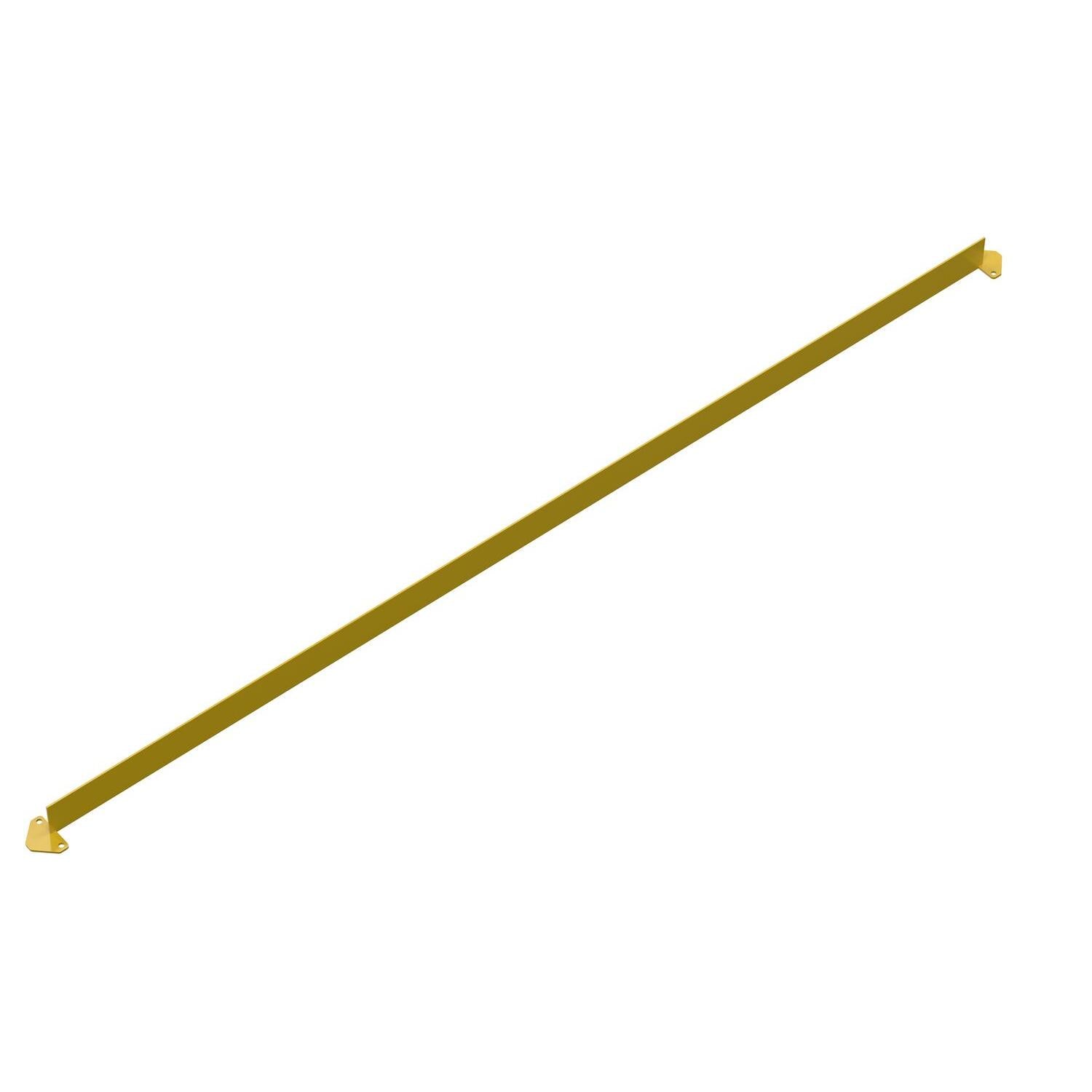

• 10 Feet Steel Toe Board
  • Total Ship Wt.(lbs.): 27
  • Size: 4.625"W x 120.5"L x 4"H
  • Overall Length (in.): 120.5
  • SKU: VES-VDKR-10-BP-TB

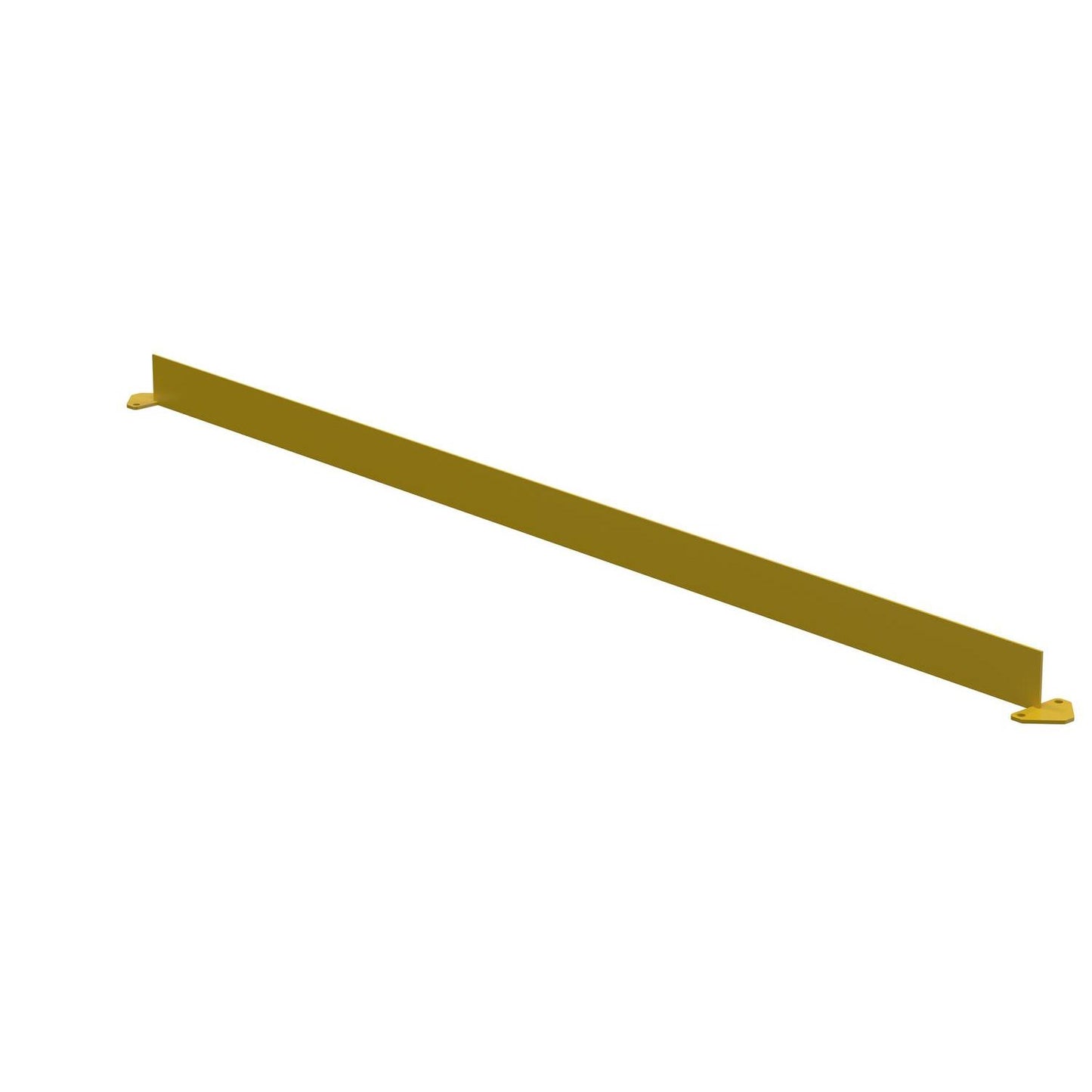

• 8 Feet Steel Toe Board
  • Total Ship Wt.(lbs.): 22
  • Size: 4.625"W x 96.5"L x 4"H
  • Overall Length (in.): 96.5
  • SKU: VES-VDKR-8-BP-TB

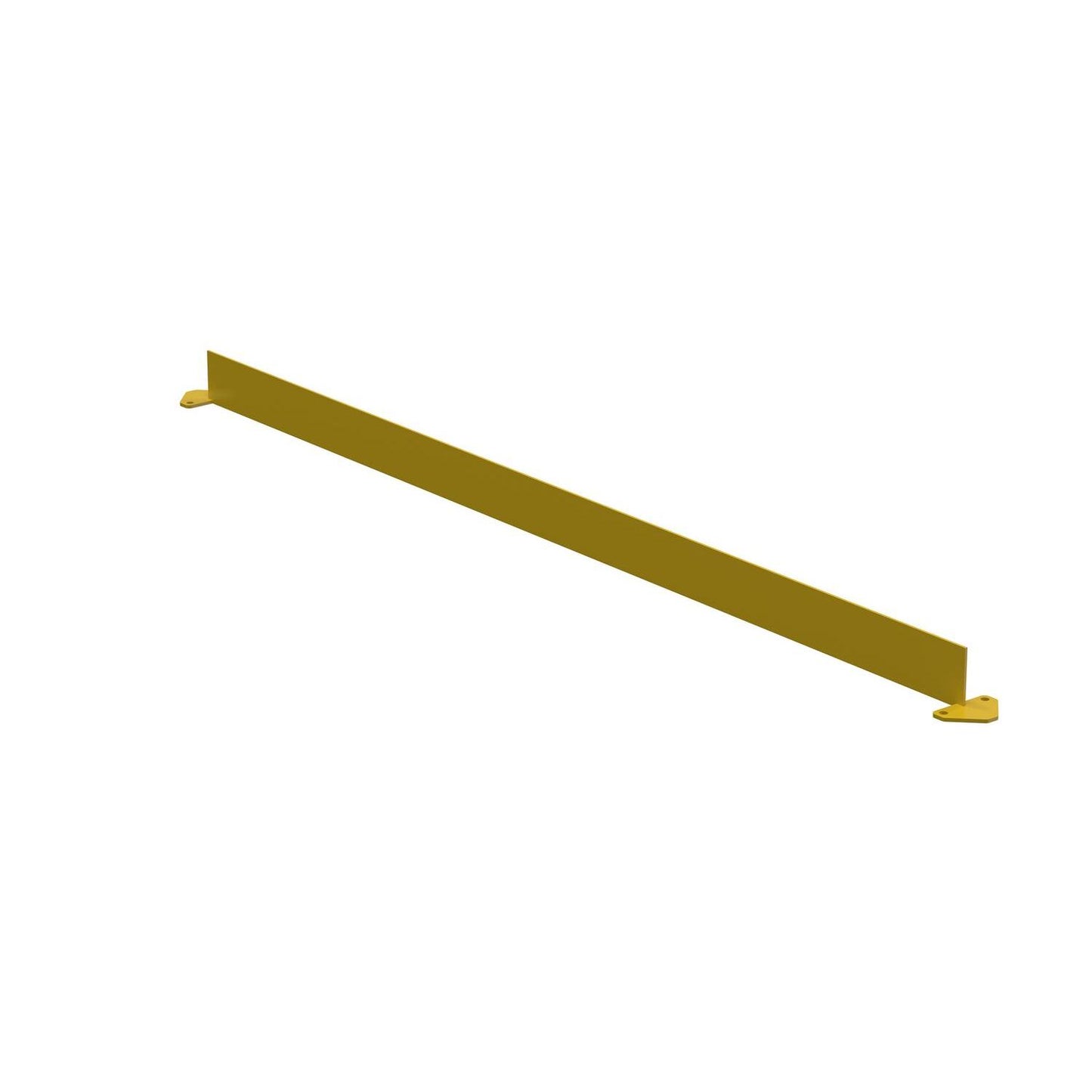

• 7  Feet Steel Toe Board
  • Total Ship Wt.(lbs.): 19
  • Size: 4.625"W x 84.5"L x 4"H
  • Overall Length (in.): 84.5

  • SKU: VES-VDKR-7-BP-TB

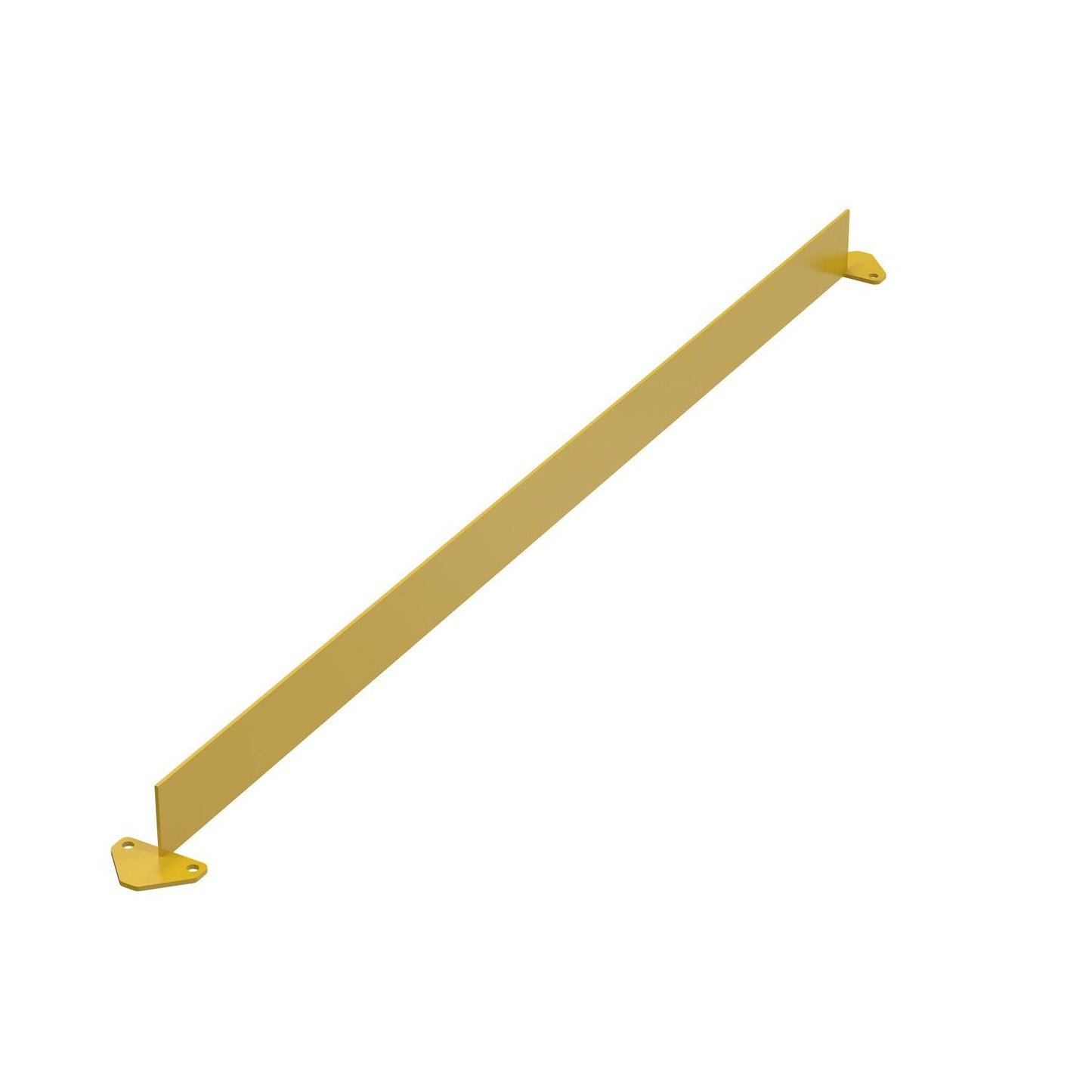

•  6 Feet Steel Toe Board
  • Total Ship Wt.(lbs.): 17
  • Size: 4.625"W x 72.5"L x 4"H
  • Overall Length (in.): 72.5
  • SKU: VES-VDKR-6-BP-TB

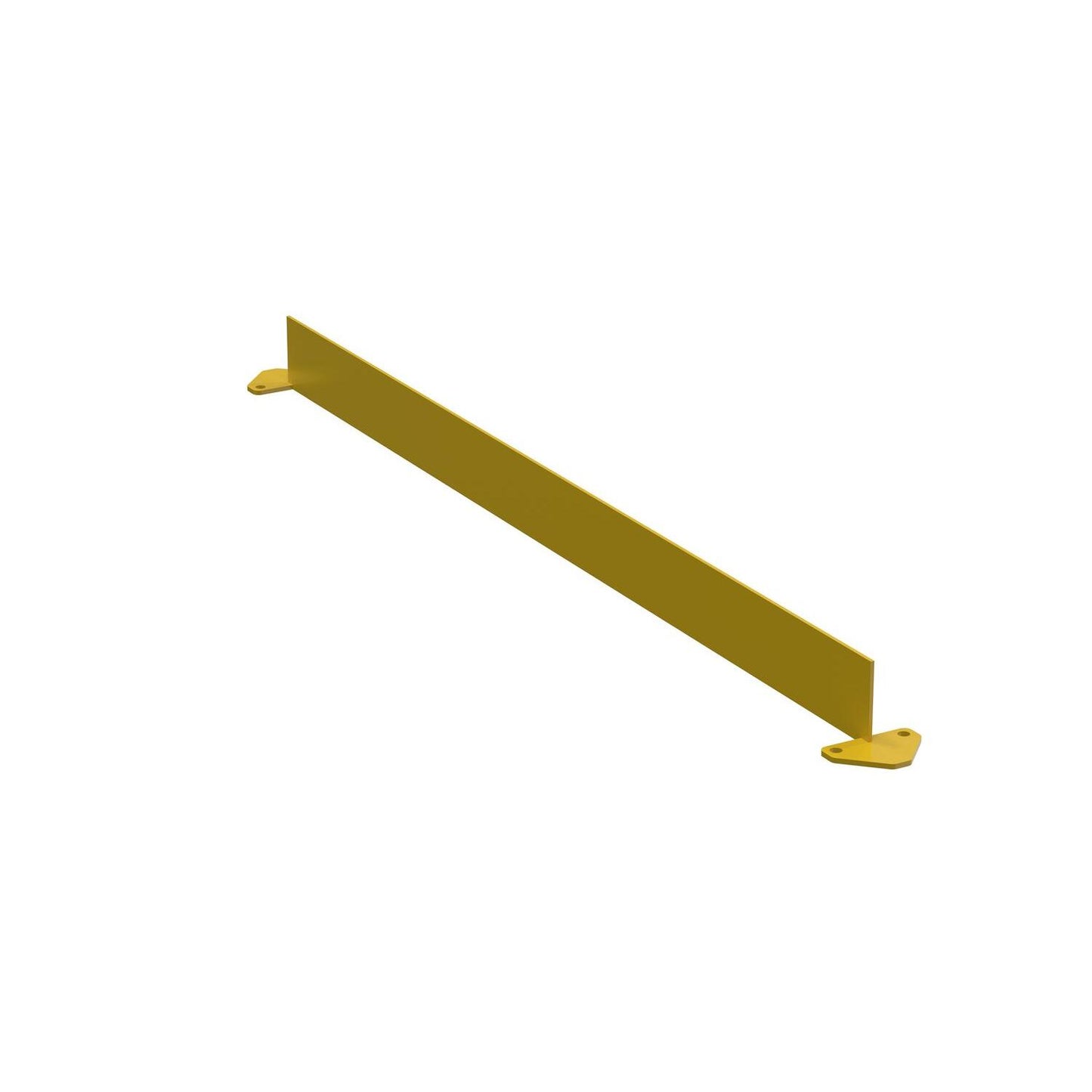

• 5 Feet Steel Toe Board
  • Total Ship Wt.(lbs.): 14
  • Size: 4.625"W x 60.5"L x 4"H
  • Overall Length (in.): 60.5
  • SKU: VES-VDKR-5-BP-TB

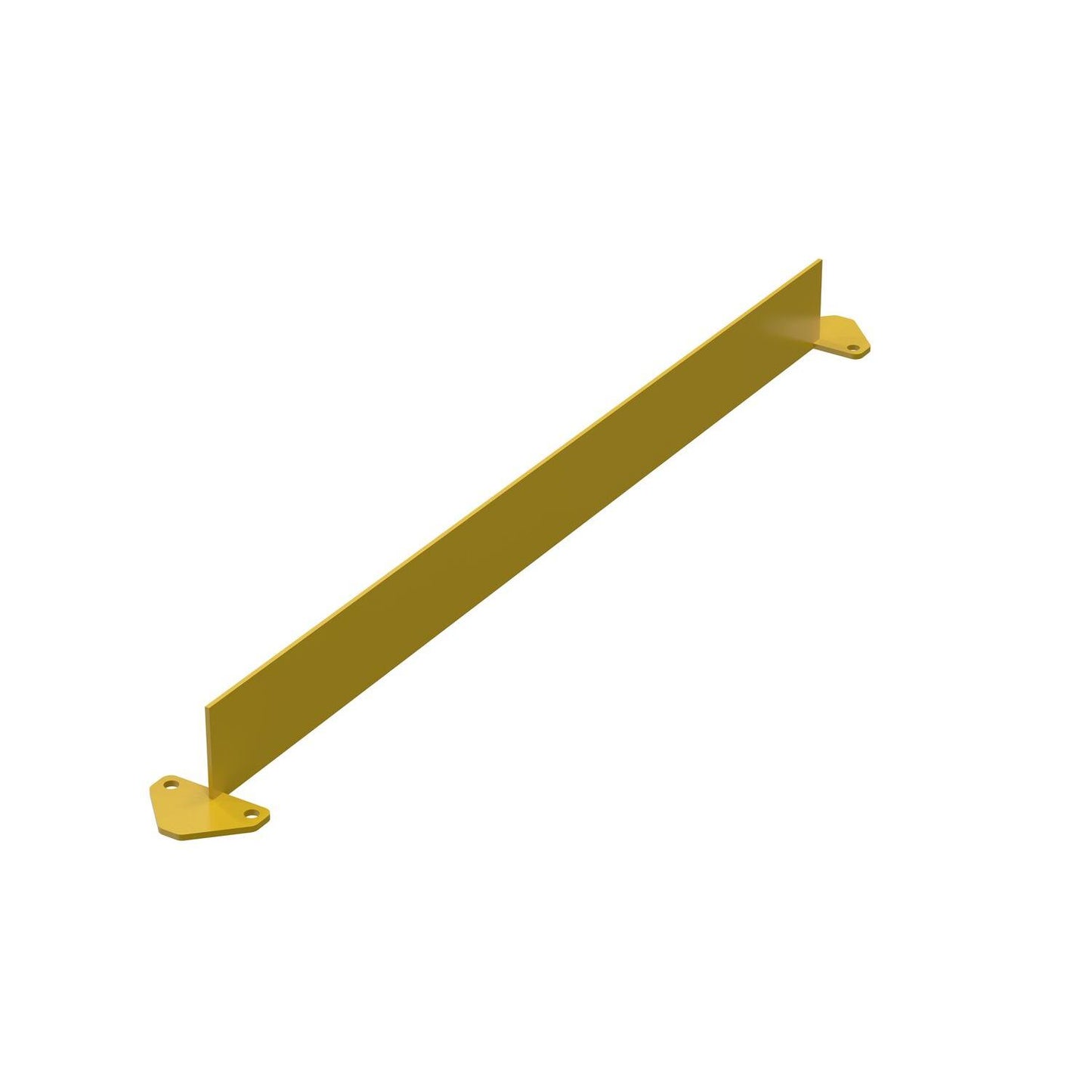

• 4 Feet Steel Toe Board
  • Total Ship Wt.(lbs.): 12
  • Size: 4.625"W x 48.5"L x 4"H
  • Overall Length (in.): 48.5
  • SKU: VES-VDKR-4-BP-TB

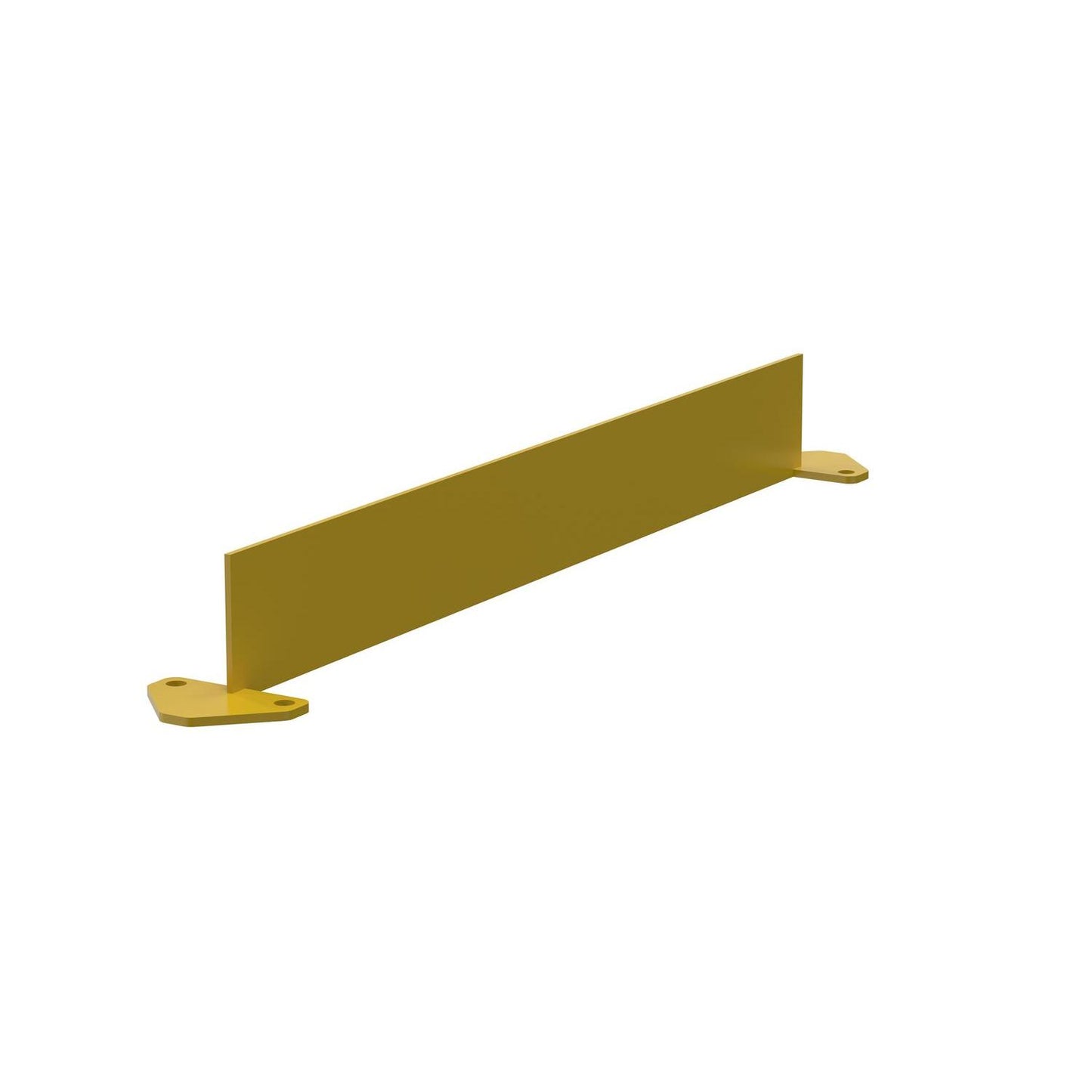

• 3 Feet Steel Toe Board
  • Total Ship Wt.(lbs.): 9
  • Size: 4.625"W x 36.5"L x 4"H
  • Overall Length (in.): 36.5

  • SKU: VES-VDKR-3-BP-TB

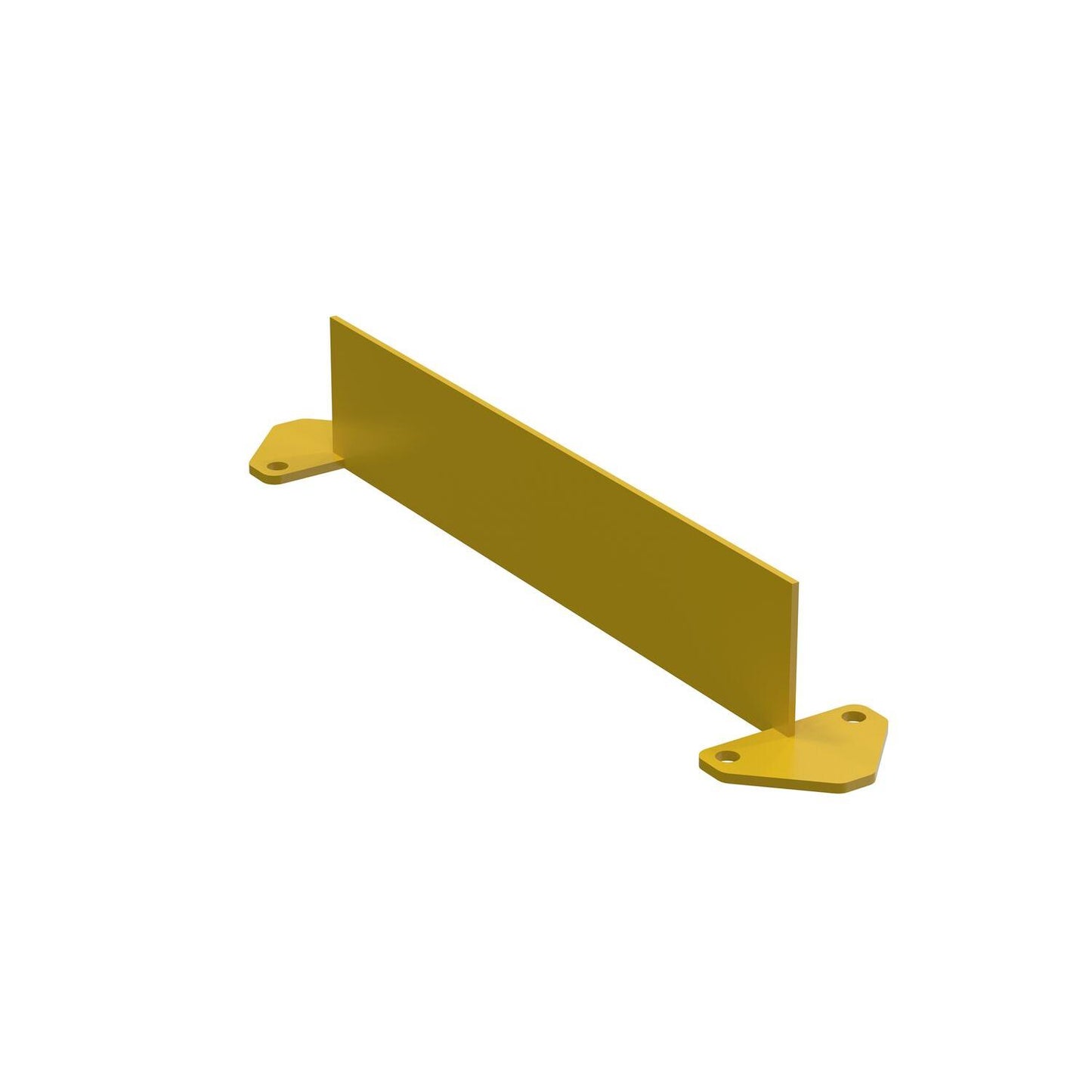

• 2 Feet Steel Toe Board
  • Total Ship Wt.(lbs.): 7
  • Size: 4.625"W x 24.5"L x 4"H
  • Overall Length (in.): 24.5
  • SKU: VES-VDKR-2-BP-TB

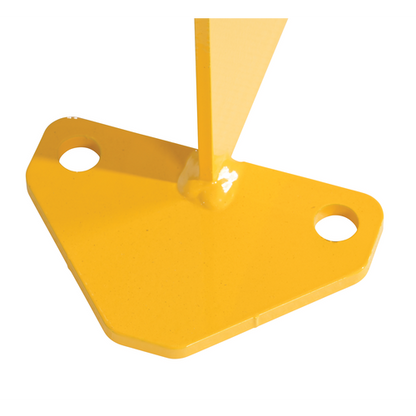

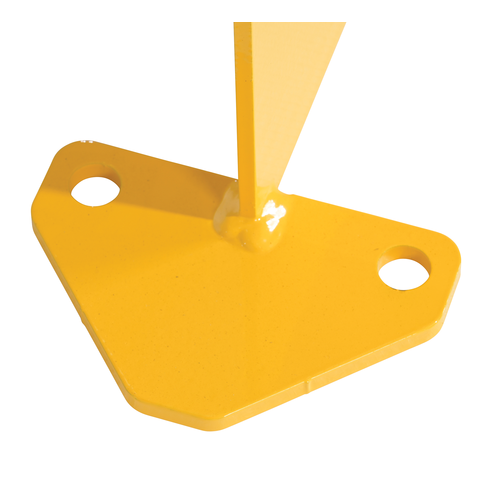

• Base Plate Length (in.): 3
• Base Plate Thickness (in.): 0.25
• Overall Width (in.): 4.625
• Gauge/Thickness (in.): 0.1875
• Base Plate Number of Mounting Holes: 3
• Overall Height (in.): 4
• Base Plate Width (in.): 4.625
• Base Plate Hole Diameter (in.): 0.5625
• Base Plate Length (in.): 3

• Material: Steel

• Available Colors:
  • Yellow (always in stock. Other colors made to order)
• Indoor / Outdoor
• Attachment Method: Bolt on
• Fastener Type: Bolt
• Manufacturer Warranty: 90 Days

Made in the USA

If you would like to request a quotation for large quantities of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
