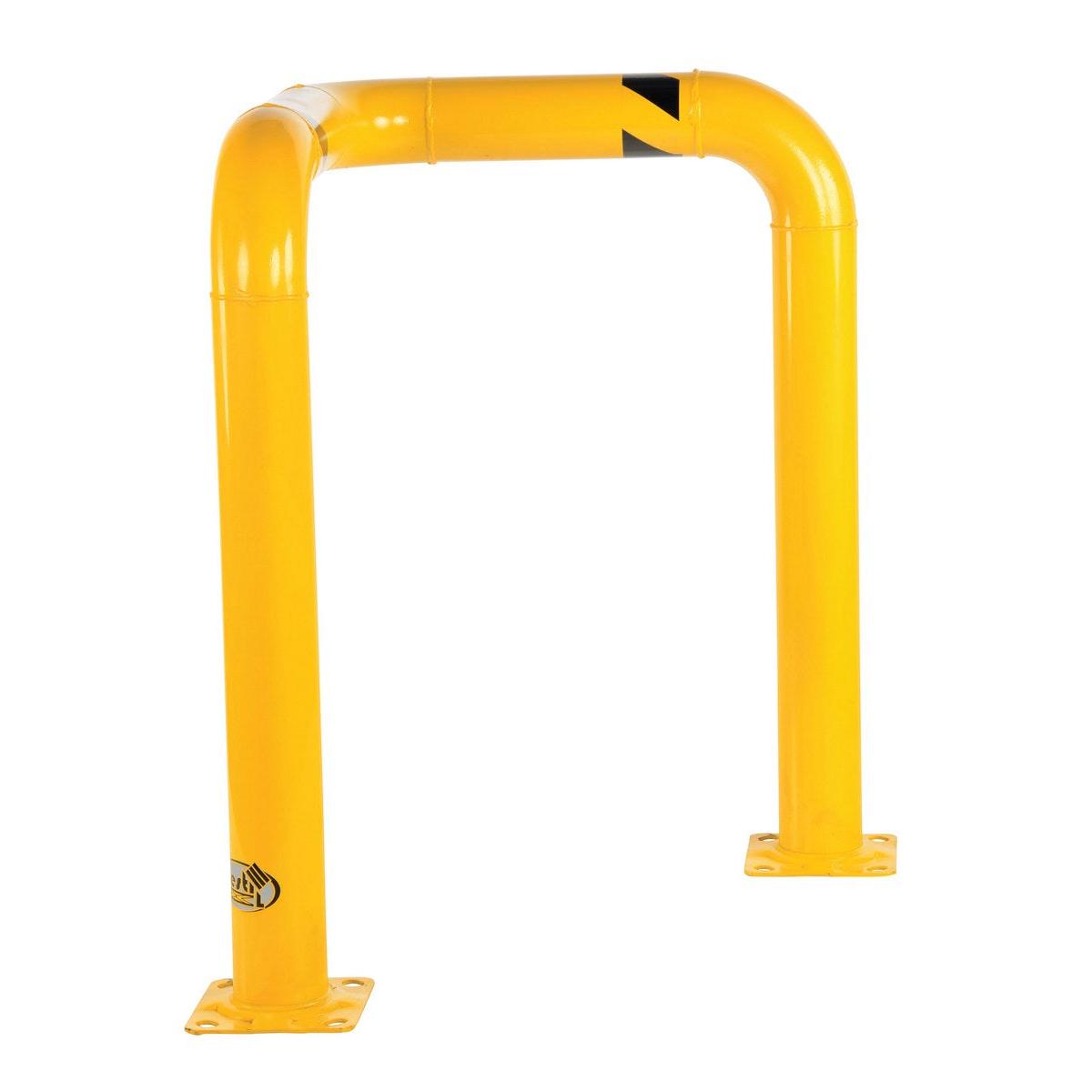

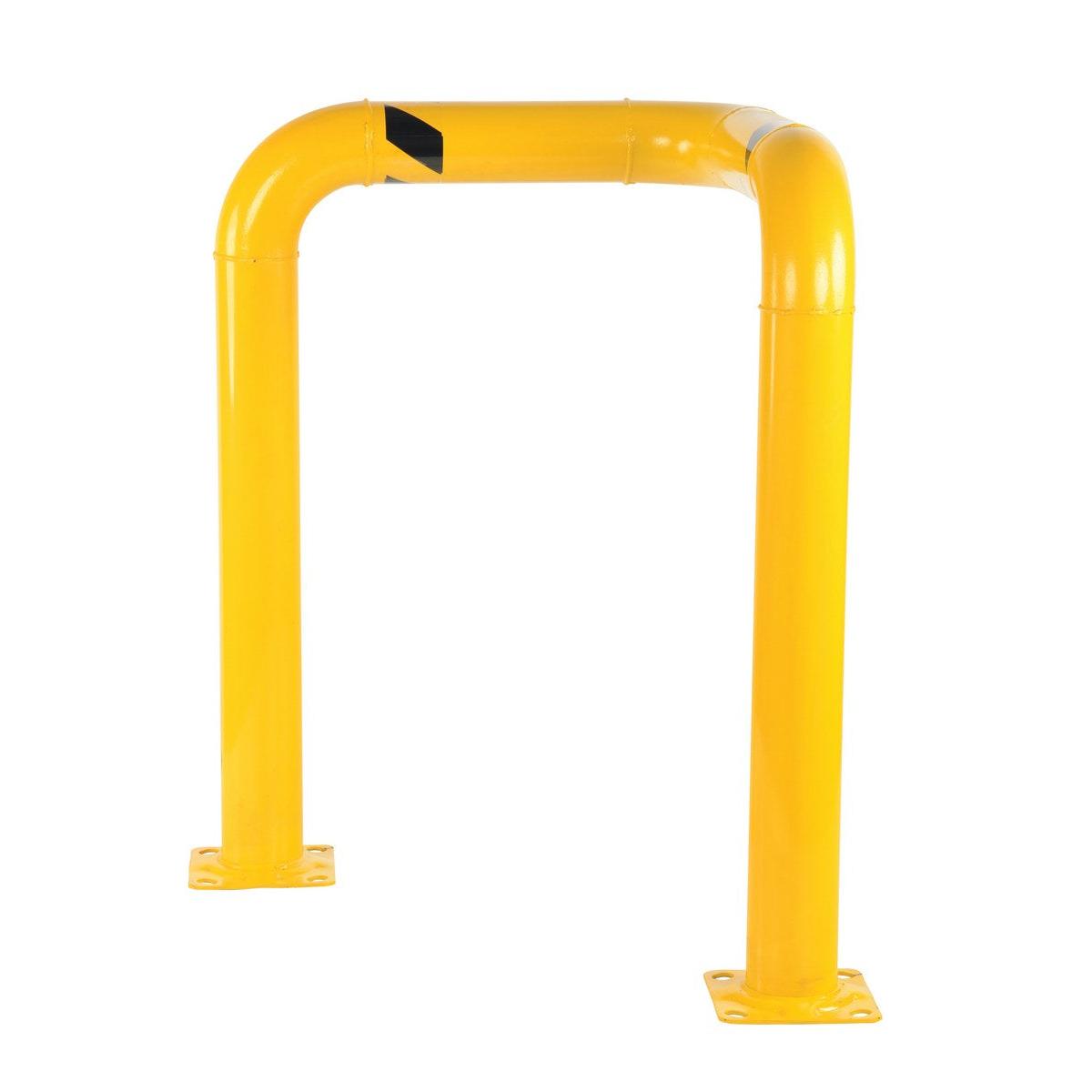

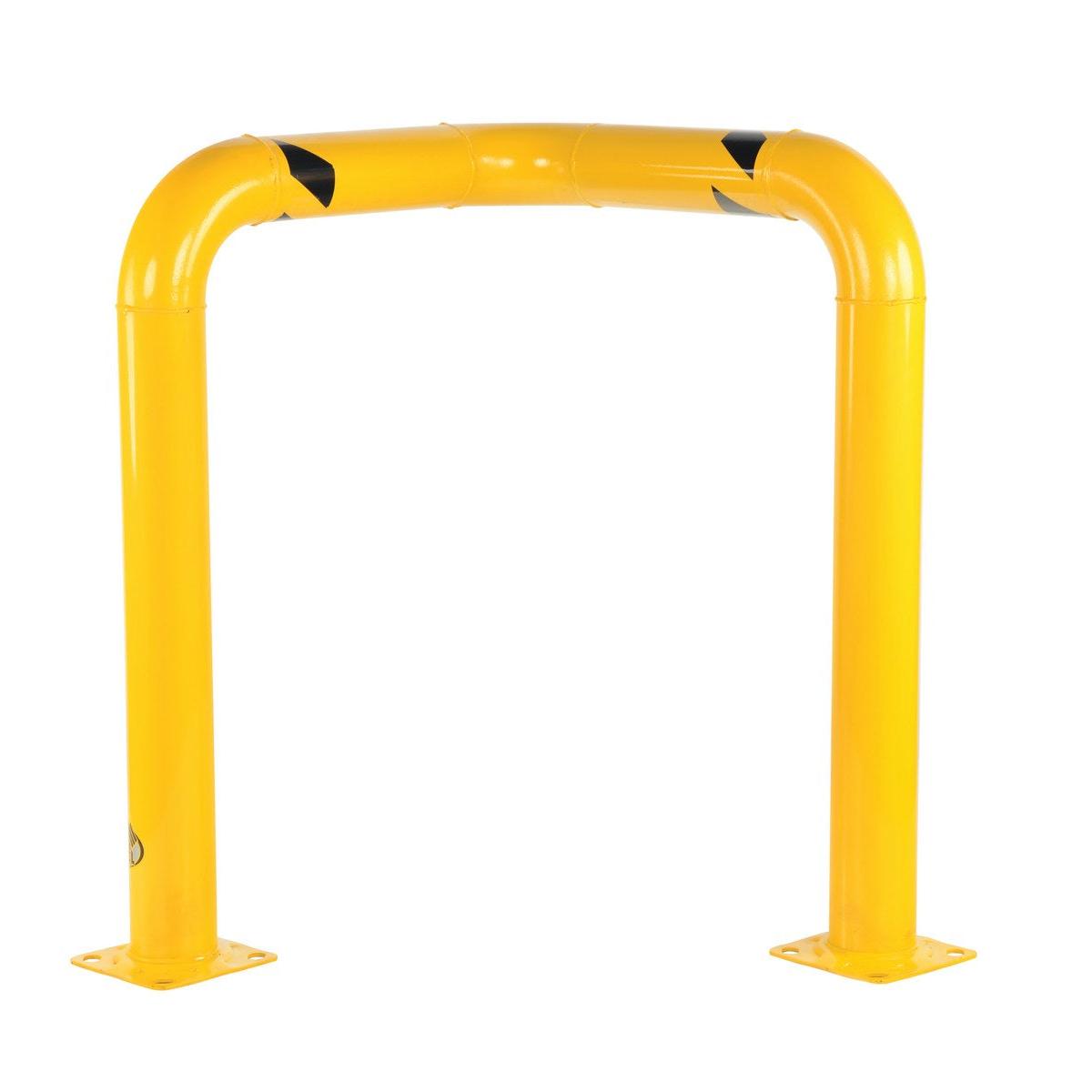

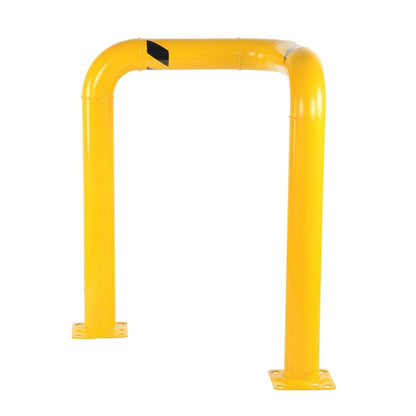

Steel Triple Elbow Guard 34-1/8 In. x 34-1/8 In. x 42-9/16 In.

The Steel Triple Elbow Guard is engineered to protect the vulnerable corners of machinery, building structures, and high-traffic areas from impact damage. Its triple-elbow configuration wraps around corners to deflect contact from forklifts, carts, and other mobile equipment, minimizing costly repairs and downtime.

Built for durability and visibility, this guard features a heavy-duty welded steel construction with a high-visibility yellow powder-coated finish. Three base plates with pre-drilled holes allow for secure and straightforward installation on a variety of surfaces.

Key Features & Benefits

• Triple Elbow Design – Wraps around corners to provide multi-angle protection in industrial and commercial environments.
• Heavy-Duty Steel Construction – Built to withstand repeated impact from mobile equipment.
• Powder-Coated Finish – Bright safety yellow coating enhances visibility and resists wear and corrosion.
• Quick Installation – Three base plates with four pre-drilled mounting holes each enable fast, secure attachment.
• Indoor/Outdoor Use – Durable safety pipe design is suitable for both interior and exterior applications.

Ideal for warehouses, loading docks, production floors, and facility corners where forklifts or carts operate. Helps extend the life of structural assets and reduce workplace accidents.

Mounting Kits available separately.

Technical Specifications:

• Total Ship Wt.(lbs.): 120
• Size: 34.125"W x 34.125"L x 42.5625"H
• Anchor Bolt Kit: AS-344-4PK
• Steel Pipe Diameter (in.): 4-1/2
• Guard Length (in.): 30-5/8
• Guard Depth (in.): 30-5/8

• Base Plate Width/Length (in.): 8 x 8
• Bolt Holes (qty.): 8
• Base Plate Slotted Mounting Hole (in.): 7/8 x 1-1/4

• Base Plate Thickness (in.): 5/8
• Elbow (degrees): 90
• Width (in.): 34.125

• Height (in.): 42.5625

• Depth (in.): 34.125

• Color / Finish: Yellow

• Material: Steel
• Bolt Hole Diameter (in.): 0.875
• Installation Hardware Included: No
• UPC: 691215039796
• GTIN: 00691215039796
• Manufacturer Warranty: 90 Days

Made in the USA
