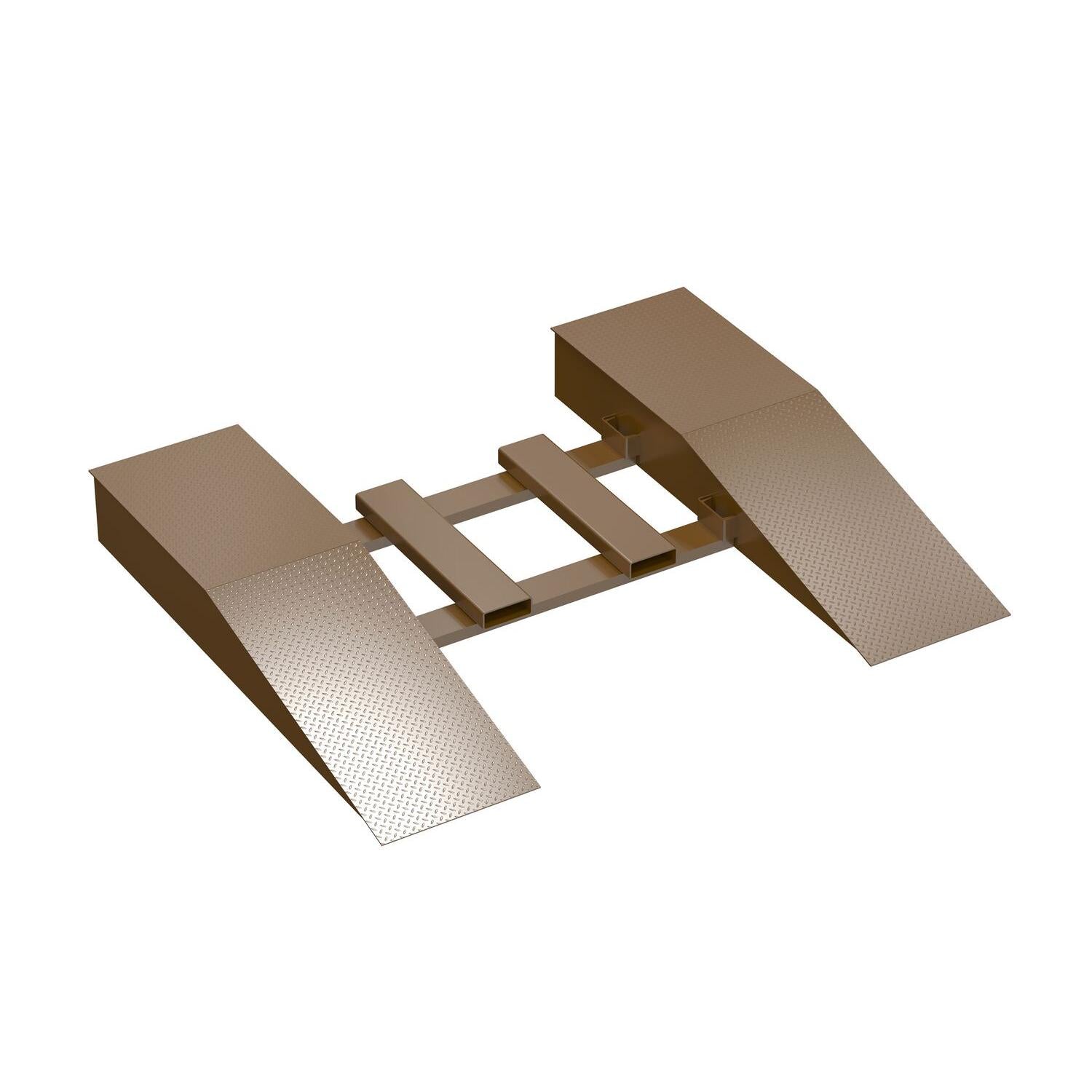

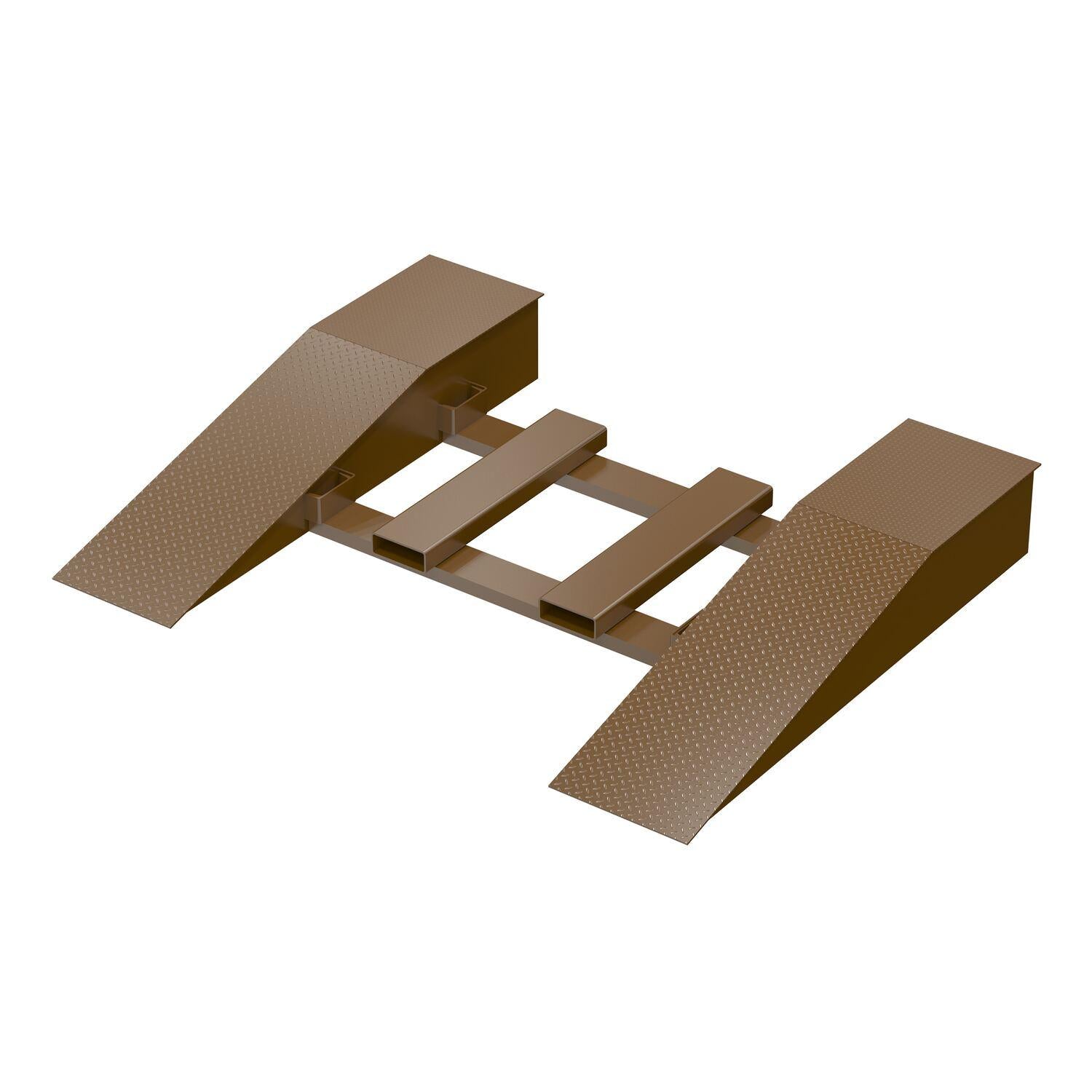

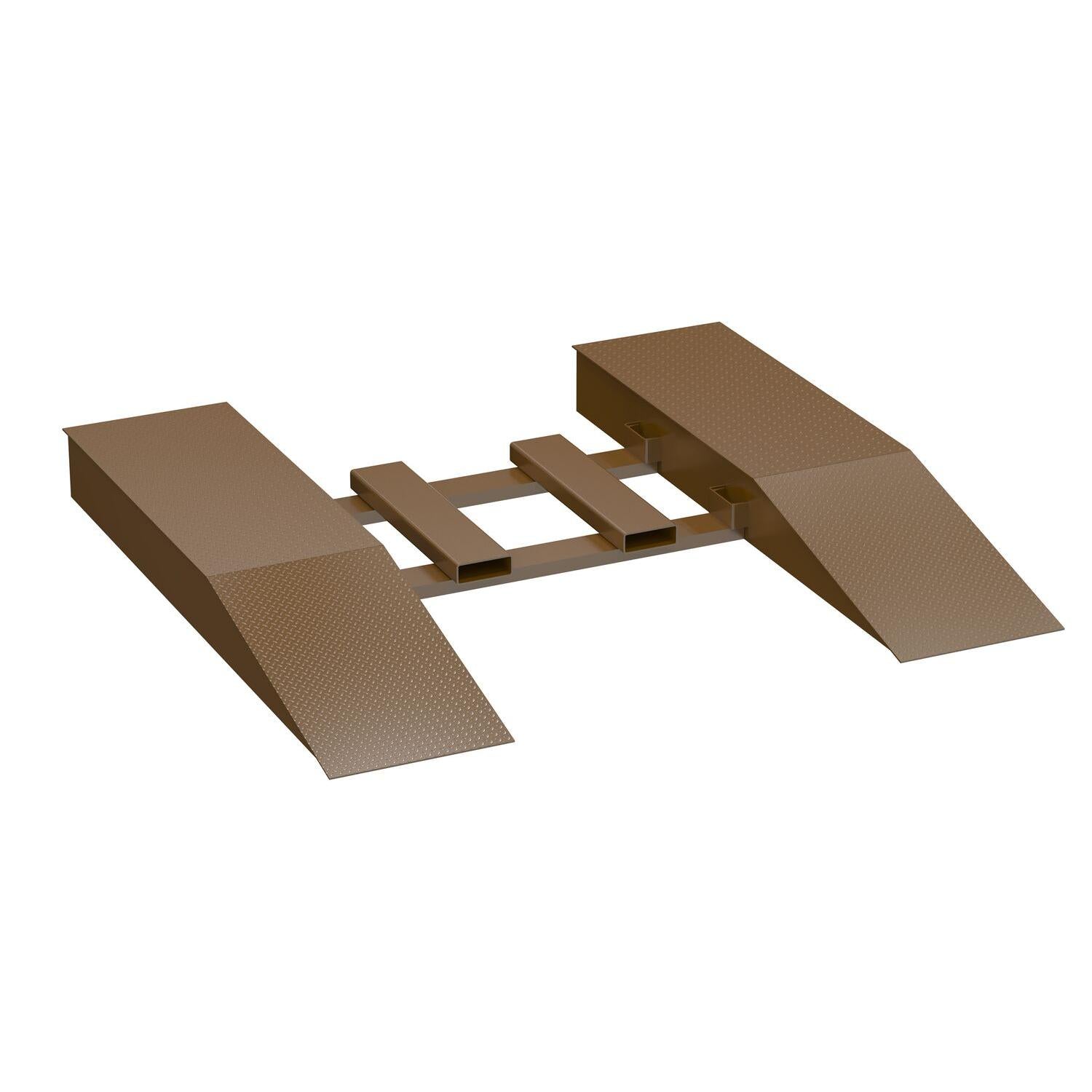

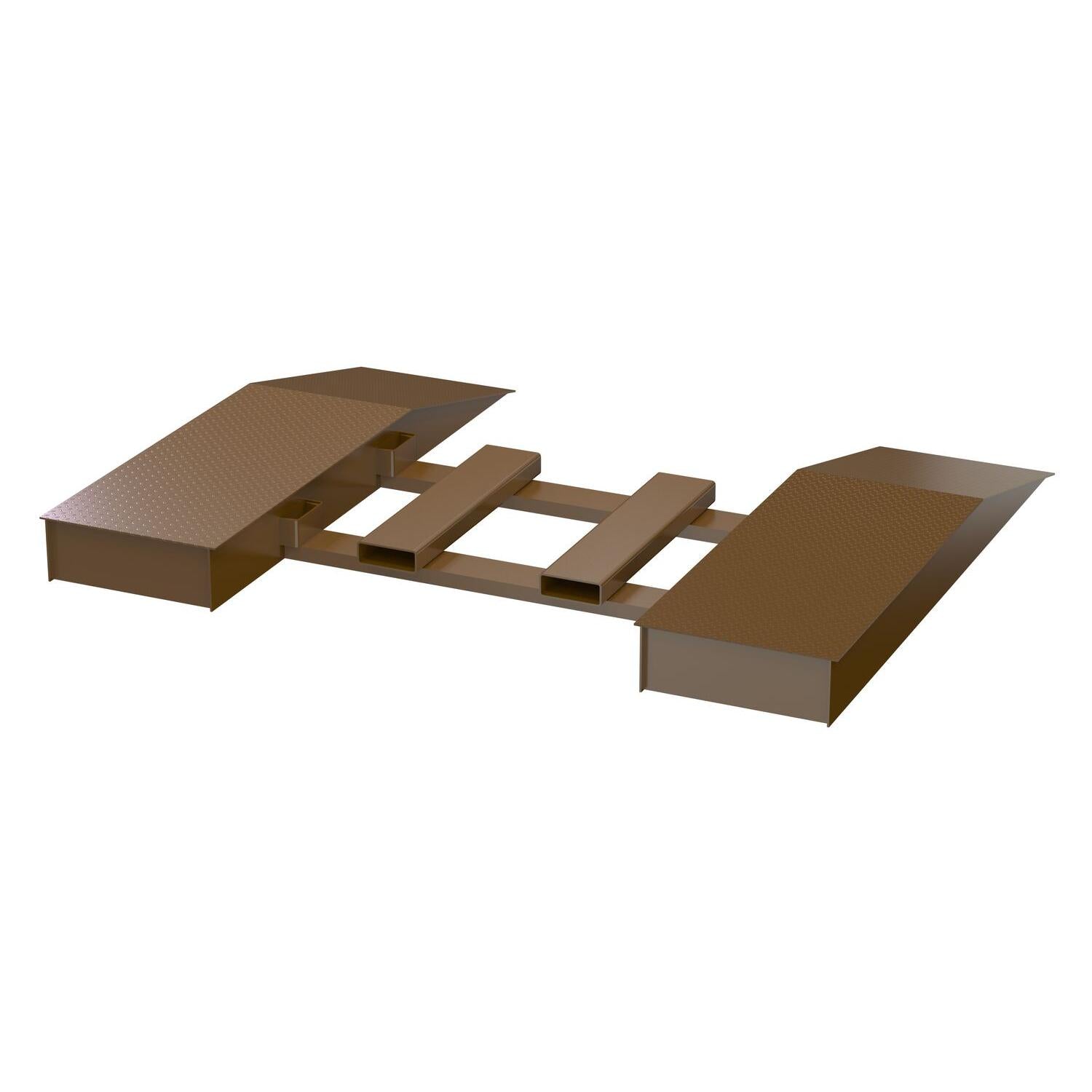

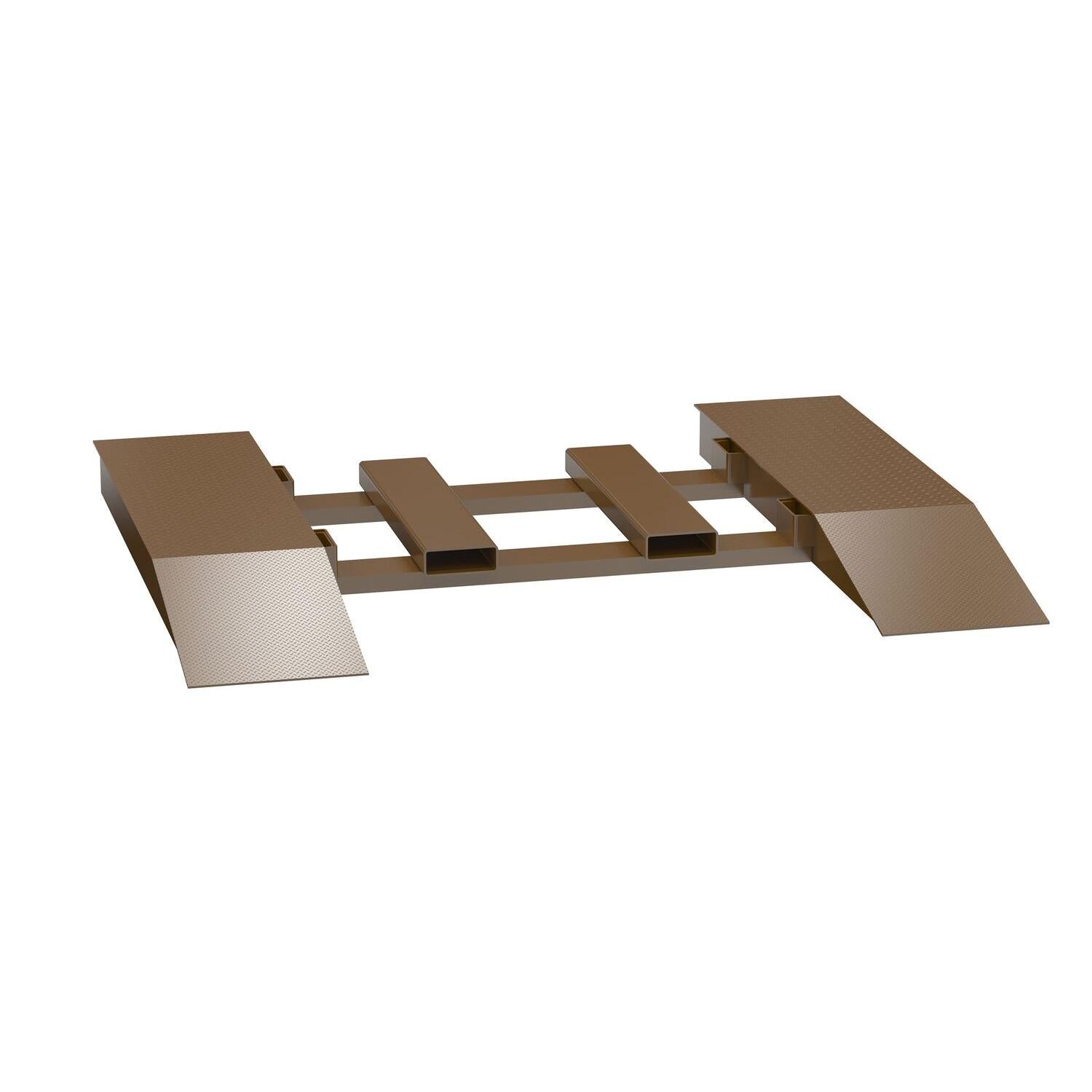

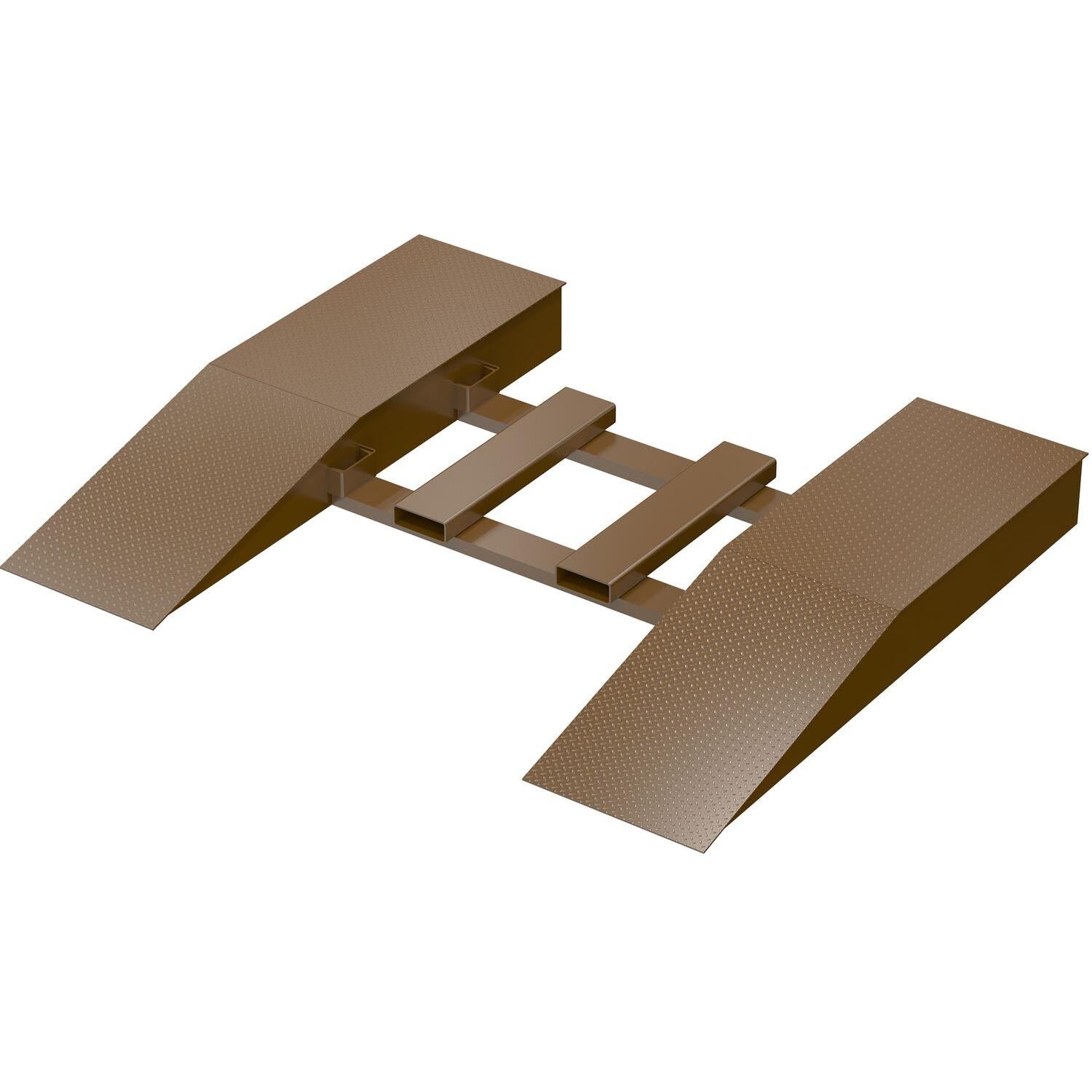

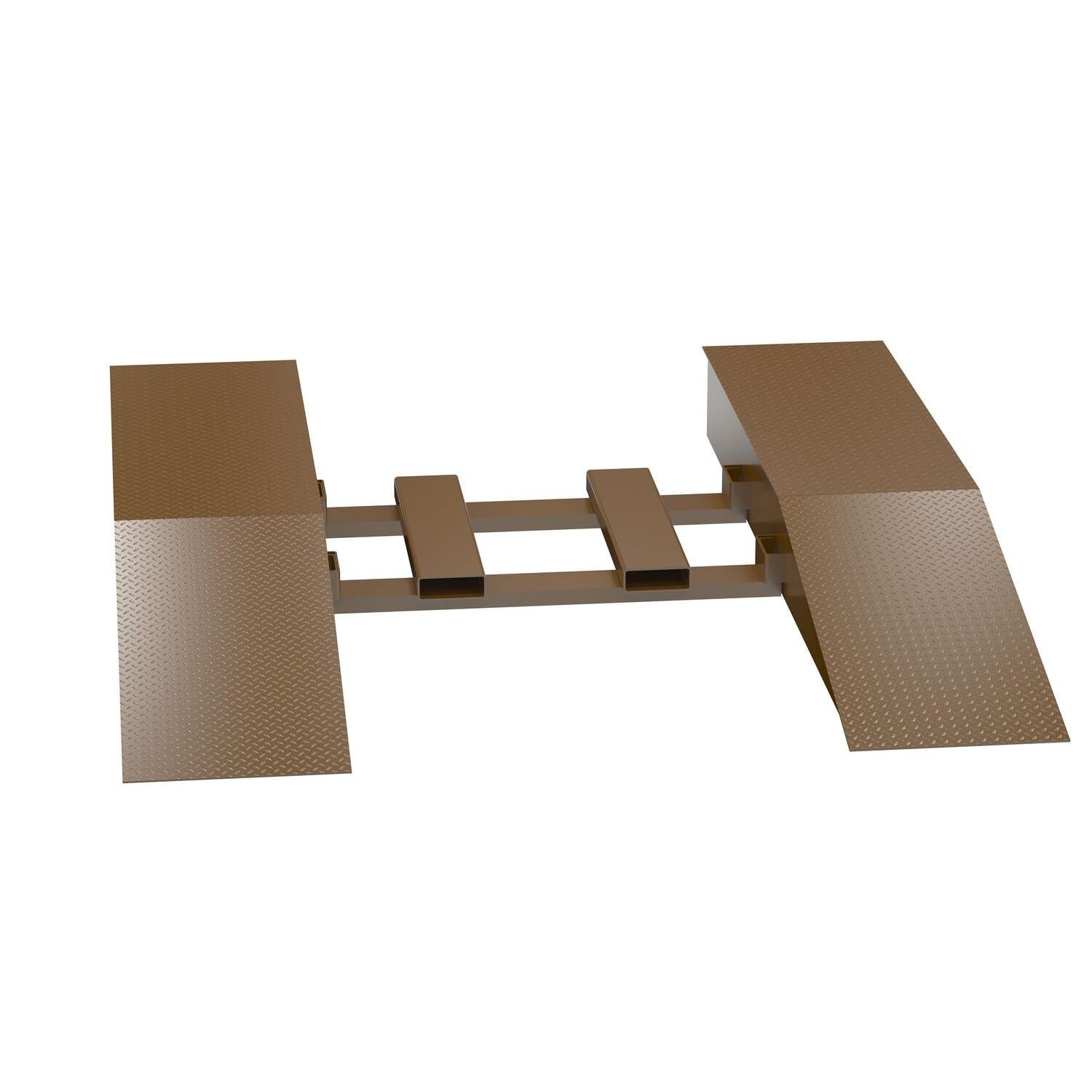

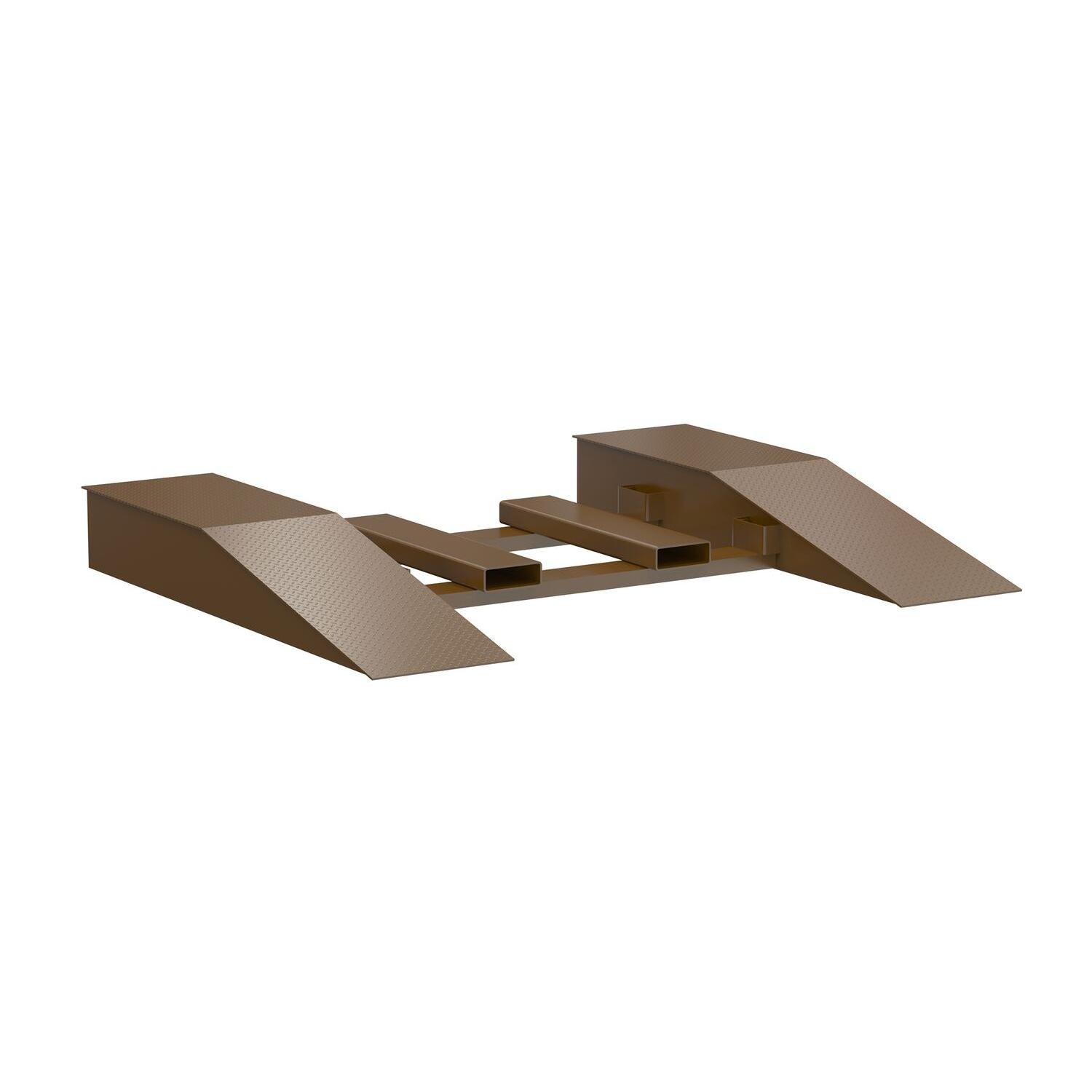

Steel Wheel Riser with Central Fork Pocket
Steel Wheel Riser with Central Fork Pocket
SKU:VES-SWR-CPL-18-6-48
Free Shipping in the Lower 48 States
- Call or Email us for large QTY quotes
Couldn't load pickup availability

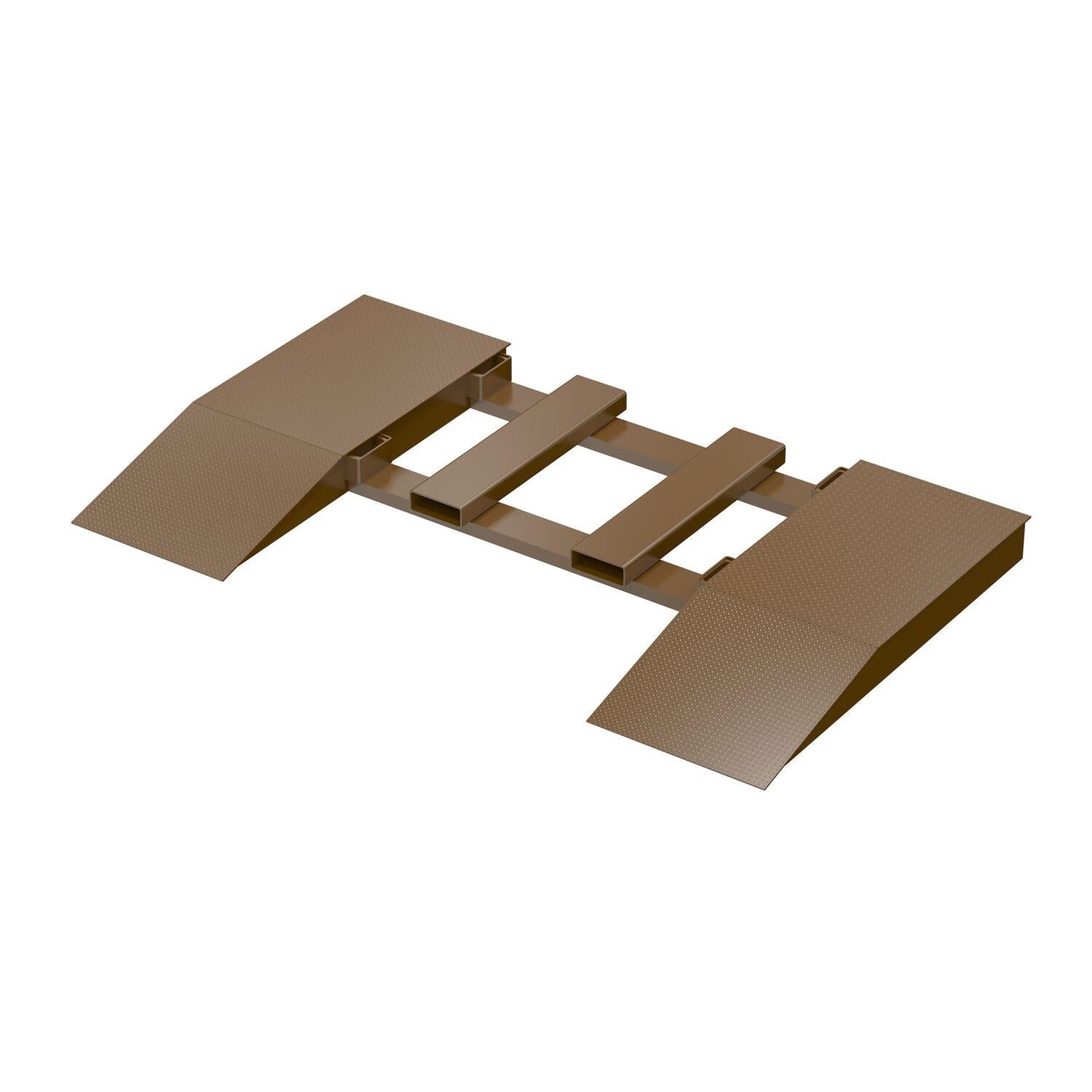

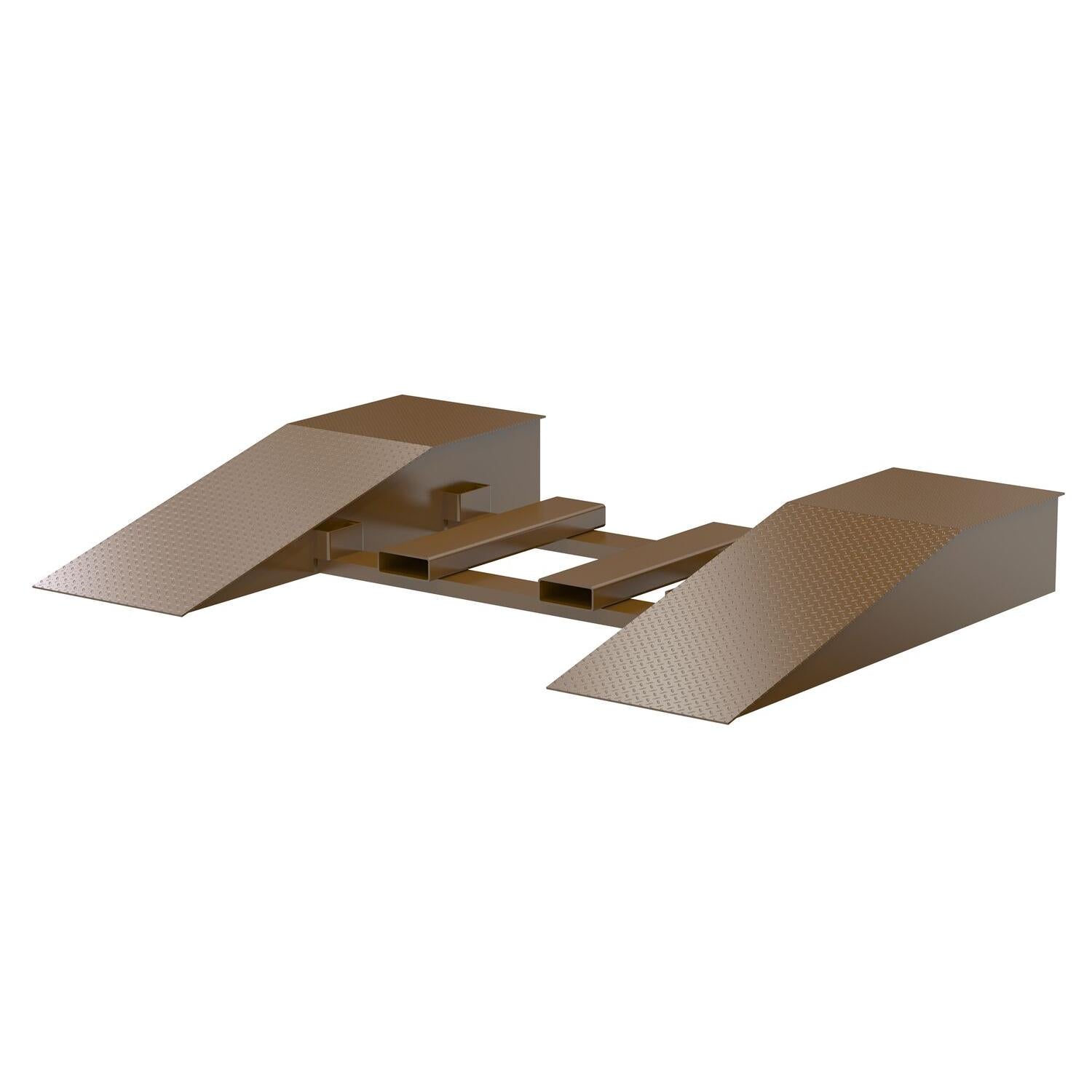

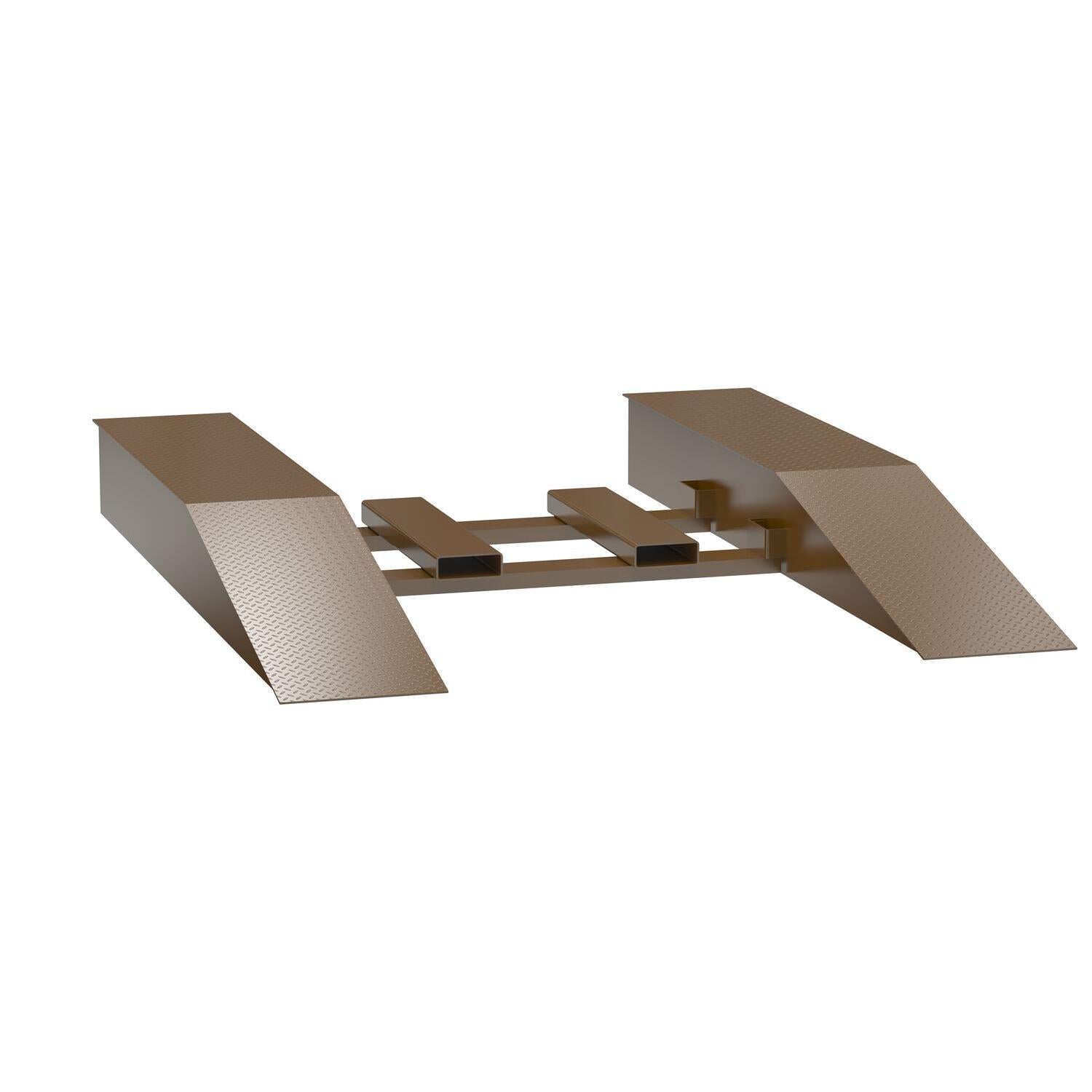

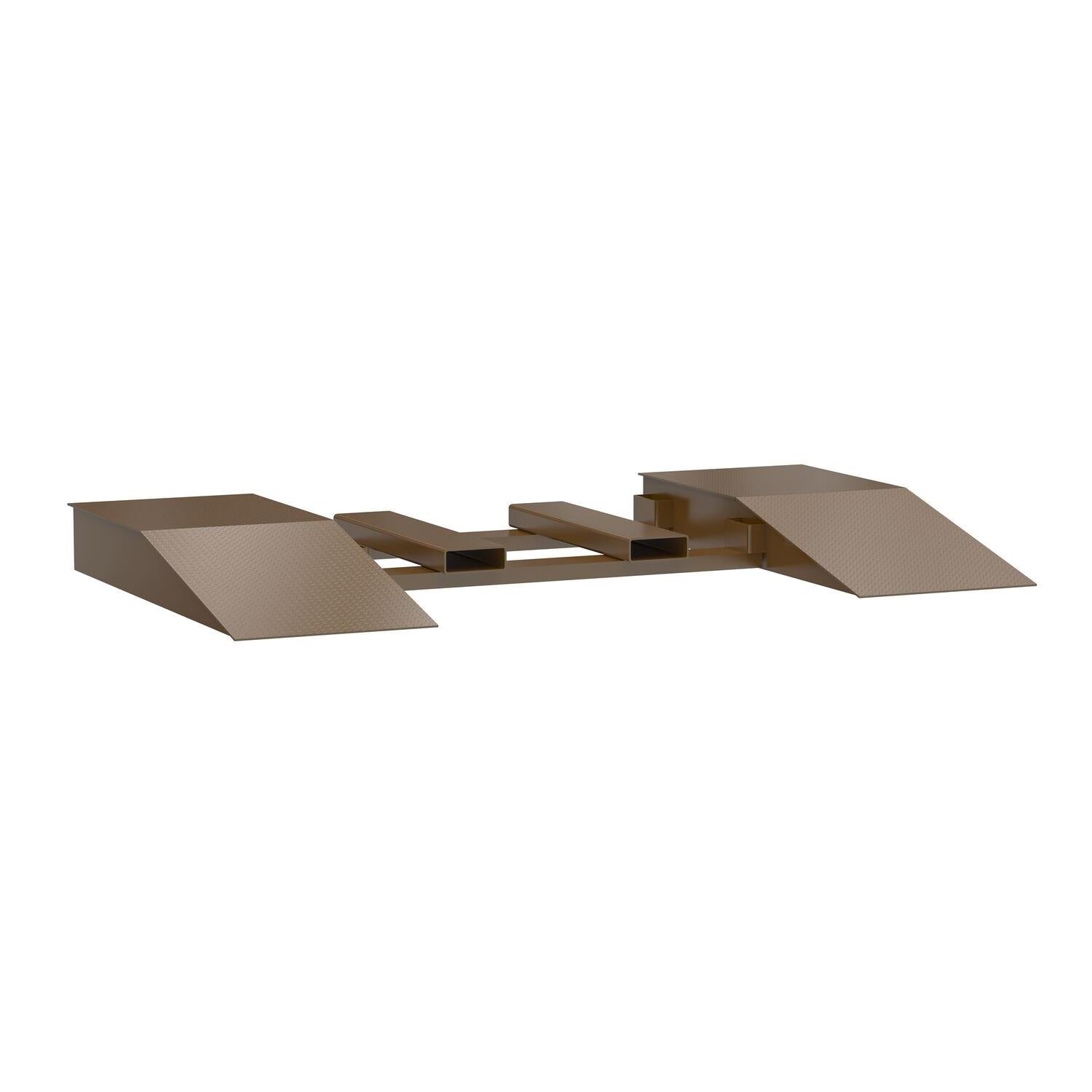

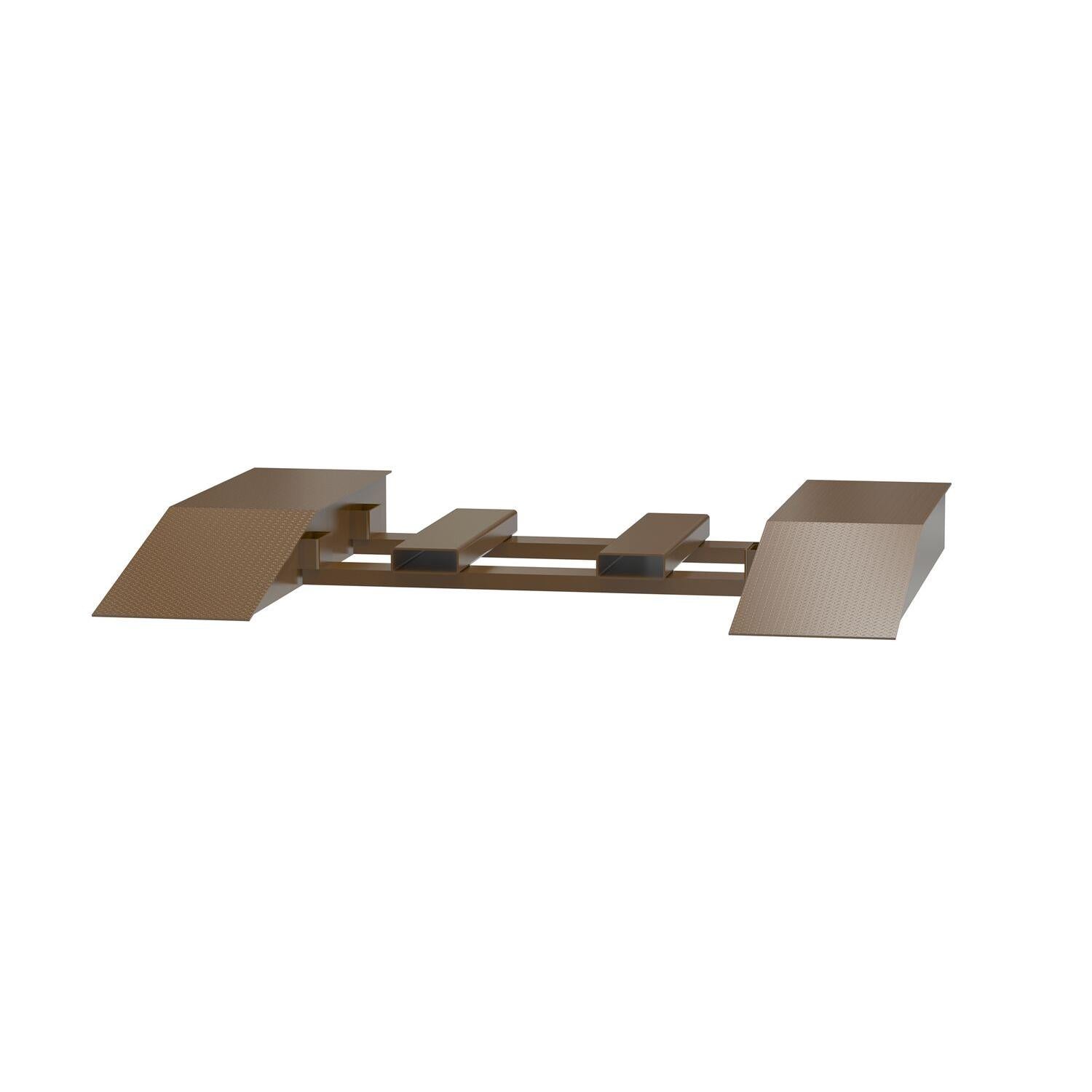

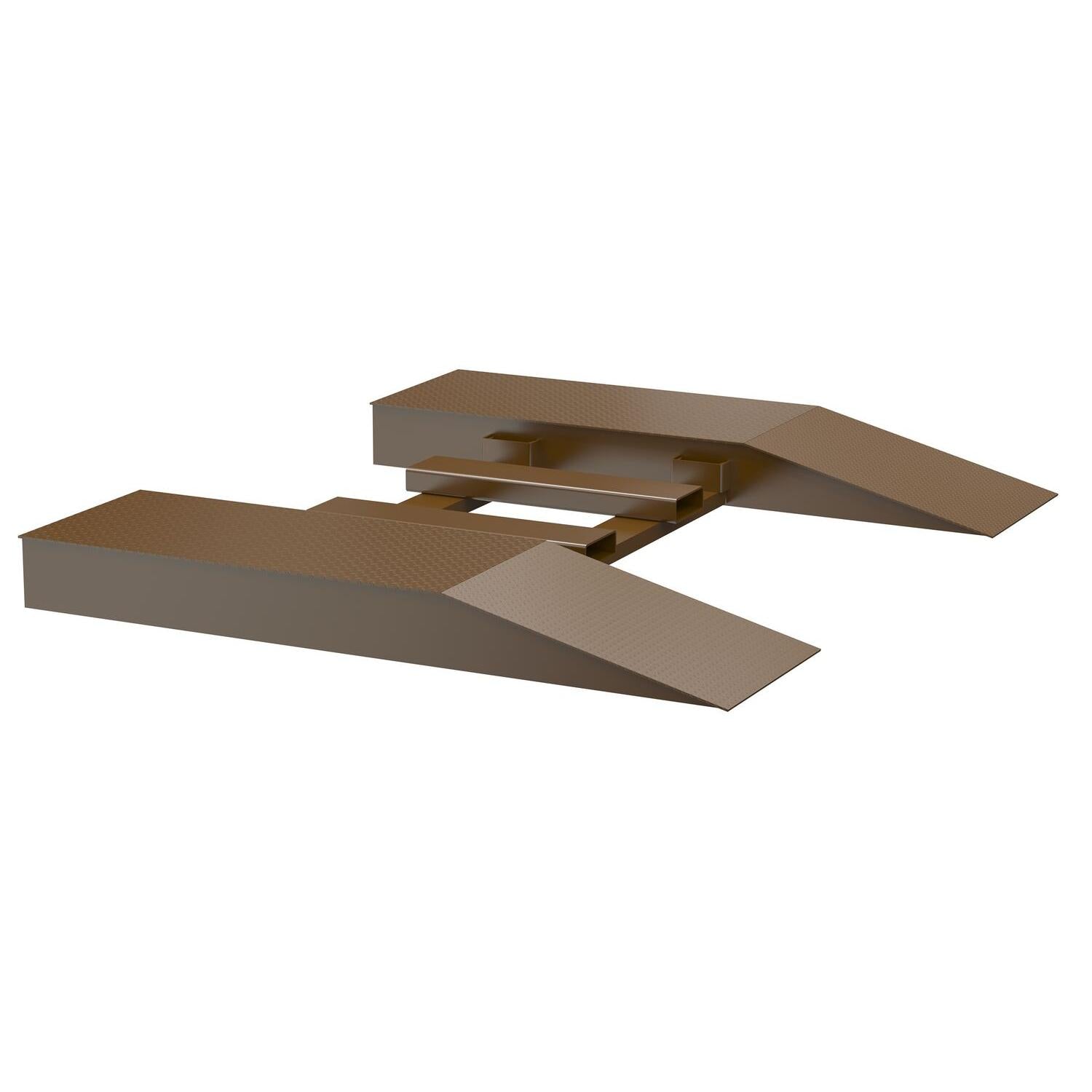

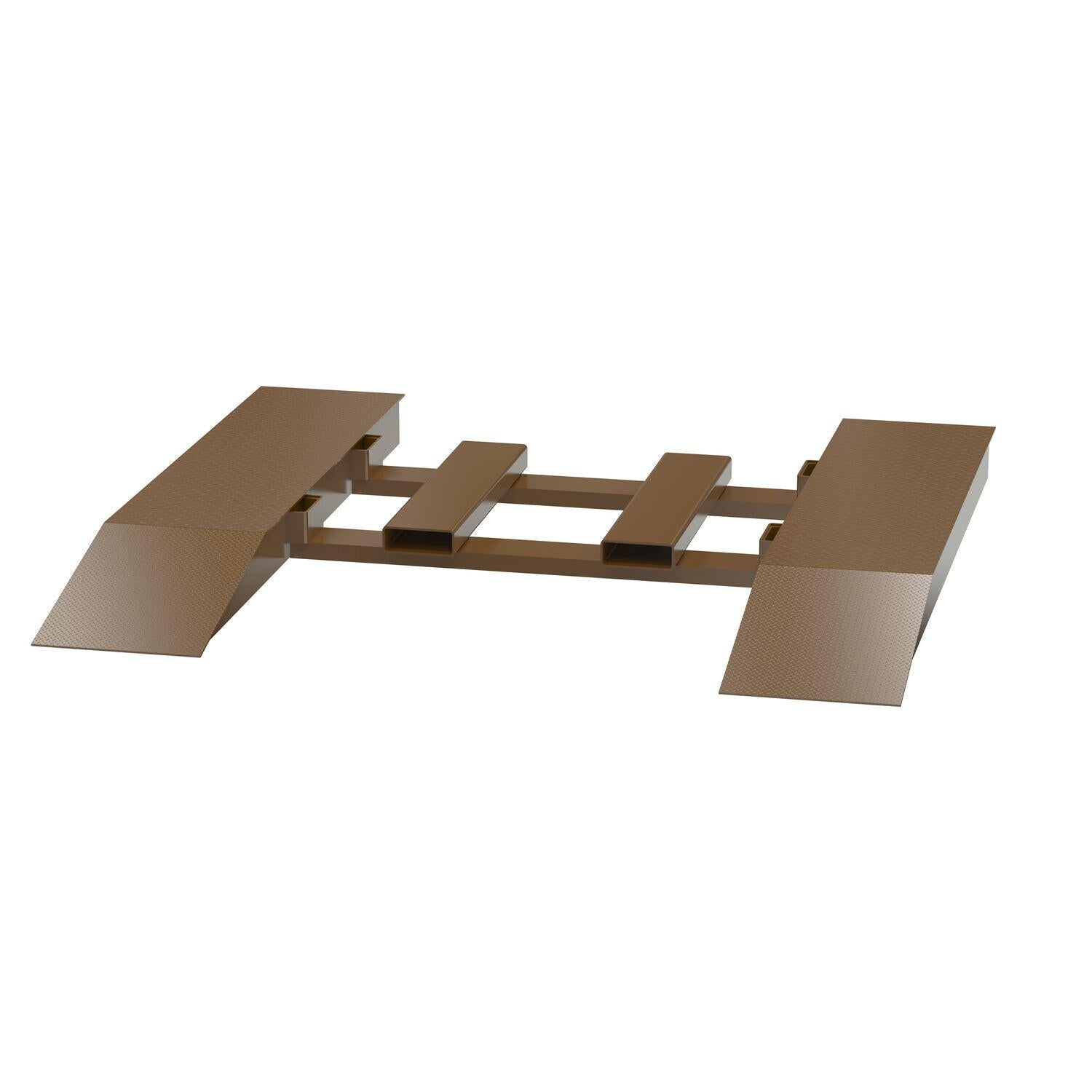

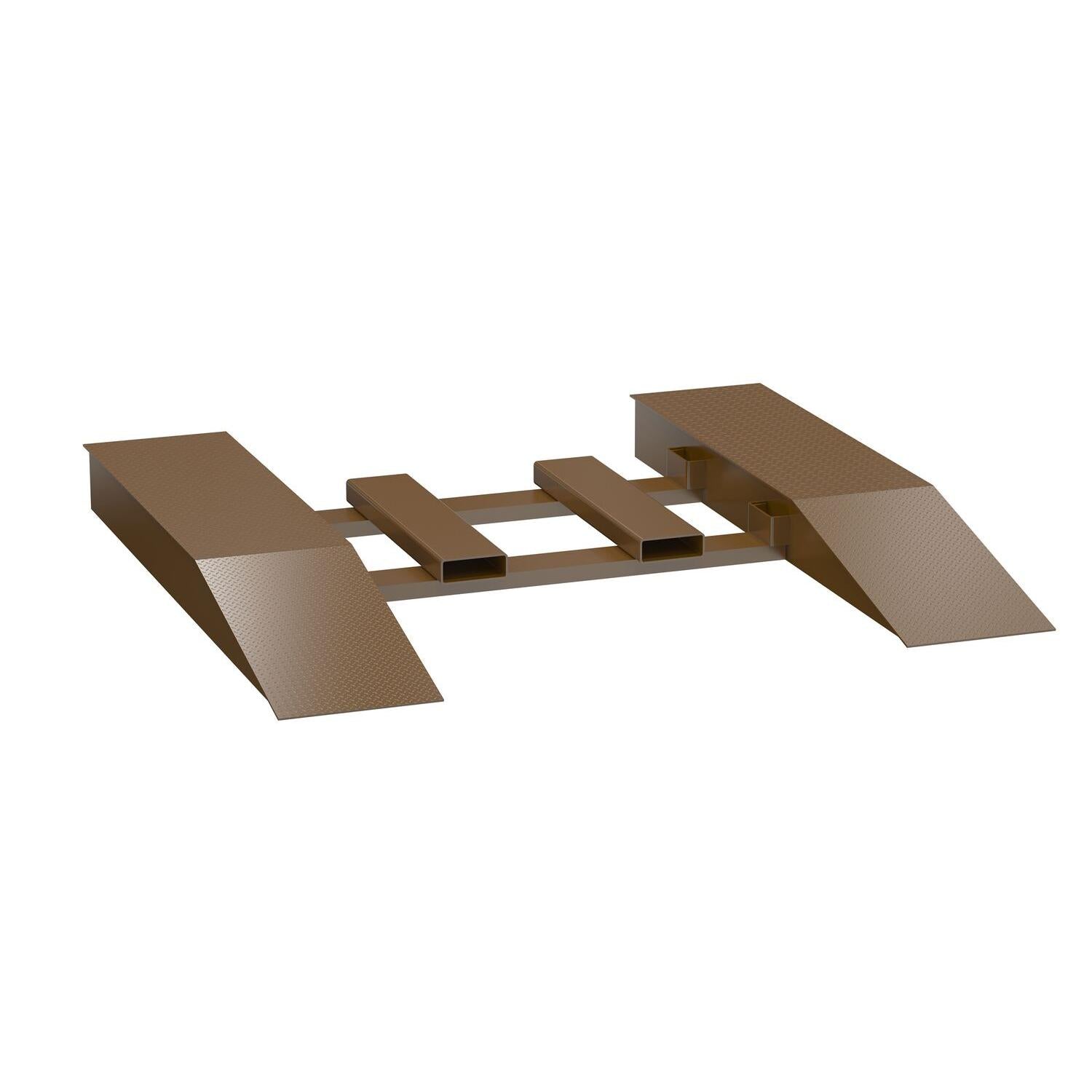

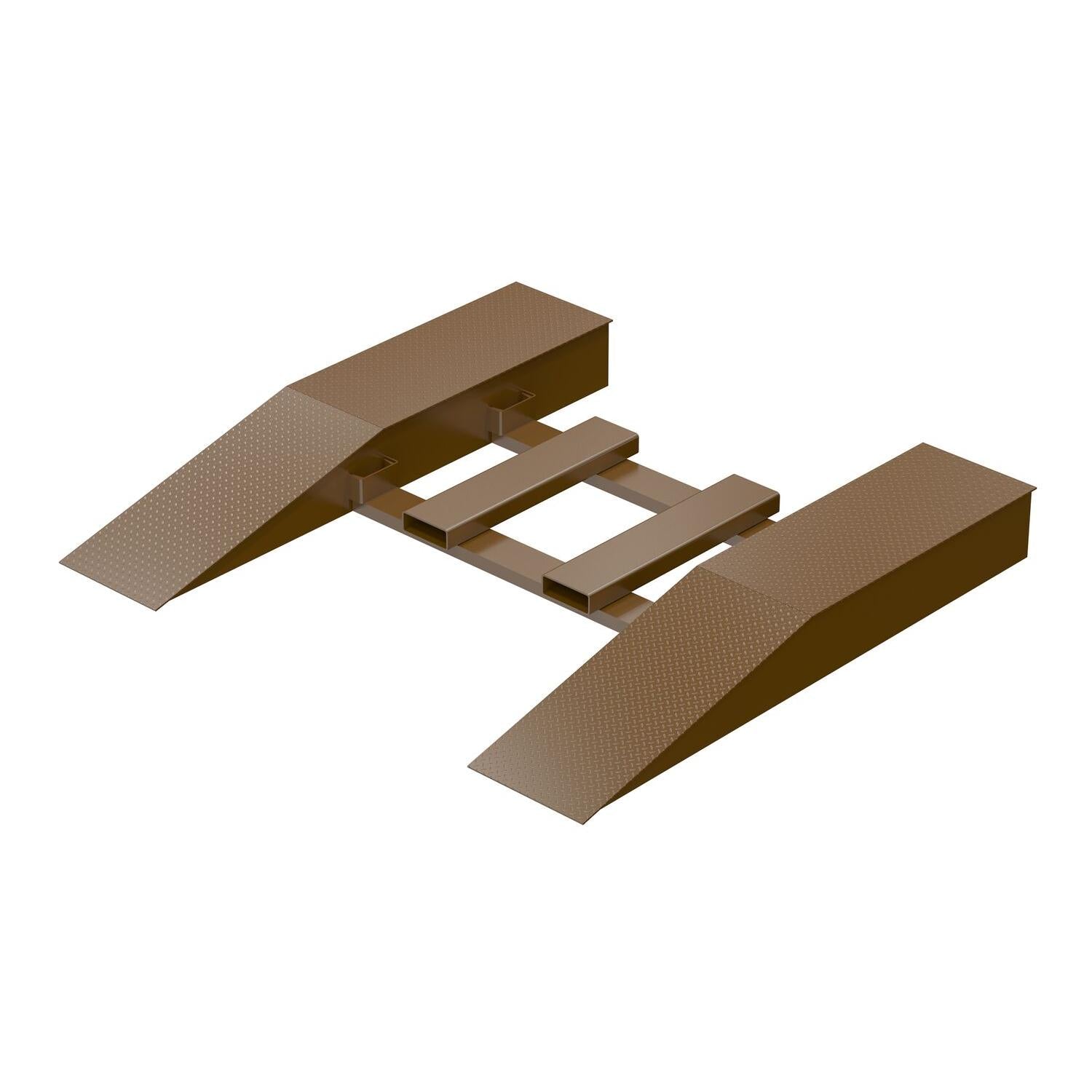

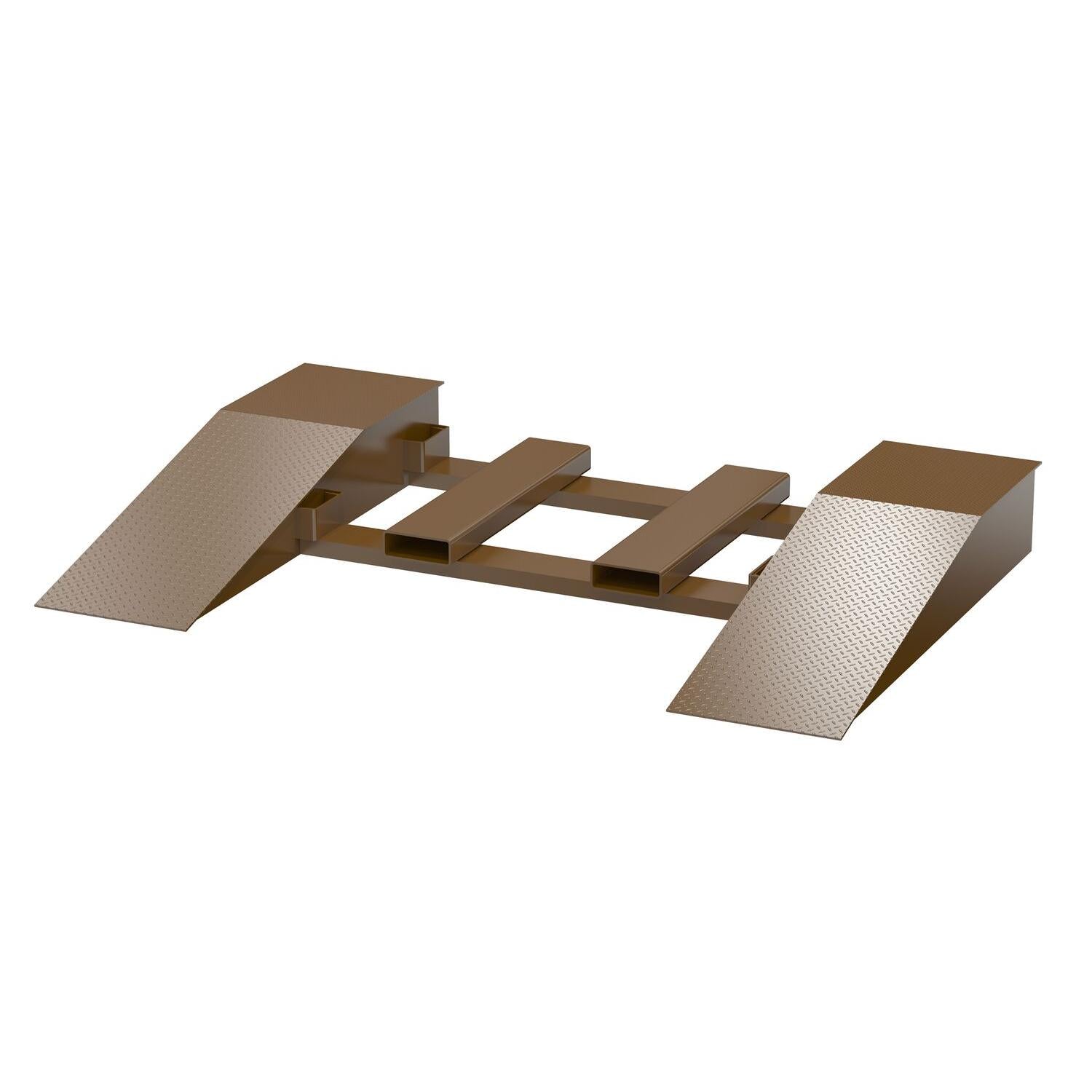

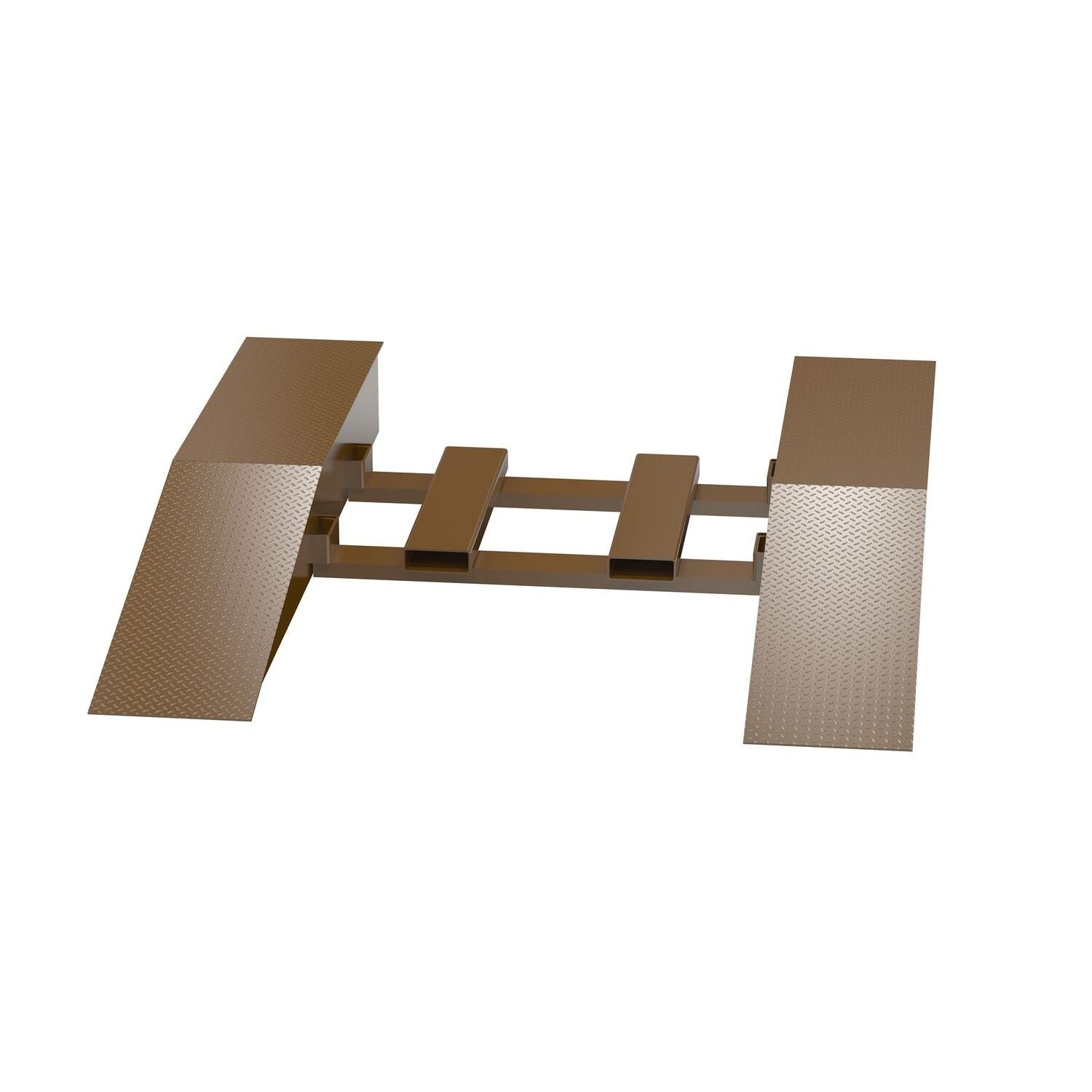

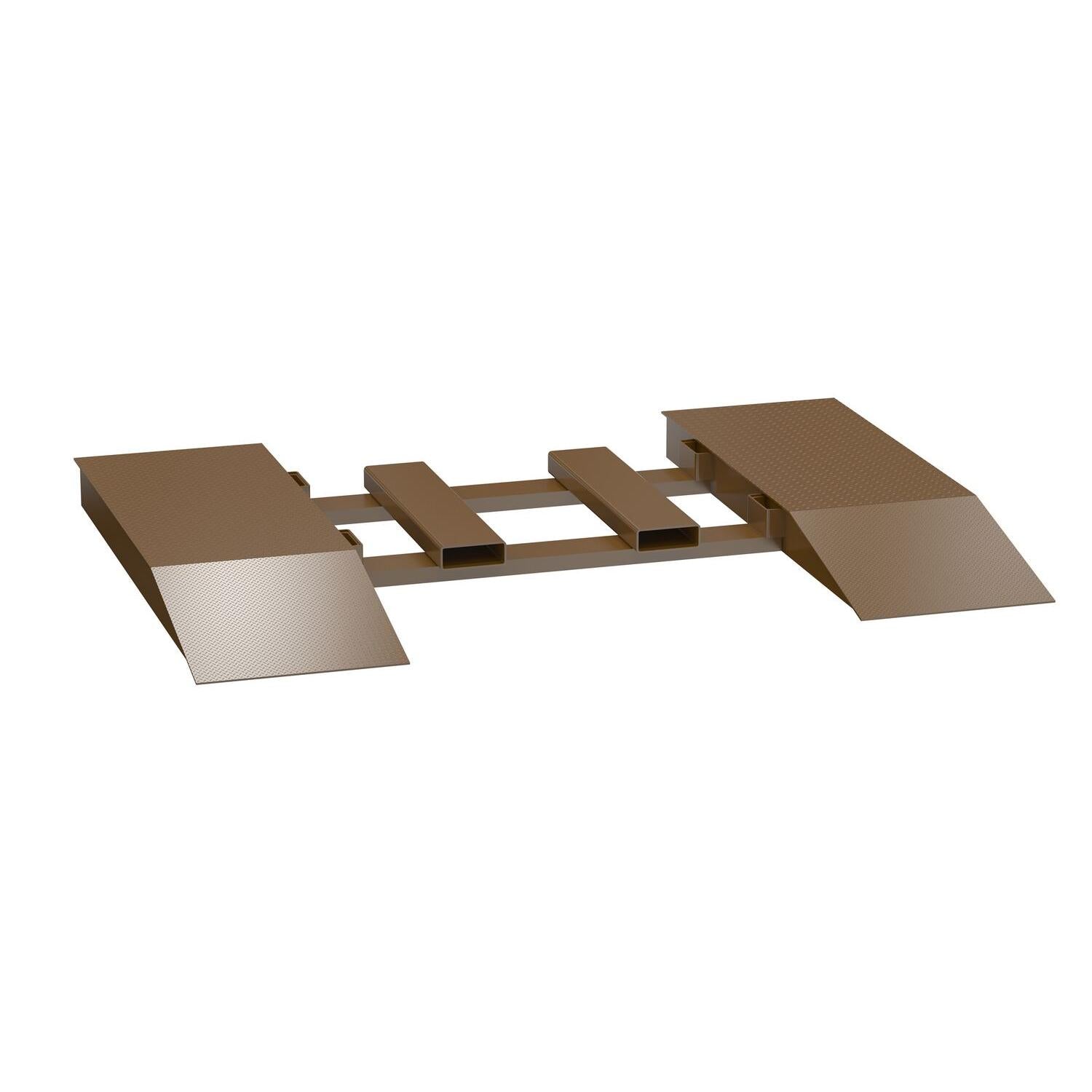

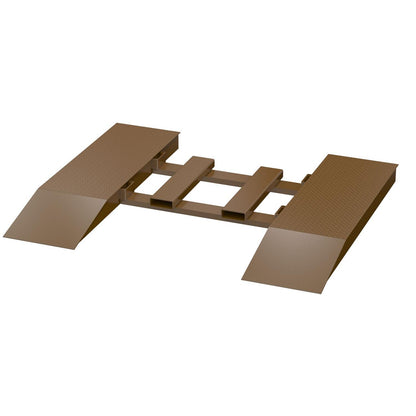

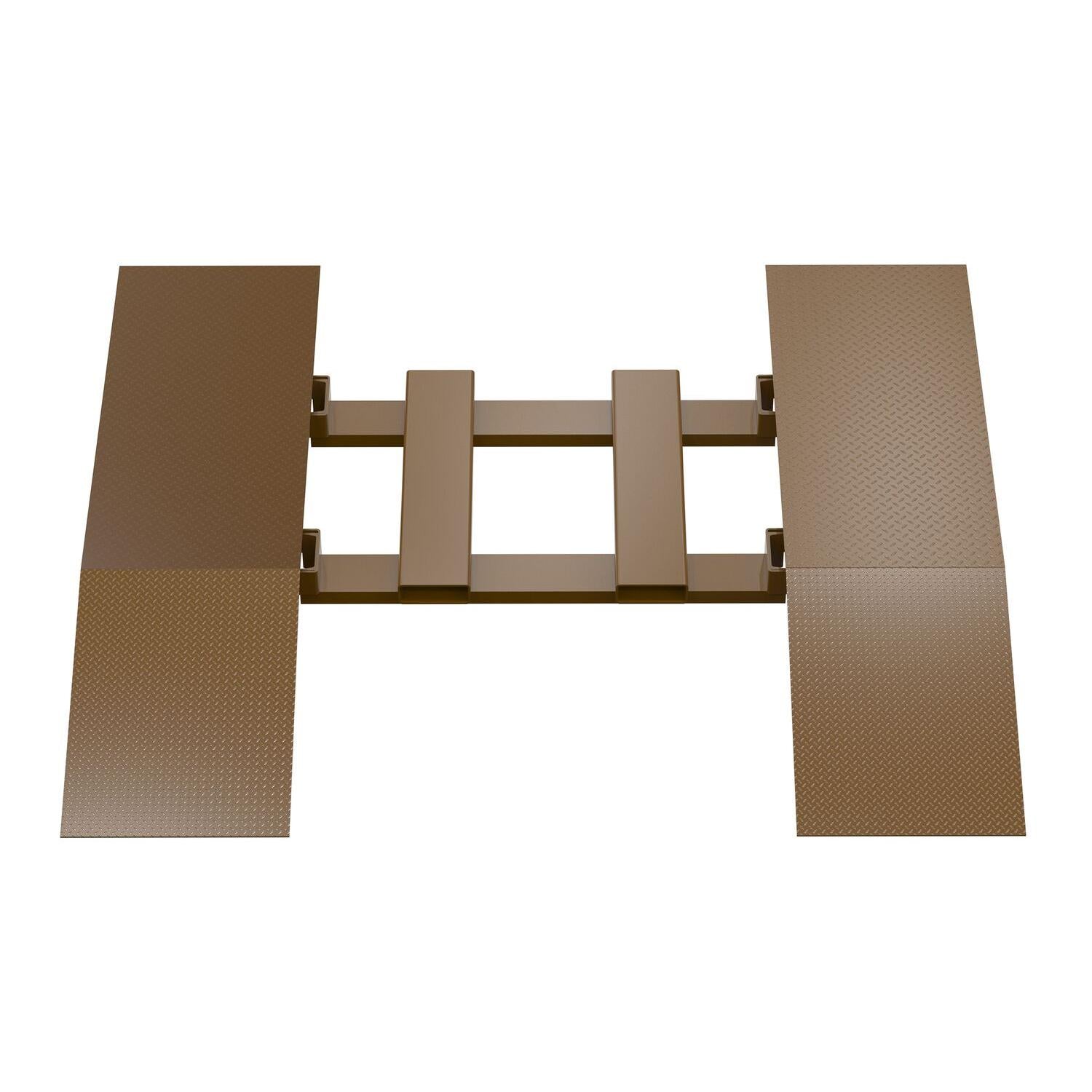

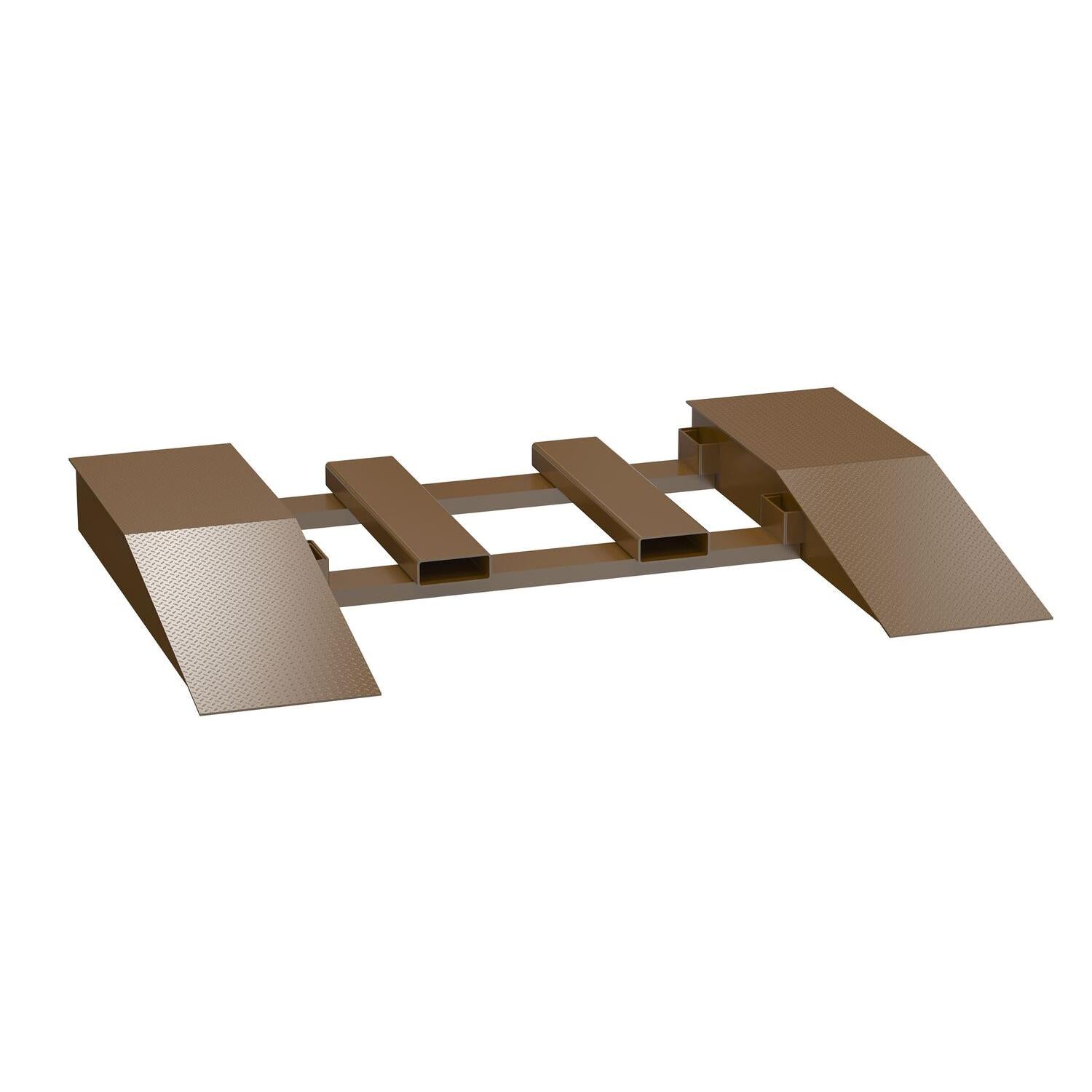

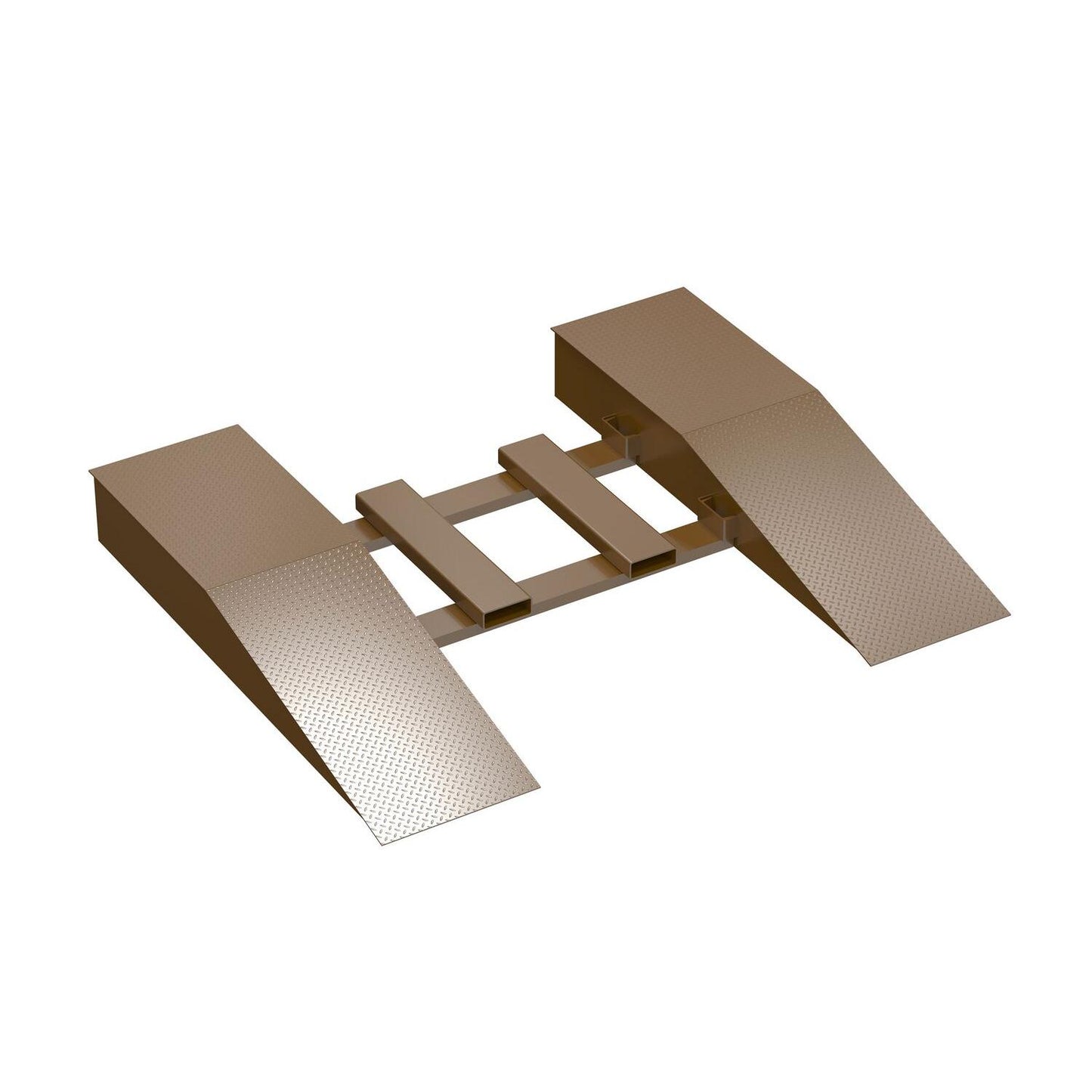

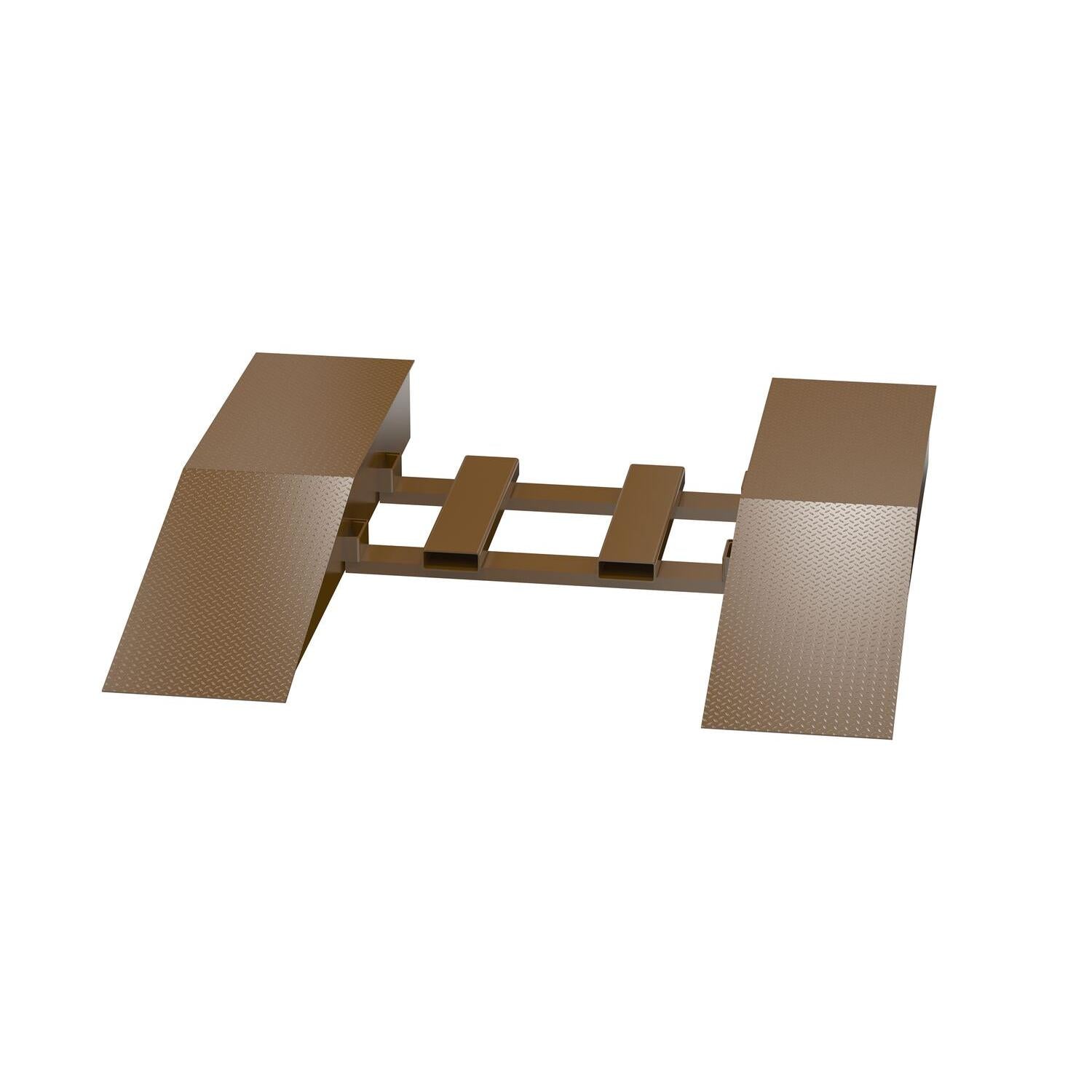

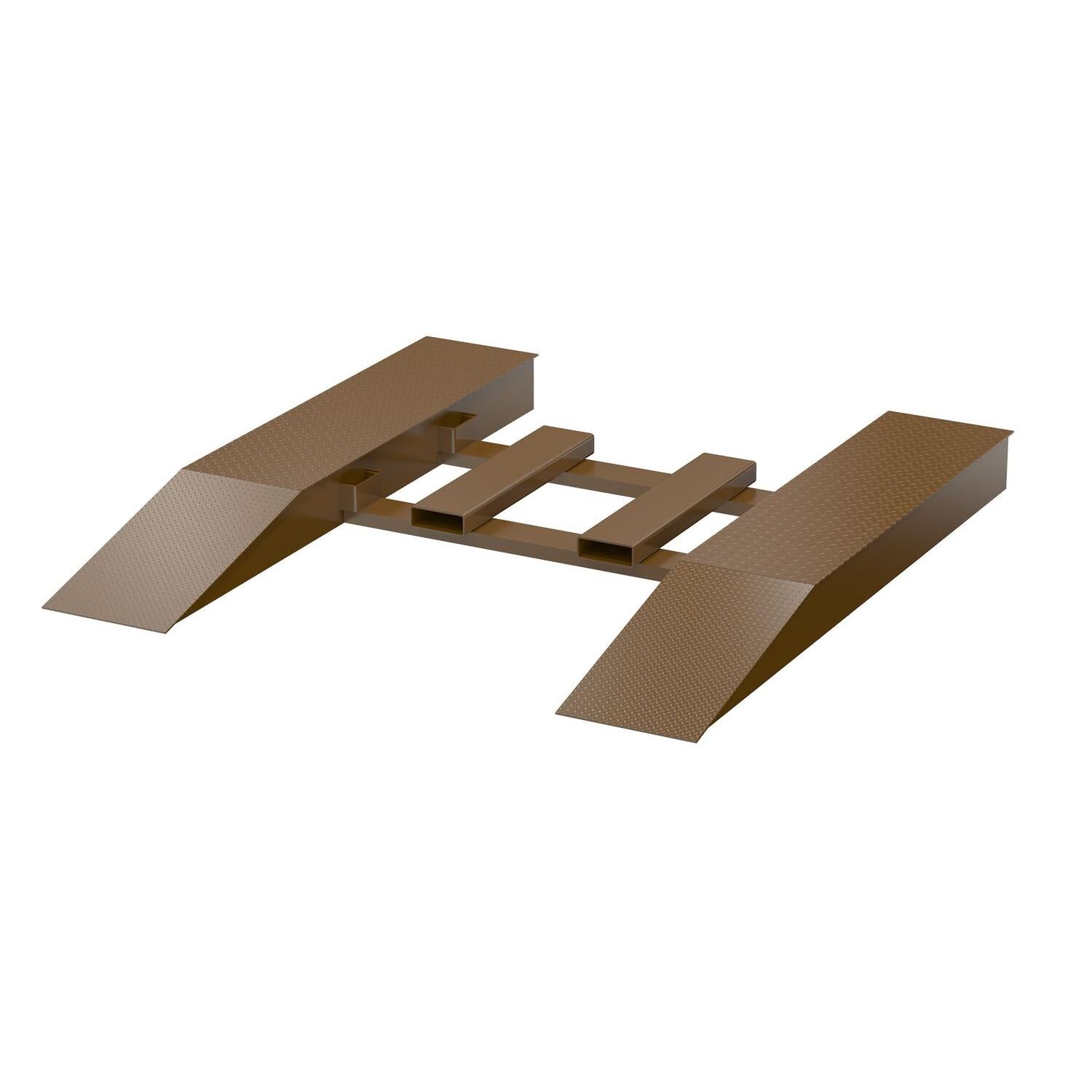

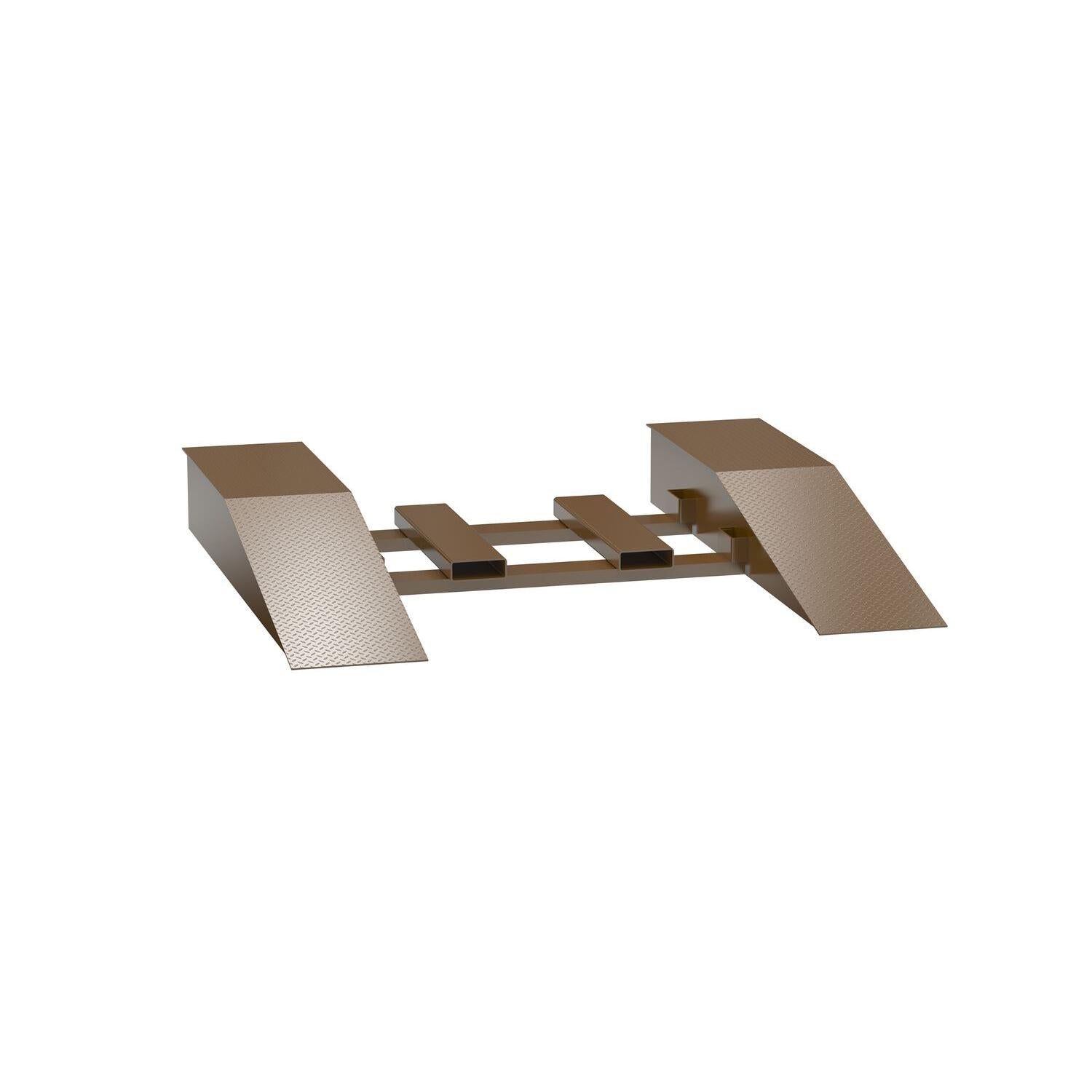

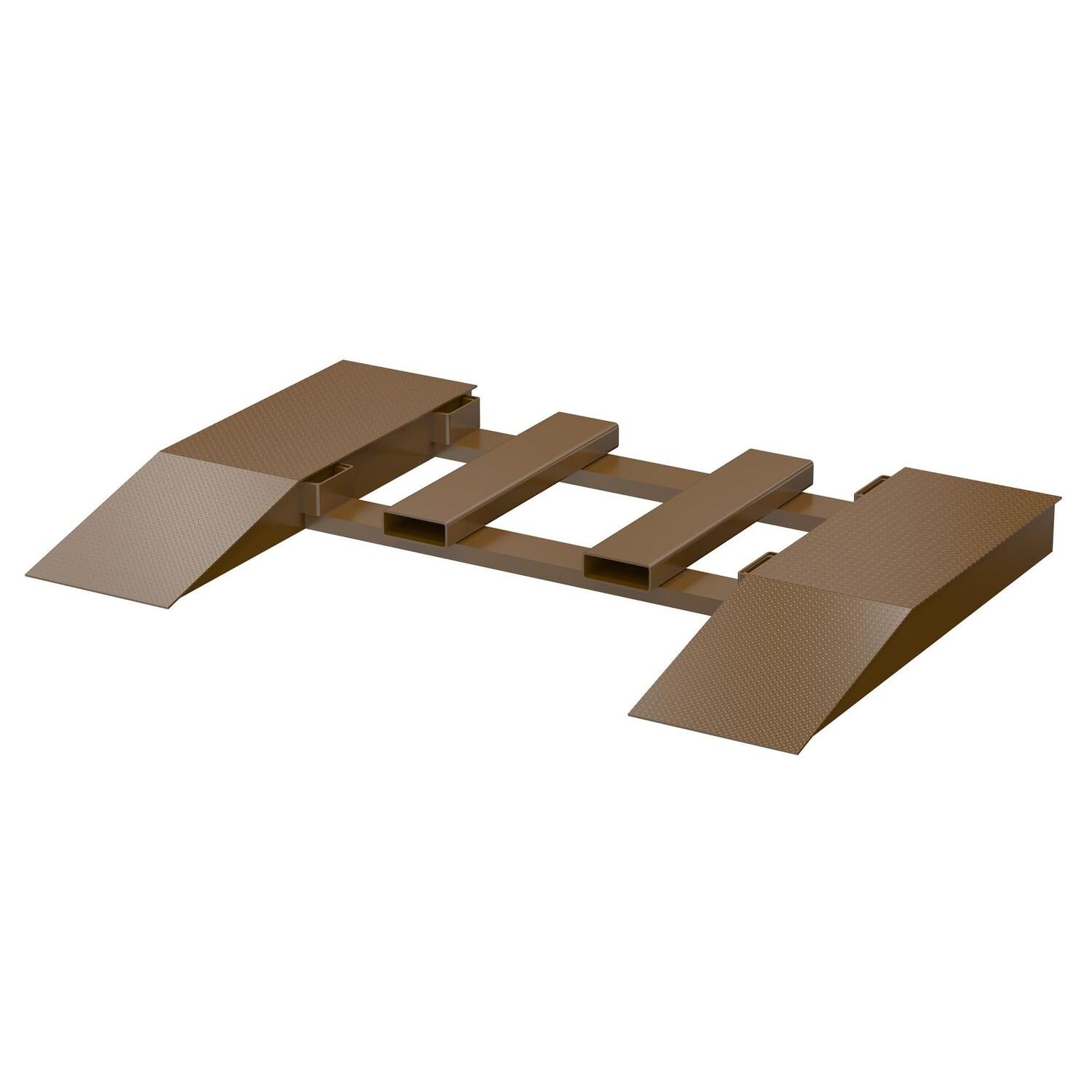

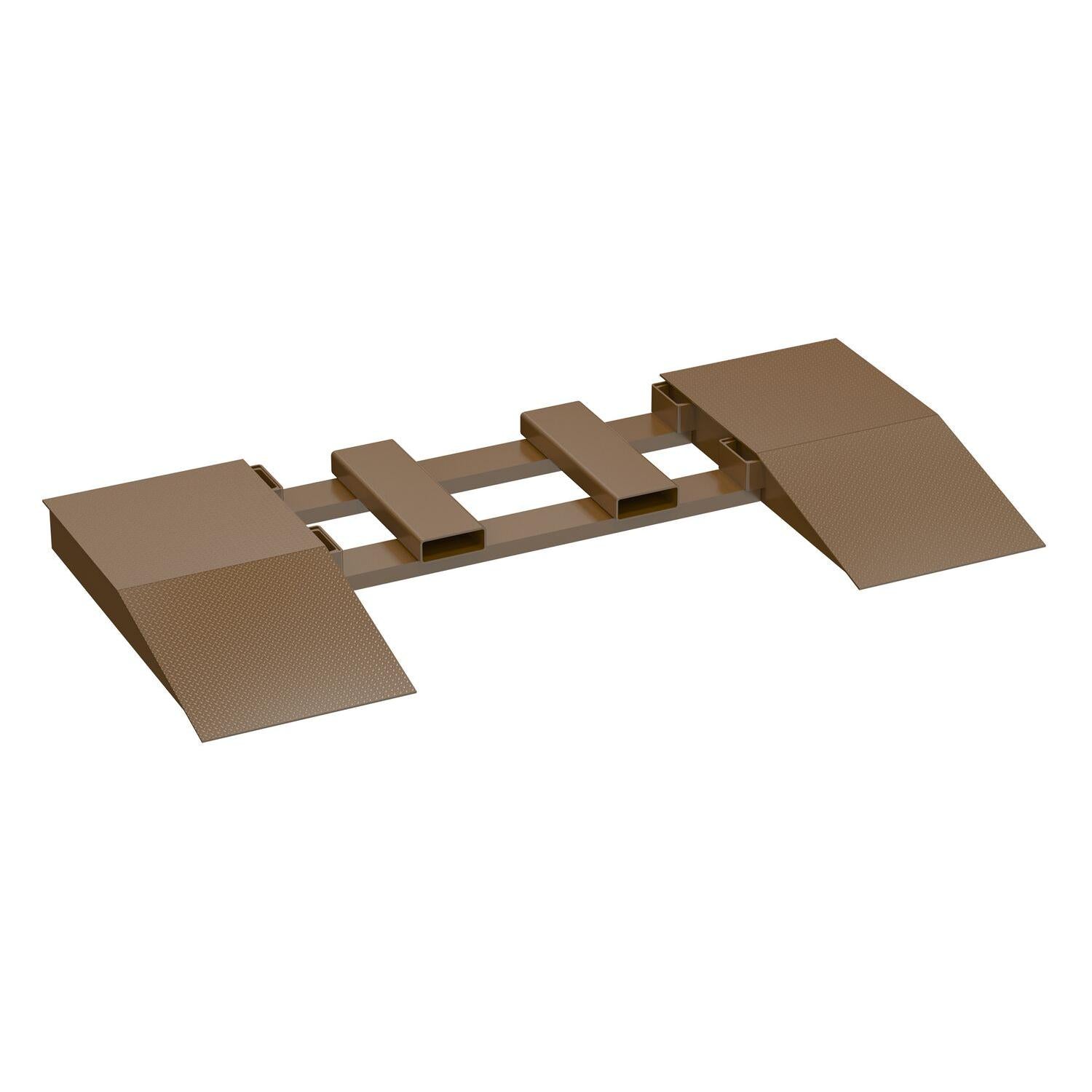

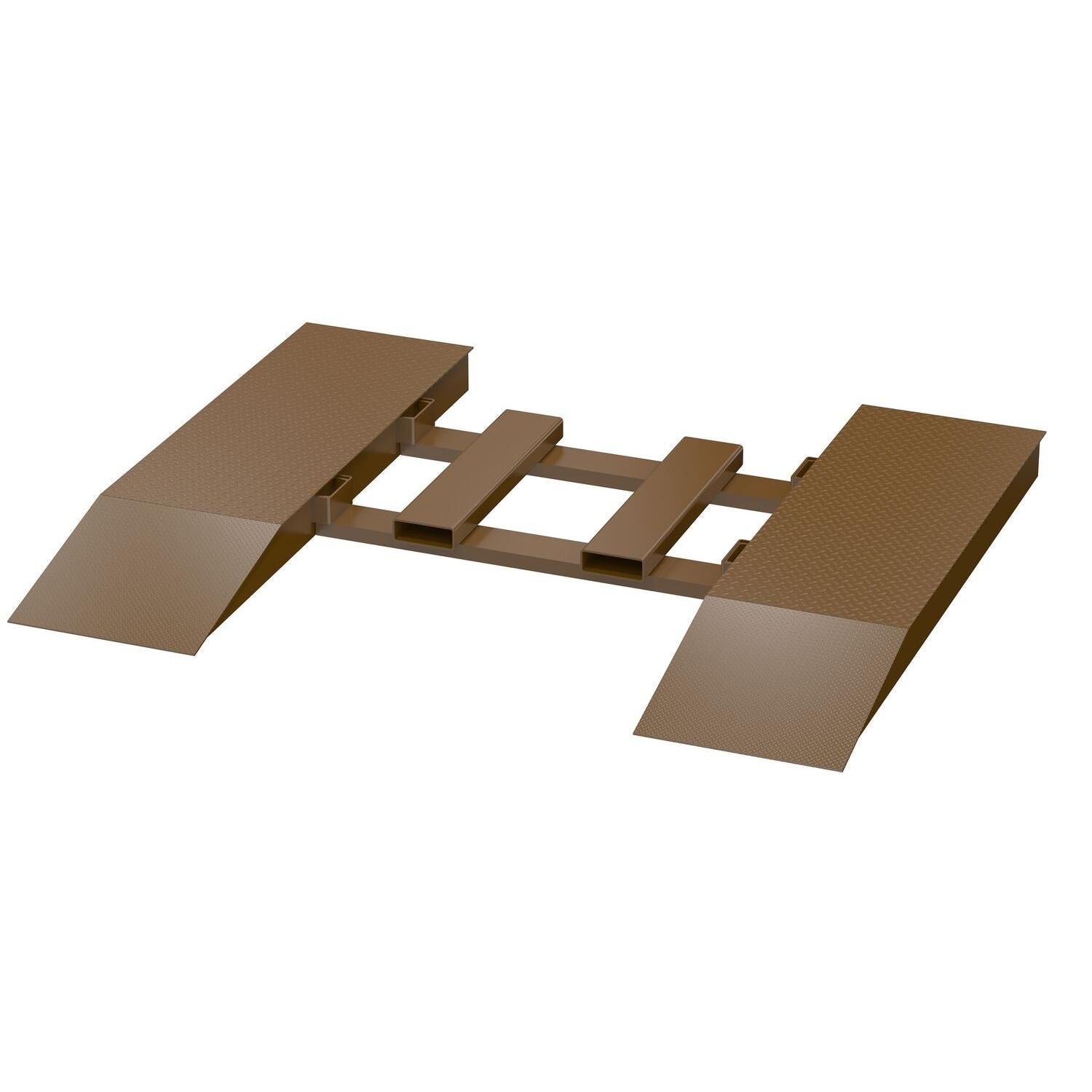

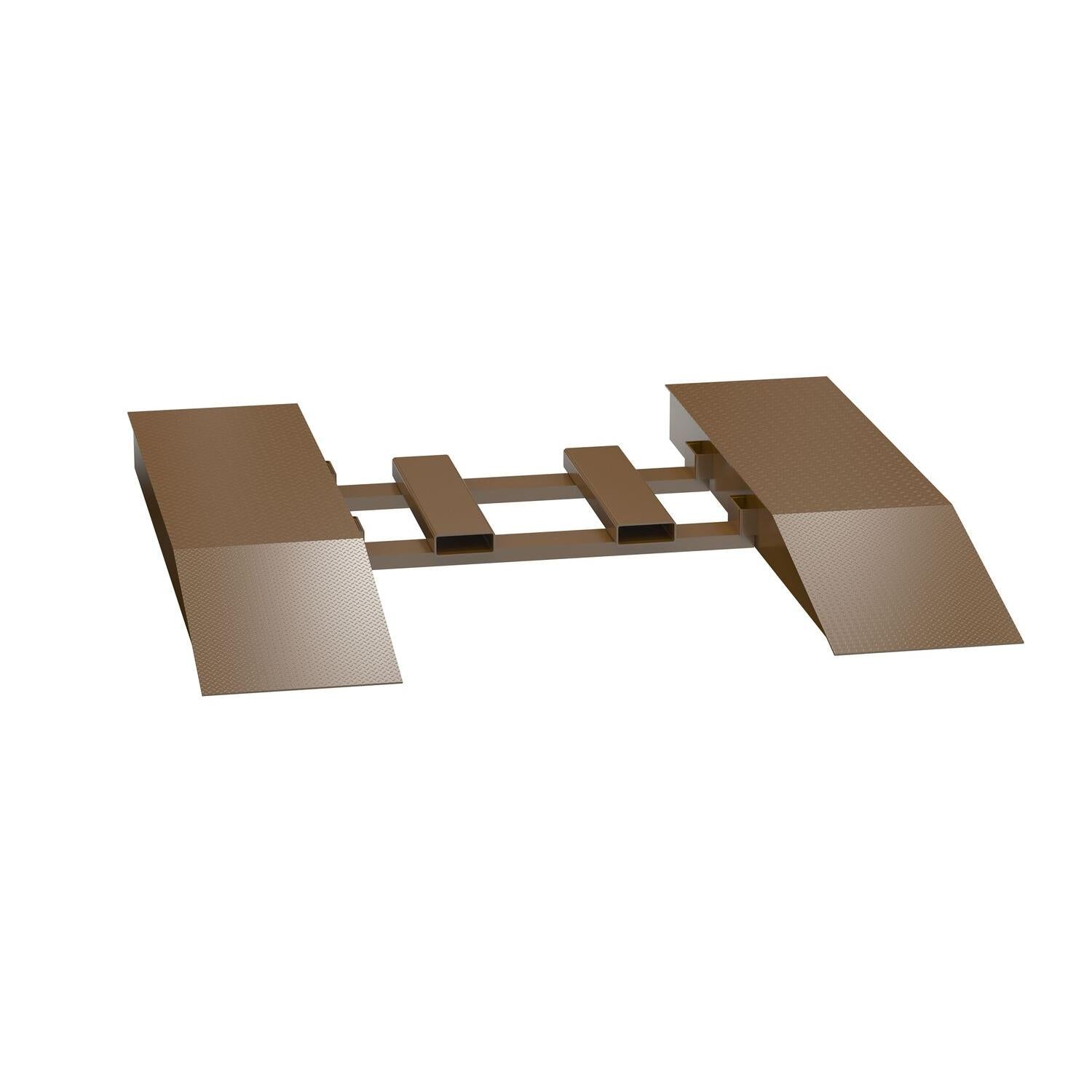

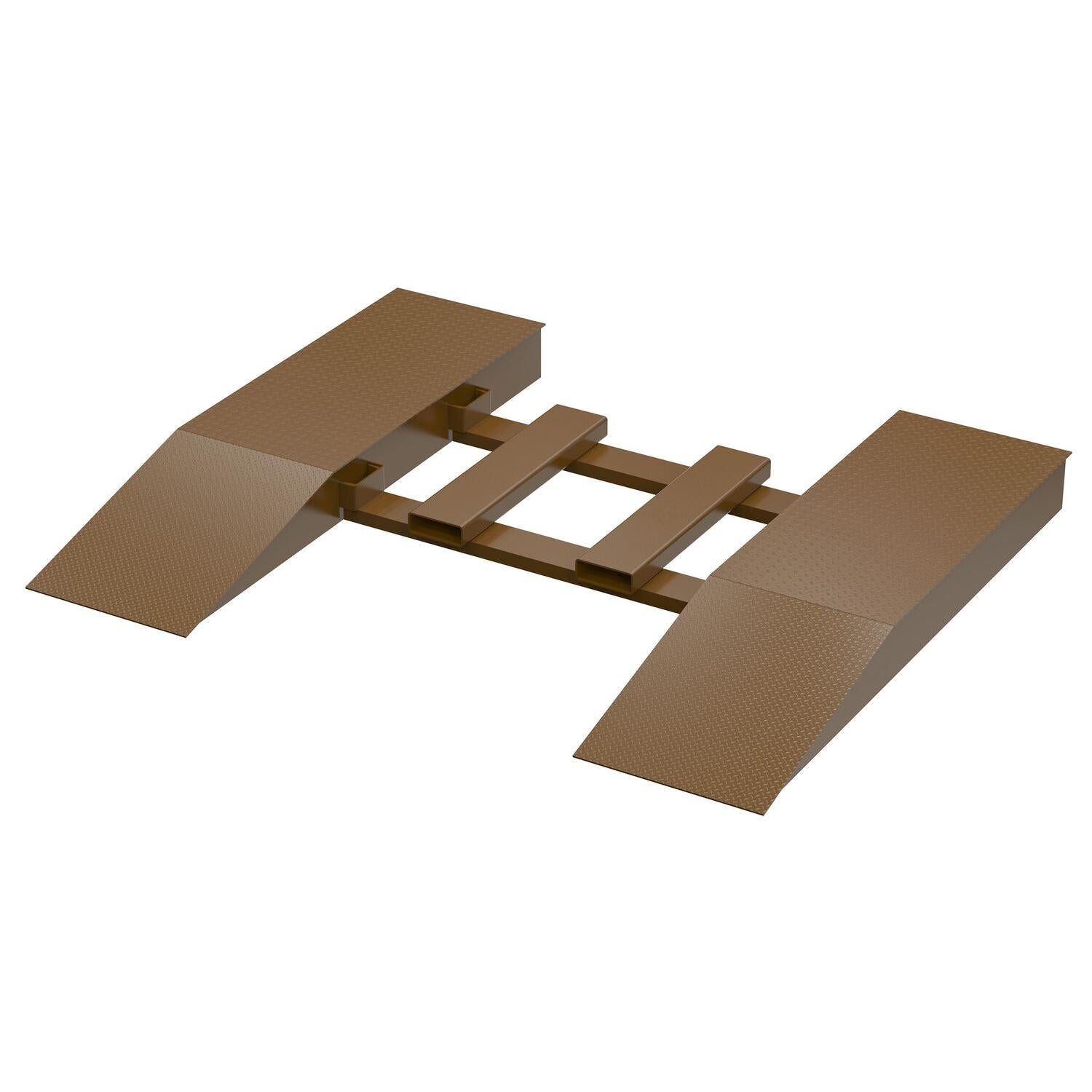

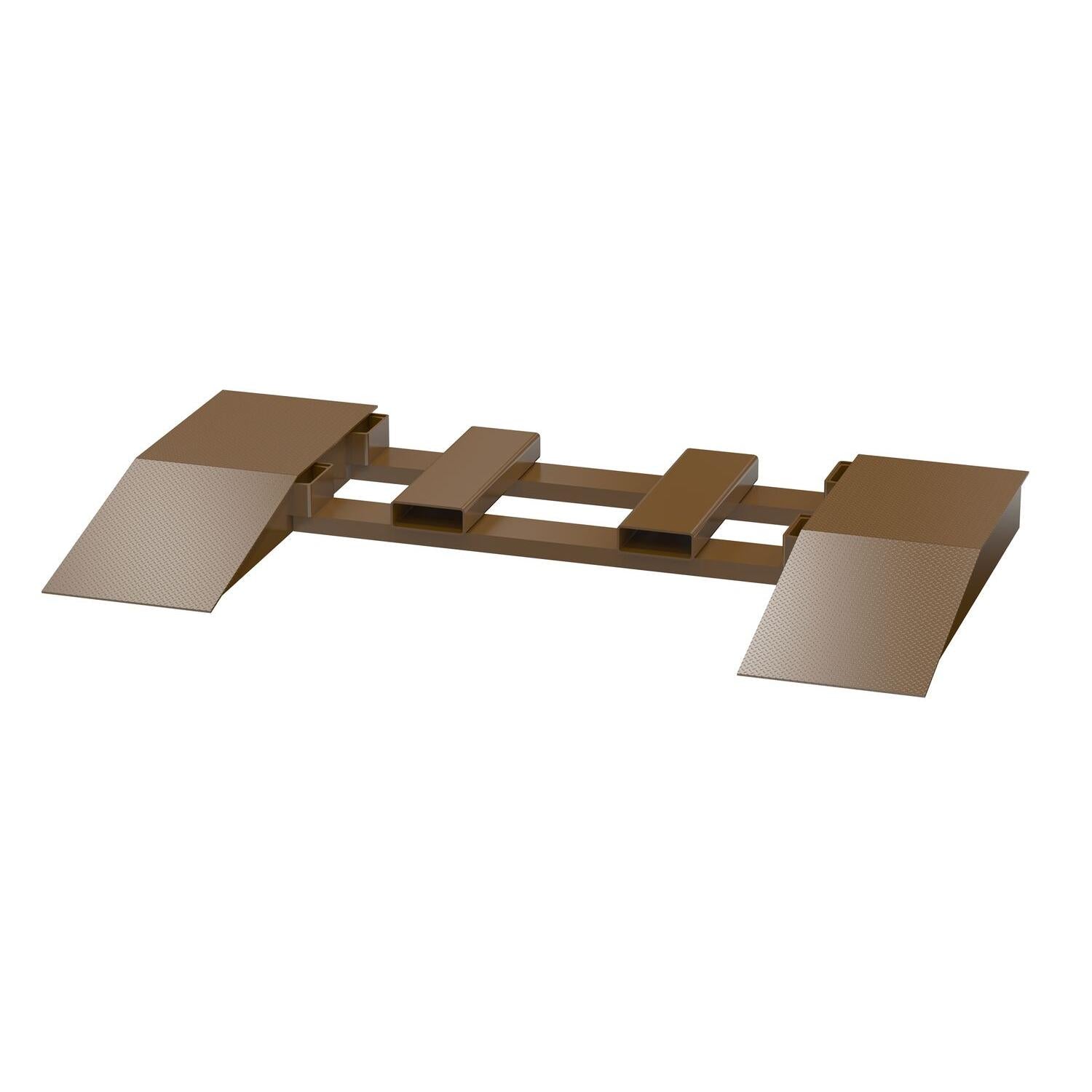

The Steel Wheel Riser with Central Fork Pocket is designed to elevate semi-trailers for efficient loading and unloading safely. Each riser features a central fork pocket loop, allowing easy forklift positioning and movement from one location to another. The heavy-duty welded steel construction ensures exceptional durability and strength, while the raised diamond tread plate surface provides non-slip traction during use.
Built to facilitate compliance with OSHA/ANSI B56.1 Part 3, Section 7 regulations for loaded fork truck operation, these risers are ideal for warehouse, distribution, and industrial loading dock environments. Units can be stacked for compact storage when not in use, maximizing space efficiency.
Features and Benefits:
- Central Fork Pocket Design: Built-in fork pocket loop allows simple transport and positioning by forklift.
- Heavy-Duty Welded Steel: Provides 40,000 lb uniform capacity per pair.
- Raised Diamond Tread Surface: Ensures maximum grip and stability.
- Stackable Construction: Allows compact storage when not in use.
- Compliance Ready: Meets OSHA/ANSI B56.1 Part 3, Section 7 safety standards.
- Durable Finish: Protective brown liquid paint for long service life.
Available Models:

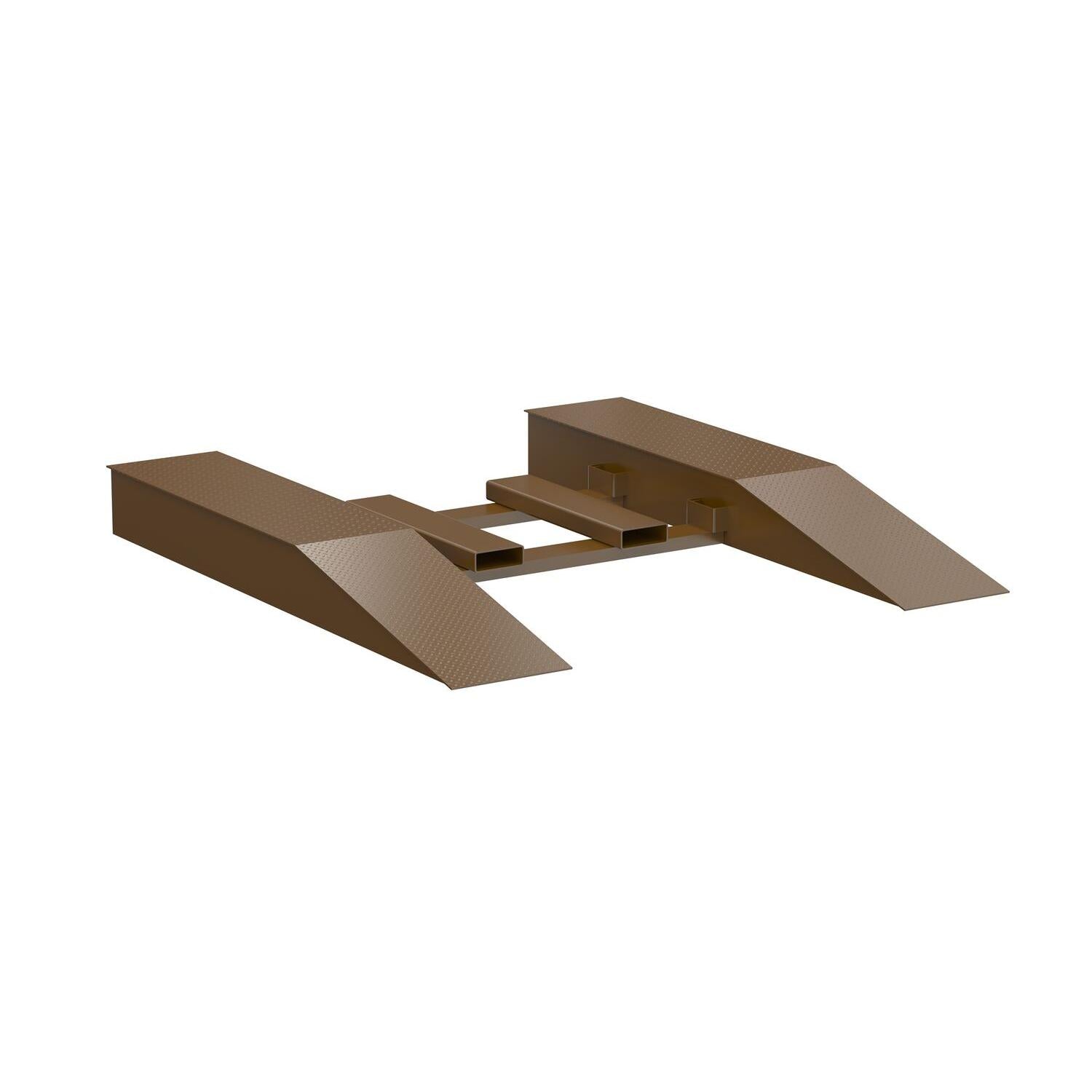

- 18" Wide Units: Available in lengths from 48" to 108" and heights from 6.25" to 12.25".
-
24" Wide Units: Available in lengths from 48" to 108" and heights from 6.25" to 12.25".
All models include a 24" fork pocket center and are built from 1/4" thick material.
Applications:
Perfect for loading docks, freight facilities, and warehouse operations requiring safe elevation of trailers and compliance with industrial safety standards.
Technical Specifications:
- Uniform Capacity: 40,000 lb
- Load Weight Capacity: 40,000 lb
- Assembly: Assembled
- Compatibility: SWR Models
- Material: Steel
- Color / Finish: Brown / Liquid Coat
- Attachment Method: Factory Installed
- Package Contents: (2) Factory Installed Fork Pockets
- Width Between Wheel Risers: 53.125 in
- Fork Pocket Width: 7.5 in
- Fork Pocket Height: 2.5 in
- Fork Pocket Center: 24 in
- Manufacturer Warranty: 30 Days
Made in the USA
