Universal Steel Rail Chocks
Universal Steel Rail Chocks
SKU:VES-FRC-2
Free Shipping in the Lower 48 States
- Call or Email us for large QTY quotes
Couldn't load pickup availability

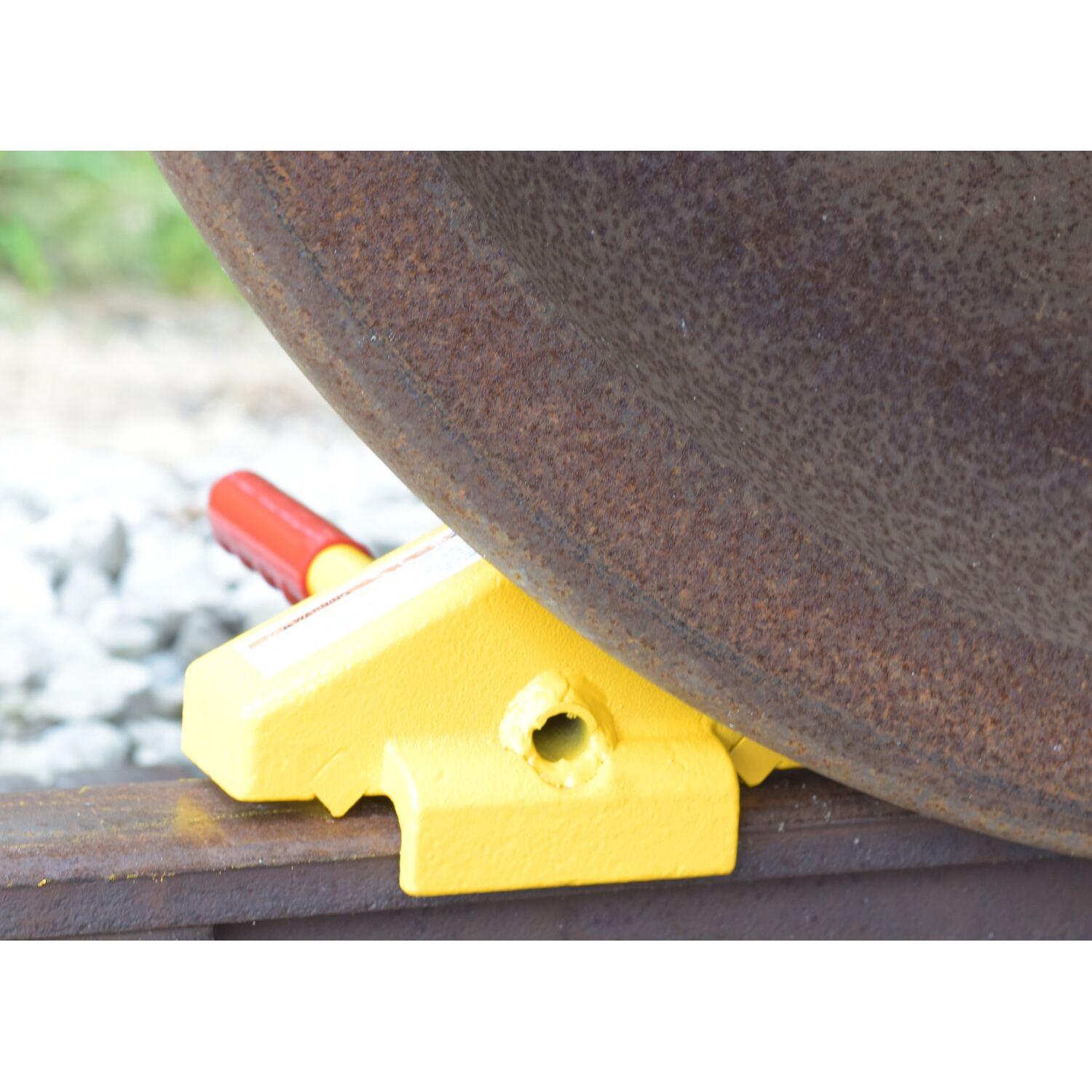

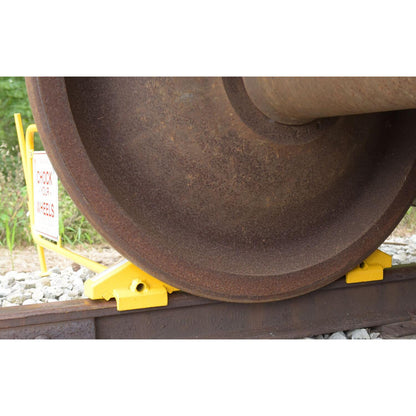

Universal Steel Rail Chocks are designed to provide maximum security and stability for railcars in industrial and transportation environments. Built from heavy-duty, powder-coated steel, these chocks withstand harsh weather, heavy use, and corrosive environments. The double-sided flanges keep chocks properly aligned on rails, while hardened steel spurs on the underside deliver a firm, non-slip grip for dependable performance.
Models are available in single, chained, and flag-equipped configurations to suit a variety of safety and operational needs. Whether for basic chocking, added visibility with a flag sign, or dual units with security chains, these chocks are engineered to perform in demanding rail applications.
Features and Benefits
- Universal Fit: Designed to fit most standard-size rails.
- Durable Construction: Heavy-duty, powder-coated steel ensures long service life.

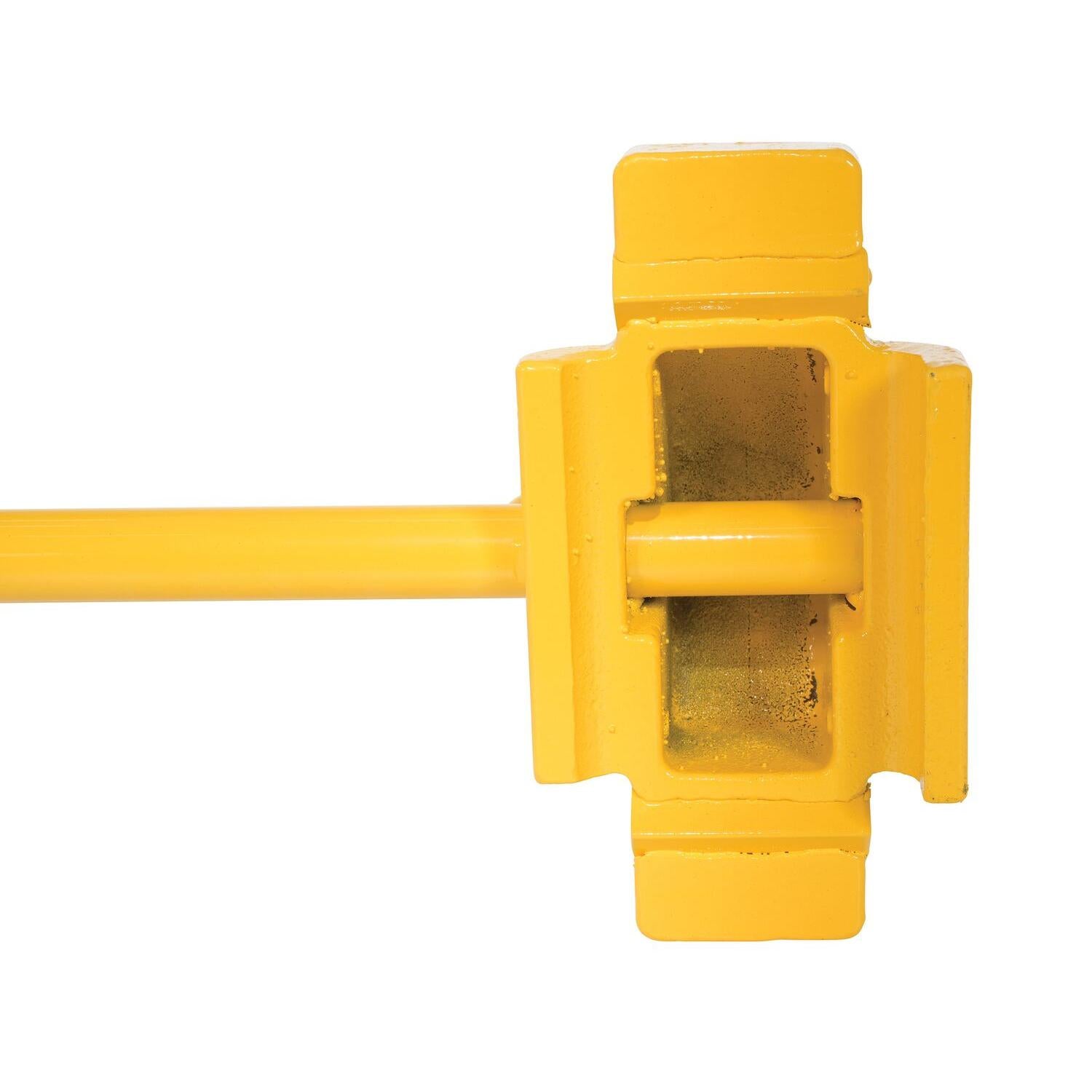

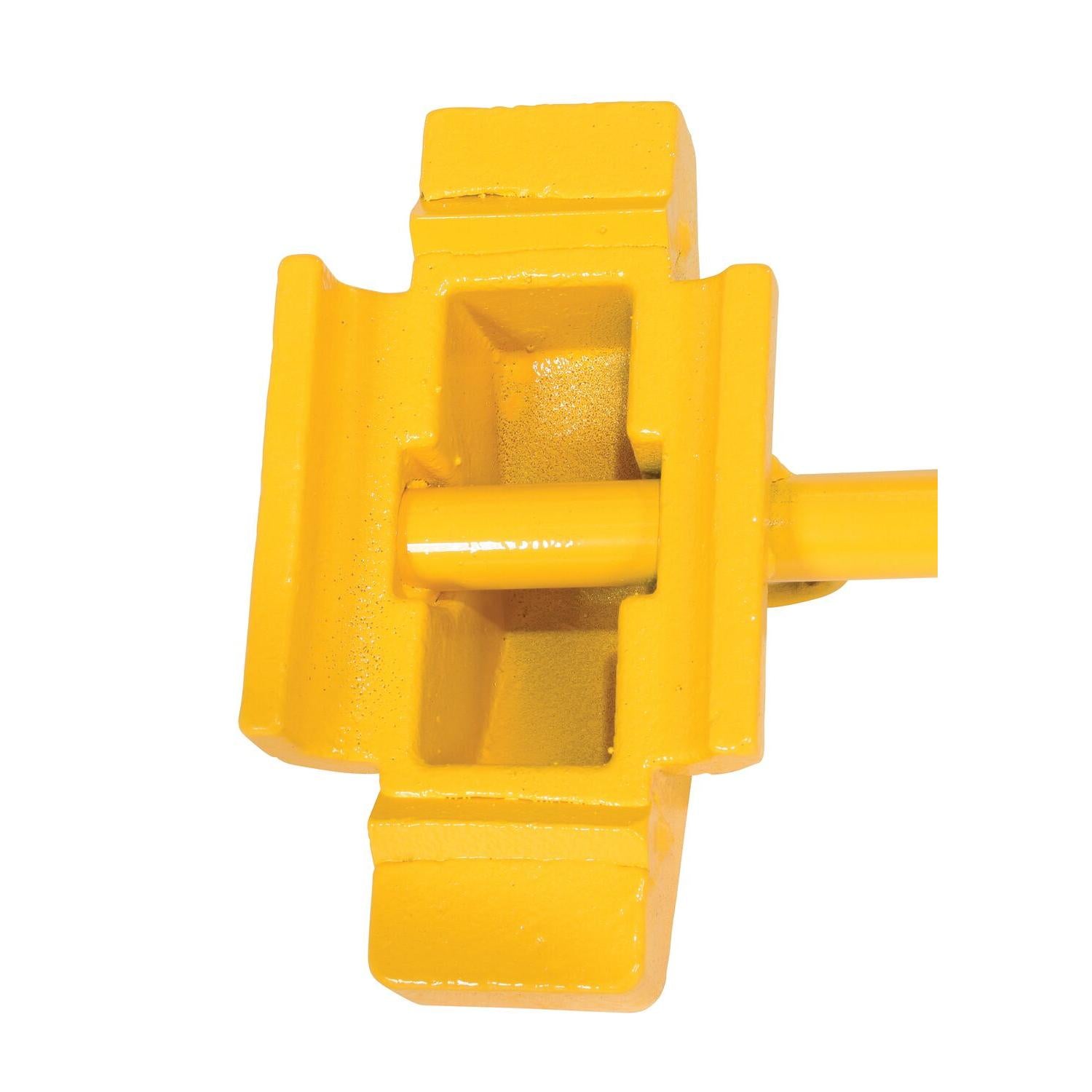

- Secure Grip: Hardened steel spurs maximize traction on rail surfaces.
- Positive Alignment: Double-sided flanges keep the chock in place.
- Ergonomic Handling: Rubber hand grips (on select models) provide a non-slip hold.
- Enhanced Visibility: Flag models include double-sided aluminum “Chock Your Wheels” signs.
- Added Security: Chain-linked models prevent chock misplacement and improve safety compliance.
Available Models
-

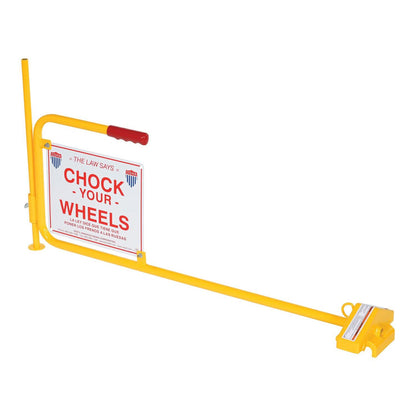

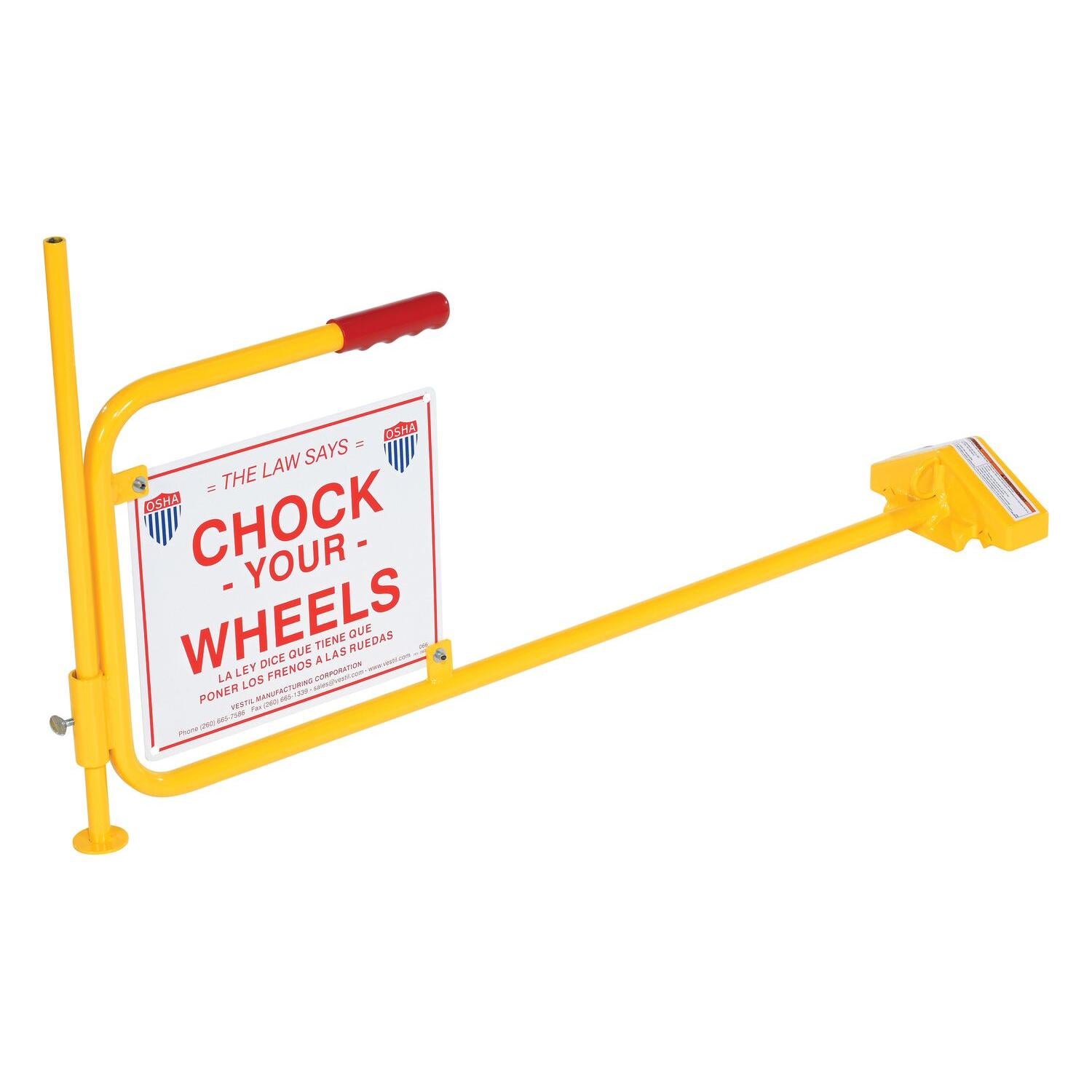

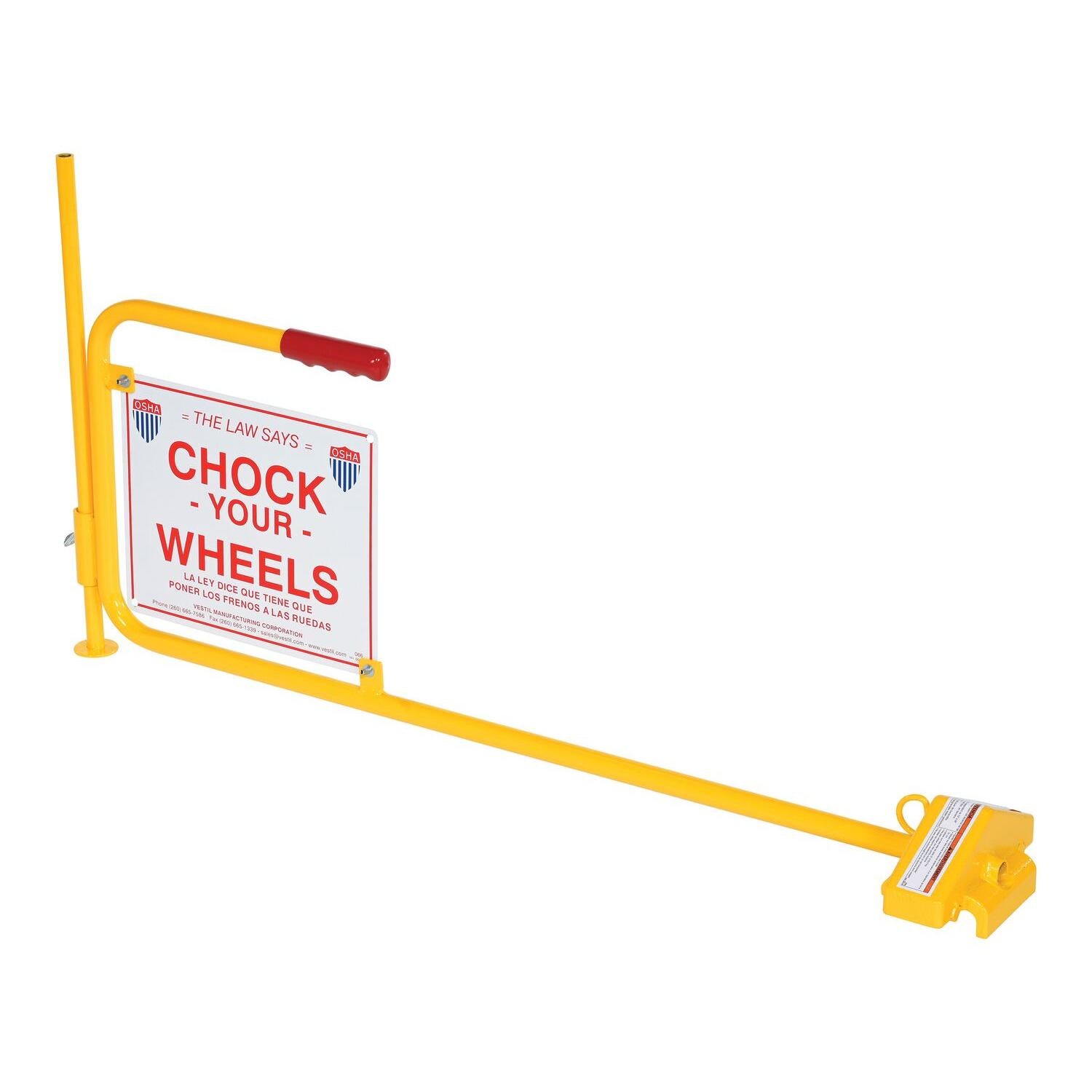

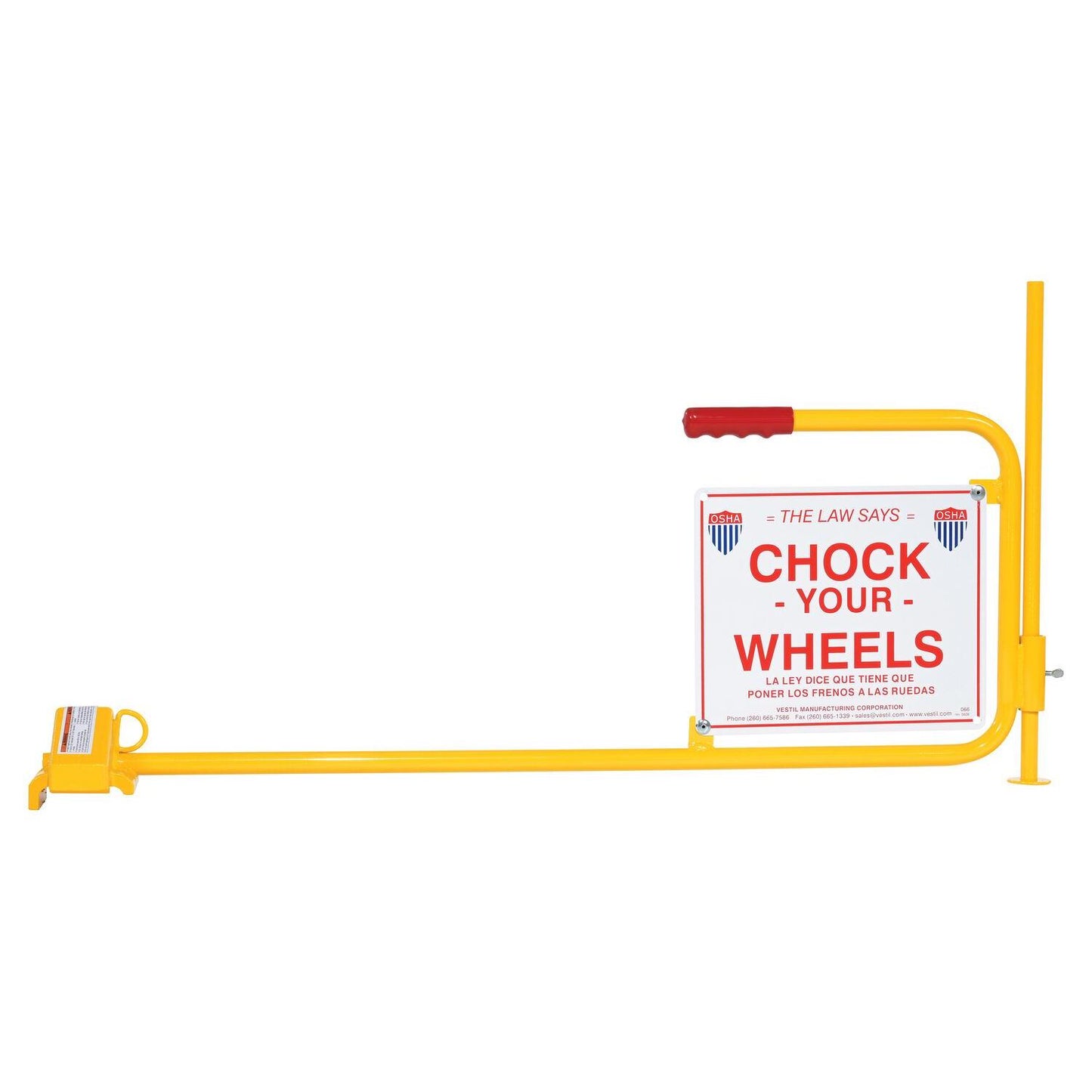

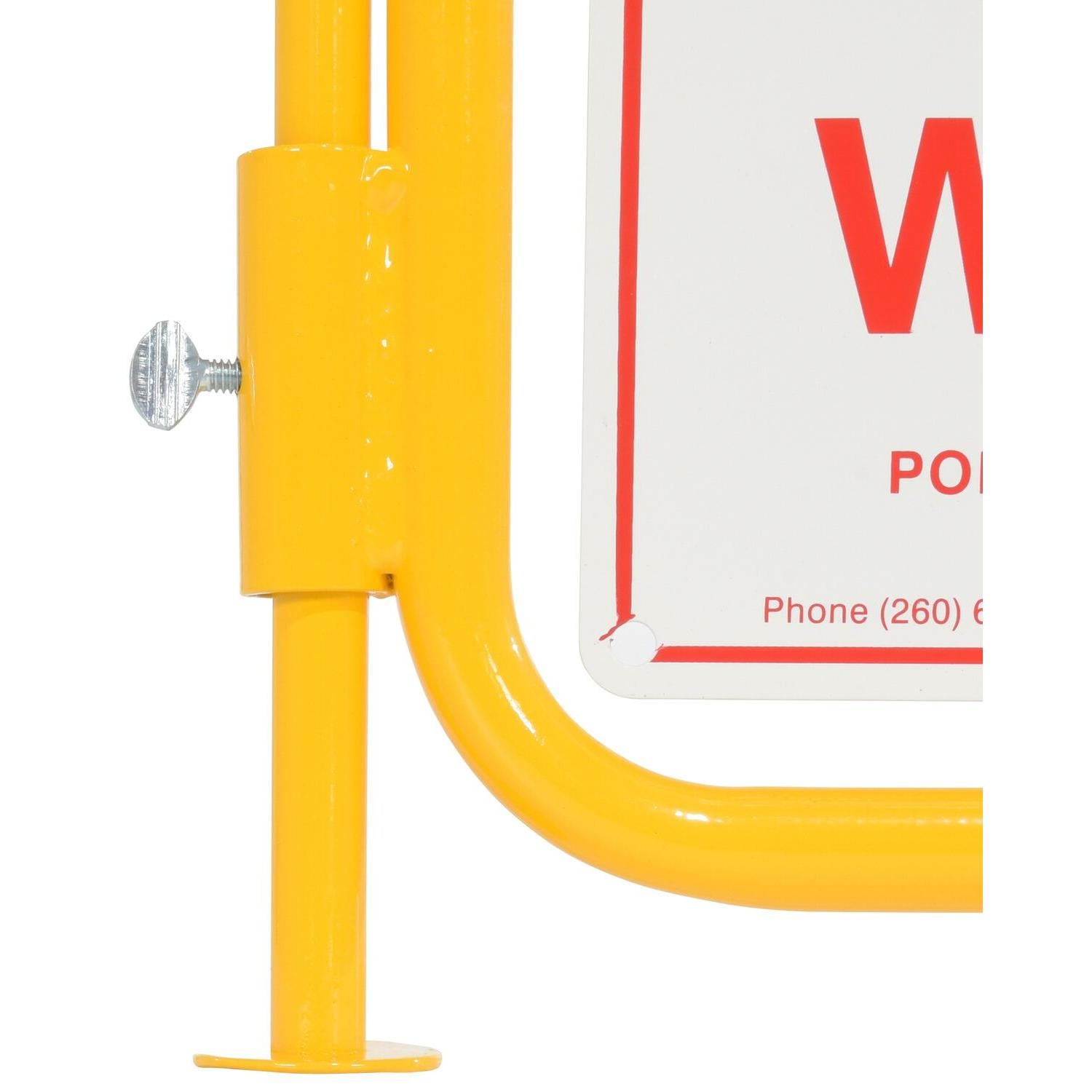

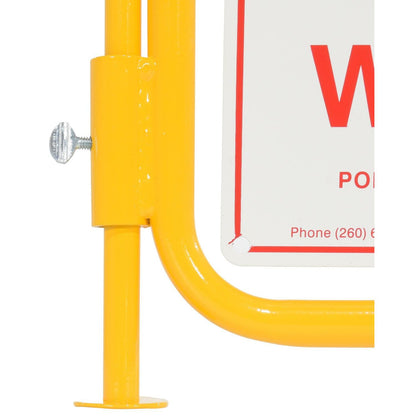

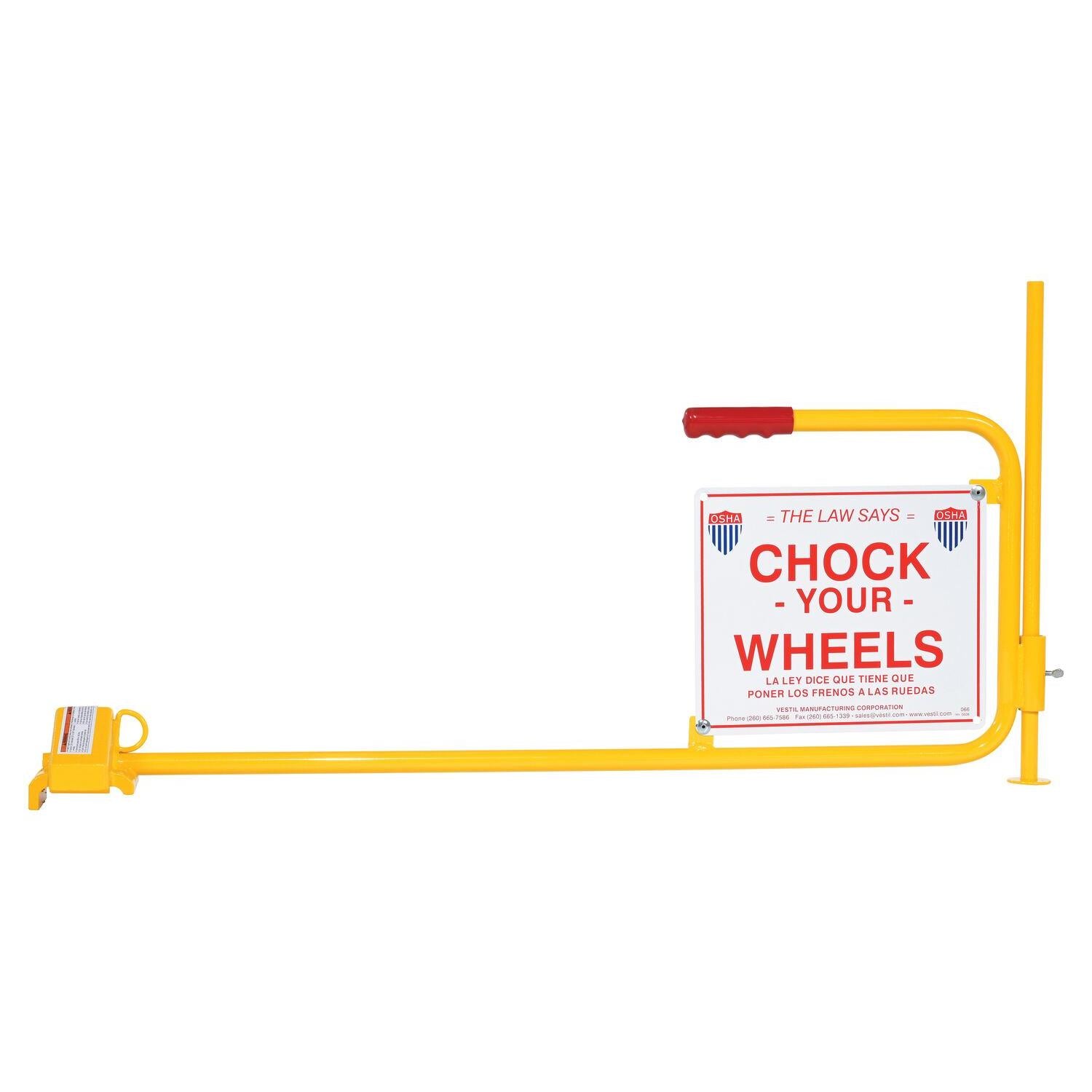

Steel Flag Rail Chock with Adjustable Height Leg (7-1/2" Width, Yellow)
Includes adjustable support legs for balance and a highly visible aluminum “Chock Your Wheels” sign, viewable from both sides. -

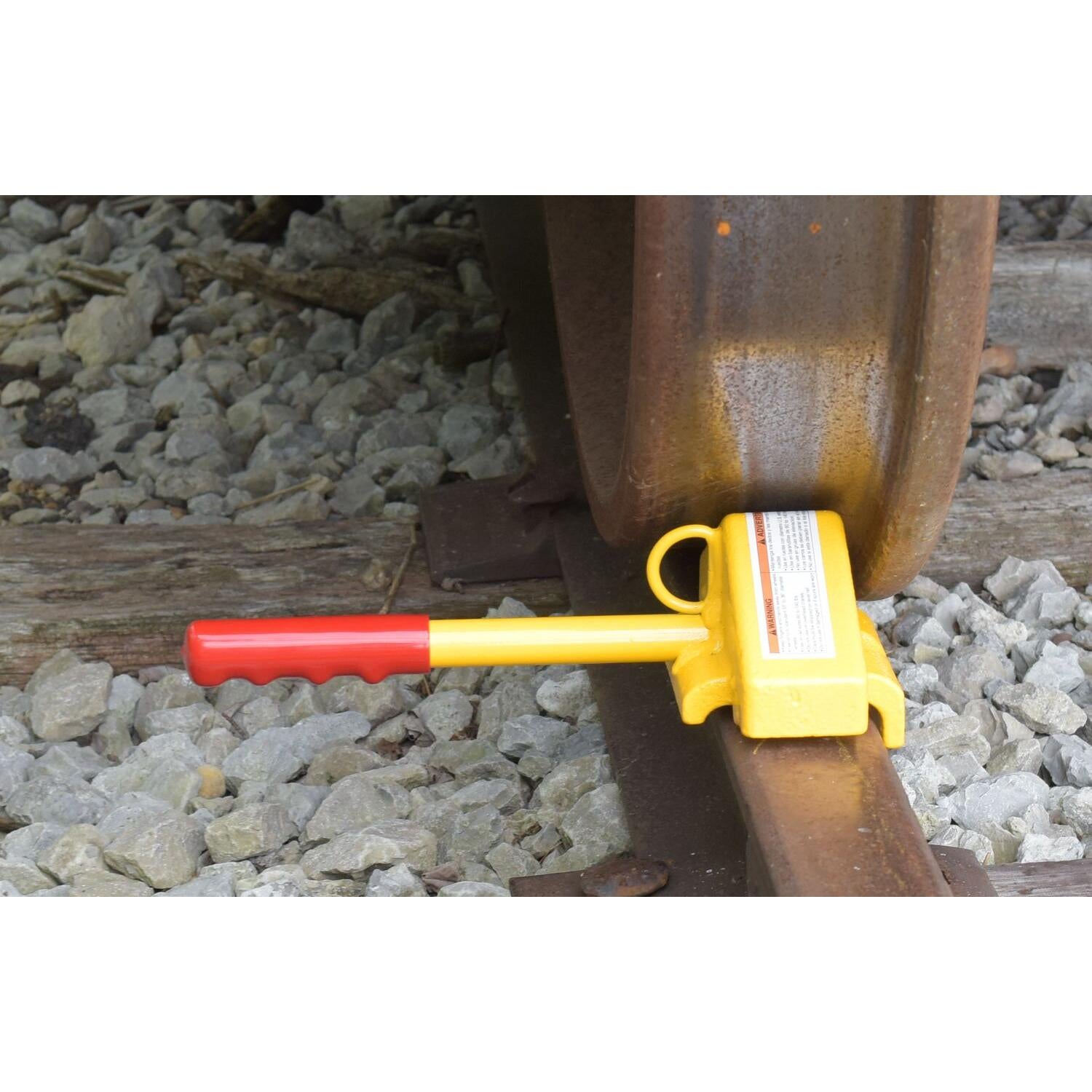

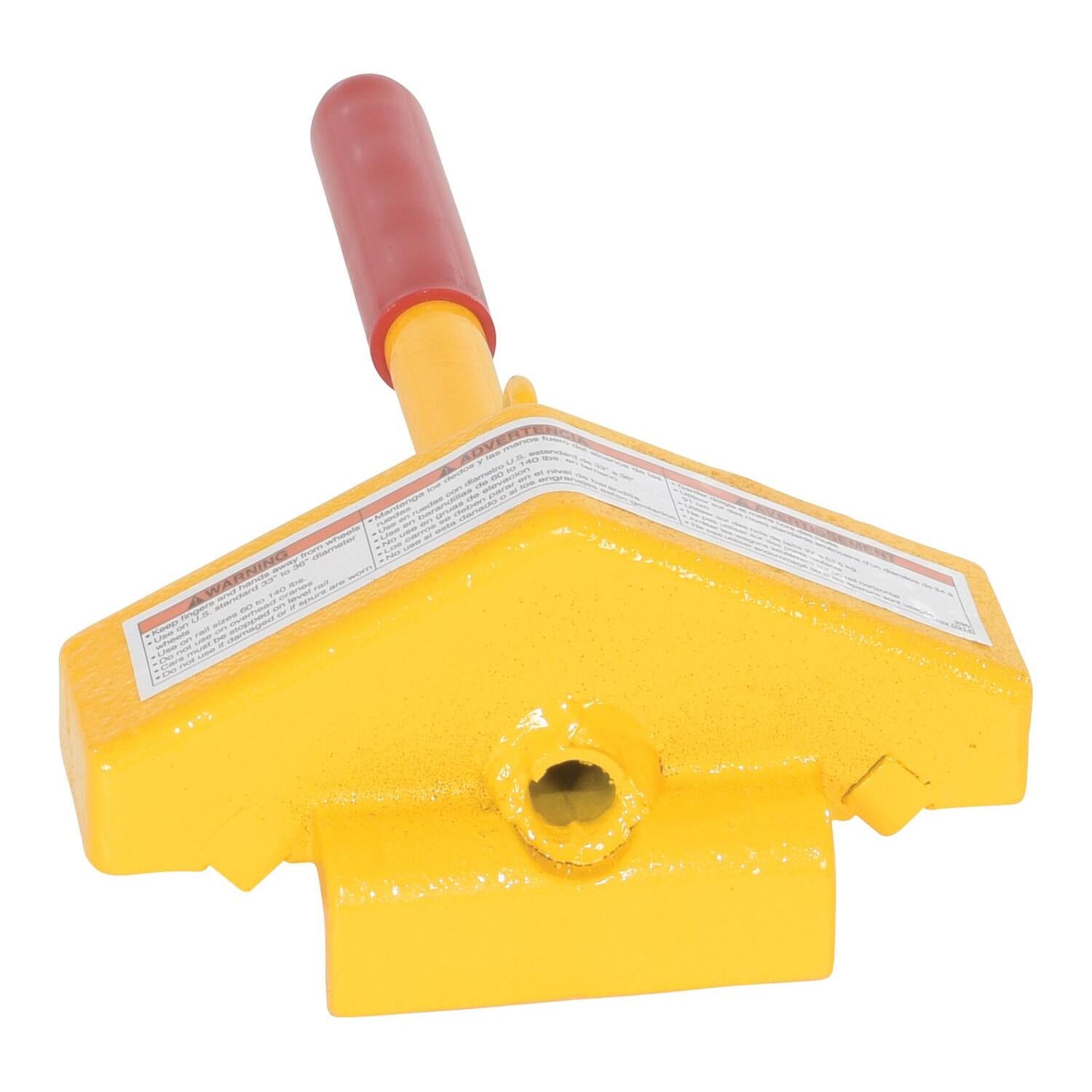

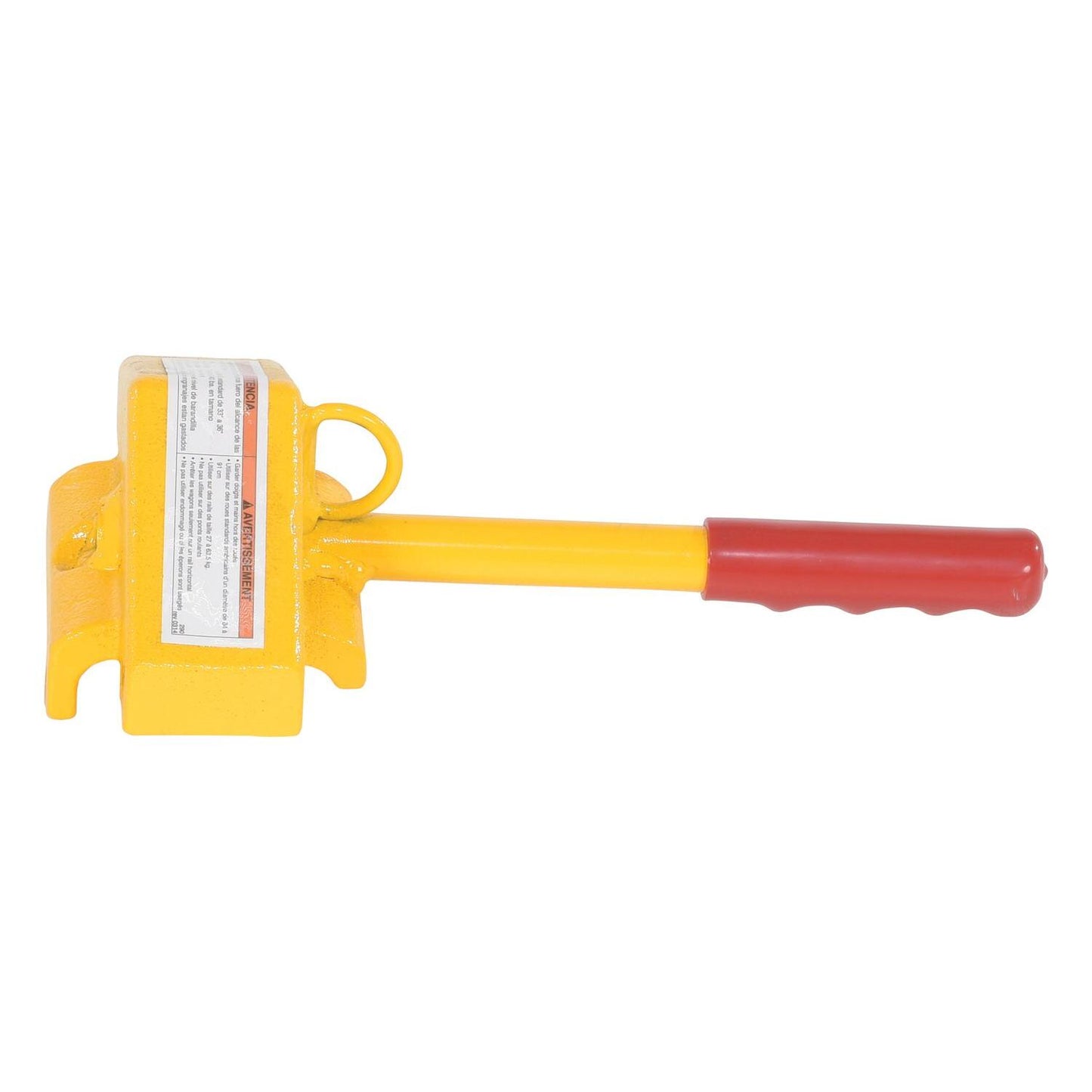

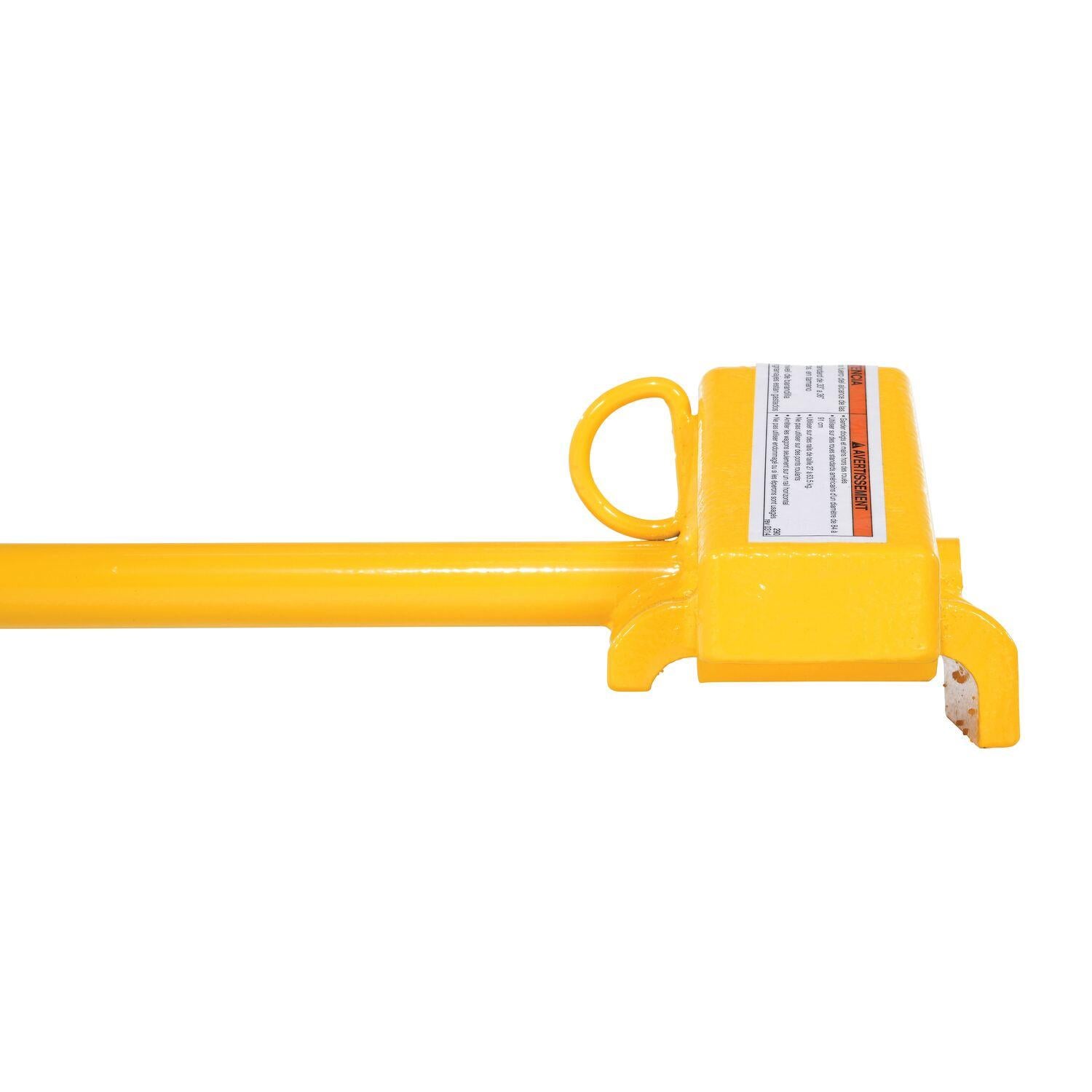

Steel Single Rail Chock (7-1/2" Width, Yellow)
Standard standalone model with powder-coated finish, steel spurs, and flanges for reliable railcar security. -

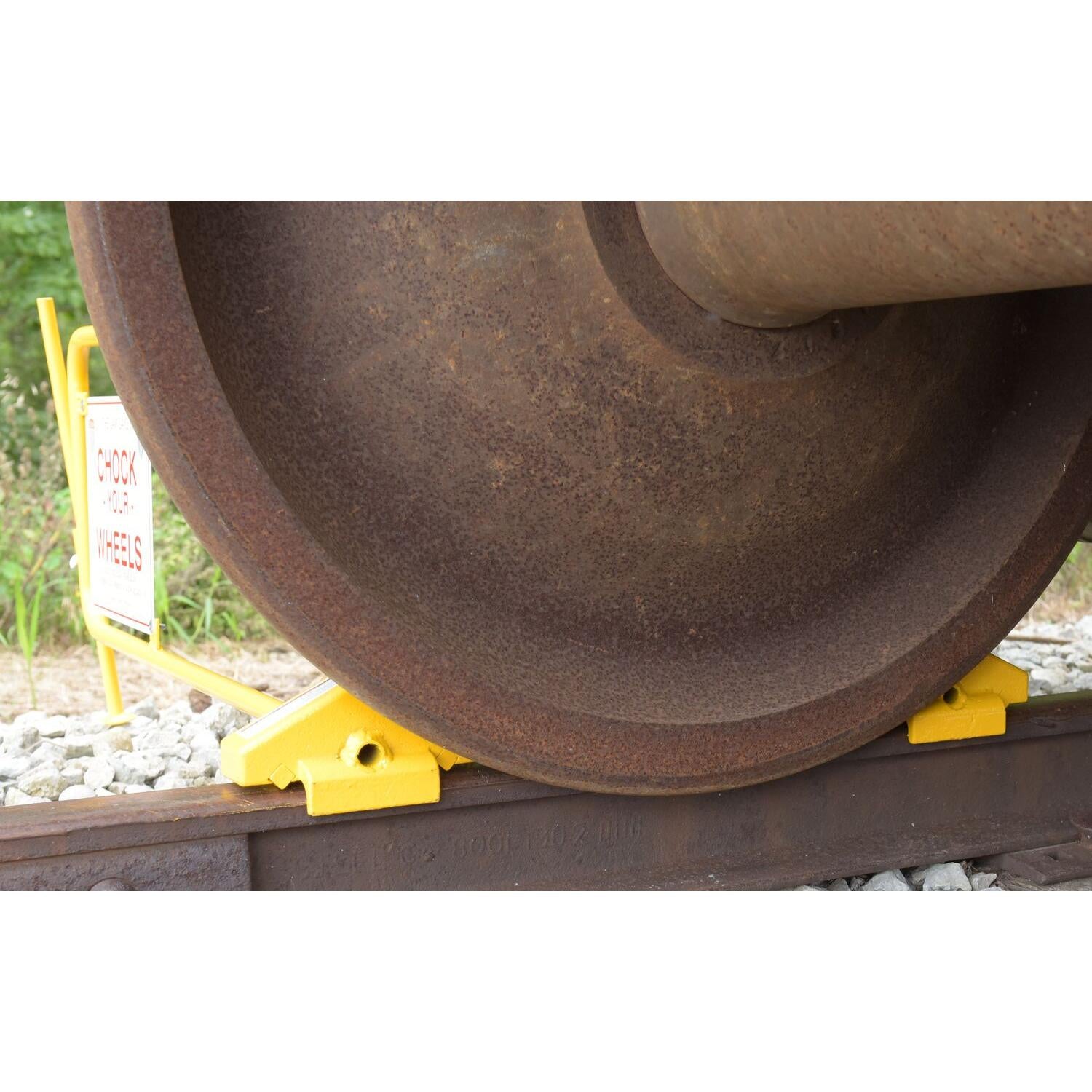

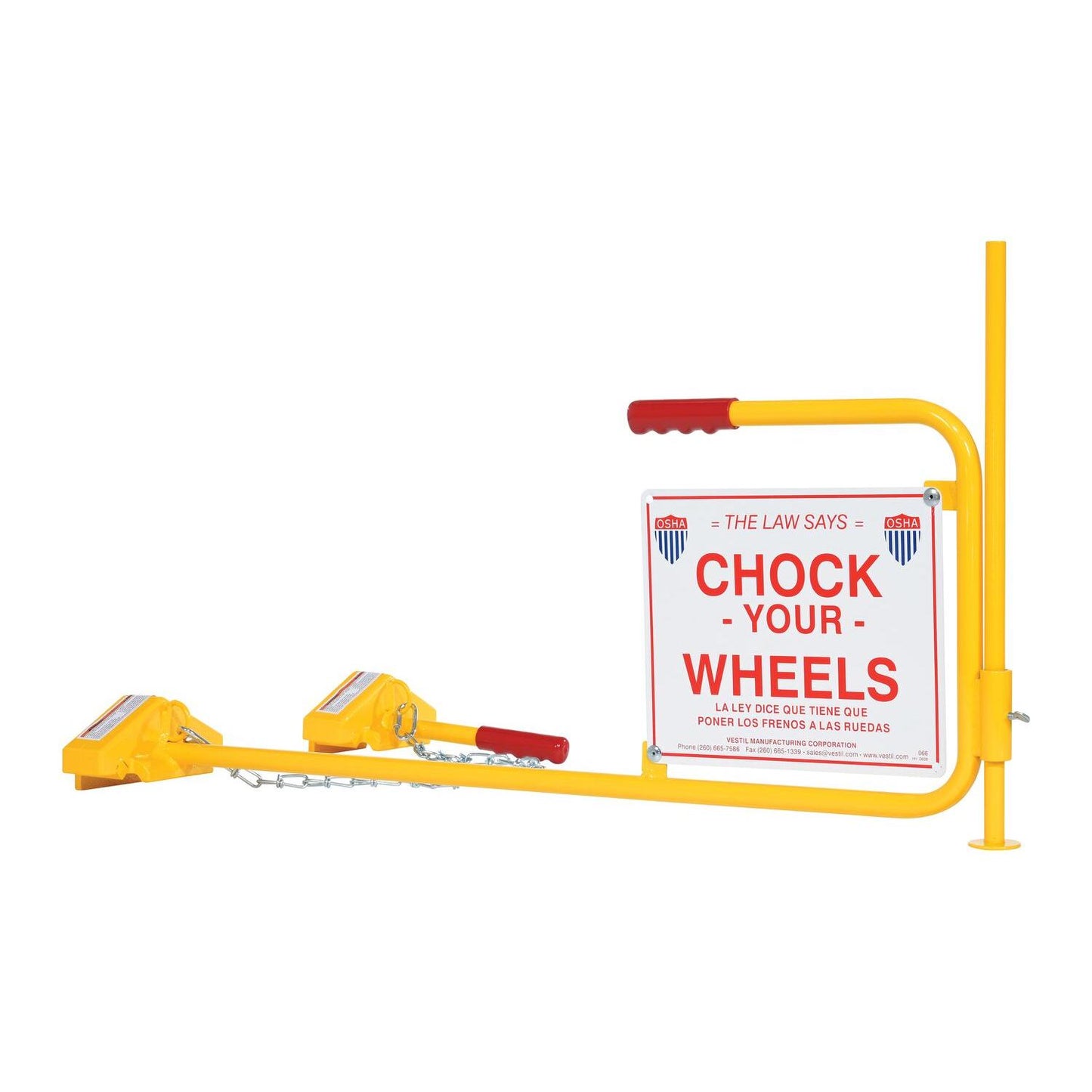

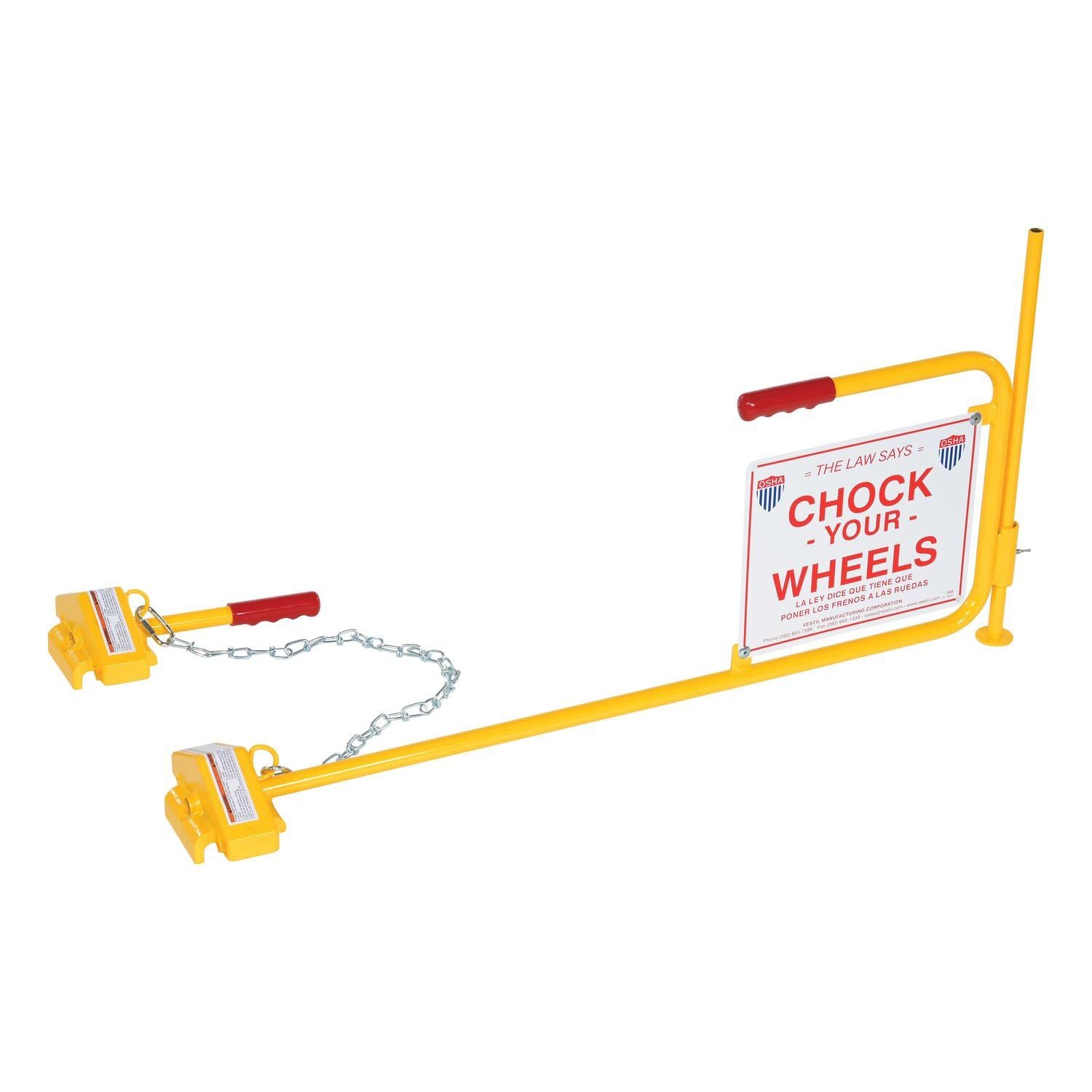

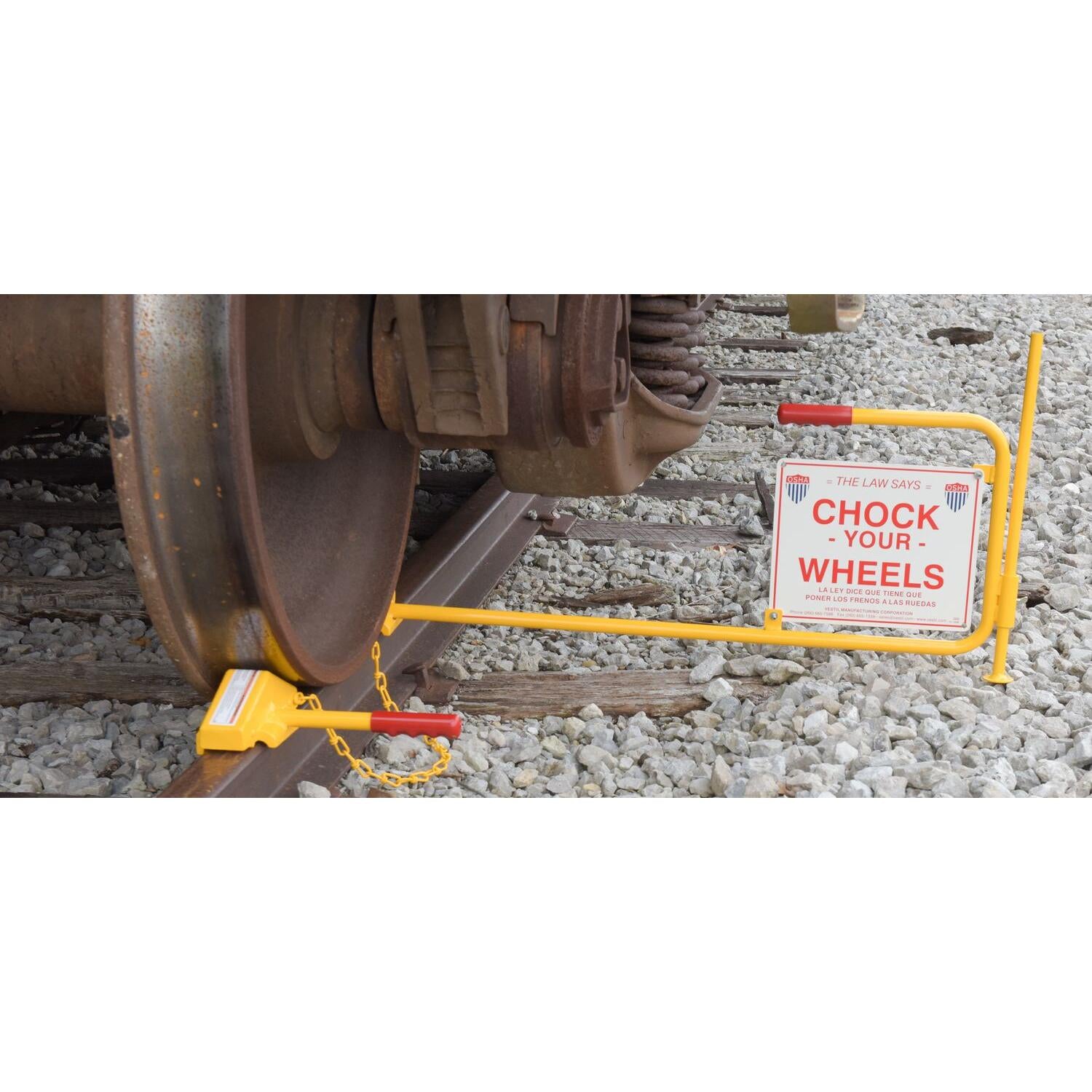

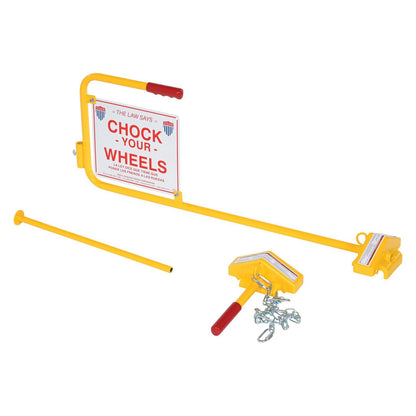

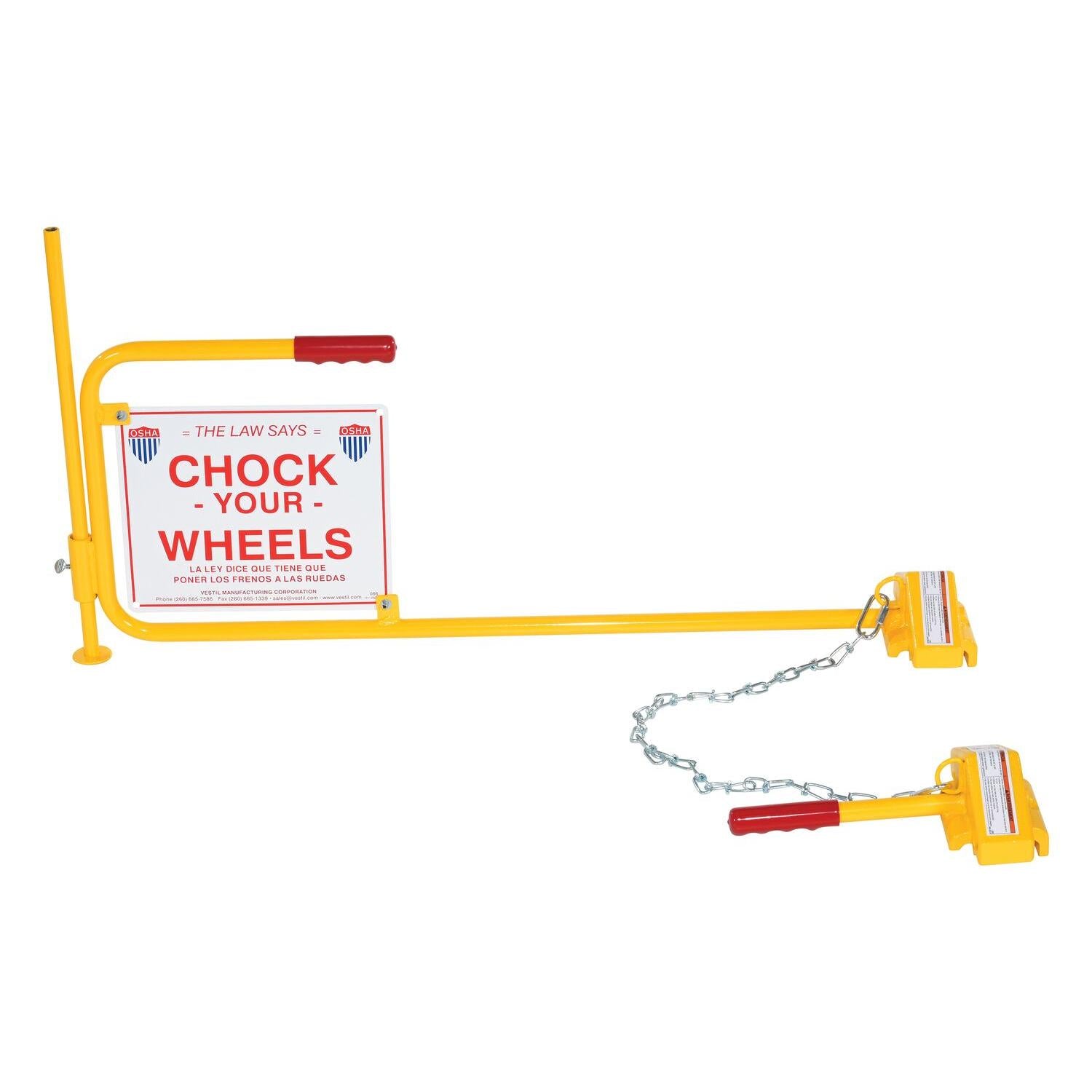

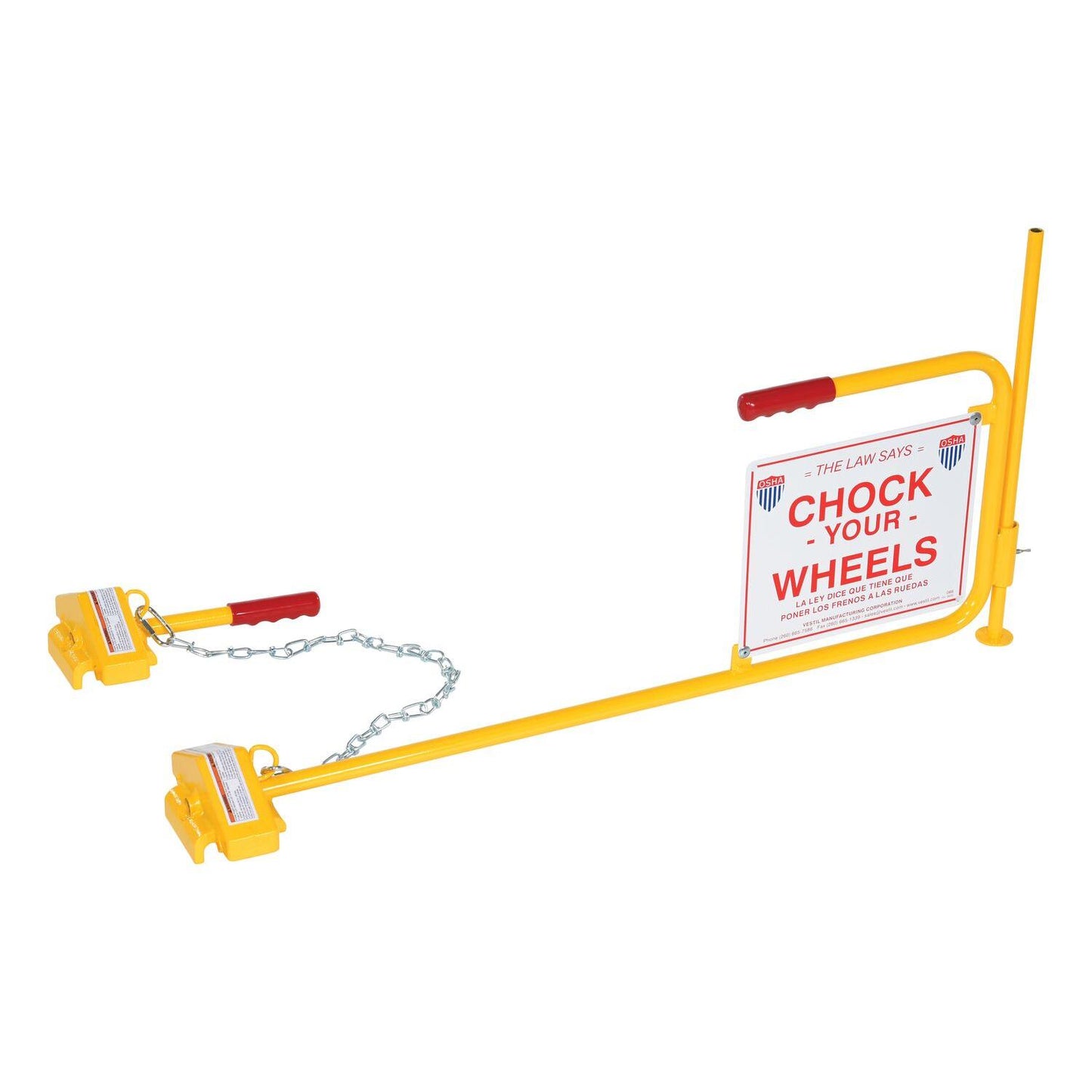

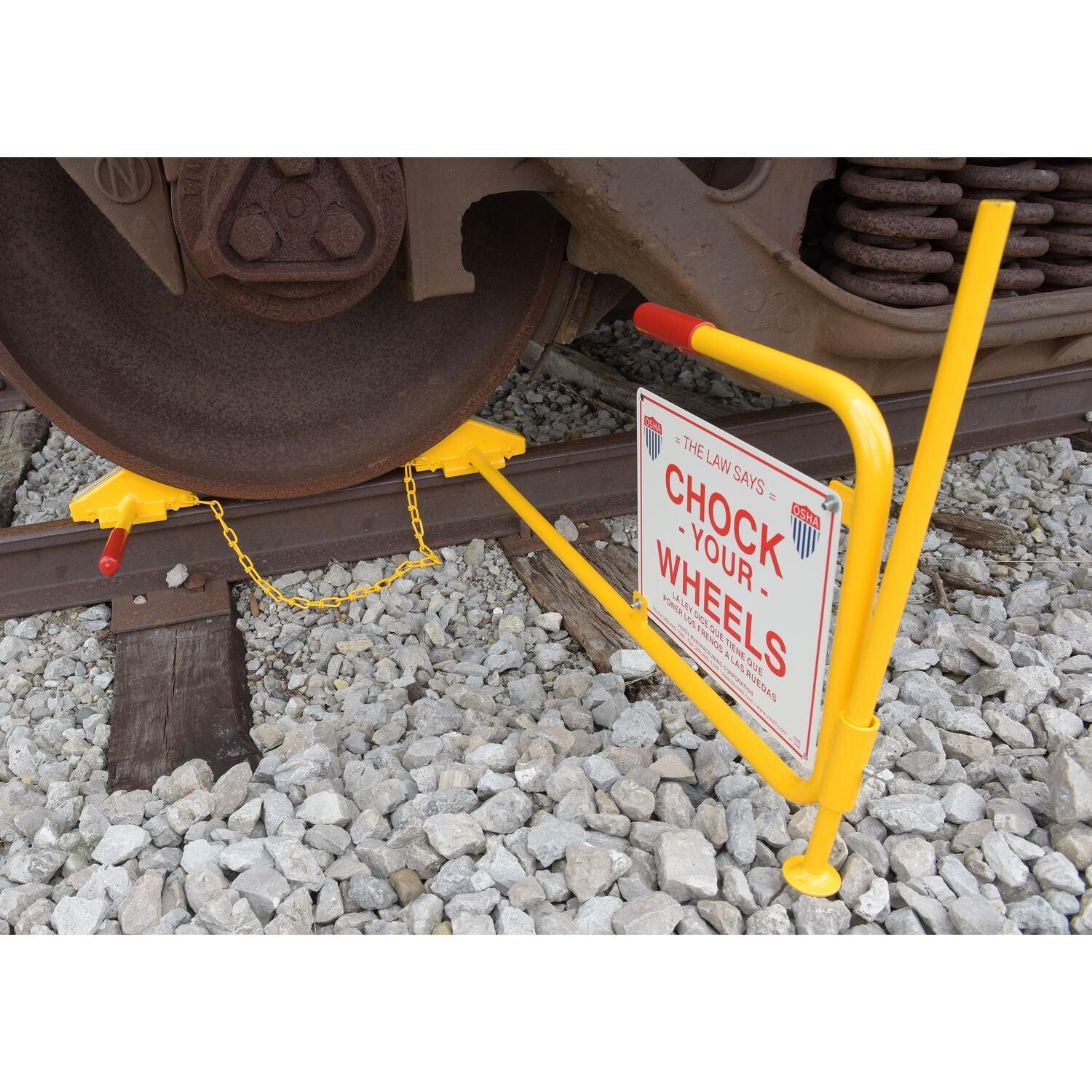

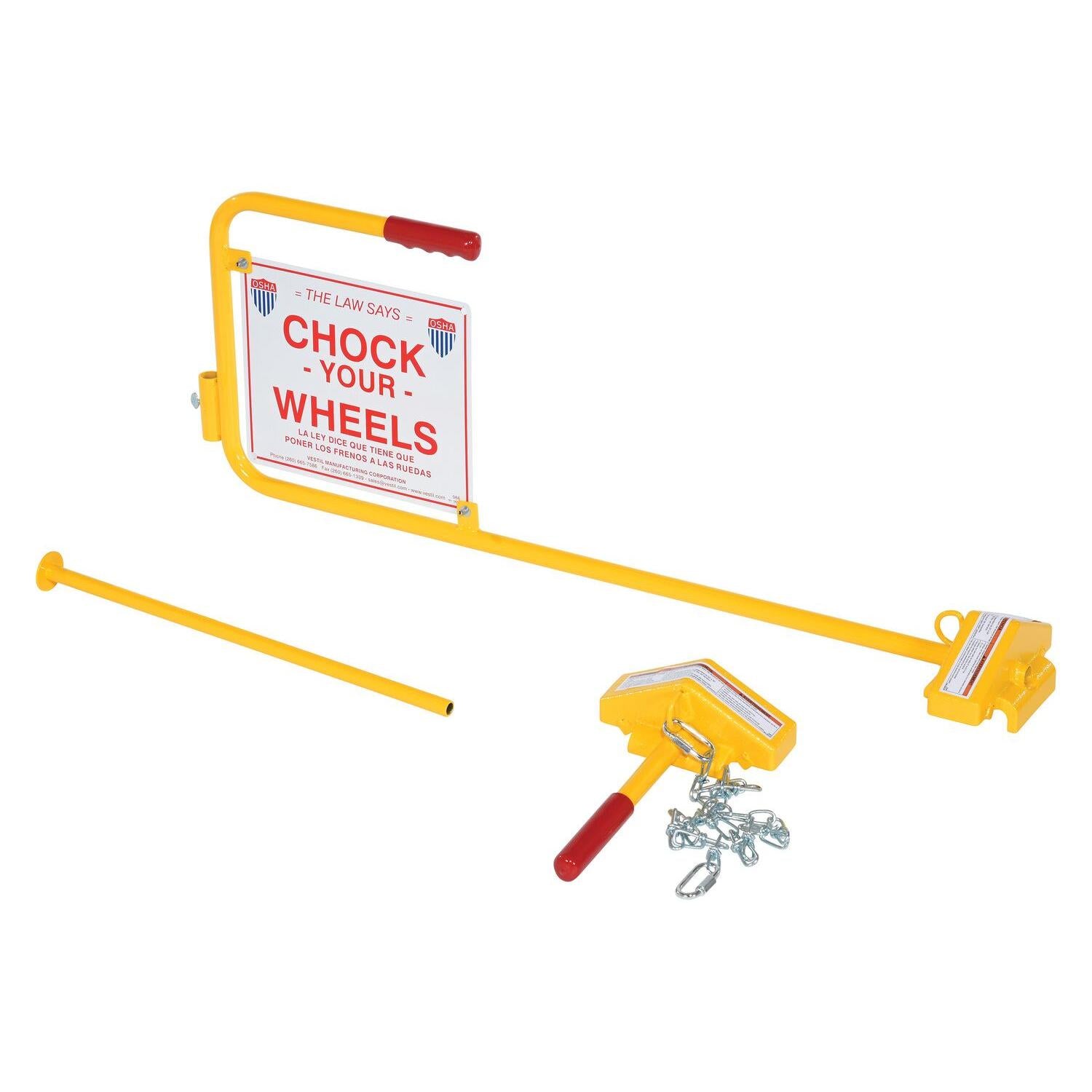

Steel Single Rail Chock with Flag Rail Chock (30" Long Chain, Yellow)
Combination design that links a standard rail chock to a flag-equipped unit with adjustable legs and aluminum signage for maximum safety. -

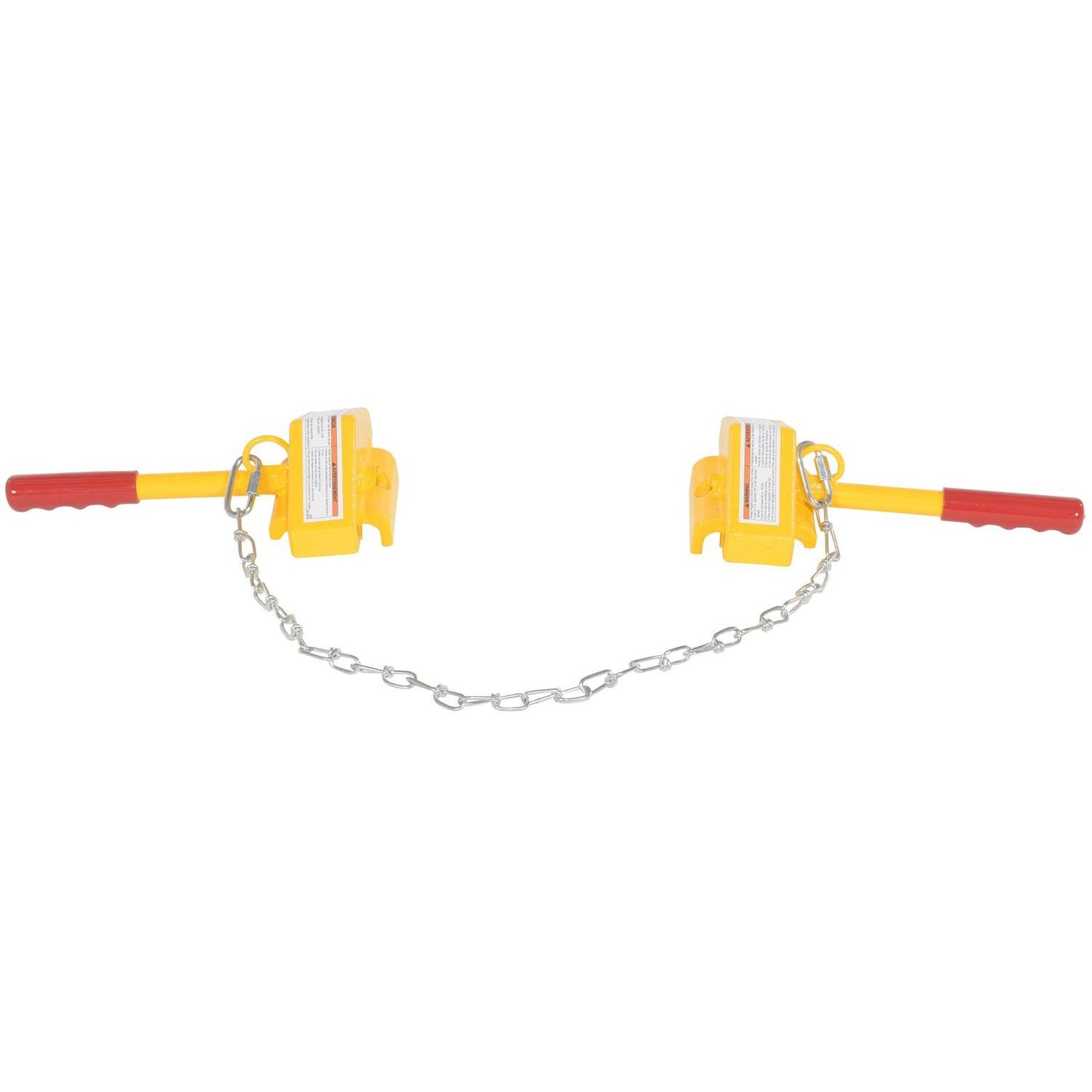

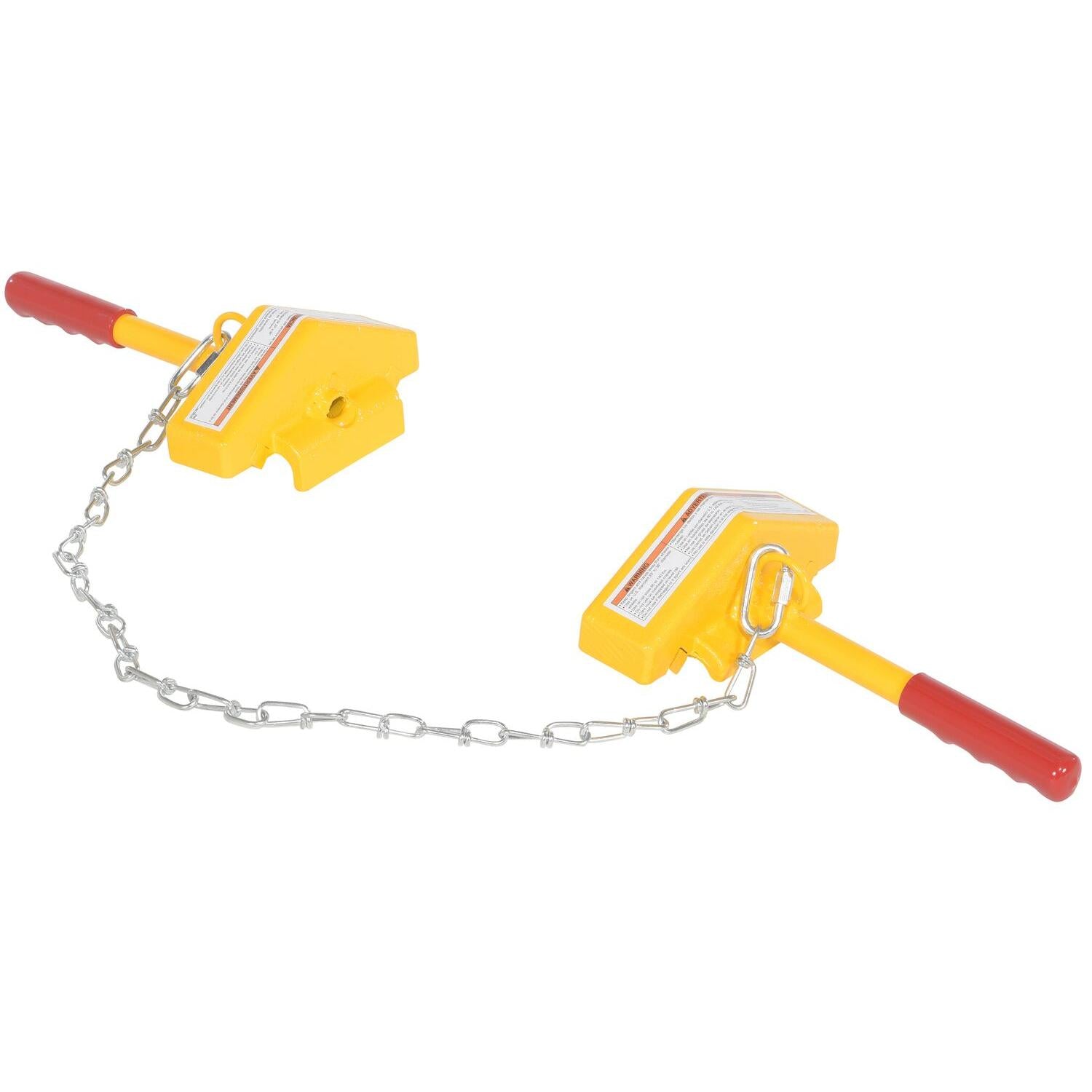

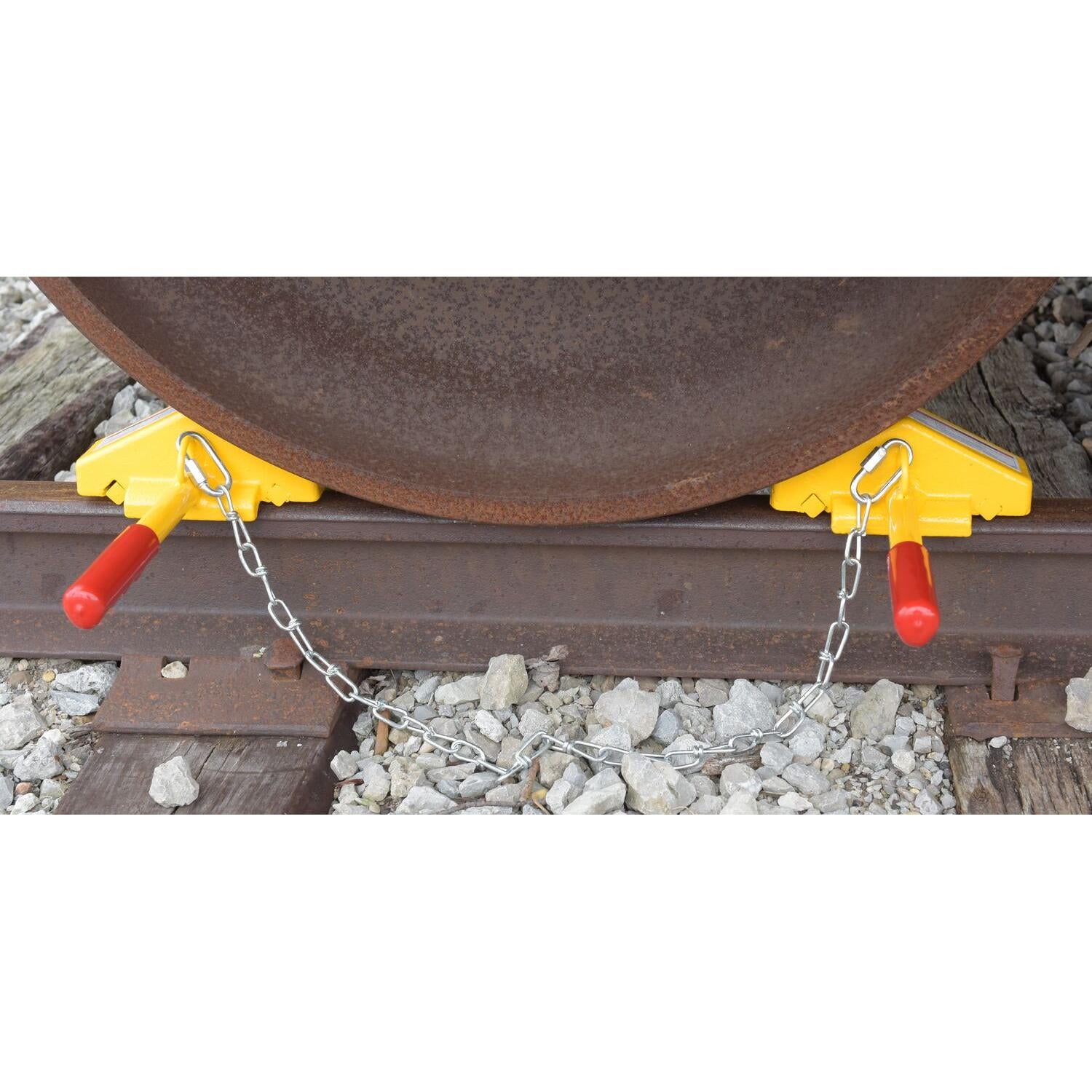

Steel Single Rail Chock with Single Rail Chock (30" Long Chain, Yellow)
Dual-unit combo connected by a 30" chain for added security and prevention of chock displacement.
Additional Information
All models are finished in high-visibility yellow for enhanced awareness. Flag-equipped units are particularly recommended for high-traffic or low-light environments where visual alerts improve compliance and safety. Combo sets with chains provide additional peace of mind by ensuring chocks remain in place and ready for use.
Technical Specifications:
| Specification | Flag Rail Chock w/ Adjustable Height Leg (7-1/2" Width) |
Single Rail Chock (7-1/2" Width) |
Single Rail Chock + Flag Rail Chock 30" Chain |
Single Rail Chock + Single Rail Chock 30" Chain |
|---|---|---|---|---|
| Assembled Size (W × L × H) | 40.0625" × 7.5" × 20.125" | 7.5" × 12.75" × 3.8125" | 40.0625" × 44" × 20.125" | 41.5" × 12.75" × 3.8125" |
| Total Ship Weight (lbs) | 15 | 8 | 23 | 16 |
| Assembly | Assembly required | Assembled | Assembled | Assembled |
| Wheel Chock Usage | Railroad | Multi-Purpose | Multi-Purpose | Multi-Purpose |
| Wheel Chock Connection | Tension Pole Assembly | None | Tension Pole Assembly | Chain |
| Wheel Chock Quantity | 1 | 1 | 2 | 2 |
| Wheel Chock Height (in) | 3.75 | 3.8125 | 3.8125 | 3.8125 |
| Wheel Chock Weight (lbs) | 6.5 | 8 | 21 | 16 |
| Flag Handle Length (in) | 36 | — | 36 | — |
| Chock Handle Length (in) | — | 9-11/16 | 9-11/16 | 9-11/16 |
| Flag Raised / Lowered (in) | 29 / 14.25 | — | 29 / 14.25 | — |
| Chain Length | — | — | 30" (chain between units) | 30" (chain between units) |
| UPC | 691215020947 | 691215037082 | 691215037068 | 691215037075 |
- Color / Finish: Yellow
- Built-In Handles / Poles: Yes
- Wheel Chock Construction Material: Steel
- Wheel Chock Length (in): 7.5
- Wheel Chock Width (in): 3.9375 (3-15/16)
- Bottom Surface Material: Steel
- Grip Surface Material: Steel
- Prop 65 Warning Required: Yes
- Manufacturer Warranty: 30 Days
Made in the USA
If you would like to request a quotation for large quantities of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
