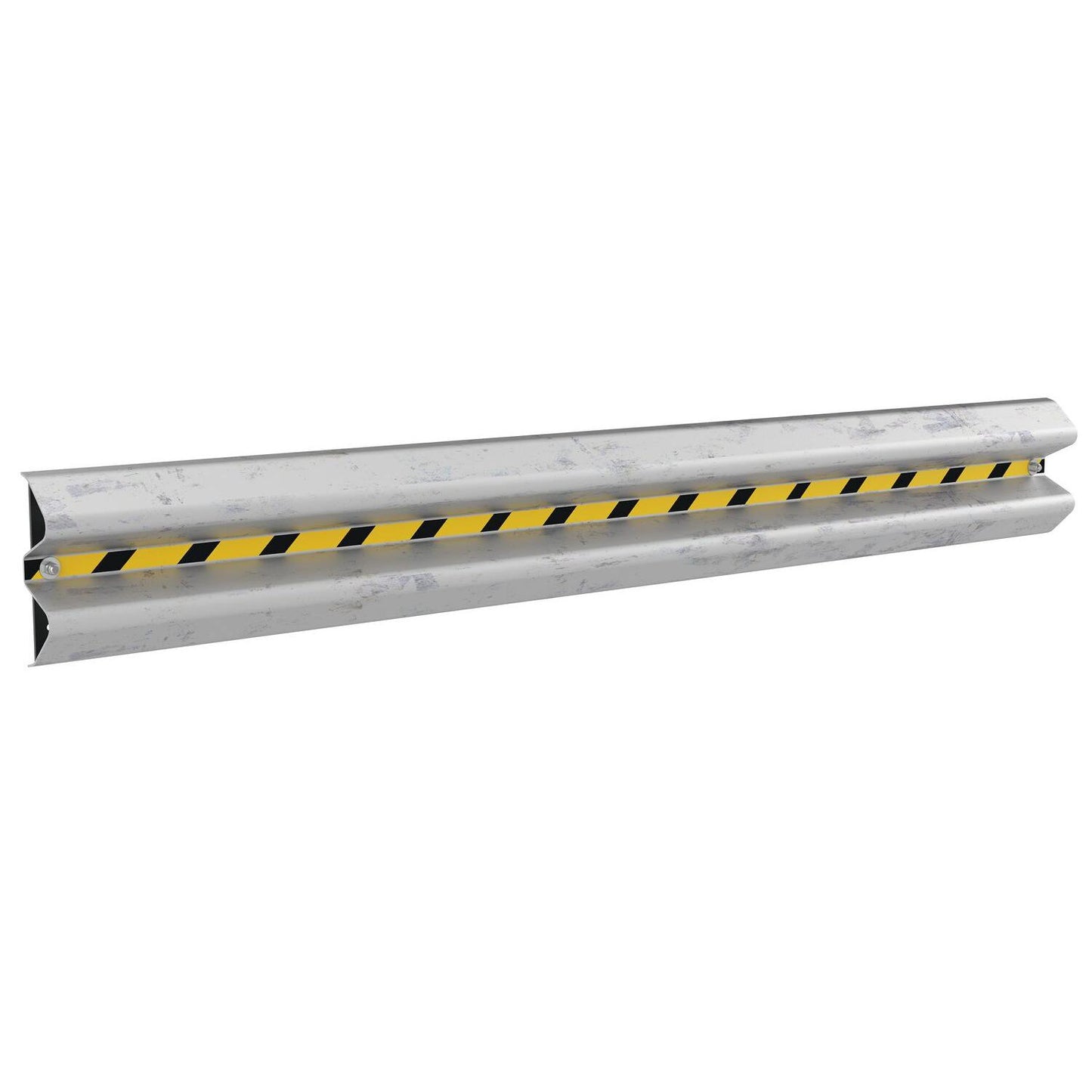

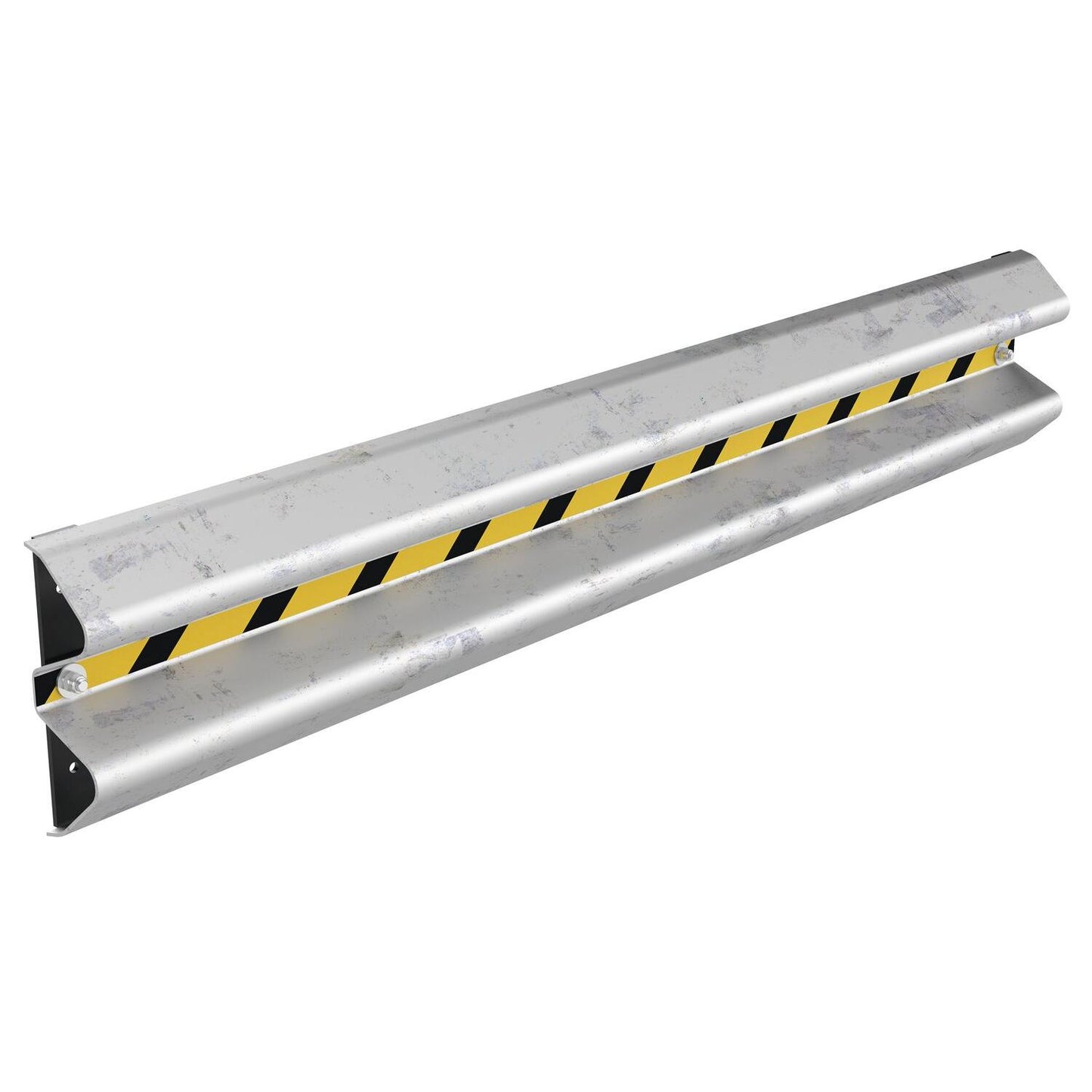

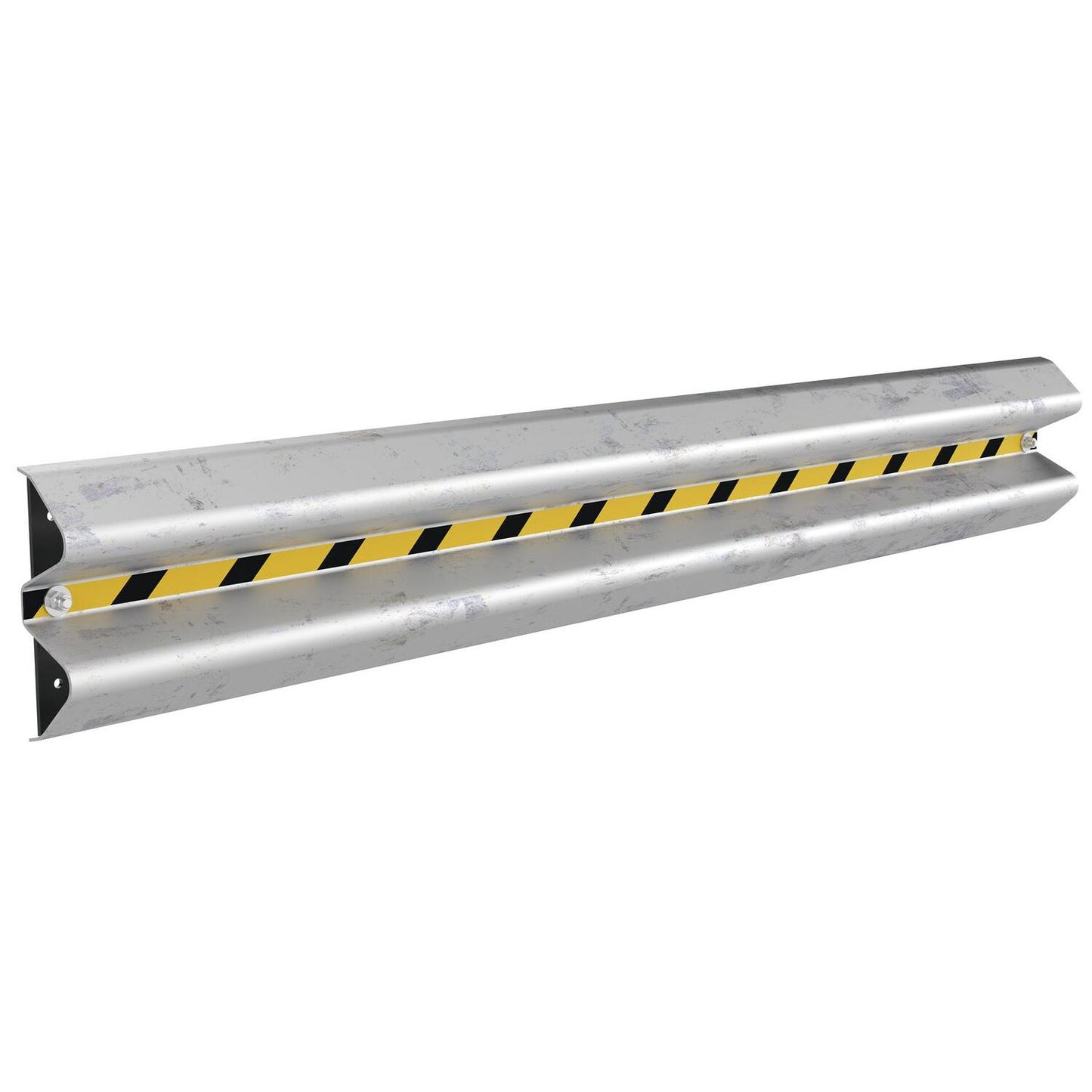

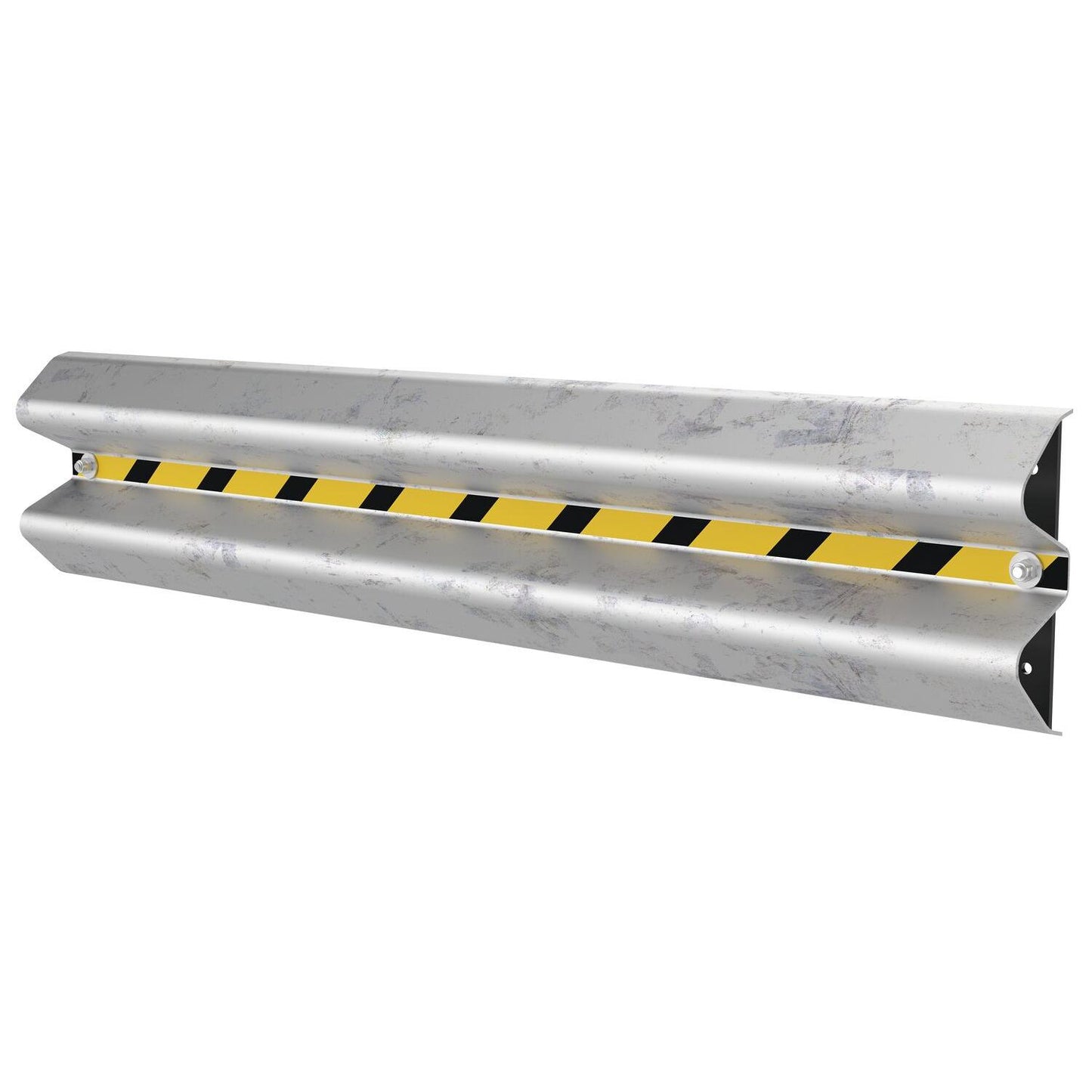

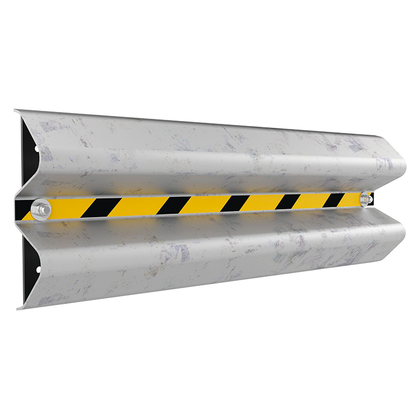

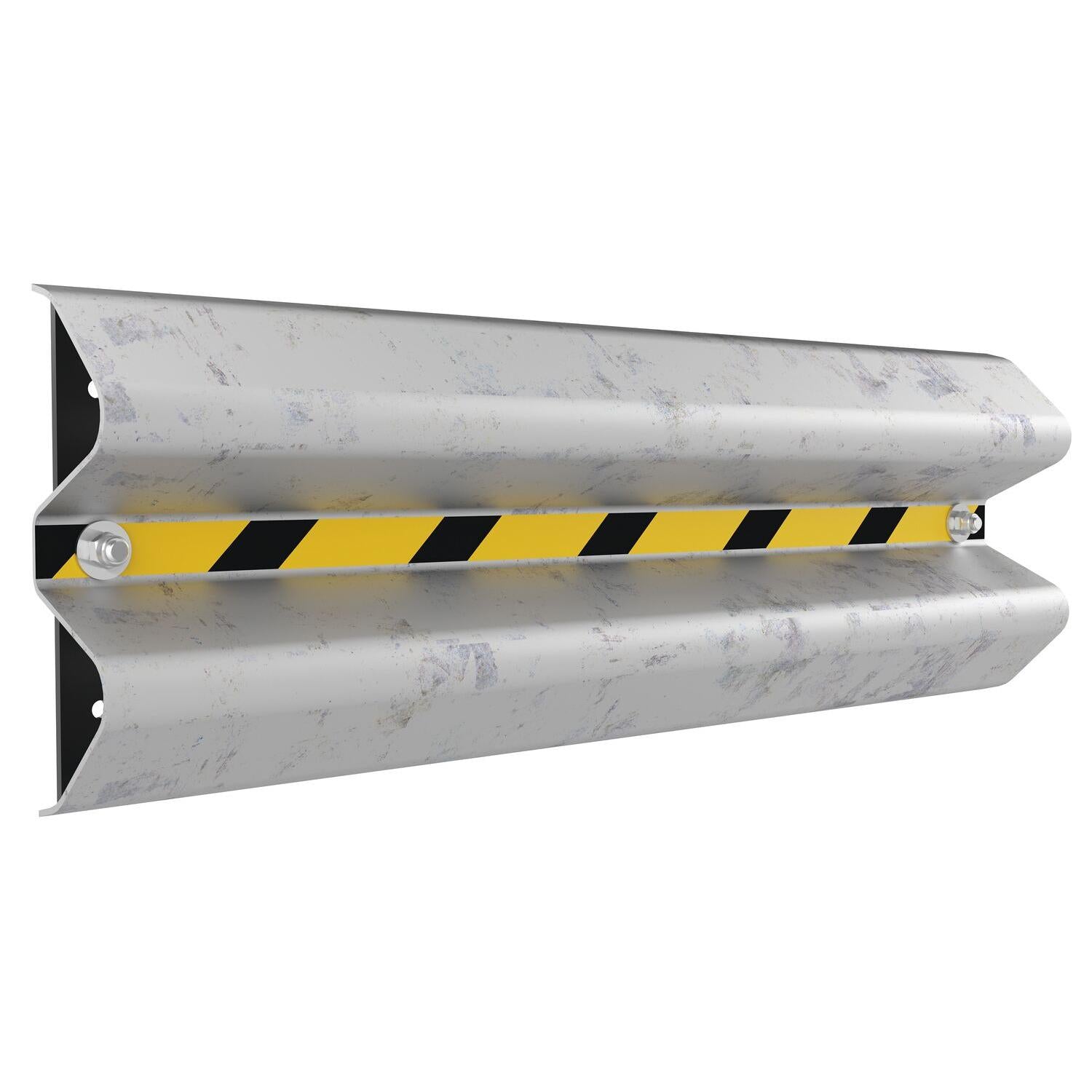

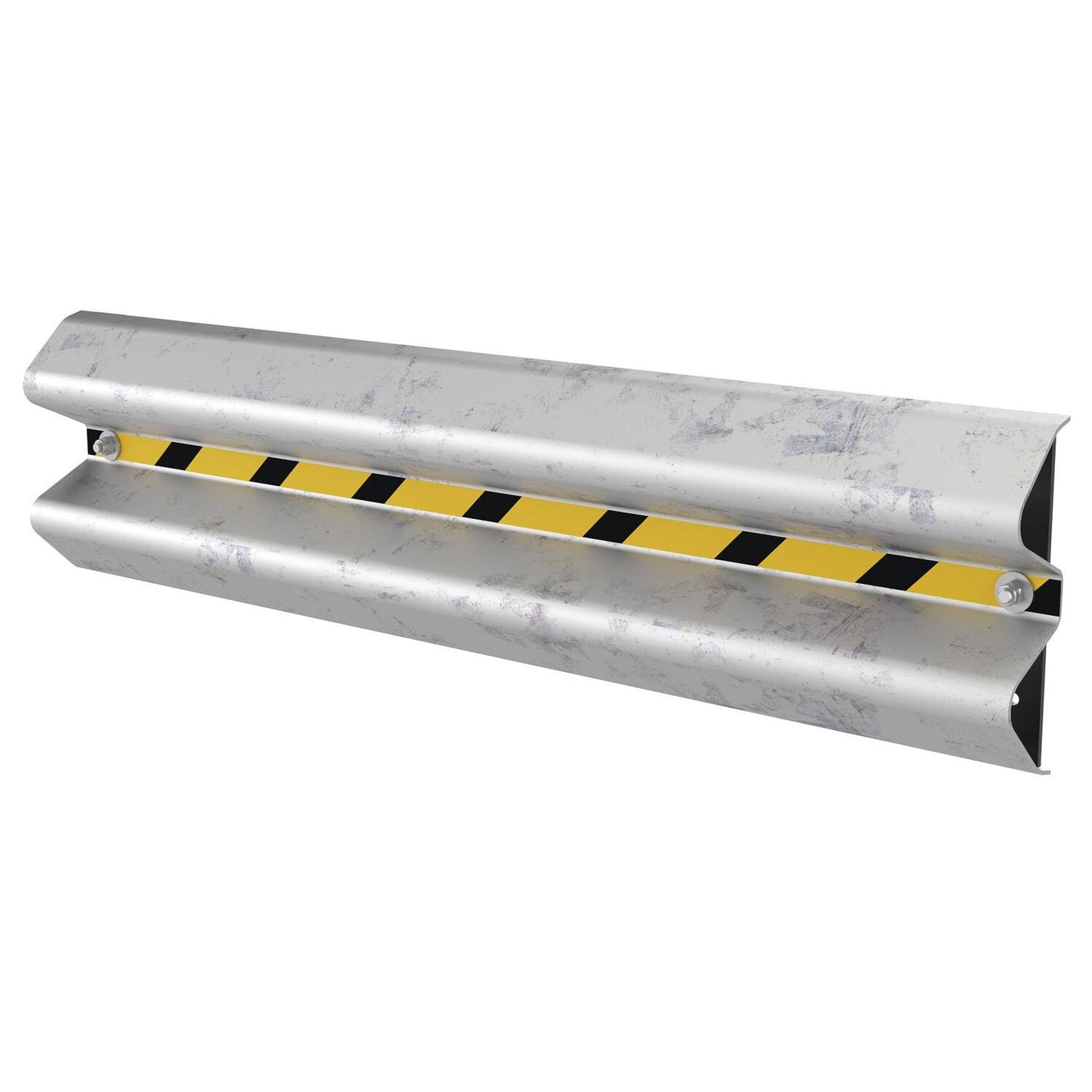

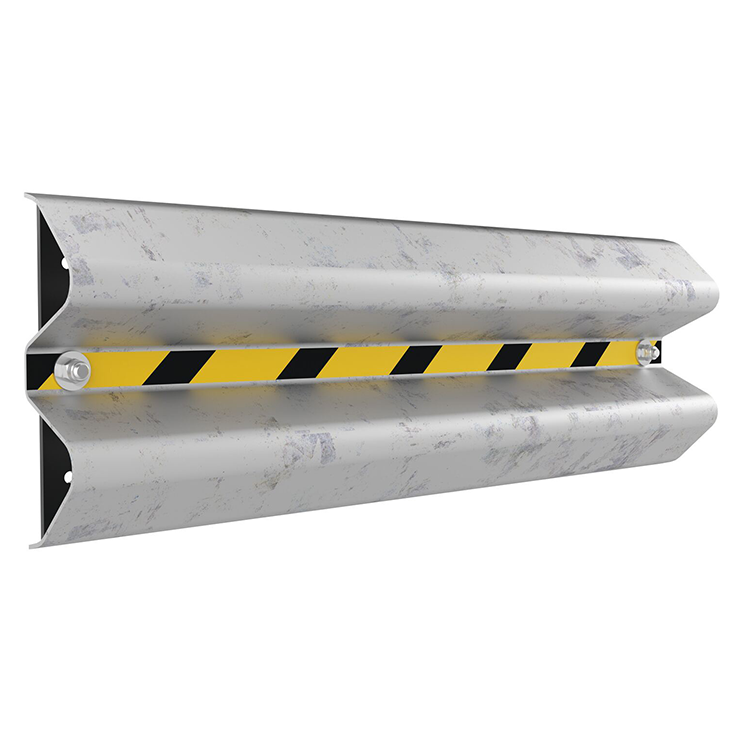

Wall-Mountable Steel Guard Rails – Hot-Dip Galvanized Finish

Wall-Mountable Steel Guard Rails provide high-strength, space-saving impact protection for loading docks, warehouse walls, service corridors, and other high-traffic areas. Mounted directly to structural surfaces, they safeguard equipment, infrastructure, and pedestrian pathways without occupying valuable floor space.

Constructed from heavy‑gauge steel and finished with a hot-dip galvanized coating, these rails provide exceptional corrosion resistance for both indoor and outdoor use. Each section is rated to withstand impacts of up to 10,000 lb at 4 mph and can be installed at any height to accommodate specific protection needs.

Key Features & Benefits

• Space‑Saving Wall Mount – Protects walls and equipment without obstructing traffic lanes.
• Heavy-Duty Steel Construction – Provides reliable structural protection in demanding environments.
• Hot-Dip Galvanized Finish – Delivers superior rust and weather resistance for long-lasting performance.
• High Impact Capacity – Rated to absorb 10,000 lb at 4 mph, reducing damage from forklifts and vehicles.
• Height‑Adjustable Installation – Mount at the optimal elevation for racks, conveyors, or door tracks.
• Versatile Length Options – Available in 36 in, 48 in, 60 in, 72 in, 84 in, and 96 in segments for custom coverage.

Additional Information:

Mounting hardware is not included and should be selected based on wall type (concrete, block, or steel). Combine multiple rail sections to create continuous runs or form corner protection tailored to your facility’s layout.

Technical Specifications:

• Hardware Included: No
• Impact Capacity (lbs): 10,000 @ 4 mph
• Gauge: 11
• Color: Gray
• Material: Galvanized Steel
• Manufacturer Warranty: 90 Days

Made in the USA

If you would like to request a quotation for large quantities of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
