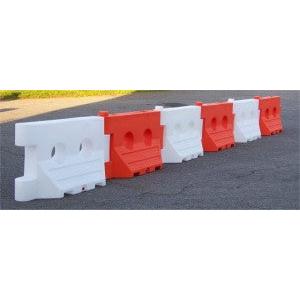

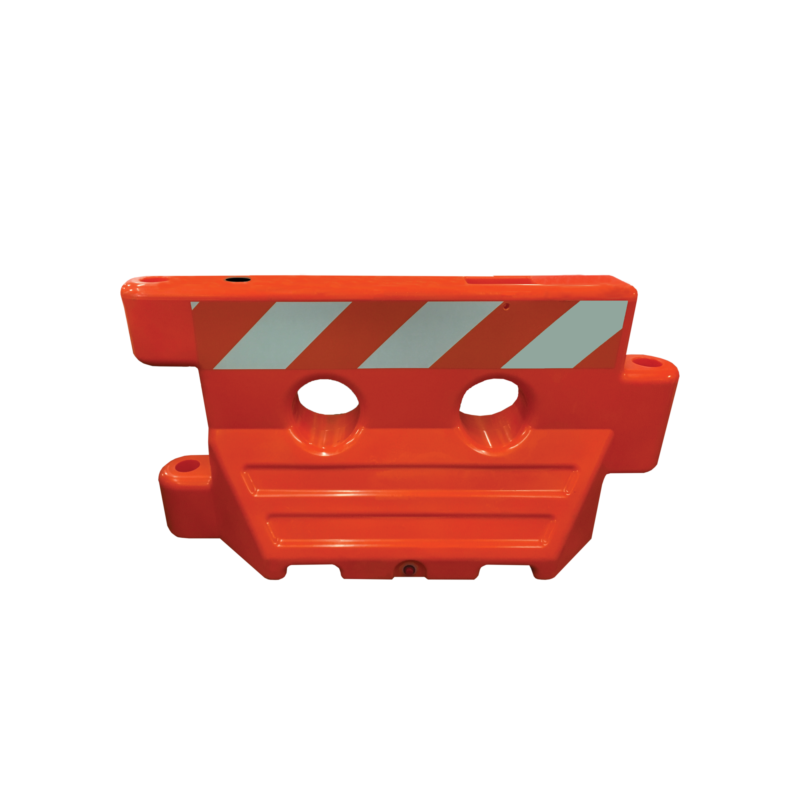

Water Filled Barricade System

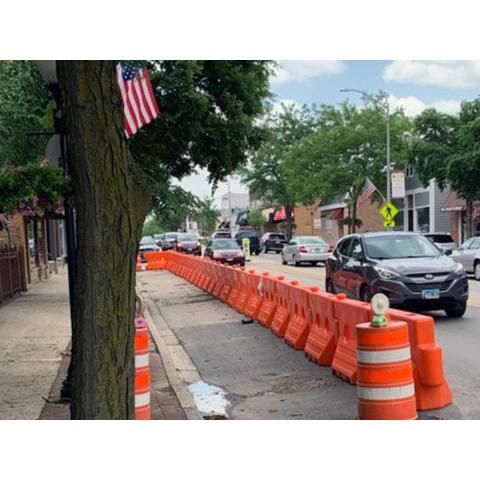

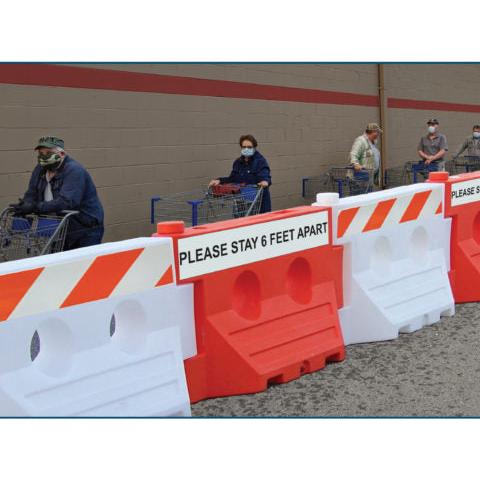

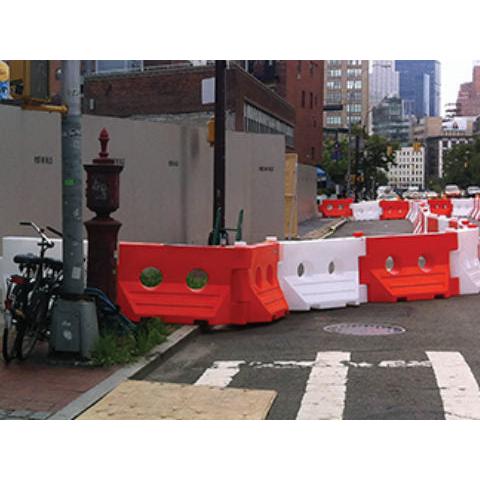

The Water Filled Barricade System is a durable, all-polyethylene jersey barrier designed for traffic and pedestrian channelization in construction zones, roadways, and event areas. With its interlocking design, these barricades can be deployed in continuous lines or configured into curves, providing reliable separation and protection for vehicles, workers, and the public.

Built for both strength and versatility, each unit can be water ballasted for stability yet remains lightweight when empty for easy handling, transport, and storage. Its integrated connector system, reflective options, and barricade light compatibility ensure safe and efficient use in any environment.

Features and Benefits:

• Water Capacity: Holds up to 72 gallons for added weight and stability
• Leak Tested: Each unit tested to ensure maximum performance

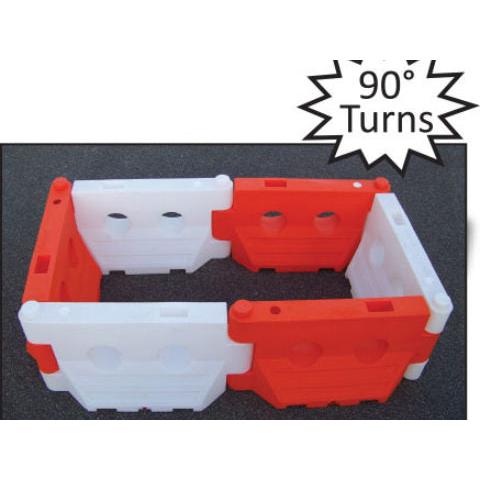

• Configurable Design: Connects and turns up to 90° for flexible channelization
• Lightweight Handling: Easy to transport, relocate, and store when empty

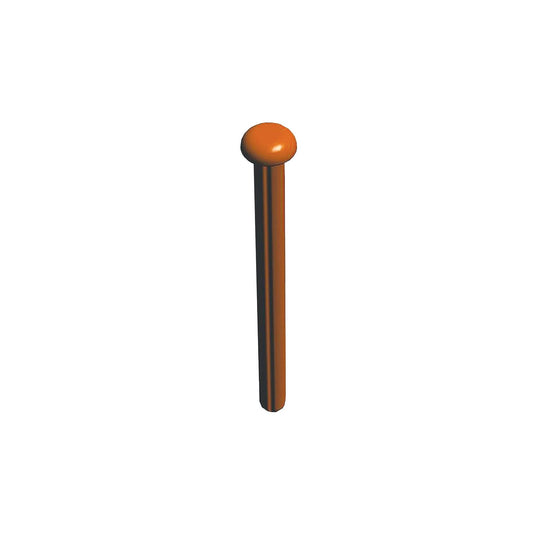

• Connector Pin: Included for secure interlocking of units
• Simple Assembly: Tongue-and-groove design ensures long-lasting unions
• Durable Construction: Impact-resistant polyethylene material

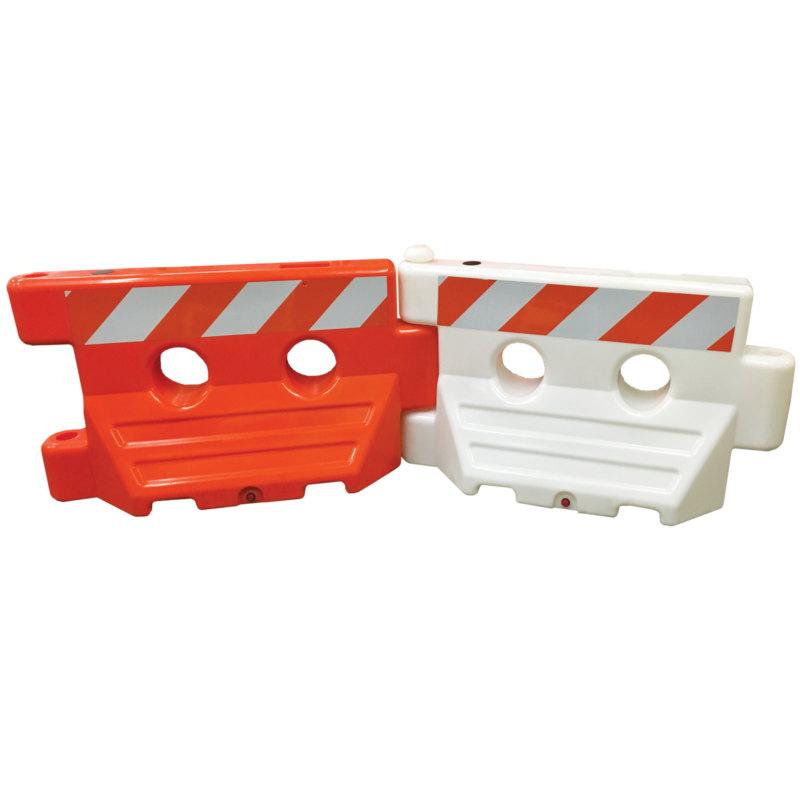

• Visibility Ready: Accepts one barricade light and single or double-sided reflective sheeting
• Certified Safety: MASH Accepted WZ-387, meets MUTCD Standards
• Made in USA: Manufactured with quality and reliability in mind

Additional Information

• Forklift access points allow safe relocation when filled
• Component parts are available separately (see Accessories and Replacement Parts above)
• Designed to adapt to roadway curves and curbs for maximum versatility

Technical Specifications:

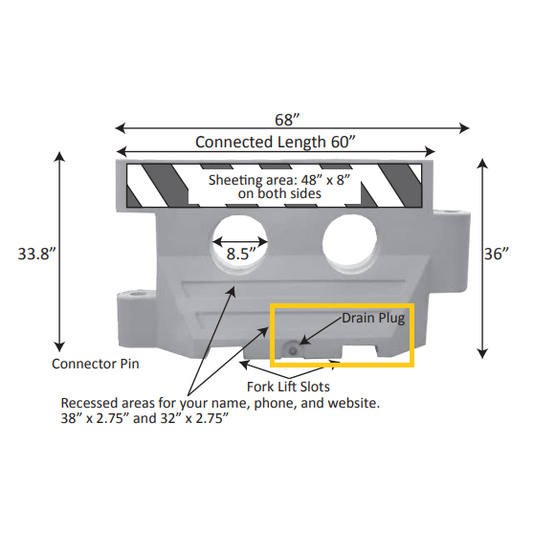

• Dimensions: 68” L x 24” W x 36” H
• Top Width: 7-5/8”
• Weight: Empty – 50 lbs., Water filled – 683 lbs., Connector Pin – 3 lbs.

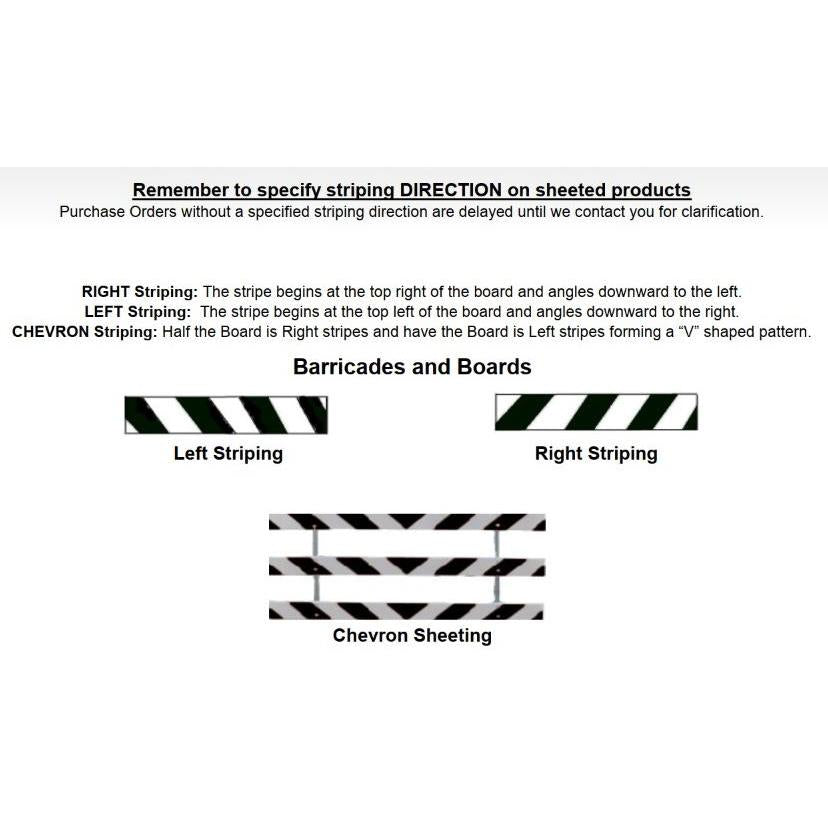

• Sheeting Options: Striped sheeting in engineer grade or high intensity prismatic grade

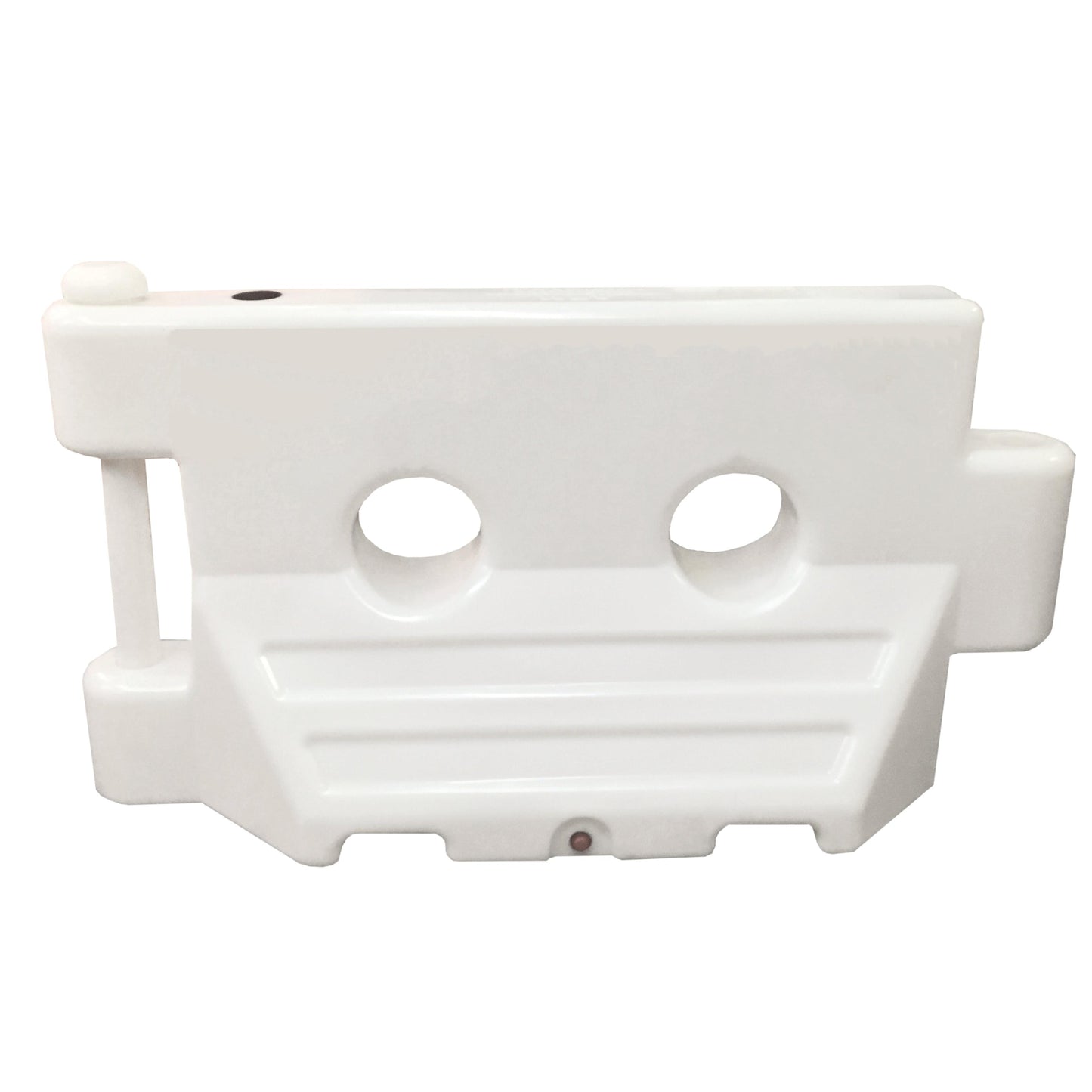

• Color: White & Orange (custom colors available upon request)
• Composition: Medium Density Polyethylene

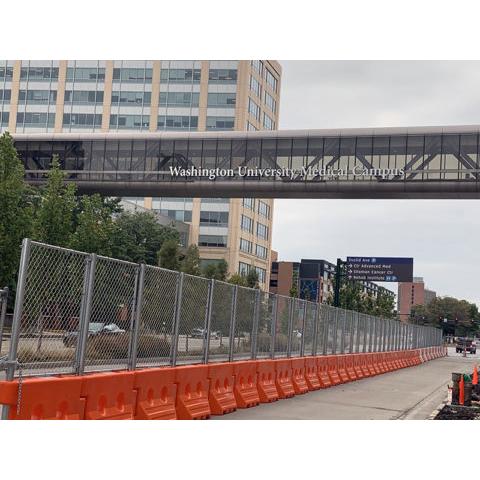

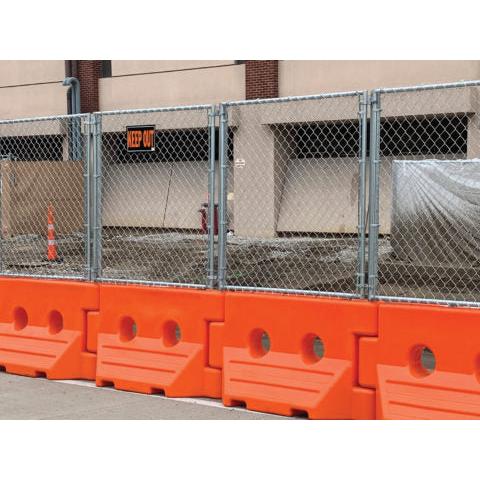

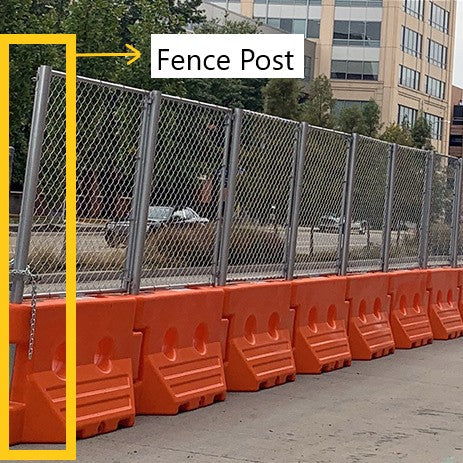

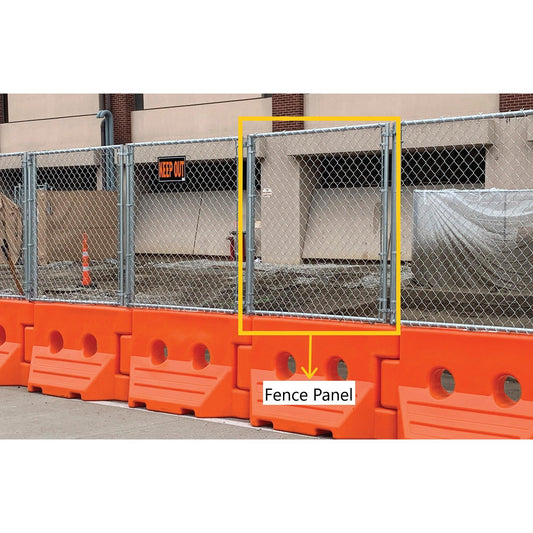

• Fence Compatibility: Accepts optional 55” W fencing with 8’ H, 3” diameter posts
• Stackable Capacity: 820 linear feet per truck (164 units) for transport and storage

State Reference Guide
This product is not part of our State Reference Guide.

Made in the USA

If you would like to request a quotation for large quantities of this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
