XL BollardFlex Heavy-Duty Flexible Bollard with 8' Signpost – Asphalt Installation

The XL BollardFlex Heavy-Duty Flexible Bollard with 8' Signpost combines a flexible parking and traffic delineator with a tall galvanized steel signpost for locations where both vehicle-level visibility and elevated signage are required.

Designed specifically for asphalt installation, the system features a galvanized steel base and 5/16" thick steel spring that allow the assembly to flex through a 360° range of motion when contacted. The lower portion of the system is concealed by a rigid 7.35" OD × 52" BollardGard™ HDPE cover, providing a highly visible finished exterior around the steel structure.

The integrated galvanized steel signpost accepts compatible steel regulatory or informational signs and includes a set of two double-sided sign brackets. The finished system stands approximately 102" high. Sign is not included.

Features & Benefits

  • Heavy-Duty Flexible Design: 5/16" thick steel spring allows the post assembly to flex through a 360° range of motion when contacted.
  • Integrated 8' Signpost: Tall galvanized steel post provides an elevated mounting point for compatible regulatory or informational signs.
  • 102" Finished Height: Provides excellent visibility in parking, traffic-control, and pedestrian applications.
  • 2-3/8" OD Galvanized Steel Signpost: Heavy-duty steel construction provides a substantial support for compatible steel signage.
  • Double-Sided Sign Brackets Included: Supplied with a set of two brackets for mounting compatible signs.
  • Asphalt Installation: Includes mounting hardware designed for installation on a suitable asphalt surface.
  • Heavy-Duty Steel Base: 9.5" square, 7-gauge steel base plate forms the foundation of the flexible assembly.
  • 52" BollardGard™ Cover: Rigid HDPE cover conceals the lower steel structure and provides a clean, highly visible exterior.
  • UV-Stable HDPE: Bollard cover is designed for exterior exposure and long-term color stability.
  • Reflective Options: Available with 3M™ #5100 Scotchlite™ Film in multiple colors for increased visibility in low-light conditions.
  • Sign Not Included: Compatible steel regulatory or informational signs are selected separately.
  • Made in the USA: Proudly manufactured in the United States.

Technical Specifications

Product Type Heavy-Duty Flexible Bollard & Signpost System
Model BF-52A-SP-XL
Installation Type Asphalt Mount
Finished Overall Height 102"
Bollard Cover Height 52"
Bollard Cover Outside Diameter 7.35"
Bollard Cover Wall Thickness .125" HDPE
Signpost 2-3/8" OD × .055" Wall Galvanized Steel – Silver
Base Plate 9.5" Square, 7-Gauge Steel
Spring 5/16" Thick Steel Spring
Range of Motion 360°
Materials HDPE / Steel
Weight 38 lb
Included Accessories Asphalt Mounting Hardware & Set of Two Double-Sided Sign Brackets
Sign Not Included
Warranty 1 Year Against Manufacturer Defects

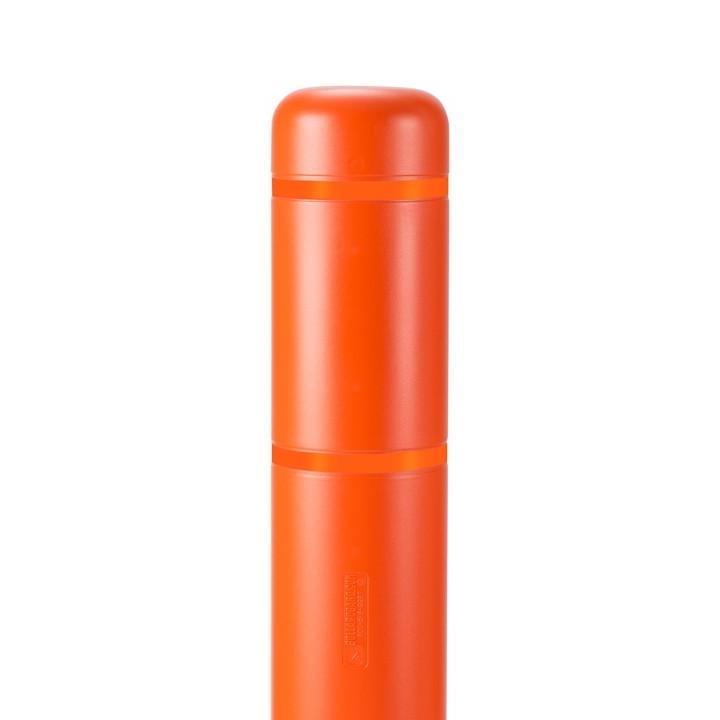

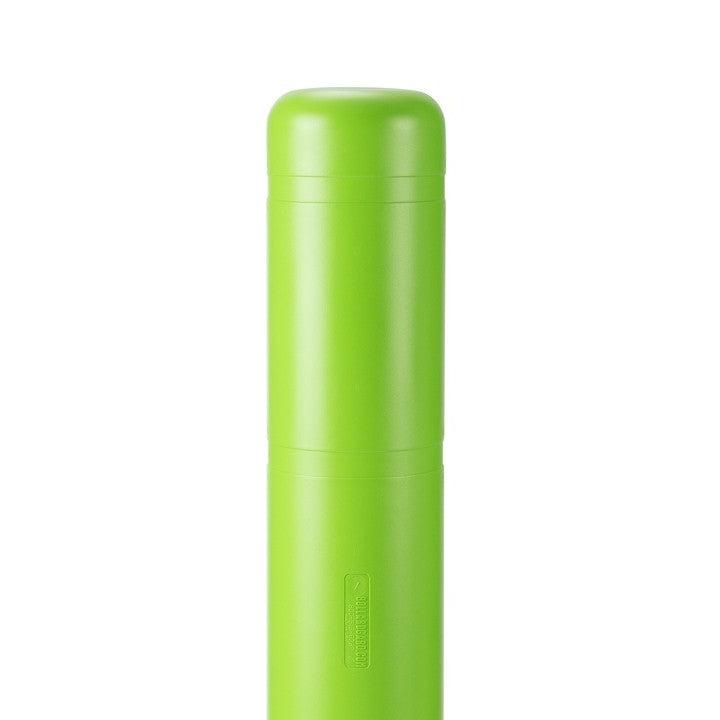

Bollard Cover Colors

The BollardGard™ cover is available in multiple high-visibility and architectural colors:

Black, Blue, Brown, Green, Light Gray, Red, White, Yellow, and Gray.

Reflective Options

For increased visibility in parking facilities and low-light environments, the BollardGard™ cover can be configured with 3M™ #5100 Scotchlite™ Film.

Available reflective colors include Black, Blue, Green, Orange, Red, White, and Yellow.

Integrated 8' Signpost

The elevated galvanized steel post allows the BollardFlex system to perform two functions from a single mounting location: traffic delineation at vehicle level and sign placement above the bollard.

A set of two double-sided sign brackets is included for mounting compatible steel regulatory or informational signs. This makes the system well suited for accessible parking, reserved parking, directional signage, traffic-control areas, and other applications where an elevated sign and visible delineator are needed together.

Steel sign is not included.

Heavy-Duty 360° Flexible Base

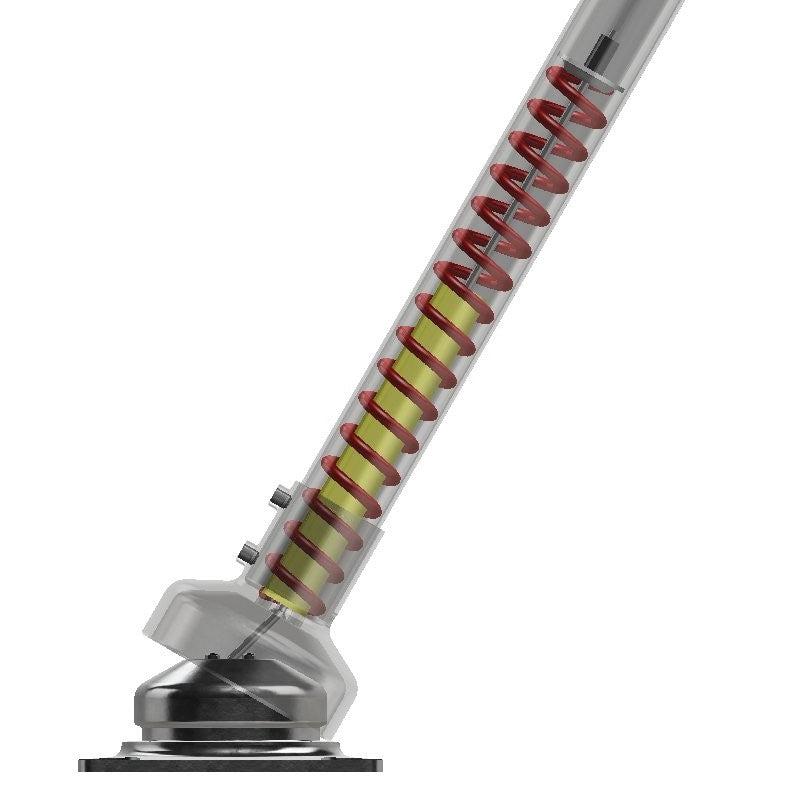

The XL BollardFlex system uses a galvanized base with a 5/16" thick steel spring that allows the post assembly to flex through a 360° range of motion when contacted.

Unlike a completely rigid signpost, the flexible assembly can yield during incidental contact, helping reduce the likelihood of damage to the post, mounting surface, or contacting vehicle while continuing to provide a visible delineator and sign support.

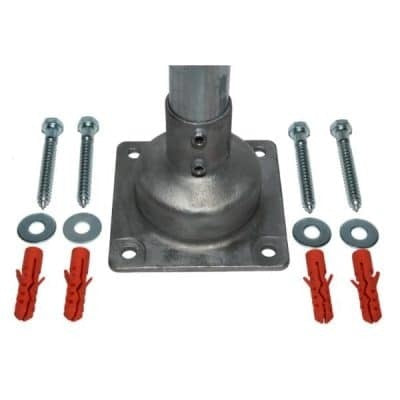

Asphalt Installation

This version is configured specifically for asphalt installation and includes the mounting hardware required for securing the base to a suitable asphalt surface.

The base should be properly anchored before the post and sign components are assembled. Follow the asphalt installation instructions and verify that the mounting area and pavement condition are suitable for the supplied anchoring system.

Common Applications

  • Accessible parking signage
  • Reserved parking spaces
  • Parking lots and garages
  • Traffic-control signs
  • Pedestrian and vehicle separation
  • Building approaches
  • Drive-through lanes
  • Directional signage
  • Commercial facilities
  • Municipal and institutional properties

BollardGard™ HDPE Cover

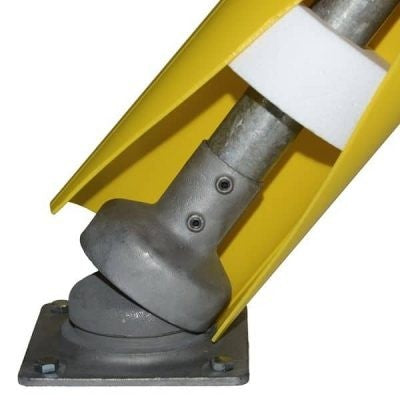

The lower portion of the steel assembly is concealed by a rigid 52" BollardGard™ HDPE cover. The cover provides a clean finished appearance while adding a highly visible surface around the flexible steel post system.

The cover measures 7.35" outside diameter with a .125" wall thickness and is available in multiple colors and reflective-film options.

Important Application Note

The XL BollardFlex system is designed primarily for parking delineation, traffic guidance, sign support, and visual separation. Its flexible construction allows the assembly to yield when contacted rather than function as a rigid crash barrier.

No certified crash rating, vehicle-impact rating, or specific impact-speed classification has been provided with the supplied product information.

Made in the USA

The XL BollardFlex Heavy-Duty Flexible Bollard with Signpost is proudly manufactured in the United States for parking, traffic-control, commercial, municipal, and institutional applications.

Made in the USA

Technical Resources

View Asphalt Installation Instructions

View Mechanical Drawings
